Review

Advances in Mid-IR Fiber Lasers: Tellurite, Fluoride and Chalcogenide

Department of Electrical and Information Engineering, Politecnico di Bari, 70125 Bari, Italy
*
Author to whom correspondence should be addressed.
Fibers 2017, 5(2), 23; https://doi.org/10.3390/fib5020023
Submission received: 28 March 2017 / Revised: 30 May 2017 / Accepted: 13 June 2017 / Published: 15 June 2017
(This article belongs to the Special Issue Advances in Optical Fibers II)

Abstract

:
A review on the recent progress in modeling and fabrication of medium infrared (Mid-IR) fiber lasers is reported. The main objective is to illustrate some recent examples of continuous wave optical sources at wavelengths longer than those commonly employed in telecom applications and allowing high beam quality. A small number of Mid-IR lasers, among the large variety of schemes, glasses, dopants and pumping schemes reported in literature, is selected on the basis of their slope efficiency and threshold pump power. In particular, tellurite, fluoride and chalcogenide fiber lasers are considered. More details are given with reference to the novel pumping schemes.

1. Introduction

Recent and impressive advances have been obtained in the field of medium infrared (Mid-IR) optical sources. Mid-IR fiber lasers constitute only a part of these devices and their actual interest is strictly related to the comparison of their performances with those of alternative solutions as quantum cascade lasers (QCLs) [1], optical parametric oscillators (OPOs) based on light-matter interaction in nonlinear propagation media [2], and frequency comb generation emitting a broad spectrum of discrete narrow lines [3]. In particular, QCLs have been recently exploited in a number of applications. Nowadays, these sources are available on the market at relatively low prices and exhibit, as their greatest strength, a wide tunability which allows a number of attractive applications requiring coherent light at both conventional and exotic wavelengths. Despite this panorama, fiber lasers remain key elements, since they have peculiar characteristics which make them unique optical sources. As an example, the beam quality achievable in Photonic Crystal Fiber (PCF) lasers cannot be obtained by means of QCLs. This advantage directly derives from the azimuthal symmetry of optical fibers generally lacking in planar/ridge waveguides. On the contrary, extremely complicated planar structures are required to obtain high beam quality emission in planar structures [4]. When beam quality, power scaling and narrow linewidth are required simultaneously, PCF based Mid-IR lasers are the most suitable solution. Short pulse generation and dispersion handling constitute further attractive characteristics of these optical sources. The possibility to vary the PCF microstructured cross-section is a well-known potential which can be exploited in the design in order to manage the modal group velocity dispersion (GVD) [5]. Therefore, Mid-IR fiber lasers cannot be substituted by other sources in some particular applications for which the aforesaid characteristics are required.
Mid-IR PCF lasers covering novel emission wavelengths can be considered solutions complementary to QCLs, OPOs and frequency comb generation [1,2,3,6]. They could be exploited in a huge quantity of potential applications, e.g., for active sensing in the field of medicine and environmental monitoring, coherent laser radar systems, laser imaging and remote chemical sensing [7,8,9,10,11,12,13,14]. Their exploitation in biological sensing is feasible since various water contaminants, chemical substances, gases and biological molecules exhibit characteristic fingerprints in the medium infrared wavelength range (3–20 μm). They could find application in free space propagation systems since the earth atmosphere exhibits a number of Mid-IR transmission windows, e.g., in the 4.3–5.0 μm, 8–10 μm and 10–14 μm wavelength ranges. As a consequence, the optimization of Mid-IR PCF lasers allowing high brilliance and high beam quality could be a disruptive breakthrough for the operation principles and the equipment designed for remote sensing, aerospace, medical diagnosis and therapy, earth surface observation, monitoring of air contaminants or constituents such as CO2, and free space communication.
The research followed in order to construct Mid-IR PCF lasers is generally focused on three main topics: glass synthesis and optimization, optimal choice of dopants with reference to the used host glass, and more efficient pumping schemes. Among the glasses employed for the construction of Mid-IR PCF lasers, there are the fluoride, tellurite and chalcogenide ones. Typical rare earths employed for doping these glasses are erbium, ytterbium, praseodymium, dysprosium, thulium, terbium and holmium [8,9,10,11]. Cascade lasing and novel direct pumping schemes in active optical fibers, by means of QCLs, have been recently explored [10,11].
In this paper, a review on recent progress in modeling and fabrication of Mid-IR fiber lasers is reported. The depicted examples constitute a small number of Mid-IR lasers, among the large variety of schemes, glasses, dopants and pumping schemes described in literature. In particular, only tellurite, fluoride and chalcogenide fiber lasers are considered. A more detailed description is given with reference to the novel pumping schemes.
The review aims to give a panorama on those fiber lasers which emit beams at wavelengths beyond λ = 1.55 μm and provide high beam quality M2 compared to the other technical solutions which are available nowadays. Only continuous wave optical sources are taken into account.
Heterogeneous materials and technologies with different degrees of maturity are considered. The output power and the threshold pump power are important characteristics for fluoride or tellurite fiber lasers, but in several actual cases, a trade-off solution is searched for to obtain a feasible source. In low power niche applications, the minimization of threshold pump power can be considered the main objective.
The slope efficiency can be considered a parameter useful for comparison but a few considerations are required for a correct discussion. While tellurite and fluoride glasses are successfully employed for emission at wavelengths up to a few microns, chalcogenide glass seems more promising for longer wavelengths. They exhibit lower efficiency also due to a less mature technology. In fact, for chalcogenide lasers, the simple emission, even with low efficiency, constitutes an important result that could pave the way for fabrication of novel optical sources at longer wavelengths with higher beam quality. For all these reasons, the reported cases are not chosen with a completely homogeneous criterion. Moreover, the low number of reported examples cannot give an exhaustive view in the area of Mid-IR lasers, but only a partial idea on the state of the art.

2. Tellurite Glasses

Tellurite glass is largely employed in order to obtain Mid-IR fiber lasers. This kind of glass is transparent up to wavelengths of about 5 μm and exhibits a low phonon energy, close to 750 cm−1, lower than that of silicate and germanate glasses. The hosted rare earths can exhibit high radiative rates and long lifetimes of the lasing levels [15,16,17,18]. The low phonon energy and the low background loss can enable a reduction of the laser threshold. Another important property of tellurite glass is the peculiar high solubility of rare earth ions within its amorphous matrix. The high rare earth concentrations allow the construction of very short fiber lasers, since the pump can be easily absorbed and the population inversion efficiently obtained. Moreover, this glass has a high refractive index. The strong confinement of light improves the light–matter interaction and increases the absorption and emission cross sections.
Tellurite glass technology can provide good laser efficiency. In [17], a Tm3+-doped tellurite fiber was pumped with a diode-pumped Er3+/Yb3+-doped silica fiber laser operating at the wavelengths in the range from λ = 1.57 μm to λ = 1.61 μm. A laser cavity providing emission in the range from λ = 1.88 μm to λ = 1.99 μm was obtained. The tellurite fiber had a core with 80TeO2-10ZnO-10Na2O mol.% composition and was doped with 1.0 wt.% Tm2O3 and 1.5 wt.% Yb2O3; the cladding had a 75TeO2-15ZnO-10Na2O mol.% composition. The core and the cladding diameters were Dc = 13 µm and Dcl = 125 µm, respectively, the numerical aperture NA = 0.29, and the fiber was uncoated. The pump source was employed to excite the Tm3+ ions directly into the 3F4 upper laser level. The CW output power was Ps = 280 mW with a very high slope efficiency of η = 76%, for a fiber having length of L = 32 cm, was demonstrated. This result was an apparent demonstration of the potential high efficiency lasing in tellurite fibers at wavelengths longer than λ = 1.56 μm.
Co-doping is a useful technique in order to increase the lasing efficiency. As an example, in [18], an efficient laser output at the wavelength λ = 2.052 μm was obtained from a Nd3+/Ho3+ co-doped tungsten tellurite fiber laser. The tellurite fiber was fabricated by a suction technique with the core and cladding diameters Dc = 32 μm and Dcl = 125 μm, respectively, the numerical aperture was NA = 0.28 and the fiber was L = 5 cm long. Figure 1 illustrates the emission spectra of Ho3+ and Nd3+/Ho3+ co-doped tungsten tellurite glasses. The improvement of the emission intensity by considering Nd3+/Ho3+ co-doping is apparent. The first dichroic mirror has a reflectivity of R1 = 99.7% at the signal wavelength and it is highly transparent at the pump wavelength. The second dichroic mirror is partially reflective (R2 = 86.8%) at the signal wavelength and highly reflective (R2 = 89.7%) at the pump wavelength. Nd3+ and Ho3+ concentrations were both equal to 1020 ions/cm3. A 795 nm laser diode was employed for the pumping. The large energy transfer coefficient from Nd3+ to Ho3+ and the high gain coefficient of Ho3+: 5I75I8 transition allowed to obtain an efficient emission at wavelength λ = 2052 nm. This result was obtained even if the propagation loss was close to 4.44 dB/m at 1310 nm.
Figure 2 illustrates the laser output power Ps versus the absorbed pump power Pp of the Nd3+/Ho3+ co-doped tungsten tellurite fiber laser of [18]. The maximum output power is Ps = 12 mW and the slope efficiency is η = 11.2%. These values are not very interesting if compared to other lasers, but the power threshold is close to Pth = 38 mW, which is very low with respect to that of Tm3+/Yb3+ doped tellurite fiber lasers with similar pumping scheme and fiber geometry. The aforesaid results indicate that the Nd3+/Ho3+ co-doped tungsten tellurite glass fiber can be considered a promising laser medium candidate for achieving ultra-compact and efficient lasers at wavelengths near λ = 2 μm.
Co-doping technique as a successful strategy to improve the laser efficiency was utilized also in [19]. A single mode tellurite fiber was employed with an Er3+ ion core density of 0.9 × 1020 cm−3 and a Ce3+ ion core density of 2.1 × 1020 cm−3. Moreover, the fiber had numerical aperture NA = 0.21, core diameter Dc = 4 µm, length L = 22 cm, mole percentage concentration of core 80TeO-10ZnO-10Na2O, mole percentage concentration of inner cladding 75TeO-15ZnO-10Na2O. The refractive index of the core and cladding were nc = 2.0448 and ncl = 2.0224 at the wavelength λ = 633 nm, respectively, and the background loss of the fiber was 2 dB/cm at the wavelength λ = 1.7 µm. The forward pump and backward pump sources were provided from lasers at the wavelength λ = 980 nm and at the wavelength λ = 1480 nm, respectively. The dual pumped Er/Ce co-doped fiber amplifier having length L = 22 cm exhibited a 28 dB net gain at the wavelength λ = 1558 nm. For the ring laser configuration, the pump laser powers were 316 mW at the wavelength λ = 980 nm and 141 mW at the wavelength λ = 1480 nm, respectively. A tuning range from 1527 to 1610 nm (83 nm) was achieved.
The recent literature on tellurite glass optimization promises the fabrication of novel optical sources at longer wavelengths and higher efficiencies. As an example, in [20], the Dy-doped tellurite glass samples were used for the time-resolved luminescence spectroscopy measurements. They were prepared from 99.99% high-purity raw materials TeO2, ZnF2, and Na2O3. The 6H13/26H15/2 emission band of Dy3+ in tellurite glass had a peak at the wavelength close to λ = 2.9 μm. The peak bandwidth was of about 290 nm and the intrinsic lifetime was about τ = 19.6 μs. Although these results refer to glass sample, the possibility to obtain lasing seems feasible. Moreover, the simulation based on the glass characterization suggested that Dy3+ (1 mol.%)-doped tellurite glass may exhibit a population inversion for laser emission at the wavelength λ = 3042 nm.

3. Fluoride Glasses

In addition to tellurite glass, fluoride glass is successfully employed for the fabrication of lasers emitting at long wavelengths. The fluoride glass fiber, made of ZrF-BaF-LaF-AlF-NaF (ZBLAN) material, has a relatively low optical absorption in the mid-infrared (IR) spectral region between λ = 1.5 μm and λ = 3 μm. Diode-pumped fluoride glass fiber lasers characterized by different configurations have been recently demonstrated, exhibiting very attractive continuous wave (CW) and pulsed optical power levels at wavelengths close to λ = 2.7 μm. Fluoride glass fiber lasers can be fabricated at low cost because their set-ups can be based on the employment of commercial laser diodes, which are efficient, reliable and easily available on the market. Therefore, fluoride glasses have been largely employed during the last few decades in order to obtain efficient fiber lasers.
In [21], for the first time, preliminary results on tunable laser emission at wavelengths close to λs1 = 2.31 μm in a Tm3+ doped monomode fluoride fiber laser were reported. The operation scheme included simultaneous laser action at the wavelength λs2 = 1.82 µm. The Tm3+ ions transitions are illustrated in Figure 3. CW laser emission over a Δλ = 250 nm tuning range, extending from λs1 = 2.25 µm to λs1 = 2.5 µm, was experimented. In particular, a Ti: sapphire laser tuned to the wavelength λp = 790 nm (corresponding to the absorption peak of the 3F4 manifold), acting as pump source, and a monomode ZBLANP fiber having length L = 10 m and a refractive index change Δn = 0.007, were employed. The fiber had a linear polarized LP11 mode cutoff at the wavelength λcutoff = 2.06 µm and a low Tm3+ doping level, close to CTm = 500 ppm. The fiber was butt-coupled to a first mirror with reflectivity close to R1 = 99.5% in the wavelength range from λ = 2.3 to λ = 2.7 µm, and transmission coefficient close to T1 = 90% at the pump wavelength. Moreover, a 0.5% output coupler, mirror R2, was employed to complete the optical cavity. At the wavelength of λs1 = 2.31 µm, the threshold pump power for laser oscillation was Pth = 51 mW and the maximum observed output power was approximately Ps = 100 µW.
In [22], a power-scalable Er3+-doped ZBLAN fiber laser emitting around λs = 2.7 µm, pumped by a tapered amplifier laser diode with an output power of 1 W at 980 nm, was proposed. The CW output power Ps = 12 mW was demonstrated. A key factor in the achievement of this relatively efficient performance was the use of high Er concentrations, close to 10,000 ppm, in a fiber with length L = 5.5 m. The double-clad fiber had a core diameter Dc = 6 µm, a cladding diameter Dcl = 125 µm and a numerical aperture NA = 0.15. This result was better than those reported in [23] and [24].
Also, in [25], an Er3+-doped fluoride glass fiber laser was fabricated in order to obtain emission close to the wavelength λs = 2.7 µm, in continuous wave at room temperature. The laser cavity was pumped again with a laser diode at the wavelength λp = 980 nm. The fiber laser was demonstrated in two different fiber output configurations. In the first configuration, a diode laser pump beam was launched into the inner cladding of the fiber via a lens and a dichroic mirror, the other fiber end being closed with a mirror. The second configuration had the diode laser pump beam launched into the inner cladding of the fiber, and the Fresnel reflection was exploited since no mirror was placed at the other fiber end. These configurations are illustrated in Figure 4. The laser characteristics are illustrated in Figure 5. The fiber used for this laser consisted of three coaxial section configurations, with a 35,000 molar ppm ErF3, Er-doped, diameter of core of Dc = 15 µm and numerical aperture NA = 0.16, inner optical guide region with rectangular shape of 100 µm × 200 µm and numerical aperture NA = 0.55, diameter of outer cladding Dcl = 300 µm. A diode pump laser at the wavelength λ = 980 nm was employed. In particular, the output power versus the pump power for two different lengths are reported. The internal laser diode pump power to fiber optical output power conversion efficiency was η = 27% for the fiber laser having length L = 8 m. The laser, suitably focused, produced microholes in paper and chicken fascia tissue. This suggested potential micromachining and microsurgery applications.
The 4I11/24I13/2 transition of erbium ions, at wavelengths close to λ = 2.7–2.8 μm, is one of the most used in order to obtain Mid-IR laser emission. This is mainly due to the availability of high power commercial laser diodes at λ = 975 nm, operating in one of the erbium absorption bands. Moreover, the energy transfer upconversion (ETU) process in high concentration erbium doped fibers can be exploited to avoid the drawback caused by the long lifetime of the 4I13/2 lower laser level. In [26], the output power Ps = 8.2 W at the wavelength of λs = 2.8 μm from an Er3+-doped fluorozirconate fiber laser was demonstrated. The launched pump power was Pp = 56 W at the wavelength λp = 975 nm. The optical cavity exploited the cascade lasing with the ground-state transition at 1.6 μm. In particular, cascade lasing was obtained from simple resonator arrangements, including Fresnel reflection from the ends of the fiber only.
Also, in [27], in order to increase the overall device efficiency, a cascaded erbium doped fluoride fiber laser, based on the two transitions 4I11/24I13/2 at λs1 = 2.8 μm and 4I13/24I15/2 at λs2 = 1.6 μm, was fabricated. The cascaded lasing scheme and the pertaining ion transitions are shown in Figure 6. Cascade lasing schemes, such as that of Figure 6, are based on the occurrence that the population inversion exploited for lasing at λs1 = 2.8 μm is strengthened by the lasing at λs2 = 1.6 μm, which depopulates the 4I13/2 level. Moreover, the lasing at λs2 = 1.6 μm is promoted by the lasing at λs1 = 2.8 μm, which populates the 4I13/2 level.
Figure 7 illustrates the characteristics of the fiber laser. The gain fiber was a double-cladding erbium-doped fluoride fiber (FiberLabs., Saitama, Japan) with an octagonal pump core having diameter Dc = 250 μm across the circular cross section, the numerical aperture was NA = 0.5, signal core diameter Dc = 20 μm, numerical aperture NA = 0.2, erbium ions dopant concentration 1.5 mol.%, and fiber length L = 10 m. In particular, (i) the maximum output power Ps1 = 15.2 W with a slope efficiency η1 = 26.7% at the wavelength λs1 = 2.8 μm and (ii) the maximum output power Ps2 = 3.2 W with a slope efficiency η2 = 7.1% at the wavelength λs2 = 1.6 μm were obtained after the laser optimization. In the aforesaid case, no cooling system was employed. In fact, the overall optical conversion efficiency was very high and the thermal load was low.
In addition to erbium, other dopants have been successfully employed. As an example, in [28], a highly efficient Ho3+-doped fluoride glass fiber laser operating at the wavelength λs = 2.08 μm was fabricated. A pump laser at the wavelength λp = 1.94 μm was employed and the maximum slope efficiency η = 78% with an output power Ps = 516 mW was obtained.
In [29], a Ho3+/Pr3+ co-doped fluoride fiber laser with an output power of Ps = 7.2 W was demonstrated. It exhibited a slope efficiency of η = 29% and a wavelength tuning range Δλ between λ = 2825 nm and λ = 2975 nm, overlapping with the OH absorption region in many mid-infrared transparent glasses. As pumping system, a diode emission at the wavelength λp1 = 976 nm was launched into a grating tuned Yb3+ fiber laser emitting at λ = 1097 nm. The Yb3+ fiber laser output pumped a Raman laser for λ = 1150 nm emission, which was coupled into the grating tuned Ho3+, Pr3+ co-doped ZBLAN fiber laser.

4. Chalcogenide Glasses

Chalcogenide glass exhibits high rare earth ion solubility. Its high refractive index can increase the emission and absorption cross-sections. It can be drawn into fibers; therefore, this glass is an attractive host material for rare-earth ions. As for the other glasses, different rare earths can be exploited in order to obtain optically active behavior.
Pr3+ ions in chalcogenide glass have a high pump absorption cross-section. Moreover, commercially available laser diodes can be employed. Mid-infrared fluorescence from the (3F2, 3H6) → 3H5 and 3H53H4 transitions of Pr3+-doped selenide glass have been recently investigated [30,31,32]. However, a Pr3+-doped selenide chalcogenide glass fiber laser has not yet been constructed for (i) the difficulty of manufacturing high purity rare earth doped chalcogenide glasses and (ii) both the upper and lower laser manifolds have long lifetimes and the population inversion is not easily obtained. Resonant pumping of the Pr3+ ions using QCLs was suggested in [30].
In [33], the investigation reported in [30] was extended by considering the ESA processes by using a complete set of experimentally extracted modeling parameters. The laser characteristic, as a function of pump wavelength, fiber length, signal wavelength, fiber background loss and output coupler reflectivity was investigated via a complete model. In particular, the McCumber theory was exploited to extract the ESA absorption cross section spectra. The numerical results showed that ESA strongly affects the laser performance and that its effect can be mitigated by selecting the pump wavelength so that σGSA > σESA, via a pumping scheme using a high power QCL. This pumping allows for a strong reduction in the laser threshold and an increase of the laser efficiency.
Dy3+ ions in chalcogenide glass have also been extensively investigated [8,9,10,11,13,34,35] in order to obtain laser emission in the wavelength range Δλ between λ = 4.1 µm and λ = 4.6 µm by exploiting the 6H11/26H13/2 transition. However, the long lifetime of the lower laser manifold and the low pump absorption rate are the two major drawbacks limiting the lasing efficiency. In [34], a master oscillator power amplifier (MOPA) configuration, exploiting direct pumping in the upper laser manifold at λp = 1.7 µm, was proposed to reuse the unabsorbed pump power to boost the output signal power by means of an additional amplifying stage. The set-up is shown in Figure 8.
The simulated optical source was a Dy3+:Ga5Ge20Sb10S65 PCF laser, designed to obtain a signal generation close to λs = 4400 nm wavelength. The PCF cross-section allowed single mode propagation at both the pump and signal wavelengths. Three rings of air holes surrounded the rare earth doped solid core. The fiber section geometrical parameters are the hole-to-hole spacing (or pitch) Λ = 8 μm, hole diameter dh = 3.2 μm, and doped region radius Rd = 4 μm. The other geometrical parameters are the laser cavity length L1 = 0.3 m; the fiber amplifier length L2 = 1 m; the first mirror reflectivity R1 = 99%; and the second mirror reflectivity R2 = 70%.
The design is performed by considering the measured PCF. Figure 9 illustrates the simulated CW laser characteristics as a function of the Dy3+ ions concentration. It can be observed that output powers around Ps = 550 mW can be easily obtained with moderately high dopant concentrations, below the glass devitrification limit. An optimized output power Ps = 637 mW and an overall efficiency better than η = 21%, with an input pump power Pp = 3 W, were predicted.
In [35], a different approach, based on the employment of QCLs, was adopted. The simulated PCF had the same physical and geometrical parameters. The optical cavity had length L = 0.5 m; dopant concentration NDy = 4 × 1025 ions/m3; first mirror reflectivity R1 = 99%; and second mirror reflectivity R2 = 30%. A low power optical beam close to the wavelength λp1 = 2.85 µm was exploited to populate the 6H13/2 manifold. This allowed to use a highly efficient in-band pumping at the wavelength λp2 = 4.1 µm, since the lower laser manifold acted as a virtual ground state. Moreover, the higher absorption cross section of the Dy3+ ions for the 6H15/26H13/2 transition allowed to significantly lower the lasing threshold.
Figure 10 illustrates the simulated characteristics of the fiber laser. By employing an input pump power Pp1 = 50 mW at wavelength λp1 = 2.85 µm, a slope efficiency as high as η = 38% at the signal wavelength λs = 4.38 µm and a lasing threshold as low as Pth2 = 35 mW at the pump wavelength λp2 = 4.1 µm were predicted.
In [36], mid infrared emission in the 4.3–6.0 µm wavelength range for a Tb3+-doped selenide glass was investigated. A Judd-Ofelt analysis was performed in order to obtain the radiative transition rates. A rate equation approach was exploited to predict the laser performance with respect to pump and signal wavelengths, fiber length, output mirror reflectivity and optical losses. The fiber considered in the simulation had a length L = 0.1–3 m, a core diameter Dc = 30 μm, a numerical aperture NA = 0.4 and was doped with 500 ppmw of Tb3+. By employing a pump power of Pp = 1 W at the wavelength λp = 2.95 µm, a signal power of about Ps = 0.4 W at the wavelength λs = 4.7 µm can be obtained for a fiber loss of 1 dB/m. A slope efficiency better than η = 40% was predicted.
It is also worthwhile to note that rare-earth doped resonant structures, such as microdisks and microspheres, coupled to fibers, could be exploited to obtain narrow line lasing [37,38]. Moreover, different gain media as Cr3+:ZnS and Cr3+:ZnSe can provide laser emission in the 2–3 µm wavelength range [39].

5. Conclusions

Some recent progresses in Mid-IR fiber lasers are illustrated in this review paper. In some cases, the state of the art includes the feasibility investigation of fabricated Mid-IR fiber lasers, overall for fluoride and tellurite glasses. As an example, for erbium doped fluoride glass fiber laser in cascade configuration, the output power Ps1 = 15.2 W with a slope efficiency η1 = 26.7% at the wavelength λs1 = 2.8 μm and the output power Ps2 = 3.2 W with a slope efficiency η2 = 7.1% at the wavelength λs2 = 1.6 μm have been measured. In other cases, as for the chalcogenide glasses, the simulation shows great potential but further glass optimizations are required to obtain lasing.

Acknowledgments

This research was partially performed within the COST Action MP1401 Advanced Fibre Laser and Coherent Source as tools for Society, Manufacturing and Lifescience.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Vitiello, M.S.; Scalari, G.; Williams, B.; De Natale, P. Quantum cascade lasers: 20 years of challenges. Opt. Express 2015, 23, 5167–5182. [Google Scholar] [CrossRef] [PubMed]
  2. Ebrahim-Zadeh, M.; Kumar, S.C. Yb-Fiber-Laser-Pumped Ultrafast Frequency Conversion Sources from the Mid-Infrared to the Ultraviolet. IEEE J. Sel. Top. Quantum Electron. 2014, 20, 624–642. [Google Scholar] [CrossRef]
  3. Schliesser, A.; Picqué, N.; Hänsch, T.W. Mid-infrared frequency combs. Nat. Photonics 2012, 6, 440–449. [Google Scholar] [CrossRef]
  4. Jia, Z.; Wang, L.; Tan, S.; Zhang, J.; Liu, F.; Zhuo, N.; Zhai, S.; Liu, J.; Wang, Z. Improvement of Buried Grating DFB Quantum Cascade Lasers by Small-Angle Tapered Structure. IEEE Photonics Technol. Lett. 2017, 29, 783–785. [Google Scholar] [CrossRef]
  5. Lin, P.; Li, Y.; Cheng, T.; Suzuki, T.; Ohishi, Y. Coexistence of Photonic Bandgap Guidance and Total Internal Reflection in Photonic Crystal Fiber Based on a High-Index Array With Internal Air Holes. IEEE J. Sel. Top. Quantum Electron. 2016, 22, 4900606. [Google Scholar] [CrossRef]
  6. Razeghi, M.; Bandyopadhyay, N.; Bai, Y.; Lu, Q.; Slivken, S. Recent advances in mid infrared (3–5 µm) Quantum Cascade Lasers. Opt. Mater. Express 2013, 3, 1872–1884. [Google Scholar] [CrossRef]
  7. Henderson-Sapir, O.; Jackson, S.D.; Ottaway, D.J. Versatile and widely tunable mid-infrared erbium doped ZBLAN fiber laser. Opt. Lett. 2016, 41, 1676–1679. [Google Scholar] [CrossRef] [PubMed]
  8. Seddon, A.B.; Tang, Z.; Furniss, D.; Sujecki, S.; Benson, T.M. Progress in rare-earth-doped mid-infrared fiber lasers. Opt. Express 2010, 18, 26704–26719. [Google Scholar] [CrossRef] [PubMed]
  9. Sójka, Ł.; Tang, Z.; Zhu, H.; Bereś-Pawlik, E.; Furniss, D.; Seddon, A.B.; Benson, T.M.; Sujecki, S. Study of mid-infrared laser action in chalcogenide rare earth doped glass with Dy3+, Pr3+ and Tb3+. Opt. Mater. Express 2012, 2, 1632–1640. [Google Scholar] [CrossRef]
  10. Sujecki, S.; Sójka, Ł.; Bereś-Pawlik, E.; Tang, Z.; Furniss, D.; Seddon, A.B.; Benson, T.M. Modelling of a simple Dy3+ doped chalcogenide glass fibre laser for mid-infrared light generation. Opt. Quantum Electron. 2010, 42, 69–79. [Google Scholar] [CrossRef]
  11. Quimby, R.S.; Shaw, L.B.; Sanghera, J.S.; Aggarwal, I.D. Modeling of Cascade Lasing in Dy: Chalcogenide Glass Fiber Laser with Efficient Output at 4.5 μm. IEEE Photonics Technol. Lett. 2008, 20, 123–125. [Google Scholar] [CrossRef]
  12. Hudson, D.D. Short pulse generation in mid-IR fiber lasers. Opt. Fiber Technol. 2014, 20, 631–641. [Google Scholar] [CrossRef]
  13. Starecki, F.; Charpentier, F.; Doualan, J.-L.; Quetel, L.; Michel, K.; Chahal, R.; Troles, J.; Bureau, B.; Braud, A.; Camy, P.; et al. Mid-IR optical sensor for CO2 detection based on fluorescence absorbance of Dy3+: Ga5Ge20Sb10S65 fibers. Sens. Actuators B 2015, 207, 518–525. [Google Scholar] [CrossRef]
  14. Ebrahim-Zadeh, M.; Kumar, S.C.; Devi, K. Yb-Fiber-Laser-Pumped Continuous-Wave Frequency Conversion Sources from the Mid-Infrared to the Ultraviolet. IEEE J. Sel. Topics Quantum Electron. 2014, 20, 350–372. [Google Scholar] [CrossRef]
  15. Jha, A.; Shen, S.; Naftaly, M. Structural origin of spectral broadening of 1.5-μm emission in Er3+-doped tellurite glasses. Phys. Rev. B 2000, 62, 6215–6227. [Google Scholar] [CrossRef]
  16. Huang, L.; Shen, S.; Jha, A. Near infrared spectroscopic investigation of Tm3+-Yb3+ co-doped tellurite glasses. J. Non-Cryst. Solids 2004, 345–346, 349–353. [Google Scholar] [CrossRef]
  17. Richards, B.; Tsang, Y.; Binks, D.; Lousteau, J.; Jha, A. Efficient ~2 µm Tm3+-doped tellurite fiber laser. Opt. Lett. 2008, 33, 402–404. [Google Scholar] [CrossRef] [PubMed]
  18. Li, L.X.; Wang, W.C.; Zhang, C.F.; Yuan, J.; Zhou, B.; Zhang, Q.Y. 2.0 μm Nd3+/Ho3+-doped tungsten tellurite fiber laser. Opt. Mater. Express 2016, 6, 2904–2914. [Google Scholar] [CrossRef]
  19. Dong, J.; Wei, Y.Q.; Wonfor, A.; Penty, R.V.; White, I.H.; Lousteau, J.; Jose, G.; Jha, A. Dual-Pumped Tellurite Fiber Amplifier and Tunable Laser Using Er/Ce Codoping Scheme. IEEE Photonics Technol. Lett. 2011, 23, 736–738. [Google Scholar] [CrossRef]
  20. Gomes, L.; Lousteau, J.; Milanese, D.; Mura, E.; Jackson, S.D. Spectroscopy of mid-infrared (2.9 μm) fluorescence and energy transfer in Dy3+-doped tellurite glasses. J. Opt. Soc. Am. B 2014, 31, 429–435. [Google Scholar] [CrossRef]
  21. Percival, R.M.; Carter, S.F.; Szebesta, D.; Davey, S.T.; Stallard, W.A. Thulium-doped monomode fluoride fibre laser broadly tunable from 2.25 to 2.5 µm. Electron. Lett. 1991, 27, 1912–1913. [Google Scholar] [CrossRef]
  22. Poppe, E.; Srinivasan, B.; Jain, R.K. 980 nm diode-pumped continuous wave mid-IR (2.7 µm) fibre laser. Electron. Lett. 1998, 34, 2331–2333. [Google Scholar] [CrossRef]
  23. Allen, R.; Esterowitz, L.; Ginther, R.J. Diode-pumped single-mode fluorozirconate fiber laser from the 4I11/24I13/2 transition in erbium. Appl. Phys. Lett. 1990, 56, 1635–1637. [Google Scholar] [CrossRef]
  24. Yanagita, H.; Masuda, I.; Yamashita, T.; Toratani, H. Diode laser pumped Er3+ fibre laser operation between 2.7–2.8 µm. Electron. Lett. 1990, 26, 1836–1838. [Google Scholar] [CrossRef]
  25. Linden, K.J. Fiber Laser with 1.2-W CW Output Power at 2712 nm. IEEE Photonics Technol. Lett. 2004, 16, 401–403. [Google Scholar] [CrossRef]
  26. Jackson, S.D.; Pollnau, M.; Li, J. Diode Pumped Erbium Cascade Fiber Lasers. IEEE J. Quant. Electron. 2011, 47, 471–478. [Google Scholar] [CrossRef]
  27. Li, J.; Wang, L.; Luo, H.; Xie, J.; Liu, Y. High Power Cascaded Erbium Doped Fluoride Fiber Laser at Room Temperature. IEEE Photonics Technol. Lett. 2016, 28, 673–676. [Google Scholar] [CrossRef]
  28. Li, R.; Li, J.; Shterengas, L.; Jackson, S.D. Highly efficient holmium fibre laser diode pumped at 1.94 µm. Electron. Lett. 2011, 47, 1089–1090. [Google Scholar] [CrossRef]
  29. Crawford, S.; Hudson, D.D.; Jackson, S.D. High-Power Broadly Tunable 3-μm Fiber Laser for the Measurement of Optical Fiber Loss. IEEE Photonics J. 2015, 7, 1–9. [Google Scholar] [CrossRef]
  30. Ferrier, A.; Velázquez, M.; Doualan, J.-L.; Moncorge, R. Spectroscopic investigation and mid-infrared luminescence properties of the Pr3+-doped low phonon single crystals CsCdBr3, KpB2Cl5 and Tl3PbBr5. J. Lumin. 2009, 129, 1905–1907. [Google Scholar] [CrossRef]
  31. Sójka, Ł.; Tang, Z.; Furniss, D.; Sakr, H.; Oladeji, A.; Bereś-Pawlik, E.; Dantanarayana, H.; Faber, E.; Seddon, A.B.; Benson, T.M.; et al. Broadband, mid-infrared emission from Pr3+ doped GeAsGaSe chalcogenide fiber, optically clad. Opt. Mater. 2014, 36, 1076–1082. [Google Scholar] [CrossRef]
  32. Chahal, R.; Starecki, F.; Boussard-Plédel, C.; Doualan, J.-L.; Michel, K.; Brilland, L.; Braud, A.; Camy, P.; Bureau, B.; Nazabal, V. Fiber evanescent wave spectroscopy based on IR fluorescent chalcogenide fibers. Sens. Actuators B 2016, 229, 209–216. [Google Scholar] [CrossRef]
  33. Sójka, Ł.; Tang, Z.; Furniss, D.; Sakr, H.; Bereś-Pawlik, E.; Seddon, A.B.; Benson, T.M.; Sujecki, S. Numerical and experimental investigation of mid-infrared laser action in resonantly pumped Pr3+ doped chalcogenide fibre. Opt. Quantum Electron. 2017, 49, 21. [Google Scholar] [CrossRef]
  34. Falconi, M.C.; Palma, G.; Starecki, F.; Nazabal, V.; Trolès, J.; Adam, J.-L.; Taccheo, S.; Ferrari, M.; Prudenzano, F. Dysprosium-Doped Chalcogenide Master Oscillator Power Amplifier (MOPA) for Mid-IR Emission. J. Lightwave Technol. 2017, 35, 265–273. [Google Scholar] [CrossRef]
  35. Falconi, M.C.; Palma, G.; Starecki, F.; Nazabal, V.; Trolès, J.; Taccheo, S.; Ferrari, M.; Prudenzano, F. Design of an Efficient Pumping Scheme for Mid-IR Dy3+:Ga5Ge20Sb10S65 PCF Fiber Laser. IEEE Photonics Technol. Lett. 2016, 28, 1984–1987. [Google Scholar] [CrossRef]
  36. Sojka, L.; Tang, Z.; Furniss, D.; Sakr, H.; Fang, Y.; Beres-Pawlik, E.; Benson, T.M.; Seddon, A.B.; Sujecki, S. Mid-infrared emission in Tb3+-doped selenide glass fiber. J. Opt. Soc. Am. B 2017, 34, A70–A79. [Google Scholar] [CrossRef]
  37. Palma, G.; Falconi, M.C.; Starecki, F.; Nazabal, V.; Yano, T.; Kishi, T.; Kumagai, T.; Prudenzano, F. Novel double step approach for optical sensing via microsphere WGM resonance. Opt. Express 2016, 24, 26956–26971. [Google Scholar] [CrossRef] [PubMed]
  38. Palma, G.; Falconi, M.C.; Starecki, F.; Nazabal, V.; Ari, J.; Bodiou, L.; Charrier, J.; Dumeige, Y.; Baudet, E.; Prudenzano, F. Design of praseodymium-doped chalcogenide micro-disk emitting at 4.7 µm. Opt. Express 2017, 25, 7014–7030. [Google Scholar] [CrossRef] [PubMed]
  39. Sorokina, I.T.; Sorokin, E. Femtosecond Cr2+-Based Lasers. IEEE J. Sel. Top. Quantum Electron. 2015, 21, 273–291. [Google Scholar] [CrossRef]

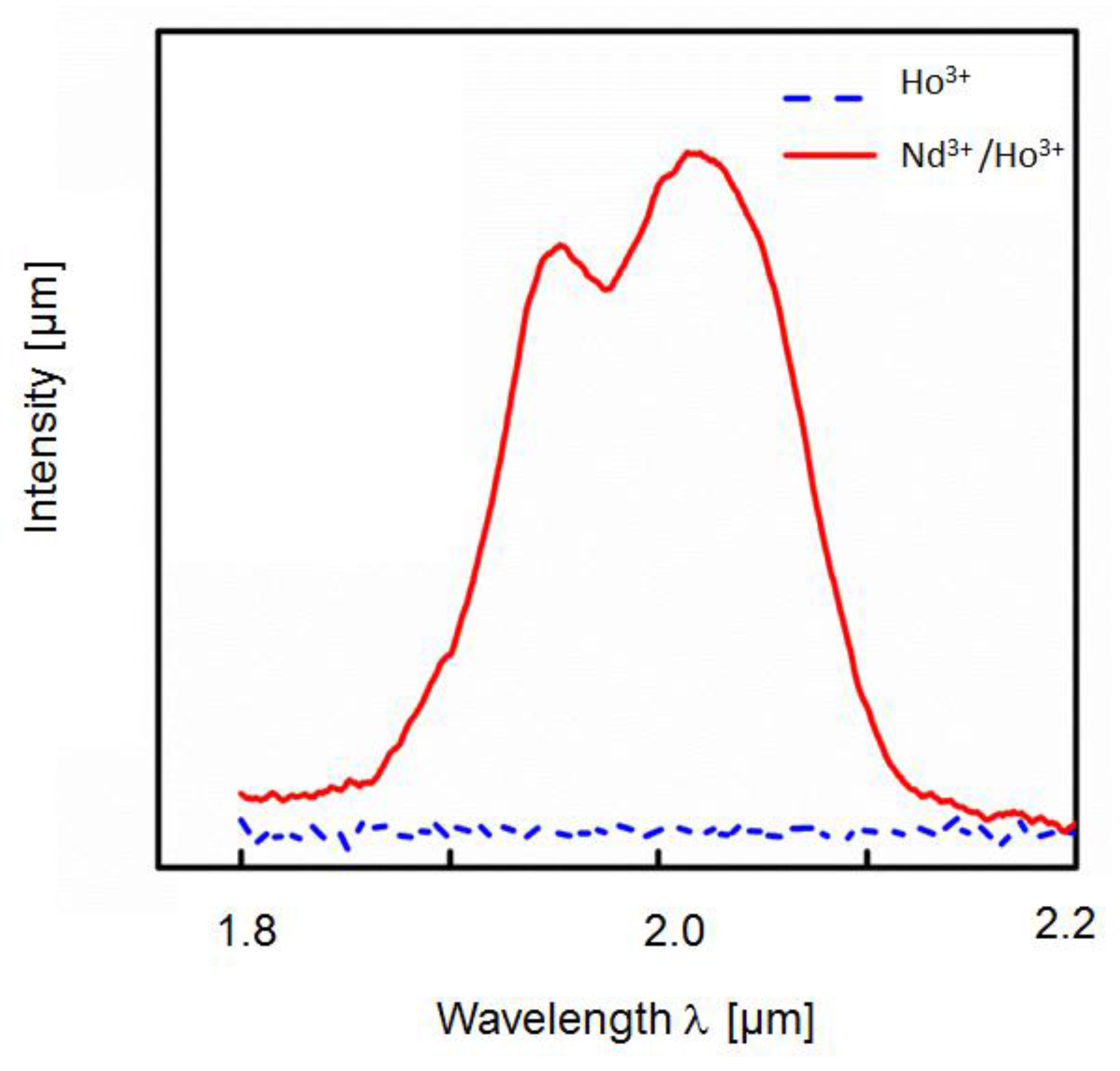

Figure 1. Emission spectra of Ho3+ and Nd3+/Ho3+ co-doped tungsten tellurite glasses. Figure adapted from [18].
Figure 1. Emission spectra of Ho3+ and Nd3+/Ho3+ co-doped tungsten tellurite glasses. Figure adapted from [18].
Fibers 05 00023 g001

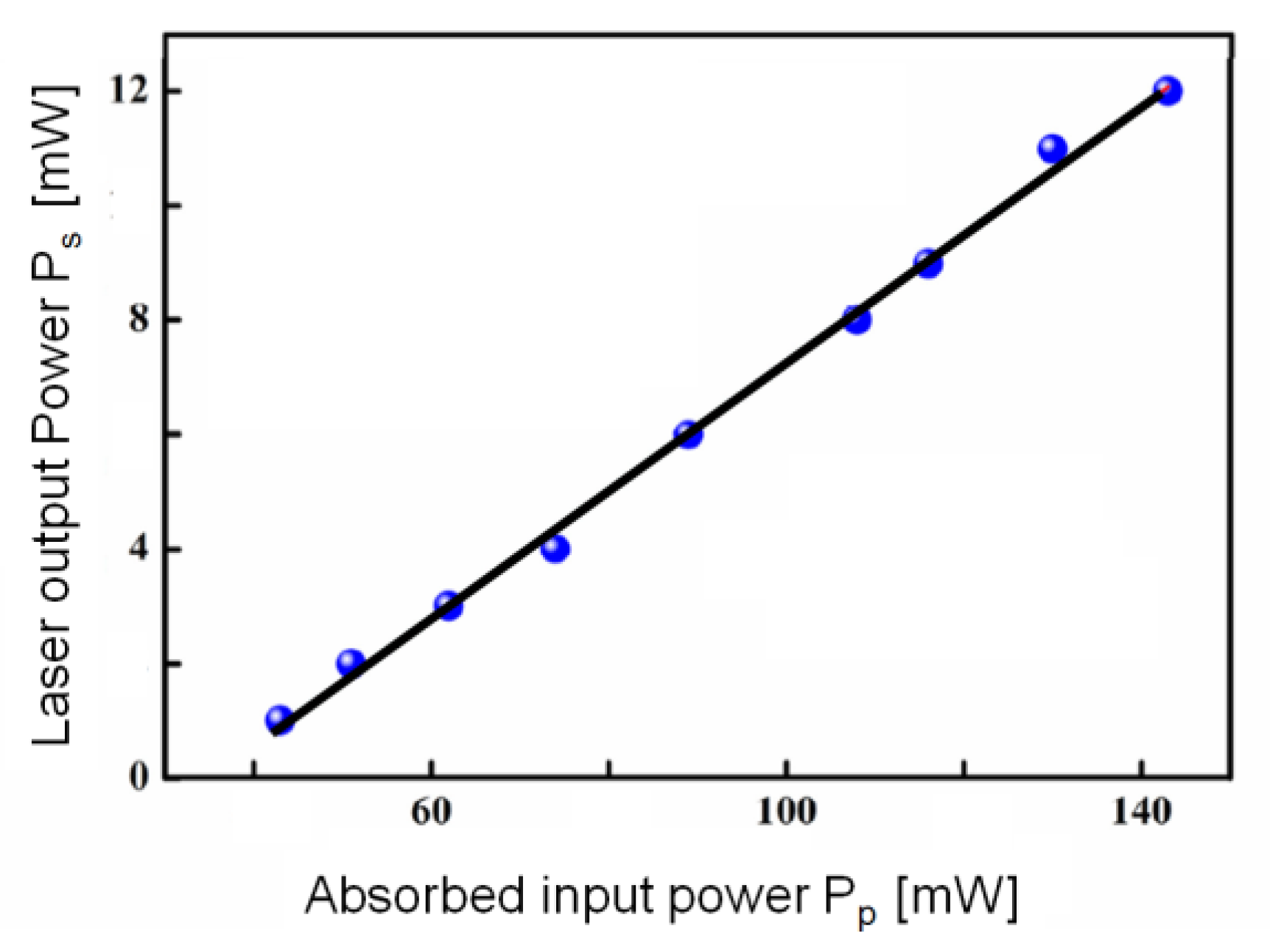

Figure 2. Characteristic of the Nd3+/Ho3+ co-doped tungsten tellurite fiber laser. The blue points are measured. Figure adapted from [18].
Figure 2. Characteristic of the Nd3+/Ho3+ co-doped tungsten tellurite fiber laser. The blue points are measured. Figure adapted from [18].
Fibers 05 00023 g002
Figure 3. Tm3+ doped monomode fluoride fiber laser proposed in [21]. Figure adapted from [21].
Figure 3. Tm3+ doped monomode fluoride fiber laser proposed in [21]. Figure adapted from [21].
Fibers 05 00023 g003

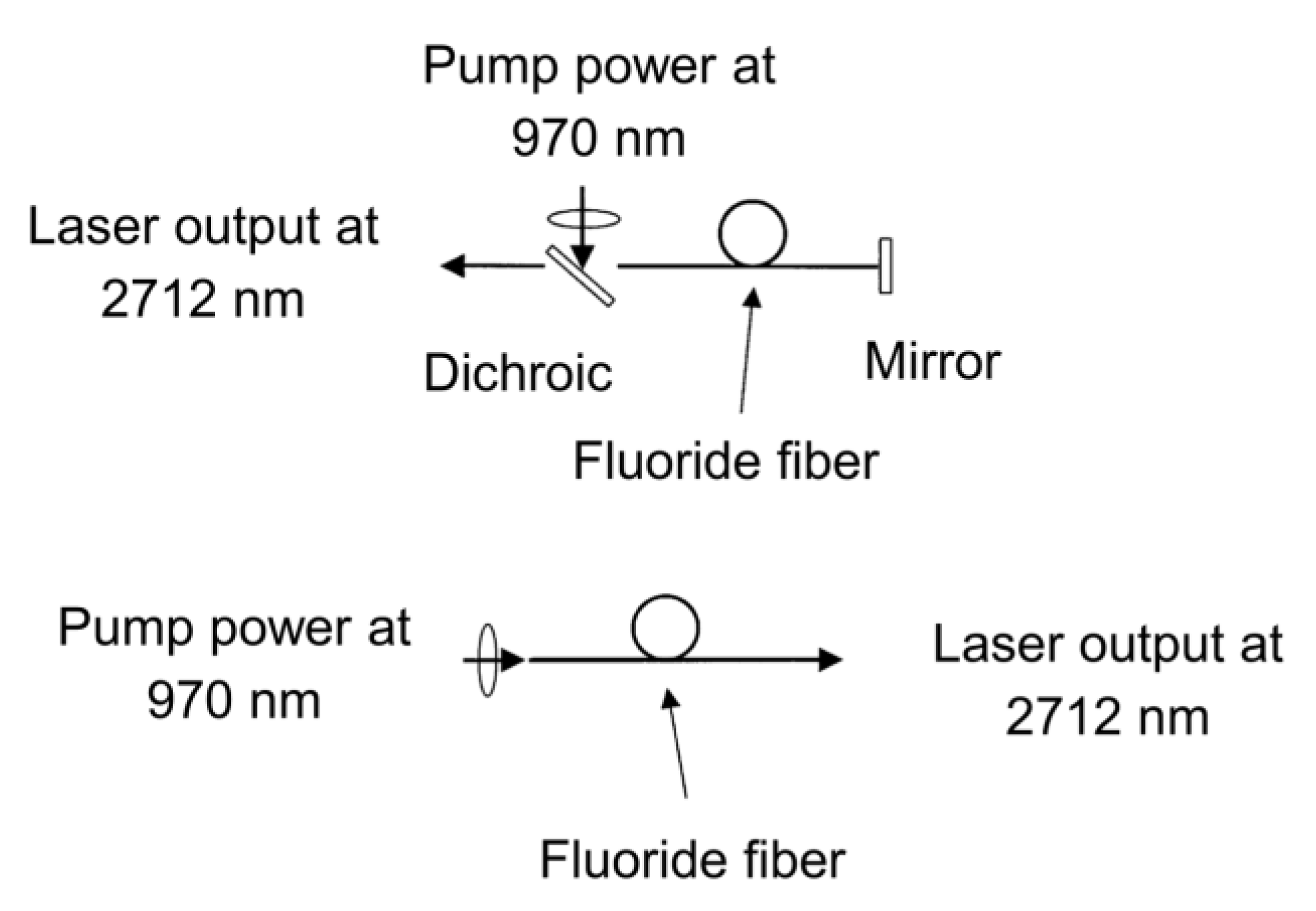

Figure 4. Set-ups of the two fiber laser configurations demonstrated in [25]. Figure adapted from [25].
Figure 4. Set-ups of the two fiber laser configurations demonstrated in [25]. Figure adapted from [25].
Fibers 05 00023 g004

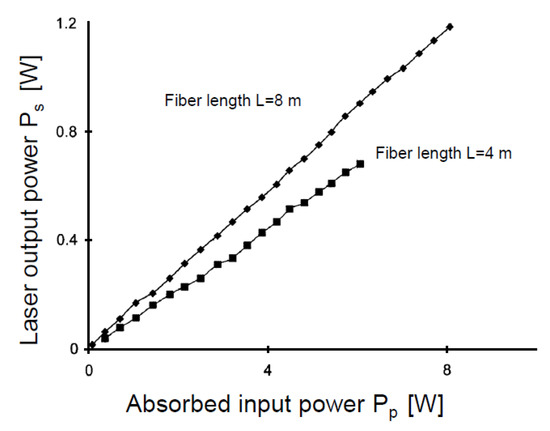

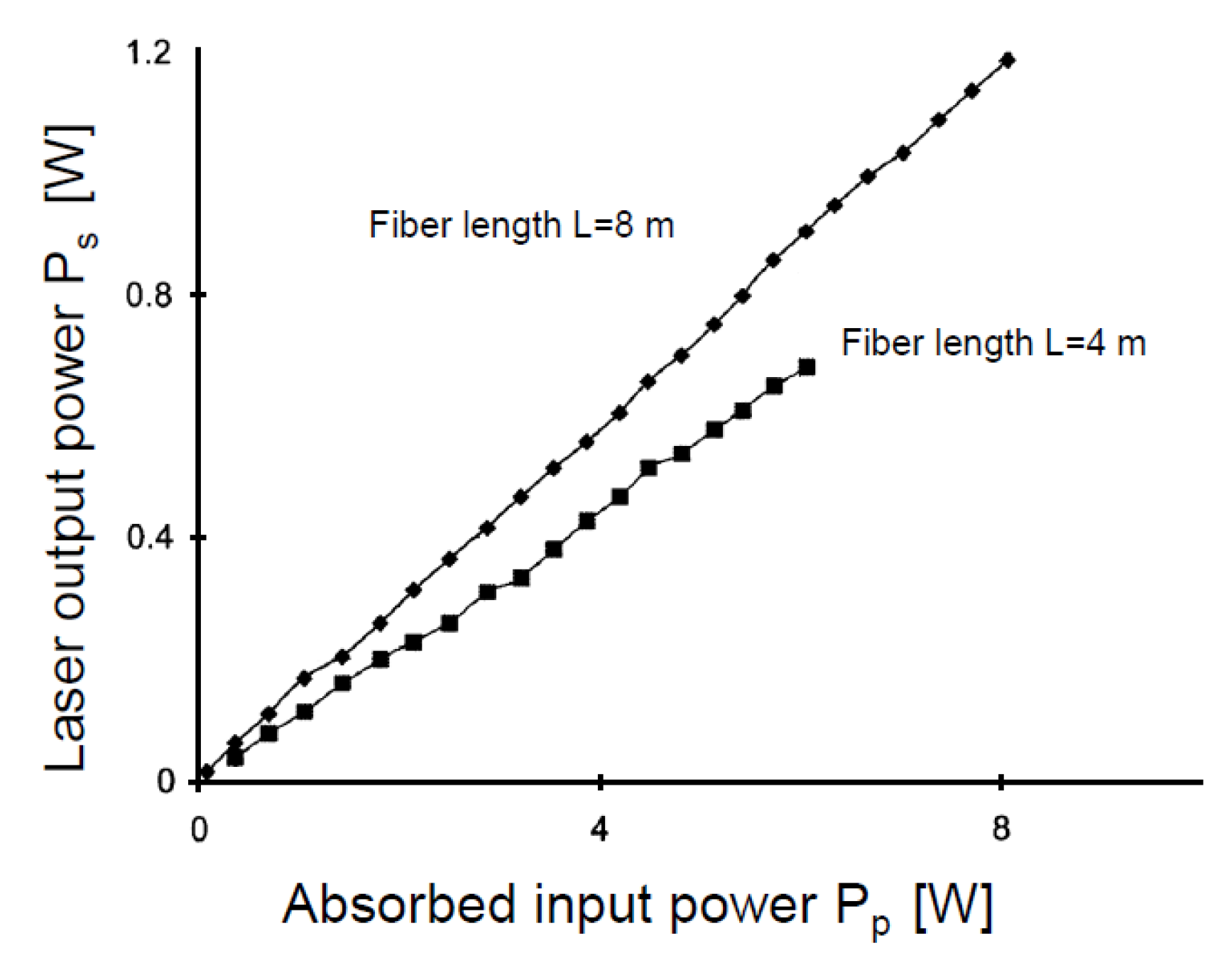

Figure 5. Characteristics of the Er3+-doped fluoride glass fiber laser [25]. Figure adapted from [25].
Figure 5. Characteristics of the Er3+-doped fluoride glass fiber laser [25]. Figure adapted from [25].
Fibers 05 00023 g005

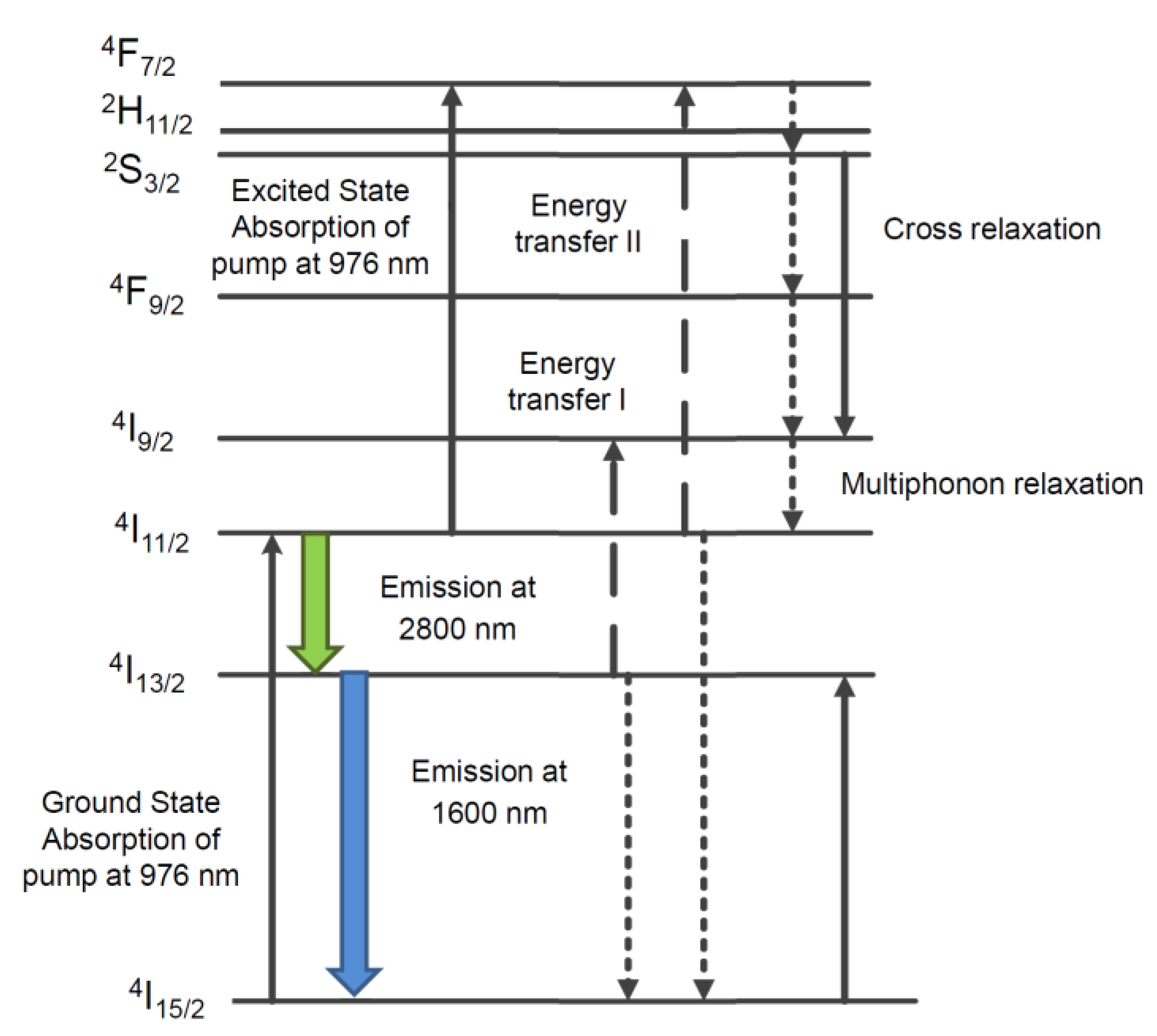

Figure 6. Scheme for the erbium doped fluoride fiber laser based on the cascade of the two transitions 4I11/24I13/2 at 2.8 μm and 4I13/24I15/2 at 1.6 μm. Figure adapted from [27].
Figure 6. Scheme for the erbium doped fluoride fiber laser based on the cascade of the two transitions 4I11/24I13/2 at 2.8 μm and 4I13/24I15/2 at 1.6 μm. Figure adapted from [27].
Fibers 05 00023 g006

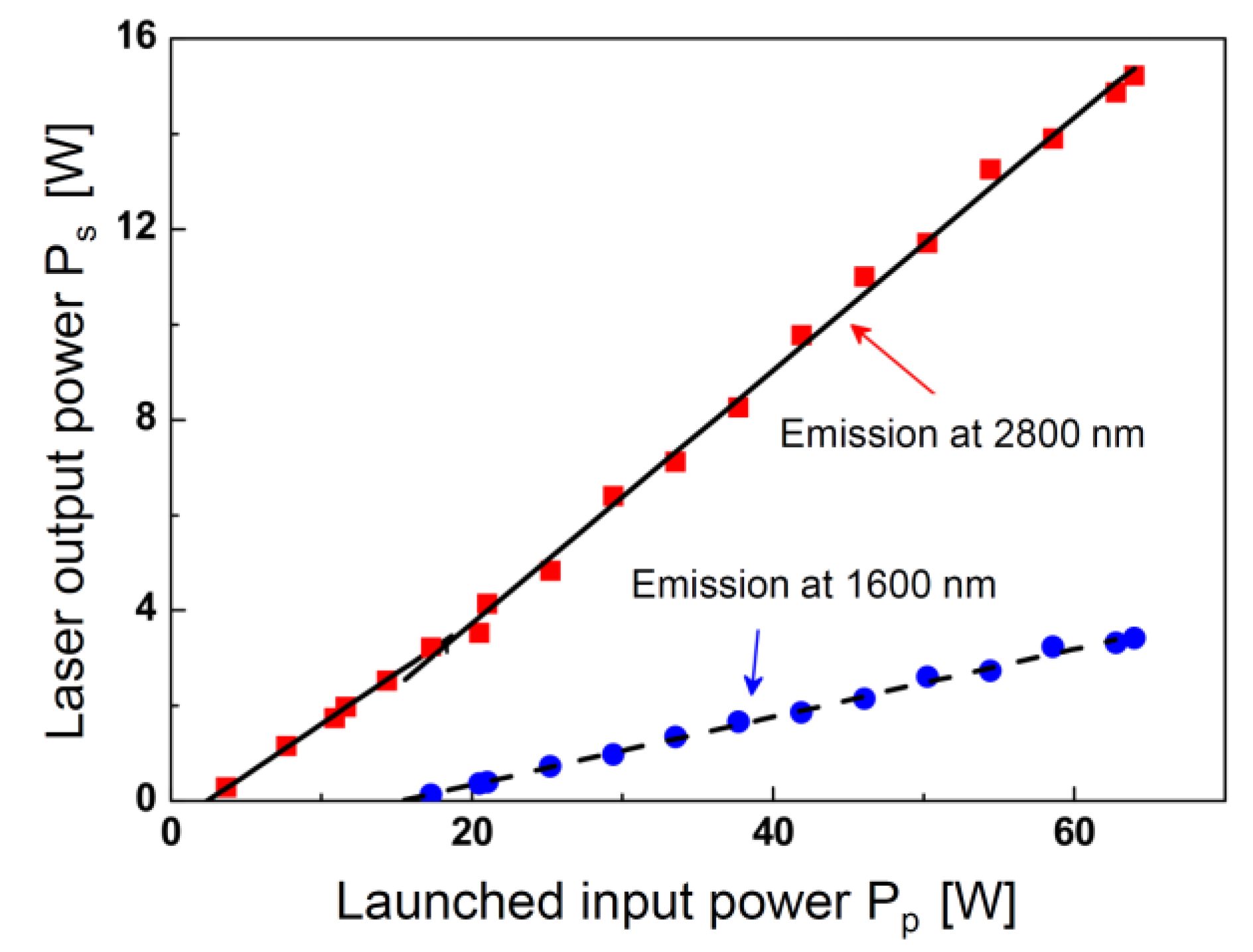

Figure 7. Characteristics of the fluoride fiber laser based on the cascade of the two transitions 4I11/24I13/2 at 2.8 μm and 4I13/24I15/2 at 1.6 μm. Figure adapted from [27].
Figure 7. Characteristics of the fluoride fiber laser based on the cascade of the two transitions 4I11/24I13/2 at 2.8 μm and 4I13/24I15/2 at 1.6 μm. Figure adapted from [27].
Fibers 05 00023 g007
Figure 8. Set-up of the master oscillator power amplifier (MOPA) fiber laser proposed in [34]. Figure adapted from [34].
Figure 8. Set-up of the master oscillator power amplifier (MOPA) fiber laser proposed in [34]. Figure adapted from [34].
Fibers 05 00023 g008

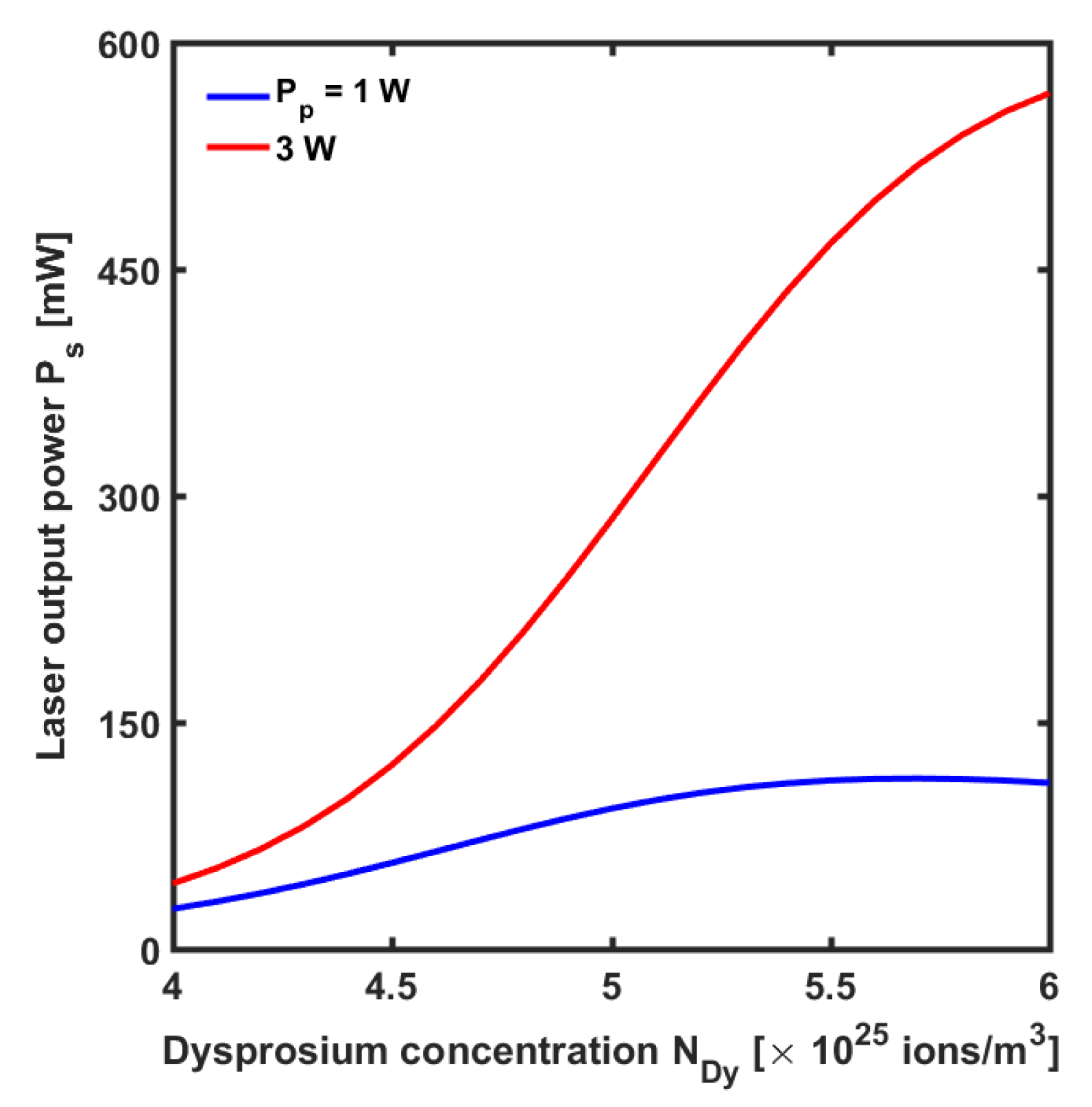

Figure 9. Characteristics of the dysprosium doped chalcogenide fiber laser based on the master oscillator power amplifier (MOPA) configuration. Figure adapted from [34].
Figure 9. Characteristics of the dysprosium doped chalcogenide fiber laser based on the master oscillator power amplifier (MOPA) configuration. Figure adapted from [34].
Fibers 05 00023 g009

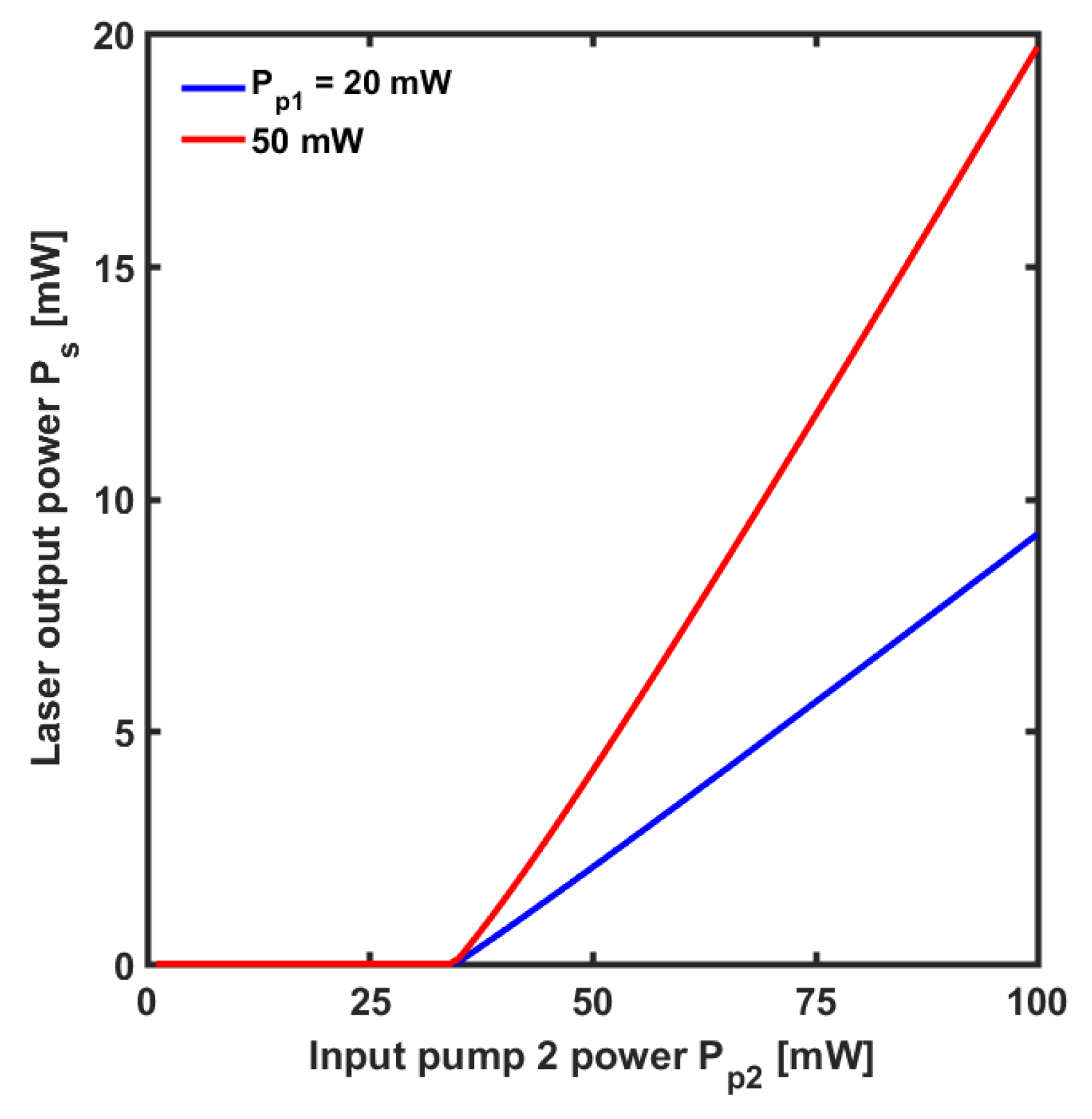

Figure 10. Characteristics of the dysprosium doped chalcogenide fiber laser pumped with quantum cascade lasers (QCLs). Figure adapted from [35].
Figure 10. Characteristics of the dysprosium doped chalcogenide fiber laser pumped with quantum cascade lasers (QCLs). Figure adapted from [35].
Fibers 05 00023 g010
