Next Article in Journal
Influence of Roller Configuration on the Fiber–Matrix Distribution and Mechanical Properties of Continuously Produced, Mineral-Impregnated Carbon Fibers (MCFs)
Previous Article in Journal
Nanostructural Changes Correlated to Decay Resistance of Chemically Modified Wood Fibers


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

The Influence of Silica Fume on the Properties of Mortars Containing Date Palm Fibers

Department of Civil Engineering, College of Engineering, University of Bisha, Bisha 61922, Saudi Arabia
Fibers 2022, 10(5), 41; https://doi.org/10.3390/fib10050041
Submission received: 20 March 2022 / Revised: 22 April 2022 / Accepted: 29 April 2022 / Published: 6 May 2022

Abstract

:
Natural fibers have recently been presented as a promising alternative for manufactured fibers. Date palm fibers showed interesting results when used as an inclusion in concrete and mortar. In this study, Sefri Date Palm Mesh Fibers (SDPMF) were used as an inclusion in mortars. Silica fume (SF) partially replaced the cement by 5%, 10%, 15%, and 20% by mass to improve the mechanical properties of SDPMF mortars. SDPMFs were collected from local farms. The fibers were then cleaned, dried, and cut to 50 mm, and added to mortars with 1%, 2%, and 3% by weight. Density, absorption, open porosity, workability, and compressive strength of mortars were investigated. A comparison with a previous study’s results for mortars containing Sefri Date Palm Leave Fibers (SDPLF) is presented. The results showed that the incorporation of SF as part of cement may lead to improving the properties of the mixtures containing SDPMF fibers.

1. Introduction

The construction industry is classified as one of the top industries responsible for carbon dioxide emissions [1,2]. Therefore, it is considered as a high threat to the environment [3,4,5]. Researchers around the world have been investigating and introducing new ways to reduce carbon dioxide emissions. For example, natural fibers could be an alternative promising solution to replace the manufacturing one. This will reduce the number of manufacturing processes in factories, energy consumption, and unlikely emissions. Besides, the natural fibers are low-cost, environmentally friendly, renewable, economic, and possess good physical and mechanical properties [6,7,8,9,10].
The agriculture sector produces million tonnes of waste annually and in most cases are dumped in landfills, causing environmental and fire hazards. For example, the annual world production of bamboo, jute, kenaf, and flax fibers is 30,000,000 tonnes, 2,300,000 tonnes, 970,000 tonnes, and 830,000 tonnes, respectively [6]. Recycling such wastes by introducing them as potential construction materials will contribute to a cleaner environment and help shifting to a “circular carbon economy”. Studies on natural fibers such as coconut, jute, bamboo, sisal, and hemp showed a positive influence on properties of concrete and mortar [8,9,11,12,13,14,15]. Kesikidou and Stefanidou [8] reported improvements up to 28%, 24%, and 16% in flexural strength when kelp, coconut, and jute fibers are incorporated in the mortar, respectively. The thermal insulation of a small house of 42 m2 area was investigated [11], where mortar coated by coconut fibers was used. The results showed an improvement in the thermal insulation by saving up to 16% of annual energy costs. Arshad et al. [16] conducted an experimental program to study the effects of basalt fibers on the mechanical properties of concretes containing 8% silica fume and different content of bagasse ash. Their results showed improvements up to 21.8% and 53.4% for compressive strength and modulus of rupture, respectively. Moreover, they found that when content of basalt fibers increases from 0.5% to 1.0%, the compressive strength and modulus of rupture marginally increase. Khan and Ali [17] conducted a study where 15% silica fume and different contents of fly ash (i.e., 0%, 5%, 10%, and 15%) were added to concretes containing 2% (by mass) of coconut fibers. They concluded that the compressive strength and modulus of elasticity improved up to 26.67% and 32.37%, respectively, as compared to the plain concrete. This improvement is corresponding to concretes having 10% fly ash. Khan et al. [18] conducted a study to investigate the effects of silica fume and coconut fibers on the thickness of concrete roads. For this reason, silica fume of 5%, 10%, 15%, and 20% by cement mass were incorporated to concretes containing 2% of coconut fibers with length of 50 mm. The compressive strength, flexural strength, and modulus of elasticity were improved up to 24.62%, 59.60%, and 33.60%, respectively, as compared to the plain concrete. This improvement is corresponding to concretes having 15% silica fume. The authors concluded that the thickness of concrete roads could be reduced up to 8% when 15% of silica fume is used in concrete containing 2% of coconut fibers.
According to [19], date palm is one of the high growing varieties around the world with 11.8 million ha. covered area. Date palm is planted in more than 94 countries especially in Asia and Africa with 8.18 and 1.66 million ha., respectively. In Saudi Arabia, for example, date palm trees are ranked the first among permanent crops, with an estimated 28.5 million date palm trees in 2015 [20]. The date palm waste generated annually by seasonal pruning and trimming can be estimated by 35 kg per tree on average [21]. As a result, million tonnes of waste could be produced and placed in landfills with no economic value and potential fire hazards.
The utilization of date palm fibers in concrete and mortar was studied. According to [22,23], the density of mortars containing date palm fibers could be slightly reduced, with a reduction ranging from 1% to 8%. However, with a high volume of date palm fibers inclusion, a significant reduction in density could be observed. For example, the inclusion of 21% and 51% by volume could yield a reduction in the density up to 16% and 39%, respectively [24,25,26,27]. Water absorption and porosity of mortars containing date palm fibers were studied [23,27,28]. It was found that the water absorption and porosity increase when the content and length of fibers increase. However, the pretreated fibers with Ca(OH)2 showed lower water absorption. This is due to the effects of the alkali pre-treatment that removes the hemicellulose and lignin from the fibers. The ability of date palm fibers to improve the thermal conductivity of mortar and cement-based composites was also investigated [24,25,26,29,30,31,32]. These authors concluded that date palm fibers could be classified among the best construction materials in terms of thermal insulation. For example, the thermal conductivity of mortars containing date palm fibers of 21%, 27%, 31%, 35%, 48%, and 51% by volume was studied [30]. They concluded that the thermal conductivity could be improved up to 70% for mortars containing 51% date palm fibers. Similar results were obtained by [26] where a reduction in the thermal conductivity up to 75% was observed for 51% date palm fibers inclusion. Braiek et al. [31] conducted an experimental study to evaluate the thermal insulation capacity of gypsum plaster containing different contents of date palm fibers (i.e., 5%, 10%, 15%, and 20% by weight). The authors concluded that the thermal conductivity decreases when the content of date palm fibers increases. For example, the thermal conductivity decreases up to 14.38%, 37.17%, 52.88%, and 61.50% for date palm fibers inclusion of 5%, 10%, 15%, and 20%, respectively. Benmansour et al. [24] investigated the thermal conductivity of mortars containing 5%, 10%, 15%, 20%, 25%, and 30% by weight date palm fibers. The date palm fibers used were composite of crushed petiole and rachis with different diameter of 3 mm and 6 mm. The results showed significant improvements in terms of thermal conductivity up to 92.5% and 87% for mortars containing 30% inclusion of date palm fiber with 6 mm and 3 mm diameter, respectively.
Mortars and cement-based materials containing date palm fibers showed lower compressive and flexural strength as compared to plain ones [24,28,30,33,34,35]. It was noticed that the compressive and flexural strengths decrease when the length and content of date palm fibers increase. Date palm fibers which were pre-treated by boiling in water, immersing in alkalis, and coating with oil were used to improve the mechanical properties of mortars containing date palm fibers [33,36,37]. However, to the best of the author’s knowledge, no study has been reported on the incorporation of pozzolanic materials into mortars containing date palm fibers. Such incorporation may lead to overcome the main drawback of the mechanical strength of mortars containing date palm fibers due to the pozzolanic reaction. Besides, the use of date palm fibers in mortars and concretes could lead to clean and green environment by eliminating the date palm waste. In this study, the physical and mechanical properties of mortars containing Sefri Date Palm Mesh Fibers (SDPMF) were investigated. Silica fume (SF) was incorporated as part of cement in the mortars containing SDPMF fibers.

2. Experimental Program

2.1. Materials

In this study, Portland cement type I was used. The sand was obtained from the Wadi Bisha rainfall stream with a specific gravity of 2.67, and particle size distribution as shown in Figure 1. Sefri Date Palm’s (a type of date palm in Saudi Arabia) trunk mesh Fibers (SDPMF) were collected from a local farm at Bisha. The SDPMFs were cleaned, dried, manually separated, and then cut to specified lengths of 50 ± 5 mm (Figure 2). SDPMFs were incorporated into the mixtures by 1%, 2%, and 3% by weight. In order to investigate the effects of silica fume (SF) on the mechanical properties of SDPMF mortars, the cement was partially replaced by silica fume with 5%, 10%, 15%, and 20% by weight. The chemical composition and physical properties of SF are presented in Table 1.

2.2. Mix Proportion

This study aims to investigate the mechanical properties of mortars due to (a) incorporation of 1%, 2%, and 3% SDPMF fibers, (b) incorporation of 1%, 2%, and 3% SDPMF fibers, and 10% of SF, and (c) incorporation of 1% SDPMFs and 5%, 10%, 15%, and 20% of SF. Thus, a total of ten mixtures of mortars were prepared, including the control mixture. Table 2 shows the mix proportions and SDPMF and SF ratios for all mixtures.
Figure 3 shows the flow chart of the mixing procedure. The sand, cement, and SDPMFs were put together into the mixer, and the mixer was operated for about one minute to ensure the SDPMFs are equally distributed among the mixture. The mixing water was then gradually added, and the mixer was run for about 3 min. The mortar was then placed in the molds and properly compacted as per ASTM C192. The specimens were left in the molds for 48 h, then demolded and placed in water tank until the day of the test. M1S10 is a mixture where the percentage of SDPMF is 1% and the content of SF is 10%.

2.3. Tests

2.3.1. SDPMF Properties

The density and absorption of SDPMF were determined by Equations (1) and (2), respectively. The procedure of the test was adopted from ASTM C127. A sample of SDPMF was dried in an oven at 110 °C until a constant weight was obtained; this weight was recorded as oven-dried weight (Wo). The sample was then immersed in water for 18 h. The water on the SDPMF was wiped and the weight was recorded as saturated surface dry (WSSD). The weight of the SSD specimens in water (submerged weight Wi) was also determined.
d e n s i t y   ( O D ) ( kg / m 3 ) = W o W S S D W i 997.5
A b s o r p t i o n   ( % ) = W S S D W o W o 100

2.3.2. Mortar Properties

To investigate the effects of SDPMF and SF on mortar’s properties, density, absorption, open porosity, workability, and compressive strength were investigated. A flow table test was conducted in accordance with ASTM C230 for each mixture to investigate the workability of the mortars. After 25 drops of the flow table, the diameter of the mortar was measured in four directions. The average of the measured diameters was used to interpret the results. The apparent density, absorption, and open porosity of mortars were determined at age of 180 days using Equations (3)–(5), respectively. The procedure of the test is adopted from ASTM C642. Three cubes of 100 mm length for each mixture were used in this test. The oven-dried weight was determined after drying the specimens at 110 °C for more than 24 h. The weight of saturated surface dry was determined after immersing the specimens for more than 24 h. in the water and wiping the surface water with a piece of cloth. The weight of saturated surface dry specimens in water (submerged weight) was also determined.
A p p a r e n t   d e n s i t y ( kg / m 3 ) = O v e n   d r i e d   m a s s O v e n   d r i e d   m a s s s u b m e r g e d   m a s s 1000
A b s o r p t i o n   ( % ) = S a t u r a t e d   s u r f a c e   d r y   m a s s O v e n   d r i e d   m a s s O v e n   d r i e d   m a s s 100
O p e n   p o r o s i t y ( % ) = S a t u r a t e d   s u r f a c e   d r y   m a s s O v e n   d r i e d   m a s s S a t u r a t e d   s u r f a c e   d r y   m a s s s u b m e r g e d   m a s s 100
Six cubes of 100 mm were cast and cured to determine the compressive strength of mortar at 7, 28, and 180 days in accordance with ASTM C192 and ASTM C109. A compression test machine of 3000 kN capacity was used to test the cubes with a stress increment of 0.15 MPa/s.

3. Results and Discussion

3.1. Physical Properties of SDPMFs

The density and absorption of SDPMFs were determined as the average of two samples. Figure 4 shows the SDPMFs during testing. The results are summarized in Table 3. As compared to other natural fibers, the SDPMFs could be lighter than cotton, jute, flax, hemp, abaca, ramie, and sisal [6,38]. This property could lead to lighter construction materials. Several researchers concluded that the addition of date palm fibers to the mortar decreases its density up to 39% for inclusion of 51% of date palm fibers [23,26,30]. It is obvious that SDPMFs have high porosity with an absorption capacity of 122.53%. The high porosity structure comes from the small canal and the huge number of pores inside the fibers [34]. Such high absorption capacity could affect the workability and mixing water of the mixture; therefore, causation needs to be exercised during mix design. As compared to SDPLFs, it can be seen that SDPMFs have lower density and higher absorption capacity, which may lead to different effects on mortars.

3.2. Workability of Mortars

3.2.1. Effects of SDPMF Content

Figure 5 shows the workability test procedure. The results of the workability test are illustrated in Figure 6, Figure 7 and Figure 8. As shown in Figure 6, the workability of mortars decreases as the content of SDPMF increases. The reductions of 11.37%, 21.07%, and 24.25% for M1S0, M2S0, and M3S0, respectively, were observed. This reduction is expected due to the high porosity and absorption of SDPMFs, which lead to the loss of mixing water. Similar results were reported, where a reduction in workability up to 7.6% was recorded when date palm leaves (SDPLF) up to 3% are incorporated in the mortars [23]. The higher loss of workability for mortars containing SDPMFs compared to mortars containing SDPLFs, could be attributed to the higher absorption capacity of SDPMFs (i.e., 122.53%) compared to SDPLFs (i.e., 94.74%). Thus, researchers suggest submerging date palm fibers in water before mixing process [22].

3.2.2. Effects of SDPMF Content and 10% SF

Figure 7 shows the effects of SDPMF content and 10% SF on mortar workability. The workability losses of 30.43%, 35.28%, and 40.55% were recorded for M1S10, M2S10, and M3S10, respectively. With the 10% SF partial replacement of cement, the workability became lower as compared to SDPMF’s mortars containing no SF. This is due to the micro size and high fineness of SF that demands high content of water, leading to mixing water loss [39,40].
Figure 7. Effects of SDPMF content and 10% SF on the workability.
Figure 7. Effects of SDPMF content and 10% SF on the workability.
Fibers 10 00041 g007

3.2.3. Effects of SF Content

Figure 8 shows the effects of SF content on mortars containing 1% SDPMFs. SF content of 5%, 10%, 15%, and 20% were tested. The workability of mortars decreases when the content of SF increases, recording a reduction of 24.25%, 30.43%, 30.94%, and 33.11% for M1S5, M1S10, M1S15, and M1S20, respectively. Even though the content of SF is doubled from 10% for M1S10 to 20% for M1S20, the loss in workability is increased by only 2.68%. This refers to an insignificant loss that could be occurred when higher content of SF up to 20% is incorporated into the mortars.
Figure 8. Effects of SF content on the workability of mortars containing 1% SDPMFs.
Figure 8. Effects of SF content on the workability of mortars containing 1% SDPMFs.
Fibers 10 00041 g008

3.3. Water Absorption and Open Porosity

Table 4 shows the results of water absorption, open porosity, and apparent density of all mixtures except for M0S20 which is not included in these tests. The standard deviations for all tests are also presented. With respect to water absorption, it can be seen that the mortars containing SDMPF fibers showed higher absorption than the control one. Similarly, the open porosity of the mortars containing SDPMFs is higher than the control one. Even though the content of SDPMFs increases from 1% to 3% in the mortars. However, no significant increments in water absorption and open porosity were observed. This could be attributed to a) the presence of SDPMFs and b) the fibers with aging were not significant in the water absorption of the mortars [41].
The mortars with 10% SF showed higher water absorption and open porosity as compared to mortars containing SDPMFs only. The hydrophilicity of the fibers, as well as the heterogeneous dispersion of silica fume in the mixture, may have contributed to the mortars’ increased porosity [41]. The mortars with 1% SDPMFs and different content of SF showed higher water absorption and open porosity as the content of SF increases. Increments of 22.98%, 51.06%, and 42.45% in open porosity were recorded for the mortars M1S5, M1S10, and M1S15, respectively, as compared to the control mortar. Such increments could be attributed to the presence of SF where agglomeration could have occurred with a degree proportional to the content of SF [41,42,43]. When the addition of SF is presented in the mortar, low dispersion of particles is occurred forming large particle sizes and reducing the hydration process [41,44].

3.4. Density

The apparent density of all mortars is shown in Table 4. As can be seen from Table 4, positive effects, but not significant, were observed in the density of the mortars containing SDPMF fibers. Increments ranging from 0.51% for M2S0 to 1.13% for M3S0 were recorded. These insignificant increments could be attributed to (a) the possibly high compaction between SDPMFs and cement matrix that leads to enhanced homogeneity [28,45], (b) the very small inclusion dosage and diameter of SDPMFs may prevent the agglomeration of the fibers. With respect to the study carried out by [23], the mortars containing SDPLF leave fibers showed an insignificant reduction in the density up to 0.8%. In contrast, the findings of this study showed improvement in the density of the mortars containing SDPMFs up to 1.13%. The large tuft of SDPLF leave fibers (which is about 5 mm) may lead to disturbing the compaction between the fibers and matrix creating more pores resulting in an insignificant reduction in the density.
With regard to the mortars containing 1% SDPMF and 10 SF, M1S10, and M2S10 showed insignificant improvements while M3S10 showed insignificant reduction as compared to the control mortar. Similarly, M1S5 showed a small reduction while M1S15 showed almost the same density as the control one. Previous studies have concluded that the density of mortars may be insignificantly decreased/increased when the cement is partially replaced by SF [46,47]. The reduction in the density in the mortars containing SF may be due to the lower density of SF that replaces the cement. However, the insignificant improvement in the density of the mortars containing SF could be attributed to the aging of the mortars (180 days) that may develop additional C-S-H products.

3.5. Compressive Strength

Table 5 shows the average compressive strength of two specimens at 7, 28, and 180 days for all mortars.

3.5.1. Effects of SDPMF Content

Figure 9 illustrates the effects of SDPMFs on the mortars’ compressive strength. It is obvious that, with the increase in SDPMF content, the compressive strength decreases. At 28 days, a reduction of 29.01%, 47.16%, and 57.66% for M1S0, M2S0, and M3S0, respectively, was observed. The reduction in the compressive strength is attributed to the SDPMF itself as it is highly porous structure [2,7]. At 180 days, a larger reduction was noticed with 33.67%, 51.39%, and 56.90% for M1S0, M2S0, and M3S0, respectively. Kriker et. al. [33] conducted an investigation on the effects of pretreated date palm fiber with Ca(OH)2, and observed that the pretreated fibers become weaker. Thus, the authors concluded that the durability of date palm fibers in concrete and mortar may be affected, due to calcium hydroxide released during the hydration process.
The relationship between the compressive strength (Y) and the SDPMF content (x), for the mortars containing SDPMFs is shown in Figure 10. It may be expressed using a best fit polynomial equation (Equation (6)) with correlation coefficient R2 = 0.9499
Y = 9550 x 2 680.8 x + 20.597
Compared to mortars containing SDPLF leaves, SDPMF mortars showed better performance. Mortars containing 1% and 3% SDPMF showed lower loss of compressive strength with 29.01% and 57.66%, respectively, compared to 50.30% and 83.91% for mortars containing 1% and 3% SDPLF leaves, respectively. These results could be attributed to the larger tuft of SDPLF leaves (5 mm) that weakening the bonding of the mortar matrix.

3.5.2. Effects of SDPMF Content and 10% SF

As Figure 11 shows, the compressive strength decreases when the content of SDPMFs increases for mortars containing 10% SF. At 7 and 28 days, mortars with SDPMFs and 10% SF showed higher losses as compared to mortars containing SDPMFs only. This is because of the low content of cement due to its replacement with SF, and due to the fact that the pozzolanic reaction needs time to launch. However, at 180 days, the loss in compressive strength became lower as compared to ages of 7 and 28 days. M2S10 mortar showed the best behavior, where the addition of 10% SF yields a ceasing of compressive strength loss by 33.25%. This behavior could be attributed to the pozzolanic reaction that took place in the mortars. The pozzolanic reaction results in additional C-S-H gel and consuming Ca(OH)2 that might degrade the mechanical strength of SDPMFs.

3.5.3. Effects of SF Content

The effects of SF content on the compressive strength of 1% SDPMF mortars are presented in Figure 12. At age of 7 days, the loss in compressive strength ranges from 52.68% for M1S5 to 70.24% for M1S20. However, at age of 28 days, the reduction in compressive strength becomes lower. Besides to the presence of SDPMFs in the mortars, the replacement of cement by SF content could be the reason behind the large compressive strength loss at early ages. The positive effects of SF content in 1% SDPMF’s mortars are observed by substantially ceasing the loss of compressive strength. For example, the compressive strength of M1S15 mortar improved by 54.10% at age of 180 days as compared to the age of 7 days. Similarly, an improvement of 63.10% was noticed for M1S20 mortar at age of 180 days against the age of 7 days. The improvement in compressive strength for the mortars at age of 180 days as compared to the early ages could be attributed to the presence of SF that induces the pozzolanic reaction and produces more C-S-H gel. The improvement in compressive strength for mortars containing SF and 1% SDPMF at 180 days age against early ages (7 and 28 days) increases when SF content increases with the best performance accredited to M1S20 mortar. Therefore, it can be concluded that the negative effects of date palm fibers on the compressive strength of the mortars could be reduced by the addition of SF content up 20%.

4. SDPMF Mortar’s Applications

Based on the above discussion, it is obvious that the incorporation of SDPMFs into mortars lead to decrease the compressive strength. However, the compressive strength is still high enough to be used in several construction applications. For example, according to RILEM functional classification of lightweight concrete [48], all studied mortars could be classified as “Class II:. compressive strength is higher than 3.5 MPa”, which can be acceptable for use in structural applications of lightweight construction. Thus, it can be concluded that mortars containing SDPMFs up to 3% by weight could be produced with acceptable compressive strength for use as structural materials in buildings and lightweight construction.

5. Conclusions

The effects of incorporating SDPMF and SF on the physical and mechanical properties of mortars were experimentally studied. A comparison between mortars containing SDPMF mesh fibers and mortars containing SDPLF leave fibers is presented. A total of ten mixtures were prepared and tested. SDPMFs were collected, cleaned, dried, manually separated, and then cut to specified lengths of 50 ± 5 mm. Physical properties of SDPMFs and workability, density, water absorption, porosity, and compressive strength of mortars were investigated. The following conclusions can be drawn:
  • The low density (951.78 kg/m3) and high absorption capacity (122.53%) of SDPMFs classify them as lightweight fibers, which might produce light mortars towards green construction materials.
  • The workability of mortars was affected and reduced due to the inclusion of SDPMFs and reduced more as SF partially replaced the cement. With changing the content of SDPMFs and SF, the workability was reduced up to 24.25% and 33.11%, respectively, as compared to the control mortar.
  • The density of mortars was insignificantly affected by the presence of SDPMFs and SF, with improvements up to 1.13% as compared to the control mortar. However, some mortars showed insignificant reduction up to 2.21%.
  • All mortars showed higher water absorption and higher open porosity as compared to the control mortar. With changing the content of SDPMFs and SF, the water absorption and open porosity were increased up to 86.18% and 68.11%, respectively.
  • The mortars containing SDPMFs showed a loss in compressive strength up to 57.66% at 28 days for 3% SDPMF inclusion. The loss in compressive strength at early ages becomes higher when SF is introduced to the mortars.
  • The loss in compressive strength due to the inclusion of SDPMFs could be compensated by incorporating SF. A substantial improvement in compressive strength up to 63.10% at age of 180 days could be observed when 20% SF is incorporated to a mortar containing 1% SDPMFs.
  • Mortars containing SDPMFs could be produced with acceptable strength for use in structural applications.
As the inclusion of SDPMFs to mortars showed promising results especially with the addition of SF, it is recommended to invest more time and resources to expand the research in this topic. For example, deep studies are recommended to understand the bonding mechanism between fibers and matrix, bridging mechanism, and incorporation of natural pozzolanic materials. In addition, the long-term durability of date palm fibers is still a matter of concern which needs more investigations.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Paik, I.; Na, S. Evaluation of Carbon Dioxide Emissions amongst Alternative Slab Systems during the Construction Phase in a Building Project. Appl. Sci. 2019, 9, 4333. [Google Scholar] [CrossRef] [Green Version]
  2. Ali, K.A.; Ahmad, M.I.; Yusup, Y. Issues, Impacts, and Mitigations of Carbon Dioxide Emissions in the Building Sector. Sustainability 2020, 12, 7427. [Google Scholar] [CrossRef]
  3. Sandanayake, M.; Bouras, Y.; Haigh, R.; Vrcelj, Z. Current Sustainable Trends of Using Waste Materials in Concrete—A decade Review. Sustainability 2020, 12, 9622. [Google Scholar] [CrossRef]
  4. Ali, M.B.; Saidur, R.; Hossain, M.S. A review on emission analysis in cement industries. Renew. Sustain. Energy Rev. 2011, 15, 2252–2261. [Google Scholar] [CrossRef]
  5. Anand, S.; Vrat, P.; Dahiya, R.P. Application of a system dynamics approach for assessment and mitigation of CO2 emissions from the cement industry. J. Environ. Manag. 2006, 79, 383–398. [Google Scholar] [CrossRef]
  6. Faruk, O.; Bledzki, A.K.; Fink, H.P.; Sain, M. Biocomposites reinforced with natural fibers: 2000–2010. Prog. Polym. Sci. 2012, 37, 1552–1596. [Google Scholar] [CrossRef]
  7. Ardanuy, M.; Claramunt, J.; Toledo Filho, R.D. Cellulosic fiber reinforced cement-based composites: A review of recent research. Constr. Build. Mater. 2015, 79, 115–128. [Google Scholar] [CrossRef] [Green Version]
  8. Kesikidou, F.; Stefanidou, M. Natural fiber-reinforced mortars. J. Build. Eng. 2019, 25, 100786. [Google Scholar] [CrossRef]
  9. Song, H.; Liu, J.; He, K.; Ahmad, W. A comprehensive overview of jute fiber reinforced cementitious composites. Case Stud. Constr. Mater. 2021, 15, e00724. [Google Scholar] [CrossRef]
  10. Haigh, R.; Sandanayake, M.; Bouras, Y.; Vrcelj, Z. A review of the mechanical and durability performance of kraft-fibre reinforced mortar and concrete. Constr. Build. Mater. 2021, 297, 123759. [Google Scholar] [CrossRef]
  11. Quiñones-Bolaños, E.; Gómez-Oviedo, M.; Mouthon-Bello, J.; Sierra-Vitola, L.; Berardi, U.; Bustillo-Lecompte, C. Potential use of coconut fibre modified mortars to enhance thermal comfort in low-income housing. J. Environ. Manag. 2021, 277, 111503. [Google Scholar] [CrossRef]
  12. Dhakal, H.N.; Zhang, Z.Y.; Richardson, M. Effect of water absorption on the mechanical properties of hemp fibre reinforced unsaturated polyester composites. Compos. Sci. Technol. 2007, 67, 1674–1683. [Google Scholar] [CrossRef]
  13. Kumarasamy, K.; Shyamala, G.; Gebreyowhanse, H. Strength Properties of Bamboo Fiber Reinforced Concrete. In Proceedings of the IOP Conference Series: Materials Science and Engineering, Chennai, India, 16–17 September 2020; Volume 981. [Google Scholar] [CrossRef]
  14. Marrero, R.E.; Soto, H.L.; Benitez, F.R.; Medina, C.; Suarez, O.M. Study of high-strength concrete reinforced with bamboo fibers. Adv. Mater.-TechConnect Briefs 2017, 2, 301–304. [Google Scholar]
  15. Thomas, B.C.; Jose, Y.S. Impact of sisal fiber reinforced concrete and its performance analysis: A review. Evol. Intell. 2019, 1–11. [Google Scholar] [CrossRef]
  16. Arshad, S.; Sharif, M.B.; Irfan-Ul-Hassan, M.; Khan, M.; Zhang, J.L. Efficiency of Supplementary Cementitious Materials and Natural Fiber on Mechanical Performance of Concrete. Arab. J. Sci. Eng. 2020, 45, 8577–8589. [Google Scholar] [CrossRef]
  17. Khan, M.; Ali, M. Improvement in concrete behavior with fly ash, silica-fume and coconut fibres. Constr. Build. Mater. 2019, 203, 174–187. [Google Scholar] [CrossRef]
  18. Khan, M.; Rehman, A.; Ali, M. Efficiency of silica-fume content in plain and natural fiber reinforced concrete for concrete road. Constr. Build. Mater. 2020, 244, 118382. [Google Scholar] [CrossRef]
  19. Food and Agriculture Organization. Global Forest Resources Assessment 2020; Food and Agriculture Organization: Rome, Italy, 2020. [Google Scholar] [CrossRef]
  20. Ministry of Environment W and A. Available online: https://www.mewa.gov.sa/ar/InformationCenter/Researchs/StaticticsData/Pages/default.aspx (accessed on 20 January 2022).
  21. El-Juhany, L.I. Surveying of lignocellulosic agricultural residues in some major cities of Saudi Arabia. Res. Bull. 2001, 1, 5–23. [Google Scholar]
  22. Vantadori, S.; Carpinteri, A.; Zanichelli, A. Lightweight construction materials: Mortar reinforced with date-palm mesh fibres. Theor. Appl. Fract. Mech. 2019, 100, 39–45. [Google Scholar] [CrossRef]
  23. Bamaga, S. Physical and mechanical properties of mortars containing date palm fibers. Mater. Res. Express 2022, 9, 015102. [Google Scholar] [CrossRef]
  24. Benmansour, N.; Agoudjil, B.; Gherabli, A.; Kareche, A.; Boudenne, A. Thermal and mechanical performance of natural mortar reinforced with date palm fibers for use as insulating materials in building. Energy Build. 2014, 81, 98–104. [Google Scholar] [CrossRef]
  25. Belakroum, R.; Gherfi, A.; Kadja, M.; Maalouf, C.; Lachi, M.; El Wakil, N.; Mai, T. Design and properties of a new sustainable construction material based on date palm fibers and lime. Constr. Build. Mater. 2018, 184, 330–343. [Google Scholar] [CrossRef]
  26. Boukhattem, L.; Boumhaout, M.; Hamdi, H.; Benhamou, B.; Nouh, F.A. Moisture content influence on the thermal conductivity of insulating building materials made from date palm fibers mesh. Constr. Build. Mater. 2017, 148, 811–823. [Google Scholar] [CrossRef]
  27. Kareche, A.; Agoudjil, B.; Haba, B.; Boudenne, A. Study on the Durability of New Construction Materials Based on Mortar Reinforced with Date Palm Fibers Wastes. Waste Biomass-Valorization 2019, 11, 3801–3809. [Google Scholar] [CrossRef]
  28. Ozerkan, N.G.; Ahsan, B.; Mansour, S.; Iyengar, S.R. Mechanical performance and durability of treated palm fiber reinforced mortars. Int. J. Sustain. Built Environ. 2013, 2, 131–142. [Google Scholar] [CrossRef] [Green Version]
  29. Chikhi, M. Young’s modulus and thermophysical performances of bio-sourced materials based on date palm fibers. Energy Build. 2016, 129, 589–597. [Google Scholar] [CrossRef]
  30. Boumhaout, M.; Boukhattem, L.; Hamdi, H.; Benhamou, B.; Nouh, F.A. Thermomechanical characterization of a bio-composite building material: Mortar reinforced with date palm fibers mesh. Constr. Build. Mater. 2017, 135, 241–250. [Google Scholar] [CrossRef]
  31. Braiek, A.; Karkri, M.; Adili, A.; Ibos, L.; ben Nasrallah, S. Estimation of the thermophysical properties of date palm fibers/gypsum composite for use as insulating materials in building. Energy Build. 2017, 140, 268–279. [Google Scholar] [CrossRef]
  32. Chennouf, N.; Agoudjil, B.; Alioua, T.; Boudenne, A.; Benzarti, K. Experimental investigation on hygrothermal performance of a bio-based wall made of cement mortar filled with date palm fibers. Energy Build. 2019, 202, 109413. [Google Scholar] [CrossRef]
  33. Kriker, A.; Bali, A.; Debicki, G.; Bouziane, M.; Chabannet, M. Durability of date palm fibres and their use as reinforcement in hot dry climates. Cem. Concr. Compos. 2008, 30, 639–648. [Google Scholar] [CrossRef]
  34. Kriker, A.; Debicki, G.; Bali, A.; Khenfer, M.M.; Chabannet, M. Mechanical properties of date palm fibres and concrete reinforced with date palm fibres in hot-dry climate. Cem. Concr. Compos. 2005, 27, 554–564. [Google Scholar] [CrossRef]
  35. Benaimeche, O.; Carpinteri, A.; Mellas, M.; Ronchei, C.; Scorza, D.; Vantadori, S. The influence of date palm mesh fibre reinforcement on flexural and fracture behaviour of a cement-based mortar. Compos. Part B Eng. 2018, 152, 292–299. [Google Scholar] [CrossRef] [Green Version]
  36. Ali-Boucetta, T.; Ayat, A.; Laifa, W.; Behim, M. Treatment of date palm fibres mesh: Influence on the rheological and mechanical properties of fibre-cement composites. Constr. Build. Mater. 2021, 273, 121056. [Google Scholar] [CrossRef]
  37. Lahouioui, M.; ben Arfi, R.; Fois, M.; Ibos, L.; Ghorbal, A. Investigation of Fiber Surface Treatment Effect on Thermal, Mechanical and Acoustical Properties of Date Palm Fiber-Reinforced Cementitious Composites. Waste Biomass-Valorization 2020, 11, 4441–4455. [Google Scholar] [CrossRef]
  38. Bogoeva-Gaceva, G.; Avella, M.; Malinconico, M.; Buzarovska, A.; Grozdanov, A.; Gentile, G.; Errico, M. Natural fiber eco-composites. Polym. Compos. 2007, 28, 98–107. [Google Scholar] [CrossRef]
  39. Vellaichamy, P.; Priyadharshini, S.; R, S.; Selvan, S. Studies on Effect of Silica Fume on Workability and Strength of Concrete. Int. Res. J. Multidiscip. Technovation 2019, 1, 165–171. [Google Scholar] [CrossRef]
  40. Prakash, S.; Kumar, S.; Biswas, R.; Rai, B. Influence of silica fume and ground granulated blast furnace slag on the engineering properties of ultra-high-performance concrete. Innov. Infrastruct. Solut. 2022, 7, 117. [Google Scholar] [CrossRef]
  41. Machado, P.J.C.; dos Reis Ferreira, R.A.; de Castro Motta, L.A. Study of the effect of silica fume and latex dosages in cementitious composites reinforced with cellulose fibers. J. Build. Eng. 2020, 31, 101442. [Google Scholar] [CrossRef]
  42. Zhang, Z.; Zhang, B.; Yan, P. Comparative study of effect of raw and densified silica fume in the paste, mortar and concrete. Constr. Build. Mater. 2016, 105, 82–93. [Google Scholar] [CrossRef]
  43. Lei, D.Y.; Guo, L.P.; Sun, W.; Liu, J.; Shu, X.; Guo, X.L. A new dispersing method on silica fume and its influence on the performance of cement-based materials. Constr. Build. Mater. 2016, 115, 716–726. [Google Scholar] [CrossRef]
  44. Pedro, D.; de Brito, J.; Evangelista, L. Evaluation of high-performance concrete with recycled aggregates: Use of densified silica fume as cement replacement. Constr. Build. Mater. 2017, 147, 803–814. [Google Scholar] [CrossRef]
  45. Ismail, M.A. Compressive and Tensile Strength of Natural Fibre-reinforced Cement base Composites. Al-Rafidain Eng. J. AREJ 2007, 15, 42–51. [Google Scholar] [CrossRef]
  46. Gencel, O.; Nodehi, M.; Yavuz Bayraktar, O.; Kaplan, G.; Benli, A.; Gholampour, A.; Ozbakkaloglu, T. Basalt fiber-reinforced foam concrete containing silica fume: An experimental study. Constr. Build. Mater. 2022, 326, 126861. [Google Scholar] [CrossRef]
  47. Fallah, S.; Nematzadeh, M. Mechanical properties and durability of high-strength concrete containing macro-polymeric and polypropylene fibers with nano-silica and silica fume. Constr. Build. Mater. 2017, 132, 170–187. [Google Scholar] [CrossRef]
  48. Muralitharan, R.S.; Ramasamy, V. Development of Lightweight concrete for structural applications. J. Struct. Eng. 2017, 44, 1–9. [Google Scholar]

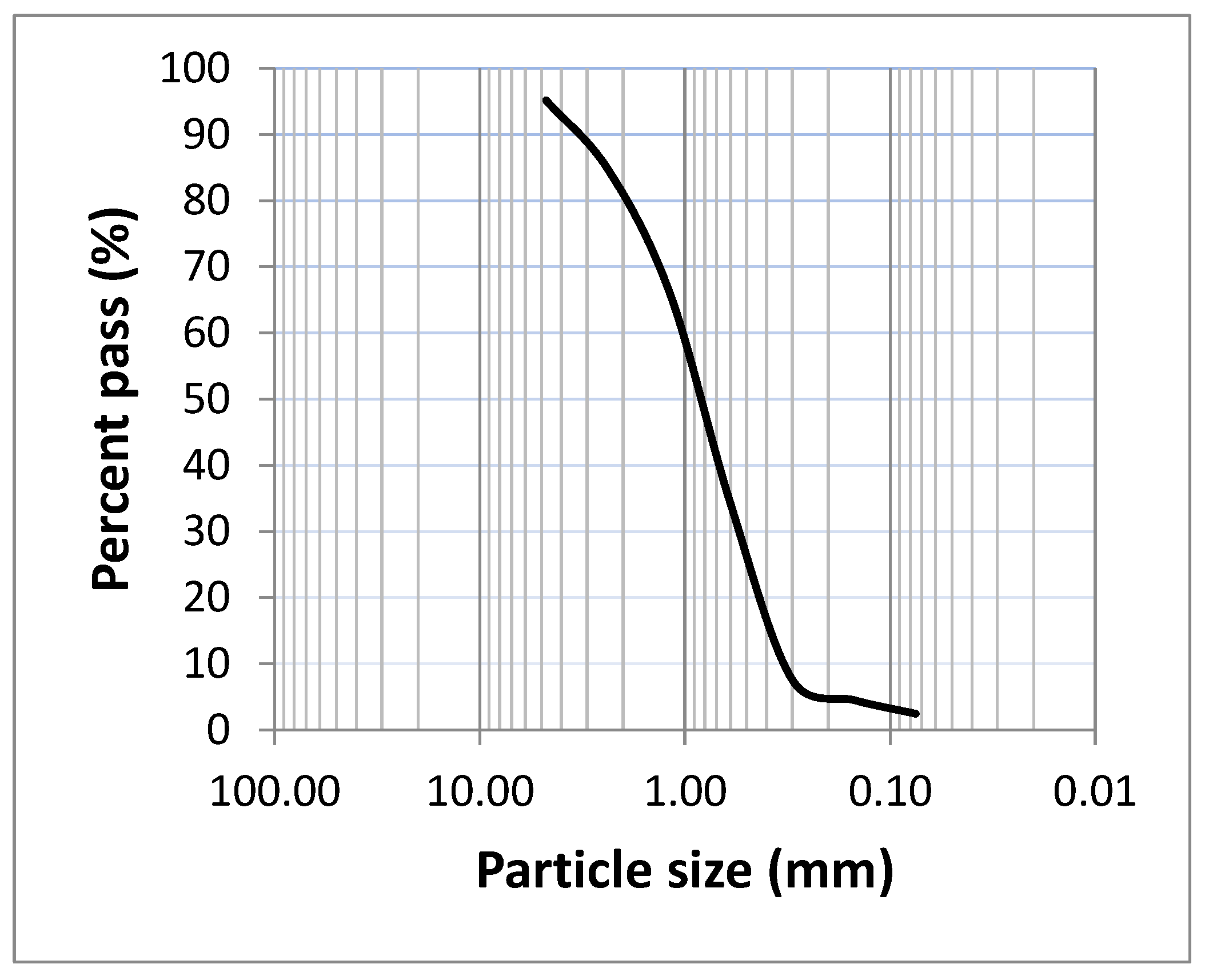

Figure 1. Particle size distribution of the used sand [23].
Figure 1. Particle size distribution of the used sand [23].
Fibers 10 00041 g001

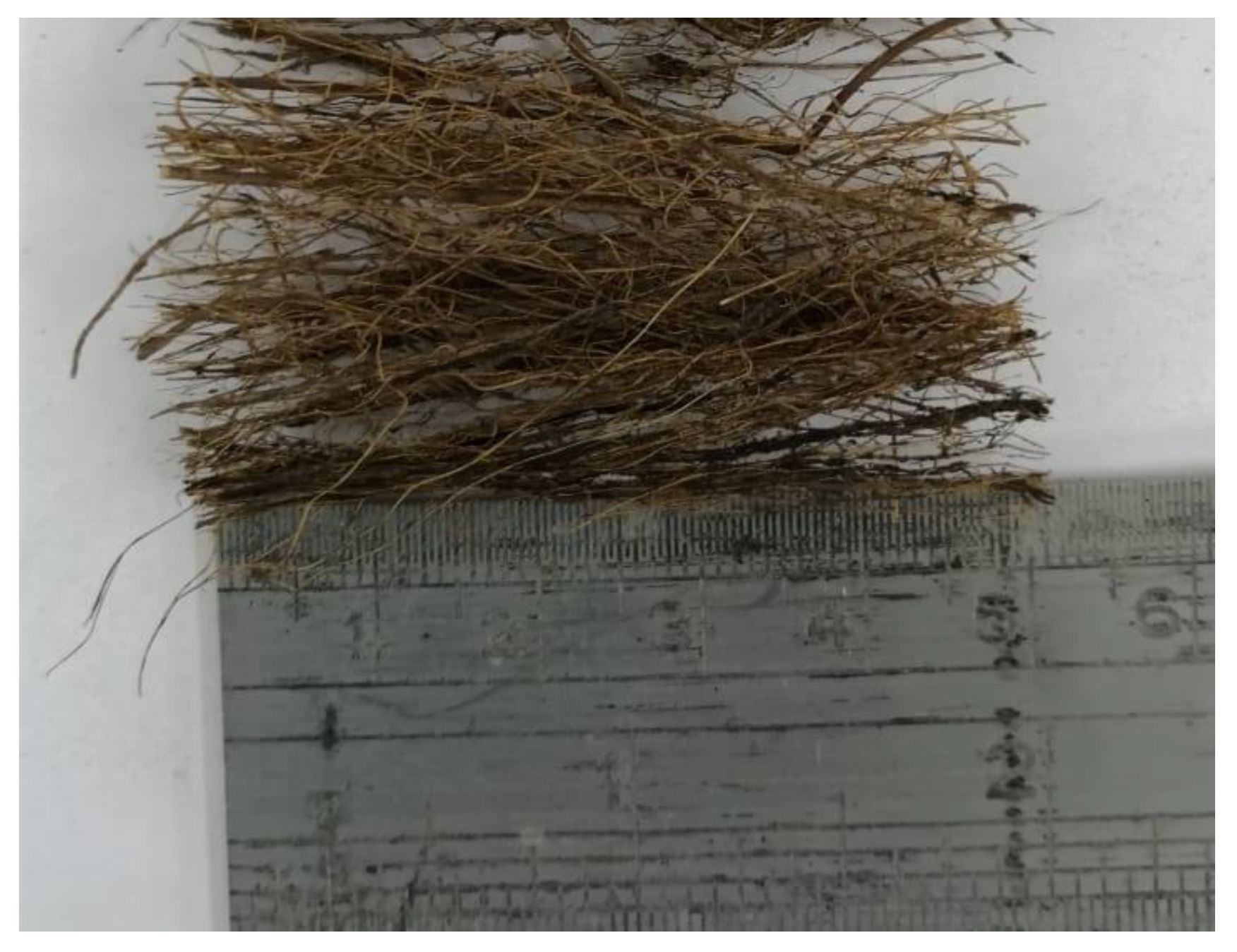

Figure 2. SDPMFs after preparation.
Figure 2. SDPMFs after preparation.
Fibers 10 00041 g002

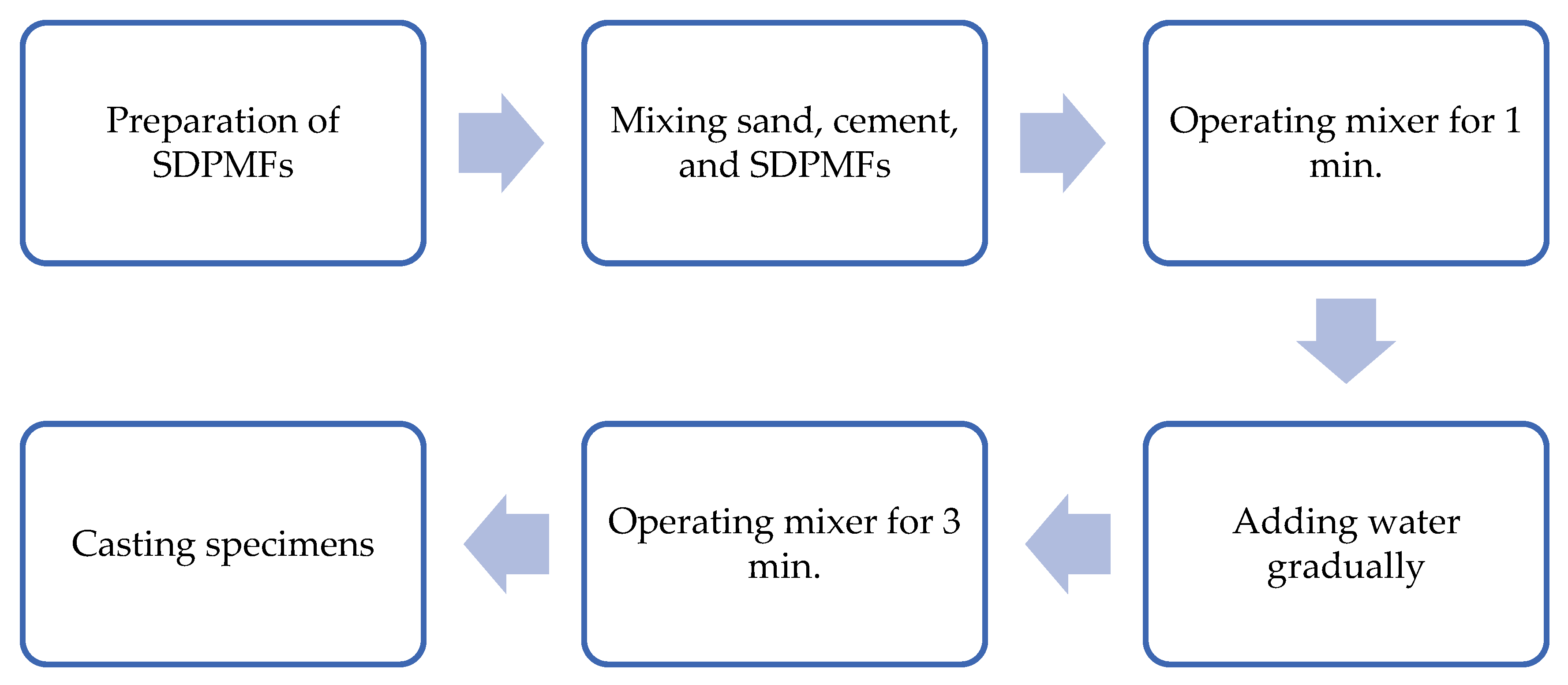

Figure 3. Mortars mixing procedure.
Figure 3. Mortars mixing procedure.
Fibers 10 00041 g003
Figure 4. SDPMFs in SSD condition.
Figure 4. SDPMFs in SSD condition.
Fibers 10 00041 g004

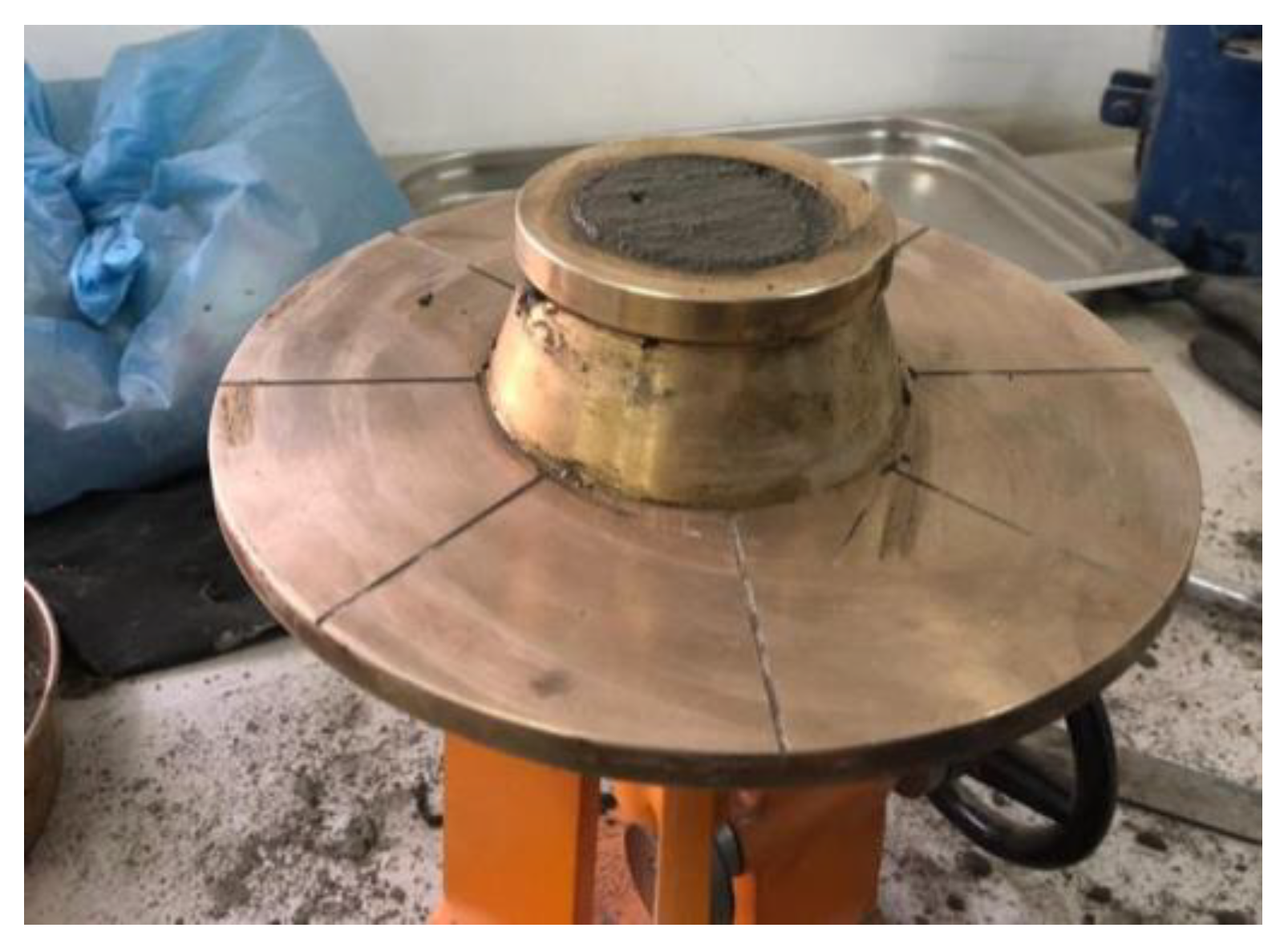

Figure 5. Workability test.
Figure 5. Workability test.
Fibers 10 00041 g005

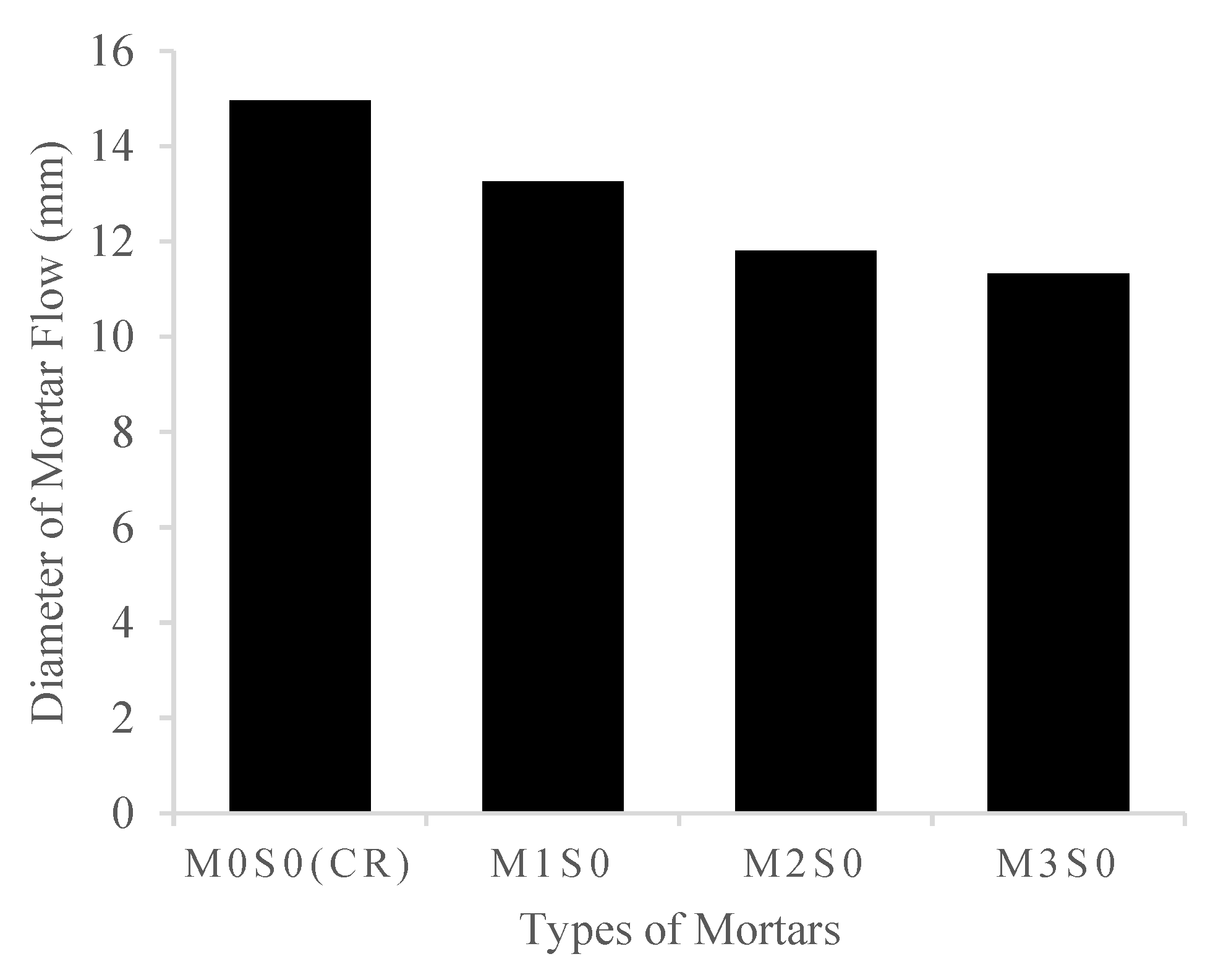

Figure 6. Effects of SDPMF content on the workability.
Figure 6. Effects of SDPMF content on the workability.
Fibers 10 00041 g006

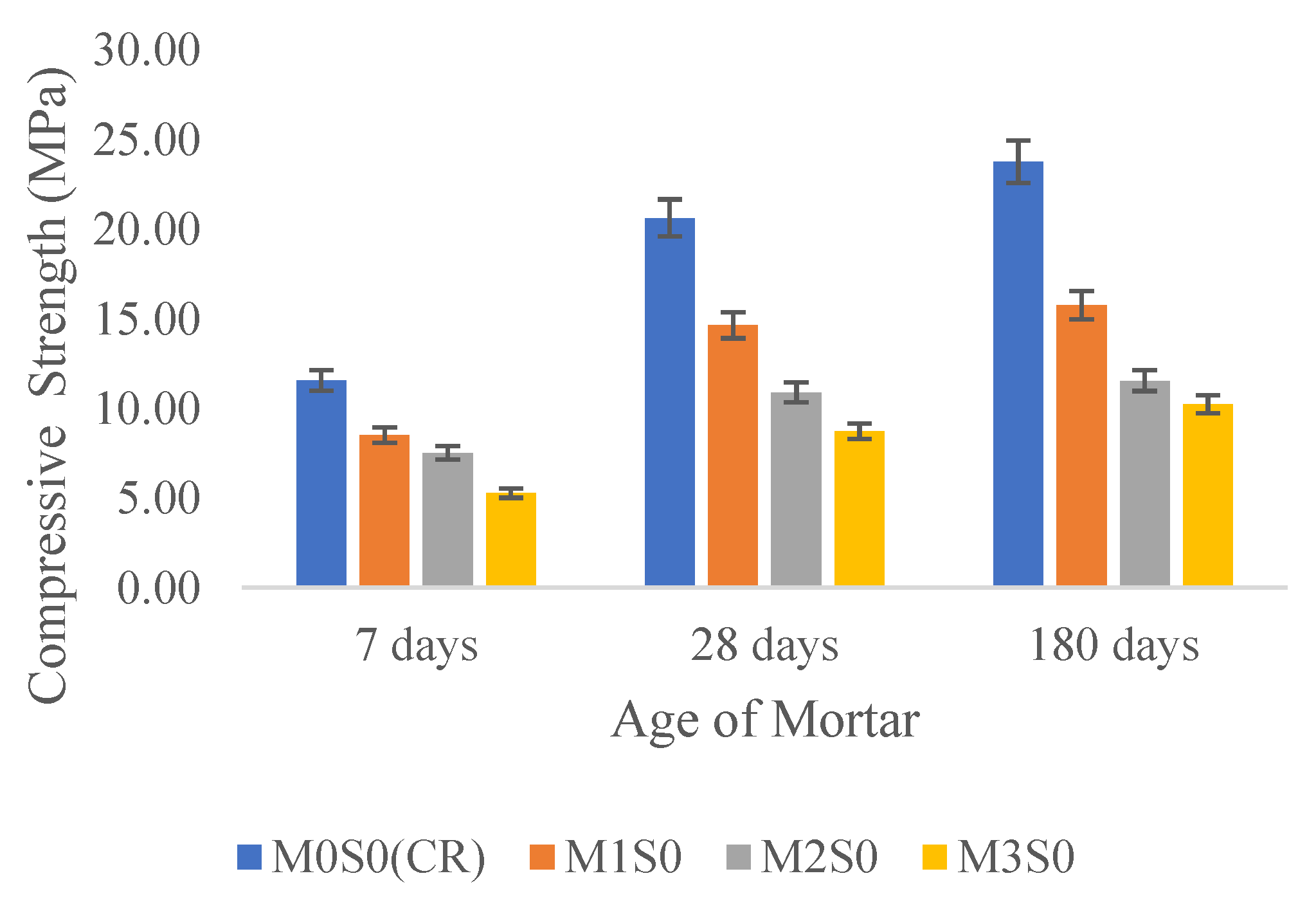

Figure 9. Effects of SDPMF content on mortars’ compressive strength.
Figure 9. Effects of SDPMF content on mortars’ compressive strength.
Fibers 10 00041 g009
Figure 10. Best fit curve of SDPMF mortars’ compressive strength.
Figure 10. Best fit curve of SDPMF mortars’ compressive strength.
Fibers 10 00041 g010

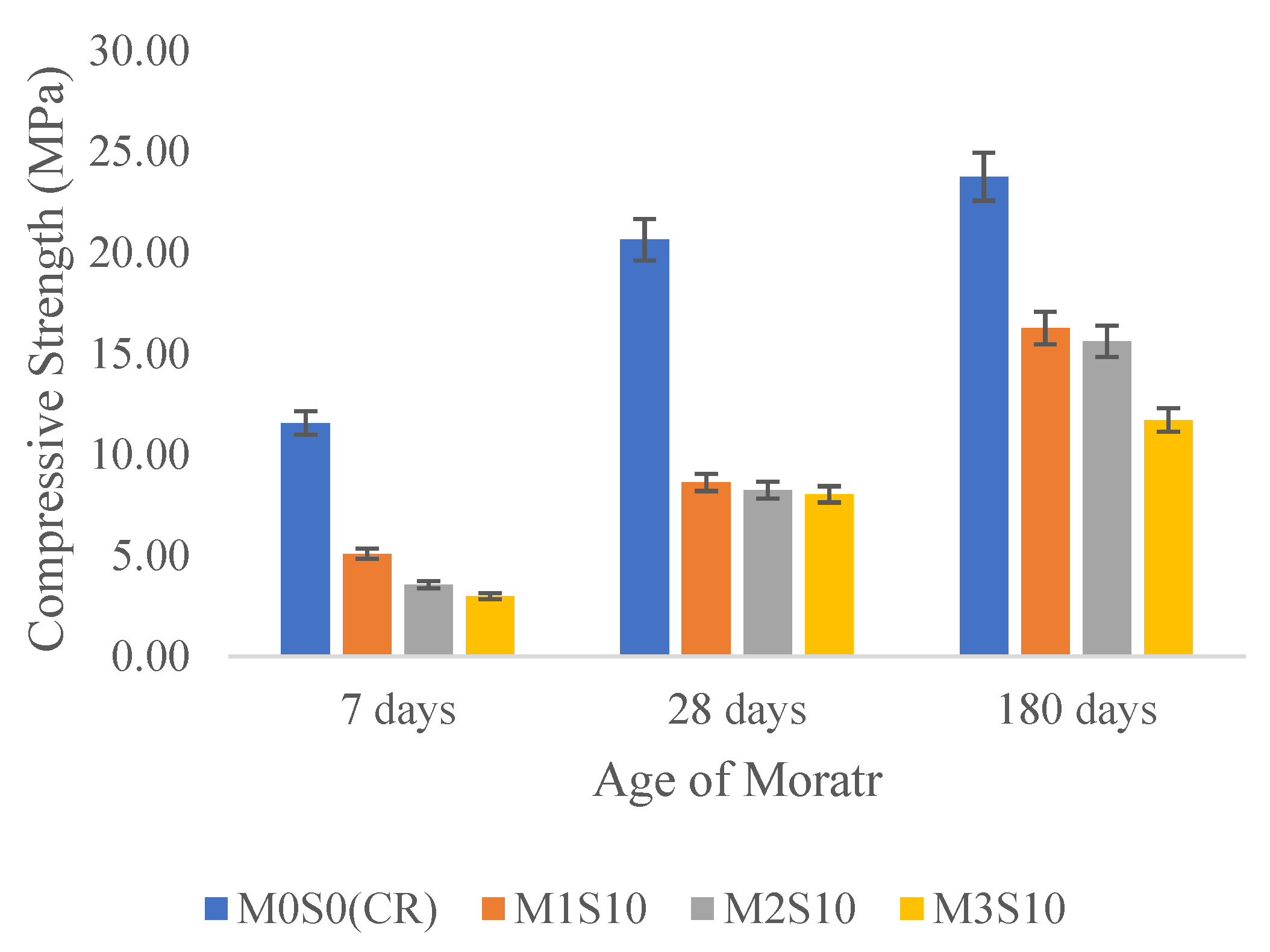

Figure 11. Effects of SDPMF content and 10% SF on mortars’ compressive strengths.
Figure 11. Effects of SDPMF content and 10% SF on mortars’ compressive strengths.
Fibers 10 00041 g011
Figure 12. Effects of SF content on the compressive strength of 1% SDPMF mortars.
Figure 12. Effects of SF content on the compressive strength of 1% SDPMF mortars.
Fibers 10 00041 g012
Table 1. Chemical composition and physical properties of SF.
Table 1. Chemical composition and physical properties of SF.
Compound CompositionContent (%)
SiO291.6
Al2O31.65
Fe2O30.99
CaO0.22
MgO0.30
SO30.07
Cl0.01
Na2O0.25
K2O0.17
LOI3.75
Relative density2.27
ColorGrey dark
Table 2. Mix proportion of mortars.
Table 2. Mix proportion of mortars.
MixtureSDPMF (%)SF (%)w/cBinder:Sand
M0S0(CR)000.51:2
M1S0100.51:2
M2S0200.51:2
M3S0300.51:2
M1S101100.51:2
M2S102100.51:2
M3S103100.51:2
M1S5150.51:2
M1S151150.51:2
M1S201200.51:2
Table 3. Physical properties of SDPMF.
Table 3. Physical properties of SDPMF.
SDPMF PropertyValue Range
Density (OD)951.78 ± 20.78 kg/m3
Absorption122.53 ± 8.24%
Table 4. Physical properties of the mixtures.
Table 4. Physical properties of the mixtures.
MixtureApparent Density (kg/m3)Absorption (%)Open Porosity (%)
ValueDev.ValueDev.ValueDev.
M0S02331.008.005.860.3712.010.70
M1S02354.0563.558.120.0714.992.18
M2S02342.8025.168.130.5716.001.07
M3S02357.419.328.150.3516.110.63
M1S102347.3120.609.030.9618.141.70
M2S102352.842.999.340.8617.531.28
M3S102322.996.3910.911.3520.192.06
M1S52279.3346.008.740.3114.773.48
M1S152331.3442.039.210.3217.111.32
Table 5. Compressive strength results.
Table 5. Compressive strength results.
Mixture7 Days28 Days180 Days
M0S0(CR)11.5620.6323.76
M1S08.5114.6515.76
M2S07.5210.9011.55
M3S05.298.7410.24
M1S105.088.6216.26
M2S103.558.2415.61
M3S102.978.0311.71
M1S55.477.3913.27
M1S154.138.9316.75
M1S203.449.8417.60
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Bamaga, S.O. The Influence of Silica Fume on the Properties of Mortars Containing Date Palm Fibers. Fibers 2022, 10, 41. https://doi.org/10.3390/fib10050041

AMA Style

Bamaga SO. The Influence of Silica Fume on the Properties of Mortars Containing Date Palm Fibers. Fibers. 2022; 10(5):41. https://doi.org/10.3390/fib10050041

Chicago/Turabian Style

Bamaga, S. O. 2022. "The Influence of Silica Fume on the Properties of Mortars Containing Date Palm Fibers" Fibers 10, no. 5: 41. https://doi.org/10.3390/fib10050041

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
