Additive manufacturing (AM) is a new paradigm for the design and production of high-performance components for aerospace, medical, energy, and automotive applications. This review will exclusively cover directed energy deposition (DED)-AM, with a focus on the deposition of powder-feed based metal and alloy systems. This paper provides a comprehensive review on the classification of DED systems, process variables, process physics, modelling efforts, common defects, mechanical properties of DED parts, and quality control methods. To provide a practical framework to print different materials using DED, a process map using the linear heat input and powder feed rate as variables is constructed. Based on the process map, three different areas that are not optimized for DED are identified. These areas correspond to the formation of a lack of fusion, keyholing, and mixed mode porosity in the printed parts. In the final part of the paper, emerging applications of DED from repairing damaged parts to bulk combinatorial alloys design are discussed. This paper concludes with recommendations for future research in order to transform the technology from “form” to “function,” which can provide significant potential benefits to different industries.

1. Introduction

Additive manufacturing (AM), also popularly known as 3D printing, is at the frontier of development for manufacturing diverse parts and has also been referred to as the third industrial revolution [1,2,3]. AM has an advantage over other conventional manufacturing techniques, making it possible to print complex shapes without the need for several conventional processing steps, such as expensive tooling, dies, or casting molds [3,4,5]. There are several reviews on AM covering different aspects from process dynamics to post-processing [6,7,8,9,10]. This paper focuses on one such type of AM process, popularly known as directed energy deposition (DED), (also more specifically as laser engineered net shaping (LENS™), blown powder additive manufacturing, laser metal deposition system, and directed laser deposition), which has attracted significant attention due to its ability to print metals and potentially any metal-alloy system, notably functionally gradient materials [11,12]. Another important application utilizing DED is the remanufacturing or repairing of a component to increase its lifespan and hence reduce environmental impact [12,13].
DED systems have a concentrated energy source and a stream of raw material, both intersecting at a common focal point, generally in the presence of an inert shield gas. The energy density generated at a particular point melts the raw materials in and around that spot, giving rise to melt pool formation. There are various types of DED systems, which include (but are not limited to): Powder-feed and wire-feed based DED (on the basis of the type of feedstock), melt based DED, and kinetic energy based DED (on the basis of the type of energy source). Melt based DED could be further subclassified as laser based DED, electron-beam based DED, plasma based DED, and electric arc based DED. The powder based DED system has been studied extensively in the literature and is the most commonly used metal DED technique. It predominantly uses a laser beam as the heat source. Wire based DED processes provide a lower resolution as compared to laser-beam powder based processes, but have a higher deposition rate and the ability to build larger structures [14,15]. They generally use an electron-beam, plasma, or electric arc as the heat source. Electron-beam based AM (EBAM), which has a high energy focused electron beam in vacuum, can fuse almost any metal. EBAM is commercialized by Sciaky, Inc. and it is mainly used for manufacturing near net shape parts [16]. Plasma based AM uses a controlled plasma source to melt the metal particles. This is a relatively new AM technology and is commercially being used by Norsk Titanium to build mainly titanium parts [17]. Electric arc based DED melts the wire feed to deposit the layers. Emerging technology, like metal big area additive manufacturing (mBAAM) [14], takes advantage of the principle of electric arc welding to print big parts. Kinetic energy based DED systems, often referred to as Cold Spray, use a converging-diverging nozzle to accelerate micron sized particles to supersonic velocities [18]. Beyond a critical impact velocity, micron sized particles adhesively bond to the substrate and build up material in the form of a coating as well free standing bulk components [19]. Figure 1 summarizes the different DED categories in the form of a flowchart.
This paper will focus on the powder based DED systems in detail. It covers sections on metal and alloy systems, emphasizing the potential of DED, modelling efforts and process variables (surface tension, Marangoni effect, dimensionless numbers, energy distribution in a DED process, process-microstructure relationships, dilution), common defects (porosity, solute segregation and changes in chemical compositions, printability of alloys), mechanical properties (tensile strength, hardness, fatigue, residual stress), DED process control and monitoring, determination of optimal processing parameters by establishing process maps and the regions where high amount of defects are expected, application, and emerging technologies (DED of metal parts in biomedical applications, welding and cladding, repair, bulk combinatorial alloy design, construction materials, and hybrid AM). The paper will conclude with an overview of possible future perspectives of the field.

Metal and Alloy Systems

DED has been used to print mainly functionally graded materials, metal-matrix composites, and coatings. Each system was developed for a targeted application (e.g., enhancing biocompatibility, improving oxidation resistance, mechanical, and tribological properties, interfacial strength, etc.). Table 1 summarizes selected material systems with an emphasis on the potential applications.

2. DED Process Variables and Modelling Efforts

2.1. Overview of Powder-Fed DED Process Physics and Thermal History

DED is a non-equilibrium processing technique, which has very fast cooling rates, often on the order of 103 to 105 K/s [55,56] for laser and electron beam energy sources. Major process parameters for laser based DED include: Laser power, laser beam spot size, powder or wire feed rate, scanning speed, carrier gas flow rate, clad angle, feedstock properties, and layer dimensions. Therefore, a diverse set of processing parameters coupled with the complex transport phenomena, including conduction of heat into the substrate, convection due to Marangoni effects, and radiation accompanied by the shield gas, lead to a difficulty in understanding the effect of these individual process parameters on the overall DED process. Figure 2 schematically shows the complex thermal history during the multi-layer DED process, and the trend of an increasing peak temperature with an increasing layer number due to the accumulation of heat in the system [57].
Modelling efforts are beneficial to complement experimental data. The model should be close to the real DED system, taking into account the transient temperature and heat flow, complex transport phenomena, heating and cooling cycles, solidification rate, etc. These in turn give important information about the microstructure, defects, texture, and mechanical properties [57]. Table 2 summarizes some important modelling efforts of the DED process in the literature.

2.2. Surface Tension and Marangoni Effect

The Marangoni effect is a convective heat transfer phenomenon, which affects the melt pool flow dynamics and indirectly contributes towards porosity, which is a major concern in DED processed materials. In 1982, Heiple and Roper [71] postulated the theory that Marangoni forces generated due to the differences in surface tension and temperatures along the melt pool lead to more spattering and circulation of the liquid melt pool. The movement is mainly from regions of high surface tension to low surface tension (γ), finally leading to variable melt pool penetration. The strength of the Marangoni flow for any DED process can be determined through the dimensionless Marangoni number (Ma) [72], as provided in Equation (1):
M a = d γ d T d T d x L 2 η α
where γ is the surface tension, dT/dx is the temperature gradient, α is the thermal diffusivity, L is the characteristic length, and η is the viscosity of the melt pool. The surface tension gradient (the slope of the graph) qualitatively governs the melt pool movement. Figure 3 schematically shows how the variation of the surface tension with temperature affects the melt pool geometry. Figure 3a shows how the melt pool length is small due to a negative surface tension gradient and signifies bulk turbulence flow in the melt pool. Figure 3b shows how the melt pool depth increases with a positive gradient of surface tension and surface turbulence occurs in the melt pool, which could also potentially trap undesired oxides in the bulk. Figure 3c shows the transition from a positive to negative surface tension gradient at a certain temperature, To. This transition also indicates a melt pool flow transition from surface turbulence to bulk turbulence. The surface tension and therefore the internal melt pool flow could be controlled, to a certain extent, using surface active elements. For example, in an Fe system, changes in the concentration of the surface-active elements, like sulphur and oxygen, were shown to modify the internal melt pool flow [72,73].
Besides the Marangoni flow force, other forces, like aerodynamic drag (outward drag forces caused by the plume formed above the melt pool), buoyancy (upward movements of the melt pool due to density changes caused by thermal gradients inside the melt pool), electromagnetic, and Lorentz forces (forces due to electric and magnetic fields generated by the source), may also be present during the DED process [72].

2.3. Dimensionless Numbers

Other than the Marangoni number, there are several other dimensionless numbers which enable capturing of the accumulative effect of various process parameters [74]. While these dimensionless numbers are not specifically developed for DED, they can capture the DED process variable relationships very well. Table 3 summarizes three such dimensionless numbers for laser based DED systems (these can be extended to other heat sources as well).

2.4. Energy Distribution in a DED System

During DED, there should be conservation of mass, momentum, and energy, like any other physical system. Therefore, keeping track of how the initial heat source energy is distributed during the process will be beneficial in further improving the DED process to reduce energy loss and maximize energy for melting powders. Calorimetric measurements of the energy absorbed by the substrate (QABS), energy absorbed by the powder (QDEP), energy reflected by the substrate (QREF), and energy lost by the powder (QLOST) due to evaporation and lack of fusion for DED of Ti-6Al-4V and Inconel were performed in the literature [77]. The important parameter is the bulk absorption coefficient (β), which gives the ratio of the energy for a particular component of energy (QABS, QDEP, QREF, or QLOST) with respect to the total energy supplied to the system (QIN). The energy balance equation is shown in Equation (2) and the corresponding bulk absorption coefficient, β, is presented in Equation (3) [77]:
β ABS + β DEP + β REF + β LOST = 1
where βABS refers to the bulk absorption coefficient due to QABS, βDEP refers to the bulk absorption coefficient due to QDEP, βREF refers to the bulk absorption coefficient due to QREF, and βLOST refers to the bulk absorption coefficient due to QLOST. From this study, it was experimentally proven that about 60% of the total initial energy was lost when using a laser as heat source, due to reflection by powders and also by powders not absorbing enough energy to melt.

2.5. Process–Microstructure Relationship

The energy source used during DED can be approximated as the Rosenthal solution of a moving heat source (laser, electron beam, plasma, or arc) on an infinite substrate. The microstructures obtained through DED can be predicted using the two important parameters: Thermal gradient, G (K/cm), and solidification front velocity (or interfacial velocity), R (cm/s). The relationship between G and R gives the thermal process maps [78,79]. Figure 4 shows graphs describing relationships between parameters, like G, R, arc length, undercooling, and supercooling. The mathematical relationships for the cooling rate, thermal gradient, and solidification front velocity are as follows (the reader could refer to [56] for a derivation of these equations):
Cooling   rate :   T t
Thermal   Gradient :   G = | T |
Solidification   front   velocity :   R = 1 G T t
where T is the temperature and t is the time. The melt pool circumference (MPC) length used in Figure 4 is the length of the circumference of the melt pool, and measurement starts from the bottom to the top of the melt pool in this study.
Some of the important trends derived from solidification front velocity and thermal gradient studies are:
  • Cooling rates as high as 13,000 K/s were recorded in the literature during in-situ process monitoring of Ti-6Al-4V with laser based DED [81]. The initial cooling rates and microstructures changed with an increase in the number of deposited layers. This may be due to the accumulation of thermal energy in the part as more layers are deposited. This is proven in a study of Ti-6Al-4V printed with laser based DED, wherein a martensite microstructure formed in the first layers slowly convert to a Widmanstaten microstructure as the layers build up [82].
  • According to the literature, the microstructure of laser based DED processed Ti-6Al-4V was columnar near the substrate (smaller MPC length) and equiaxed away from the substrate (higher MPC length) (due to differences in cooling rates), and there was a superheated melt pool during the process (almost 40%–50%) [81]. Figure 4a shows the relationship between undercooling and constitutional supercooling with respect to the MPC length.
  • Heterogeneous nucleation varies with respect to the scanning speed, powder feed rate, and heat source power as shown in Figure 4b. Increases in the scanning speed and powder feed rate or decreasing the heat source power decreases the thermal gradient, G. That leads to an increase in R and a higher amount of equiaxed structure in the part.
  • The ratio of G/R is an important parameter. G/R > 1 means a low rate of nucleation, due to a thermal gradient that is greater than the solidification front velocity, and G/R < 1 means a high rate of nucleation, due to a thermal gradient that is smaller than the solidification front velocity, as shown in Figure 4c.

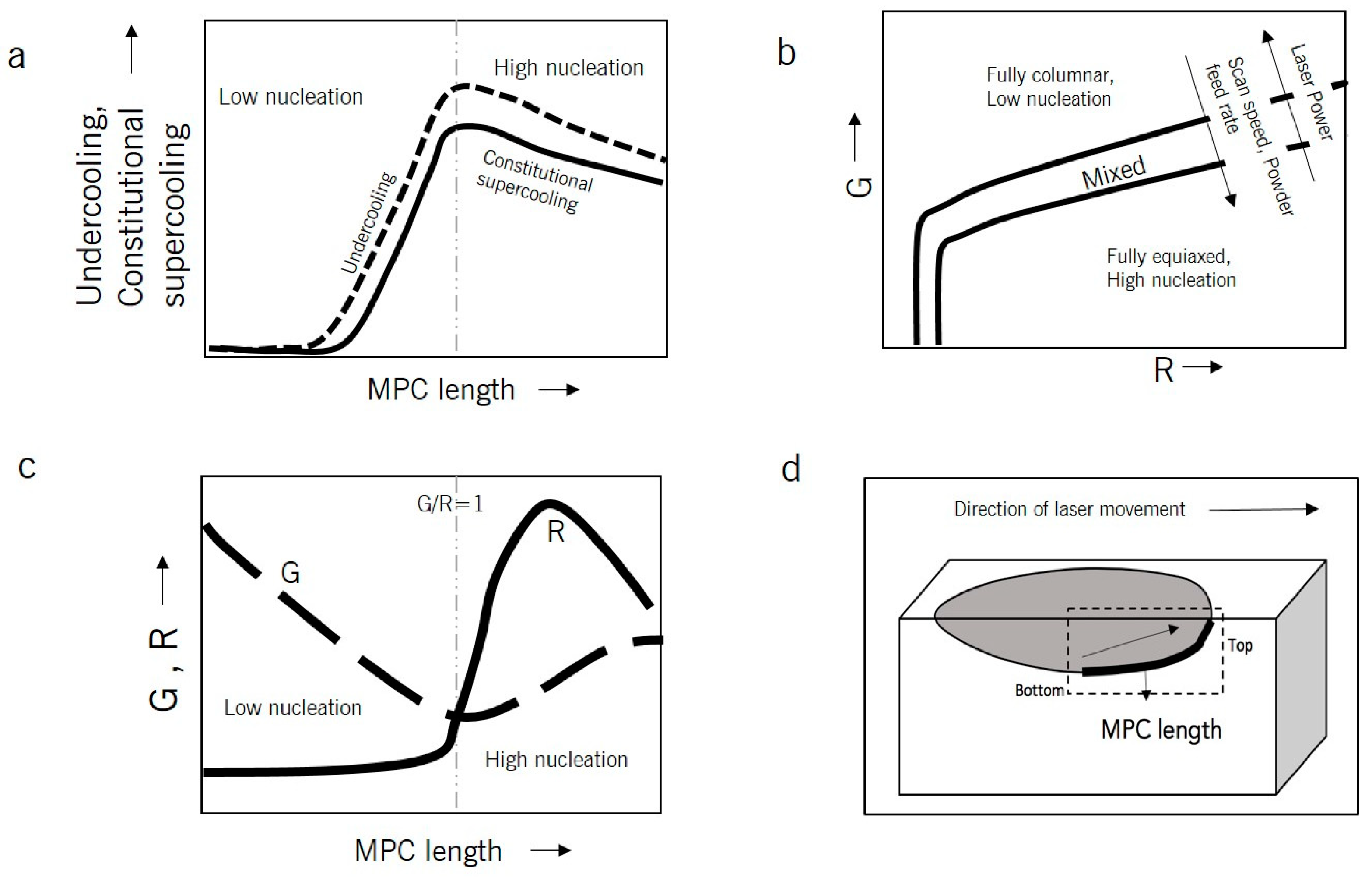

  • Figure 4d shows the MPC length, and increases in the value from the bottom to the top of the melt pool.
To conclude, as the MPC length increases, there is an increasing trend of undercooling and constitutional supercooling, leading to more columnar-to-equiaxed transition (CET), till the G/R ratio reaches 1. Therefore, CET is dictated by the thermal history and can be engineered according to requirements [80].

2.6. Dilution

DED involves the printing of subsequent layers of material to build a final part. There is heat accumulation due to multi-track and multi-layer deposition, and that will change the microstructure and final properties of the printed parts. A minimum level of metallurgical bonding is required between subsequent layers, which can be quantified using a dimensionless parameter called dilution. Dilution can be defined as:
D = d h + d
where d is the depth of the melt pool below the substrate level, and h is the height of the material deposited above the substrate level. A high value of h correlates to a higher powder flow rate or lower energy input (corresponding to low dilution and lack of fusion between different layers), whereas a high value of d is due to a lower powder feed rate or higher energy input (corresponding to high dilution and keyholing phenomenon). There is an optimum value for dilution, which results in a good metallurgical bonding [83]. Figure 5b shows the optimal dilution level in a metal-substrate system generally between 10% and 30%, which is the standard value adopted by several researchers [84], and Figure 5a,c shows the extreme cases of dilution (<10% and >30%, respectively).

3. Common Defects

Defects may arise in the material during manufacturing. It is important to know the cause of such defects and take effective measures to counteract them. The most common defects arising during DED are discussed in the following sections.

3.1. Porosity

Porosity is one of the most important defects, which is linked to mechanical properties of DED processed parts. There are two major types of porosities: Interlayer porosity and intralayer porosity. Interlayer porosity occurs due to a lack of sufficient energy input to melt the filler material (powder or wire), leading to un-melted regions. This happens near the substrate or between un-melted tracks, when the linear heat input (heat source energy/scanning speed) is decreased or the mass flow rate is increased or a combination of the two. Interlayer pores are usually large and irregular in shape and occur due to higher solidification cooling rates. Low dilution values also cause the occurrence of interlayer porosities. Intralayer porosity is linked to the use of inert shielding gas during the DED process, promoting gas entrapment. Intralayer pores are usually spherical in shape and occur at random locations, owing to vaporization leading to gas trapped porosities, and observed within regions having lower solidification cooling rates [82,85,86]. High dilution refers to the occurrence of intralayer porosities. Interlayer and intralayer porosities are schematically shown in Figure 6a,b, respectively. Porosity is also dependent on the initial powder characteristics and uniformity [87]. If the starting powders do not have a uniform size distribution, it will give rise to more porosity in the final build. Inherent porosity inside the powder particle also leads to defects in the final part [88]. Taking all these modes of porosities into account, it is important to control the shape and size range of powders, and also maintain optimal process parameters during deposition. Porosity can be measured both qualitatively and quantitatively. Some commonly used techniques include the Archimedes principle, X-ray computed tomography, and optical microscopy.
Another important parameter in the literature, referred to as the global energy density (GED), establishes a relationship between interlayer (lack of fusion) and intralayer (keyholing) porosity:
GED = P v d
In Equation (8), GED is defined for laser based DED, where P is the laser power, v is the scan speed, and d is the laser spot size. GED can be easily correlated with dilution. As shown in Figure 6c, lower values of GED lead to less dilution (the negative slope), meaning more propensity to a lack of fusion defect, whereas higher values of GED lead to high dilution (the positive slope), meaning more tendency to form keyhole porosity [85].

3.2. Changes in Chemical Compositions due to Solute Segregation and Loss of Alloying Elements

When several layers are deposited during AM, it gives rise to the redistribution of solute particles, leading to the segregation and formation of heterogeneous microstructural bands, also known as heat affected zone (HAZ). This happens due to differences in the compositions at the interfaces of the substrate and deposit. The amount of solute segregation also depends upon the solidification cooling rates, with higher solidification cooling rates having a higher probability of a solute trap. These changes give rise to compositional inhomogenity along the printed material [89,90]. Another phenomenon, the loss of alloying elements, occurs due to the preferential vaporization of a few elements in the alloy during DED, due to differences in the boiling points of individual elements. For example, in a study of printed 304L stainless steels, compositional gradients developed along the build direction due to a greater loss of volatile elements (e.g., Cr, Mn, and Ni) as more heat built up in the system. The loss of these austenite stabilizers led to an increased hardness in the build direction due to the presence of a more martensitic phase in the upper layers [91]. The Langmuir equation can quantitatively predict the vaporization flux of the alloying elements, given by [65]:
J i = λ P i 2 π M i T
where Ji is the vaporization flux of alloying elements, Mi is the molecular weight, Pi is the vapor pressure of the alloying elements, T is the temperature, and λ is a positive fraction, which estimates the condensation of some vaporized atoms. Consecutively, the mass of material vaporized can be estimated by:
Δ m i = L A s J i v
where Δmi is the mass vaporized, L is the track length, As is the melt pool area, v is the scan speed, and Ji is the vaporization flux of alloying elements. An example where the above equations were applied to estimate the amount of material lost during AM inferred that Al in Ti-6Al-4V is most susceptible to composition changes during DED, followed by Mn in stainless steel 316, with the least susceptible being Cr in Inconel 625 [92].

3.3. Printability of Alloys

Not all alloys are suitable to be processed by AM. Quantitatively, the printability of alloys could be defined using a dimensionless parameter known as thermal strain (Equation (11)). Lower values of thermal strain cause lesser residual stress in the material, thereby increasing the printability of the alloy by AM:
ε * = β Δ T E I t F ρ H
where β is the bulk thermal expansion coefficient, ΔT is the change in temperature, t is the deposition time, H is the heat input, EI is the flexural rigidity, F is the Fourier number, and ρ is the density of material (the derivation of this particular equation has been performed in literature [92]). So, with an increase in βΔT, t, and H, there is an increase in the thermal strain, whereas an increase in EI and F can decrease thermal strain.

4. Mechanical Properties

4.1. Tensile Strength

The tensile strength and ductility of printed parts is dependent on the DED process parameters and the microstructure. There are several instances from the literature, which record varying trends of tensile behavior and ductility for the same material printed by DED. For instance, in one study, the tensile strength of DED fabricated Ti-6Al-4V was found to be similar to wrought manufactured Ti-6Al-4V, but with reduced ductility [93]. Another study showed that DED processed Ti-6Al-4V has a higher tensile strength due to a finer microstructure as compared with wrought alloy, but still exhibits lower ductility, due to a combination of the fine microstructure and the presence of internal defects [94]. Yet another study on DED processed parts showed an anisotropic porosity and tensile behavior in three different orientations, due to microstructural anisotropy [95]. The same study also demonstrated that with a 0.0124% increase in oxygen and decrease in the alpha lath width of DED processed Ti-6Al-4V, the yield strength and ultimate tensile strength (UTS) increased without any change in ductility. Post-processing, like heat treatments or hot isostatic pressing, tends to improve the ductility with a slight decrease in the tensile strength [94].

4.2. Hardness

Microhardness values can change along the build direction due to variations in the microstructure. The microhardness is higher near the first and the last layers, and relatively lower in the central layers. This variation could be attributed to the cyclic thermal history during the DED process. There is a higher heat buildup in the central layers, resulting in lower microhardness values [96]. A higher hardness and finer microstructure was reported in the literature by increasing the substrate thickness (more substrate mass acts as a faster heat sink). Increasing the substrate temperature decreased the hardness, due to a decrease in the thermal gradients and cooling rates, which can lead to a coarser microstructure. A higher interlayer dwell time is also known to increase the hardness, due to steeper thermal gradients [82]. Hardness studies by Zuback et al. stated that post processing of AM parts (like heat treatment or aging) or alloy selection could give more control over hardness, rather than changing the DED process parameters [97].

4.3. Fatigue

Fatigue is an important criterion for determining the structural integrity of materials printed by DED. The fatigue properties of AM parts have been studied by several groups [98,99,100] and recently reviewed by Bian et al. [101]. Fatigue is influenced significantly by the microstructure and defects [102]. In DED processed parts, the fatigue life can be estimated by determining the fatigue crack growth and number of probable fatigue initiation sites (or pores) [9]. Another fatigue initiator is un-melted powders, which could subsequently reduce the fatigue life by an order of magnitude [103]. In-situ high energy X-ray microtomography tests for fatigue crack propagation data at Argonne Photon Source (APS) were correlated with fatigue data from other conventional fatigue testing techniques (i.e., direct current potential drop techniques and fracture surface striations) [93]. It was found that fatigue crack growth was mostly in plane, with some cracks propagating towards the direction of tensile force. The crack growth rate was found to vary along different directions, and was also location dependent [93]. As of now, there is still a lack of consistency in the fatigue behavior reported by several authors. For instance, a study of LENS™ processed Ti-6Al-4V found a better high cycle fatigue life with respect to cast Ti-6Al-4V [104], while another study found a similar high cycle fatigue life for both LENS™ and wrought materials [103]. Another study stated that as-deposited DED shows similar properties to those of cast Ti-6Al-4V, while heat-treated DED Ti-6Al-4V has similar properties to those of wrought Ti-6Al-4V [94]. Hot isostatic pressing (HIP) improved the fatigue life of DED parts, by closing the porosities inside the parts [105]. As fatigue data is crucial to understanding the damage tolerance of structural materials, a lot more research is required in this field to establish accurate predictions of fatigue properties.

4.4. Residual Stress

Residual stress (RS) is generated during DED or any other metal AM technique due to the presence of steep thermal gradients between the heat source and the surrounding material. RS has the ability to damage the printed parts, due to distortion and cracking. RS is different at different locations in the printed metal. Studies have shown that residual stresses near the surface are tensile in nature, while the ones in the center are compressive stresses. RS tends to be higher when they occur between dissimilar materials [56]. Maximum RS was observed at the substrate–deposit interface. RS in metal AM can be broadly classified into two types based on the length scale: On the macroscale and on the microscale and nanoscale [106]. RS measurements on the macroscale are most widely used and can be conducted using non-destructive techniques, like X-ray diffraction and neutron diffraction [89]. Different methods can be used to relieve or reduce residual stresses. The most common techniques are: Preheating the substrate or preheating the initial feedstock to decrease the steep thermal gradients; using in situ process monitoring with feedback control to tune the process parameters on the fly; or using ex-situ post processing techniques, like heat treatment, to relief RS [106].

5. DED Process Control and Monitoring

Controlling the DED process is complicated due to the potential involvement of more than one type of material and also due to high build volumes, making it prone to defects. Also, the majority of users rely on expensive and time-consuming techniques, such as multiple experimental runs, to define optimized process parameters. The National Institute of Standards and Technology (NIST) highlights this issue and acts as a catalyst to resolve the issue of non-uniformity in printed parts by developing better process monitoring protocols for faster industrialization of DED [107]. For example, porosity control in a DED system is crucial, as it directly affects the structural integrity of the part. Some efforts made towards DED process control are tabulated in Table 4. However, these studies do not provide comprehensive information on how the material’s thermo-mechanical properties change dynamically during the process. Hence, there is a need for the application of robust scientific techniques which could counter these limitations and help us monitor material related properties dynamically. Recent developments in quality monitoring includes high-energy X-ray synchrotron studies of DED. These encompass: High energy synchrotron X-ray source and high speed imaging camera used in tandem to detect the in situ melt pool geometries and deduce the phase transformations of Ti-6Al-4V [108]; a piezo driven powder delivery in conjunction with a laser heat source to investigate the powder–melt pool interaction during printing of Ti-6Al-4V [109]. These studies provide insights into the DED process physics, but are still far from mimicking all the components in a real DED system. Hence, there is still lack of data for real industrial DED systems and future research in this area is required.

6. Determination of Optimal Process Parameters for Laser Based Powder-Fed DED

DED is an emerging field in the area of metal AM, and our goal was to create efficient process maps which provide a holistic picture of the DED process parameters. This is expected to save the user time, money, and effort to design their experiments. Inspiration was taken from the work of M. Thomas et al., who created normalized process diagrams for selective laser melting using dimensionless numbers [120]. However, DED has an additional parameter of the powder feed rate. After scrutiny, the linear heat input and powder feed rate were selected as primary parameters to make the process maps. The corresponding equations for these parameters are as follows:
Linear   heat   input = P v
where P is the laser power, v is the scanning speed of the laser, and:
Powder   feed   rate = M   t
where M is the total mass of the powder and t is the time to deposit powders. The linear heat input is a standard parameter which has been used often in the literature, normalized using the ratio of the two fundamental parameters: Laser power and scanning speed [74]. The linear heat input can be used for any range of values for the power and scanning speed, and it has been proven experimentally that the same linear power density gives similar properties [121]. Some previous studies have attempted to build DED process maps, based on the linear mass density [122,123], where:
Linear   Mass   Density = M t v
However, the linear mass density is not a robust parameter, as it fails to consider the influence of the effective residence time of the laser beam spot per unit volume of the powder feed. A higher scan speed or a higher powder feed rate will result in a lower effective residence time of the laser spot per unit volume of powder. To understand the consequences due to a less effective residence time, consider two extreme cases of process parameters, one having a high speed and high mass flow rate, and the other having a low speed and low mass flow rate. Even though both cases produce the same value of linear mass density, their properties are significantly different [122]. The high speed and high mass flow rate case will have worse properties due to the much lower effective residence time. To counteract such problems associated with the linear mass density and to be consistent irrespective of the varying range of values, the linear heat input was chosen to construct process maps.
The other unique DED parameter is the powder feed rate, which is not applicable for other AM systems, like powder bed fusion, selective laser melting, etc. Powder feed rate values will determine how much powder is transferred to the laser spot area. The powder catchment efficiency varies, depending upon process parameters, like the feed rate, carrier gas flow rate, particle size, and velocity, etc., and it determines the percentage of the total powders that gets inside the melt-pool [59]. A material utilization efficiency of about 70% to 90% was reported for DED of Ti-6Al-4V powders [124]. Insufficient heat input or a very high powder feed rate also leads to unmelted powders.
A graph of the linear heat input versus the powder feed rate is plotted using selected data points from the literature, as listed in Table 5. The criterion for the selection of these specific data points was on the basis of their corresponding values of dilution. As mentioned in Section 2.5, about a 10% to 30% dilution represents a good amount of metallurgical bonding between subsequent layers (the clad dimensions are related to the scanning speed and powder feed rate of the DED process. These consecutively affect the contact angle, which determines the bonding of the deposit to the substrate, and overall, these quantities can be understood through the dilution parameter). However, there might be exceptions to the optimum dilution range. For example, Ti-15Mo alloy requires higher values of dilution to achieve optimal conditions due to the refractory nature of the material. Wherever no information was given about the optimal dilution values, it was considered to have an optimal dilution of 10% to 30%. Qualitatively, if the dilution level goes above 30%, it might lead to keyholing or below 10% might lead to a lack of fusion, and both cases are considered to be outside the optimal processing range. Another region on the process map is identified, called the mixed-mode porosity region, that occurs due to the combination of both keyholing and a lack of fusion. The high linear heat input is excessive for the upper layers of the powders, but due to the high feed rate, the heat input does not melt the bottom layers very efficiently (shielding by the powders). As a result, the top powder volume experiences keyholing and the bottom powder volume experiences a lack of fusion. A gas tungsten arc welding study defined this mid-porosity region in the literature [125]. This unique resemblance can be attributed towards the similarities between the welding and DED processes.
The graph shown in Figure 7 gives the optimal processing ranges for the alloy systems, like Inconel, Ti-6Al-4V, H13 Tool steel, Fe, Ti-15Mo, and some Ni-Cr alloys. From the graph, three regions which do not contain any optimal data points are observed. It can be hypothesized that these regions are due to three modes of increased porosity formation in the material: Keyholing (due to a high linear heat input and low powder feed rate), lack of fusion (due to a low linear heat input and high powder feed rate), and mid porosity zone (due to an appreciably high linear heat input and high powder feed rate contributing to mixed-mode porosity). These regions have been defined up to a linear heat input of 400 J/mm and a powder feed rate up to 25 g/min. Such regions are valid for most of the metal-alloy systems that have been studied.

7. Applications and Emerging Technologies

This paper discussed the physics of DED technology and established process maps, which will be useful in various research fields as well as industries. This section lists some applications, both common in other metal AM techniques, as well as ones which are unique to DED, aiding the readers to understand the diverse functionalities of DED.

7.1. DED Metal Parts Used in Various Biomedical Applications

It is advantageous to produce porous implants using DED as compared to conventional casting methods: It is possible to alter the mechanical properties simply by changing the orientation or geometry of the build; it is possible to incorporate different materials together and obtain the optimal properties through a functionally graded material; and it is much easier to custom build the implants due to specific patient requirements. The most common materials used for biomedical applications are Ti and its alloys, Co based alloys, 316L stainless steel, and Ni-Ti based alloys. Additive manufactured parts have gained prominence in the orthopedic and dental implant industry. Biomedical applications garnered a revenue of 16.4% of the total AM industry in 2012 [10]. This shows promising metal DED applications in the biomedical industry, with a growing trend in the future, specifically in dental [142], orthopedic, and cardiovascular [143] applications. Biocompatibility tests on porous Ti-6Al-4V made with LENS™ proved the capability of cell growth on implants having a pore size of 200 μm or larger [144]. Also, in-vivo biocompatibility studies with porous Ti-6Al-4V processed by DED showed that a pore volume fraction of 0.40 (upper limit) can accelerate the healing process through biological fixation [144].

7.2. Welding and Cladding

Conventional welding leads to high RS at the interfaces, especially for the welding of dissimilar metals. This might lead to early failures, and the results could be catastrophic. DED can be used to change the composition as a function of the position, facilitating a smooth transition from one joint to the other. This could be achieved by designing a gradient path that avoids the unwanted phases determined from multi-component phase diagrams [145]. This will reduce the RS and improve the mechanical integrity of the joints [146,147,148,149,150,151,152]. Cladding is generally used to form corrosion resistant protective coatings on substrates or to improve the tribological properties [56,153,154]. There is also an added advantage of using DED for cladding two dissimilar materials, due to the possibility of using functionally graded alloys. Another useful cladding technique is multi-axis cladding, making it possible to deposit layers at any angular axis. This functionality is a great advantage of DED over other AM systems [56,155,156,157].

7.3. Repair

Repairing (or remanufacturing) is essential to improve the life cycle of parts and to restore their functionality. This also leads to a reduced environmental impact, due to less material and energy wastage [12,13]. DED is a well-known repair technique, with the parts possessing good metallurgical bonding and exhibiting good post-repair mechanical properties [4,158]. Some studies establishing DED as a standard repairing technique in industries include: Repairing a gas-turbine blade using a Ni based superalloy delivered through a co-axial powder feeder [159]; repairing steam circuit parts at thermal power stations, using deposition of Co based alloys to maintain high temperature mechanical properties [160]; and repairing of Ti-6Al-4V aero engine parts using Ti-6Al-4V powders [161].

7.4. Bulk Combinatorial Alloy Design

It is possible to design alloys with compositional gradients using DED and this functionality is a unique characteristic which distinguishes DED from other AM systems. For example, the Ti-6Al-4V to V gradient and 304L steel to Invar 36 gradient were processed in the literature using DED. The aim was to successfully design the gradient path such that the unwanted brittle phases could be avoided in the microstructure, which would eventually give better mechanical properties for the printed parts [145]. This was done using multi-component phase diagrams. Another study used Cr-V-Mo hot working tool steel and Ni based maraging steel as base materials, with varying ratios of these two materials [162]. It was hot rolled and subsequently characterized, enabling high throughput probing of important alloy blends. DED processed high entropy alloy (HEA) AlCrFeMoVx (x = 0 to 1) was also studied in literature, to assess the composition–microstructure–hardness relationships [163]. High hardness was observed with increasing V, due to the high V solubility in this HEA leading to solid solution strengthening.

7.5. Construction Materials

AM, and in general DED, has good potential in the construction industry, but has its fair share of challenges, as structural members are usually quite big to be built using AM. Nonetheless, it would be advantageous to build highly specialized parts by exploiting this technology. Conventional casting leads to prismatic structures (uniform microstructures). With DED, engineered compositional and microstructural gradients in the structural parts are possible, which might give superior mechanical properties. An important thing to note is that the construction industry contributes to about 30% of greenhouse emissions in total, which could be reduced by partly adopting AM for the mass production of specialized parts [164].

7.6. Hybrid Additive Manufacturing

DED printed parts have several problems associated with it, like RS, lack of surface finish, etc., and to address these challenges without separate post-processing, several hybrid AM systems have been developed. Hybrid CNC-AM systems fully integrate the capabilities of both additive and subtractive manufacturing, which can be further exploited to increase productivity and competitiveness in the market. The parts produced by this hybrid method are precise even when produced in large-scale, due to the post-processing techniques integrated into a single system, without the need for separate machining. Hybrid manufacturing is still a relatively new technology and requires a lot more research for acceptance into the market. Therefore, the most important steps to be taken in the direction of improvement of such machines would be process optimization strategies along with developments in software integration [165]. Other secondary processes that complement the performance of DED parts (to name a few) are: Inter-pass rolling [166] and Ultrasonic Vibration Assisted LENS™ [167], both used for grain size refinement to enhance the mechanical properties of the parts.

8. Summary and Outlook

There are many far-from-equilibrium and highly dynamic phenomena during DED due to extreme heating and cooling rates. These include dynamic melt pool, melting and vaporization of powder particles, rapid solidification, and phase transformation. Such transient events often result in a large scatter in mechanical properties of printed components due to many complex interactions, leading to unwanted phase transformations and grain structures, residual stresses, and porosities. Further studies on establishing a correlation between composition, process parameters (powder feed rate, laser power, and velocity), process signature (melt pool stability and dimensions), and the resultant microstructure, pore content, residual stresses, and macroscopic properties will be extremely beneficial to the advancement of this technology. It is expected that the process physics of alloy systems and composite systems would be different and future studies are required in each area both experimentally and computationally.
The major contribution in this paper was the establishment of process maps for DED, after compiling the available literature. Researchers will be able to use this map to predict their preferred operating ranges for different alloy classes, but further work is required to extend our study to more extensive material systems. Hybrid AM technologies were discussed toward the end of this paper. These are relatively new approaches to overcome some of the limitations of AM. Further research is required in this area to mature these technologies beyond the current state of the art.


This research received no external funding.
