The Effects of an Interlayer Debond on the Flexural Behavior of Three-Layer Beams

Abstract

Debonds at the interfaces between layers of multilayered systems make the degree of the composite action reduce. As a consequence, the global stiffness of such composites decreases. In order to investigate this reduction, even simplified analytical models are preferable to numerical analyses. This paper analyzes the flexural response of a three-point bending three-layer beam having a debonded portion at the upper interface to investigate the effects of the interlayer debond on the flexural stiffness of the three-layer beam and to examine the feasibility of detecting the presence of possible manufacturing or in-service flaws. A more general model proposed and validated previously by the author was specialized to solve the equilibrium problem considered. A parametric analysis was then performed on varying the model parameters and evaluating the maximum deflection to compare with that for perfectly bonded layers as a measure of the reduction of the flexural stiffness due to the presence of the debond. The numerical results obtained show that the flexural behavior of the sandwich beam under consideration is affected strongly by the length of the debond but only moderately by its position along the interface unless the outer faces are quite stiffer than the core.

1. Introduction

Composite beams consisting of structural elements connected together at the common interfaces by appropriate mechanical devices or adhesive joints are widely used in many practical applications, in which the use of materials with unique properties is desirable. Laminated and sandwich beams are only some examples of the employment of multilayer composite beams to develop lightweight structures with high flexural stiffness and strength.

Such enhanced performances depend not only on the mechanical properties of each layer but also on those of the connections that force the parts to act together as a composite, as well as on the geometry of the beam. In such structures, manufacturing flaws as well as in-service debonds at the interfaces between layers can be dangerous, because they lead to a reduction of the degree of the composite action and of the global stiffness and strength of the system as a consequence. Failure can occur even if each element behaves elastically. The investigation of such an additional collapse mechanism is, then, of great importance for the optimal design of composite systems.

This paper deals with the investigation of the effects on the mechanical response of composite systems of a partial composite action between their elements for a prescribed loading condition. In order to do this, even simplified analytical models are preferable to numerical analyses performed for specific geometry, material properties, and interface behavior. In particular, the attention is focused here on the flexural behavior of three-layer beams. This has been the object of some studies in the literature. Starting from the pioneering works by Goodman and Popov [1], McCutcheon [2], and Chui and Barclay [3], other models have been developed (see, e.g., [4,5,6]). Among others, Monetto [7] solved explicitly the problem of partial interaction in three-layer beams with interlayer slip and stepwise linear interface law. This formulation builds on previous work [8] on two-layer composite beams and permits one to derive explicit expressions, having general validity, for all static and kinematic variables of the problem. In spite of its simplicity, this analytical solution can be employed to analyze the response of composite beams for different boundary and loading conditions, also inducing irreversible processes of progressive interfacial debonding. Among more recent papers, References [9,10,11,12,13] present other analytical solutions but for particular geometries or boundary and loading conditions.

In this paper, the analytical solution of the problem of partial interaction in three-layer beams proposed in [7] was employed. Namely, this more general model, proposed previously by the author and validated with many results from the literature for different boundary and loading conditions as well as for interfaces behaving nonlinearly, was here specialized to a specific problem. This is central to achieve the main goal of the present work: The investigation of the effects of an interlayer debond on the flexural stiffness of three-layer beams, as a feasibility study for detecting the presence and possibly determining the extension of possible debonding during the fabrication or employment of a composite beam.

The case study of a sandwich beam simply supported at both ends, subjected to a point load at center and with a debonded portion along the upper interface, was considered. A parametric analysis was then performed on varying the geometrical and mechanical properties of the layers, as well as the debond length and related distance from one end of the beam. The maximum deflection at midspan was then evaluated and compared with that of the beam composed of the same layers but perfectly bonded to measure the reduction of the flexural stiffness due to the presence of the debond, which causes an increase in the displacements as a consequence. The numerical results obtained show that the flexural behavior of the sandwich beam under consideration is strongly affected by the length of the debond but only moderately by its position along the interface unless the outer faces are quite stiffer than the core. This occurs for high face Young’s modulus and/or thickness.

The paper is organized as follows. In Section 2, the composite beam analyzed as a case study to obtain the numerical results is presented; furthermore, the related equilibrium problem is posed; finally, the procedure to employ the explicit functions for all the kinematic and static quantities characterizing the mechanical response of the beam and to determine the arbitrary constants contained in such functions is detailed. The numerical results of the parametric analysis performed are shown and discussed in Section 3, whereas final additional conclusions are drawn in Section 4. In Appendix A, firstly, a brief statement of the main points of a more general model formulation and related fundamental solution detailed in [7] is given; secondly, the procedure to specialize such a more general formulation to the special equilibrium problem described in Section 2 is presented; finally, the derivation of displacements and internal forces functions describing the solution of the equilibrium problem under consideration is detailed.

2. Materials and Methods

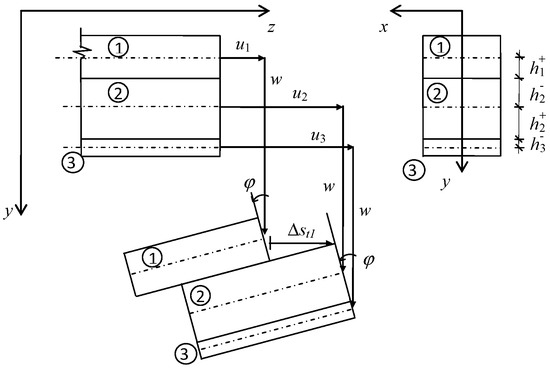

The composite beam considered in the present model consists of three layers connected by continuous bonds. The layers have constant cross sections and are made of isotropic, linearly elastic, and homogeneous materials. The lower interface is perfect in both transverse and longitudinal directions: No separation, interpenetration or slip across this interface are possible. The upper interface is perfect in the transverse direction, while it can only ensure partial composite actions in the longitudinal direction. Only interlayer slips can then be allowed at the upper interface, whereas no separation or interpenetration between the layers can occur. Figure 1 shows the undeformed and typical deformed configurations of the three-layer beam under consideration.

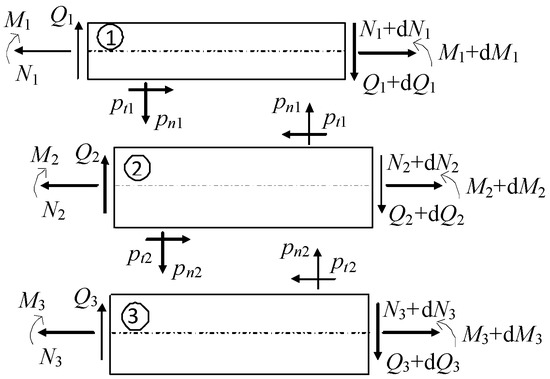

Under the assumption of small strains, displacements, and rotations, each layer is modeled as a linearly elastic Euler–Bernoulli beam subjected only to the action of internal forces and interfacial tractions, as shown in Figure 2. This is the situation when point loads are applied, as of interest in this paper. For the imperfect bond, the limit case of vanishing interfacial stiffness is considered; as a consequence, no shear traction is transmitted across the interface.

The problem of the equilibrium of the composite beam under consideration is governed by the compatibility, equilibrium, and constitutive equations for the three layers together with the bond conditions at the two interfaces. In order to solve this special problem, reference is made to a more general formulation proposed and validated by the author in [7]. In that paper, the governing equations and the solution procedure leading to exact expressions of all the static and kinematic variables were detailed with reference to the most general case of three-layer beams with interlayer slip and stepwise linear interface law at both interfaces and uniformly loaded along their axis. In this paper, these general results were specialized to the particular three-layer beam under consideration shown in Figure 1 and Figure 2. The procedure followed is detailed in Appendix A, where all the closed form solution functions for rotation, deflection, axial displacements, and internal forces so derived can be found as well. The limit case of perfect upper interface was also analyzed.

In this paper, the closed form solution presented in Appendix A was employed to simulate the response in bending of three-layer composite beams with interfacial flaws and analyze the effects of their length and position along the interface on the flexural stiffness for different geometrical and mechanical properties of the layers. The procedure is described with reference to the case study, for which the numerical results are shown and interpreted in Section 3 and Section 4.

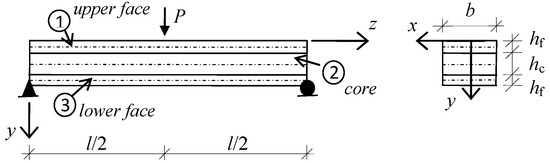

A composite symmetric sandwich beam comprising an inner core (layer 2), having thickness h_c and Young’s modulus E_c, enclosed by two stiffer outer faces, having equal thickness h_f and Young’s modulus E_f, was considered. The beam is simply supported at both ends and subjected to a point load at center, as shown in Figure 3. The lower interface between the core and the lower face (layer 3) was assumed to be perfect also in the longitudinal direction, so no slip can occur along this interface. The upper interface between the core and the upper face (layer 1) was assumed to be perfect as well, except for the presence of a debonded portion having length a at a distance d < l/2 from the left end. Then, the upper interface can exhibit one of the two configurations shown in Figure 4 depending on the value of d + a.

Extending the solution procedure described in [14], it is reasonable to divide the beam domain 0 ≤ z ≤ l in four subdomains, l being the beam length: Each subdomain involves adjacent points along the interfaces that behave accordingly to the same regime and are singled out by two distinct discontinuity locations.

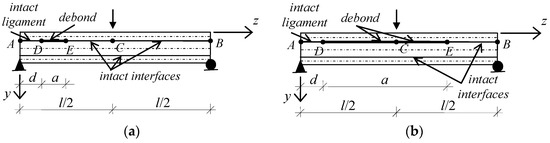

With reference to the generic configuration with a small debond (Figure 4a), we have: Portion AD (0 ≤ z ≤ d) with a perfectly bonded upper interface; portion DE (d ≤ z ≤ d + a) with a fully debonded upper interface; and portions EC (d + a ≤ z ≤ l/2) and CB (l/2 ≤ z ≤ l) with a perfectly bonded upper interface. The solution of the equilibrium problem of such a configuration consists of four sets of independent functions for displacements and internal forces, each one referring to a portion of the composite beam. For portions AD, EC, and CB, the explicit expressions for the static and kinematic variables are given by Equations (A10)–(A13) and (A15)–(A17), specialized for the interfacial tractions of Equations (A8) and (A6). Each of these three sets of functions contains 6 arbitrary constants. For portion DE, the explicit expressions for the static and kinematic variables are given by Equations (A10)–(A12) and (A14)–(A17), specialized for the interfacial tractions of Equations (A9) and (A6). This set of functions contains 8 arbitrary constants. The general solution then contains, in total, 26 arbitrary constants, which are determined by imposing the boundary conditions at the ends A and B simply supported and the continuity conditions at the discontinuity locations C (where the point load is applied), D, and E (where the regime experienced by the upper interface changes). In order to do this, it is convenient to define the following static global quantities:

$$N_{123}=N_1+N_2+N_3,Q_{123}=Q_1+Q_2+Q_3,M_{22}=M_1+M_2+M_3-N_2\left(h_{\mathrm{f}}+h_{\mathrm{c}}\right)/2$$

(1a)

$$M_{12}=M_1+M_2+M_3-N_1\left(h_{\mathrm{f}}+h_{\mathrm{c}}\right)-N_2\left(h_{\mathrm{f}}+h_{\mathrm{c}}\right)/2,N_{23}=N_2+N_3$$

(1b)

Then, the boundary conditions at end A can be written as:

$$w^{\mathrm{AD}}=u_3^{\mathrm{AD}}=0,M_{12}^{\mathrm{AD}}=0$$

(2)

and at end B as:

$$w^{\mathrm{CB}}=0,N_{123}^{\mathrm{CB}}=0,M_{12}^{\mathrm{CB}}=0$$

(3)

where, as an example, w^AD denotes the deflection function in portion AD. Furthermore, the continuity conditions at D can be written as:

$$w^{\mathrm{AD}}=w^{\mathrm{DE}},u_1^{\mathrm{AD}}=u_1^{\mathrm{DE}},u_3^{\mathrm{AD}}=u_3^{\mathrm{DE}},{\mathsf{\phi }}^{\mathrm{AD}}={\mathsf{\phi }}^{\mathrm{DE}},Q_{123}^{\mathrm{AD}}=Q_{123}^{\mathrm{DE}},N_{123}^{\mathrm{AD}}=N_{123}^{\mathrm{DE}},M_{12}^{\mathrm{AD}}=M_{12}^{\mathrm{DE}}$$

(4)

at E as:

$$w^{\mathrm{DE}}=w^{\mathrm{EC}},u_1^{\mathrm{DE}}=u_1^{\mathrm{EC}},u_3^{\mathrm{DE}}=u_3^{\mathrm{EC}},{\mathsf{\phi }}^{\mathrm{DE}}={\mathsf{\phi }}^{\mathrm{EC}},Q_{123}^{\mathrm{DE}}=Q_{123}^{\mathrm{EC}},N_{123}^{\mathrm{DE}}=N_{123}^{\mathrm{EC}},M_{12}^{\mathrm{DE}}=M_{12}^{\mathrm{EC}}$$

(5)

and at C as:

$$w^{\mathrm{EC}}=w^{\mathrm{CB}},u_3^{\mathrm{EC}}=u_3^{\mathrm{CB}},{\mathsf{\phi }}^{\mathrm{EC}}={\mathsf{\phi }}^{\mathrm{CB}},Q_{123}^{\mathrm{EC}}=P+Q_{123}^{\mathrm{CB}},N_{123}^{\mathrm{EC}}=N_{123}^{\mathrm{CB}},M_{12}^{\mathrm{EC}}=M_{12}^{\mathrm{CB}}$$

(6)

With reference to the generic configuration with a long debond (Figure 4b), we have: Portion AD (0 ≤ z ≤ d) with a perfectly bonded upper interface; portions DC (d ≤ z ≤ l/2) and CE (l/2 ≤ z ≤ d + a) with a fully debonded upper interface; and portion EB (d + a ≤ z ≤ l) with perfectly bonded upper interface. The solution of the equilibrium problem of such a configuration consists of four sets of independent functions for displacements and internal forces, each one referring to a portion of the composite beam. For portions AD and EB, the explicit expressions for the static and kinematic variables are given by Equations (A10)–(A13) and (A15)–(A17), specialized for the interfacial tractions of Equations (A8) and (A6). Each of these two sets of functions contains 6 arbitrary constants. For portions DC and CE, the explicit expressions for the static and kinematic variables are given by Equations (A10)–(A12) and (A14)–(A17), specialized for the interfacial tractions of Equations (A9) and (A6). Each of these two sets of functions contains 8 arbitrary constants. The general solution then contains, in total, 28 arbitrary constants, which are determined by imposing the boundary conditions at the ends A and B, simply supported and the continuity conditions at the discontinuity locations C (where the point load is applied), D, and E (where the regime experienced by the upper interface changes). Also for this configuration, the boundary conditions at ends A and B are given by Equations (2) and (3), while the continuity conditions at D are given by Equation (4). The other conditions differ from those written above. Namely, the continuity conditions at C can be written as:

$$w^{\mathrm{DC}}=w^{\mathrm{CE}},u_1^{\mathrm{DC}}=u_1^{\mathrm{CE}},u_3^{\mathrm{DC}}=u_3^{\mathrm{CE}},{\mathsf{\phi }}^{\mathrm{DC}}={\mathsf{\phi }}^{\mathrm{CE}}$$

(7a)

$$Q_{123}^{\mathrm{DC}}=P+Q_{123}^{\mathrm{CE}},N_1^{\mathrm{DC}}=N_1^{\mathrm{CE}},N_{23}^{\mathrm{DC}}=N_{23}^{\mathrm{CE}},M_{22}^{\mathrm{DC}}=M_{22}^{\mathrm{CE}}$$

(7b)

at E as:

$$w^{\mathrm{CE}}=w^{\mathrm{EB}},u_1^{\mathrm{CE}}=u_1^{\mathrm{EB}},u_3^{\mathrm{CE}}=u_3^{\mathrm{EB}},{\mathsf{\phi }}^{\mathrm{CE}}={\mathsf{\phi }}^{\mathrm{EB}},Q_{123}^{\mathrm{CE}}=Q_{123}^{\mathrm{EB}},N_{123}^{\mathrm{CE}}=N_{123}^{\mathrm{EB}},M_{12}^{\mathrm{CE}}=M_{12}^{\mathrm{EB}}$$

(8)

When the arbitrary constants have been determined, the maximum deflection w_max exhibited by the composite beam at midspan under the load point can be evaluated by considering the proper deflection function. For the configuration shown in Figure 4a, w_max is given indifferently by the deflection function w^EC or w^CB evaluated at C. For the configuration shown in Figure 4b, w_max is given indifferently by the deflection function w^DC or w^CE evaluated at C. It is straightforward that the value of w_max depends on those of all the geometrical and physical parameters of the model, as discussed in Section 3, where the solution described above is employed to analyze the effects of an interlayer debond at the upper interface of three-layer beams on their flexural behavior.

3. Results

With reference to the sandwich beam shown in Figure 3 and Figure 4, the effects due to the presence of the debond along the upper interface on the flexural stiffness of the system were investigated by performing a parametric analysis. As a measure of the reduction of the flexural stiffness due to the presence of the debond, the maximum deflection at the load point was calculated for different values of the geometrical and mechanical parameters and compared with that of the beam with the same geometry and layer materials but both intact interfaces. In fact, the increase in the displacements due to the presence of the debond results in a decrease in the flexural stiffness of the composite beam.

The following dimensionless parameters which control the response of the composite beam are defined:

Λ = l/h_c, η = h_f/h_c, Ω = E_f/E_c

(9)

which characterize the geometry and layer materials, and:

ξ = a/h_c = Λa/l, δ = d/h_c = Λd/l

(10)

which characterize the configuration of the upper interface. It is worthwhile to note that the particular case of a composite beam with three equal thickness layers made of the same material corresponds to η = 1 and Ω = 1; ξ = 0 corresponds to the particular case of perfectly bonded layers; and for δ = 0, the system reduces to a standard end notched flexural specimen, analyzed in many analytical models within fracture mechanics (see, e.g., [15]).

The results shown in what follows were obtained assuming a beam length-to-core thickness ratio Λ = 100 and varying face-to-core thickness ratio η = 0.05, 0.15, and 0.25, and face-to-core Young’s modulus ratio Ω = 1.5, 2.5, 5, and 10 for debonds of different length ξ = 0–Λ (0 ≤ a < l) and position δ = 0–Λ/2 (0 ≤ d < l/2). Such results are presented in terms of the ratio w_max/w₀, where for each set of results, w_max and w₀ are the maximum deflections in the cases of upper interface with an initial debond and intact upper interface, respectively. It is well known that for a simply supported beam under a point load at midspan:

w₀ = 1/48Pl³/K

(11)

where P is the point load and K is the section flexural modulus which depends on both the section geometry and material. For the composite section shown in Figure 3, we have, for perfectly bonded layers:

$$K=\frac{1}{12}b\left(2E_{\mathrm{f}}{h}_{\mathrm{f}}^3+E_{\mathrm{c}}{h}_{\mathrm{c}}^3\right)+\frac{1}{2}b{E}_{\mathrm{f}}{h}_{\mathrm{f}}{\left(h_{\mathrm{f}}+h_{\mathrm{c}}\right)}^2$$

(12)

that reduces to:

$$K=\frac{1}{12}b\left(2E_{\mathrm{f}}{h}_{\mathrm{f}}^3+E_{\mathrm{c}}{h}_{\mathrm{c}}^3\right)+\frac{1}{4}b{\left(h_{\mathrm{f}}+h_{\mathrm{c}}\right)}^2\frac{E_{\mathrm{f}}{h}_{\mathrm{f}}{E}_{\mathrm{c}}{h}_{\mathrm{c}}}{E_{\mathrm{f}}{h}_{\mathrm{f}}+E_{\mathrm{c}}{h}_{\mathrm{c}}}$$

(13)

for a fully debonded upper interface, b being the beam width. It is straightforward that dividing Equation (12) by Equation (13) gives another limit value for the dimensionless maximum deflection, say w_lim/w₀, which corresponds to the case of fully debonded upper interface; it results in:

$$\frac{w_{\lim }}{w_0}=\left(1+\mathsf{\Omega }\mathsf{\eta }\right)\frac{\left(1+2{\mathsf{\Omega }\mathsf{\eta }}^3\right)+6\mathsf{\Omega }\mathsf{\eta }{\left(1+\mathsf{\eta }\right)}^2}{\left(1+2{\mathsf{\Omega }\mathsf{\eta }}^3\right)\left(1+\mathsf{\Omega }\mathsf{\eta }\right)+3\mathsf{\Omega }\mathsf{\eta }{\left(1+\mathsf{\eta }\right)}^2}$$

(14)

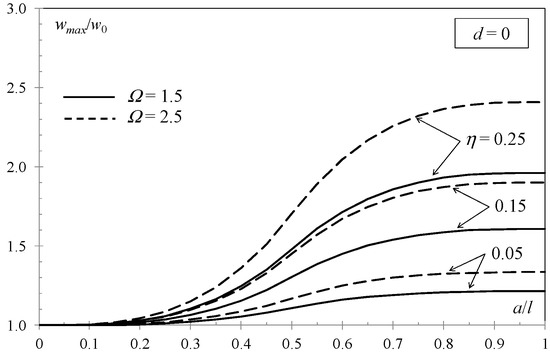

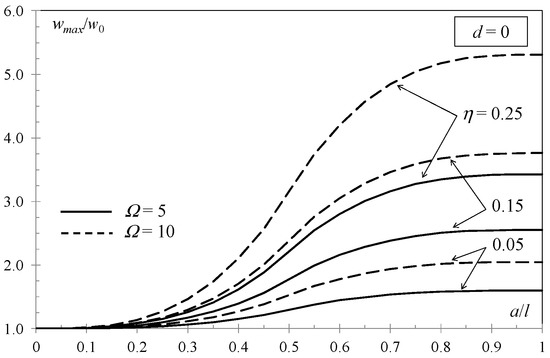

A first set of results refers to the composite sandwich beam having a debonded portion at one end of the upper interface between the core and the upper face layers (d = 0). Such results are shown in Figure 5 and Figure 6, where the dimensionless maximum deflection is plotted versus the dimensionless debond length. As expected, the longer the debond, the lower the flexural stiffness of the composite beam in bending is; this leads to an increase in deflections. It is worthwhile to note that for a tending towards l, the dimensionless maximum deflections tend towards the limit value (Equation (14)). However, a minimum debond length for which an additional debond extension induces an important flexural stiffness decrease higher than 1% can be defined. A maximum debond length for which an additional debond extension induces a moderate flexural stiffness decrease lower than 1% can be also defined. Such limit values depend on both the face-to-core stiffness and thickness ratios. Active debonds are in the length range a = 20h_c–80h_c = 0.2l–0.8l for face layers little stiffer than the core (Ω = 1.5 and 2.5) and a = 15h_c–85h_c = 0.15l–0.85l for face layers much stiffer than the core (Ω = 5 and 10).

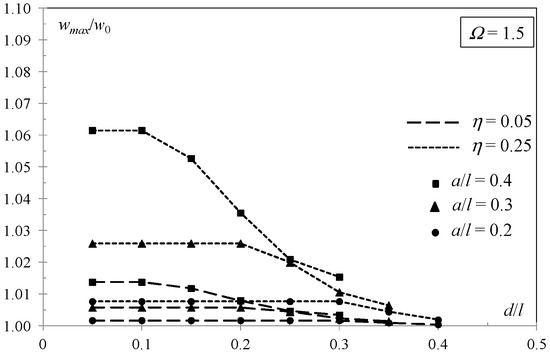

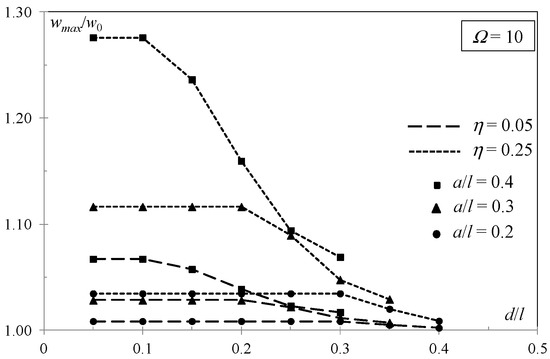

A second set of results refers to the composite sandwich beam having an interfacial defect within the upper interface (d ≠ 0). These results are shown in Figure 7 and Figure 8, where the dimensionless maximum deflection is plotted versus the dimensionless length of the intact ligament ahead the interfacial debond. According to these results, for a prescribed debond length, the debond position only moderately affects the composite beam behavior in bending. The decrease in flexural stiffness due to an interfacial debond centered on the beam (e.g., d = 30h_c = 0.3l for a = 40h_c = 0.4l, d = 35h_c = 0.35l for a = 30h_c = 0.3l, and d = 40h_c = 0.4l for a = 20h_c = 0.2l) is minimum independently of layer materials and geometry. Such a decrease becomes more significant for the debond approaching one end of the beam and is maximum for an end debond (d = 0). However, in many cases, the stiffness reduction with respect to that of three perfectly bonded layers results in being independent of the debond position unless the debond approaches midspan. As an example, for faces moderately stiffer than the core (Ω = 1.5), significant reductions are induced by 20h_c = 0.2l (circular markers in Figure 7) and 30h_c = 0.3l (triangular markers in Figure 7) long debonds at a distance from the end longer than 30h_c = 0.3l and 20h_c = 0.2l, respectively. Analogous considerations follow from the results related to faces much stiffer than the core (Ω = 10).

4. Discussion and Conclusions

This study deals with the simulation of the mechanical behavior in the bending of three-layer composite beams. The boundary and loading conditions considered are those of standard three point bending tests usually used to measure the flexural Young’s modulus of a material in the shape of a beam: The beam is simply supported at both ends and subjected to a point load at midspan. For simplicity’s sake, a symmetric sandwich beam was analyzed. Its related equilibrium problem was solved by employing a more general model proposed and validated previously by the author; such a fundamental solution actually permits one to also consider sandwich beams with face layers having different thickness, as well as beams composed of three different layers made of different materials.

The attention is focused on the change in flexural stiffness due to the presence of an interface defect. The main aim of the work was to correlate such change with the length and possibly the position along the interface of the defect that caused it. Secondly, the possibility of investigating the presence of interfacial damage and estimating its amount on the basis of a comparison between theoretical results and experimental measures of the maximum deflection was also explored. This is central during a monitoring program for the verification of a manufacturing process of composite beams.

Within this context, a final conclusion can be drawn by examining the distribution of the numerical results shown in Figure 7 and Figure 8. It is evident that a lot of configurations (each one corresponding to a single value of each physical or geometrical parameter Ω, η, ξ and δ) lead to very close results which differ less than 1%. This could make it difficult to distinguish one configuration from the other only on the basis of a measure of the maximum deflection. Then, the accuracy of the test machine plays a fundamental role. This point is worth further investigations through ad hoc test programs on ad hoc designed specimens. In fact, even recent experimental investigations found in the literature focus the attention on other mechanical properties (see, e.g., [16]).
