Next Article in Journal
Antimicrobial Activities of Hydrophobically Modified Poly(Acrylate) Films and Their Complexes with Different Chain Length Cationic Surfactants
Previous Article in Journal
Proactive Release of Antimicrobial Essential Oil from a “Smart” Cotton Fabric
Article Menu
Issue 4 (April) cover image

Export Article

Open AccessArticle

Numerical Simulation of Failure of Composite Coatings due to Thermal and Hygroscopic Stresses

1
MOE Key Laboratory of Disaster Forecast and Control in Engineering, School of Mechanics and Construction Engineering, Jinan University, Guangzhou 510632, China
2
School of Aerospace, Mechanical and Mechatronic Engineering J07, The University of Sydney, Sydney, NSW 2006, Australia
3
School of Mechanics and Construction Engineering, Jinan University, Guangzhou 510632, China
*
Author to whom correspondence should be addressed.
Coatings 2019, 9(4), 243; https://doi.org/10.3390/coatings9040243
Received: 25 March 2019 / Revised: 7 April 2019 / Accepted: 8 April 2019 / Published: 10 April 2019
  |
PDF [6426 KB, uploaded 11 April 2019]
  |

Abstract

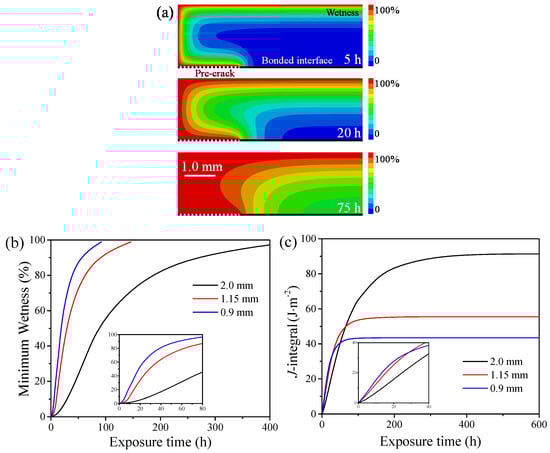

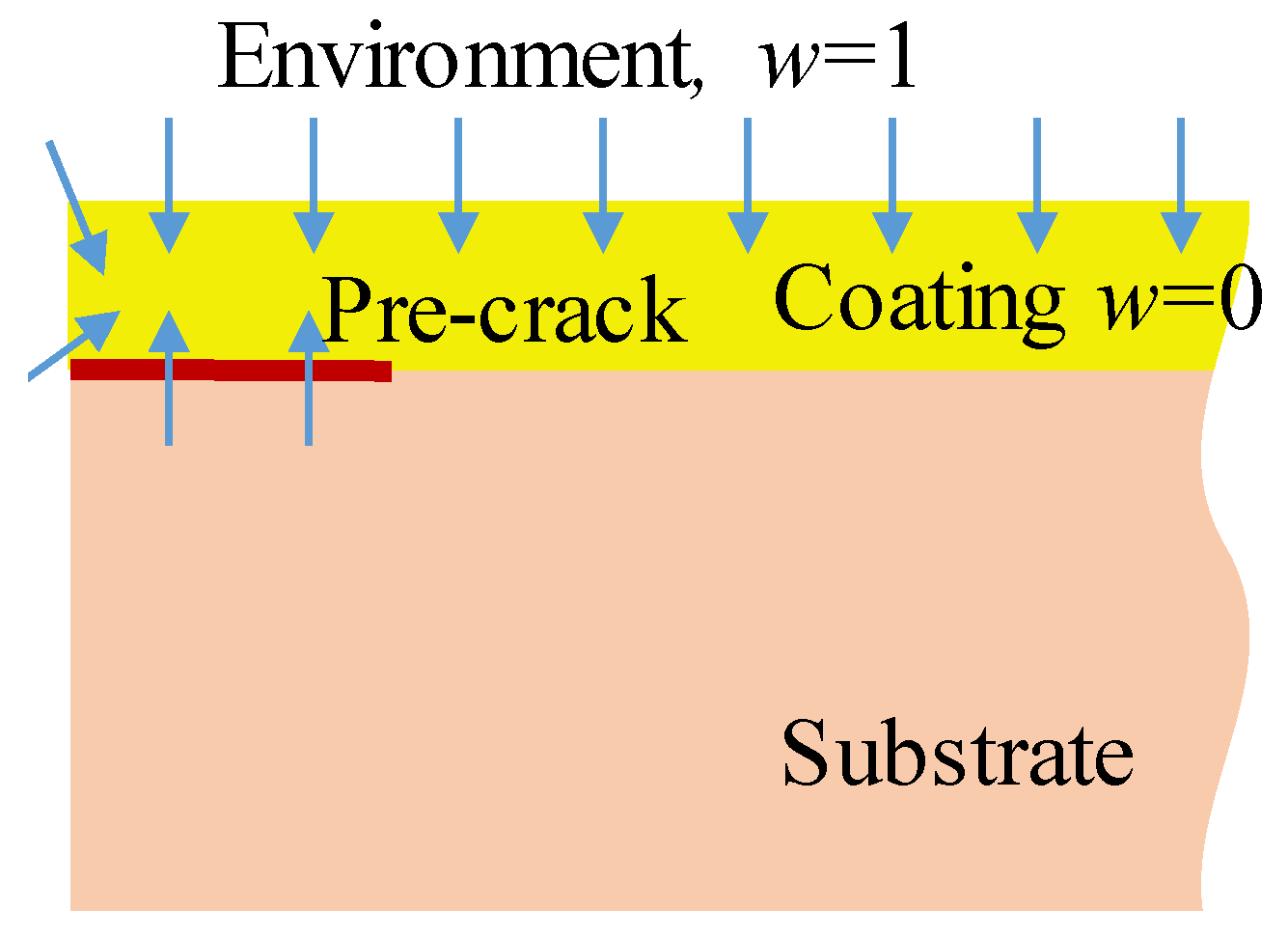

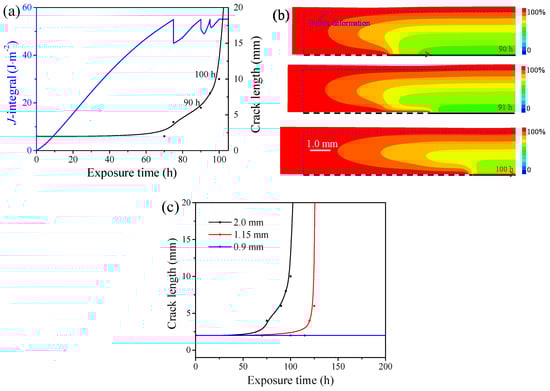

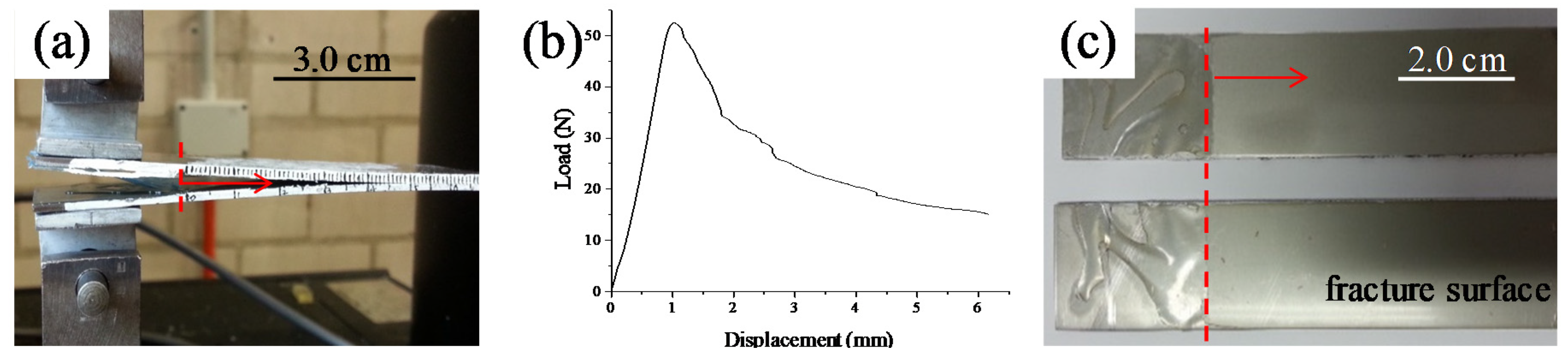

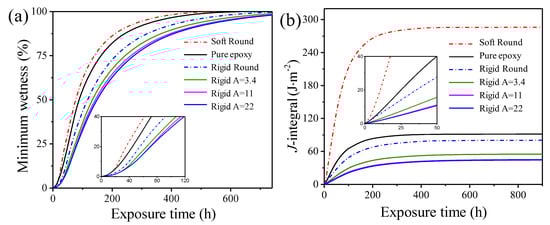

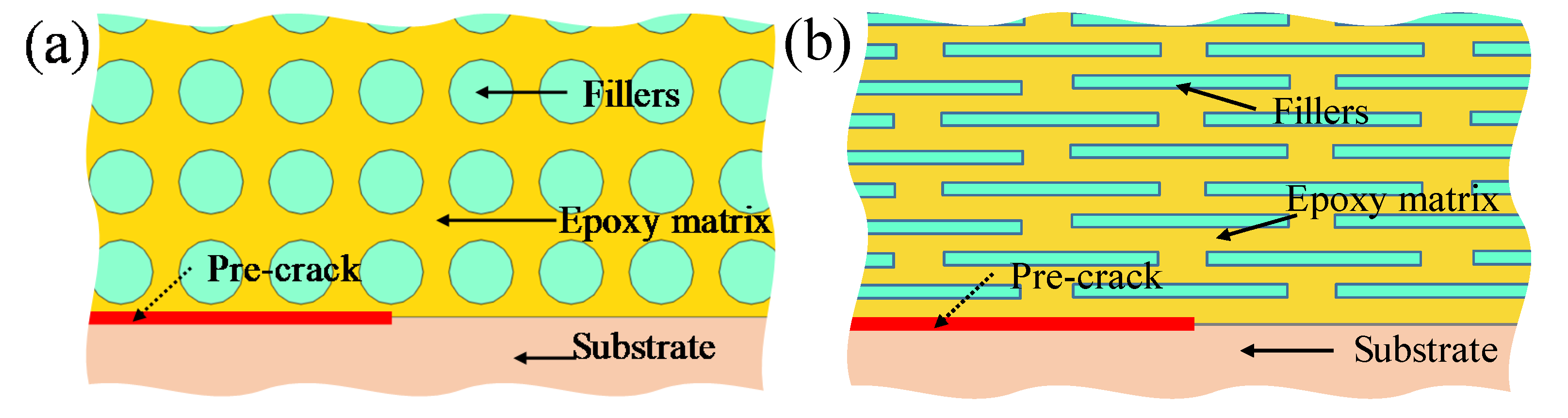

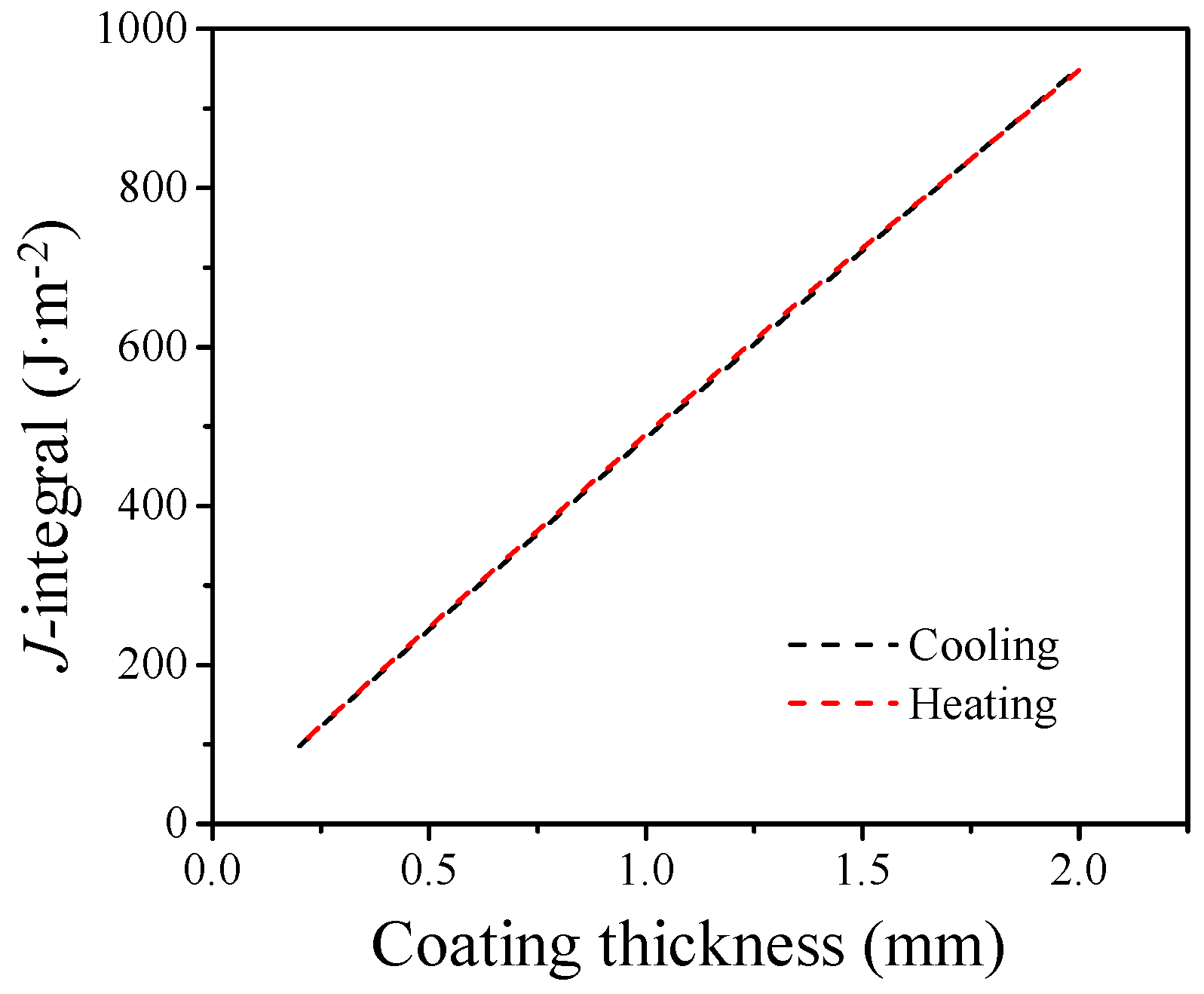

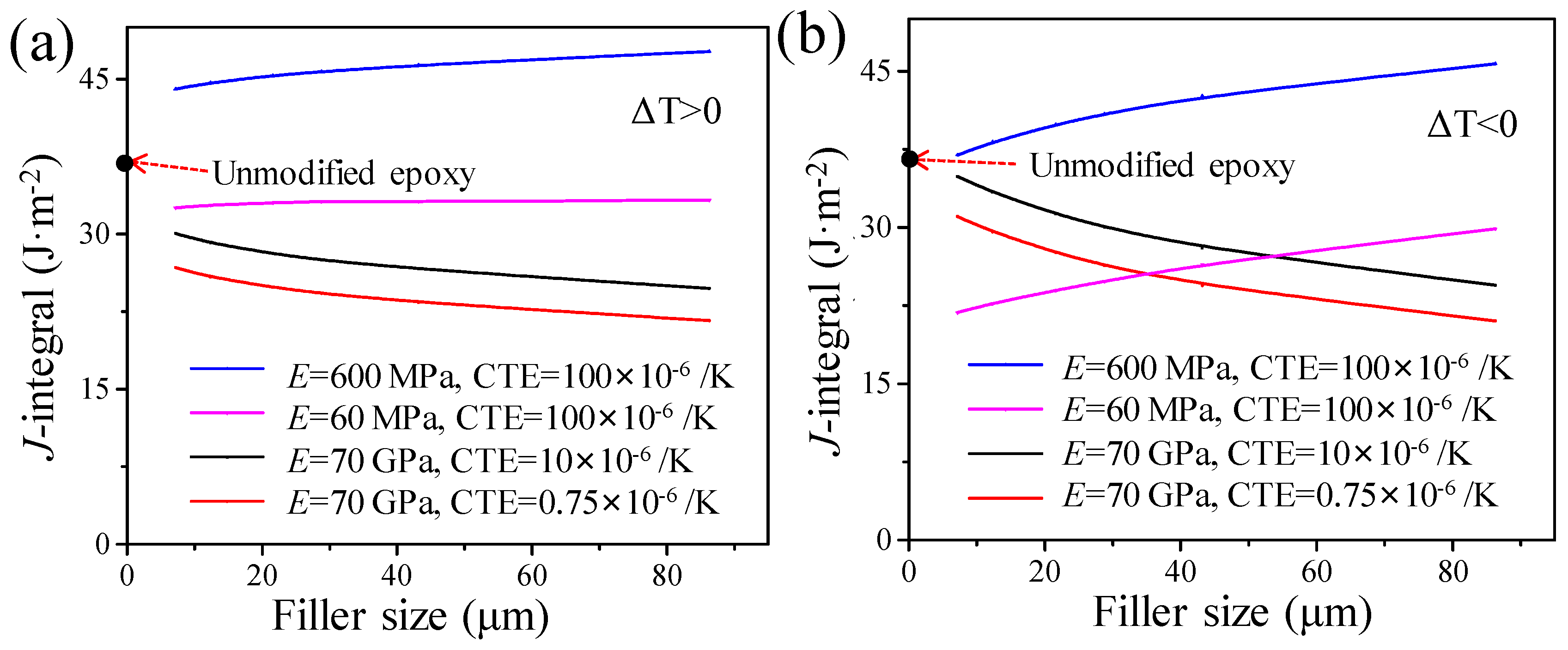

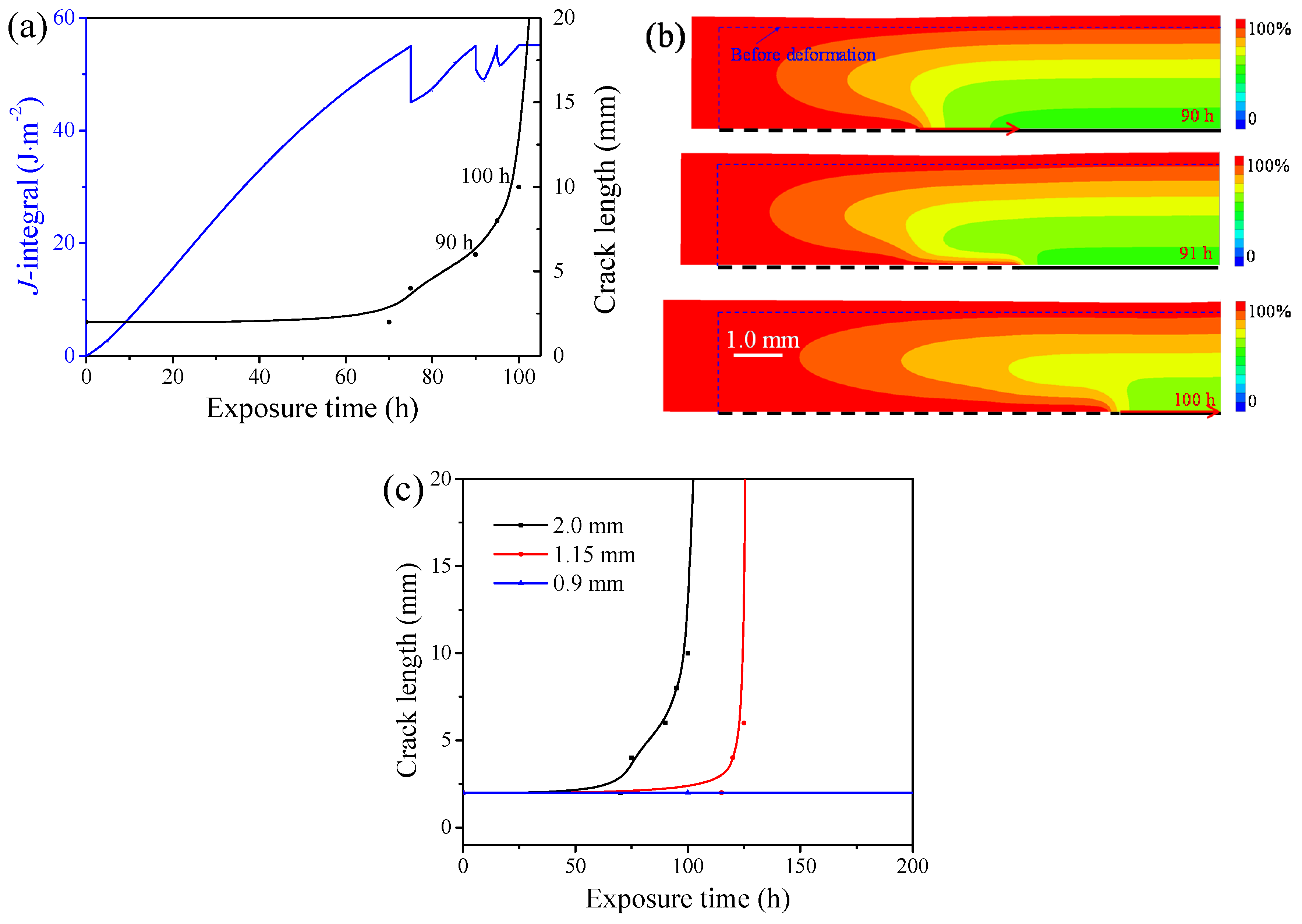

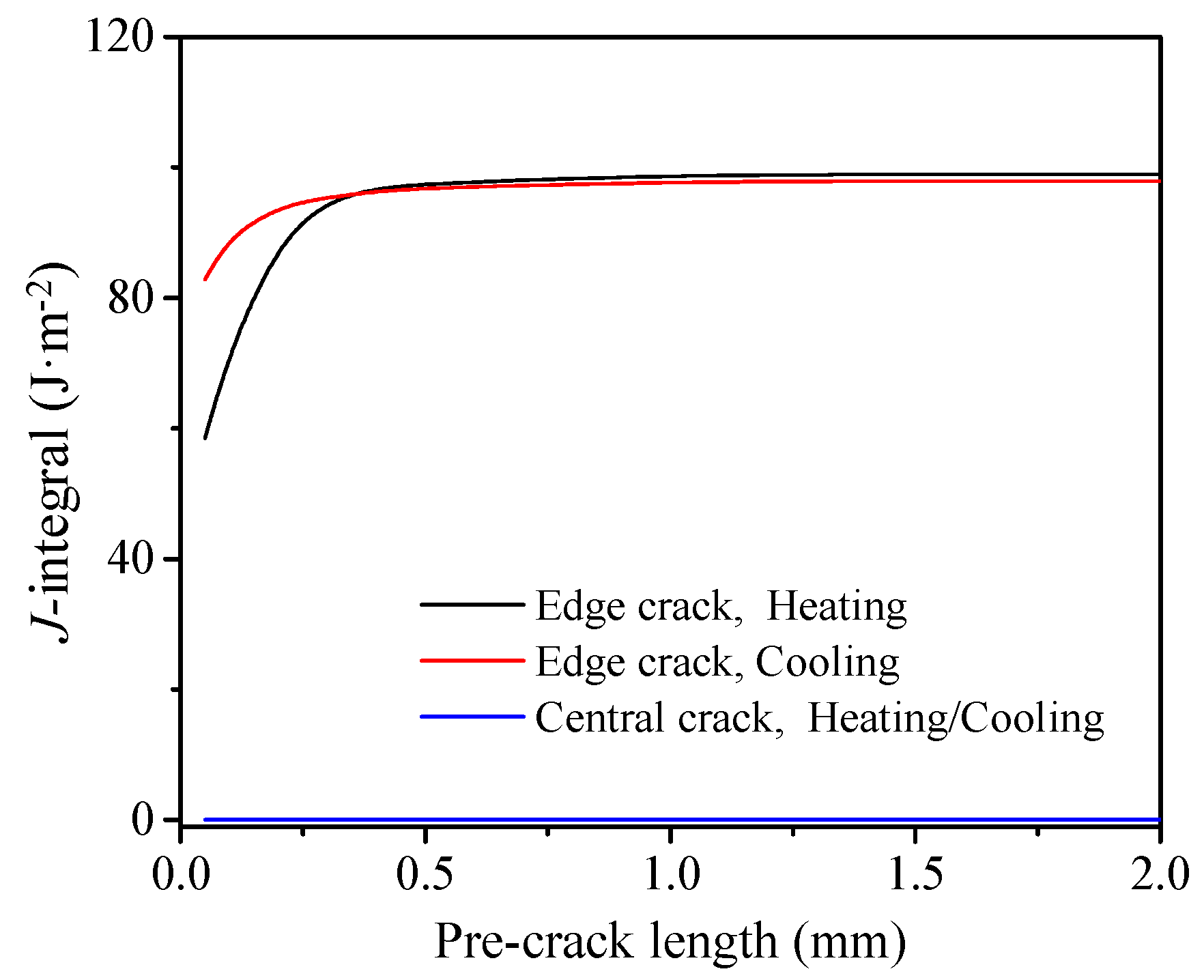

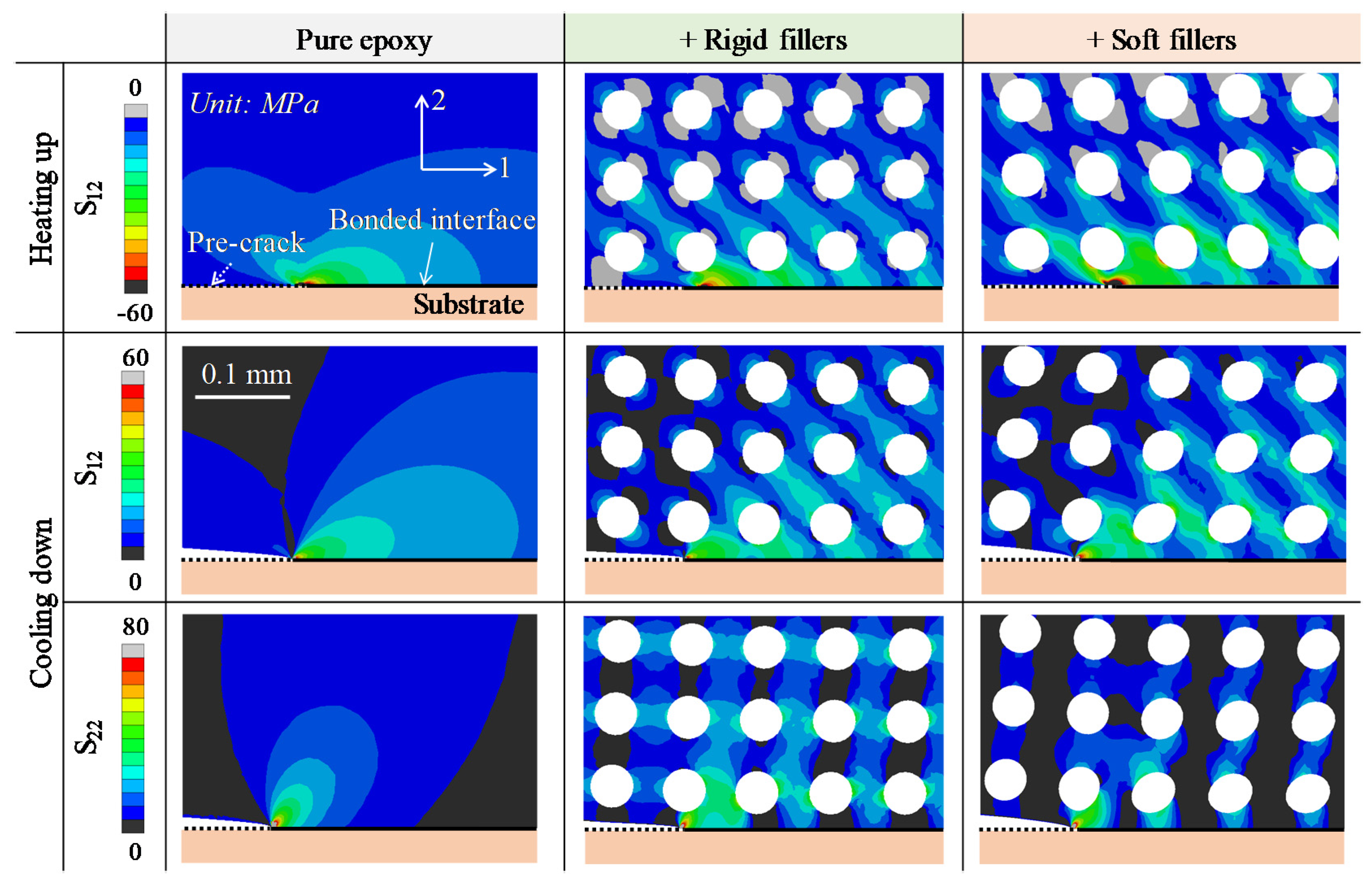

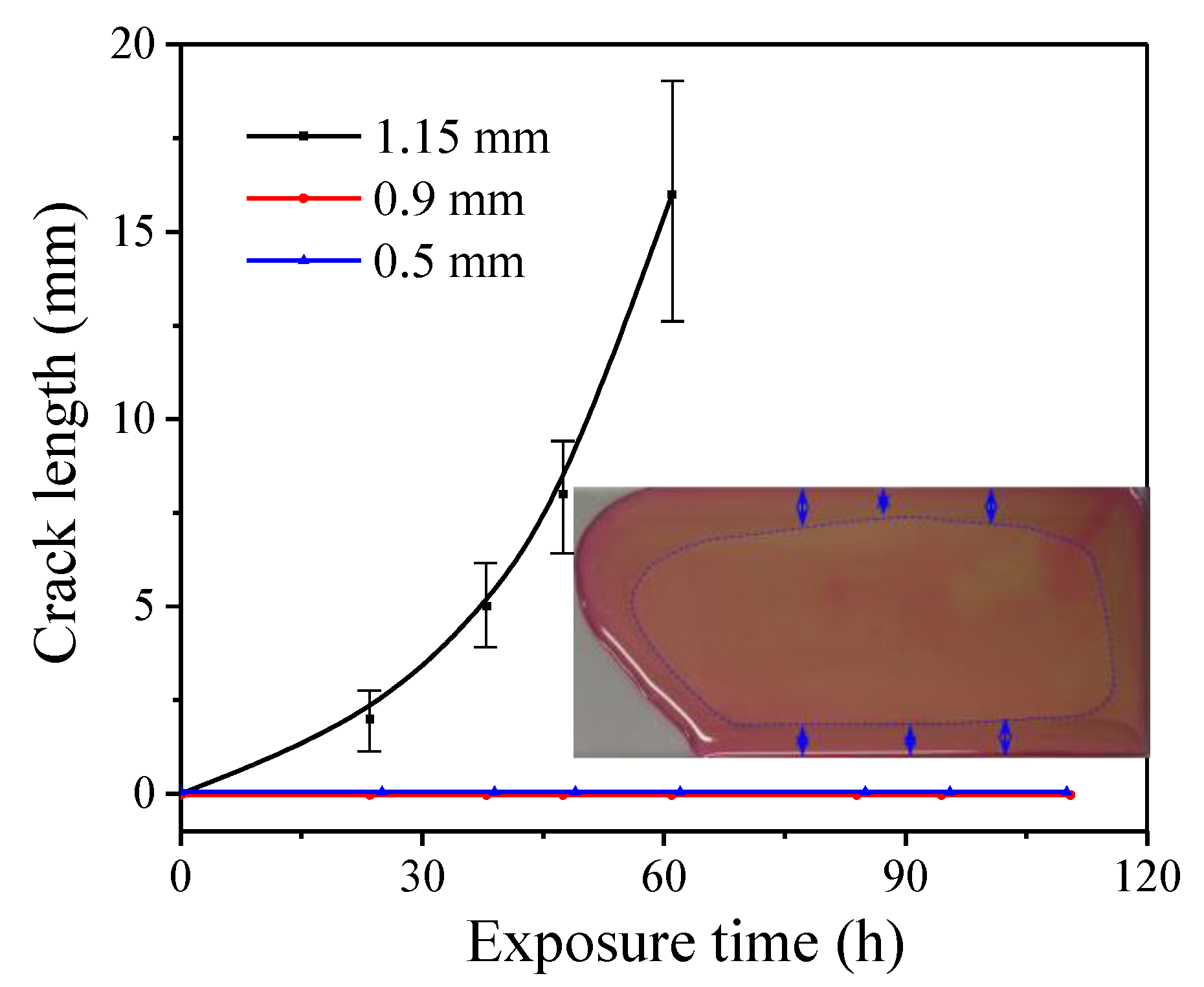

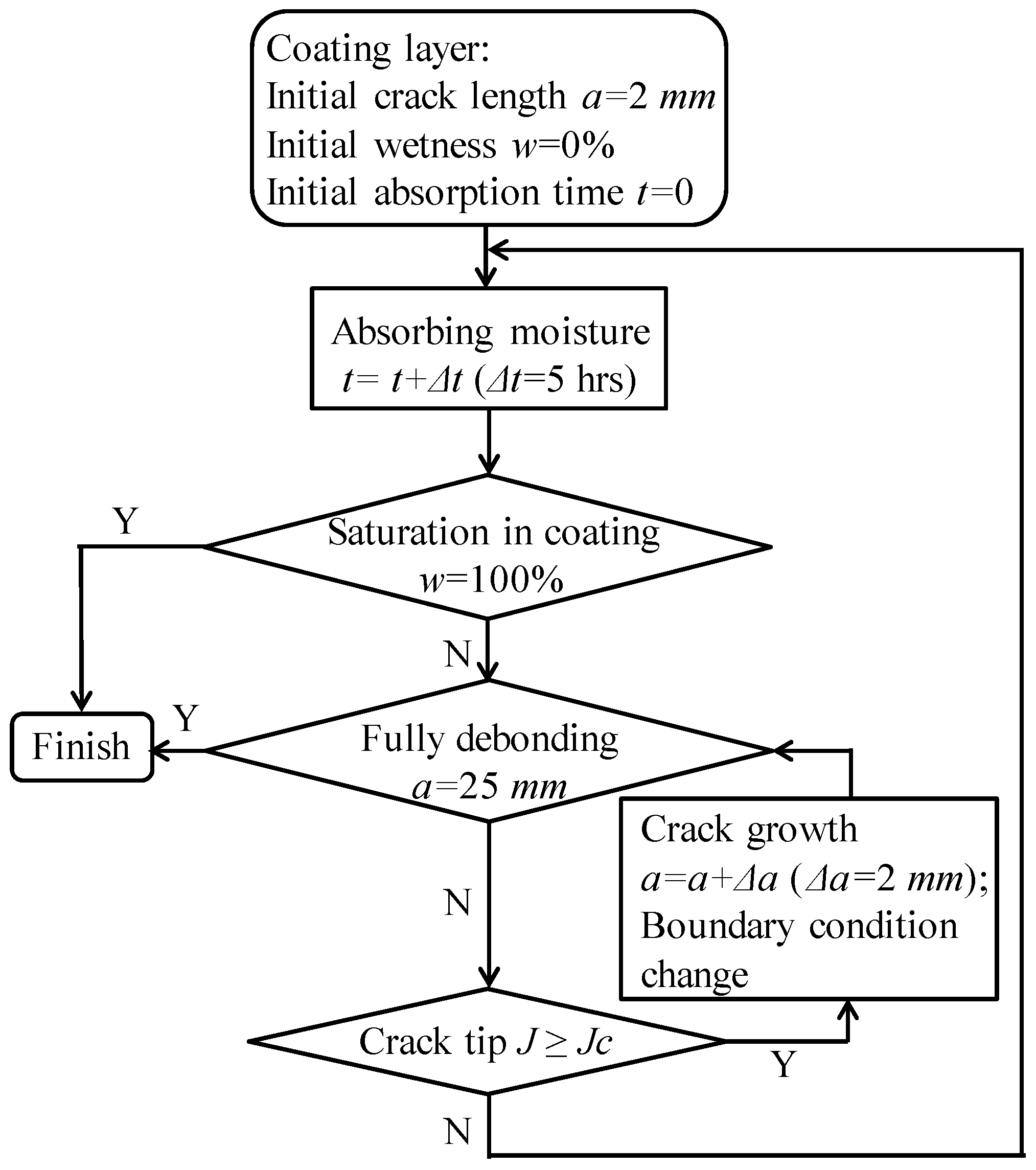

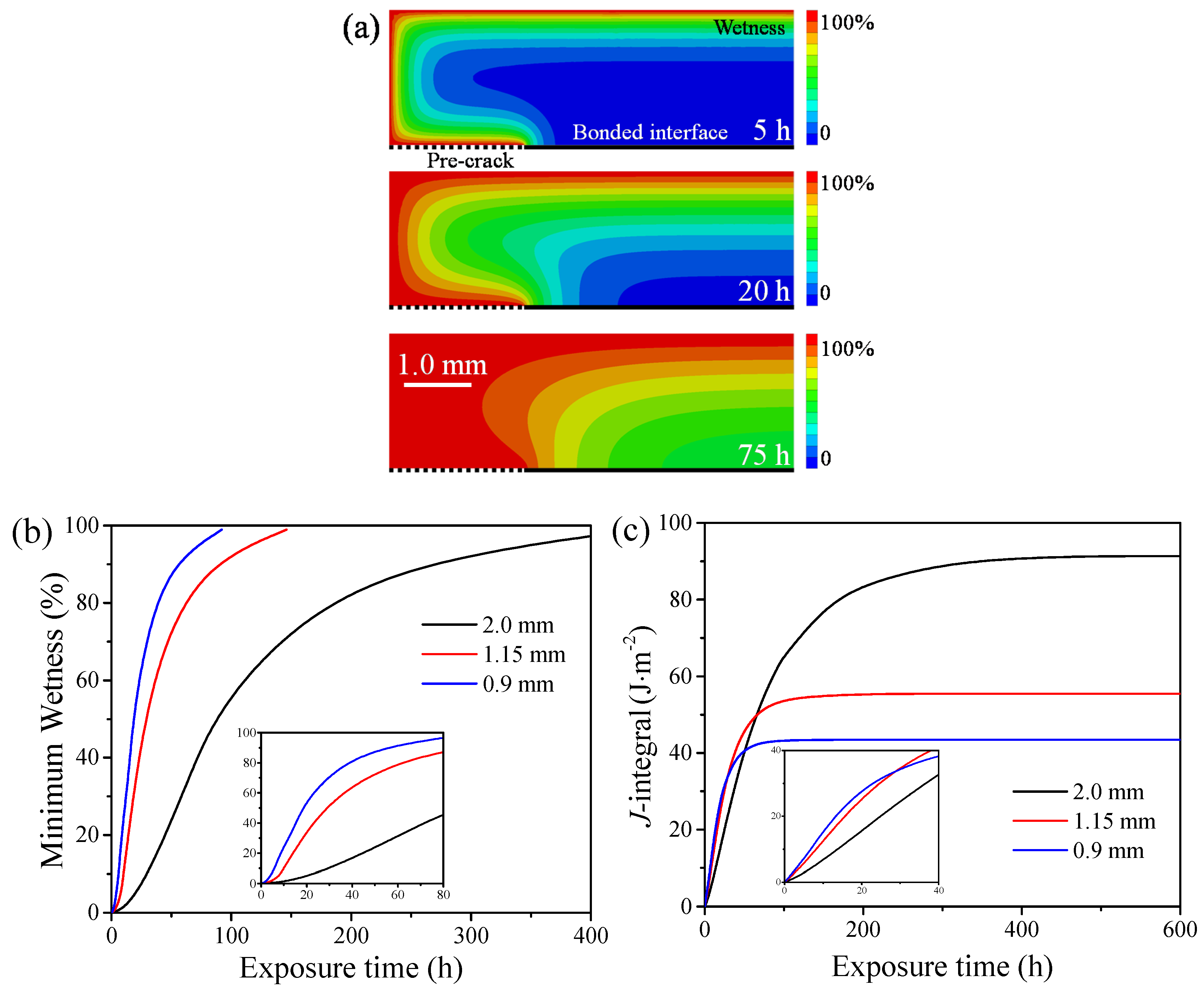

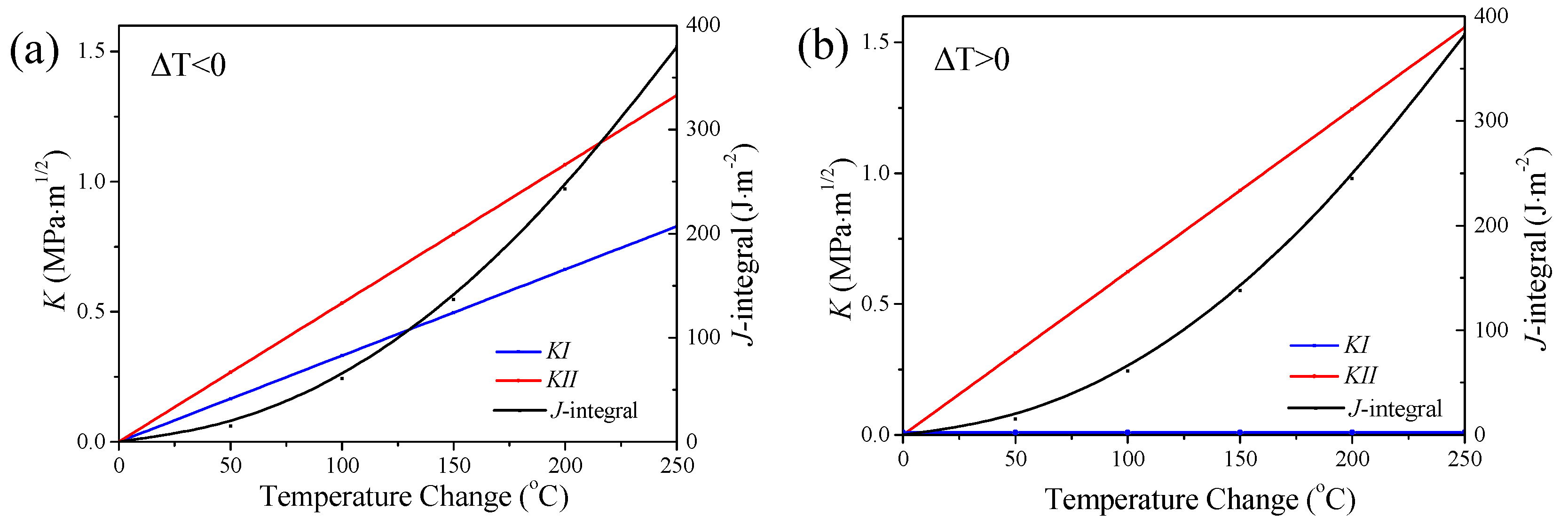

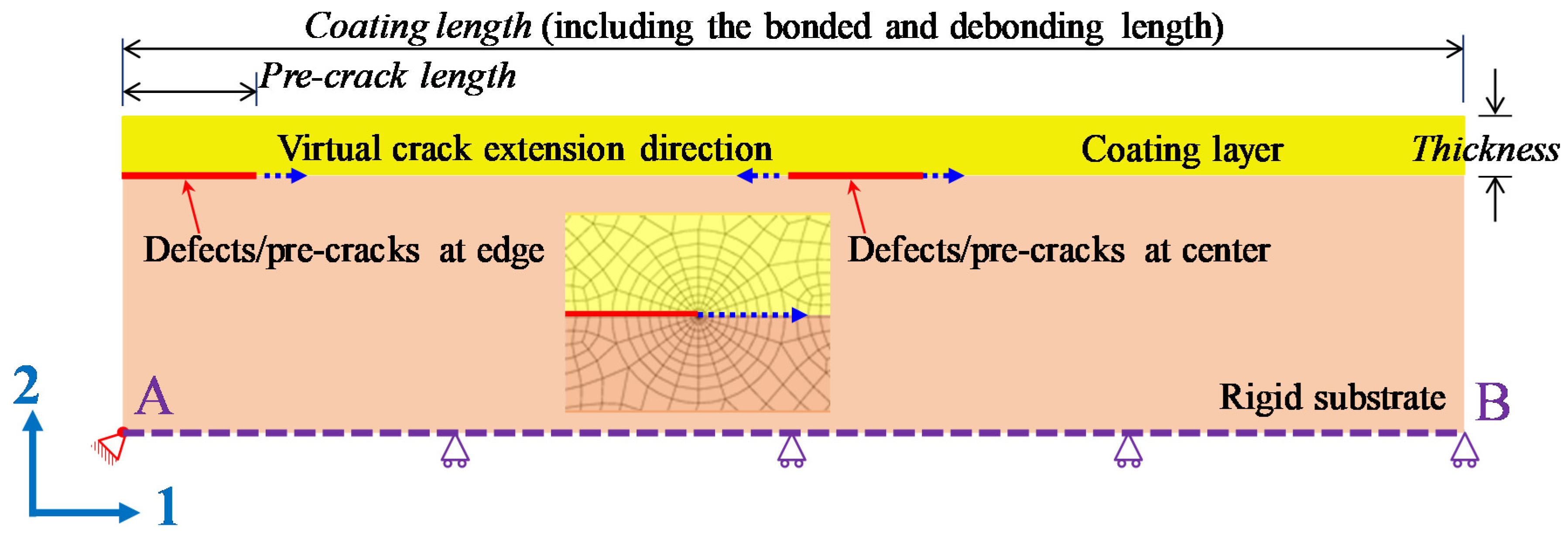

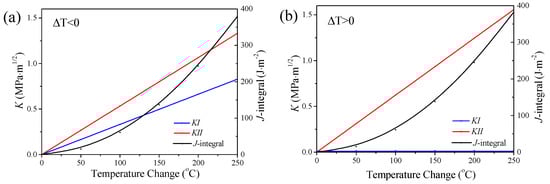

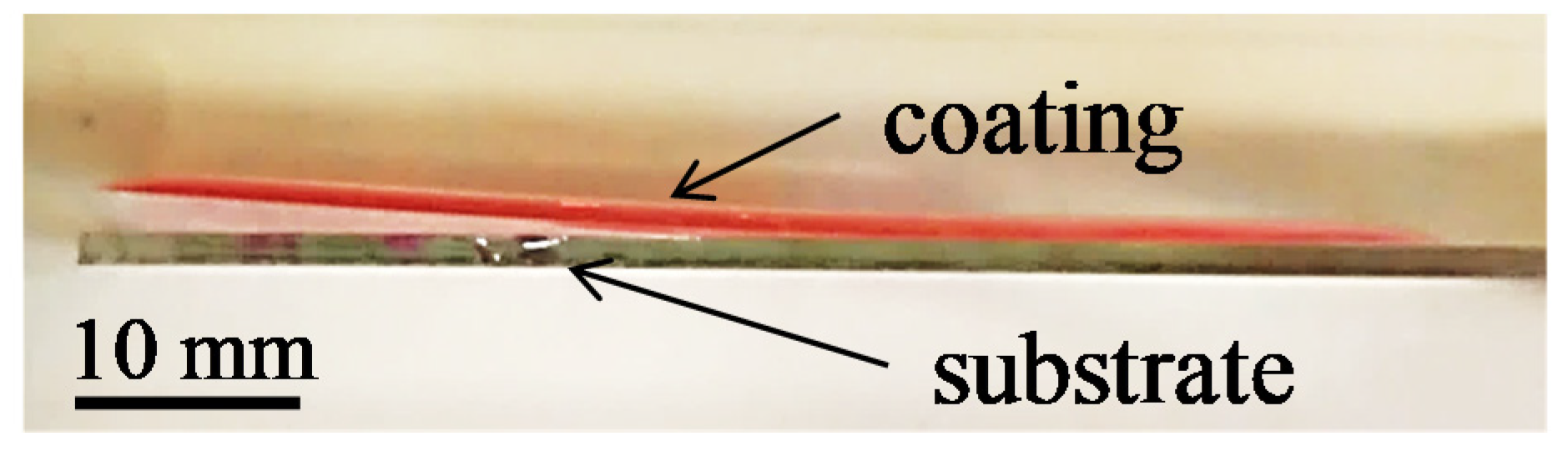

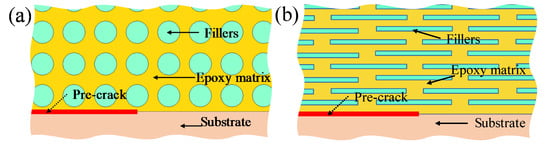

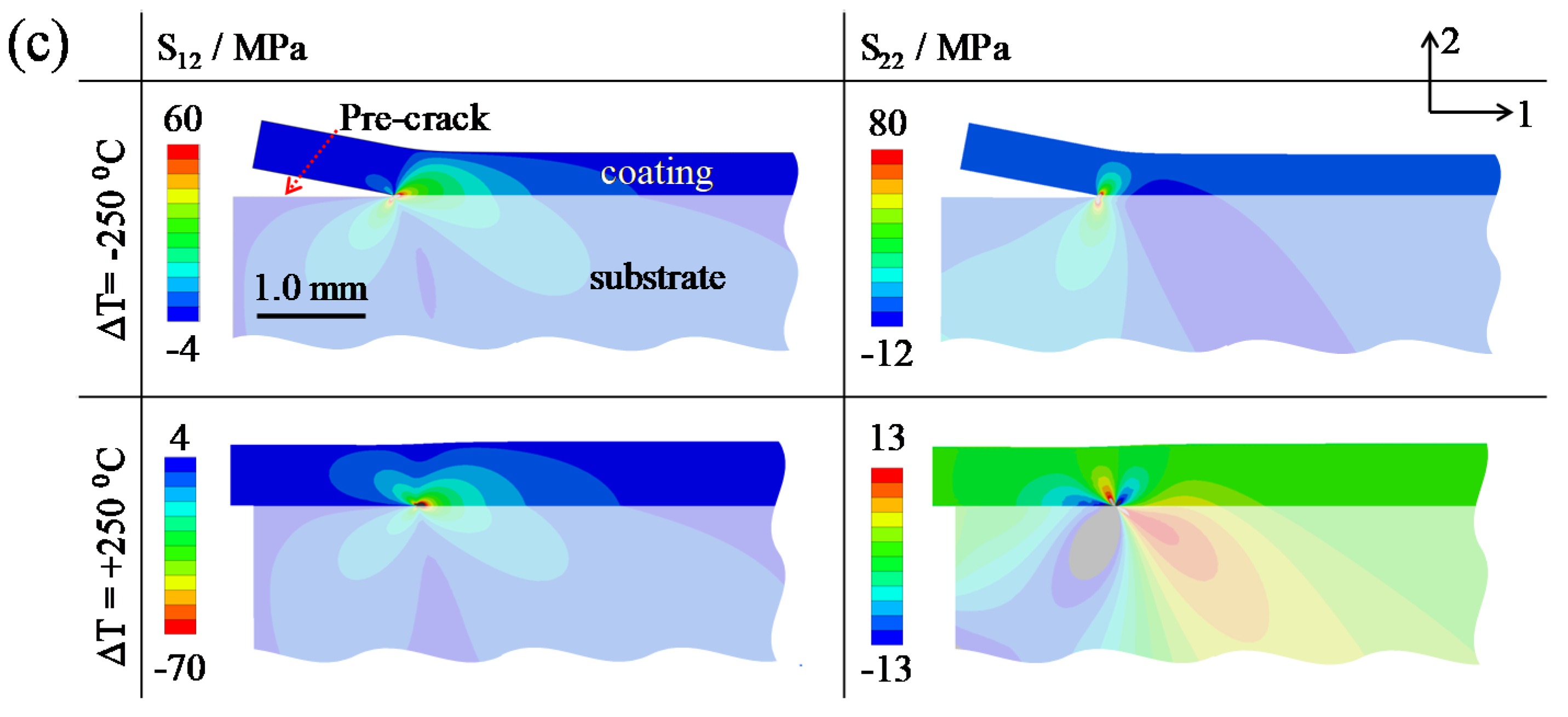

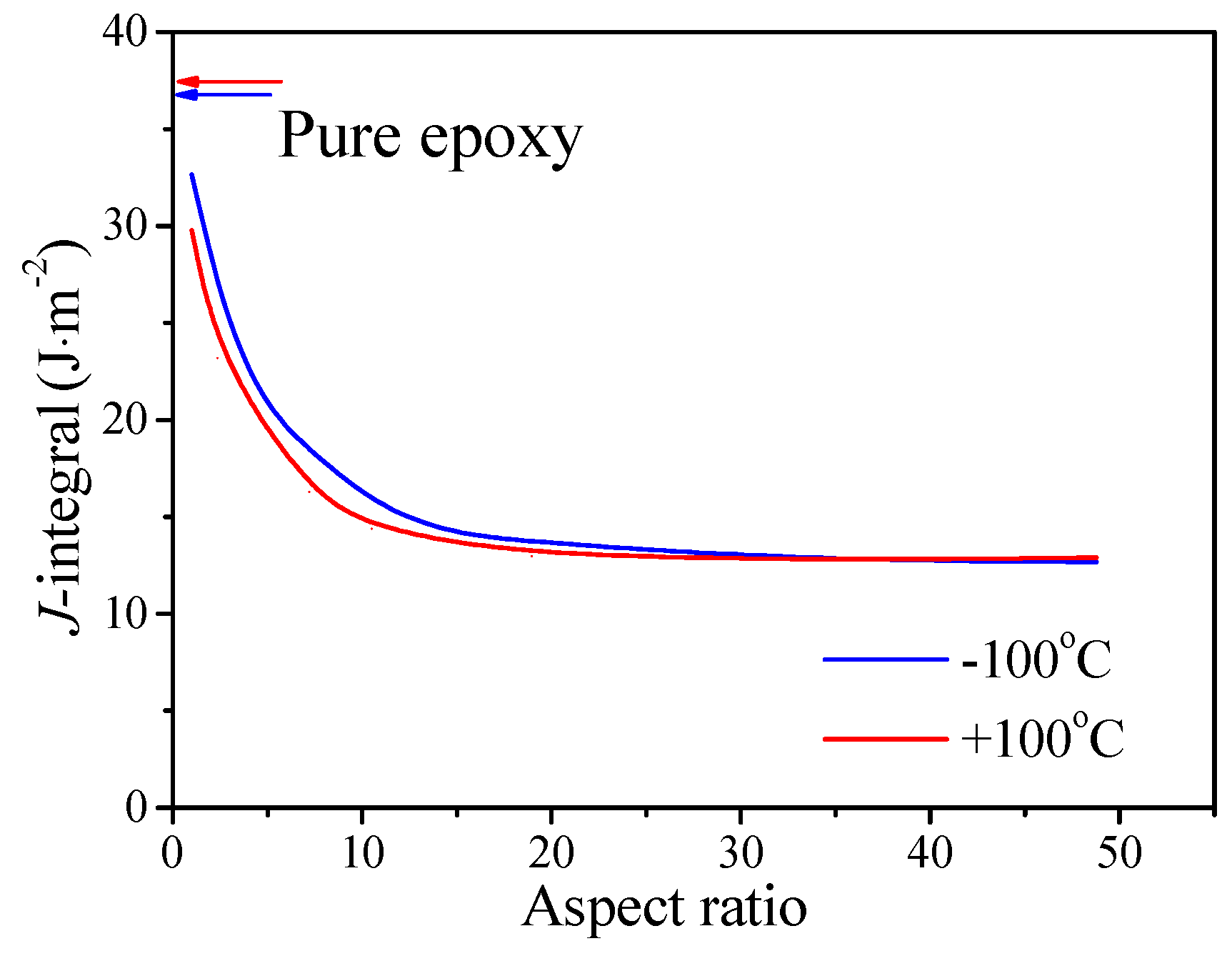

Due to the higher thermal and moisture expansions of epoxy coatings than the rigid substrate, these coatings suffer from high thermal and hygroscopic stresses, leading to coating/substrate interfacial crack growth. Herein, a parametric study was conducted systematically on epoxy coatings incorporated with fillers, in order to understand their effects on coating/substrate interface delamination caused by thermal and hygroscopic stresses. A finite element model (FEM) was developed to determine an indicator J-integral value (Ji), in comparison with a critical JC value to interpret the obtained interface delamination experimental results. FE simulations showed that interfacial pre-cracks located at coating edges were more serious than those at the centre. Once delamination was triggered by thermal shock or moisture absorption, it propagated rapidly along the coating/substrate interface. However, by adding suitable micro-/nano-fillers to the coating the thermal and hygroscopic stresses give lower Ji values, so that delamination crack growth can be effectively controlled. The simulation results demonstrate that the incorporation of fillers with lower Young’s modulus, lower thermal expansion and moisture absorption coefficients, smaller size for soft fillers, larger size for rigid fillers, and suitable aspect ratios for rod-shape fillers to the coatings, are more effective against interface delamination. Hence, useful guidelines for improving the design of epoxy composite coatings against delamination growth can be obtained for different engineering applications. View Full-Text
Keywords: epoxy composite coating; crack propagation; J-integral; thermal stress; hygroscopic stress epoxy composite coating; crack propagation; J-integral; thermal stress; hygroscopic stress
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Zhou, H.; Liu, H.-Y.; Fu, K.; Yuan, H.; Du, X.; Mai, Y.-W. Numerical Simulation of Failure of Composite Coatings due to Thermal and Hygroscopic Stresses. Coatings 2019, 9, 243.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
