Influence of Annealing Temperature on the Properties of ZnGa₂O₄ Thin Films by Magnetron Sputtering

Abstract

Zinc gallate (ZnGa₂O₄) thin films were grown on sapphire (0001) substrate using radio frequency (RF) magnetron sputtering. After the thin film deposition process, the grown ZnGa₂O₄ was annealed at a temperature ranging from 500 to 900 °C at atmospheric conditions. The average crystallite size of the grown ZnGa₂O₄ thin films increased from 11.94 to 27.05 nm as the annealing temperature rose from 500 to 900 °C. Excess Ga released from ZnGa₂O₄ during thermal annealing treatment resulted in the appearance of a Ga₂O₃ phase. High-resolution transmission electron microscope image analysis revealed that the preferential crystallographic orientation of the well-arranged, quasi-single-crystalline ZnGa₂O₄ (111) plane lattice fringes were formed after the thermal annealing process. The effect of crystallite sizes and lattice strain on the width of the X-ray diffraction peak of the annealed ZnGa₂O₄ thin films were investigated using Williamson-Hall analysis. The results indicate that the crystalline quality of the deposited ZnGa₂O₄ thin film improved at higher annealing temperatures.

1. Introduction

Zinc gallate (ZnGa₂O₄) belongs to a group of close-packed, face-centered cubic structured compounds (AB₂O₄) with a normal oxide spinel structure (space group of Fd3m). Zn²⁺ and Ga³⁺ cations occupy the tetrahedrally coordinated A-sites in tetrahedral and octahedral lattice B-sites, respectively. The lattice constant is 8.334 Å at room temperature [1]. ZnGa₂O₄ materials have recently gained increased attention [2,3]. These materials are widely applied in vacuum fluorescent and field emission displays, gas sensors, electronic devices, and solar-blind ultraviolet photodetectors (PDs) due to their high transparency in the deep ultraviolet (DUV) spectral region, excellent thermal and chemical stability, and wide optical band gap (~5 eV) [4,5,6].

Researchers have discussed many one-dimensional (1D) ZnGa₂O₄ nanostructures (nanoparticles, nanocrystal, nanowires, and nanotube) over the years [7,8,9]. Although these 1D ZnGa₂O₄ devices exhibit high optoelectronic performance, the reliability and stability of these devices are a critical aspect of their application, which raises concern [10,11]. Thin film structures have been proven to possess properties that can overcome the aforementioned challenges posed by a 1D ZnGa₂O₄ nanostructure. Therefore, it is important to develop and perfect ZnGa₂O₄ film materials and related optoelectronic devices.

There are several methods for the preparation of ZnGa₂O₄ thin films, including: sol-gel [12], pulsed laser deposition [13], metalorganic chemical vapor deposition (MOCVD) [14], and radio frequency (RF) magnetron sputtering [15]. Shen et al. used ZnGa₂O₄ thin film for the development of metal-oxide-semiconductor field effect transistors by MOCVD. Their research showed promising results in enhancing the breakdown voltage and I_on/I_off (current on/off) ratio performance [16]. Wu et al. reported that the properties of thin film ZnGa₂O₄ gas sensor deposited by MOCVD [17]. Huang et al. developed a ZnGa₂O₄ thin film solar-blind PDs based on a metal-semiconductor-metal structure fabricated by an RF magnetron sputtering method [18]. They investigated the effect of oxygen partial pressure on the electrical properties of the devices during the sputtering and thermal annealing process.

Among these growth techniques, RF magnetron sputtering techniques have many advantages, including the ease of controlling the growth parameter, excellent packing density, good adhesion, and relatively low running cost. However, the RF magnetron sputtering method often produces amorphous or polycrystalline film structures that significantly destroy the optical and electrical properties of the material. Enhancement of polycrystalline thin films has spurred several types of research, leading to the investigation of process parameters that include growth temperature, film thickening, post-annealing temperature, and RF power. In this paper, the effects of post-annealing temperatures on the structural and optical properties of ZnGa₂O₄ films deposited on sapphire substrates after RF magnetron sputtering were investigated.

2. Experimental Methods

The ZnGa₂O₄ thin films were deposited over a C-plane sapphire using the RF magnetron sputtering technique. The sputtering target was ZnGa₂O₄ ceramic, which was sintered with ZnO and Ga₂O₃ powder of 99.99% purity, with a mix proportion of 30:70. Initially, the substrates were cleaned in acetone and alcohol, followed by ultrasonic cleansing in de-ionized water for 10 min, and then blow-dried with nitrogen gas. Prior to deposition, the vacuum level of chamber pressure was approximately 5 × 10⁻⁶ torr. The plasma generation was activated by the RF power for ZnGa₂O₄, the target was 150 W at 13.56 MHz, and the deposition pressure was kept at 5 × 10⁻³ torr. The as-deposited film was deposited at the substrate temperature of 400 °C. The distance between target and the substrate was 15 cm. To maintain uniform film thickness, the substrate holder was rotated at 18 rpm during the deposition process. The deposition time was 2 h and the deposited samples were annealing at different temperature ranging from 500 to 900 °C in steps of 100 °C at atmospheric ambient conditions in a quartz furnace tube. The crystallographic properties of ZnGa₂O₄ films were investigated by X-ray diffraction (XRD, X’Pert PRO MRD, PANalytical, Almelo, The Netherlands) with Cu Kα X-ray source (λ = 1.541874 Å) radiation. The surface morphologies, microstructures, and elemental analyses of these deposited samples were analyzed by scanning electron microscopy (SEM, S-3000H, Hitachi, Tokyo, Japan), atomic force microscopy (AFM, 5400, Agilent, Santa Clara, CA, USA), and high-resolution transmission electron microscopy (HRTEM, H-600, Hitachi, Tokyo, Japan). Optical properties (transmittance, absorbance, and photoluminescence) were determined using an UV-visible (UV-VIS) near infra-red (NIR) spectrophotometer (Model: LAMBDA 750 from Perkin Elmer, Perkin Elmer, MA, USA).

3. Results

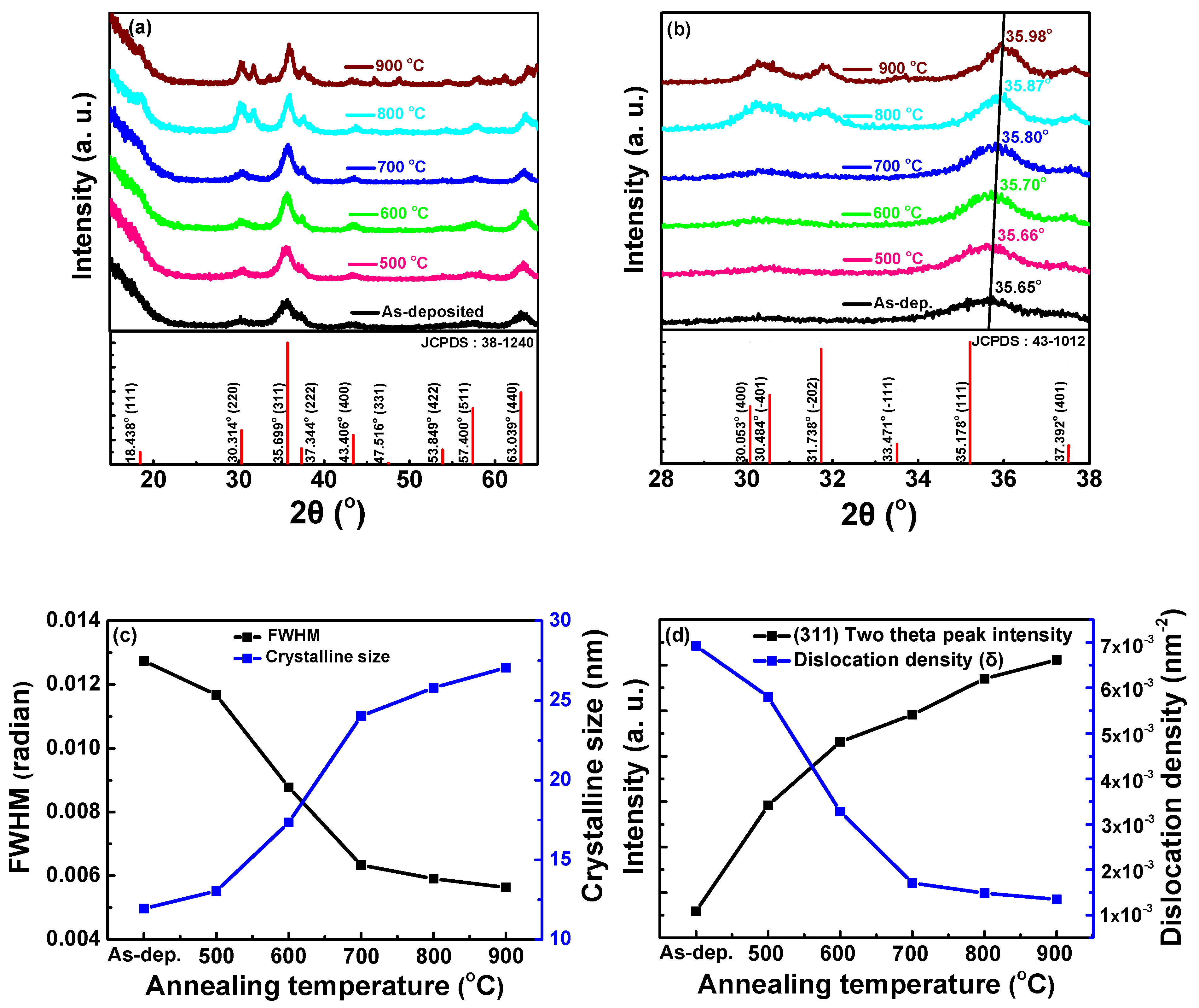

The XRD spectra of the deposited ZnGa₂O₄ thin films as a function of annealing temperature is shown in Figure 1a. The annealing temperature was varied from 500 to 900 °C for 1 h. The polycrystalline nature of all the deposited ZnGa₂O₄ film can be indexed and refer to the reported data of Joint Committee on Powder Diffraction Standards (JCPDS) card file 38-1240; the characteristic peaks of the preferred crystallographic orientations are (220), (311), (222), (400), (511), and (440). The intensity of the diffraction peak (311) plane increased with an increase in the annealing temperature. The increment of the diffraction peak (311) is attributed to improved crystallinity of deposited ZnGa₂O₄ thin films. The diffraction peaks of Ga₂O₃ (−401) and (−202) were observed from the phase separation of ZnGa₂O₄ for the sample annealed at a temperature above 800 °C (Figure 1b). The JCPDS data of the Ga₂O₃ (card No. 43-1012) is given for reference. The observed Ga₂O₃ plane is attributed to the expulsion of Zn atoms at an annealing temperature above 800 °C [19]. The Debye-Scherrer formula in Equation (1) below was used to calculate the average crystallite size and full width at half maxima (FWHM) of ZnGa₂O₄ peak (311) at different annealing temperatures, as shown in Figure 1c [20]:

D = 0.9λ/βcos θ

(1)

where D is the average crystallite size (nm), λ is the wavelength of X-ray (0.15418 nm), β is the FWHM (radian), and θ is diffraction angle (degrees). The average crystallite sizes estimated by the Scherrer method increase from 11.94 to 27.05 nm. ZnGa₂O₄ crystallite size increased with an increase in annealing temperatures, and a narrower FWHM peak (311) was observed, indicating an improvement in the crystallinity of ZnGa₂O₄ (Figure 1c). The observation might be due to the enhanced nucleation dynamics and/or strain release. Based on the solid-state diffusion process, either the aggregation of small grains to form larger ones, or grain boundary movement, results in grain recrystallization and regrowth. This improved the crystallinity of ZnGa₂O₄ film at high annealing temperatures [21].

Figure 1d shows the variation of XRD peak intensity (311) and dislocation density with increased annealing temperatures. The value of the dislocation density (δ), which is related to the number of defects in the grown nanocrystalline film, was calculated from the average values of the crystallite size by the relationship in Equation (2) [22]:

δ = 1/D²

(2)

The dislocation density decreases as the annealing temperature increases, resulting in a decrement in the nature of native imperfections (defects, concentration of native impurity, and stress) at high annealing temperatures [23]. The Williamson-Hall analysis was used to evaluate the crystalline sizes and lattice strain distribution in the sample. This can be determined by Equation (3) [24]. The calculated parameters are shown in

Table 1. The crystallite size (D), dislocation density (δ) and energy bandgap for ZnGa₂O₄ thin films annealed at different temperature.

Temperature	Scherrer’s Method		Williamson-Hall			Energy Gap (eV)
	D (mm)	δ × 1015	D (mm)	δ × 1015	ε × 10−3
As-deposited	11.94	6.93	13.40	5.57	53.7	4.69
500 °C	13.04	5.80	14.64	4.66	3.77	4.77
600 °C	17.34	3.28	19.22	2.71	8.49	4.80
700 °C	24.03	1.71	26.98	1.37	9.78	4.86
800 °C	25.79	1.48	28.98	1.19	7.98	4.92
900 °C	27.05	1.35	30.43	1.08	2.62	4.98

.

β_hklcos (θ_hkl) = kλ/D_W-H + 4εsin (θ_hkl)

(3)

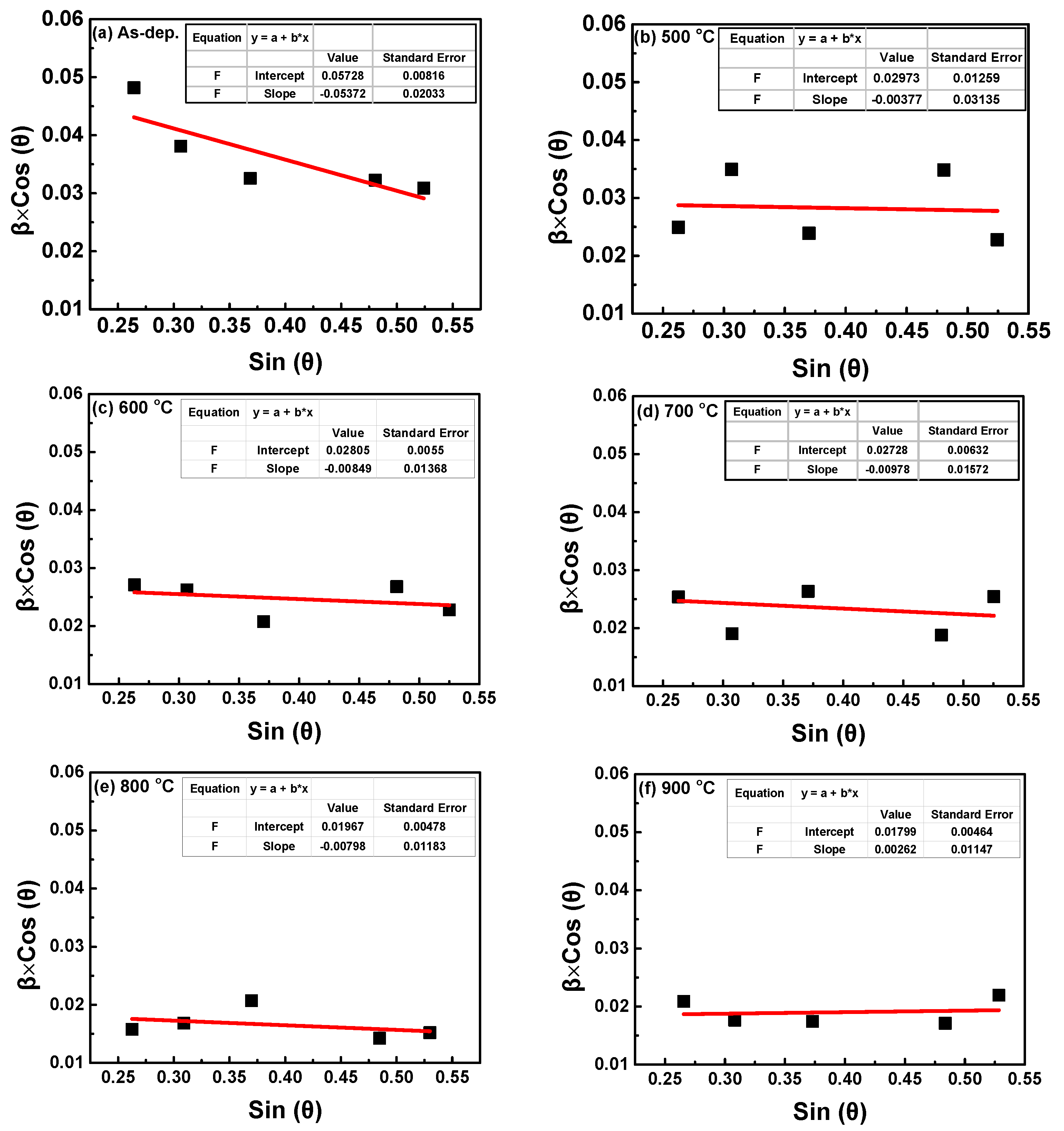

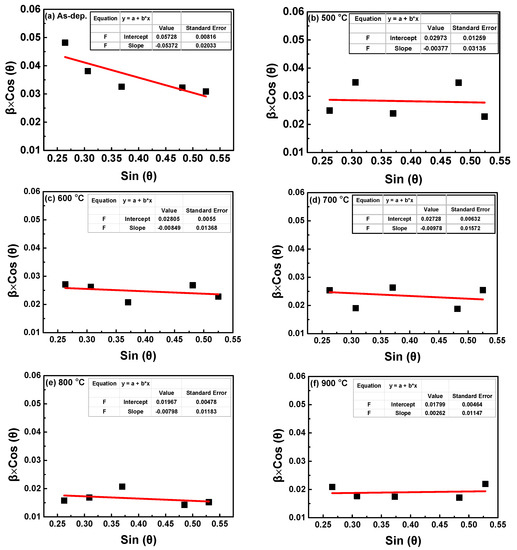

where ε is the lattice strain, k is the shape factor, and (hkl) is the Miller Indices. Other parameters have previously been defined in Equation (1). The strain in the ZnGa₂O₄/sapphire samples at different annealing temperatures can be calculated from the slope of plotted of β_hklcos θ_hkl (along the y-axis) and sin θ (along the x-axis) as shown in Figure 2a–f. The slopes of the fitted trendline for each plot (Figure 2a–e) were negative, indicating the existence of compressive strain in the lattice of all ZnGa₂O₄/sapphire samples. The intrinsic compressive stresses observed in the sputtering method deposited films were mainly caused by energetic particle bombardment, lattice mismatch, defects, etc. of the depositing films/substrate. After the sample was annealed at 900 °C, a positive slope was observed, which indicates the existence of tensile strain in the lattice (Figure 2f) [25].

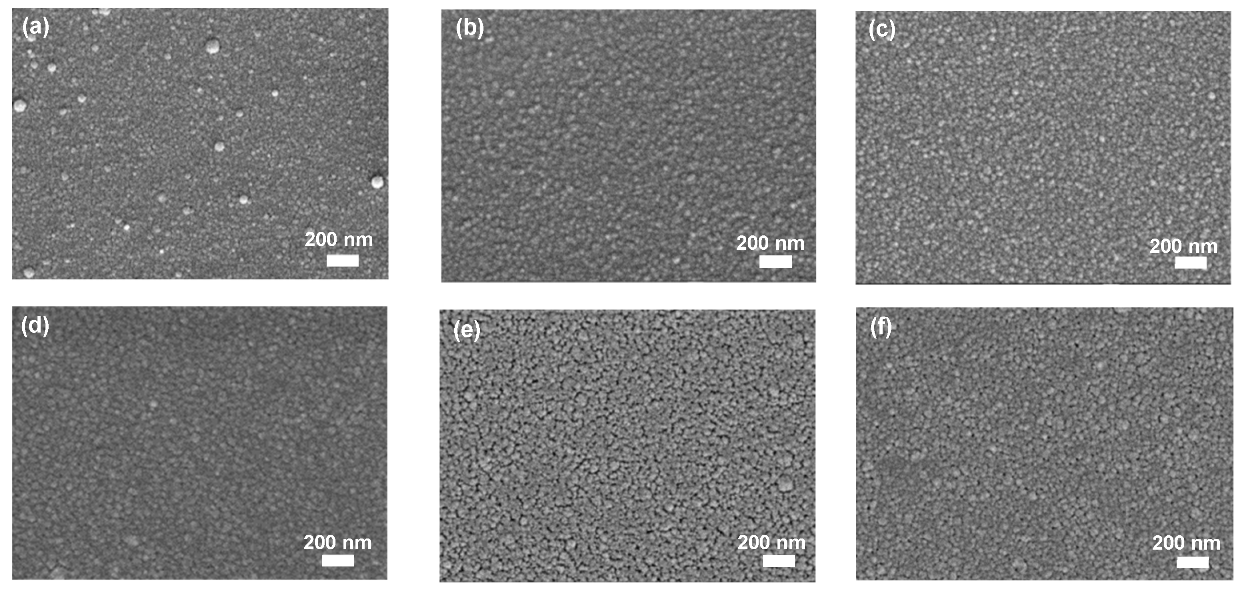

Plane-view SEM images of the ZnGa₂O₄ films at different annealing temperatures are shown in Figure 3a–f. It can be seen that the surface morphologies of these ZnGa₂O₄ films exhibit a very similar column structure. As the annealing temperature increases, the crystallite size increases. The increment is caused by regrowth and coalescence during thermal treatment. Moreover, a high annealing temperature provides sufficient driving force to improve the mobility of the atoms, and further improve the film crystallinity. These results are in agreement with the observation from the XRD spectra. It can be concluding that the crystallinity of the films can be improved by controlling annealing temperature. Similar results have been reported by Sharma et al. [26].

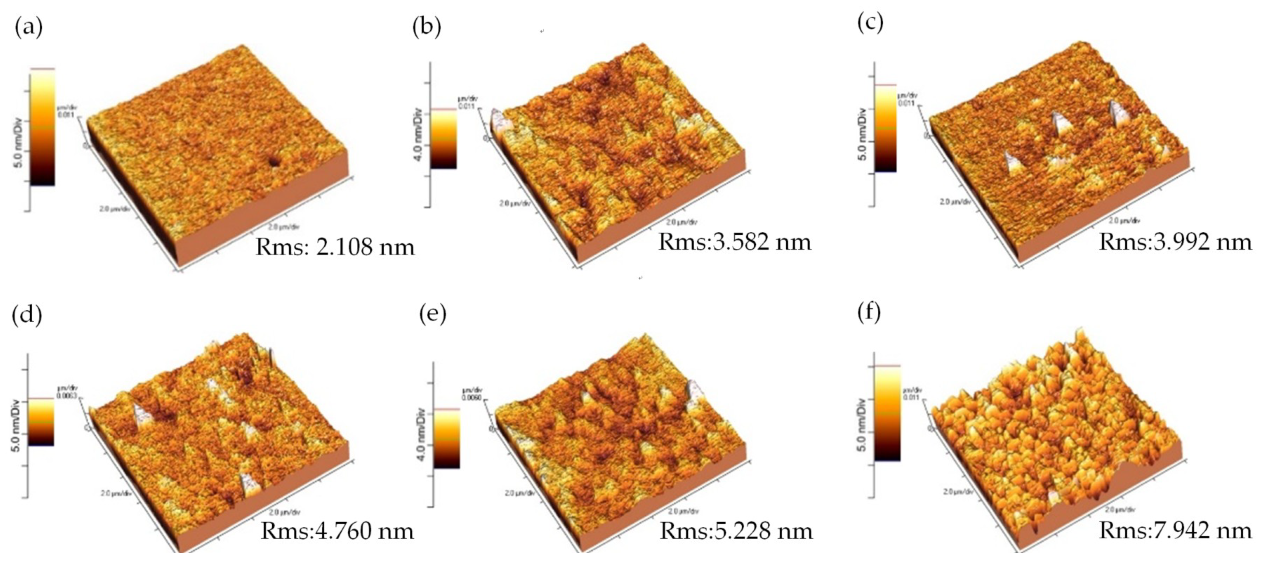

The surface morphologies of the ZnGa₂O₄ films at various annealing temperatures were obtained by AFM, as shown in Figure 4. The root mean square (RMS) values of the annealed samples (500, 600, and 700 °C) decreased compared to that of the as-deposited sample. As the annealing temperature increased above 800 °C, the RMS increased from 3.228 to 3.549 nm. This can be attributed to the phase separation that occurred at the surface resulting from the thermal decomposition or atomic migration on the disordered nanostructure of the ZnGa₂O₄ film. Figure 5a shows the cross-sectional transmission electron microscopy (TEM) images of ZnGa₂O₄ film annealed at a temperature of 900 °C. It was found that the ZnGa₂O₄ film exhibited a columnar structure with a thickness of approximately 485 nm. To investigate the detailed microstructure and compositional distribution of annealed ZnGa₂O₄ films, zones I, II, and III in Figure 5a were further analyzed by HRTEM. D-spacing was used to define the distance between planes of atoms in crystalline materials. Nanocrystalline grains including the crystal planes of ZnGa₂O₄ (311) and Ga₂O₃ (−401) were observed (Figure 5b), which corresponded to a d-spacing of 2.5 and 2.9 Å, respectively. This is because Zn atoms diffuse from the film at high annealing temperatures resulting in the partial conversion of ZnGa₂O₄ to Ga₂O₃. Therefore, it can be inferred that the Ga₂O₃ phases are accompanied by ZnGa₂O₄ phases in this layer. Multiple phases including ZnGa₂O₄ (311), (222), (400), and (220) plane were obtained, as shown in Figure 5c. The clear crystal lattice stripes with the preferred orientation perpendicular to the film surface of cubic ZnGa₂O₄ (111) (d-spacing value of 4.8 Å) possess a quasi-single-crystalline structure (Figure 4d). This result might be attributed to the thermally activated process that provides enough kinetic energy, which was imparted to the ZnGa₂O₄ molecules. The imparted kinetic energy aids the rearrangement and improvement of crystallite perfection in the ZnGa₂O₄ thin film structure.

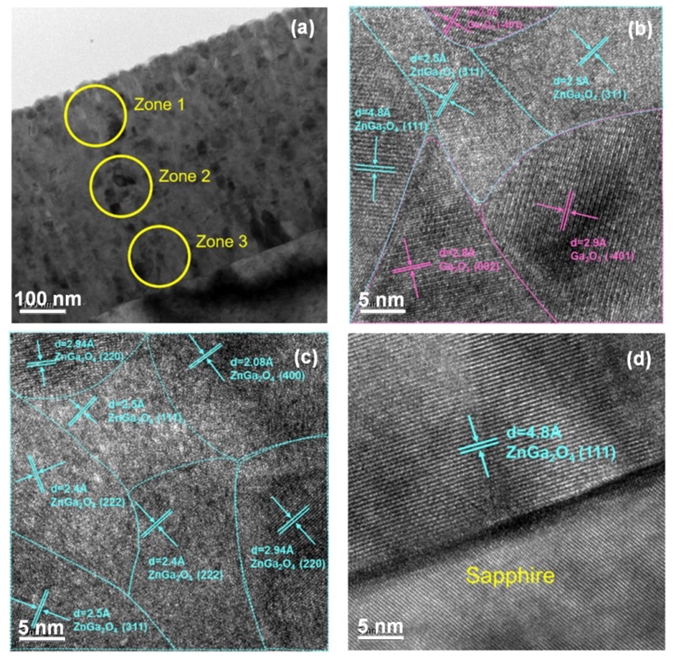

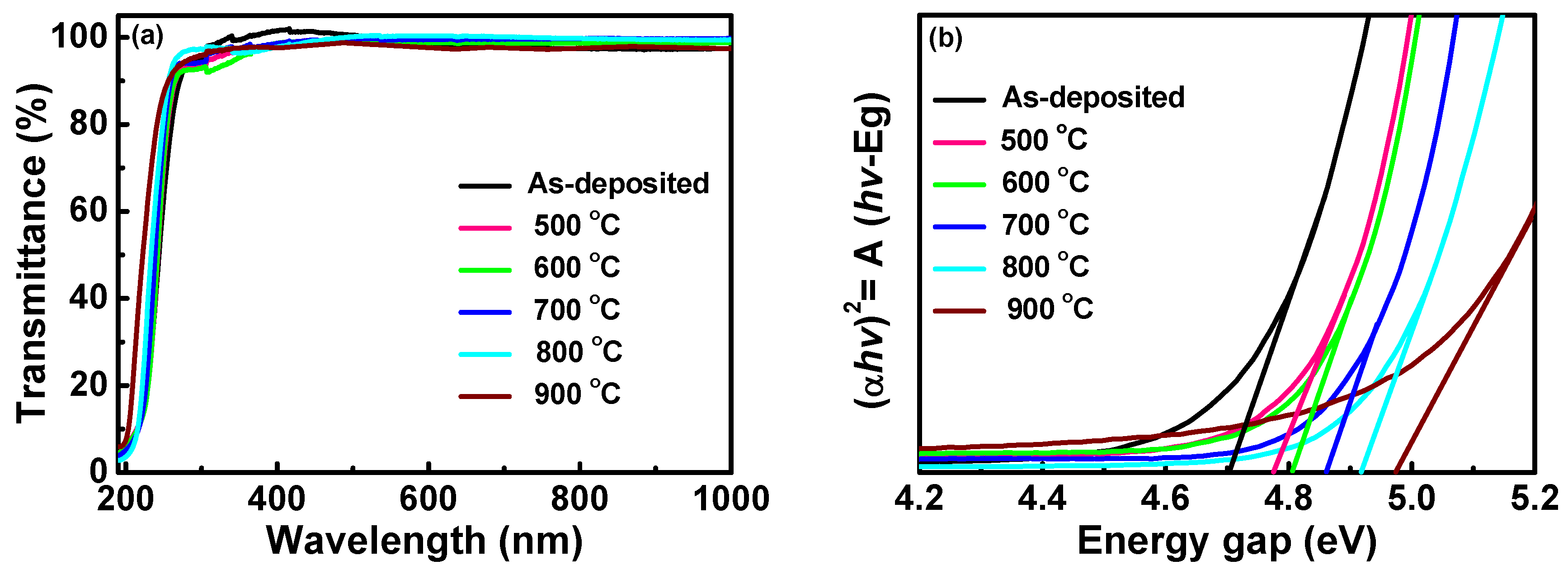

The optical transmittance spectra and energy gap of ZnGa₂O₄ films annealed at different temperatures are shown in Figure 6. The optical transmittance spectra of ZnGa₂O₄ thin films were recorded from 200 to 1000 nm. All deposited ZnGa₂O₄ films showed high transmittance greater than 80% in the ultraviolet A radiation UVA (400–315 nm) and ultraviolet B radiation (UVB) (315–280 nm) regions. The decrease may be attributed to a rough surface, as observed in the AFM result. The energy gap of ZnGa₂O₄ thin films at annealing temperatures ranging from 500 to 900 °C can be evaluated from the absorption edge (αhν)² curve as shown in Figure 6b [27], where α is the absorption coefficient and hν is the photon energy. The photon energy gap increased from 4.7 eV for the as-deposited sample to 4.98 eV as the annealing temperature increased to 900 °C. The increase in energy gap is attributed to the decrease in the number of defect densities and grain boundaries, as well as the increase in the annealing temperature. The energy gap is narrowed because the amorphous structure usually produces excited electrons that undergo conduction in defect state [28].

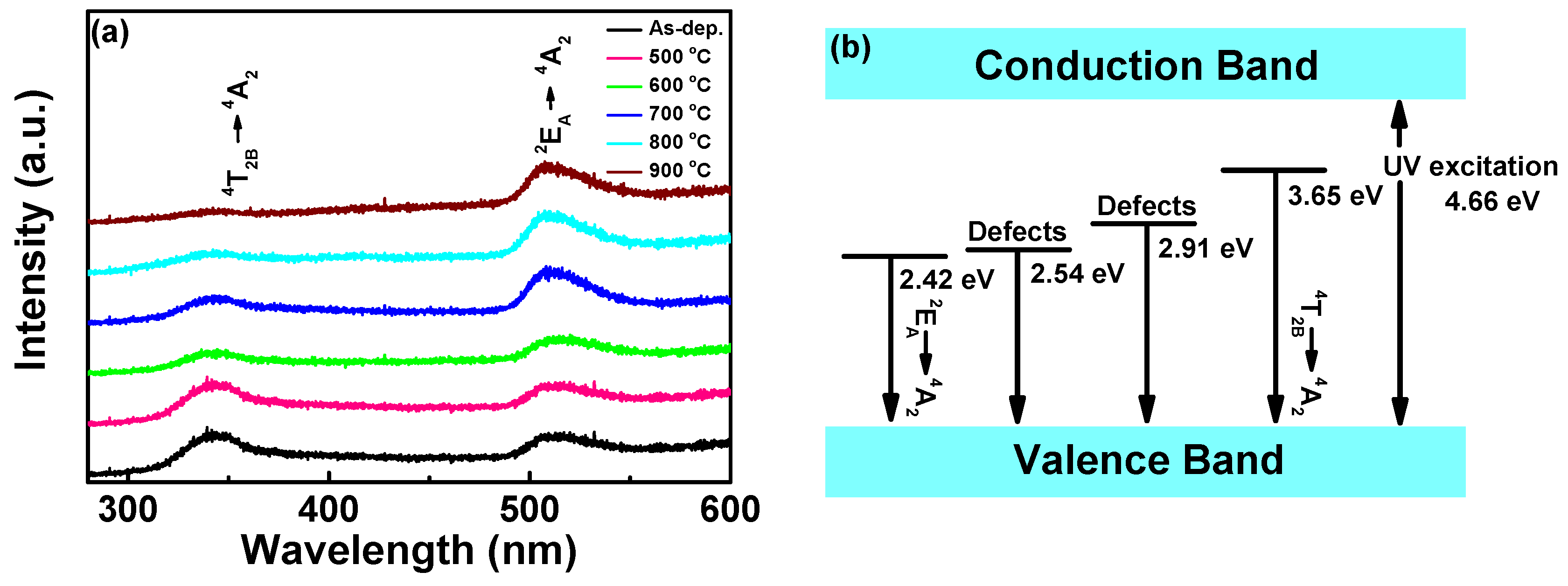

The photoluminescence emission spectra of ZnGa₂O₄ thin films at various annealing temperature is shown in Figure 7a. It was observed that the sample under higher annealing temperatures has a higher luminescence intensity. While all of the annealed samples of photoluminescence spectra exhibited broad band emission extending from 300 to 600 nm, the emission peaks were located at 340 and 520 nm. The emission peak centered at 340 nm can be attributed to the ⁴T_2B → ⁴T_2A transition, while the ²E_A → ⁴T_2A transition is responsible for the emission peak centered at 520 nm. Since the UV band emission is related to the excited excess Ga³⁺ ions of the Ga–O group [29]. During thermal annealing, the Ga³⁺ ions substitute the Zn²⁺ ions site in the AB₂O₄ spinel structure, then interactions between the p orbitals in the Ga³⁺ ion and the orbitals of the six oxygen ligands lead to a shifts in the energy levels of the individual orbitals in a distorted octahedral configuration, further splitting the five 3d-orbital energy levels. The five 3d-orbital energy levels are labeled ⁴T₁, ⁴T_2A, ⁴T_2B, ²E_B, ²E_A, and ⁴A₂. A schematic diagram of the energy levels in ZnGa₂O₄ thin films is illustrated in Figure 7b. It was previously reported that ZnGa₂O₄ annealed at different temperatures may lead to transitions as a result of the stoichiometric variations in the composition of Ga/Zn [30]. The possibility of the expulsion of Zn atoms from the ZnGa₂O₄ matrix increases with an increase in the annealing temperature. Therefore, a variation in the Ga/Zn stoichiometry in ZnGa₂O₄ thin films will be observed.

4. Conclusions

In this study, ZnGa₂O₄ thin films were prepared on sapphire substrate using an RF sputtering technique. The polycrystalline nature of the randomly oriented ZnGa₂O₄ films was improved and converted to a quasi-single-crystalline structure through thermal annealing treatment. The stress of the deposited ZnGa₂O₄ thin films was transformed from compressive to tensile stress as the annealing temperature increased from 500 to 900 °C. The optical transmittance of ZnGa₂O₄ films was greater than 80% in the UVA and UVB regions, and the energy band gap increased with an increase in annealing temperature. These results indicate that the annealing process is an effective method for the improvement of ZnGa₂O₄ thin film crystallinity, and may obtain the preferred orientation.
