Coatings 2018, 8(7), 240; https://doi.org/10.3390/coatings8070240

Article
Fabrication of Transparent Very Thin SiOx Doped Diamond-Like Carbon Films on a Glass Substrate
1
Thin Film Technology Center, National Central University, No. 300, Chongda Road, Chongli District, Taoyuan 32001, Taiwan
2
Department of Optics and Photonics, National Central University, No. 300, Chongda Road, Chongli District, Taoyuan 32001, Taiwan
3
Department of Mechanical Engineering, National Central University, No. 300, Chongda Road, Chongli District, Taoyuan 32001, Taiwan
4
Instrument Technology Research Center, National Applied Research Laboratories, No. 20. R&D Rd. VI, Hsinchu Science Park, Hsinchu 30076, Taiwan
*
Authors to whom correspondence should be addressed.
Received: 5 June 2018 / Accepted: 4 July 2018 / Published: 7 July 2018

Abstract

:
A novel direct current (DC) magnetron sputtering system via radio frequency (RF) bias with hexamethyldisiloxane (HMDSO) plasma polymerization was developed for the deposition of SiOx-doped diamond-like carbon (DLC) films on a glass substrate. As the RF bias increased, the ratio of intensity of D peak and G peak (I(D)/I(G)) decreased and the G peak shifted to a low position, leading to high hardness and a large portion of sp3 bonds. Additionally, weak sp2 graphite bonds were broken and sp3 diamond bonds formed because the RF bias attracted hydrogen ion bombarding the DLC films. Increasing DC power was helpful to improve the hardness of the DLC films because the proportion of sp3 bonds and the I(D)/I(G) ration was increased. HMDSO was introduced into this process to form SiOx:DLC films with enhanced optical performance. The average transmittance in the visible region of these very thin SiOx:DLC films with a thickness of 37.5 nm was 80.3% and the hardness of the SiOx:DLC films was increased to 7.4 GPa, which was 23.3% higher than that of B270 substrates.
Keywords:
SiOx:DLC; hexamethyldisiloxane (HMDSO); RF bias; hardness; plasma polymerization

1. Introduction

Diamond-like carbon (DLC) films are various forms of amorphous carbon materials with some of the unique properties of natural diamond [1,2]. The DLC films are composite materials that consist of carbon atoms with sp2 bonds (graphite-like) and sp3 bonds (diamond-like). The properties of DLC films are determined by the compositional concentrations of sp2 bonds, sp3 bonds, and hydrogen atoms. In 1971, Aisenberg and Chabot became the first to produce amorphous carbon films with many of the properties of diamond, using ion-beam deposition [3]. DLC films are already well-known for their superior properties, such as high hardness, high wear resistance, low friction coefficient, chemical inertness, thermal conductivity, and others [4,5,6,7]. Hence, DLC films have had various applications, such as in car engine parts, electromechanical devices, magnetic storage disks, articulations, and bio-lubricants [2,8,9,10,11,12]. Unlike diamond films, which are prepared in a high temperature process [13,14], DLC films can be fabricated at low temperature [15,16,17,18]. However, DLC films have some disadvantages, such as a high internal compressive stress, poor adhesion, and low transmittance [19,20]. DLC films have been prepared using various deposition methods such as plasma-enhanced chemical vapor deposition [21,22,23] and physical vapor deposition [24,25]. The doping of DLC films to widen their range of application has been extensively investigated. Zhao et al. prepared Ti-doped hydrogenated DLC films on polished stainless steel substrates and Si wafers in a radio frequency (RF) plasma-enhanced chemical vapor deposition (PECVD) and unbalanced magnetron sputtering system with an ultra-low friction coefficient of ~0.008 [26]. Zou et al. deposited Cr:DLC nanocomposite coatings on Si and WC–Co cemented carbide substrates in a middle frequency magnetron sputtering and ion plating system, and reported that a 9.7 at.% Cr content reduces the stress of the coatings to 0.49 GPa [27].
Sharma et al. reported a new technique called grid-based PECVD for depositing DLC films on conducting and insulating substrates and discussed theirs corrosion resistance [28]. Paul et al. prepared DLC films on SnO2-coated glass substrates by electrodeposition and found them to be extremely hydrophobic [29]. Ding et al. reported on the optical and electrical properties of DLC films that were deposited by the pulsed laser ablation of a graphite target on quartz substrate. The thickness of their DLC films was approximately 200 nm [30]. These studies reported on the deposition of DLC films on Si, quartz, and SnO2-coated glass substrates, but unfortunately not glass substrates. The transmittance and thickness of the DLC films were all less than 63% and more than 100 nm, respectively. However, the literature works that studied DLC films neither discussed transmittance nor high transmittance.
Damasceno et al. fabricated SiOx:DLC–SiOx films on crystalline silicon, glass, and polycarbonate substrates in the cathode of a conventional RF parallel plate glow discharge reactor system, and indicated that these films exhibited decreasing residual stress [31]. Paul et al. synthesized DLC films (~2 µm thick) on glass substrates with various sp2/sp3 ratios by sputtering a vitreous carbon target in Ar + H2 plasma, and they found that the films were hydrophobic [32]. Ahmed et al. deposited silver-doped DLC films by RF reactive sputtering on glass and silicon substrates. An Ag concentration of 12.5 at.% yielded an optical band gap of 1.95 eV and reduced the transmittance [33]. These authors subsequently reported on the optical properties of fluorine-doped DLC thin films that were synthesized by PECVD on glass and silicon substrates at visible and near-infrared wavelengths [34]. Even though these studies involved DLC films on glass, their thickness always exceeded 170 nm, and sometimes even exceeded 2.9 μm. Additionally, neither transmittance of the DLC films nor high transparency was discussed. In these studies, the highest transmittance was less than 80%.
In this study, transparent very thin SiOx:DLC films were deposited on a glass substrate using direct current (DC) magnetron sputtering system via RF bias by hexamethyldisiloxane (HMDSO) plasma polymerization. The transmittance in the visible region was improved by increasing the HMDSO flow rate, and the deposition thickness was controlled from 9.8 to 87.2 nm.

2. Experimental Section

2.1. Deposition of Transparent Very Thin Films

The DC magnetron sputtering system with RF bias and plasma polymerization was used to deposit SiOx:DLC films on B270 glass substrates. The B270 substrates were obtained by I-MEI Materials Co., Ltd., (New Taipei, Taiwan) and successively cleaned in acetone, isopropanol, and deionized (DI) water for 10 min in each substance by ultra-sonication, and dried using nitrogen gas. Figure 1 schematically depicts the deposition system, which involved a carbon target (99.99% purity and 3 inch in diameter) and a substrate holder that was connected to an RF power source with a frequency of 13.56 MHz. The sputtering chamber was pumped down to 3 × 10−5 torr using a diffusion pump prior to the deposition. The working gas was methane (CH4), the organic silicon monomer was HMDSO, and the working pressure was 3 × 10−3 torr. In this process, HMDSO was ionized by plasma polymerization to supply SiOx dopant.

2.2. Measurements

The thickness of transparent very thin SiOx:DLC films was measured using an alpha-step profile meter (Dektak 6M, Veeco, Plainview, NY, USA). The hardness was obtained using a nano-indenter (MTS Nano-Indenter, Keysight Technologies, Santa Rosa, CA, USA) worked in a continuous stiffness measurement mode and the maximum load was 10 mN. The proportion of sp3 bonds and the relative atomic contents of C, Si, and O were obtained using X-ray photoelectron spectroscopy (XPS) (VG Sigma Probe, VG-Scientific Ltd., East Grinsted, UK) with a microfocus monochromator Al anode X-ray device. The ratio of intensity of D peak and G peak (I(D)/I(G)) was obtained using a Raman spectrometer (RAMaker, ProTrus Tech Co. Ltd., Tainan, Taiwan) with a 532 nm laser. The optical transmittance of SiOx:DLC films was measured using a Hitachi U4100 spectrometer in the wavelength range from 400 to 700 nm.

3. Results and Discussion

3.1. The Optimized DLC Films

According to the literature, the properties of DLC films were characterized by bias voltage of deposition systems [35,36,37]. Figure 2a,b shows the properties of DLC thin films deposited using CH4 plasma with various RF biases from 200 to 400 V with and without 50 W DC power, respectively. As depicted in Figure 2a, the G peak shifted to a low wavenumber and of I(D)/I(G) ratio decreased as the RF bias increased. Both the D peak (1350 cm−1) and the G peak (1580 cm−1) originated from the sp2 bonding in the amorphous carbon films. The intensity ratio of the corresponding two bands, I(D)/I(G), was closely related to the graphite that was formed during the growth of the film. In DLC films, a small I(D)/I(G) ratio corresponds to a high proportion of sp3 [38]. The proportion of sp3 bonds and hardness increased with the increasing RF bias. Hydrogen ions that were attracted by RF bias bombard the DLC films, weak sp2 graphite bonds were then broken and sp3 diamond bonds were formed [39]. As the RF bias increased, the I(D)/I(G) ratio decreased and the G peak shifted to a low position resulting in a great hardness and a larger proportion of sp3. From Figure 2b, the position of the G peak, hardness, proportion of sp3 bonds and I(D)/I(G) ratio did not obviously vary with the RF bias since the energy of the CH4 plasma achieved only using RF bias without DC power was not enough to increase the proportion of sp3 bonds when the DLC films were deposited. From Figure 2, the optimal RF bias for depositing the DLC films was 400 V with 50 W DC power. The DLC films were deposited in a DC power range of 25–100 W with an RF bias of 400 V. Figure 3 displays the G peak, the I(D)/I(G) ratio and the hardness of DLC films. The G peak and the I(D)/I(G) ratio of the DLC films increased with the DC power, because the DC power as an additional source provided extra energy for hydrogen ions bombardment. The highest hardness and thickness of the DLC films, obtained by deposition using a DC power of 50 W, were 10.1 GPa and 155 nm, respectively. These results showed that the optimal parameters of the deposition of the DLC films were an RF bias of 400 V and a DC power of 50 W.
Carbon source of DLC films deposited in this system were provided from CH4 plasma. Under the above conditions of an RF bias of 400 V and a DC power of 50 W, DLC films were fabricated using various CH4 flow rates as shown in Figure 4. The wavenumber of the G peak was between 1522 and 1528 cm−1 at a CH4 flow range of 10 to 20 sccm. The I(D)/I(G) ratio and the hardness showed that the structures and the mechanical properties of the DLC films did not significantly change. The highest transmittance of the DLC films in the visible region was 66.2%, which was achieved at a CH4 flow rate of 12.5 sccm, which was therefore used in the rest of this study. The hardness and the thickness of the DLC films were 8.6 GPa and 133 nm, respectively.

3.2. The Transparent Very Thin SiOx:DLC Films

In the above study, the transmittance of DLC films in the visible region was poor, even when their thickness was approximately 130 nm. Hence, the DLC films were doped with SiOx by HMDSO plasma polymerization to improve their transmittance at an RF bias of 400 V, a DC power of 50 W, and a CH4 flow rate of 12.5 sccm. The thickness of the transparent SiOx:DLC films was controlled in the range of 65 ± 5 nm. Figure 5 displays the transmittance spectra of the thin films in the visible region with an HMDSO flow rate of 0–1.2 sccm and Figure 6 presents the DLC properties. The hardness decreased and the transmittance increased as the HMDSO flow rate increased. Similar results were also reported by Batory et al. [40]. Figure 7 presents the XPS relative atomic contents of C, Si, and O. The elemental C content of the SiOx:DLC films at an HMDSO flow rate of 0 sccm was 95.85%. The elemental C content decreased and the elemental Si and O contents increased with the HMDSO flow rate from 0 to 1.2 sccm. As the HMDSO flow rate increased, more SiOx was doped into the DLC films, improving transmittance and reducing hardness. The transmittance was improved to 86.8% at an HMDSO flow rate of 1.2 sccm but the hardness was only 7 GPa. An HMDSO flow rate of 0.9 sccm was chosen in further experiments because the achieved transmittance and hardness were then both better than those of non-doped DLC films. The hardness of a B270 substrate was 6 GPa. The hardness of SiOx:DLC films achieved at an HMDSO flow rate of 0.9 sccm was increased to 8.6 GPa, which was 43.3% higher than that of a B270 substrate. The average transmittance of the SiOx:DLC films in the visible region was 78.6%.
The thickness of the SiOx:DLC films was controlled from 9.8 to 87.2 nm. Figure 8 and Figure 9 display the properties and transmittance spectra of the SiOx:DLC films of various thicknesses, respectively. The transmittance decreased as the thickness of SiOx:DLC films increased. Figure 8 reveals that the wavenumber of the G peak was between 1490 and 1498 cm−1, and the I(D)/I(G) ratio was between 0.5% and 0.6%. The structure of the SiOx:DLC film was independent of thickness. The hardness decreased and the transmittance increased as the thickness decreased. When the thickness was only 37.5 nm, the average transmittance was 80.3% and the hardness was 7.4 GPa, which was 23.3% higher than that of B270 substrate. When the thickness of the SiOx:DLC films on the B270 substrate was 64 nm, the hardness was 8.6 GPa, which was 43.3% higher than that of B270 substrate, and the transmittance in the visible region was 78.6%.

4. Conclusions

Transparent very thin SiOx:DLC films were deposited on a glass substrate using a novel DC magnetron sputtering system via RF bias with HMDSO plasma polymerization. Increasing the DC power increased the proportion of sp3 bonds and the I(D)/I(G) ratio, improving the hardness of the thin films. The highest hardness and thickness of the DLC films were 14.2 GPa and 470 nm; these were achieved at an RF bias of 400 V, a DC power of 50 W, and a CH4 flow rate of 15 sccm. Doping with SiOx increased the transmittance of the DLC films. The optimal parameters of SiOx:DLC films were an RF bias of 400 V, a DC power of 50 W, a CH4 flow rate of 12.5 sccm, and an HMDSO flow rate of 0.9 sccm. The transmittance in the visible region and the hardness of SiOx:DLC films with a thickness of 37.5 nm on a B270 substrate in were 80.3% and 7.4 GPa, respectively. Reducing the thickness of the SiOx:DLC films increased the transmittance of the DLC films by 14.1% from 66.2% to 80.3%, although it reduced the hardness of the thin films by 1.2 GPa from 8.6 to 7.4 GPa.

Author Contributions

Conceptualization, C.C.K. and W.B.L.; Methodology, C.C.K. and W.B.L.; Validation, Y.Y.L.; Formal Analysis, H.S.W. and H.P.C.; Investigation, Y.Y.L.; Data Curation, Y.Y.L.; Writing-Original Draft Preparation, Y.C.C. and W.B.L.; Writing-Review & Editing, Y.C.C. and W.B.L.

Funding

This research was funded by the Ministry of Science and Technology (Nos. MOST 106-2221-E-008-072 and MOST 106-2622-E-008-010-CC2).

Conflicts of Interest

The authors declare that they have no conflict of interest.

References

  1. Aisenberg, S.; Chabot, R. Deposition of carbon films with diamond properties. Carbon 1972, 10, 356. [Google Scholar] [CrossRef]
  2. Robertson, J. Diamond-like amorphous carbon. Mater. Sci. Eng. R 2002, 37, 129–281. [Google Scholar] [CrossRef][Green Version]
  3. Aisenberg, S.; Chabot, R. Ion-beam deposition of thin films of diamondlike carbon. J. Appl. Phys. 1971, 42, 2953–2958. [Google Scholar] [CrossRef]
  4. Grill, A. Plasma-deposited diamondlike carbon and related materials. IBM J. Res. Dev. 1999, 43, 147–162. [Google Scholar] [CrossRef]
  5. Bewilogua, K.; Hofmann, D. History of diamond-like carbon films—From first experiments to worldwide applications. Surf. Coat. Technol. 2014, 242, 214–225. [Google Scholar] [CrossRef]
  6. Grill, A. Diamond-like carbon coatings as biocompatible materials—An overview. Diam. Relat. Mater. 2003, 12, 166–170. [Google Scholar] [CrossRef]
  7. Hauert, R. An overview on the tribological behavior of diamond-like carbon in technical and medical applications. Tribol. Int. 2004, 37, 991–1003. [Google Scholar] [CrossRef]
  8. Bewilogua, K.; Bräuer, G.; Dietz, A.; Gäbler, J.; Goch, G.; Karpuschewski, B.; Szyszka, B. Surface technology for automotive engineering. CIRP Ann. Manuf. Technol. 2009, 58, 608–627. [Google Scholar] [CrossRef]
  9. Treutler, C.P. Industrial use of plasma-deposited coatings for components of automotive fuel injection systems. Surf. Coat. Technol. 2005, 200, 1969–1975. [Google Scholar] [CrossRef]
  10. Sapawe, N.; Samion, S.; Ibrahim, M.I.; Daud, M.R.; Yahya, A.; Hanafi, M.F. Tribological testing of hemispherical titanium pin lubricated by novel palm oil: Evaluating anti-wear and anti-friction properties. Chin. J. Mech. Eng. 2017, 30, 644–651. [Google Scholar] [CrossRef]
  11. Huang, L.Y.; Xu, K.W.; Lu, J.; Guelorget, B.; Chen, H. Nano-scratch and fretting wear study of DLC coatings for biomedical application. Diam. Relat. Mater. 2001, 10, 1448–1456. [Google Scholar] [CrossRef]
  12. Hauert, R.; Thorwarth, K.; Thorwarth, G. An overview on diamond-like carbon coatings in medical applications. Surf. Coat. Technol. 2013, 233, 119–130. [Google Scholar] [CrossRef]
  13. Borzdov, Y.; Pal’Yanov, Y.; Kupriyanov, I.; Gusev, V.; Khokhryakov, A.; Sokol, A.; Efremov, A. HPHT synthesis of diamond with high nitrogen content from an Fe3N–C system. Diam. Relat. Mater. 2002, 11, 1863–1870. [Google Scholar] [CrossRef]
  14. Ferro, S. Synthesis of diamond. J. Mater. Chem. 2002, 12, 2843–2855. [Google Scholar] [CrossRef]
  15. Namba, Y. Attempt to grow diamond phase carbon films from an organic solution. J. Vac. Sci. Technol. 1992, 10, 3368–3370. [Google Scholar] [CrossRef]
  16. Su, C.H.; Lin, C.R.; Chang, C.Y.; Hung, H.C.; Lin, T.Y. Mechanical and optical properties of diamond-like carbon thin films deposited by low temperature process. Thin Solid Films 2006, 498, 220–223. [Google Scholar] [CrossRef]
  17. Liu, W.J.; Guo, X.J.; Chang, C.L.; Lu, J.H. Diamond-like carbon thin films synthesis by low temperature atmospheric pressure plasma method. Thin Solid Films 2009, 517, 4229–4232. [Google Scholar] [CrossRef]
  18. Rohrbeck, M.; Körsten, S.; Fischer, C.B.; Wehner, S.; Kessler, B. Diamond-like carbon coating of a pure bioplastic foil. Thin Solid Films 2013, 545, 558–563. [Google Scholar] [CrossRef]
  19. Miyoshi, K.; Murakawa, M.; Watanabe, S.; Takeuchi, S.; Miyake, S.; Wu, R.L.C. CVD diamond, DLC, and c-BN coatings for solid film lubrication. Tribol. Lett. 1998, 5, 123–129. [Google Scholar] [CrossRef]
  20. Cho, Y.H.; Choi, W.S.; Park, Y.S.; Cho, H.J.; Hong, B. Study of the tribological properties of DLC double-layer films grown by using plasma enhanced chemical-vapor deposition and closed-field unbalanced magnetron sputtering. J. Korean Phys. Soc. 2007, 51, 1129–1133. [Google Scholar] [CrossRef]
  21. Ding, X.Z.; Zhang, F.M.; Liu, X.H.; Wang, P.W.; Durrer, W.G.; Cheung, W.Y.; Wong, S.P.; Wilson, I.H. Ion beam assisted deposition of diamond-like nanocomposite films in an acetylene atmosphere. Thin Solid Films 1999, 346, 82–85. [Google Scholar] [CrossRef]
  22. Zajíčková, L.; Buršíková, V.; Peřina, V.; Mackova, A.; Janča, J. Correlation between SiOx content and properties of DLC: SiOx films prepared by PECVD. Surf. Coat. Technol. 2003, 174, 281–285. [Google Scholar] [CrossRef]
  23. Vanhulsel, A.; Celis, J.P.; Dekempeneer, E.; Meneve, J.; Smeets, J.; Vercammen, K. Inductively coupled r.f. plasma assisted chemical vapour deposition of diamond-like carbon coatings. Diam. Relat. Mater. 1999, 8, 1193–1197. [Google Scholar] [CrossRef]
  24. Flege, S.; Hatada, R.; Ensinger, W.; Baba, K. Properties of hydrogenated DLC films as prepared by a combined method of plasma source ion implantation and unbalanced magnetron sputtering. J. Mater. Res. 2012, 27, 845–849. [Google Scholar] [CrossRef]
  25. Singh, A.; Lavigne, P. Deposition of diamond-like carbon films by low energy ion beam and dc magnetron sputtering. Surf. Coat. Technol. 1991, 47, 188–200. [Google Scholar] [CrossRef]
  26. Zhao, F.; Li, H.; Ji, L.; Wang, Y.; Zhou, H.; Chen, J. Ti-DLC films with superior friction performance. Diam. Relat. Mater. 2010, 19, 342–349. [Google Scholar] [CrossRef]
  27. Zou, C.W.; Wang, H.J.; Feng, L.; Xue, S.W. Effects of Cr concentrations on the microstructure, hardness, and temperature-dependent tribological properties of Cr-DLC coatings. Appl. Surf. Sci. 2013, 286, 137–141. [Google Scholar] [CrossRef]
  28. Sharma, R.; Barhai, P.K.; Kumari, N. Corrosion resistant behaviour of DLC films. Thin Solid Films 2008, 516, 5397–5403. [Google Scholar] [CrossRef]
  29. Paul, R.; Dalui, S.; Das, S.N.; Bhar, R.; Pal, A. Hydrophobicity in DLC films prepared by electrodeposition technique. Appl. Surf. Sci. 2008, 255, 1705–1711. [Google Scholar] [CrossRef]
  30. Ding, X.L.; Li, Q.S.; Kong, X.H. Optical and electrical properties evolution of diamond-like carbon thin films with deposition temperature. Chin. Phys. Lett. 2009, 26, 027802. [Google Scholar]
  31. Damasceno, J.C.; Camargo, S.S. Plasma deposition and characterization of silicon oxide-containing diamond-like carbon films obtained from CH4:SiH4:O2 gas mixtures. Thin Solid Films 2008, 516, 1890–1897. [Google Scholar] [CrossRef]
  32. Paul, R.; Das, S.N.; Dalui, S.; Gayen, R.N.; Roy, R.K.; Bhar, R.; Pal, A.K. Synthesis of DLC films with different sp2/sp3 ratios and their hydrophobic behavior. J. Phys. D Appl. Phys. 2008, 41, 055309. [Google Scholar] [CrossRef]
  33. Ahmed, S.F.; Moon, M.W.; Lee, K.R. Effect of silver doping on optical property of diamond like carbon films. Thin Solid Films 2009, 517, 4035–4038. [Google Scholar] [CrossRef]
  34. Ahmed, S.F.; Banerjee, D.; Chattopadhyay, K.K. The influence of fluorine doping on the optical properties of diamond-like carbon thin films. Vacuum 2010, 84, 837–842. [Google Scholar] [CrossRef]
  35. Lee, D.H.; He, X.M.; Walter, K.C.; Nastasi, M.; Tesmer, J.R.; Tuszewski, M.; Tallant, D.R. Diamondlike carbon deposition on silicon using radio-frequency inductive plasma of Ar and C2H2 gas mixture in plasma immersion ion deposition. Appl. Phys. Lett. 1998, 73, 2423–2425. [Google Scholar] [CrossRef]
  36. Yu, S.J.; Ding, Z.F.; Xu, J.; Zhang, J.L.; Ma, T.C. CVD of hard DLC films in a radio frequency inductively coupled plasma source. Thin Solid Films 2001, 390, 98–103. [Google Scholar] [CrossRef]
  37. Lifshitz, Y. Pitfalls in amorphous carbon studies. Diam. Relat. Mater. 2003, 12, 130–140. [Google Scholar] [CrossRef]
  38. Cui, W.G.; Lai, Q.B.; Zhang, L.; Wang, F.M. Quantitative measurements of sp3 content in DLC films with raman spectroscopy. Surf. Coat. Technol. 2010, 205, 1995–1999. [Google Scholar] [CrossRef]
  39. Zou, J.W.; Reichelt, K.; Schmidt, K.; Dischler, B. The deposition and study of hard carbon films. J. Appl. Phys. 1989, 65, 3914–3918. [Google Scholar] [CrossRef]
  40. Batory, D.; Jedrzejczak, A.; Szymanski, W.; Niedzielski, P.; Fijalkowski, M.; Louda, P.; Kotela, I.; Hromadka, M.; Musil, J. Mechanical characterization of a-C:H:SiOx coatings synthesized using radio-frequency plasma-assisted chemical vapor deposition method. Thin Solid Films 2015, 590, 299–305. [Google Scholar] [CrossRef]
Figure 1. Schematic diagram of the apparatus used for deposition of SiOx: diamond-like carbon (DLC) films. Radio frequency (RF), hexamethyldisiloxane (HMDSO), mass flow controller (MFC).
Figure 1. Schematic diagram of the apparatus used for deposition of SiOx: diamond-like carbon (DLC) films. Radio frequency (RF), hexamethyldisiloxane (HMDSO), mass flow controller (MFC).
Coatings 08 00240 g001

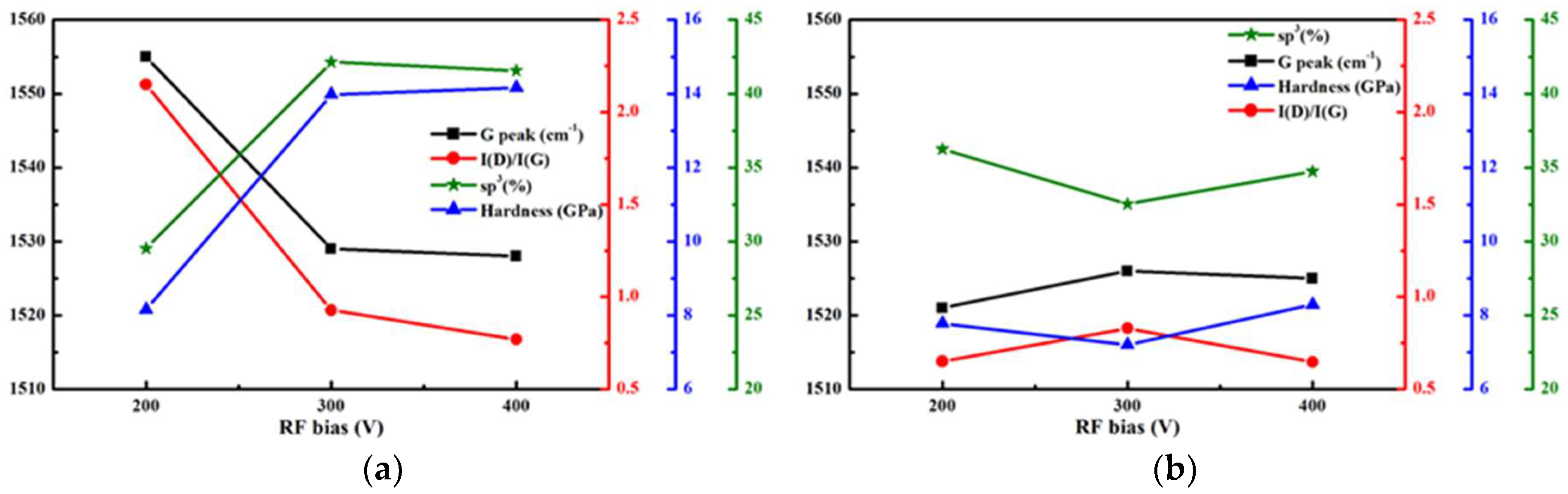

Figure 2. The analysis of DLC properties in the RF bias range of 200–400 V (a) with, and (b) without DC power of 50 W with CH4 flow rate of 15 sccm. (CH4 = 15 sccm, thickness: (a) 470 nm and (b) 110 nm).
Figure 2. The analysis of DLC properties in the RF bias range of 200–400 V (a) with, and (b) without DC power of 50 W with CH4 flow rate of 15 sccm. (CH4 = 15 sccm, thickness: (a) 470 nm and (b) 110 nm).
Coatings 08 00240 g002

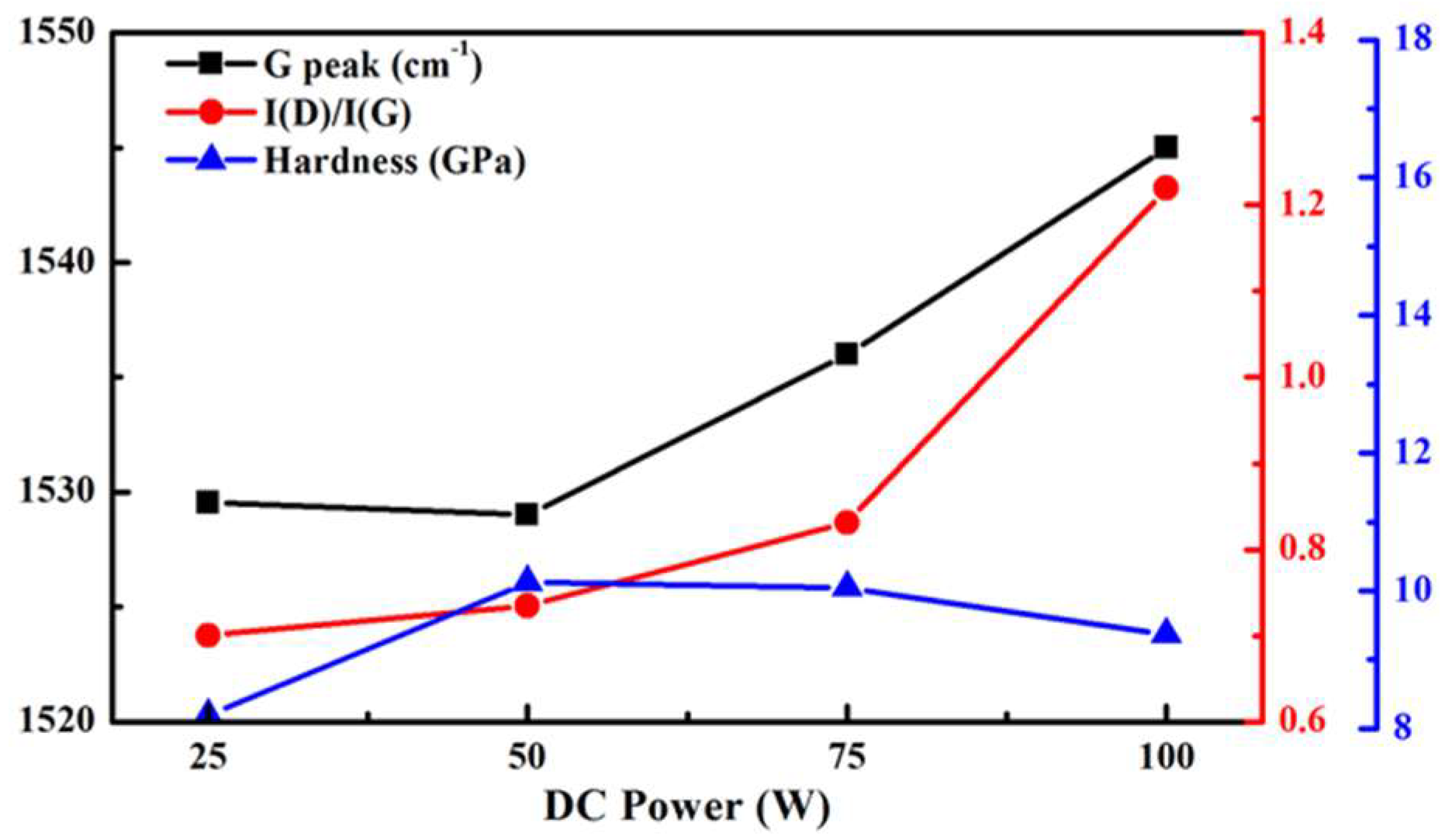

Figure 3. The analysis of DLC properties in the DC power range of 25–100 W with RF bias of 400 V. (CH4 = 15 sccm, Thickness = 150 ± 10 nm).
Figure 3. The analysis of DLC properties in the DC power range of 25–100 W with RF bias of 400 V. (CH4 = 15 sccm, Thickness = 150 ± 10 nm).
Coatings 08 00240 g003

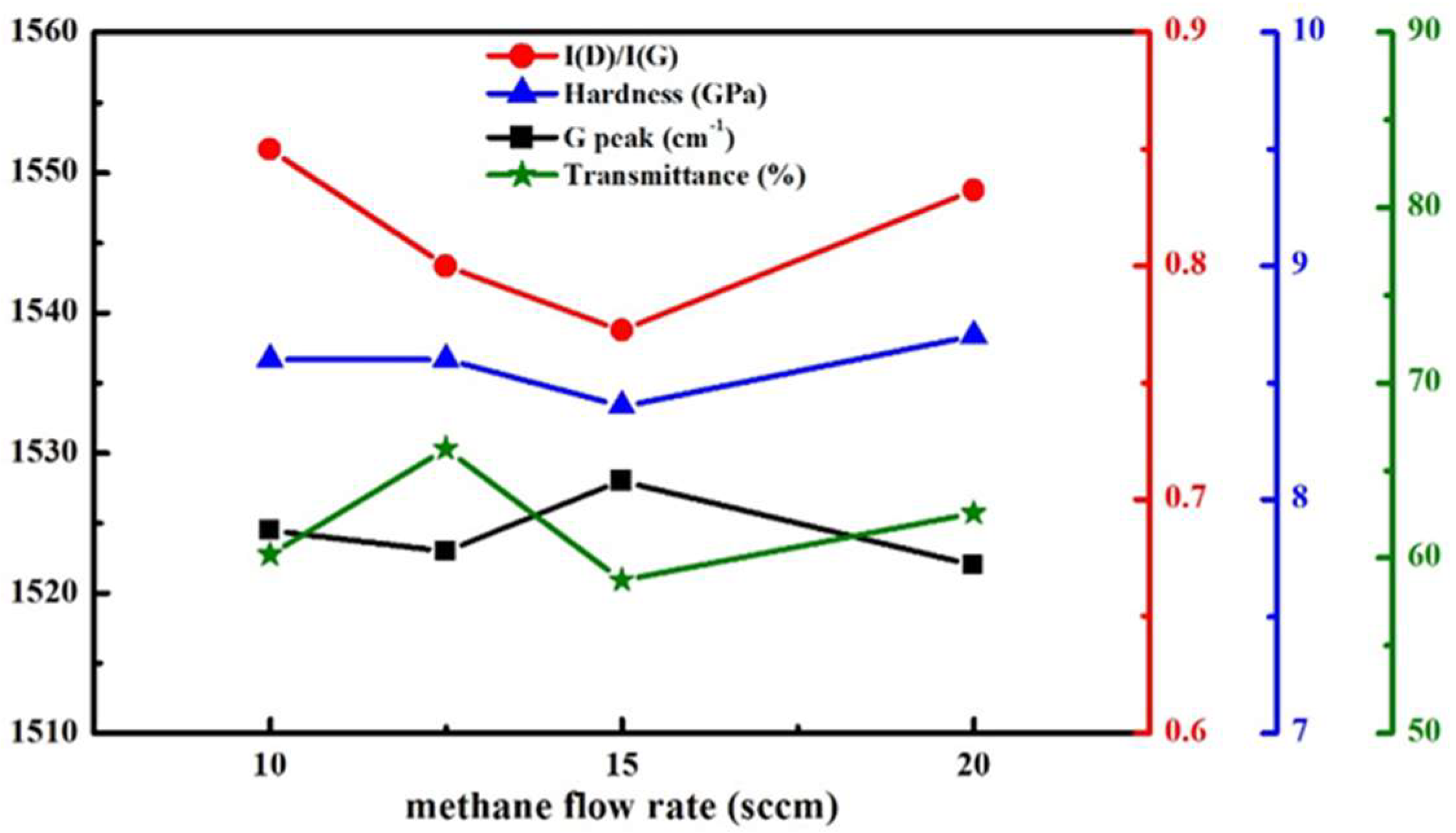

Figure 4. The analysis of DLC properties and transmittance at the different CH4 flow rates with RF bias of 400 V and DC power of 50 W. (thickness = 135 ± 10 nm).
Figure 4. The analysis of DLC properties and transmittance at the different CH4 flow rates with RF bias of 400 V and DC power of 50 W. (thickness = 135 ± 10 nm).
Coatings 08 00240 g004

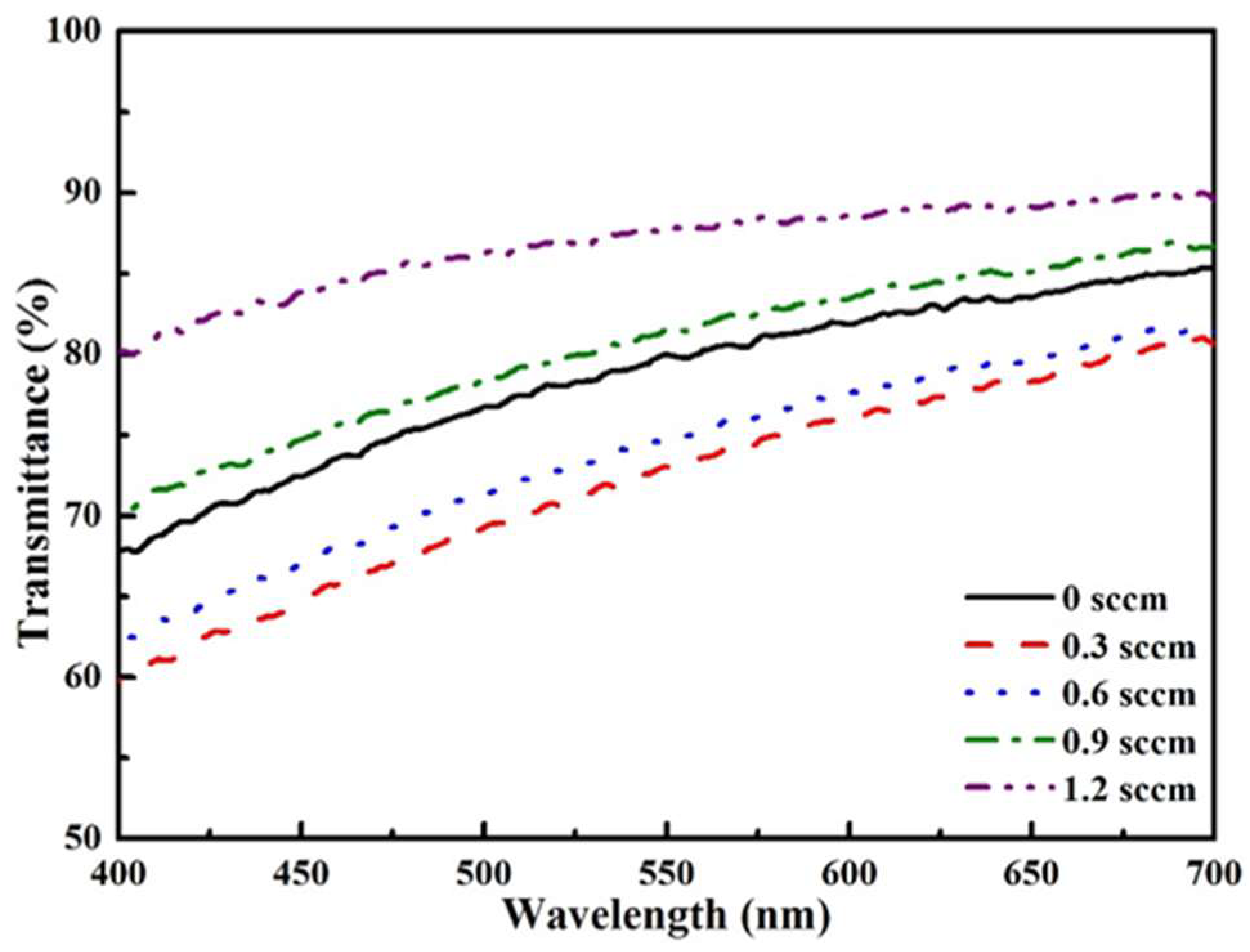

Figure 5. The transmittance spectra of SiOx:DLC films with the different HMDSO flow rates. (RF bias = 400 V, DC power = 50 W, CH4 = 12.5 sccm, thickness = 65 ± 5 nm).
Figure 5. The transmittance spectra of SiOx:DLC films with the different HMDSO flow rates. (RF bias = 400 V, DC power = 50 W, CH4 = 12.5 sccm, thickness = 65 ± 5 nm).
Coatings 08 00240 g005

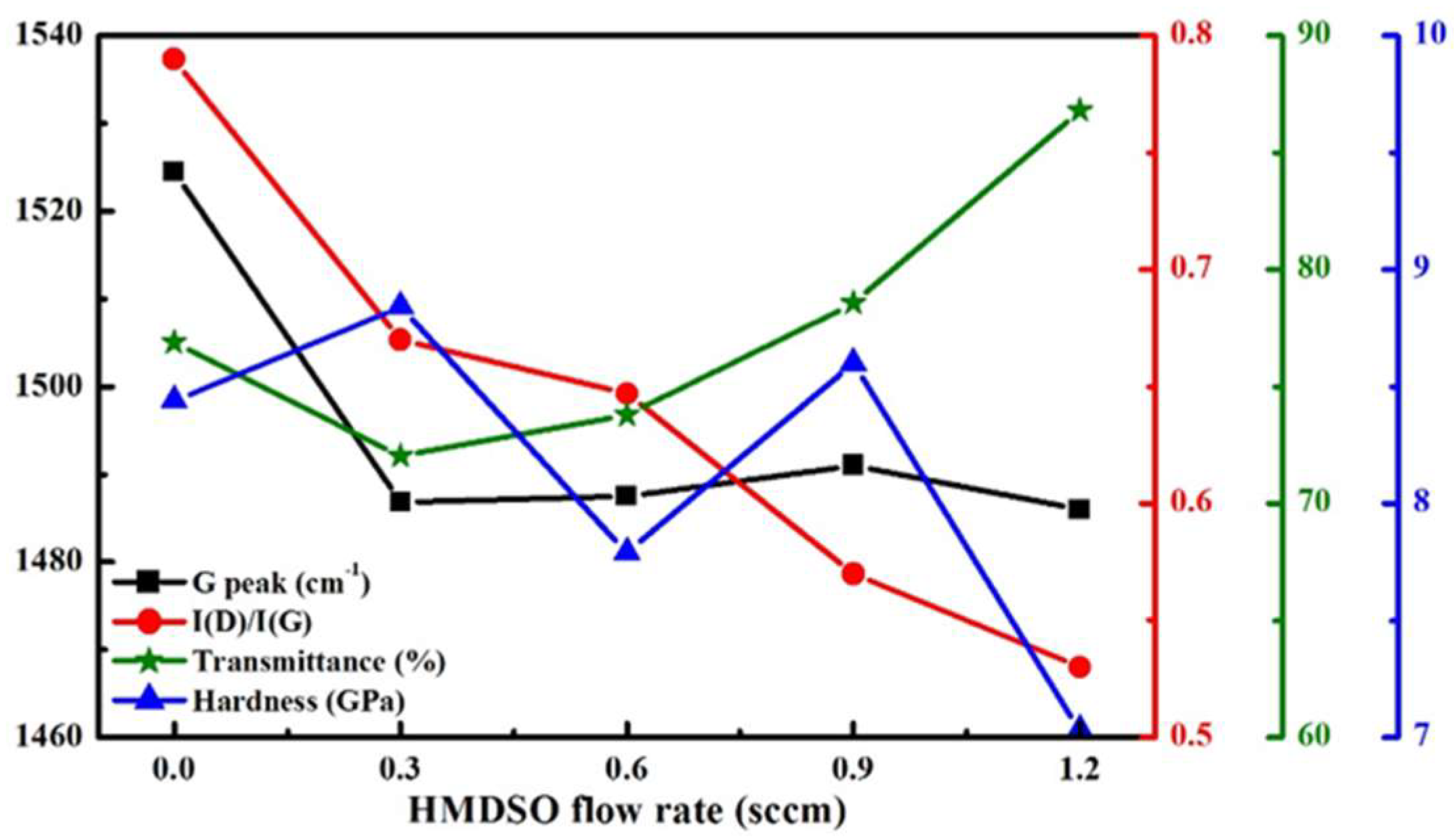

Figure 6. The analysis of DLC properties and transmittance at the different HMDSO flow rates. (RF bias = 400 V, DC power = 50 W, CH4 = 12.5 sccm, thickness = 65 ± 5 nm).
Figure 6. The analysis of DLC properties and transmittance at the different HMDSO flow rates. (RF bias = 400 V, DC power = 50 W, CH4 = 12.5 sccm, thickness = 65 ± 5 nm).
Coatings 08 00240 g006

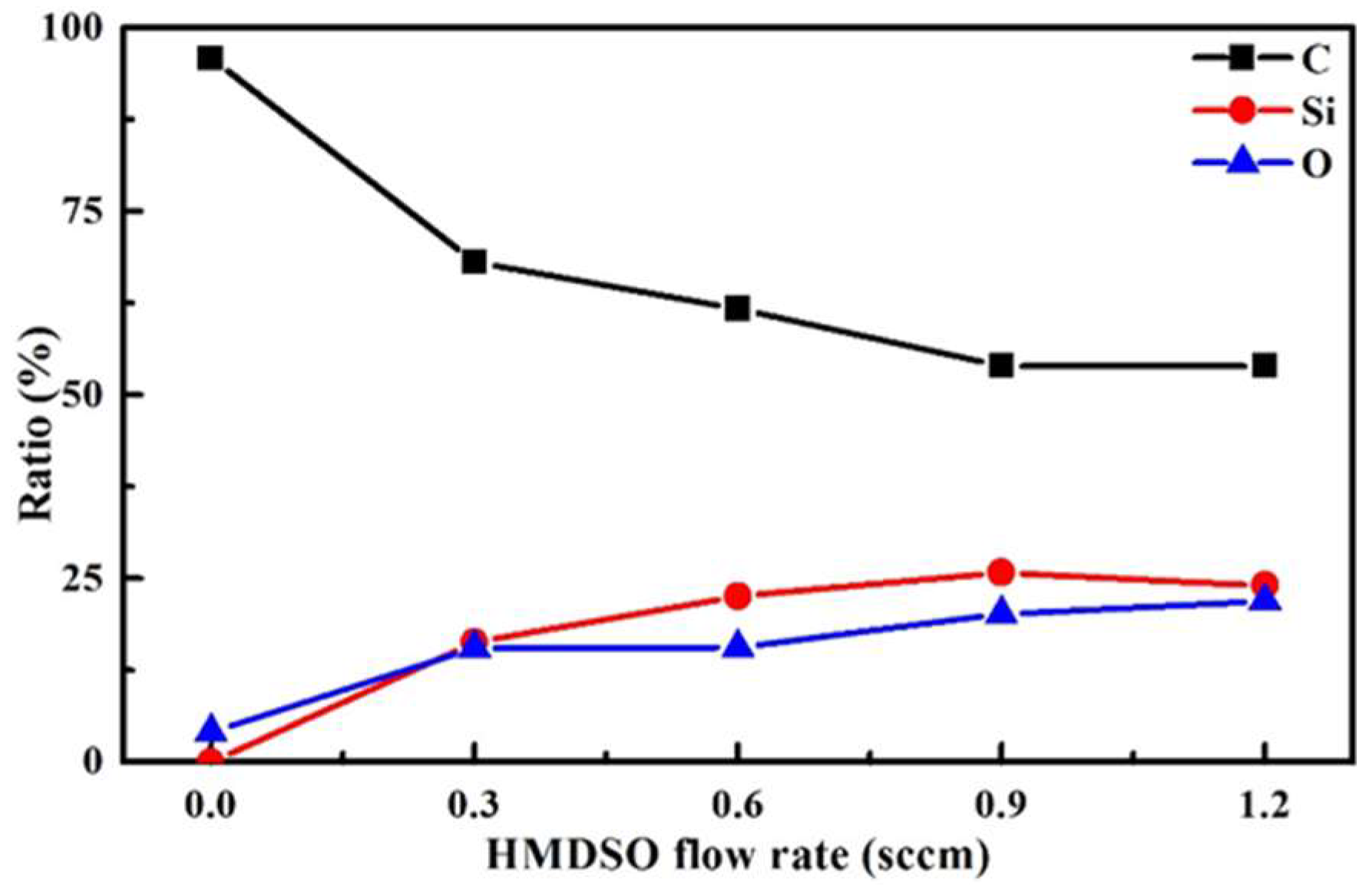

Figure 7. The X-ray photoelectron spectroscopy (XPS) relative atomic content of C, Si, and O at the different HMDSO flow rates. (RF bias = 400 V, DC power = 50 W, CH4 = 12.5 sccm, thickness = 65 ± 5 nm).
Figure 7. The X-ray photoelectron spectroscopy (XPS) relative atomic content of C, Si, and O at the different HMDSO flow rates. (RF bias = 400 V, DC power = 50 W, CH4 = 12.5 sccm, thickness = 65 ± 5 nm).
Coatings 08 00240 g007

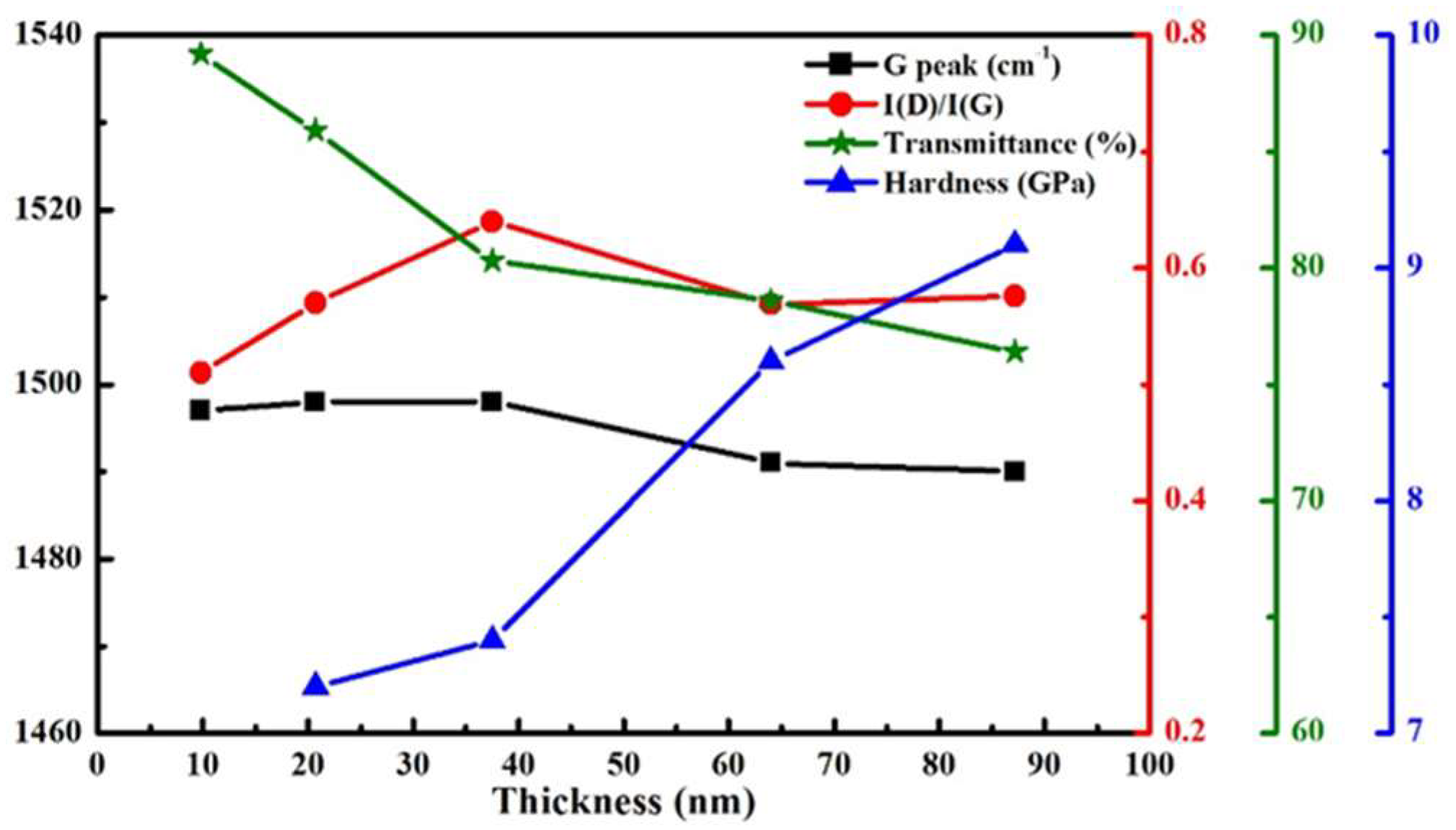

Figure 8. The analysis of DLC properties and transmittance in the different thickness of SiOx:DLC films. (RF bias = 400 V, DC power = 50 W, CH4 = 12.5 sccm, HMDSO = 0.9 sccm).
Figure 8. The analysis of DLC properties and transmittance in the different thickness of SiOx:DLC films. (RF bias = 400 V, DC power = 50 W, CH4 = 12.5 sccm, HMDSO = 0.9 sccm).
Coatings 08 00240 g008

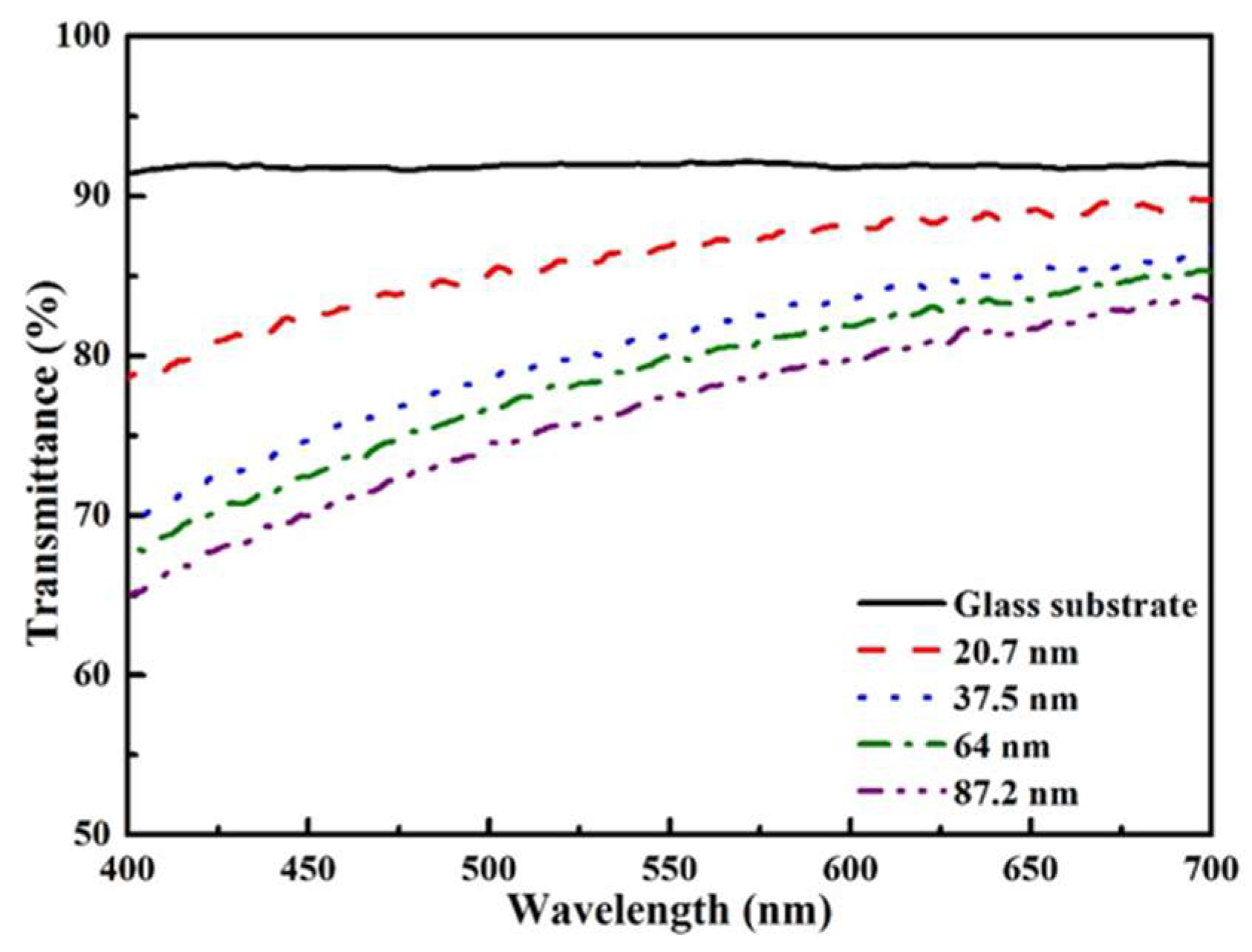

Figure 9. The transmittance spectra of SiOx:DLC films with different thickness. (RF bias = 400 V, DC power = 50 W, CH4 = 12.5 sccm, HMDSO = 0.9 sccm).
Figure 9. The transmittance spectra of SiOx:DLC films with different thickness. (RF bias = 400 V, DC power = 50 W, CH4 = 12.5 sccm, HMDSO = 0.9 sccm).
Coatings 08 00240 g009
