Next Article in Journal
Carbon-Coated Nickel Nanoparticles: Effect on the Magnetic and Electric Properties of Composite Materials
Next Article in Special Issue
Enhanced Transmittance Modulation of SiO2-Doped Crystalline WO3 Films Prepared from a Polyethylene Oxide (PEO) Template
Previous Article in Journal
Effect of the N/C Ratios of Ammonia Added to Process Gas Mixtures on the Morphology and Structure of MPCVD Diamond Films
Previous Article in Special Issue
Morphological Characteristics of Au Films Deposited on Ti: A Combined SEM-AFM Study
Open AccessArticle

Dithienylpyrrole- and Tris[4-(2-thienyl)phenyl]amine-Containing Copolymers as Promising Anodic Layers in High-Contrast Electrochromic Devices

Department of Chemical Engineering and Materials Engineering, National Yunlin University of Science and Technology, Yunlin 64002, Taiwan
*
Author to whom correspondence should be addressed.
Coatings 2018, 8(5), 164; https://doi.org/10.3390/coatings8050164
Received: 22 March 2018 / Revised: 13 April 2018 / Accepted: 20 April 2018 / Published: 27 April 2018
(This article belongs to the Special Issue Thin Films for Advance Applications)

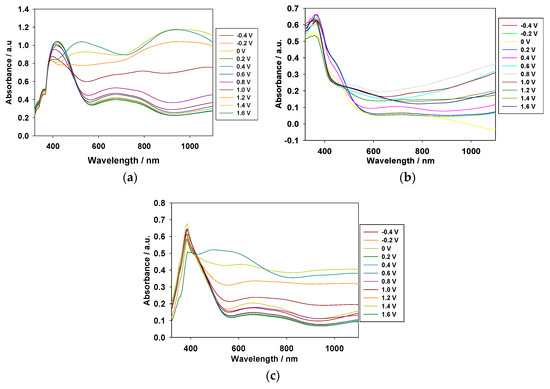

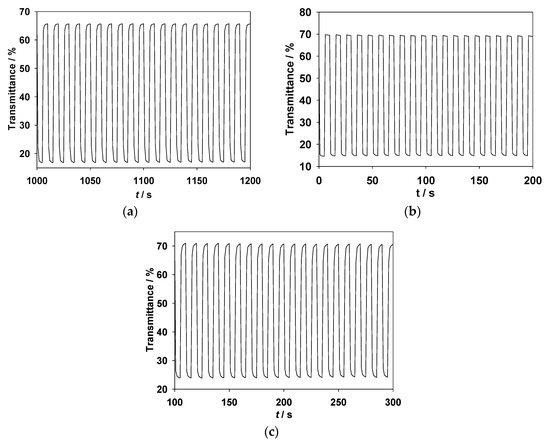

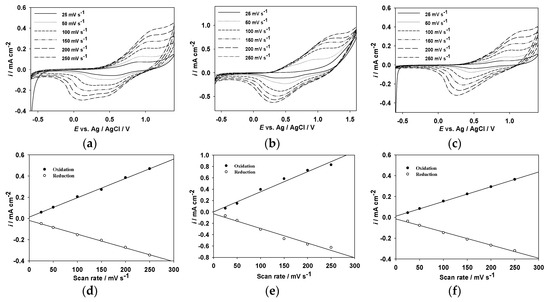

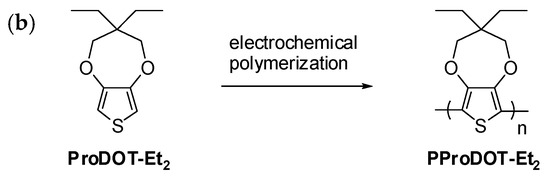

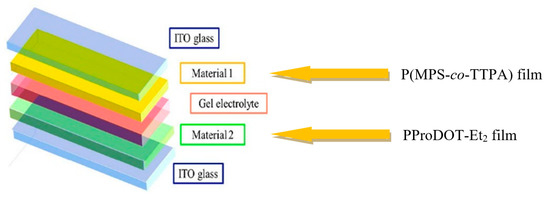

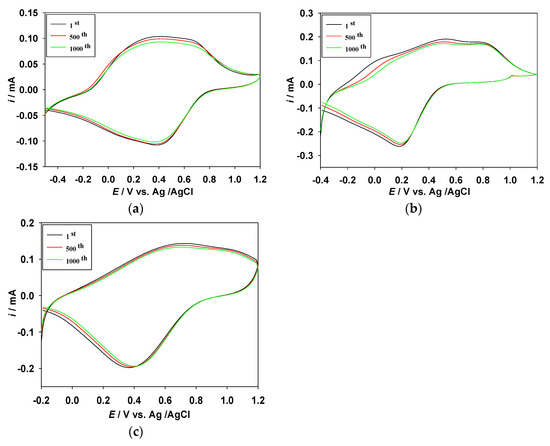

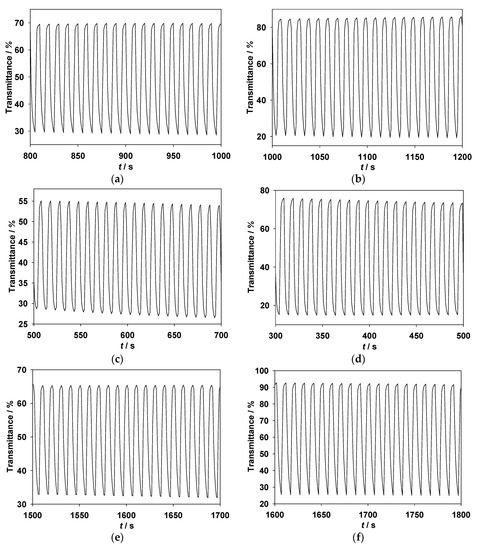

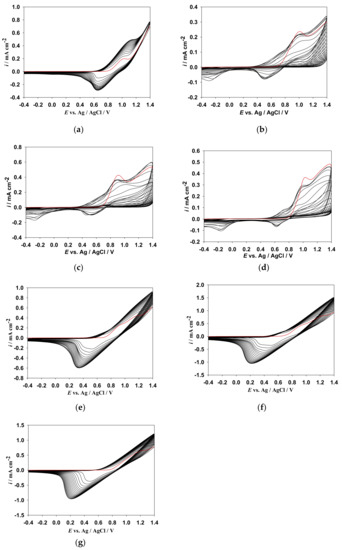

Three dithienylpyrrole- and tris[4-(2-thienyl)phenyl]amine-containing copolymers (P(MPS-co-TTPA), P(MPO-co-TTPA), and P(ANIL-co-TTPA)) were deposited on indium tin oxide (ITO) surfaces using electrochemical polymerization. Spectroelectrochemical characterizations of polymer films revealed that P(MPS-co-TTPA) film was light olive green, greyish-green, bluish grey, and grey in neutral state, intermediate state, oxidized state, and highly oxidized state, respectively, whereas P(MPO-co-TTPA) film was green moss, foliage green, dark greyish-green, and bluish-grey in neutral state, intermediate state, oxidized state, and highly oxidized state, respectively. The ΔTmax of P(MPS-co-TTPA) film at 964 nm, P(MPO-co-TTPA) film at 914 nm, and P(ANIL-co-TTPA) film at 960 nm were 67.2%, 60.7%, and 67.1%, respectively, and the coloration efficiency (η) of P(MPS-co-TTPA) film at 964 nm, P(MPO-co-TTPA) film at 914 nm, and P(ANIL-co-TTPA) film at 960 nm were calculated to be 260.3, 176.6, and 230.8 cm2 C−1, respectively. Dual type complementary colored electrochromic devices (ECDs) were constructed using P(MPS-co-TTPA), P(MPO-co-TTPA), or P(ANIL-co-TTPA) as anodic copolymer layer and PProDOT-Et2 as cathodic polymer layer. P(MPO-co-TTPA)/PProDOT-Et2 ECD revealed high ΔT (55.1%) and high η (766.5 cm2 C−1) at 580 nm. Moreover, P(MPS-co-TTPA)/PProDOT-Et2, P(MPO-co-TTPA)/PProDOT-Et2, and P(ANIL-co-TTPA)/PProDOT-Et2 ECDs showed satisfactory long-term cycling stability and optical memory. View Full-Text
Keywords: electrochemical polymerization; spectroelectrochemistry; electrochromic switching; optical contrast; electrochromic devices electrochemical polymerization; spectroelectrochemistry; electrochromic switching; optical contrast; electrochromic devices
Show Figures

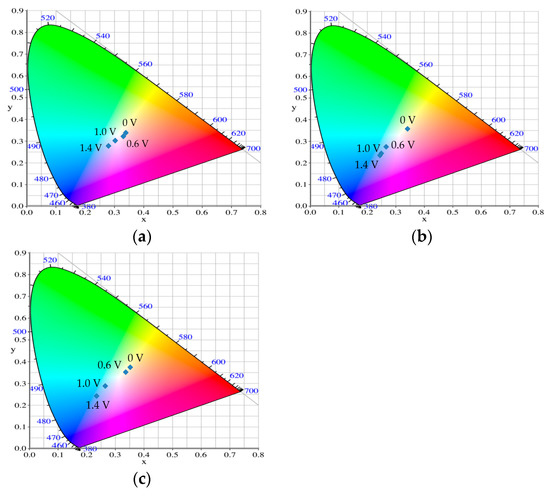

Figure 1

MDPI and ACS Style

Wu, T.-Y.; Su, Y.-S.; Chang, J.-C. Dithienylpyrrole- and Tris[4-(2-thienyl)phenyl]amine-Containing Copolymers as Promising Anodic Layers in High-Contrast Electrochromic Devices. Coatings 2018, 8, 164.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map

1
Back to TopTop
