Next Article in Journal
Mechanical Durability of Engineered Superhydrophobic Surfaces for Anti-Corrosion
Next Article in Special Issue
Cost-Effective Surface Modification of Carbon Cloth Electrodes for Microbial Fuel Cells by Candle Soot Coating
Previous Article in Journal
The Functionalization of Nanostructures and Their Potential Applications in Edible Coatings
Previous Article in Special Issue
Modulating the Partitioning of Microparticles in a Polyethylene Glycol (PEG)-Dextran (DEX) Aqueous Biphasic System by Surface Modification
Article

Synthesis of Core-Shell MgO Alloy Nanoparticles for Steelmaking

by 1, 2,3,*, 2,3, 2,3 and 2,3
1
Central Iron and Steel Research Institute, Beijing 100081, China
2
School of Metallurgical and Ecological Engineering, University of Science and Technology Beijing, Beijing 100083, China
3
Beijing Key Laboratory of Special Melting and Preparation of High-End Metal Materials, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Coatings 2018, 8(5), 161; https://doi.org/10.3390/coatings8050161
Received: 4 April 2018 / Revised: 16 April 2018 / Accepted: 23 April 2018 / Published: 27 April 2018
(This article belongs to the Special Issue Surface Chemical Modification)

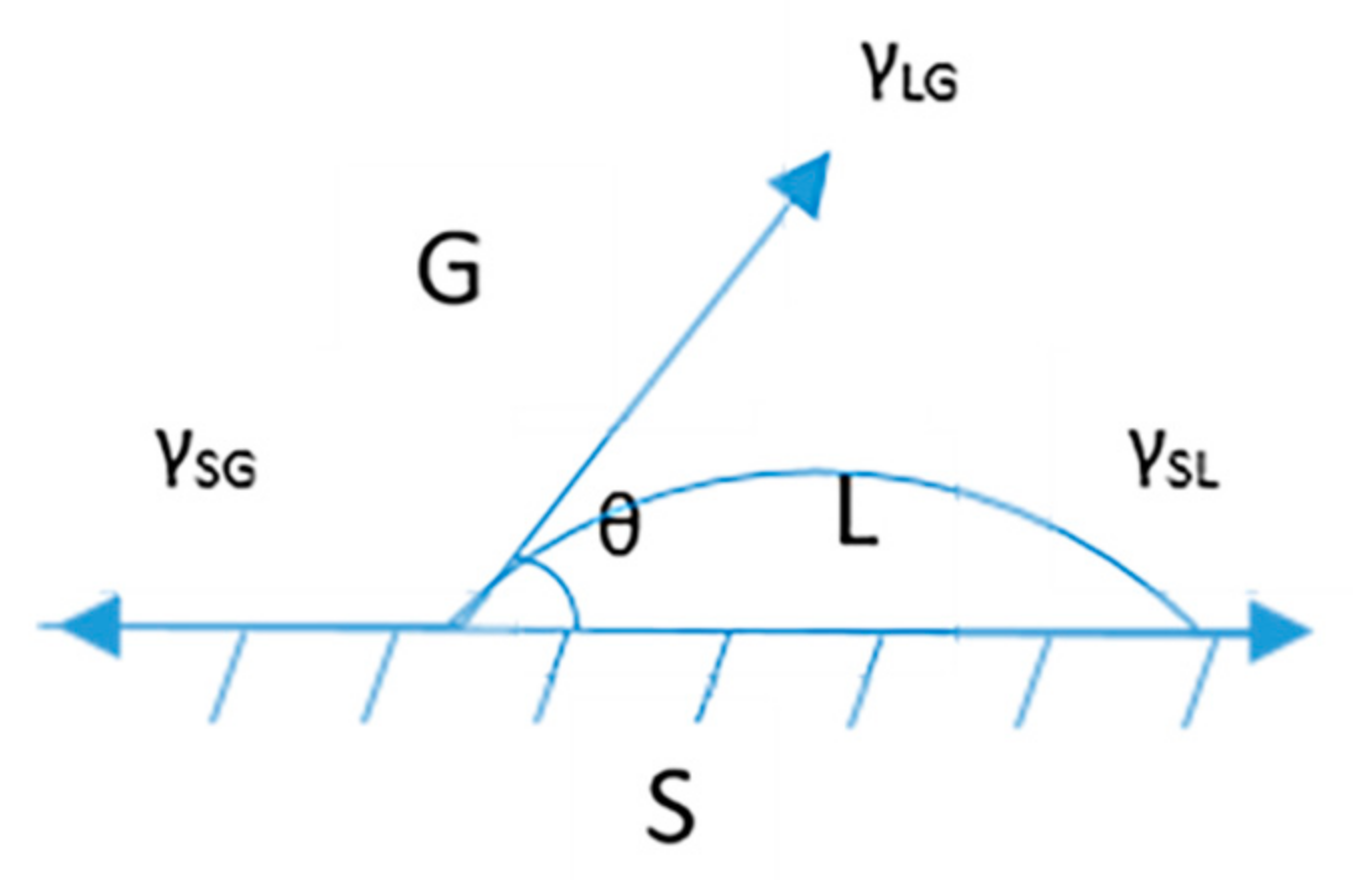

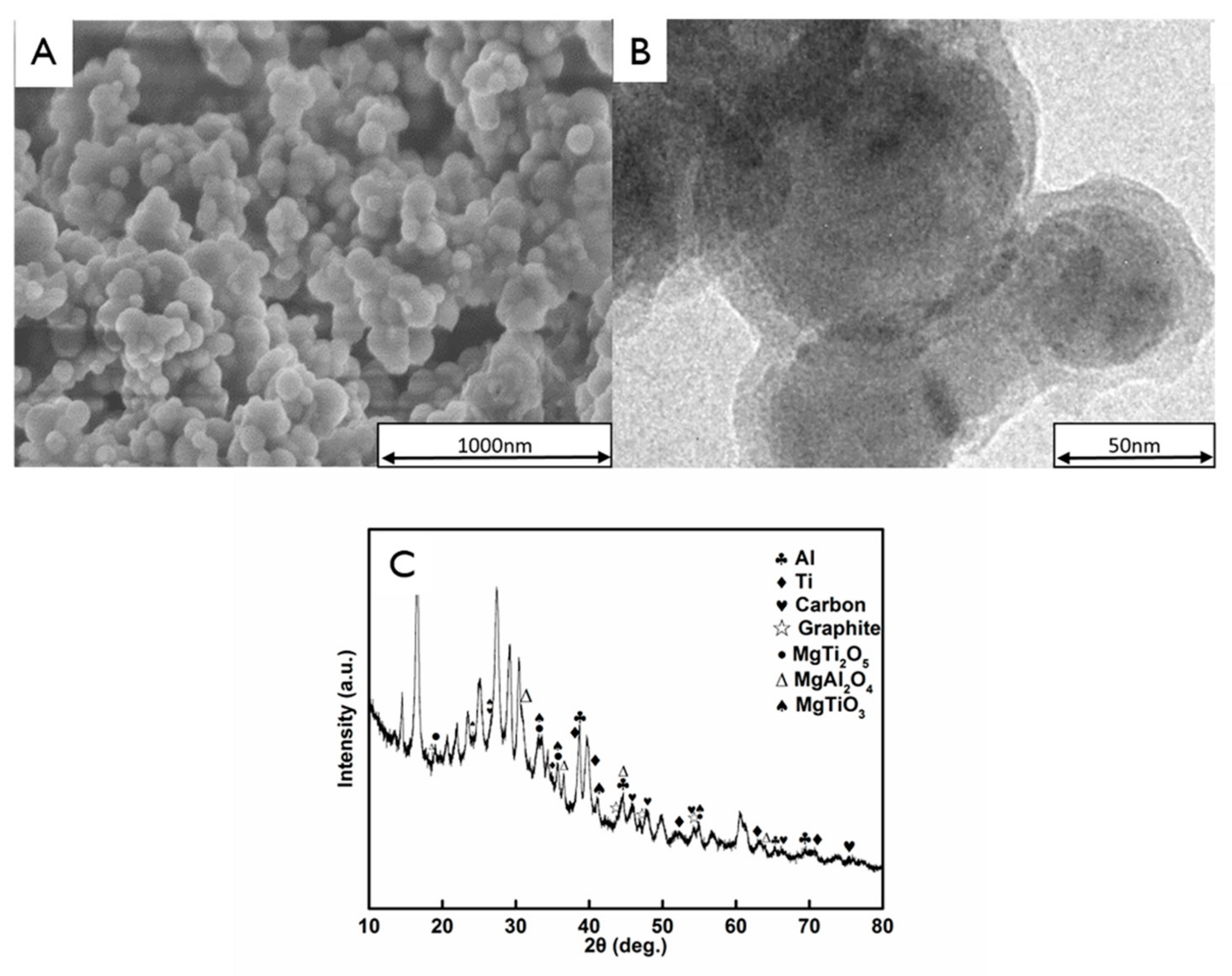

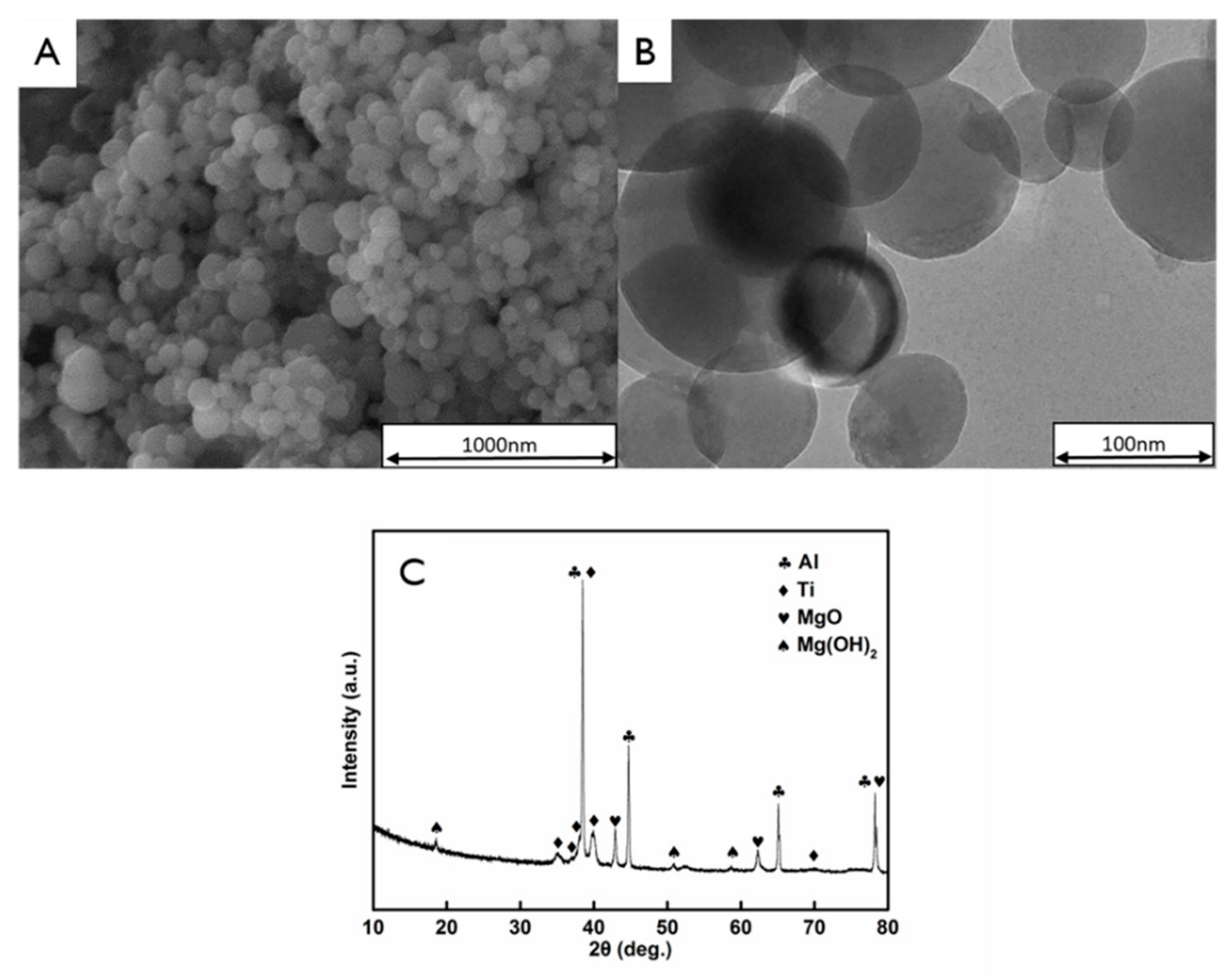

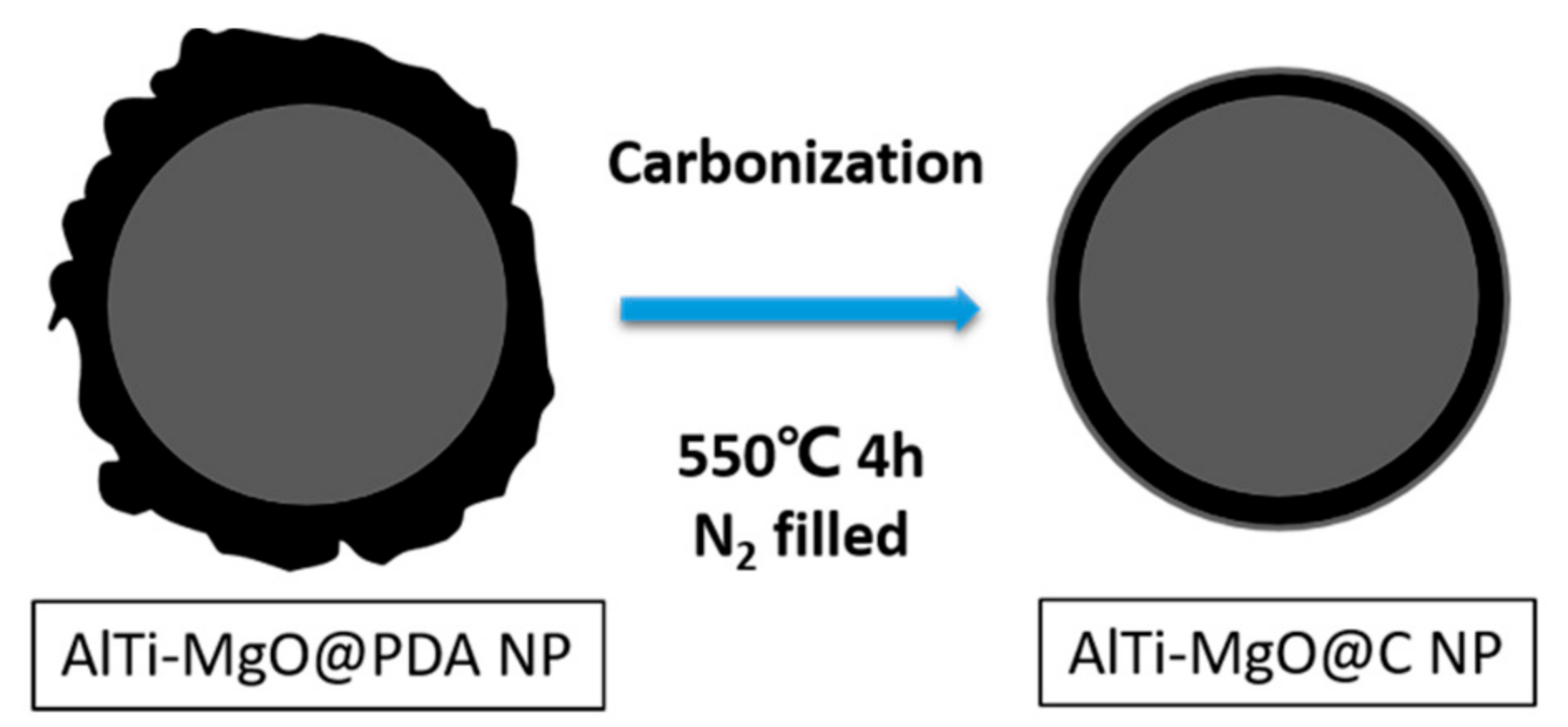

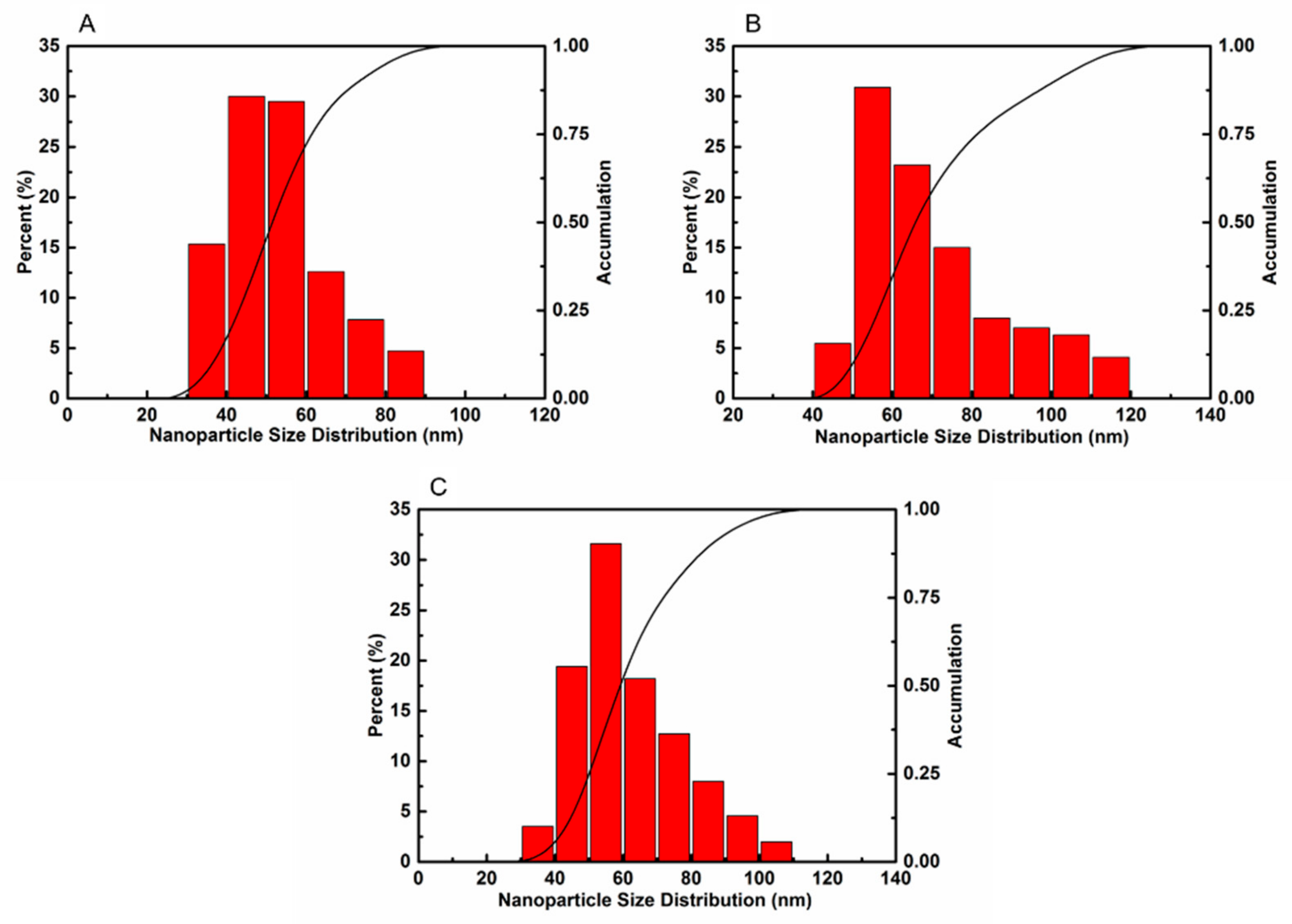

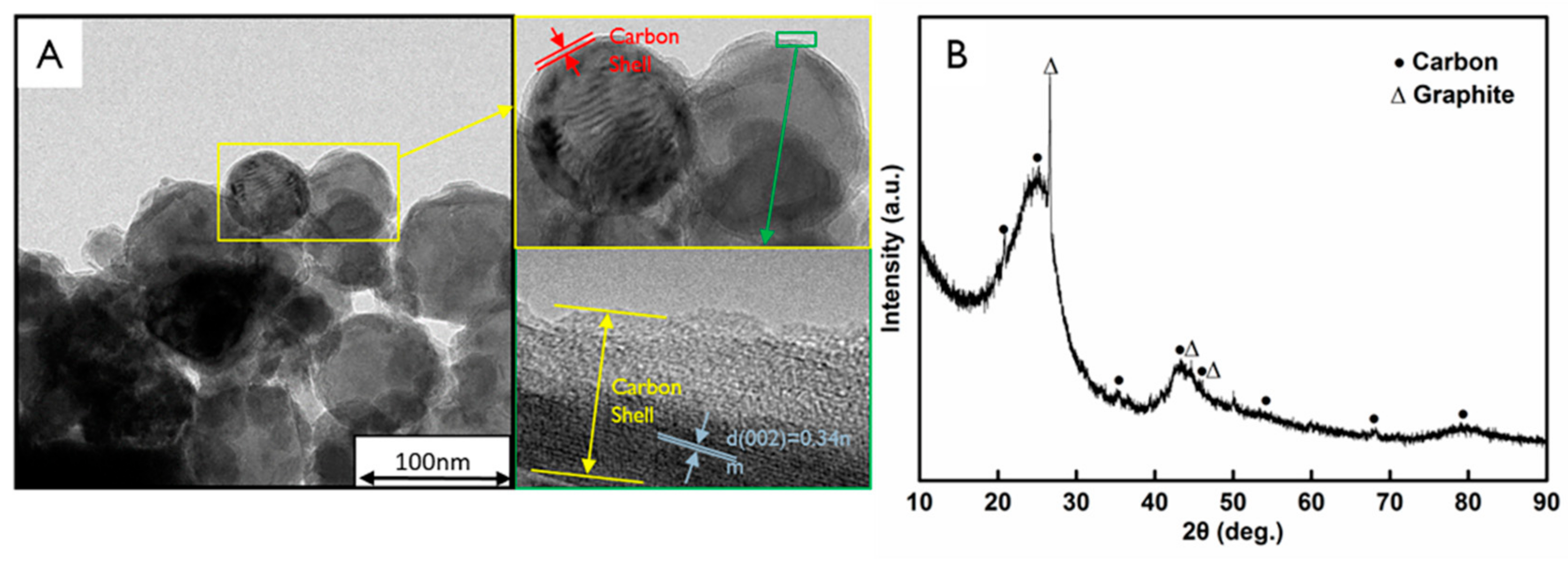

In this present study, we aimed to reduce the wetting angle of nanoparticles (NPs) in molten steel and thus, increase their utilization ratio in steel. In order to achieve this, a two-step process was used to synthesize a core-shell [email protected] NP structure for steelmaking through a dopamine polymerization process, which used an ammonium persulfate oxidant and high-temperature carbonization. The NP surface characterization was tested by scanning electron microscopy and field emission transmission electron microscopy, while the hydrodynamic NP size was measured by dynamic light scattering. The results showed that a carbon coating that had a thickness of 10 nm covered the NP surface, with the dispersion and stability of the particles in the aqueous solution having improved after the coating. The contact angle of the surface-treated NP was less than that of the uncoated NP in high-temperature molten steel and the corresponding wetting energy was smaller, which indicated improved wettability. View Full-Text
Keywords: MgO nanoparticle; dopamine polymerization; carbonization process; core shell structure; contact angle MgO nanoparticle; dopamine polymerization; carbonization process; core shell structure; contact angle
Show Figures

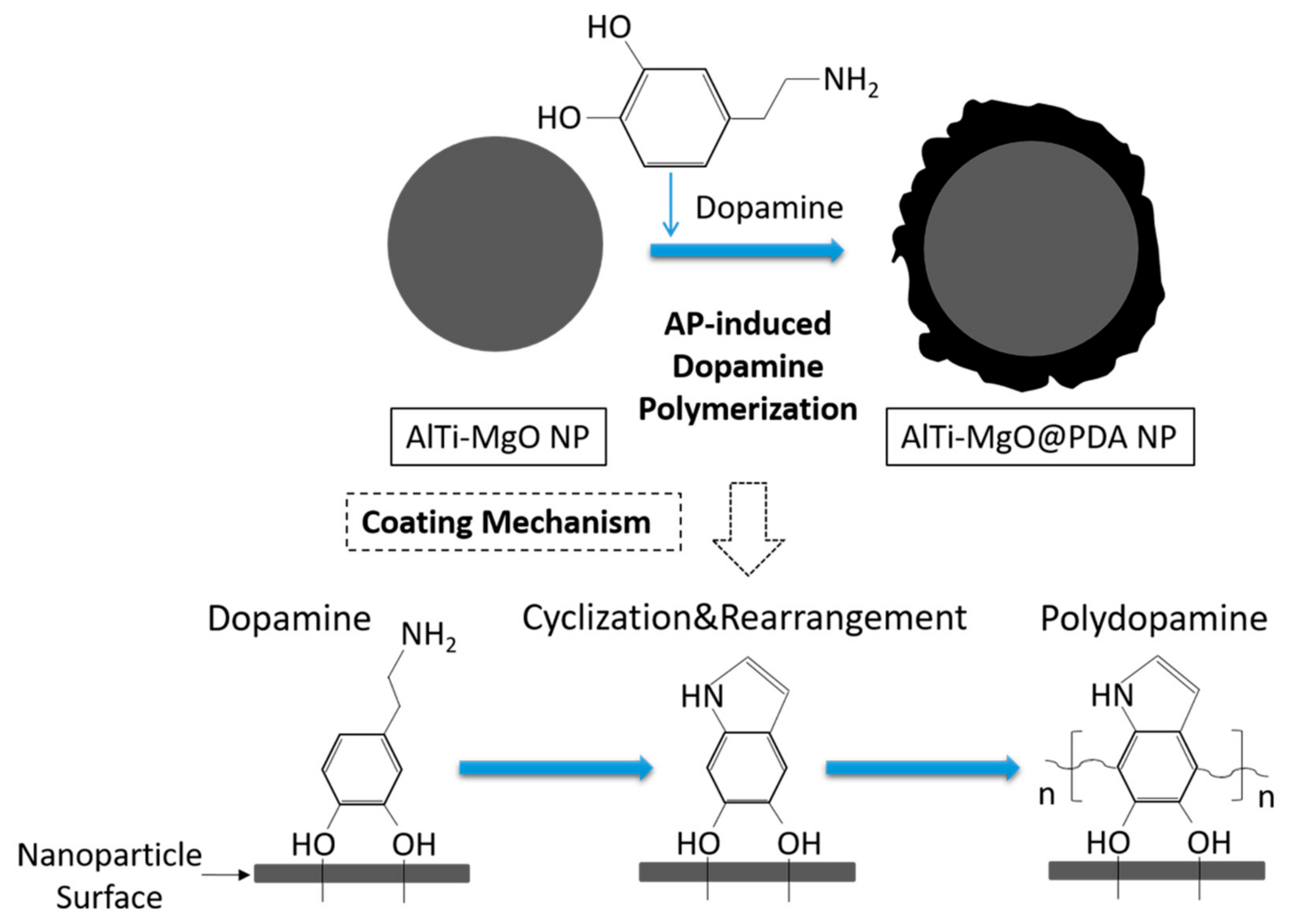

Figure 1

MDPI and ACS Style

Qu, J.; Yang, S.; Guo, H.; Li, J.; Wang, T. Synthesis of Core-Shell MgO Alloy Nanoparticles for Steelmaking. Coatings 2018, 8, 161. https://doi.org/10.3390/coatings8050161

AMA Style

Qu J, Yang S, Guo H, Li J, Wang T. Synthesis of Core-Shell MgO Alloy Nanoparticles for Steelmaking. Coatings. 2018; 8(5):161. https://doi.org/10.3390/coatings8050161

Chicago/Turabian Style

Qu, Jinglong, Shufeng Yang, Hao Guo, Jingshe Li, and Tiantian Wang. 2018. "Synthesis of Core-Shell MgO Alloy Nanoparticles for Steelmaking" Coatings 8, no. 5: 161. https://doi.org/10.3390/coatings8050161

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
