Next Article in Journal
Synthesis of Polydimethylsiloxane-Modified Polyurethane and the Structure and Properties of Its Antifouling Coatings
Next Article in Special Issue
TiO2 Nanocrystal Based Coatings for the Protection of Architectural Stone: The Effect of Solvents in the Spray-Coating Application for a Self-Cleaning Surfaces
Previous Article in Journal
Anti-Corrosion Characteristics of Electrodeposited Self-Doped Polyaniline Films on Mild Steel in Low Acidity
Previous Article in Special Issue
Self-Assembled Composite Langmuir Films via Fluorine-Containing Bola-Type Derivative with Metal Ions
Open AccessArticle

Process and Formulation Strategies to Improve Adhesion of Nanoparticulate Coatings on Stainless Steel

Institute for Particle Technology, Technische Universität Braunschweig, 38106 Braunschweig, Germany
*
Author to whom correspondence should be addressed.
Coatings 2018, 8(5), 156; https://doi.org/10.3390/coatings8050156
Received: 19 January 2018 / Revised: 17 April 2018 / Accepted: 21 April 2018 / Published: 26 April 2018
(This article belongs to the Special Issue Nanostructured Thin Films)
  |
PDF [2987 KB, uploaded 3 May 2018]
  |

Abstract

The use of ceramic nanoparticles in coatings can significantly improve their mechanical properties such as hardness, adhesion to substrate, and scratch and abrasion resistance. A successful enhancement of these properties depends strongly on the coating formulation used, and the subsequent structure formed during coating. The aim of the present work was to enhance the adhesion between nanoparticulate coatings and stainless-steel substrates. A covalent particle structure was formed and better mechanical properties were achieved by modifying alumina nanoparticles, as well as substrates, with 3-aminopropyltriethoxysilane and by using a formulation consisting of solvent, modified particles, and bisphenol-A-diglycidylether as cross-linking additive. In addition to the adhesion force needed to remove the coating from the substrate, the type of failure (adhesive or cohesive) was characterized to gain a deeper understanding of the structure formation and to identify interdependencies between process, formulation, and coating structure properties. The modification process and the formulation composition were varied to achieve a detailed conception of the relevant correlations. By relating the results to other structural properties, such as the theoretical porosity and thickness, it was possible to understand the formation of the coating structure in more detail. View Full-Text
Keywords: alumina; nanoparticles; cross-linking; formulation; coating adhesion alumina; nanoparticles; cross-linking; formulation; coating adhesion

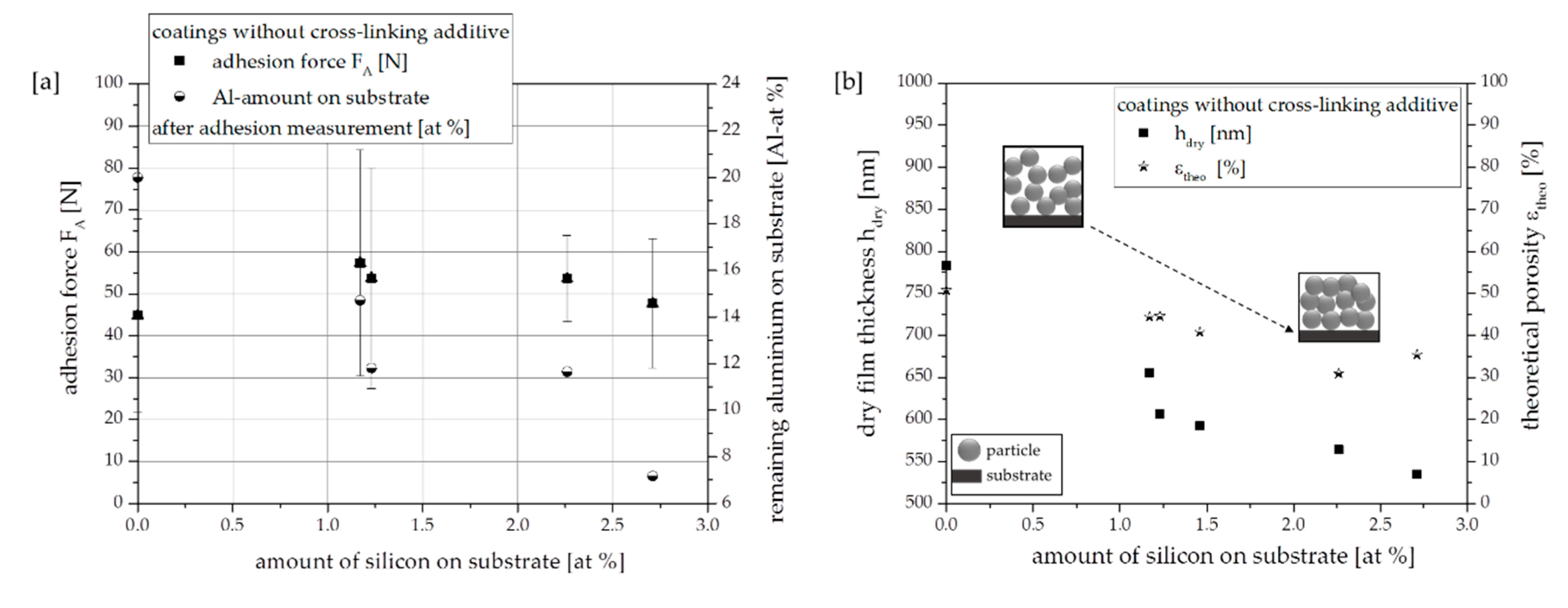

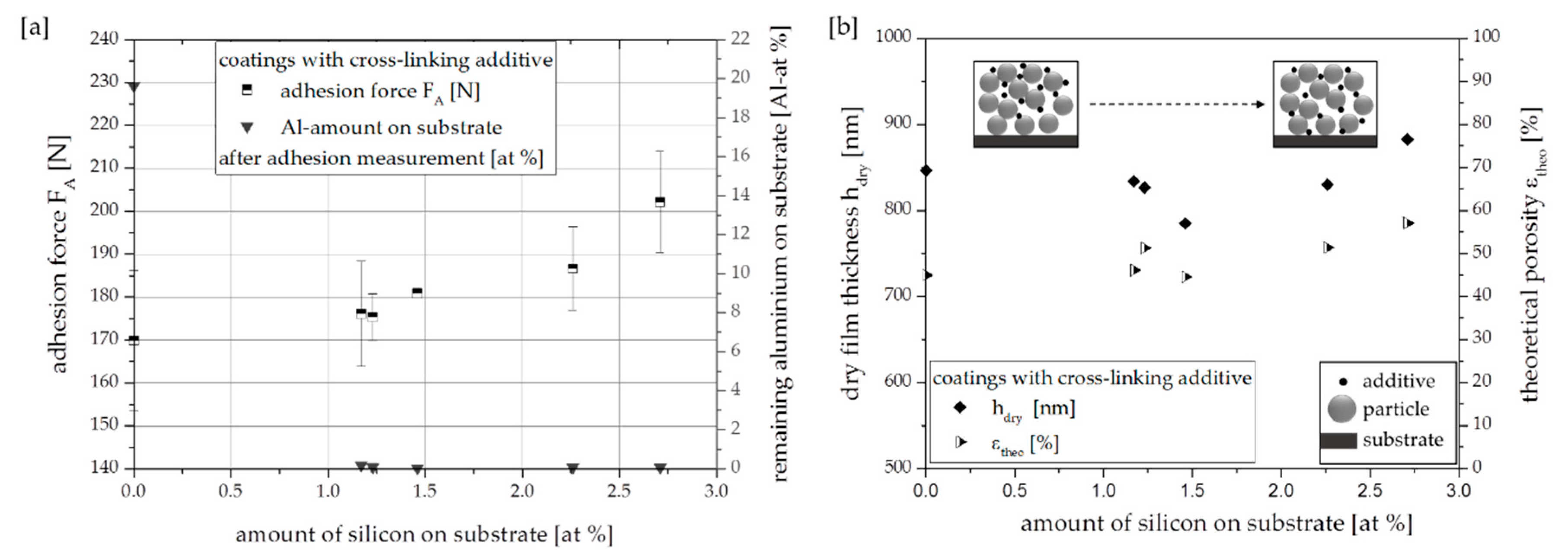

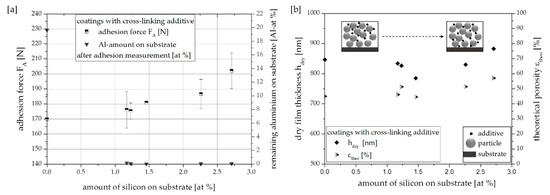

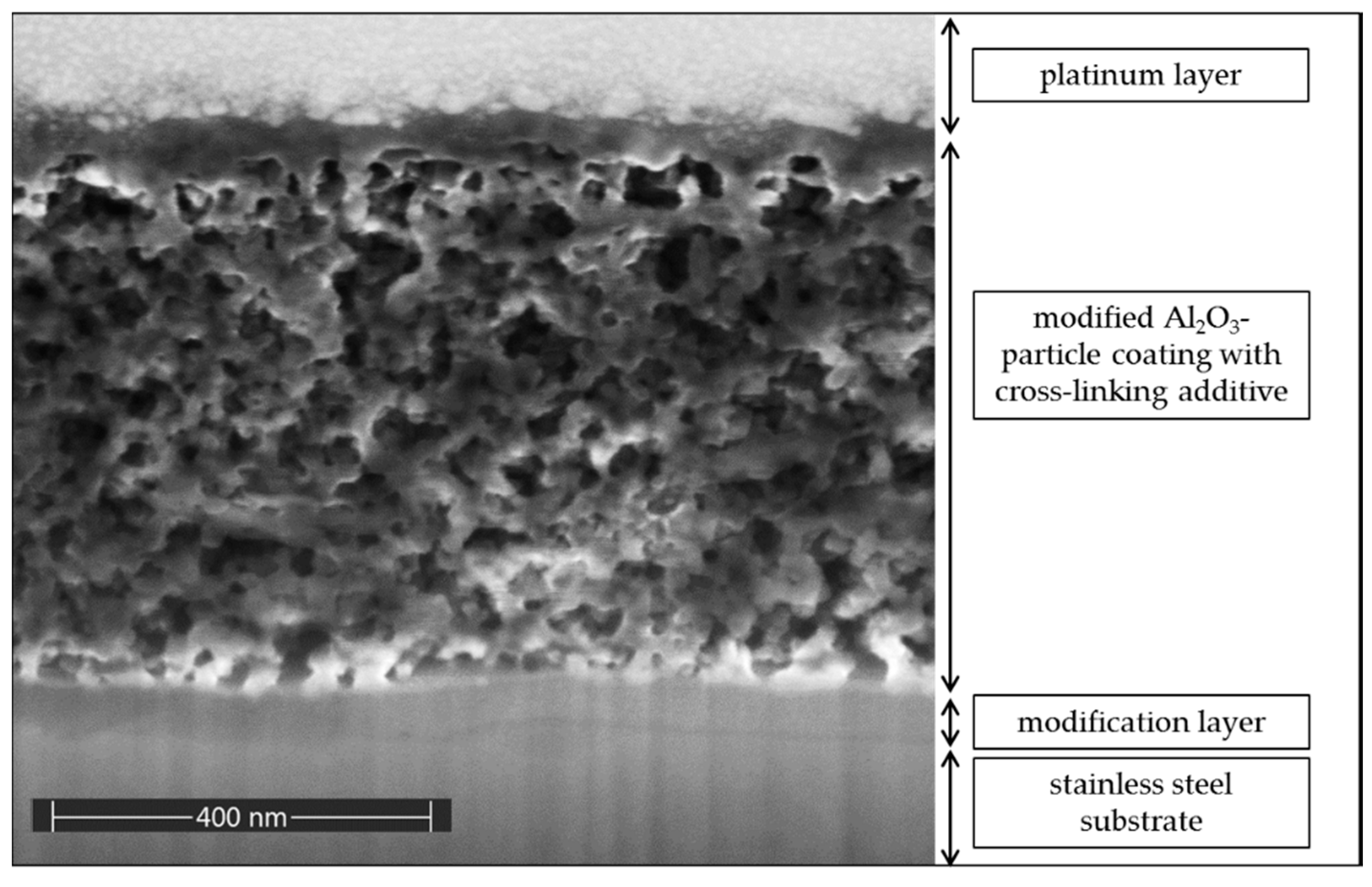

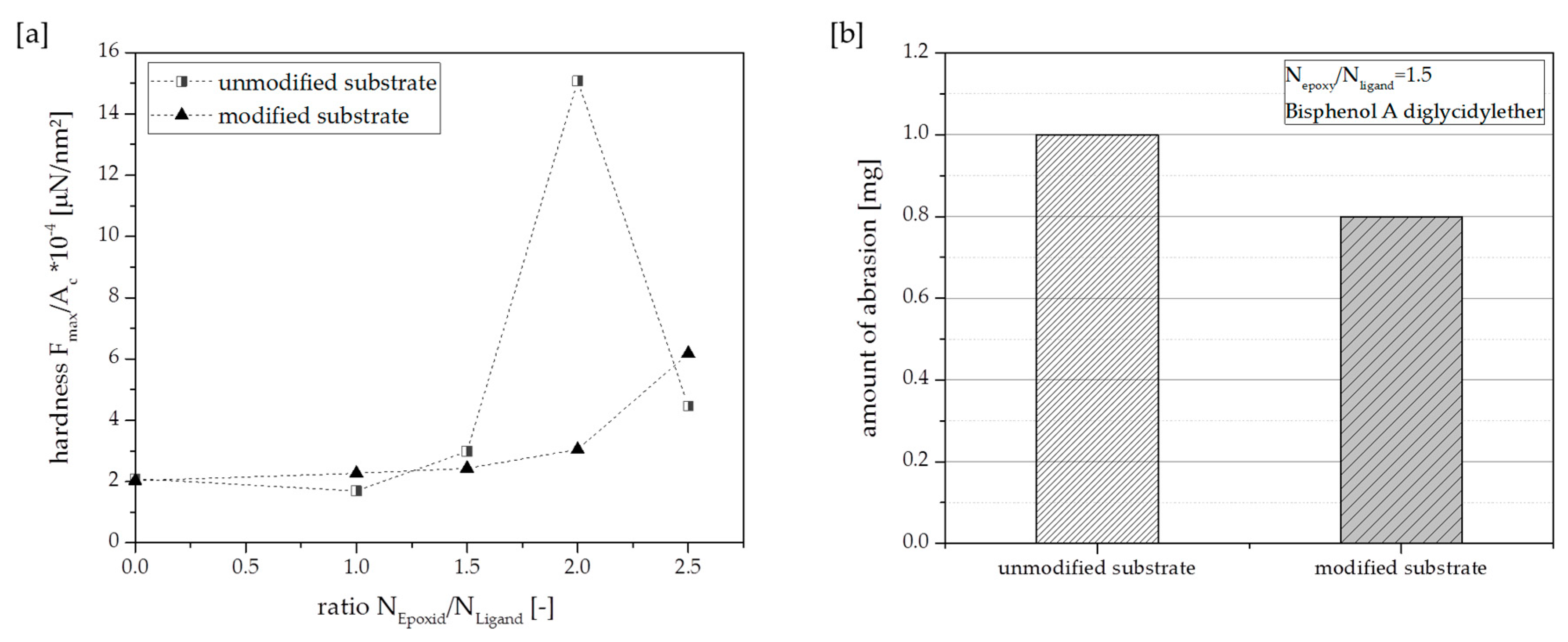

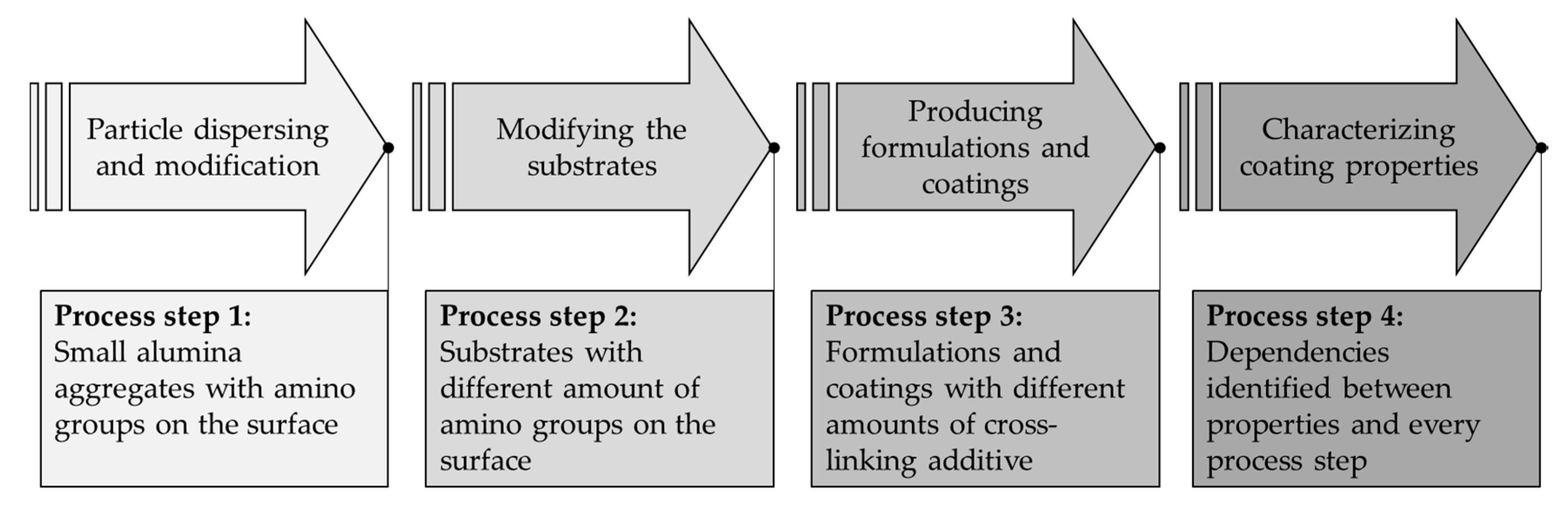

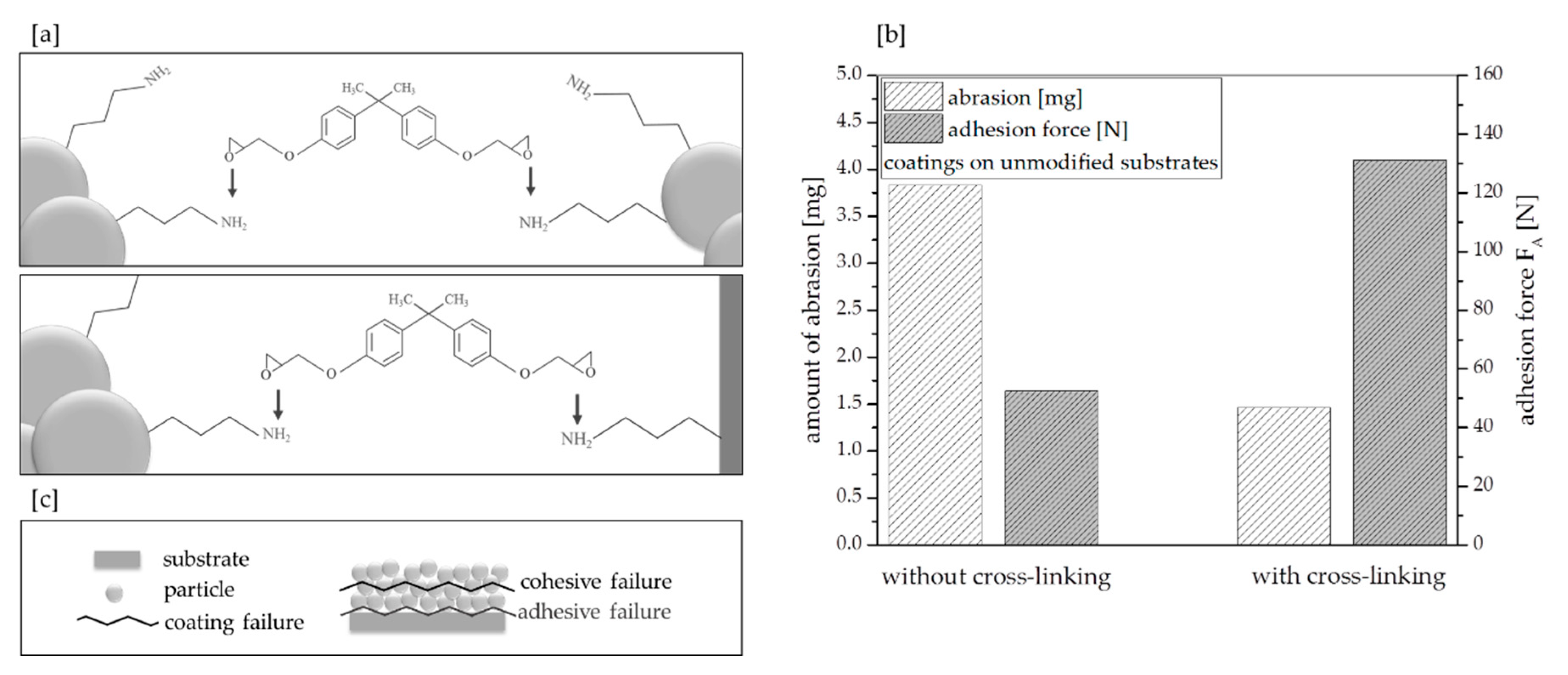

Figures

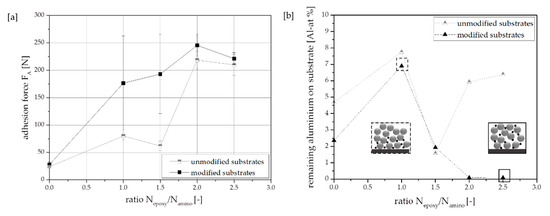

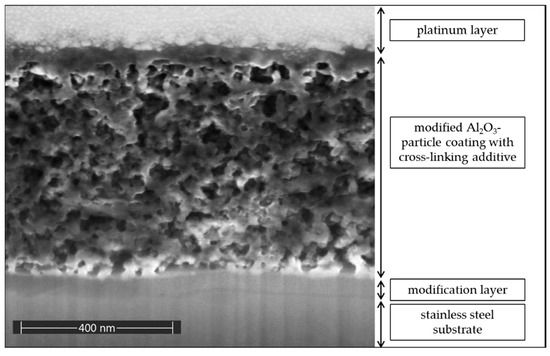

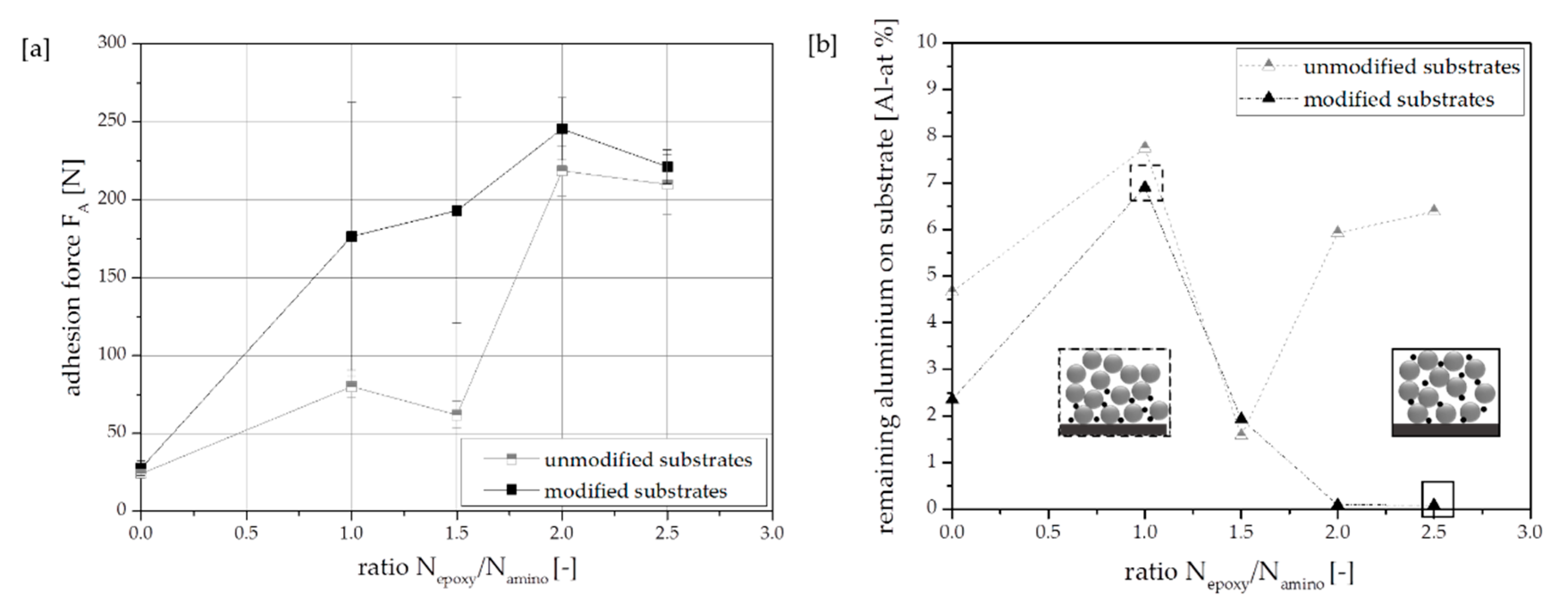

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Hesselbach, J.; Böttcher, A.-C.; Kampen, I.; Garnweitner, G.; Schilde, C.; Kwade, A. Process and Formulation Strategies to Improve Adhesion of Nanoparticulate Coatings on Stainless Steel. Coatings 2018, 8, 156.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
