Next Article in Journal
The Influence of Aluminizing Process on the Surface Condition and Oxidation Resistance of Ti–45Al–8Nb–0.5(B, C) Alloy
Next Article in Special Issue
Tribological Properties of New Cu-Al/MoS2 Solid Lubricant Coatings Using Magnetron Sputter Deposition
Previous Article in Journal
The Effect of Deposition Parameters on the Structure and Mechanical Properties of Chromium Oxide Coatings Deposited by Reactive Magnetron Sputtering
Previous Article in Special Issue
Influence of Cu Content on the Structure, Mechanical, Friction and Wear Properties of VCN–Cu Films
Article Menu
Issue 3 (March) cover image

Export Article

Open AccessArticle

Microstructure, Microhardness, and Wear Resistance of AlCoCrFeNiTi/Ni60 Coating by Plasma Spraying

National Demonstration Center for Experimental Materials Science and Engineering Education, Jiangsu University of Science and Technology, Zhenjiang 212003, China
Author to whom correspondence should be addressed.
Coatings 2018, 8(3), 112;
Received: 7 February 2018 / Revised: 8 March 2018 / Accepted: 15 March 2018 / Published: 19 March 2018
(This article belongs to the Special Issue Coatings Tribology)
PDF [4412 KB, uploaded 3 May 2018]

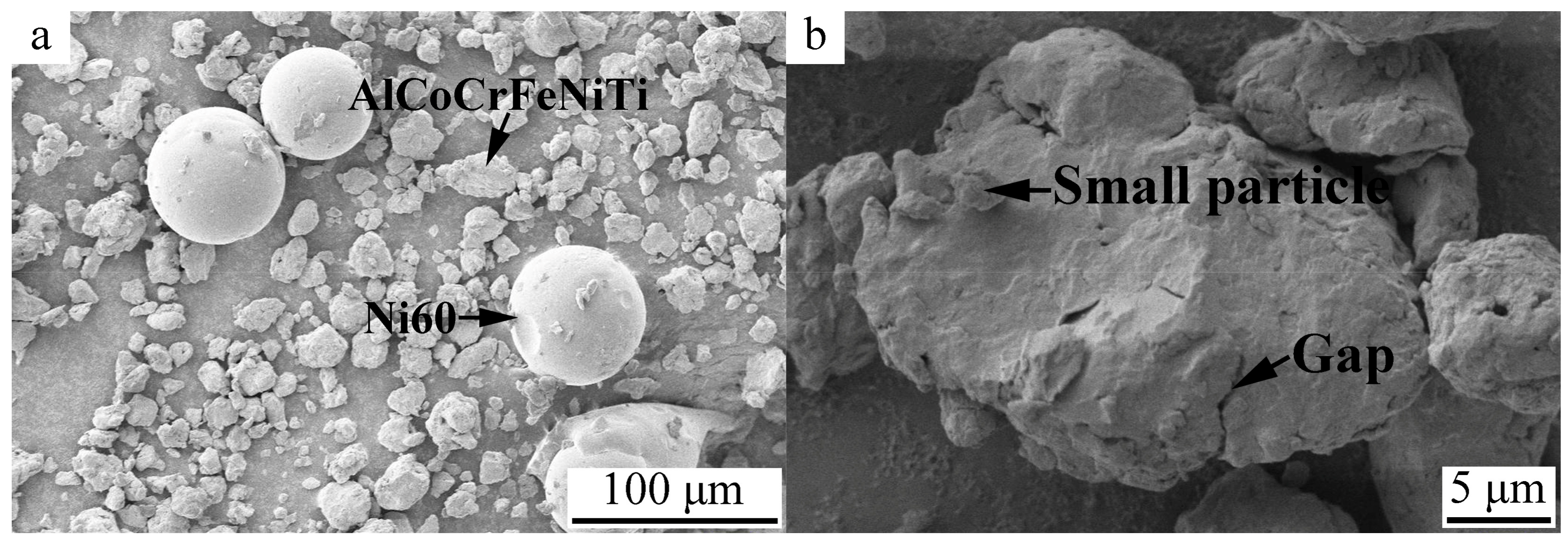

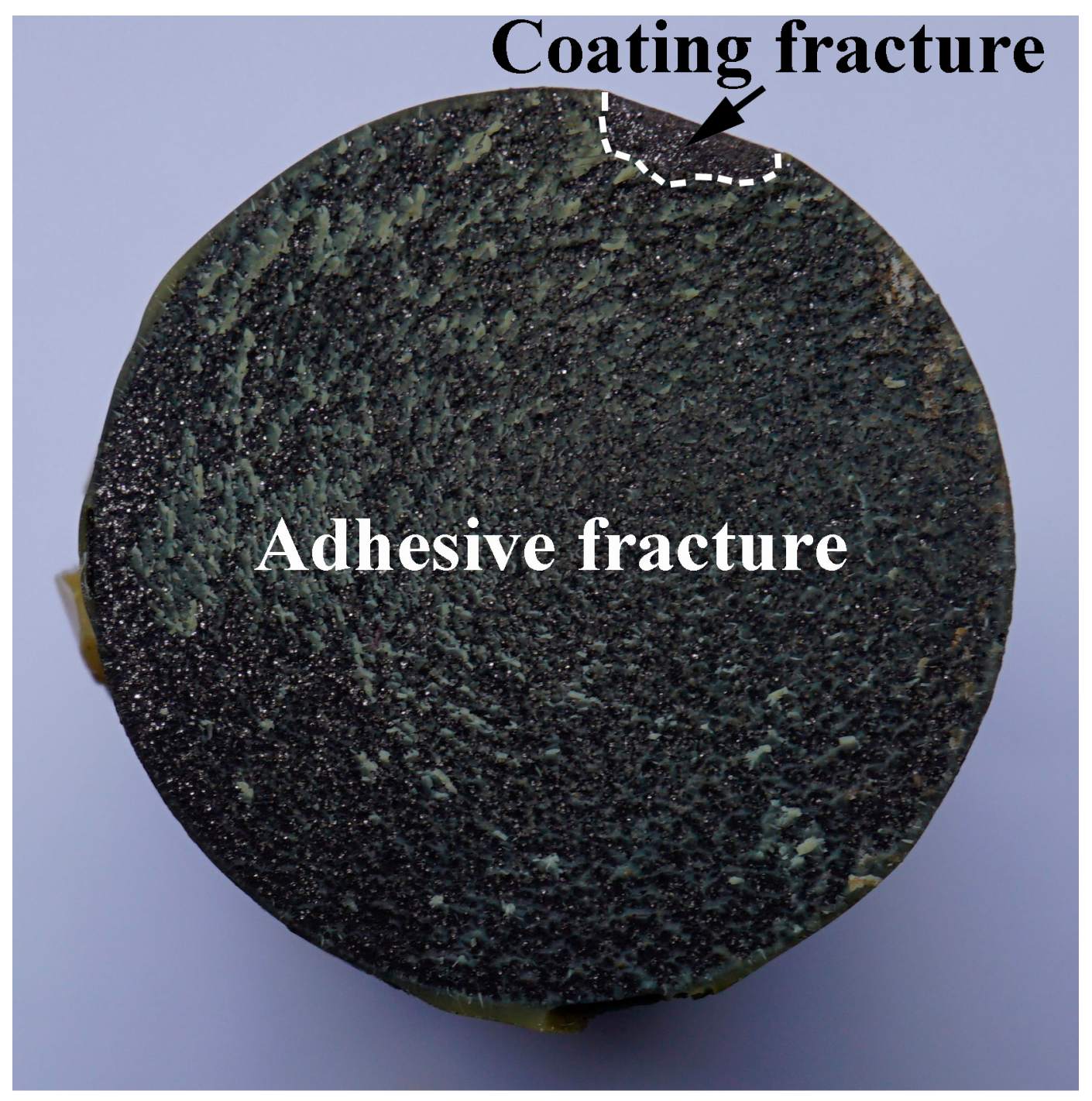

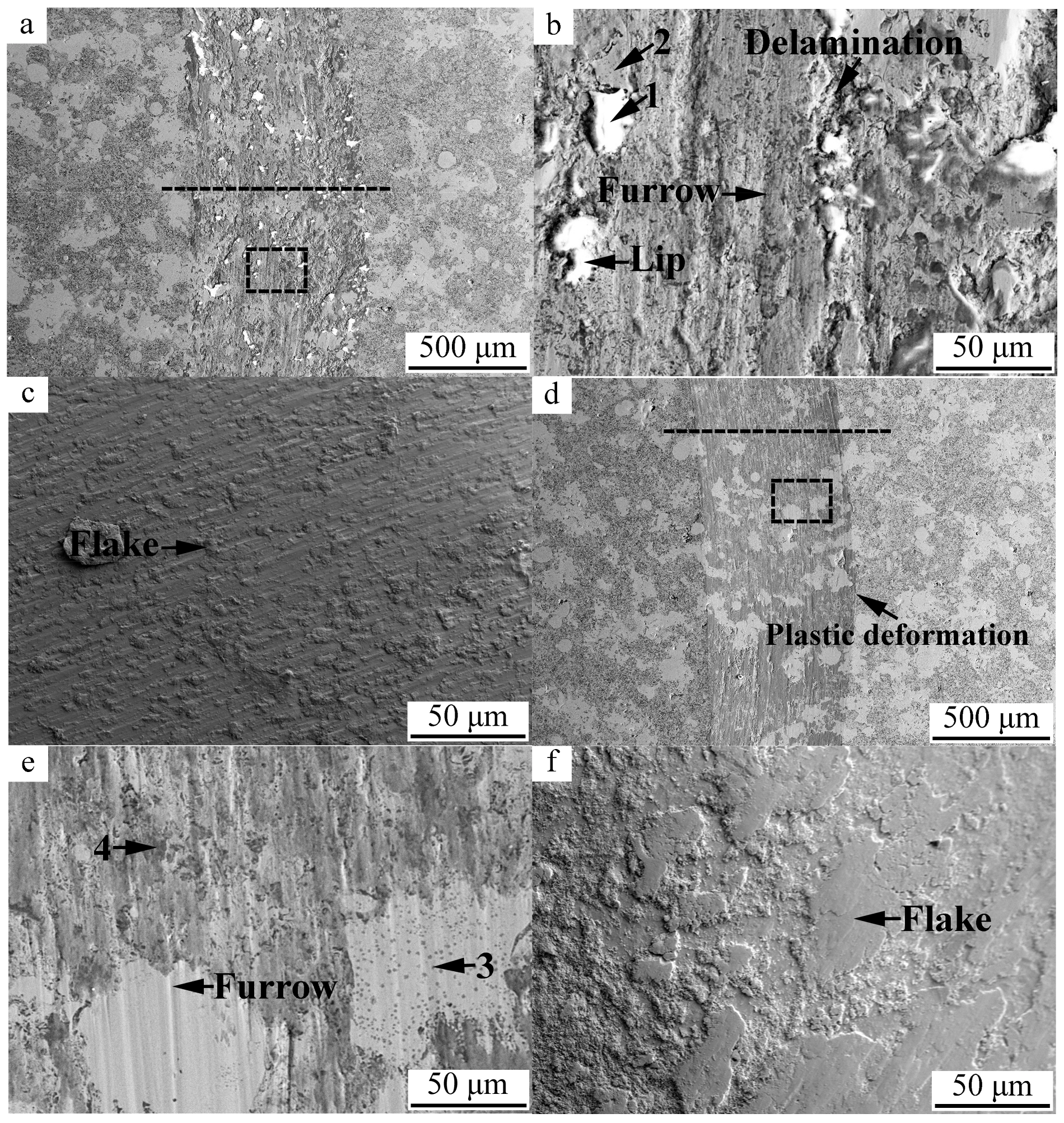

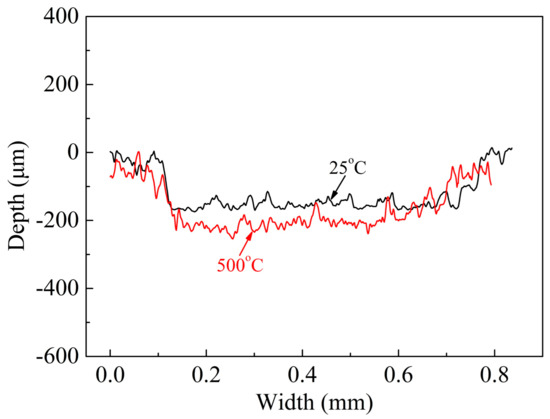

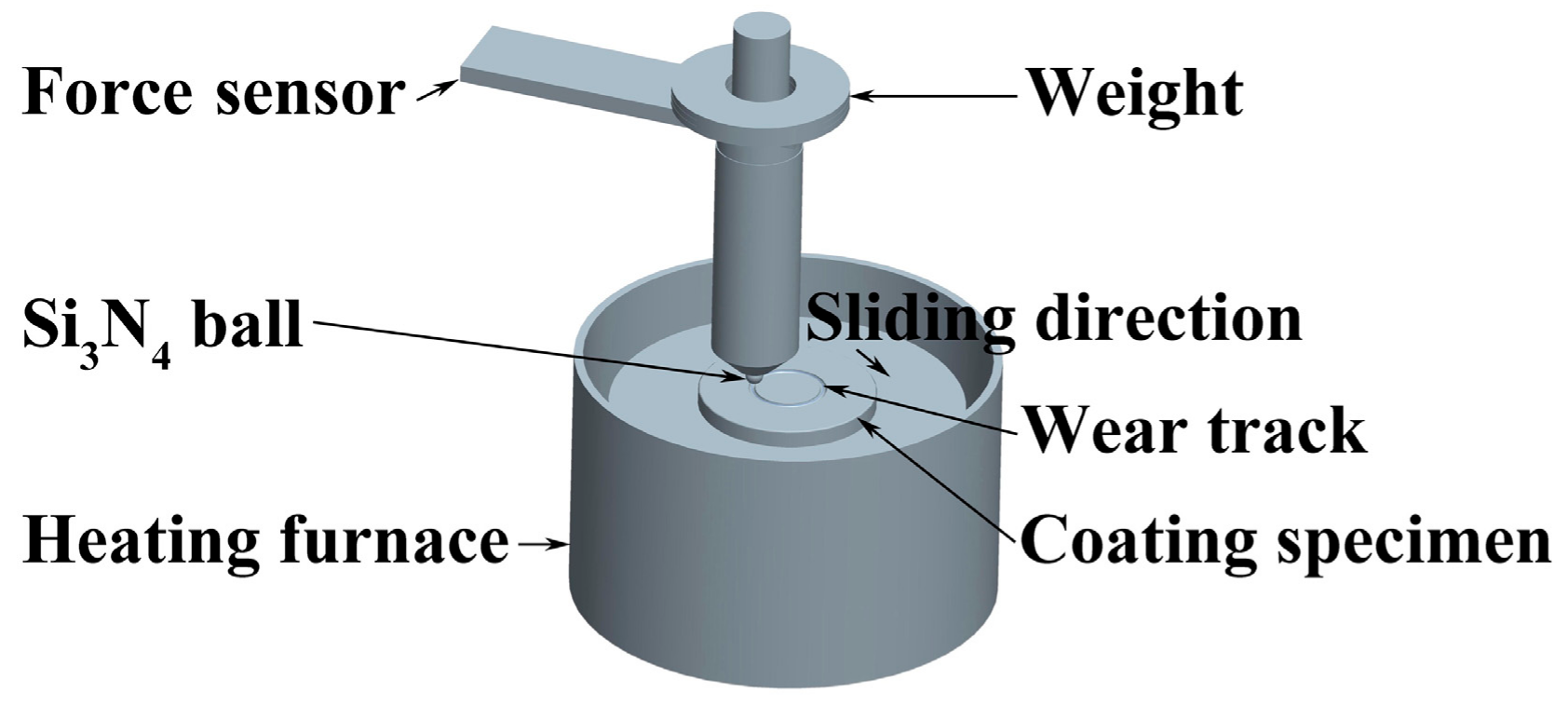

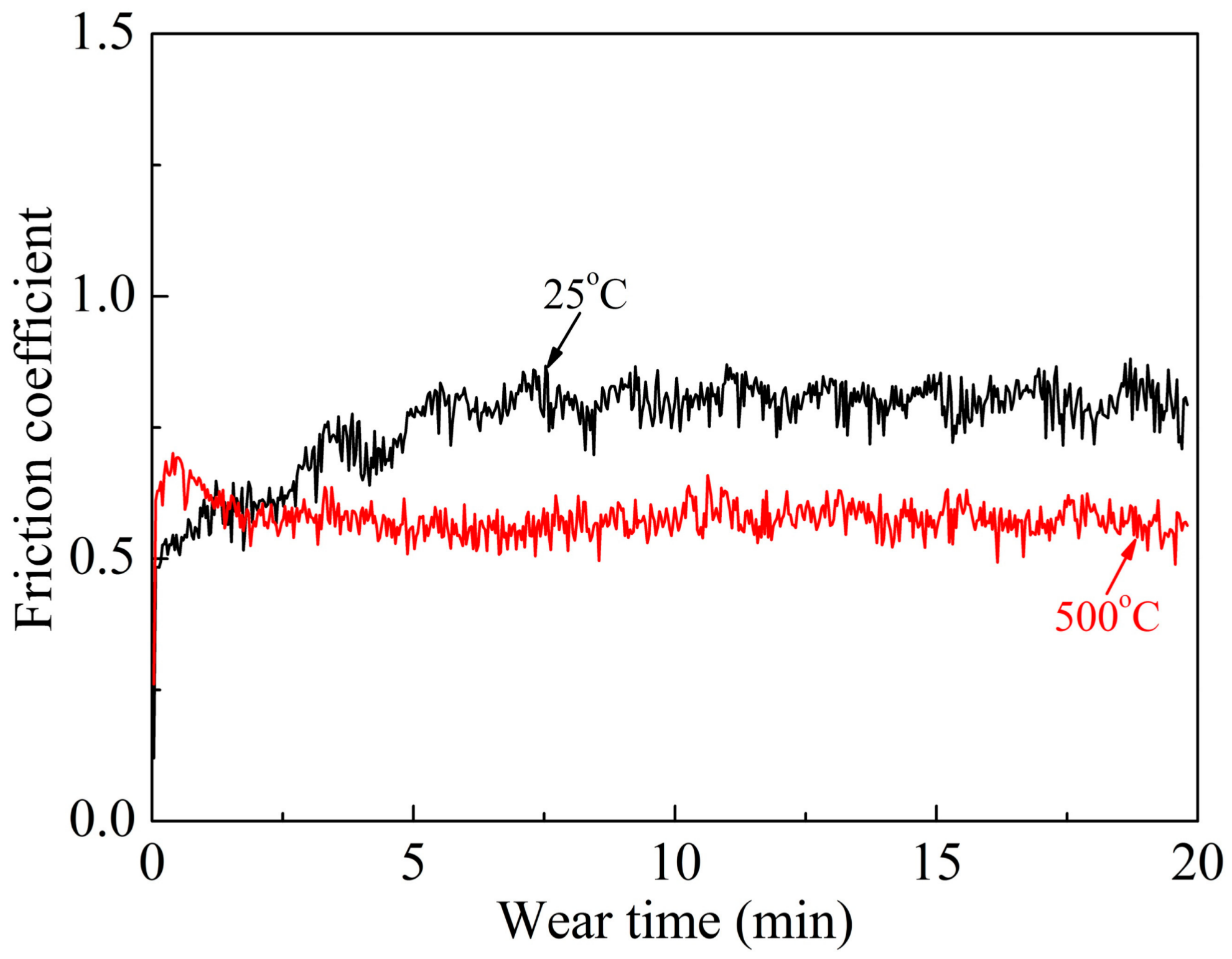

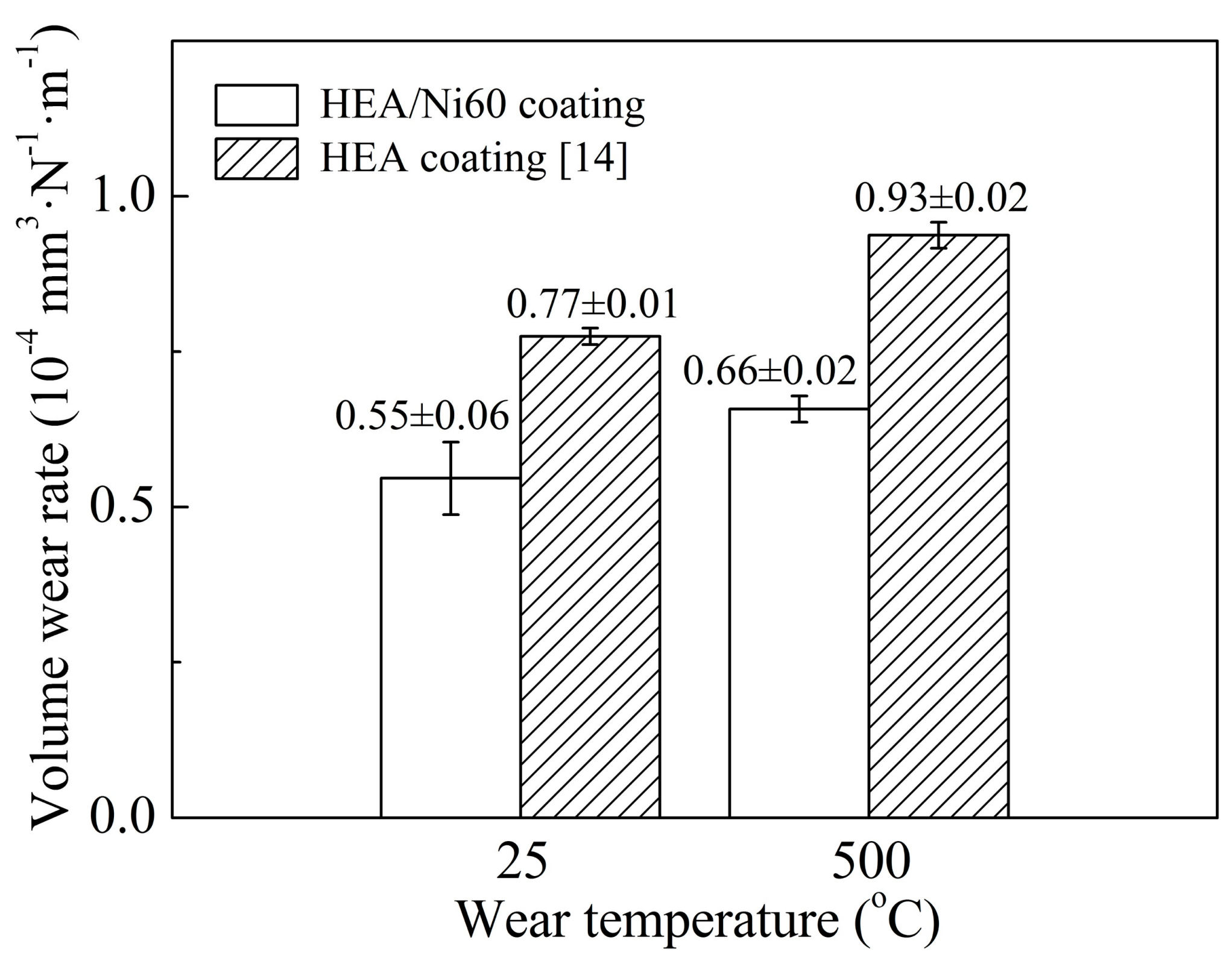

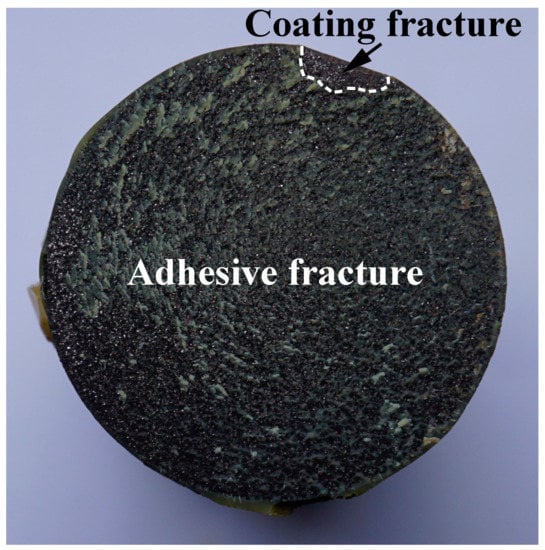

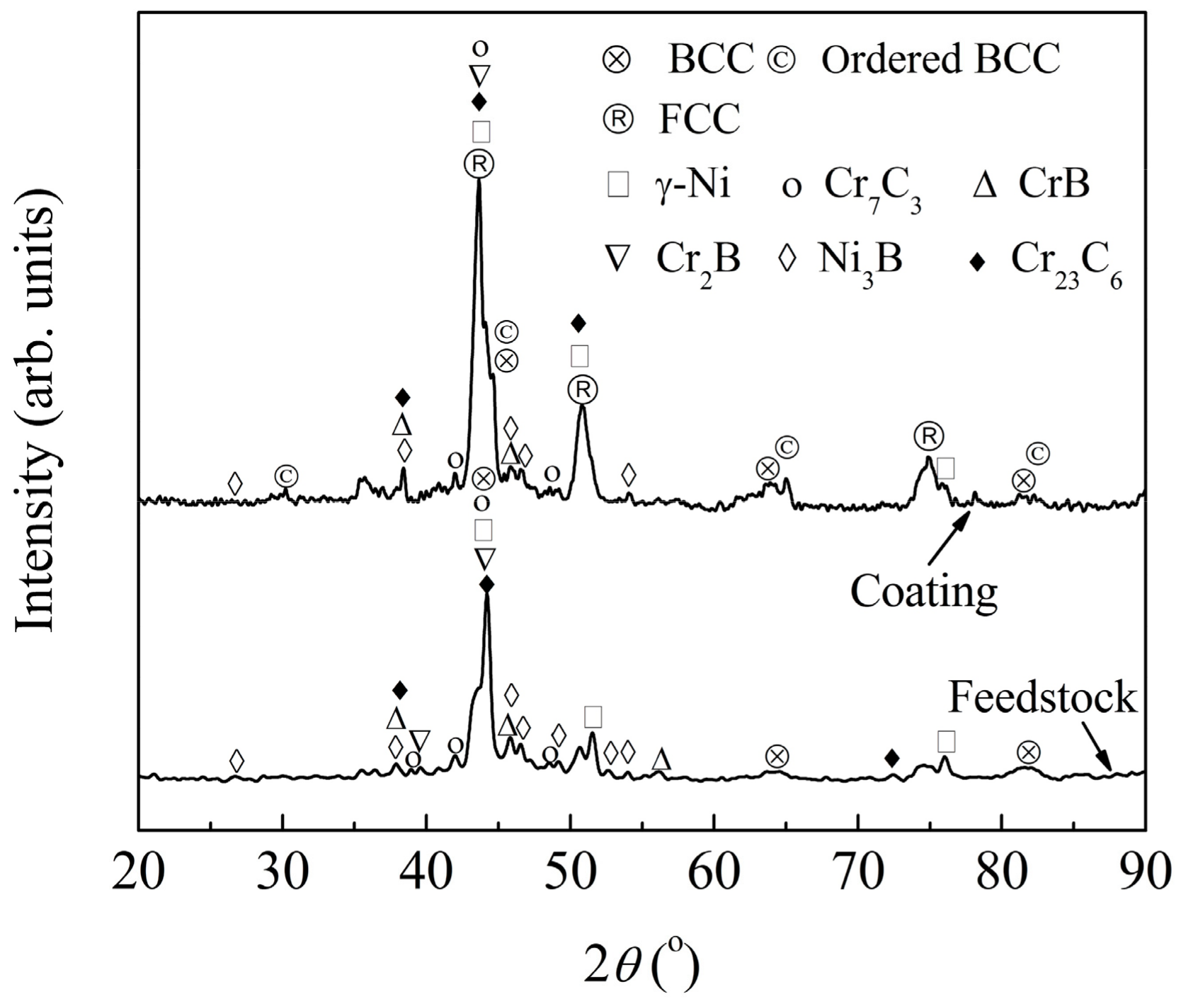

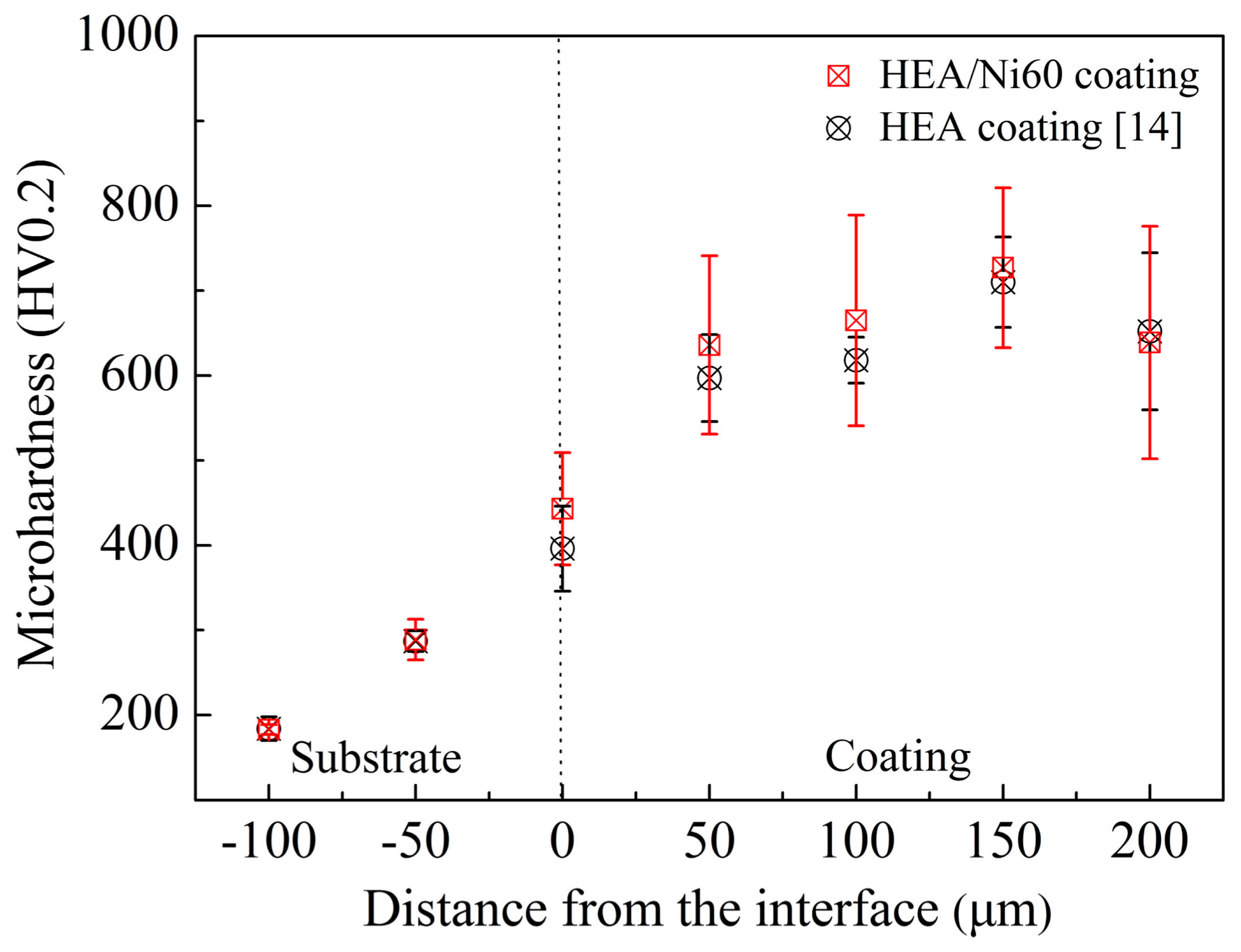

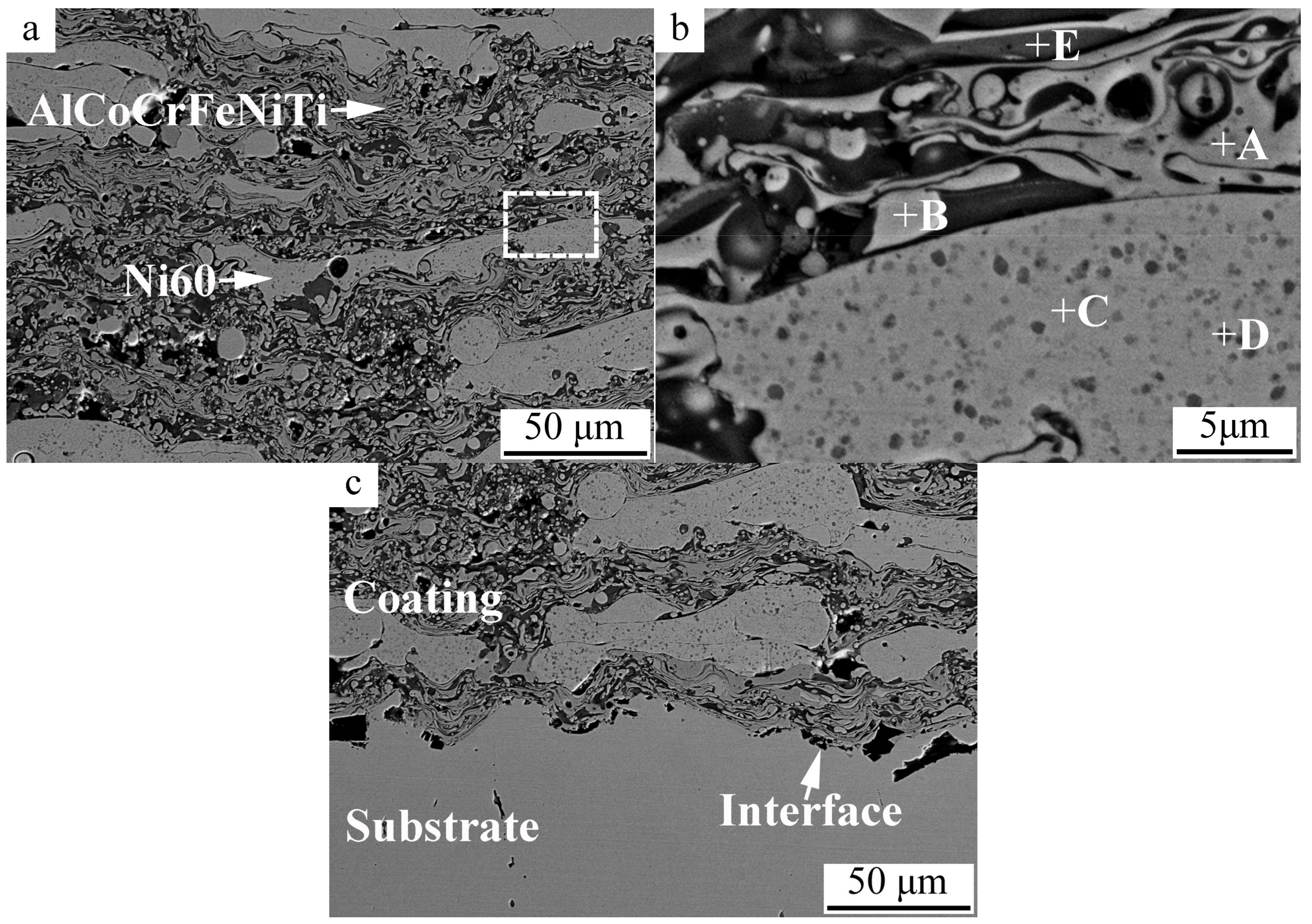

In this comparative study, Ni60 was used as a reinforcement and added into an AlCoCrFeNiTi high-entropy alloy (HEA) matrix coating in order to enhance its hardness and wear resistance. An AlCoCrFeNiTi/Ni60 coating was prepared by plasma spraying with mechanically-blended AlCoCrFeNiTi/Ni60 powder. The coating microstructure was observed and analyzed. Bonding strength, microhardness, and wear resistance of the coating were investigated. The results showed that a compact AlCoCrFeNiTi/Ni60 coating with Ni60 splats uniformly distributed in the AlCoCrFeNiTi matrix was deposited. After spraying, matrix body-centered cubic (BCC), face-centered cubic, and ordered BCC phases were detected in the coating. The added large Ni60 particles played an important role in strengthening the coating. Tensile test results showed that bonding strength of this coating was above 60.1 MPa, which is far higher than that of the AlCoCrFeNiTi HEA coating in the previous study. An average microhardness of 676 HV was obtained for the main body of the coating, which is much higher than that of the AlCoCrFeNiTi HEA coating. Solution hardening in γ-Ni and dispersion strengthening of the hard interstitial compounds, such as Cr7C3, CrB, Cr2B, and Cr23C6 increased the hardness of Ni60, and then the AlCoCrFeNiTi/Ni60 coating. During wear testing at 25 °C, adhesive wear and abrasive wear occurred, while, at 500 °C, abrasive wear took place. Volume wear rates of the coating at 25 °C and 500 °C were 0.55 ± 0.06 × 10−4 mm3·N−1·m−1 and 0.66 ± 0.02 × 10−4 mm3·N−1·m−1, respectively. Wear resistance of this coating was better than that of the AlCoCrFeNiTi HEA coating, which can be attributed to addition of the hard Ni60. Therefore, Ni60 is an appropriate reinforcement to further enhance the wear resistance of HEA coating. View Full-Text
Keywords: high-entropy alloy (HEA) matrix coating; plasma spraying; wear resistance; microhardness; bonding strength high-entropy alloy (HEA) matrix coating; plasma spraying; wear resistance; microhardness; bonding strength

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Tian, L.; Feng, Z.; Xiong, W. Microstructure, Microhardness, and Wear Resistance of AlCoCrFeNiTi/Ni60 Coating by Plasma Spraying. Coatings 2018, 8, 112.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
