Effect of Particle Size on the Thermal Shock Resistance of Plasma-Sprayed YSZ Coatings

Key Laboratory of Pressure System and Safety, Ministry of Education, East China University of Science and Technology, Shanghai 200237, China
Shanghai Junshan Surface Technology Engineering Co., Ltd., Shanghai 201900, China
Author to whom correspondence should be addressed.
Coatings 2017, 7(9), 150;
Received: 18 August 2017 / Revised: 12 September 2017 / Accepted: 18 September 2017 / Published: 19 September 2017
PDF [8887 KB, uploaded 19 September 2017]

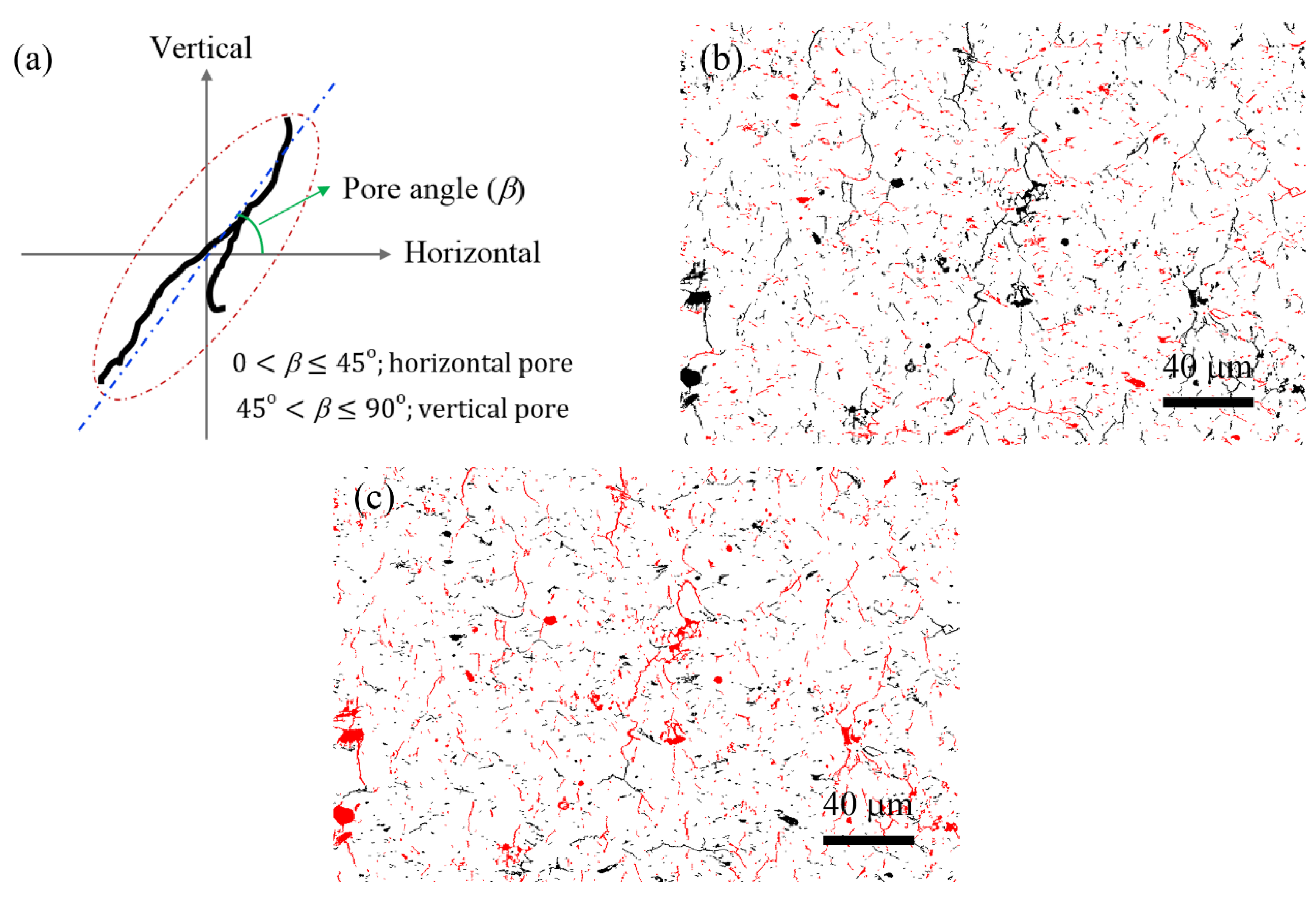

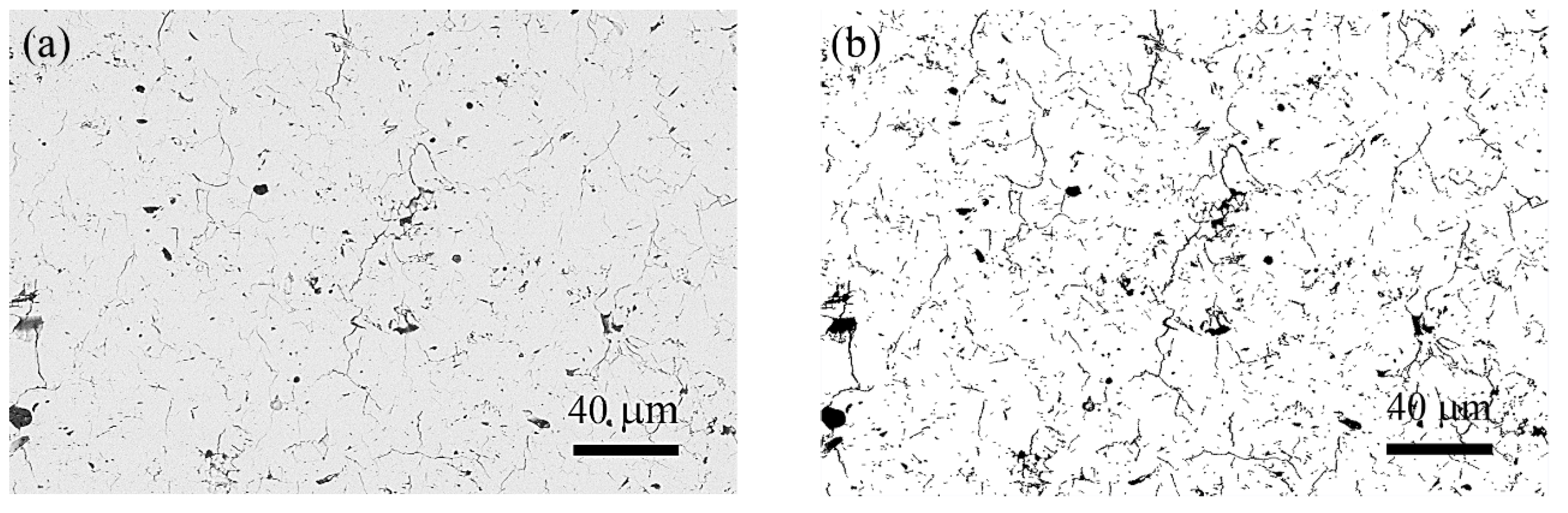

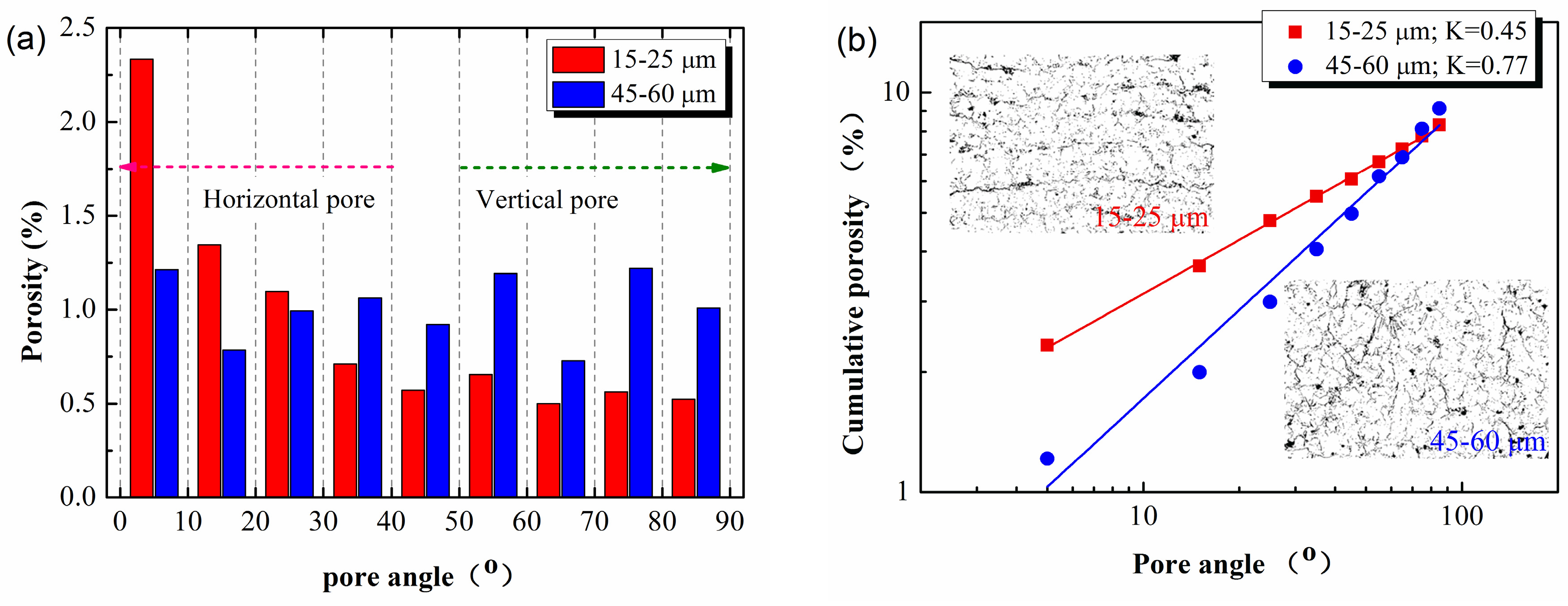

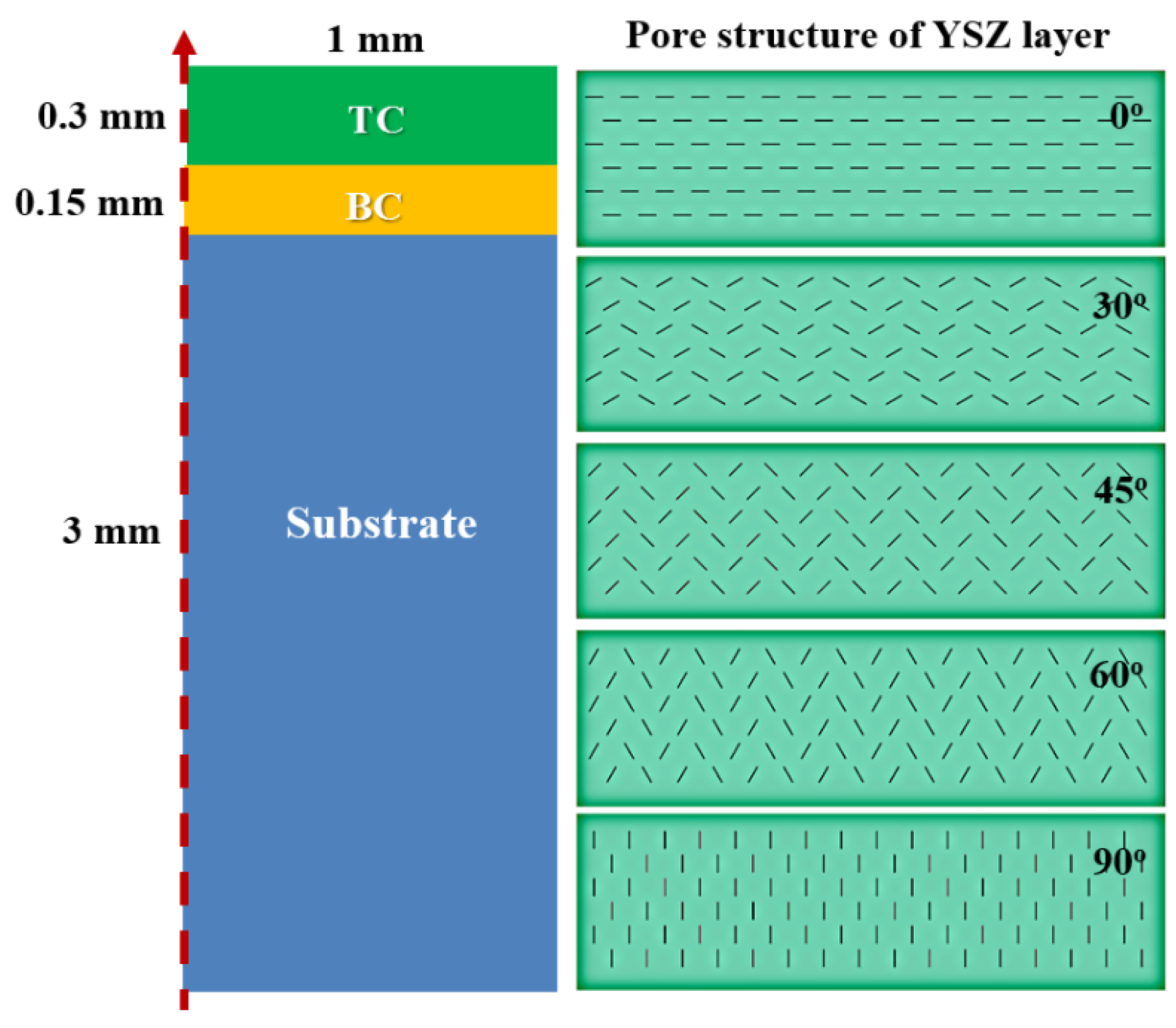

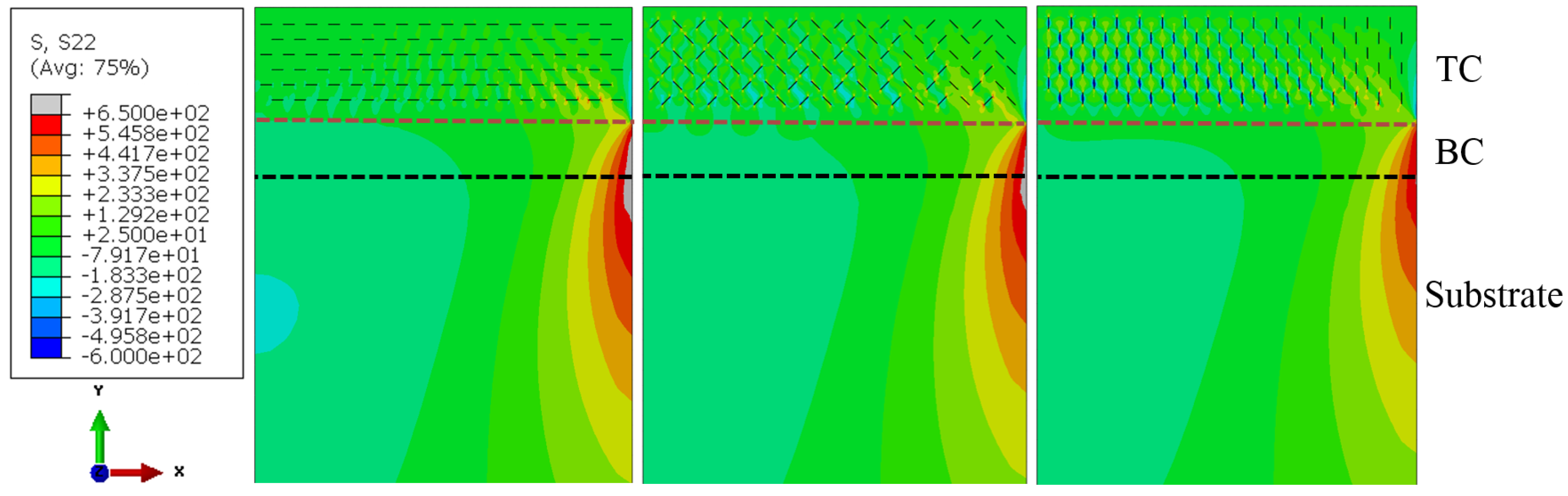

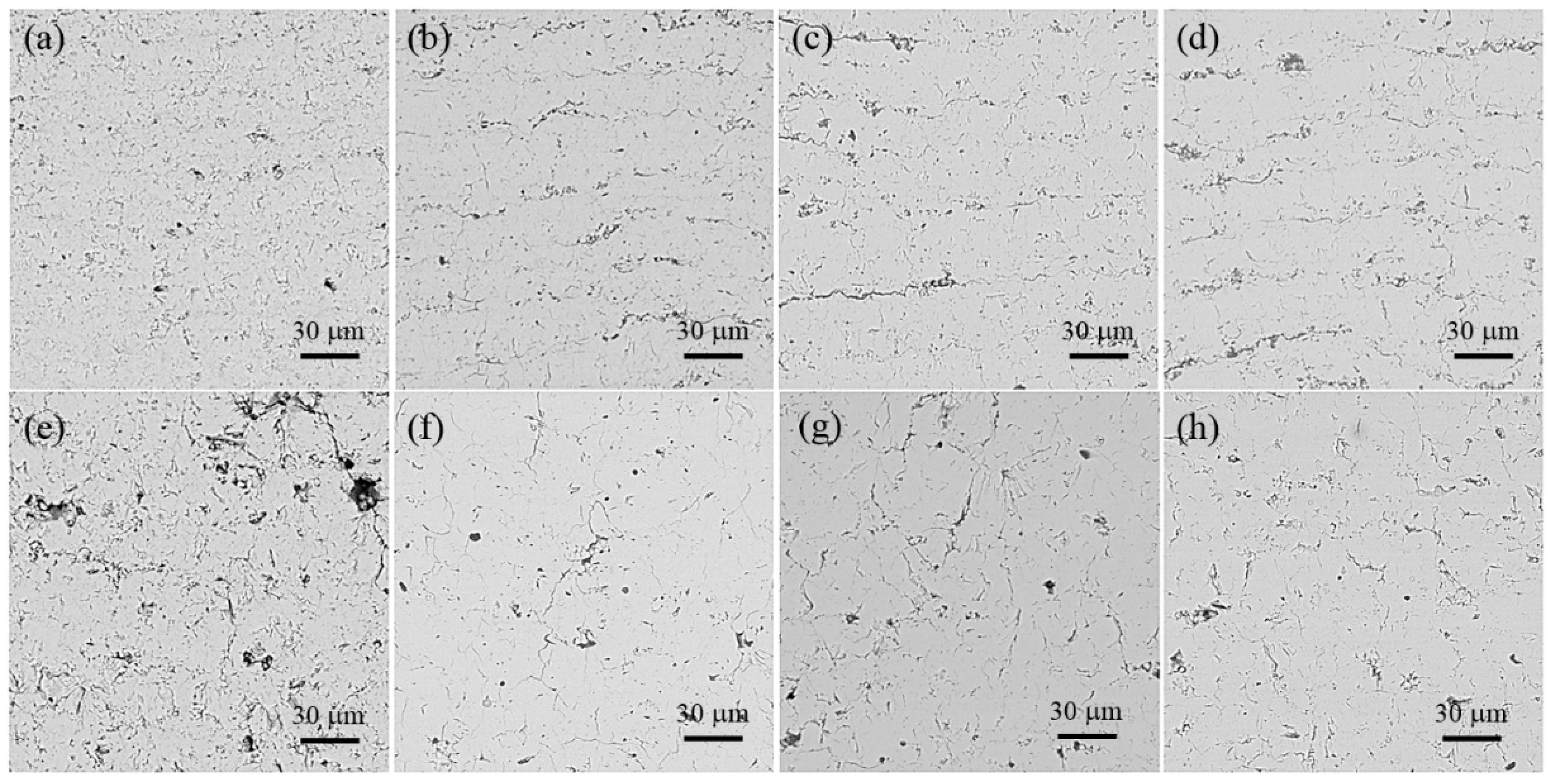

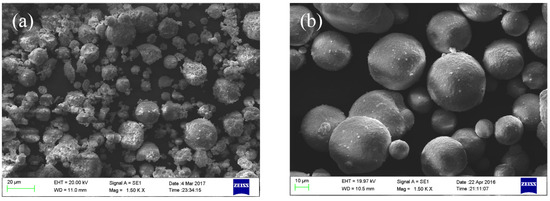

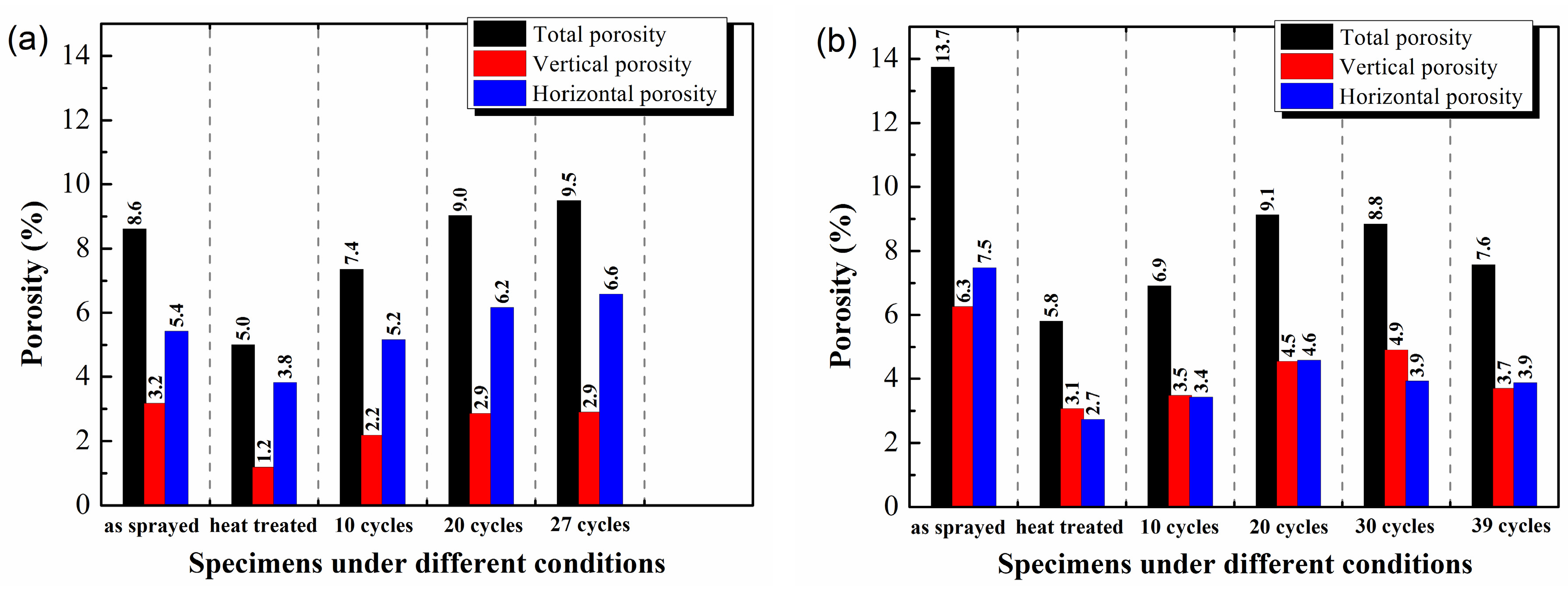

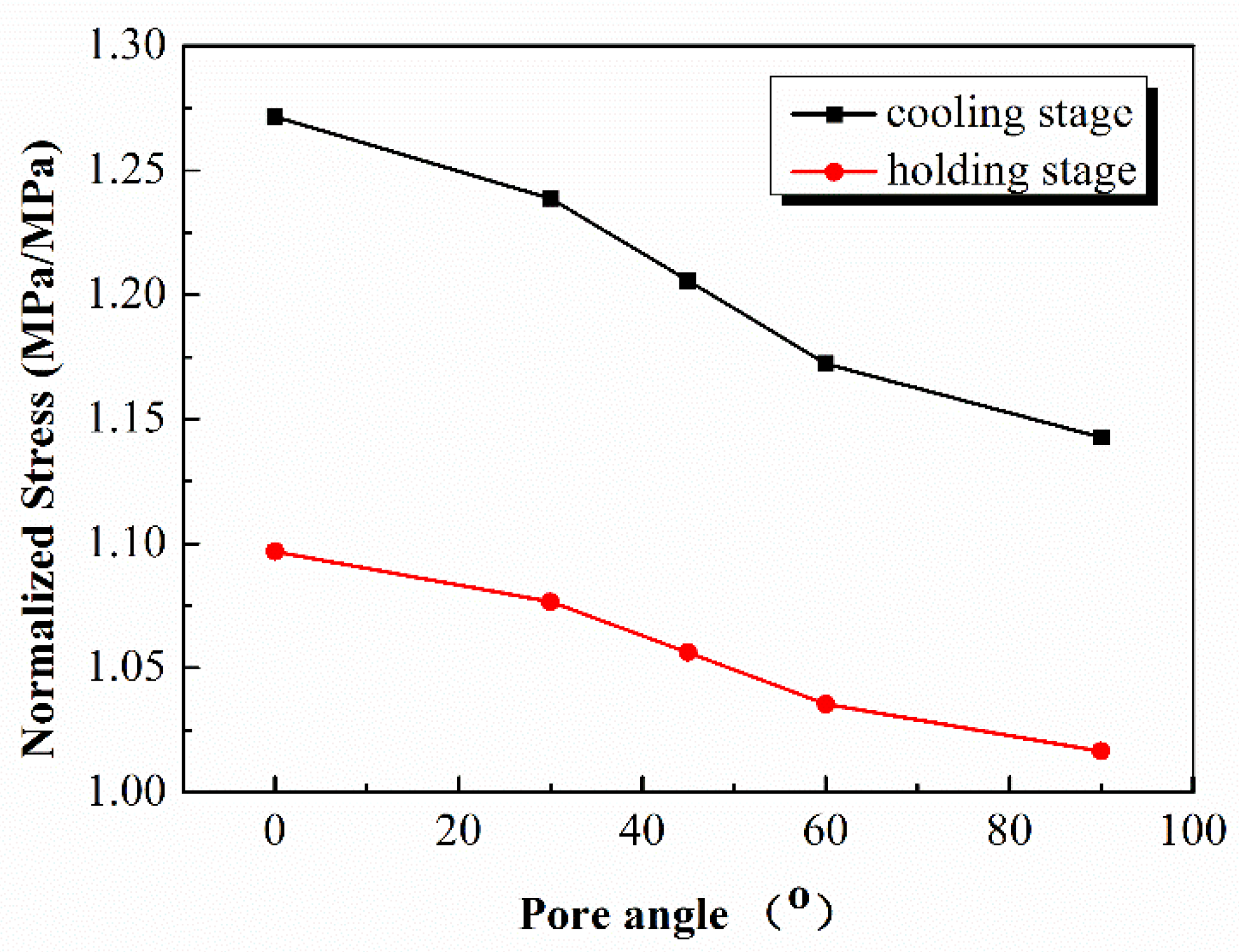

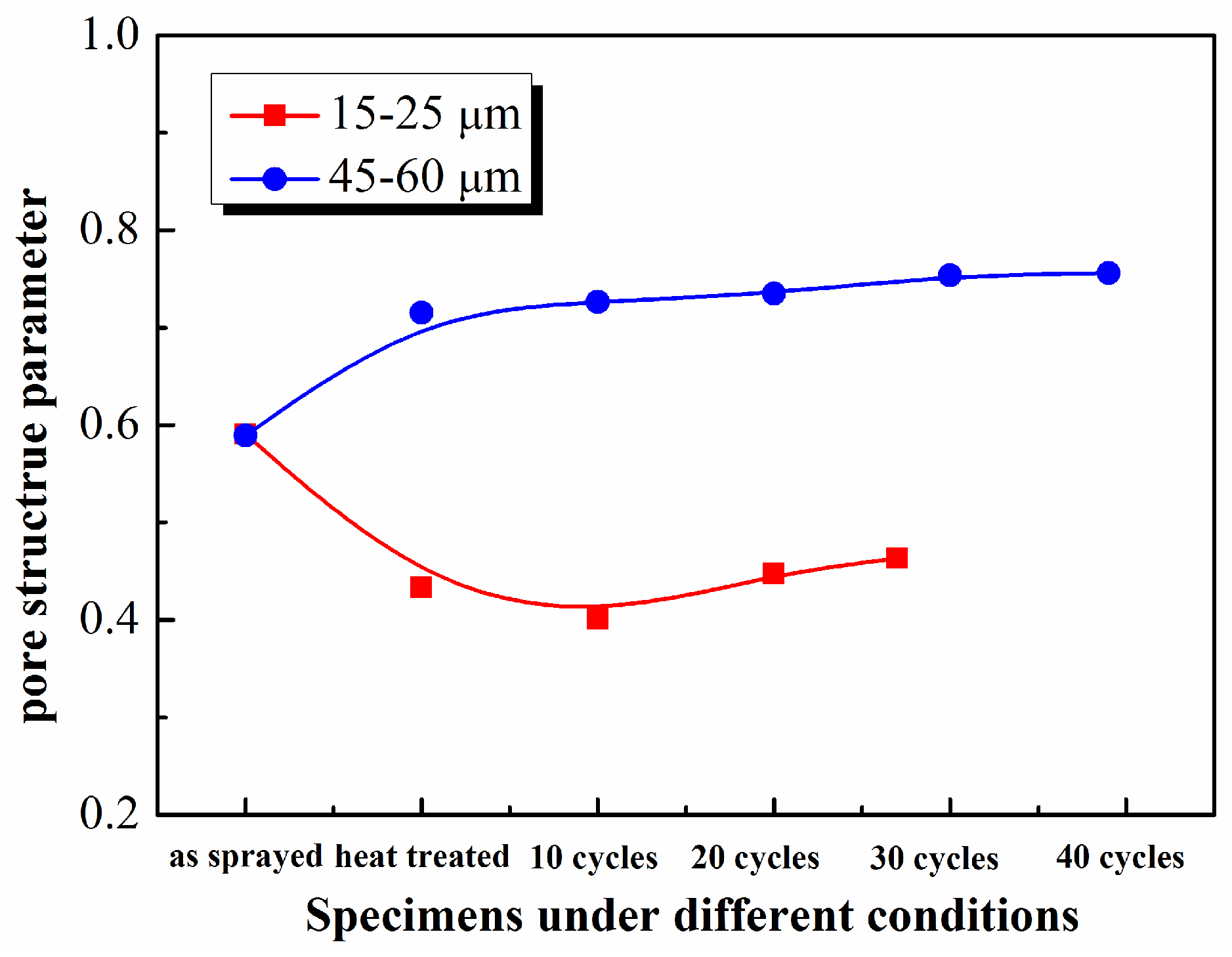

In this study, yttria-stabilized zirconia (YSZ) coatings were deposited by atmospheric plasma spraying (APS) using feedstocks with two different particle sizes. The effect of particle size on the pore structure and failure mechanism of the coatings was investigated. The evolution of the pore structure of the two kinds of coatings during cyclic thermal shock test was described by quantitative metallography. The influence of pore orientation on the thermal stress of the coating system was analyzed by the finite element method. It was found that the coatings deposited using coarse particles show a high thermal shock life time. The orientation of the pores in the coatings prepared by different particle sizes was different. A structural parameter was proposed to effectively characterize the pore orientation of the coatings. Coatings prepared by coarse YSZ powder tend to form almost the same number of horizontal and vertical pores, while coatings prepared by fine powder tend to form horizontal ones parallel to the direction of the substrate. The simulation results revealed that the vertical pores can reduce the thermal stress in the coating. The results of this investigation are a benefit to the design and integrity of TBCs. View Full-Text
Keywords: thermal barrier coatings; YSZ; particle size; pore; thermal shocks; stress thermal barrier coatings; YSZ; particle size; pore; thermal shocks; stress

Figure 1
