Next Article in Journal
Investigation of a Simplified Mechanism Model for Prediction of Gallium Nitride Thin Film Growth through Numerical Analysis
Next Article in Special Issue
The Effect of Temperature and Local pH on Calcareous Deposit Formation in Damaged Thermal Spray Aluminum (TSA) Coatings and Its Implication on Corrosion Mitigation of Offshore Steel Structures
Previous Article in Journal
Defect-Free Large-Area (25 cm2) Light Absorbing Perovskite Thin Films Made by Spray Coating
Previous Article in Special Issue
Pitted Corrosion Detection of Thermal Sprayed Metallic Coatings Using Fiber Bragg Grating Sensors
Article Menu
Issue 3 (March) cover image

Export Article

Open AccessArticle
Coatings 2017, 7(3), 44;

High-Temperature Corrosion of AlCrSiN Film in Ar-1%SO2 Gas

School of Advanced Materials Science & Engineering, Sungkyunkwan University, Suwon 16419, Korea
School of Materials Science & Engineering, Anhui University of Technology, Maanshan 243002, China
Department of Advanced Materials Engineering, Chungbuk National University, Cheongju 28644, Korea
Author to whom correspondence should be addressed.
Academic Editors: Niteen Jadhav and Andrew J. Vreugdenhil
Received: 26 December 2016 / Revised: 7 March 2017 / Accepted: 9 March 2017 / Published: 13 March 2017
(This article belongs to the Special Issue Coatings for Corrosion Mitigation)
Full-Text   |   PDF [2170 KB, uploaded 13 March 2017]   |

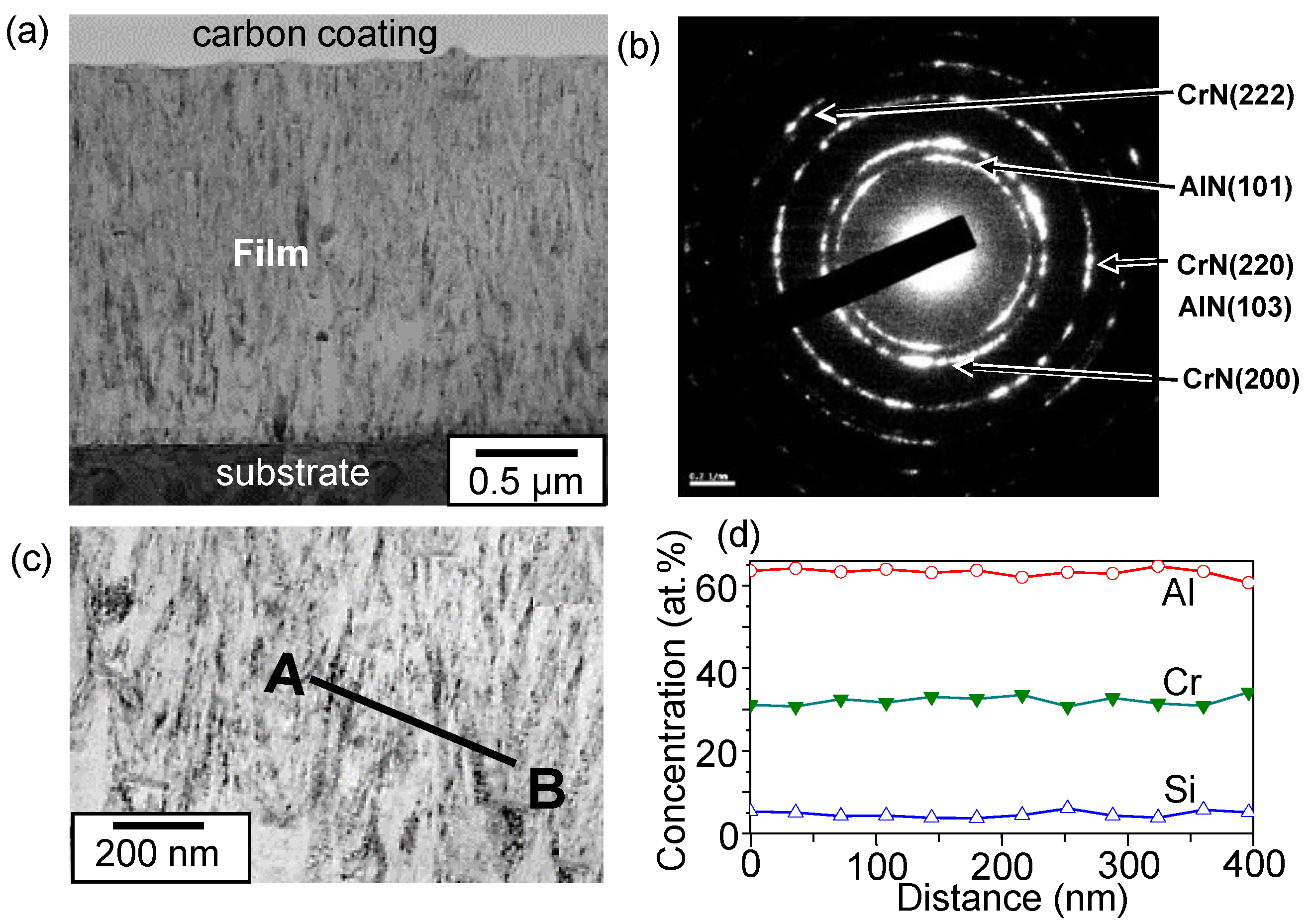

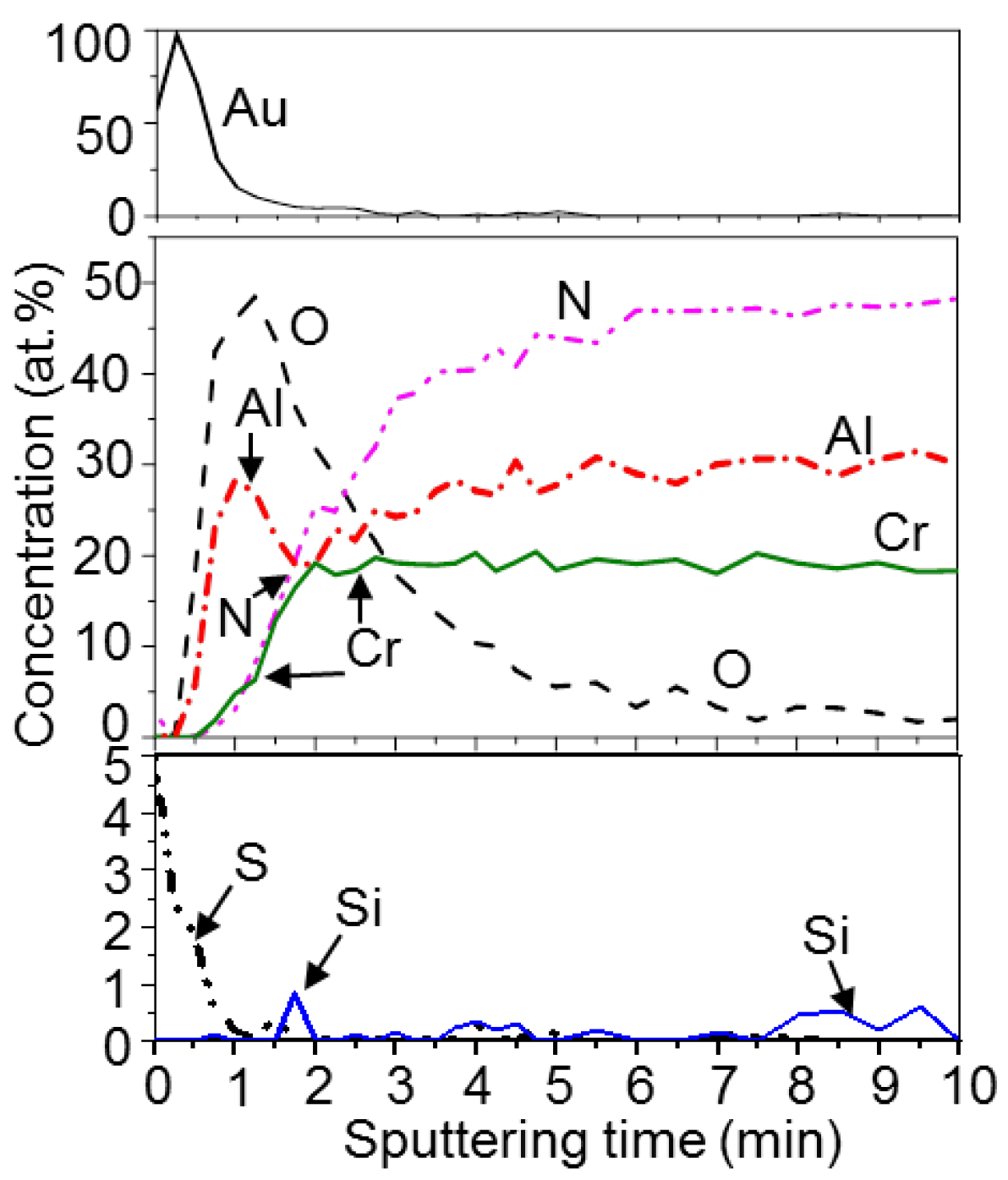

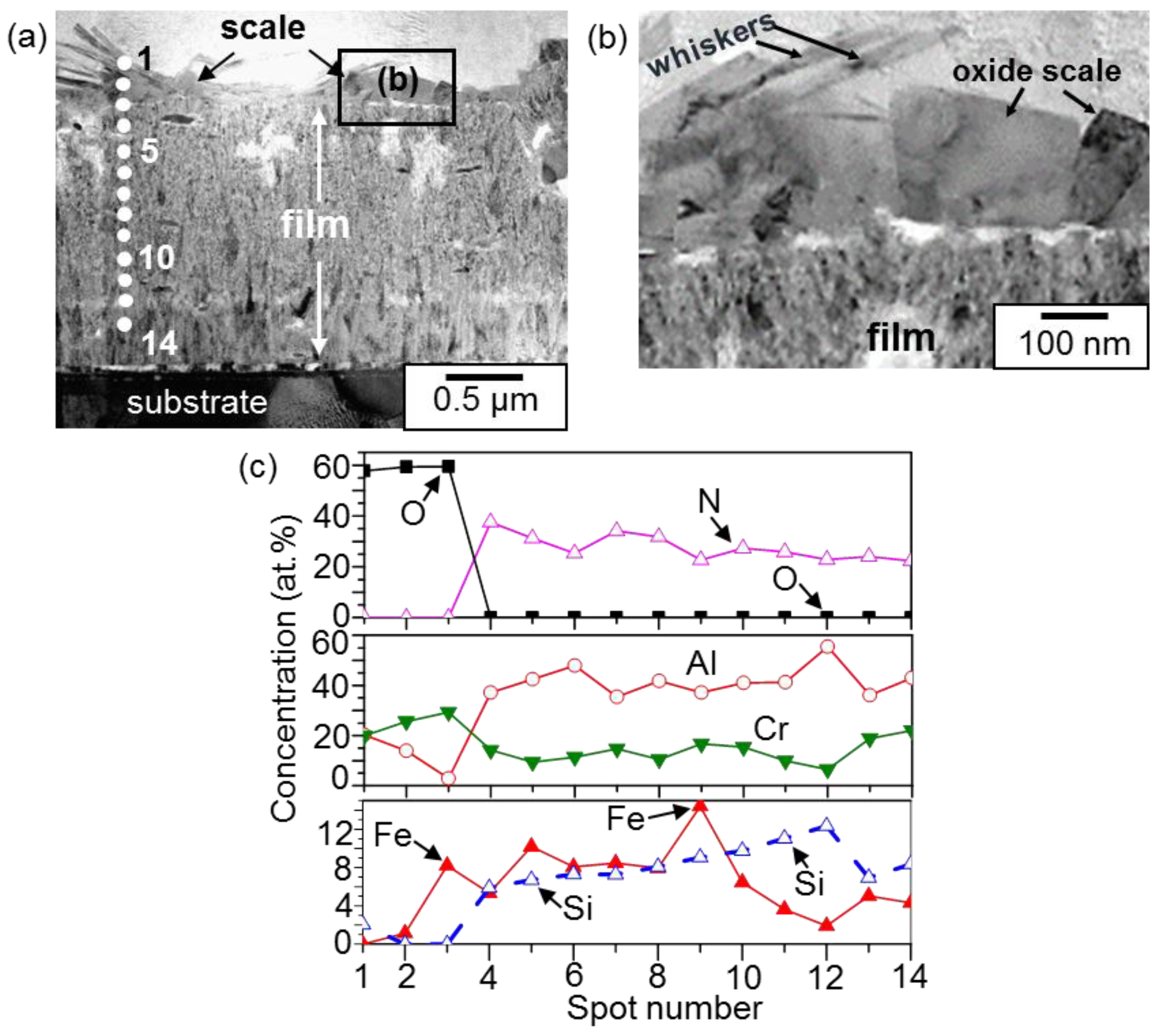

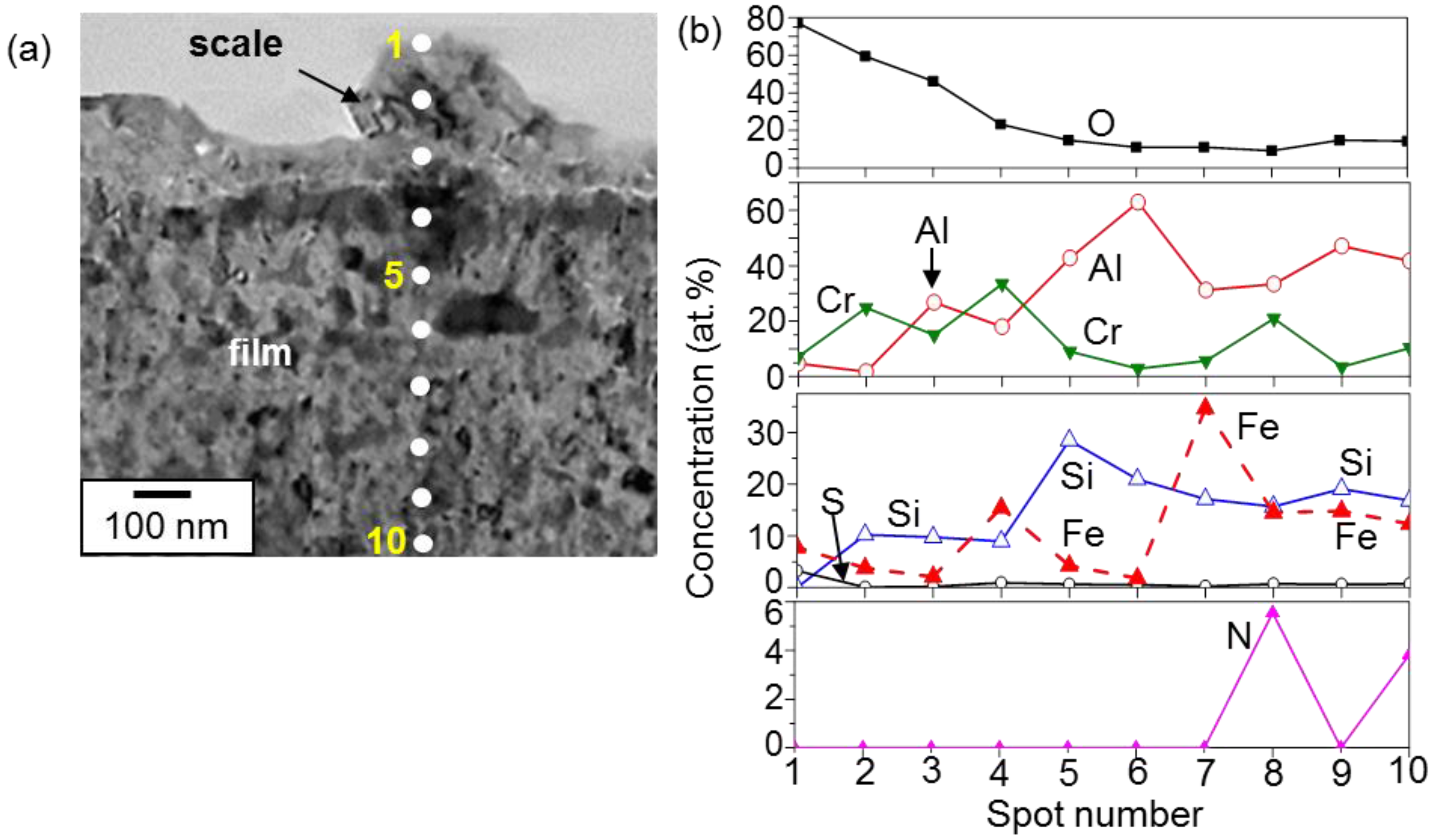

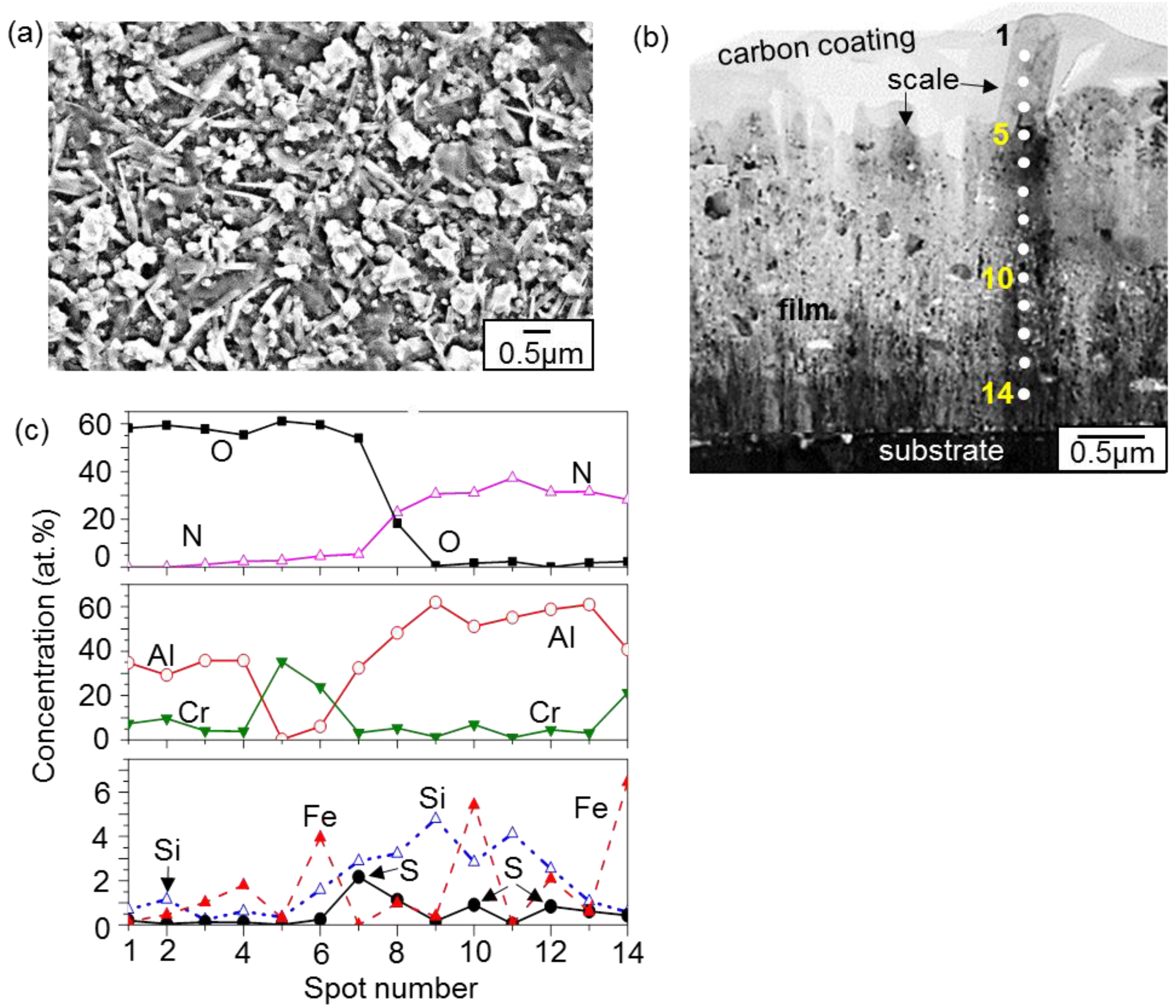

AlCrSiN film with a composition of 29.1Al-17.1Cr-2.1Si-51.7N in at. % was deposited on a steel substrate by cathodic arc ion plating at a thickness of 1.8 μm. It consisted of nanocrystalline hcp-AlN and fcc-CrN, where a small amount of Si was dissolved. Corrosion tests were carried out at 800 °C for 5–200 h in Ar-1%SO2 gas. The major corrosion reaction was oxidation owing to the high oxygen affinity of Al and Cr in the film. The formed oxide scale consisted primarily of (Al,Cr)2O3, within which Fe, Si, and S were dissolved. Even after corrosion for 200 h, the thickness of the scale was about 0.7–1.2 μm, indicating that the film had good corrosion resistance in the SO2-containing atmosphere. View Full-Text
Keywords: AlCrSiN film; oxidation; sulfidation; SO2 gas corrosion AlCrSiN film; oxidation; sulfidation; SO2 gas corrosion

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Yadav, P.; Lee, D.B.; Lin, Y.; Zhang, S.; Kwon, S.C. High-Temperature Corrosion of AlCrSiN Film in Ar-1%SO2 Gas. Coatings 2017, 7, 44.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
