Next Article in Journal / Special Issue
Development of a Fabrication Process Using Suspension Plasma Spray for Titanium Oxide Photovoltaic Device
Previous Article in Journal
A Field Performance Evaluation Scheme for Microwave-Absorbing Material Coatings
Previous Article in Special Issue
Assessment on the Effects of ZnO and Coated ZnO Particles on iPP and PLA Properties for Application in Food Packaging
Open AccessArticle

Influence of the Electrolyte Concentration on the Smooth TiO2 Anodic Coatings on Ti-6Al-4V

Instituto de Materiales de Misiones (IMAM), CONICET-UNaM, Posadas 3300, Misiones, Argentina
Facultad de Ciencias Exactas, Químicas y Naturales (FCEQyN), UNaM, Posadas 3300, Misiones, Argentina
Authors to whom correspondence should be addressed.
Academic Editor: S. D. Worley
Coatings 2017, 7(3), 39;
Received: 16 January 2017 / Revised: 27 February 2017 / Accepted: 28 February 2017 / Published: 3 March 2017

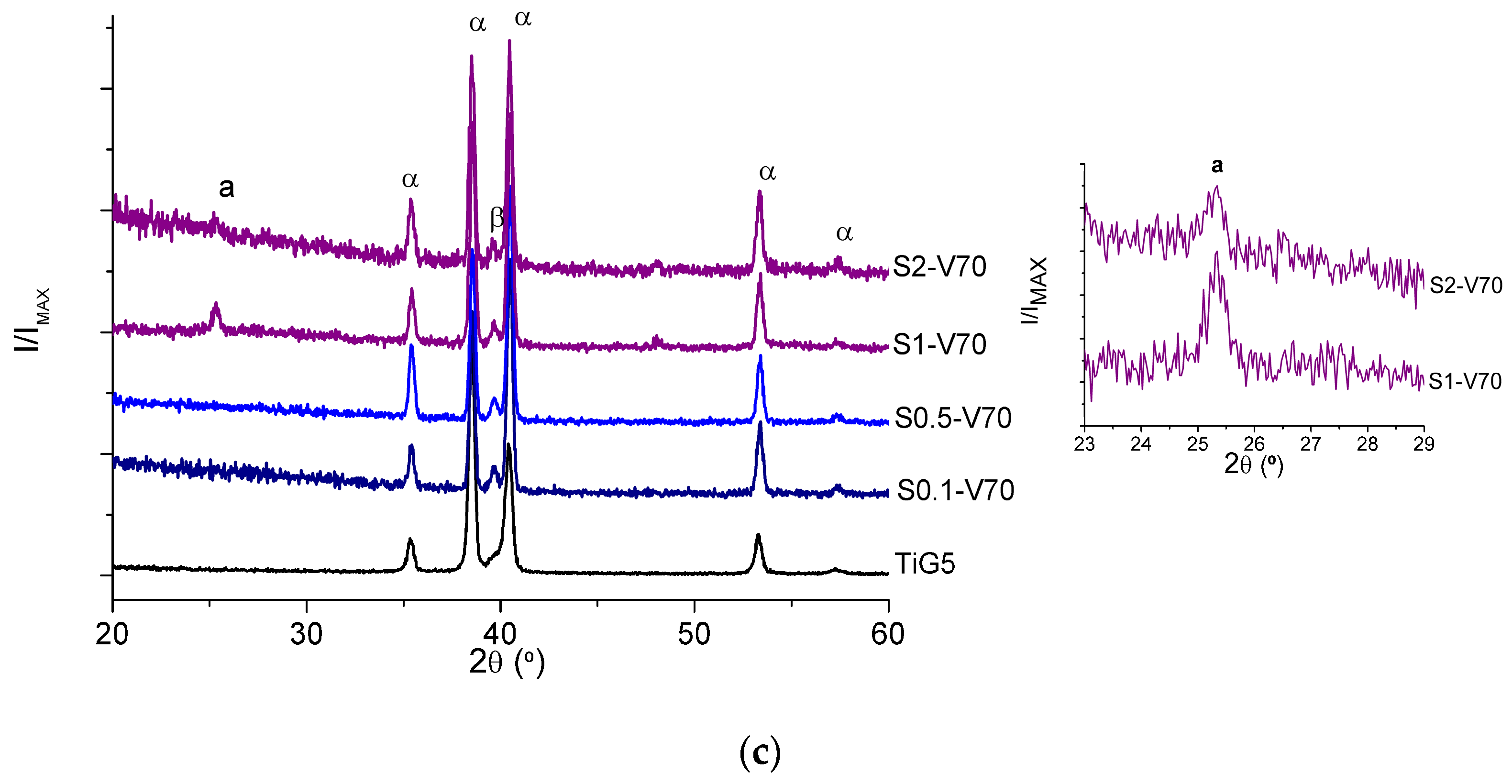

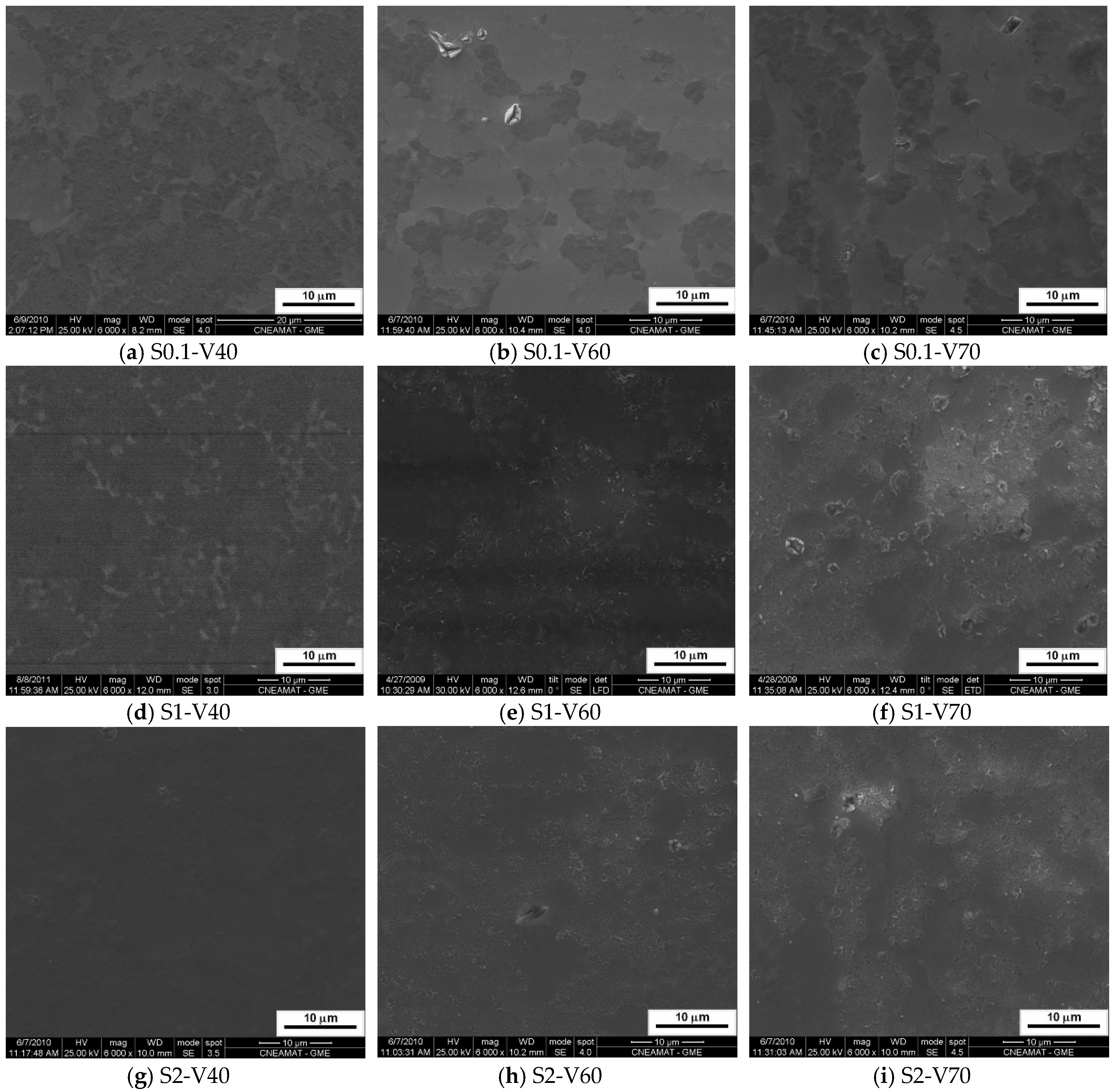

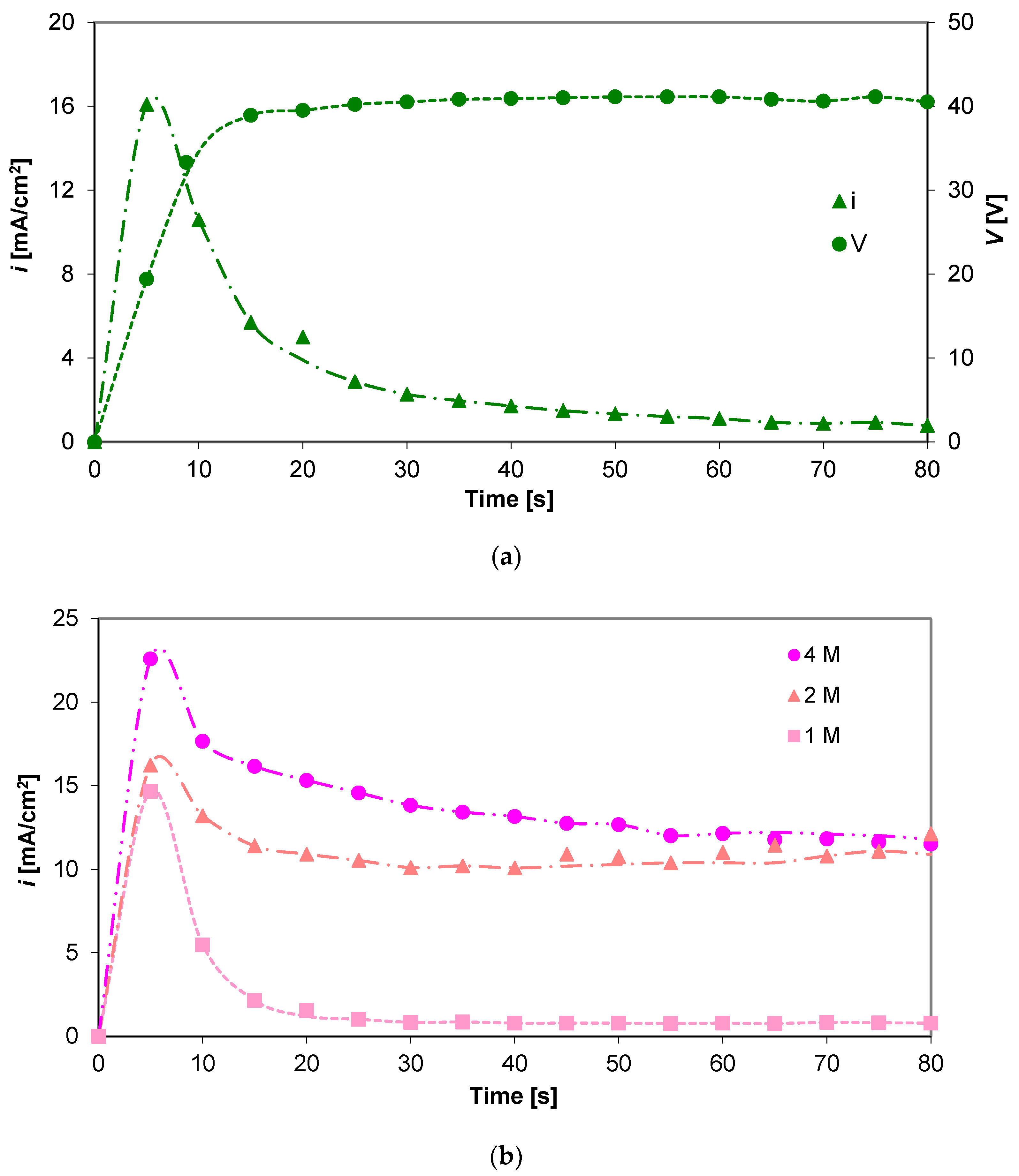

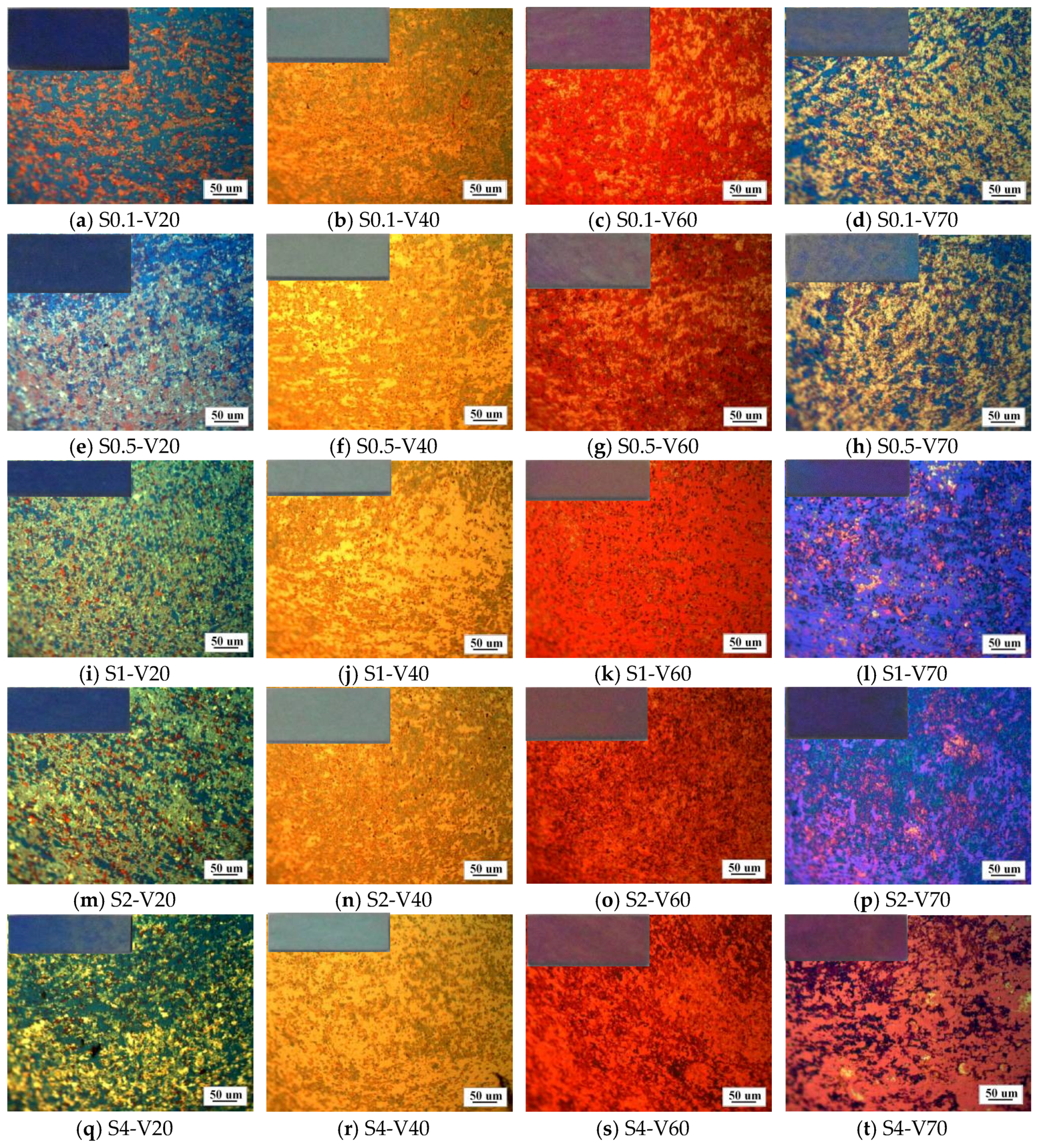

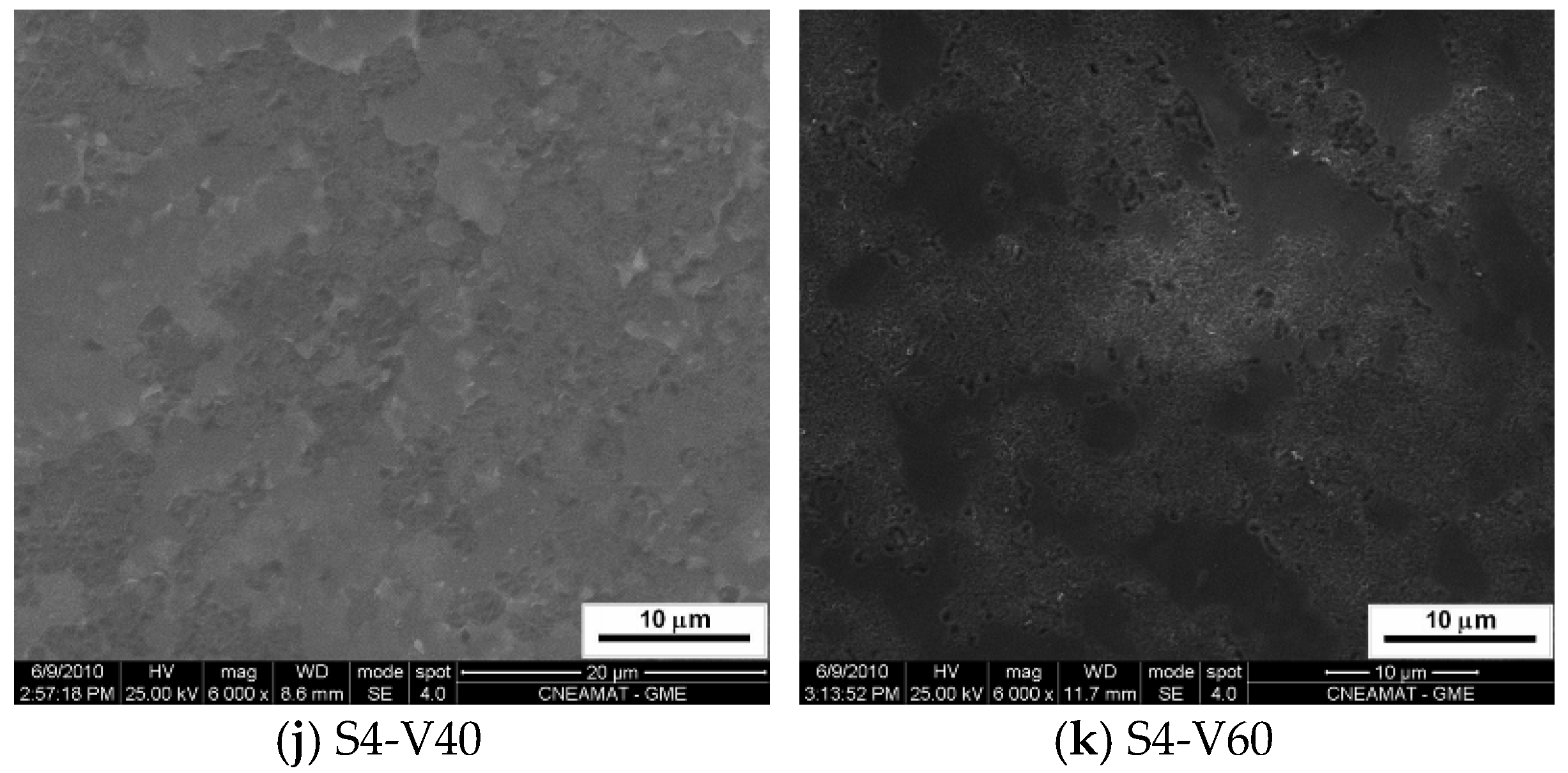

To obtain smooth TiO2 coatings for building a new design of Ti-6Al-4V heart valve, the anodic oxidation technique in pre-spark conditions was evaluated. TiO2 coating is necessary for its recognized biocompatibility and corrosion resistance. A required feature on surfaces in contact with blood is a low level of roughness (Ra ≤ 50 nm) that does not favor the formation of blood clots. The present paper compares the coatings obtained by anodic oxidation of the Ti-6Al-4V alloy using H2SO4 at different concentrations (0.1–4 M) as electrolyte and applying different voltages (from 20 to 70 V). Color and morphological analysis of coatings are performed using optical and scanning microscopy. The crystalline phases were analyzed by glancing X-ray diffraction. By varying the applied voltage, different interference colors coatings were obtained. The differences in morphologies of the coatings caused by changes in acid concentration are more evident at high voltages, limiting the oxidation conditions for the desired application. Anatase phase was detected from 70 V for 1 M H2SO4. An increase in the concentration of H2SO4 decreases the voltage at which the transformation of amorphous to crystalline coatings occurs; i.e., with 4 M H2SO4, the anatase phase appears at 60 V. View Full-Text
Keywords: anodic oxidation; titanium dioxide; electrolyte concentration; sulfuric acid anodic oxidation; titanium dioxide; electrolyte concentration; sulfuric acid
Show Figures

Figure 1

MDPI and ACS Style

Vera, M.L.; Colaccio, Á.; Rosenberger, M.R.; Schvezov, C.E.; Ares, A.E. Influence of the Electrolyte Concentration on the Smooth TiO2 Anodic Coatings on Ti-6Al-4V. Coatings 2017, 7, 39.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Back to TopTop
