Article

Memory Properties of Zr-Doped ZrO2 MOS-like Capacitor

National Institute of Materials Physics, 405A Atomistilor Street, 077125 Magurele, Romania
*
Author to whom correspondence should be addressed.
Coatings 2022, 12(9), 1369; https://doi.org/10.3390/coatings12091369
Received: 30 August 2022 / Revised: 12 September 2022 / Accepted: 13 September 2022 / Published: 19 September 2022
(This article belongs to the Special Issue Advances of Nanoparticles and Thin Films)

Abstract

:
The high-k-based MOS-like capacitors are a promising approach for the domain of non-volatile memory devices, which currently is limited by SiO2 technology and cannot face the rapid downsizing of the electronic device trend. In this paper, we prepare MOS-like trilayer memory structures based on high-k ZrO2 by magnetron sputtering, with a 5% and a 10% concentrations of Zr in the Zr–ZrO2 floating gate layer. For crystallization of the memory structure, rapid thermal annealing at different temperatures between 500 °C and 700 °C was performed. Additionally, Al electrodes were deposited in a top-down configuration. High-resolution transmission electron microscopy reveals that ZrO2 has a polycrystalline–columnar crystallization and a tetragonal crystalline structure, which was confirmed by X-ray diffraction measurements. It is shown that the tetragonal phase is stabilized during the crystallization by the fast diffusion of oxygen atoms. The capacitance–voltage characteristics show that the widest memory window (ΔV = 2.23 V) was obtained for samples with 10% Zr annealed at 700 °C for 4 min. The charge retention characteristics show a capacitance decrease of 36% after 10 years.

Graphical Abstract

1. Introduction

In recent decades, the miniaturization trend of electronic devices has been the mainstream approach for increasing computational power and data storage capabilities. The usage of SiO2 as a dielectric oxide for classical metal–oxide–semiconductor (MOS) devices [1,2] was made possible due to SiO2’s very good electrical stability and native interface with Si. The scaling down of the SiO2 tunneling oxide was the preferred method used for increasing the density of the memory structures on the surface unit. However, this approach has some limitations as the SiO2 tunneling oxide has to be thinned down to 2 nm [3]. If the value is below this, the process of direct tunneling of the charge carriers between the Si substrate and the floating gate layer through the SiO2 tunneling layer leads to a high-leakage current and a low-charge retention capability of the MOS-like capacitor [4]. A solution to this problem is to replace the SiO2 with a high-k oxide, such as ZrO2, HfO2 or Al2O3 [5,6,7,8,9,10,11], that has a dielectric constant of k > 20, which is sufficiently high to have a low equivalent oxide thickness (EOT) [12] and low enough to avoid the lateral fringing-field effect [13,14] to be used in MOS-like capacitors. ZrO2 is characterized by a good interface with Si [15] and being thermally stable [16], and the temperature of the phase transformation from monoclinic to tetragonal is almost 500 °C, which is lower than that for HfO2 [17,18]. Additionally, the dielectric constant, k, of the tetragonal phase is higher than 40 [19]. It is important to have a lower phase transition temperature, as using lower temperature processing together with the magnetron sputtering (MS) deposition method (which is a cheap and reproducible method) means cost-effective production and equipment investments.
In the literature, there are very few articles related to the memory properties of the ZrO2-based trilayer MOS-like capacitors. Some of these articles describe the charge storage properties of Ge or Zr nanocrystals embedded in the ZrO2 matrix as a floating gate layer [20,21,22] located at a tunnelable distance from the Si substrate. Other articles describe the ferroelectric properties of ZrO2 in association with HfO2 [23,24,25].
In this paper, we use Zr-doped ZrO2 for the formation of charge storage centers in a ZrO2-based MOS-like trilayer structure. The main advantage of using an oxygen-deficient ZrO2 layer as a floating gate layer compared with Zr nanocrystals embedded in ZrO2 is related to the high density of the storage centers. This is translated into a very stable memory structure with a long charge retention time. For this, we prepared a MOS-like memory structure of ZrO2 [gate oxide]/Zr–ZrO2 [floating gate]/ZrO2 [tunneling oxide]/p-Si by MS, followed by rapid thermal annealing (RTA) between 500 °C and 700 °C and a metallization process. In the Zr–ZrO2 floating gate layer, we used 5% and 10% Zr. The broadest memory window (ΔV = 2.23 V) was obtained from the samples with 10% Zr annealed at 700 °C.

2. Materials and Methods

2.1. Sample Preparation

The memory structures ZrO2 [gate oxide]/ZrZrO2 [floating gate]/ZrO2 [tunneling oxide]/p-Si were prepared by using an MS deposition technique (Surrey Nanosystems Gamma 1000 equipment, East Sussex, UK) on a p-type Si substrate (1–10 Ω·cm resistivity). Before the deposition, the Si wafers were chemically cleaned by using a two-step procedure. In the first step, the organic contaminants were removed in a piranha solution (H2O2:H2SO4 = 1:3), followed by the second step of native SiO2 removal in an aqueous solution of HF (2%). The preparation of the trilayer MOS-like capacitor starts with the deposition of a 13-nm tunneling ZrO2 layer from a ZrO2 target on which the power of P = 60 W RF was applied. Then, a 13-nm Zr-doped ZrO2 floating gate layer was deposited by co-sputtering the Zr and the ZrO2 (P = 60 W RF) from separate targets. For the Zr, we used two concentrations of 5% and 10% (P = 10–30 W DC) for obtaining 2 types of samples. Finally, the gate oxide layer of 30 nm was also deposited at a P = 60 W RF. The memory structure deposition was performed in an Ar atmosphere at a 25-sccm (standard cubic centimeters per minute) flow rate and a working pressure of p = 3 mTorr. To ensure the uniformity of the layer deposition, the Si substrate was rotated at 15 rpm. Additionally, a 56-nm ZrO2 control structure was deposited under similar conditions as the trilayer one. After the deposition, the trilayer memory structure was nanostructured by RTA at different temperatures between 500 °C and 700 °C for 4 min in an N2 atmosphere.
Table 1 presents the structure sketch and the preparation details of the trilayer MOS-like capacitor and the control structure.
For the electrical characterization, Al electrodes with a 1-mm2 area were deposited by thermal evaporation in a top-down configuration, forming a MOS-like capacitor.

2.2. Characterization Methods

The trilayer MOS-like capacitor structure and morphology were characterized by high-resolution transmission electron microscopy (HRTEM) in the Jeol JEM-ARM 200F electron microscope (JEOL, Tokyo, Japan). The crystalline structure was determined by X-ray diffraction measurements using the Rigaku SmartLab diffractometer (Rigaku, Tokyo, Japan), and the oxidation states of Zr were determined by X-ray photoelectron spectroscopy (XPS). A SPECS XPS spectrometer (SPECS Surface Nano Analysis GmbH, Berlin, Germany) with a PHOIBOS 150 analyzer was used for this. This uses a 300-W monochromatic RX source (Al Kα—1486.61 eV) and a SPECS FG15/40 (SPECS Surface Nano Analysis GmbH, Berlin, Germany) flood gun for charge neutralization.
The memory characteristics of each trilayer structure were determined by capacitance–voltage (CV) measurements using an Agilent 4980A LCR meter (Agilent Technologies, Santa Clara, CA, USA). The frequency dependence of the capacitance (C-f) was also measured between 10 kHz and 1 MHz with different voltages applied to the gate electrode. The capacity of the MOS-like trilayer capacitor to retain electrical charges was determined by the time dependence of the capacitance (C-t), measured at a frequency of 1 MHz.

3. Results and Discussion

The structure and morphology of the sample with the 10% Zr content in the floating gate layer annealed at 700 °C for 4 min (Zr10-700) were determined by cross-section HRTEM analyses (Figure 1a), where the columnar crystallization of ZrO2 can be observed.
In the HRTEM image, it is possible to measure some lattice fringe distances of 0.29 nm, 0.18 nm, and 0.16 nm that correspond to the planes (111), (002), and (103) of the ZrO2 tetragonal phase, respectively.
The contrast between the deposited layers is low, and the trilayer configuration of the memory capacitor cannot be observed as distinct individual layers. The reason for this is the presence of the columnar crystallization process. The fast diffusion of oxygen atoms leads to uniform nonstoichiometric suboxides in the whole trilayer structure, not only in the middle layer. This will stabilize the tetragonal phase during the crystallization. In our opinion, the crystallization process begins with the nucleation on the tunneling layer, and the crystal growth continues normally to the free surface in a columnar morphology with a growth rate that depends on the nuclei orientations.
Some information about the structural configuration of the trilayer structure is obtained by analyzing the energy-dispersive X-ray spectroscopy (EDX) data. Figure 1b presents the relative concentration of Zr (magenta), Si (blue), and O (green) measured on the cross-section of the Zr10-700 sample (Figure 1c).
The maximum concentration of Zr is located near the floating gate layer, as expected from the preparation conditions. These results confirm the trilayer structure configuration of the MOS-like memory capacitor.
The polycrystallinity of the trilayer memory structure observed in the HRTEM analysis (Figure 1a) was also confirmed by the two-dimensional fast Fourier transform (FFT) (Figure 2b) applied to the HRTEM image (Figure 2a), followed by an inverse FFT (IFFT) (Figure 2c). The colored regions are obtained by filtering the spatial frequencies and orientations in the FFT image, which are labeled with numbers and colors in Figure 2b. Each colored region in Figure 2c represents a ZrO2 nanocrystallite or a group of them having the same lattice fringe spacing and direction, giving the same spot in the FFT image. For example, the green area shows a group of four nanocrystallites that have the same crystalline orientation and similar lattice fringes in the HRTEM image. Each nanocrystallite resembles a coherent domain of ZrO2.
The crystalline structure of the MOS-like capacitor was also evidenced by XRD measurements (Figure 3).
The XRD diffractogram presents high intensity peaks positioned at 2θ = 30.48 deg, 2θ = 35.2 deg, 2θ = 50.6 deg, and 2θ = 60.32 deg. These peaks correspond to a high-pressure tetragonal phase of the ZrO2, indexed in the ICCD DB card no. 01-070-6627, for the crystallographic planes of (111), (002), (200), and (211), respectively. The 30.48 deg peak corresponds to the (111) plane with a lattice spacing of 0.293 nm, which is smaller than the 0.295 nm (for 30.28 deg) of the tetragonal lattice phase. However, the experimental (111) peak has a very large base (from 28.4 to 31.5 deg) covering the positions of the (-111) and (111) peaks of the monoclinic phase of the ZrO2. This monoclinic phase is present in several percentages in the structure and explains the small coherence size of the ZrO2 crystallites.
At room temperature and atmospheric pressure, the most stable phase of ZrO2 is the monoclinic phase, which is characterized by a lower value of the dielectric constant compared with the tetragonal phase. In our case, by co-depositing between 10% Zr–90% ZrO2 for the floating gate layer, some amorphous zones of the ZrO2 at the nanometric scale will probably appear.
A possible explanation for the tetragonal phase being the majority phase in the trilayer structure is that during the RTA at 700 °C, the crystallization starts in both the tunneling ZrO2 and the gate ZrO2 and continues in the floating gate layer, similarly to the case of HfO2-based trilayers. [26]. In the present case, the internal strain appears by oxygen vacancy formation and is also due to the 10% Zr excess in the floating gate.
We also performed X-ray photoelectron spectroscopy (XPS) measurements at the surface of the trilayer structure (Figure 4).
As it can be seen, the Zr 3d doublets Zr 3d5/2 and Zr 3d3/2 have a splitting energy of 2.4 eV and an area ratio of 3/2. The binding energy clearly indicates that Zr is in an oxidation state; therefore, there is no metallic Zr in the ZrO2 gate oxide layer contributing to the formation of the tetragonal phase of ZrO2.
The memory properties of the MOS-like capacitor with Zr concentrations of 5 and 10 % in the floating gate layer and annealing temperatures between 500 °C and 700 °C (for 4 min) were investigated by CV measurements. The CV characteristics are presented in Figure 5 together with the CV curve taken on the control structure, for comparison.
The C-V measurements were performed by swiping the voltage between +2 V (inversion regime) and −3 V (accumulation regime) with a swiping speed of 1 V/s at 1 MHz frequency [27]. The hysteresis loops in Figure 5a and Figure 5b show that the best memory window of ΔV = 2.23 V is obtained on the capacitors with the 10% Zr content in the floating gate and an RTA at 700 °C (for 4 min in an N2 atmosphere), in contrast with the CV characteristic of the control structure (having no hysteresis).
Therefore, we can conclude that the memory properties of the trilayer MOS-like capacitor are due to both oxygen vacancies present in the trilayer structure and to Zr excess in the Zr–ZrO2 floating gate layer acting as charge storage nodes.
The sample with the best memory characteristics (Zr10-700) was chosen for further investigations of the frequency dependence of the capacitance (Figure 6a) and the resistance (Figure 6b). The C-f and R-f characteristics were measured at different voltage values (−3 V–+2 V) applied to the ZrO2 gate oxide electrodes. The capacitance and resistance values were recorded during the frequency swiping between 10 kHz and 1 MHz (Figure 6).
The voltage dependence of the C-f and R-f characteristics can be explained by the voltage dependence of the depletion region at the interface between the Si substrate and the ZrO2 tunneling layer. By applying a negative voltage on the ZrO2 gate oxide, the majority of charge carriers (holes) accumulate at the Si–ZrO2 interface, meaning that there is no depletion region at the Si surface [27]. In the present case, the total capacitance is at its maximum value and is given only by the capacitance of the trilayer structure. By swiping the applied voltage from negative to positive, the Si–ZrO2 interface is depleted of charge carriers. In this case, the total capacitance is the series capacitance of the trilayer structure and the capacitance of the depleted region. Since the depleted region capacitance depends on the dielectric constant of the Si and the width of the depleted region, the total capacitance decreases as the voltage approaches the inversion regime, where the minority of charge carriers arrive at the Si–ZrO2 interface due to the high electric field.
In our previous work [28], we studied the frequency dependence of the capacitance and the resistance of a trilayer structure and developed a model that allows us to simultaneously fit the C-f and R-f characteristics. From the fit, we extracted the material parameters, such as the dielectric constant, of each layer in the MOS-like capacitor. We applied the same model to this structure (ZrO2 [gate oxide]/Zr–ZrO2 [floating gate]/ZrO2 [tunneling oxide]/p-Si) and fitted the frequency dependence of the capacitance and the resistance in the accumulation regime (−3 V) to determine the dielectric constant of each layer. The results of the fit are presented in Figure 7.
The values of the dielectric constants for each layer obtained from the C-f and R-f fits are presented in Figure 8.
Figure 8 shows the values of the dielectric constants obtained from the fit curves from Figure 7. These values of the dielectric constant correspond to the layers in the 700 °C RTA sample. One can observe that they are very close to each other and that they are typical for the tetragonal phase range [19]. These results are in good agreement with the XRD and HRTEM results. Additionally, the small variation in the dielectric constant values from one layer to another one shows that there is an internal strain in the trilayer structure due to oxygen vacancy formation and Zr excess.
The charge retention characteristics were also measured on the Zr10-700 sample at a frequency of 500 kHz and at a temperature of 23 °C. In Figure 9, the C-t characteristics are presented for both the programmed and the erased processes. The programming process was performed by charging the trilayer structure at −3 V for 1 s applied on the gate oxide (accumulation regime) and then the capacitance value was recorded in time at the applied voltage of −1.6 V (flatband voltage). The erasing process was performed by applying +2 V to the gate oxide for 1 s (inversion regime) and then the capacitance value was recorded in time at the applied voltage of +0.6 V (flatband voltage).
The capacitance-decreasing trend was extrapolated for 10 years, and we observed a 36% capacitance decrease, which is in the accepted range of a standard 50% capacitance decrease after 10 years for FLASH memory devices [29].

4. Conclusions

We prepared a MOS-like memory structure of ZrO2 [gate oxide]/Zr–ZrO2 [floating gate]/ZrO2 [tunneling oxide]/p-Si using MS with a 5% and a 10% Zr content in the Zr–ZrO2 floating gate layer, followed by an RTA process at 500 °C, 600 °C, and 700 °C. The trilayer structure Zr10-700 with the 10% Zr content in the floating gate layer is formed of polycrystalline ZrO2 that is columnar crystallized in a tetragonal phase (HRTEM, XRD). The polycrystalline character of the trilayer memory structure is confirmed by FFT and IFFT analyses. We consider that the tetragonal phase is stabilized during the crystallization by the fast diffusion of oxygen atoms, leading to uniform nonstoichiometric suboxides in the whole trilayer. Additionally, XRD measurements show that besides the majority of the ZrO2 tetragonal phase, the MOS-like capacitor structure contains several percentages of monoclinic phase that explains the small coherence size of the ZrO2 crystallites. The XPS results show that Zr is in an oxidation state; therefore, there is no metallic Zr in the gate ZrO2 layer to contribute to the ZrO2 tetragonal phase.
The best memory properties were obtained on trilayer capacitors with 10% Zr annealed at 700 °C. The hysteresis loops taken on them have the broadest memory window of ΔV = 2.23 V, and the charge retention characteristics show a 36% capacitance decrease after 10 years. Additionally, the dielectric constants of each layer in the trilayer, obtained from the fit of C-f and R-f experimental curves, have values close to each other and they are typical for the tetragonal phase range. We consider that the most important contribution to the memory properties is given by oxygen vacancies with a high enough density, acting as charge storage centers.

Author Contributions

Conceptualization, methodology, software, C.P.; investigation, C.P., A.S., I.S., V.A.M., and C.N.; writing—original draft preparation, C.P.; writing—review and editing, C.P. and M.L.C.; supervision, C.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by CNCS—UEFISCDI, projects no. PN-III-P1-1.1-PD-2019-1038, PN-III-P2-2.1-PED-2019-0205, PN-III-P2-2.1-PED-2019-4468, PN-III-P1-1.1-TE-2021-1537 within PNCDI III and by the Romanian Ministry of Research, Innovation, and Digitalization.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Markov, S.; Sushko, P.V.; Roy, S.; Fiegna, C.; Sangiorgi, E.; Shluger, A.L.; Asenov, A. Si-SiO2 Interface Band-Gap Transition—Effects on MOS Inversion Layer. Phys. Status Solidi (a) 2008, 205, 1290–1295. [Google Scholar] [CrossRef]
  2. Kar, S.; Narasimhan, R.L. Characteristics of the Si-SiO2 Interface States in Thin (70–230 Å) Oxide Structures. J. Appl. Phys. 1987, 61, 5353–5359. [Google Scholar] [CrossRef]
  3. Majkusiak, B.; Walczak, J. Theoretical Limit for the SiO2 Thickness in Silicon MOS Devices. Sci. Technol. Semicond. Insul. Struct. Devices Oper. Harsh Environ. 2005, 185, 309–320. [Google Scholar] [CrossRef]
  4. Timp, G.; Bude, J.; Baumann, F.; Bourdelle, K.K.; Boone, T.; Garno, J.; Ghetti, A.; Green, M.; Gossmann, H.; Kim, Y.; et al. The Relentless March of the MOSFET Gate Oxide Thickness to Zero. Microelectron. Reliab. 2000, 40, 557–562. [Google Scholar] [CrossRef]
  5. Liu, J.; Li, J.; Wu, J.; Sun, J. Structure and Dielectric Property of High-k ZrO2 Films Grown by Atomic Layer Deposition Using Tetrakis (Dimethylamido) Zirconium and Ozone. Nanoscale Res. Lett. 2019, 14, 154. [Google Scholar] [CrossRef]
  6. Huang, K.-W.; Chang, T.-J.; Wang, C.-Y.; Yi, S.-H.; Wang, C.I.; Jiang, Y.-S.; Yin, Y.-T.; Lin, H.-C.; Chen, M.-J. Leakage Current Lowering and Film Densification of ZrO2 High-k Gate Dielectrics by Layer-By-Layer, In-Situ Atomic Layer Hydrogen Bombardment. Mater. Sci. Semicond. Processing 2020, 109, 104933. [Google Scholar] [CrossRef]
  7. Kashir, A.; Ghiasabadi Farahani, M.; Hwang, H. Towards an Ideal High-κ HfO2–ZrO2-Based Dielectric. Nanoscale 2021, 13, 13631–13640. [Google Scholar] [CrossRef]
  8. Palade, C.; Slav, A.; Cojocaru, O.; Teodorescu, V.S.; Stoica, T.; Ciurea, M.L.; Lepadatu, A.-M. SiGeSn Quantum Dots in HfO2 for Floating Gate Memory Capacitors. Coatings 2022, 12, 348. [Google Scholar] [CrossRef]
  9. Dragoman, M.; Dinescu, A.; Dragoman, D.; Palade, C.; Teodorescu, V.S.; Ciurea, M.L. Graphene/Ferroelectric (Ge-Doped HfO2) Adaptable Transistors Acting as Reconfigurable Logic Gates. Nanomaterials 2022, 12, 279. [Google Scholar] [CrossRef]
  10. Dragoman, M.; Dinescu, A.; Dragoman, D.; Palade, C.; Moldovan, A.; Dinescu, M.; Teodorescu, V.S.; Ciurea, M.L. Wafer-Scale Graphene-Ferroelectric HfO2/Ge–HfO2/HfO2 Transistors Acting as Three-Terminal Memristors. Nanotechnology 2020, 31, 495207. [Google Scholar] [CrossRef]
  11. Stavarache, I.; Cojocaru, O.; Maraloiu, V.A.; Teodorescu, V.S.; Stoica, T.; Ciurea, M.L. Effects of Ge-Related Storage Centers Formation in Al2O3 Enhancing the Performance of Floating Gate Memories. Appl. Surf. Sci. 2021, 542, 148702. [Google Scholar] [CrossRef]
  12. Ni, K.; Saha, A.; Chakraborty, W.; Ye, H.; Grisafe, B.; Smith, J.; Rayner, G.B.; Gupta, S.; Datta, S. Equivalent Oxide Thickness (EOT) Scaling with Hafnium Zirconium Oxide High-κ Dielectric near Morphotropic Phase Boundary. In Proceedings of the 2019 IEEE International Electron Devices Meeting (IEDM), San Francisco, CA, USA, 7–11 December 2019. [Google Scholar] [CrossRef]
  13. Zhao, H.; Yeo, Y.-C.; Rustagi, S.C.; Samudra, G.S. Analysis of the Effects of Fringing Electric Field on FinFET Device Performance and Structural Optimization Using 3-D Simulation. IEEE Trans. Electron. Devices 2008, 55, 1177–1184. [Google Scholar] [CrossRef]
  14. Yang, C.-F.; Hwu, J.-G. Role of Fringing Field on the Electrical Characteristics of Metal-Oxide-Semiconductor Capacitors with Co-Planar and Edge-Removed Oxides. AIP Adv. 2016, 6, 125017. [Google Scholar] [CrossRef]
  15. Peacock, P.W.; Xiong, K.; Tse, K.; Robertson, J. Bonding and Interface States of Si:HfO2 and Si:ZrO2 Interfaces. Phys. Rev. B 2006, 73, 075328. [Google Scholar] [CrossRef]
  16. Namavar, F.; Wang, G.; Cheung, C.L.; Sabirianov, R.F.; Zeng, X.C.; Mei, W.N.; Bai, J.; Brewer, J.R.; Haider, H.; Garvin, K.L. Thermal Stability of Nanostructurally Stabilized Zirconium Oxide. Nanotechnology 2007, 18, 415702. [Google Scholar] [CrossRef]
  17. Zhang, Y.; Zhang, J. First Principles Study of Structural and Thermodynamic Properties of Zirconia. Mater. Today Proc. 2014, 1, 44–54. [Google Scholar] [CrossRef]
  18. Haggerty, R.P.; Sarin, P.; Apostolov, Z.D.; Driemeyer, P.E.; Kriven, W.M. Thermal Expansion of HfO2 and ZrO2. J. Am. Ceram. Soc. 2014, 97, 2213–2222. [Google Scholar] [CrossRef]
  19. Panda, D.; Tseng, T.-Y. Growth, Dielectric Properties, and Memory Device Applications of ZrO2 Thin Films. Thin Solid Film. 2013, 531, 1–20. [Google Scholar] [CrossRef]
  20. Lehninger, D.; Khomenkova, L.; Röder, C.; Gärtner, G.; Abendroth, B.; Beyer, J.; Schneider, F.; Meyer, D.C.; Heitmann, J. Ge Nanostructures Embedded in ZrO2 Dielectric Films for Nonvolatile Memory Applications. ECS Trans. 2015, 66, 203–212. [Google Scholar] [CrossRef]
  21. Wu, Y.-H.; Wu, J.-R.; Wu, M.-L.; Chen, L.-L.; Lin, C.-C. Ge-Based Nonvolatile Memory Formed on Si Substrate with Ge-Stabilized Tetragonal ZrO2 as Charge Trapping Layer. J. Electrochem. Soc. 2011, 158, H410. [Google Scholar] [CrossRef]
  22. Palade, C.; Slav, A.; Ciurea, M.L. Memory Properties of GeZrO2 Based Trilayer Structure. In Proceedings of the 2021 International Semiconductor Conference (CAS), online, 6–8 October 2021. [Google Scholar] [CrossRef]
  23. Müller, J.; Böscke, T.S.; Schröder, U.; Mueller, S.; Bräuhaus, D.; Böttger, U.; Frey, L.; Mikolajick, T. Ferroelectricity in Simple Binary ZrO2 and HfO2. Nano Lett. 2012, 12, 4318–4323. [Google Scholar] [CrossRef] [PubMed]
  24. Li, Y.; Li, J.; Liang, R.; Zhao, R.; Xiong, B.; Liu, H.; Tian, H.; Yang, Y.; Ren, T.-L. Switching Dynamics of Ferroelectric HfO2-ZrO2 with Various ZrO2 Contents. Appl. Phys. Lett. 2019, 114, 142902. [Google Scholar] [CrossRef]
  25. Chen, Y.; Wang, L.; Liu, L.; Tang, L.; Yuan, X.; Chen, H.; Zhou, K.; Zhang, D. Thickness-Dependent Ferroelectric Properties of HfO2/ZrO2 Nanolaminates Using Atomic Layer Deposition. J. Mater. Sci. 2021, 56, 6064–6072. [Google Scholar] [CrossRef]
  26. Palade, C.; Lepadatu, A.-M.; Slav, A.; Cojocaru, O.; Iuga, A.; Maraloiu, V.A.; Moldovan, A.; Dinescu, M.; Teodorescu, V.S.; Stoica, T.; et al. A Nanoscale Continuous Transition from the Monoclinic to Ferroelectric Orthorhombic Phase inside HfO2 Nanocrystals Stabilized by HfO2 Capping and Self-Controlled Ge Doping. J. Mater. Chem. C 2021, 9, 12353–12366. [Google Scholar] [CrossRef]
  27. Lepadatu, A.M.; Palade, C.; Slav, A.; Maraloiu, A.V.; Lazanu, S.; Stoica, T.; Logofatu, C.; Teodorescu, V.S.; Ciurea, M.L. Single Layer of Ge Quantum Dots in HfO2 for Floating Gate Memory Capacitors. Nanotechnology 2017, 28, 175707. [Google Scholar] [CrossRef]
  28. Palade, C.; Lepadatu, A.M.; Slav, A.; Lazanu, S.; Teodorescu, V.S.; Stoica, T.; Ciurea, M.L. Material Parameters from Frequency Dispersion Simulation of Floating Gate Memory with Ge Nanocrystals in HfO2. Appl. Surf. Sci. 2018, 428, 698–702. [Google Scholar] [CrossRef]
  29. Hong, A.J.; Kim, J.; Kim, K.; Wang, Y.; Xiu, F.; Jeon, J.; Park, J.; Rauda, I.; Chen, L.-M.; Yang, Y.; et al. Cr Metal Thin Film Memory. J. Appl. Phys. 2011, 110, 054504. [Google Scholar] [CrossRef]

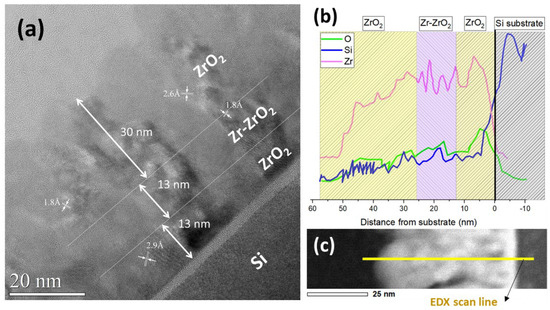

Figure 1. (a) HRTEM image obtained of the Zr10-700 structure; (b) EDX analysis with relative concentrations of Zr (magenta), Si (blue), and O (green), measured on the cross-section of the sample; (c) High-angle annular dark-field (HAADF) cross-section image.
Figure 1. (a) HRTEM image obtained of the Zr10-700 structure; (b) EDX analysis with relative concentrations of Zr (magenta), Si (blue), and O (green), measured on the cross-section of the sample; (c) High-angle annular dark-field (HAADF) cross-section image.
Coatings 12 01369 g001

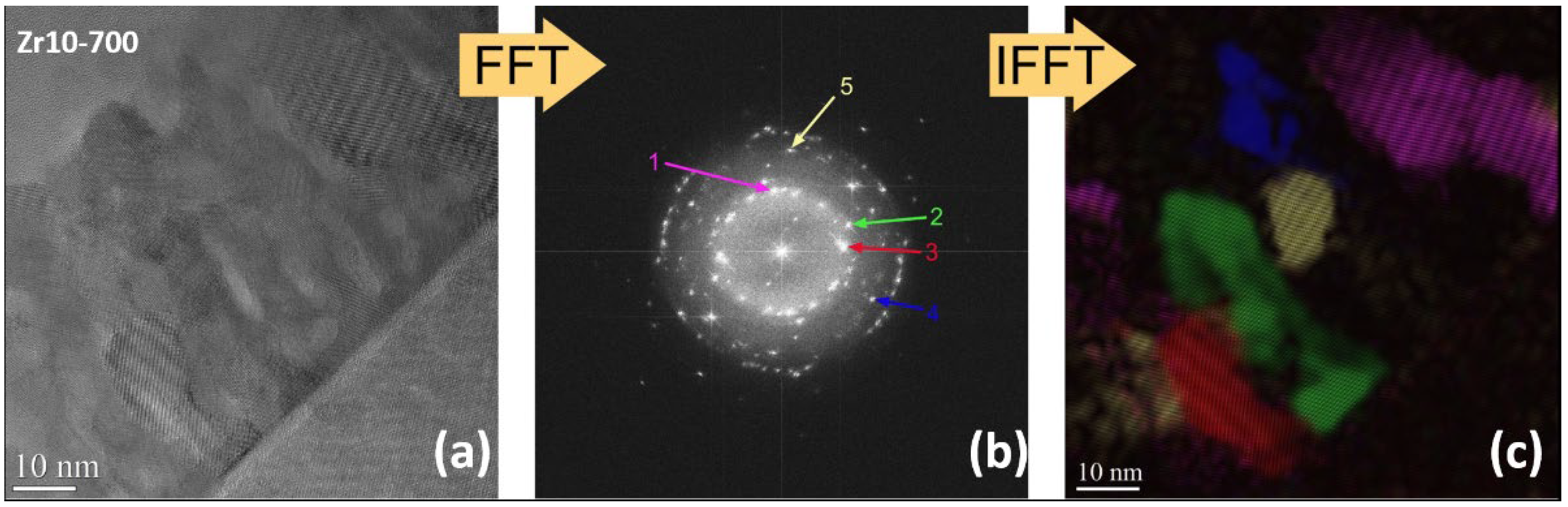

Figure 2. (a) HRTEM image obtained on the Zr10-700; (b) FFT algorithm applied on the HRTEM image. Each number correspond to a different lattice fringe spacing and direction; (c) IFFT image with colored regions that represents ZrO2 nanocrystallites with different crystalline lattice fringe spacings and orientation.
Figure 2. (a) HRTEM image obtained on the Zr10-700; (b) FFT algorithm applied on the HRTEM image. Each number correspond to a different lattice fringe spacing and direction; (c) IFFT image with colored regions that represents ZrO2 nanocrystallites with different crystalline lattice fringe spacings and orientation.
Coatings 12 01369 g002

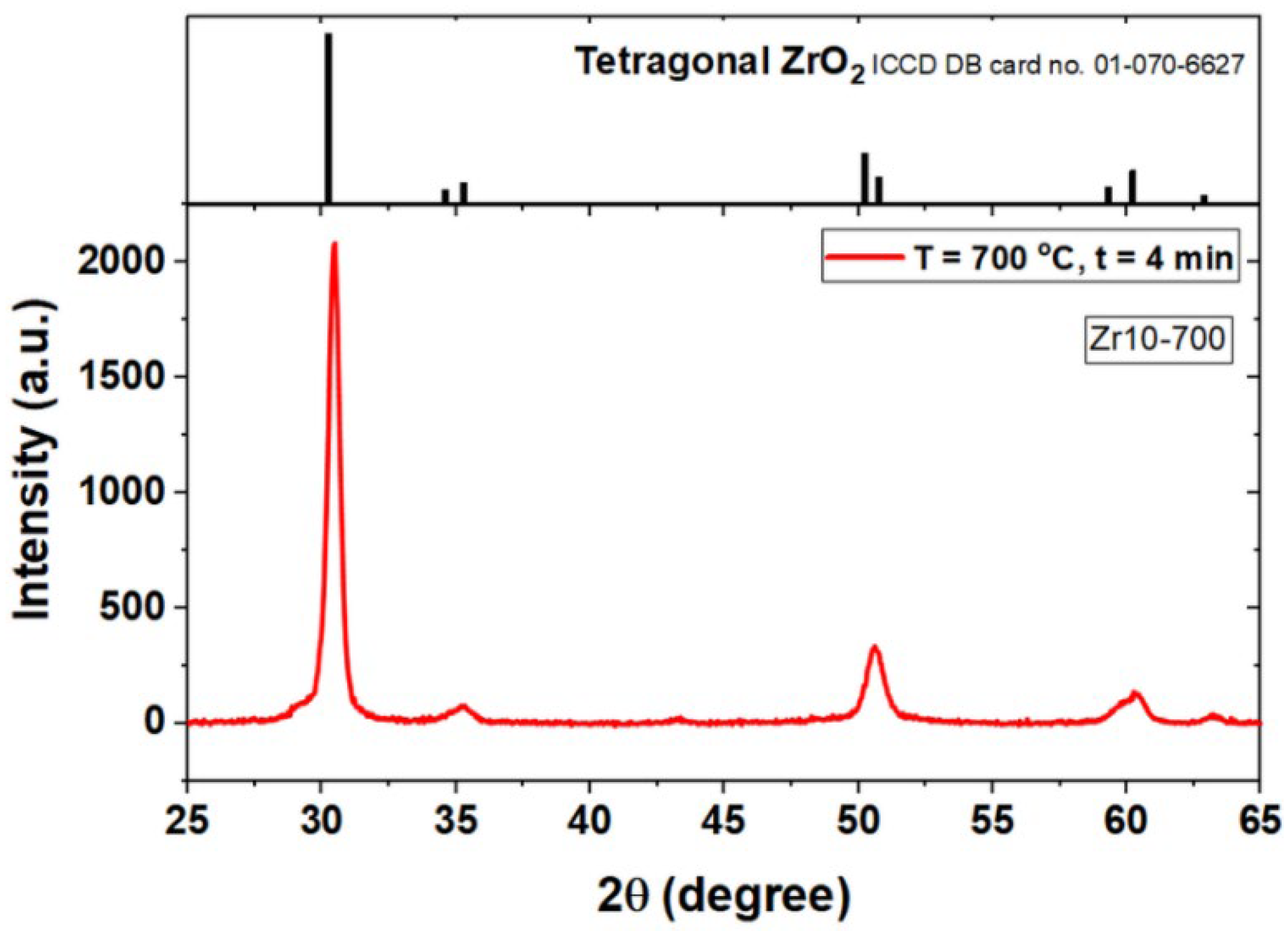

Figure 3. XRD spectra of the sample obtained after 4 minutes at 700 °C RTA (Zr10-700).
Figure 3. XRD spectra of the sample obtained after 4 minutes at 700 °C RTA (Zr10-700).
Coatings 12 01369 g003

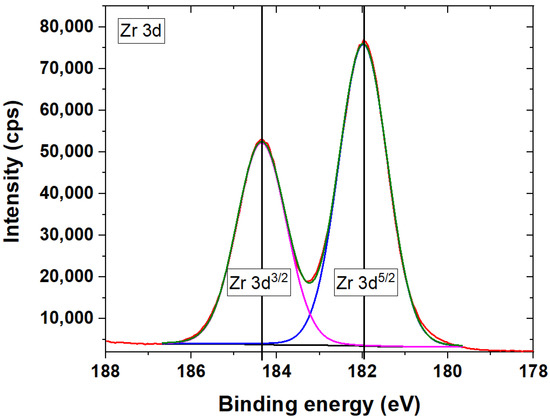

Figure 4. XPS spectra of the Zr 3d obtained on the Zr10-700. The colored lines represent components of spectral deconvolution (Voigt profiles) were each maximum corresponds to Zr 3d doublets.
Figure 4. XPS spectra of the Zr 3d obtained on the Zr10-700. The colored lines represent components of spectral deconvolution (Voigt profiles) were each maximum corresponds to Zr 3d doublets.
Coatings 12 01369 g004

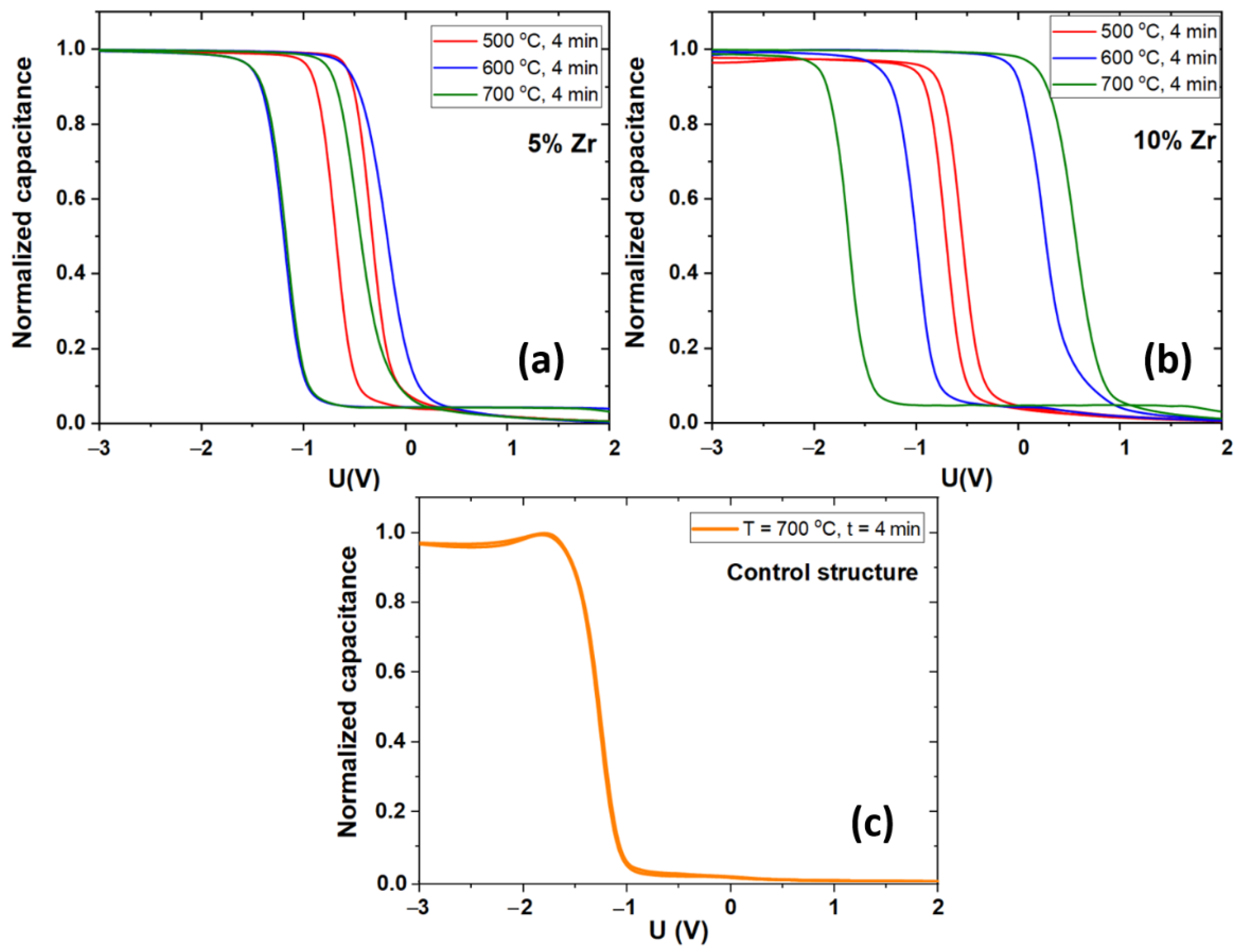

Figure 5. CV characteristics obtained on the MOS-like capacitor with (a) 5% and (b) 10% concentration in the floating gate layer, annealed at 500°C, 600 °C, and 700 °C for 4 min; (c) CV curves obtained on the control structure of 56 nm of ZrO2 annealed at 700 °C for 4 min.
Figure 5. CV characteristics obtained on the MOS-like capacitor with (a) 5% and (b) 10% concentration in the floating gate layer, annealed at 500°C, 600 °C, and 700 °C for 4 min; (c) CV curves obtained on the control structure of 56 nm of ZrO2 annealed at 700 °C for 4 min.
Coatings 12 01369 g005

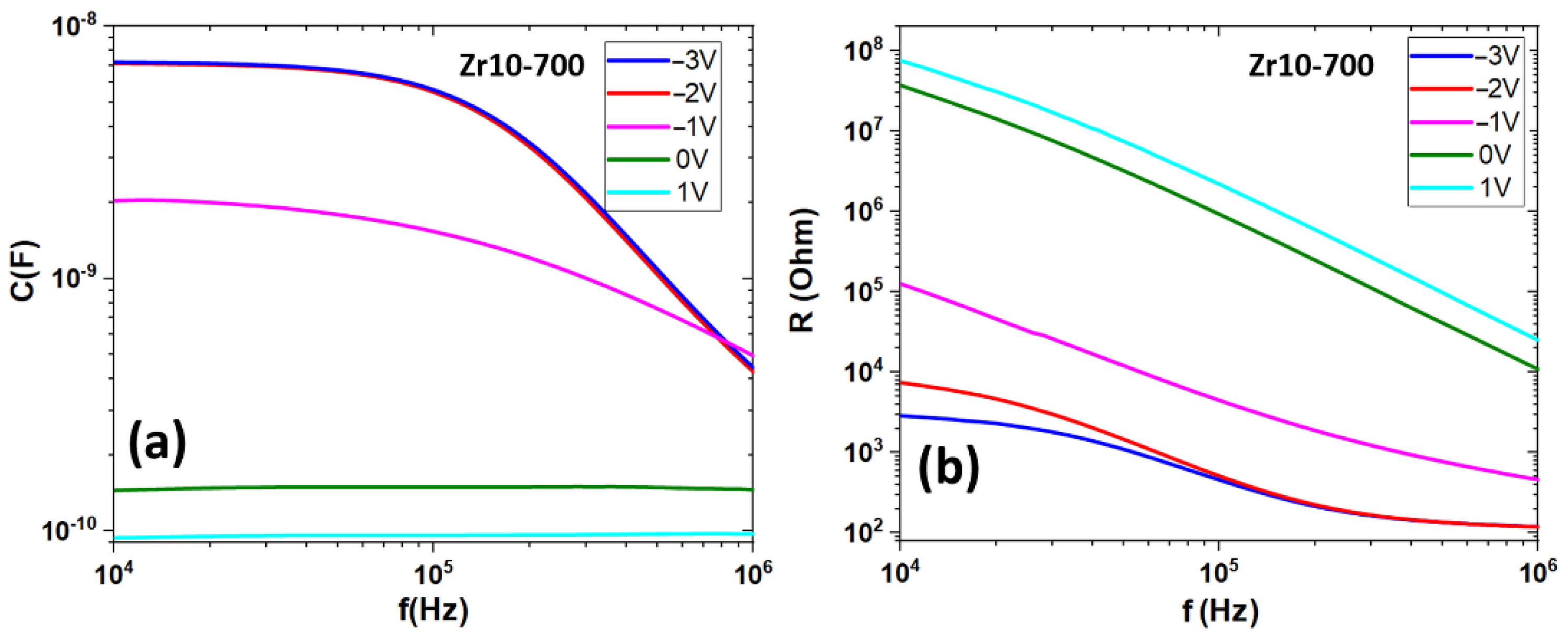

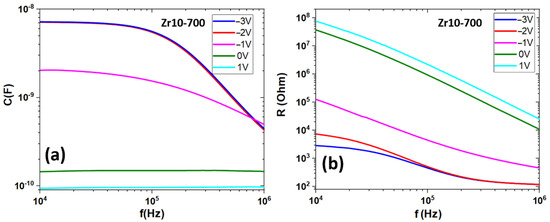

Figure 6. (a) C-f and (b) R-f measurements made at different voltages applied to the gate oxide electrode.
Figure 6. (a) C-f and (b) R-f measurements made at different voltages applied to the gate oxide electrode.
Coatings 12 01369 g006

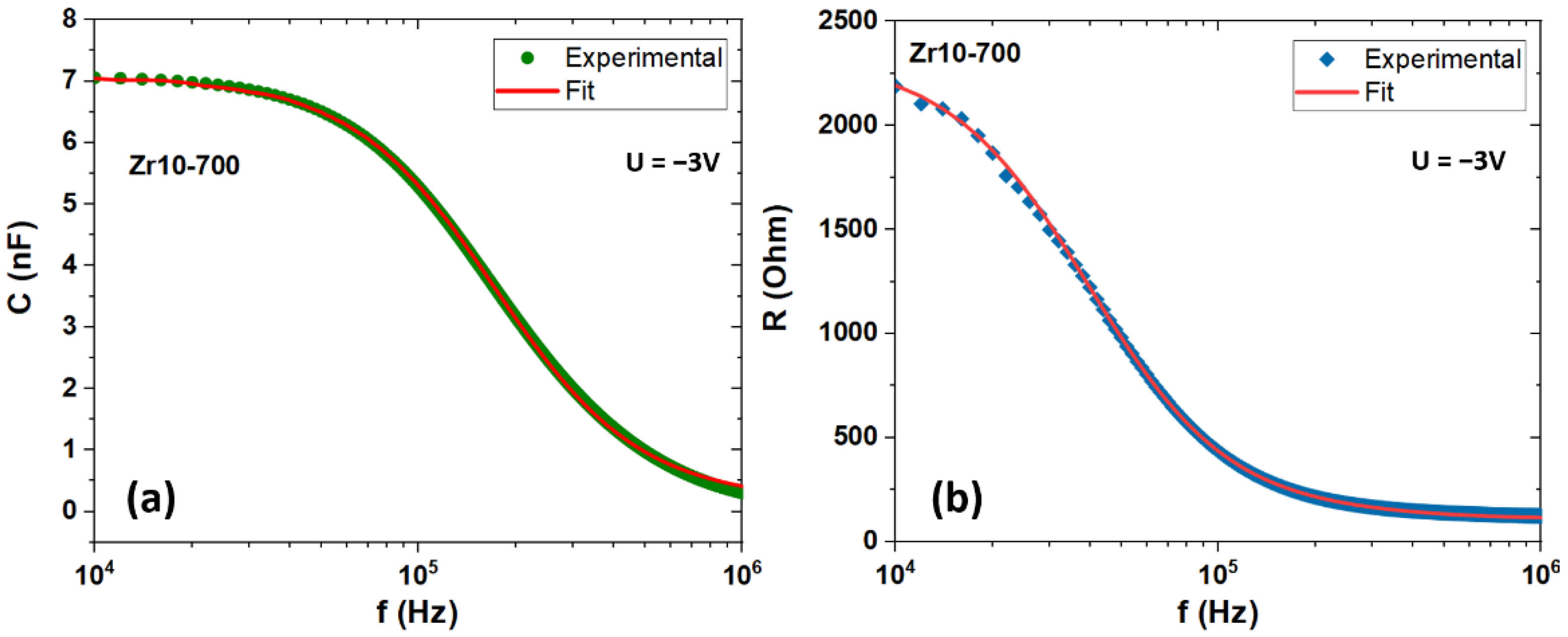

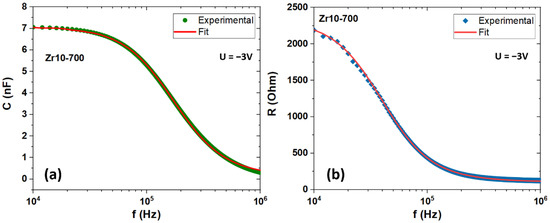

Figure 7. The frequency dependence of the (a) capacitance and (b) resistance measured on Zr10-700 in the accumulation regime (−3 V).
Figure 7. The frequency dependence of the (a) capacitance and (b) resistance measured on Zr10-700 in the accumulation regime (−3 V).
Coatings 12 01369 g007

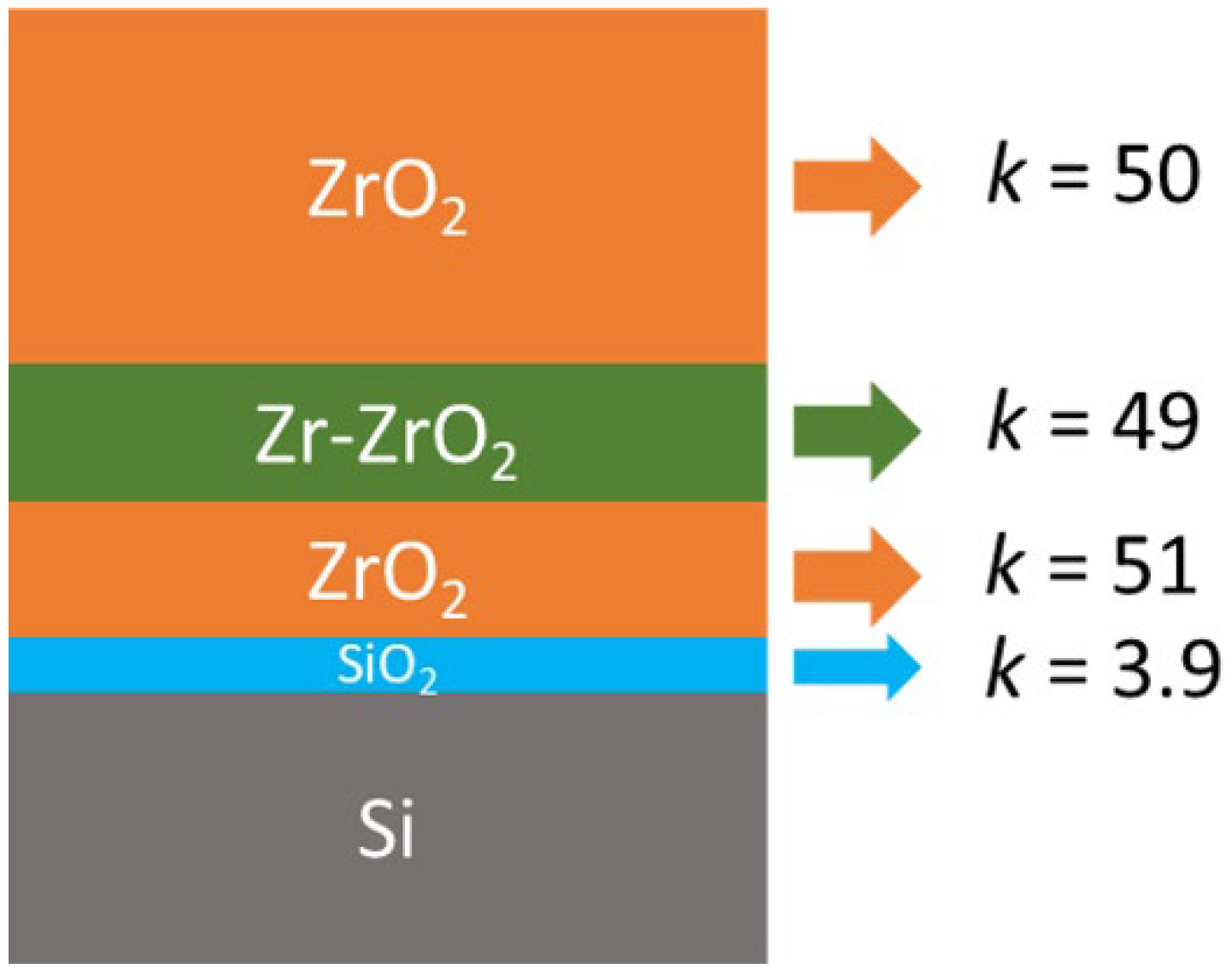

Figure 8. The schematic representation of the as-deposited trilayer structure and the dielectric constants obtained from the C-f and R-f fit curves from Figure 7 (the experimental C-f and R-f curves were measured on the Zr-10-700 structure).
Figure 8. The schematic representation of the as-deposited trilayer structure and the dielectric constants obtained from the C-f and R-f fit curves from Figure 7 (the experimental C-f and R-f curves were measured on the Zr-10-700 structure).
Coatings 12 01369 g008

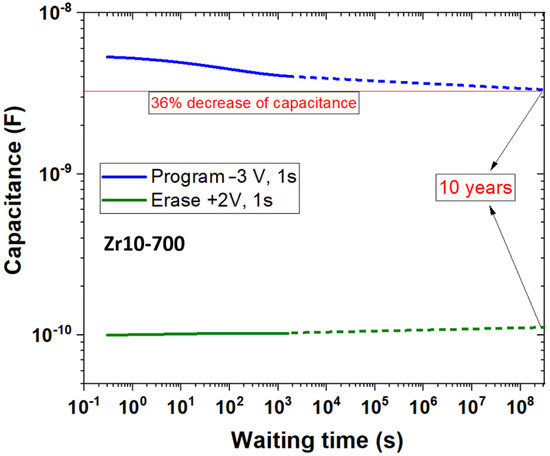

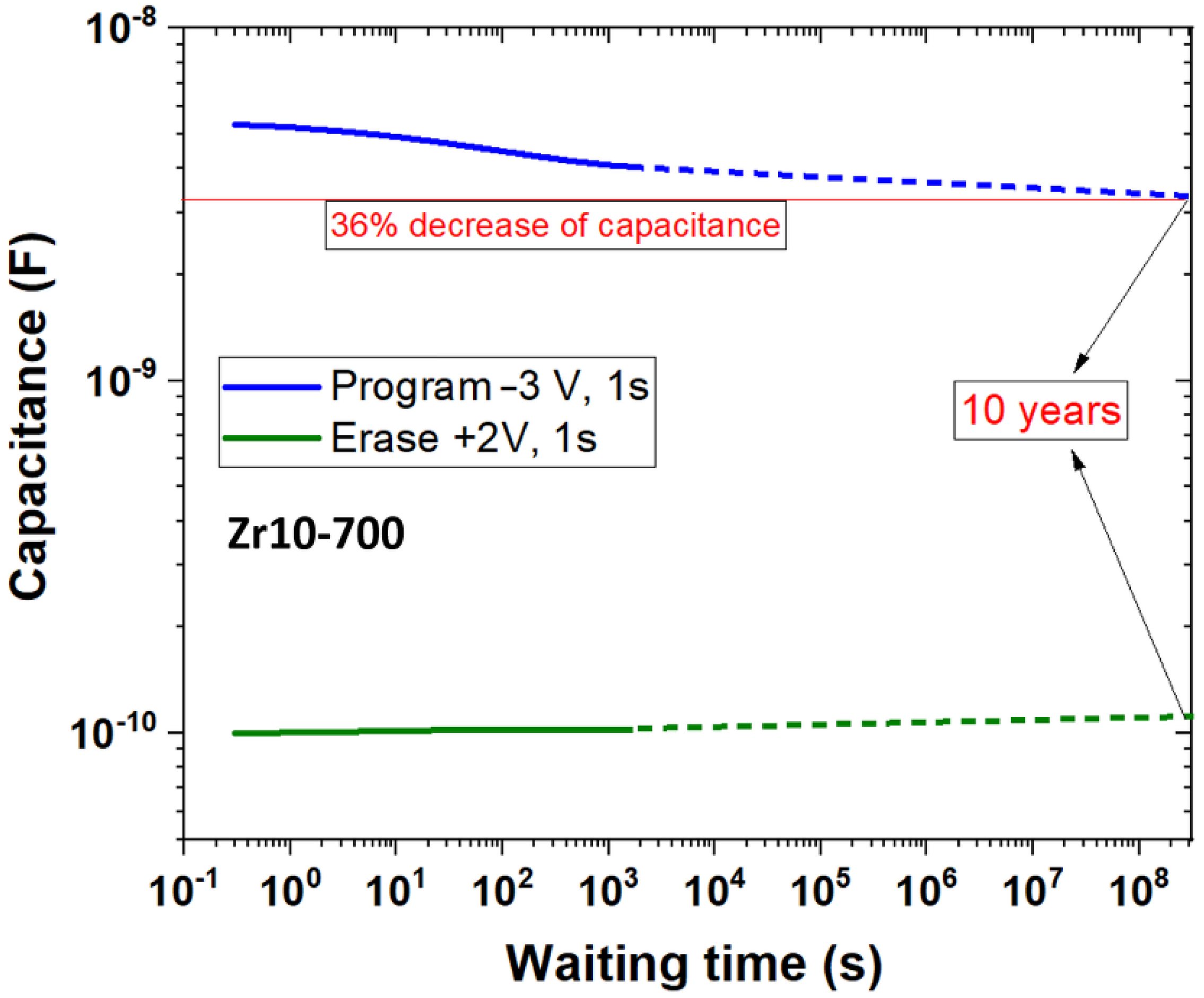

Figure 9. Charge retention characteristics measured at 500 kHz on the Zr10-700 sample. There is a 36% capacitance decrease after 10 years.
Figure 9. Charge retention characteristics measured at 500 kHz on the Zr10-700 sample. There is a 36% capacitance decrease after 10 years.
Coatings 12 01369 g009
Table 1. Structure configuration and preparation details of the trilayer ZrO2 [gate oxide]/Zr–ZrO2 [floating gate]/ZrO2 [tunneling oxide]/p-Si and the control structure.
Table 1. Structure configuration and preparation details of the trilayer ZrO2 [gate oxide]/Zr–ZrO2 [floating gate]/ZrO2 [tunneling oxide]/p-Si and the control structure.
NameFloating Gate Layer CompositionStructureLayers
Thickness [nm]
Thermal Annealing
Coatings 12 01369 i001Zr5-500
Zr5-600
Zr5-700


5% Zr + 95% ZrO2
ZrO2/Zr-ZrO2/ZrO 2/Si30/13/13T = 500 °C, t = 4 min
T = 600 °C, t = 4 min
T = 700 °C, t = 4 min
Zr10-500
Zr10-600
Zr10-700

10% Zr + 90% ZrO2
Coatings 12 01369 i002Control-ZrO 2/Si56T = 700 °C, t = 4 min
