Article

Metal-Organic Framework Fabricated V2O5 Cathode Material for High-Performance Lithium-Ion Batteries

1
Department of Chemistry, University of Delhi, Delhi 110007, India
2
Department of Advanced Materials Science and Engineering, Mokpo National University, 61 Dorim-ri, 1666 Yeongsan-ro, Cheonggye-myeon, Muan-gun 58554, Jeonnam, Korea
3
New & Renewable Energy Materials Development Center (NewREC), School of Chemical Engineering, Jeonbuk National University, Jeonju 54896, Jeonbuk, Korea
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Coatings 2022, 12(6), 844; https://doi.org/10.3390/coatings12060844
Submission received: 13 May 2022 / Revised: 3 June 2022 / Accepted: 6 June 2022 / Published: 16 June 2022
(This article belongs to the Collection Feature Papers of Coatings for Energy Applications)

Abstract

:
In this article, oval-shaped V2O5 nanoparticles were hydrothermally synthesized using a metal-organic framework (MOF), which was then followed by calcination under an air atmosphere. The obtained sample was characterized through various characterization techniques to determine the sample purity and the structural and morphological details. Since V2O5 possesses a layered crystal structure, it exhibits promising electrochemical performances as a cathode material for lithium-ion battery applications. However, poor cycling and inferior rate capabilities are the major issues that limit its application. Thus, a strategy to fabricate unique oval-shaped V2O5 nanoparticles was employed here to improve electrochemical performances using an MOF, which acts as a template and provides a skeleton for the growth of a novel nanostructure. It is believed that the oval-shaped morphology is beneficial to achieving better electrochemical results due to the large surface area and the existence of numerous channels for lithiation and de-lithiation. The obtained electrochemical result reveals that the V2O5 electrode can be considered a prominent cathode material for next-generation lithium-ion battery applications.

1. Introduction

As the modern development of society expanded, the demand for energy storage devices significantly increased. Currently, lithium-ion batteries (LIBs) are the most suitable energy storage devices, especially for portable electronics and electric vehicles [1,2,3,4,5]. Rechargeable LIBs are now globally used due to their environmentally friendly features, lightweight design, flexibility and high energy density. It is well-known that cathode materials largely affect not only the electrochemical performance but also the cost of LIBs. There are numerous commercially available cathode materials such as LiCoO2 (140 mAh g−1), LiMn2O4 (148 mAh g−1) and LiFePO4 (~170 mAh g−1), which have the advantages of a high working voltage and an excellent cycling performance. However, their low theoretical capacities, as well as the high cost of materials, limit their practical applications [6,7,8,9,10,11,12]. Therefore, the development of a new class of cathode materials which exhibit a large specific capacity and high safety at a low cost is required.
To improve the performance of LIBs, transition metal oxides, phosphides, sulfides and various other materials have been widely used as cathode materials. Among these materials, transition metal oxides are considered potential cathode materials due to their physical and chemical properties, which help to obtain high specific capacities and an excellent cycling performance [13]. Vanadium pentoxide (V2O5), a potential transition metal oxide, has garnered great interest due to its mainly variable oxidation states (V2+, V3+, V4+ and V5+). V5+ is the most stable oxidation state of V2O5, and it is widely studied as a cathode material due to its low-cost, easy and scalable synthesis and high working voltage [14,15,16]. In addition, V2O5 has a layered crystal structure which allows it to accommodate the volume change during Li+ insertion/extraction efficiently, resulting in enhanced electrochemical performances [17]. The theoretical capacity of V2O5 is deeply affected by the amount of intercalated Li+ ions in the crystal structure, which eventually form LixV2O5 (0 < x < 2). However, the x value can be increased until 2 < x < 3 due to the continuous Li+ ion insertion at higher voltages [18,19]. As a cathode material for LIBs, the theoretical capacities of V2O5 of ~294 mAh g−1 and ~440 mAh g−1 can be obtained based on the intercalation of two and three Li+ ions, respectively, which are nearly three times higher than the theoretical capacity of LiCoO2 (~140 mAh g−1) [14]. Despite all these advantages, V2O5 still suffers from fast capacity fading due to the low lithium-ion diffusion efficiency, insufficient contact areas and poor structural stability [20,21,22]. For obtaining an enhanced electrochemical performance, higher electrode/electrolyte interfaces and a better accommodation ability of the strain upon volume change during lithiation/de-lithiation, nanostructured materials also possess advantages. Numerous nanostructured V2O5 samples have been reported, such as nanoparticles [23], micro/nanosphere [24,25,26], nanosheets [27,28,29], nanorods [30], nanotubes [31] and nanowires [32], to alleviate the kinetic limitations when employed as a cathode material for LIB.
Since metal-organic frameworks are the new class of porous inorganic-organic materials, demonstrating an alterable high specific surface area, framework topologies, active-metal sites, a crystalline structure and tunable pore sizes, they have attracted much attention for their promising applications in batteries and supercapacitors [33,34]. Therefore, in this work, we have synthesized oval-shaped V2O5 nanoparticles by using a simple and facile hydrothermal synthesis method. To synthesize a vanadium-based metal-organic framework, terephthalic acid as an organic moiety and vanadium acetylacetonate as a metal precursor were used. It is believed that the MOF provides a skeleton for the growth of an oval-shaped nanostructure. When V2O5 was applied as a cathode material for LIBs, it exhibited remarkable electrochemical performances.

2. Materials and Methods

2.1. Material Synthesis

Oval-shaped V2O5 nanoparticles were successfully synthesized using the facile hydrothermal synthesis method. Firstly, 2 mmol each of vanadium acetylacetonate (Sigma Aldrich, Saint Louis, MO, USA, 97%) and terephthalic acid (SRL, Mumbai, India, 98%) were dissolved in 60 mL of isopropanol with continuous stirring. The terephthalic acid is used here as an organic moiety to form a metal-organic framework. After continuous stirring for 45 min, the obtained homogeneous solution was then transferred to a Teflon-lined stainless-steel autoclave and heated at 180 °C for 12 h. After natural cooling, the obtained product was centrifuged and washed with distilled water/ethanol several times. After drying the sample at 75 °C overnight, the calcination was performed at 450 °C for 1 h in an air atmosphere.

2.2. Materials Characterisation

To discover the calcination temperature, the thermal analysis of the as-prepared sample was recorded using thermogravimetric/differential thermal analysis (TG/DTA) on a Shimadzu DTG 60 instrument (Shimadzu, Kyoto, Japan) from room temperature to 700 °C under an air atmosphere. The crystallinity, purity, particle sizes and morphology of the calcined sample were investigated using X-ray diffraction analysis (XRD, Bruker, D8 Discover High Resolution X-Ray Diffractometer with Cu Kα radiation, λ = 1.5406 Å, Karlsruhe, Germany) and field-emission transmission electron microscopy (FE-TEM, Philips TecnaiF20 at 200 kV, Philips, Amsterdam, The Netherlands). The elemental distribution analysis of the calcined sample was carried out by energy-dispersive X-ray spectrometry (EDX, Mode: JSM 6610LV, JEOL, Tokyo, Japan).

2.3. Electrode Fabrication

The testing electrodes were fabricated by mixing the active material of V2O5 (75 wt %), Ketjen black (15 wt %) and polyvinylidene fluoride (PVDF) (10 wt %) using an N-methyl 2-pyrrolidone (NMP) solvent. Then, the mixture was cast onto the aluminium foil (current collector) using a doctor blade. After drying the slurry in a vacuum oven at 120 °C overnight, it was hot-pressed using a twin roller hot press for better adhesion between the slurry and the current collector. The electrochemical cells were assembled using lithium metal foil (reference electrode), glass fiber (separator) and 1M LiPF6 with a volumetric ratio of EC:DMC of 1:1 (electrolyte) in an argon-filled glove box. The electrochemical properties of the assembled half-cell were investigated on a Wonatech WBCS 3000 electrochemical workstation within the potential window of 1.5–4.5 V vs. Li+/Li at different current densities.

3. Results

3.1. Physiochemical Analysis

As can be seen from Figure 1, a total of 58% of weight loss was observed in the TG curve within the temperature range of 200–400 °C, which can be ascribed to the removal of the functional groups of co-ordinated molecules and the carbon skeleton presented in the precursors. Since there was no significant weight loss observed after 400 °C until 700 °C, the as-prepared sample was calcined at 450 °C.
To further confirm the formation of V2O5 after calcination at 450 °C, powder X-ray diffraction was performed. The XRD pattern, along with the crystal structure of V2O5, is demonstrated in Figure 2a. All of the diffraction peaks were exactly matched with the standard JCPDS data (card no. 00-041-1426, orthorhombic crystal system and Pmmn space group). It can be noticed that the obtained diffraction peaks are highly intense and sharp, which confirmed the crystallinity of the sample without any extra impurity peak. The layered crystal structure of V2O5 is also depicted in the inset of Figure 2a.
To further investigate the morphological details of the calcined V2O5 sample, FE-TEM was employed, and the obtained results are displayed in Figure 3. As can be seen from Figure 3a,b, the mixed size and shape of the nanoparticles, including the oval-shaped nanoparticles with an average size of ~50–250 nm, are observed throughout the sample. More importantly, there is also less agglomeration, which may be due to the use of the MOF. The typical HR-TEM image in Figure 3b clearly shows lattice fringes with d-spacings of 0.57 nm and 0.34 nm, which correspond to the (200) and (110) planes of the sample. The obtained planes are perfectly matched with the XRD peaks, indicating the high purity of the sample. To further investigate the elemental distribution in the calcined V2O5 sample, energy dispersive spectroscopy (EDS) analysis was also performed, and the result is displayed in Figure 2b. The obtained EDS spectra revealed the presence of vanadium (V) and oxygen (O) elements in the sample without any other impurity, which further indicates the fabrication of a pure V2O5 sample.

3.2. Electrochemical Performances

To further investigate the electrochemical performances of V2O5 as a cathode material, the galvanostatic charge/discharge measurement was first examined at a current density of 250 mA g−1, and the obtained result is displayed in Figure 4a. During the first discharge cycle, numerous irreversible reduction plateaus can be seen, which correspond to the formation of a solid electrolyte interface (SEI) layer as well as multistep electrochemical reactions between Li+ and V2O5 [35]. From the second cycle onwards, the shape of curves became similar without multistep reduction plateaus being observed in any discharge cycle, indicating the reversible electrochemical reactions within the electrode. The observed significant change in the charge–discharge profiles can be attributed merely to their different electrochemical responses against applied voltages. The V2O5 cathode delivered initial discharge/charge capacities of 422.9 and 356.4 mAh g−1, respectively, with a corresponding initial coulombic efficiency of 84.2%. However, as can be noticed, the electrode can deliver a discharge/charge capacity of 267.5/263.9 mAh g−1 after 10 cycles, with a coulombic efficiency of ~99%.
The cyclic voltammetry (CV) profiles of the V2O5 cathode at a scan rate of 0.1 mV s−1 are depicted in Figure 4b within the voltage range of 1.5–4.0 V. The first cathodic scan exhibits the multiple irreversible reduction peaks at ~3.35 V, ~3.16 V, ~2.29 V, ~2.23 V, ~2.0 V and ~1.83 V, as observed in the first discharge cycle (Figure 3a), which can be attributed to the multistep lithiation of the V2O5 electrode and the formation of the solid electrolyte interface layer. It is well known that the phase transformation occurred during lithiation from α-V2O5 to ε-Li0.5V2O5, δ-LiV2O5 and then to γ-Li2V2O5, respectively [35,36,37]. However, in the subsequent discharge scans, these multiple reduction peaks completely vanished, and the two main broad peaks located at ~2.4 V and ~3.5 V are observed, which can be attributed to the pseudocapacitive behavior of the V2O5 cathode [20]. On the other hand, the two major peaks located at ~2.7 V and ~3.7 V can be seen during the anodic scan, which can be attributed to the reversible phase transformation of V2O5. More importantly, from the second cycle onwards, the two pairs of redox peaks between the voltage window of ~2.0–4.0 V can be observed, which correspond to the reversible Li+ insertion/de-insertion within the electrode [36]. Generally, V2O5 accepts two Li+ ions during the discharge and Li2V2O5 forms, which converts back to layered V2O5 after the removal of Li+ ions during charging. The corresponding reactions can be as follows: [37]
α V 2 O 5 + 0.5   Li + + 0.5   e ε Li 0.5 V 2 O 5
ε Li 0.5 V 2 O 5 + 0.5   Li + + 0.5   e δ LiV 2 O 5
δ LiV 2 O 5 + Li + + e γ Li 2 V 2 O 5
To further examine the structural stability, the cycling performances were also tested at two different current densities and 250 mA g−1, as shown in Figure 5a. It can be seen that the electrode demonstrates stable cycling performances with the discharge capacities of 169.3 mAh g−1 at 133 mA g−1 and 150.7 mAh g−1 at 250 mA g−1 after 50 cycles. Thus, the oval-shaped V2O5 nanoparticles electrode showed excellent capacity retention and a stable cycle life during the charge/discharge reactions, which is possibly due to the unique nanostructure, imparting a high surface area and numerous path channels for the insertion/de-insertion of Li+ ions. Moreover, the rate capability of the V2O5 cathode material was also investigated at numerous current densities, and the results are displayed in Figure 5b. It can be noticed that the electrode is cycled for 10 cycles at each current density. The electrode delivered discharge capacities of 445.1, 268.15, 198.6 and 128.1 mAh g−1 at the current densities of 133, 266, 532 and 1330 mA g−1, respectively. In addition, when the electrode was reversed back to the lower current density of 133 mA g−1 after 50 cycles of charge/discharge between the lower and higher current densities, it regained a capacity that was similar to the previous capacity, which confirmed the structural stability of the oval-shaped V2O5 nanoparticles cathode.
Since various research articles have already been reported in the literature, we have prepared an electrochemical performance comparison table between the current oval-shaped V2O5 nanoparticle electrode and the previously reported pure and composite V2O5 electrode materials based on numerous nanostructures. It is concluded from Table 1 that the oval-shaped V2O5 nanoparticle electrode provides a comparable electrochemical performance and can be considered a potential cathode material for LIB.

4. Conclusions

This work demonstrates a metal-organic framework that fabricated an oval-shaped V2O5 cathode material by using a simple and facile hydrothermal synthesis method. It is believed that the obtained unique nanostructure of the V2O5 electrode may provide a high surface area and numerous channels for Li+ insertion/de-insertion, resulting in improved electrochemical performances. When applied as a cathode material, the electrode exhibits discharge capacities of 169.3 mAh g−1 at 133 mA g−1 and 150.7 mAh g−1 at 250 mA g−1 after 50 cycles and 57.5 mAh g−1 at a high current density of 1330 mA g−1 after 40 cycles. The obtained electrochemical performances showed that the oval-shaped V2O5 electrode is a potential cathode material for LIBs, and the current synthetic strategy can be also extended to the fabrication of other electrode materials.

Author Contributions

Conceptualization, J.S. and K.H.; methodology, J.S. and K.H.; software, J.S., K.H., M.S.A. and A.K.R.; validation, J.S., K.H., M.S.A. and A.K.R.; formal analysis, J.S. and K.H.; investigation, J.S., J.K., K.H., Y.C. and A.K.R.; data curation, J.S., K.H., Y.C., J.K. and A.K.R.; writing—original draft preparation, J.S., K.H., J.K. and A.K.R.; writing—review and editing, Y.C., M.S.A. and A.K.R.; visualization, Y.C. and A.K.R.; supervision, Y.C. and A.K.R.; funding acquisition, Y.C. and A.K.R. All authors have read and agreed to the published version of the manuscript.

Funding

This work was mainly supported by the Council of Scientific and Industrial Research (CSIR) Research Grant (File No. 01(3015)/21/EMR-II). This work was also partially supported by the Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (2021R1I1A3057918).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

One of the authors (Jay Singh) would like to thank the CSIR, New Delhi, for the award of a senior research fellowship. Alok Kumar Rai is grateful to the University Grants Commission (UGC) for the position and funding support under the UGC-FRP scheme (FRP ID: 57304).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nitta, N.; Wu, F.; Lee, J.T.; Yushin, G. Li-ion battery materials: Present and future. Mater. Today 2015, 18, 252–264. [Google Scholar] [CrossRef]
  2. Tian, B.; Kempa, T.J.; Lieber, C.M. Single nanowire photovoltaics. Chem. Soc. Rev. 2009, 38, 16–24. [Google Scholar] [CrossRef] [PubMed]
  3. Hu, B.; Cheng, H.; Huang, C.; Aslam, M.K.; Liu, L.; Xu, C.; Chen, P.; Yu, D.; Chen, C. The controlled study of surfactants on the morphologies of three-dimensional turbine-like V2O5 for the application of high performance lithium ion storage. Solid State Ionics 2019, 342, 115059. [Google Scholar] [CrossRef]
  4. Dou, Y.; Liang, X.; Gao, G.; Wu, G. Template-free synthesis of porous V2O5 yolk-shell microspheres as cathode materials for lithium ion batteries. J. Alloys Compd. 2018, 735, 109–116. [Google Scholar] [CrossRef]
  5. Chen, M.; Liang, X.; Yin, J.; Chen, Q.; Xia, X. Graphene foam supported V2O5/N-C core/shell arrays as advanced cathode for lithium-ion storage. J. Alloys Compd. 2018, 735, 2022–2029. [Google Scholar] [CrossRef]
  6. Wang, J.; Sun, X. Understanding and recent development of carbon coating on LiFePO4 cathode materials for lithium-ion batteries. Energy Environ. Sci. 2012, 5, 5163–5185. [Google Scholar] [CrossRef]
  7. Yadav, G.G.; David, A.; Zhu, H.; Caruthers, J.; Wu, Y. Microemulsion-based synthesis and electrochemical evaluation of different nanostructures of LiCoO2 prepared through sacrificial nanowire templates. Nanoscale 2014, 6, 860–866. [Google Scholar] [CrossRef]
  8. Cai, Y.; Huang, Y.; Wang, X.; Jia, D.; Pang, W.K.; Guo, Z.; Du, Y.; Tang, X. Facile synthesis of LiMn2O4 octahedral nanoparticles as cathode materials for high capacity lithium ion batteries with long cycle life. J. Power Sources 2015, 278, 574–581. [Google Scholar] [CrossRef]
  9. Haris, M.; Atiq, S.; Abbas, S.M.; Mahmood, A.; Ramay, S.M.; Naseem, S. Acetylene black coated V2O5 nanocomposite with stable cyclability for lithium-ion batteries cathode. J. Alloys Compd. 2018, 732, 518–523. [Google Scholar] [CrossRef]
  10. Chen, A.; Li, C.; Zhang, C.; Li, W.; Yang, Q. The mechanical hybrid of V2O5 microspheres/graphene as an excellent cathode for lithium-ion batteries. J. Solid State Electrochem. 2022, 26, 729–738. [Google Scholar] [CrossRef]
  11. Lang, X.; Li, Y.; Cai, K.; Li, L.; Chen, D.; Zhang, Q. Influence of Sulfur-Modified Vanadium Pentoxide by Solid Phase Sintering Method on Electrochemical Performance of Cathode Materials for Lithium-Ion Batteries. Energy Technol. 2019, 7, 1800808. [Google Scholar] [CrossRef]
  12. Zeng, J.; Huang, J.; Liu, J.; Xie, T.; Peng, C.; Lu, Y.; Lu, P.; Zhang, R.; Min, J. Self-assembly of single layer V2O5 nanoribbon/graphene heterostructures as ultrahigh-performance cathode materials for lithium-ion batteries. Carbon 2019, 154, 24–32. [Google Scholar] [CrossRef]
  13. Shashank, M.; Alharthi, F.A.; Alsalme, A.; Al-Zaqri, N.; Nagaraju, G. Ag decorated V2O5 nanorods as cathode material for lithium-ion battery. J. Mater. Sci. Mater. Electron. 2020, 31, 14279–14286. [Google Scholar] [CrossRef]
  14. Yue, Y.; Liang, H. Micro- and Nano-Structured Vanadium Pentoxide (V2O5) for Electrodes of Lithium-Ion Batteries. Adv. Energy Mater. 2017, 7, 1602545. [Google Scholar] [CrossRef]
  15. Pan, A.Q.; Wu, H.B.; Zhang, L.; Lou, X.W.D. Uniform V2O5 nanosheet-assembled hollow micro flowers with excellent lithium storage properties. Energy Environ. Sci. 2013, 6, 1476–1479. [Google Scholar] [CrossRef]
  16. Chen, P.; Zheng, G.; Guo, G.; Wang, Z.; Tang, J.; Li, S.; Wen, Z.; Ji, S.; Sun, J. Ce-doped V2O5 microspheres with improved electrochemical performance for high-power rechargeable lithium ion batteries. J. Alloys Compd. 2019, 784, 574–583. [Google Scholar] [CrossRef]
  17. Tang, Y.; Rui, X.; Zhang, Y.; Lim, T.M.; Dong, Z.; Hng, H.H.; Chen, X.; Yan, Q.; Chen, Z. Vanadium pentoxide cathode materials for high-performance lithium-ion batteries enabled by a hierarchical nanoflower structure via an electrochemical process. J. Mater. Chem. A 2013, 1, 82–88. [Google Scholar] [CrossRef]
  18. Li, M.; Kong, F.; Wang, H.; Li, G. Synthesis of vanadium pentoxide (V2O5) ultralong nanobelts via an oriented attachment growth mechanism. CrystEngComm 2011, 13, 5317–5320. [Google Scholar] [CrossRef]
  19. Zhai, T.; Liu, H.; Li, H.; Fang, X.; Liao, M.; Li, L.; Zhou, H.; Koide, Y.; Bando, Y.; Golberg, D. Centimeter-Long V2O5 Nanowires: From Synthesis to Field-Emission, Electrochemical, Electrical Transport, and Photoconductive Properties. Adv. Mater. 2010, 22, 2547–2552. [Google Scholar] [CrossRef]
  20. Liu, J.; Xia, H.; Xue, D.; Lu, L. Double-Shelled Nanocapsules of V2O5-Based Composites as High-Performance Anode and Cathode Materials for Li Ion Batteries. J. Am. Chem. Soc. 2009, 131, 12086–12087. [Google Scholar] [CrossRef]
  21. Mai, L.; Dong, F.; Xu, X.; Luo, Y.; An, Q.; Zhao, Y.; Pan, J.; Yang, J. Cucumber-Like V2O5/poly(3,4-ethylenedioxythiophene) & MnO2 Nanowires with Enhanced Electrochemical Cyclability. Nano Lett. 2013, 13, 740–745. [Google Scholar] [PubMed]
  22. Liu, Y.; Gao, G.; Liang, X.; Wu, G. Nanofibers of V2O5/C@MWCNTs as the cathode material for lithium-ion batteries. J. Solid State Electrochem. 2018, 22, 2385–2393. [Google Scholar] [CrossRef]
  23. Liu, X.; Zeng, J.; Yang, H.; Zhou, K.; Pan, D. V2O5-Based nanomaterials: Synthesis and their applications. RSC Adv. 2018, 8, 4014–4031. [Google Scholar] [CrossRef] [Green Version]
  24. Bin Wu, H.; Pan, A.; Hng, H.H.; Lou, X.W. Template-Assisted Formation of Rattle-type V2O5 Hollow Microspheres with Enhanced Lithium Storage Properties. Adv. Funct. Mater. 2013, 23, 5669–5674. [Google Scholar] [CrossRef]
  25. Pan, A.; Bin Wu, H.; Yu, L.; Lou, X.W. Template-Free Synthesis of VO2 Hollow Microspheres with Various Interiors and Their Conversion into V2O5 for Lithium-Ion Batteries. Angew. Chem. 2013, 125, 2282–2286. [Google Scholar] [CrossRef]
  26. Ma, Y.; Huang, A.; Zhou, H.; Ji, S.; Zhang, S.; Li, R.; Yao, H.; Cao, X.; Jin, P. Template-free formation of various V2O5 hierarchical structures as cathode materials for lithium-ion batteries. J. Mater. Chem. A 2017, 5, 6522–6531. [Google Scholar] [CrossRef]
  27. Zeng, Y.; Gao, G.; Wu, G.; Yang, H. Nanosheet-structured vanadium pentoxide thin film as a carbon- and binder-free cathode for lithium-ion battery applications. J. Solid State Electrochem. 2015, 19, 3319–3328. [Google Scholar] [CrossRef]
  28. Qi, Y.; Qin, K.; Jian, Z.; Yang, X.; Jin, W.; Tan, Y.; Zou, Y.; Chen, W. Ag-functionalized exfoliated V2O5 nanosheets: A flexible and binder-free cathode for lithium-ion batteries. J. Mater. Sci. 2019, 54, 12713–12722. [Google Scholar] [CrossRef]
  29. Cheng, J.; Gu, G.; Guan, Q.; Razal, J.M.; Wang, Z.; Li, X.; Wang, B. Synthesis of a porous sheet-like V2O5-CNT nanocomposite using an ice-templating ‘bricks-and-mortar’ assembly approach as a high capacity, long cycle life cathode material for lithium-ion batteries. J. Mater. Chem. 2016, 4, 2729–2737. [Google Scholar] [CrossRef]
  30. Wang, H.-G.; Ma, D.-L.; Huang, Y.; Zhang, X.-B. Electrospun V2O5 Nanostructures with Controllable Morphology as High-Performance Cathode Materials for Lithium-Ion Batteries. Chem. A Eur. J. 2012, 18, 8987–8993. [Google Scholar] [CrossRef]
  31. Yao, X.; Guo, G.; Li, P.Z.; Luo, Z.Z.; Yan, Q.; Zhao, Y. Scalable synthesis of honeycomblike V2O5/carbon nanotube networks as enhanced cathodes for lithium-ion batteries. ACS Appl. Mater. Interfaces 2017, 9, 42438–42443. [Google Scholar] [CrossRef] [PubMed]
  32. Mai, L.; Tian, X.; Xu, X.; Chang, L.; Xu, L. Nanowire Electrodes for Electrochemical Energy Storage Devices. Chem. Rev. 2014, 114, 11828–11862. [Google Scholar] [CrossRef] [PubMed]
  33. Janiak, C.; Vieth, J.K. MOFs, MILs and more: Concepts, properties and applications for porous coordination networks (PCNs). New J. Chem. 2010, 34, 2366–2388. [Google Scholar] [CrossRef]
  34. Ni, Z.; Masel, R.I. Rapid Production of Metal−Organic Frameworks via Microwave-Assisted Solvothermal Synthesis. J. Am. Chem. Soc. 2006, 128, 12394–12395. [Google Scholar] [CrossRef]
  35. Wang, C.; Zhang, L.; Al-Mamun, M.; Dou, Y.; Liu, P.; Su, D.; Wang, G.; Zhang, S.; Wang, D.; Zhao, H. A Hollow-Shell Structured V2O5 Electrode-Based Symmetric Full Li-Ion Battery with Highest Capacity. Adv. Energy Mater. 2019, 9, 1900909. [Google Scholar] [CrossRef]
  36. Zhang, H.; Rong, Y.; Jia, W.; Chai, H.; Cao, Y. Simple solvent-free synthesis of rod-like Cu-doped V2O5 for high storage capacity cathode materials of lithium-ion batteries. J. Alloys Compd. 2019, 802, 139–145. [Google Scholar] [CrossRef]
  37. Huang, J.; Qiao, X.; Xu, Z.; Cao, L.; Ouyang, H.; Li, J.; Wang, R. V2O5 self-assembled nanosheets as high stable cathodes for Lithium-ion batteries. Electrochim. Acta 2016, 191, 158–164. [Google Scholar] [CrossRef]
  38. Xu, Y.; Dunwell, M.; Fei, L.; Fu, E.; Lin, Q.; Patterson, B.; Yuan, B.; Deng, S.; Andersen, P.; Luo, H.; et al. Two-Dimensional V2O5 Sheet Network as Electrode for Lithium-Ion Batteries. ACS Appl. Mater. Interfaces 2014, 6, 20408–20413. [Google Scholar] [CrossRef]
  39. Partheeban, T.; Kesavan, T.; Vivekanantha, M.; Sasidharan, M. One-pot solvothermal synthesis of V2O5/MWCNT composite cathode for Li-ion batteries. Appl. Surf. Sci. 2019, 493, 1106–1114. [Google Scholar] [CrossRef]
  40. Niu, C.; Li, J.; Jin, H.; Shi, H.; Zhu, Y.; Wang, W.; Cao, M. Self-template processed hierarchical V2O5 nanobelts as cathode for high performance lithium ion battery. Electrochim. Acta 2015, 182, 621–628. [Google Scholar] [CrossRef]
  41. Liu, P.; Zhu, K.; Bian, K.; Xu, Y.; Zhang, F.; Zhang, W.; Zhang, J.; Huang, W. 3D hierarchical porous sponge-like V2O5 micro/nano-structures for high-performance Li-ion batteries. J. Alloys Compd. 2018, 765, 901–906. [Google Scholar] [CrossRef]
  42. Pan, J.; Li, M.; Luo, Y.; Wu, H.; Zhong, L.; Wang, Q.; Li, G. Microwave-assisted hydrothermal synthesis of V2O5 nanorods assemblies with an improved Li-ion batteries performance. Mater. Res. Bull. 2016, 74, 90–95. [Google Scholar] [CrossRef]
  43. Han, C.; Yan, M.; Mai, L.; Tian, X.; Xu, L.; Xu, X.; An, Q.; Zhao, Y.; Ma, X.; Xie, J. V2O5 quantum dots/graphene hybrid nanocomposite with stable cyclability for advanced lithium batteries. Nano Energy 2013, 2, 916–922. [Google Scholar] [CrossRef]
  44. Shan, Y.; Xu, L.; Hu, Y.; Jiang, H.; Li, C. Internal-diffusion controlled synthesis of V2O5 hollow microspheres for superior lithium-ion full batteries. Chem. Eng. Sci. 2019, 200, 38–45. [Google Scholar] [CrossRef]
  45. Zhang, Y.; Zou, Z.; Liu, J.; Zhang, S.; Zhang, H. Effect of Ga doping on structure and properties of V2O5 lithium-ion batteries. Mater. Technol. 2020, 35, 887–895. [Google Scholar] [CrossRef]
  46. Cao, L.; Kou, L.; Li, J.; Huang, J.; Yang, J.; Wang, Y. Nitrogen-doped carbon-coated V2O5 nanocomposite as cathode materials for lithium-ion battery. J. Mater. Sci. 2018, 53, 10270–10279. [Google Scholar] [CrossRef]

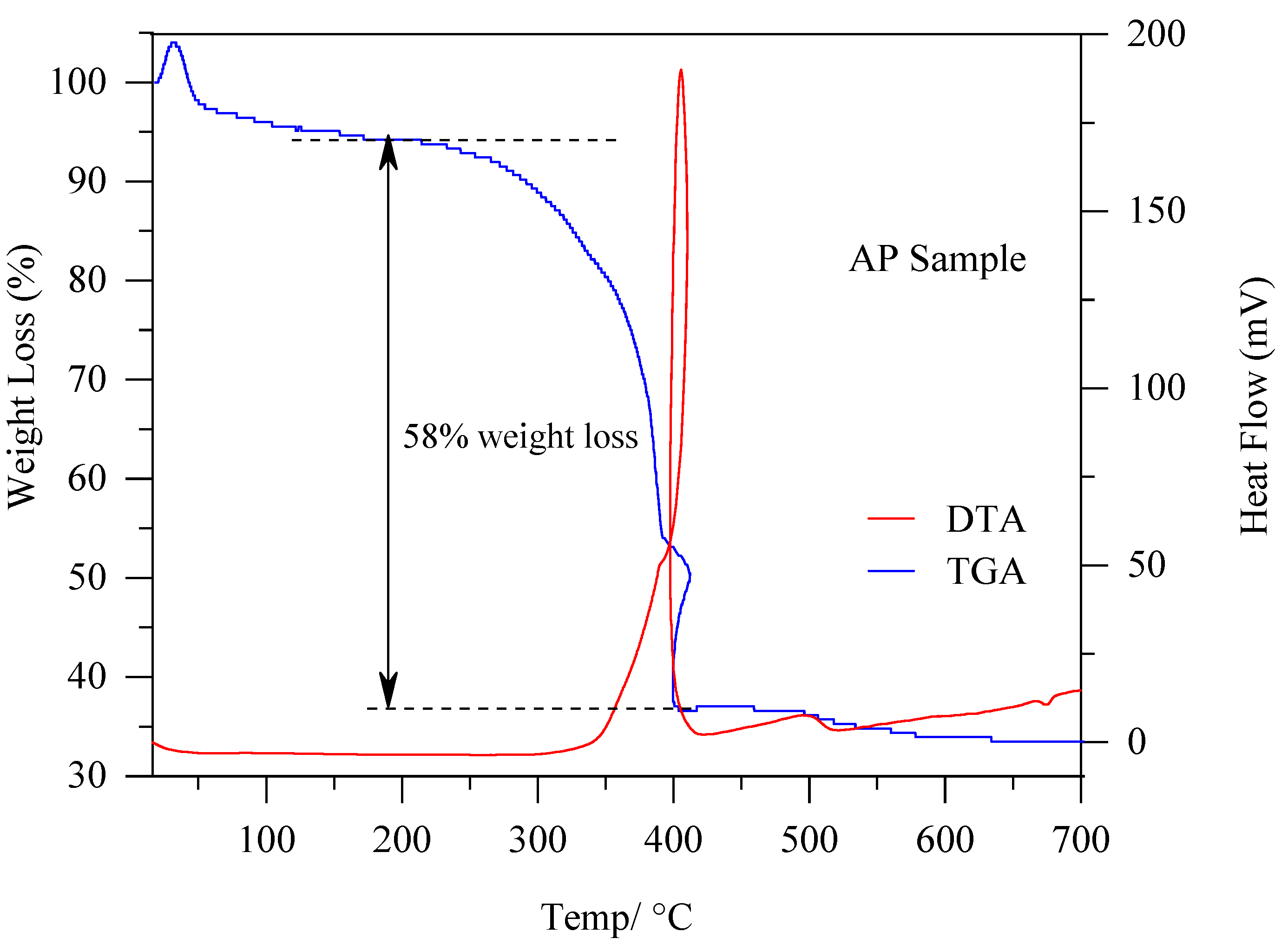

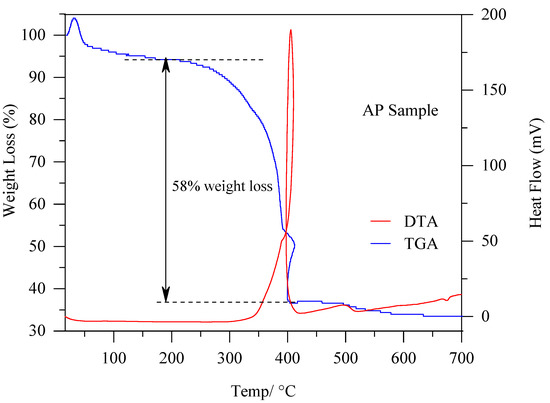

Figure 1. TG-DTA curves of the as-prepared V2O5 sample with the layered crystal structure.
Figure 1. TG-DTA curves of the as-prepared V2O5 sample with the layered crystal structure.
Coatings 12 00844 g001

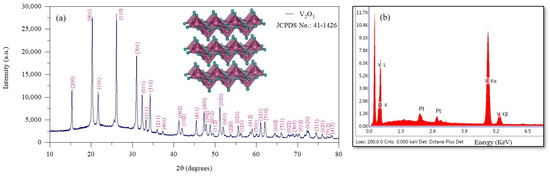

Figure 2. (a) Powder XRD patterns and (b) EDS spectra of the as-prepared V2O5 sample with the layered crystal structure.
Figure 2. (a) Powder XRD patterns and (b) EDS spectra of the as-prepared V2O5 sample with the layered crystal structure.
Coatings 12 00844 g002
Figure 3. (a) FE-TEM image and (b) HR-TEM image of the calcined oval-shaped V2O5 nanoparticles sample.
Figure 3. (a) FE-TEM image and (b) HR-TEM image of the calcined oval-shaped V2O5 nanoparticles sample.
Coatings 12 00844 g003

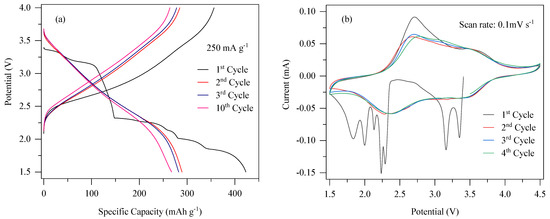

Figure 4. (a) Charge–discharge profile under the voltage range of 1.5–4.0 V at 250 mA g−1 and (b) cyclic voltammetry curves at a scan rate of 0.1 mV s−1 of the oval-shaped V2O5 nanoparticles electrode.
Figure 4. (a) Charge–discharge profile under the voltage range of 1.5–4.0 V at 250 mA g−1 and (b) cyclic voltammetry curves at a scan rate of 0.1 mV s−1 of the oval-shaped V2O5 nanoparticles electrode.
Coatings 12 00844 g004

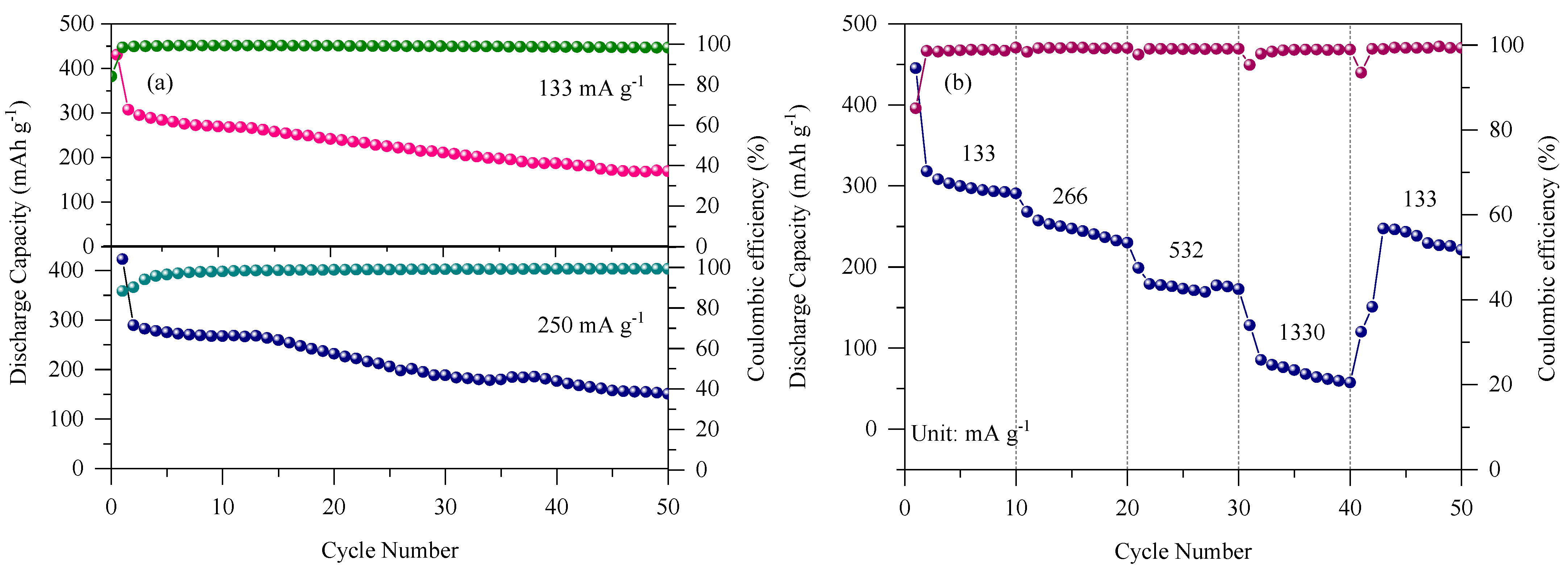

Figure 5. (a) Cycling performance at the constant current densities of 133 and 250 mA g−1 until 50 cycles and (b) the capacity retention at various current densities from 133 to 1330 mA g−1 of the oval-shaped V2O5 nanoparticles electrode.
Figure 5. (a) Cycling performance at the constant current densities of 133 and 250 mA g−1 until 50 cycles and (b) the capacity retention at various current densities from 133 to 1330 mA g−1 of the oval-shaped V2O5 nanoparticles electrode.
Coatings 12 00844 g005
Table 1. Electrochemical performance comparison between the current oval-shaped V2O5 nanoparticle electrode and the previously reported pure and composite V2O5 electrode materials based on numerous nanostructures.
Table 1. Electrochemical performance comparison between the current oval-shaped V2O5 nanoparticle electrode and the previously reported pure and composite V2O5 electrode materials based on numerous nanostructures.
MaterialSynthesis MethodNanostructureElectrochemical Performance
(Dis. Capacity/Cycle Number/Rate)
Ref.
V2O5The polymer-assisted chemical solution methodNetwork99 mAh g−1/100 cycles/1 A g−1[38]
V2O5SolvothermalSheets140 mAh g−1/100 cycles/0.1C[39]
V2O5/MWCNTParticles190 mAh g−1/100 cycles/0.1C
V2O5HydrothermalNanobelts168 mAh g−1/50th cycles/50 mA g−1[40]
V2O5The ultrasonic method with subsequent thermal decomposition.Nanosheets179.5 mAh g−1/50 cycles/1C[37]
Nanoparticles106.1 mAh g−1/50 cycles/1C
V2O5Hydrothermal/annealingSLMNSs202 mAh g−1/50 cycles/100 mA g−1[41]
Nanoribbons131 mAh g−1/50 cycles/100 mA g−1
V2O5Microwave-assisted hydrothermal
synthesis
Separate nanorods112.6 mAh g−1/50 Cycles/100 mA g−1[42]
Nanorods assemblies191.6 mAh g−1/50 cycles/100 mA g−1
V2O5-SnO2SolvothermalDouble-shelled nanocapsules174 mAh g−1/50 Cycles/100 mA g−1[20]
V2O5HydrothermalNanowire 126 mAh g−1/100 Cycles/100 mA g−1[43]
V2O5/rGOQuantum dots212 mAh g−1/100 Cycles/100 mA g−1
V2O5SolvothermalHollow microspheres125 mAh g−1/100 Cycles/1 C[44]
V2O5SolvothermalNanoparticles91.40 mAh g−1/100 Cycles/50 mA g−1[45]
V2O5HydrothermalNanoflakes/
Nanoparticles
139 mAh g−1/50 Cycles/15 mA g−1[46]
V2O5HydrothermalOval-shaped Nanoparticle169.3 mAh g−1/50 cycles/133 mA g−1This work
150.7 mAh g−1/50 cycles/250 mA g−1
