Roles of London Dispersive and Polar Components of Nano-Metal-Coated Activated Carbons for Improving Carbon Dioxide Uptake

Department of Chemistry, Inha University, Incheon 22212, Korea
Department of Mechanical Engineering, College of Engineering, Kyung Hee University, Yongin 17104, Korea
Authors to whom correspondence should be addressed.
Coatings 2021, 11(6), 691;
Submission received: 12 May 2021 / Revised: 4 June 2021 / Accepted: 7 June 2021 / Published: 9 June 2021


Adsorption using carbonaceous materials has been considered as the prevailing technology for CO2 capture because it offers advantages such as high adsorption capacity, durability, and economic benefits. Activated carbon (AC) has been widely used as an adsorbent for CO2 capture. We investigated CO2 adsorption behaviors of magnesium oxide-coated AC (MgO-AC) as a function of MgO content. The microstructure and textural properties of MgO-AC were characterized by X-ray diffraction and nitrogen adsorption–desorption isotherms at 77 K, respectively. The CO2 adsorption behaviors of MgO-AC were evaluated at 298 K and 1 atm. Our experimental results revealed that the presence of MgO plays a key role in increasing the CO2 uptake through the interaction between an acidic adsorbate ( e + ) and an efficient basic adsorbent ( e ).

Graphical Abstract

1. Introduction

Surface-free energy, which describes the physical phenomenon caused by intermolecular interaction at an interface, may be considered as the sum of two components: a dispersive component corresponding to London attraction and a nondispersive (or polar) component that includes all other types of interactions, such as Debye inductive force, Keesom orientational forces, hydrogen bonding, and Lewis acid–base interaction. In particular, knowledge of surface-free energy at a given temperature and surface enthalpy of a solid has resulted in advanced understanding in the field of adsorption, wettability, adhesion, etc. [1,2,3].
In the early 1960s, adsorption studies reported by Fowkes [4] and Graham [5] defined equilibrium spreading pressure ( π e ) and surface-free energy of solids ( γ S ) using simple adsorbates such as nitrogen, argon, and hydrocarbon. Park and Brendle [3] reported that an increase in the London dispersive component of surface-free energy ( γ S L ) is one of the main factors in the adsorption capacity, along with the specific surface area of the adsorbent including practically nonpolar adsorbents (for example, carbon materials). The specific (or polar) component of the surface-free energy ( γ S S P ) on the adsorbent is another important factor in increasing the strength of adsorption through acid–base interaction [6].
In particular, the molecular electric quadrupole moment of nonpolar molecules represents the first non-vanishing electric moment and thus dominates the interaction between the molecule and an external non-uniform electric field [7]. Since CO2 has an electrical quadrupole moment of −1.4 × 10−39 C·m2, which is much higher than those of other gases (e.g., N2, H2, etc.) [8,9], the CO2 adsorption is largely governed by the inclusion of basic characteristics within the pore structure of the adsorbents, thereby inducing basicity and an electric field in their cavities. The CO2 molecule may interact with the electric fields of carbonaceous materials, leading to increased acid–base interaction [10].
Carbon dioxide (CO2) is a critical heat-trapping greenhouse gas that causes global warming. Increasing the concentration of CO2 in the atmosphere is assumed to directly result in global climate changes [11]. Considerable effort has been devoted to limiting the emissions of greenhouse gases into the environment. Technological advancements that address the global climate change through carbon capture and sequestration are as important as the innovations that lead to adoption of renewable energy [12,13].
Currently, commercially available CO2 capture technologies are quite expensive and energy intensive. Improved technologies for CO2 capture are required to achieve low energy penalties. Adsorption is considered to be a promising technology for capturing CO2 from flue gases [14,15]. Adsorption methods to separate CO2 from flue gases using physical adsorbents have been suggested. Solid adsorbents can be particularly effective for CO2 separation from the synthesis gas. CO2 adsorption on an adsorbent is of critical importance because there is a need to develop cost-efficient CO2 capture technologies that can alleviate the consequences of climate change by improving gas separation processes of industrial interest [16,17]. The success of such an approach is strongly dependent on the use of suitable adsorbents with good CO2 selectivity and adsorption capacity, resulting in a large specific surface area and viable CO2-friendly sites on the adsorbent surfaces [18,19,20,21].
Among the porous materials available, activated carbon (AC) has been considered as an effective adsorbent for the removal of organic pollutants from wastewater and for gas purification owing to its large surface area and porosity [21,22]. In physical adsorption, the size and volume of the pores are important. Thus, microporous carbons are used for the sorption/separation of light gases, and porous carbons with large pore sizes are used for the removal of toxins or other large organic molecules. In contrast, to ensure specific interaction between an acidic adsorbate and basic adsorbents in the adsorption process, other features of AC, such as surface functional chemistry, should also be taken into consideration [23,24,25,26].
It is well-known that the forces of metals at the surface can be varied through modifications at ambient or elevated temperatures, which is associated with adsorbate bonding, geometry of the adsorption sites, etc. [27]. Various metal oxides have been identified as efficient post carbon capture sorbents [28,29,30]. Among them, magnesium oxide (MgO) has been recognized as a promising adsorbent candidate for CO2 capture applications due to its suitable surface basicity, wide temperature range, and tunable physicochemical properties [31]. Moreover, hybrid adsorbents of MgO with metal compounds (alkali metal oxides, hydroxides, and carbonates/bicarbonates), and/or non-metals such as carbonaceous materials, silica, and metal–organic frameworks have a significant contribution in enhancing the CO2 uptake performance [32,33].
In this work, MgO nanoparticles-coated AC are prepared by the metal-reduction method and a subsequent post-oxidation process to discuss the CO2 adsorption mechanism. The CO2 adsorption capacities are examined at 298 K and 1 atm, which are typically related to the flue gas of the post-combustion working conditions. The experimental details and results are discussed in the following sections.

2. Materials and Methods

Activated carbons (ACs, Tokyo Chemical Industry Co., Tokyo, Japan) were used as a neat material. Magnesium nitrate, sodium hydroxide, ethylene glycol, and formaldehyde were obtained from Sigma-Aldrich Co. (St. Louis, MO, USA) and used as received. Before loading magnesium oxide (MgO) onto the surfaces of the ACs, the ACs were purified by acid treatment using 5 M nitric acid solution to enhance the interfacial adhesion between magnesium and the AC surfaces.
For Mg coating, the ACs were suspended in an ethylene glycol (EG) solution under N2 conditions. An EG solution containing Mg nitrate, with different loading amounts (1, 2, and 5 wt.%), was slowly added dropwise to the AC/EG solution with constant mechanical stirring for 4 h under a N2 atmosphere. A 1 M NaOH solution was added to adjust the pH of the solution, and 2 mL of formaldehyde solution as a reduction agent was then added dropwise into the solution. Then, the solution was heated to 120 °C for 2 h to completely reduce the Mg particles [34]. The MgO-coated ACs were prepared using a post-oxidation method on the Mg-coated AC samples. The oxidation temperature was fixed at 300 °C in an air stream for 10 min. The MgO-coated AC samples were labeled as a function of the Mg amount, as 1-MgO-ACs, 2-MgO-ACs, and 5-MgO-ACs.
The MgO content on the AC surfaces was examined using X-ray photoelectron spectroscopy (XPS, ESCA LAB MK-II, VG Scientific Co., East Grinstead, UK) with monochromatic Al Kα radiation (hυ = 1486.6 eV), operated under the constant analysis mode. The survey spectra were measured in the range of 50–1350 eV pass energy. A non-linear least squares curve-fitting program (Peak-Fit version 4, Systat Software Inc., San Jose, CA, USA) with a Gaussian-Lorentzian mix function and Shirley background subtraction was used to de-convolve the XPS subpeaks [35]. An elemental analyzer (EA, EA1112, Thermo Scientific Co., Waltham, MA, USA) was used to investigate chemical elemental composition of the prepared samples. X-ray diffraction (XRD, Model D/MAX-II, Rigaku Co., Tokyo, Japan), which was performed using Cu Kα radiation, showed changes in the crystalline phase of the prepared adsorbents and lattice distortions. An indexing identification of the peak and a peak-fitting analysis (Xprocess Program, USA) was performed to identify the diffraction of nanoparticles for the determination of the sizes. The N2 adsorption isotherms were measured at 77 K using a gas adsorption analyzer (BEL-SORP, Bel Co., Tokyo, Japan). The samples were outgassed at 383 K for 24 h to obtain a residual pressure less than 10−3 torr. The specific surface areas and micropore volumes of the samples were determined from the BET equation and t-plot method, respectively. The mesoporous volumes of the samples were determined using the BJH method [36]. The amount of N2 adsorbed at relative pressures (P/P0 = 0.98) was used to determine the total pore volume, which corresponds to the sum of the micropore and mesopore volumes.
The CO2 adsorption performance was evaluated at 298 K using BEL-SORP (BEL Co., Tokyo, Japan). The samples were outgassed at 393 K for 24 h to obtain a residual pressure less than 10−3 torr. After degassing under vacuum, the CO2 adsorption of the sorbents was evaluated at 298 K and 1 atm.

3. Results and Discussion

3.1. Morphological Properties

Figure 1 shows the SEM images of the MgO nanoparticle-coated AC surfaces with different MgO loading amounts. With the increasing MgO amount, the roughness of the sample surfaces appeared to increase because the MgO particles were introduced onto the AC surfaces. This means that the AC surfaces could be blocked by the Mg particles and the subsequent post-oxidation process.

3.2. Surface Properties

XPS was used to study the chemical composition of MgO-coated AC surfaces with different MgO loading amounts. Table 1 lists the atomic percentage of Mg that increased gradually with the increasing MgO loading amounts on the AC surfaces. Figure 2 presents the high-resolution O1s and Mg2p subpeaks of the prepared samples. These data revealed that three O1s subpeaks can be easily distinguished in the XPS spectra of all the samples. The peaks of MgO, Mg(OH)2, and MgCO3 have binding energies in the ranges of 530.0–531.0 eV, 530.0–533.2 eV, and 533.2–533.5 eV, respectively [37,38]. We found that MgO is predominantly formed during post-oxidation at 300 °C due to the reaction with air. The four subpeaks in the ranges of 49.5–49.8 eV, 50.5–50.8 eV, 51.0–51.5 eV, and 51.9–52.5 eV corresponded to metallic Mg, MgO, Mg(OH)2, and MgCO3, respectively. These peak assignments agree with the values reported in the literature [39,40]. The intensities of the Mg2p peaks increased with the increasing MgO amounts, which indicates that the increased intensity of the Mg2p peak can be mainly attributed to the MgO formation, as shown in Figure 2f. This means that the MgO-coated AC samples possess Mg 2 + ions, which induce a strong affinity toward CO2 at low pressures [41,42,43].

3.3. Structural Properties

Figure 3 shows the XRD patterns of the MgO-coated ACs prepared with different MgO amounts. All the samples showed prominent peaks at 2 theta = 26°, which is a typical value for crystalline graphite of ACs. With the increasing MgO content, the intensity of the carbon peaks of the ACs decreased slightly. The diffraction peaks of the MgO-coated AC samples at 2 theta = 43° and 62° were assigned to (200) and (220) of MgO, respectively [44]. Furthermore, the intensity of the MgO diffraction peaks was enhanced gradually with the increasing MgO fractions.
The mean particle sizes of the MgO particles on the AC surfaces were calculated from the XRD patterns using the Scherrer formula:
L c = K λ β 1 / 2 cos θ
where L c is the mean particle size (nm), K the Scherrer constant (=0.9), λ the X-ray wavelength (Cu Kα = 0.154 nm), θ the angle at peak maximum, and β 1 / 2 the full width (radians) of the peak at half height [45].
According to the Scherrer equation, the mean crystallite sizes of MgO in 1-MgO-ACs, 2-MgO-ACs, and 5-MgO-ACs are approximately 8.1, 8.5, and 9.0 nm, respectively. The crystallite sizes of MgO increased slightly with the increasing MgO amounts, which affected the specific surface and pore volumes of the MgO-coated AC samples.

3.4. Textural Properties

To explore the textural properties, N2/77 K adsorption–desorption isotherms were evaluated, as presented in Figure 4. Bare AC showed a typical type I isotherm with significant adsorption below a relative pressure P / P 0 = 0.01, according to IUPAC classification, indicating a microporous structure [46,47]. However, the adsorption isotherms of the MgO-coated AC samples displayed type IV behavior with a low N2 uptake at lower pressures, indicating capillary condensation in the mesopores (>2 nm). Moreover, the N2 adsorption capacities decreased with increasing the MgO amounts. This can be attributed to the pore filling or blocking by the MgO coating onto the AC surfaces.
As listed in Table 1, the textural properties indicated that all the samples exhibited mesoporous structures. The bare AC showed the highest specific surface area, micropore volume, and mesopore volume of 1608 m2/g, 0.2 cm3/g, and 1.37 cm3/g, respectively. With the increasing MgO loading amounts, the specific surface area and mesopore volume decreased gradually while the micropore volume did not change significantly. From the results, it is clear that the MgO coating significantly decreases the mesopores on the AC surfaces, resulting in a decrease in the specific surface area.

3.5. CO2 Uptake Behaviors

The CO2 adsorption isotherms of bare AC and MgO-coated AC samples were measured at 298 K and 1 atm through pressure swing analysis, as shown in Figure 5. The CO2 adsorption capacities of AC, 1-MgO-AC, 2-MgO-AC, and 5-MgO-AC were 74.4, 83.3, 108.8, and 105.1 mg/g, respectively. The MgO-coated AC samples showed a higher adsorption capacity than bare AC. This clearly indicates that MgO plays a key role in improving the CO2 adsorption capacity. The adsorption capacities were found to increase with the increasing MgO loading amounts up to 2-MgO-AC and showed no significant change in 5-MgO-AC. The optimum effect of MgO coating can be assessed from the bare AC and 2-MgO-AC samples; the latter was approximately 32% higher (2.55 at.% MgO fraction obtained from XPS data) than the former (without treatment). This can be attributed to an enhanced interaction between the CO2 molecule and MgO through the acid ( δ + )-base ( δ ) interaction, which is referred to as the specific (polar) component ( γ S S P ) of the surface-free energy on the adsorbent, resulting in improved CO2 adsorption uptake.
We noted that the CO2 adsorption capacity of 5-MgO-AC showed no improvement even though 5-MgO-AC had a considerable MgO loading amount (6.72 at.% of Mg obtained from the XPS data). The experimental data indicate that the higher loading amounts of MgO did not improve the adsorption capacity of the MgO-coated AC, probably owing to the decreased specific surface area and pore volume because the excessive MgO coating resulted in the filling and/or blocking of the pores on the AC surfaces. This is not favorable for enhancing the CO2 adsorption capacity because of the inadequacy of the London dispersive component of the surface-free energy ( γ S L ). Thus, it appears that the lack or minimal presence of the specific surface area and pore structures may take away the expected benefit of the interaction between the adsorbent and adsorbate.
Therefore, the net result is an increase in the CO2 adsorption capacity of the acidic adsorbate and efficient basic adsorbent, resulting in increased the polar-polar interaction, in the presence of the specific surface area and pore volume of ACs. The schematic illustrations of the suggested CO2 adsorption mechanism on the bare AC and MgO-coated AC are shown in Figure 6.

4. Conclusions

In this work, we studied the CO2 adsorption behaviors of MgO-coated AC as a function of MgO content. The experimental results showed that the CO2 adsorption capacity of the prepared samples increased with the increasing MgO loading amounts up to 2-MgO-AC owing to an improvement of acid–base interaction (refer to the specific (polar) component of the surface-free energy ( γ S S P )). Equally important, the data suggested that the specific surface areas and pore volumes are the key factors in improving the CO2 adsorption capacity, resulting from the London dispersive component of surface-free energy ( γ S L ). Thus, our results on the underlying physics of adsorption mechanism should help in designing adsorbents for gases more efficiently, particularly those with quadrupole moments.

Author Contributions

Conceptualization and methodology, S.-Y.L., J.-H.L. and Y.-H.K.; Writing—original draft preparation, S.-Y.L., J.-H.L. and Y.-H.K.; Writing—review and editing, K.-Y.R. and S.-J.P.; Supervision, K.-Y.R. and S.-J.P. All authors have read and agreed to the published version of the manuscript.


This work was supported by Nano-Convergence Foundation( funded by the Ministry of Science and ICT(MSIT, Korea) & the Ministry of Trade, Industry and Energy (MOTIE, Korea) [Development of high-efficiency activated carbon filter for removing indoor harmful elements (VOCs, radon, bacteria, etc.)], supported by Korea Evaluation institute of Industrial Technology (KEIT) through the Carbon Cluster Construction project [10083586, Development of petroleum based graphite fibers with ultra-high thermal conductivity] funded by the Ministry of Trade, Industry & Energy (MOTIE, Korea), and supported by Korea Electric Power Corporation [R21XO01-5].

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Adamson, A. Physical Chemistry of Surfaces; John Wiley and Sons Inc.: New York, NY, USA, 1990; p. 784. [Google Scholar]
  2. Saint Flour, C.; Papirer, E. Gas-solid chromatography. A method of measuring surface free energy characteristics of short glass fibers. 1. Through adsorption isotherms. Ind. Eng. Chem. Prod. Res. Dev. 1982, 21, 337–341. [Google Scholar] [CrossRef]
  3. Park, S.-J.; Brendle, M. London dispersive component of the surface free energy and surface enthalpy. J. Colloid Interface Sci. 1997, 188, 336–339. [Google Scholar] [CrossRef]
  4. Fowkes, F.M. Attractive forces at interfaces. Ind. Eng. Chem. 1964, 56, 40–52. [Google Scholar] [CrossRef]
  5. Graham, D. Physical adsorption on low energy solids. II. Adsorption of nitrogen, argon, carbon tetrafluoride, and ethane on polypropylene1. J. Phys. Chem. 1964, 68, 2788–2792. [Google Scholar] [CrossRef]
  6. Gutmann, V. The Donor-Acceptor Approach to Molecular Interactions; Plenum Press: New York, NY, USA, 1978. [Google Scholar]
  7. Coriani, S.; Halkier, A.; Rizzo, A.; Ruud, K. On the molecular electric quadrupole moment and the electric-field-gradient-induced birefringence of CO2 and CS2. Chem. Phys. Lett. 2000, 326, 269–276. [Google Scholar] [CrossRef]
  8. Choi, H.-S.; Suh, M.P. Highly selective CO2 capture in flexible 3d coordination polymer networks. Angew. Chem. Int. Ed. 2009, 48, 6865–6869. [Google Scholar] [CrossRef]
  9. Buckingham, A.D.; Disch, R.L.; Pople, J.A. The quadrupole moment of the carbon dioxide molecule. Ser. A. Math. Phys. Sci. 1963, 273, 275–289. [Google Scholar] [CrossRef]
  10. Bonenfant, D.; Kharoune, M.; Niquette, P.; Mimeault, M.; Hausler, R. Advances in principal factors influencing carbon dioxide adsorption on zeolites. Sci. Technol. Adv. Mater. 2008, 9, 013007. [Google Scholar] [CrossRef] [PubMed]
  11. Lashof, D.A.; Ahuja, D.R. Relative contributions of greenhouse gas emissions to global warming. Nature 1990, 344, 529–531. [Google Scholar] [CrossRef]
  12. Singh, G.; Lee, J.; Karakoti, A.; Bahadur, R.; Yi, J.B.; Zhao, D.Y.; AlBahily, K.; Vinu, A. Emerging trends in porous materials for CO2 capture and conversion. Chem. Soc. Rev. 2020, 49, 4360–4404. [Google Scholar] [CrossRef]
  13. Hetti, R.K.; Karunathilake, H.; Chhipi-Shrestha, G.; Sadiq, R.; Hewage, K. Prospects of integrating carbon capturing into community scale energy systems. Renew. Sust. Energ. Rev. 2020, 133, 17. [Google Scholar] [CrossRef]
  14. Wang, X.; Song, C. Carbon capture from flue gas and the atmosphere: A perspective. Front. Energy Res. 2020, 8, 560849. [Google Scholar] [CrossRef]
  15. Siegelman, R.L.; Milner, P.J.; Kim, E.J.; Weston, S.C.; Long, J.R. Challenges and opportunities for adsorption-based CO2 capture from natural gas combined cycle emissions. Energy Environ. Sci. 2019, 12, 2161–2173. [Google Scholar] [CrossRef] [PubMed]
  16. Lee, S.-Y.; Park, S.-J. A review on solid adsorbents for carbon dioxide capture. J. Ind. Eng. Chem. 2015, 23, 1–11. [Google Scholar] [CrossRef]
  17. Pardakhti, M.; Jafari, T.; Tobin, Z.; Dutta, B.; Moharreri, E.; Shemshaki, N.S.; Suib, S.; Srivastava, R. Trends in solid adsorbent materials development for CO2 capture. ACS Appl. Mater. Interfaces 2019, 11, 34533–34559. [Google Scholar] [CrossRef]
  18. Meng, L.-Y.; Park, S.-J. Effect of ZnCl2 activation on CO2 adsorption of N-doped nanoporous carbons from polypyrrole. J. Solid State Chem. 2014, 218, 90–94. [Google Scholar] [CrossRef]
  19. Rehman, A.; Park, S.-J. Microporous carbons derived from melamine and isophthalaldehyde: One-pot condensation and activation in a molten salt medium for efficient gas adsorption. Sci. Rep. 2018, 8, 6092. [Google Scholar] [CrossRef] [Green Version]
  20. Rehman, A.; Heo, Y.-J.; Nazir, G.; Park, S.-J. Solvent-free, one-pot synthesis of nitrogen-tailored alkali-activated microporous carbons with an efficient CO2 adsorption. Carbon 2021, 172, 71–82. [Google Scholar] [CrossRef]
  21. Rehman, A.; Park, S.-J. Influence of nitrogen moieties on CO2 capture by polyaminal-based porous carbon. Macromol. Res. 2017, 25, 1035–1042. [Google Scholar] [CrossRef]
  22. Rodriguez, R.; Contrino, D.; Mazyck, D.W. Role of activated carbon precursor in mercury removal. Ind. Eng. Chem. Res. 2020, 59, 17740–17747. [Google Scholar] [CrossRef]
  23. Lee, M.-S.; Park, M.; Kim, H.Y.; Park, S.-J. Effects of microporosity and surface chemistry on separation performances of N-containing pitch-based activated carbons for CO2/N2 binary mixture. Sci. Rep. 2016, 6, 23224. [Google Scholar] [CrossRef]
  24. Jonnalagadda, M.; Ibrahim, S.M.; Shair, O.H.M.; Mutyala, S. Porous carbon supported calcium oxide for CO2 adsorption and separation of CO2/CH4. Environ. Technol. 2020, 1–9. [Google Scholar] [CrossRef]
  25. Kamran, U.; Park, S.-J. Tuning ratios of KOH and NaOH on acetic acid-mediated chitosan-based porous carbons for improving their textural features and CO2 uptakes. J. CO2 Util. 2020, 40, 101212. [Google Scholar] [CrossRef]
  26. Sreńscek-Nazzal, J.; Kiełbasa, K. Advances in modification of commercial activated carbon for enhancement of CO2 capture. Appl. Surf. Sci. 2019, 494, 137–151. [Google Scholar] [CrossRef]
  27. Bohnen, K.P.; Ho, K.M. Structure and dynamics at metal surfaces. Surf. Sci. Rep. 1993, 19, 99–120. [Google Scholar] [CrossRef]
  28. Mutch, G.A.; Shulda, S.; McCue, A.J.; Menart, M.J.; Ciobanu, C.V.; Ngo, C.; Anderson, J.A.; Richards, R.M.; Vega-Maza, D. Carbon capture by metal oxides: Unleashing the potential of the (111) facet. J. Am. Chem. Soc. 2018, 140, 4736–4742. [Google Scholar] [CrossRef] [Green Version]
  29. Rawool, S.A.; Belgamwar, R.; Jana, R.; Maity, A.; Bhumla, A.; Yigit, N.; Datta, A.; Rupprechter, G.; Polshettiwar, V. Direct CO2 capture and conversion to fuels on magnesium nanoparticles under ambient conditions simply using water. Chem. Sci. 2021, 12, 5774–5786. [Google Scholar] [CrossRef]
  30. Veerabhadrappa, M.G.; Maroto-Valer, M.M.; Chen, Y.; Garcia, S. Layered double hydroxides-based mixed metal oxides: Development of novel structured sorbents for CO2 capture applications. ACS Appl. Mater. Interfaces 2021, 13, 11805–11813. [Google Scholar] [CrossRef] [PubMed]
  31. Ruhaimi, A.H.; Aziz, M.A.A.; Jalil, A.A. Magnesium oxide-based adsorbents for carbon dioxide capture: Current progress and future opportunities. J. CO2 Util. 2021, 43, 101357. [Google Scholar] [CrossRef]
  32. Bhatta, L.K.G.; Bhatta, U.M.; Venkatesh, K. Metal oxides for carbon dioxide capture. In Sustainable Agriculture Reviews 38: Carbon Sequestration Vol. 2 Materials and Chemical Methods; Inamuddin, Asiri, A.M., Lichtfouse, E., Eds.; Springer International Publishing: Cham, Switzerland, 2019; pp. 63–83. [Google Scholar]
  33. Taifan, W.; Boily, J.-F.; Baltrusaitis, J. Surface chemistry of carbon dioxide revisited. Surf. Sci. Rep. 2016, 71, 595–671. [Google Scholar] [CrossRef] [Green Version]
  34. Park, S.J.; Lee, S.Y. Hydrogen storage behaviors of platinum-supported multi-walled carbon nanotubes. Int. J. Hydrog. Energy 2010, 35, 13048–13054. [Google Scholar] [CrossRef]
  35. Koenig, M.F.; Grant, J.T. Deconvolution in X-ray photoelectron spectroscopy. J. Electron. Spectrosc. Relat. Phenom. 1984, 33, 9–22. [Google Scholar] [CrossRef]
  36. Joyner, L.G.; Barrett, E.P.; Skold, R. The determination of pore volume and area distributions in porous substances. II. Comparison between nitrogen isotherm and mercury porosimeter methods. J. Am. Chem. Soc. 1951, 73, 3155–3158. [Google Scholar] [CrossRef]
  37. Rheinheimer, V.; Unluer, C.; Liu, J.; Ruan, S.; Pan, J.; Monteiro, P.J.M. XPS study on the stability and transformation of hydrate and carbonate phases within MgO systems. Materials 2017, 10, 75. [Google Scholar] [CrossRef] [Green Version]
  38. Santamaria, M.; Di Quarto, F.; Zanna, S.; Marcus, P. Initial surface film on magnesium metal: A characterization by X-ray photoelectron spectroscopy (XPS) and photocurrent spectroscopy (PCS). Electrochim. Acta 2007, 53, 1314–1324. [Google Scholar] [CrossRef] [Green Version]
  39. Ardizzone, S.; Bianchi, C.L.; Fadoni, M.; Vercelli, B. Magnesium salts and oxide: An XPS overview. Appl. Surf. Sci. 1997, 119, 253–259. [Google Scholar] [CrossRef]
  40. Müller, M.; Matthes, F.; Schneider, C.M. Photoemission study of the Fe(001)/MgO interface for varying oxidation conditions of magnesium oxide. J. Appl. Phys. 2007, 101, 09G519. [Google Scholar] [CrossRef] [Green Version]
  41. Li, L.; Wen, X.; Fu, X.; Wang, F.; Zhao, N.; Xiao, F.; Wei, W.; Sun, Y. MgO/Al2O3 sorbent for CO2 Capture. Energy Fuels 2010, 24, 5773–5780. [Google Scholar] [CrossRef]
  42. Zukal, A.; Pastva, J.; Čejka, J. MgO-modified mesoporous silicas impregnated by potassium carbonate for carbon dioxide adsorption. Microporous Mesoporous Mater. 2013, 167, 44–50. [Google Scholar] [CrossRef]
  43. Heo, Y.-J.; Park, S.-J. Facile synthesis of MgO-modified carbon adsorbents with microwave—assisted methods: Effect of MgO particles and porosities on CO2 capture. Sci. Rep. 2017, 7, 5653. [Google Scholar] [CrossRef] [PubMed]
  44. Wang, R.; Liu, X.; He, Y.; Yuan, Q.; Li, X.; Lu, G.; Zhang, T. The humidity-sensitive property of MgO-SBA-15 composites in one-pot synthesis. Sens. Actuators B Chem. 2010, 145, 386–393. [Google Scholar] [CrossRef]
  45. Yuan, D.; Liu, Y. Electroless deposition of Cu on multiwalled carbon nanotubes. Rare Met. 2006, 25, 237–240. [Google Scholar] [CrossRef]
  46. Heo, Y.J.; Park, S.J. A role of steam activation on CO2 capture and separation of narrow microporous carbons produced from cellulose fibers. Energy 2015, 91, 142–150. [Google Scholar] [CrossRef]
  47. Yue, J.; Wang, Z.; Chen, J.; Zheng, M.; Wang, Q.; Lou, X. Investigation of pore structure characteristics and adsorption characteristics of coals with different destruction types. Adsorpt. Sci. Technol. 2019, 37, 623–648. [Google Scholar] [CrossRef] [Green Version]
Figure 1. SEM images of (a) bare AC, (b) 1-MgO-AC, (c) 2-MgO-AC, and (d) 5-MgO-AC (scale bar: 500 nm).
Figure 1. SEM images of (a) bare AC, (b) 1-MgO-AC, (c) 2-MgO-AC, and (d) 5-MgO-AC (scale bar: 500 nm).
Coatings 11 00691 g001

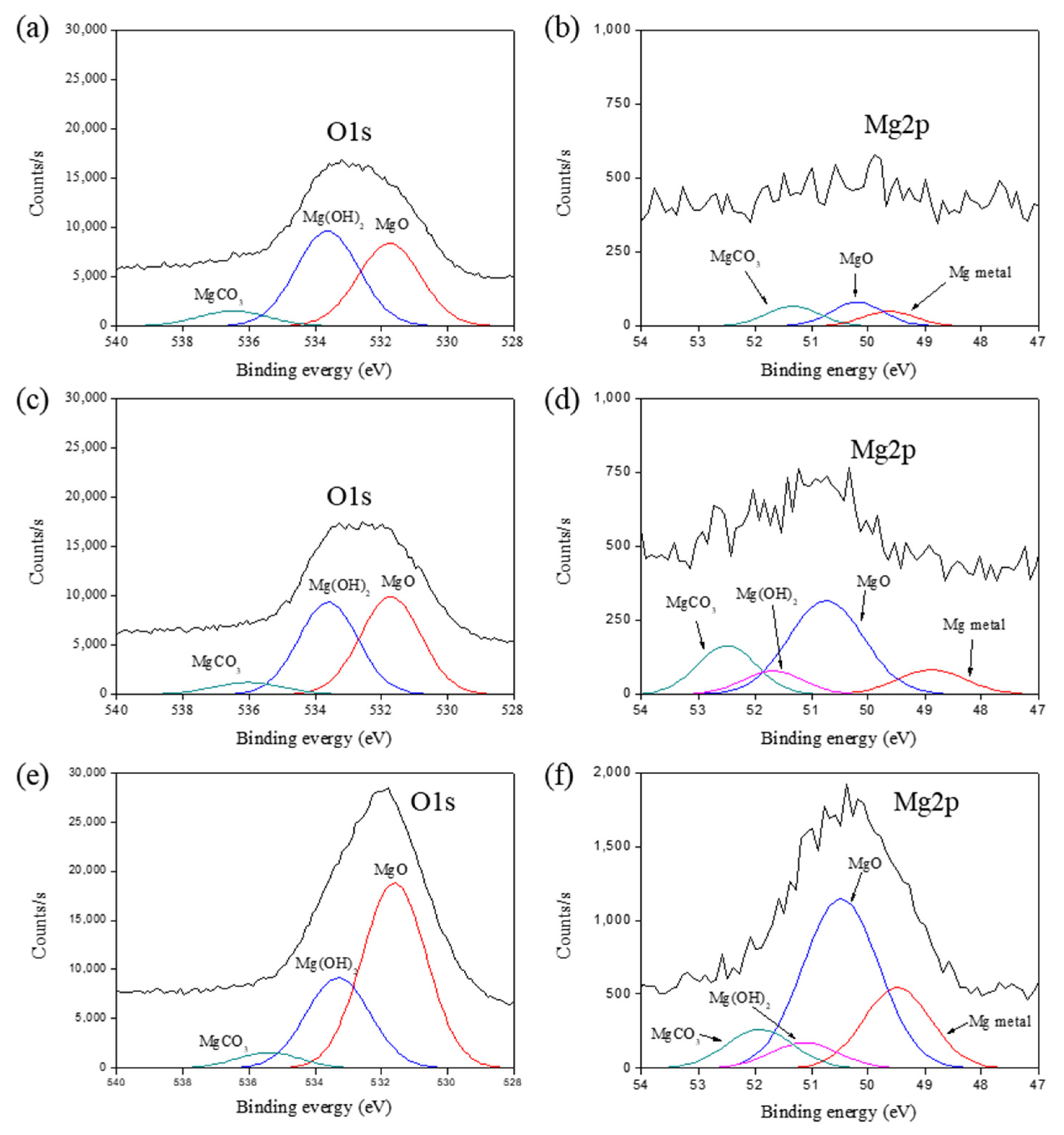

Figure 2. High-resolution peaks of (a,b) 1-MgO-AC, (c,d) 2-MgO-AC, and (e,f) 5-MgO-AC.
Figure 2. High-resolution peaks of (a,b) 1-MgO-AC, (c,d) 2-MgO-AC, and (e,f) 5-MgO-AC.
Coatings 11 00691 g002

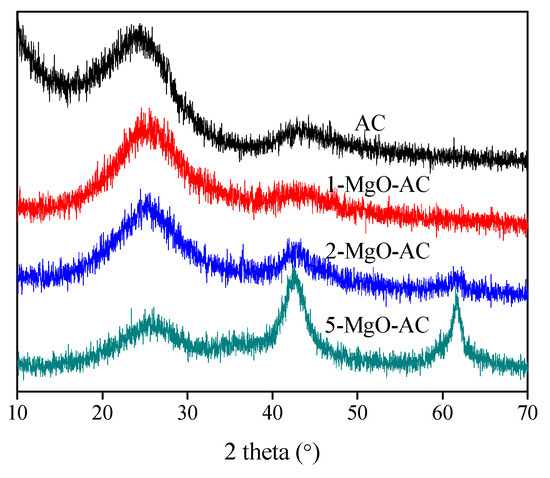

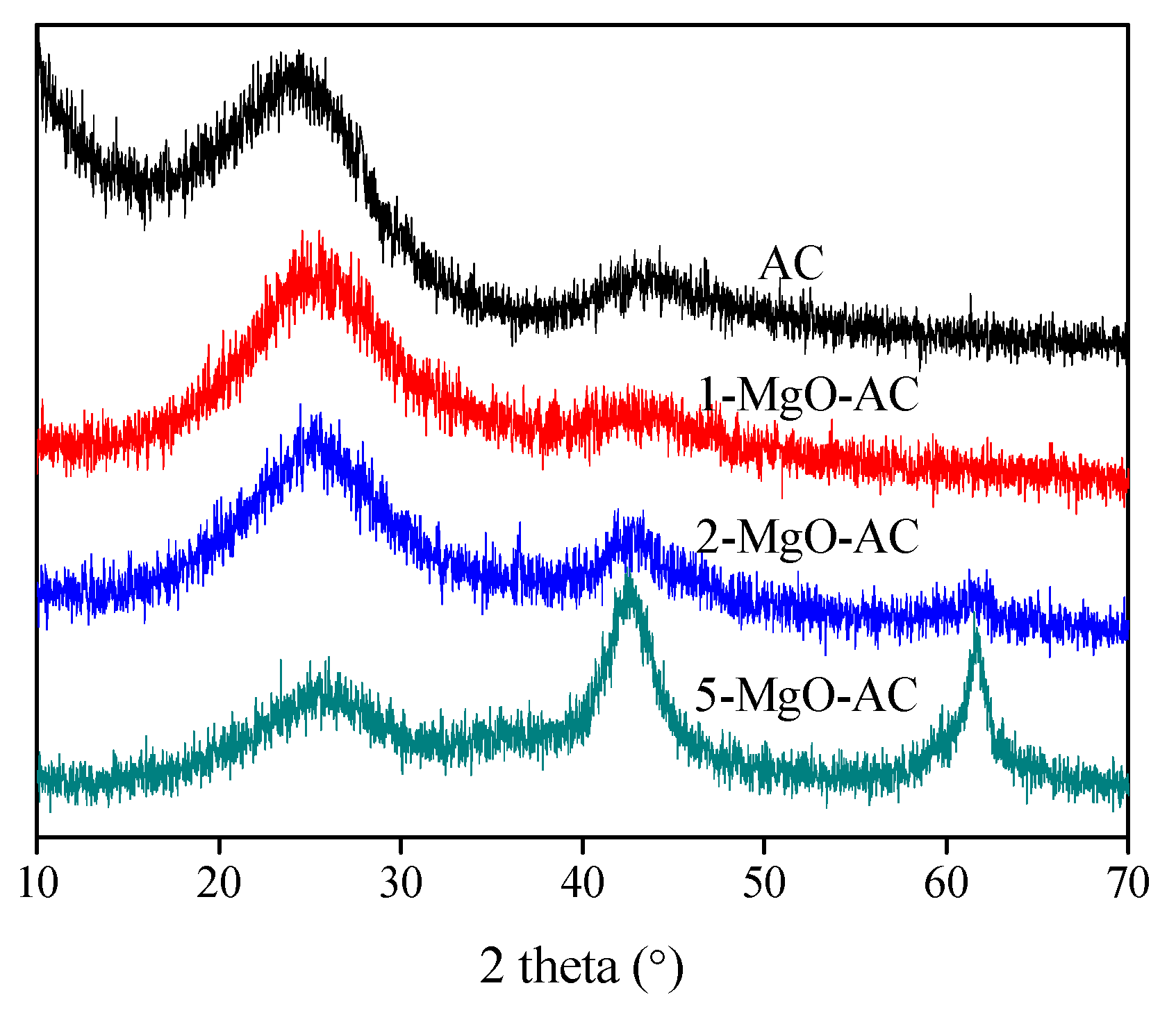

Figure 3. XRD patterns of bare AC and MgO-coated AC samples.
Figure 3. XRD patterns of bare AC and MgO-coated AC samples.
Coatings 11 00691 g003

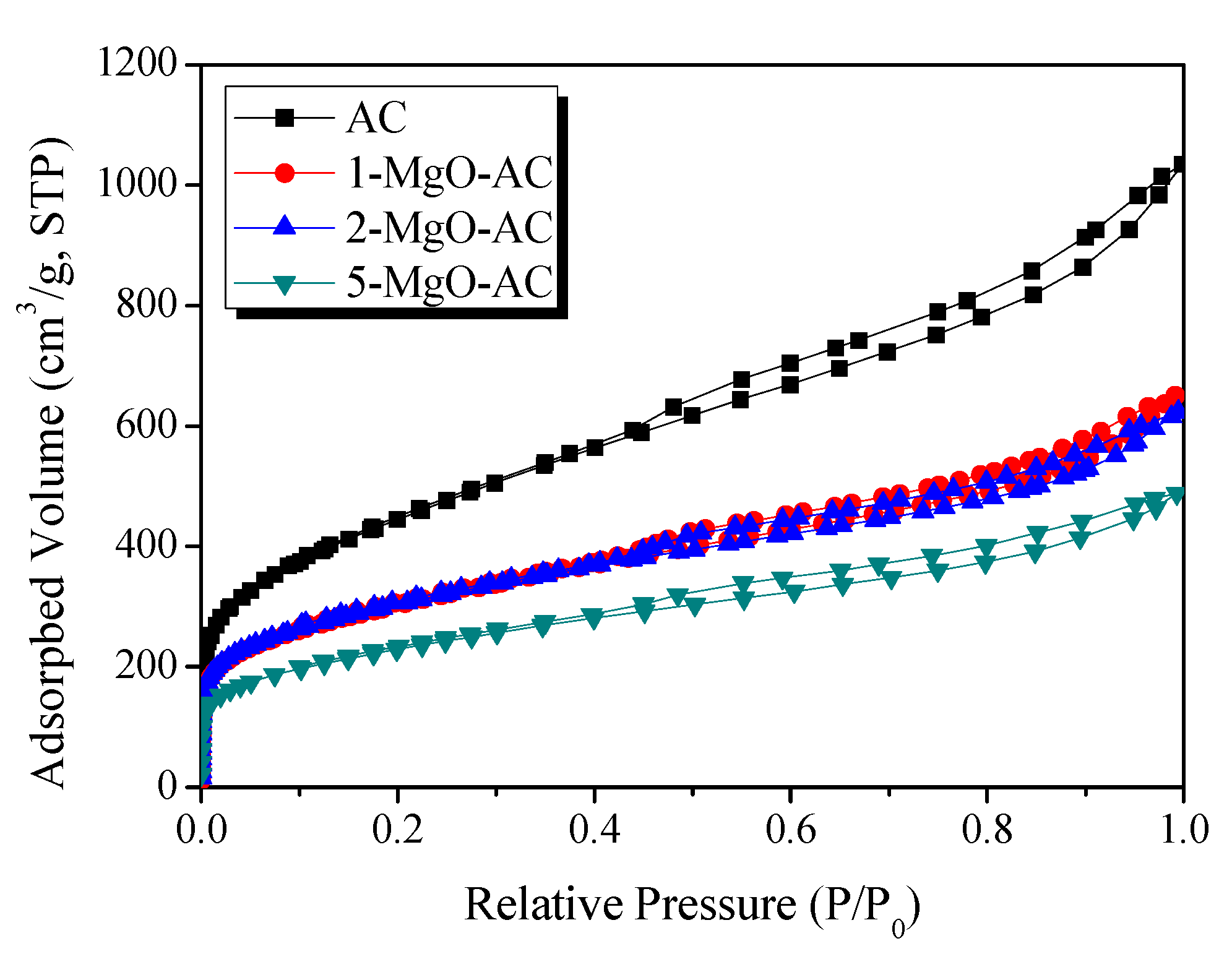

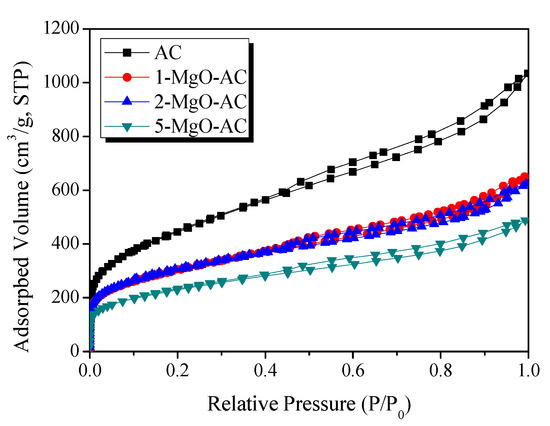

Figure 4. N2/77 K adsorption–desorption isotherms of AC and MgO coated ACs with different MgO loading amounts.
Figure 4. N2/77 K adsorption–desorption isotherms of AC and MgO coated ACs with different MgO loading amounts.
Coatings 11 00691 g004

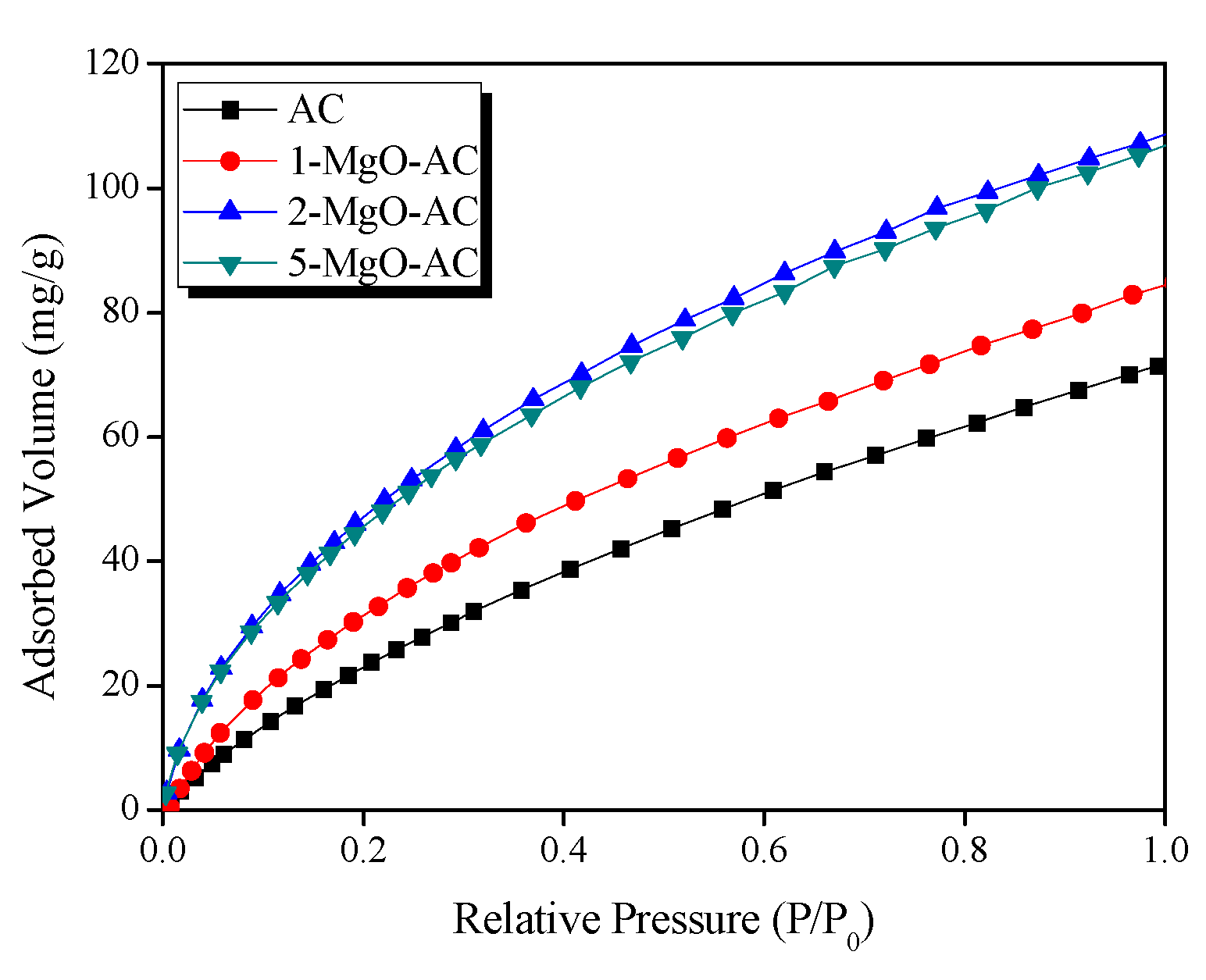

Figure 5. CO2 adsorption capacity of the samples studied at 298 K and 1 atm.
Figure 5. CO2 adsorption capacity of the samples studied at 298 K and 1 atm.
Coatings 11 00691 g005

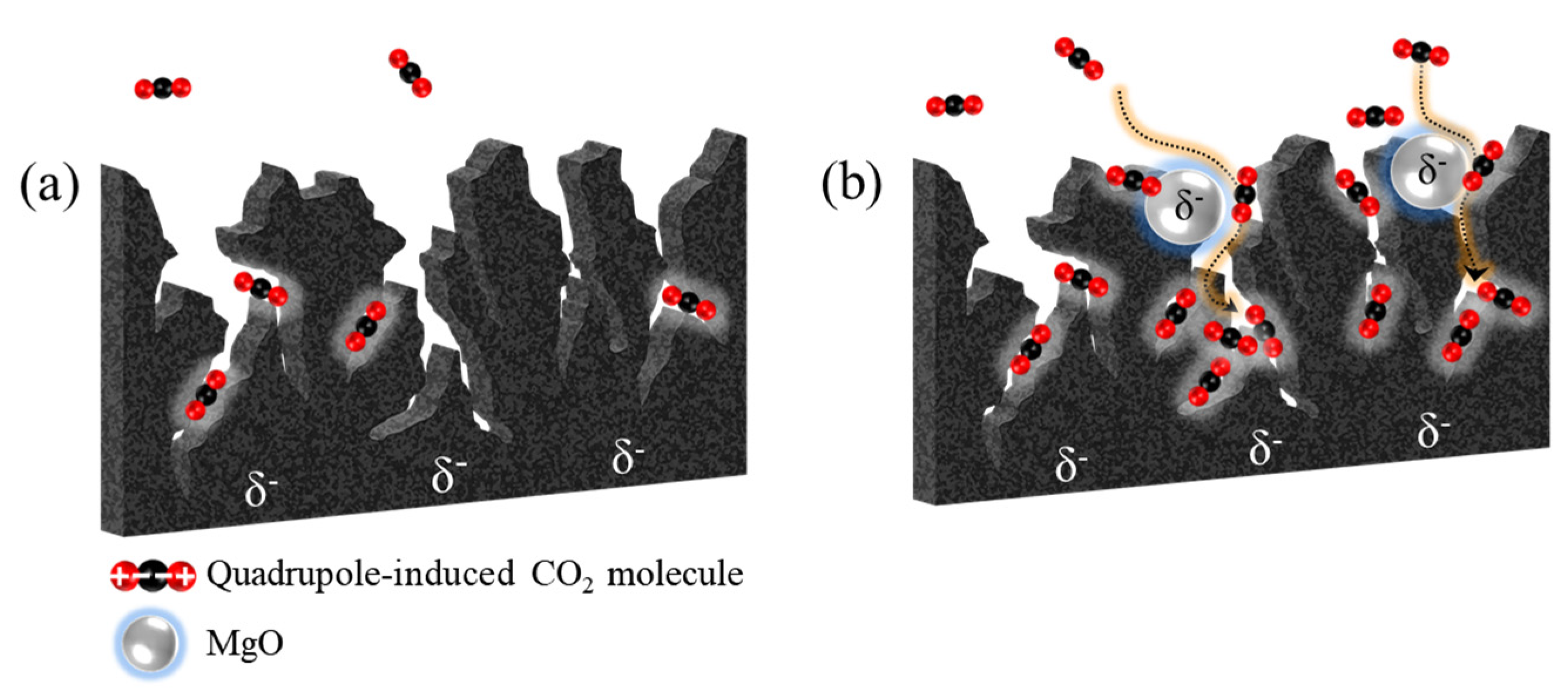

Figure 6. Schematic illustrations of the suggested CO2 adsorption mechanism on (a) bare AC and (b) MgO-coated AC.
Figure 6. Schematic illustrations of the suggested CO2 adsorption mechanism on (a) bare AC and (b) MgO-coated AC.
Coatings 11 00691 g006
Table 1. Chemical compositions and textural properties of the MgO-coated AC samples.
Table 1. Chemical compositions and textural properties of the MgO-coated AC samples.
SpecimensAtomic Percentage (at.%)Textural Properties
SBET1: specific surface area (m2/g), Vtotal2: total pore volume (cm3/g), Vmicro3: micropore volume (cm3/g), Vmeso4: mesopore volume (cm3/g)
