Next Article in Journal
Effect of Emulsifier on the Structure and Properties of Waterborne Silicone Antifouling Coating
Previous Article in Journal
A New Alternative Electrochemical Process for a Pre-Deposited UPD-Mn Mediated the Growth of Cu(Mn) Film by Controlling the Time during the Cu-SLRR
Open AccessArticle

Optimization of Rice Husk Ash-Based Geopolymers Coating Composite for Enhancement in Flexural Properties and Microstructure Using Response Surface Methodology

1
Department of Process and Food Engineering, Faculty of Engineering, Universiti Putra Malaysia, Serdang 43400 UPM, Selangor, Malaysia
2
Department of Aerospace Engineering, Faculty of Engineering, Universiti Putra Malaysia, Serdang 43400 UPM, Selangor, Malaysia
3
Aerospace Manufacturing Research Center (AMRC), Universiti Putra Malaysia, Serdang 43400 UPM, Selangor, Malaysia
4
Institute of Tropical Forestry and Forest Products (INTROP), Universiti Putra Malaysia, Serdang 43400 UPM, Selangor, Malaysia
*
Author to whom correspondence should be addressed.
Coatings 2020, 10(2), 165; https://doi.org/10.3390/coatings10020165
Received: 12 December 2019 / Revised: 31 December 2019 / Accepted: 3 January 2020 / Published: 11 February 2020
(This article belongs to the Section Surface Characterization, Deposition and Modification)

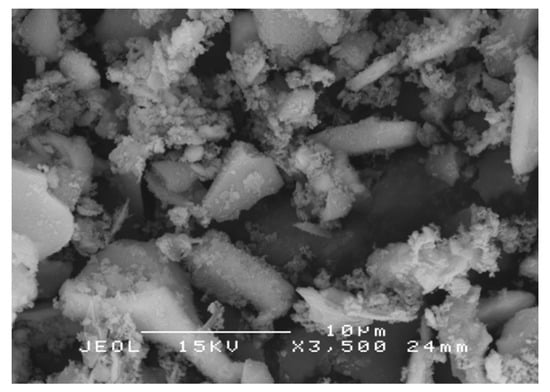

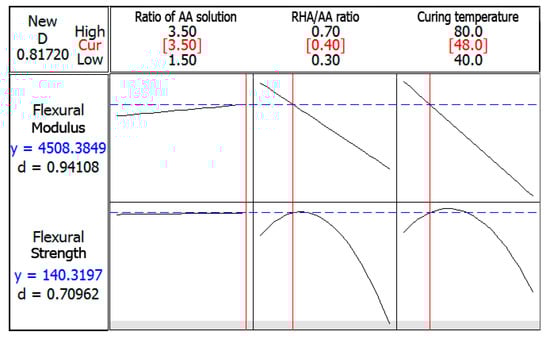

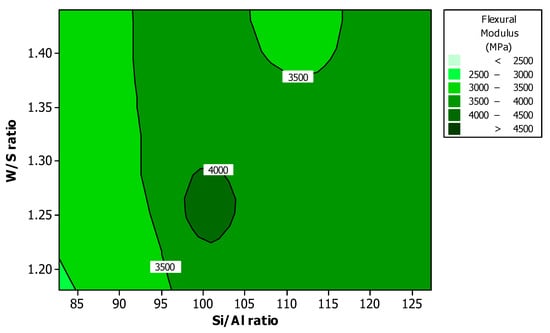

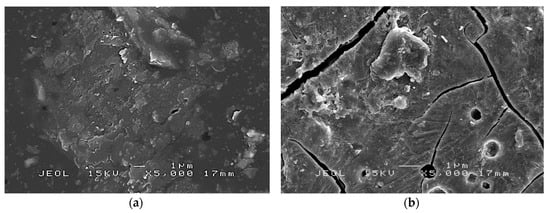

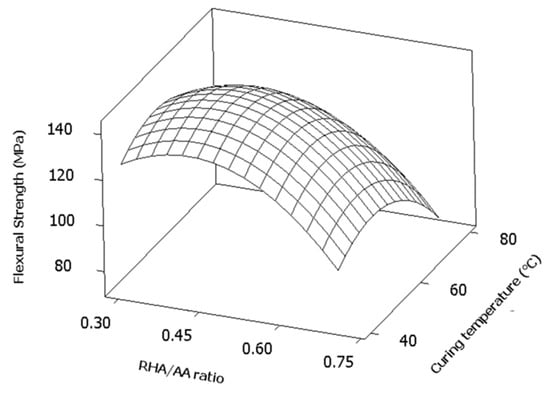

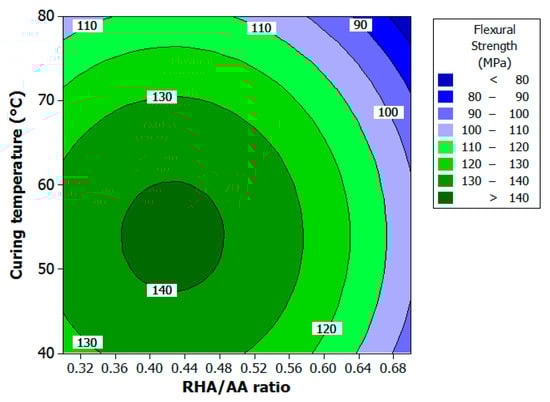

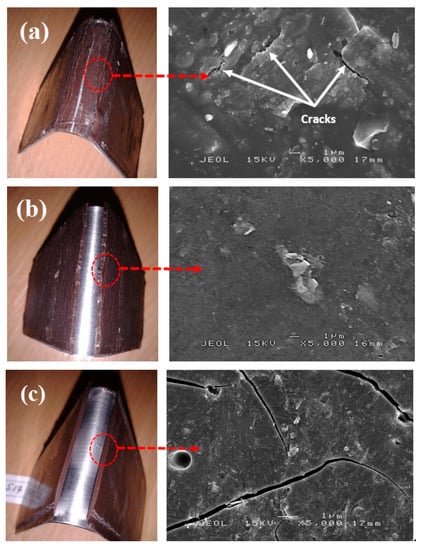

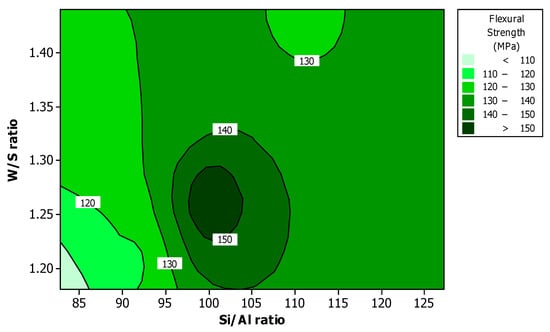

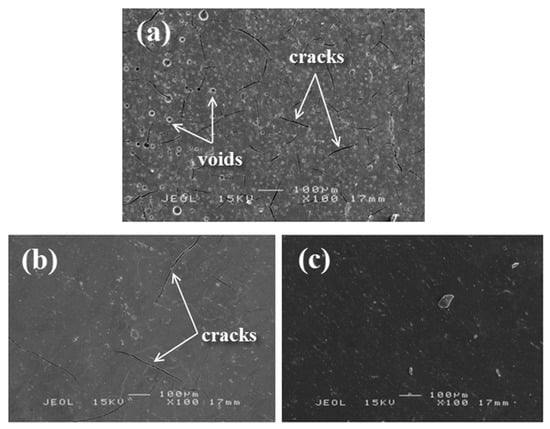

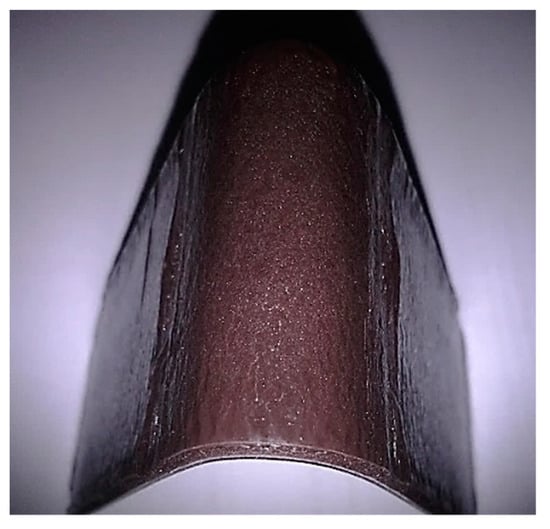

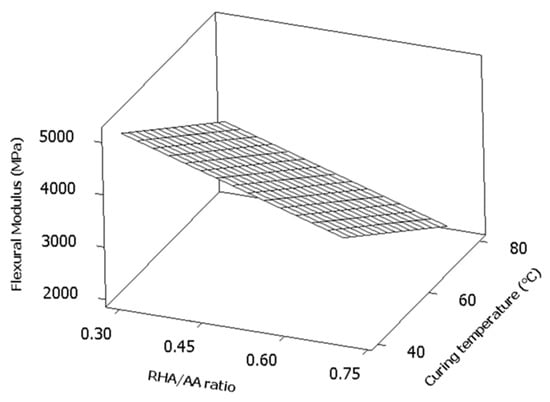

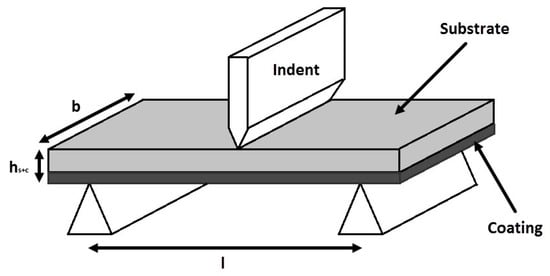

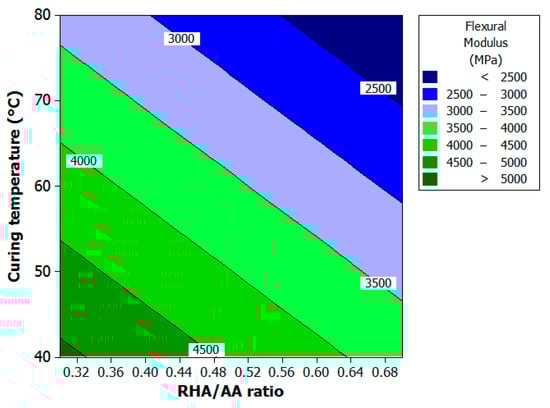

If the coating is sufficiently flexible, no tears, cracks, or debond will occur. Although geopolymers have a great potential as a coating material, research on the flexural properties is very limited. In this study, a three-point bending test and scanning electron microscope were used to investigate the flexural properties and microstructure of the geopolymer composite coating (GCC), respectively. Response Surface Methodology (RSM) consists of a combination of mathematical and statistical techniques, which is useful in modelling, analyzing, and optimizing responses that are influenced by several factors. It was used in determining the relationship between each factor and determining the best composition for the composite coating. Several factors were considered including ratio of activated alkaline (AA) solution (V1), RHA/AA ratio (V2), and curing temperature (V3). Results showed that the RHA/AA ratio mostly influenced the response, followed by curing temperature while the ratio of AA was not significant. Lower V2 and V3 values provided the highest flexural strength and modulus. The optimum composition which provided the best coating of flexural properties were V1 = 3.5, V2 = 0.39, and V3 = 45.7 °C. Microscopic images showed that coating with high flexural properties (ductile coating) exhibited minor and rough cracks as compared to that of coating with low flexural properties (brittle coating) which displayed a crack with a clean linear cut. Brittle coating was highly agglomerated and has a significant negative effect on the flexural properties. By developing the optimum composition, the GCC may potentially be a good alternative as a building construction coating material. View Full-Text
Keywords: rice husk ash; geopolymer composite coating; response surface methodology; flexural strength; flexural modulus rice husk ash; geopolymer composite coating; response surface methodology; flexural strength; flexural modulus
Show Figures

Figure 1

MDPI and ACS Style

Basri, M.S.M.; Mustapha, F.; Mazlan, N.; Ishak, M.R. Optimization of Rice Husk Ash-Based Geopolymers Coating Composite for Enhancement in Flexural Properties and Microstructure Using Response Surface Methodology. Coatings 2020, 10, 165.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
