Review

Phosphoethanolamine Transferases as Drug Discovery Targets for Therapeutic Treatment of Multi-Drug Resistant Pathogenic Gram-Negative Bacteria

by
Van C. Thai
1,
Keith A. Stubbs
2,
Mitali Sarkar-Tyson
1 and
Charlene M. Kahler
1,*
1
The Marshall Center for Infectious Diseases Research and Training, School of Biomedical Sciences, University of Western Australia, Crawley, WA 6009, Australia
2
School of Molecular Sciences, University of Western Australia, Crawley, WA 6009, Australia
*
Author to whom correspondence should be addressed.
Antibiotics 2023, 12(9), 1382; https://doi.org/10.3390/antibiotics12091382
Submission received: 4 August 2023 / Revised: 25 August 2023 / Accepted: 26 August 2023 / Published: 29 August 2023
(This article belongs to the Special Issue Alternatives to Antibiotics: Bacteriocins and Antimicrobial Peptides, 2nd Edition)
Browse Figures
Review Reports Versions Notes

Abstract

:
Antibiotic resistance caused by multidrug-resistant (MDR) bacteria is a major challenge to global public health. Polymyxins are increasingly being used as last-in-line antibiotics to treat MDR Gram-negative bacterial infections, but resistance development renders them ineffective for empirical therapy. The main mechanism that bacteria use to defend against polymyxins is to modify the lipid A headgroups of the outer membrane by adding phosphoethanolamine (PEA) moieties. In addition to lipid A modifying PEA transferases, Gram-negative bacteria possess PEA transferases that decorate proteins and glycans. This review provides a comprehensive overview of the function, structure, and mechanism of action of PEA transferases identified in pathogenic Gram-negative bacteria. It also summarizes the current drug development progress targeting this enzyme family, which could reverse antibiotic resistance to polymyxins to restore their utility in empiric therapy.

1. Introduction

Antimicrobial resistance (AMR) has been identified by the World Health Organization (WHO) as one of the most pressing threats to global public health [1]. The emergence of novel AMR mechanisms is leading to the mismanagement of commonly occurring infectious diseases, thereby prolonging transmission chains, and exacerbating morbidity and mortality rates [2]. The treatment of AMR infections is associated with significantly higher healthcare costs relative to the treatment of common infections, as delayed care in these patients may necessitate prolonged hospitalization, increase the risk of intensive care, and require diagnostics-driven point-of-care testing for AMR and non-standard therapeutic pathways [3]. In 2016, O’Neill et al. [4,5] reported that 700,000 people worldwide die annually due to antimicrobial-resistant infections, and this number is projected to reach 10 million cases by 2050, costing global healthcare systems nearly $8 trillion [4,5]. A recent systematic analysis showed that 4.95 million deaths in 2019 were associated with bacterial AMR, indicating that the forecasts by O’Neill et al. [4,5] are gradually becoming a reality.
In 2017, WHO published a list of antibiotic-resistant “priority pathogens,” including 12 bacterial species that require urgent research and development of novel antibiotics [6]. Infections caused by these species are generally more difficult, and sometimes impossible, to treat as they are resistant to most first-in-line antibiotics (e.g., β-lactams, aminoglycosides, and fluoroquinolones) [6]. The majority of pathogens in the WHO’s list are Gram-negative bacteria, including Acinetobacter baumannii, Pseudomonas aeruginosa (P. aeruginosa), Enterobacteriaceae, Neisseria gonorrhoeae, Helicobacter pylori, Campylobacter spp., Salmonellae, Haemophilus influenzae, and Shigella spp. [6]. Gram-negative bacteria exhibit higher antibiotic resistance than Gram-positive bacteria due to their outer membrane (OM) enclosing the cell wall, which impedes the permeability of antibiotics to reach their intended targets in the periplasm and cytosol [7].
Polymyxins, including polymyxin B (PxB) and colistin, are cationic antimicrobial peptides (CAMPs) that are primarily used as a last-in-line treatment of infections caused by multidrug-resistant (MDR) Gram-negative bacteria, particularly carbapenem-resistant A. baumannii, P. aeruginosa, and Enterobacteriaceae [8]. Polymyxins exhibit their antibacterial activity by targeting the bacterial OM and binding to the negatively charged phosphate groups of lipid A on lipopolysaccharides (LPS)/lipooligosaccharide (LOS) via the α, γ-diaminobutyric acid residue of the positively charged polymyxin [9]. This binding leads to increased permeability and the loss of bacterial membrane integrity, which ultimately results in bacterial cell lysis.
Unfortunately, bacteria have evolved numerous mechanisms to develop resistance to polymyxins, including the targeted modification of LPS/LOS, reduced production of LPS/LOS or lipid A, increased expression of efflux systems, altered expression of OM proteins, and increasing production of anionic capsular polysaccharide [10]. In pathogenic Gram-negative bacteria, the modification of lipid A headgroups on LPS/LOS with cationic residues (e.g., phosphoethanolamine (PEA) and 4-amino-4-deoxy-L-arabinose (L-Ara4N)) has been reported to be the primary mechanism of resistance by disrupting the interaction between polymyxin and lipid A to confer high-level polymyxin resistance (Figure 1a) [10,11].

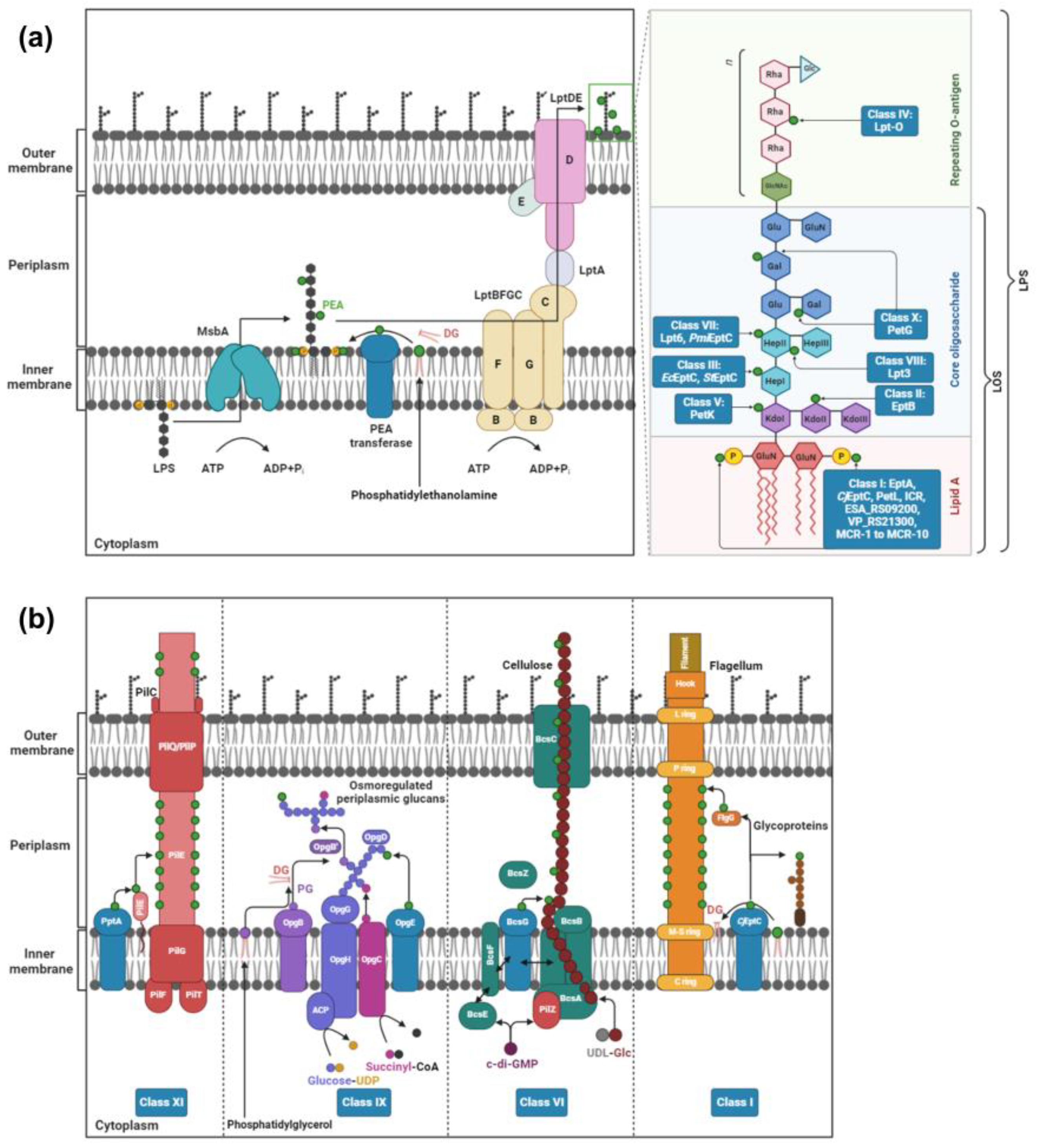

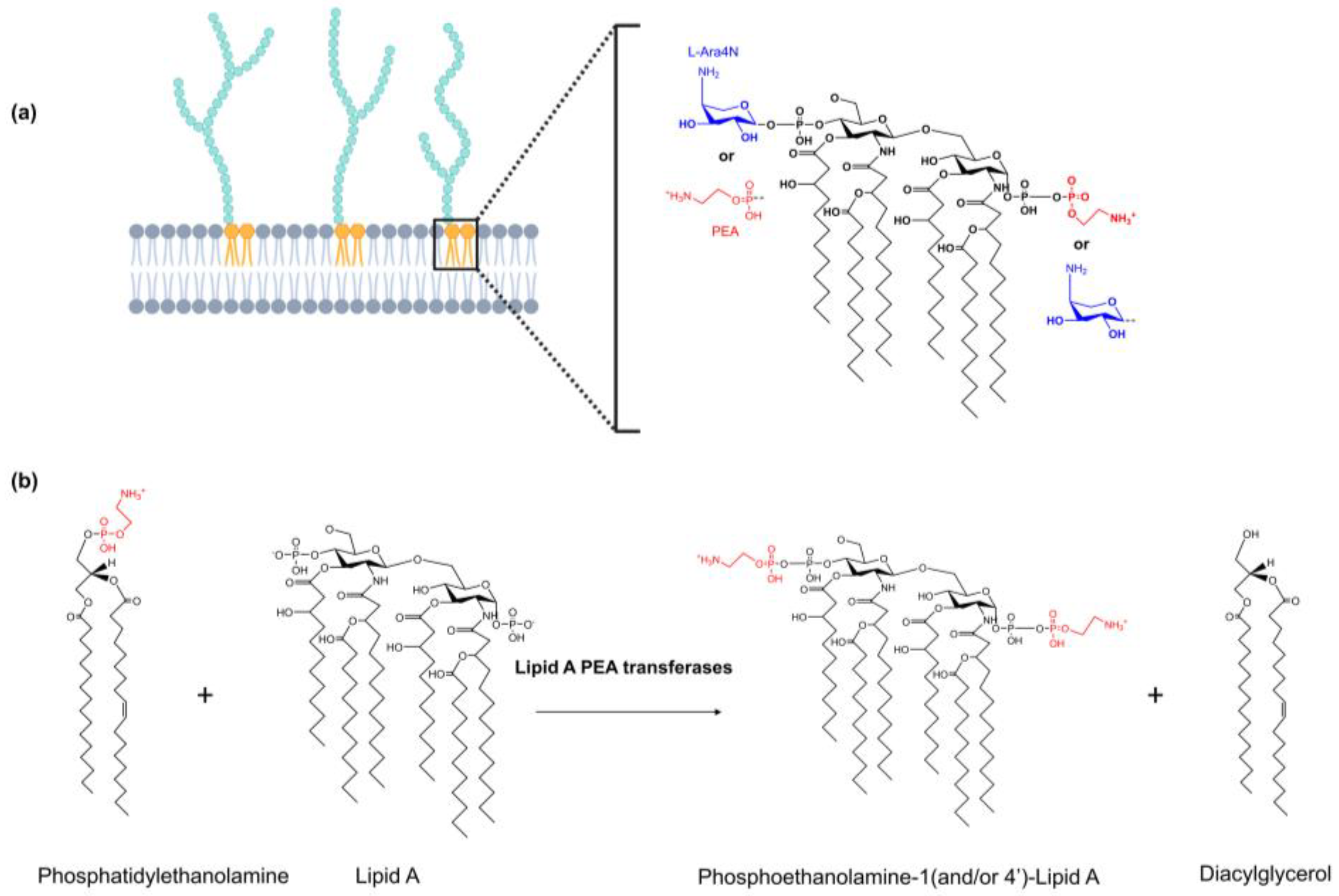

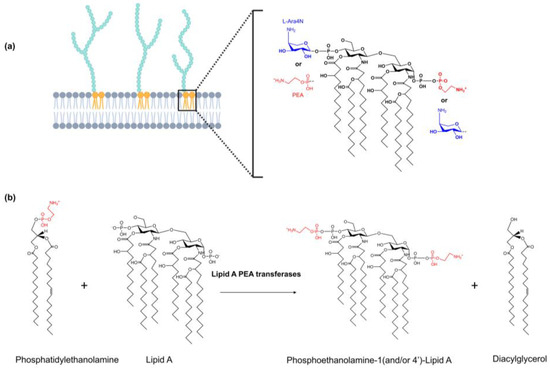

The modification of lipid A headgroups with PEA occurs in the periplasm, where the PEA moiety is transferred from phosphatidylethanolamine (PE) to the 1 and/or 4′ position on Lipid A to form PPEA-Lipid A (Figure 1b) [12,13]. Unlike L-Ara4N modification, which is generally catalyzed by the chromosome-encoded enzymes, the decoration of PEA to the lipid A headgroups is catalyzed by the family of PEA transferases, which can be found on core genomes, genetic islands, or plasmids of many Gram-negative bacteria [14]. The following literature review endeavours to provide a systematic summary of the fundamental functions, structures, and mechanisms of action exhibited by PEA transferases that have been identified in pathogenic Gram-negative bacteria. Additionally, this review aims to outline the current progress in drug development targeting this family of enzymes.

2. PEA Transferases

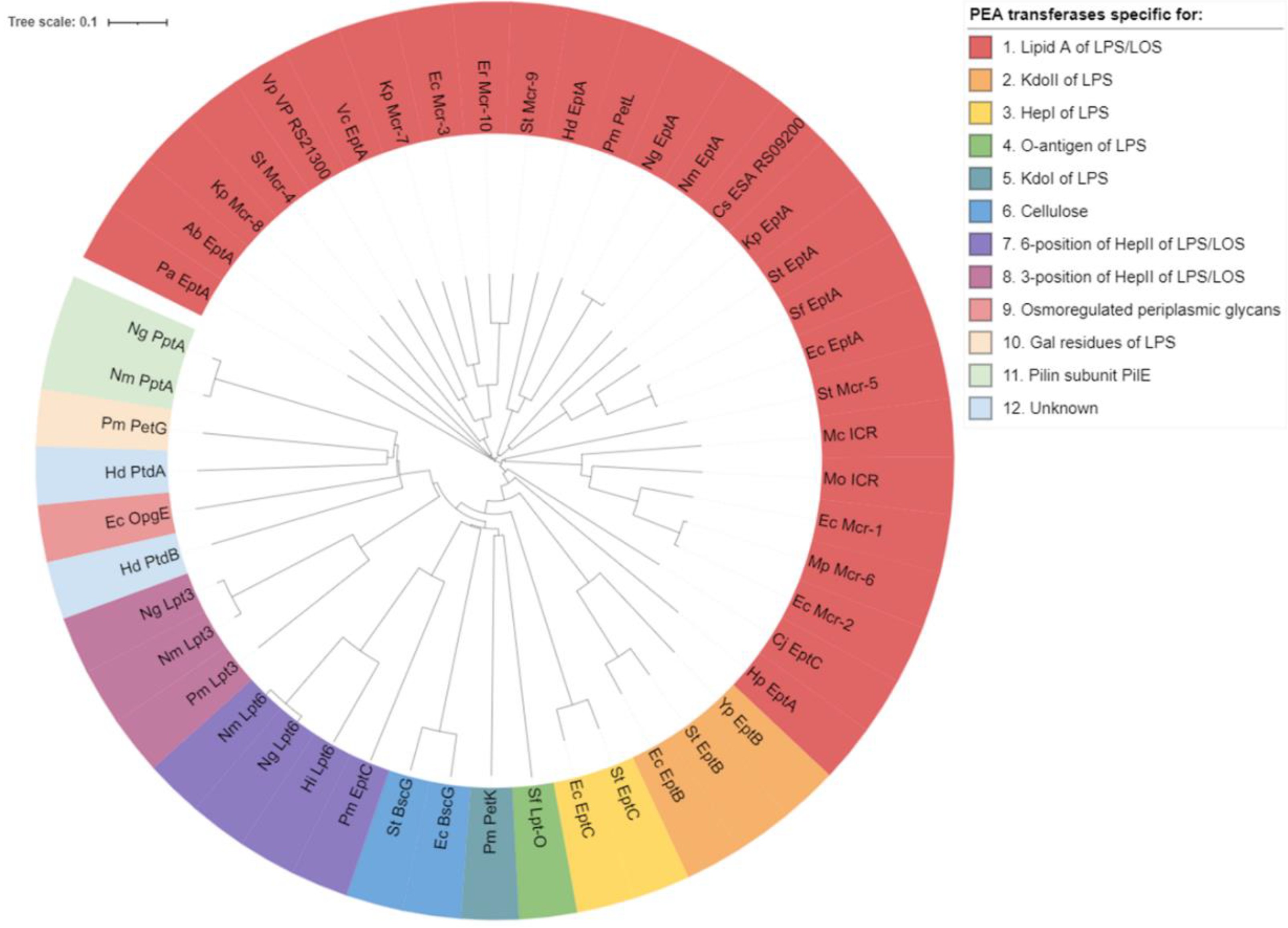

PEA transferases are members of the alkaline phosphatase superfamily (IPR017850), which are primarily responsible for attaching PEA to lipid A headgroups of LPS/LOS in Gram-negative bacteria to confer CAMP resistance [15]. Recent evidence has revealed the existence of diverse PEA transferases in pathogenic Gram-negative bacteria, which facilitate PEA-dependent modifications on multiple sites of proteins and glycans [16,17]. Previously, Harper et al. [18] conducted a comprehensive phylogenetic analysis of known and predicted PEA transferases, identifying five distinct families based on their substrate specificity. These families include PEA transferases that are specific to the lipid A headgroups, the O-3 position of HepII, the O-6 position of HepII, Gal residues, and Kdo in the inner core of LOS/LPS [18]. However, PEA transferases are also involved in catalyzing the addition of PEA to HepI of LPS [19,20,21,22,23], O-antigen [24], cellulose [25,26,27], osmoregulated periplasmic glucans [28], and periplasmic proteins [29,30,31] (Figure 2). Considering the evolutionary relationships between different PEA transferases and their substrate specificity (Figure 3 and Table 1), we propose a refined classification of PEA transferases into 11 distinct subclasses. The detailed regulatory framework for each class of PEA transferases is described below.

2.1. Class I: Lipid A PEA Transferases

Lipid A PEA transferase or EptA (also called LptA, PmrC, or YjdB in different Gram-negative bacteria), was first identified in Neisseria meningitidis [12], and was subsequently shown to be prevalent among clinically relevant Gram-negative bacteria (Table 1 and Figure 2a). In Neisseria spp., EptA is the only genomic island-encoded lipid A-modifying enzyme, which transfers PEA to both the 1- and 4′-positions on lipid A to form PPEA-Lipid A; however, the 4′-position is preferable [12]. Notably, the modification of the lipid A headgroups with PEA is specific for neisserial pathogens (N. meningitidis and N. gonorrhoeae) as the EptA-genomic island is not found in commensal Neisseria spp. [50]. In pathogenic Neisseria, it was reported that PPEA-Lipid A elicits a stronger cytokine response in THP-1 monocytes than the commensal strains expressing undecorated lipid A [50]. The inactivation of eptA in pathogenic Neisseria, results in the complete loss of the PEA groups from lipid A and causes the loss of gonococcal colonization of epithelial cells [45]. Similarly, in a pathogenicity study of N. meningitidis, the inactivation of EptA resulted in approximately 10-fold reduction in bacterial adhesion to human epithelial and endothelial cells [45]. EptA mutants are more susceptible to killing by human PMNs [51], the complement pathway [47] and cationic antimicrobial peptides (CAMPs), such as PxB (PxB), LL-37 (a human cathelicidin) and mouse cathelicidin, CRAMP-38 [46,47,48]. Additionally, modification of the lipid A moiety has been known to reduce autophagic flux in macrophages and enhance gonoccocal survival during the killing by macrophages [52]. Ultimately, the removal of EptA expression in N. gonorrhoeae results in a complete clearance of the bacterium from mice and human models of infection [43].
In Escherichia coli, Salmonella enterica Typhymurium, and P. aeruginosa, however, the modification of lipid A with L-Ara4N residue is more common compared to PEA modification [33,40,100]. EptA can catalyze the addition of PEA residues to both 1- and 4′-phosphate group of Lipid A; however, the reaction at 4′-position only occurs when L-Ara4N is absent [33,40]. L-Ara4N fully neutralizes the negative charge of lipid A, while PEA only decreases it by 0.5. (from −1.5 to 1.0) [33,100], thus conferring an advantage for this hierarchy of lipid A headgroup decoration. Both L-Ara4N and PEA modifications of lipid A decrease the affinity of CAMPs to the bacterial outer membrane, thus promoting CAMP resistance. Intriguingly, Vibrio cholerae serogroup O1 consists of two biotypes, Classical and El Tor, but only current pandemic El Tor biotype isolates exhibit CAMP resistance through glycine or diglycine modification of lipid A acyl chain and PEA modification of lipid A headgroups [41,42]. These modifications are catalyzed by AlmEFG and EptA, respectively [41,42]. Previous studies revealed that eptA expression in V. cholerae El Tor only occurs in mildly acidic growth conditions (pH = 5.8) where lipid A glycinylation is absent [41]. Altogether, it is suggested that EptA-mediated modification of lipid A is the secondary mechanism contributing to the CAMP resistance in these pathogens.
In contrast to the previous examples, H. pylori PEA transferase decorates only the 1-phosphate headgroup, due to the absence of the 4′-phospate group on the lipid A headgroup [38,39]. Two-enzymatic steps are required for this decoration. Firstly, the 1-phosphate group on the lipid A headgroup is removed by LpxEHP (Hp0021, Lipid A phosphatase), followed by the second step of incorporating the PEA residue by EptA (Hp0022) [38]. In Haemophilus ducreyi the addition of PEA to the lipid A headgroups of LOS is required for human defensin resistance but not for cathelicidin LL-37 and human serum resistance, or virulence in a human model of H. ducreyi infection [53]. In addition to EptA, the genome of H. ducreyi also contains two additional PEA transferases, namely, PtdA and PtdB, which also confer resistance to human defensins, but the exact modification site of these transferases is not clear [53,101].
The addition of PEA to the 4′-phosphate headgroup of lipid A, which is facilitated by ESA_RS09200 in Cronobacter sakazakii strain BAA894 (grown at pH 5 but not pH 7), confers resistance to CAMP, decreases recognition by the immune system through TLR4/MD2 cascade signaling, and increases the evasion of phagocytosis [54]. VP_RS21300 is a PEA transferase found in Vibrio parahaemolyticus ATCC33846 that selectively modifies lipid A headgroups with PEA, resulting in enhancing pathogenicity in RAW264.7 cells and providing resistance to polymyxins [55]. In Pasteurella multocida, the PEA modification of lipid A headgroups is catalyzed by PetL, resulting in CAMP cathelicidin-2 resistance [18]. ICR, chromosome-encoded intrinsic colistin resistance PEA transferase, found in Moraxella spp., has been reported to modify the 1 (or 4′)-phosphate position of the lipid A headgroup and contributes to colistin resistance [15,57,102]. In addition to the modification of lipid A moieties, Wei et al. [15] showed that the expression of Moraxella osloensis ICR in E. coli significantly prevents the generation of reactive oxygen species (ROS) triggered by colistin to kill bacteria.
In 2016, Liu et al. [71] reported the emergence of the first plasmid-mediated colistin resistance gene mcr-1 in Enterobacteriaceae, which was isolated from animals and humans in China. Like EptA, this transmissible PEA transferase mediates 4′-PEA modification of the lipid A headgroups on LPS, conferring polymyxin resistance [71,103]. Shortly afterward, mcr-2 was identified in colistin-resistant E. coli isolated from calves and piglets in Belgium [72]. mcr-2 has 77% nucleotide sequence identity to mcr-1 and exhibits high level colistin resistance (4–8 mg/L) [72]. Kieffer et al. [102] showed strong evidence that these transferases potentially originated from Moraxella spp. which possess mcr-like genes with high nucleotide sequence identity (67–70%) to mcr-1/2. In addition, both the mcr-1/2 and mcr-like sites are flanked by the pap2 gene, a membrane-associated lipid phosphatase [102]. The occurrence of mcr-3 to mcr-10 in Enterobacteriaceae was reported shortly afterwards [58,59,60,61,62,63,64,65]; however, mcr-1 is still the most prevalent [104]. The mechanism regulating the expression of mcr-1 is not well understood, but typically involves regulation by the gene’s promoter as well as activators and/or inhibitors [105]. In a recent study by Yang et al. [106], the authors observed that the over-expression of mcr-1 confers high-level colistin resistance in E. coli; however, it reduced the bacterial fitness and displayed highly attenuated virulence in a Galleria mellonella (wax moth) model of infection. Their findings further demonstrated that the expression of mcr-1 must be strictly controlled in order to maintain both bacterial fitness and colistin resistance [106]. Of note, Yin et al. [107] showed that the expression of mcr-3 not only confers colistin resistance in Aeromonas salmonicida and E. coli but also increases pathogenicity and impairs host phagocytosis. In addition to Enterobacteriaceae, mcr genes were also identified in P. aeruginosa [66,67] and Acinetobacter spp. [68,69], respectively. Recently, this family of PEA transferases has spread globally (69 countries), with the potential to create new superbug infections [104].
Cullen et al. [75] first identified Campylobacter jejuni EptC (CjEptC), which catalyzes the addition of PEA to 1- and 4′-phosphate groups of lipid A headgroups. In addition to lipid A headgroups, CjEptC is able to catalyze the addition of PEA to other cell-surface residues (Table 1 and Figure 2a,b), including FlgG flagellar rod protein [75], N-linked glycan [76], and the 1st heptose (HepI) of the inner core region of LOS [77]. Deletion of eptC in C. jejuni showed a 2.4- to 23-fold increase in susceptibility to all tested CAMPs (i.e., PxB, HBD-2, LL-37, P-113, and GAL-6) [77]. Moreover, C. jejuni strains lacking eptC showed a significant decrease in mobility, flagella production [75], recognition by the TLR4/MD2 complex, and colonization of chick ceca and BALB/cByJ mice, when compared to the WT strains [77], indicating the importance of eptC in the pathogenesis. In another study, an insertional mutation of eptC significantly decreased biofilm formation (>20%) of C. jejuni NCTC11168 on glass and polystyrene surfaces, which are the major food contact surfaces [78].

2.2. Class II: PEA Transferases That Modify KdoII of LPS

Kanipes et al. [80] reported the appearance of a KdoII-linked PEA residue on the LPS of a heptose-deficient E. coli mutant strain WBB06 when the cells were grown in the medium containing CaCl2 (5–50 mm) but not in the standard LB broth. A later study confirmed that EptB (formerly called YhjW) (Table 1 and Figure 2a) is responsible for this modification [81]. The function of EptB-dependent modification of PEA is similar to that of EptA, reducing the negative charge of LPS to develop resistance to PxB [84].
The genome of S. enterica Typhimurium also encodes EptB, which specifically catalyzes PEA modification of KdoII in the inner core of LPS [85,86]. A previous study showed that LPS isolated from the eptB mutant S. enterica Typhimurium but not WT is bound by intelectin, a host protein, which binds to and detoxifies LPS [85]. Consistently, the inactivation of eptB was reported to reduce the expression of inflammatory cytokines in the spleen of infected mice [85]. These results suggested the importance of eptB in promoting systemic inflammation during infection caused by S. enterica Typhimurium.
The eptB gene has also been identified in the genome of Yersinia pestis, which shares a high sequence identity (63%) and has an absolute functional identity to the E. coli eptB [87]. The incorporation of a PEA moiety on Kdo was detected in the LPS of wild-type Y. pestis grown at very low temperature (6 °C) while in the same cultivation conditions no PEA was revealed in the LPS of the eptB mutant strain [88,89]. Mass spectra analysis of certain Y. pestis strains grown at 25 °C also consisted of PEA residue on the LPS [108]. This decoration of PEA is supposed to decrease the susceptibility of Y. pestis to the CAMPs produced by the wintering flea [90].

2.3. Class III: PEA Transferases That Modify HepI of LPS

In E. coli, EptC catalyzes the incorporation of PEA to the Hep I phosphate group of the LPS inner core (Table 1 and Figure 2a) [19]. This modification is thought to increase the sensitivity of bacteria to SDS and sublethal concentrations of Zn2+, suggesting that EptC-dependent modification is critical for outer membrane stability [19]. A more recent study found that the PEA moiety incorporated onto the Hep I of LPS contributes to PxB resistance by reducing the OM-permeabilizing activity and binding of PxB to the LPS; however, sensitivity towards sodium dodecyl sulfate (SDS) or novobiocin remained unchanged [20]. Similar to E. coli, the homologue CptA (or EptC) identified in S. enterica Typhimurium is also required for the addition of PEA to Hep I in the core region of LPS [22]. Interestingly, this modification showed a modest effect on PxB resistance and did not impair virulence in the mouse model [22,23].

2.4. Class IV: PEA Transferases That Modify O-Antigen

Lpt-O is a plasmid-encoded PEA transferase found in Shigella flexneri that mediates the addition of PEA residues to the 3-position of RhaII on O-antigen (Table 1 and Figure 2a), conferring the MASF IV-1 positive phenotype in serotype Xv strains [24]. The authors hypothesized that this novel mechanism of O-antigen modification may provide the bacterium with a significant fitness advantage, as evidenced by the prevalence of serotype Xv in China [24].

2.5. Class V: PEA Transferases That Modify KdoI

In addition to PetL, which is specific for the modification of lipid A headgroups, Harper et al. [18] also identified a PEA transferase PetK in P. multocida (Table 1 and Figure 2a). The expression of PetK, which catalyzes PEA modification at KdoI of LPS, is essential for resistance to the CAMP cathelicidin-2 [18].

2.6. Class VI: PEA Transferases That Modify Cellulose

Many bacteria are known to produce cellulose, which is a major component of the self-produced extracellular matrix in biofilms [26]. The biosynthesis and export of cellulose in bacteria is typically controlled by the bacterial cellulose synthesis (Bcs) complex (Table 1 and Figure 2b), consisting of the bcsABZC operon [109]. Using solid-state NMR, Thongsomboon et al. [26] identified a novel chemically modified cellulose, so-called PEA cellulose, in E. coli and S. enterica. The modification of cellulose with PEA is catalyzed by BcsG, with the input of cyclic diguanylate monophosphate (c-di-GMP) via a BcsEFG transmembrane signaling pathway [25,26,27]. Eliminating bcsG changes the biofilm’s architecture and integrity [25,26,27].

2.7. Class VII: PEA Transferases Modifying O-6 Position of HepII of the LPS/LOS

A study conducted using some N. meningitidis (meningococci) strains possessing PEA at the O-6 position of HepII identified another transferase, named Lpt6 (Table 1 and Figure 2a), which is encoded by lpt6, located on an exchangeable island next to lgtG, a galactosyl-transferase [91,110]. Both Lpt6 and LgtG compete for the same attachment site, O-6, on L,D-Hep II. Ram et al. [111] indicated that the binding of complement component C4b (C4b) to the PEA at the O-6 position of HepII was more efficient than to the PEA at the O-3 position, and thereby meningococcal strains harboring PEA-linked to the O-6 position were more sensitive to complement-mediated killing. The high prevalence of meningococcal strains with PEA modification observed at the O-3 position of HepII compared to the O-6 position could be explained by their ability to avoid the clearance of serum via the classical complement pathway [91,97,111]. However, there is no existing evidence in which Lpt6 contributes to CAMP resistance in both N. meningitidis and N. gonorrhoeae [91,93]. Previous structural studies revealed that H. influenzae strains always possess PEA on HepII of LPS [91,94]. Consistent with this, the Lpt6 homologue, which has 75.5% similarity to N. meningitidis Lpt6, has been identified in all of H. influenzae isolates [91].
The eptC gene identified in the genome of Proteus mirabilis encodes a PEA transferase EptC, which also involves the transferring of PEA to the O-6 position of L,D-Hep II [95]. In P. mirabilis, alterations of LPS with both PEA and L-Ara4N are required for intrinsic resistance to polymyxins [96]. However, some P. mirabilis strains isolated from animals do not require EptC for PxB resistance [112]. This observation suggests that L-Ara4N-linked LPS could be the main mechanism of PxB resistance.

2.8. Class VIII: PEA Transferases That Modify the O-3 Position of HepII of LOS

Lpt3 was first identified in N. meningitidis by Mackinnon et al. [97] and is responsible for the addition of PEA to the O-3 position of the HepII residue of the LOS (Table 1 and Figure 2a). Interestingly, the incorporation of PEA into the inner core of LOS is required for the interaction of the monoclonal antibody B5 to a surface-accessible epitope [97,98]. Inactivation of lpt-3 resulted in abolishing mAb B5 reactivity and thus decreased the susceptibility of N. meningitidis to killing and opsonophagocytosis of mAb B5 [97]. Lpt3 in N. gonorrhoeae FA1090 also mediates the modification of the O-3 position of HepII by PEA [99]. Insertional inactivation of lpt3 did not influence the susceptibility of gonococci to PxB [93,99]. Homologues of lpt3 have been identified in other Gram-negative bacteria such as P. multocida [56]. This gene is also phase variable and responsible for the serotyping of P. multocida [56].

2.9. Class IX: PEA Transferases That Modify Osmoregulated Periplasmic Glucans

A PEA transferase, namely OpgE, has been identified in E. coli, which transfers a PEA moiety to osmoregulated periplasmic glucans (Table 1 and Figure 2b) [28]. However, the role of this modification remains unclear.

2.10. Class X: PEA Transferases That Modify Gal Residues of LPS

PetG identified in P. multocida has been shown to modify Gal residues of the LPS with PEA (Table 1 and Figure 2a) [18]. The role of this modification remains unclear; however, it is not required for CAMP resistance [18].

2.11. Class XI: PEA Transferases That Modify the Pilin Subunit PilE

Pilin phosphorylcholine transferase A (PptA) was first found in N. meningitidis and plays a role in catalyzing the attachment of phosphorylcholine to the pilin (Table 1) [29]. Subsequently, this transferase was reported in N. gonorrhoeae and can modify the PilE protein subunit of the type IV pilus with both phosphorylcholine and PEA (Figure 2b) [30,31]. Although the mechanism regulating the expression of pptA is not yet understood, the PptA-dependent modifications are thought to influence pilin structure and antigenicity [30,31]. It is thought that PptA has a broader substrate range as it has been shown to decorate at least two other periplasmic lipoproteins [113].

3. Regulation of PEA Transferase Expression in Pathogenic Gram-Negative Bacteria

In most Gram-negative bacteria, the expression of Class I eptA genes is directly regulated by the sensor kinase PmrA/B two-component system in response to multiple environmental signals: For example, Fe3+, Al3+, or mild acidic pH (Figure 4) [14,23,33,35]. Also, the PhoP/Q sensor kinase two-component system, which is highly conserved among Gram-negative bacteria, indirectly regulates the expression of eptA in response to divalent cations (i.e., Mg2+, Ca2+, low Ph, and CAMPs) [14,23,33,37]. In P. aeruginosa, eptA is induced by a zinc signal via the ColR/S two-component system [40]. Transcriptomic analysis of P. multocida showed that the global regulator Fis and Hfq-dependent sRNA regulate the expression of petL both positively and negatively [18]. The expression of eptA in N. meningitidis and N. gonorrhoeae is regulated by stochastic expansion and contraction of a homopolymeric tract in the open reading frame and positively by the MisR/S two-component system, the signal for which remains unknown [114,115,116,117].
Antibiotics 12 01382 g004

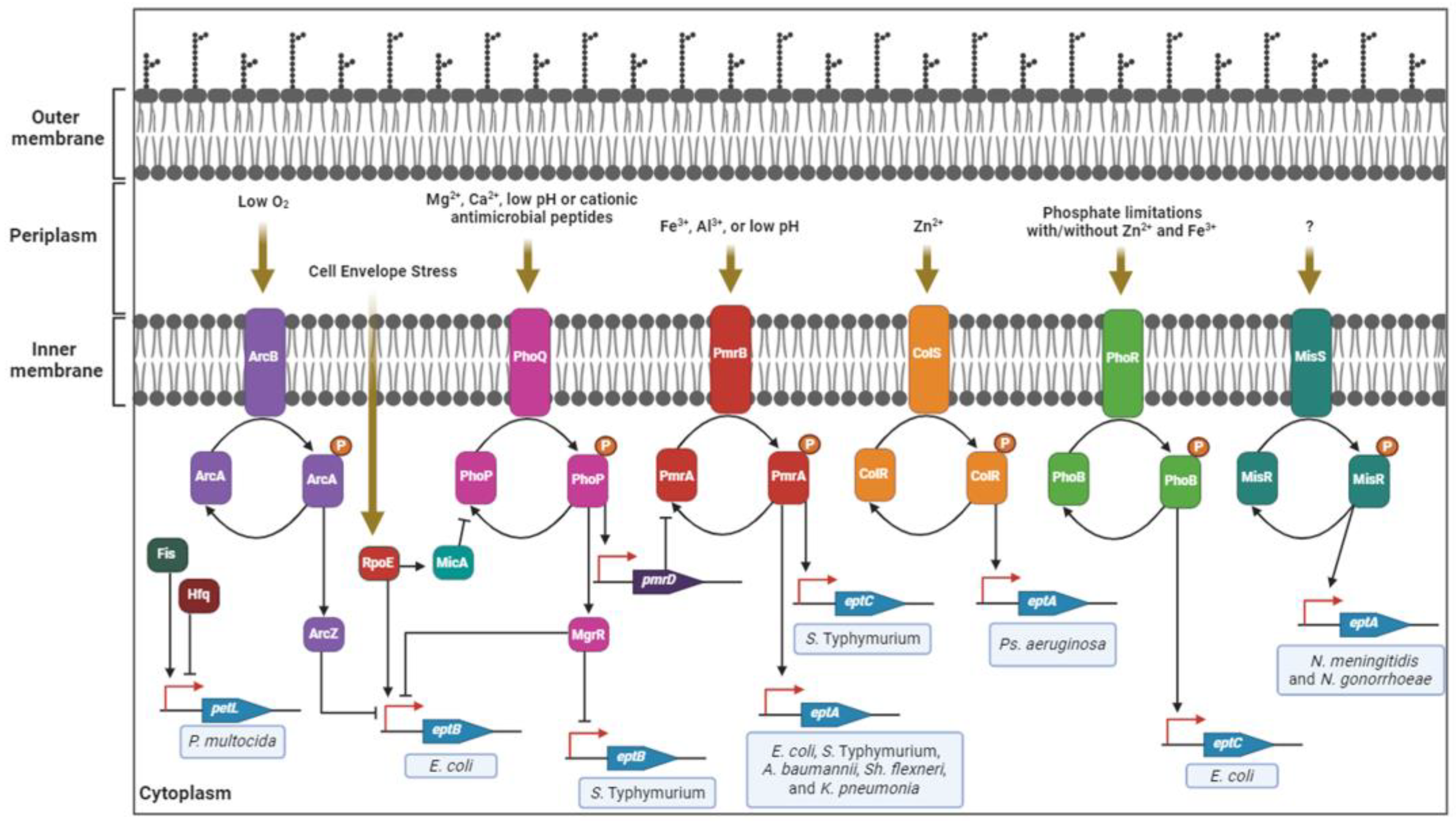

Figure 4. Regulatory pathways to control the expression of PEA transferases in pathogenic Gram-negative bacteria. In several Gram-negative bacteria, the expression of eptA is regulated by the two-component systems PhoP/Q and PmrA/B in response to multiple environmental signals [14,23,33,35]. In P. aeruginosa, the expression of eptA is regulated by a zinc signal via the ColR/S two-component system [40]. The expression of petL in P. multocida is positively and negatively regulated by the global regulator Fis and Hfq-dependent sRNA [18]. The expression of eptA in N. meningitidis and N. gonorrhoeae is positively regulated by the MisR/S two-component system [114,115,116,117]. The expression of eptB is regulated by the sRNA ArcZ via ArcA/B two-component system or sigma factor RpoE and/or sRNA MgrR [82,83]. Two-component systems PmrA/B and PhoB/R regulate the expression of S. enterica Typhymurium eptC and E. coli eptC, respectively [19,22,83]. This figure was created using Biorender.
Figure 4. Regulatory pathways to control the expression of PEA transferases in pathogenic Gram-negative bacteria. In several Gram-negative bacteria, the expression of eptA is regulated by the two-component systems PhoP/Q and PmrA/B in response to multiple environmental signals [14,23,33,35]. In P. aeruginosa, the expression of eptA is regulated by a zinc signal via the ColR/S two-component system [40]. The expression of petL in P. multocida is positively and negatively regulated by the global regulator Fis and Hfq-dependent sRNA [18]. The expression of eptA in N. meningitidis and N. gonorrhoeae is positively regulated by the MisR/S two-component system [114,115,116,117]. The expression of eptB is regulated by the sRNA ArcZ via ArcA/B two-component system or sigma factor RpoE and/or sRNA MgrR [82,83]. Two-component systems PmrA/B and PhoB/R regulate the expression of S. enterica Typhymurium eptC and E. coli eptC, respectively [19,22,83]. This figure was created using Biorender.
Antibiotics 12 01382 g004
The expression of Class II eptB in E. coli requires a complex regulatory system [82] (Figure 4). In brief, the transcription of eptB is positively and negatively regulated by the RNA polymerase sigma factor RpoE and sRNA MgrR, respectively [82,83]. In a phoP+ strain, high concentrations of Ca2+ represses MgrR, and allows for the expression of EptB under conditions inducing RpoE expression [82]. Another level of regulation is controlled by ArcZ, a sRNA that negatively regulates eptB in a two-component system ArcA/B-dependent manner in response to a low concentration of oxygen [82,83]. In S. enterica Typhimurium, the expression of eptB is negatively regulated by the sRNA, MgrR [86].
The expression of Class III eptC in E. coli is positively regulated by the PhoB/R two-component system in response to phosphate-limiting growth conditions with or without Zn2+ and Fe3+ [19,83]. Interestingly, the expression of EptC was also observed at basal levels without a requirement for regulation [19,83]. Unlike E. coli, S. enterica Typhimurium eptC is positively regulated by the PmrA/B two-component regulatory system [22].
Further studies are required to elucidate the regulatory networks of the remaining classes of PEA transferases.

4. Structure of PEA Transferases

4.1. Overall Structure

PEA transferases are integral membrane proteins comprised of an N-terminal 5′-helix transmembrane domain and a periplasm-facing C-terminal catalytic domain. Recently, the full-length structure of N. meningitidis EptA (NmEptA) was successfully determined (PDB: 5FGN; Figure 5a) [13]. The N-terminal domain of NmEptA has 5 transmembrane α-helices (TMH1-TMH5) positioned approximately parallel to each other, spanning the inner membrane [13]. Two periplasmic facing helices (PH2 and PH2′) are revealed on the long loop, which links between TMH3 and TMH4 [13]. These helices contain both non-polar residues oriented towards the membrane and polar residues oriented towards the periplasm that have been proposed to create the barriers to the substrate binding site of PEA donor lipid [13]. Of these 5 helices, TMH5 is the longest and has adequate length (35 Å) to span the full width of a membrane bilayer (30 Å) while the other four appear shorter than 30 Å [13].
A bridging helix and an extended periplasmic loop coordinate the transmembrane domain with the catalytic domain. Two amphipathic helices (PH3 and PH4) were found on the extended periplasmic loop that adopts a 310 configuration [13]. The presence of positively charged residues (Lys142, Lys144, Arg146, and Lys150) at the end of TMH5 close to the cytoplasmic facing surface is assumed to contribute to the interactions with the phospholipid head groups at the inner membrane [13]. Structural modelling of MCR-1, which used the full-length NmEptA as a template, indicated that the structure of the transmembrane domain of MCR-1 is similar to that of NmEptA with an overall positive charge [118]. Several patches of positively charged R/K amino acids found in the transmembrane region of MCR-1 are proposed to interact with the negatively charged phospholipid head groups of the membrane bilayers [118]. These interactions are required for the stabilization and correct orientation of MCR-1 on the inner membrane, which is essential for catalytic activity [119,120]. Another study revealed that the removal of the TM domain of MCR-2 fully impaired the ability of this enzyme to confer colistin resistance [120].
The crystal structure of the catalytic domain of multiple PEA transferases from Classes I, III and VI, have been solved and they adopt a similar alkaline phosphatase family α/β/α fold, composed of a central seven-stranded β-sheet enveloped by two layers of α-helices (Figure 5b).
Antibiotics 12 01382 g005

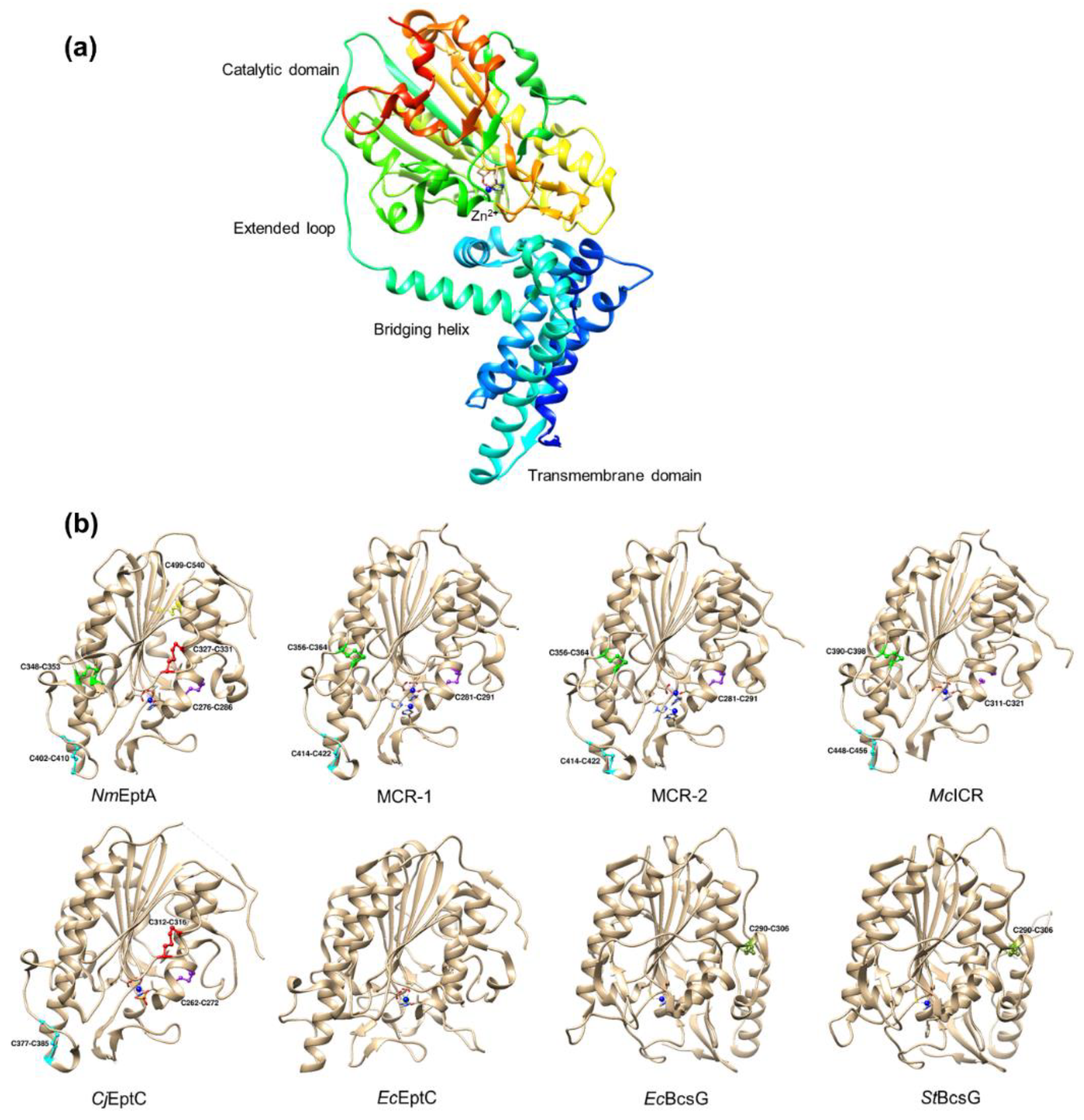

Figure 5. Crystal structure of PEA transferases. Panel (a). The full-length crystal structure of Neisseria meningitidis EptA (NmEptA). The NmEptA structure (PDB: 5FGN) consists of an N-terminal 5′-helix transmembrane domain and a periplasm-facing C-terminal catalytic domain, which are coordinated by a bridging helix and an extended periplasmic loop [13]. Panel (b). Comparison of the disulfide bonds identified in the catalytic domain of PEA transferases. The catalytic domain of NmEptA (PDB: 5FGN) contains five disulfide bonds (DB 1–5), including Cys276– Cys286 (DB1; Purple), Cys327–Cys331 (DB2; Red), Cys348–Cys353 (DB3; Green), Cys402–Cys410 (DB4; Cyan), and Cys499–Cys540 (DB5; Yellow) [13]. The catalytic domain of MCR-1 (PDB: 5GRR) [121] and MCR-2 (PDB: 5MX9) [122] contain three conserved disulfide bonds, including DB1, DB3, and DB4. The catalytic domain of McICR (PDB: 6BNF) has two conserved bonds (DB3 and DB4) and one reduced bond (DB1) [57]. CjEptC (PDB: 4TN0) has three conserved bonds (DB1, DB2, and DB4) compared to those of NmEptA [79]. EcEptC (PDB: 6A83) lacks disulfide bonds [21]. EcBcsG (PDB: 6PCZ) [25] and StBcsG (PDB: 5OLT) [27] contain a distinct disulfide bond (Cys290–Cys306). This figure was visualized using UCSF Chimera [123].
Figure 5. Crystal structure of PEA transferases. Panel (a). The full-length crystal structure of Neisseria meningitidis EptA (NmEptA). The NmEptA structure (PDB: 5FGN) consists of an N-terminal 5′-helix transmembrane domain and a periplasm-facing C-terminal catalytic domain, which are coordinated by a bridging helix and an extended periplasmic loop [13]. Panel (b). Comparison of the disulfide bonds identified in the catalytic domain of PEA transferases. The catalytic domain of NmEptA (PDB: 5FGN) contains five disulfide bonds (DB 1–5), including Cys276– Cys286 (DB1; Purple), Cys327–Cys331 (DB2; Red), Cys348–Cys353 (DB3; Green), Cys402–Cys410 (DB4; Cyan), and Cys499–Cys540 (DB5; Yellow) [13]. The catalytic domain of MCR-1 (PDB: 5GRR) [121] and MCR-2 (PDB: 5MX9) [122] contain three conserved disulfide bonds, including DB1, DB3, and DB4. The catalytic domain of McICR (PDB: 6BNF) has two conserved bonds (DB3 and DB4) and one reduced bond (DB1) [57]. CjEptC (PDB: 4TN0) has three conserved bonds (DB1, DB2, and DB4) compared to those of NmEptA [79]. EcEptC (PDB: 6A83) lacks disulfide bonds [21]. EcBcsG (PDB: 6PCZ) [25] and StBcsG (PDB: 5OLT) [27] contain a distinct disulfide bond (Cys290–Cys306). This figure was visualized using UCSF Chimera [123].
Antibiotics 12 01382 g005

4.2. Disulfide Bonds

The soluble catalytic domains of all classes of PEA-transferases contain variable numbers of disulfide bonds (DB) and these have been shown to have roles in structural integrity and active site architecture. The soluble catalytic domain of the Class I NmEptA (PDB: 5FGN) contains five pairs of cysteine residues forming five disulfide bonds (DB 1-5), namely, Cys276–Cys286 (DB1), Cys327–Cys331 (DB2), Cys348–Cys353 (DB3), Cys402–Cys410 (DB4), and Cys499–Cys540 (DB5) (Figure 5b) [13,49]. Multiple sequence alignment analysis showed that only DB1 and DB4 are structurally conserved across all Class I PEA transferases acting on lipid A headgroups on LPS/LOS [13]. DB1 bridges a smaller α-helix to the central β-strand whereas DB4 stabilizes a loop located at the top of the enzyme [121]. The other three DBs have a variety of proposed roles. In the MCR proteins, DB3 may structurally constrain the conformational freedom of the loop (aa: Lys348–365) and facilitate the entry of the substrate into the catalytic cleft [121]. The absence of this extended loop in CjEptC may allow the entry of multiple substrates that are consistent with the ability of CjEptC to modify different targets [79]. The roles of DB2 and DB5 are less clear but are most likely to be involved in protecting the enzyme from proteolytic degradation by periplasmic proteases [21,124].
DB distribution in other classes of PEA transferase is different from Class I such as in EcEptC (Class III), which lacks disulfide bonds [19,21]. Class VI EcBcsG and StBcsG structures contain one distinct DB (Cys290–Cys306), which connects the loop just after the corresponding helix with an adjacent helical component positioned alongside the central β-sheet structure of the catalytic domain [25,27]. Anderson et al. [25] showed that mutation of this Cys pair to alanine in EcBcsG resulted in inactivation, suggesting a functional role. Overall, the presence of DBs across PEA transferases is believed to be necessary for structural integrity and catalytic activity.

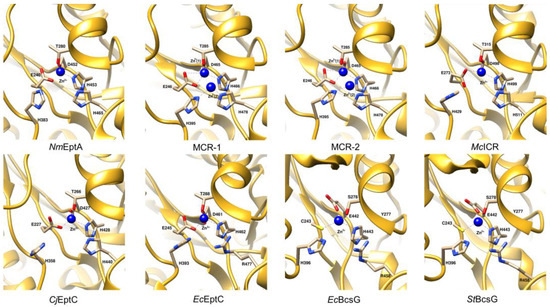

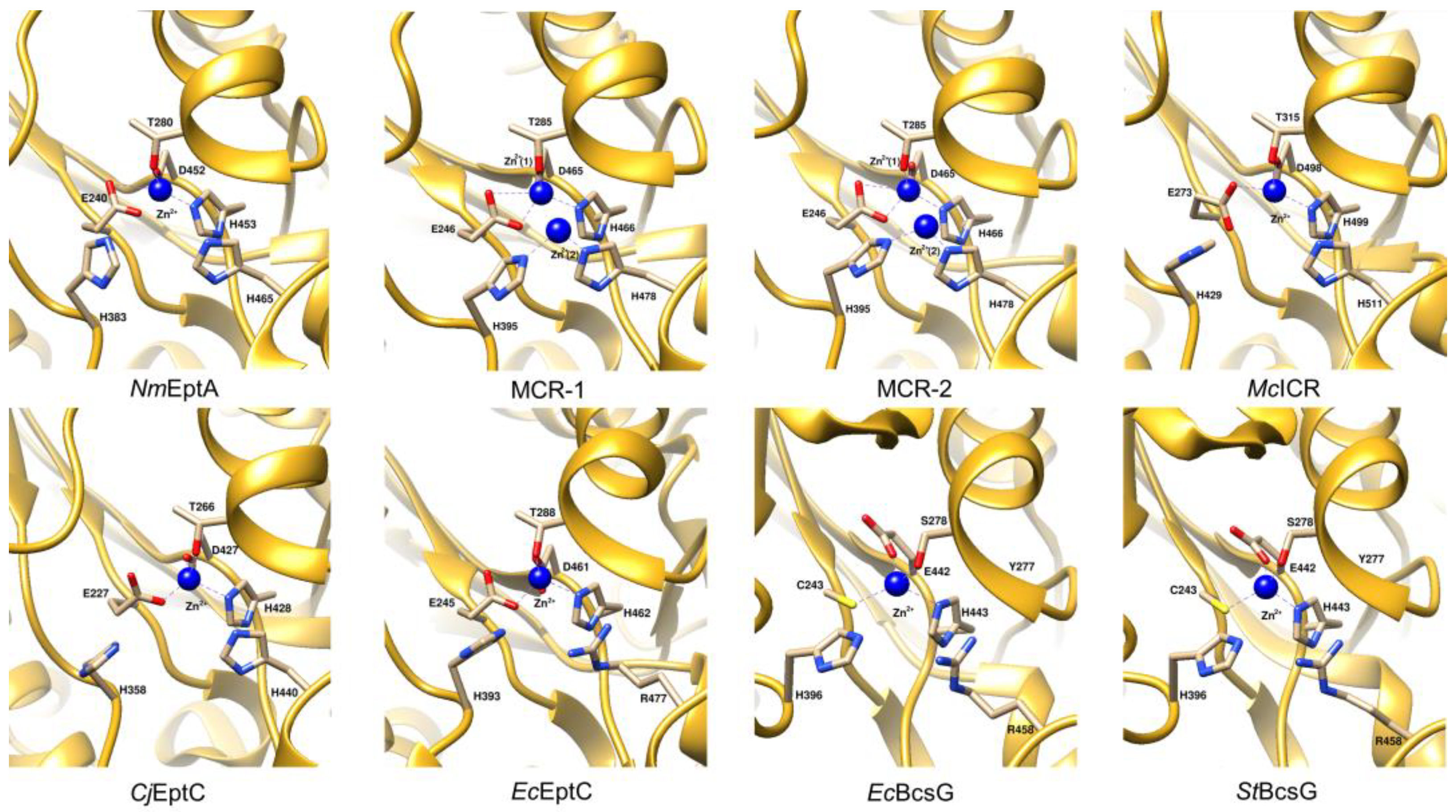

4.3. Active Site Architecture

How the active site works was established using the canonical crystal structure of Class I NmEptA [13]. The active site of NmEptA lies at the base of a cleft formed by the extensive interface between the catalytic and transmembrane domains, while its substrate binding pocket involves the catalytic domain and the PH2 and PH2′ helices on the transmembrane domain [13]. The active site structure of NmEptA (Figure 6) revealed a bound Zn2+ ion and a phosphorylated form of threonine, Thr280, which is required for the nucleophilic attack of the substrate, phosphatidylethanolamine (PE) (Figure 1), and the formation of an intermediate in which PEA is linked to Thr [33]. The side chains of His453, Asp452, Glu240, and nucleophile residue Thr280 tetrahedrally coordinate this Zn2+ ion and are conserved among the other PEA transferases [49]. An additional Zn2+ ion, which is coordinated by His383, His465, and an oxygen atom of the phosphate group attached to Thr280, was found when the protein crystal was soaked in a solution containing ZnSO4 [49]. The organization and architecture of the active sites of other Class I PEA transferases MCR-1/2, McICR, and CjEptC, all contain the same conserved set of coordinating residues with a putative nucleophilic threonine and Zn2+ ions; however, the number of Zn2+ ions is varied (Figure 6) [13,57,70,79,118,121,122,125,126,127]. Point mutations of these active-site residues result in loss of function of the enzyme [21,79].
The structure of EcEptC (Class III) revealed a conserved Thr288 in the active site, which was not phosphorylated and may represent the native state of the enzyme without any bound substrate [21]. Although the Zn2+-coordinating residues of EcEptC are conserved in other PEA transferases, only two residues (Glu245 and Asp461) are essential for zinc co-ordination [21].
Both catalytic domains of EcBcsG [25] and StBcsG [27] (Class VI) revealed the presence of a Zn2+ ion, which is coordinated by the conserved side chain residues Cys243, Glu442, and His443. Of note, serine but not threonine is predicted to be a catalytic nucleophile residue in both structures [25,27]. Compared to the reported structures of Class I PEA transferases, the second-metal binding site of EcBcsG and StBcsG contains only a conserved His396 residue while another, His458, is substituted by Arg458. Consistently, no sign of a second Zn2+ ion was detected in electron density maps [27]. Interestingly, the replacement of Arg458 by alanine or methionine but not histidine resulted in the severe impairment of cellulose synthesis of S. enterica Typhimurium strain MAE97, demonstrating that Arg458 is involved in the substrate recognition and/or catalysis rather than zinc coordination [27]. The Tyr277 residue in the active site pocket is predicted to facilitate the integration of cellulose glycans adjacent to catalytic Ser278 and Zn2+ ion at the active site [25]. Anderson et al. [25] showed that substitution of the Zn2+-binding residues Cys243, Glu442, and His443, catalytic nucleophile Ser278, His396, and Tyr277 of EcBcsG with alanine resulted in failure to maintain the fragile pellicle phenotype of E. coli strain AR3110, highlighting the importance of these residues for enzymatic activity in vivo. In S. enterica Typhimurium, Sun et al. [27] observed that the point mutations at Zn2+-binding residues, Ser278, and His396 resulted in StBcsG protein variants with disturbed cellulose biosynthesis confirming the importance of these residues in transferase activity.

4.4. Model of Enzyme Activity

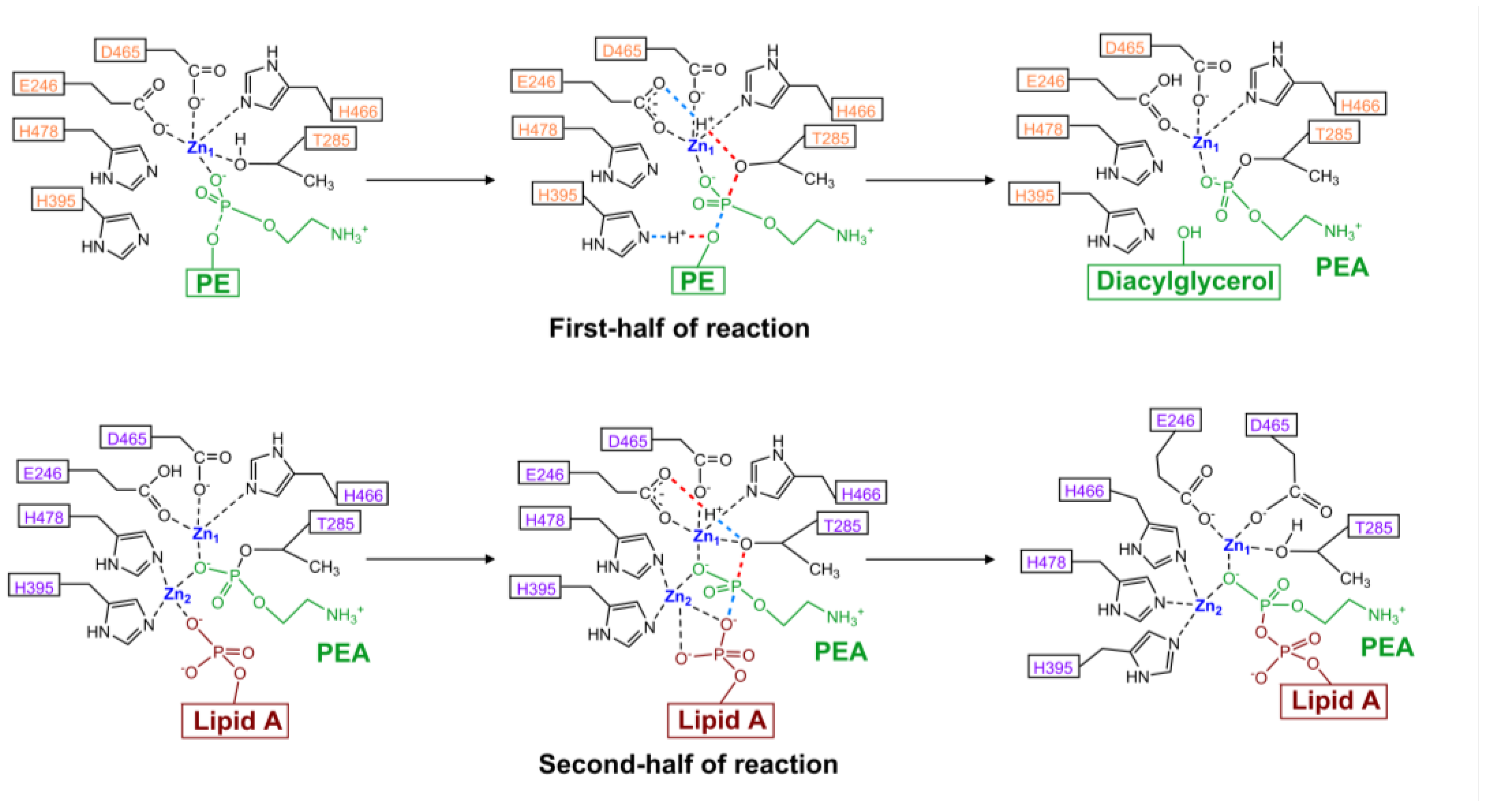

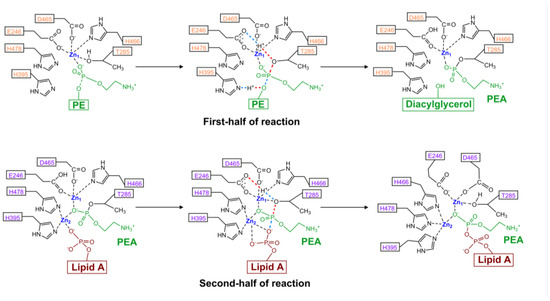

Previous studies revealed that the catalytic domain of Class I PEA transferases, such as NmEptA and MCR enzymes, can adopt multiple conformational states to accommodate two different-sized substrates (PE and lipid A) [13,70,125,128,129,130]. This intriguing observation suggests the involvement of a possible ping-pong mechanism in transferring PEA from PE donor to lipid A, necessitating two distinct reaction steps (Figure 7) [70,125,128,129,130].
In the first step, the membrane phospholipid PE enters the active site pocket, where a Zn2+ ion coordinates with the phosphoryl group of PEA [70,125,128,129]. Subsequently, the PEA moiety from the PE donor is directly transferred to the nucleophile residue Thr285 [70,125,128,129]. Density functional theory cluster model calculations suggested that this transition state involves the concerted cleavage of P–O bonds with the transfer of two protons, one from Thr285 to the carboxylate of Glu246 and the second from His395 to the dephosphorylated lipidic leaving group [70,125,129]. This step requires a Zn2+ ion to stabilize the nucleophilic state of Thr285, leading to the nucleophilic attack of Thr285 on PE, breaking the acyl side chain from PE and releasing diacylglycerol [129] (Figure 1). Using an in vitro enzymatic assay, several studies have shown that purified PEA transferases can cleave the PEA group from a fluorescently labelled substrate NBD-Glycerol-3-PEA and release NBD-Glycerol [128,130,131,132]. This step is believed to be common among PEA transferases due to their conserved core structures and the same cavity for PE entry [30,128].
The second step occurs when the receiver substrate lipid A binds to the enzyme, enabling the transfer of the PEA moiety to the 1- and/or 4′-phosphate group to generate the final products PPEA-1 (and/or 4′)-lipid A (Figure 7) [128,129]. The calculations of Suardiaz et al. [129] on MCR-1 suggested that the presence of the second Zn2+ ion is mandatory for this step of the reaction as it coordinates the oxygen atoms of the phosphate group of lipid A and then guides it to the phosphate group of PEA, which is attached to Thr285 [129]. A proton from Glu246, which was protonated in the first step of the reaction, is returned to Thr280, which subsequently breaks the P-O bond between Thr285 and PEA moiety and restores the coordination of Thr285 [129]. The His466 residue now connects to the second Zn2+ ion, which may enable the release of the modified lipid A [129]. The enzyme finally restores to its resting state where the second Zn2+ ion is released and the coordination of His466 to the first Zn2+ ion is restored [129]. The second step of the reaction is supposed to be common in Class I PEA transferases recognizing the same substrate lipid A, but it may differ in other PEA transferases with different receiver substrates [21,25,27,49,57,70,79,122].

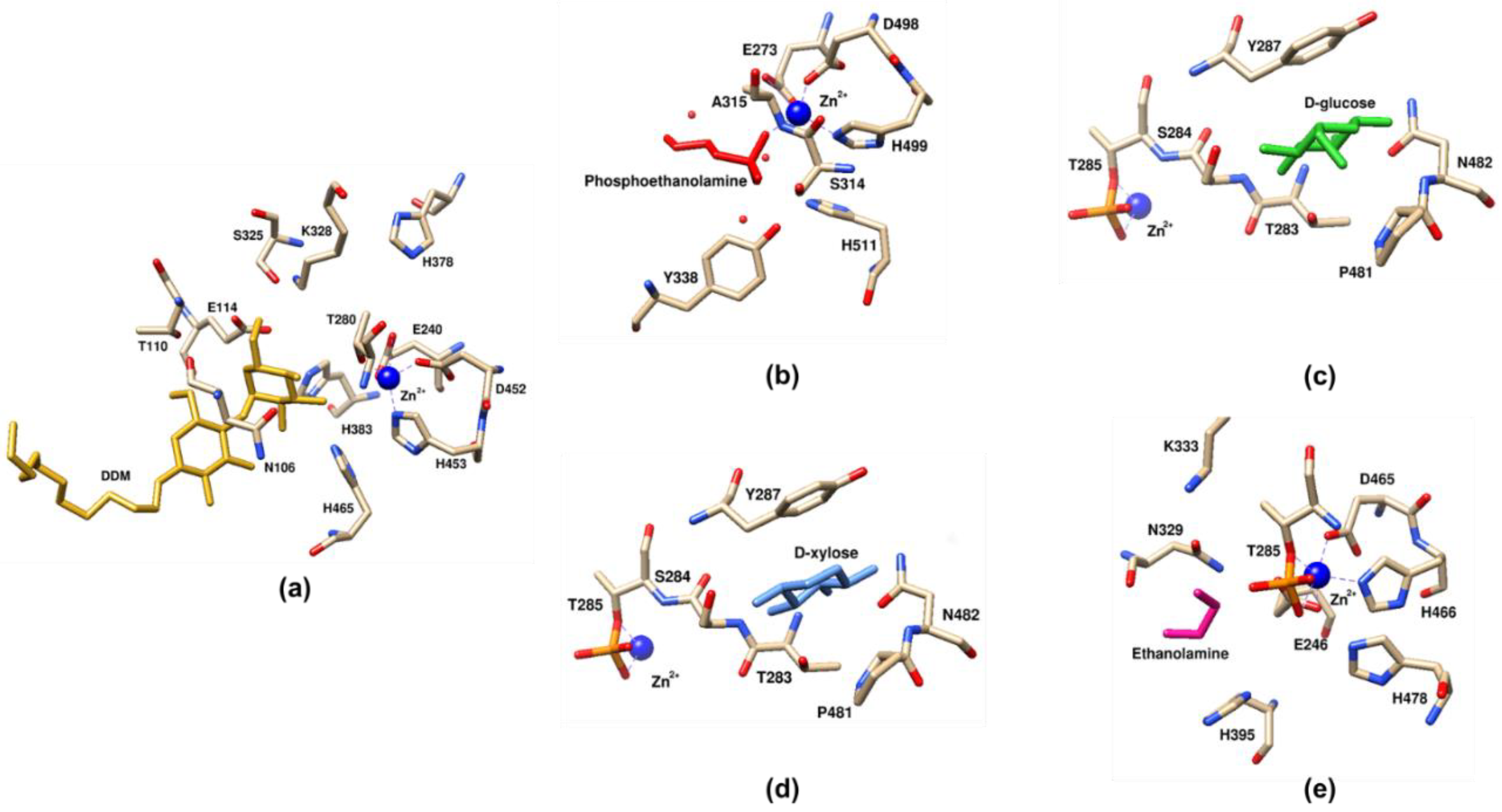

4.5. Co-Crystals with Receiver Substrates

Currently, there is very little understanding of how different receiver substrates are bound to the enzyme-PEA intermediate. Most of our current knowledge stems from studies on Class I enzymes NmEptA [13] and McICR [57] with analogues of PE and lipid A. Since lipid A is highly flexible and hydrophobic, no complete co-crystal structure has been reported. Anandan et al. [13] did report a bound dodecyl maltoside (DDM) detergent molecule, which is a PE substrate analogue, in the substrate pocket of NmEptA (PDB: 5FGN; Figure 8a), when the protein was solubilized and purified in DDM. The O3B hydroxyl group of DMM has been shown to bind to an active site Zn2+ and the hydroxyl group of Thr280 while the carbohydrate moiety of DDM forms hydrogen bonds with three invariant residues in the PH2 and PH2′ helices. Xu et al. [128] conducted a molecular docking analysis of NmEptA with DDM and identified a substrate entry/binding cavity composed of 12 residues. Apart from the five residues that coordinated the zinc molecule, seven residues (Asn106, Thr110, Glu114, Ser325, Lys328, His383, and Asp465) were purportedly involved in the recognition of substrate PE [128]. Point mutation of Glu114Ala, Lys328Ala, His383Ala, and Asp465Ala led to loss of enzyme function, while N106A, E114A, and S325A resulted in partial inactivation as determined by polymyxin resistance [128].
In a separate study, the McICRThr315Ala mono-Zn2+ structure in complex with PEA (Figure 8b) by Stogios et al. [57] showed that the phosphate portion of the PEA moiety forms connections with the Zn2+, His511, Ala315, and three water molecules. The structure also featured the requirement of the dimerization of the McICR catalytic domain for the coordination of the substrate that provides additional interaction with Tyr338 from the partner subunit [57]. Interestingly, no interactions between the ethanolamine group of PEA and the enzyme were observed [57]. The attempt to determine the crystal structure of McICRThr315Ala in complex with the lipid A headgroup was unsuccessful due to the absence of density corresponding to the substrate molecule [57].
Glucose and xylose are analogues of the glucosamine backbone of lipid A. A solved structure of the co-crystal of the catalytic domain of MCR-1 in complex with D-glucose (Figure 8c) identified a binding pocket composed of Thr283, Ser284, Tyr287, Pro481, and Asn482 residues the phosphorylated Thr285 in the active site [118]. Mutation of the Tyr287 and Pro481 suggested that they are significant for functionality [118]. D-xylose (Figure 8d) is bound to the same pocket with a weaker interaction than that of D-glucose [133].

5. Progress in Drug Development of PEA Transferase Inhibitors

There are many programs underway to identify Class I lipid A PEA transferase inhibitors. Lipid A PEA transferase inhibitors can be used to break resistance to clinically used antibiotics such as polymyxin and colistin. These programs generally fall into three categories: The development of analogues of the donor or receiver molecules, inhibition by interference with Zn2+ occupancy in the active site, or screens for compounds with affinity for EptA that result in inhibition of the enzyme.

5.1. Inhibitors Based on Analogues

Wei et al. [118] showed that ethanolamine, a PE substrate analogue, bound to the cavity pocket of MCR-1 and impaired PxB resistance, but it had low activity (10 mM) against an E. coli strain expressing mcr-1 (Table 2). A solved structure of the co-crystal of ethanolamine with the catalytic domain of MCR-1 [118] (Figure 8e) depicted a possible substrate-binding pocket consisting of eight residues (Glu246, Thr285, Asn329, Lys333, His395, Asp465, His466, and His478). Notably, all point mutations of these residues impaired PxB resistance, implying that they are crucial for the catalytic activity of MCR-1 [118]. Lan et al. [134] later developed more effective derivatives of 1-phenyl-2-(phenylamino) ethenone, 6p [4-((1-Ethoxy-2-(4-hexylphenyl)-2-oxoethyl)amino)-3-methylbenzoic Acid], and 6q [4-((1-Ethoxy-2-(4-octylphenyl)-2-oxoethyl)amino)benzoic Acid)] that completely reversed colistin resistance in E. coli strain BL21(DE3) carrying mcr-1. Results from an enzymatic assay revealed that the compounds inhibited the PEA transfer reaction catalyzed by MCR-1 [134]. Molecular docking studies further revealed that the most potent compounds formed hydrogen bonds with the cavity pocket residues Glu246 and Thr285 [134].

5.2. Targeting Zinc Co-Ordination in the Active Site of EptA

Targeting the Zn2+ ion, which is necessary for enzymatic activity, is a promising strategy for developing inhibitors of PEA transferases. Despite having distinct structures and substrates, both MCRs and metallo-β-lactamases can be effectively disrupted by auranofin, an antirheumatic drug, which displaces Zn2+ in the active sites of both enzymes [135]. Screening of a library of metal-based compounds, bioligands, and Zn2+ chelating agents identified silver nitrate (AgNO3), which restores the colistin activity against multidrug-resistant Enterobacteriaceae isolates carrying mcr-1 and mcr variants [136]. X-ray crystallographic analysis revealed that silver disrupts the function of MCR-1 by displacing the zinc ion, thus interfering with substrate binding to the enzyme [136].
PBT2, a zinc ionophore originally developed for the treatment of Alzheimer’s disease, has been found to possess antimicrobial properties against various Gram-positive bacteria by interfering with bacterial metal homeostasis [137]. Studies by Jen et al. [138,139] revealed that the combination of PBT2 and zinc enhances the effectiveness of tetracycline, colistin, PxB, and LL-37 against N. gonorrhoeae strains. Although the PBT2/zinc combination has been shown to partially inhibit the decoration of lipid A with PEA in WHO Z, the precise mechanism of action is not yet fully understood [138].
According to Cui et al. [140], the combination of EDTA and Baicalin (a compound from Scutellaria baicalensis (a herbal Chinese medicine)) could restore colistin efficacy against several colistin-resistant Salmonella isolates recovered from poultry and humans by directly inhibiting the production of MCR-1. Molecular docking analysis revealed a strong interaction between baicalin and several residues of MCR-1 (Lys307, Lys333, Asp331, Asp337, Gly334, and Tyr308), whereas EDTA, a strong metal chelating agent, was proposed to chelate the Zn2+ in the active site of MCR-1 [140].

5.3. Miscellaneous Compounds with No Known Mode of Action

Numerous studies have performed non-targeted screening programs for the identification adjuvants that break resistance to colistin. Most of these compounds have no known direct mode of action targeting MCR-1. Several promising candidates, including Pterostilbene [141], Genistein [142], Phloretin [143], Osthole [144], Pogostone [145], Pingwei Pill [146], Pyrazolones [147], and Honokiol [148], which could improve polymyxin efficacy both in vitro and in vivo, have been found. Molecular simulation and/or molecular docking analyses suggest that most of these compounds, except for Pterostilbene, have the potential to interact with multiple residues in the MCR-1 active site [141,142,143,144,145,146,148], but further studies are necessary to confirm their direct ability to inhibit MCR-1.
Table 2. Inhibitors acting on lipid A PEA transferases.
Table 2. Inhibitors acting on lipid A PEA transferases.
InhibitorStructureTargetOrganismWorking
Concentration		ActivityTarget VerificationReference

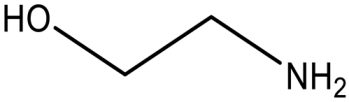

Ethanolamine Antibiotics 12 01382 i001MCR-1E. coli10 mMComplete reversal of PxB resistanceThe crystal structure of ethanolamine binding to MCR-1. [118]

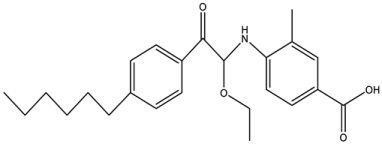

Compounds 6pAntibiotics 12 01382 i002MCR-1E. coli25 μMComplete reversal of colistin resistanceInhibit the reaction of PEA transfer catalyzed by MCR-1 in an enzymatic assay.[134]

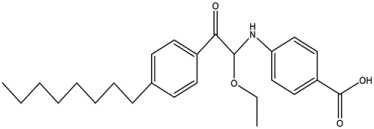

Compounds 6q Antibiotics 12 01382 i003MCR-1E. coli25 μMComplete reversal of colistin resistanceInhibit the reaction of PEA transfer catalyzed by MCR-1 in an enzymatic assay.[134]
AuranofinAntibiotics 12 01382 i004MCR-1 and MCR variantsE. coli and other G-ve species *7.37 μMComplete/partial reversal colistin resistanceInhibit the reaction of PEA transfer catalyzed by MCR-1 in an enzymatic assay.
Displace Zn2+ by Au+ ion in a zinc release assay (PAR assay) and
X-ray crystallography.		[135]
Silver nitrateAntibiotics 12 01382 i005MCR-1 and MCR variantsE. coli and other G-ve species **2.96 μMComplete/partial reversal of colistin resistance Inhibit the reaction of PEA transfer catalyzed by MCR-1 in an enzymatic assay.
Displace Zn2+ by Ag+ ion in a zinc release assay (PAR assay) and
X-ray crystallography.		[136]
EDTA/Baicalin #Antibiotics 12 01382 i006MCR-1Salmonella isolatesEDTA: 213.86 μM/Baicalin: 2800.41 μMComplete reversal of colistin resistanceDirectly inhibit mcr-1 expression.[140]
PBT2/zinc ##Antibiotics 12 01382 i007EptAN. gonorrhoeaePBT2: 0.5 μM/zinc: 2.5 μMAll tested strains became sensitive to tetracycline, colistin, PxB, LL-37, and PG-1.Reduce PEA decoration of lipid A by MS analysis.[138,139]

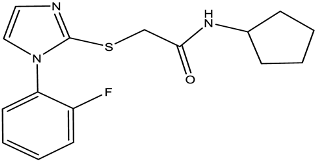

Compound 137Antibiotics 12 01382 i008EptAN. gonorrhoeae100 μMReduced PxB MIC by 4-fold for FA1090 and 2-fold for WHO reference strains.Reduce PEA decoration of lipid A by MS analysis.[149]

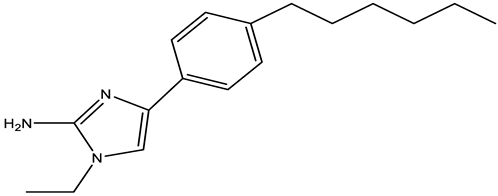

Compound 2Antibiotics 12 01382 i009MCR-1A. baumannii,
E. coli,
K. pneumoniae		30 μMReversed colistin resistance mediated by MCR-1 and chromosome-encoded enzymes.Reduce PEA decoration of lipid A by MS analysis.[150]
IMD-0354 Antibiotics 12 01382 i010Lipid A modifying enzymesA. baumannii,
E. coli,
K. pneumoniae,
P. aeruginosa		5 μMReversed colistin resistance mediated by MCR-1 and chromosome-encoded enzymes.Reduce or completely abrogate PEA and Ara4N modification of lipid A by MS analysis.[151]
Note: The table only includes the compounds that have been verified to inhibit the activity of lipid A PEA transferases. * S. flexneri, S. enterica Typhimurium, K. pneumoniae, Enterobacter asburiae, Klebsiella aerogenes, Enterobacter kobei; ** S. enterica Typhimurium, K. aerogenes, K. pneumoniae, E. kobei; # Structure of EDTA (Ethylenediaminetetraacetic acid); ## Structure of PBT2; MS: Mass spectrometry; ITC: Isothermal titration calorimetry; PxB: Polymyxin B; MCR variants: MCR-1.5, MCR-1.6, MCR-1.7, MCR-1.9, MCR-1.10, MCR-2.1, MCR-3.1, MCR-4.1, MCR-5.1, MCR-6.1, MCR-7.1; PAR assay: 4-(2-pyridylazo)resorcinol assay.

5.4. Rational Drug Development Programs

Three drug screening programs have been conducted to identify inhibitors of lipid A PEA transferases [149,150,151]. These inhibitors do not directly impact bacterial growth; instead, they enhance the susceptibility of bacteria to CAMPs. Mullally et al. [149] were the first to utilize saturation transfer difference (STD)-NMR screening, coupled with iterative medicinal chemistry optimization, to create the first generation of EptA inhibitors against N. gonorrhoeae. The lead compound 137 (Table 2) improved the susceptibility of strain FA1090 and multiple MDR strains to PxB by 4-fold and 2-fold, respectively. Pre-treating bacterial cells with the compound resulted in increased macrophage-mediated killing. Moreover, compound treatment of bacteria reduced lipid A decoration with PEA by 17%, and decreased cytokine responses in THP-1 cells [149].
Barker et al. [150] identified a compound (compound 2), which suppresses mcr-1 encoded colistin resistance in A. baumannii, E. coli, and K. pneumoniae. Exposure of A. baumannii ATCC 17978+mcr−1 to the compound resulted in a reduction in the extent of lipid A modification, as demonstrated by mass spectrometry analysis of the lipid A [150].
The screening of kinase inhibitor libraries identified IMD-0354, which successfully eliminated colistin resistance mediated by Lipid A modification in several Gram-negative organisms without affecting growth [151]. Analysis of the lipid A extracted from A. baumannii 4106 and K. pneumoniae B9, treated with IMD-0354 using mass spectrometry, indicated that the presence of the compound could partially or completely inhibit PEA and Ara4N decoration of lipid A [151]. Although the targets of IMD-0354 are not completely known, it could potentially target the regulatory pathways, which control PEA and Ara4N decoration of lipid A. Further optimization of IMD-0354 analogues led to another compound, which restored the susceptibility of a highly resistant strain of K. pneumoniae to colistin at 250 nM; nevertheless, further study is required to validate its target on lipid-A modifying enzymes [152].

6. Concluding Remarks and Future Perspectives

The lipid A PEA transferases present across all clinically relevant Gram-negative bacteria that confer resistance to CAMPs, are considered to be the most important subclass of PEA transferases. In contrast to other Gram-negative bacteria, pathogenic Neisseria, including N. gonorrhoeae and N. meningitidis, utilize EptA as the sole mechanism to modify lipid A headgroups with PEA. This unique feature highlights EptA as a potential therapeutic target, particularly for the management of MDR gonorrhoea.
The increasing prevalence of mobilized mcr genes encoding PEA transferases is a growing public health concern as it raises the possibility of global dissemination of polymyxin resistance. Accordingly, current drug development efforts for lipid A modifying PEA transferases have been directed towards MCR-1, with the goal of restoring polymyxin sensitivity, but these endeavors are still in the preclinical stage.
Given the conserved structure of PEA transferases, additional investigations are needed to evaluate the feasibility of developing broad-spectrum inhibitors against multiple Class I enzymes, which could have significant clinical benefits. Further research also needs to focus on determining the full-length enzyme-substrate co-crystal structure, which could help to design potent and specific inhibitors for these enzymes.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/antibiotics12091382/s1, Table S1: The representative PEA transferases for constructing phylogenetic tree.

Author Contributions

V.C.T. wrote the draft version. V.C.T. and C.M.K. edited the manuscript. C.M.K., M.S.-T. and K.A.S. reviewed and approved the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

V.C.T. is supported by the University International Fee Scholarship (UIFS) and University Postgraduate Award (International Students) (UPAIS) from the University of Western Australia.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. WHO. Antimicrobial Resistance Global Report on Surveillance: 2014 Summary; WHO: Geneva, Switzerland, 2014. [Google Scholar]
  2. Lomazzi, M.; Moore, M.; Johnson, A.; Balasegaram, M.; Borisch, B. Antimicrobial resistance–moving forward? BMC Public Health 2019, 19, 858. [Google Scholar] [CrossRef] [PubMed]
  3. Prestinaci, F.; Pezzotti, P.; Pantosti, A. Antimicrobial resistance: A global multifaceted phenomenon. Pathog. Glob. Health 2015, 109, 309–318. [Google Scholar] [CrossRef]
  4. O’Neill, J. Review on Antimicrobial Resistance Antimicrobial Resistance: Tackling a Crisis for the Health and Wealth of Nations; Review on Antimicrobial Resistance: London, UK, 2014. [Google Scholar]
  5. Tagliabue, A.; Rappuoli, R. Changing Priorities in Vaccinology: Antibiotic Resistance Moving to the Top. Front. Immunol. 2018, 9, 1068. [Google Scholar] [CrossRef]
  6. WHO. Prioritization of Pathogens to Guide Discovery, Research and Development of New Antibiotics for Drug-Resistant Bacterial Infections, Including Tuberculosis; (WHO/EMP/IAU/2017.12); WHO: Geneva, Switzerland, 2017. [Google Scholar]
  7. Kapoor, G.; Saigal, S.; Elongavan, A. Action and resistance mechanisms of antibiotics: A guide for clinicians. J. Anaesthesiol. Clin. Pharmacol. 2017, 33, 300–305. [Google Scholar] [CrossRef] [PubMed]
  8. Mohapatra, S.S.; Dwibedy, S.K.; Padhy, I. Polymyxins, the last-resort antibiotics: Mode of action, resistance emergence, and potential solutions. J. Biosci. 2021, 46, 85. [Google Scholar] [CrossRef] [PubMed]
  9. Ayoub Moubareck, C. Polymyxins and Bacterial Membranes: A Review of Antibacterial Activity and Mechanisms of Resistance. Membranes 2020, 10, 181. [Google Scholar] [CrossRef] [PubMed]
  10. Moffatt, J.H.; Harper, M.; Boyce, J.D. Mechanisms of Polymyxin Resistance. Adv. Exp. Med. Biol. 2019, 1145, 55–71. [Google Scholar] [CrossRef]
  11. Llewellyn, A.C.; Zhao, J.; Song, F.; Parvathareddy, J.; Xu, Q.; Napier, B.A.; Laroui, H.; Merlin, D.; Bina, J.E.; Cotter, P.A.; et al. NaxD is a deacetylase required for lipid A modification and Francisella pathogenesis. Mol. Microbiol. 2012, 86, 611–627. [Google Scholar] [CrossRef]
  12. Cox, A.D.; Wright, J.C.; Li, J.; Hood, D.W.; Moxon, E.R.; Richards, J.C. Phosphorylation of the lipid A region of meningococcal lipopolysaccharide: Identification of a family of transferases that add phosphoethanolamine to lipopolysaccharide. J. Bacteriol. 2003, 185, 3270–3277. [Google Scholar] [CrossRef]
  13. Anandan, A.; Evans, G.L.; Condic-Jurkic, K.; O’Mara, M.L.; John, C.M.; Phillips, N.J.; Jarvis, G.A.; Wills, S.S.; Stubbs, K.A.; Moraes, I.; et al. Structure of a lipid A phosphoethanolamine transferase suggests how conformational changes govern substrate binding. Proc. Natl. Acad. Sci. USA 2017, 114, 2218–2223. [Google Scholar] [CrossRef]
  14. Huang, J.; Li, C.; Song, J.; Velkov, T.; Wang, L.; Zhu, Y.; Li, J. Regulating polymyxin resistance in Gram-negative bacteria: Roles of two-component systems PhoPQ and PmrAB. Futur. Microbiol. 2020, 15, 445–459. [Google Scholar] [CrossRef]
  15. Wei, W.; Srinivas, S.; Lin, J.; Tang, Z.; Wang, S.; Ullah, S.; Kota, V.G.; Feng, Y. Defining ICR-Mo, an intrinsic colistin resistance determinant from Moraxella osloensis. PLoS Genet. 2018, 14, e1007389. [Google Scholar] [CrossRef] [PubMed]
  16. Gaballa, A.; Wiedmann, M.; Carroll, L.M. More than mcr: Canonical plasmid- and transposon-encoded mobilized colistin resistance genes represent a subset of phosphoethanolamine transferases. Front. Cell. Infect. Microbiol. 2023, 13, 1060519. [Google Scholar] [CrossRef] [PubMed]
  17. Huang, J.; Zhu, Y.; Han, M.L.; Li, M.; Song, J.; Velkov, T.; Li, C.; Li, J. Comparative analysis of phosphoethanolamine transferases involved in polymyxin resistance across 10 clinically relevant Gram-negative bacteria. Int. J. Antimicrob. Agents 2018, 51, 586–593. [Google Scholar] [CrossRef]
  18. Harper, M.; Wright, A.; St Michael, F.; Li, J.; Deveson Lucas, D.; Ford, M.; Adler, B.; Cox, A.D.; Boyce, J.D. Characterization of Two Novel Lipopolysaccharide Phosphoethanolamine Transferases in Pasteurella multocida and Their Role in Resistance to Cathelicidin-2. Infect. Immun. 2017, 85, e00557-17. [Google Scholar] [CrossRef]
  19. Klein, G.; Muller-Loennies, S.; Lindner, B.; Kobylak, N.; Brade, H.; Raina, S. Molecular and structural basis of inner core lipopolysaccharide alterations in Escherichia coli: Incorporation of glucuronic acid and phosphoethanolamine in the heptose region. J. Biol. Chem. 2013, 288, 8111–8127. [Google Scholar] [CrossRef] [PubMed]
  20. Salazar, J.; Alarcon, M.; Huerta, J.; Navarro, B.; Aguayo, D. Phosphoethanolamine addition to the Heptose I of the Lipopolysaccharide modifies the inner core structure and has an impact on the binding of Polymyxin B to the Escherichia coli outer membrane. Arch. Biochem. Biophys. 2017, 620, 28–34. [Google Scholar] [CrossRef]
  21. Zhao, Y.; Meng, Q.; Lai, Y.; Wang, L.; Zhou, D.; Dou, C.; Gu, Y.; Nie, C.; Wei, Y.; Cheng, W. Structural and mechanistic insights into polymyxin resistance mediated by EptC originating from Escherichia coli. FEBS J. 2019, 286, 750–764. [Google Scholar] [CrossRef]
  22. Tamayo, R.; Choudhury, B.; Septer, A.; Merighi, M.; Carlson, R.; Gunn, J.S. Identification of cptA, a PmrA-regulated locus required for phosphoethanolamine modification of the Salmonella enterica serovar Typhimurium lipopolysaccharide core. J. Bacteriol. 2005, 187, 3391–3399. [Google Scholar] [CrossRef]
  23. Chen, H.D.; Groisman, E.A. The biology of the PmrA/PmrB two-component system: The major regulator of lipopolysaccharide modifications. Annu. Rev. Microbiol. 2013, 67, 83–112. [Google Scholar] [CrossRef]
  24. Sun, Q.; Knirel, Y.A.; Lan, R.; Wang, J.; Senchenkova, S.N.; Jin, D.; Shashkov, A.S.; Xia, S.; Perepelov, A.V.; Chen, Q.; et al. A novel plasmid-encoded serotype conversion mechanism through addition of phosphoethanolamine to the O-antigen of Shigella flexneri. PLoS ONE 2012, 7, e46095. [Google Scholar] [CrossRef] [PubMed]
  25. Anderson, A.C.; Burnett, A.J.N.; Hiscock, L.; Maly, K.E.; Weadge, J.T. The Escherichia coli cellulose synthase subunit G (BcsG) is a Zn2+-dependent phosphoethanolamine transferase. J. Biol. Chem. 2020, 295, 6225–6235. [Google Scholar] [CrossRef] [PubMed]
  26. Thongsomboon, W.; Serra, D.O.; Possling, A.; Hadjineophytou, C.; Hengge, R.; Cegelski, L. Phosphoethanolamine cellulose: A naturally produced chemically modified cellulose. Science 2018, 359, 334–338. [Google Scholar] [CrossRef] [PubMed]
  27. Sun, L.; Vella, P.; Schnell, R.; Polyakova, A.; Bourenkov, G.; Li, F.; Cimdins, A.; Schneider, T.R.; Lindqvist, Y.; Galperin, M.Y.; et al. Structural and Functional Characterization of the BcsG Subunit of the Cellulose Synthase in Salmonella Typhimurium. J. Mol. Biol. 2018, 430, 3170–3189. [Google Scholar] [CrossRef]
  28. Bontemps-Gallo, S.; Cogez, V.; Robbe-Masselot, C.; Quintard, K.; Dondeyne, J.; Madec, E.; Lacroix, J.M. Biosynthesis of osmoregulated periplasmic glucans in Escherichia coli: The phosphoethanolamine transferase is encoded by opgE. BioMed Res. Int. 2013, 2013, 371429. [Google Scholar] [CrossRef]
  29. Warren, M.J.; Jennings, M.P. Identification and characterization of pptA: A gene involved in the phase-variable expression of phosphorylcholine on pili of Neisseria meningitidis. Infect. Immun. 2003, 71, 6892–6898. [Google Scholar] [CrossRef]
  30. Naessan, C.L.; Egge-Jacobsen, W.; Heiniger, R.W.; Wolfgang, M.C.; Aas, F.E.; Rohr, A.; Winther-Larsen, H.C.; Koomey, M. Genetic and functional analyses of PptA, a phospho-form transferase targeting type IV pili in Neisseria gonorrhoeae. J. Bacteriol. 2008, 190, 387–400. [Google Scholar] [CrossRef]
  31. Aas, F.E.; Egge-Jacobsen, W.; Winther-Larsen, H.C.; Lovold, C.; Hitchen, P.G.; Dell, A.; Koomey, M. Neisseria gonorrhoeae type IV pili undergo multisite, hierarchical modifications with phosphoethanolamine and phosphocholine requiring an enzyme structurally related to lipopolysaccharide phosphoethanolamine transferases. J. Biol. Chem. 2006, 281, 27712–27723. [Google Scholar] [CrossRef]
  32. Letunic, I.; Bork, P. Interactive Tree Of Life (iTOL) v5: An online tool for phylogenetic tree display and annotation. Nucleic Acids Res. 2021, 49, W293–W296. [Google Scholar] [CrossRef]
  33. Samantha, A.; Vrielink, A. Lipid A Phosphoethanolamine Transferase: Regulation, Structure and Immune Response. J. Mol. Biol. 2020, 432, 5184–5196. [Google Scholar] [CrossRef]
  34. Lee, H.; Hsu, F.F.; Turk, J.; Groisman, E.A. The PmrA-regulated pmrC gene mediates phosphoethanolamine modification of lipid A and polymyxin resistance in Salmonella enterica. J. Bacteriol. 2004, 186, 4124–4133. [Google Scholar] [CrossRef] [PubMed]
  35. Adams, M.D.; Nickel, G.C.; Bajaksouzian, S.; Lavender, H.; Murthy, A.R.; Jacobs, M.R.; Bonomo, R.A. Resistance to colistin in Acinetobacter baumannii associated with mutations in the PmrAB two-component system. Antimicrob. Agents Chemother. 2009, 53, 3628–3634. [Google Scholar] [CrossRef]
  36. Arroyo, L.A.; Herrera, C.M.; Fernandez, L.; Hankins, J.V.; Trent, M.S.; Hancock, R.E. The pmrCAB operon mediates polymyxin resistance in Acinetobacter baumannii ATCC 17978 and clinical isolates through phosphoethanolamine modification of lipid A. Antimicrob. Agents Chemother. 2011, 55, 3743–3751. [Google Scholar] [CrossRef]
  37. Cheng, H.Y.; Chen, Y.F.; Peng, H.L. Molecular characterization of the PhoPQ-PmrD-PmrAB mediated pathway regulating polymyxin B resistance in Klebsiella pneumoniae CG43. J. Biomed. Sci. 2010, 17, 60. [Google Scholar] [CrossRef] [PubMed]
  38. Tran, A.X.; Karbarz, M.J.; Wang, X.; Raetz, C.R.; McGrath, S.C.; Cotter, R.J.; Trent, M.S. Periplasmic cleavage and modification of the 1-phosphate group of Helicobacter pylori lipid A. J. Biol. Chem. 2004, 279, 55780–55791. [Google Scholar] [CrossRef]
  39. Tran, A.X.; Whittimore, J.D.; Wyrick, P.B.; McGrath, S.C.; Cotter, R.J.; Trent, M.S. The lipid A 1-phosphatase of Helicobacter pylori is required for resistance to the antimicrobial peptide polymyxin. J. Bacteriol. 2006, 188, 4531–4541. [Google Scholar] [CrossRef]
  40. Nowicki, E.M.; O’Brien, J.P.; Brodbelt, J.S.; Trent, M.S. Extracellular zinc induces phosphoethanolamine addition to Pseudomonas aeruginosa lipid A via the ColRS two-component system. Mol. Microbiol. 2015, 97, 166–178. [Google Scholar] [CrossRef]
  41. Herrera, C.M.; Henderson, J.C.; Crofts, A.A.; Trent, M.S. Novel coordination of lipopolysaccharide modifications in Vibrio cholerae promotes CAMP resistance. Mol. Microbiol. 2017, 106, 582–596. [Google Scholar] [CrossRef]
  42. Henderson, J.C.; Fage, C.D.; Cannon, J.R.; Brodbelt, J.S.; Keatinge-Clay, A.T.; Trent, M.S. Antimicrobial peptide resistance of Vibrio cholerae results from an LPS modification pathway related to nonribosomal peptide synthetases. ACS Chem. Biol. 2014, 9, 2382–2392. [Google Scholar] [CrossRef]
  43. Hobbs, M.M.; Anderson, J.E.; Balthazar, J.T.; Kandler, J.L.; Carlson, R.W.; Ganguly, J.; Begum, A.A.; Duncan, J.A.; Lin, J.T.; Sparling, P.F.; et al. Lipid A’s structure mediates Neisseria gonorrhoeae fitness during experimental infection of mice and men. mBio 2013, 4, e00892-13. [Google Scholar] [CrossRef] [PubMed]
  44. Liu, M.; John, C.M.; Jarvis, G.A. Phosphoryl moieties of lipid A from Neisseria meningitidis and N. gonorrhoeae lipooligosaccharides play an important role in activation of both MyD88- and TRIF-dependent TLR4-MD-2 signaling pathways. J. Immunol. 2010, 185, 6974–6984. [Google Scholar] [CrossRef] [PubMed]
  45. Takahashi, H.; Carlson, R.W.; Muszynski, A.; Choudhury, B.; Kim, K.S.; Stephens, D.S.; Watanabe, H. Modification of lipooligosaccharide with phosphoethanolamine by LptA in Neisseria meningitidis enhances meningococcal adhesion to human endothelial and epithelial cells. Infect. Immun. 2008, 76, 5777–5789. [Google Scholar] [CrossRef] [PubMed]
  46. Tzeng, Y.L.; Ambrose, K.D.; Zughaier, S.; Zhou, X.; Miller, Y.K.; Shafer, W.M.; Stephens, D.S. Cationic antimicrobial peptide resistance in Neisseria meningitidis. J. Bacteriol. 2005, 187, 5387–5396. [Google Scholar] [CrossRef]
  47. Lewis, L.A.; Shafer, W.M.; Dutta Ray, T.; Ram, S.; Rice, P.A. Phosphoethanolamine residues on the lipid A moiety of Neisseria gonorrhoeae lipooligosaccharide modulate binding of complement inhibitors and resistance to complement killing. Infect. Immun. 2013, 81, 33–42. [Google Scholar] [CrossRef] [PubMed]
  48. Packiam, M.; Yedery, R.D.; Begum, A.A.; Carlson, R.W.; Ganguly, J.; Sempowski, G.D.; Ventevogel, M.S.; Shafer, W.M.; Jerse, A.E. Phosphoethanolamine decoration of Neisseria gonorrhoeae lipid A plays a dual immunostimulatory and protective role during experimental genital tract infection. Infect. Immun. 2014, 82, 2170–2179. [Google Scholar] [CrossRef]
  49. Wanty, C.; Anandan, A.; Piek, S.; Walshe, J.; Ganguly, J.; Carlson, R.W.; Stubbs, K.A.; Kahler, C.M.; Vrielink, A. The structure of the Neisserial lipooligosaccharide phosphoethanolamine transferase A (LptA) required for resistance to polymyxin. J. Mol. Biol. 2013, 425, 3389–3402. [Google Scholar] [CrossRef]
  50. John, C.M.; Liu, M.; Phillips, N.J.; Yang, Z.; Funk, C.R.; Zimmerman, L.I.; Griffiss, J.M.; Stein, D.C.; Jarvis, G.A. Lack of lipid A pyrophosphorylation and functional lptA reduces inflammation by Neisseria commensals. Infect. Immun. 2012, 80, 4014–4026. [Google Scholar] [CrossRef]
  51. Handing, J.W.; Criss, A.K. The lipooligosaccharide-modifying enzyme LptA enhances gonococcal defence against human neutrophils. Cell. Microbiol. 2015, 17, 910–921. [Google Scholar] [CrossRef]
  52. Zughaier, S.M.; Kandler, J.L.; Balthazar, J.T.; Shafer, W.M. Phosphoethanolamine Modification of Neisseria gonorrhoeae Lipid A Reduces Autophagy Flux in Macrophages. PLoS ONE 2015, 10, e0144347. [Google Scholar] [CrossRef]
  53. Trombley, M.P.; Post, D.M.; Rinker, S.D.; Reinders, L.M.; Fortney, K.R.; Zwickl, B.W.; Janowicz, D.M.; Baye, F.M.; Katz, B.P.; Spinola, S.M.; et al. Phosphoethanolamine Transferase LptA in Haemophilus ducreyi Modifies Lipid A and Contributes to Human Defensin Resistance In Vitro. PLoS ONE 2015, 10, e0124373. [Google Scholar] [CrossRef]
  54. Liu, L.; Li, Y.; Wang, X.; Guo, W. A phosphoethanolamine transferase specific for the 4′-phosphate residue of Cronobacter sakazakii lipid A. J. Appl. Microbiol. 2016, 121, 1444–1456. [Google Scholar] [CrossRef] [PubMed]
  55. Tan, X.; Qiao, J.; Zhou, Q.; Huang, D.; Li, H.; Wang, J.; Wang, X. Identification of a phosphoethanolamine transferase for lipid A modification in Vibrio parahaemolyticus. Food Control 2021, 125, 108033. [Google Scholar] [CrossRef]
  56. St Michael, F.; Harper, M.; Parnas, H.; John, M.; Stupak, J.; Vinogradov, E.; Adler, B.; Boyce, J.D.; Cox, A.D. Structural and genetic basis for the serological differentiation of Pasteurella multocida Heddleston serotypes 2 and 5. J. Bacteriol. 2009, 191, 6950–6959. [Google Scholar] [CrossRef] [PubMed]
  57. Stogios, P.J.; Cox, G.; Zubyk, H.L.; Evdokimova, E.; Wawrzak, Z.; Wright, G.D.; Savchenko, A. Substrate Recognition by a Colistin Resistance Enzyme from Moraxella catarrhalis. ACS Chem. Biol. 2018, 13, 1322–1332. [Google Scholar] [CrossRef]
  58. Yin, W.; Li, H.; Shen, Y.; Liu, Z.; Wang, S.; Shen, Z.; Zhang, R.; Walsh, T.R.; Shen, J.; Wang, Y. Novel Plasmid-Mediated Colistin Resistance Gene mcr-3 in Escherichia coli. mBio 2017, 8, e00543-17. [Google Scholar] [CrossRef]
  59. Carattoli, A.; Villa, L.; Feudi, C.; Curcio, L.; Orsini, S.; Luppi, A.; Pezzotti, G.; Magistrali, C.F. Novel plasmid-mediated colistin resistance mcr-4 gene in Salmonella and Escherichia coli, Italy 2013, Spain and Belgium, 2015 to 2016. Eurosurveillance 2017, 22, 30589. [Google Scholar] [CrossRef]
  60. Borowiak, M.; Fischer, J.; Hammerl, J.A.; Hendriksen, R.S.; Szabo, I.; Malorny, B. Identification of a novel transposon-associated phosphoethanolamine transferase gene, mcr-5, conferring colistin resistance in d-tartrate fermenting Salmonella enterica subsp. enterica serovar Paratyphi B. J. Antimicrob. Chemother. 2017, 72, 3317–3324. [Google Scholar] [CrossRef]
  61. AbuOun, M.; Stubberfield, E.J.; Duggett, N.A.; Kirchner, M.; Dormer, L.; Nunez-Garcia, J.; Randall, L.P.; Lemma, F.; Crook, D.W.; Teale, C.; et al. mcr-1 and mcr-2 variant genes identified in Moraxella species isolated from pigs in Great Britain from 2014 to 2015. J. Antimicrob. Chemother. 2017, 72, 2745–2749. [Google Scholar] [CrossRef]
  62. Yang, Y.Q.; Li, Y.X.; Lei, C.W.; Zhang, A.Y.; Wang, H.N. Novel plasmid-mediated colistin resistance gene mcr-7.1 in Klebsiella pneumoniae. J. Antimicrob. Chemother. 2018, 73, 1791–1795. [Google Scholar] [CrossRef]
  63. Wang, X.; Wang, Y.; Zhou, Y.; Wang, Z.; Wang, Y.; Zhang, S.; Shen, Z. Emergence of Colistin Resistance Gene mcr-8 and Its Variant in Raoultella ornithinolytica. Front. Microbiol. 2019, 10, 228. [Google Scholar] [CrossRef]
  64. Wang, C.; Feng, Y.; Liu, L.; Wei, L.; Kang, M.; Zong, Z. Identification of novel mobile colistin resistance gene mcr-10. Emerg. Microbes. Infect. 2020, 9, 508–516. [Google Scholar] [CrossRef] [PubMed]
  65. Carroll, L.M.; Gaballa, A.; Guldimann, C.; Sullivan, G.; Henderson, L.O.; Wiedmann, M. Identification of Novel Mobilized Colistin Resistance Gene mcr-9 in a Multidrug-Resistant, Colistin-Susceptible Salmonella enterica Serotype Typhimurium Isolate. mBio 2019, 10, e00853-19. [Google Scholar] [CrossRef] [PubMed]
  66. Snesrud, E.; Maybank, R.; Kwak, Y.I.; Jones, A.R.; Hinkle, M.K.; McGann, P. Chromosomally Encoded mcr-5 in Colistin-Nonsusceptible Pseudomonas aeruginosa. Antimicrob. Agents Chemother. 2018, 62, e00679-18. [Google Scholar] [CrossRef]
  67. Singh, S.; Pathak, A.; Kumar, A.; Rahman, M.; Singh, A.; Gonzalez-Zorn, B.; Prasad, K.N. Emergence of Chromosome-Borne Colistin Resistance Gene mcr-1 in Clinical Isolates of Klebsiella pneumoniae from India. Antimicrob. Agents Chemother. 2018, 62, e01885-17. [Google Scholar] [CrossRef] [PubMed]
  68. Martins-Sorenson, N.; Snesrud, E.; Xavier, D.E.; Cacci, L.C.; Iavarone, A.T.; McGann, P.; Riley, L.W.; Moreira, B.M. A novel plasmid-encoded mcr-4.3 gene in a colistin-resistant Acinetobacter baumannii clinical strain. J. Antimicrob. Chemother. 2020, 75, 60–64. [Google Scholar] [CrossRef]
  69. Kalova, A.; Gelbicova, T.; Overballe-Petersen, S.; Litrup, E.; Karpiskova, R. Characterisation of Colistin–Resistant Enterobacterales and Acinetobacter Strains Carrying mcr Genes from Asian Aquaculture Products. Antibiotics 2021, 10, 838. [Google Scholar] [CrossRef]
  70. Lythell, E.; Suardiaz, R.; Hinchliffe, P.; Hanpaibool, C.; Visitsatthawong, S.; Oliveira, A.S.F.; Lang, E.J.M.; Surawatanawong, P.; Lee, V.S.; Rungrotmongkol, T.; et al. Resistance to the “last resort” antibiotic colistin: A single-zinc mechanism for phosphointermediate formation in MCR enzymes. Chem. Commun. 2020, 56, 6874–6877. [Google Scholar] [CrossRef]
  71. Liu, Y.Y.; Wang, Y.; Walsh, T.R.; Yi, L.X.; Zhang, R.; Spencer, J.; Doi, Y.; Tian, G.; Dong, B.; Huang, X.; et al. Emergence of plasmid-mediated colistin resistance mechanism MCR-1 in animals and human beings in China: A microbiological and molecular biological study. Lancet Infect. Dis. 2016, 16, 161–168. [Google Scholar] [CrossRef]
  72. Xavier, B.B.; Lammens, C.; Ruhal, R.; Kumar-Singh, S.; Butaye, P.; Goossens, H.; Malhotra-Kumar, S. Identification of a novel plasmid-mediated colistin-resistance gene, mcr-2, in Escherichia coli, Belgium, June 2016. Eurosurveillance 2016, 21, 30280. [Google Scholar] [CrossRef]
  73. Poirel, L.; Kieffer, N.; Fernandez-Garayzabal, J.F.; Vela, A.I.; Larpin, Y.; Nordmann, P. MCR-2-mediated plasmid-borne polymyxin resistance most likely originates from Moraxella pluranimalium. J. Antimicrob. Chemother. 2017, 72, 2947–2949. [Google Scholar] [CrossRef]
  74. Wang, X.; Wang, Y.; Zhou, Y.; Li, J.; Yin, W.; Wang, S.; Zhang, S.; Shen, J.; Shen, Z.; Wang, Y. Emergence of a novel mobile colistin resistance gene, mcr-8, in NDM-producing Klebsiella pneumoniae. Emerg. Microbes Infect. 2018, 7, 122. [Google Scholar] [CrossRef] [PubMed]
  75. Cullen, T.W.; Trent, M.S. A link between the assembly of flagella and lipooligosaccharide of the Gram-negative bacterium Campylobacter jejuni. Proc. Natl. Acad. Sci. USA 2010, 107, 5160–5165. [Google Scholar] [CrossRef] [PubMed]
  76. Scott, N.E.; Nothaft, H.; Edwards, A.V.; Labbate, M.; Djordjevic, S.P.; Larsen, M.R.; Szymanski, C.M.; Cordwell, S.J. Modification of the Campylobacter jejuni N-linked glycan by EptC protein-mediated addition of phosphoethanolamine. J. Biol. Chem. 2012, 287, 29384–29396. [Google Scholar] [CrossRef] [PubMed]
  77. Cullen, T.W.; O’Brien, J.P.; Hendrixson, D.R.; Giles, D.K.; Hobb, R.I.; Thompson, S.A.; Brodbelt, J.S.; Trent, M.S. EptC of Campylobacter jejuni mediates phenotypes involved in host interactions and virulence. Infect. Immun. 2013, 81, 430–440. [Google Scholar] [CrossRef]
  78. Lim, E.S.; Kim, J.S. Role of eptC in Biofilm Formation by Campylobacter jejuni NCTC11168 on Polystyrene and Glass Surfaces. J. Microbiol. Biotechnol. 2017, 27, 1609–1616. [Google Scholar] [CrossRef]
  79. Fage, C.D.; Brown, D.B.; Boll, J.M.; Keatinge-Clay, A.T.; Trent, M.S. Crystallographic study of the phosphoethanolamine transferase EptC required for polymyxin resistance and motility in Campylobacter jejuni. Acta Crystallogr. D Biol. Crystallogr. 2014, 70, 2730–2739. [Google Scholar] [CrossRef]
  80. Kanipes, M.I.; Lin, S.; Cotter, R.J.; Raetz, C.R. Ca2+-induced phosphoethanolamine transfer to the outer 3-deoxy-D-manno-octulosonic acid moiety of Escherichia coli lipopolysaccharide. A novel membrane enzyme dependent upon phosphatidylethanolamine. J. Biol. Chem. 2001, 276, 1156–1163. [Google Scholar] [CrossRef]
  81. Reynolds, C.M.; Kalb, S.R.; Cotter, R.J.; Raetz, C.R. A phosphoethanolamine transferase specific for the outer 3-deoxy-D-manno-octulosonic acid residue of Escherichia coli lipopolysaccharide. Identification of the eptB gene and Ca2+ hypersensitivity of an eptB deletion mutant. J. Biol. Chem. 2005, 280, 21202–21211. [Google Scholar] [CrossRef]
  82. Moon, K.; Six, D.A.; Lee, H.J.; Raetz, C.R.; Gottesman, S. Complex transcriptional and post-transcriptional regulation of an enzyme for lipopolysaccharide modification. Mol. Microbiol. 2013, 89, 52–64. [Google Scholar] [CrossRef]
  83. Klein, G.; Raina, S. Regulated Assembly of LPS, Its Structural Alterations and Cellular Response to LPS Defects. Int. J. Mol. Sci. 2019, 20, 356. [Google Scholar] [CrossRef]
  84. Dersch, P.; Khan, M.A.; Muhlen, S.; Gorke, B. Roles of Regulatory RNAs for Antibiotic Resistance in Bacteria and Their Potential Value as Novel Drug Targets. Front. Microbiol. 2017, 8, 803. [Google Scholar] [CrossRef] [PubMed]
  85. Zhang, L.F.; Rivera-Chavez, F.; Hiyoshi, H.; Baumler, A.J. 2420: Loss of eptB decreases systemic inflammation during Salmonella infection and allows for evasion of the host immune response. J. Clin. Transl. Sci. 2018, 1, 9. [Google Scholar] [CrossRef]
  86. Acuna, L.G.; Barros, M.J.; Penaloza, D.; Rodas, P.I.; Paredes-Sabja, D.; Fuentes, J.A.; Gil, F.; Calderon, I.L. A feed-forward loop between SroC and MgrR small RNAs modulates the expression of eptB and the susceptibility to polymyxin B in Salmonella Typhimurium. Microbiology 2016, 162, 1996–2004. [Google Scholar] [CrossRef]
  87. Knirel, Y.A.; Anisimov, A.P.; Kislichkina, A.A.; Kondakova, A.N.; Bystrova, O.V.; Vagaiskaya, A.S.; Shatalin, K.Y.; Shashkov, A.S.; Dentovskaya, S.V. Lipopolysaccharide of the Yersinia pseudotuberculosis Complex. Biomolecules 2021, 11, 1410. [Google Scholar] [CrossRef]
  88. Knirel, Y.A.; Lindner, B.; Vinogradov, E.; Shaikhutdinova, R.Z.; Senchenkova, S.N.; Kocharova, N.A.; Holst, O.; Pier, G.B.; Anisimov, A.P. Cold temperature-induced modifications to the composition and structure of the lipopolysaccharide of Yersinia pestis. Carbohydr. Res. 2005, 340, 1625–1630. [Google Scholar] [CrossRef] [PubMed]
  89. Dentovskaya, S.V.; Anisimov, A.P.; Kondakova, A.N.; Lindner, B.; Bystrova, O.V.; Svetoch, T.E.; Shaikhutdinova, R.Z.; Ivanov, S.A.; Bakhteeva, I.V.; Titareva, G.M.; et al. Functional characterization and biological significance of Yersinia pestis lipopolysaccharide biosynthesis genes. Biochemistry 2011, 76, 808–822. [Google Scholar] [CrossRef]
  90. Trimble, M.J.; Mlynarcik, P.; Kolar, M.; Hancock, R.E. Polymyxin: Alternative Mechanisms of Action and Resistance. Cold Spring Harb. Perspect. Med. 2016, 6, a025288. [Google Scholar] [CrossRef]
  91. Wright, J.C.; Hood, D.W.; Randle, G.A.; Makepeace, K.; Cox, A.D.; Li, J.; Chalmers, R.; Richards, J.C.; Moxon, E.R. lpt6, a gene required for addition of phosphoethanolamine to inner-core lipopolysaccharide of Neisseria meningitidis and Haemophilus influenzae. J. Bacteriol. 2004, 186, 6970–6982. [Google Scholar] [CrossRef]
  92. Wenzel, C.Q.; St Michael, F.; Stupak, J.; Li, J.; Cox, A.D.; Richards, J.C. Functional characterization of Lpt3 and Lpt6, the inner-core lipooligosaccharide phosphoethanolamine transferases from Neisseria meningitidis. J. Bacteriol. 2010, 192, 208–216. [Google Scholar] [CrossRef]
  93. Lewis, L.A.; Choudhury, B.; Balthazar, J.T.; Martin, L.E.; Ram, S.; Rice, P.A.; Stephens, D.S.; Carlson, R.; Shafer, W.M. Phosphoethanolamine substitution of lipid A and resistance of Neisseria gonorrhoeae to cationic antimicrobial peptides and complement-mediated killing by normal human serum. Infect. Immun. 2009, 77, 1112–1120. [Google Scholar] [CrossRef]
  94. Mansson, M.; Hood, D.W.; Moxon, E.R.; Schweda, E.K. Structural characterization of a novel branching pattern in the lipopolysaccharide from nontypeable Haemophilus influenzae. Eur. J. Biochem. 2003, 270, 2979–2991. [Google Scholar] [CrossRef]
  95. Aquilini, E.; Merino, S.; Knirel, Y.A.; Regue, M.; Tomas, J.M. Functional identification of Proteus mirabilis eptC gene encoding a core lipopolysaccharide phosphoethanolamine transferase. Int. J. Mol. Sci. 2014, 15, 6689–6702. [Google Scholar] [CrossRef]
  96. Sun, Y.; Wen, S.; Zhao, L.; Xia, Q.; Pan, Y.; Liu, H.; Wei, C.; Chen, H.; Ge, J.; Wang, H. Association among biofilm formation, virulence gene expression, and antibiotic resistance in Proteus mirabilis isolates from diarrhetic animals in Northeast China. BMC Vet. Res. 2020, 16, 176. [Google Scholar] [CrossRef]
  97. Mackinnon, F.G.; Cox, A.D.; Plested, J.S.; Tang, C.M.; Makepeace, K.; Coull, P.A.; Wright, J.C.; Chalmers, R.; Hood, D.W.; Richards, J.C.; et al. Identification of a gene (lpt-3) required for the addition of phosphoethanolamine to the lipopolysaccharide inner core of Neisseria meningitidis and its role in mediating susceptibility to bactericidal killing and opsonophagocytosis. Mol. Microbiol. 2002, 43, 931–943. [Google Scholar] [CrossRef] [PubMed]
  98. Plested, J.S.; Makepeace, K.; Jennings, M.P.; Gidney, M.A.; Lacelle, S.; Brisson, J.; Cox, A.D.; Martin, A.; Bird, A.G.; Tang, C.M.; et al. Conservation and accessibility of an inner core lipopolysaccharide epitope of Neisseria meningitidis. Infect. Immun. 1999, 67, 5417–5426. [Google Scholar] [CrossRef] [PubMed]
  99. O’Connor, E.T.; Piekarowicz, A.; Swanson, K.V.; Griffiss, J.M.; Stein, D.C. Biochemical analysis of Lpt3, a protein responsible for phosphoethanolamine addition to lipooligosaccharide of pathogenic Neisseria. J. Bacteriol. 2006, 188, 1039–1048. [Google Scholar] [CrossRef] [PubMed]
  100. Olaitan, A.O.; Morand, S.; Rolain, J.M. Mechanisms of polymyxin resistance: Acquired and intrinsic resistance in bacteria. Front. Microbiol. 2014, 5, 643. [Google Scholar] [CrossRef]
  101. Melaugh, W.; Phillips, N.J.; Campagnari, A.A.; Tullius, M.V.; Gibson, B.W. Structure of the major oligosaccharide from the lipooligosaccharide of Haemophilus ducreyi strain 35000 and evidence for additional glycoforms. Biochemistry 1994, 33, 13070–13078. [Google Scholar] [CrossRef]
  102. Kieffer, N.; Nordmann, P.; Poirel, L. Moraxella Species as Potential Sources of MCR-Like Polymyxin Resistance Determinants. Antimicrob. Agents Chemother. 2017, 61, e00129-17. [Google Scholar] [CrossRef]
  103. Gao, R.; Hu, Y.; Li, Z.; Sun, J.; Wang, Q.; Lin, J.; Ye, H.; Liu, F.; Srinivas, S.; Li, D.; et al. Dissemination and Mechanism for the MCR-1 Colistin Resistance. PLoS Pathog. 2016, 12, e1005957. [Google Scholar] [CrossRef]
  104. Mmatli, M.; Mbelle, N.M.; Osei Sekyere, J. Global epidemiology, genetic environment, risk factors and therapeutic prospects of mcr genes: A current and emerging update. Front. Cell. Infect. Microbiol. 2022, 12, 941358. [Google Scholar] [CrossRef] [PubMed]
  105. Lentz, S.A.M.; Dalmolin, T.V.; Barth, A.L.; Martins, A.F. mcr-1 Gene in Latin America: How is It Disseminated among Humans, Animals, and the Environment? Front. Public Health 2021, 9, 648940. [Google Scholar] [CrossRef] [PubMed]
  106. Yang, Q.; Li, M.; Spiller, O.B.; Andrey, D.O.; Hinchliffe, P.; Li, H.; MacLean, C.; Niumsup, P.; Powell, L.; Pritchard, M.; et al. Balancing mcr-1 expression and bacterial survival is a delicate equilibrium between essential cellular defence mechanisms. Nat. Commun. 2017, 8, 2054. [Google Scholar] [CrossRef] [PubMed]
  107. Yin, W.; Ling, Z.; Dong, Y.; Qiao, L.; Shen, Y.; Liu, Z.; Wu, Y.; Li, W.; Zhang, R.; Walsh, T.R.; et al. Mobile Colistin Resistance Enzyme MCR-3 Facilitates Bacterial Evasion of Host Phagocytosis. Adv. Sci. 2021, 8, e2101336. [Google Scholar] [CrossRef] [PubMed]
  108. Dentovskaya, S.V.; Bakhteeva, I.V.; Titareva, G.M.; Shaikhutdinova, R.Z.; Kondakova, A.N.; Bystrova, O.V.; Lindner, B.; Knirel, Y.A.; Anisimov, A.P. Structural diversity and endotoxic activity of the lipopolysaccharide of Yersinia pestis. Biochemistry 2008, 73, 192–199. [Google Scholar] [CrossRef]
  109. Morgan, J.L.; McNamara, J.T.; Zimmer, J. Mechanism of activation of bacterial cellulose synthase by cyclic di-GMP. Nat. Struct. Mol. Biol. 2014, 21, 489–496. [Google Scholar] [CrossRef]
  110. Kahler, C.M.; Datta, A.; Tzeng, Y.L.; Carlson, R.W.; Stephens, D.S. Inner core assembly and structure of the lipooligosaccharide of Neisseria meningitidis: Capacity of strain NMB to express all known immunotype epitopes. Glycobiology 2005, 15, 409–419. [Google Scholar] [CrossRef]
  111. Ram, S.; Cox, A.D.; Wright, J.C.; Vogel, U.; Getzlaff, S.; Boden, R.; Li, J.; Plested, J.S.; Meri, S.; Gulati, S.; et al. Neisserial lipooligosaccharide is a target for complement component C4b. Inner core phosphoethanolamine residues define C4b linkage specificity. J. Biol. Chem. 2003, 278, 50853–50862. [Google Scholar] [CrossRef]
  112. Boda, S.K.; Fischer, N.G.; Ye, Z.; Aparicio, C. Dual Oral Tissue Adhesive Nanofiber Membranes for pH-Responsive Delivery of Antimicrobial Peptides. Biomacromolecules 2020, 21, 4945–4961. [Google Scholar] [CrossRef]
  113. Anonsen, J.H.; Egge-Jacobsen, W.; Aas, F.E.; Borud, B.; Koomey, M.; Vik, A. Novel protein substrates of the phospho-form modification system in Neisseria gonorrhoeae and their connection to O-linked protein glycosylation. Infect. Immun. 2012, 80, 22–30. [Google Scholar] [CrossRef]
  114. Kahler, C.M.; Nawrocki, K.L.; Anandan, A.; Vrielink, A.; Shafer, W.M. Structure-Function Relationships of the Neisserial EptA Enzyme Responsible for Phosphoethanolamine Decoration of Lipid A: Rationale for Drug Targeting. Front. Microbiol. 2018, 9, 1922. [Google Scholar] [CrossRef] [PubMed]
  115. Tzeng, Y.L.; Datta, A.; Ambrose, K.; Lo, M.; Davies, J.K.; Carlson, R.W.; Stephens, D.S.; Kahler, C.M. The MisR/MisS two-component regulatory system influences inner core structure and immunotype of lipooligosaccharide in Neisseria meningitidis. J. Biol. Chem. 2004, 279, 35053–35062. [Google Scholar] [CrossRef] [PubMed]
  116. Tzeng, Y.L.; Kahler, C.M.; Zhang, X.; Stephens, D.S. MisR/MisS two-component regulon in Neisseria meningitidis. Infect. Immun. 2008, 76, 704–716. [Google Scholar] [CrossRef] [PubMed]
  117. Johnson, M.B.; Criss, A.K. Resistance of Neisseria gonorrhoeae to neutrophils. Front. Microbiol. 2011, 2, 77. [Google Scholar] [CrossRef]
  118. Wei, P.; Song, G.; Shi, M.; Zhou, Y.; Liu, Y.; Lei, J.; Chen, P.; Yin, L. Substrate analog interaction with MCR-1 offers insight into the rising threat of the plasmid-mediated transferable colistin resistance. FASEB J. 2018, 32, 1085–1098. [Google Scholar] [CrossRef]
  119. Son, S.J.; Huang, R.; Squire, C.J.; Leung, I.K.H. MCR-1: A promising target for structure-based design of inhibitors to tackle polymyxin resistance. Drug Discov. Today 2019, 24, 206–216. [Google Scholar] [CrossRef]
  120. Sun, J.; Xu, Y.; Gao, R.; Lin, J.; Wei, W.; Srinivas, S.; Li, D.; Yang, R.S.; Li, X.P.; Liao, X.P.; et al. Deciphering MCR-2 Colistin Resistance. mBio 2017, 8, e00625-17. [Google Scholar] [CrossRef]
  121. Ma, G.; Zhu, Y.; Yu, Z.; Ahmad, A.; Zhang, H. High resolution crystal structure of the catalytic domain of MCR-1. Sci. Rep. 2016, 6, 39540. [Google Scholar] [CrossRef]
  122. Coates, K.; Walsh, T.R.; Spencer, J.; Hinchliffe, P. 1.12 A resolution crystal structure of the catalytic domain of the plasmid-mediated colistin resistance determinant MCR-2. Acta Crystallogr. F Struct. Biol. Commun. 2017, 73, 443–449. [Google Scholar] [CrossRef]
  123. Pettersen, E.F.; Goddard, T.D.; Huang, C.C.; Couch, G.S.; Greenblatt, D.M.; Meng, E.C.; Ferrin, T.E. UCSF Chimera—A visualization system for exploratory research and analysis. J. Comput. Chem. 2004, 25, 1605–1612. [Google Scholar] [CrossRef]
  124. Piek, S.; Wang, Z.; Ganguly, J.; Lakey, A.M.; Bartley, S.N.; Mowlaboccus, S.; Anandan, A.; Stubbs, K.A.; Scanlon, M.J.; Vrielink, A.; et al. The role of oxidoreductases in determining the function of the Neisserial lipid A phosphoethanolamine transferase required for resistance to polymyxin. PLoS ONE 2014, 9, e106513. [Google Scholar] [CrossRef]
  125. Hinchliffe, P.; Yang, Q.E.; Portal, E.; Young, T.; Li, H.; Tooke, C.L.; Carvalho, M.J.; Paterson, N.G.; Brem, J.; Niumsup, P.R.; et al. Insights into the Mechanistic Basis of Plasmid-Mediated Colistin Resistance from Crystal Structures of the Catalytic Domain of MCR-1. Sci. Rep. 2017, 7, 39392. [Google Scholar] [CrossRef] [PubMed]
  126. Stojanoski, V.; Sankaran, B.; Prasad, B.V.; Poirel, L.; Nordmann, P.; Palzkill, T. Structure of the catalytic domain of the colistin resistance enzyme MCR-1. BMC Biol. 2016, 14, 81. [Google Scholar] [CrossRef]
  127. Hu, M.; Guo, J.; Cheng, Q.; Yang, Z.; Chan, E.W.C.; Chen, S.; Hao, Q. Crystal Structure of Escherichia coli originated MCR-1, a phosphoethanolamine transferase for Colistin Resistance. Sci. Rep. 2016, 6, 38793. [Google Scholar] [CrossRef] [PubMed]
  128. Xu, Y.; Wei, W.; Lei, S.; Lin, J.; Srinivas, S.; Feng, Y. An Evolutionarily Conserved Mechanism for Intrinsic and Transferable Polymyxin Resistance. mBio 2018, 9, e02317-17. [Google Scholar] [CrossRef] [PubMed]
  129. Suardiaz, R.; Lythell, E.; Hinchliffe, P.; van der Kamp, M.; Spencer, J.; Fey, N.; Mulholland, A.J. Catalytic mechanism of the colistin resistance protein MCR-1. Org. Biomol. Chem. 2021, 19, 3813–3819. [Google Scholar] [CrossRef]
  130. Xu, Y.; Zhong, L.L.; Srinivas, S.; Sun, J.; Huang, M.; Paterson, D.L.; Lei, S.; Lin, J.; Li, X.; Tang, Z.; et al. Spread of MCR-3 Colistin Resistance in China: An Epidemiological, Genomic and Mechanistic Study. eBioMedicine 2018, 34, 139–157. [Google Scholar] [CrossRef]
  131. Zhang, H.; Hou, M.; Xu, Y.; Srinivas, S.; Huang, M.; Liu, L.; Feng, Y. Action and mechanism of the colistin resistance enzyme MCR-4. Commun. Biol. 2019, 2, 36. [Google Scholar] [CrossRef]
  132. Zhang, H.; Zong, Z.; Lei, S.; Srinivas, S.; Sun, J.; Feng, Y.; Huang, M.; Feng, Y. A Genomic, Evolutionary, and Mechanistic Study of MCR-5 Action Suggests Functional Unification across the MCR Family of Colistin Resistance. Adv. Sci. 2019, 6, 1900034. [Google Scholar] [CrossRef]
  133. Liu, Z.-X.; Han, Z.; Yu, X.-L.; Wen, G.; Zeng, C. Crystal Structure of the Catalytic Domain of MCR-1 (cMCR-1) in Complex with d-Xylose. Crystals 2018, 8, 172. [Google Scholar] [CrossRef]
  134. Lan, X.J.; Yan, H.T.; Lin, F.; Hou, S.; Li, C.C.; Wang, G.S.; Sun, W.; Xiao, J.H.; Li, S. Design, Synthesis and Biological Evaluation of 1-Phenyl-2-(phenylamino) Ethanone Derivatives as Novel MCR-1 Inhibitors. Molecules 2019, 24, 2719. [Google Scholar] [CrossRef] [PubMed]
  135. Sun, H.; Zhang, Q.; Wang, R.; Wang, H.; Wong, Y.T.; Wang, M.; Hao, Q.; Yan, A.; Kao, R.Y.; Ho, P.L.; et al. Resensitizing carbapenem- and colistin-resistant bacteria to antibiotics using auranofin. Nat. Commun. 2020, 11, 5263. [Google Scholar] [CrossRef] [PubMed]
  136. Zhang, Q.; Wang, R.; Wang, M.; Liu, C.; Koohi-Moghadam, M.; Wang, H.; Ho, P.L.; Li, H.; Sun, H. Re-sensitization of mcr carrying multidrug resistant bacteria to colistin by silver. Proc. Natl. Acad. Sci. USA 2022, 119, e2119417119. [Google Scholar] [CrossRef] [PubMed]
  137. Bohlmann, L.; De Oliveira, D.M.P.; El-Deeb, I.M.; Brazel, E.B.; Harbison-Price, N.; Ong, C.Y.; Rivera-Hernandez, T.; Ferguson, S.A.; Cork, A.J.; Phan, M.D.; et al. Chemical Synergy between Ionophore PBT2 and Zinc Reverses Antibiotic Resistance. mBio 2018, 9, e02391-18. [Google Scholar] [CrossRef] [PubMed]
  138. Jen, F.E.; Everest-Dass, A.V.; El-Deeb, I.M.; Singh, S.; Haselhorst, T.; Walker, M.J.; von Itzstein, M.; Jennings, M.P. Neisseria gonorrhoeae Becomes Susceptible to Polymyxin B and Colistin in the Presence of PBT2. ACS Infect. Dis. 2020, 6, 50–55. [Google Scholar] [CrossRef] [PubMed]
  139. Jen, F.E.; El-Deeb, I.M.; Zalucki, Y.M.; Edwards, J.L.; Walker, M.J.; von Itzstein, M.; Jennings, M.P. A drug candidate for Alzheimer’s and Huntington’s disease, PBT2, can be repurposed to render Neisseria gonorrhoeae susceptible to natural cationic antimicrobial peptides. J. Antimicrob. Chemother. 2021, 76, 2850–2853. [Google Scholar] [CrossRef]
  140. Cui, X.D.; Zhang, J.K.; Sun, Y.W.; Yan, F.B.; Zhao, J.F.; He, D.D.; Pan, Y.S.; Yuan, L.; Zhai, Y.J.; Hu, G.Z. Synergistic antibacterial activity of baicalin and EDTA in combination with colistin against colistin-resistant Salmonella. Poult. Sci. 2023, 102, 102346. [Google Scholar] [CrossRef]
  141. Zhou, Y.; Liu, S.; Wang, T.; Li, H.; Tang, S.; Wang, J.; Wang, Y.; Deng, X. Pterostilbene, a Potential MCR-1 Inhibitor That Enhances the Efficacy of Polymyxin B. Antimicrob. Agents Chemother. 2018, 62, e02146-17. [Google Scholar] [CrossRef]
  142. Wang, Y.; Liu, X.; Sun, X.; Wen, Z.; Wang, D.; Peng, L. A Potential Inhibitor of MCR-1: An Attempt to Enhance the Efficacy of Polymyxin Against Multidrug-Resistant Bacteria. Curr. Microbiol. 2020, 77, 3256–3263. [Google Scholar] [CrossRef]
  143. Du, R.; Lv, Q.; Hu, W.; Hou, X.; Zhou, Y.; Deng, X.; Sun, L.; Li, L.; Deng, Y.; Wang, J. Phloretin potentiates polymyxin E activity against gram-negative bacteria. Life Sci. 2021, 287, 120085. [Google Scholar] [CrossRef]
  144. Zhou, Y.; Wang, J.; Guo, Y.; Liu, X.; Liu, S.; Niu, X.; Wang, Y.; Deng, X. Discovery of a potential MCR-1 inhibitor that reverses polymyxin activity against clinical mcr-1-positive Enterobacteriaceae. J. Infect. 2019, 78, 364–372. [Google Scholar] [CrossRef] [PubMed]
  145. Xie, S.; Li, L.; Zhan, B.; Shen, X.; Deng, X.; Tan, W.; Fang, T. Pogostone Enhances the Antibacterial Activity of Colistin against MCR-1-Positive Bacteria by Inhibiting the Biological Function of MCR-1. Molecules 2022, 27, 2819. [Google Scholar] [CrossRef] [PubMed]
  146. Sheng, Q.; Du, R.; Ma, C.; Zhou, Y.; Shen, X.; Hou, X.; Xu, L.; Li, L.; Deng, X.; Wang, J. NMPA-approved traditional Chinese medicine-Pingwei Pill: New indication for colistin recovery against MCR-positive bacteria infection. Chin. Med. 2021, 16, 106. [Google Scholar] [CrossRef] [PubMed]
  147. Hanpaibool, C.; Ngamwongsatit, N.; Ounjai, P.; Yotphan, S.; Wolschann, P.; Mulholland, A.J.; Spencer, J.; Rungrotmongkol, T. Pyrazolones Potentiate Colistin Activity against MCR-1-Producing Resistant Bacteria: Computational and Microbiological Study. ACS Omega 2023, 8, 8366–8376. [Google Scholar] [CrossRef] [PubMed]
  148. Guo, Y.; Lv, X.; Wang, Y.; Zhou, Y.; Lu, N.; Deng, X.; Wang, J. Honokiol Restores Polymyxin Susceptibility to MCR-1-Positive Pathogens both In Vitro and In Vivo. Appl. Environ. Microbiol. 2020, 86, e02346-19. [Google Scholar] [CrossRef]
  149. Mullally, C.; Stubbs, K.A.; Thai, V.C.; Anandan, A.; Bartley, S.; Scanlon, M.J.; Jarvis, G.A.; John, C.M.; Lim, K.Y.L.; Sullivan, C.M.; et al. Novel small molecules that increase the susceptibility of Neisseria gonorrhoeae to cationic antimicrobial peptides by inhibiting lipid A phosphoethanolamine transferase. J. Antimicrob. Chemother. 2022, 77, 2441–2447. [Google Scholar] [CrossRef]
  150. Barker, W.T.; Martin, S.E.; Chandler, C.E.; Nguyen, T.V.; Harris, T.L.; Goodell, C.; Melander, R.J.; Doi, Y.; Ernst, R.K.; Melander, C. Small molecule adjuvants that suppress both chromosomal and mcr-1 encoded colistin-resistance and amplify colistin efficacy in polymyxin-susceptible bacteria. Bioorg. Med. Chem. 2017, 25, 5749–5753. [Google Scholar] [CrossRef]
  151. Barker, W.T.; Nemeth, A.M.; Brackett, S.M.; Basak, A.K.; Chandler, C.E.; Jania, L.A.; Zuercher, W.J.; Melander, R.J.; Koller, B.H.; Ernst, R.K.; et al. Repurposing Eukaryotic Kinase Inhibitors as Colistin Adjuvants in Gram-Negative Bacteria. ACS Infect. Dis. 2019, 5, 1764–1771. [Google Scholar] [CrossRef]
  152. Nemeth, A.M.; Basak, A.K.; Weig, A.W.; Marrujo, S.A.; Barker, W.T.; Jania, L.A.; Hendricks, T.A.; Sullivan, A.E.; O’Connor, P.M.; Melander, R.J.; et al. Structure-Function Studies on IMD-0354 Identifies Highly Active Colistin Adjuvants. ChemMedChem 2020, 15, 210–218. [Google Scholar] [CrossRef]
Antibiotics 12 01382 g001
Figure 1. Modification of lipid A headgroups on LPS/LOS in pathogenic Gram-negative bacteria. Panel A. The modification of lipid A headgroups on LPS/LOS with phosphoethanolamine (PEA) and 4-amino-4-deoxy-L-arabinose (L-Ara4N) confer resistance to cationic antimicrobial peptides (CAMPs) in pathogenic Gram-negative bacteria (a). Panel B. The lipid A PEA transferases catalyze the reaction in which the PEA moiety is transferred from phosphatidylethanolamine (PE) onto the 1 and/or 4′ position of the Lipid A headgroups on LPS/LOS (b). This figure was created using Biorender.
Figure 1. Modification of lipid A headgroups on LPS/LOS in pathogenic Gram-negative bacteria. Panel A. The modification of lipid A headgroups on LPS/LOS with phosphoethanolamine (PEA) and 4-amino-4-deoxy-L-arabinose (L-Ara4N) confer resistance to cationic antimicrobial peptides (CAMPs) in pathogenic Gram-negative bacteria (a). Panel B. The lipid A PEA transferases catalyze the reaction in which the PEA moiety is transferred from phosphatidylethanolamine (PE) onto the 1 and/or 4′ position of the Lipid A headgroups on LPS/LOS (b). This figure was created using Biorender.
Antibiotics 12 01382 g001
Antibiotics 12 01382 g002
Figure 2. Schematic models of the PEA modifications catalyzed by 11 subclasses of PEA transferases in pathogenic Gram-negative bacteria. Panel (a) PEA transferases modify lipooligosaccharide (LOS)/lipopolysaccharide (LPS) during transport across the periplasmic space. Multiple positions on LOS/LPS can be decorated (see insert showing Classes I, II, III, IV, V, VII, VIII, X). Panel (b) Other targets in the periplasm are decorated by Classes I, VI, IX and XI. Class I CjEptC (Campylobacter jejuni EptC) modifies lipid A headgroups of LOS, HepI of LOS, FlgG flagellar rod protein, and glycoproteins. Class VI BcsG modifies cellulose [26]. Class IX OpgE modifies osmoregulated periplasmic glycans [28]. Class XI PptA modifies Pilin subunit PilE [29]. This figure was created using Biorender.
Figure 2. Schematic models of the PEA modifications catalyzed by 11 subclasses of PEA transferases in pathogenic Gram-negative bacteria. Panel (a) PEA transferases modify lipooligosaccharide (LOS)/lipopolysaccharide (LPS) during transport across the periplasmic space. Multiple positions on LOS/LPS can be decorated (see insert showing Classes I, II, III, IV, V, VII, VIII, X). Panel (b) Other targets in the periplasm are decorated by Classes I, VI, IX and XI. Class I CjEptC (Campylobacter jejuni EptC) modifies lipid A headgroups of LOS, HepI of LOS, FlgG flagellar rod protein, and glycoproteins. Class VI BcsG modifies cellulose [26]. Class IX OpgE modifies osmoregulated periplasmic glycans [28]. Class XI PptA modifies Pilin subunit PilE [29]. This figure was created using Biorender.
Antibiotics 12 01382 g002
Antibiotics 12 01382 g003
Figure 3. Maximum likelihood phylogeny inferred from amino acid sequences of PEA transferases. Tree representing the evolutionary relationships between different PEA transferases were created after multiple sequence alignment using the Clustal Omega web server (https://www.ebi.ac.uk/Tools/msa/clustalo/, accessed on 12 July 2023). The tree was further modified using the iTOL web server (https://itol.embl.de/, accessed on 12 July 2023) [32], with 11 PEA transferase subclasses identified based on their sites of PEA modification. Detailed representative PEA transferase sequences used to construct this tree are provided in Table S1. Escherichia coli (Ec), Salmonella enterica Typhimurium (St), Acinetobacter baumannii (Ab), Shigella flexneri (Sf), Klebsiella pneumoniae (Kp), Helicobacter pylori (Hp), Pseudomonas aeruginosa (Pa), Vibrio cholerae (Vc), Neisseria meningitidis (Nm), Neisseria gonorrhoeae (Ng), Haemophilus ducreyi (Hd), Cronobacter sakazakii (Cs), Vibrio parahaemolyticus (Vp), Proteus mirabilis (Pmi), Pasteurella multocida (Pmu), Moraxella catarrhalis (Mc), Moraxella osloensis (Mo), Moraxella pluranimalium (Mp), Enterobacter roggenkampii (Er), Yersinia pestis (Yp), Campylobacter jejuni (Cj), and Haemophilus influenzae (Hi).
Figure 3. Maximum likelihood phylogeny inferred from amino acid sequences of PEA transferases. Tree representing the evolutionary relationships between different PEA transferases were created after multiple sequence alignment using the Clustal Omega web server (https://www.ebi.ac.uk/Tools/msa/clustalo/, accessed on 12 July 2023). The tree was further modified using the iTOL web server (https://itol.embl.de/, accessed on 12 July 2023) [32], with 11 PEA transferase subclasses identified based on their sites of PEA modification. Detailed representative PEA transferase sequences used to construct this tree are provided in Table S1. Escherichia coli (Ec), Salmonella enterica Typhimurium (St), Acinetobacter baumannii (Ab), Shigella flexneri (Sf), Klebsiella pneumoniae (Kp), Helicobacter pylori (Hp), Pseudomonas aeruginosa (Pa), Vibrio cholerae (Vc), Neisseria meningitidis (Nm), Neisseria gonorrhoeae (Ng), Haemophilus ducreyi (Hd), Cronobacter sakazakii (Cs), Vibrio parahaemolyticus (Vp), Proteus mirabilis (Pmi), Pasteurella multocida (Pmu), Moraxella catarrhalis (Mc), Moraxella osloensis (Mo), Moraxella pluranimalium (Mp), Enterobacter roggenkampii (Er), Yersinia pestis (Yp), Campylobacter jejuni (Cj), and Haemophilus influenzae (Hi).
Antibiotics 12 01382 g003
Antibiotics 12 01382 g006
Figure 6. Comparison of the active sites of PEA transferases. NmEptA (PDB: 5FGN) [13], MCR-2 (PDB: 5MX9) [122], McICR (PDB: 6BNF) [57], CjEptC (PDB: 4TN0) [79], EcEptC (PDB: 6A83) [21], EcBcsG (PDB: 6PCZ) [25], and StBcsG (PDB: 5OLT) [27]. The structure of MCR-1 (PDB: 5GRR) [121], which displays two zinc molecules at the active site region, was chosen for the comparative analysis. This figure was visualized using UCSF Chimera [123].
Figure 6. Comparison of the active sites of PEA transferases. NmEptA (PDB: 5FGN) [13], MCR-2 (PDB: 5MX9) [122], McICR (PDB: 6BNF) [57], CjEptC (PDB: 4TN0) [79], EcEptC (PDB: 6A83) [21], EcBcsG (PDB: 6PCZ) [25], and StBcsG (PDB: 5OLT) [27]. The structure of MCR-1 (PDB: 5GRR) [121], which displays two zinc molecules at the active site region, was chosen for the comparative analysis. This figure was visualized using UCSF Chimera [123].
Antibiotics 12 01382 g006
Antibiotics 12 01382 g007
Figure 7. Reaction catalyzed by Class I PEA transferases. A cluster model has been proposed to illustrate the catalytic pathway of MCR-1. The first half of the reaction involves the formation of a PEA-Enzyme conjugate and the release of diacylglycerol. In the second half of the reaction the PEA-lipid A once formed will be released from the Enzyme active site. Amino acids are numbered according to their position in MCR-1 and side chains are shown. Dashes represent hydrogen bonds while solid lines are covalent bonds. The figure was modified from Suardiaz et al. [129].
Figure 7. Reaction catalyzed by Class I PEA transferases. A cluster model has been proposed to illustrate the catalytic pathway of MCR-1. The first half of the reaction involves the formation of a PEA-Enzyme conjugate and the release of diacylglycerol. In the second half of the reaction the PEA-lipid A once formed will be released from the Enzyme active site. Amino acids are numbered according to their position in MCR-1 and side chains are shown. Dashes represent hydrogen bonds while solid lines are covalent bonds. The figure was modified from Suardiaz et al. [129].
Antibiotics 12 01382 g007
Antibiotics 12 01382 g008
Figure 8. The interactions between PEA transferases and their corresponding substrate or substrate analogues. Panel (a) depicts the interaction between NmEptA and DDM molecule (PDB: 5FGN) [13]. Panel (b) shows the interaction between the McICRThr315Ala mono-Zn2+ catalytic domain and phosphoethanolamine (PDB: 6BND) [57], which involves Tyr338 from the partner subunit. Red sphere: Water molecule. Panels (c–e) illustrate the interactions between the catalytic domain of MCR-1 and D-glucose (PDB: 5YLF) [118], D-xylose (PDB: 5ZJV) [133], and ethanolamine (PDB: 5YLE) [118], respectively. This figure was visualized using UCSF Chimera [123].
Figure 8. The interactions between PEA transferases and their corresponding substrate or substrate analogues. Panel (a) depicts the interaction between NmEptA and DDM molecule (PDB: 5FGN) [13]. Panel (b) shows the interaction between the McICRThr315Ala mono-Zn2+ catalytic domain and phosphoethanolamine (PDB: 6BND) [57], which involves Tyr338 from the partner subunit. Red sphere: Water molecule. Panels (c–e) illustrate the interactions between the catalytic domain of MCR-1 and D-glucose (PDB: 5YLF) [118], D-xylose (PDB: 5ZJV) [133], and ethanolamine (PDB: 5YLE) [118], respectively. This figure was visualized using UCSF Chimera [123].
Antibiotics 12 01382 g008
Table 1. Summary of known PEA transferases identified in pathogenic Gram-negative bacteria.
Table 1. Summary of known PEA transferases identified in pathogenic Gram-negative bacteria.
ClassEnzymeOrganismEncoded bySites of PEA ModificationRegulationFunctionReference
IEptA
(LptA, PmrC, YjdB)		E. coliCore genomeLipid A headgroupsPmrA/B and PhoP/QResistance to CAMPs[17,23,33]
S. enterica TyphymuriumCore genomeLipid A headgroupsPmrA/B and PhoP/QResistance to CAMPs[17,23,33,34]
A. baumanniiCore genomeLipid A headgroupsPmrA/BResistance to CAMPs[35,36]
S. flexneriCore genomeLipid A headgroupsPmrA/B and PhoP/QResistance to CAMPs[17]
K. pneumoniaCore genomeLipid A headgroupsPmrA/B and PhoP/QResistance to CAMPs[17,37]
H. pyloriCore genomeLipid A headgroupsRequires the removal of phosphate group by LpxEHP (Hp0021, Lipid A phosphatase)Resistance to CAMPs[38,39]
P. aeruginosaCore genomeLipid A headgroupsColR/SResistance to CAMPs[17,40]
V. choleraCore genomeLipid A headgroupspH = 5.8Resistance to CAMPs[41,42]
N. meningitidisGenetic islandLipid A headgroupsPhase variation of the open reading frame and MisR/SResistance to CAMPs
Resistance to human serum
Colonisation of mucosal surfaces		[12,17,43,44,45,46,47,48,49]
N. gonorrhoeaeGenetic islandLipid A headgroupsPhase variation of the open reading frame and MisR/SResistance to CAMPs
Resistance to human serum
Evasion of phagocytosis by PNMs and macrophages
Colonisation of mucosal surfaces
Influence bacterial survival in mouse and human models		[12,17,43,44,45,46,47,48,50,51,52]
H. ducreyiCore genomeLipid A headgroupsUnknownResistance to CAMPs[53]
ESA_RS09200 (ESA_02008)C. sakazakiiCore genomeLipid A headgroupspH = 5.0Resistance to CAMPs
Avoid TLR4/MD2 recognition
Evasion of phagocytosis by macrophages		[54]
VP_RS21300V. parahaemolyticusCore genomeLipid A headgroupspH = 6.5Resistance to CAMPs
Increase pathogenicity		[55]
PetLP. multocidaCore genomeLipid A headgroupsGlobal regulator Fis and Hfq-dependent sRNAResistance to CAMPs[18,56]
ICRMoraxella spp.
(M. catarrhalis and
M. osloensis)		Core genomeLipid A headgroupsUnknownIntrinsic resistance to CAMPs[15,57]
MCR-1 to MCR-10Enterobacteriaceae, Moraxella spp., P. aeruginosa and Acinetobacter spp.PlasmidLipid A headgroupsUnknownResistance to CAMPs
Mcr-3 increases pathogenicity and impairs phagocytosis.		[58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74]
EptCC. jejuniCore genomeLipid A headgroups
HepI of LOS
FlgG flagellar rod protein
N-linked glycan (Glycoproteins)		UnknownResistance to CAMPs
Mobility and flagella production
Biofilm formation
Recognition by a human TLR4/MD2
Colonization of chick ceca and BALB/cByJ mice		[75,76,77,78,79]
IIEptBE. coliCore genomeKdoII of LPSMgrR/RpoE (High Ca2+ concentration)
ArcZ sRNA in an ArcA/B-dependent manner (Low oxygen concentration)		Resistance to CAMPs[80,81,82,83,84]
S. enterica TyphymuriumCore genomeKdoII of LPSMgrRResistance to CAMPs
Protect bacteria from the binding and detoxifying by intelectin
Enhance cytokine secretion in spleen of infected mouse		[85,86]
Y. pestisCore genomeKdoII of LPSLow temperatures (6 °C)Resistance to CAMPs[87,88,89,90]
IIIEptC (CptA)E. coliCore genomeHepI of LPSPhoB/RResistance to SDS and sublethal concentration of Zn2+
Not confer resistance to CAMPs		[19,20,21]
S. enterica TyphymuriumCore genomeHepI of LPSPmrA/BModest resistance to CAMPs but not impairing the virulence in mouse model of infection.[22,23]
IVLpt-OS. flexneriPlasmidO-antigen of LPSUnknownConfer the MASF IV-1 positive phenotype in serotype Xv strains[24]
VPetKP. multocidaCore genomeKdoI of LPSUnknownResistance to CAMPs[18]
VIBcsGE. coliCore genomeCelluloseUnknownCellulose production
Maintain biofilm’s architecture and integrity		[25,26]
S. enterica TyphymuriumCore genomeCelluloseUnknownCellulose production
Maintain biofilm’s architecture and integrity		[27]
VIILpt6N. meningitidisGenetic islandO-6 position of HepII of LOSUnknownIncrease susceptibility to complement-mediated killing[91,92]
N. gonorrhoeaeGenetic islandO-6 position of HepII of LOSUnknownUnknown[93]
H. influenzaeCore genomeO-6 position of HepII of LPSUnknownUnknown[91,94]
EptCP. mirabilisCore genomeO-6 position of HepII of LPSUnknownResistance to CAMPs[95,96]
VIIILpt3N. meningitidisCore genomeO-3 position of HepII of LOSUnknownRequire for the binding of mAb B5[92,97,98]
N. gonorrhoeaeCore genomeO-3 position of HepII of LOSUnknownUnknown[99]
P. multocidaCore genomeO-3 position of HepII of LPSUnknownInhibit the binding of mAbs T1C6 and T6B2[56]
IXOpgEE. coliCore genomeOsmoregulated periplasmic glycansUnknownUnknown[28]
XPetGP. multocidaCore genomeGal residues of LPSUnknownUnknown[18]
XIPptAN. meningitidisCore genomePilin subunit PilEUnknownInfluence pilin structure and antigenicity[29]
N. gonorrhoeaeCore genomePilin subunit PilEUnknownInfluence pilin structure and antigenicity[30,31]
N/APtdAH. ducreyiCore genomeUnknownUnknownResistance to CAMPs[53]
N/APtdBH. ducreyiCore genomeUnknownUnknownResistance to CAMPs[53]
Footnote: CAMPs: Cationic antimicrobial peptides; PNMs: Polymorphonuclear neutrophils; TLR4/MD2: Toll-like receptor 4-myeloid differentiation factor 2 complex; SDS: Sodium dodecyl sulfate; MASF: Monoclonal antisera of S. flexneri; mAb: Monoclonal antibody; N/A: Not available due to lacking site of PEA modification. For full species designations refer to the legend of Figure 2.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Thai, V.C.; Stubbs, K.A.; Sarkar-Tyson, M.; Kahler, C.M. Phosphoethanolamine Transferases as Drug Discovery Targets for Therapeutic Treatment of Multi-Drug Resistant Pathogenic Gram-Negative Bacteria. Antibiotics 2023, 12, 1382. https://doi.org/10.3390/antibiotics12091382

AMA Style

Thai VC, Stubbs KA, Sarkar-Tyson M, Kahler CM. Phosphoethanolamine Transferases as Drug Discovery Targets for Therapeutic Treatment of Multi-Drug Resistant Pathogenic Gram-Negative Bacteria. Antibiotics. 2023; 12(9):1382. https://doi.org/10.3390/antibiotics12091382

Chicago/Turabian Style

Thai, Van C., Keith A. Stubbs, Mitali Sarkar-Tyson, and Charlene M. Kahler. 2023. "Phosphoethanolamine Transferases as Drug Discovery Targets for Therapeutic Treatment of Multi-Drug Resistant Pathogenic Gram-Negative Bacteria" Antibiotics 12, no. 9: 1382. https://doi.org/10.3390/antibiotics12091382

APA Style

Thai, V. C., Stubbs, K. A., Sarkar-Tyson, M., & Kahler, C. M. (2023). Phosphoethanolamine Transferases as Drug Discovery Targets for Therapeutic Treatment of Multi-Drug Resistant Pathogenic Gram-Negative Bacteria. Antibiotics, 12(9), 1382. https://doi.org/10.3390/antibiotics12091382

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
