Article

Host Dependent-Transposon for a Plasmid Found in Aeromonas salmonicida subsp. salmonicida That Bears a catB3 Gene for Chloramphenicol Resistance

1
Institut de Biologie Intégrative et des Systèmes (IBIS), Université Laval, Quebec City, QC G1V 0A6, Canada
2
Département de Biochimie, de Microbiologie et de Bio-Informatique, Faculté des Sciences et de Génie, Université Laval, Quebec City, QC G1V 0A6, Canada
3
Centre de Recherche de l’Institut Universitaire de Cardiologie et de Pneumologie de Québec (IUCPQ), Quebec City, QC G1V 4G5, Canada
4
Aquarium du Québec, Quebec City, QC G1W 4S3, Canada
5
Groupe de Recherche en Écologie Buccale (GREB), Faculté de Médecine Dentaire, Université Laval, Quebec City, QC G1V 0A6, Canada
6
Département des Sciences Animales, Faculté des Sciences de l’Agriculture et de l’Alimentation, Université Laval, 2425 rue de l’Agriculture, Quebec City, QC G1V 0A6, Canada
*
Author to whom correspondence should be addressed.
Antibiotics 2023, 12(2), 257; https://doi.org/10.3390/antibiotics12020257
Submission received: 29 December 2022 / Revised: 23 January 2023 / Accepted: 24 January 2023 / Published: 27 January 2023

Abstract

:
Plasmids that carry antibiotic resistance genes occur frequently in Aeromonas salmonicida subsp. salmonicida, an aquatic pathogen with severe consequences in salmonid farming. Here, we describe a 67 kb plasmid found in the A. salmonicida subsp. salmonicida Strain SHY15-2939 from Quebec, Canada. This new plasmid, named pAsa-2939 and identified by high throughput sequencing, displays features never found before in this bacterial species. It contains a transposon related to the Tn21 family, but with an unusual organization. This transposon bears a catB3 gene (chloramphenicol resistance) that has not been detected yet in A. salmonicida subsp. salmonicida. The plasmid is transferable by conjugation into Aeromonas hydrophila, but not into Escherichia coli. Based on PCR analysis and genomic sequencing (Illumina and PacBio), we determined that the transposon is unstable in A. salmonicida subsp. salmonicida Strain SHY15-2939, but it is stable in A. hydrophila trans-conjugants, which explains the chloramphenicol resistance variability observed in SHY15-2939. These results suggest that this bacterium is likely not the most appropriate host for this plasmid. The presence of pAsa-2939 in A. salmonicida subsp. salmonicida also strengthens the reservoir role of this bacterium for antibiotic resistance genes, even those that resist antibiotics not used in aquaculture in Québec, such as chloramphenicol.

1. Introduction

The Gram-negative bacterium Aeromonas salmonicida subsp. salmonicida is a major psychrophilic fish pathogen that is responsible for significant economic losses in the aquaculture industry worldwide [1]. It is the causative agent of furunculosis, a disease characterized by a high mortality and morbidity in salmonids. This disease mainly occurs in fish farming due to more stressful conditions than in the wild, which increase the risk of infection [2]. For A. salmonicida subsp. salmonicida, the type three secretion system is an essential virulence factor involved in the development of the disease and most of the genes for this system are found on a plasmid [3,4].
Antibiotics are frequently used to treat various bacterial infections in fish farms. Due to these treatments, the effectiveness of antibiotics is becoming more limited, and the emergence of multidrug-resistant pathogens is now a global concern in the aquaculture sector [5,6]. In Canada, antibiotic treatments to fight against A. salmonicida subsp. salmonicida infections are widely used in fish farms. This bacterium contains a very diverse plasmidome [7], including a large variety of plasmids that carry antibiotic resistance genes (ARGs), especially in Canadian isolates [8,9,10,11,12,13,14]. Some strains even bear plasmids that make them resistant to all antibiotics authorized by Health Canada for aquaculture, leaving the fish farmers without curative resources to fight furunculosis [10].
The rise of bacterial strains resistant to antibiotics is mainly due to the horizontal gene transfer of plasmids that carry ARGs [15]. Thus far, many plasmids found in various A. salmonicida subspecies that bear ARGs have been shown to be transferrable by conjugation to other bacteria from the same genus and to other genera [8,9,11,15,16]. Moreover, variants of plasmids found in other bacterial species have been observed in A. salmonicida subsp. salmonicida. Examples include pSN254b, which is an IncA/C plasmid, a variant of a plasmid found in Salmonella enterica [7,11].
Transposons and integrons were listed in plasmids found in A. salmonicida subsp. salmonicida. Typically, these genetic elements bear ARGs and other genes that provide diverse advantages to the bacteria [15]. The pAsa4 plasmid variants contain transposon Tn21 with an In2 integron [9]. A similar Tn21 is also found in pSN254b. In this case, the transposon also includes mercury resistance genes [11]. Another frequent transposon in A. salmonicida subsp. salmonicida is Tn1721. Different complete or truncated forms of this transposon have been observed in plasmids like pRAS1, pAsa8 or pAsa10 [7]. This suggests that this transposon is malleable and can interact with other mobile genetic elements [17].
In this paper, using high-throughput sequencing technologies, conjugation assay, PCR genotyping and antibiotic susceptibility tests, we investigated a new plasmid named pAsa-2939, which has ARGs and is found in an A. salmonicida subsp. salmonicida strain isolated in 2015 in Québec (Canada). The analysis of this new plasmid revealed the presence for the first time in this bacterial subspecies of the catB3 gene, which is responsible for chloramphenicol resistance. Our results demonstrate that this plasmid contains a transposon with a host-dependent instability; in A. salmonicida subsp. salmonicida, the plasmid can lose its transposon, though it has not been observed to lose its transposon in Aeromonas hydrophila.

2. Results and Discussion

The veterinary diagnostic service of the University of Montreal isolated a bacterial strain (SHY15-2939) from the kidney of a dead furunculosis-infected juvenile brook char (Salvelinus fontinalis) in the province of Quebec that presented an atypical antibiotic resistance profile for a strain isolated in this province. Of the six antibiotics tested by the diagnostic service, this strain exhibited resistance only to sulfadiazine/trimethoprim. Typically, in Quebec, when resistant to antibiotics, the strains that are isolated exhibit tetracycline monoresistance or multidrug resistance to two or three of the following antibiotics: Florfenicol, tetracycline and sulfadiazine/trimethoprim [8,10,11]. The other antibiotics tested by the diagnostic service are erythromycin, enrofloxacin and nalidixic acid.
To explore the ARGs further in SHY15-2939, we first used a PCR genotyping approach [10]. The sul1 gene was the only one detected in this strain among the following list of tested genes: cat (found in pAsa4), floR, sul1, sul2, tetA, tetA(C), tetA(E), tetH and tetG [10]. This result agreed with the diagnostic service antibiogram results and suggested that there might be a new plasmid in this strain due to the atypical presence of the sul1 gene without the other antibiotic resistance genes tested [8,9,10,11].
To identify and characterize this potential plasmid, the genomic DNA of the SHY15-2939 strain was sequenced with Illumina technology and the reads were de novo assembled. The sul1 gene was found on a contig with identical ends (i.e., circular). This contig was identified as a new plasmid with a complete sequence of 66.9 kb. The annotated map of this new plasmid is shown in Figure 1. Since the backbone of this plasmid does not show a strong identity with any other plasmids found in A. salmonicida, it was named pAsa-2939.
A BLAST analysis revealed that a section of about 19.4 kb was very similar to the Tn21 transposon sequences. A typical transposon from the Tn21 family includes a gene for its own transposition, an integron, and a mercury resistance (mer) operon. The Tn21 family is involved in dissemination of ARGs due to the presence of an integron [18]. This mobile element is responsible for the acquisition of various resistance genes. Figure 2 presents a comparison of pAsa-2939 transposon with Tn21 from E. coli (accession AF071413). First, for the homologous regions, the sequences are highly similar with 99.97% nucleotide identity. The tnpA gene, which encodes a transposase, and the aminoglycoside antibiotic resistance gene aadA are less similar with a 78% and 57% nucleotide identity, respectively. The TnpA protein from pAsa-2939 seems to originate from the Tn1721 with 99.19% nucleotide identity (accession X61367). Furthermore, there is a new region in the pAsa-2939 transposon which includes a chloramphenicol resistance gene and a dihydrofolate reductase. However, this transposon lacks the IS3 family transposase in comparison with the reference sequence as shown in the Figure 2. The nearest transposon sequence to the one found in pAsa-2939 is in the pCFS3273-1 plasmid (268,665 bp, accession CP026933) from E. coli Strain CFS3273 (cover 89%, identity 99.87%).
Our analysis revealed the presence of a chloramphenicol resistance gene in the pAsa-2939 transposon: catB3. This gene is located immediately downstream from the aatI site of In2. According to the Comprehensive Antibiotic Resistance Database (CARD), this gene is widely found in many bacterial species [19]. Based on an analysis on 26 November 2022 on the NCBI Nucleotide collection (nr/nt) database, the catB3 gene was found with 100% identity, 100% coverage in 57 strains of Aeromonas sp. and in another 10 strains of Aeromonas sp. with a coverage and identity between 98.42% and 99.84%. These strains are mainly mesophile Aeromonas sp. (hydrophila, caviae, veronii, etc.). In the case of A. salmonicida sp., the catB3 gene is also found in plasmids from A. salmonicida sp. (pS44-1, pS121-1a, pS121-1b) and A. salmonicida subsp. masoucida (pAsmA and pA). Interestingly, for these five plasmids, the catB3 gene is part of a transposon that is quite similar to the one found in pAsa-2939. This gene has never been identified in the past in strains of A. salmonicida subsp. salmonicida, according to sequence databases.
A PCR genotyping screen was performed on 225 A. salmonicida subsp. salmonicida strains isolated in Quebec (Table S1). The tested strains were isolated from fish sick with furunculosis in the years from 2001 to 2020. The primer pairs used in this screen targeted the catB3 gene and two regions of the pAsa-2939 backbone (Table S2 and Figure 1). Strain SHY15-2939 was used as a positive control in these analyzes while Strain 01-B526, whose genome is fully known and does not have this resistance gene, was the negative control [20]. None of the 225 strains tested gave a positive result for the plasmid itself or the catB3 gene. This shows that, of the strains tested so far in Quebec, Strain SHY15-2939 is the only known example of an A. salmonicida subsp. salmonicida strain that bears this plasmid and the catB3 gene.
Until now, genes that confer resistance to chloramphenicol in A. salmonicida subsp. salmonicida have only been found in the pAsa4, pAsa4c and pAsa7 plasmids. All these plasmids were found in strains from Europe. pAsa4 and pAsa4c bear the same cat gene while pAsa7 has a different version of the cat gene [4,9,21]. The catB3 gene found in the SHY15-2939 strain would therefore be the first example of a chloramphenicol resistance gene found in Quebec in A. salmonicida subsp. salmonicida. This in itself is surprising considering that chloramphenicol (and its salts and derivatives) is on the list of banned drugs for use on any food-producing animal since 1997, thus not used in aquaculture in Canada [22]. The antibiotic most used in aquaculture in Quebec is florfenicol, an antibiotic of the same class as chloramphenicol. However, the cat genes (found in pAsa4 and pAsa7 [9,21]) provide specific resistance to chloramphenicol compared to the floR gene, which is very often found on plasmids such as pSN254b in strains from Quebec and which confers resistance to both florfenicol and chloramphenicol [23,24].
A. salmonicida subsp. salmonicida has often been proposed to be an ARG reservoir, even for ARGs of little use to the bacterium itself. We recently described this situation for the pRAS3 plasmids increasingly found in strains of A. salmonicida subsp. salmonicida in Quebec and which confer resistance to tetracycline, an antibiotic with limited use in aquaculture, but widely used in the pork industry in the same province [14].
Chloramphenicol is a naturally occurring, broad-spectrum antibiotic that is artificially manufactured. This antibiotic causes various negative side effects for human health [25]. Consequently, the use of this antibiotic is limited to the treatment of a variety of infections in companion animals and for life-threatening infections in humans [25,26]. Despite limited use, a study on organic antibiotics detected chloramphenicol in surface waters and sewage plant effluent [27]. Thus, it is possible that fish are exposed to chloramphenicol even if its use is banned in food-producing animals [25]. The presence of pAsa-2939 in A. salmonicida subsp. salmonicida in waterways is an example of the One Health concept where human and animal health and the environment are intertwined.
Based on a BLAST analysis, the conjugative genes predicted in pAsa-2939 (Figure 1) do not seem to derive from any other A. salmonicida plasmids. The closest result was the pWP8-S18-ESBL-04 plasmid (accession AP022255.1) found in Aeromonas caviae with an identity percentage of 92.36% with a BLASTN analysis. Interestingly, this plasmid also shares the second-highest identity with the pAsa-2939 backbone (84.55%). The plasmid with the highest identity with the pAsa-2939 backbone is the A. caviae pWP2-W18-ESBL-01_1 plasmid (accession AP021928.1) with an identity value of 89.05%. However, the identity between pWP8-S18-ESBL-04 and pAsa-2939 has more coverage (63%) than pWP2-W18-ESBL-01_1 (56%).
We verified the functionality of the pAsa-2939 conjugative genes. A strain of A. hydrophila (HER1210) and a strain from E. coli (DH5α) were used as recipient bacteria for these conjugation assays (Table 1). Two attempts were made with each of the bacteria. While the conjugation in A. hydrophila worked very well on both occasions, giving dozens of conjugants, the transfer did not work at all in the case of E. coli DH5α. This strain of E. coli was found to be a good recipient bacterium for the pRAS1b plasmid from the donor strain 2004-072 [13], which was used as a control to show that the method used was adequate. The presence of the plasmid and of the catB3 gene was confirmed by PCR in the trans-conjugants of A. hydrophila using the primers described above (Table S2). This result is likely not surprising since, when performing a BLAST analysis on the nr/nt database, that the top 50 plasmids sharing the highest identity with pAsa-2939 backbone were found only in Aeromonas sp. In the case of pRAS1b, plasmids from many different genera are found in the top 50 sequences that share identity with this plasmid, suggesting a greater host range of the backbone of pRAS1b than the backbone of pAsa2939. Thus, we can consider that pAsa-2939 is a plasmid with a narrower host range. Since the replicon type and some specific genes predominately determine the host range of a plasmid [28], we can conclude that pAsa-2939 does not contain genetic features compatible with many bacterial hosts and seems to be specific to the Aeromonas genus.
We then evaluated the chloramphenicol minimal inhibitory concentration (MIC) for both SHY15-2939 and an A. hydrophila trans-conjugant with appropriate controls. While it was possible to repeatedly obtain an MIC of 256 µg/mL in A. hydrophila possessing pAsa-2939 (<16 µg/mL for the same strain without the plasmid, n = 3), it was not possible to determine the MIC accurately for Strain SHY15-2939. Even after six attempts, this gave variable results ranging from <16 to 256 µg/mL with a median at 96 µg/mL (Table 2). Considering that we could not accurately determine the MIC for chloramphenicol for SHY15-2939, this suggests that the plasmid or a part of the plasmid is probably unstable in this strain, though it is not unstable in A. hydrophila HER1210 used as a conjugation recipient strain.
To address this point, we explored two different approaches: (1) See if the plasmid becomes permanently lost in SHY15-2939 with a long period of cultivation and (2) analyze the read frequency in the raw Illumina sequencing data of the plasmid compared to the chromosome reads as a reference.
To evaluate the plasmid stability in SHY15-2939, we first incubated the bacteria at 18 °C on two LB media, one without antibiotic and the other containing 5 µg/mL of chloramphenicol. Then we produced PCR lysates for 16 colonies from each medium and streaked those colonies on new LB agar without antibiotics. We streaked the colonies three times (for a total cultivation period of 288 h) and produced a total of 64 lysates. As shown in the Figure 3A,B, the PCR primers targeting junction between the Tn21-like transposon and the plasmid show a signal for every colony. Thus, the variability of the MIC is not due to the loss of the plasmid. Since the plasmid seems to be stable, the variability of the MIC might be due to the instability of the transposon. To verify this, we used a pair of primers that are located outside the sequence of the transposon. When the strain carries pAsa-2939 without the transposon, an amplification is produced by the excision of the transposon and the junction of the two plasmid ends together. We confirmed this result by testing this primer pair on other A. salmonicida subsp. salmonicida strains not carrying pAsa-2939 (Figure 3C). None of them gave an amplicon confirming the excision of the transposon of pAsa-2939 in SHY15-2939. It appeared that an amplicon can be produced with this pair of primers for Strain SHY15-2939 regardless the growth conditions or the time of cultivation (Figure 3A,B). On the other hand, no amplicon where detected with the same primers with the A. hydrophila trans-conjugants that bears pAsa-2939 suggesting no transposon excision in this case (Figure 3D,E). The amplicon obtained with SHY15-2939 was sequenced, which revealed that it corresponds to the expected sequence for the junction of the plasmid after excision of the transposon. These results confirm the capacity of the transposon to be excised from the plasmid in Strain SHY15-2939 and the stability of the transposon in A. hydrophila trans-conjugant. These results validate the difference in chloramphenicol sensitivity observed for SHY15-2939 and the A. hydrophila trans-conjugant.
To confirm the presence of the plasmid without the transposon, the genomic DNA of Strain SHY15-2939 was sequenced with long-read sequencing (PacBio SMRT technology). After performing the assembly, it was possible to again obtain the complete assembled sequence of the pAsa-2939 plasmid. To confirm the potential absence of the transposon in a proportion of cells, the reads from the PacBio sequencing were mapped on a theoretical version of pAsa-2939 without the transposon. In total, 43 098 reads were aligned to the junction using minimap2 [31] (Figure 4), which again confirms the excision of the transposon. It was not possible to find a secondary shorter assembly of the plasmid that would be the truncated version of the plasmid without the transposon. This is not surprising considering how the assembly algorithm works and that there were a low number of reads that were mapped on the junction of pAsa-2939 without the transposon.
Using the Illumina reads, it appeared that the coverage was lower for the region of the transposon than for the rest of the plasmid (Table 3). The difference between these two values is prominent, suggesting that about 50% of the plasmid molecules do not bear the transposon. When compared to the read coverage of the chromosome, pAsa-2939 seems to be only in one copy in the cells. The coverage of the Tn21-like transposon is less, which suggests that a sub-population of the bacteria bears pAsa-2939 with the transposon, and another sub-population bears the same plasmid without the Tn21-like transposon. The dataset used for this analysis was produced from bacteria grown without antibiotic.
To our knowledge, this is the first time that transposon instability has been observed in Aeromonas (we did not find any results through Web of Science research), though transposon instability has been described for many transposons in other bacterial species [32,33,34]. It is important to keep in mind that catB3 is located in the In2 portion of Tn21. One study showed that integrons could excise and reorganize the order of the cassettes located downstream of the aatI site [35]. Using this mechanism, the Tn21 transposon could reposition cassettes that are still part of the mobile genetic element but with a decreased or even almost null level of expression. Another possibility would be the complete excision of the entire Tn21 or of the In2. This type of rearrangement was already detected in other bacteria [18,36] and would explain the differences in coverage observed between the replicon backbone and the Tn21-corresponding sequences (Table 3).

3. Materials and Methods

3.1. Bacterial Strains

The pAsa-2939 plasmid was found in psychrophilic A. salmonicida subsp. salmonicida Strain SHY15-2939 isolated in 2015 from the kidney of a dead furunculosis-infected juvenile brook char (Salvelinus fontinalis) in the province of Quebec. SHY15-2939 was provided by the diagnostic service of the Faculty of Veterinary Medicine of the University of Montreal. The other strains used in this study are described in Table 1 and Table S1. They were grown from the frozen stocks on furunculosis agar (FA) for 3 days at 18 °C as previously described [30]. E. coli DH5α and A hydrophila were grown from the frozen stock on tryptic soy agar (TSA) (Wisent, St-Bruno, QC, Canada) for one day at 37 °C.

3.2. PCR Analyses

DNA lysates of each strain were obtained using a previously described protocol [17]. PCR analyses were first performed to detect the presence of ARGs against chloramphenicol/florfenicol (cat and floR), sulfonamide (sul1 and sul2) and tetracycline (tetA, tetA(C), tetA(E), tetH and tetG) in Strain SHY15-2939 prior genomic sequencing using a previously described multiplex PCR approach [10]. A PCR screening was performed to detect the new plasmid and the new chloramphenicol resistance gene in 225 A. salmonicida subsp. salmonicida strains (Table S1). To evaluate the plasmid stability, we performed a PCR that targeted the backbone of pAsa-2939. The PCR cycle was as follow: 2 min 30 s at 95 °C, 30 cycles of 30 s at 95 °C, 30 s at 55 °C, and an elongation step 15 s at 68 °C, ending by a 5 min extension at 68 °C. We also designed a primer pair for each extremity of the transposon to verify the excision of this mobile element. The amplicons produced by these primer pairs amplify a region corresponding to the insertion site of the transposon with the flanking regions in the backbone of the plasmid and the transposon. Then, we used primers located outside the transposon to investigate the junction that resulted from the excision. All new primers used in this study are listed in Table S2. The PCR cycle for these primers was slightly different with an elongation time of 1 min 15 s at instead of 15 s.

3.3. DNA Extraction and Sequencing

The total genomic DNA of Strain SHY15-2939 was extracted using DNeasy Blood and Tissue kits (Qiagen, Montreal, QC, Canada) with the addition of an RNase A treatment step (20 µg/mL, Ambion, ThermoFisher, Mississauga, ON, Canada) according to the manufacturer’s protocol. Sequencing libraries were prepared from purified bacterial DNA using the Nextera XT DNA Library Preparation Kit (Illumina, San Diego, CA, USA) and the sequencing was performed using a MiSeq instrument system (Illumina, San Diego, CA, USA) at the Plateforme d’Analyse Génomique of the Institut de Biologie Intégrative et des Systèmes (Université Laval, Quebec City, QC, Canada).

3.4. Sequence Assembly and Analyses

The sequencing reads were de novo assembled using A5-miseq version 20,160,825 [37]. Then CONTIGuator version 2.7.5 was used for mapping the contigs on the reference genome of Strain A449 (NC_009348.1). The unmapped contigs were screened using BLAST [38] to find the sul1 gene. It was found on a 66 909 bp contig, which was annotated using Prokka [39]. Its sequence was deposited in DDBJ/ENA/GenBank under accession number OQ067800. The plasmid sequence was then further characterized using BLAST [38], and verified by Artemis version 16.0.0 [40]. Finally, the plasmid maps were created using DNAPlotter version 18.0.0 [41] and EasyFig version 2.2.2 [42]. For the alignment, the reads were mapped on the junction of pAsa-2939 using minimap2 (v2.24). Then the mapped reads were analyzed using BLAST (v2.13.0+) to find the reads overlapping the junction. To evaluate the coverage of the Illumina reads we used the program bwa (0.7.17). The statistical analyses were done using Qualimap (v2.2.2) [43].

3.5. PacBio Sequencing

The total genomic DNA was also sequenced using a Pacific BioScience RS II system (PacBio, San Francisco, CA, USA) at the Génome Québec Innovation Center (McGill University, Montreal, QC, Canada). The assembly and the circularization of the contigs were done using Unicycler version 0.4.7 [44].

3.6. Bacterial Conjugation Assays

Bacterial conjugation assays were performed as previously described [9] to transfer pAsa-2939 from the donor strain (SHY15-2939) to A. hydrophila strain HER1210 (ATCC 7966) and E. coli Strain DH5α (ATCC 29552). A conjugation assay was also performed between a donor strain bearing pRAS1b (2004-072) and the same recipient strains as a control (Table 1) [13]. PCR analyses were performed to detect the presence of pAsa-2939 in trans-conjugants using the primers described above. The absence of A. salmonicida subsp. salmonicida among the trans-conjugants was confirmed by primers that target the tapA gene [45] (Table S1). Conjugation assays were performed twice with each recipient strain.

3.7. Assessment of the MIC

The bacteria were inoculated on LB agar (Wisent, St-Bruno, QC, Canada) directly from frozen stocks and were grown at 18 °C for 72 h for A. salmonicida subsp. salmonicida strains and at 37 °C for 24 h for A. hydrophila HER1209 before each experiment. Several colonies of each isolate were suspended in fresh LB broth (Wisent, St-Bruno, Qc, Ca) and the OD600 was adjusted to 0.1 which represents 1.3 × 108 CFU/mL [46]. The chloramphenicol and florfenicol MICs of the strains were determined using a previously described protocol [11] with minor modifications of the bacterial growth conditions performed at 18 °C and 37 °C for 24 h for mesophilic strains and only at 18 °C for 72 h for psychrophilic strains. Every assay was performed at least in technical duplicate and three biological replicates for A. hydrophila and 6 biological replicates for A. salmonicida subsp. salmonicida strains.

3.8. Stability of the Plasmid

Strain SHY15-2939 was inoculated on LB agar and LB+5 µg/mL of chloramphenicol at 18 °C. After 3 days, 16 lysates from 16 distinct colonies were produced for the PCR experiment. Then 16 colonies were streaked on the new medium (LB or LB+5 µg/mL of chloramphenicol) according to media used for the initial growth from the frozen stock and incubated at 18 °C again. In total, 48 lysates for each medium were produced for the PCR analyses. We also wanted to investigate the stability of the transposon for the A. hydrophila trans-conjugant that bears pAsa-2939. Therefore, A. hydrophila strain was grown three times at 37 °C for 24 h on LB agar. Each time, a PCR lysate originating from a colony was produced. Theses lysates were tested for the presence of pAsa-2939 and transposon excision by PCR genotyping.

4. Conclusions

This study, which began with a simple observation of a new plasmid in a strain of A. salmonicida subsp. salmonicida isolated in Quebec (pAsa-2939), made it possible to highlight a new resistance gene (catB3) never before observed in this bacterial subspecies. The plasmid that carries catB3 has an unstable transposon in its original strain, SHY15-2939, but this plasmid is stable in A. hydrophila. This result and the similarity of pAsa-2939 to other plasmids found in mesophilic Aeromonas strains suggest that the acquisition of pAsa-2939 by SHY15-2939 is potentially a fortuitous event and that the true host of the ancestor of this plasmid was an Aeromonas sp. that shares the same ecological niche. The mechanisms explaining the instability of the transposon are unknown for the moment and could be a good focus for future research; identification of potential variants of this plasmid would be useful to understand its instability. Regardless of how the pAsa-2939 plasmid arrived in a strain of A. salmonicida subsp. salmonicida, the results of our study once again demonstrate the great reservoir potential of this bacterial subspecies to carry ARGs, including resistance to an antibiotic not even used in aquaculture and the connection of this subspecies with its community for the exchange of mobile genetic elements.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/antibiotics12020257/s1, Table S1. A. salmonicida subsp. salmonicida strains analyzed for the presence of pAsa-2939 and catB3 gene; Table S2. Primers used in this study.

Author Contributions

Conceptualization, P.-É.M., A.T.V. and S.J.C.; Methodology, P.-É.M., S.A.A. and V.E.P.; Software, S.A.A. and A.T.V.; Validation, P.-É.M., S.A.A., M.F. and S.J.C.; Formal analysis, P.-É.M., S.A.A., V.E.P., M.F.P., A.T.V. and S.J.C.; Investigation, P.-É.M., S.A.A., V.E.P., M.F.P. and S.B.G.; Resources, J.F.; Data curation, P.-É.M., S.A.A. and A.T.V.; Writing—original draft preparation, P.-É.M., S.J.C., V.E.P., J.F. and M.F.; Writing—review and editing, all authors; Visualization, P.-É.M.; Supervision, S.J.C.; Project administration, S.J.C.; Funding acquisition, S.J.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Ministère de l’agriculture, des pêcheries et de l’alimentation du Québec (MAPAQ, INNOVAMER Program) and the Natural Sciences and Engineering Research Council of Canada (NSERC, RGPIN-2019-04444).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The pAsa-2939 sequence was deposited in DDBJ/ENA/GenBank under the accession number OQ067800.

Acknowledgments

The authors thank the veterinary diagnostic service of the University of Montreal for the A. salmonicida subsp. salmonicida strains provided for this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Austin, B.; Austin, D.A. Aeromonadaceae Representative (Aeromonas salmonicida). In Bacterial Fish Pathogens: Disease of Farmed and Wild Fish; Austin, B., Austin, D.A., Eds.; Springer International Publishing; New York; NY; USA: 2016; pp. 215–321.
  2. Dallaire-Dufresne, S.; Tanaka, K.H.; Trudel, M.V.; Lafaille, A.; Charette, S.J. Virulence, genomic features, and plasticity of Aeromonas salmonicida subsp. salmonicida, the causative agent of fish furunculosis. Vet. Microbiol. 2014, 169, 1–7. [Google Scholar] [CrossRef] [PubMed]
  3. Vanden Bergh, P.; Frey, J. Aeromonas salmonicida subsp. salmonicida in the light of its type-three secretion system. Microb. Biotechnol. 2014, 7, 381–400. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Reith, M.E.; Singh, R.K.; Curtis, B.; Boyd, J.M.; Bouevitch, A.; Kimball, J.; Munholland, J.; Murphy, C.; Sarty, D.; Williams, J.; et al. The genome of Aeromonas salmonicida subsp. salmonicida A449: Insights into the evolution of a fish pathogen. BMC Genom. 2008, 9, 427. [Google Scholar] [CrossRef]
  5. Cabello, F.C. Heavy use of prophylactic antibiotics in aquaculture: A growing problem for human and animal health and for the environment. Environ. Microbiol. 2006, 8, 1137–1144. [Google Scholar] [CrossRef] [PubMed]
  6. Vincent, A.T.; Gauthier, J.; Derome, N.; Charette, S.J. The Rise and Fall of Antibiotics in Aquaculture. In Microbial Communities in Aquaculture Ecosystems: Improving Productivity and Sustainability; Derome, N., Ed.; Springer International Publishing: Cham, Switzerland, 2019; pp. 1–19. [Google Scholar]
  7. Vincent, A.T.; Hosseini, N.; Charette, S.J. The Aeromonas salmonicida plasmidome: A model of modular evolution and genetic diversity. Ann. N. Y. Acad. Sci. 2020, 1488, 16–32. [Google Scholar] [CrossRef]
  8. Massicotte, M.A.; Vincent, A.T.; Schneider, A.; Paquet, V.E.; Frenette, M.; Charette, S.J. One Aeromonas salmonicida subsp. salmonicida isolate with a pAsa5 variant bearing antibiotic resistance and a pRAS3 variant making a link with a swine pathogen. Sci. Total Environ. 2019, 690, 313–320. [Google Scholar] [CrossRef]
  9. Tanaka, K.H.; Vincent, A.T.; Trudel, M.V.; Paquet, V.E.; Frenette, M.; Charette, S.J. The mosaic architecture of Aeromonas salmonicida subsp. salmonicida pAsa4 plasmid and its consequences on antibiotic resistance. PeerJ 2016, 4, e2595. [Google Scholar] [CrossRef] [Green Version]
  10. Trudel, M.V.; Vincent, A.T.; Attéré, S.A.; Labbe, M.; Derome, N.; Culley, A.I.; Charette, S.J. Diversity of antibiotic-resistance genes in Canadian isolates of Aeromonas salmonicida subsp. salmonicida: Dominance of pSN254b and discovery of pAsa8. Sci. Rep. 2016, 6, 35617. [Google Scholar] [CrossRef] [Green Version]
  11. Vincent, A.T.; Trudel, M.V.; Paquet, V.E.; Boyle, B.; Tanaka, K.H.; Dallaire-Dufresne, S.; Daher, R.K.; Frenette, M.; Derome, N.; Charette, S.J. Detection of variants of the pRAS3, pAB5S9, and pSN254 plasmids in Aeromonas salmonicida subsp. salmonicida: Multidrug resistance, interspecies exchanges, and plasmid reshaping. Antimicrob. Agents Chemother. 2014, 58, 7367–7374. [Google Scholar] [CrossRef] [Green Version]
  12. McIntosh, D.; Cunningham, M.; Ji, B.; Fekete, F.A.; Parry, E.M.; Clark, S.E.; Zalinger, Z.B.; Gilg, I.C.; Danner, G.R.; Johnson, K.A.; et al. Transferable, multiple antibiotic and mercury resistance in Atlantic Canadian isolates of Aeromonas salmonicida subsp. salmonicida is associated with carriage of an IncA/C plasmid similar to the Salmonella enterica plasmid pSN254. J. Antimicrob. Chemother. 2008, 61, 1221–1228. [Google Scholar] [CrossRef] [Green Version]
  13. Vaillancourt, K.C.; Paquet, V.E.; Vincent, A.T.; Schneider, A.; Thompson, C.; Laurent, M.; Frenette, M.; Charette, S.J. Draft Genome Sequence of an Aeromonas salmonicida subsp. salmonicida Strain from the Canadian Pacific Coast Bearing a Variant of pRAS1. Microbiol. Resour. Announc. 2021, 10, e00291-21. [Google Scholar] [CrossRef]
  14. Fournier, K.C.; Paquet, V.E.; Attere, S.A.; Farley, J.; Marquis, H.; Gantelet, H.; Ravaille, C.; Vincent, A.T.; Charette, S.J. Expansion of the pRAS3 Plasmid Family in Aeromonas salmonicida subsp. salmonicida and Growing Evidence of Interspecies Connections for These Plasmids. Antibiotics 2022, 11, 1047. [Google Scholar] [CrossRef]
  15. Piotrowska, M.; Popowska, M. Insight into the mobilome of Aeromonas strains. Front. Microbiol. 2015, 6, 494. [Google Scholar] [CrossRef] [Green Version]
  16. Sandaa, R.A.; Enger, O. High frequency transfer of a broad host range plasmid present in an atypical strain of the fish pathogen Aeromonas salmonicida. Dis. Aquat. Org. 1996, 24, 71–75. [Google Scholar] [CrossRef]
  17. Attéré, S.A.; Vincent, A.T.; Paccaud, M.; Frenette, M.; Charette, S.J. The role for the small cryptic plasmids as moldable vectors for genetic innovation in Aeromonas salmonicida subsp. salmonicida. Front. Genet. 2017, 8, 211. [Google Scholar] [CrossRef] [Green Version]
  18. Liebert, C.A.; Hall, R.M.; Summers, A.O. Transposon Tn21, flagship of the floating genome. Microbiol. Mol. Biol. Rev. 1999, 63, 507–522. [Google Scholar] [CrossRef] [Green Version]
  19. Alcock, B.P.; Raphenya, A.R.; Lau, T.T.Y.; Tsang, K.K.; Bouchard, M.; Edalatmand, A.; Huynh, W.; Nguyen, A.V.; Cheng, A.A.; Liu, S.; et al. CARD 2020: Antibiotic resistome surveillance with the comprehensive antibiotic resistance database. Nucleic Acids Res. 2020, 48, D517–D525. [Google Scholar] [CrossRef]
  20. Tanaka, K.H.; Vincent, A.T.; Emond-Rheault, J.G.; Adamczuk, M.; Frenette, M.; Charette, S.J. Plasmid composition in Aeromonas salmonicida subsp. salmonicida 01-B526 unravels unsuspected type three secretion system loss patterns. BMC Genom. 2017, 18, 528. [Google Scholar] [CrossRef] [Green Version]
  21. Vincent, A.T.; Emond-Rheault, J.G.; Barbeau, X.; Attere, S.A.; Frenette, M.; Lague, P.; Charette, S.J. Antibiotic resistance due to an unusual ColE1-type replicon plasmid in Aeromonas salmonicida. Microbiology 2016, 162, 942–953. [Google Scholar] [CrossRef]
  22. Government of Canada. List of Banned Drugs. 2005. Available online: https://www.canada.ca/en/health-canada/services/drugs-health-products/veterinary-drugs/list-banned-drugs.html (accessed on 20 November 2022).
  23. Schwarz, S.; Kehrenberg, C.; Doublet, B.; Cloeckaert, A. Molecular basis of bacterial resistance to chloramphenicol and florfenicol. FEMS Microbiol. Rev. 2004, 28, 519–542. [Google Scholar] [CrossRef] [Green Version]
  24. Arcangioli, M.A.; Leroy-Setrin, S.; Martel, J.L.; Chaslus-Dancla, E. A new chloramphenicol and florfenicol resistance gene flanked by two integron structures in Salmonella typhimurium DT104. FEMS Microbiol. Lett. 1999, 174, 327–332. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Wongtavatchai, J.; McLean, J.G.; Ramos, F.; Arnold, D. Chlroramphenicol. Available online: https://inchem.org/documents/jecfa/jecmono/v53je03.htm (accessed on 20 November 2022).
  26. Lorenzo, D. Chloramphenicol Resurrected: A Journey from Antibiotic Resistance in Eye Infections to Biofilm and Ocular Microbiota. Microorganisms 2019, 7, 278. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Hirsch, R.; Ternes, T.; Haberer, K.; Kratz, K.L. Occurrence of antibiotics in the aquatic environment. Sci. Total Environ. 1999, 225, 109–118. [Google Scholar] [CrossRef] [PubMed]
  28. Hulter, N.; Ilhan, J.; Wein, T.; Kadibalban, A.S.; Hammerschmidt, K.; Dagan, T. An evolutionary perspective on plasmid lifestyle modes. Curr. Opin. Microbiol. 2017, 38, 74–80. [Google Scholar] [CrossRef]
  29. Charette, S.J.; Brochu, F.; Boyle, B.; Filion, G.; Tanaka, K.H.; Derome, N. Draft genome sequence of the virulent strain 01-B526 of the fish pathogen Aeromonas salmonicida. J. Bacteriol. 2012, 194, 722–723. [Google Scholar] [CrossRef] [Green Version]
  30. Daher, R.K.; Filion, G.; Tan, S.G.; Dallaire-Dufresne, S.; Paquet, V.E.; Charette, S.J. Alteration of virulence factors and rearrangement of pAsa5 plasmid caused by the growth of Aeromonas salmonicida in stressful conditions. Vet. Microbiol. 2011, 152, 353–360. [Google Scholar] [CrossRef]
  31. Li, H. New strategies to improve minimap2 alignment accuracy. Bioinformatics 2021, 37, 4572–4574. [Google Scholar] [CrossRef]
  32. Marra, D.; Scott, J.R. Regulation of excision of the conjugative transposon Tn916. Mol. Microbiol. 1999, 31, 609–621. [Google Scholar] [CrossRef] [Green Version]
  33. Rauch, P.J.; de Vos, W.M. Identification and characterization of genes involved in excision of the Lactococcus lactis conjugative transposon Tn5276. J. Bacteriol. 1994, 176, 2165–2171. [Google Scholar] [CrossRef] [Green Version]
  34. Sutanto, Y.; Shoemaker, N.B.; Gardner, J.F.; Salyers, A.A. Characterization of Exc, a novel protein required for the excision of Bacteroides conjugative transposon. Mol. Microbiol. 2002, 46, 1239–1246. [Google Scholar] [CrossRef]
  35. Cambray, G.; Guerout, A.M.; Mazel, D. Integrons. Annu. Rev. Genet. 2010, 44, 141–166. [Google Scholar] [CrossRef]
  36. Brown, H.J.; Stokes, H.W.; Hall, R.M. The integrons In0, In2, and In5 are defective transposon derivatives. J. Bacteriol. 1996, 178, 4429–4437. [Google Scholar] [CrossRef] [Green Version]
  37. Coil, D.; Jospin, G.; Darling, A.E. A5-miseq: An updated pipeline to assemble microbial genomes from Illumina MiSeq data. Bioinformatics 2015, 31, 587–589. [Google Scholar] [CrossRef] [Green Version]
  38. Altschul, S.F.; Gish, W.; Miller, W.; Myers, E.W.; Lipman, D.J. Basic local alignment search tool. J. Mol. Biol. 1990, 215, 403–410. [Google Scholar] [CrossRef]
  39. Seemann, T. Prokka: Rapid prokaryotic genome annotation. Bioinformatics 2014, 30, 2068–2069. [Google Scholar] [CrossRef] [Green Version]
  40. Carver, T.; Harris, S.R.; Berriman, M.; Parkhill, J.; McQuillan, J.A. Artemis: An integrated platform for visualization and analysis of high-throughput sequence-based experimental data. Bioinformatics 2012, 28, 464–469. [Google Scholar] [CrossRef] [Green Version]
  41. Carver, T.; Thomson, N.; Bleasby, A.; Berriman, M.; Parkhill, J. DNAPlotter: Circular and linear interactive genome visualization. Bioinformatics 2009, 25, 119–120. [Google Scholar] [CrossRef] [Green Version]
  42. Sullivan, M.J.; Petty, N.K.; Beatson, S.A. Easyfig: A genome comparison visualizer. Bioinformatics 2011, 27, 1009–1010. [Google Scholar] [CrossRef] [Green Version]
  43. Garcia-Alcalde, F.; Okonechnikov, K.; Carbonell, J.; Cruz, L.M.; Gotz, S.; Tarazona, S.; Dopazo, J.; Meyer, T.F.; Conesa, A. Qualimap: Evaluating next-generation sequencing alignment data. Bioinformatics 2012, 28, 2678–2679. [Google Scholar] [CrossRef] [Green Version]
  44. Wick, R.R.; Judd, L.M.; Gorrie, C.L.; Holt, K.E. Unicycler: Resolving bacterial genome assemblies from short and long sequencing reads. PLoS Comput. Biol. 2017, 13, e1005595. [Google Scholar] [CrossRef] [Green Version]
  45. Ebanks, R.O.; Knickle, L.C.; Goguen, M.; Boyd, J.M.; Pinto, D.M.; Reith, M.; Ross, N.W. Expression of and secretion through the Aeromonas salmonicida type III secretion system. Microbiology 2006, 152, 1275–1286. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Paquet, V.E.; Durocher, A.F.; Charette, S.J. Aeromonas salmonicida intraspecies divergence revealed by the various strategies displayed when grazed by Tetrahymena pyriformis. FEMS Microbiol. Lett. 2022, 369, fnac067. [Google Scholar] [CrossRef] [PubMed]

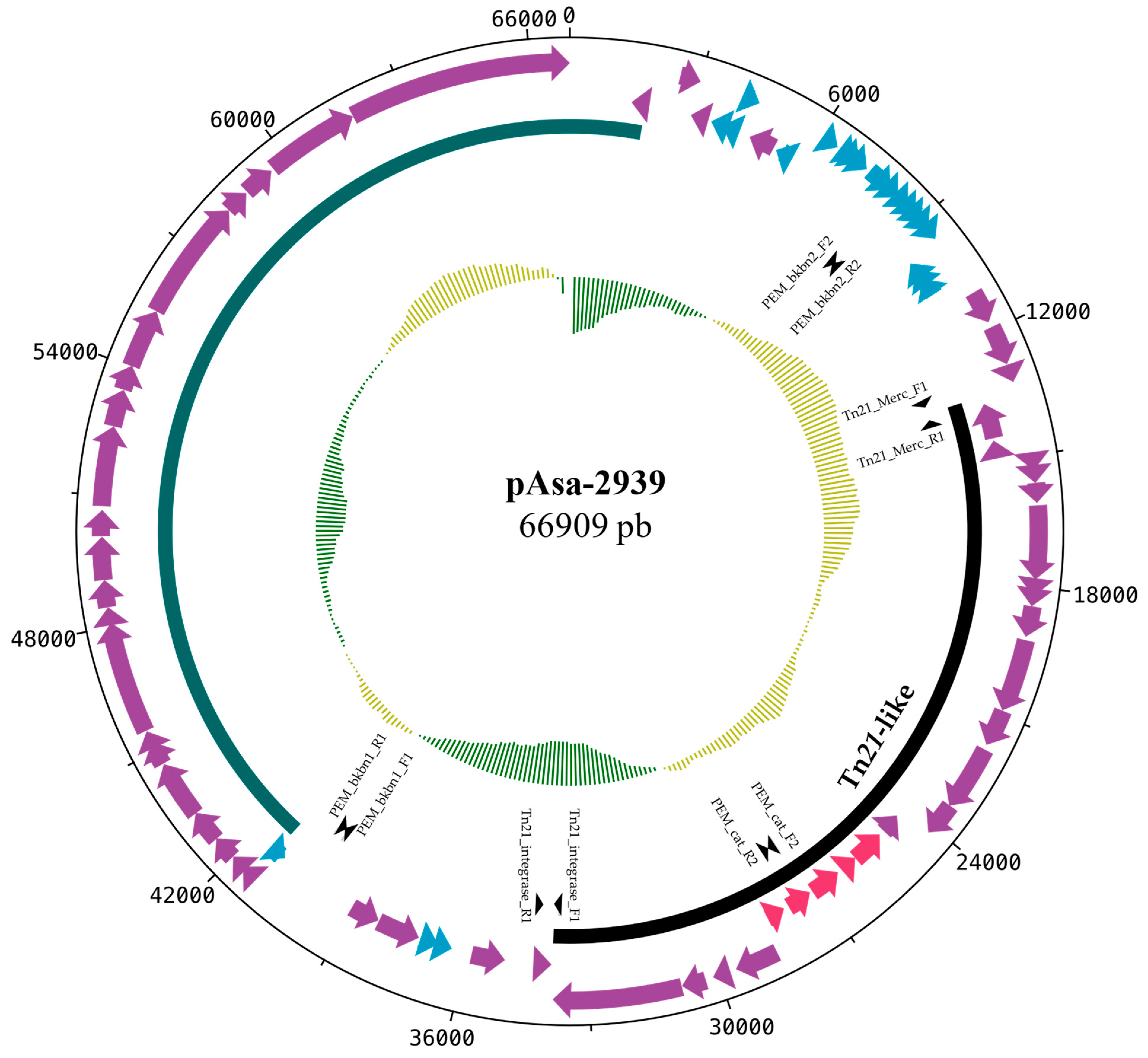

Figure 1. Gene map of the pAsa-2939 plasmid. This map was produced with the DNA plotter software. The red genes code for antibiotic resistance proteins, the blue genes for hypothetical proteins, and the purple genes for proteins with other known functions. The black arc indicates the transposon (Tn21-like). The green arc corresponds to conjugation genes and the inner circle corresponds to the GC skew. The primers used for PCR genotyping are also shown on the map with arrowheads.
Figure 1. Gene map of the pAsa-2939 plasmid. This map was produced with the DNA plotter software. The red genes code for antibiotic resistance proteins, the blue genes for hypothetical proteins, and the purple genes for proteins with other known functions. The black arc indicates the transposon (Tn21-like). The green arc corresponds to conjugation genes and the inner circle corresponds to the GC skew. The primers used for PCR genotyping are also shown on the map with arrowheads.
Antibiotics 12 00257 g001

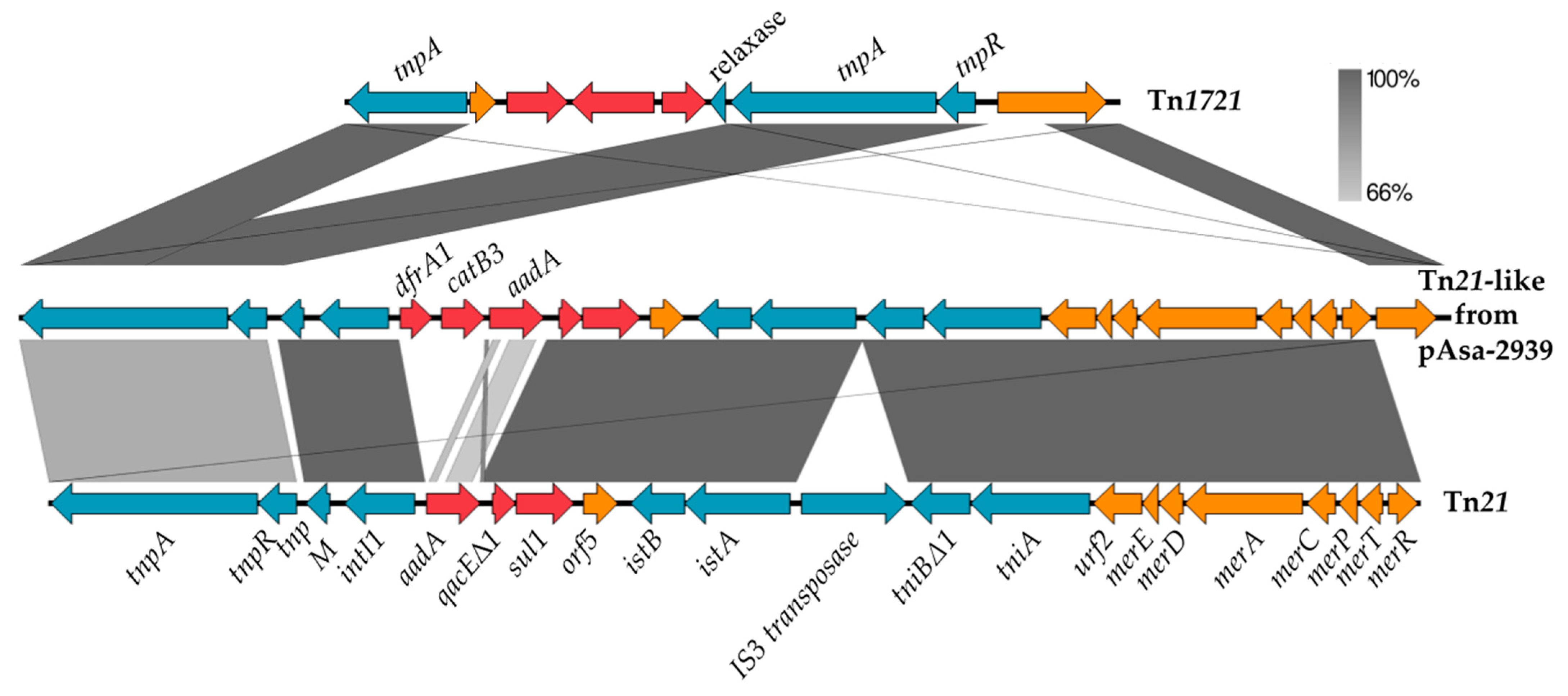

Figure 2. Nucleotide alignment of pAsa-2939 transposon with Tn21 and Tn1721. Comparison of Tn1721 (accession X61367) and the transposon from pAsa-2939 (Tn21-like) and Tn21 (accession AF071413). The gray areas represent similar or identical segments in the sequences of the plasmids compared. The ARGs are shown in red, the mobile elements are in blue and the orange arrows represent other genes. The figure was made using Easyfig software.
Figure 2. Nucleotide alignment of pAsa-2939 transposon with Tn21 and Tn1721. Comparison of Tn1721 (accession X61367) and the transposon from pAsa-2939 (Tn21-like) and Tn21 (accession AF071413). The gray areas represent similar or identical segments in the sequences of the plasmids compared. The ARGs are shown in red, the mobile elements are in blue and the orange arrows represent other genes. The figure was made using Easyfig software.
Antibiotics 12 00257 g002

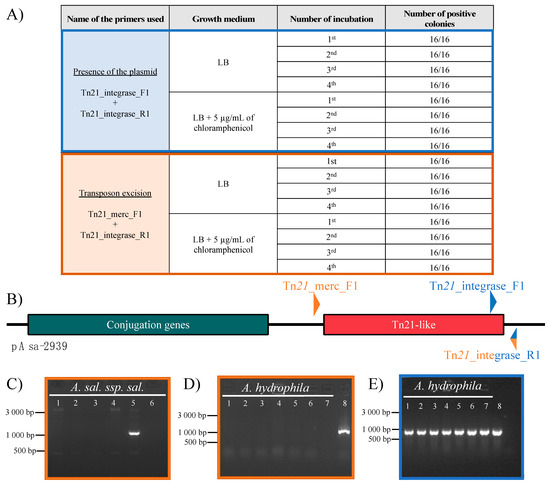

Figure 3. Transposon instability in SHY15-2939 confirmed by PCR analysis. (A) Analysis of different lysates from A. salmonicida subsp. salmonicida SHY15-2939 grown on different medium using different primers. This confirms the excision of the transposon in a part of the bacterial population (in orange) while the majority of the bacteria keep an intact plasmid (in blue). (B) Schematic representation of pAsa-2939 found in A. salmonicida subsp. salmonicida SHY15-2939. The region in green corresponds to the gene involve in the conjugation of the plasmid and the Tn21-like is represented by the region in red. The primers are shown in blue or orange depending on the combination used for the PCR. The Tn21_integrase_R1 primer was used in both PCR reaction. (C) Confirmation of the specificity of the Tn21_Merc_F1 and Tn21_integrase R1 primers (orange combination) for transposon excision. Strains tested are in this order from lane 1 to 6: 01-B526, 01-B516, A449, SHY16-3432, SHY15-2939 and water as a negative control. (D) The PCR result from 7 trans-conjugants of A. hydrophila with the pAsa-2939 plasmid (line 1 to 7) using the primers Tn21_Merc_F1 and Tn21_integrase R1 (orange combination). The eighth well corresponds to the positive control which is A. salmonicida ssp. salmonicida SHY15-2939. (E) A PCR amplification of the primers Tn21_integrase_F1 and Tn21_integrase_R1 (blue combination) for A. hydrophila with pAsa-2939 on the same samples than in D.
Figure 3. Transposon instability in SHY15-2939 confirmed by PCR analysis. (A) Analysis of different lysates from A. salmonicida subsp. salmonicida SHY15-2939 grown on different medium using different primers. This confirms the excision of the transposon in a part of the bacterial population (in orange) while the majority of the bacteria keep an intact plasmid (in blue). (B) Schematic representation of pAsa-2939 found in A. salmonicida subsp. salmonicida SHY15-2939. The region in green corresponds to the gene involve in the conjugation of the plasmid and the Tn21-like is represented by the region in red. The primers are shown in blue or orange depending on the combination used for the PCR. The Tn21_integrase_R1 primer was used in both PCR reaction. (C) Confirmation of the specificity of the Tn21_Merc_F1 and Tn21_integrase R1 primers (orange combination) for transposon excision. Strains tested are in this order from lane 1 to 6: 01-B526, 01-B516, A449, SHY16-3432, SHY15-2939 and water as a negative control. (D) The PCR result from 7 trans-conjugants of A. hydrophila with the pAsa-2939 plasmid (line 1 to 7) using the primers Tn21_Merc_F1 and Tn21_integrase R1 (orange combination). The eighth well corresponds to the positive control which is A. salmonicida ssp. salmonicida SHY15-2939. (E) A PCR amplification of the primers Tn21_integrase_F1 and Tn21_integrase_R1 (blue combination) for A. hydrophila with pAsa-2939 on the same samples than in D.
Antibiotics 12 00257 g003

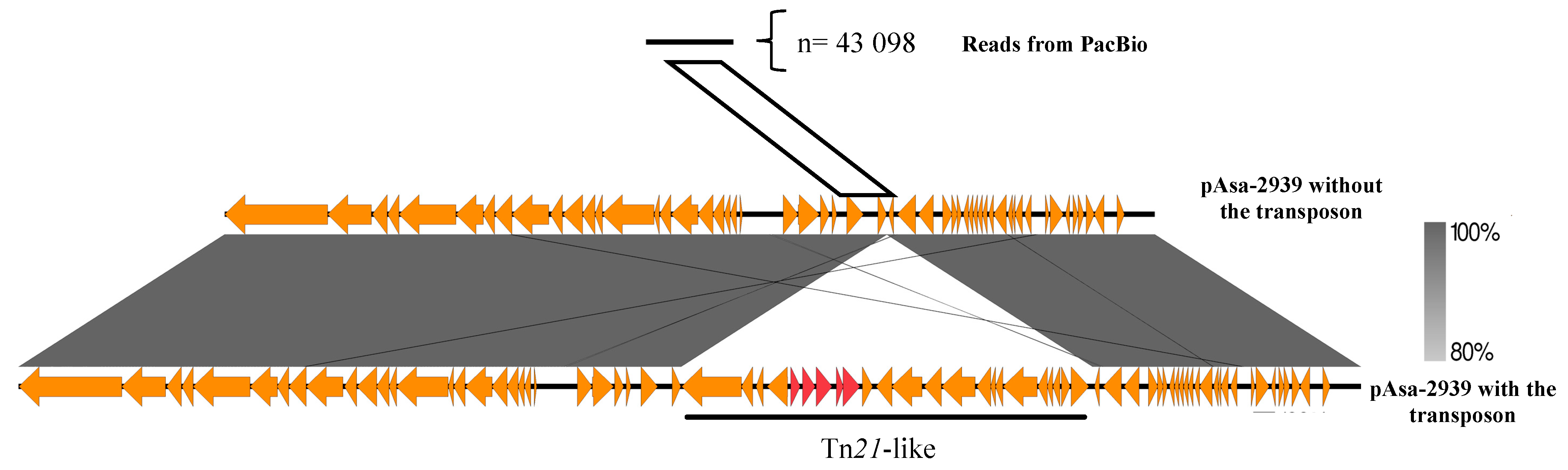

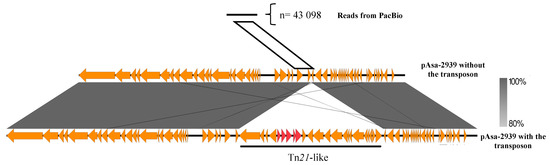

Figure 4. Transposon instability in SHY15-2939 confirmed by bioinformatics analysis. Comparison between a read from PacBio and the sequence of pAsa-2939 without the transposon (theoretical) and the pAsa-2939 plasmid including the transposon. The gray area represents similarities between the two plasmid versions. The red arrows represent the ARGs and the orange arrows represent other genes. The white parallelogram represents the region used to detect PacBio reads corresponding to the junction consequent to transposon excision.
Figure 4. Transposon instability in SHY15-2939 confirmed by bioinformatics analysis. Comparison between a read from PacBio and the sequence of pAsa-2939 without the transposon (theoretical) and the pAsa-2939 plasmid including the transposon. The gray area represents similarities between the two plasmid versions. The red arrows represent the ARGs and the orange arrows represent other genes. The white parallelogram represents the region used to detect PacBio reads corresponding to the junction consequent to transposon excision.
Antibiotics 12 00257 g004
Table 1. Strains used in this study.
Table 1. Strains used in this study.
Strain NameSpeciesLifestyleCommentaryReference
SHY15-2939A. salmonicida subsp. salmonicidaPsychrophilicBears pAsa-2939This study
01-B526A. salmonicida subsp. salmonicidaPsychrophilicNegative control for MIC experiments[29]
JF3791A. salmonicida subsp. salmonicidaPsychrophilicBears pAsa7, positive control for MIC experiments[21]
HER1210Aeromonas hydrophilaMesophilicRecipient strain for conjugation experimentsATCC 7966
DH5αEscherichia coliMesophilicRecipient strain for conjugation experimentsATCC 29552
2004-072A. salmonicida subsp. salmonicidaPsychrophilicBears pRAS1b, positive control for conjugation test[13]
01-B516A. salmonicida subsp. salmonicidaPsychrophilicNegative control for the stability of pAsa-2939[30]
A449A. salmonicida subsp. salmonicidaPsychrophilicNegative control for the stability of pAsa-2939[4]
SHY16-3432A. salmonicida subsp. salmonicidaPsychrophilicNegative control for the stability of pAsa-2939[8]
Table 2. MIC of chloramphenicol at 18 °C for A. salmonicida subsp. salmonicida and at 37 °C for A. hydrophila.
Table 2. MIC of chloramphenicol at 18 °C for A. salmonicida subsp. salmonicida and at 37 °C for A. hydrophila.
Strain NameSpeciesMIC (µg/mL)Concentration (µg/mL)
n1n2n3n4n5n6256
SHY15-2939A. salmonicida subsp. salmonicida128128<163225664128
01-B526A. salmonicida subsp. salmonicida<16<16<16<16<16<1664
JF3791A. salmonicida subsp. salmonicida25625625625625625632
HER1210A. hydrophila<16<16<16 16
HER1210 + pAsa-2939A. hydrophila256256256 0
Table 3. Read coverage in the raw sequencing of SHY15-2939.
Table 3. Read coverage in the raw sequencing of SHY15-2939.
NameLength (pb)Mapped BasesMean CoverageStandard Deviation
Chromosome4,614,604457,980,60099.2570.0
TTSS33,2043,739,690112.6342.9
Tn21-like20,530900,23143.8514.4
pAsa-2939 without the transposon46,3803,889,49283.8659.0
