Furaquinocins K and L: Novel Naphthoquinone-Based Meroterpenoids from Streptomyces sp. Je 1-369

by
Stepan Tistechok
1,
Marc Stierhof
2,
Maksym Myronovskyi
2,
Josef Zapp
3,
Oleksandr Gromyko
1,4 and
Andriy Luzhetskyy
2,5,*
1
Department of Genetics and Biotechnology, Ivan Franko National University of Lviv, 79005 Lviv, Ukraine
2
Department of Pharmaceutical Biotechnology, Saarland University, 66123 Saarbruecken, Germany
3
Department of Pharmaceutical Biology, Saarland University, 66123 Saarbruecken, Germany
4
Microbial Culture Collection of Antibiotic Producers, Ivan Franko National University of Lviv, 79005 Lviv, Ukraine
5
Helmholtz Institute for Pharmaceutical Research Saarland, 66123 Saarbruecken, Germany
*
Author to whom correspondence should be addressed.
Antibiotics 2022, 11(11), 1587; https://doi.org/10.3390/antibiotics11111587
Submission received: 17 October 2022 / Revised: 4 November 2022 / Accepted: 7 November 2022 / Published: 10 November 2022
Browse Figures
Versions Notes

Abstract

:
Actinomycetes are the most prominent group of microorganisms that produce biologically active compounds. Among them, special attention is focused on bacteria in the genus Streptomyces. Streptomycetes are an important source of biologically active natural compounds that could be considered therapeutic agents. In this study, we described the identification, purification, and structure elucidation of two new naphthoquinone-based meroterpenoids, furaquinocins K and L, from Streptomyces sp. Je 1-369 strain, which was isolated from the rhizosphere soil of Juniperus excelsa (Bieb.). The main difference between furaquinocins K and L and the described furaquinocins was a modification in the polyketide naphthoquinone skeleton. In addition, the structure of furaquinocin L contained an acetylhydrazone fragment, which is quite rare for natural compounds. We also identified a furaquinocin biosynthetic gene cluster in the Je 1-369 strain, which showed similarity (60%) with the furaquinocin B biosynthetic gene cluster from Streptomyces sp. KO-3988. Furaquinocin L showed activity against Gram-positive bacteria without cytotoxic effects.

1. Introduction

Actinomycetes are aerobic, spore-forming, Gram-positive bacteria that are characterized by a high G+C content in their genomes. These bacteria synthesize approximately two-thirds of all natural antibiotics used in medicine, veterinary medicine, and agriculture [1]. On average, actinomycete strains have the genetic potential to produce approximately 10–20 secondary metabolites [2]. Secondary metabolites produced by actinomycetes have been widely studied since the 1950s and are the most economically and biotechnologically valuable source for discovering new biologically active compounds [3]. The analysis of actinomycete secondary metabolites resulted in the discovery of many biologically active compounds, which were later embodied in the development of antimicrobial (i.e., vancomycin, chloramphenicol, and tetracycline) anticancer (i.e., daunorubicin and bleomycin), and immunosuppressive (i.e., rapamycin) drugs among others [4]. However, due to the rapid spread of microbial pathogens and their frequent resistance to known antibiotics, the search for new biologically active compounds is still relevant.
Meroterpenoids are a large class of natural products derived from polyketide or nonpolyketide and terpenoid biosynthesis [5]. A significant amount of naphthoquinone-based meroterpenoids have been isolated from marine and soil-derived streptomycete bacteria [6,7]. The structure of naphthoquinone-based meroterpenoids contains a 1,3,6,8-tetrahydroxynaphthalene core and a prenyl moiety, which are linked by aromatic prenyltransferase enzymes [8]. To form the final structure, the resulting hybrid compound is then subjected to several cyclization and modification steps. These compounds exhibit an impressive spectrum of biological activities, namely, antitumour, antibacterial, antifungal, antimalarial, cytotoxic, anti-HIV, and neuroprotective activities, among others [9].
Our research focused on the discovery of new biologically active metabolites from soil-derived actinomycetes. Streptomyces sp. strain Je 1-369 was isolated from Juniperus excelsa (Bieb.) rhizosphere soil collected in the Crimean Peninsula (Ukraine). Previous studies of actinomycetes from this area led to the identification of several new compounds, viz., kendomycin E [10], albaflavenol B [11], juniperolide A [12], leopolic acid A [13], and others. In this study, we described the isolation, purification, and structure elucidation of two new naphthoquinone-based meroterpenoids, furaquinocins K and L, from Streptomyces sp. Je 1-369, which expands the structural diversity of the furaquinocin family of natural products. In addition, the furaquinocin biosynthetic gene cluster in the genome of the Je 1-369 strain was identified. The new furaquinocin L showed potent activity against Gram-positive bacteria without cytotoxic effects.

2. Results

2.1. Identification and Structure Elucidation of Furaquinocins K and L

The Streptomyces sp. Je 1-369 strain was isolated from the rhizosphere soil of J. excelsa (Crimea Peninsula, Ukraine). High-resolution LC-MS analysis of the crude extract of this strain revealed the presence of several peaks, two of which exhibited an interesting UV spectrum (Supplementary Materials Figure S1). These peaks were characterized by strong UV absorption signals at λmax 226, 264, 300, and 408 nm and at λmax 228, 278, 328, and 504 for peaks 1 and 2, respectively. Peak 1 had a retention time (tR) of 14.7 min and an m/z of 385.2005 Da [M+H]+ (1), whereas for peak 2 they were tR = 15.3 min and m/z 443.2187 Da [M+H]+ (2). The dereplication analysis of the identified monoisotopic masses 384.1929 (1) and 442.2114 (2) in the Dictionary of Natural Products Database (DNP) [14] yielded no matches. Thus, the lack of matches in the DNP database may indicate the novelty of these compounds.
To determine the structure of the identified compounds, the Je 1-369 strain was grown in 10 L of SG medium, and metabolites were extracted from the supernatant with ethyl acetate. The obtained extract was purified in three stages, including normal-phase chromatography on a silica gel column, size-exclusion chromatography through a Sephadex column, and preparative high-performance liquid chromatography (HPLC). As a result, 3.2 and 1.4 mg of compounds 1 and 2 were obtained.
The molecular formula of 1 was established as C23H28O5 based on the monoisotopic mass of m/z 385.2005 Da ([M + H]+). Its UV spectrum (Figure S1B) suggested a naphthoquinone moiety. 1H and 13C NMR together with DEPT-edited HSQC revealed 11 quaternary carbons, two methylenes, three methines, and 7 methyl groups, of which two belonged to a methoxy unit (δC 55.81, δH 3.95, 4-OMe, and δC 60.70, δH 4.00, 7-OMe). Careful analysis of the chemical shifts, 2D HHCOSY, and HMBC correlations (Table 1 and Figures S2–S7) led to a highly substituted 1,4-napthochinon and an unsaturated monoterpene unit. All these structural features revealed similarities to the known furaquinocins A-J [15,16,17]; this was especially observed with furaquinocin C, which, in contrast to 1, lacked the methoxy group at C-4 (Figure 1). Therefore, we named 1 furaquinocin K, which is the first furaquinocin bearing a methoxy group at C-4.
Furaquinocin K contains two stereo centres at C-2 and C-3, which are in the 2R and 3R configuration in all naturally occurring furaquinocins [18]. To confirm this finding, the optical rotation value of furaquinocin K, [α]D23 = −78°, was compared with those of furaquinocin C (2R, 3R; [α]D23 = −25°) and its synthetic epimer 3-epifuraquinocin C (2R, 3S; [α]D23 = +58°) [19]. The negative value determined for furaquinocin K supported the expected 2R, 3R configuration.
Compound 2, C24H30N2O6, m/z 443.2187 Da ([M + H]+), was present as a red solid. Its 1D and 2D NMR spectra (Table 2 and Figures S2 and S9–S14) revealed structural elements already known from furaquinocin K (1), including the 8-Me (δC 9.26 and δH 2.06) and 7-OMe (δC 60.70 and δH 4.00) groups and the monoterpene unit as part of a cyclic ether. However, in contrast to 1, H-5 was missing, the five-membered ether ring was fused to a 1,2-benzoquinone derivative (δC 179.22 and 139.94) rather than a phenol, and the carbonyls of the former 1,4-benzoquinone moiety at C-6 and C-9 were converted into a hydroquinone moiety (δC 147.79 and 149.00). In addition, the molecular formula of 2 was enlarged by CH2N2O.
The nature of the two nitrogens was further analysed by 1H,15N-HSQC and 1H,15N-HMBC (Figures S15 and S16). This identified an NH signal at δN 171.7 and δH 14.90 and an N signal at δN 301.9, in which the chemical shifts matched a hydrazone unit. This was supported by the correlation of the NH proton with C-5 (δC 139.94) of the benzoquinone in the 1H,13C-HMBC. In addition, correlations of the NH proton and a methyl group (δC 22.12, δH 2.25 s, C-17) with the carbons of a carbonyl (δC 179.22, C-16) were detected, which indicated a directly adjacent acetyl group. Consequently, the structural component was assigned to an acetylhydrazone.
The low-field-shifted proton signals of NH (δNH 14.90) and 6-OH (δOH 12.89) indicated intramolecular hydrogen bonds to the carbonyl oxygens and the imine nitrogen of hydrazine, respectively. This led to two possible constitutional isomers (2 and 2a) (Figure 2A), as C-4 and C-5 could not be distinguished by HMBC. To determine the correct isomer, the measured carbon shift of 2 was compared with predicted data for 2 and 2a, which were calculated using the NMR prediction tool of ACD Labs, version 2021.2.0 (Figure 2B). As a result, the chemical shift values of isomer 2 showed a slightly better fit based on the regression coefficient values [20]. In addition, a 1H,15N-HMBC correlation from 6-OH to the imine nitrogen 5-N suggested a 1hJN, OH coupling caused by an O-H.... N intramolecular hydrogen bond, as also present in 2 [21], which strongly indicated that 2 was the correct structure.

2.2. Identification of the Furaquinocin Biosynthetic Gene Cluster

To identify the furaquinocin biosynthetic gene cluster, the genome of Je 1-369 was sequenced and analysed. The phylogenetic analysis based on the 16S rRNA gene sequence of the Je1–369 strain revealed this strain to belong to the genus Streptomyces (Figure S17). The total genome size of Streptomyces sp. Je 1-369 strain is 8,820,026 bp with 71% G+C. Terminal inverted repeats (TIRs) of 160,307 bp are present at the ends of the chromosome. The genome annotation of this strain identified 7695 probable protein-coding genes, eighteen rRNA genes in six operons, and eighty-seven tRNA genes. A preliminary analysis of the complete genome using antiSMASH showed the presence of thirty-six predicted gene clusters (two of which were duplicated in TIRs) (Supplementary Table S1). Among them, there were nine clusters of terpenes, five PKS, and three NRPS; others included lanthipeptide, siderophores, ectoine, phenazine, bacteriocin, butyrolactone, melanine, clusters, and several hybrid clusters. Two secondary metabolite gene clusters were located at the edges of the chromosome in the TIRs. One of them showed a 60% homology to the furaquinocin B (fur) biosynthetic gene cluster.
A detailed analysis of the detected cluster in Streptomyces sp. strain Je 1-369 showed its significant difference from the described fur cluster from Streptomyces sp. KO-3988. The main difference between the studied clusters lay in their gene cluster organization. However, the key furaquinocin-forming genes involved in naphthoquinone core formation (open reading frame (Orf) 1–4), polyprenyl synthetase (Orf22), and prenyltrasferase (Orf26) were presented. In addition, five of the six mevalonate pathway genes were missing from the identified cluster from the Je 1-369 strain, but these genes were detected outside the cluster. In addition, a complete set of genes (Orf8–Orf12) for the recycling of S-adenosylhomocysteine to S-adenosylmethionine were contained between the furaquinocine-forming genes in the cluster from the Je 1-369 strain (Figure 3 and Table 3). An identical gene arrangement occurred in the furanonaphthoquinone I gene cluster [22], which was a regioisomer of furaquinocin C.

2.3. Biological Activity of Novel Furaquinocin Analogues

The structures of the furaquinocin analogues identified in this study contained significant differences from those already described. Therefore, these differences in structure may have a significant effect on their activities. Thus, the identified furaquinocins K and L were tested against a wide range of test strains of bacteria, yeast, and fungi, including Bacillus subtilis DSM 10, Staphylococcus aureus Newman, Mycobacterium smegmatis mc2155, Escherichia coli BW25113 (wt), E. coli JW0451-2 (ΔacrB), Pseudomonas aeruginosa PA14, Acinetobacter baumannii DSM 30008, Citrobacter freundii DSM 30039, Candida albicans DSM 1665, Cryptococcus neoformans DSM 11959, Pichia anomala DSM 6766, and Mucor hiemalis DSM 2656. Furaquinocin K showed no antagonistic activity against the tested strains but demonstrated cytotoxicity against hepatocellular carcinoma (HepG2) cells with an IC50 value of 12.6 μg/mL. In turn, pure furaquinocin L showed antagonistic activity only against the Gram-positive bacteria B. subtilis DSM 10 (minimum inhibitory concentration (MIC) values of 64 μg/mL) and the S. aureus Newman strain (MIC values of 2 μg/mL) and no cytotoxicity against HepG2 cells at the maximum concentration (37 μg/mL) (Table 4).

3. Discussion

The numbers of cases involving antibiotic-resistant bacterial pathogens are increasing; as a result, mankind is facing a dilemma and screening for new antibiotics is urgently needed [23]. Microbial secondary metabolites are the predominant source of biologically active products that can be used as therapeutic agents to preserve human life and health [24]. Meroterpenoids can play a significant role in this endeavour, since most of them show an impressive range of biological activity [9]. In this study, we described the identification, purification, and structure elucidation of two new naphthoquinone-based meroterpenoids, furaquinocins K and L, from the Streptomyces sp. Je 1-369 strain isolated from the rhizosphere soil of J. excelsa. Furaquinocins are a small family of meroterpenoids, including furaquinocins A–J [15,16,17], furanonaphthoquinone I, which is a regioisomer of furaquinocin C [25], furaquinocin derivatives PI-220 [26], and JBIR-136 [27]. The furaquinocins A-J and their homologues differ only in the modification of the terpene side chains. However, the furaquinocins K and L isolated in this study contained a modification in the naphthoquinone moiety. In addition, the structure of furaquinocin L included an acetylhydrazone moiety, which is quite rare among natural products [28]. Not surprisingly, relatively little is known about hydrazone biosynthesis. A recent study showed that the hydrazone group is formed by nonenzymatic Japp–Klingemann coupling between the electrophilic diazotated alkyl 5-hydroxylanthranilate and a β-keto aldehyde-containing cyclic peptide precursor during tazicamide biosynthesis [29]. Given the cardinal difference in the structure between tazicamides and furaquinocin L, we believe that the formation of the hydrazone group between these structures will also be different.
The gene cluster of furaquinocin B was identified in the course of a study by Kawasaki et al. [30] due to its promising cytotoxic activity against human cancer cells. Genome analysis of the Je 1-369 strain revealed a gene cluster that showed a 60% homology with the cluster of furaquinocin B biosynthesis. Moreover, this cluster was located in the TIRs at the ends of the chromosome. The presence of gene clusters that are duplicated in streptomycete chromosomes is called “superclusters” and can often affect production levels [31]. However, we did not find any genes similar to the genes involved in N–N bond formation in the identified furaquinocin gene cluster. Thus, we suggest that extracluster genes or genes in which the function has not yet been characterized may be involved in the formation of the furaquinocin L structure. Thus, further studies on the biosynthesis of furaquinocin L, namely, the formation of acetylhydrazone, will clarify the nature and mechanisms of hydrazone-containing compound formation.
As mentioned above, the furaquinocins showed promising cytotoxic activity but did not exhibit antimicrobial activity. Furaquinocin K showed no antimicrobial activity but demonstrated cytotoxicity against HepG2 cells in the same manner as the described furaquinocins and their analogues. This was explained by the slight difference in the chemical structures, in which the difference between the C and K furaquinocins lay in the methoxy group at C-4 (Figure 1). We also hypothesized that the presence of acetylhydrazone in the structure of furaquinocin L may have a significant effect on its activity, since N–N-containing natural compounds exhibit a diverse spectrum of biological activities [28]. As a result, furaquinocin L containing acetylhydrazone showed activity against Gram-positive bacteria in the absence of cytotoxicity. Therefore, to the best of our knowledge, this is the first furaquinocin with antibacterial activity. Thus, our study expands the possibilities of using furaquinocins not only as anticancer agents but also as potential antibacterial agents.

4. Materials and Methods

4.1. General Experimental Procedures

The strain Je 1-369 isolated from the rhizosphere soil of J. excelsa was used in this study. This strain was isolated by direct inoculation of an aqueous suspension of soil on OM medium (20 g/L oat flour and 20 g/L agar; pH 7.2) and incubated at 28 °C for 14 days. Spores and mycelial suspensions of Je 1-369 strain were stored in 20% (v/v) glycerol solution at −20 °C and deposited in the Microbial Culture Collection of Antibiotic Producers (MCCAP) of Ivan Franko National University of Lviv (collection number Lv 391).
OM medium was used to cultivate the actinomycete strain. Liquid tryptic soy broth (TSB) (Sigma-Aldrich, St. Louis, MO, USA) was used for the extraction of total DNA. SG medium (20.0 g/L glucose, 10 g/L soy peptone, and 2 g/L CaCO3; pH 7.2) was used to produce the secondary metabolites.

4.2. Secondary Metabolite Extraction and Analysis

To extract the secondary metabolites, the Streptomyces sp. Je 1-369 strain was grown in 15 mL of TSB in a 100 mL flask for 2 days at 28 °C and 180 rpm, and 1 mL of pre-culture was inoculated into 100 mL of production SG medium in a 500 mL flask. The Je 1-369 strain was grown for 7 days at 28 °C and 180 rpm in an Infors multitron shaker (Infors AG, Basel, Switzerland). The secondary metabolites of the Je 1-369 strain were then extracted from the culture supernatant with an equal amount of ethyl acetate and acetone:methanol (1:1) mixture from the culture biomass. The obtained extracts were evaporated using an IKA RV-8 rotary evaporator (IKA, Staufen, Germany) at 40 °C and were dissolved in methanol. The extracts were analysed on a Dionex Ultimate 3000 UPLC system (ThermoFisher Scientific, Waltham, MA, USA) coupled to a PDA detector using a 100 mm ACQUITY UPLC BEH C18 1.7 μm column (Waters Corporation, Milford, MA, USA). A linear gradient (5% to 95% solvent B) of a water solution containing 0.1% (v/v) formic acid (solvent A) and an acetonitrile solution containing 0.1% (v/v) formic acid (solvent B) as the mobile phase was used to separate the extracts at a flow rate of 0.6 mL/min for 18 min. Mass analysis was performed on a Bruker Amazon Speed (Bruker, Billerica, MA, USA) mass spectrometer using the positive mode of ionization and a range detection of 150–2000 m/z. Data were analysed using the Compass Data Analysis v. 4.2 (Bruker, Billerica, MA, USA).

4.3. Secondary Metabolite Purification

Secondary metabolites were extracted from the Streptomyces sp. Je 1-369 strain grown in 10 L of SG medium. The ethyl acetate extract from the culture supernatant of this strain was dissolved in methanol and purified in three stages. The first purification stage was normal-phase chromatography on a silica gel column with hexane (solvent A), chloroform (solvent B), ethyl acetate (solvent C), and methanol (solvent D) as the mobile phase at a flow rate of 100 mL/min. A triple linear gradient of each solvent pair A/B (10 column volumes (CV)), B/C (15 CV) and C/D (15 CV) was used, and fractions were collected every 18 mL. The separation was performed on a Biotage Isolera One LC-system (Biotage, Uppsala, Sweden) using a SNAP Ultra 50 g column HP-Sphere (Biotage, Uppsala, Sweden). The fractions containing the compounds of interest were pooled together, concentrated, and used for the second separation stage, which was size-exclusion chromatography on a Sephadex LH-20 column (Sigma-Aldrich, St. Louis, MO, USA) with methanol as the mobile phase. The fractions containing the compound of interest were again pooled together and concentrated. The last purification stage was reversed-phase high-performance liquid chromatography (HPLC), separation on a semipreparative C18 column SynergiTM 4 μm Fusion-RP 80 Å 250 mm × 10 mm (Phenomenex, Torrance, CA, USA) using a water solution containing 0.1% (v/v) formic acid (solvent A), and an acetonitrile solution containing 0.1% (v/v) formic acid (solvent B) as a mobile phase. The following gradient at a flow rate of 4 mL/min was used for compound 1 separation: 0 min—35% B, 0.5 min—35%, 2.5 min—70% B, 17.5 min—95% B, 21 min—95% B, 22 min—35% B, and 23 min—35% B. The following gradient at a flow rate of 4 mL/min was used for compound 2 separation: 0 min—35% B, 0.5 min—35%, 2.5 min—50% B, 17.5 min—95% B, 21 min—95% B, 22 min—35% B, and 25 min—35% B. The fractions containing pure compound were pooled together and evaporated. For compound 1 fractions with tR between 16.0 and 17.0 min were collected and for compound 2 fractions with tR between 20.2 and 20.8 min were collected. The quality assessment of the purification at each stage was verified by HPLC–MS.

4.4. Nuclear Magnetic Resonance (NRM) Spectroscopy and Optical Rotation (OD)

The NMR spectra of furaquinocin K were recorded on a Bruker Avance I UltraShield 500 MHz (Bruker, BioSpin GmbH, Rheinstetten, Germany) equipped with a 5 mm BBO probe at 298 K. The NMR spectra of furaquinocin L were acquired on a Bruker Avance III Ascent 700 MHz spectrometer at 298 K equipped with a 5 mm TCI cryoprobe. The chemical shifts (δ) were reported in parts per million (ppm) relative to TMS. As solvents, CDCl3 (δH 7.27 ppm, δC 77.00 ppm) and DMSO-d6 (δH 2.50 ppm, δC 39.51 ppm, 1 drop TFA) from Deutero (Kastellaun, Germany) were used. DEPT-edited 1H,13C-HSQC, 1H,13C-HMBC, 1H-1H COSY, 1H,15N-HSQC, and 1H,15N-HMBC spectra were recorded using standard pulse programs from TOPSPIN v.3.6. Optical rotations were measured using a JASCO P-2000 digital polarimeter (28600 Mary’s Ct, Easton, MD, USA).

4.5. Antimicrobial Susceptibility Test and Cytotoxicity Assay

MICs were determined according to standard procedures. Single colonies of the bacterial strains were suspended in cation-adjusted Müller–Hinton broth to obtain a final inoculum of 104 CFU mL−1. Serial dilutions of furaquinocins (0.5 to 64 µg/mL) were prepared in sterile 96-well plates, and the bacterial suspension was added. Growth inhibition was assessed after overnight incubation at 30–37 °C for 16–18 h. A total of 5 μL of thiazolyl blue tetrazolium bromide (MTT, 10 mg/mL) solution was added to each well and plates were incubated at 30 °C for 1 h. MICs were evaluated visually as the concentration of furaquinocins in a well, in which the compound colour did not change from yellow to dark blue. The following microbial test cultures were used: B. subtilis DSM 10, S. aureus Newman, M. smegmatis mc2155, E. coli BW25113 (wt), E. coli JW0451-2 (ΔacrB), P. aeruginosa PA14, A. baumannii DSM 30008, C. freundii DSM 30039, C. albicans DSM 1665, C. neoformans DSM 11959, P. anomala DSM 6766, and M. hiemalis DSM 2656.
The HepG2 cell line was used to evaluate the cytotoxic activity of the isolated furaquinocins. The cell line was obtained from the German Collection of Microorganisms and Cell Cultures (Deutsche Sammlung für Mikroorganismen und Zellkulturen (DSMZ)) and cultured under the conditions recommended by the depositor. Cells were grown and diluted to 5 × 104 per well of 96-well plates in 180 μL of complete RPMI-1640 medium (+10% fetal bovine serum (FBS)). After 2 h of equilibration (37 °C and 5% CO2), the cells were treated with a serial dilution of furaquinocins in methanol. A total of 20 μL of 5 mg/mL MTT in phosphate-buffered saline (PBS) was added to each well after the cells were grown for 5 days (37 °C and 5% CO2). The cells were further incubated for 2 h at 37 °C before the supernatant was discarded. Subsequently, the cells were washed with 100 μL of PBS and treated with 100 μL of 2-propanol/10 N HCl (250:1) to dissolve formazan granules. Cell viability was measured as a percentage relative to the respective methanol control by measuring the absorbance at 570 nm with a microplate reader (Tecan Infinite 200 PRO). GraphPad Prism was used for sigmoidal curve fitting to determine the IC50 values as well as the calculation of confidence intervals.

4.6. Genome Sequencing and Bioinformatics Analysis

To extract the total DNA, the Streptomyces sp. Je 1-369 strain was grown in TSB medium for four days at 28 °C with a shaking rate of 180 rpm. A salting-out procedure was used to obtain the total DNA [32]. The RNA-free genomic DNA of strain Je 1-369 was sequenced using an Illumina paired-end sequencing library (TruSeq sample preparation kit; Illumina, USA) as recommended by the manufacturer. The Illumina sequencing data were de novo assembled using Newbler v2.8 (454 Life Sciences, Branford, CT, USA) with default settings. Gene prediction and genome annotation were carried out using the prokka v1.11 and GenDB 2.0 platforms [33,34]. The secondary metabolite gene clusters were analysed using the antiSMASH genome mining tool [35]. The analysis of genetic data was performed using Geneious 9.1.2 software [36]. The whole genome sequences of Streptomyces sp. Je 1-369 were deposited under accession number CP101750 (PRJNA860344 for BioProject and SAMN29841164 for BioSample) into the GenBank database.

5. Conclusions

In summary, two new naphthoquinone-based meroterpenoids, furaquinocin K and L, were isolated from the Streptomyces sp. Je 1-369 strain. Their structures were elucidated by NMR and found to contain modifications in the polyketide naphthoquinone skeleton that have not yet been described for furaquinocins. Deciphering the biosynthesis of these furaquinocin analogues will expand the knowledge about the biosynthesis of meroterpenoids as well as the formation of hydrazones in natural compounds.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/antibiotics11111587/s1, Figure S1: HPLC-MS analysis of crude extract of Streptomyces sp. Je 1-369. (A) Base peak chromatograms of crude extract, peaks corresponding to furaquinocin K and L are indicated by 1 and 2, respectively. (B) Mass spectrum (MS) and UV spectrum (UV) of furaquinocin K. (C) Mass spectrum (MS) and UV spectrum (UV) of furaquinocin L; Figure S2: Identified furaquinocins. (A) Structure of furaquinocin K (1) and furaquinocin L (2). (B) Selected COSY and HMBC correlations for furaquinocin K (1) and L (2); Figure S3: 1H-NMR spectrum (500 MHz, CDCl3) of furaquinocin K; Figure S4: 13C-NMR spectrum (125 MHz, CDCl3) of furaquinocin K; Figure S5: 1H-1H-COSY spectrum (CDCl3) of furaquinocin K; Figure S6: Edited HSQC spectrum (CDCl3) of furaquinocin K; Figure S7: 1H,13C-HMBC spectrum (CDCl3) of furaquinocin K; Figure S8: NOESY spectrum (CDCl3) of furaquinocin K; Figure S9: 1H-NMR spectrum (500 MHz, CDCl3) of furaquinocin L; Figure S10: 13C-NMR spectrum (125 MHz, CDCl3) of furaquinocin L; Figure S11: 1H-1H-COSY spectrum (CDCl3) of furaquinocin L; Figure S12: Edited HSQC spectrum (CDCl3) of furaquinocin L; Figure S13: 1H,13C-HMBC spectrum (CDCl3) of furaquinocin L; Figure S14: HMBC spectrum (CDCl3) of furaquinocin L with impurities but higher quantity; Figure S15: 1H,15N-HSQC spectrum (DMSO-d6, TFA) of furaquinocin L; Figure S16: 1H,15N-HMBC spectrum (DMSO-d6, TFA) of furaquinocin L; Figure S17: NJ tree based on the 16S rRNA gene sequences of the Je1–369 (in bold), its closest neighbours and selected Streptomyces-type strains. Micromonospora echinospora DSM 43816 was used as an outgroup; Table S1: Secondary metabolite biosynthesis gene clusters identified in the genome of Streptomyces sp. Je 1-369.

Author Contributions

S.T., M.M. and A.L. designed experiments; S.T. performed experiments; O.G. isolated strains; M.S. and J.Z. performed and evaluated the NMR analysis; S.T., M.S., M.M., O.G. and A.L. analysed the data and wrote the manuscript; all authors reviewed the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This work was partially supported by the personal Grant 91657043 from the German Academic Exchange Service (DAAD) to ST. In addition, the authors thank Alexandra Amann (HIPS) for performing the biological assays.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. De Simeis, D.; Serra, S. Actinomycetes: A Never-Ending Source of Bioactive Compounds-An Overview on Antibiotics Production. Antibiotics 2021, 10, 483. [Google Scholar] [CrossRef] [PubMed]
  2. Bentley, S.D.; Chater, K.F.; Cerdeño-Tárraga, A.M.; Challis, G.L.; Thomson, N.R.; James, K.D.; Harris, D.E.; Quail, M.A.; Kieser, H.; Harper, D.; et al. Complete genome sequence of the model actinomycete Streptomyces coelicolor A3(2). Nature 2002, 417, 141–147. [Google Scholar] [CrossRef] [PubMed]
  3. Hopwood, D.A. Streptomyces in Nature and Medicine: The Antibiotic Makers; Oxford University Press: New York, NY, USA, 2007; p. 250. [Google Scholar]
  4. Barka, E.A.; Vatsa, P.; Sanchez, L.; Gaveau-Vaillant, N.; Jacquard, C.; Klenk, H.-P.; Clément, C.; Ouhdouch, Y.; van Wezel, G.P. Taxonomy, physiology, and natural products of Actinobacteria. Microbiol. Mol. Biol. Rev. 2016, 80, 1–43. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Nazir, M.; Saleem, M.; Tousif, M.I.; Anwar, M.A.; Surup, F.; Ali, I.; Wang, D.; Mamadalieva, N.Z.; Alshammari, E.; Ashour, M.L.; et al. Meroterpenoids: A Comprehensive Update Insight on Structural Diversity and Biology. Biomolecules 2021, 11, 957. [Google Scholar] [CrossRef] [PubMed]
  6. Shen, X.; Wang, X.; Huang, T.; Deng, Z.; Lin, S. Naphthoquinone-Based Meroterpenoids from Marine-Derived Streptomyces sp. B9173. Biomolecules 2020, 10, 1187. [Google Scholar] [CrossRef]
  7. Murray, L.A.M.; Mc Kinnie, S.M.K.; Moore, B.S.; George, J.H. Meroterpenoid natural products from Streptomyces bacteria—The evolution of chemoenzymatic syntheses. Nat. Prod. Rep. 2020, 37, 1334–1366. [Google Scholar] [CrossRef]
  8. Heide, L. Prenyl transfer to aromatic substrates: Genetics and enzymology. Curr. Opin. Chem. Biol. 2009, 13, 171–179. [Google Scholar] [CrossRef]
  9. Gozari, M.; Alborz, M.; El-Seedi, H.R.; Jassbi, A.R. Chemistry, Biosynthesis and Biological Activity of Terpenoids and Meroterpenoids in Bacteria and Fungi Isolated from Different Marine Habitats. Eur. J. Med. Chem. 2021, 210, 112957. [Google Scholar] [CrossRef]
  10. Paulus, C.; Gromyko, O.; Luzhetskyy, A. New Kendomycin Derivative Isolated from Streptomyces sp. Cl 58-27. Molecules 2021, 26, 6834. [Google Scholar] [CrossRef]
  11. Raju, R.; Gromyko, O.; Fedorenko, V.; Luzketskyy, A.; Müller, R. Albaflavenol B, a new sesquiterpene isolated from the terrestrial actinomycete, Streptomyces sp. J. Antibiot. 2015, 68, 286–288. [Google Scholar] [CrossRef]
  12. Raju, R.; Gromyko, O.; Fedorenko, V.; Luzketskyy, A.; Plaza, A.; Müller, R. Juniperolide A: A New Polyketide Isolated from a Terrestrial Actinomycete, Streptomyces sp. Org. Lett. 2012, 14, 5860–5863. [Google Scholar] [CrossRef] [PubMed]
  13. Raju, R.; Gromyko, O.; Fedorenko, V.; Luzketskyy, A.; Müller, R. Leopolic acid A, isolated from a terrestrial actinomycete, Streptomyces sp. Tetrahedron Lett. 2012, 53, 6300–6301. [Google Scholar] [CrossRef]
  14. Buckingham, J. Dictionary of Natural Products on CD-ROM; Version 13:2; Chapman & Hall: London, UK, 2005; ISBN 9780412491504. [Google Scholar]
  15. Komiyama, K.; Funayama, S.; Anraku, Y.; Ishibashi, M.; Takahashi, Y.; Omura, S. Novel antibioitcs, furaquinocins A and B: Taxonomy, fermentation, isolation and physico-chemical and biological characteristics. J. Antibiot. 1990, 43, 247–252. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Ishibashi, M.; Funayama, S.; Anraku, Y.; Komiyama, K.; Omura, S. Novel antibiotics, furaquinocins C, D, E, F, G and H. J. Antibiot. 1991, 44, 390–395. [Google Scholar] [CrossRef] [PubMed]
  17. Panthee, S.; Takahashi, S.; Takagi, H.; Nogawa, T.; Oowada, E.; Uramoto, M.; Osada, H. Furaquinocins I and J: Novel polyketide isoprenoid hybrid compounds from Streptomyces reveromyceticus SN-593. J. Antibiot. 2011, 64, 509–513. [Google Scholar] [CrossRef]
  18. Dormer, P.G.; Smith, A.B.; Funayama, S.; Omura, S. Furaquinocins A-G: Relative and absolute stereochemistry. Tetrahedron Lett. 1992, 33, 1717–1720. [Google Scholar] [CrossRef]
  19. Smith, A.B.; Sestelo, J.P.; Dormer, P.G. Total Synthesis of (-)-Furaquinocin C. J. Am. Chem. Soc. 1995, 117, 10755–10756. [Google Scholar] [CrossRef]
  20. Elyashberg, M.; Williams, A.J.; Blinov, K. Structural revisions of natural products by Computer-Assisted Structure Elucidation (CASE) systems. Nat. Prod. Rep. 2010, 27, 1296–1328. [Google Scholar] [CrossRef]
  21. Huang, X.S.; Liu, X.; Constantine, K.L.; Leet, J.E.; Roongta, V. Observation of O-H...N scalar coupling across a hydrogen bond in nocathiacin I. Magn. Reason. Chem. 2007, 45, 447–450. [Google Scholar] [CrossRef]
  22. Haagen, Y.; Glück, K.; Fay, K.; Kammerer, B.; Gust, B.; Heide, L. A Gene Cluster for Prenylated Naphthoquinone and Prenylated Phenazine Biosynthesis in Streptomyces cinnamonensis DSM 1042. ChemBioChem 2006, 7, 2016–2027. [Google Scholar] [CrossRef]
  23. WHO. Antimicrobial resistance. 2021. Available online: https://www.who.int/newsroom/fact-sheets/detail/antimicrobial-resistance (accessed on 23 February 2021).
  24. Pham, J.V.; Yilma, M.A.; Feliz, A.; Majid, M.T.; Maffetone, N.; Walker, J.R.; Kim, E.; Cho, H.J.; Reynolds, J.M.; Song, M.C.; et al. A Review of the Microbial Production of Bioactive Natural Products and Biologics. Front. Microbiol. 2019, 10, 1404. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Sedmera, P.; Pospíšil, S.; Novák, J. New Furanonaphthoquinone from Streptomyces cinnamonensis. J. Nat. Prod. 1991, 54, 870–872. [Google Scholar] [CrossRef]
  26. Kagamizono, T.; Kawashima, A.; Kishimura, Y.; Yamagishi, M.; Tsuchida, Y.; Kondo, H.; Hanada, K. PI-220, a New Platelet Aggregation Inhibitor. Biosci. Biotechnol. Biochem. 1993, 57, 766–769. [Google Scholar] [CrossRef]
  27. Kawahara, T.; Nagai, A.; Takagi, M.; Shin-ya, K. A new furaquinocin derivative, JBIR-136, from Streptomyces sp. 4963H2. J. Antibiot. 2012, 65, 579–581. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Blair, L.M.; Sperry, J. Natural Products Containing a Nitrogen–Nitrogen Bond. J. Nat. Prod. 2013, 76, 794–812. [Google Scholar] [CrossRef] [PubMed]
  29. Ma, G.L.; Candra, H.; Pang, L.M.; Xiong, J.; Ding, Y.; Tran, H.T.; Low, Z.J.; Ye, H.; Liu, M.; Zheng, J.; et al. Biosynthesis of Tasikamides via Pathway Coupling and Diazonium-Mediated Hydrazone Formation. J. Am. Chem. Soc. 2022, 144, 1622–1633. [Google Scholar] [CrossRef]
  30. Kawasaki, T.; Hayashi, Y.; Kuzuyama, T.; Furihata, K.; Itoh, N.; Seto, H.; Dairi, T. Biosynthesis of a natural polyketide-isoprenoid hybrid compound, furaquinocin A: Identification and heterologous expression of the gene cluster. J Bacteriol. 2006, 188, 1236–1244. [Google Scholar] [CrossRef] [Green Version]
  31. Tian, J.; Yang, J.; Li, L.; Ruan, L.; Wei, W.; Zheng, G.; Zhao, W.; Chen, J.; Jiang, W.; Ge, M.; et al. The complete genome sequence of a high pristinamycin-producing strain Streptomyces pristinaespiralis HCCB10218. J Biotechnol. 2015, 214, 45–46. [Google Scholar] [CrossRef]
  32. Kieser, B.; Buttner, M.; Charter, K.; Hopwood, B. Practical Streptomyces Genetics; John Innes Foundation: Norwich, UK, 2000; p. 613. [Google Scholar]
  33. Meyer, F. GenDB-an open source genome annotation system for Prokaryote genomes. Nucleic Acids Res. 2003, 31, 2187–2195. [Google Scholar] [CrossRef] [Green Version]
  34. Seemann, T. Prokka: Rapid prokaryotic genome annotation. Bioinform 2014, 30, 2068–2069. [Google Scholar] [CrossRef] [Green Version]
  35. Blin, K.; Shaw, S.; Kloosterman, A.M.; Charlop-Powers, Z.; van Weezel, G.P.; Medema, M.H.; Weber, T. antiSMASH 6.0: Improving cluster detection and comparison capabilities. Nucleic Acids Res. 2021, 49, W29–W35. [Google Scholar] [CrossRef] [PubMed]
  36. Kearse, M.; Moir, R.; Wilson, A.; Stones-Havas, S.; Cheung, M.; Sturrock, S.; Buxton, S.; Cooper, A.; Markowitz, S.; Duran, C.; et al. Geneious Basic: An integrated and extendable desktop software platform for the organization and analysis of sequence data. Bioinformatics 2012, 28, 1647–1649. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Antibiotics 11 01587 g001 550

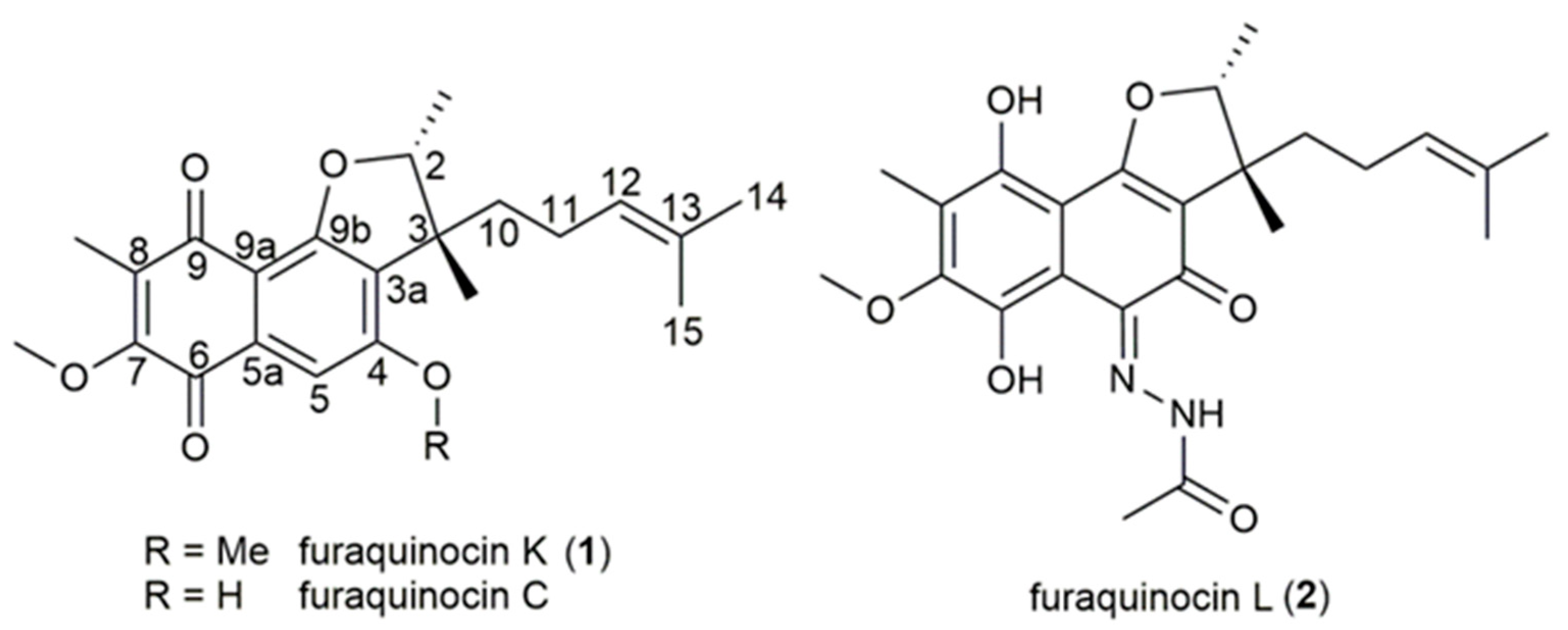

Figure 1. Furaquinocin C and the new furaquinocins K (1) and L (2).
Figure 1. Furaquinocin C and the new furaquinocins K (1) and L (2).
Antibiotics 11 01587 g001
Antibiotics 11 01587 g002 550

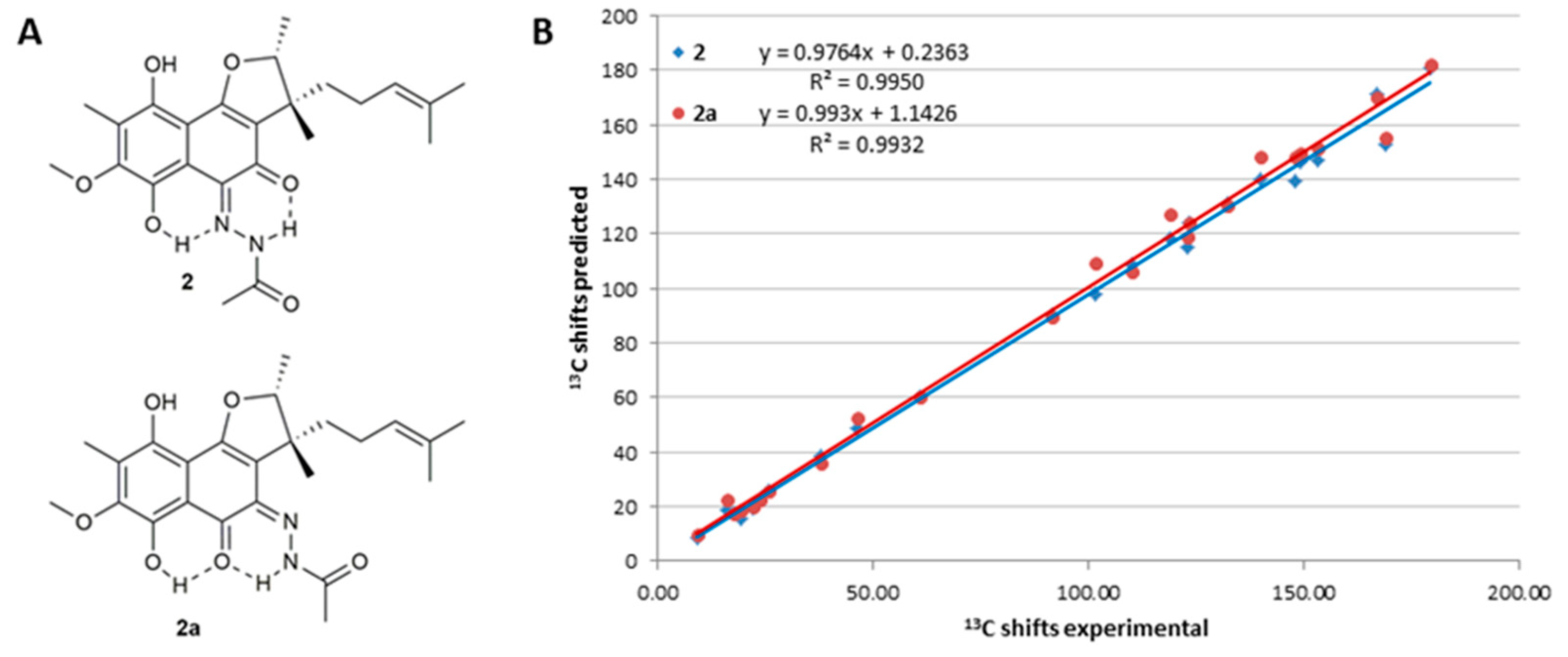

Figure 2. Comparison of the predicted 13C NMR shifts from ACD labs of the two possible furaquinocin L isomers 2 and 2a (A) with the experimentally determined data (B).
Figure 2. Comparison of the predicted 13C NMR shifts from ACD labs of the two possible furaquinocin L isomers 2 and 2a (A) with the experimentally determined data (B).
Antibiotics 11 01587 g002
Antibiotics 11 01587 g003 550

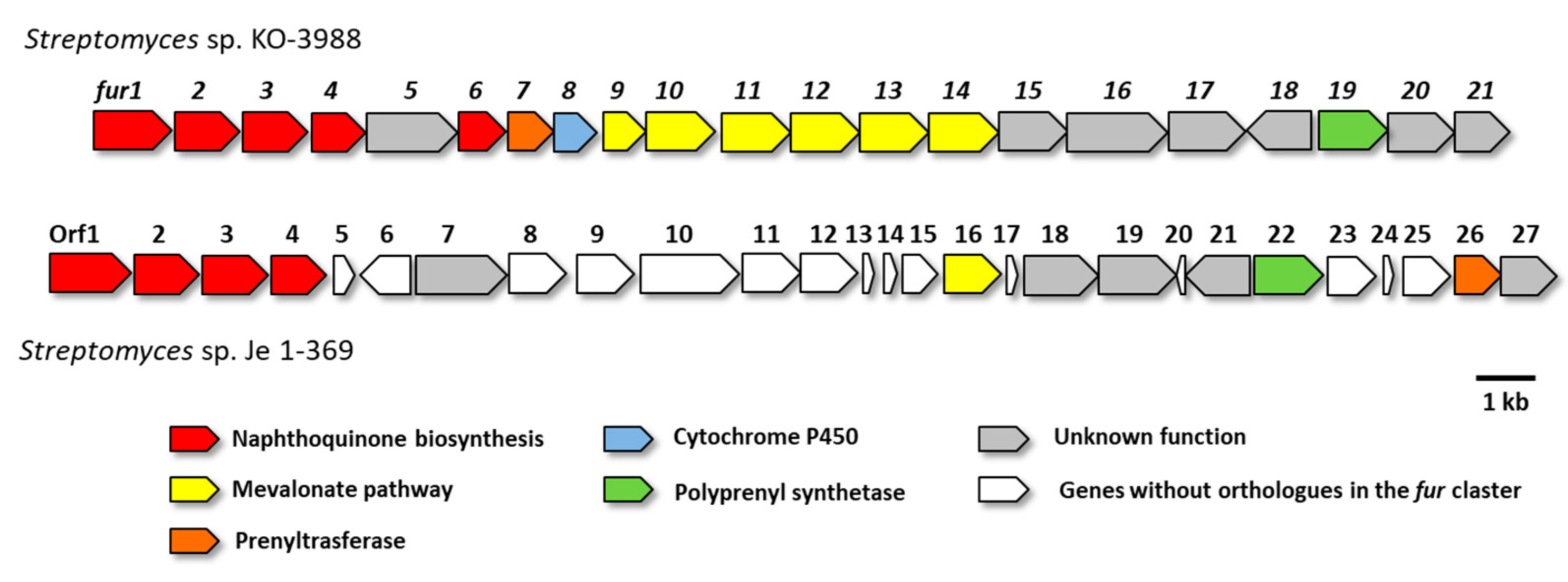

Figure 3. Comparison of the furaquinocin B biosynthetic gene clusters from Streptomyces sp. KO-3988 and Streptomyces sp. Je 1-369.
Figure 3. Comparison of the furaquinocin B biosynthetic gene clusters from Streptomyces sp. KO-3988 and Streptomyces sp. Je 1-369.
Antibiotics 11 01587 g003
Table
Table 1. NMR chemical shifts and 2D correlations of furaquinocin K recorded in CDCl3.
Table 1. NMR chemical shifts and 2D correlations of furaquinocin K recorded in CDCl3.
Positiona δC, Typeb δH, Mult. (J in Hz)COSYc HMBC
287.72, CH4.84, q (6.6)163, 3a, 9b, 10, 2-Me, 3-Me
2-Me15.32, CH31.46, d (6.6)22, 3
347.12, C---
3-Me19.79, CH31.22, s-2, 3, 3a, 10
3a128.99, C---
4159.77, C---
4-OMe55.81, CH33.95, s-4, 5
5103.30, CH7.21, s-3, 3a, 4, 5a, 6,9, 9a
5a133.58, C---
6180.98, C---
7156.80, C---
7-OMe60.70, CH34.00, s-7
8133.31, C---
8-Me9.26, CH32.06, s-6, 7, 8, 9, 7-OMe
9184.10, C---
9a110.20, C---
9b160.23, C---
1037.61, CH21.93, m
1.59, dd (8.0, 11.9)		112, 3, 3a, 11, 12, 3-Me
1123.71, CH21.94, m
1.77, m		10, 123, 10, 12, 13
12123.82, CH5.06, m11, 14, 1510, 11, 14, 15
13131.90, C---
1425.65, CH31.66, bs12, 1512, 13, 15
1517.49, CH31.53, bs12, 1412, 13, 14
a 125 MHz for 13C-NMR. b 500 MHz for 1H-NMR. c HMBC correlations from protons to the indicated carbons.
Table
Table 2. NMR chemical shifts and 2D correlations of furaquinocin L recorded in CDCl3.
Table 2. NMR chemical shifts and 2D correlations of furaquinocin L recorded in CDCl3.
Positiona δC, Typeb δH, Mult. (J in Hz)COSYc HMBC
291.43, CH4.99, q (6.5)2-Me3-Me, 10, 9b
2-Me15.83, CH31.5, d (6.7)22, 3
346.41, C---
3-Me19.21, CH31.32, s-2, 3, 3a, 10
3a118.74, C---
4179.22, C---
5139.94, C---
5-Nd 301.9, N---
5a109.99, C---
6147.79, C---
6-OH-12.89, s-5a, 6, 7, d 5-N
7153.15, C---
7-OMe60.77, CH3.99, s-7
8123.08, C---
8-Me9.10, CH32.22, s-8, 7, 9
9149.00, C---
9-OH-8.10, s-7, 8, 9, 9a
9a101.44, C---
9b169.10, C---
1037.91, CH21.72, m
1.94, m		113, 11
1123.55, CH21.87, m
2.01, m		10, 1211, 14, 15
12123.49, CH5.09, t (7.37)11, 14, 1510, 12
13132.20, C---
1425.66, CH31.66, s12, 1512, 15
1517.70, CH31.56, s12, 1412, 14
16167.03, CO---
16-NHd 171.7, NH14.90, s 5, 16
1722.12, CH32.25, s-16, d 16-NH
a 125 MHz for 13C-NMR. b 500 MHz for 1H-NMR. c HMBC correlations from protons to the indicated carbons. d Determined from 1H,15N-HSQC, and 1H,15N-HMBC experiments in DMSO containing one drop of TFA.
Table
Table 3. Identified ORFs, their putative gene functions, and their respective homologs in the furaquinocin (fur) biosynthetic gene cluster.
Table 3. Identified ORFs, their putative gene functions, and their respective homologs in the furaquinocin (fur) biosynthetic gene cluster.
Gene in
Je 1-369		ORFs * from fur Gene ClusterPutative Product and Their Accession Number (% Identity) **
Gene% Identity/Coverage
Orf1fur181/99type III polyketide synthase of Streptomyces sp. SID10115 (98.0%), A0A6B2SFW1
Orf2fur281/88cupin-domain-containing protein of Streptomyces sp. SID10115 (93.8%), A0A6B2SAS0
Orf3fur381/93aminotransferase of Streptomyces sp. SID10115 (93.8%), WP_150181863
Orf4fur474/88methyltransferase of Streptomyces sp. SID10115 (86.8%), A0A6B2SP85
Orf5 NAD(P)H:quinone oxidoreductase of Streptomyces sp. SID10115 (96.0%), A0A6B2SAG1
Orf6 enoyl-CoA hydratase/isomerase of Frankia sp. EUN1f (32.5%), D3CRF9
Orf7fur573/98acyl-CoA ligase of Streptomyces sp. SID10115 (95.3%), A0A6B2SZ49
Orf8 S-adenosylmethionine synthase of Streptomyces sp. SID10115 (97.5%), A0A6B2SM86
Orf9 carbohydrate kinase of Streptomyces sp. SID10115 (92.0%), A0A6B2SJJ8
Orf10 methionine synthase of Streptomyces sp. SID10115 (92.5%), A0A6B2SFQ1
Orf11 methylenetetrahydrofolate reductase of Streptomyces sp. SID10115 (93.4%), A0A6B2ST43
Orf12 adenosylhomocysteinase of Streptomyces sp. SID10115 (94.9%), A0A6B2SGN4
Orf13 surface protein of Streptomyces sp. SID10115 (68%), A0A6B2SEN8
Orf14 TetR_C_16-domain-containing protein of Streptomyces sp. SID10115 (92.3%), A0A6B2SJP1
Orf15 MFS transporter of Streptomyces sp. SID10115 (96.1%), A0A6B2SIA2
Orf16fur968/93mevalonate kinase of Streptomyces sp. SID10115 (75.0%), A0A6B2SSL0
Orf17 uncharacterized protein of Streptomyces sp. SID10115 (52.2%), A0A6B2SMM5
Orf18fur1672/92FAD-binding protein of Streptomyces sp. Ru71 (72.2%), A0A2S4YSV4
Ofr19fur1775/923-carboxy-cis, cis-muconate cycloisomerase of Streptomyces sp. Ru71 (77.8%), A0A2S4YT60
Orf20 helix–turn–helix-domain-containing protein of Streptomyces sp. SID10116 (100%), A0A6B2SPW8
Orf21fur1854/99uncharacterized protein of Streptomyces sp. SID10115 (94.7%) A0A6B2ST33
Orf22fur1971/98polyprenyl synthetase family protein of Streptomyces sp. SID10115 (95.5%), A0A6B2SPK4
Orf23 FAD-binding protein of Streptomyces sp. SID10115 (90.5%), A0A6B2STJ0
Orf24 pyridine nucleotide-disulfide oxidoreductase of Streptomyces sp. MZ04 (45.5%), A0A4R9EYD3
Orf25 cytochrome bc1 complex cytochrome b subunit of Streptomyces sp. SID10115 (94.3%), A0A6B2SYI1
Orf26fur766/98prenyltransferase of Streptomyces sp. SID10115 (92.7%), A0A6B2SAL2
Orf27fur2161/99Methyltransferase-domain-containing protein of Streptomyces sp. SID10115 (96.8%), A0A6B2SFQ2
* Open reading frame. ** Best match found by UniProt Protein–Protein BLAST.
Table
Table 4. Antibacterial and cytotoxic activities of furaquinocins K and L.
Table 4. Antibacterial and cytotoxic activities of furaquinocins K and L.
Test Strain/Cell LineFuraquinocin K
(MIC, μg/mL)		Furaquinocin L
(MIC, μg/mL)
Bacillus subtilis DSM 10>6464
Staphylococcus aureus Newman>642
Mycobacterium smegmatis mc2155>64>64
Escherichia coli BW25113 (wt)>64>64
E. coli JW0451-2 (ΔacrB)>64>64
Pseudomonas aeruginosa PA14>64>64
Acinetobacter baumannii DSM 30008>64>64
Citrobacter freundii DSM 30039>64>64
Candida albicans DSM 1665>64>64
Cryptococcus neoformans DSM 11959>64>64
Pichia anomala DSM 6766>64>64
Mucor hiemalis DSM 2656>64>64
HepG212.6>37
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Tistechok, S.; Stierhof, M.; Myronovskyi, M.; Zapp, J.; Gromyko, O.; Luzhetskyy, A. Furaquinocins K and L: Novel Naphthoquinone-Based Meroterpenoids from Streptomyces sp. Je 1-369. Antibiotics 2022, 11, 1587. https://doi.org/10.3390/antibiotics11111587

AMA Style

Tistechok S, Stierhof M, Myronovskyi M, Zapp J, Gromyko O, Luzhetskyy A. Furaquinocins K and L: Novel Naphthoquinone-Based Meroterpenoids from Streptomyces sp. Je 1-369. Antibiotics. 2022; 11(11):1587. https://doi.org/10.3390/antibiotics11111587

Chicago/Turabian Style

Tistechok, Stepan, Marc Stierhof, Maksym Myronovskyi, Josef Zapp, Oleksandr Gromyko, and Andriy Luzhetskyy. 2022. "Furaquinocins K and L: Novel Naphthoquinone-Based Meroterpenoids from Streptomyces sp. Je 1-369" Antibiotics 11, no. 11: 1587. https://doi.org/10.3390/antibiotics11111587

APA Style

Tistechok, S., Stierhof, M., Myronovskyi, M., Zapp, J., Gromyko, O., & Luzhetskyy, A. (2022). Furaquinocins K and L: Novel Naphthoquinone-Based Meroterpenoids from Streptomyces sp. Je 1-369. Antibiotics, 11(11), 1587. https://doi.org/10.3390/antibiotics11111587

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
