Article

Prevalence, Genetic Diversity, Antimicrobial Resistance, and Toxigenic Profile of Vibrio vulnificus Isolated from Aquatic Environments in Taiwan

by
I-Ching Lin
1,2,†,
Bashir Hussain
3,4,†,
Bing-Mu Hsu
3,5,*,
Jung-Sheng Chen
6,†,
Yu-Ling Hsu
7,†,
Yi-Chou Chiu
8,
Shih-Wei Huang
9,10 and
Jiun-Ling Wang
11
1
Department of Kinesiology, Health and Leisure, Chienkuo Technology University, Changhua City 500, Taiwan
2
Department of Family Medicine, Asia University Hospital, Taichung City 413, Taiwan
3
Department of Earth and Environmental Sciences, National Chung Cheng University, Chiayi 621, Taiwan
4
Department of Biomedical Sciences, National Chung Cheng University, Chiayi 621, Taiwan
5
Center for Innovative on Aging Society (CIRAS), National Chung Cheng University, Chiayi 621, Taiwan
6
Department of Medical Research, E-Da Hospital, Kaohsiung City 824, Taiwan
7
Department of Nuclear Medicine, Ditmanson Medical Foundation Chia-Yi Christian Hospital, Chiayi 600, Taiwan
8
General Surgery, Surgical Department, Cheng Hsin General Hospital, Taipei 112, Taiwan
9
Center for Environmental Toxin and Emerging Contaminant Research, Cheng Shiu University, Kaohsiung City 833, Taiwan
10
Super Micro Research and Technology Center, Cheng Shiu University, Kaohsiung City 833, Taiwan
11
Department of Internal Medicine, National Cheng Kung University Hospital, Tainan 704, Taiwan

add Show full affiliation list

remove Hide full affiliation list
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Antibiotics 2021, 10(5), 505; https://doi.org/10.3390/antibiotics10050505
Submission received: 30 March 2021 / Revised: 20 April 2021 / Accepted: 24 April 2021 / Published: 29 April 2021
(This article belongs to the Special Issue Antibiotics and Antibiotic Resistance in Aquatic Environments)
Browse Figures
Review Reports Versions Notes

Abstract

:
Vibrio vulnificus is a gram-negative, opportunistic human pathogen associated with life-threatening wound infections and is commonly found in warm coastal marine water environments, globally. In this study, two fishing harbors and three tributaries of the river basin were analyzed for the prevalence of V. vulnificus in the water bodies and shellfish that are under the pressure of external pollutions. The average detection rate of V. vulnificus in the river basins and fishing harbors was 8.3% and 4.2%, respectively, in all seasons. A total of nine strains of V. vulnificus were isolated in pure cultures from 160 samples belonging to river basins and fishing harbors to analyze the antibiotic susceptibility, virulence gene profiles, and enterobacterial repetitive intergenic consensus PCR (ERIC-PCR) fingerprinting. All isolates were susceptible to 10 tested antibiotics. The genotypic characterization revealed that 11.1% (n = 1/9) strain was nonvirulent, whereas 88.9% (n = 8/9) isolates were virulent strains, which possessed the four most prevalent toxin genes such as vcgC (88.9%), 16S B (88.9%), vvhA (88.9%), and manIIA (88.9%), followed by nanA (77.8%), CPS1 (66.7), and PRXII (44.4%). Additionally, ERIC-PCR fingerprinting grouped these nine isolates into two main clusters, among which the river basin isolates showed genetically diverse profiles, suggesting multiple sources of V. vulnificus. Ultimately, this study highlighted the virulent strains of V. vulnificus in the coastal aquatic environments of Taiwan, harboring a potential risk of infection to human health through water-borne transmission.

1. Introduction

Vibrio vulnificus is a halophilic, gram-negative, motile, curved, and rod-shaped pathogenic bacterium that belongs to the family Vibrionaceae, which naturally occurs in the coastal and estuarine environment, especially in warm temperatures (22–30 °C) and moderate saline zones (15–20‰ salinity) worldwide [1,2,3]. However, at a cold temperature (<13 °C), V. vulnificus turns into a viable but not culturable (VBNC) state, which makes it more resistant to various lethal environmental stress factors, as compared with the culturable cells of these bacteria [2,4,5]. Coastal and estuarine environments are aquaculture areas, and, due to the filter-feeding ability of shellfish, they have a high concentration of V. vulnificus. Shellfish, in turn, may become potential reservoirs for the entrance of these pathogenic bacteria into the food chain, becoming a source of wound infections in humans [6,7,8,9]. V. vulnificus has been frequently observed in various geographical areas in the world. Recent studies indicate that due to the global climate change, which resulted in increased surface water temperatures, enabled the global distribution and spread of V. vulnificus [10,11,12,13,14].
V. vulnificus has been classified into three biotypes, on the basis of biochemical and pathogenic characterization [15]. Among them, most biotype 1 strains belonged to the human pathogenic type; most biotype 2 strains belonged to the aquatic animal pathogenic type; moreover, biotype 3 (a hybrid of biotypes 1 and 2) can also cause human infections [10,16,17]. The consumption of raw or undercooked Mollusca and the exposure of wound to seawater are the major sources of getting varying degrees of the V. vulnificus lethal illnesses caused by septicemia, with high fever and chills, and wound infections resulting in tissue necrosis and severe bacteremia, with a fatality rate of >50%, especially in immuno-incompetent individuals [18,19,20,21,22]. V. vulnificus has a high variation rate in the strains’ virulence potential, which makes it difficult to differentiate rapidly, posing a threat to public health [23]. To overcome this problem, genotyping systems based on variation in the sequence of some loci, such as the 16S rRNA gene (types A and B correlated with clinical and environmental strains), the virulence-correlated gene (vcg), and the cytolysin⁄hemolysin gene (vvhA), which also serves as a primary feature to distinguish between clinical (C-) genotypes and environmental (E-) genotypes, have been developed [1,24].
V. vulnificus strains are generally susceptible to most veterinary and clinically used antibiotics [2,25]. However, a large proportion of resistance has been observed in various environmental niches, which are categorized into three levels: a low resistance against cefepime, kanamycin, oxytetracycline, tetracycline, nalidixic acid, and oxalinic acid; an intermediate resistance against aztreonam, streptomycin, erythromycin, vancomycin, clindamycin, ampicillin, penicillin, and gentamycin; and a complete resistance against tobramycin and cefazolin [26,27,28]. Such an increasing rate of antibiotic resistance in various environmental niches is correlated to the extensive use of antibiotics in agriculture, aquaculture, and clinical settings. These antibiotics, in turn, reach surface water bodies such as rivers and lakes through wastewater effluent, posing a potential threat to public health [10,29,30]. Consequently, not only do these water bodies play a crucial role in the dispersion of antibiotics and the development of resistant bacteria, but they also act as a potential reservoir for V. vulnificus, whereby these life-threatening pathogens are transmitted to the food chain and human body surface, becoming a cause of V. vulnificus infection [31].
The Puzih River has livestock wastewater contamination, and our previous studies show many species of bacteria with severe drug-resistant problems, such as methicillin-resistant Staphylococcus aureus (MRSA) and Acinetobacter baumannii, Salmonella [32,33,34,35,36]. Moreover, the downstream, estuary, and coast of the Puzih River are the biggest aquatic-culture region in Taiwan. Food chain security and health are utmost priorities for Taiwan; therefore, the surveillance of emerging pathogens and their toxin, as well as antibiotic-resistance profiling is necessary. The previous investigation of V. vulnificus in aquatic environments was approximately two decades ago [29]. This study aims to determine the prevalence and epidemiology of V. vulnificus, by analyzing the antibiotic susceptibility profile and the virulence gene pattern based on ERIC-PCR fingerprinting for conducting a detailed investigation of V. vulnificus in the fishing harbors and nearby river basins. Therefore, this study will also be carried out in order to provide the possible contamination sources and drug-resistant situations related to this pathogenic micro-organism.

2. Results

2.1. Detection Rate of V. vulnificus from Water and Shellfish Samples Associated with River Basin and Fishing Harbors

A total of 96 river samples, 24 seawaters, and 40 shellfish samples were collected from the Puzih river basin and two fishing harbors (DS and BD) for the detection of V. vulnificus. In spring and autumn, no V. vulnificus was detected from all the PR basins (Table 1). However, in the summer season, the detection rate of V. vulnificus was 25% in the estuary area (area C), 12.5% in the middle part (area B) in the vicinity to the urban area, and 0% in the upper section (area A), with a total detection rate of 12.5% in all PR basins. Area A of PR is the upstream confluence region, which is the farthest from the estuary. Similarly, in winter, the detection rate was as follows: 37.5% (area B), 25% (area C), and 0% (area A), with a total detection rate of 20.8% in the PR regions. From the water samples collected from fishing harbor areas (DS and BD), V. vulnificus was detected only in the autumn season (16.7%), with a total detection rate of 4.2% in all seasons. However, none of the isolates were detected from shellfish samples. The overall detection rate in the PR basin was 8.3% and 4.2% in the fishing harbor, irrespective of the seasons. During the study, nine isolates were successfully purified from eight positive sampling sites. These isolated strains were confirmed to be positive for vvhA (V. vulnificus targeting gene) by PCR detection.

2.2. Antimicrobial Susceptibility and Genotypic Profiling of Vibrio Vulnificus Isolates

A total of nine V. vulnificus isolates were subjected to an antibiotic susceptibility test against 10 antimicrobial categories. All of these isolates were susceptible to the employed categories of antibiotics, irrespective of the sampling locations, as shown in Table 2.
The status of virulent and nonvirulent strains of V. vulnificus in aquatic environments was checked by targeting a combination of virulence and nonvirulence genes to confirm the toxicity threat to humans, as shown in Table 3. The result revealed that 90% of the isolated strains carried a combination of various toxic genes. Among these, 88.9% (n = 8/9) strains showed the four most prevalent virulence genes in similar distribution (88.9%, n = 9), which included vcgC (viral correlated gene), 16S B (encoding 30S small subunit of a prokaryotic ribosome), vvhA (encoding V. vulnificus cytolysin⁄ haemolysin protien), and manIIA (encoding enzyme IIA for mannitol fermentation operon), followed by three other toxin genes, which are: nanA (encoding N-acetylneuraminic acid lyase; 77.8%); CPS1 (66.7), which serves as a capsular polysaccharide operon, regulating the production of polysaccharides; and PRXII (an arylsulfatase gene cluster; 44.4%). Additionally, 56% of the strains possessed both 16S A (environmental type; nonvirulent) and 16S B genes (clinical type; virulent), whereas one strain (10%) possessed both the vcgC (clinical type; virulent) and vcgE genes (environmental type; nonvirulent). In this study, the strain (10%) that belonged to the PR area B showed only non-virulence genes (environmental type), e.g., vcgE, 16S A, CPS2, and vvhA.

2.3. Genetic Analysis of V. vulnificus Strains by ERIC-PCR Fingerprinting Combined with Genotypic Profiling

We combined ERIC-PCR typing and genetic diversity results with genotypic data to better interpret the origin/source and genetic variation of V. vulnificus strains. The ERIC-PCR fingerprinting successfully categorized the nine strains isolated from river basins and fishing harbors into two major clusters exhibiting a less than 40% Pearson similarity coefficient based on reference strain, sampling sites, and phylogenetic diversity (Figure 1). Cluster 1 contained 55.5% (n = 6/9) of the strains collected from river basins belonging to Area B (60%; n = 3/5) and Area C (40%; n = 2/5). Cluster 1 was further subdivided into two sub-clusters, assigned as clusters 1.1 and 1.2. In the sub-cluster 1.1, the nonvirulent strain primarily belonging to the river basin Area B was separated, exhibiting a less than 57% Pearson similarity in genotypic profile, compared with the virulent strains of sub-cluster 1.2. Additionally, sub-cluster 1.2, containing virulent strains, was further subdivided into A and B clusters. The virulent strains S02PR2911 and S02PR311, primarily from the river basin (Area A) and grouped into cluster A, showed 100% similarity in genotypic profile. Similarly, the strains S04PR2211 and S04PR2311, which belonged to the same sampling site (Area B) and was grouped into cluster B, exhibited almost a 90% similarity in genotypic profile. Cluster 2 contained the remaining 44.4% strains, belonging to the river basin Area B (25%; n = 1/4), Area C (50%; n = 2/4), and fishing harbors (25%); n = 1/4). This cluster’s strains showed a less than 62% Pearson similarity, which were further subdivided into two sub-clusters, assigned as 2.1 and 2.2, respectively. The sub-cluster 2.1 was further subdivided into two clusters, A and B. In cluster A, the strains BD-FH W211 and S04PR2711 were isolated from fishing harbors and the river basin (Area C), and were grouped into cluster A, exhibiting an 85% similarity in genotypic profile. Additionally, the strains S04PR2511 and S04PR3111, primarily from the river basin Area B and C, were grouped into profile B, showing almost a 90% similarity in genotypic profile. In contrast, the reference strain showing a less than 75% similarity was grouped separately.

3. Discussion

The differences in various environmental constraints such as temperature, salinity, precipitation, geographical locations, and pollution contents greatly influence the population and growth rate of V. vulnificus in different water bodies [13,37,38,39]. Therefore, the detection rate of V. vulnificus varies from 6% to 69% in different seasons, globally [40,41,42]. In this study, the detection rate of V. vulnificus in the river basins was higher in the winter season (20.8%) than in the summer season (12.5%), which is unique and different from what was shown in most of the previous studies [41,43]. The river site of our investigation is located in the subtropical area, where the weather temperature at the sampling time was over 33 °C in summer and approximately 22 °C in winter; thus, the winter season in Taiwan is more suitable for the survival of V. vulnificus, where, as previously highlighted, the optimal growth temperature ranges from 20–30 °C [9,43,44,45,46]. In this study, the overall detection rate of V. vulnificus during four seasons was 8.3% (including all PR regions), which is higher than what was shown in a recent study on V. vulnificus from a river in China [42]. Moreover, the 4.2% detection rate (in all fishing harbors) of our study aligns with the results of a previous study regarding V. vulnificus from five major harbors in Taiwan [47]. These findings imply that the yearly average detection rate of V. vulnificus (in the score year) was approximately 5% in Taiwan’s harbor environments.
The previous reports highlighted the relatively lower concentration of V. vulnificus in the surrounding waters, compared with waters containing oysters, shellfish, and mussels, whose filter-feeding ability when obtaining food causes a higher concentration of V. vulnificus in their intestines [3,8]. Interestingly, none of the V. vulnificus cases were isolated from the 40 shellfish samples associated with fishing harbors in this study. The highest detection rate of V. vulnificus from the estuary area (Area C) and urban residential area (Area B) of the river basin might be associated with the mixing of domestic waste and organic matters along with the supporting salinity parameters.
Usually, V. vulnificus is considered to be susceptible to most antibiotics used for human and animal treatment [10]. In this study, all of the nine isolates of V. vulnificus showed susceptibility against all of the tested antibiotics. The V. vulnificus strains’ resistance to some antibiotics has been reported; however, most of the strains were also susceptible to several antibiotics [48]. The aquatic bacteria with high drug-resistant profiles were mostly found to be Enterobacteriaceae (Especially in E. coli, Salmonella, etc.), Enterococcaceae, and Staphylococcaceae, among others [34,35,36,49,50,51]. Furthermore, most V. vulnificus populations with high drug-resistance were isolated from the shellfish [27,48]. A comparison of all these reports indicated the different variations of susceptibility and resistance patterns of V. vulnificus against a wide range of antibiotics, based on the environmental parameters or host [52,53], which need to be traced continuously.
Populations of V. vulnificus consist of heterogenic bacterial species that display variations in virulence and pathogenicity factors at strain level [54,55]. Not a single pathogenic gene is defined to hold the causative agent associated with V. vulnificus infections. Previous studies have emphasized the targeting of multiple virulence genes through PCR amplification for identification, differentiation, and typing of V. vulnificus at strain level [23,56]. In this study, we selected a combination of four key biomarker genes or virulence genes such as vcgC, 16S B, CPS1, and vvhA-1 to differentiate virulent strains of V. vulnificus from non-virulent strains. Previous study has also indicated that these virulence genes of V. vulnificus are highly specific to the virulent strains [57]. Additionally, three more virulence-associated genes, such as nanA, manIIA, and PRXII, were also included for risk assessment purposes, as previously suggested [20]. In this study, 90% of the isolated strains of V. vulnificus carried virulence genes, which were associated with both the river basins and fishing harbors. Our result is in accordance with the previous study, where the prevalence rate of virulent strains, isolated from Ariake Sea, Japan, was 90%; whereas, in Mikawa and Ise Bay, the prevalence rate was 70% [46]. Similarly, the prevalence of virulent strains in the marine environment, using tri-primer PCR based on 16S rRNA gene analysis, was 65% and for non-virulent strains, it was 35% [58]. However, in this study, the prevalence of the non-virulent strain of V. vulnificus was only 10%. Several studies have used vcg (vcgC and vcgE), 16S rRNA (16S A and 16S B), and CPS (CPS1 and CPS2) to differentiate between the clinical (virulent) and environmental strains (nonvirulent) of V. vulnificus. Rosche et al. (2005) demonstrated that 90% of clinical strains carried the vcgC gene, whereas the detection rate of vcgE was 87% in environmental strains. In this study, the detection rate of vcgC was associated with 89.6% isolated strains, whereas the vcgE gene detection rate was 22.2%. However, one strain showed the PCR amplification of both vcgC and vcgE genes associated with the river basin. This is in accordance with the report of Warner and Oliver (2008a), where the V. vulnificus strain isolated from water and oysters was found to be both vcgC- and vcgE-positive. However, in a previous report, 26% of the clinical strains isolated from infected patients exhibited the vcgE gene [59]. Previously, the clinical strain isolated from oysters carried 76% 16S B, and environmental strains possessed 15% 16S A [60]. In this study, the prevalence of the 16S B and 16S A gene was 89.8% and 66.7%; whereas, 56% of strains were found to possess both 16S B and A, simultaneously. This latter phenomenon has been reported frequently; some environmental strains of V. vulnificus, isolated from aquatic environments and oyster, possessed both 16S B and A simultaneously [61], probably in order to meet the survival needs of V. vulnificus under different environmental conditions [57]. Based on the CPS allele 1 and 2 differentiation between virulent (clinical) and non-virulent strains, only one strain showed CPS2 (n = 1/9; 11.1%), 66.7% (n = 6/9) possessed CPS1, and 22% (n = 2/9) of the strains did not show any of these two alleles. Additionally, none of the strains possessed both alleles simultaneously. However, the absence of both alleles has been reported in V. vulnificus strains isolated from different environments [60,62]. It has been clearly demonstrated that CPS plays an important role in virulence associated with clinical strains, whereas in environmental strain, it is mostly involved in survival mechanisms [63]. Based on the comparison of V. vulnificus genotyping in this study’s virulence factors, the vcgC, 16S B, vvhA, manIIA, and GPS 2 genotypes were more appropriate for distinguishing virulent and non-virulent strains. This finding suggested that most V. vulnificus wild types are also a human health concern.
Previous studies have demonstrated the higher genetic diversity among the isolates of V. vulnificus from different environmental niches, using the ERIC-PCR method, which is more accurate as compared with REP-PCR [3]. In this study, we combined the toxigenic profiles of isolated strains of V. vulnificus with ERIC-PCR, which grouped these isolates into two main clusters based on their respective sampling sites, reference strain, and genotypic profiles. This is consistent with the result of the previous study, where the V. vulnificus strains isolated from the Baltic Sea region were classified into two main clusters using multi-locus sequence typing (MLST) [64]. The strains of V. vulnificus isolated from the river basin showed diverse heterogeneity in genotypic profiles, indicating unique sources of this pathogenic strain and implying an uneven distribution of genetic differences across each sampling site. The genetically divergent strains may also be associated with geographical distribution, invertebrate host preferences, environmental stress, and changing estuarine conditions [63]. However, in this study, due to the limited number of isolates from fishing harbors, the exact sources could not be traced, which warrants extended and continuous epidemiological surveillance. The result of ERIC-PCR typing in combination with the genotypic profile could be significantly useful in distinguishing the V. vulnificus strains from source tracking and the differences between their distinct environments.

4. Materials and Methods

4.1. Sampling Information

In this study, three sampling sites were investigated around the neighboring Puzih River (PR), Dongshi fishing harbor (DS), and Budai fishing harbor (BD). The PR region was divided into three sections according to the distance to the estuary, as shown in Figure 2. The upper section (area A) converged the upstream of the river. In contrast, the middle part (area B) was the urban residential area. Area C was an estuary, adjacent to DS and BD fishing harbors. From January 2016 to February 2017, 96 water samples were collected from the PR area and 24 samples from DS and BD in different seasons.

4.2. Pre-Treatment of Water Samples

About 300 mL of water was filtered through a 47 mm sterilized filter membrane with a pore size of 0.45 um (66191 GN-6, Pall Corporation, city, state, USA) to get the high concentration of bacteria. This concentrated membrane was eluted in 25 mL phosphate-buffered saline (PBS) and centrifuged at 2600× g for 30 min. In the case of shellfish samples, 10–20 g of shellfish meat was suspended in a 50 mL centrifuge tube along with 1S PBS, with a total volume of 40 mL. Finally, homogenization was carried out twice using an ultra-turrax tube drive (UTTD, IKA, Staufen, Germany) at a maximum rotating speed of 30 s.

4.3. Enrichment, Cultivation, and Molecular Profiling of V. vulnificus

The pre-treated water sample and 1 mL shellfish homogenized liquid sample was transferred into 10 mL Alkaline Peptone Water (APW; Taiwan Prepared Media, Taipei, Taiwan), followed by incubation at 30 °C, for 24 h, for enrichment. The next day, a loopful of broth from the pre-enrichment step was streaked on CHROMagar Vibrio (CV; Taiwan Prepared Media, Taipei, Taiwan) plates and Thiosulfate Citrate Bile Salt Sucrose (TCBS; Taiwan Prepared Media, Taipei, Taiwan) agar plate, followed by incubating at 37 °C, for 24 h. The next day, a single colony from agar plate was picked with the help of a toothpick and inoculated into an APW tube and then incubated at 30 °C, for 24 h. After incubation, 300 µL culture containing candidate isolates were mixed with 700 µL 33% glycerol into a 1.5 mL centrifuge tube and stored at −20 °C. The reference strain source in this study was V. vulnificus ATCC27562, which served as a control for subsequent experimental analysis. The DNA extraction from overnight culture was centrifuged at 10,000× g for 5 min and removed from the supernatant. DNA from concentrated pellet was extracted for molecular analysis using ZP02006 MagPurix automatic DNA extraction system (Zinexts Life Science Corp, New Taipei, Taiwan) provided with the bacterial DNA extraction kit, following the procedure of the manufacturer’s instructions, with the final elution in 100 µL. This eluent was then used for PCR experiments with a total reaction volume of 25 µL by adding the appropriate concentration of template, primers, and master mix, respectively, as shown in Table 1. PCR amplification was performed using Life ECO Thermal Cycler (Bioer Technology Co., Ltd., Hangzhou, China) according to the conditions of the PCR programs, as shown in Table 4. Finally, DNA quality was assessed visually by running gel electrophoresis with 1.5% 1 × TAE Buffer at 110 V, for 30 min, and bands were visualized under UV. The positive samples were identified by targeting the vvhA gene in PCR, which is a common gene marker for the identification of V. vulnificus species. Subsequently, the detected five major virulence-associated genes, including V. vulnificus cytolysin⁄hemolysin gene (vvhA), viral correlated gene (vcg), capsular polysaccharide operon (CPS), pathogenicity region XII (PRXII), Sial acid catastrophe region (nanA), and enzyme IIA of mannitol fermentation operon (manIIA) were used for phylogenetic analysis and strain typing, by means of ERIC-PCR fingerprinting and with the aid of commercial software BioNumerics (Applied Maths NV, Inc., Sint-Martens-Latem, Belgium). Finally, the cluster analysis was performed using curve-based Pearson correlation, and the resulting dendrogram was generated based on the unweighted pair group method with arithmetic mean (UPGMA).

4.4. Antibiotic Susceptibility Testing and Multidrug Resistance Profiling of V. vulnificus Isolates

The antibiotic susceptibility testing of all isolates of V. vulnificus was carried out using the disc diffusion method, following the guidelines of Clinical and Laboratory Standards Institute instructions (CLSI, 2010). The isolated strains of V. vulnificus were cultured in 5 mL Cation Adjusted Mueller Hinton Broth (CAMHB; Dr. Plate Biotech Company, Taipei, Taiwan), for 16–25 h, at 35 °C. The bacterial suspension was adjusted to 0.5 McFarland and evenly streaked on Mueller Hinton Agar (MHA). Subsequently, we aseptically placed the selected antibiotic paper disc on evenly streaked MHA and incubated at 34 °C, for 16–20 h. Finally, the antibiotic susceptibility of different strains was observed by measuring the size of the zone of inhibition (ZOI). The criteria for MDR was defined as non–susceptibility to at least one agent in three or more antimicrobial categories [67].

5. Conclusions

The detection rate of V. vulnificus strains was higher in downstream of the river basins adjacent to the residential area followed by the estuary area and fishing harbors. Additionally, none of the isolates were purified from the upper section of the river basin and the shellfish samples of these fishing harbors. Furthermore, we could isolate only one strain from the water sample of fishing harbors. These data suggest that the virulent strains of V. vulnificus might be enriched and spread from the surrounding urban, residential areas, most probably through domestic waste discharge mixing into the river basin. Consequently, following the water flow, this might also lead to the contamination of downflow areas, including the estuary area of the river basin and the fishing harbors. Notably, 88.9% isolated strain of V. vulnificus exhibited multiple virulence factors. The comparison of V. vulnificus genotyping based on this study’s virulence factors, the vcgC, 16S B, vvhA, manIIA, and GPS 2 genotype were more appropriate for distinguishing virulent and non-virulent strains. Fortunately, all V. vulnificus isolates in this study were susceptible to all tested antibiotics. The ERIC-PCR fingerprinting revealed heterogeneity among the isolated strains even at a single sampling site, the river basin. This defined the broad distribution of genetic differences across sampling sites and respective isolated strains, indicating multiple sources of these strains. Even at individual strain-level, these virulent strains of V. vulnificus exhibit multiple toxigenic profiles in the aquatic environments, which is a significant threat to human health. Therefore, a continuous monitoring of these coastal aquatic environments and their adjacent waste discharge areas is warranted in order to timely prevent the further spread of V. vulnificus.

Author Contributions

Conceptualization, B.-M.H., I.-C.L., and J.-S.C.; methodology, B.H., Y.-L.H., and J.-S.C.; software, Y.-C.C. and S.-W.H.; validation, B.-M.H., I.-C.L., J.-L.W., and J.-S.C.; formal analysis, B.H. and Y.-L.H.; investigation, B.H., I.-C.L., Y.-L.H., and J.-S.C.; resources, B.-M.H., B.H., I.-C.L., and J.-S.C.; data curation, J.-L.W. and S.-W.H.; writing—original draft preparation, I.-C.L., B.H., Y.-L.H., and J.-S.C.; writing—review and editing, B.-M.H.; visualization, B.H., Y.-L.H., and J.-S.C.; supervision, B.-M.H., I.-C.L., and J.-S.C.; project administration, B.-M.H., I.-C.L., J.-S.C., and Y.-L.H.; funding acquisition, B.-M.H., I.-C.L., and Y.-L.H.. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Science and Technology of Taiwan (MOST 108-2116-M-194-005 & 108-2811-M-194-507), Asia University Hospital (grant no. 10951003), the Ditmanson Medical Foundation Chia-Yi Christian Hospital (grant no. RCN008), and the Center for Innovative Research on Aging Society (CIRAS) from The Featured Areas Research Center Program within the framework of the Higher Education Sprout Project by the Ministry of Education (MOE) in Taiwan.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bier, N.; Jäckel, C.; Dieckmann, R.; Brennholt, N.; Böer, S.I.; Strauch, E. Virulence profiles of Vibrio vulnificus in German coastal waters, a comparison of North sea and Baltic sea isolates. Int. J. Environ. Res. Public Health 2015, 12, 15943–15959. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Oliver, J.D. The biology of Vibrio vulnificus. Microbiol. Spectr. 2015, 3. [Google Scholar] [CrossRef] [Green Version]
  3. Paydar, M.; Thong, K.L. Prevalence and genetic characterization of Vibrio vulnificus in raw seafood and seawater in Malaysia. J. Food Prot. 2013, 76, 1797–1800. [Google Scholar] [CrossRef]
  4. Oliver, J.D.; Hite, F.; McDougald, D.; Andon, N.L.; Simpson, L.M. Entry into, and resuscitation from, the viable but nonculturable state by Vibrio vulnificus in an estuarine environment. Appl. Environ. Microbiol. 1995, 61, 2624–2630. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Rao, N.V.; Shashidhar, R.; Bandekar, J.R. Induction, resuscitation and quantitative real-time polymerase chain reaction analyses of viable but nonculturable Vibrio vulnificus in artificial sea water. World J. Microbiol. Biotechnol. 2014, 30, 2205–2212. [Google Scholar] [CrossRef] [PubMed]
  6. DePaola, A.; Capers, G.M.; Alexander, D. Densities of Vibrio vulnificus in the intestines of fish from the US Gulf Coast. Appl. Environ. Microbiol. 1994, 60, 984–988. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Strom, M.S.; Paranjpye, R.N. Epidemiology and pathogenesis of Vibrio vulnificus. Microbes Infect. 2000, 2, 177–188. [Google Scholar] [CrossRef]
  8. Turner, J.W.; Good, B.; Cole, D.; Lipp, E.K. Plankton composition and environmental factors contribute to Vibrio seasonality. ISME J. 2009, 3, 1082–1092. [Google Scholar] [CrossRef] [Green Version]
  9. Bhattacharyya, N.; Lemon, T.L.; Grove, A. A role for Vibrio vulnificus PecS during hypoxia. Sci. Rep. UK 2019, 9, 1–12. [Google Scholar] [CrossRef]
  10. Heng, S.-P.; Letchumanan, V.; Deng, C.-Y.; Ab Mutalib, N.-S.; Khan, T.M.; Chuah, L.-H.; Chan, K.-G.; Goh, B.-H.; Pusparajah, P.; Lee, L.-H. Vibrio vulnificus: An Environmental and Clinical Burden. Front. Microbiol. 2017, 8, 997. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Liu, J.-W.; Lee, K.; Tang, H.-J.; Ko, W.-C.; Lee, H.-C.; Liu, Y.-C.; Hsueh, P.-R.; Chuang, Y.-C. Prognostic factors and antibiotics in Vibrio vulnificus septicemia. Arch. Intern. Med. 2006, 166, 2117–2123. [Google Scholar] [CrossRef] [PubMed]
  12. Baker-Austin, C.; Trinanes, J.A.; Taylor, N.G.; Hartnell, R.; Siitonen, A.; Martinez-Urtaza, J. Emerging Vibrio risk at high latitudes in response to ocean warming. Nat. Clim. Chang. 2013, 3, 73–77. [Google Scholar] [CrossRef]
  13. Martinez-Urtaza, J.; Bowers, J.C.; Trinanes, J.; DePaola, A. Climate anomalies and the increasing risk of Vibrio parahaemolyticus and Vibrio vulnificus illnesses. Food Res. Int. 2010, 43, 1780–1790. [Google Scholar] [CrossRef]
  14. Paz, S.; Bisharat, N.; Paz, E.; Kidar, O.; Cohen, D. Climate change and the emergence of Vibrio vulnificus disease in Israel. Environ. Res 2007, 103, 390–396. [Google Scholar] [CrossRef] [PubMed]
  15. Baker-Austin, C.; Stockley, L.; Rangdale, R.; Martinez-Urtaza, J. Environmental occurrence and clinical impact of Vibrio vulnificus and Vibrio parahaemolyticus: A European perspective. Environ. Microbiol. Rep. 2010, 2, 7–18. [Google Scholar] [CrossRef]
  16. Reynaud, Y.; Pitchford, S.; De Decker, S.; Wikfors, G.H.; Brown, C.L. Molecular typing of environmental and clinical strains of Vibrio vulnificus isolated in the northeastern USA. PLoS ONE 2013, 8, e83357. [Google Scholar] [CrossRef] [Green Version]
  17. Baker-Austin, C.; Oliver, J.D. Vibrio vulnificus: New insights into a deadly opportunistic pathogen. Environ. Microbiol. 2018, 20, 423–430. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Li, G.; Wang, M.-Y. The role of Vibrio vulnificus virulence factors and regulators in its infection-induced sepsis. Folia Microbiol. 2020, 65, 265–274. [Google Scholar] [CrossRef] [PubMed]
  19. Lee, W.; Lee, S.-H.; Kim, M.; Moon, J.-S.; Kim, G.-W.; Jung, H.-G.; Kim, I.H.; Oh, J.E.; Jung, H.E.; Lee, H.K. Vibrio vulnificus quorum-sensing molecule cyclo (Phe-Pro) inhibits RIG-I-mediated antiviral innate immunity. Nat. Commun. 2018, 9, 1–13. [Google Scholar] [CrossRef] [Green Version]
  20. Hackbusch, S.; Wichels, A.; Gimenez, L.; Döpke, H.; Gerdts, G. Potentially human pathogenic Vibrio spp. in a coastal transect: Occurrence and multiple virulence factors. Sci. Total Environ. 2020, 707, 136113. [Google Scholar] [CrossRef]
  21. Han, F.; Ge, B. Quantitative detection of Vibrio vulnificus in raw oysters by real-time loop-mediated isothermal amplification. Int. J. Food Microbiol. 2010, 142, 60–66. [Google Scholar] [CrossRef]
  22. Senoh, M.; Miyoshi, S.I.; Okamoto, K.; Fouz, B.; Amaro, C.; Shinoda, S. The cytotoxin-hemolysin genes of human and eel pathogenic Vibrio vulnificus strains: Comparison of nucleotide sequences and application to the genetic grouping. Microbiol. Immunol. 2005, 49, 513–519. [Google Scholar] [CrossRef]
  23. Sanjuán, E.; Fouz, B.; Oliver, J.D.; Amaro, C. Evaluation of genotypic and phenotypic methods to distinguish clinical from environmental Vibrio vulnificus strains. Appl. Environ. Microbiol. 2009, 75, 1604–1613. [Google Scholar] [CrossRef] [Green Version]
  24. Cohen, A.L.V.; Oliver, J.D.; DePaola, A.; Feil, E.J.; Boyd, E.F. Emergence of a virulent clade of Vibrio vulnificus and correlation with the presence of a 33-kilobase genomic island. Appl. Environ. Microbiol. 2007, 73, 5553–5565. [Google Scholar] [CrossRef] [Green Version]
  25. Baker-Austin, C.; McArthur, J.V.; Lindell, A.H.; Wright, M.S.; Tuckfield, R.C.; Gooch, J.; Warner, L.; Oliver, J.; Stepanauskas, R. Multi-site analysis reveals widespread antibiotic resistance in the marine pathogen Vibrio vulnificus. Microb. Ecol. 2009, 57, 151–159. [Google Scholar] [CrossRef] [PubMed]
  26. Kurdi Al-Dulaimi, M.M.; Ariffin, A.A. Multiple antibiotic resistance (MAR), plasmid profiles, and DNA polymorphisms among Vibrio vulnificus isolates. Antibiotics 2019, 8, 68. [Google Scholar] [CrossRef] [Green Version]
  27. Pan, J.; Zhang, Y.; Jin, D.; Ding, G.; Luo, Y.; Zhang, J.; Mei, L.; Zhu, M. Molecular characterization and antibiotic susceptibility of Vibrio vulnificus in retail shrimps in Hangzhou, People’s Republic of China. J. Food Prot. 2013, 76, 2063–2068. [Google Scholar] [CrossRef] [PubMed]
  28. Roig, F.J.; Llorens, A.; Fouz, B.; Amaro, C. Spontaneous quinolone resistance in the zoonotic serovar of Vibrio vulnificus. Appl. Environ. Microbiol. 2009, 75, 2577–2580. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Hor, L.-I.; Goo, C.-T.; Wan, L. Isolation and characterization ofVibrio vulnificus inhabiting the marine environment of the southwestern area of Taiwan. J. Biomed. Sci. 1995, 2, 384–389. [Google Scholar] [CrossRef]
  30. Hsueh, P.-R.; Lin, C.-Y.; Tang, H.-J.; Lee, H.-C.; Liu, J.-W.; Liu, Y.-C.; Chuang, Y.-C. Vibrio vulnificus in Taiwan. Emerg. Infect. Dis. 2004, 10, 1363. [Google Scholar] [CrossRef]
  31. Dafale, N.A.; Srivastava, S.; Purohit, H.J. Zoonosis: An Emerging Link to Antibiotic Resistance under “One Health Approach”. Indian J. Microbiol. 2020, 60, 139–152. [Google Scholar] [CrossRef]
  32. Tsai, H.-C.; Chou, M.-Y.; Shih, Y.-J.; Huang, T.-Y.; Yang, P.-Y.; Chiu, Y.-C.; Chen, J.-S.; Hsu, B.-M. Distribution and genotyping of aquatic Acinetobacter baumannii strains isolated from the Puzi River and its tributaries near areas of livestock farming. Water-Sui 2018, 10, 1374. [Google Scholar] [CrossRef] [Green Version]
  33. Ho, Y.-N.; Tsai, H.-C.; Hsu, B.-M.; Chiou, C.-S. The association of Salmonella enterica from aquatic environmental and clinical samples in Taiwan. Sci. Total Environ. 2018, 624, 106–113. [Google Scholar] [CrossRef] [PubMed]
  34. Huang, K.-H.; Hsu, B.-M.; Chou, M.-Y.; Tsai, H.-L.; Kao, P.-M.; Wang, H.-J.; Hsiao, H.-Y.; Su, M.-J.; Huang, Y.-L. Application of molecular biological techniques to analyze Salmonella seasonal distribution in stream water. FEMS Microbiol. Lett. 2014, 352, 87–96. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Tsai, H.-C.; Tao, C.-W.; Hsu, B.-M.; Yang, Y.-Y.; Tseng, Y.-C.; Huang, T.-Y.; Huang, S.-W.; Kuo, Y.-J.; Chen, J.-S. Multidrug-resistance in methicillin-resistant Staphylococcus aureus (MRSA) isolated from a subtropical river contaminated by nearby livestock industries. Ecotoxicol. Environ. Saf. 2020, 200, 110724. [Google Scholar] [CrossRef]
  36. Hsu, C.-Y.; Hsu, B.-M.; Ji, W.-T.; Chang, T.-Y.; Kao, P.-M.; Tseng, S.-F.; Shen, T.-Y.; Shih, F.-C.; Fan, C.-W.; Liu, J.-H. A Potential Association Between Antibiotic Abuse and Existence of Related Resistance Genes in Different Aquatic Environments. Water Air Soil Pollut. 2014, 226, 2235. [Google Scholar] [CrossRef]
  37. Kang, S.J.; Jung, S.I.; Peck, K.R. Historical and Clinical Perspective of Vibrio vulnificus Infections in Korea. Infect. Chemother. 2020, 52, 245–251. [Google Scholar] [CrossRef] [PubMed]
  38. Prousalis, M. An Investigation of Vibrio vulnificus and the Influence of Environmental Factors on Bacterial Abundance and Activity in a Subtropical Coastal Estuary, Santa Rosa County, Florida, USA; The University of West Florida: Ann Arbor, FL, USA, 2020. [Google Scholar]
  39. Johnson, C.N.; Bowers, J.C.; Griffitt, K.J.; Molina, V.; Clostio, R.W.; Pei, S.; Laws, E.; Paranjpye, R.N.; Strom, M.S.; Chen, A.; et al. Ecology of Vibrio parahaemolyticus and Vibrio vulnificus in the Coastal and Estuarine Waters of Louisiana, Maryland, Mississippi, and Washington (United States). Appl. Environ. Microbiol. 2012, 78, 7249–7257. [Google Scholar] [CrossRef] [Green Version]
  40. Dalsgaard, A.; Høi, L. Prevalence and characterization of Vibrio vulnificus isolated from shrimp products imported into Denmark. J. Food Prot. 1997, 60, 1132–1134. [Google Scholar] [CrossRef]
  41. Lin, M.; Schwarz, J.R. Seasonal shifts in population structure of Vibrio vulnificus in an estuarine environment as revealed by partial 16S ribosomal DNA sequencing. FEMS Microbiol. Ecol. 2003, 45, 23–27. [Google Scholar] [CrossRef]
  42. Wang, Q.; Fu, S.; Yang, Q.; Hao, J.; Zhou, C.; Liu, Y. The Impact of Water Intrusion on Pathogenic Vibrio Species to Inland Brackish Waters of China. Int. J. Environ. Res. Public Health 2020, 17, 6781. [Google Scholar] [CrossRef] [PubMed]
  43. Di, D.Y.W.; Lee, A.; Jang, J.; Han, D.; Hur, H.-G. Season-Specific Occurrence of Potentially Pathogenic Vibrio spp. on the Southern Coast of South Korea. Appl. Environ. Microbiol. 2017, 83, e02680-16. [Google Scholar] [CrossRef] [Green Version]
  44. Hoffmann, M.; Fischer, M.; Ottesen, A.; McCarthy, P.J.; Lopez, J.V.; Brown, E.W.; Monday, S.R. Population dynamics of Vibrio spp. associated with marine sponge microcosms. ISME J. 2010, 4, 1608–1612. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Lipp, E.K.; Rodriguez-Palacios, C.; Rose, J.B. Occurrence and distribution of the human pathogen Vibrio vulnificus in a subtropical Gulf of Mexico estuary. In The Ecology and Etiology of Newly Emerging Marine Diseases; Springer: Berlin/Heidelberg, Germany, 2001; pp. 165–173. [Google Scholar]
  46. Yokochi, N.; Tanaka, S.; Matsumoto, K.; Oishi, H.; Tashiro, Y.; Yoshikane, Y.; Nakashima, M.; Kanda, K.; Kobayashi, G. Distribution of virulence markers among Vibrio vulnificus isolates of clinical and environmental origin and regional characteristics in Japan. PLoS ONE 2013, 8, e55219. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Wu, H.; Liu, D.; Hwang, C.; Chen, M.; Hwang, J.; Liu, Y.; Shankuan, L.; Lin, C.; Wu, T. Survey on the distribution of Vibrionaceae at the seaport areas in Taiwan, 1991–1994. Chin. J. Microbiol. Immunol. 1996, 29, 197–209. [Google Scholar]
  48. Sudha, S.; Mridula, C.; Silvester, R.; Hatha, A. Prevalence and antibiotic resistance of pathogenic Vibrios in shellfishes from Cochin market. Indian J. Geo-Mar. Sci. 2014, 43, 815–824. [Google Scholar]
  49. Wolny-Koładka, K.; Lenart-Boroń, A. Phenotypic and molecular assessment of drug resistance profile and genetic diversity of waterborne Escherichia coli. Water Air Soil Pollut. 2016, 227, 146. [Google Scholar] [CrossRef] [Green Version]
  50. Huang, W.-C.; Hsu, B.-M.; Kao, P.-M.; Tao, C.-W.; Ho, Y.-N.; Kuo, C.-W.; Huang, Y.-L. Seasonal distribution and prevalence of diarrheagenic Escherichia coli in different aquatic environments in Taiwan. Ecotoxicol. Environ. Saf. 2016, 124, 37–41. [Google Scholar] [CrossRef]
  51. Yu, D.; Yi, X.; Ma, Y.; Yin, B.; Zhuo, H.; Li, J.; Huang, Y. Effects of administration mode of antibiotics on antibiotic resistance of Enterococcus faecalis in aquatic ecosystems. Chemosphere 2009, 76, 915–920. [Google Scholar] [CrossRef]
  52. Campagnolo, E.R.; Johnson, K.R.; Karpati, A.; Rubin, C.S.; Kolpin, D.W.; Meyer, M.T.; Esteban, J.E.; Currier, R.W.; Smith, K.; Thu, K.M. Antimicrobial residues in animal waste and water resources proximal to large-scale swine and poultry feeding operations. Sci. Total Environ. 2002, 299, 89–95. [Google Scholar] [CrossRef]
  53. Shaw, K.S.; Rosenberg Goldstein, R.E.; He, X.; Jacobs, J.M.; Crump, B.C.; Sapkota, A.R. Antimicrobial Susceptibility of Vibrio vulnificus and Vibrio parahaemolyticus Recovered from Recreational and Commercial Areas of Chesapeake Bay and Maryland Coastal Bays. PLoS ONE 2014, 9, e89616. [Google Scholar] [CrossRef]
  54. Biosca, E.G.; Amaro, C.; Larsen, J.L.; Pedersen, K. Phenotypic and genotypic characterization of Vibrio vulnificus: Proposal for the substitution of the subspecific taxon biotype for serovar. Appl. Environ. Microbiol. 1997, 63, 1460–1466. [Google Scholar] [CrossRef] [Green Version]
  55. Vickery, M.C.L.; Nilsson, W.B.; Strom, M.S.; Nordstrom, J.L.; DePaola, A. A real-time PCR assay for the rapid determination of 16S rRNA genotype in Vibrio vulnificus. J. Microbiol. Meth. 2007, 68, 376–384. [Google Scholar] [CrossRef]
  56. Panicker, G.; Call, D.R.; Krug, M.J.; Bej, A.K. Detection of pathogenic Vibrio spp. in shellfish by using multiplex PCR and DNA microarrays. Appl. Environ. Microbiol. 2004, 70, 7436–7444. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Han, F.; Ge, B. Multiplex PCR assays for simultaneous detection and characterization of Vibrio vulnificus strains. Lett. Appl. Microbiol. 2010, 51, 234–240. [Google Scholar] [CrossRef] [PubMed]
  58. Kim, M.S.; Jeong, H.D. Development of 16S rRNA targeted PCR methods for the detection and differentiation of Vibrio vulnificus in marine environments. Aquaculture 2001, 193, 199–211. [Google Scholar] [CrossRef]
  59. Kim, H.-J.; Cho, J.-C. Genotypic diversity and population structure of Vibrio vulnificus strains isolated in Taiwan and Korea as determined by multilocus sequence typing. PLoS ONE 2015, 10, e0142657. [Google Scholar] [CrossRef] [Green Version]
  60. Han, F.; Pu, S.; Hou, A.; Ge, B. Characterization of clinical and environmental types of Vibrio vulnificus isolates from Louisiana oysters. Foodborne Pathog. Dis. 2009, 6, 1251–1258. [Google Scholar] [CrossRef] [PubMed]
  61. Çam, S.; Brinkmeyer, R.; Schwarz, J.R. Quantitative PCR enumeration of vcgC and 16S rRNA type A and B genes as virulence indicators for environmental and clinical strains of Vibrio vulnificus in Galveston Bay oysters. Can. J. Microbiol. 2019, 65, 613–621. [Google Scholar] [CrossRef]
  62. Chatzidaki-Livanis, M.; Hubbard, M.A.; Gordon, K.; Harwood, V.J.; Wright, A.C. Genetic distinctions among clinical and environmental strains of Vibrio vulnificus. Appl. Environ. Microbiol. 2006, 72, 6136–6141. [Google Scholar] [CrossRef] [Green Version]
  63. Chatzidaki-Livanis, M.; Jones, M.K.; Wright, A.C. Genetic variation in the Vibrio vulnificus group 1 capsular polysaccharide operon. J. Bacteriol. 2006, 188, 1987–1998. [Google Scholar] [CrossRef] [Green Version]
  64. Bier, N.; Bechlars, S.; Diescher, S.; Klein, F.; Hauk, G.; Duty, O.; Strauch, E.; Dieckmann, R. Genotypic diversity and virulence characteristics of clinical and environmental Vibrio vulnificus isolates from the Baltic Sea region. Appl. Environ. Microbiol. 2013, 79, 3570–3581. [Google Scholar] [CrossRef] [Green Version]
  65. Wong, H.-C.; You, W.-Y.; Chen, S.-Y. Detection of Toxigenic Vibrio cholerae, Vparahaemolyticus and Vvulnificus in Oyster by Multiplex-PCR with Internal Amplification Control. J. Food Drug Anal. 2012, 20, 48–58. [Google Scholar]
  66. Wei, S.; Zhao, H.; Xian, Y.; Hussain, M.A.; Wu, X. Multiplex PCR assays for the detection of Vibrio alginolyticus, Vibrio parahaemolyticus, Vibrio vulnificus, and Vibrio cholerae with an internal amplification control. Diagn. Microbiol. Infect. Dis. 2014, 79, 115–118. [Google Scholar] [CrossRef]
  67. Magiorakos, A.-P.; Srinivasan, A.; Carey, R.t.; Carmeli, Y.; Falagas, M.t.; Giske, C.t.; Harbarth, S.; Hindler, J.t.; Kahlmeter, G.; Olsson-Liljequist, B. Multidrug-resistant, extensively drug-resistant and pandrug-resistant bacteria: An international expert proposal for interim standard definitions for acquired resistance. Clin. Microbiol. Infect. 2012, 18, 268–281. [Google Scholar] [CrossRef] [Green Version]
Antibiotics 10 00505 g001 550

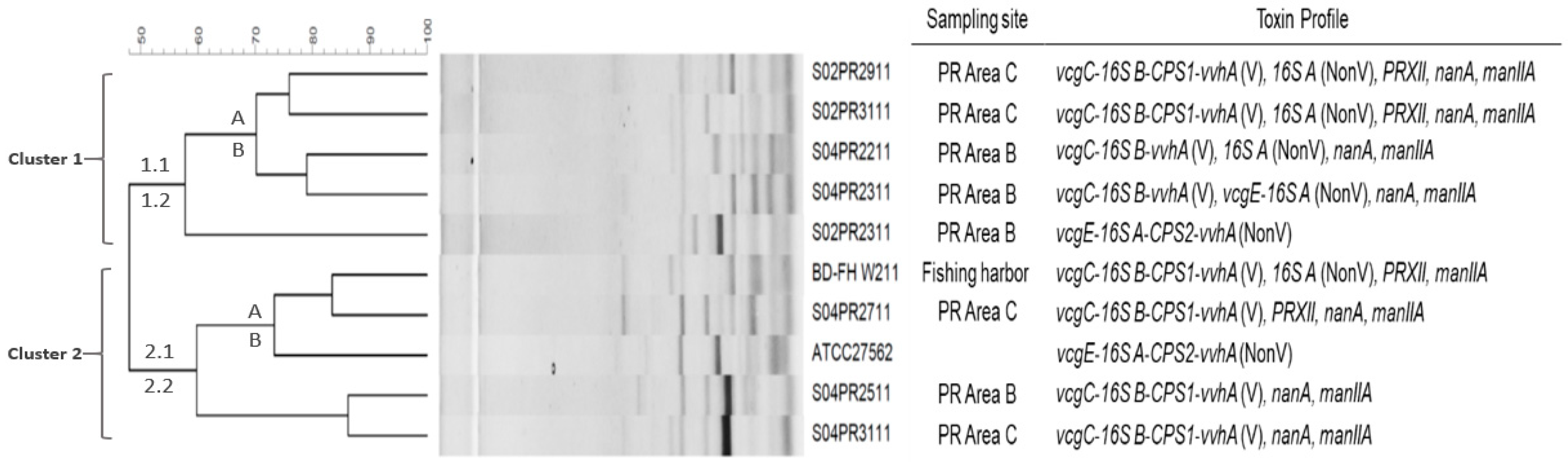

Figure 1. Genetic diversity of Vibrio vulnificus isolates by ERIC-PCR, combined with toxigenic profiling.
Figure 1. Genetic diversity of Vibrio vulnificus isolates by ERIC-PCR, combined with toxigenic profiling.
Antibiotics 10 00505 g001
Antibiotics 10 00505 g002 550

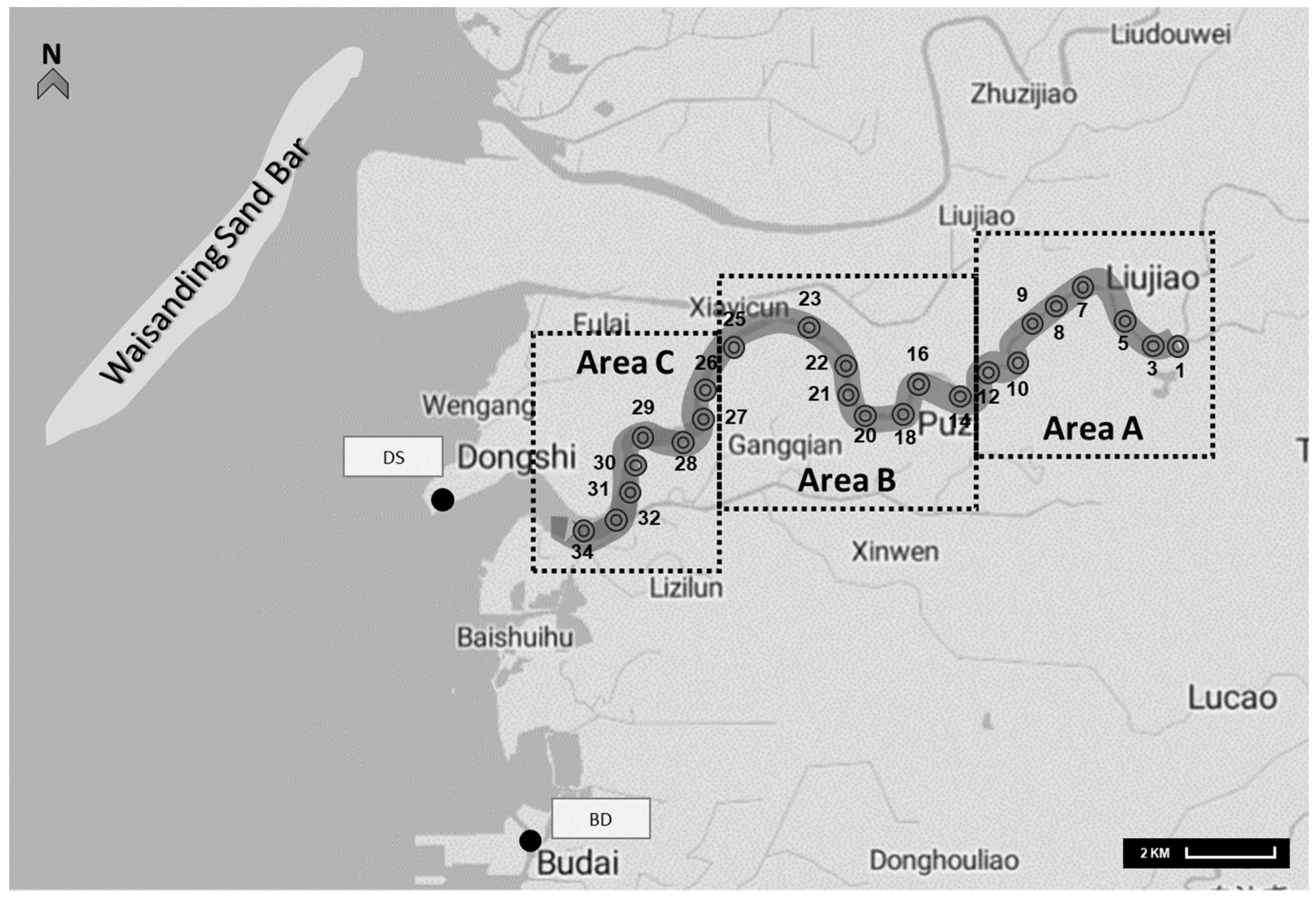

Figure 2. The illustration of the sampling sites and the Puzih River tributaries. The Puzih River is located in a subtropical area under the influence of high population density and significant numbers of aquaculture. The sampling sites of surface water in PR (◎) and fishing harbors (●) are marked accordingly.
Figure 2. The illustration of the sampling sites and the Puzih River tributaries. The Puzih River is located in a subtropical area under the influence of high population density and significant numbers of aquaculture. The sampling sites of surface water in PR (◎) and fishing harbors (●) are marked accordingly.
Antibiotics 10 00505 g002
Table
Table 1. Detection rates of Vibrio vulnificus in aquatic water bodies and shellfish in different seasons.
Table 1. Detection rates of Vibrio vulnificus in aquatic water bodies and shellfish in different seasons.
SeasonsDS & BD Fishing Harbor (HW)
(Shellfish)		DS & BD Fishing Harbor (HW)
(Water)		Area A of PR
(Water)		Area B of PR
(Water)		Area C of PR
(Water)		Sum of PR
(Water)
Spring0/10 (0%)0/6 (0%)0/8 (0%)0/8 (0%)0/8 (0%)0/24 (0%)
Summer0/10 (0%)0/6 (0%)0/8 (0%)1/8 (12.5%)2/8 (25%)3/24 (12.5%)
Autumn0/10 (0%)1/6 (16.7%)0/8 (0%)0/8 (0%)0/8 (0%)0/24 (0%)
Winter0/10 (0%)0/6 (0%)0/8 (0%)3/8 (37.5%)2/8 (25%)5/24 (20.8%)
Total0/40 (0%)1/24 (4.2%)0/32 (0%)4/32 (12.5%)4/32 (12.5%)8/96 (8.3%)
Table
Table 2. Prevalence of antibacterial susceptibility in Vibrio vulnificus isolates.
Table 2. Prevalence of antibacterial susceptibility in Vibrio vulnificus isolates.
StrainsZone of Inhibition (mm)
AmpicillinAmoxycillin-Clavulanic AcidAmpicillin-SulbactamCefepimeChloramphenicolCiprofloxacinGentamicinImipenemTetracyclineTrimethoprim-Sulfamethoxazole
S02PR231129252523251920232225
S02PR291121222223252620232323
S02PR311123262328323224343333
S04PR221135282731363423383232
S04PR231126302932313222293436
S04PR251128262026252620261923
S04PR271119212322332822192225
BD-FH W21123222331343723272628
S04PR311119191925263125222824
Resistant ≤13≤13≤11≤14≤12≤15≤12≤13≤14≤10
Intermediate 14–1614–1712–1415–1713–1716–2013–1414–1515–1811–15
Susceptible≥17≥18≥15≥18≥18≥21≥15≥16≥19≥16
Table
Table 3. Percentages of Vibrio vulnificus strains carrying various virulent and nonvirulent genes.
Table 3. Percentages of Vibrio vulnificus strains carrying various virulent and nonvirulent genes.
StrainSampling
Type		Virulent TypeNonvirulent TypePRXIInanAmanIIA
vcgC16S BCPS1vvhAvcgE16S ACPS2vvhA
S02PR2911PR
Area C		++++ + +++
S02PR3111PR
Area C		++++ + +++
S04PR2211PR
Area B		++ + + ++
S04PR2311PR
Area B		++ +++ ++
S02PR2311PR
Area B		 ++++
BD-FH W211Fishing
harbor		++++ + + +
S04PR2711PR
Area C		++++ +++
S04PR2511PR
Area B		++++ ++
S04PR3111PR
Area C		++++ ++
Toal 8/9
(88.9%)		8/9
(88.9%)		6/9
(66.7%)		8/9
(88.9%)		2/9
(22.2%)		6/9
(66.7%)		1/9
(11.1%)		1/9
(11.1%)		4/9
(44.4%)		7/9
(77.8%)		8/9
(88.9%)
“+” indicated the presence of genes in the table.
Table
Table 4. PCR primers and conditions for targeting toxin gene profiles, and the identification and differentiation of V. vulnificus.
Table 4. PCR primers and conditions for targeting toxin gene profiles, and the identification and differentiation of V. vulnificus.
Target GeneSizeSequence (5′ to 3′)Reaction Materials
Final Volume: 25 μL		PCR ConditionReference
vvhA505FDAvvhA-F: 5′-CCGCGGTACAGGTTGGCGCA-3′
FDAvvhA-R: 5′-CGCCACCCACTTTCGGGCC-3′		DNA: 100–300 ng
Primer: 300 nM
Master mix: 5 μL		Pre-denaturation: 94 °C 3 min
Denaturation: 94 °C 60 s
Annealing: 60 °C 60 s
Extension: 72 °C 60 s
D.A.E. Cycles: 30 cycles
Final extension: 72 °C 10 min		[65,66]
ERIC -ERIC1R: 5′-ATGTAAGCTCCTGGGGATTCAC-3′
ERIC2: 5′-AAGTAAGTGACTGGGGTGAGCG-3′		DNA: 100–300 ng
Primer: 5000 nM
Master mix: 5 μL		Pre-denaturation: 95 °C 7 min
Denaturation: 92 °C 45 s
Annealing: 54 °C 60 s
Extension: 70 °C 10 min
D.A.E. Cycles: 35 cycles
Final extension: 72 °C 20 min		[3]
Virulent type
vcgC
vcgC
16S B
CPS1		99
278
839
342		vcgC-F: 5′-AGCTGCCGATAGCGATCT-3′
vcgC-R: 5′-TGAGCTAACGCGAGTAGTGAG-3′
vcg-P1: 5′-AGCTGCCGATAGCGATCT-3′
vcg-P3: 5′-CGCTTAGGATGATCGGTG-3′
16S B-F1: 5′-GCCTACGGGCCAAAGAGG-3′
16S B-R1: 5′-CCTGCGTCTCCGCTGGCT-3′
CPS1HP-1F: 5′-TTTGGGATTTGAAAGGCTTG-3′
CPS1HP-1R: 5′-GTGCCTTTGCGAATTTTGAT-3′		DNA: 100–300 ng
Primer:
300 nM vcgC-FR,
200 nM vcg-P13,
200 nM 16S B-FR,
700 nM CPS1HP-FR
Master mix: 5 μL		Pre-denaturation: 95 °C 5 min
Denaturation: 94 °C 60 s
Annealing: 56 °C 60 s
Extension: 72 °C 60 s
D.A.E. Cycles: 30 cycles
Final extension: 72 °C 7 min		[21]
Nnvoirulent type
vcgE
16S A
CPS2		278
839
152		vcg-P2: 5′-CTCAATTGACAATGATCT-3′
vcg-P3: 5′-CGCTTAGGATGATCGGTG-3′
16S A-F2: 5′-AGCTTCGGCTCAAAGAGG-3′
16S A-R2: 5′-CCAGCGTCTCCGCTAGAT-3′
CPS2HP-2F: 5′-TTCCATCAAACATCGCAGAA-3′
CPS2HP-2R: 5′-CTTTTGTCCGGCTTCTATCG-3′		DNA: 100–300 ng
Primer:
300 nM vcg-P23,
300 nM 16S A-FR,
200 nM CPS2HP-FR
Master mix: 5 μL		Pre-denaturation: 95 °C 5 min
Denaturation: 94 °C 60 s
Annealing: 50 °C 60 s
Extension: 72 °C 60 s
D.A.E. Cycles: 30 cycles
Final extension: 72 °C 7 min		[57]
Virulent type
vvhA-1		814vvhA-1F: 5′-AGATTAAGTGTGTGTTGCACACAAGCGGTG-3′
vvhA-1R: 5′-ACCGAAAACAGCGCTGAAGGAAGAACGGTA-3′		DNA: 100–300 ng
Primer: 400 nM
Master mix: 5 μL		Pre-denaturation: 95 °C 2 min
Denaturation: 95 °C 30 s
Annealing: 57 °C 30 s
Extension: 72 °C 90 s
D.A.E. Cycles: 30 cycles
Final extension: 72 °C 3 min		[22]
Nnvoirulent type
vvhA-2		814vvhA-2F: 5′-AAATTAAGTGCGTGCTACACACAAGTGGTG-3′
vvhA-2R: 5′-ACTGAGAAGAGTGCTGAAGGGATTACCGTA-3′		DNA: 100–300 ng
Primer: 400 nM
Master mix: 5 μL		Pre-denaturation: 95 °C 2 min
Denaturation: 95 °C 30 s
Annealing: 57 °C 30 s
Extension: 72 °C 90 s
D.A.E. Cycles: 30 cycles
Final extension: 72 °C 3 min		[22]
PRXII,
nanA,
manIIA		2257
1299
243		VVA1612F: 5′-ACCCTGATCGTTGGCTACTC-3′
VVA1613R: 5′-GGAGCGGTGTGATGGTGTTG-3′
rpiR-F: 5′-TACGCAAGCCCAGCGGCATG-3′
nanA-2R: 5′-TTGCCACTTCCGCGATCGGG-3′
ManIIA-F: 5′-GATGTTGGTGAACAACTTCTCTGC-3′
ManIIA-R: 5′-TCTGAAGCCTGTTGGATGCC-3′		DNA: 100–300 ng
Primer:
800 nM VVA-FR,
200 nM nanA-FR,
200 nM ManIIA-FR
Master mix: 5 μL		Pre-denaturation: 94 °C 4 min
Denaturation: 94 °C 30 s
Annealing: 63 °C 30 s
Extension: 72 °C 2.5 min
D.A.E. Cycles: 30 cycles
Final extension: 72 °C 10 min		[1]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lin, I.-C.; Hussain, B.; Hsu, B.-M.; Chen, J.-S.; Hsu, Y.-L.; Chiu, Y.-C.; Huang, S.-W.; Wang, J.-L. Prevalence, Genetic Diversity, Antimicrobial Resistance, and Toxigenic Profile of Vibrio vulnificus Isolated from Aquatic Environments in Taiwan. Antibiotics 2021, 10, 505. https://doi.org/10.3390/antibiotics10050505

AMA Style

Lin I-C, Hussain B, Hsu B-M, Chen J-S, Hsu Y-L, Chiu Y-C, Huang S-W, Wang J-L. Prevalence, Genetic Diversity, Antimicrobial Resistance, and Toxigenic Profile of Vibrio vulnificus Isolated from Aquatic Environments in Taiwan. Antibiotics. 2021; 10(5):505. https://doi.org/10.3390/antibiotics10050505

Chicago/Turabian Style

Lin, I-Ching, Bashir Hussain, Bing-Mu Hsu, Jung-Sheng Chen, Yu-Ling Hsu, Yi-Chou Chiu, Shih-Wei Huang, and Jiun-Ling Wang. 2021. "Prevalence, Genetic Diversity, Antimicrobial Resistance, and Toxigenic Profile of Vibrio vulnificus Isolated from Aquatic Environments in Taiwan" Antibiotics 10, no. 5: 505. https://doi.org/10.3390/antibiotics10050505

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
