Electrochemical Field-Effect Transistor Utilization to Study the Coupling Success Rate of Photosynthetic Protein Complexes to Cytochrome c

1
Department of Electrical Engineering, University of South Florida (USF), Tampa, FL 33620, USA
2
Department of Chemistry, University of California Irvine, Irvine, CA 92697, USA
3
Department of Microbiology and Immunology, University of British Columbia (UBC), Vancouver, BC V6T1Z3, Canada
*
Author to whom correspondence should be addressed.
Biosensors 2017, 7(2), 16; https://doi.org/10.3390/bios7020016
Submission received: 19 February 2017 / Revised: 17 March 2017 / Accepted: 27 March 2017 / Published: 30 March 2017
(This article belongs to the Special Issue Biophotonic Sensors and Applications)

Abstract

:
Due to the high internal quantum efficiency, reaction center (RC) proteins from photosynthetic organisms have been studied in various bio-photoelectrochemical devices for solar energy harvesting. In vivo, RC and cytochrome c (cyt c; a component of the biological electron transport chain) can form a cocomplex via interprotein docking. This mechanism can be used in vitro for efficient electron transfer from an electrode to the RC in a bio-photoelectrochemical device. Hence, the success rate in coupling RCs to cyt c is of great importance for practical applications in the future. In this work, we use an electrochemical transistor to study the binding of the RC to cytochrome. The shift in the transistor threshold voltage was measured in the dark and under illumination to estimate the density of cytochrome and coupled RCs on the gate of the transistor. The results show that ~33% of the cyt cs on the transistor gate were able to effectively couple with RCs. Due to the high sensitivity of the transistor, the approach can be used to make photosensors for detecting low light intensities.

Graphical Abstract

1. Introduction

Application of photosynthetic reaction centers (RCs) in bioelectronic devices has attracted growing interest due to the unique properties of RCs. RCs are natural protein complexes with high quantum efficiency (~100%) in generating electric charges from photons [1], which are potentially useful for making bio-photoelectrochemical devices to harvest solar energy. The conventional method of fabricating a device is to immobilize RCs on the surface of an electrode via a linker molecule and utilize the electrode in an electrochemical cell [2,3]. Recently, a new method was devised for immobilizing RCs via natural interprotein interaction between cyt c and RC [4,5]. Using this approach, the RC orientation is well controlled when attached to the electrode through the immobilized cyt c protein [4]. Additionally, using cyt c as a part of the linking structure can facilitate the charge transfer between the RC and the electrode [6].
The new immobilization method was previously tested on the Rhodobacter sphaeroides RC [4,5]. This RC is an integral membrane protein complex consisting of three subunits and cofactors. The photoreaction starts with the absorption of photons at the primary electron donor (P) which is one of the cofactors. Due to the energy profile of the cofactors, the photoexcited electron at P moves first to bacteriopheophytin (HA) and then to a quinone molecule (QB) [1]. In a photosynthetic organism, after receiving two electrons and two protons (H+), QB becomes a hydroquinone (QH2) and leaves the RC. The charge transfer from P+ involves cyt c which acts as a charge mediator [1]. Cyt c approaches the RC at the P-side and donates one electron to the RC. Due to the presence of Fe2+ ion in the cyt c heme, the protein has two positive charges in its reduced form. After donating an electron, cyt c is oxidized and carries three positive charges (Fe3+). One approach to remove the negative charge from the RC in an electrochemical cell is to employ a redox mediator such as methyl viologen (MV) [7]. The energy diagram in Figure 1a shows the charge balance in an electrochemical cell when an RC interacts with cyt c and MV. In this process, after absorbing a photon, the electron at P promotes from the ground state (P/P+) to the excited state (P*). In presence of methyl viologen the excited electron can be transferred to MV2+ before reaching QB. The reduced mediator (MV+) can diffuse out from the protein. Meanwhile the positive charge at P+ will be filled with the electrons received from cyt c2+ which oxidizes the protein to cyt c3+.
The natural protein-protein interaction between the RC and cyt c can be used in a bio-photoelectrochemical device not only for charge transfer but also for immobilizing RCs from the P-side where the protein features a cavity (Figure 1b) [4]. Despite the advantages in this approach, one concern is the success rate in immobilizing RCs to an electrode by relying on this natural protein-protein interaction. In our previous work [4], we estimated the density of RCs on a layer of immobilized cyt c using a cyclic voltammetry (CV) method. However, the CV method does not reveal effective coupling between the two proteins. In this work, we have used an electrochemical field-effect transistor (FET) as a substrate to study the immobilization of RCs through cytochromes. Electrochemical FETs have been used widely as sensors for detecting various chemicals and biological materials, including proteins, DNAs, and cells [8,9,10,11,12,13]. As shown in Figure 1c, an electrochemical transistor has a structure very similar to a metal-oxide-semiconductor FET (MOSFET) but the gate metal being replaced with an electrolyte. Due to high sensitivity of the drain current, ID, to the static charge on the gate insulator, a common method is to use a linker molecule for immobilizing proteins and DNAs [10,12,13]. The immobilized materials can mimic a surface charge which can be measured accurately by monitoring the voltage shift in the device.

2. Materials and Methods

Electrochemical transistors with two layers of gate insulator (98 nm thick SiO2 and 100 nm thick Si3N4) were purchased from Microsense. The electrochemical cells were set in disposable cuvettes with 0.1 M Tris-HCl buffer (pH 8.0) as the electrolyte and an Ag/AgCl reference electrode as the gate contact (Figure 1c).
The RC from Rhodobacter sphaeroides was prepared as described elsewhere [14]. The RC concentration after purification was measured to be 15 µM based on the absorption peak at 804 nm [15]. This RC has a 6-His tag on the C-terminus of the H-subunit which is on the opposite side of the RC from where cyt c binds [15]. The concentration of the RC solution was diluted to 5 µM by adding Tris-HCl buffer (pH 8.0) into the solution. A self-assembled monolayer (SAM) of the linker molecule was deposited on the Si3N4 layer of the transistor by inserting the device into an ethanolic solution of 10 mM 10-carboxydecylphosphonic acid (Dojindo, Rockville, MD, USA) for 4 h at room temperature. Cyt c was deposited on the SAM by inserting the device in a 0.8 mM solution of cyt c (Sigma, St. Louis, MO, USA) in Tris buffer (pH 8.0) for 24 h at room temperature. RC incubation was carried out by drop casting 20 μL of the diluted RC solution on top of the active area of the transistor and keeping it at 4 °C for 24 h.
The electrochemical cells were tested using a custom-made setup including a dark box with a white light emitting diode (LED) and a multi wavelength LED (MTMD6788594SMT6 from Marktech Optoelectronics, Latham, NY, USA) as the light sources inside the box. Various pins of the LEDs were biased with 20 mA current pulse to get emission for white light and single wavelength emissions at 670, 770, 810, 850, and 950 nm. From the datasheet of the LED, the intensity of the monochromatic light was estimated to be ~3 μW/cm2 at the transistor surface. The transistor was characterized using a 2602A Keithley instrument (Tektronix, Beaverton, OR, USA). The Keithley instrument and the pulse current source for the LEDs were controlled through LabTracer 2.0 software (Tektronix, Beaverton, OR, USA).

3. Results and Discussion

First, a bare transistor was tested in the dark box. The output characteristic of the device was obtained by measuring the drain current when the gate voltage (i.e., reference electrode) was kept constant and the drain voltage was scanned from 0.0 V to 1.2 V. The experiment was repeated for different gate voltages from 2.0 V to 3.0 V. The IDVDS of the transistor when the gate voltage was at 3.0 V is shown in Figure 2a. The output characteristic shows that the device was operating in the saturation mode when VDS was 1.0 V. Therefore, the transconductance characteristic of the device was measured by recording the drain current when VDS = 1.0 V, and the gate voltage was scanned from 0.0 V to 3.0 V (Figure 2b). The output and transconductance characteristics of the device were measured at different wavelengths when the transistor was exposed to monochromatic and white light from the LEDs.
To study the success rate in immobilizing RCs via the new linker structure, first a SAM layer was deposited on the transistor. After the deposition, the sample was characterized in the absence and presence of illumination. The dark output and transconductance responses of the device with the linker coating are shown in Figure 2a,b, respectively. The slight change in the dark response of the transistor indicates formation of the SAM on the Si3N4 layer.
The device was removed from the cell for deposition of cytochrome on the SAM. After the deposition, the transistor was returned to the test cell inside the dark box, and it was found that the transistor drain current was greatly enhanced. Under a gate-source voltage (VGS) of 3 V, the saturation current at VDS = 1.2 V increased from 34 μA for the transistor without cyt c to 71 μA after adsorption of the protein (Figure 2a).
The drain current, ID, in a FET device in the saturation mode when VGS is greater than the threshold voltage, Vth, is expressed by [16]:
I D = μ S i C G 2 W L ( V G S V t h ) 2 ,
where μSi is the mobility of the carrier in the channel of the transistor, W/L is the channel width to length ratio, and CG is the gate capacitance which is independent from W and L. For the bare transistor:
C G = ( t S i O 2 ε S i O 2 t S i 3 N 4 ε S i 3 N 4 ) 1 ,
where tSiO2, tSi3N4, εSiO2 and εSi3N4 are the thickness and permittivity of the SiO2 and Si3N4 layers, respectively. Considering that the carrier’s mobility in the silicon (buried under the dielectric layers) and W/L have not been changed after coating the device with the protein, the change in the drain current should be due to a change in CG and/or Vth. To study the effect of linker and cyt c on the device parameters, the transconductance responses were converted to √ID vs VGS (inset of Figure 2b). As shown in Equation (3), the √IDVGS curves were approximated with linear functions for VGS > 2.75 V.
I D = ( μ S i C G 2 W L ) ( V G S V t h ) ,
Considering that the carrier’s mobility in the silicon (buried under the dielectric layers) and W/L have not been changed after coating the device with the linker and protein, changes in the slope of the linear functions were interpreted as changes in the CG value, and the threshold voltage was found from the VGS-intercept of the linear functions.
The data show that CG dropped by 4% after the SAM coating, but the slope did not change after the cytochrome deposition. Due to the thick layers of SiO2 and Si3N4 and thin insulating SAM, this change in CG is reasonable. However, a relatively large reduction of the threshold voltage from 2.39 V for the bare transistor to 2.17 V after the cytochrome coating on the top of the SAM was observed. The threshold voltage in a fabricated transistor can be changed if charged molecules attach to the dielectric layer [9]. The density of charges, Qs, from the attached molecules can be estimated from the change in the threshold voltage, ΔVth, using the simple equation of Qs = ΔVth × CG [16]. Knowing the thickness and the permittivity of the SiO2 and Si3N4 layers, the CG value was estimated for the bare transistor to be 2.30 × 10−8 F/cm2. Therefore, Qs was found to be 5.12 × 10−9 C/cm2. Assuming that the charge on the surface of the protein is passivated by the counter ions in the electrolyte, the effective charge of the reduced cyt c would be only two unit charges (unit charge = 1.6 × 10−19 C) from the unshielded charge at the heme (Fe2+) core of the protein. This corresponds to the surface density of attached cyt cs to be 1.6 × 1010 proteins per cm2. Considering the protein dimensions, this implies only ~15% of the surface coverage. Although surface coverage near 100% is achievable on a gold electrode (with a different linker molecule) [17], immobilizing cyt c to Si3N4 has not been reported before. In this work, carboxydecylphosphonic acid which is recommended as a linker for various insulating materials was chosen. However, a separate study would be required to find the optimum deposition conditions to achieve a compact linker layer on Si3N4. Therefore, it is likely that the linker coverage was limited which resulted in the poor surface coverage by the proteins. The transconductance characteristic of the device was also measured under other illumination conditions, and the results were consistent with the above interpretations.
After the measurements, the device was removed from the test cell for the RC incubation. The transistor with the linker, cytochrome c, and RC (linker+cyt c+RC) was tested again in the dark and illuminated conditions in 0.1 M Tris-HCl buffer (pH 8.0) electrolyte containing 0.05 M methyl viologen. Figure 3a shows the output characteristic of the device for three different gate voltages when it was in the dark, and the IDVDS curves for VGS = 3.0 V under white and two monochromatic lights. The largest change in ID was measured when white light was applied to the device. The change in the transistor drain current under illumination suggests that the charge density at the gate of the transistor was increased (reduction of threshold voltage). Since it is expected that RCs would be attached from the P-side to cyt c, one explanation is that P+ in the illuminated RCs would receive an electron from cyt c (oxidizing cyt c, Fe3+) while the negative charge would be transferred to MV and diffused to the bulk electrolyte. Therefore, only RCs that were coupled to cyt cs would enhance Qs. It should be mentioned that due to the insulating properties of the gate insulator, there is no charge transfer between cytochrome and the transistor channel. In fact, the advantage of this method is that the threshold voltage changes only with the charge density, not the charge transfer rate (photocurrent). The charge density is directly proportional to the number of the attached proteins.
Similar to the approach with cytochrome, the additional charge density generated by the coupled RCs under illumination was estimated to be 8.34 × 10−10 C/cm2 from the threshold voltage shift in the transistor (Figure 3b). Considering that each RC can add one positive charge, the density of the properly attached RCs to cyt cs was estimated to be 5.21 × 109 (= 8.34 × 10−10/1.6 × 10−19) proteins/cm2. This implies coupling success rate of 33% (5.21 × 109/1.6 × 1010) for RCs to cyt cs which means that for every three cytochrome proteins on the SAM layer, one can successfully couple to RCs. To confirm that the generated charges were actually from RCs, ΔVth (Vth w RCVth wo RC) was calculated at various wavelengths when the transistor was illuminated with monochromatic LEDs with low intensity. Figure 4 shows that ΔVth follows the absorption spectrum of RCs.
The results in Figure 4 also show that the electrochemical transistor with immobilized RCs could be used as a photosensor for detecting low light intensities. It should be mentioned that we have tested different RC immobilization configurations for making a photosensor, including only the RC, linker+RC, and cyt c+RC on the Si3N4 gate insulator. Although some shift in the threshold voltage was observed in those configurations, the monochromatic illumination tests did not show any pattern (like the one in Figure 4) to verify generation of the gate charges by the RC. This confirmed that the linker+cyt c+RC structure generates an RC orientation for effective coupling to the cyt c protein.

4. Conclusions

A sequential deposition approach of a linker molecule, cyt c and RC proteins was implemented on the gate insulator of an electrochemical transistor to study the concentration of cytochrome and coupled RCs. It was found that the ratio of coupled RC to cytochrome can be as high as 1 to 3. The combination of the immobilized RCs to the gate of the transistor also showed the potential in application of a new bio-photosensor for detecting low intensity lights.

Acknowledgments

This work was supported by NSF 1400017 (USA) and an NSERC and Genome British Columbia (Canada) Discovery Grants.

Author Contributions

A.T. and J.W. are the Principal Investigators (PIs) of the project at USF who designed and performed the experiments. D.J. and J.T.B. grow the photosynthetic bacteria and prepared RC complexes at UBC, A.T. and H.Y. analyzed the data. All the authors contributed in writing the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Feher, G.; Allen, J.P.; Okamura, M.Y.; Rees, D.C. Structure and function of bacterial photosynthetic reaction centres. Nature 1989, 339, 111–116. [Google Scholar] [CrossRef]
  2. Katz, E. Application of bifunctional reagents for immobilization of proteins on a carbon electrode surface: Oriented immobilization of photosynthetic reaction centers. J. Electroanal. Chem. 1994, 365, 157–164. [Google Scholar] [CrossRef]
  3. Trammell, S.A.; Spano, A.; Price, R.; Lebedev, N. Effect of protein orientation on electron transfer between photosynthetic reaction centers and carbon electrodes. Biosens. Bioelectron. 2006, 21, 1023–1028. [Google Scholar] [CrossRef] [PubMed]
  4. Yaghoubi, H.; Li, Z.; Jun, D.; Lafalce, E.; Jiang, X.; Schlaf, R.; Beatty, J.T.; Takshi, A. Hybrid wiring of the rhodobacter sphaeroides reaction center for applications in bio-photoelectrochemical solar cells. J. Phys. Chem. C 2014, 118, 23509–23518. [Google Scholar] [CrossRef]
  5. Yaghoubi, H.; Schaefer, M.; Yaghoubi, S.; Jun, D.; Schlaf, R.; Beatty, J.T.; Takshi, A. A ZnO nanowire bio-hybrid solar cell. Nanotechnology 2016, 28, 054006. [Google Scholar] [CrossRef] [PubMed]
  6. Lebedev, N.; Trammell, S.A.; Spano, A.; Lukashev, E.; Griva, I.; Schnur, J. Conductive wiring of immobilized photosynthetic reaction center to electrode by cytochrome c. J. Am. Chem. Soc. 2006, 128, 12044–12045. [Google Scholar] [CrossRef] [PubMed]
  7. Kondo, M.; Iida, K.; Dewa, T.; Tanaka, H.; Ogawa, T.; Nagashima, S.; Nagashima, K.V.P.; Shimada, K.; Hashimoto, H.; Gardiner, A.T.; et al. Photocurrent and electronic activities of oriented-his-tagged photosynthetic light-harvesting/reaction center core complexes assembled onto a gold electrode. Biomacromolecules 2012, 13, 432–438. [Google Scholar] [CrossRef] [PubMed]
  8. Terasaki, N.; Yamamoto, N.; Tamada, K.; Hattori, M.; Hiraga, T.; Tohri, A.; Sato, I.; Iwai, M.; Iwai, M.; Taguchi, S.; et al. Bio-photosensor: Cyanobacterial photosystem i coupled with transistor via molecular wire. Biochim. Biophys. Acta (BBA) Bioenerg. 2007, 1767, 653–659. [Google Scholar] [CrossRef] [PubMed]
  9. Lee, C.-S.; Kim, S.K.; Kim, M. Ion-sensitive field-effect transistor for biological sensing. Sensors 2009, 9, 7111–7131. [Google Scholar] [CrossRef] [PubMed]
  10. Veigas, B.; Fortunato, E.; Baptista, P.V. Field effect sensors for nucleic acid detection: Recent advances and future perspectives. Sensors 2015, 15, 10380–10398. [Google Scholar] [CrossRef] [PubMed]
  11. Grieshaber, D.; MacKenzie, R.; Voeroes, J.; Reimhult, E. Electrochemical biosensors-sensor principles and architectures. Sensors 2008, 8, 1400–1458. [Google Scholar] [CrossRef] [PubMed]
  12. Mahdavi, M.; Samaeian, A.; Hajmirzaheydarali, M.; Shahmohammadi, M.; Mohajerzadeh, S.; Malboobi, M. Label-free detection of DNA hybridization using a porous poly-si ion-sensitive field effect transistor. RSC Adv. 2014, 4, 36854–36863. [Google Scholar] [CrossRef]
  13. Freeman, R.; Gill, R.; Willner, I. Following a protein kinase activity using a field-effect transistor device. Chem. Commun. 2007, 33, 3450–3452. [Google Scholar] [CrossRef] [PubMed]
  14. Jun, D.; Saer, R.G.; Madden, J.D.; Beatty, J.T. Use of new strains of rhodobacter sphaeroides and a modified simple culture medium to increase yield and facilitate purification of the reaction centre. Photosynth. Res. 2013, 120, 1–9. [Google Scholar] [CrossRef] [PubMed]
  15. Goldsmith, J.O.; Boxer, S.G. Rapid isolation of bacterial photosynthetic reaction centers with an engineered poly-histidine tag. Biochim. Biophys. Acta (BBA) Bioenerg. 1996, 1276, 171–175. [Google Scholar] [CrossRef]
  16. Sze, S.M.; Kwok, K.N. Physics of Semiconductor Devices, 3rd ed.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2006. [Google Scholar]
  17. Imabayashi, S.I.; Mita, T.; Feng, Z.Q.; Iida, M.; Niki, K.; Kakiuchi, T. Redox reactions of cytochrome c on self-assembled monolayers of mercaptobenzoic acid and mercaptohydrocinnamic acid absorbed on Au (111) electrodes. Electrochemistry 1997, 65, 467–470. [Google Scholar]

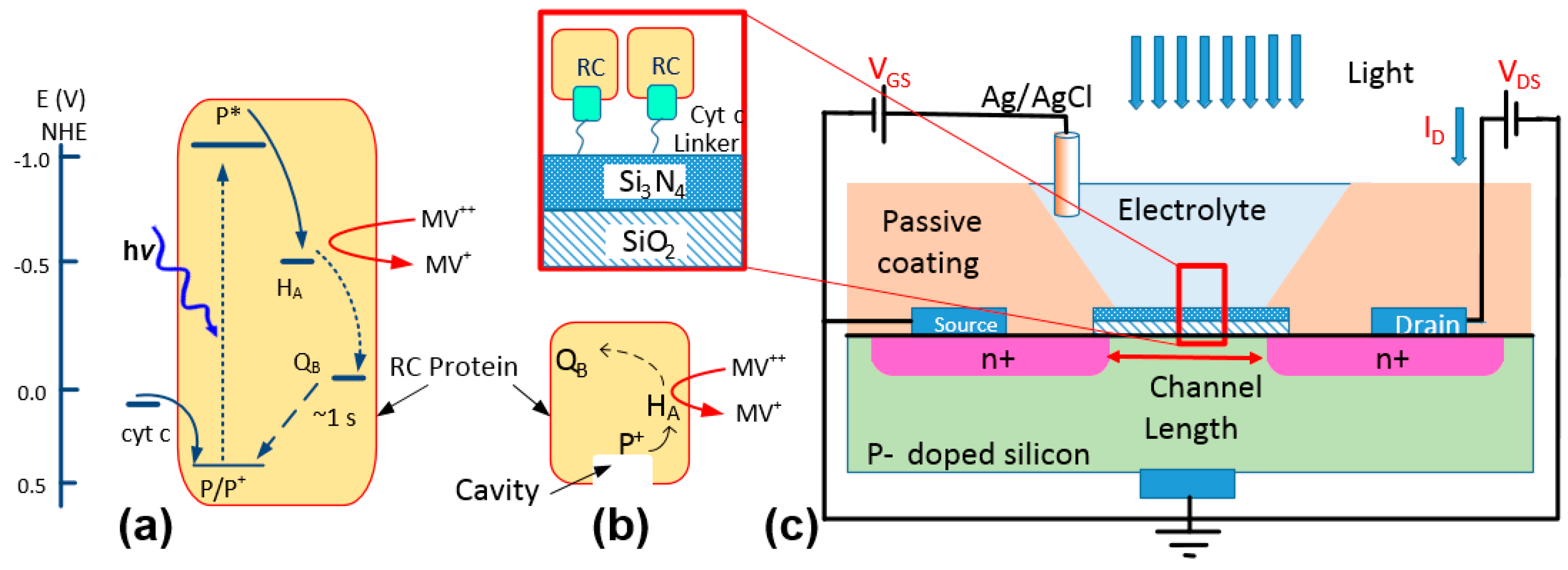

Figure 1. (a) Energy diagram demonstrating the charge circulation inside a reaction center (RC) and the interactions with cyt c and methyl viologen. (b) A schematic of an RC. The cavity indicates the cytochrome docking site. (c) A schematic of the electrochemical device. The device was characterized in dark and light by measuring ID while applying voltages to VDS and VGS. The structure of the immobilized proteins using a linker on the surface of Si3N4 is shown in the zoomed-in box.
Figure 1. (a) Energy diagram demonstrating the charge circulation inside a reaction center (RC) and the interactions with cyt c and methyl viologen. (b) A schematic of an RC. The cavity indicates the cytochrome docking site. (c) A schematic of the electrochemical device. The device was characterized in dark and light by measuring ID while applying voltages to VDS and VGS. The structure of the immobilized proteins using a linker on the surface of Si3N4 is shown in the zoomed-in box.
Biosensors 07 00016 g001

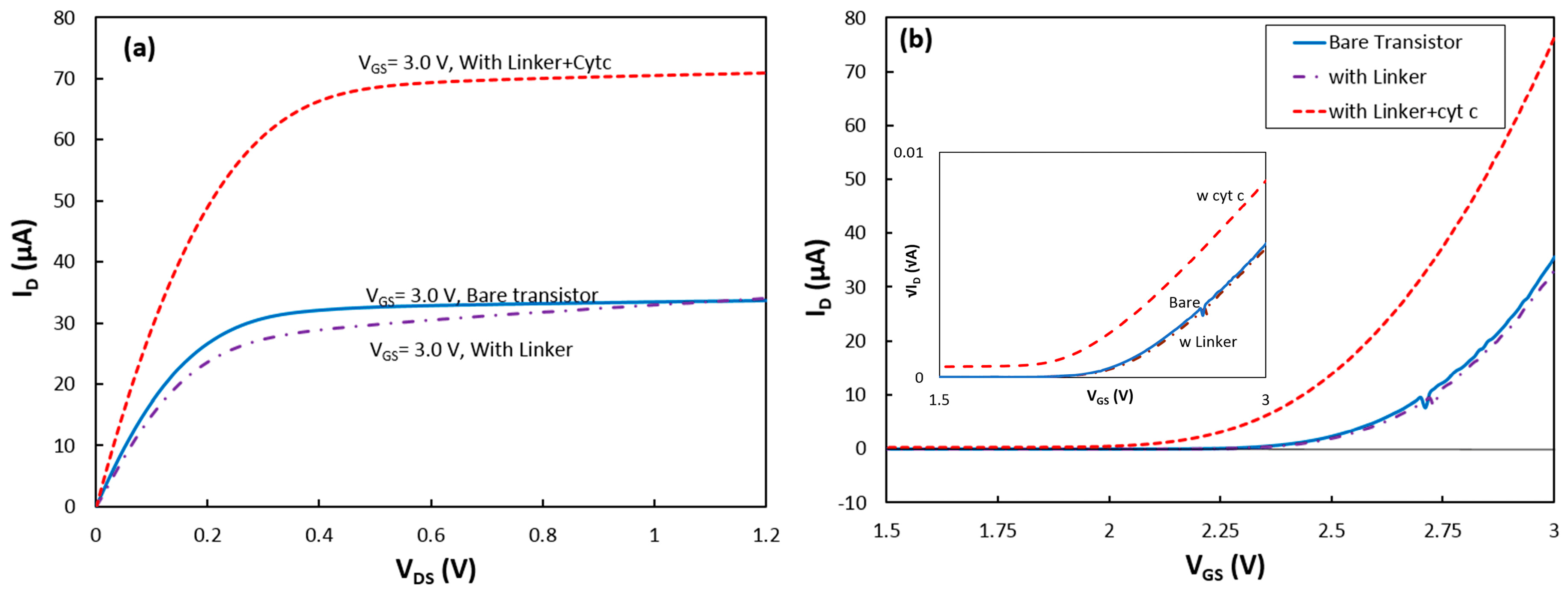

Figure 2. (a) Output and (b) transconductance (at VDS = 1.0 V) characteristics of the transistor in the dark for the bare device, with the SAM linker layer, and immobilized cytochrome on the gate insulator (Si3N4). (Inset) √IDVGS at VDS = 1.0 V used for estimating CG and Vth.
Figure 2. (a) Output and (b) transconductance (at VDS = 1.0 V) characteristics of the transistor in the dark for the bare device, with the SAM linker layer, and immobilized cytochrome on the gate insulator (Si3N4). (Inset) √IDVGS at VDS = 1.0 V used for estimating CG and Vth.
Biosensors 07 00016 g002

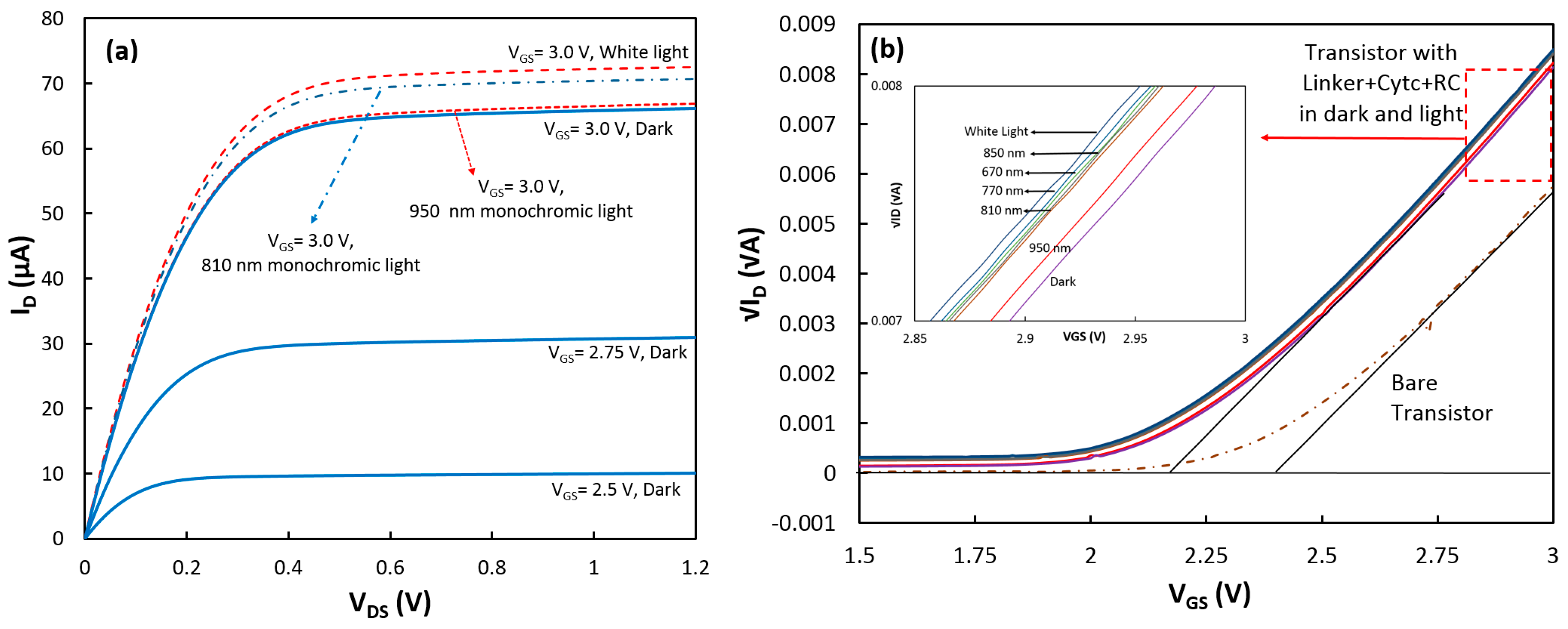

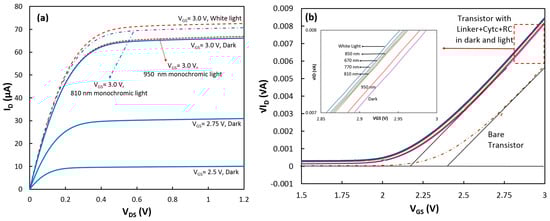

Figure 3. (a) Output and (b) transconductance (at VDS = 1.0 V) characteristics of the transistor with the linker+cyt c+RC on top of the gate under dark and light conditions. (Inset in (b)) The linear approximation to √IDVGS for the device in the dark and under illumination of white and monochromatic lights.
Figure 3. (a) Output and (b) transconductance (at VDS = 1.0 V) characteristics of the transistor with the linker+cyt c+RC on top of the gate under dark and light conditions. (Inset in (b)) The linear approximation to √IDVGS for the device in the dark and under illumination of white and monochromatic lights.
Biosensors 07 00016 g003

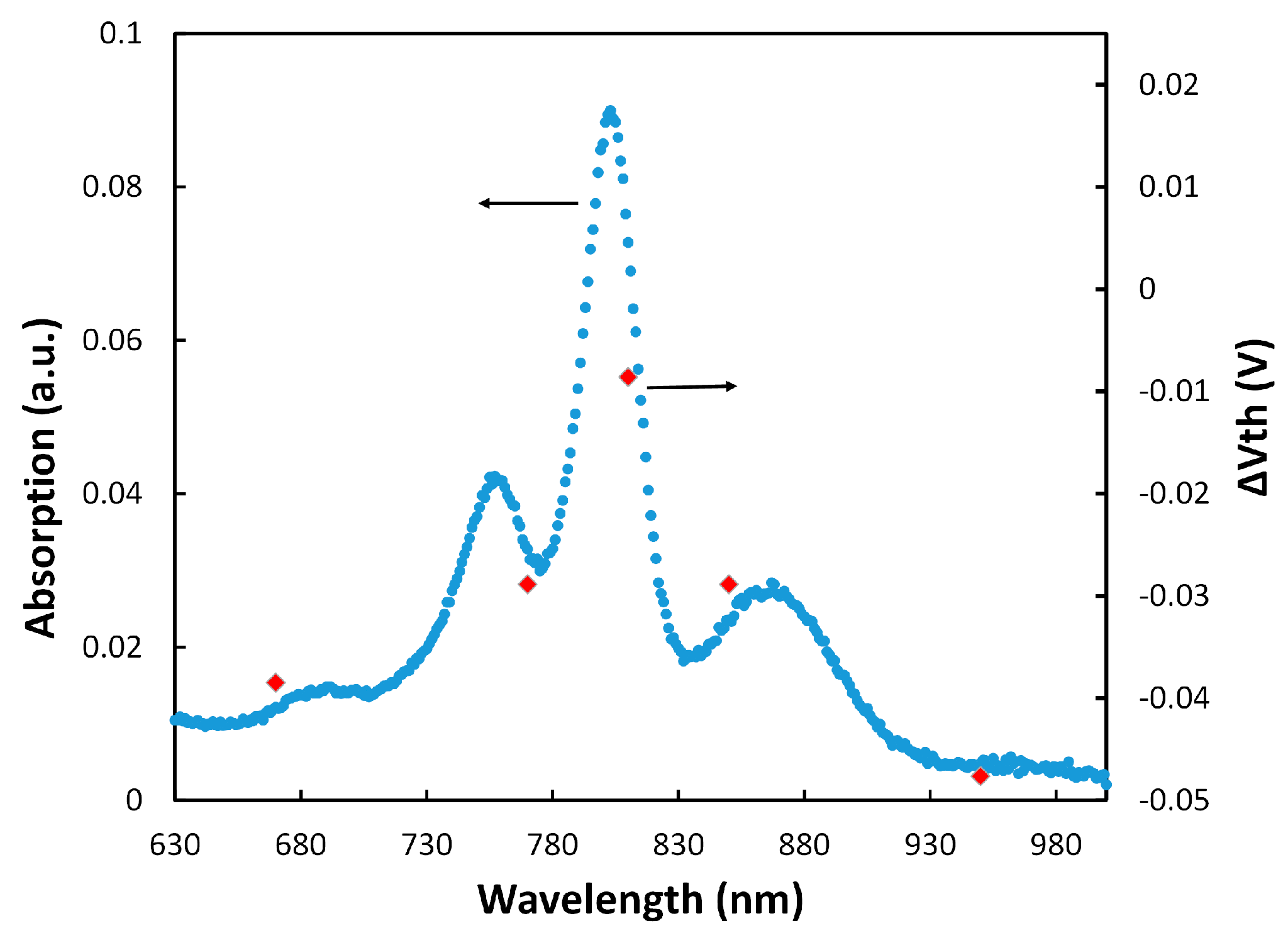

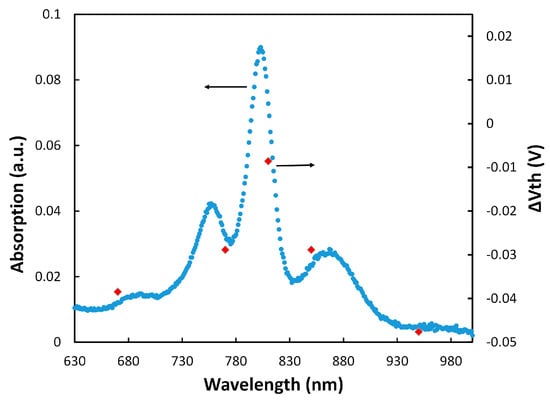

Figure 4. The absorption spectrum of the RC and the results from ΔVth under the tested wavelengths.
Figure 4. The absorption spectrum of the RC and the results from ΔVth under the tested wavelengths.
Biosensors 07 00016 g004
