Hierarchical Thin Film Architectures for Enhanced Sensor Performance: Liquid Crystal-Mediated Electrochemical Synthesis of Nanostructured Imprinted Polymer Films for the Selective Recognition of Bupivacaine

by
Subramanian Suriyanarayanan
1,
Hazrat Nawaz
1,†,
Natacha Ndizeye
1,† and
Ian A. Nicholls
1,2,*
1
Bioorganic and Biophysical Chemistry Laboratory, Linnæus University Centre for Biomaterials Chemistry and Department of Chemistry and Biomedical Sciences, Linnæus University, SE-391 82 Kalmar, Sweden
2
Department of Chemistry—BMC, Uppsala University, Box 576, SE-751 23 Uppsala, Sweden
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Biosensors 2014, 4(2), 90-110; https://doi.org/10.3390/bios4020090
Submission received: 11 February 2014 / Revised: 15 March 2014 / Accepted: 28 March 2014 / Published: 8 April 2014
(This article belongs to the Special Issue Piezoelectric Biosensors)
Browse Figures
Versions Notes

Abstract

:
Nanostructured bupivacaine-selective molecularly imprinted 3-aminophenylboronic acid-p-phenylenediamine co-polymer (MIP) films have been prepared on gold-coated quartz (Au/quartz) resonators by electrochemical synthesis under cyclic voltammetric conditions in a liquid crystalline (LC) medium (triton X-100/water). Films prepared in water and in the absence of template were used for control studies. Infrared spectroscopic studies demonstrated comparable chemical compositions for LC and control polymer films. SEM studies revealed that the topologies of the molecularly imprinted polymer films prepared in the LC medium (LC-MIP) exhibit discernible 40 nm thick nano-fiber structures, quite unlike the polymers prepared in the absence of the LC-phase. The sensitivity of the LC-MIP in a quartz crystal microbalance (QCM) sensor platform was 67.6 ± 4.9 Hz/mM under flow injection analysis (FIA) conditions, which was ≈250% higher than for the sensor prepared using the aqueous medium. Detection was possible at 100 nM (30 ng/mL), and discrimination of bupivacaine from closely related structural analogs was readily achieved as reflected in the corresponding stability constants of the MIP-analyte complexes. The facile fabrication and significant enhancement in sensor sensitivity together highlight the potential of this LC-based imprinting strategy for fabrication of polymeric materials with hierarchical architectures, in particular for use in surface-dependent application areas, e.g., biomaterials or sensing.

1. Introduction

In surface-based sensing technologies such as quartz crystal microbalance (QCM), surface plasmon resonance (SPR), total internal reflectance fluorescence spectroscopy (TIRF) and electrochemical sensing, the proximity of the analyte to the transducer surface is critical for the sensor response [1,2,3,4,5,6]. Sensor surfaces based upon thin polymer film coatings have become of increasing interest in this regard due to their stability, breadth of polymer functionalities available and the possibility of regulating film thickness, e.g., when using electrochemical [7,8,9] or INIFERTER-based synthesis strategies.
Molecularly imprinted polymer (MIP) [10,11,12,13,14] films have attracted significant interest for use in such sensor platforms due to the possibility of tailoring the ligand recognition characteristics of the material through the templating process, together with the advantages described above [15,16,17,18]. Despite the success achieved in sensing using MIP-based thin films, the need for greater sensitivity remains, in particular for applications where the analyte is present in very low concentrations, e.g., biomarkers, some toxins. Recently, efforts have been directed towards manipulating the morphologies of MIP-thin films in order to optimize both the availability of binding sites and analyte diffusion to these sites [19,20]. A number of strategies are evolving for creating hierarchical architectures in these materials through a combination of nanostructuring and molecular imprinting, to afford predetermined polymer structural features in both the Ångström–nanometer and nanometer-micrometer scales [21,22,23,24]. In the studies reported to date, top-down processes such as lithography and the use of sacrificial structures have been used to steer morphologies. Bottom-up approaches have been limited to the choice of polymer or solvent (often referred to as the porogen), and the regulation of thickness when using INIFERTER or electrochemical synthesis strategies.
We are currently exploring new strategies for directing the morphologies of imprinted polymeric materials [24], ideally such strategies should be economically viable and offer the potential for scale-up. In this study we have explored a bottom-up strategy where liquid crystalline (LC) structures are used to impart nano-scale structuring in molecularly imprinted polymer films and we have examined the impact of the resulting morphological features on the performance of films imprinted with the local anesthetic bupivacaine when used in a QCM platform.

2. Experimental Section

2.1. Chemicals

Bupivacaine hydrochloride (1), 1,3-aminophenylboronic acid (2), p-phenylenediamine (3), Triton X-100 (4), mepivacaine hydrochloride (5), ropivacaine hydrochloride (6) (see Scheme 1), sodium sulfate (Na2SO4), sodium hydroxide, sodium chloride, sodium dihydrogen phosphate (NaH2PO4), disodium hydrogen phosphate (Na2HPO4) and sulfuric acid were procured from Sigma-Aldrich (Steinheim, Germany). Hydrogen peroxide (30%) was obtained from Fluka (Buchs, Switzerland). A Milli-Q gradient water filtration system (Millipore, MA, USA) was used to purify distilled water to ultrapure grade with resistance values of ≤18.2 MΩ Ultrapure water-Milli Q water was used for solution preparations and for the rinsing of substrates.
Biosensors 04 00090 g006 1024

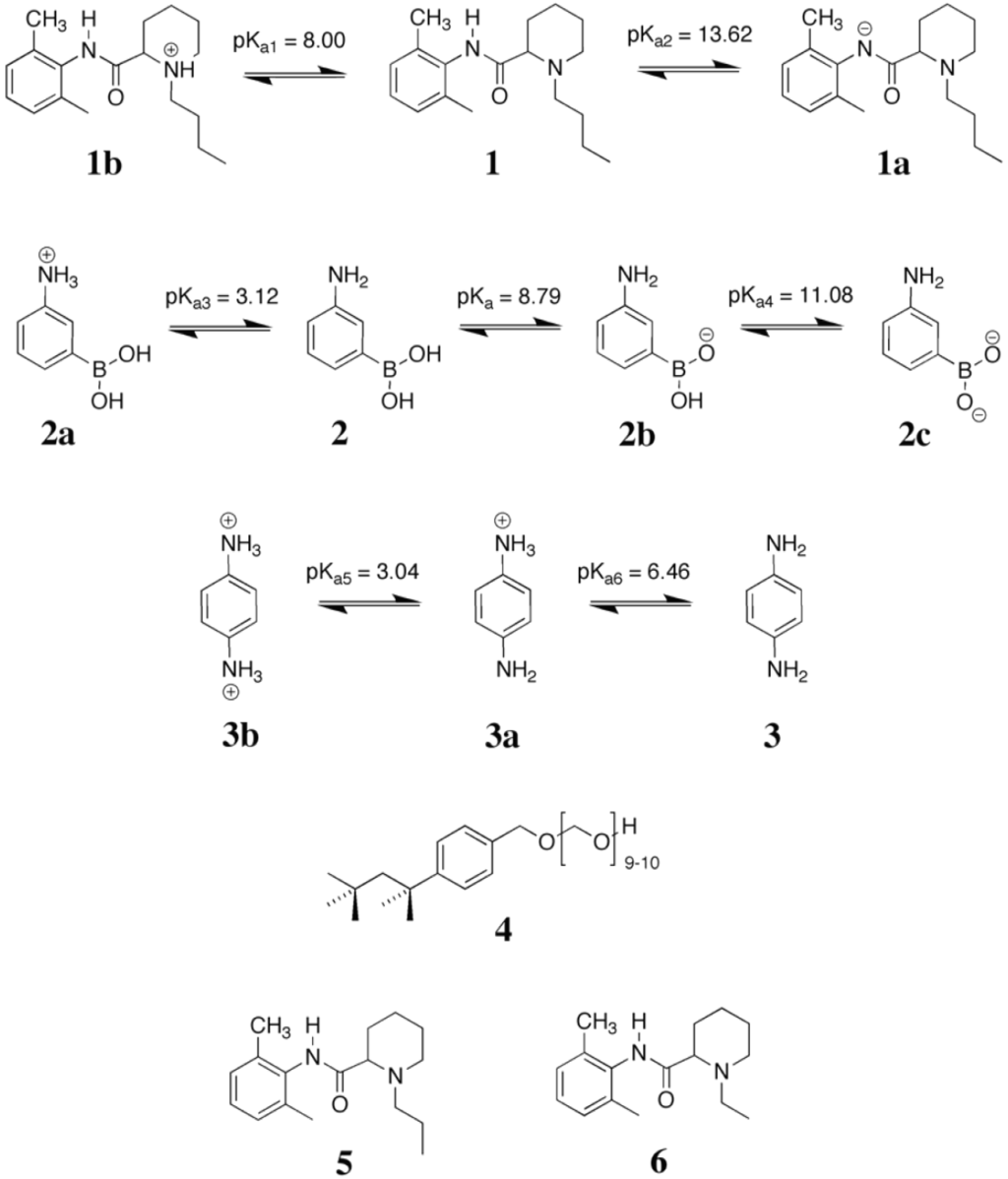

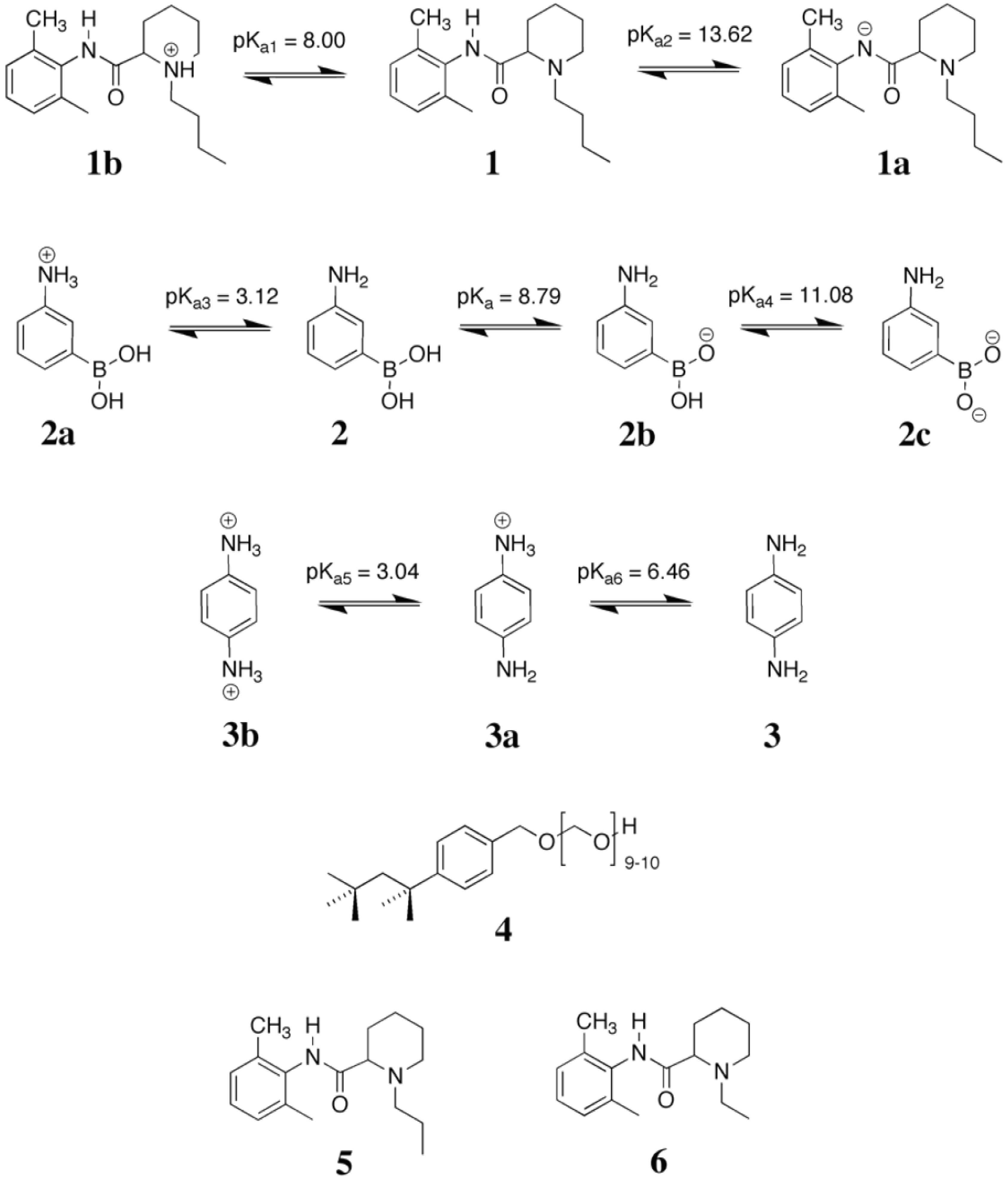

Scheme 1. Protonation/deprotonation dissociation equilibria of bupivacaine (1) and monomers employed: 3-aminophenylboronic acid (2) and p-phenylenediamine (3). Structural formula of Triton X-100 used for the preparation of liquid crystalline medium: polyethylene glycol p-(1,1,3,3-tetramethylbutyl)-phenyl ether (4). Template analogues used to evaluate sensor performance: mepivacaine (5) and ropivacaine (6).
Scheme 1. Protonation/deprotonation dissociation equilibria of bupivacaine (1) and monomers employed: 3-aminophenylboronic acid (2) and p-phenylenediamine (3). Structural formula of Triton X-100 used for the preparation of liquid crystalline medium: polyethylene glycol p-(1,1,3,3-tetramethylbutyl)-phenyl ether (4). Template analogues used to evaluate sensor performance: mepivacaine (5) and ropivacaine (6).
Biosensors 04 00090 g006

2.2. Instrumentation and Protocols

2.2.1. Electrochemistry and Quartz Crystal Microbalance

Electrochemical syntheses were performed with cyclicvoltammetry (CV) (see Section 2.3 for sensor fabrication) using a Reference 600 potentiostat/galvanostat (Gamry instruments, Warminster, PA, USA). The Gamry framework software provided by the manufacturer was used to control the instrument. Platinum wire and Ag|AgCl electrodes supplied by Gamry instruments were used as counter and reference electrodes, respectively.
Piezoelectric microgravimetric measurements were performed using a quartz crystal microbalance (QCM) system (Attana A100, Attana AB, Stockholm, Sweden). The QCM was configured for flow injection analysis (FIA) and was controlled by the Attester software supplied by the maker. 10 MHz AT-cut quartz resonators (Attana AB, Stockholm, Sweden) of 8 mm diameter, sputtered with 45 mm diameter and 140 nm thick gold on both the sides (adhered with a 10 nm Ti or Cr underlying layer), was used both as the working electrode and substrate sensor evaluation. Substrates were cleaned by immersion in piranha solution (1:3, v/v; H2O2:H2SO4) for 1 min (caution: the piranha solution reacts violently with organic compounds and contact with the skin or eyes is dangerous). The substrate was then rinsed extensively with ultrapure water, dried under a stream of N2 gas and stored under vacuum until use.

2.2.2. Scanning Electron Microscopy (SEM)

Electron micrographs of electrodeposited polymer films were imaged using a Leo 1550 Gemini instrument furnished with a field emission electron gun in the high vacuum mode. The substrates were placed on a black carbon tape attached to alumina stubs and coated with a thin layer of platinum using a platinum sputtering unit (LEICA EM SCD 500) before being inserted into the SEM instrument. The pressure of the measurement chamber was maintained at 2 × 10−5 mbar. A 3 kV potential was applied to the electron gun to generate the electron beam used to scan the sample surface.

2.2.3. UV-Visible Spectroscopy

UV-visible spectra were measured in the range 350–200 nm at 0.1 nm resolution by means of UV-1800 spectrophotometer of Shimadzu Corporation (Tokyo, Japan).

2.2.4. IR Spectroscopy

RAIR spectra of the polymer film coated Au/quartz surface were recorded in a Bruker Hyperion 3000 IR microscope coupled to a Tensor 27 IR spectrometer and computerized sample stage. Infrared beam was double reflected from the surface with angles 52° and 83° to the surface normal using a grazing angle objective. The spectra were derived from 1000 interferograms collected by a single element mercury-cadmium-telluride (MCT) detector with a 4 cm−1 resolution. The sample chamber was maintained under an inert atmosphere throughout the measurement by purging with nitrogen gas at positive pressure. A three-term Blackmann–Harris apodization function was applied to the interferograms, prior to the Fourier transformation. An unmodified Au/quartz resonator was used to measure the background spectra.

2.2.5. Flow Injection Analysis

The sensing capabilities of the polymer film coated Au/quartz resonators were studied under flow injection analysis (FIA) conditions using a QCM (see Section 2.2.1). The substrates were mounted in the flow cell holders provided by the manufacturers. Phosphate buffer (10 mM) containing 150 mM NaCl at pH 8.5 was used as the carrier buffer. A dual piston peristaltic pump, in-built within the QCM instrument was used to pump the carrier buffer solution over the polymer film coated substrates at the desired flow rates. The buffer solution was allowed to equilibrate with polymer film at this condition to have minimum change (±0.5 Hz) in the resonant frequency for over 400 s. An aliquot (75 µL) of the test solution, diluted with carrier buffer was injected in the flow cell using a 6-point injection valve present in the instrument.

2.3. Sensor Fabrication and Characterization

MIP recognition films were prepared by electropolymerization on gold-coated quartz (Au/quartz) transducers. Initially, polymerization reaction mixtures were prepared by mixing 1 (bupivacaine, template), 2 and 3 (cross-linking functional monomers) in the ratio 1:5:25 and dissolved either in ultrapure water containing 0.2 M of Na2SO4 (supporting electrolyte) or LC medium comprising 42% of Triton X-100 in water (v/v). The solutions were allowed to equilibrate for 5 min prior to use.
Piranha-cleaned Au/quartz resonators were mounted in the QCM chip holders (Attana AB, Stockholm, Sweden). A well-shaped groove was carved into the Perspex cover of the chip holder to provide a volume of 5 mm diameter and 2.5 mm depth above the gold surface. Next, the contact leads for the Au/quartz substrate, provided in the QCM chip holder was electrically connected to the working electrode terminal of the Gamry potentiostat. A drop of the pre-polymerization solution was then placed over the Au/quartz substrate. The counter and reference electrodes were carefully dipped into the solution close to the gold surface though without making contact with the Au surface, or between the electrodes.
MIP recognition film was deposited by scanning the potential from −0.5 to 1.45 V at 50 mV/s. The growth of the polymer was governed by the number of cycles. Afterwards, the polymer film was rinsed in ultrapure water to remove the physisorbed species. The bupivacaine template was repeatedly extracted from the MIP film with aqueous NaOH (5 mM, 1 mL, 5 times) for 1 h. UV-visible spectra of the washing solutions were used to examine the efficiency of template removed from the MIP film. A reference polymer film was prepared by an identical procedure to that described above, though in the absence of the template bupivacaine.

3. Results and Discussion

In surface-based sensing techniques, such as QCM, SPR and TIRF, the proximity of the analyte binding or recognition event to the transducer surface is critical for the sensor response. Thin polymer film coatings of molecularly imprinted materials have become of increasing interest in this area due to their stability, possibilities of regulating their thickness during fabrication and the broad range of structures that are amenable for use as a template. A number of reports have been made where sacrificial structures, either organic or inorganic, are used to generate complementary morphologies in polymer matrices [25,26,27]. The often rigorous treatment necessary for subsequent removal of these sacrificial structures, e.g., HF, suggested to us the need for alternative approaches, ideally requiring mild removal protocols. We perceived that colloidal structures might provide a stable enough framework to impart complementary structures in a cross-linked polymer, while at the same time being easily dismantled simply by elution under suitable conditions. It has previously been demonstrated that mixtures of triton X-100 and water can form hexagonally ordered cylindrical micelles in lyotrophic liquid crystals [28], as demonstrated by X-ray diffraction studies [7]. It was this well studied system that we proposed to use as a basis for the present study.

3.1. Electrochemical Preparation of MIP Films

The liquid crystalline medium was prepared following established procedures [6] by heating triton X-100 (42%, v/v) in water to 50 °C under constant stirring to afford an isotropic phase. The mixture is then allowed to cool slowly to room temperature to form lyotrophic liquid crystalline phase. Polymerization reaction components; template (1) and the cross-linking functional monomers 1,3-aminophenylboronic acid (2, 3-APBA) and p-phenylenediamine (3, p-PD), were then mixed before being added to the LC medium. This particular polymer system was selected on the basis of results of another study that shall be communicated in elsewhere. Polymerization was performed CV. Figure 1A shows the CV curve for the copolymerization of 2 and 3 in the presence of the template (1) using Na2SO4 as supporting electrolyte on the Au/quartz electrode. The potential of the working Au/quartz electrode was ramped from −0.5 to 1.5 V at a 50 mV/s scan rate. In the anodic scan of the first cycle (Curve 1, in Figure 1A), broad peaks around 0.5 V and 0.75 V can be attributed for the oxidation of 3-APBA and p-PD monomers to form radical cations [29,30,31,32]. Combined oxidation of bipolaron state of these radical cations is observed as a shoulder at 1.3 V, corresponding to the copolymerization [33,34]. The build up of the polymer film on the electrode surface is seen as a drastic decrease in the peak currents, for the oxidation of radical cations (Curve 2 in Figure 1A), owing to the hindered diffusion of the monomers to the electrode surface through. Growth of the pair of redox peaks at 0.74 V and 0.3 V, corresponding to the reduction and oxidation of the co-polymer film, respectively, further support this conclusion. A uniformly reddish brown gold electrode coated surface is obtained. For comparison, a reference polymer film (REF) was prepared identically, though in the absence of template. The similarities of the CV curve profiles from the preparation of the REF and MIP films discounts the possible that oxidation of bupivacaine takes place under the polymerization.
The CV curves for the electrodeposition of MIP and REF polymer films from water (Figure A1 in Appendix) shows similar features for the oxidation of cross-linking functional monomers and copolymerization, except the medium dependent shift in potentials and high current values. In the presence of the Triton X-100 the rate of polymerization is considerably enhanced due to various factors [35]. The polar head group (PEO chains) of the Triton X-100 may contribute by stabilizing the radical cations formation due to their attraction towards the oxygen atom of the PEO chains [36]. Apparently, this will decrease the monomer oxidation potential accelerating the polymerization. Further it has been argued that the PEO chains of the Triton X-100 adsorb on the electrode surface thus changing the electrode/electrolyte interface character to enable the facile diffusion of monomers towards to electrode surface [37]. This benefits the production of more cationic radicals and electropolymerization. Furthermore, triton X-100 improves the solubility of the monomers helping to afford well-defined growth of the polymer [36,38]. Here again, possible oxidation of template was ruled out as the CV curves profiles for MIP and REF polymers were essentially identical.
Biosensors 04 00090 g001 1024

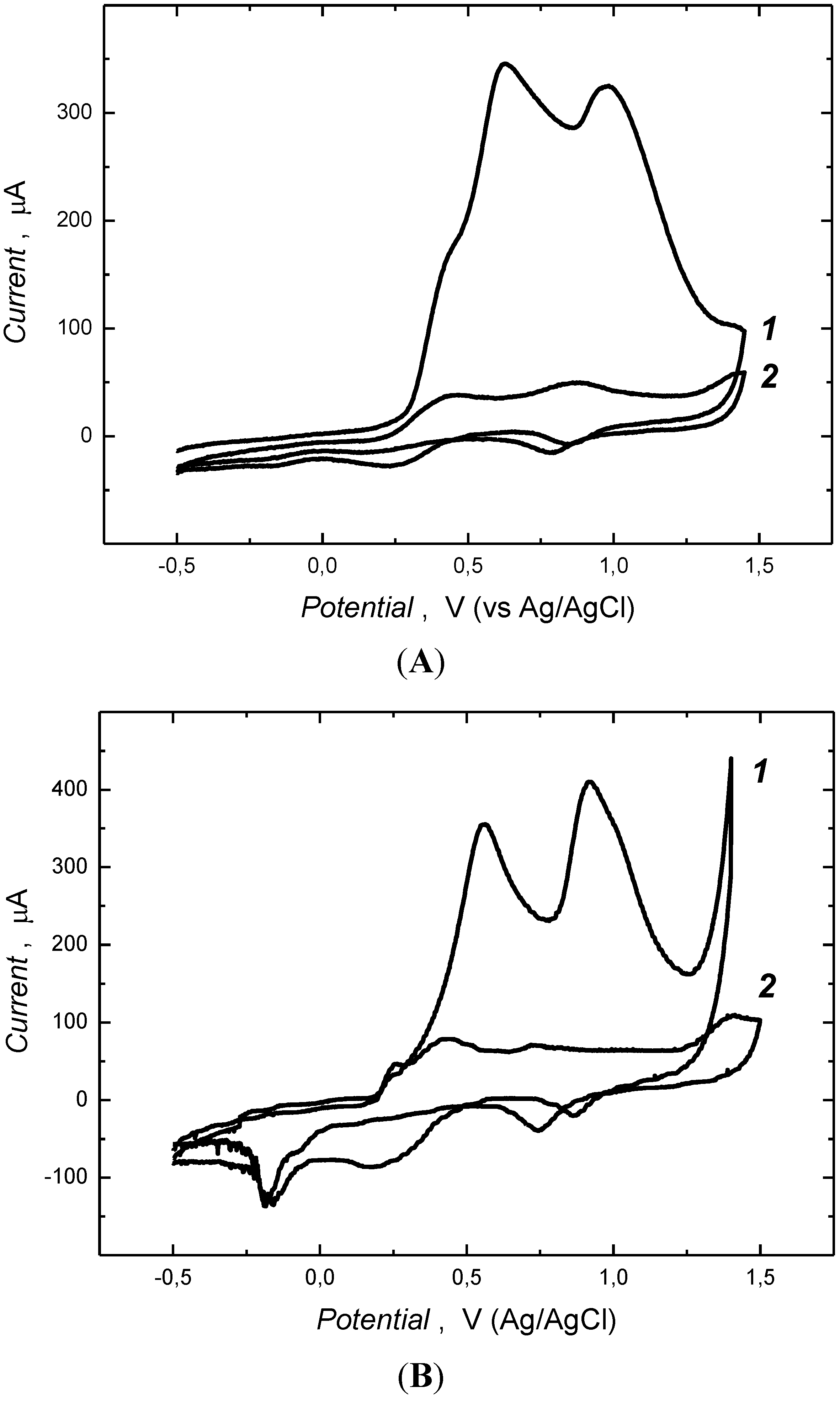

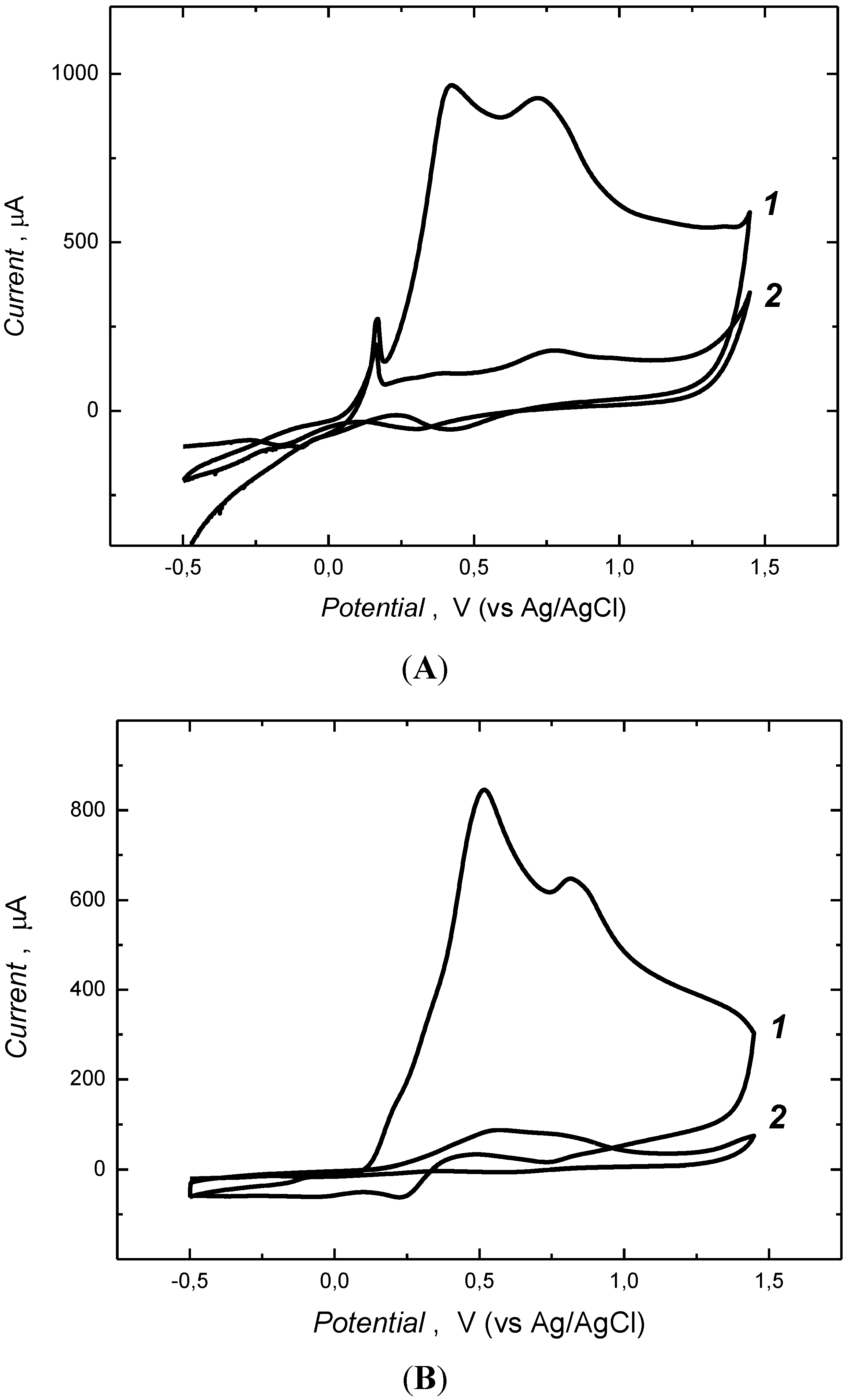

Figure 1. Cyclic voltammograms for the electrochemical co-polymerization of 3-APBA (2, 5 mM) and p-PD (3, 25 mM), in the presence (A) and absence (B) of 1 mM bupivacaine (1), in Triton X 100-water lytotropic liquid crystalline medium, containing 0.2 M Na2SO4 at pH 8.5, on the gold coated quartz electrode. Potential scan rate was 0.05 V/s. Curves 1 and 2 denote the first and fifth cycle of the cyclic voltammogram.
Figure 1. Cyclic voltammograms for the electrochemical co-polymerization of 3-APBA (2, 5 mM) and p-PD (3, 25 mM), in the presence (A) and absence (B) of 1 mM bupivacaine (1), in Triton X 100-water lytotropic liquid crystalline medium, containing 0.2 M Na2SO4 at pH 8.5, on the gold coated quartz electrode. Potential scan rate was 0.05 V/s. Curves 1 and 2 denote the first and fifth cycle of the cyclic voltammogram.
Biosensors 04 00090 g001
The polymer films were washed with copious volumes of water to remove physisorbed materials, then extracted with a series of 5 mM NaOH(aq) solutions to remove the template. The efficiency of the template extraction process was monitored by UV-visible spectroscopy. The UV-vis spectra of the extract (Curves b and c in Figure A2) were recorded after rinsing the film for 1 h. The bands at 262 nm and 270.5 nm can be ascribed to bupivacaine (Curve a in Figure A2) [39,40]. After four consecutive extractions, the intensities of these bands diminish towards the baseline showing the practical completeness of template extraction process (Curve d in Figure A2).
Topological and structural features of the polymer films were studied by microscopic (SEM) and spectroscopic (RAIRS) methods. Specific recognition of the polymer films towards bupivacaine and desired analytes were evaluated with QCM measurements.

3.2. Characterization of Polymer Films

The chemical functionalities of the films were studied by refractive angle infrared (RAIR) spectroscopy. Figure 2 shows the RAIR spectra for MIP and REF films prepared in aqueous and LC medium. Discernible bands at 829, 1288, 1396, 1508, 1567, 3027, 3208, 3314, and 3442 cm−1 depict the ring bending, ν(C–N), ν(B–O), ν(C=C), δ(N–H), ν(C–H), ν(B–OH) and ν(N–H) IR-active vibrational modes present in the backbone of the copolymer [41,42,43,44]. In addition, the band at 1396 and broad bands around 3350 cm−1 corresponds to the stretching vibrations of –B–O [45] in 3-APBA and –NH2 moieties in p-PD, respectively, validate the copolymerization. The spectral features of the polymer films prepared in both media were very similar indicating that the polymerization reactions had incorporated both the monomers into the copolymer films. Interestingly, the lack of a significant difference between the spectra of the MIP and REF films indicates that the template does not affect the polymerization process and the copolymer composition. Furthermore, the absence of vibrational bands for the amide carbonyl (C(=O)NH) and ether (C–O–C) functionalities support the conclusion that the bupivacaine template and Triton X-100 were both efficiently removed from the polymer films.
Biosensors 04 00090 g002 1024

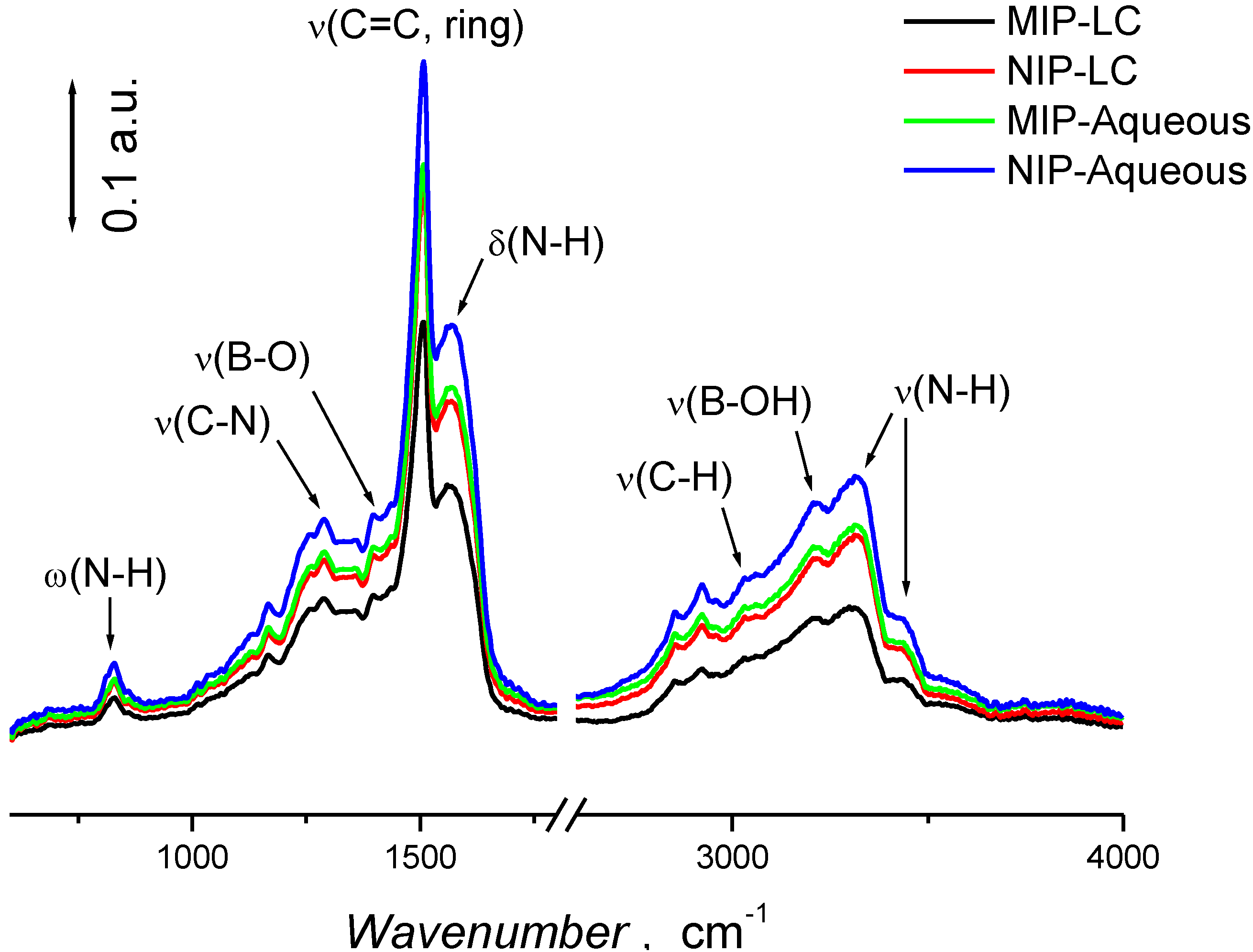

Figure 2. RAIR spectra of the bupivacaine MIP and REF films.
Figure 2. RAIR spectra of the bupivacaine MIP and REF films.
Biosensors 04 00090 g002
The topologies of the MIP and REF films were examined by SEM (Figure 3). Both the MIP and REF films prepared in the LC medium present unique morphological features with organized, densely packed fibrous nanowires or brush-like structures grown uniformly under electrochemical conditions. Figure A3 demonstrates the long-range uniformity of the nanowires with thickness ranging from 39.9 ± 7.8 nm and 44.6 ± 6.7 nm for MIP and REF films, respectively. The films prepared in aqueous media were uniform, and devoid of noticeable morphological features. The extreme increase in the surface areas of the polymer films as a result of using the LC medium is dramatic (Figure 3). The greater surface area afforded by fiber structures arising from the synthesis of the polymer films in the LC medium was anticipated to increase the number of accessible ligand binding cavities in close proximity to the sensor surface.
Biosensors 04 00090 g003 1024
Figure 3. Surface topography mapped using scanning electron microscope (SEM) for the MIP (A and B) and REF film (C and D) coated on Au/quartz prepared in LC or aqueous media, respectively.
Figure 3. Surface topography mapped using scanning electron microscope (SEM) for the MIP (A and B) and REF film (C and D) coated on Au/quartz prepared in LC or aqueous media, respectively.
Biosensors 04 00090 g003

3.3. Piezoelectric Microgravimetric (QCM) Determination of Bupivacaine

The influence of the polymer film hierarchical architecture, Ångström–nm sized cavities arising from the template and LC-phase induced morphologies at the nm–µm scale, on the polymer’s capacity to bind bupivacaine (1) was examined by QCM under FIA conditions. Studies were performed at pH 8.5 using a 0.01 M phosphate buffer containing 0.15 M NaCl as carrier solution. This pH was selected to limit the presence of charged functionalities present on polymer and analyte so as to reduce the impact of non-specific binding. Above this pH 3-APBA will be deprotonated (pKa4, Scheme 1) and below pH 8.0 bupivacaine is protonated (pKa1, Scheme 1) [46,47].
In Figure 4, the QCM traces (resonant frequency versus time) from the injection of 1 over the LC-MIP and REF film coated resonators at concentrations from 0.3 to 2 mM are shown. The response time, the time taken by the signal to reach 90% of its maximum value, was as short as ≈70 s. The sensor surface was recovered by subsequent washing with the running buffer solution until the frequency had been returned to its initial value, 6.5 min. The responses were significantly greater for the MIP surface than the corresponding reference. This was in contrast to the bupivacaine-MIP films prepared in aqueous conditions; which had lower values for both response and recovery times, ≈100 s and 8.3 min, respectively (Figure A4). Collectively these results demonstrate that the hierarchical architectural features present in the MIP film prepared in the presence of the LC medium lead to an enhancement of sensor performance.
Biosensors 04 00090 g004 1024

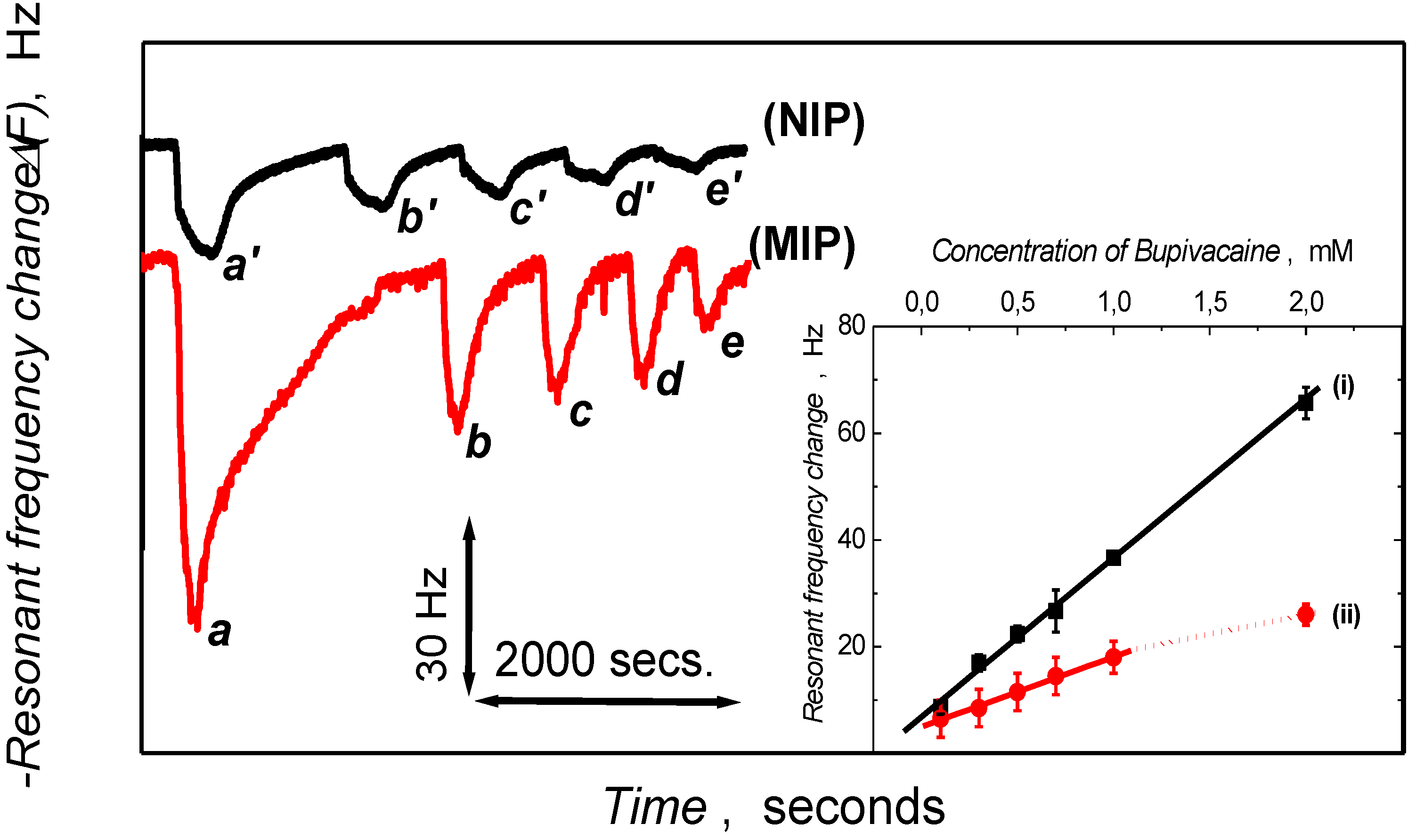

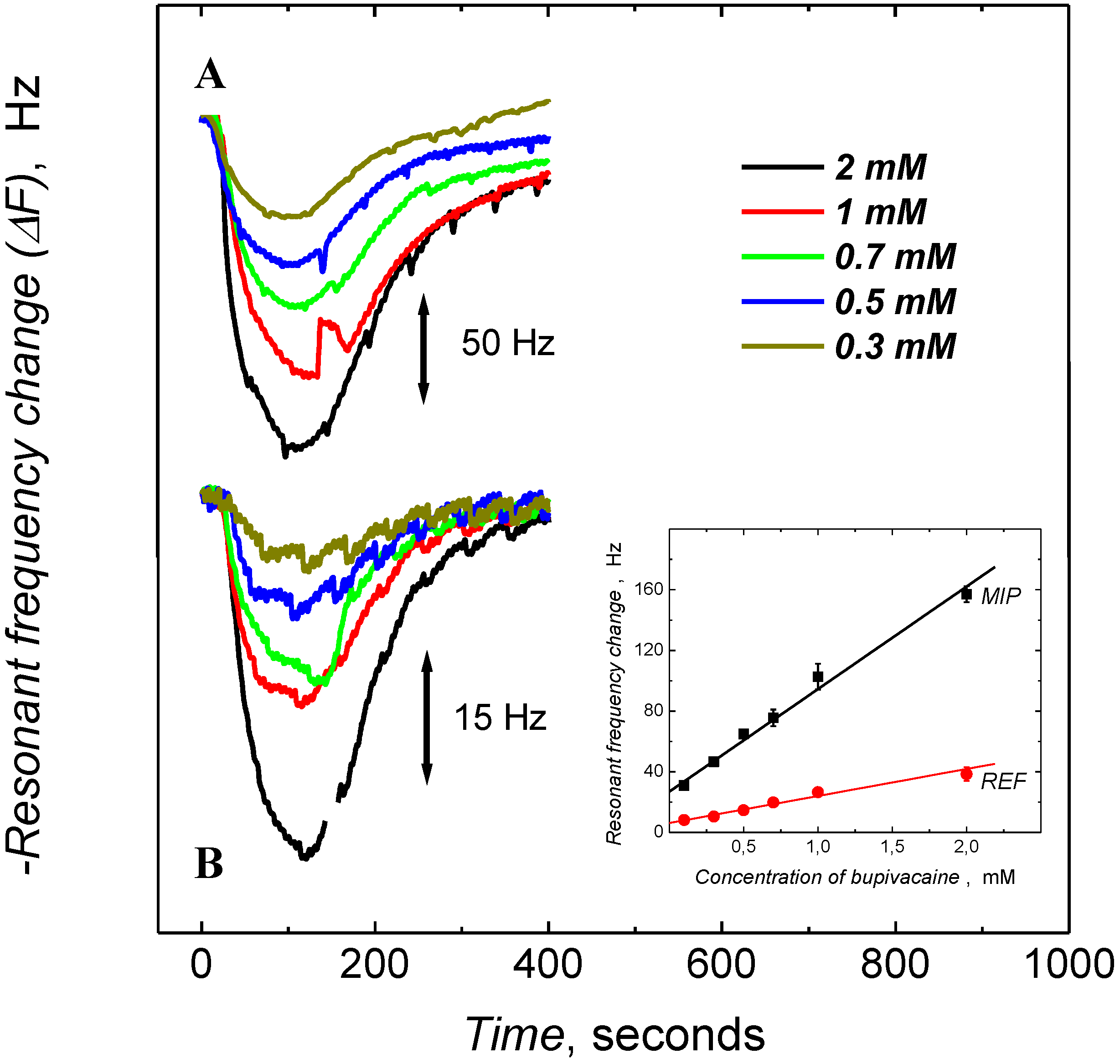

Figure 4. Variation in the resonant frequency of gold-coated quartz resonators overlaid with (A) MIP and (B) REF films prepared in LC medium, upon injection of analyte (1) under FIA condition. Inset is the corresponding FIA calibration plots for 1 on MIP and REF film. Phosphate buffer (0.01 M) containing 150 mM NaCl at pH = 8.5 was used as carrier solution at the flow rate of 25 µL/min. The injection volume was 75 µL.
Figure 4. Variation in the resonant frequency of gold-coated quartz resonators overlaid with (A) MIP and (B) REF films prepared in LC medium, upon injection of analyte (1) under FIA condition. Inset is the corresponding FIA calibration plots for 1 on MIP and REF film. Phosphate buffer (0.01 M) containing 150 mM NaCl at pH = 8.5 was used as carrier solution at the flow rate of 25 µL/min. The injection volume was 75 µL.
Biosensors 04 00090 g004
The MIP chemosensor responses were calibrated (Figure 4) for the determination of 1 using the frequency response vs. time curves. The dampening of the resonant frequency of the sensor was observed to vary linearly with the concentration of the injected analyte (1). Table 1 gives the sensitivity values obtained from the slope of the calibration plots. In the case of the nanostructured MIP film (Inset in Figure 4), sensitivity was over twice that of the non-structured surface prepared, in water (Figure A4) with linearity over the concentration range 0.1 to 2 mM (3–60 μg/mL). In the case of the REF films (both LC and water), the sensor responses were saturated with the analyte (1), when the concentration of the analyte exceeded 1 mM (Inset to Figure 4B and Figure A4), and the sensitivities of the reference polymer films were at least half as low as the corresponding MIP film (Table 1). The limit of detection (LOD) of the chemosensor was 100 nM (30 ng/mL) bupivacaine determined under optimized FIA conditions, i.e., the sample volume was increased to 1 mL, while the flow rate of the carrier buffer solution was 25 µL/min (signal to noise ratio S/N = 3).
Table
Table 1. Relative sensitivities and stability constants, Ks of the bupivacaine MIP and REF films.
Table 1. Relative sensitivities and stability constants, Ks of the bupivacaine MIP and REF films.
Polymer film (preparation medium)Relative sensitivity (Hz/mM)aCorrelation coefficient Ks (M-1) a
MIP (H2O)29.92 ± 4.150.998660.56 ± 17.56
REF (H2O)13.22 ± 3.220.996330.12 ± 17.12
MIP (LC)67.64 ± 4.910.9952187.61 ± 29.02
REF (LC)17.81 ± 2.670.989444.27 18.71
a Errors represent ± standard deviation.
The binding ability of the MIP film with the analyte was quantified by determining the apparent stability constant (Ks), of the non-covalently bound MIP-analyte (MIP-An) complexes [18,19] (Equation (1)). The affinity interaction between the MIP and the analyte An is governed by the corresponding association (ka) and dissociation (kd) rate constants, and can be derived with the kinetic equation (Equation (2)) as reported elsewhere [48,49,50,51,52,53].
MIP + An ⇔ MIP − An
f = feq [1 − exp(−kobs t)]
where kobs = kacT + kd and cT is the concentration of analyte.

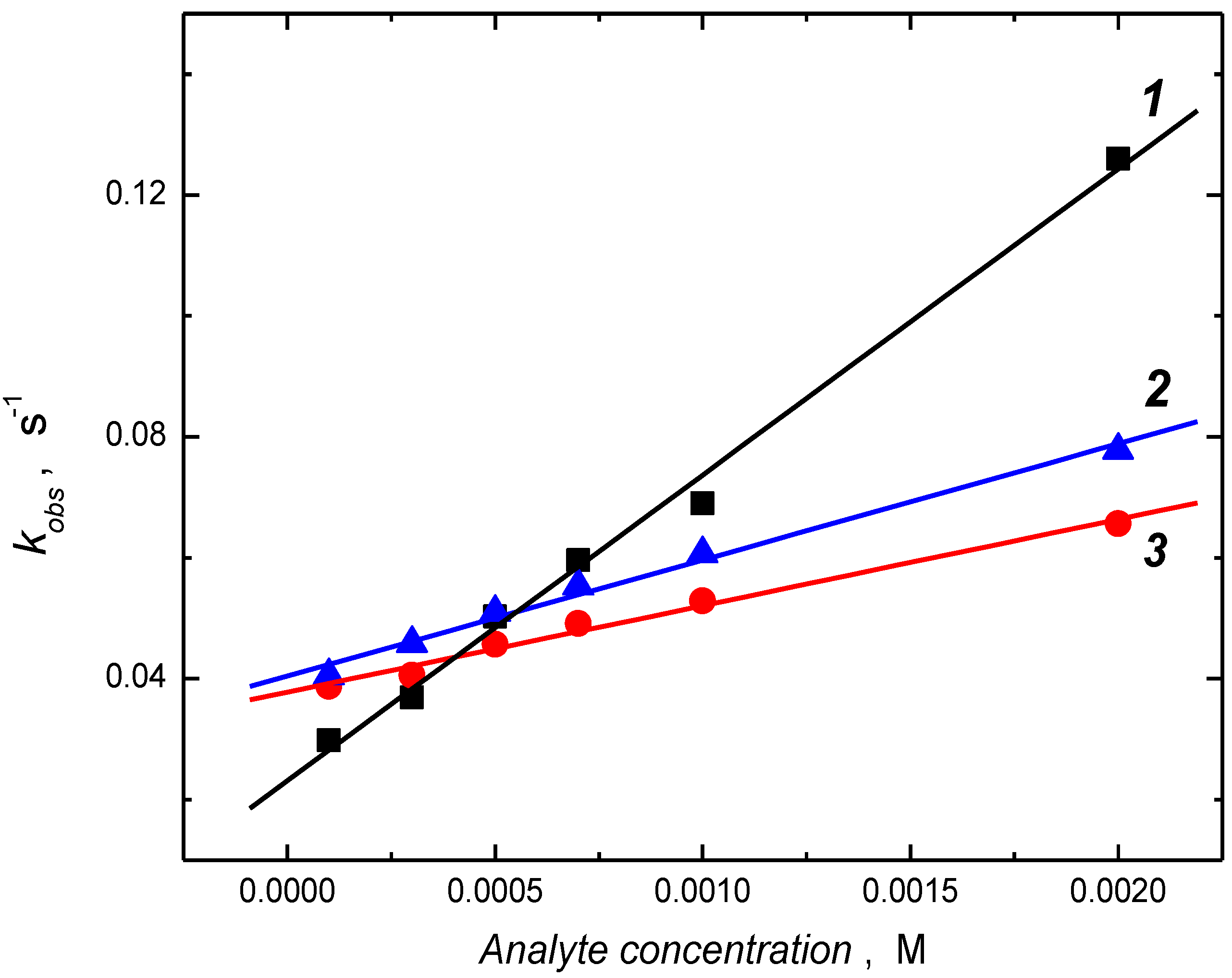

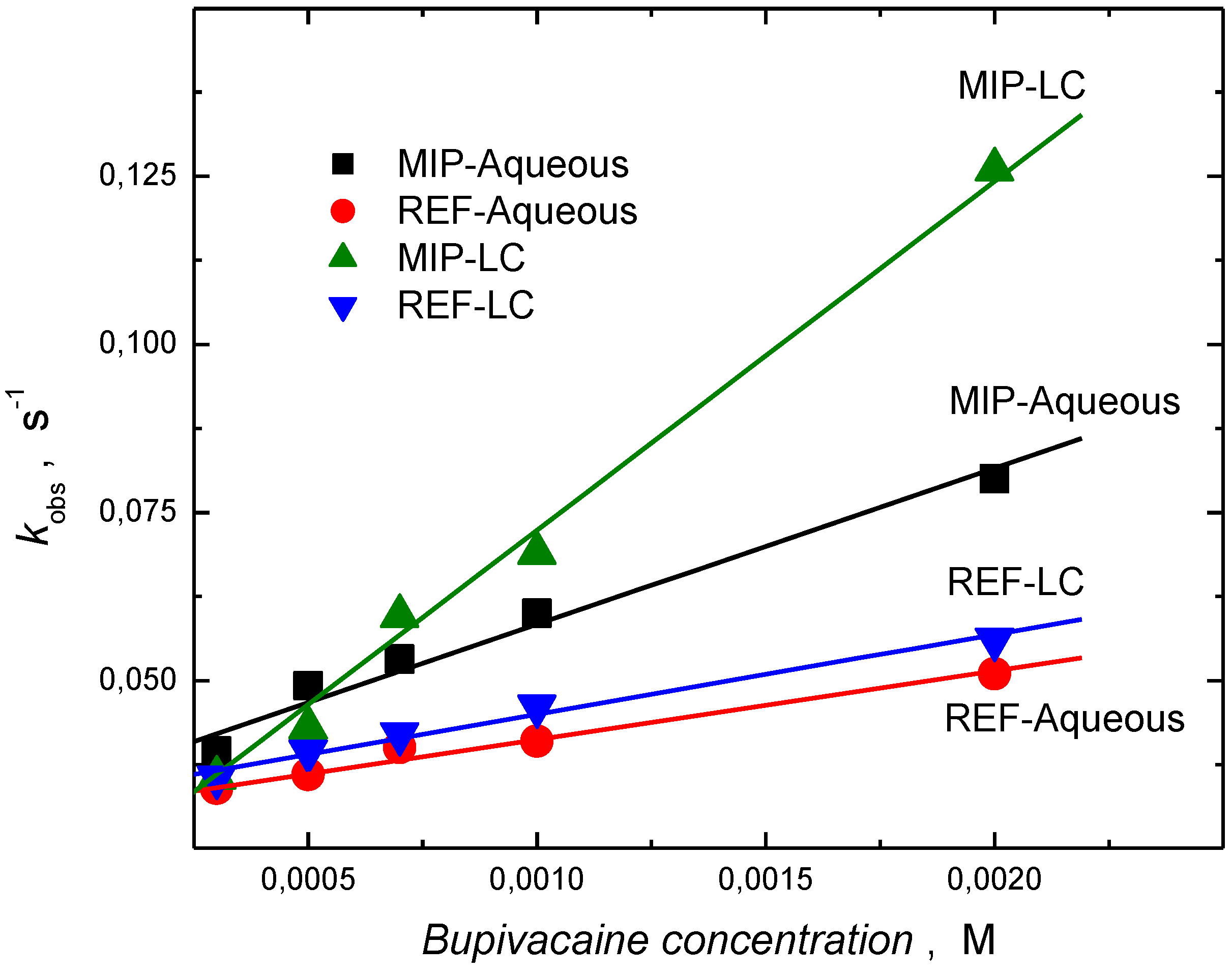

By fitting the initial parts of the FIA binding curves (Figure 4) for the different bupivacaine concentrations to Equation (1), the apparent rate constants could be deduced, kobs [15,18,19,54,55,56]. The determined kobs values varied linearly with the concentration of the analyte (Figure A5). The ratio of the slope (ka) and intercept (kd) calculated from this plot gives the value of the apparent stability constant (Ks = ka/kd) [56], for the MIP-analyte complexes (Table 1). Essentially, the stability constant values follow a similar trend to that of the sensitivities, with very high and low values for imprinted and reference polymer, respectively.
To investigate the fidelity of the imprinting induced binding sites, the LC-MIP chemosensor was examined with respect to ligand affinity. This cross reactivity study was performed using the closely related analogs mepivacaine (5) and ropivacaine (6). These substances differ from 1 by lack of only one (6) or three (5) methylene residues in the N-alkyl side chain. Frequency response versus time curves for the repeated injection of these analytes as well as the template (1) are shown in Figure 5. The frequency change was noticeably higher for the 1 than for the 5 and 6, highlighting the greater affinity for bupivacaine. The relative sensitivity values (Table 2) reflecting the affinities, were three and two times higher for 1 than that for the interferants (5 and 6), respectively. The stability constant values (determined from the apparent rate constant kobs values, Figure A6) for the MIP-analyte complexes reveal the high affinity and selectivity (Inset to Figure 5) of the MIP chemosensor for bupivacaine (1). It is important to note that the ligand affinity for the and detection limits of the present MIP-QCM sensor assembly presented here are comparable to that of HPLC methods [57,58,59,60] and superior to those of electroanalytical (ion selective electrodes) methods [61] reported for the selective determination of bupivacaine (Table 3).
Biosensors 04 00090 g005 1024

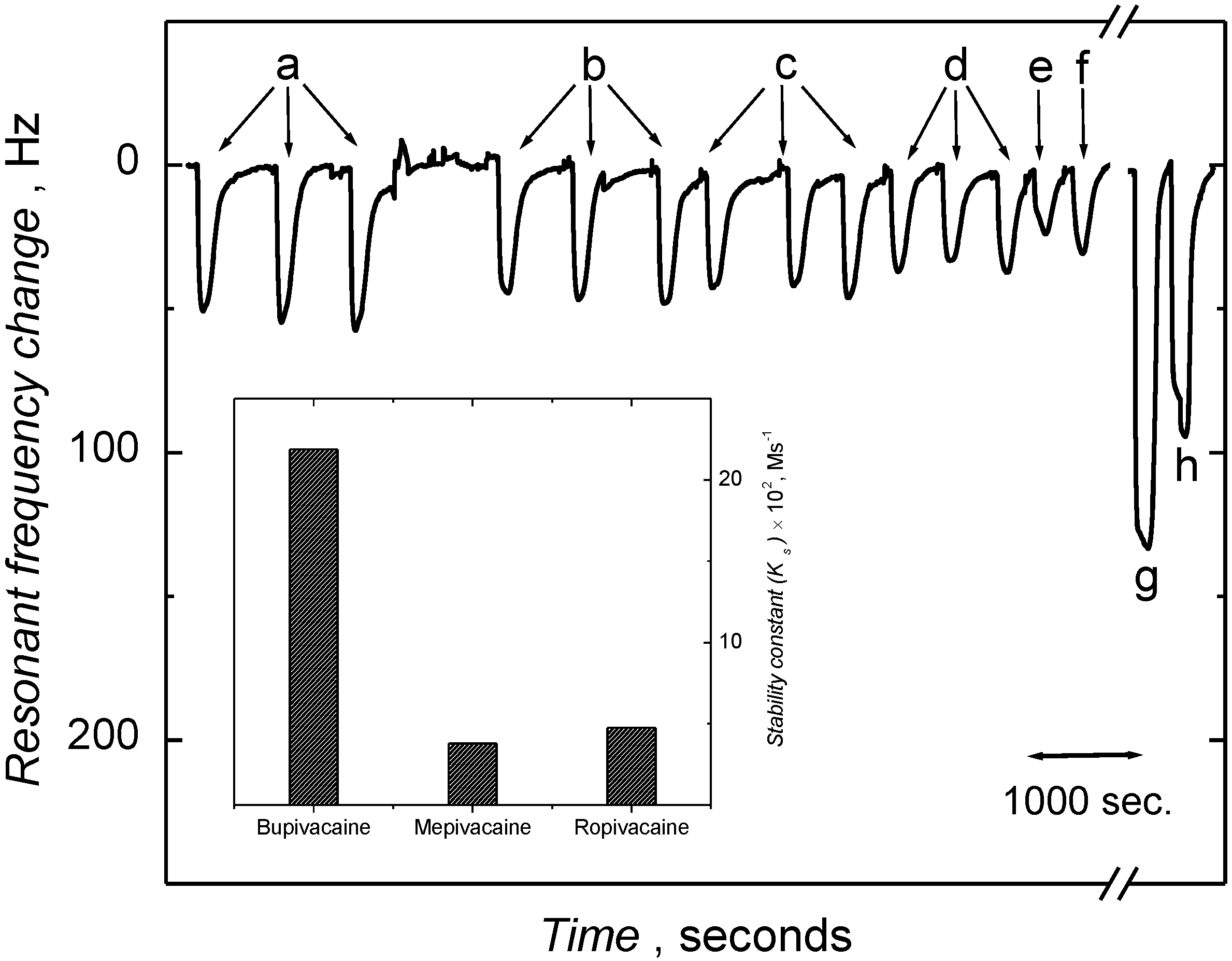

Figure 5. Resonant frequency versus time curve for the bupivacaine, and analogues (5 and 6) under FIA conditions. Inset is the histogram of stability constant values for MIP-analyte complex. The carrier solution was a phosphoric acid solution (0.01 M) containing 150 mM NaCl at pH = 8.5, with a flow rate of 25 µL/min. An injection volume of 75 µL was used for the analytes mepivacaine ((a) 2, (b) 1, (c) 0.7, (d) 0.5, (e) 0.1 and (f) 0.3 mM) and bupivacaine (1 (g) and 1.7 mM (h)) concentration.
Figure 5. Resonant frequency versus time curve for the bupivacaine, and analogues (5 and 6) under FIA conditions. Inset is the histogram of stability constant values for MIP-analyte complex. The carrier solution was a phosphoric acid solution (0.01 M) containing 150 mM NaCl at pH = 8.5, with a flow rate of 25 µL/min. An injection volume of 75 µL was used for the analytes mepivacaine ((a) 2, (b) 1, (c) 0.7, (d) 0.5, (e) 0.1 and (f) 0.3 mM) and bupivacaine (1 (g) and 1.7 mM (h)) concentration.
Biosensors 04 00090 g005
Table
Table 2. Relative sensitivities and interference factors of the bupivacaine LC-MIP films.
Table 2. Relative sensitivities and interference factors of the bupivacaine LC-MIP films.
AnalyteRelative sensitivity Hz/mMCorrelation coefficient Interference factor, IF a
Bupivacaine (1)67.6 ± 4.910.9951.00
Mepivacaine (5)28.4 ± 1.510.9890.17
Ropivacaine (6)38.0 ± 5.160.9900.22
a Interference factors (IF) were calculated by normalizing the stability constant values to that of MIP-bupivacaine complex.
In summary, the bupivacaine selective chemosensor based upon a MIP recognition film prepared in the LC medium exhibits good selectivity and sensitivity. The hexagonal cylindrical structures present in the LC medium [36] affords imprinted polymers with nanowire or fiber-like structures [62,63]. LC media have even been claimed to enhance the polymerization process due to improved solubility of monomers [64,65] and radicals [66]. Furthermore, the polymer films synthesized in the LC medium demonstrated high stability.
Table
Table 3. Comparison of analytical methods for the determination of bupivacaine.
Table 3. Comparison of analytical methods for the determination of bupivacaine.
MethodReported dynamic concentration rangeDetection limit, LODReference
Present work3–60 μg/mL30 ng/mL-
HPLC5.0–50 μg/mL250 ng/mL[58]
HPLC0.02–5.00 mg/L20 μg/L[60]
HPLC0.033–3.31 μg/mL10 ng/mL[67]
Ion-selective electrodes16 μM–100 mM-[61]

4. Conclusions

Nanostructured bupivacaine-selective molecularly imprinted 3-aminophenylboronic acid-p-phenylenediamine co-polymer films have been prepared on gold-coated quartz (Au/quartz) resonators by electrochemical synthesis under cyclic voltammetric conditions in a liquid crystalline (LC) medium (Triton X-100). Films prepared in water and in the absence of template were used for control studies. The presence of the LC-derived nanowire or brush-like structures on the sensor surface enhanced the performance of the piezoelectric microgravimetric (QCM) sensors. Importantly, the performance of this sensor system compared well with those of other analytical techniques. Finally, the facile fabrication together with the significant enhancement in sensor sensitivity highlight the potential of this soft sacrificial LC-based imprinting strategy for the fabrication of polymeric materials with hierarchical architectures, which are of particular interest for use in surface-dependent application areas, e.g., biomaterials or sensing [67].

Acknowledgments

The financial support of Linnæus University, the Swedish Research Council (VR) and the Swedish Knowledge Foundation (KKS) are acknowledged.

Author Contributions

SS and IAN had responsibility for experiment design; SS, NN and HN for surface chemistry and QCM analyses; SS and NN for physical characterization; all authors contributed to the drafting and final approval of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Daikhin, L.; Urbakh, M. Effect of surface film structure on the quartz crystal microbalance response in liquids. Langmuir 1996, 12, 6354–6360. [Google Scholar] [CrossRef]
  2. Zhang, Z.; Lu, D.-F.; Liu, Q.; Qi, Z.-M.; Yang, L.; Liu, J. Wavelength-interrogated surface plasmon resonance sensor with mesoporous-silica-film-enhanced sensitivity to small molecules. Analyst 2012, 137, 4822–4828. [Google Scholar] [CrossRef]
  3. Hotta, K.; Yamaguchi, A.; Teramae, N. Nanoporous waveguide sensor with optimized nanoarchitectures for highly sensitive label-free biosensing. ACS Nano 2012, 6, 1541–1547. [Google Scholar]
  4. Berrier, A.; Offermans, P.; Cools, R.; van Megen, B.; Knoben, W.; Vecchi, G.; Rivas, J.G.; Crego-Calama, M.; Brongersma, S.H. Enhancing the gas sensitivity of surface plasmon resonance with a nanoporous silica matrix. Sens. Actuator B Chem. 2011, 160, 181–188. [Google Scholar] [CrossRef]
  5. Gaur, G.; Koktysh, D.S.; Weiss, S.M. Immobilization of quantum dots in nanostructured porous silicon films: Characterizations and signal amplification for dual-mode optical biosensing. Adv. Funct. Mater. 2013, 23, 3604–3614. [Google Scholar] [CrossRef]
  6. Niu, X.; Li, Y.; Tang, J.; Hu, Y.; Zhao, H.; Lan, M. Electrochemical sensing interfaces with tunable porosity for nonenzymatic glucose detection: A Cu foam case. Biosens. Bioelectron. 2014, 51, 22–28. [Google Scholar] [CrossRef]
  7. Ates, M. A review study of (bio)sensor systems based on conducting polymers. Mater. Sci. Eng. C 2013, 33, 1853–1859. [Google Scholar] [CrossRef]
  8. Anraku, Y.; Takahashi, Y.; Kitano, H.; Hakari, M. Recognition of sugars on surface-bound cap-shaped gold particles modified with a polymer brush. Colloids Surf. B 2007, 57, 61–68. [Google Scholar] [CrossRef]
  9. Suriyanarayanan, S.; Lee, H.-H.; Liedberg, B.; Aastrup, T.; Nicholls, I.A. Protein-resistant hyperbranched polyethyleneimine brush surfaces. J. Colloid Interface Sci. 2013, 396, 307–315. [Google Scholar] [CrossRef]
  10. Whitcombe, M.J.; Chianella, I.; Larcombe, L.; Piletsky, S.A.; Noble, J.; Porter, R.; Horgan, A. The rational development of molecularly imprinted polymer-based sensors for protein detection. Chem. Soc. Rev. 2011, 40, 1547–1571. [Google Scholar] [CrossRef] [Green Version]
  11. Mayes, A.G.; Whitcombe, M.J. Synthetic strategies for the generation of molecularly imprinted organic polymers. Adv. Drug Deliv. Rev. 2005, 57, 1742–1778. [Google Scholar] [CrossRef]
  12. Alexander, C.; Andersson, H.S.; Andersson, L.I.; Ansell, R.J.; Kirsch, N.; Nicholls, I.A.; O’Mahony, J.; Whitcombe, M.J. Molecular imprinting science and technology: A survey of the literature for the years up to and including 2003. J. Mol. Recognit. 2006, 19, 106–180. [Google Scholar] [CrossRef]
  13. Olsson, G.D.; Karlsson, B.C.G.; Shoravi, S.; Wiklander, J.G.; Nicholls, I.A. Mechanisms underlying molecularly imprinted polymer molecular memory and the role of crosslinker: Resolving debate on the nature of template recognition in phenylalanine anilide imprinted polymers. J. Mol. Recognit. 2012, 25, 69–73. [Google Scholar] [CrossRef]
  14. Suriyanarayanan, S.; Cywinski, P.J.; Moro, A.J.; Mohr, G.J.; Kutner, W. Chemosensors based on molecularly imprinted polymers. Mol. Imprint. 2012, 325, 165–265. [Google Scholar]
  15. Pietrzyk, A.; Suriyanarayanan, S.; Kutner, W.; Chitta, R.; D’Souza, F. Selective histamine piezoelectric chemosensor using a recognition film of the molecularly imprinted polymer of bis(bithiophene) derivatives. Anal. Chem. 2009, 81, 2633–2643. [Google Scholar] [CrossRef]
  16. Azevedo, S.D.; Lakshmi, D.; Chianella, I.; Whitcombe, M.J.; Karim, K.; Ivanova-Mitseva, P.K.; Subrahmanyam, S.; Piletsky, S.A. Molecularly imprinted polymer-hybrid electrochemical sensor for the detection of beta-estradiol. Ind. Eng. Chem. Res. 2013, 52, 13917–13923. [Google Scholar] [CrossRef]
  17. Akbulut, M.; Lakshmi, D.; Whitcombe, M.J.; Piletska, E.V.; Chianella, I.; Guven, O.; Piletsky, S.A. Microplates with adaptive surfaces. ACS Comb. Sci. 2011, 13, 646–652. [Google Scholar] [CrossRef]
  18. Pietrzyk, A.; Suriyanarayanan, S.; Kutner, W.; Maligaspe, E.; Zandler, M.E.; D’Souza, F. Molecularly imprinted poly bis(2,2'-bithienyl)methane film with built-in molecular recognition sites for a piezoelectric microgravimetry chemosensor for selective determination of dopamine. Bioelectrochemistry 2010, 80, 62–72. [Google Scholar] [CrossRef]
  19. Pietrzyk, A.; Kutner, W.; Chitta, R.; Zandler, M.E.; D’Souza, F.; Sannicolo, F.; Mussini, P.R. Melamine acoustic chemosensor based on molecularly imprinted polymer film. Anal. Chem. 2009, 81, 10061–10070. [Google Scholar] [CrossRef]
  20. Li, J.; Zhang, X.; Liu, Y.; Tong, H.; Xu, Y.; Liu, S. Preparation of a hollow porous molecularly imprinted polymer using tetrabromobisphenol A as a dummy template and its application as SPE sorbent for determination of bisphenol a in tap water. Talanta 2013, 117, 281–287. [Google Scholar] [CrossRef]
  21. Carter, S.R.; Rimmer, S. Surface molecularly imprinted polymer core-shell particles. Adv. Funct. Mater. 2004, 14, 553–561. [Google Scholar] [CrossRef]
  22. Diaz-Garcia, M.E.; Laino, R.B. Molecular imprinting in sol-gel materials: Recent developments and applications. Microchim. Acta 2005, 149, 19–36. [Google Scholar] [CrossRef]
  23. Lofgreen, J.E.; Moudrakovski, I.L.; Ozin, G.A. Molecularly imprinted mesoporous organosilica. ACS Nano 2011, 5, 2277–2287. [Google Scholar] [CrossRef]
  24. Suriyanarayanan, S.; Petrone, L.; Ederth, T.; Nicholls, I.A. Biotinyl moiety-selective polymer films with highly ordered macropores. Chem. Commun. 2013, 49, 5274–5276. [Google Scholar] [CrossRef]
  25. Yilmaz, E.; Ramstrom, O.; Moller, P.; Sanchez, D.; Mosbach, K. A facile method for preparing molecularly imprinted polymer spheres using spherical silica templates. J. Mater. Chem. 2002, 12, 1577–1581. [Google Scholar] [CrossRef]
  26. Giovannoli, C.; Anfossi, L.; Biagioli, F.; Passini, C.; Baggiani, C. Solid phase extraction of penicillins from milk by using sacrificial silica beads as a support for a molecular imprint. Microchim. Acta 2013, 180, 1371–1377. [Google Scholar] [CrossRef]
  27. Yilmaz, E.; Haupt, K.; Mosbach, K. The use of immobilized templates—A new approach in molecular imprinting. Angew. Chem. Int. Ed. 2000, 39, 2115–2118. [Google Scholar] [CrossRef]
  28. Ahir, S.V.; Petrov, P.G.; Terentjev, E.M. Rheology at the phase transition boundary: 2. Hexagonal phase of Triton X-100 surfactant solution. Langmuir 2002, 18, 9140–9148. [Google Scholar] [CrossRef]
  29. Liu, S.Q.; Bakovic, L.; Chen, A.C. Specific binding of glycoproteins with poly(aniline boronic acid) thin film. J. Electroanal. Chem. 2006, 591, 210–216. [Google Scholar] [CrossRef]
  30. Shoji, E.; Freund, M.S. Potentiometric saccharide detection based on the pKa changes of poly(aniline boronic acid). J. Am. Chem. Soc. 2002, 124, 12486–12493. [Google Scholar] [CrossRef]
  31. Feng, L.; Liu, Y.; Tan, Y.; Hu, J. Biosensor for the determination of sorbitol based on molecularly imprinted electro synthesized polymers. Biosens. Bioelectron. 2004, 19, 1513–1519. [Google Scholar] [CrossRef]
  32. Cheng, Z.L.; Wang, E.K.; Yang, X.R. Capacitive detection of glucose using molecularly imprinted polymers. Biosens. Bioelectron. 2001, 16, 179–185. [Google Scholar] [CrossRef]
  33. Sayyah, S.M.; Abd El-Rehim, S.S.; El-Deeb, M.M.; Kamal, S.M.; Azooz, R.E. Electropolymerization of p-phenylenediamine on Pt-electrode from aqueous acidic solution: Kinetics, mechanism, electrochemical studies, and characterization of the polymer obtained. J. Appl. Polym. Sci. 2010, 117, 943–952. [Google Scholar] [CrossRef]
  34. Sayyah, S.M.; Ei-Rabiey, M.M.; El-Rehim, S.S.A.; Azooz, R.E. Electropolymerization kinetics of a binary mixture of pyrrole and o-aminobenzoic acid and characterization of the obtained polymer films. J. Appl. Polym. Sci. 2008, 109, 1643–1653. [Google Scholar] [CrossRef]
  35. Mackay, R.A.; Texter, J. Electrochemistry in colloids and dispersions. J. Chem. Educ. 1993, 70. [Google Scholar] [CrossRef]
  36. Raoof, J.-B.; Ojani, R.; Hosseini, S.R. Electrochemical fabrication of novel Pt/poly (m-toluidine)/Triton X-100 composite catalyst at the surface of carbon nanotube paste electrode and its application for methanol oxidation. Int. J. Hydrogen Energy 2011, 36, 52–63. [Google Scholar] [CrossRef]
  37. Girija, T.C.; Sangaranarayanan, M.V. Polyaniline-based nickel electrodes for electrochemical supercapacitors—Influence of Triton X-100. J. Power Sources 2006, 159, 1519–1526. [Google Scholar] [CrossRef]
  38. Kupila, E.L.; Kankare, J. Electropolymerization of pyrrole—Effects of pH and anions on the conductivity and growth-kinetics of polypyrrole. Synth. Met. 1993, 55, 1402–1405. [Google Scholar] [CrossRef]
  39. Boogaerts, J.G.; Lafont, N.D.; Carlino, S.; Noel, E.; Raynal, P.; Goffinet, G.; Legros, F.J. Biodistribution of liposome-associated bupivacaine after extradural administration to rabbits. Br. J. Anaesth. 1995, 75, 319–325. [Google Scholar] [CrossRef]
  40. Corciova, A. Spectrophotometric method for determination of bupivacaine hydrochloride in pharmaceutical preparations. Eur. Chem. Bull. 2013, 2, 554–557. [Google Scholar]
  41. Siva Rama Krishna, V.; Bhat, N.; Amrutur, B.; Chakrapani, K.; Sampath, S. Detection of Glycated Hemoglobin Using 3-Aminophenylboronic Acid Modified Graphene Oxide. In Proceedings of 2011 IEEE/NIH Life Science Systems and Applications Workshop (LiSSA), Bethesda, MD, USA, 7–8 April 2011; pp. 1–4.
  42. Zhang, Y.-P.; Lee, S.-H.; Reddy, K.R.; Gopalan, A.I.; Lee, K.-P. Synthesis and characterization of core-shell SiO2 nanoparticles/poly(3-aminophenylboronic acid) composites. J. Appl. Polym. Sci. 2007, 104, 2743–2750. [Google Scholar] [CrossRef]
  43. Pham, Q.L.; Haldorai, Y.; van Hoa, N.; Tuma, D.; Shim, J.-J. Facile synthesis of poly(p-phenylenediamine)/MWCNT nanocomposites and characterization for investigation of structural effects of carbon nanotubes. Bull. Mater. Sci. 2011, 34, 37–43. [Google Scholar] [CrossRef]
  44. Li, X.G.; Huang, M.R.; Chen, R.F.; Jin, Y.; Yang, Y.L. Preparation and characterization of poly(p-phenylenediamine-co-xylidine). J. Appl. Polym. Sci. 2001, 81, 3107–3116. [Google Scholar] [CrossRef]
  45. Brewer, S.H.; Allen, A.M.; Lappi, S.E.; Chasse, T.L.; Briggman, K.A.; Gorman, C.B.; Franzen, S. Infrared detection of a phenylboronic acid terminated alkane thiol monolayer on gold surfaces. Langmuir 2004, 20, 5512–5520. [Google Scholar]
  46. DrugBank: Bupivacaine (DB00297). Available online: http://www.drugbank.ca/drugs/DB00297 (accessed on 14 March 2014).
  47. DrugBank: M-Aminophenylboronic Acid (DB01896). Available online: http://www.drugbank.ca/drugs/DB01896 (accessed on 14 March 2014).
  48. O’Shannessy, D.J.; Brighma-Burke, M.; Soneson, K.K.; Hensley, P.; Brooks, I. Determination of rate and equilibrium binding constants for macromolecular interactions using surface plasmon resonance: Use of nonlinear least squares analysis methods. Anal. Biochem. 1993, 212, 457–468. [Google Scholar] [CrossRef]
  49. Morton, T.A.; Myszka, D.G.; Chaiken, I.M. Interpreting complex binding-kinetics from optical biosensors—A comparison of analysis by linearization, the integrated rate-equation, and numerical-integration. Anal. Biochem. 1995, 227, 176–185. [Google Scholar] [CrossRef]
  50. Navratilova, I.; Skladal, P.; Viklicky, V. Development of piezoelectric immunosensors for measurement of albuminuria. Talanta 2001, 55, 831–839. [Google Scholar] [CrossRef]
  51. Skladal, P.; Horacek, J. Kinetic studies of affinity interactions: Comparison of piezoelectric and resonant mirror-based biosensors. Anal. Lett. 1999, 32, 1519–1529. [Google Scholar] [CrossRef]
  52. Pribyl, J.; Hepel, M.; Skladal, P. Piezoelectric immunosensors for polychlorinated biphenyls operating in aqueous and organic phases. Sens. Actuator B Chem. 2006, 113, 900–910. [Google Scholar] [CrossRef]
  53. Halamek, J.; Hepel, M.; Skladal, P. Investigation of highly sensitive piezoelectric immunosensors for 2,4-dichlorophenoxyacetic acid. Biosens. Bioelectron. 2001, 16, 253–260. [Google Scholar] [CrossRef]
  54. Pietrzyk, A.; Suriyanarayanan, S.; Kutner, W.; Chitta, R.; Zandler, M.E.; D’Souza, F. Molecularly imprinted polymer (MIP) based piezoelectric microgravimetry chemosensor for selective determination of adenine. Biosens. Bioelectron. 2010, 25, 2522–2529. [Google Scholar] [CrossRef]
  55. Horacek, J.; Skladal, P. Effect of organic solvents on immunoassays of environmental pollutants studied using a piezoelectric biosensor. Anal. Chim. Acta 2000, 412, 37–45. [Google Scholar] [CrossRef]
  56. Skladal, P. Piezoelectric quartz crystal sensors applied for bioanalytical assays and characterization of affinity interactions. J. Braz. Chem. Soc. 2003, 14, 491–502. [Google Scholar] [CrossRef]
  57. Dincel, A.; Basci, N.E. An experimental design approach to selecting the optimum LC conditions for the determination of local anaesthetics. Chromatographia 2007, 66, S81–S85. [Google Scholar] [CrossRef]
  58. Venkateshwaran, T.G.; Stewart, J.T. HPLC determination of morphine-hydromorphone-bupivacaine and morphine-hydromorphone-tetracaine mixtures in 0.9% sodium chloride injection. J. Liq. Chromatogr. 1995, 18, 565–578. [Google Scholar] [CrossRef]
  59. Fijalek, Z.; Baczynski, E.; Piwonska, A.; Warowna-Grzeskiewicz, M. Determination of local anaesthetics and their impurities in pharmaceutical preparations using HPLC method with amperometric detection. J. Pharm. Biomed. Anal. 2005, 37, 913–918. [Google Scholar] [CrossRef]
  60. Lindberg, R.L.P.; Pihlajamaki, K.K. High-performance liquid-chromatographic determination of bupivacaine in human-serum. J. Chromatogr. A 1984, 309, 369–374. [Google Scholar] [CrossRef]
  61. Shoukry, A.F.; Issa, Y.M.; Elshiekh, R.; Zareh, M. New ion-selective electrodes for determination of bupivacaine and oxybuprocaine. Anal. Lett. 1991, 24, 1581–1590. [Google Scholar] [CrossRef]
  62. Wang, C.; Chen, D.; Jiao, X. Lyotropic liquid crystal directed synthesis of nanostructured materials. Sci. Tech. Adv. Mater. 2009, 10. [Google Scholar] [CrossRef]
  63. Agha, H.; Fleury, J.B.; Galerne, Y. Micro-wires self-assembled and 3D-connected with the help of a nematic liquid crystal. Eur. Phys. J. E Soft Matter 2012, 35. [Google Scholar] [CrossRef]
  64. Haegel, F.H.; Schlupen, J.; Schultze, J.W.; Winkels, S.; Stromberg, C. Anodic polymerization of thiophene derivatives from microemulsions and liquid crystals. Electrochim. Acta 2001, 46, 3973–3984. [Google Scholar] [CrossRef]
  65. Song, G.; Han, J.; Bo, J.; Guo, R. Synthesis of polyaniline nanostructures in different lamellar liquid crystals and application to lubrication. J. Mater. Sci. 2009, 44, 715–720. [Google Scholar]
  66. Kawabata, K.; Yoneyama, H.; Goto, H. Uniaxially ordered conjugated polymer film prepared by electrochemical polymerization in a nematic liquid crystal with rubbing orientation method showing redox-driven tunable dichroism. Polym. Chem. 2010, 1, 1606–1608. [Google Scholar] [CrossRef] [Green Version]
  67. Yu, Z.X.; Westerlund, D. Direct injection of large volumes of plasma in a column-switching system for the analysis of local anaesthetics. II. Determination of bupivacaine in human plasma with an alkyl-diol silica precolumn. J. Chromatogr. A 1996, 725, 149–155. [Google Scholar] [CrossRef]

Appendix

Figure A1: Cyclic voltammograms.
Figure A2: UV-vis spectra from template elution studies.
Figure A3: SEM studies.
Figure A4: QCM studies of MIP and REF.
Figure A5: Concentration dependence of rate constants (1).
Figure A6: Concentration dependence of rate constants (1, 5 and 6).
Biosensors 04 00090 g007 1024
Figure A1. Cyclic voltammograms for the electrochemical co-polymerization of 5 mM of (2) and 25 mM of (3) in the presence (A) and absence (B) of 1 mM bupivacaine, in 0.2 M Na2SO4 aqueous solution at pH 8.0 on the gold coated quartz electrode. Potential scan rate was 0.05 V/s. Curves 1 and 2 denotes the first and fifth cycle of the cyclic voltammogram.
Figure A1. Cyclic voltammograms for the electrochemical co-polymerization of 5 mM of (2) and 25 mM of (3) in the presence (A) and absence (B) of 1 mM bupivacaine, in 0.2 M Na2SO4 aqueous solution at pH 8.0 on the gold coated quartz electrode. Potential scan rate was 0.05 V/s. Curves 1 and 2 denotes the first and fifth cycle of the cyclic voltammogram.
Biosensors 04 00090 g007
Biosensors 04 00090 g008 1024

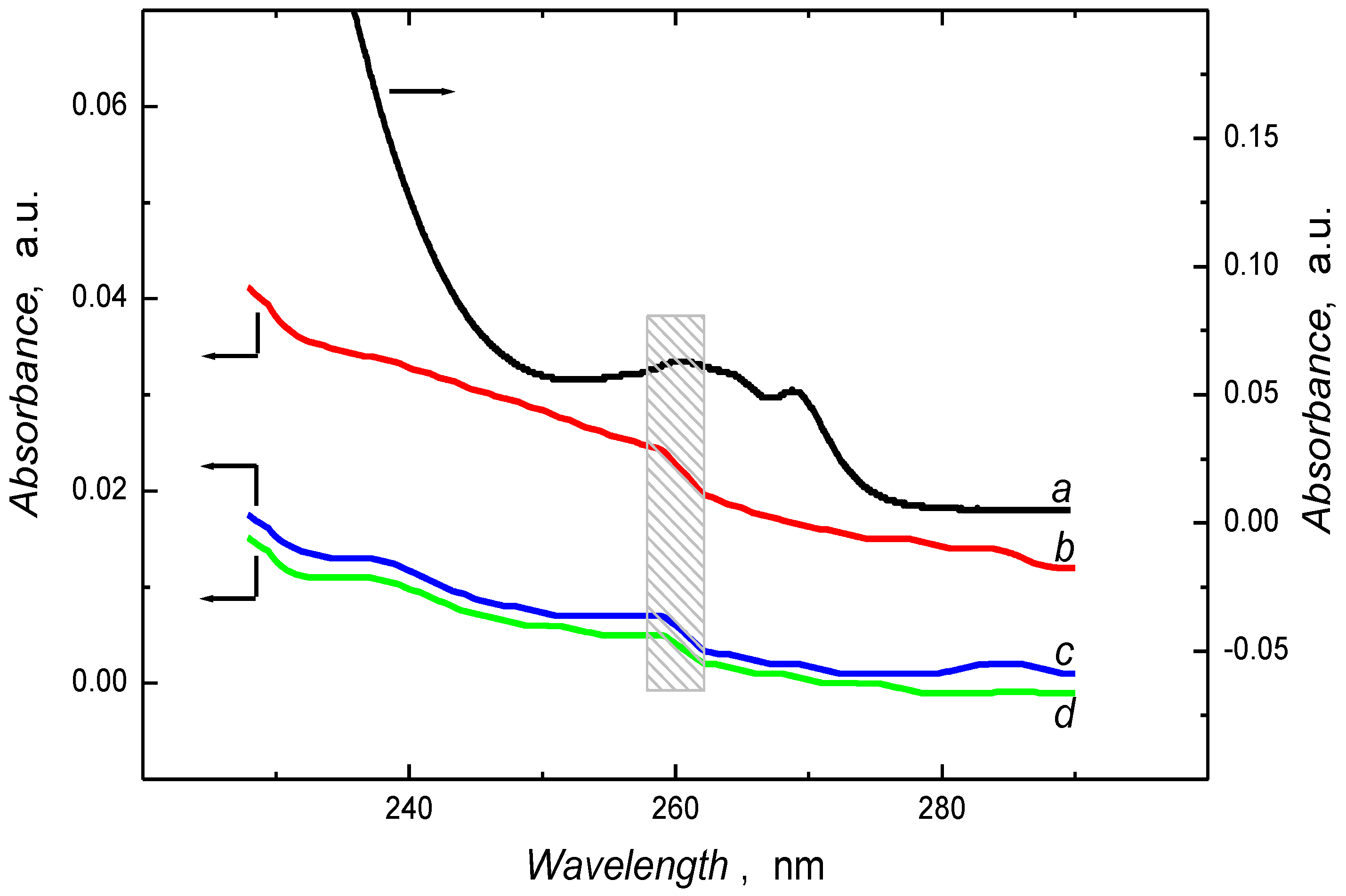

Figure A2. UV-vis spectra of 5 mM NaOH solution containing (a) 0.5 µM bupivacaine, (b) first, (c) second and (d) fourth extract of the bupivacaine templated MIP film. Bupivacaine was extracted from MIP film by washing with 5 mM NaOH.
Figure A2. UV-vis spectra of 5 mM NaOH solution containing (a) 0.5 µM bupivacaine, (b) first, (c) second and (d) fourth extract of the bupivacaine templated MIP film. Bupivacaine was extracted from MIP film by washing with 5 mM NaOH.
Biosensors 04 00090 g008
Biosensors 04 00090 g009 1024
Figure A3. Scanning electron microscope (SEM) studies of the (A) MIP and (B) REF film coated Au/quartz resonators prepared in either LC or aqueous medium, respectively. Inset in (A and B) refers to the histogram of the thickness of the nanowires calculated with 40 entities from the SEM picture.
Figure A3. Scanning electron microscope (SEM) studies of the (A) MIP and (B) REF film coated Au/quartz resonators prepared in either LC or aqueous medium, respectively. Inset in (A and B) refers to the histogram of the thickness of the nanowires calculated with 40 entities from the SEM picture.
Biosensors 04 00090 g009
Biosensors 04 00090 g010 1024
Figure A4. Variation in the resonant frequency of the gold-coated quartz resonator overlaid with bupivacaine-templated MIP and REF (NIP) film, prepared in aqueous conditions, upon injection of analyte (1) under FIA condition. Concentration of the analyte injected are (a, a') 2, (b, b') 1, (c, c') 0.7, (d, d') 0.5 and (e, e') 0.3 mM. Inset denotes the FIA calibration plots for (1) on MIP (i) and REF (ii) films. Volume of the injected analyte was 50 µL. Phosphate buffer solution (0.01 M) containing 150 mM NaCl at pH = 8.5 was used as carrier solution at the flow rate of 25 µL/min. Volume of the injected analyte was 75 µL.
Figure A4. Variation in the resonant frequency of the gold-coated quartz resonator overlaid with bupivacaine-templated MIP and REF (NIP) film, prepared in aqueous conditions, upon injection of analyte (1) under FIA condition. Concentration of the analyte injected are (a, a') 2, (b, b') 1, (c, c') 0.7, (d, d') 0.5 and (e, e') 0.3 mM. Inset denotes the FIA calibration plots for (1) on MIP (i) and REF (ii) films. Volume of the injected analyte was 50 µL. Phosphate buffer solution (0.01 M) containing 150 mM NaCl at pH = 8.5 was used as carrier solution at the flow rate of 25 µL/min. Volume of the injected analyte was 75 µL.
Biosensors 04 00090 g010
Biosensors 04 00090 g011 1024
Figure A5. Dependence of observed rate constant, kobs, on the concentration of (1) upon binding with template extracted MIP and REF film prepared in LC medium and aqueous medium, respectively. kobs values were calculated by non-linear curve fitting of the binding part of the frequency vs. time trace.
Figure A5. Dependence of observed rate constant, kobs, on the concentration of (1) upon binding with template extracted MIP and REF film prepared in LC medium and aqueous medium, respectively. kobs values were calculated by non-linear curve fitting of the binding part of the frequency vs. time trace.
Biosensors 04 00090 g011
Biosensors 04 00090 g012 1024
Figure A6. Dependence of observed rate constant, kobs, on the concentration of analyte (1) bupivacaine, (2) ropivacaine and (3) mepivacaine upon binding with template extracted MIP prepared in LC medium. kobs values were calculated by non-linear curve fitting of the binding part of the frequency vs. time trace.
Figure A6. Dependence of observed rate constant, kobs, on the concentration of analyte (1) bupivacaine, (2) ropivacaine and (3) mepivacaine upon binding with template extracted MIP prepared in LC medium. kobs values were calculated by non-linear curve fitting of the binding part of the frequency vs. time trace.
Biosensors 04 00090 g012

Share and Cite

MDPI and ACS Style

Suriyanarayanan, S.; Nawaz, H.; Ndizeye, N.; Nicholls, I.A. Hierarchical Thin Film Architectures for Enhanced Sensor Performance: Liquid Crystal-Mediated Electrochemical Synthesis of Nanostructured Imprinted Polymer Films for the Selective Recognition of Bupivacaine. Biosensors 2014, 4, 90-110. https://doi.org/10.3390/bios4020090

AMA Style

Suriyanarayanan S, Nawaz H, Ndizeye N, Nicholls IA. Hierarchical Thin Film Architectures for Enhanced Sensor Performance: Liquid Crystal-Mediated Electrochemical Synthesis of Nanostructured Imprinted Polymer Films for the Selective Recognition of Bupivacaine. Biosensors. 2014; 4(2):90-110. https://doi.org/10.3390/bios4020090

Chicago/Turabian Style

Suriyanarayanan, Subramanian, Hazrat Nawaz, Natacha Ndizeye, and Ian A. Nicholls. 2014. "Hierarchical Thin Film Architectures for Enhanced Sensor Performance: Liquid Crystal-Mediated Electrochemical Synthesis of Nanostructured Imprinted Polymer Films for the Selective Recognition of Bupivacaine" Biosensors 4, no. 2: 90-110. https://doi.org/10.3390/bios4020090

APA Style

Suriyanarayanan, S., Nawaz, H., Ndizeye, N., & Nicholls, I. A. (2014). Hierarchical Thin Film Architectures for Enhanced Sensor Performance: Liquid Crystal-Mediated Electrochemical Synthesis of Nanostructured Imprinted Polymer Films for the Selective Recognition of Bupivacaine. Biosensors, 4(2), 90-110. https://doi.org/10.3390/bios4020090

Article Metrics

Back to TopTop
