Enhanced BSA Detection Precision: Leveraging High-Performance Dual-Gate Ion-Sensitive Field-Effect-Transistor Scheme and Surface-Treated Sensing Membranes

by
Yeong-Ung Kim
and
Won-Ju Cho
*
Department of Electronic Materials Engineering, Kwangwoon University, Gwangun-ro 20, Nowon-gu, Seoul 01897, Republic of Korea
*
Author to whom correspondence should be addressed.
Biosensors 2024, 14(3), 141; https://doi.org/10.3390/bios14030141
Submission received: 29 January 2024 / Revised: 11 March 2024 / Accepted: 11 March 2024 / Published: 13 March 2024
(This article belongs to the Special Issue Transistor‐Based Biosensors: From Theory to Real Devices)
Browse Figures
Versions Notes

Abstract

:
Bovine serum albumin (BSA) is commonly incorporated in vaccines to improve stability. However, owing to potential allergic reactions in humans, the World Health Organization (WHO) mandates strict adherence to a BSA limit (≤50 ng/vaccine). BSA detection with conventional techniques is time-consuming and requires specialized equipment. Efficient alternatives such as the ion-sensitive field-effect transistor (ISFET), despite rapid detection, affordability, and portability, do not detect BSA at low concentrations because of inherent sensitivity limitations. This study proposes a silicon-on-insulator (SOI) substrate-based dual-gate (DG) ISFET platform to overcome these limitations. The capacitive coupling DG structure significantly enhances sensitivity without requiring external circuits, owing to its inherent amplification effect. The extended-gate (EG) structure separates the transducer unit for electrical signal processing from the sensing unit for biological detection, preventing chemical damage to the transducer, accommodating a variety of biological analytes, and affording easy replaceability. Vapor-phase surface treatment with (3-Aminopropyl) triethoxysilane (APTES) and the incorporation of a SnO2 sensing membrane ensure high BSA detection efficiency and sensitivity (144.19 mV/log [BSA]). This DG-FET-based biosensor possesses a simple structure and detects BSA at low concentrations rapidly. Envisioned as an effective on-site diagnostic tool for various analytes including BSA, this platform addresses prior limitations in biosensing and shows promise for practical applications.

1. Introduction

The ongoing global pandemic caused by COVID-19 has created a heightened awareness of biological stability in crucial medical materials, the lack of which is a pressing concern [1,2,3,4,5]. This awareness is particularly pronounced with regard to vaccines and has led to an increased demand for the evaluation of biological stability using precise detection equipment capable of assessing various biological factors [6,7,8,9]. Bovine serum albumin (BSA) is a protein that is widely used in biochemistry and molecular biology and is a vital raw material for vaccine production. However, its potential allergenicity in humans necessitates the strict limitation of BSA content. The World Health Organization (WHO)’s recommended BSA limit is ≤50 ng per vaccine [10,11,12,13]. Consequently, biosensors that are capable of precisely detecting BSA levels are critically needed.
Traditional methods that have been used for BSA detection, such as the Bradford protein assay, have drawbacks such as extended detection times and the requirement for specialized equipment [14,15,16]. To address these challenges, the ion-sensitive field-effect transistor (ISFET) has emerged as an effective solution that offers rapid detection, affordability, and portability [17,18,19,20,21]. Developed by Bergveld in the early 1970s, the ISFET is a type of biosensor that analyzes the electrical characteristics of the detection material based on the interaction between the sensing membrane and ions. Its compatibility with CMOS processes enables its mass production and miniaturization. However, ISFETs have critical limitations owing to the Nernst limit (59.14 mV/pH at room temperature), which results in reduced sensitivity [22,23,24,25].
To address these challenges, we propose an alternative dual-gate field-effect transistor (DG-FET)-based BSA-detection biosensor platform. To enhance its detection capabilities, we utilized a dual-gate (DG) structure and capacitive coupling effects [26,27,28,29,30,31]. The capacitive coupling effect is determined by the capacitance ratio between the top-gate (TG) oxide and the bottom-gate (BG) oxide and achieves high sensitivity without requiring additional circuits, owing to its inherent amplification effect. Additionally, we adopted an extended-gate (EG) structure in which the transducer unit for electrical signal processing and the sensing unit for biological detection are separate. This offers advantages such as the prevention of chemical damage to the transducer and the accommodation of a variety of biological analytes [32,33,34,35]. The economic viability and ease of EG production make it readily replaceable; thus, it is an excellent means of detecting irreversible reactions [36,37,38,39]. Furthermore, its simple structure provides significant advantages for rapid and diverse transformation to detect biochemical signals via various surface treatments. We performed a vapor-phase surface treatment with (3-Aminopropyl) triethoxysilane (APTES) to incorporate BSA detection capability [40,41,42]. In addition to the commonly used SiO2 sensing membrane, the EG sensing membrane incorporated a SnO2 sensing membrane, which has been reported by other biochemical sensor studies to display high sensitivity and facilitate comparative analysis. By leveraging the high detection efficiency of the SnO2 sensing membrane, we aimed to achieve precise detection capabilities and extend its application to BSA detection [43,44,45,46].
In this study, we meticulously evaluated characteristics such as the sensing capability and long-term stability of the developed DG-FET-based BSA-detection biosensor platform [47,48,49] with the aim to validate its suitability for detecting various biological molecules and compounds to ensure safe manufacturing and quality assessment of pharmaceuticals. Based on the results, we envision that the proposed sensor platform will play a pivotal role in enhancing patient safety, public health protection, and the overall advancement of biosensing technologies.

2. Materials and Methods

2.1. Material Specifications

The materials used in this study and their specifications are as follows: glass substrate (Corning 7059; Corning Inc., Corning, NY, USA), bovine serum albumin (BSA; purity = 98%, Sigma-Aldrich, St. Louis, MO, USA), triethylamine (C6H15N; purity = 98%, Sigma-Aldrich, St. Louis, MO, USA), sodium chloride (NaCl; purity = 99%, Sigma-Aldrich, St. Louis, MO, USA), calcium chloride (CaCl2; purity = 99%, Sigma-Aldrich, St. Louis, MO, USA), and potassium chloride (KCl; purity = 99%, Sigma-Aldrich, St. Louis, MO, USA).

2.2. Fabrication of the DG-FET as Transducer for the BSA-Detection Biosensor Platform

In this study, a double-gate FET, which acts as a pivotal transducer unit in the BSA-detection biosensor platform, was fabricated on a silicon-on-insulator (SOI) substrate. To optimize the amplification potential of capacitive coupling, tantalum oxide (Ta2O5), which is a high-k material, was selected as the TG dielectric. To minimize the interface defects with the silicon channel, Ta2O5 was deposited on the silicon dioxide (SiO2) layer. The SOI substrate comprises a 100 nm thick p-type top Si layer and a 200 nm thick buried oxide (BOX) layer. The Radio Corporation of America (RCA) cleaning process was used to eliminate contaminants on the substrate. Subsequently, a 150 nm thick dummy oxide layer was deposited using radiofrequency (RF) magnetron sputtering. The source and drain regions were fabricated on the dummy oxide layer using photolithography and wet-etching techniques employing a 30:1 buffered oxide etchant (BOE) solution as the etchant. Phosphosilicate glass (PSG) doping was performed using a thermal diffusion process on the patterned source and drain regions.
The PSG solution was applied via spin-coating at a speed of 2000 rpm for a duration of 20 s, and then solidified on a hot plate at 200 °C for 10 min. To activate the dopant, rapid thermal annealing (RTA) was conducted at 950 °C for a duration of 30 s in an O2/N2 gas environment. Following activation, the remaining PSG and dummy oxide layers were eliminated utilizing a 30:1 BOE. Subsequently, the active area was delineated through reactive ion etching (RIE) after photolithography patterning, resulting in a channel width of 10 μm. A high-k engineered dielectric layer comprising hybrid SiO2 and Ta2O5 layers was applied to the TG oxide. To improve the interface properties with the Si channel and reduce the leakage current of Ta2O5, a 20 nm thick SiO2 layer was first deposited, followed by an 80 nm thick Ta2O5 layer. To achieve a 5-fold amplification ratio, the hybrid layer used as the TG oxide was designed to have an equivalent oxide thickness (EOT) of less than 1/5 compared with the SiO2 layer used as the BG oxide. Subsequently, a TG electrode was fabricated using the deposition of a 150 nm thick Al thin-film layer using an electron-beam evaporator. To enhance the electrical properties of this electrode, forming gas annealing (FGA) was carried out at 450 °C for 30 min (in a 5% H2/N2 gas ambient). Figure 1a illustrates the overall structure of the DG-FET-based BSA-detection biosensor platform, and Figure 1b shows the optical microscopy image of the fabricated DG-FET, providing visual insight into the sophisticated structure of the proposed platform. Figure 1c shows a photograph of the BSA-detection EG, providing visual insight into the implementation of the DG-FET-based biosensor platform. These detailed fabrication steps ensured the creation of a highly sensitive and stable transducer for this BSA-detection biosensor platform.

2.3. DG Structure and Capacitive Coupling Effect of Transducer

Figure 2 illustrates the simplified equivalent circuit of the DG-FET-based sensor platform in single-gate (SG) and DG operation modes. As this interpretation is based on the operational principle of the DG-FET without incorporating a surface-treated EG, we elucidated this as in the case of a basic ISFET. In an ISFET featuring a DG structure, the sensing process is segregated into two operation modes: the SG mode and the DG mode. In SG mode, only one gate is utilized, whereas in DG mode, both gates are employed simultaneously. During SG mode operation, surface potential detection and voltage sweeping activities are conducted exclusively at the TG, while the BG remains grounded. In this configuration, the threshold voltage shift (ΔVTH) is determined solely based on the change in surface potential (Δψ), as expressed in Equation (1) [50,51,52]:
Δ V T H T G = − Δ ψ
Conversely, in the DG mode, voltage sweeping is performed using the bottom gate, whereas changes in the surface potential are detected using the top gate. In this case, a capacitive coupling effect arises between the dielectric layers of the TG and BG. The BG electrode amplifies the alteration in surface potential generated by the TG electrode, surpassing the Nernst limit. Here, the movement in the transfer curve due to Δψ is amplified according to the capacitance ratio of the TG and BG dielectric layers. The relationship between V T H T G and V T H B G is expressed in terms of the VTH of the TG and BG, as shown in Equation (2). By rearranging Equations (1) and (2), we obtain Equation (3) [53,54,55]:
Δ V T H B G = C T O X C B O X · Δ V T H T G
Δ V T H B G = − C T O X C B O X · Δ ψ
Therefore, the change in surface potential induced during detection is amplified at the bottom gate by the ratio of C T O X / C B O X .

2.4. Fabrication of the EG for the BSA-Detection Biosensor Platform

A glass substrate (dimensions: 1.5 cm × 2.5 cm) was used to fabricate the EG sensing unit. The electrode for the EG was deposited using a 300 nm thick indium tin oxide (ITO) layer, and two types of EG units were prepared by adopting SiO2 or SnO2 as the sensing membrane. The thickness of both sensing membranes was set to 50 nm, and they were deposited using the same RF magnetron sputtering method. After physical assembly, the sensing membranes were surface functionalized for BSA detection. Initially, the fabricated EG was subjected to a 30 s O2 plasma treatment to induce the formation of OH groups on the surface [56,57]. Subsequently, APTES exposure facilitated amino functionalization. This specific functionalization was aimed at enabling the detection of BSA (a polymer protein) and was achieved by exposing APTES to the OH groups developed on the surface of the sensing membrane through the vapor-phase reaction method [40,41]. To minimize the impact of humidity, a 5 L desiccator was purged with argon gas before the commencement of the process. Two trays were placed inside the desiccator, and 30 μL of APTES and 10 μL of triethylamine were pipetted onto each tray. After preparation, the O2 plasma-treated EGs were placed in a desiccator, and APTES and triethylamine were removed after 120 min of incubation. The desiccator was filled with argon gas. Finally, the EGs were stored in a desiccator for 48 h to cure the APTES coatings [58,59]. The manufacturing process of BSA-detectable EG is illustrated in Figure 3.

2.5. Device Characterization

The electrical properties of the proposed sensor platform were assessed during sensing operations employing an Agilent 4156 B precision semiconductor parameter analyzer (Agilent Technologies, Santa Clara, CA, USA). The sensing unit and the transducer unit were connected using an RG58A 9222 electrical cable (BELDEN, St. Louis, MO, USA). To mitigate potential interference from external factors such as light and noise, all measurements were performed within a light-attenuating enclosure. The reference electrode (Horiba 2080-06T; Kyoto, Japan) was submerged in the BSA buffer solution within the PDMS reservoir located on the EG unit and linked to the TG of the DG-FET. The sensitivity of the DG-FET-based BSA-detection biosensor platform was determined by measuring the change in the transfer curve at a drain current of 1 nA (constant-current method) corresponding to the BSA concentration of the buffer solution. This measurement method involves designating the point where a specific current value is reached during the detection of the analyte as the ‘reference voltage (VREF)’ and tracking its changes. For sensitivity measurements, BSA buffer solutions with concentrations ranging from 10 nM to 100 μM were prepared by dissolving BSA powder in deionized water. Sensitivity extraction was defined as the difference in VREF when detecting deionized water (zero BSA concentration) and each concentration of the BSA buffer solution; this was used to quantify the response of the sensor to varying BSA concentrations. Additionally, the non-ideal effects of the proposed sensor platform were assessed by evaluating the drift effects. To evaluate reliability during continuous measurements, drift effects were investigated by exposing the sensing membrane of the EG to a 100 μM BSA buffer solution for a duration of 10 h and monitoring the ΔVREF between the initial and final values.

3. Results and Discussion

3.1. Electrical Characteristics of the DG-FET

Figure 4 illustrates the electrical characteristics of the proposed transducer device in both SG and DG operation modes. The electrical characteristics were evaluated using transfer (ID–VG) and output (ID–VD) curve measurements. For the transfer curve measurements, VD was set to 1 V in both SG and DG modes. In the output curve measurements, VG–VTH was varied from 0 to 1 V in 11 steps (1 step = 0.1), and the VD sweep range was set from 0 to 1 V. Table 1 summarizes the electrical parameters of the fabricated transducer based on data from Figure 4. In the SG mode, the device exhibited a subthreshold swing (SS) of 137.76, an ON/OFF current ratio (ION/IOFF) of 1.52 × 108, and a field-effect mobility (μFE) of 140.51. In contrast, in the DG mode, it demonstrated an SS of 213.56, an ION/IOFF ratio of 8.44 × 107, and a μFE of 384.55, respectively. In the SG mode, in which operation occurs through the TG, the characteristics of the TG oxide with high-k materials play a significant role. This confirms the excellent SS characteristics stemming from the outstanding electric field transferability of the TG oxide layer. In the DG mode, enhanced channel control was achieved while operating through both TG and BG, which allows for a higher current value.

3.2. Sensing Characteristics of the DG-FET-Based BSA-Detection Biosensor Platform

The stringent WHO guidelines, which stipulate a maximum allowable BSA concentration of ≤50 ng/vaccine, pose a considerable challenge for electrochemical detection in solutions at extremely low BSA concentrations [10]. However, the engineered DG-FET-based BSA-detection biosensor platform is distinguished by its capacity to precisely self-amplify minute potentials, which effectively demonstrates its proficiency in detecting BSA levels with remarkable sensitivity. An EG with integrated BSA sensing capabilities was used to perform the measurements, as outlined in the illustration of the surface treatment process in Figure 3. The BSA detection characteristics of the prepared biosensor platform were evaluated with respect to BSA concentration, and the ΔVREF for various BSA buffer solutions was extracted at 1 nA, as shown in Figure 5. At concentrations below 10−9 M, the linearity of the transfer curve shift was not maintained, making accurate detection impossible. Therefore, the detection limit was set to 10−8 M, and concentrations were extracted in the range of 10−8 to 10−4 M. Figure 5a,b show the transfer characteristic curves as a function of BSA concentration for the SG and DG sensing modes, respectively. Notably, for both the SiO2 and SnO2 sensing membranes, the observed ΔVREF in the DG mode surpasses that in the SG mode. This observation underscores that the BSA detection capability in DG mode sensing, especially with the SnO2 sensing membrane used in this study, outperforms SG mode sensing using the conventional SiO2 sensing membrane, owing to the amplification effect of capacitive coupling in the DG mode.
The BSA sensitivity extracted from Figure 5 is shown in Figure 6. The sensitivity values were determined as the averages of the measurement results from five samples. Owing to the irreversible nature of the detection response in the BSA-detection EG, each individual EG was used as a disposable unit for precise detection. The SiO2 sensing membrane exhibited sensitivities of 14.83 mV/log [BSA] in SG mode and 71.59 mV/log [BSA] in DG mode. Meanwhile, the SnO2 sensing membrane demonstrated sensitivities of 29.08 mV/log [BSA] in SG mode and an impressive 141.19 mV/log [BSA] in DG mode. Both sensing membranes demonstrated approximately 4.8 times increased sensitivity owing to the amplification effect of the capacitive coupling in the DG mode. Notably, the SnO2 sensing membrane, with exceptional detection capabilities, achieved a remarkable sensitivity of 141.19 mV/log [BSA] after amplification. These results indicate that the proposed DG-FET-based biosensor effectively detects BSA, proving its efficiency as a biosensor platform with high sensitivity for detecting minute quantities of biomolecules via self-amplification.

3.3. Selectivity Characteristics of the DG-FET-Based BSA-Detection Biosensor

To assess the selective detection capability of the fabricated DG-FET-based BSA-detection biosensor for biological analytes, sensitivity characteristics were compared for NaCl, CaCl2, KCl, and BSA buffer solutions. Figure 7a,b illustrate the sensitivity characteristics in the SG and DG sensing modes for each buffer solution. The sensitivity values were calculated as the averages of the measurement results from five samples. The maximum interference ratios of other ions to BSA were 17.93% in SG mode and 18.13% in DG mode for SiO2 samples, and 11.21% in SG mode and 11.37% in DG mode for SnO2 samples. This reaffirms that the SnO2 sensing membrane can provide stable and accurate BSA detection capability compared with the SiO2 sensing membrane. Moreover, the maximum interference ratios of other ions to BSA were sufficiently small to be negligible, indicating the potential utility of the proposed biosensor platform capable of BSA detection. The numerical values extracted from Figure 7 for the selectivity characteristics are presented in Table 2.

3.4. Reliability and Stability of the DG-FET-Based BSA-Detection Biosensor

This section discusses the reliability and stability of the DG-FET-based BSA-detection biosensor platform, focusing on the non-ideal effects and drift rates observed during prolonged sensing operations. Ensuring the capability to detect BSA at levels recommended by the WHO demands not only high sensitivity but also the stability of the sensor platform itself, which facilitates consistent sensing operations. Therefore, non-ideal effects were evaluated through repetitive and sustained operations under various environmental conditions. Figure 8 illustrates the drift effect of the proposed DG-FET-based BSA-detection biosensor platform. The parameters were measured for 10 h after applying a 100 μM BSA buffer solution, and the ΔVREF of the initial and final points were compared. The drift effect values were determined as the averages of the measurements from five samples. The drift effects in SG and DG modes for the SiO2 sensing membrane were 4.51 mV/h and 9.32 mV/h, and those for the SnO2 sensing membrane were 4.32 mV/h and 10.41 mV/h, respectively. In both cases, the drift effects were lower in the SG mode than in the DG mode.
Table 3 presents a comprehensive summary of the observed non-ideal effects and sensitivity values under various measurement conditions. The standard deviation (σ) values for the extracted data are indicated below the sensitivity and drift effect values. To facilitate a quantitative comparison, the sensitivity-to-drift effect ratio for each condition is also provided.
Figure 9 presents the numerical comparative data of the non-ideal effects and sensitivity values based on Table 2. Compared with that of the SiO2 sensing membrane, the numerical value of the drift effect for the SnO2 sensing membrane is higher. Furthermore, the drift effect in the DG mode surpasses that in the SG mode. However, considering the significantly higher sensitivity gain achieved through the amplification effect, this difference is negligible. Using SnO2 sensing membranes and leveraging amplification minimizes the impact of non-ideal effects, leading to the establishment of a stable sensor platform. This highlights the exceptional detection capabilities at low BSA concentration and the high stability of the proposed DG-FET-based BSA-detection biosensor platform.

4. Conclusions

In this study, we introduce a novel DG-FET-based biosensor platform for the precise detection of BSA. The proposed platform overcomes the limitations of traditional ISFETs by incorporating a DG structure into an SOI substrate. The capacitive coupling effect between the TG and BG significantly enhances sensitivity without requiring additional external circuits. This innovative design achieves rapid and sensitive detection of low concentrations of BSA, satisfying the critical requirements mandated by the WHO for applications in vaccine production. The DG-FET biosensor demonstrates excellent sensitivity, with a remarkable amplification effect in the presence of SnO2 sensing membranes. This platform exhibits superior sensitivity and stability, outperforming traditional ISFETs. Compared with sensors produced using conventional methods, which exhibit a sensitivity of 14.83 mV/log [BSA], this sensing platform achieves a significantly higher sensitivity (approximately 9.52 times) of 141.19 mV/log [BSA]. Sensitivity-to-drift effect ratio analysis revealed the robustness of the proposed biosensor, particularly when the SnO2 sensing membranes were used in the DG mode. Our findings suggest that the developed DG-FET-based biosensor can potentially detect various biological analytes with high precision. Hence, future studies are required to extend the capacity of the proposed biosensor to detect various biological molecules and compounds to ensure the continued improvement in the stability and reliability of biosensing technology. We believe that the significant advances presented in this study could potentially revolutionize biosensor applications in terms of biological stability and detection and contribute to the ongoing efforts to enhance the accuracy and efficiency of biosensors, which in turn would improve safety in pharmaceutical manufacturing and quality assessment, especially in the context of global health challenges.

Author Contributions

Y.-U.K.: conceptualization, formal analysis, methodology, investigation, data curation, visualization, software, resources, and writing the original draft. W.-J.C.: conceptualization, methodology, investigation, resources, formal analysis, funding acquisition, supervision, validation, and writing the review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Korea Institute for Advancement of Technology grant, funded by the Korean government (MOTIE) (P0020967, The Competency Development Program for Industry Specialists).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Acknowledgments

The present research was conducted with the Research Grant of Kwangwoon University in 2023 and the excellent research project support of Kwangwoon University in 2023.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Das, S.; Das, S.; Ghangrekar, M.M. The COVID-19 Pandemic: Biological Evolution, Treatment Options and Consequences. Innov. Infrastruc. Solut. 2020, 5, 76. [Google Scholar] [CrossRef]
  2. Qazi, S.; Sheikh, K.; Faheem, M.; Khan, A.; Raza, K. A Coadunation of Biological and Mathematical Perspectives on the Pandemic COVID-19: A Review. Coronaviruses 2021, 2, 5–20. [Google Scholar] [CrossRef]
  3. Russell, C.J.; Hu, M.; Okda, F.A. Influenza Hemagglutinin Protein Stability, Activation, and Pandemic Risk. Trends Microbiol. 2018, 26, 841–853. [Google Scholar] [CrossRef] [PubMed]
  4. Takahashi, T.; Suzuki, T. Low-PH Stability of Influenza A Virus Sialidase Contributing to Virus Replication and Pandemic. Biol. Pharm. Bull. 2015, 38, 817–826. [Google Scholar] [CrossRef] [PubMed]
  5. Bassey, B.E.; Atsu, J.U. Global Stability Analysis of the Role of Multi-Therapies and Non-Pharmaceutical Treatment Protocols for COVID-19 Pandemic. Chaos Solitons Fractals 2021, 143, 110574. [Google Scholar] [CrossRef] [PubMed]
  6. Knezevic, I. Stability Evaluation of Vaccines: WHO Approach. Biologicals 2009, 37, 357–359. [Google Scholar] [CrossRef] [PubMed]
  7. Oude Blenke, E.; Örnskov, E.; Schöneich, C.; Nilsson, G.A.; Volkin, D.B.; Mastrobattista, E.; Almarsson, Ö.; Crommelin, D.J.A. The Storage and In-Use Stability of MRNA Vaccines and Therapeutics: Not A Cold Case. J. Pharm. Sci. 2023, 112, 386–403. [Google Scholar] [CrossRef] [PubMed]
  8. Crommelin, D.J.A.; Volkin, D.B.; Hoogendoorn, K.H.; Lubiniecki, A.S.; Jiskoot, W. The Science Is There: Key Considerations for Stabilizing Viral Vector-Based Covid-19 Vaccines. J. Pharm. Sci. 2021, 110, 627–634. [Google Scholar] [CrossRef] [PubMed]
  9. Bajrovic, I.; Schafer, S.C.; Romanovicz, D.K.; Croyle, M.A. Novel Technology for Storage and Distribution of Live Vaccines and Other Biological Medicines at Ambient Temperature. Sci. Adv. 2020, 6, eaau4819. [Google Scholar] [CrossRef]
  10. Requirements for Vi Polysaccharide Typhoid Vaccine, Annex 1, TRS No. 840. Available online: https://www.who.int/publications/m/item/vi-polysaccharide-typhoid-vaccine-annex-1-trs-no-840 (accessed on 16 January 2024).
  11. Khamehchian, S.; Madani, R.; Golchinfar, F.; Taghavian, M. Development of a Sandwich Enzyme-Linked Immunosorbent Assay (ELISA) for Determining of Bovine Serum Albumin (BSA) in Trivalent Measles-Mump-Rubella (MMR) Vaccines. Hum. Vaccin. 2008, 4, 375–378. [Google Scholar] [CrossRef] [PubMed]
  12. Loughney, J.W.; Lancaster, C.; Ha, S.; Rustandi, R.R. Residual Bovine Serum Albumin (BSA) Quantitation in Vaccines Using Automated Capillary Western Technology. Anal. Biochem. 2014, 461, 49–56. [Google Scholar] [CrossRef]
  13. Wang, Q.L.; Li, J.; Li, X.D.; Tao, W.J.; Ding, L.S.; Luo, P.; Qing, L.-S. An Efficient Direct Competitive Nano-ELISA for Residual BSA Determination in Vaccines. Anal. Bioanal. Chem. 2017, 409, 4607–4614. [Google Scholar] [CrossRef]
  14. Compton, S.J.; Jones, C.G. Mechanism of Dye Response and Interference in the Bradford Protein Assay. Anal. Biochem. 1985, 151, 369–374. [Google Scholar] [CrossRef]
  15. Kruger, N.J. The Bradford Method for Protein Quantitation. In The Protein Protocols Handbook; Springer: Berlin/Heidelberg, Germany, 2009; pp. 17–24. [Google Scholar] [CrossRef]
  16. Hammond, J.B.W.; Kruger, N.J. The Bradford Method for Protein Quantitation BT—New Protein Techniques. Methods Mol. Biol. 1988, 3, 25–32. [Google Scholar] [CrossRef]
  17. Van der Schoot, B.H.; Bergveld, P. ISFET Based Enzyme Sensors. Biosensors 1987, 3, 161–186. [Google Scholar] [CrossRef]
  18. Jimenez-Jorquera, C.; Orozco, J.; Baldi, A. ISFET Based Microsensors for Environmental Monitoring. Sensors 2009, 10, 61–83. [Google Scholar] [CrossRef] [PubMed]
  19. Cao, S.; Sun, P.; Xiao, G.; Tang, Q.; Sun, X.; Zhao, H.; Zhao, S.; Lu, H.; Yue, Z. ISFET-Based Sensors for (Bio)Chemical Applications: A Review. Electrochem. Sci. Adv. 2023, 3, e2100207. [Google Scholar] [CrossRef]
  20. Keeble, L.; Moser, N.; Rodriguez-Manzano, J.; Georgiou, P. ISFET-Based Sensing and Electric Field Actuation of DNA for On-Chip Detection: A Review. IEEE Sens. J. 2020, 20, 11044–11065. [Google Scholar] [CrossRef]
  21. Toumazou, C.; Georgiou, P. Piet Bergveld—40 Years of ISFET Technology: From Neuronal Sensing to DNA Sequencing. Electron. Lett. 2011, 47, 7–12. [Google Scholar] [CrossRef]
  22. Parizi, K.B.; Yeh, A.J.; Poon, A.S.Y.; Wong, H.S.P. Exceeding Nernst Limit (59 mV/PH): CMOS-Based PH Sensor for Autonomous Applications. Technical Digest. In Proceedings of the IEEE International Electron Devices Meeting (IEDM), San Francisco, CA, USA, 10–13 December 2012; pp. 24–27. [Google Scholar] [CrossRef]
  23. Chen, Y.T.; Sarangadharan, I.; Sukesan, R.; Hseih, C.Y.; Lee, G.Y.; Chyi, J.I.; Wang, Y.L. High-Field Modulated Ion-Selective Field-Effect-Transistor (FET) Sensors with Sensitivity Higher than the Ideal Nernst Sensitivity. Sci. Rep. 2018, 8, 8300. [Google Scholar] [CrossRef]
  24. Chen, Y.-T.; Hseih, C.-Y.; Sarangadharan, I.; Sukesan, R.; Lee, G.-Y.; Chyi, J.-I.; Wang, Y.-L. Beyond the Limit of Ideal Nernst Sensitivity: Ultra-High Sensitivity of Heavy Metal Ion Detection with Ion-Selective High Electron Mobility Transistors. ECS J. Solid State Sci. Technol. 2018, 7, Q176–Q183. [Google Scholar] [CrossRef]
  25. Dwivedi, P.; Singh, R.; Chauhan, Y.S. Crossing the Nernst Limit (59 MV/PH) of Sensitivity through Tunneling Transistor-Based Biosensor. IEEE Sens. J. 2021, 21, 3233–3240. [Google Scholar] [CrossRef]
  26. Knopfmacher, O.; Tarasov, A.; Fu, W.; Wipf, M.; Niesen, B.; Calame, M.; Schönenberger, C. Nernst Limit in Dual-Gated Si-Nanowire FET Sensors. Nano Lett. 2010, 10, 2268–2274. [Google Scholar] [CrossRef] [PubMed]
  27. Spijkman, M.; Smits, E.C.P.; Cillessen, J.F.M.; Biscarini, F.; Blom, P.W.M.; De Leeuw, D.M. Beyond the Nernst-Limit with Dual-Gate ZnO Ion-Sensitive Field-Effect Transistors. Appl. Phys. Lett. 2011, 98, 043502-3. [Google Scholar] [CrossRef]
  28. Harb, A.; Istanbullu, M. High Sensitive PH Sensor with Graphene Based Dual-Gate ISFET. J. NanoSci. Adv. Mater. 2023, 2, 19–24. [Google Scholar] [CrossRef]
  29. Zain, A.S.M.; Dinar, A.M.; Salehuddin, F.; Hazura, H.; Hanim, A.R.; Idris, S.K.; Hamid, A.M.A. Beyond Nernst Sensitivity of Ion Sensitive Field Effect Transistor Based on Ultra-Thin Body Box FDSOI. J. Phys. Conf. Ser. 2020, 1502, 012048. [Google Scholar] [CrossRef]
  30. Kim, Y.-U.; Cho, W.J. Self-Sensitivity Amplifiable Dual-Gate Ion-Sensitive Field-Effect Transistor Based on a High-k Engineered Dielectric Layer. Jpn. J. Appl. Phys. 2023, 62, SC1056. [Google Scholar] [CrossRef]
  31. Hyun, T.H.; Cho, W.J. High-Performance FET-Based Dopamine-Sensitive Biosensor Platform Based on SOI Substrate. Biosensors 2023, 13, 516. [Google Scholar] [CrossRef] [PubMed]
  32. Yin, L.T.; Chou, J.C.; Chung, W.Y.; Sun, T.P.; Hsiung, S.K. Separate Structure Extended Gate H+-Ion Sensitive Field Effect Transistor on a Glass Substrate. Sens. Actuators B Chem. 2000, 71, 106–111. [Google Scholar] [CrossRef]
  33. Chi, L.L.; Chou, J.C.; Chung, W.Y.; Sun, T.P.; Hsiung, S.K. Study on Extended Gate Field Effect Transistor with Tin Oxide Sensing Membrane. Mater. Chem. Phys. 2000, 63, 19–23. [Google Scholar] [CrossRef]
  34. Yin, L.T.; Chou, J.C.; Chung, W.Y.; Sun, T.P.; Hsiung, S.K. Study of Indium Tin Oxide Thin Film for Separative Extended Gate ISFET. Mater. Chem. Phys. 2001, 70, 12–16. [Google Scholar] [CrossRef]
  35. Pinto, J.V.; Branquinho, R.; Barquinha, P.; Alves, E.; Martins, R.; Fortunato, E. Extended-Gate ISFETs Based on Sputtered Amorphous Oxides. IEEE/OSA J. Disp. Technol. 2013, 9, 729–734. [Google Scholar] [CrossRef]
  36. Li, L.; Zhang, J.; Dai, H.; Cai, D.; Guo, C.; Xiao, Y.; Ma, X.; Wang, Y. A Bio-Inspired Extended-Gate Metal-Oxide-Semiconductor Field-Effect-Transistor for Highly Sensitive Amino Acid Enantiodiscrimination. Anal. Chem. 2021, 93, 14425–14431. [Google Scholar] [CrossRef] [PubMed]
  37. Schöning, M.J.; Poghossian, A. Bio FEDs (Field-Effect Devices): State-of-the-Art and New Directions. Electroanalysis 2006, 18, 1893–1900. [Google Scholar] [CrossRef]
  38. Yu, J.; Gao, G.; Sun, B.; Liang, L.; Shen, Q.; Zhang, Y.; Cao, H. Optimization of Sensing-Pad Functionalizing Strategy toward Separative Extended-Gate FET Biosensors for PSA Detection. J. Pharm. Biomed. Anal. 2022, 211, 114597. [Google Scholar] [CrossRef]
  39. Koike, K.; Sasaki, T.; Hiraki, K.; Ike, K.; Hirofuji, Y.; Yano, M. Characteristics of an Extended Gate Field-Effect Transistor for Glucose Sensing Using an Enzyme-Containing Silk Fibroin Membrane as the Bio-Chemical Component. Biosensors 2020, 10, 57. [Google Scholar] [CrossRef]
  40. Firek, P.; Cichomski, M.; Waskiewicz, M.; Piwonski, I.; Kisielewska, A. ISFET Structures with Chemically Modified Membrane for Bovine Serum Albumin Detection. Circuit World 2018, 44, 45–50. [Google Scholar] [CrossRef]
  41. Ebner, A.; Hinterdorfer, P.; Gruber, H.J. Comparison of Different Aminofunctionalization Strategies for Attachment of Single Antibodies to AFM Cantilevers. Ultramicroscopy 2007, 107, 922–927. [Google Scholar] [CrossRef]
  42. Riener, C.K.; Stroh, C.M.; Ebner, A.; Klampfl, C.; Gall, A.A.; Romanin, C.; Lyubchenko, Y.L.; Hinterdorfer, P.; Gruber, H.J. Simple Test System for Single Molecule Recognition Force Microscopy. Anal. Chim. Acta 2003, 479, 59–75. [Google Scholar] [CrossRef]
  43. Chin, Y.L.; Chou, J.C.; Sun, T.P.; Liao, H.K.; Chung, W.Y.; Hsiung, S.K. A Novel SnO2/Al Discrete Gate ISFET PH Sensor with CMOS Standard Process. Sens. Actuators B Chem. 2001, 75, 36–42. [Google Scholar] [CrossRef]
  44. Batista, P.D.; Mulato, M.; Graeff, C.F.D.O.; Fernandez, F.J.R.; Marques, F.D.C. SnO2 Extended Gate Field-Effect Transistor as PH Sensor. Braz. J. Phys. 2006, 36, 478–481. [Google Scholar] [CrossRef]
  45. Liao, H.K.; Yang, E.S.; Chou, J.C.; Chung, W.Y.; Sun, T.P.; Hsiung, S.K. Temperature and Optical Characteristics of Tin Oxide Membrane Gate ISFET. IEEE Trans. Electron Devices 1999, 46, 2278–2281. [Google Scholar] [CrossRef]
  46. Liao, H.K.; Chou, J.C.; Chung, W.Y.; Sun, T.P.; Hsiung, S.K. Study of Amorphous Tin Oxide Thin Films for ISFET Applications. Sens. Actuators B Chem. 1998, 50, 104–109. [Google Scholar] [CrossRef]
  47. Jamasb, S.; Collins, S.; Smith, R.L. A Physical Model for Drift in PH ISFETs. Sens. Actuators B Chem. 1998, 49, 146–155. [Google Scholar] [CrossRef]
  48. Chen, D.Y.; Chan, P.K. An Intelligent ISFET Sensory System with Temperature and Drift Compensation for Long-Term Monitoring. IEEE Sens. J. 2008, 8, 1948–1959. [Google Scholar] [CrossRef]
  49. Bhardwaj, R.; Sinha, S.; Sahu, N.; Majumder, S.; Narang, P.; Mukhiya, R. Modeling and Simulation of Temperature Drift for ISFET-Based PH Sensor and Its Compensation through Machine Learning Techniques. Int. J. Circuit Theory Appl. 2019, 47, 954–970. [Google Scholar] [CrossRef]
  50. Park, J.K.; Jang, H.J.; Park, J.T.; Cho, W.J. SOI Dual-Gate ISFET with Variable Oxide Capacitance and Channel Thickness. Solid State Electron 2014, 97, 2–7. [Google Scholar] [CrossRef]
  51. Masahara, M.; Liu, Y.; Sakamoto, K.; Endo, K.; Matsukawa, T.; Ishii, K.; Sekigawa, T.; Yamauchi, H.; Tanoue, H.; Kanemaru, S.; et al. Demonstration, Analysis, and Device Design Considerations for Independent DG MOSFETs. IEEE Trans. Electron Devices 2005, 52, 2046–2053. [Google Scholar] [CrossRef]
  52. Chen, S.; Bomer, J.G.; Carlen, E.T.; Van Den Berg, A. Al2O3/Silicon NanoISFET with near Ideal Nernstian Response. Nano Lett. 2011, 11, 2334–2341. [Google Scholar] [CrossRef]
  53. Lim, H.K.; Member, S.; Fossum, J.G. Threshold Voltage of Thin-Film Silicon-on-Lnsulator (SOI) MOSFET’s. IEEE Trans. Electron Devices 1983, 30, 1244–1251. [Google Scholar] [CrossRef]
  54. Eminente, S.; Cristoloveanu, S.; Clerc, R.; Ohata, A.; Ghibaudo, G. Ultra-Thin Fully-Depleted SOI MOSFETs: Special Charge Properties and Coupling Effects. Solid State Electron 2007, 51, 239–244. [Google Scholar] [CrossRef]
  55. Ohata, A.; Pretet, J.; Cristoloveanu, S.; Zaslavsky, A. Correct Biasing Rules for Virtual DG Mode Operation in SOI-MOSFETs. IEEE Trans. Electron Devices 2005, 52, 124–125. [Google Scholar] [CrossRef]
  56. Bogart, K.H.A.; Cushing, J.P.; Fisher, E.R. Effects of Plasma Processing Parameters on the Surface Reactivity of OH(X2II) in Tetraethoxysilane/O2 Plasmas during Deposition of SiO2. J. Phys. Chem. B 1997, 101, 10016–10023. [Google Scholar] [CrossRef]
  57. Roy, N.C.; Hafez, M.G.; Talukder, M.R. Characterization of Atmospheric Pressure H2O/O2 Gliding Arc Plasma for the Production of OH and O Radicals. Phys. Plasmas 2016, 23, 83502. [Google Scholar] [CrossRef]
  58. Lyubchenko, Y.; Shlyakhtenko, L.; Harrington, R.; Oden, P.; Lindsay, S. Atomic Force Microscopy of Long DNA: Imaging in Air and under Water. Proc. Natl. Acad. Sci. USA 1993, 90, 2137–2140. [Google Scholar] [CrossRef]
  59. Crampton, N.; Bonass, W.A.; Kirkham, J.; Thomson, N.H. Studying Silane Mobility on Hydrated Mica Using Ambient AFM. Ultramicroscopy 2006, 106, 765–770. [Google Scholar] [CrossRef]
Biosensors 14 00141 g001

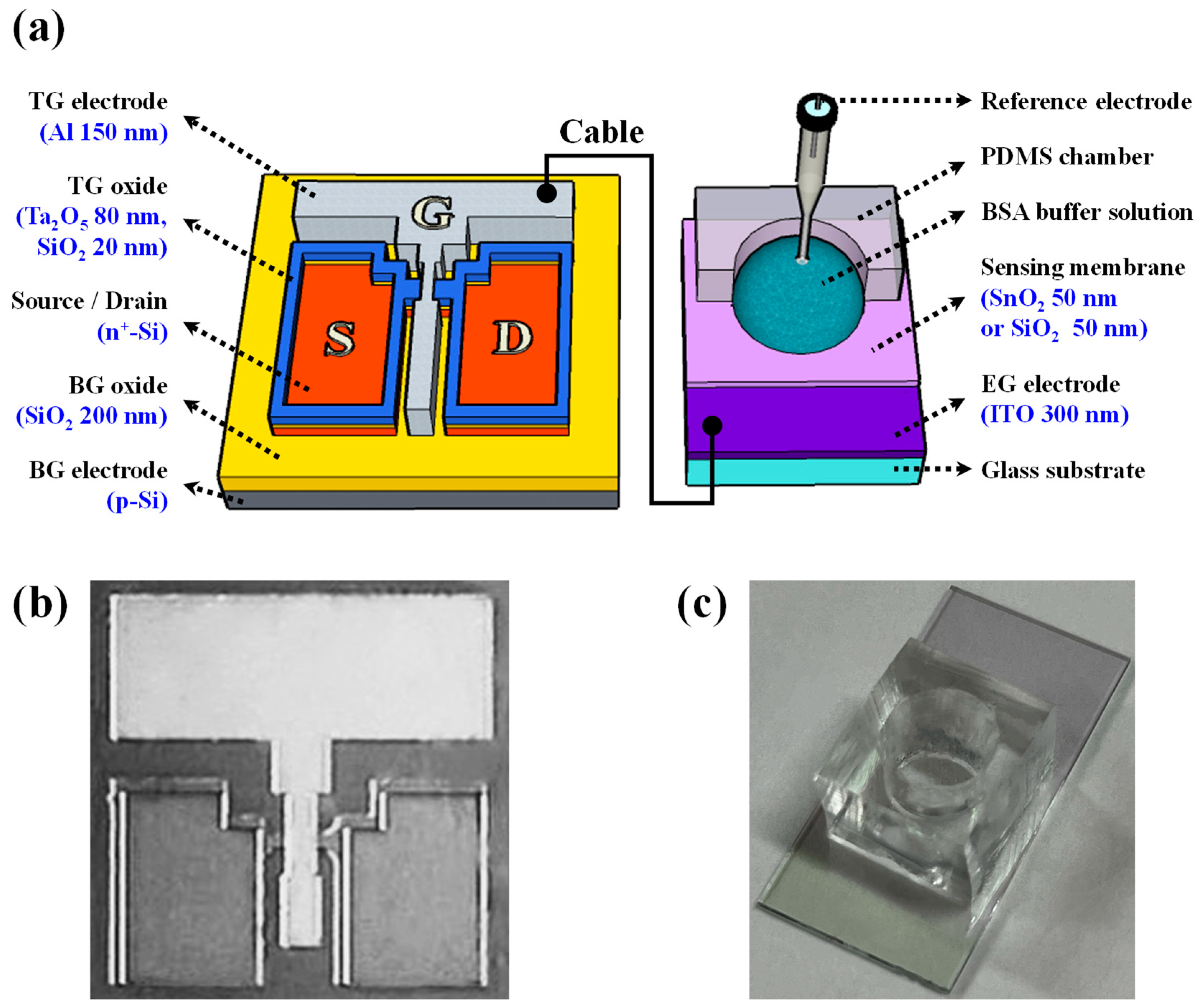

Figure 1. (a) Schematic representation of the overall structure of the dual-gate field-effect transistor (DG-FET)-based bovine serum albumin (BSA)-detection biosensor platform. (b) Optical microscopy image of the fabricated DG-FET unit. (c) Photograph of the BSA-detection extended-gate (EG) unit.
Figure 1. (a) Schematic representation of the overall structure of the dual-gate field-effect transistor (DG-FET)-based bovine serum albumin (BSA)-detection biosensor platform. (b) Optical microscopy image of the fabricated DG-FET unit. (c) Photograph of the BSA-detection extended-gate (EG) unit.
Biosensors 14 00141 g001
Biosensors 14 00141 g002

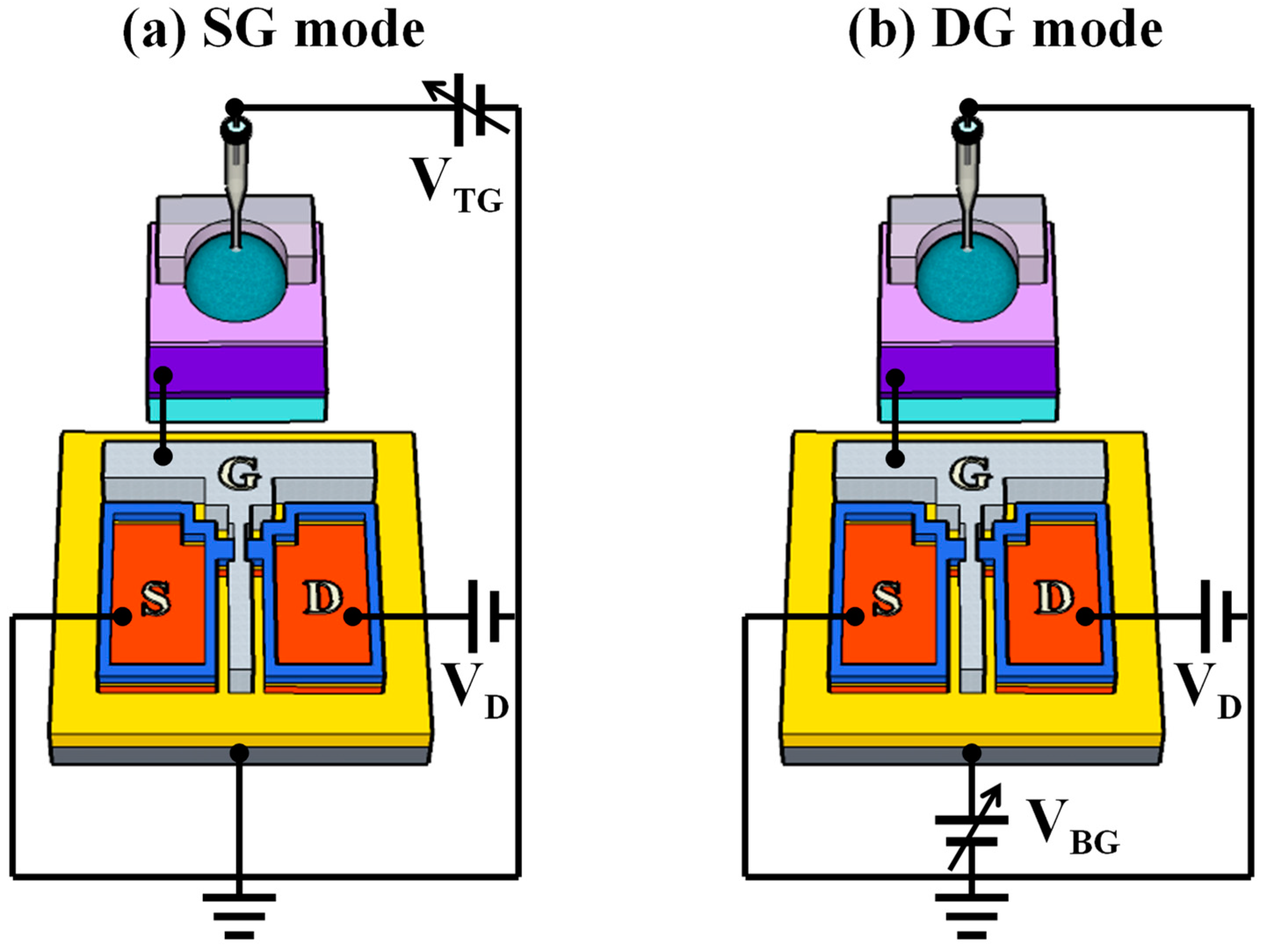

Figure 2. Simplified equivalent circuits of a DG-FET-based sensor platform in (a) single-gate (SG) and (b) dual-gate (DG) modes of operation.
Figure 2. Simplified equivalent circuits of a DG-FET-based sensor platform in (a) single-gate (SG) and (b) dual-gate (DG) modes of operation.
Biosensors 14 00141 g002
Biosensors 14 00141 g003

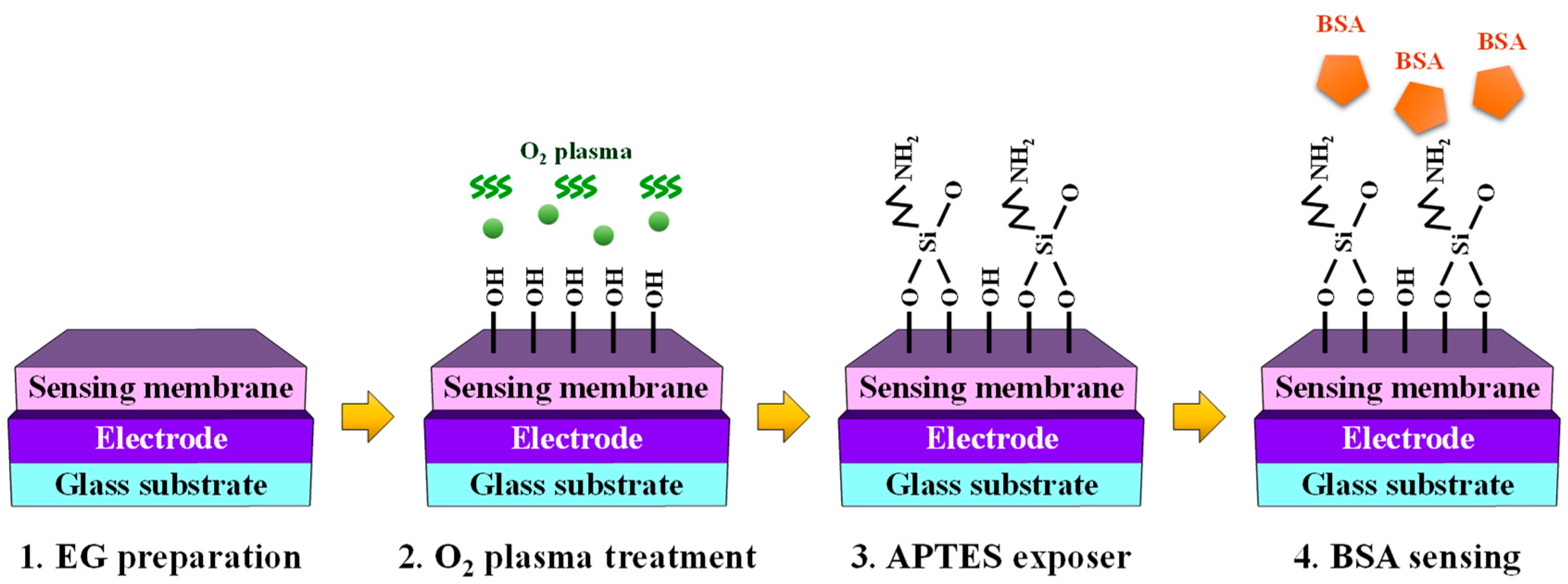

Figure 3. Schematic representation of the process of fabricating the BSA-detection extended-gate (EG) structure for the biosensor platform.
Figure 3. Schematic representation of the process of fabricating the BSA-detection extended-gate (EG) structure for the biosensor platform.
Biosensors 14 00141 g003
Biosensors 14 00141 g004

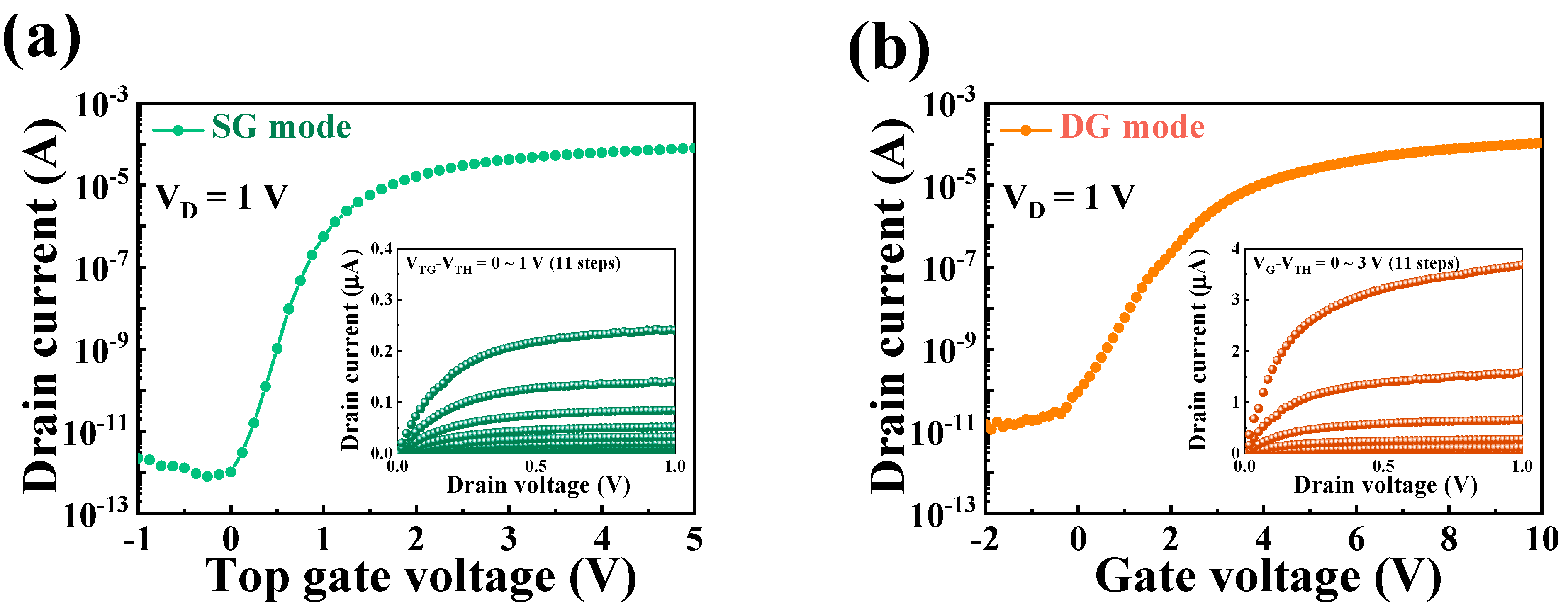

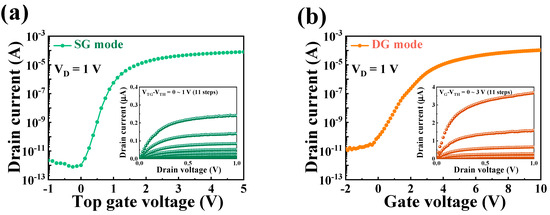

Figure 4. Electrical characteristics of the DG-FET in (a) SG and (b) DG operation modes.
Figure 4. Electrical characteristics of the DG-FET in (a) SG and (b) DG operation modes.
Biosensors 14 00141 g004
Biosensors 14 00141 g005

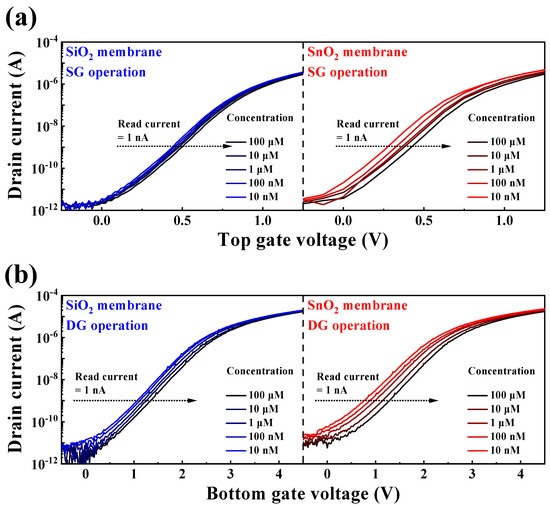

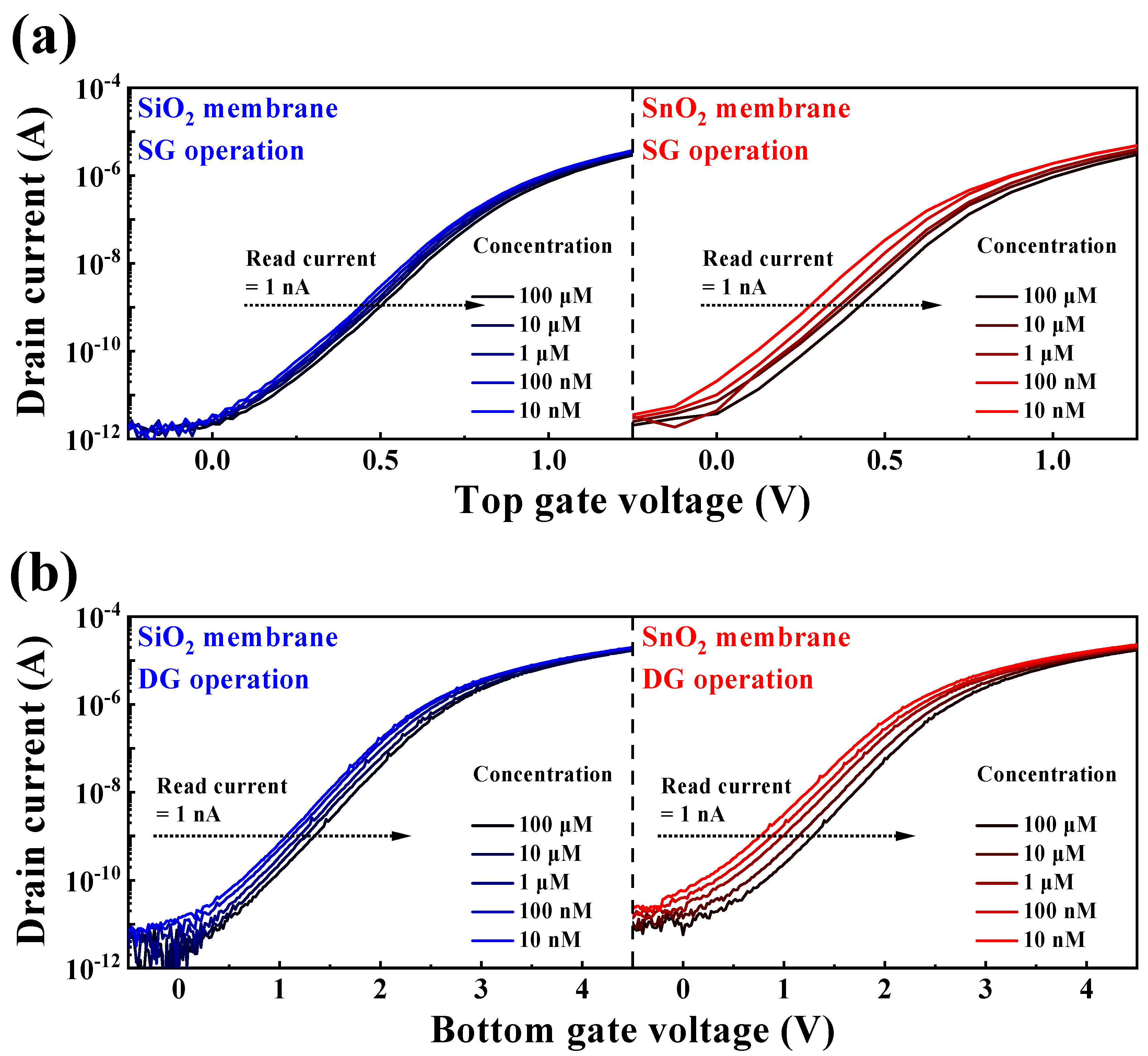

Figure 5. Transfer characteristic curves as a function of BSA concentration for (a) SG and (b) DG sensing modes.
Figure 5. Transfer characteristic curves as a function of BSA concentration for (a) SG and (b) DG sensing modes.
Biosensors 14 00141 g005
Biosensors 14 00141 g006

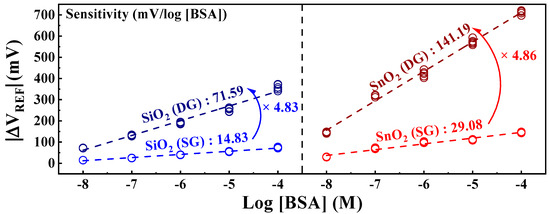

Figure 6. Sensitivity of the DG-FET-based BSA-detection biosensor platform as a function of BSA concentration.
Figure 6. Sensitivity of the DG-FET-based BSA-detection biosensor platform as a function of BSA concentration.
Biosensors 14 00141 g006
Biosensors 14 00141 g007

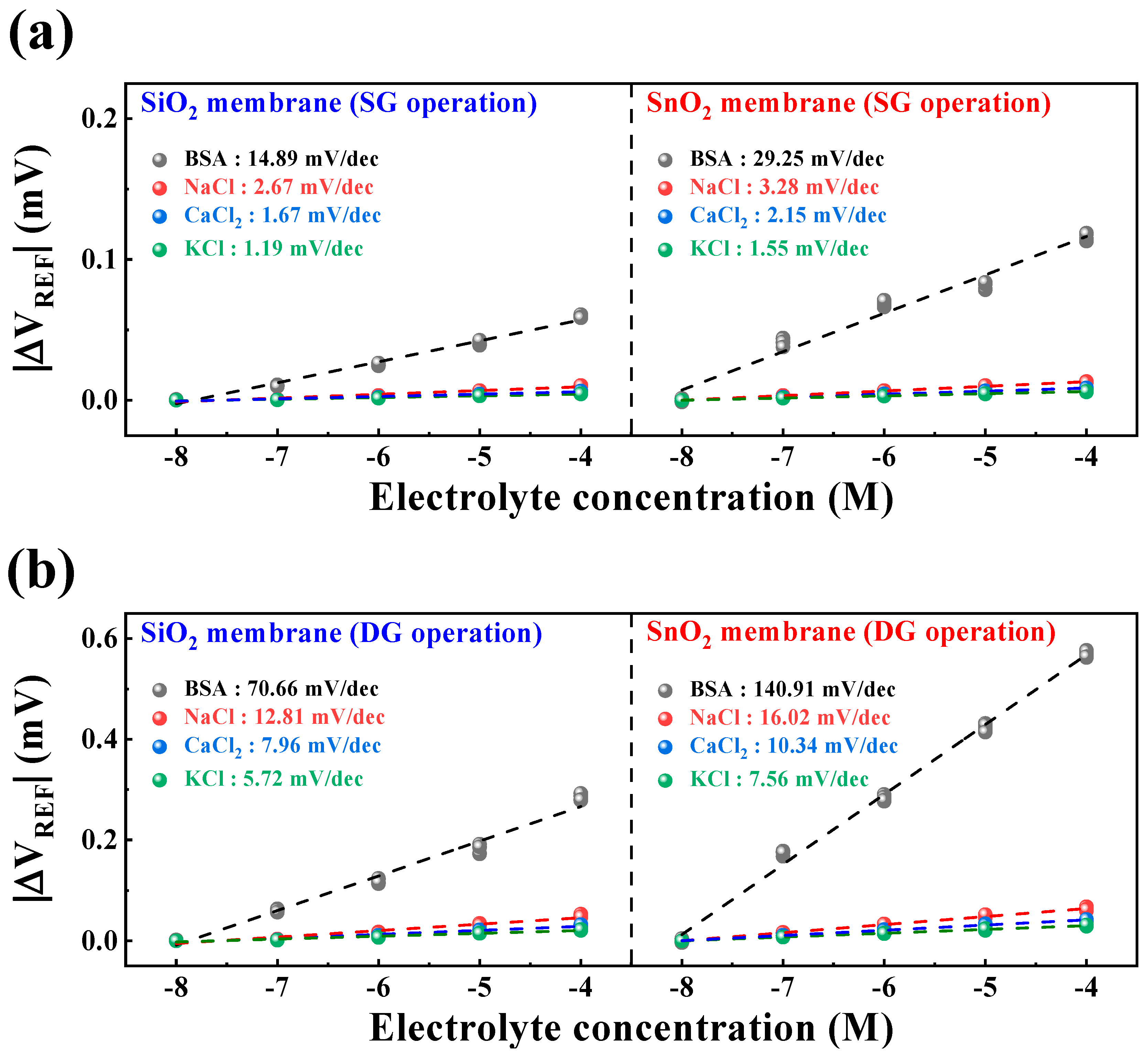

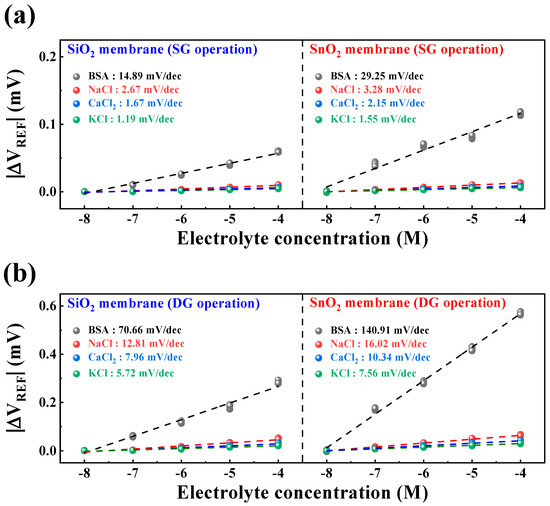

Figure 7. Selectivity characteristics of the DG-FET-based BSA-detection biosensor platform for (a) SG and (b) DG sensing modes.
Figure 7. Selectivity characteristics of the DG-FET-based BSA-detection biosensor platform for (a) SG and (b) DG sensing modes.
Biosensors 14 00141 g007
Biosensors 14 00141 g008

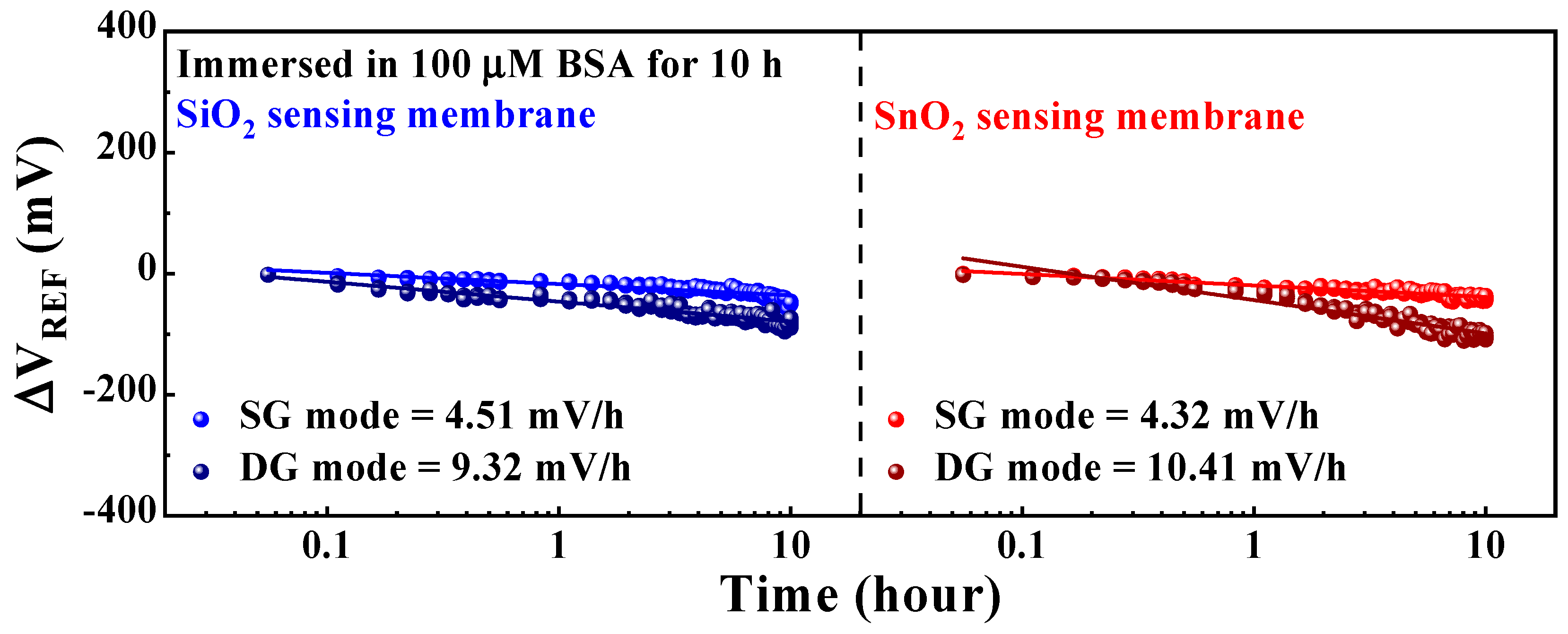

Figure 8. Drift effects of the proposed DG-FET-based BSA-detection biosensor platform.
Figure 8. Drift effects of the proposed DG-FET-based BSA-detection biosensor platform.
Biosensors 14 00141 g008
Biosensors 14 00141 g009

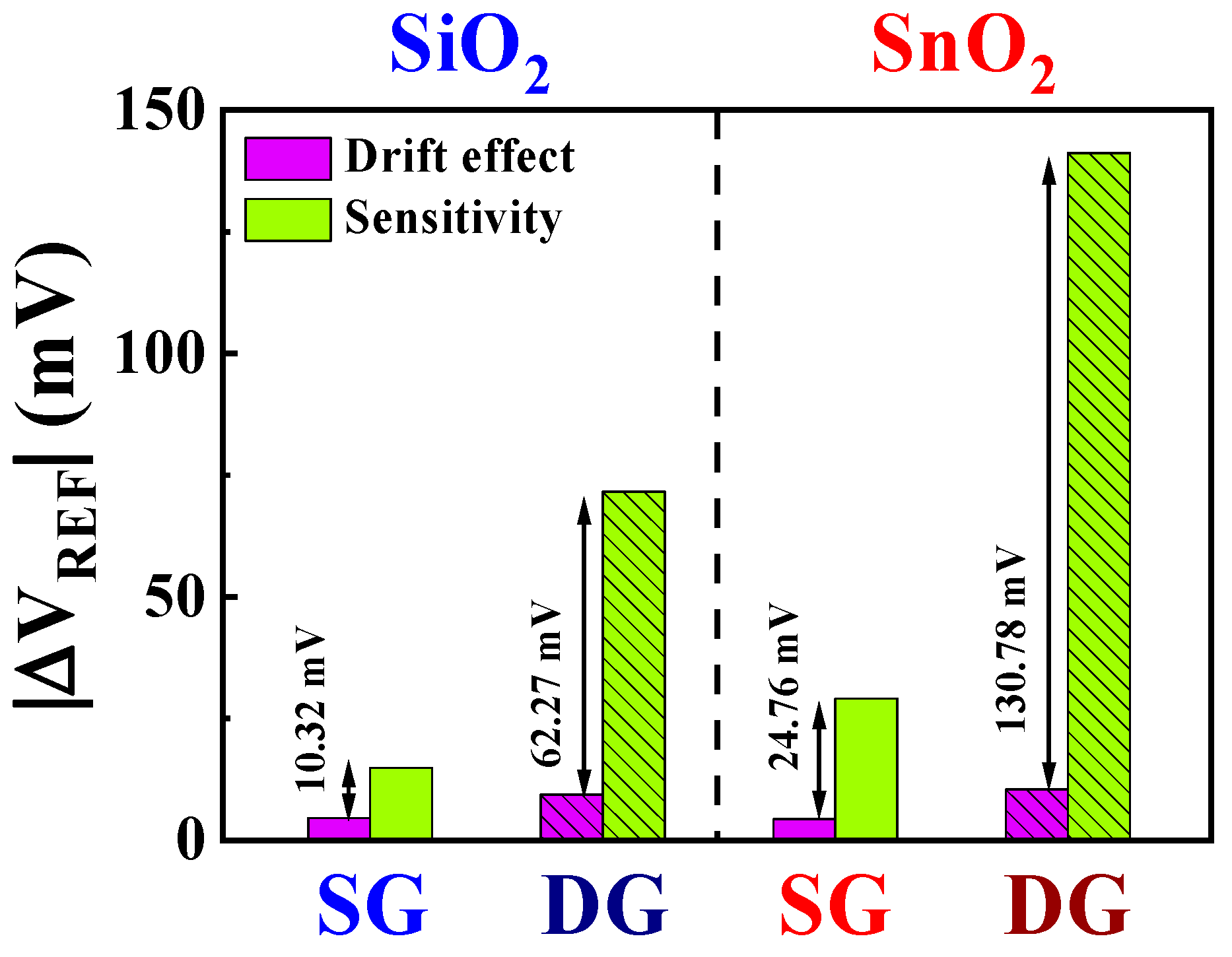

Figure 9. Numerical comparison of the drift effect and sensitivity of the DG-FET-based BSA-detection biosensor platform.
Figure 9. Numerical comparison of the drift effect and sensitivity of the DG-FET-based BSA-detection biosensor platform.
Biosensors 14 00141 g009
Table 1. Summary of electrical parameters for the dual-gate field-effect transistor (DG-FET) in single-gate (SG) and dual-gate (DG) operation modes.
Table 1. Summary of electrical parameters for the dual-gate field-effect transistor (DG-FET) in single-gate (SG) and dual-gate (DG) operation modes.
Electrical
Parameters		VTH
(V)		SS
(mV/dec)		ION/IOFF
(A/A)		μFE
(cm2/V·s)
SG mode0.13137.761.52 × 108140.51
DG mode−0.25213.568.44 × 107384.55
Table 2. Summary of selectivity characteristics of the DG-FET-based BSA-detection biosensor platform.
Table 2. Summary of selectivity characteristics of the DG-FET-based BSA-detection biosensor platform.
Membrane
Type		Operation
Mode		Sensitivity
[mV/dec]
BSA Na+Ca2+K+
SiO2SG mode14.89
(σ = 0.0021)		2.67
(σ = 0.0012)		1.67
(σ = 0.0032)		1.19
(σ = 0.0044)
DG mode70.66
(σ = 0.0119)		12.81
(σ = 0.0037)		7.96
(σ = 0.0021)		5.72
(σ = 0.0016)
SnO2SG mode29.25
(σ = 0.0061)		3.28
(σ = 0.0018)		2.15
(σ = 0.0011)		1.55
(σ = 0.0019)
DG mode140.91
(σ = 0.0121)		16.02
(σ = 0.0046)		10.34
(σ = 0.0028)		7.56
(σ = 0.0037)
Table 3. Summary of non-ideal effects and sensitivity values for the DG-FET-based BSA-detection biosensor platform for different sensing modes and sensing membrane types.
Table 3. Summary of non-ideal effects and sensitivity values for the DG-FET-based BSA-detection biosensor platform for different sensing modes and sensing membrane types.
Membrane
Type		Operation
Mode		Sensitivity
[mV/dec] 		Drift
[mV/h]		Sensitivity-
Drift Ratio [%]
SiO2SG mode14.83
(σ = 0.0023)		4.51
(σ = 0.0043)		328.82
DG mode71.59
(σ = 0.0137)		9.32
(σ = 0.0047)		768.13
SnO2SG mode29.08
(σ = 0.0063)		4.32
(σ = 0.0028)		673.15
DG mode141.19
(σ = 0.0144)		10.41
(σ = 0.0065)		1356.29
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kim, Y.-U.; Cho, W.-J. Enhanced BSA Detection Precision: Leveraging High-Performance Dual-Gate Ion-Sensitive Field-Effect-Transistor Scheme and Surface-Treated Sensing Membranes. Biosensors 2024, 14, 141. https://doi.org/10.3390/bios14030141

AMA Style

Kim Y-U, Cho W-J. Enhanced BSA Detection Precision: Leveraging High-Performance Dual-Gate Ion-Sensitive Field-Effect-Transistor Scheme and Surface-Treated Sensing Membranes. Biosensors. 2024; 14(3):141. https://doi.org/10.3390/bios14030141

Chicago/Turabian Style

Kim, Yeong-Ung, and Won-Ju Cho. 2024. "Enhanced BSA Detection Precision: Leveraging High-Performance Dual-Gate Ion-Sensitive Field-Effect-Transistor Scheme and Surface-Treated Sensing Membranes" Biosensors 14, no. 3: 141. https://doi.org/10.3390/bios14030141

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
