A UiO-66-NH2 MOF/PAMAM Dendrimer Nanocomposite for Electrochemical Detection of Tramadol in the Presence of Acetaminophen in Pharmaceutical Formulations

by
Fariba Garkani Nejad
1,
Hadi Beitollahi
2,* and
Iran Sheikhshoaie
1
1
Department of Chemistry, Faculty of Science, Shahid Bahonar University of Kerman, Kerman 76175-133, Iran
2
Environment Department, Institute of Science and High Technology and Environmental Sciences, Graduate University of Advanced Technology, Kerman P.O. Box 76318-85356, Iran
*
Author to whom correspondence should be addressed.
Biosensors 2023, 13(5), 514; https://doi.org/10.3390/bios13050514
Submission received: 15 February 2023 / Revised: 22 March 2023 / Accepted: 4 April 2023 / Published: 30 April 2023
(This article belongs to the Special Issue Advanced Materials for Electrochemical Sensors and Biosensors Development)
Browse Figures
Versions Notes

Abstract

:
In this work, we prepared a novel electrochemical sensor for the detection of tramadol based on a UiO-66-NH2 metal–organic framework (UiO-66-NH2 MOF)/third-generation poly(amidoamine) dendrimer (G3-PAMAM dendrimer) nanocomposite drop-cast onto a glassy carbon electrode (GCE) surface. After the synthesis of the nanocomposite, the functionalization of the UiO-66-NH2 MOF by G3-PAMAM was confirmed by various techniques including X-ray diffraction (XRD), energy-dispersive X-ray spectroscopy (EDS), field emission-scanning electron microscopy (FE-SEM), and Fourier transform infrared (FT-IR) spectroscopy. The UiO-66-NH2 MOF/PAMAM-modified GCE exhibited commendable electrocatalytic performance toward the tramadol oxidation owing to the integration of the UiO-66-NH2 MOF with the PAMAM dendrimer. According to differential pulse voltammetry (DPV), it was possible to detect tramadol under optimized circumstances in a broad concentration range (0.5 μM–500.0 μM) and a narrow limit of detection (0.2 μM). In addition, the stability, repeatability, and reproducibility of the presented UiO-66-NH2 MOF/PAMAM/GCE sensor were also studied. The sensor also possessed an acceptable catalytic behavior for the tramadol determination in the co-existence of acetaminophen, with the separated oxidation potential of ΔE = 410 mV. Finally, the UiO-66-NH2 MOF/PAMAM-modified GCE exhibited satisfactory practical ability in pharmaceutical formulations (tramadol tablets and acetaminophen tablets).

1. Introduction

Acetaminophen (N-acetyl-p-aminophenol), also referred to as paracetamol, is an analgesic and antipyretic medication as well as a key ingredient in some flu and cold treatments. Acetaminophen is functionally similar to aspirin, and is therefore considered a suitable alternative for aspirin-sensitive people. Combining acetaminophen with non-steroidal anti-inflammatory drugs (NSAIDs) and opioids is reportedly an effective strategy for treating pain such as post-operative or cancer pain [1,2,3]. The metabolism of acetaminophen occurs mainly in the liver, resulting in the production of toxic metabolites. Acetaminophen overdose is associated with accumulated toxic metabolites leading to the development of nephrotoxicity, hepatotoxicity, and sometimes kidney failure. Other side effects have been reported to be liver problems, pancreatitis, and skin rashes. Such bottlenecks may be due to high doses, chronic abuse, or concurrent abuse with alcohol or other agents [4,5,6].
Tramadol, (1RS, 2RS)-2-[(dimethylamine)-methyl]-1-(3-methoxy phenyl)-cyclohexanol hydrochloride), is a centrally serving synthetic analgesic with poor affinity for μ-opioid receptors. It is prescribed to manage moderate-to-severe pain and has monoaminergic performance to impede the reabsorption of serotonin and noradrenaline. Tramadol alone or in combination with NSAIDs can be prescribed for people with chronic pain, spinal cord injury, depression, postsurgical pain, and back pain [7,8,9]. Similarly to morphine, tramadol attaches to brain receptors (opioid receptors) for the reuptake of serotonin and norepinephrine, resulting in analgesic impacts. Although tramadol is an anti-addictive drug, the strong dependence of addicts on it can be attributed to its influence on opioid receptors in the central nervous system (CNS). Tramadol is not recommended at all for people who suffer from severe asthma, breathing conditions, and stomach obstruction. Tramadol overdose can cause vomiting, problems in the CNS and respiratory system, dizziness, seizures, depression, nausea, tachycardia, and coma [10,11,12].
The combination of acetaminophen and tramadol is usually recommended in pain management due to its high safety and efficacy [13]. Therefore, researchers have always been trying to determine the concentrations of these drugs, alone and in combination, in order to prevent overdose and so inhibit their toxic impacts.
Some of the methods used for the simultaneous determination of these analytes are high performance liquid chromatography [14], liquid chromatography coupled with mass spectrometry [15], gas chromatography/mass spectrometry [16], and capillary electrophoresis [17]. Despite the advantages of these techniques, they suffer from disadvantages such as a long process, high cost, and the need for a pretreatment step. Accordingly, scientists seek to develop a sensitive, facile, and selective analytical technique for sensing these analytes.
Electrochemical sensors can selectively detect an analyte in complex matrices, which are considered tools with technical simplicity, excellent sensitivity and great adaptability for in situ determination, adjustable, and relatively inexpensive [18,19,20,21,22,23]. Despite these advantages, they are hampered by their low-speed electrode kinetics and great over-potential, which lead to less charge transfer and more interference than other electrically active samples, which co-exist with the specimen. This ultimately reduces the sensing capacity of the instruments with respect to the material [24,25].
This problem can be circumvented with the help of sensor materials with great conductivity, long stability, and appropriate catalytic performance. The surface of the electrode can be modified with modifiers, which in this case can increase the speed of electron transfer and current sensitivity, and minimize over-potential. Hence, many efforts have been made recently to find a modified electrode material for sensitive and selective detection [26,27,28,29].
In the meantime, outstanding attention has been directed toward nanomaterials that have shown a wide range of practical applications [30,31,32,33,34,35,36,37,38,39]. Nanomaterials can increase the electrode surface area and the electron transfer between the modified surface and redox centers of the targeted molecules [40,41,42,43,44,45]. The incorporation of versatile nanomaterials with electrodes can enhance the properties of sensors, and enable reliable and sensitive quantification of various biomolecules at clinical levels [46,47].
Dendrimers are nano-sized and monodispersed synthetic polymers showing a highly branched three-dimensional regular structure. The poly(amidoamine) (PAMAM) dendrimer has unique properties, some of which are of a high physical and chemical stability, biocompatibility, structural flexibility, excellent monodispersity, tunable porosity, and high performance. Due to a myriad of amine groups, PAMAM dendrimers act as promising platforms for the fabrication of electrochemical sensors applicable in biomedicine, gene therapy, and the catalysis industry [48,49]. In addition, the synergistic effects of dendrimer composites would further broaden their application in the field of electrochemical sensors [50].
Metal-organic frameworks (MOFs) are made by self-assembly of metal ions associated with organic ligands. Some of the excellent properties of MOFs include high porosity, ordered crystal structures, large surface areas, and tunability for pore size and high performance. Metal ions and organic linkers of well-designed MOFs have been used to construct new electrochemical sensors [51,52,53,54,55,56,57,58,59]. Zr-based MOFs have diverse structures, low toxicity, remarkable stability, and especially unique thermostability [60,61]. The MOFs enhance the conductivity of the dendrimer nanocomposites, thus resulting in a synergistic impact to enhance the electrochemically active area and the sensitivity of the electrochemical sensor.
The current work was conducted to produce and characterize the UiO-66-NH2/G3-PAMAM nanocomposite, which was then anchored on a GCE to achieve an electrocatalytic and voltammetric tramadol sensor. The sensor based on the UiO-66-NH2 MOF/PAMAM nanocomposite demonstrated a high degree of catalysis toward tramadol, with a narrow LOD and a wide linear range. Additionally, the sensor was tested in terms of catalytic behavior for the tramadol determination in the co-existence of acetaminophen. The ability of the modified electrode for sensor applications was examined in real specimens of acetaminophen tablets and tramadol tablets.
The novelty of this research lies in the combination of the UiO-66-NH2 MOF and the PAMAM dendrimer as a sensing platform, which has enabled the detection of tramadol in the presence of acetaminophen.

2. Experimental

2.1. Instruments and Reagents

An Autolab PGSTAT302N electrochemical device was employed to conduct electrochemical determinations. The solutions’ pHs were adjusted by a pH-meter (Metrohm 710). The deionized water used in each experiment was also taken from a Millipore Direct-Q® 8 UV (ultra-violet) (Millipore, Darmstadt, Germany).
Field-emission scanning electron microscopy (MIRA3TESCAN-XMU) was utilized for morphological studies. Energy-dispersive X-ray spectroscopy (EDS)-FE-SEM (MIRA3TESCAN-XMU, Tescan, Czech Republic) was also applied for elemental analysis. XRD patterns were recorded to obtain the data on structure using a Panalytical X’Pert Pro X-ray diffractometer (Etten Leur, The Netherlands) via Cu/Kα radiation (λ = 1.5418 nm). The FT-IR spectra were also obtained through a Bruker Tensor II spectrometer (Mannheim, Germany).
The precursors for the synthesis of the UiO-66-NH2/G3-PAMAM nanocomposite, tramadol, acetaminophen, and other chemicals were also of analytical grade and were used upon delivery without any additional purification. It is noted that they were obtained from Merck and Sigma-Aldrich chemical companies.

2.2. Synthesis of the UiO-66-NH2 MOF/G3-PAMAM Nanocomposite

The previous report, with slight modification, was followed to construct the UiO-66-NH2 MOF [62]. Thus, ZrCl4, 2-aminoterephthalic acid, and glacial acetic acid (0.2 mmol, 0.2 mmol, and 5 mL, respectively) were poured into dimethylformamide (20 mL, DMF) while ultra-sonicating for 45 min, followed by their placement in a 50 mL Teflon-lined autoclave and subsequently in the oven at 120 °C for 48 h. After cooling down, a centrifugation was conducted to separate the precipitate, followed by rinsing thoroughly with DMF/methanol and then vacuum-drying at 70 °C for 12h to obtain the UiO-66-NH2 MOF.
Our previous report described the preparation steps and characteristics of G3-PAMAM [63]. Thus, the UiO-66-NH2 MOF/G3-PAMAM nanocomposite was prepared by appending the UiO-66-NH2 MOF (50 mg) to methanol (25 mL) containing 5% glutaraldehyde, followed by stirring and heating at 40 °C for 2 h. Then, the glutaraldehyde-modified UiO-66-NH2 was rinsed three times with methanol. Next, G3-PAMAM (0.025 mmol) was poured into methanol (50 mL) containing UiO-66-NH2/glutaraldehyde while stirring at room temperature for 3 h. Finally, the obtained UiO-66-NH2 MOF/PAMAM nanocomposite was rinsed with methanol and vacuum-dried at 50 °C.

2.3. Preparation of GCE Modified with the UiO-66-NH2 MOF/G3-PAMAM Nanocomposite

A facile drop-casting protocol was followed to modify the surface of GCE with the UiO-66-NH2 MOF/G3-PAMAM nanocomposite. Thus, a 1 mg/mL suspension of prepared nanocomposite underwent a 20-min sonication, and then 4 μL of the suspension was poured on the GCE surface in a dropwise manner, followed by drying under room conditions to achieve the UiO-66-NH2 MOF/PAMAM/GCE.

2.4. Preparation of Pharmaceutical Formulations

Five tablets of the tramadol (labeled value of tramadol = 100 mg per tablet) and acetaminophen (labeled value of acetaminophen = 325 mg per tablet) purchased from a local pharmacy in Kerman (Iran) were completely powdered in a mortar and pestle. Then, an accurately weighed amount of the homogenized tramadol and acetaminophen powders was transferred into 100 mL 0.1 mol/L PBS (pH 7.0). For better dissolution, the solutions inside the flasks were sonicated (20 min). After that, the resulting samples were filtered. Finally, a specific volume of the prepared samples was transferred into volumetric flasks and diluted with 0.1 M PBS (pH = 7.0). The diluted solutions were then put into the electrochemical cell for DPV analysis.

3. Results and Discussion

3.1. Characterization of the UiO-66-NH2 MOF/PAMAM Nanocomposite

FT-IR spectroscopy authenticated that the PAMAM cross-linked on the UiO-66-NH2 MOF (Figure 1). The characteristic peaks of the FT-IR spectrum prepared from the UiO-66-NH2 MOF at 1577 cm−1 and 1657 cm−1 were attributed to the stretching vibration of C=C on the benzene ring and the vibration of coordinated carboxylate moieties, respectively [64]. The bonds at 1384 cm−1 and 1259 cm−1 were attributed to the stretching vibrations of C–N related to 2-aminoterephthalic acid. The characteristic peaks at 3366 cm−1 and 3462 cm−1 were attributed to symmetric and asymmetric stretching vibrations of N-H related to the primary amine group, respectively. The characteristic peaks at 768 cm−1 and 663 cm−1 were attributed to the vibration of Zr–O on the UiO-66-NH2 [65]. In the FT-IR spectrum of the UiO-66-NH2 MOF/PAMAM nanocomposite, the observed absorption peak at 1657 cm−1 of UiO-66-NH2 shifted to 1625 cm−1 following PAMAM immobilization, authenticating the formation of imine bands (C=N) from a Schiff base reaction between the carbonyl groups, belonging to glutaraldehyde, and the amine group, belonging to the UiO-66-NH2 MOF and the PAMAM dendrimer.
Figure 2a shows the XRD pattern verifying crystallinity of the as-produced UiO-66-NH2 MOF. As seen, the characteristic peaks generated from the UiO-66-NH2 MOF were in line with earlier reports [60,66]. The characteristic peaks of the UiO-66-NH2 MOF/PAMAM nanocomposite were the same as those of the UiO-66-NH2 MOF (Figure 2b), which means that this sample did not change in crystal structure following modification with PAMAM.

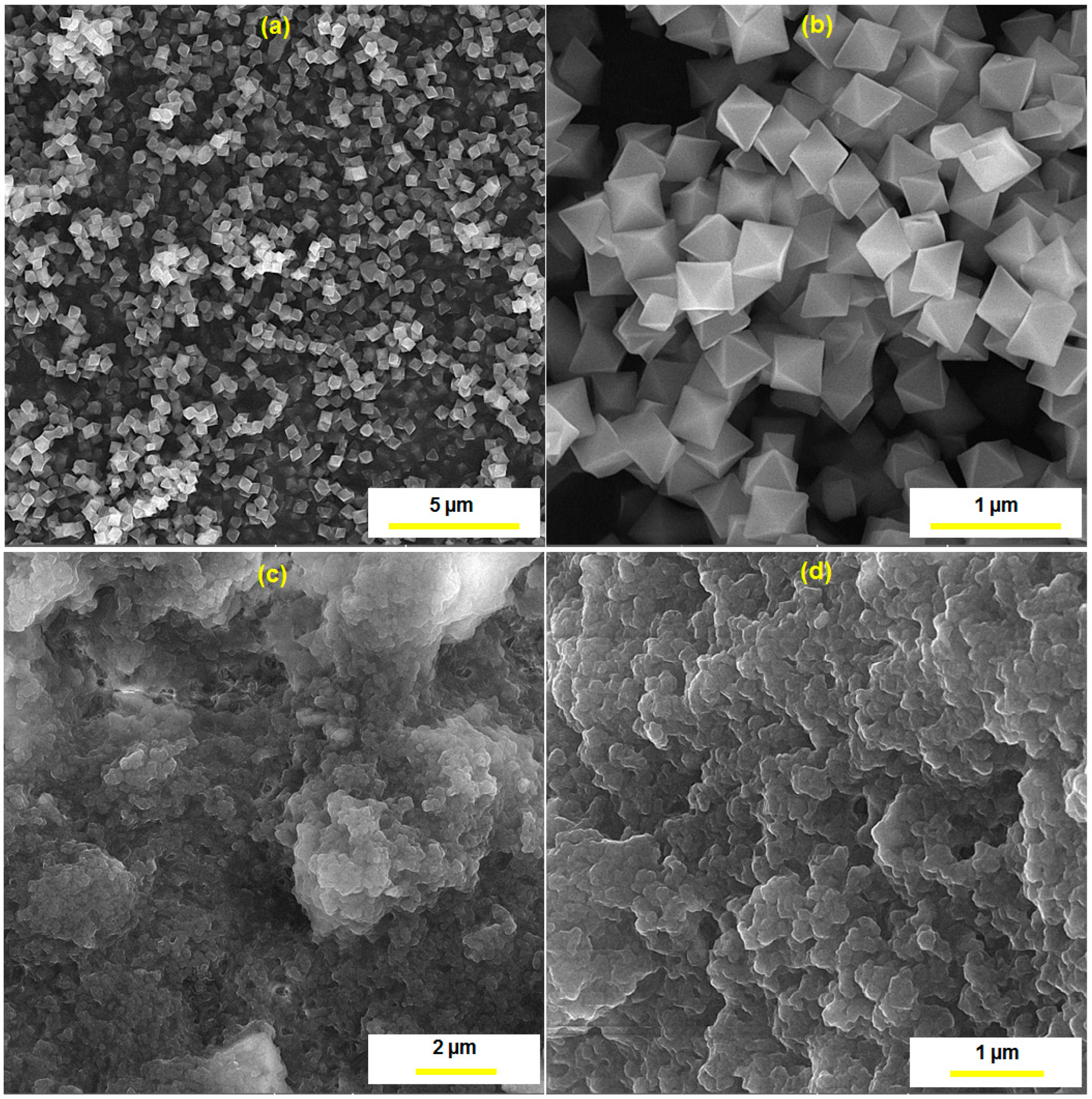

Figure 3 illustrates the FE-SEM images prepared from the UiO-66-NH2 MOF and the UiO-66-NH2 MOF/PAMAM nanocomposite for morphological studies. As seen (Figure 3a,b), the UiO-66-NH2 sample displayed octahedral morphology with proper crystallinity. The UiO-66-NH2 MOF had a particle size of ~275 nm. When PAMAM was loaded onto the UiO-66-NH2 MOF, the octahedral edges and corners of the UiO-66-NH2 MOF were destroyed and its surface was coated with the PAMAM dendrimer (Figure 3c,d).
The EDS was recruited to carry out the elemental analyses (Figure 4). As seen, the main peaks in spectrum 4a exhibited the elements Zr, C, N, and O, which indicates the chemical purity of the as-constructed UiO-66-NH2 MOF. Figure 4b depicts the EDS spectrum acquired from the UiO-66-NH2 MOF/PAMAM nanocomposite. PAMAM loading on the UiO-66-NH2 MOF caused an increase in the level of N element (8.27–22.02% by weight).

3.2. Investigating the Effect of the UiO-66-NH2 MOF/PAMAM Nanocomposite on the Electrochemical Behavior of Tramadol

The tramadol electro-oxidation has an association with electron and proton exchange. Thus, the effect of pH on the electrochemical response of the tramadol on the UiO-66-NH2 MOF/PAMAM-modified GCE sensor should be evaluated. For this purpose, experiments were performed in 0.1 M PBS at the pH range of 2.0–9.0 using DPV. The results showed more oxidation of tramadol on the surface of the UiO-66-NH2 MOF/PAMAM-modified GCE in neutral conditions relative to acidic or alkaline conditions, so pH 7.0 was considered as the optimal value for the electro-oxidation of tramadol on the as-produced electrode surface.
The cyclic voltammograms (CVs) were acquired for the tramadol solution (100.0 μM) in PBS (pH 7.0, 0.1 M) on the bare GCE (Figure 5 (curve a)) and the UiO-66-NH2 MOF/PAMAM-modified GCE (Figure 5 (curve b)). The tramadol oxidation current on the bare GCE surface was estimated to be 3.14 μA. There was an increase in the tramadol oxidation current on the UiO-66-NH2 MOF/PAMAM-modified GCE, with a maximum value of about 10.1 μA. Hence, the combination of the UiO-66-NH2 MOF and PAMAM dendrimers can greatly enhance the detection sensitivity.

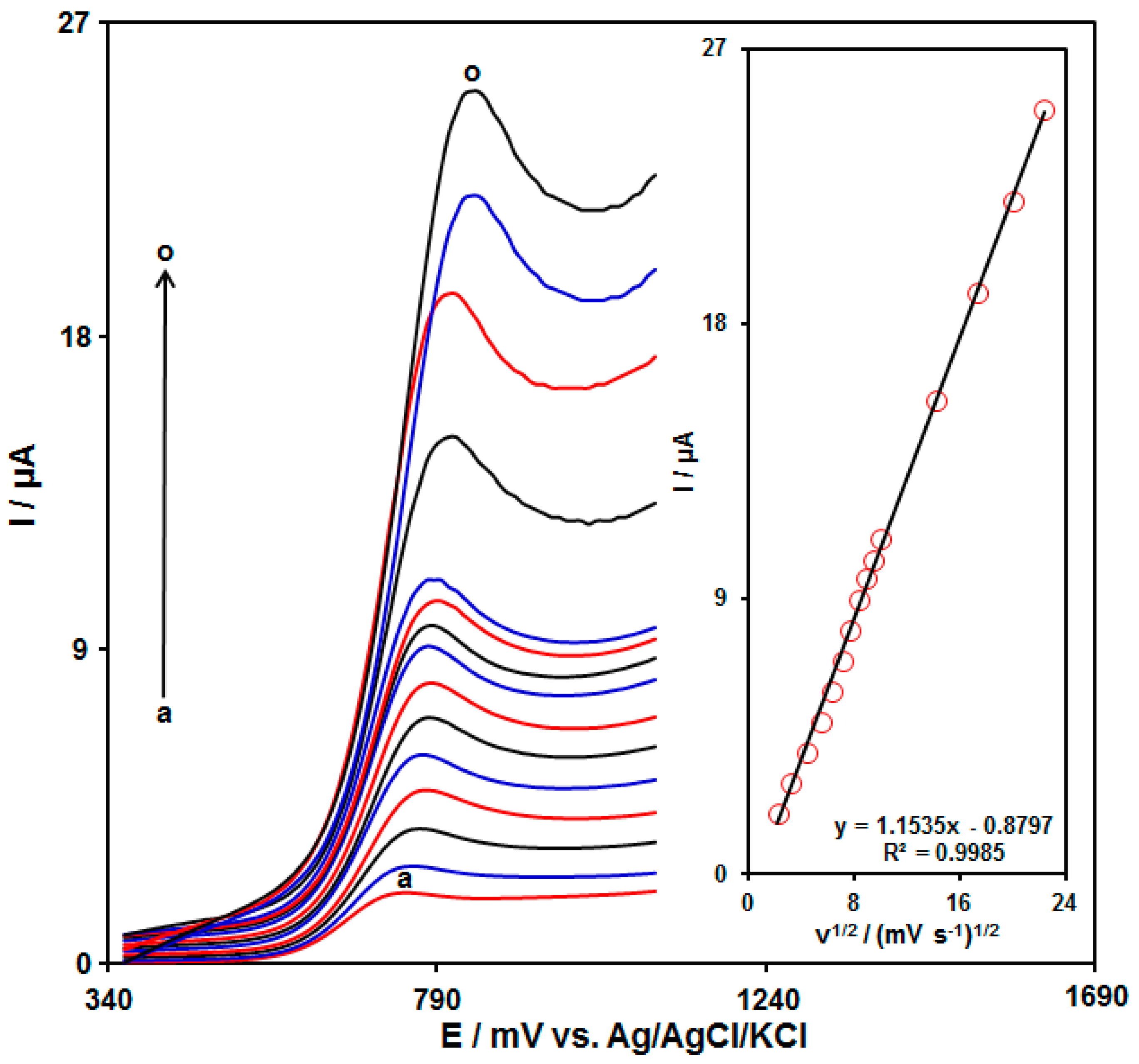

3.3. The Scan Rate Effect on the Oxidation of Tramadol on the UiO-66-NH2 MOF/PAMAM-Modified GCE

The electrochemical response of tramadol on the UiO-66-NH2 MOF/PAMAM-modified GCE was evaluated by the linear sweep voltammetry (LSV) method. Figure 6 shows the LSVs acquired for tramadol (70.0 μM) on the UiO-66-NH2 MOF/PAMAM-modified GCE in PBS (pH = 7.0, 0.1 M) at variable scan rates. The LSVs show an increase in the oxidation peak currents with enhanced applied scan rates. Figure 6 (inset) depicts the anodic peak current (Ipa) of tramadol, representing a linear relationship with the scan rate square root (υ1/2), Ipa = 1.1535υ1/2 − 0.8797 (R2 = 0.9985). Hence, the electrochemical behavior of tramadol follows a diffusion-controlled process.

3.4. Chronoamperometric Determinations

The chronoamperometry was used to explore the tramadol oxidation on the UiO-66-NH2 MOF/PAMAM-modified GCE surface (Figure 7). Chronoamperometric determinations for variable tramadol levels on the modified electrode were carried out at the working electrode potential of 825 mV. The diffusion coefficient (D) was measured for tramadol in aqueous solution in accordance with the Cottrell equation:
I = n F A Cb D1/2 π−1/2 t−1/2
Herein, Cb stands for the concentration, D for the diffusion coefficient, and A for the electrode area. Figure 7A shows the plots of I against t−1/2 for variable tramadol content. Figure 7B indicates the slopes from the straight lines plotted against tramadol levels. The D value was computed to be 7.9 × 10−5 cm2/s according to the slope of obtained plots and also the Cottrell equation. The D value in this work is comparable with the results reported in the literature (1.05 × 10−5 cm2/s [67], 9.2 × 10−6 cm2/s [68], 2.39 × 10−5 cm2/s [69].

3.5. Quantitative Determination of Tramadol by the DPV Method

The quantitative determination of tramadol was performed using the DPV method. Figure 8 illustrates the DPVs acquired for the UiO-66-NH2 MOF/PAMAM-modified GCE in the exposure to variable tramadol levels. An elevation in the concentration of tramadol obviously resulted in an increase in the Ipa of tramadol. The calibration curve for variable tramadol levels revealed a linear dynamic range as broad as 0.5 μM to 500.0 μM, with the equation of Ipa = 0.0881Ctramadol + 0.7839 (R2 = 0.9997) (Figure 8, Inset). The sensitivity and LOD were calculated to be 0.0881 μM/μA and 0.2 μM for the UiO-66-NH2 MOF/PAMAM-modified GCE in sensing tramadol, respectively. A comparison of tramadol detection using various sensors is presented in Table 1.

3.6. Quantitative Determination of Tramadol in the Presence of Acetaminophen

The current work aimed to fabricate a modified electrode capable of distinguishing the tramadol and acetaminophen at the same time. The analytical tests were performed by varying the contents of tramadol and acetaminophen at the UiO-66-NH2 MOF/PAMAM-modified GCE as the working electrode in PBS (pH 7.0, 0.1 M). The DPVs were acquired for the UiO-66-NH2 MOF/PAMAM-modified GCE at variable levels of tramadol and acetaminophen (Figure 9). Separate oxidation signals appeared at the potentials of about 780 mV and 370 mV, which correspond to the oxidation of tramadol and acetaminophen, respectively. The sensitivity of the modified electrode relative to tramadol in the absence (0.0881 µA/µM, Figure 8) and presence (0.0879 µA/µM, Figure 9B) of acetaminophen was very similar, suggesting independent oxidation of tramadol and acetaminophen on the UiO-66-NH2 MOF/PAMAM-modified GCE, and also the feasibility of simultaneous determinations of the two analytes with no interference.

3.7. The Stability, Repeatability, and Reproducibility Studies of the UiO-66-NH2 MOF/PAMAM-Modified GCE for Tramadol Analysis

For practical applications, the repeatability, reproducibility, and stability of the electrochemical sensors are essential. The stability of the UiO-66-NH2 MOF/PAMAM-modified GCE was examined by storing the electrode at laboratory temperatures. Then, the electrode was used for the analysis of 60.0 µM of tramadol from 1 to 15 day intervals in 0.1 M PBS. According to the obtained results, the UiO-66-NH2 MOF/PAMAM-modified GCE sensor presented only a 3.9% variation after 15 days
The repeatability of the response of the modified electrode (UiO-66-NH2 MOF/PAMAM-modified GCE) was estimated by performing the electrochemical experiment repeatedly (five measurements) with the same UiO-66-NH2 MOF/PAMAM-modified GCE sensor in a buffer solution (0.1 M, PBS) containing 60.0 µM of tramadol. The relative standard deviation (RSD) based on five replicates was found to be 4.1%, which indicated that the UiO-66-NH2 MOF/PAMAM-modified GCE has good repeatability.
The reproducibility of the prepared sensor was also evaluated by preparing five modified electrodes (UiO-66-NH2 MOF/PAMAM-modified GCE) using the same fabrication procedure. The RSD value for the peak currents obtained for these electrodes in a buffer solution (0.1 M, PBS) containing 60.0 µM of tramadol was calculated to be 2.8%, which revealed a very good reproducibility of the electrode preparation procedure.

3.8. The Selectivity of the UiO-66-NH2 MOF-PAMAM/GCE for the Detection of Tramadol

To evaluate the selectivity of the UiO-66-NH2 MOF-PAMAM/GCE for tramadol, an investigation into the influence of potential interfering substances was performed under the optimized conditions. The DPV responses upon addition of interfering substances into 0.1 M PBS (pH 7.0) containing 50.0 µM tramadol were recorded. The obtained results revealed no significant changes in the current of tramadol in the presence of the interfering substances (1000-fold excess of Na+, Mg2+, Ca2+, NH4+, SO42−, 500-fold excess starch, fructose, glucose, lactose, sucrose, L-lysine, L-serine, 100-fold excess dopamine, uric acid, epinephrine, and norepinephrine). However, ascorbic acid showed serious interference in the tramadol determination in equal concentration.

3.9. Application of the UiO-66-NH2 MOF/PAMAM-Modified GCE Sensor for the Analysis of Acetaminophen and Tramadol in Pharmaceutical Formulations

The developed method can be used successfully for the determination of tramadol and acetaminophen in pharmaceutical formulations (tramadol tablets and acetaminophen tablets specimens). By using the standard addition method, this study was accomplished and the results of the analysis are shown in Table 2. The appreciable recovery rates (96.7–103.5%) confirmed the capability of the UiO-66-NH2 MOF/PAMAM-modified GCE as a voltammetric sensor for the analysis of these two drugs in pharmaceutical formulations.

4. Conclusions

An attempt was made to produce a tramadol sensor through the modification of GCE surface with a UiO-66-NH2 MOF/G3-PAMAM dendrimer. The sensor (a UiO-66-NH2 MOF/PAMAM-modified GCE) exhibited commendable catalytic performance toward the tramadol oxidation. There was a linear relationship between the DPV response of the modified electrode and the tramadol contents (0.5 μM–500.0 μM). The LOD was calculated at 0.2 μM. The sensor also possessed an acceptable catalytic behavior for the tramadol determination in the co-existence of acetaminophen. In addition, it was found that the UiO-66-NH2 MOF/PAMAM-modified GCE demonstrated good stability, repeatability, and reproducibility toward the detection of the analgesic drug, tramadol. The ability of the modified electrode for sensor applications was confirmed in specimens of acetaminophen tablets and tramadol tablets, with acceptable recovery rates.

Author Contributions

Formal analysis, F.G.N.; Writing—original draft, H.B. and I.S.; Supervision, H.B. and I.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding authors.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Palakollu, V.N.; Chiwunze, T.E.; Liu, C.; Karpoormath, R. Electrochemical sensitive determination of acetaminophen in pharmaceutical formulations at iron oxide/graphene composite modified electrode. Arab. J. Chem. 2020, 13, 4350–4357. [Google Scholar] [CrossRef]
  2. Houshmand, M.; Jabbari, A.; Heli, H.; Hajjizadeh, M.; Moosavi-Movahedi, A.A. Electrocatalytic oxidation of aspirin and acetaminophen on a cobalt hydroxide nanoparticles modified glassy carbon electrode. J. Solid State Electrochem. 2008, 12, 1117–1128. [Google Scholar] [CrossRef]
  3. Shahrokhian, S.; Asadian, E. Simultaneous voltammetric determination of ascorbic acid, acetaminophen and isoniazid using thionine immobilized multi-walled carbon nanotube modified carbon paste electrode. Electrochim. Acta 2010, 55, 666–672. [Google Scholar] [CrossRef]
  4. Habibi, B.; Jahanbakhshi, M.; Pournaghi-Azar, M.H. Simultaneous determination of acetaminophen and dopamine using SWCNT modified carbon–ceramic electrode by differential pulse voltammetry. Electrochim. Acta 2011, 56, 2888–2894. [Google Scholar] [CrossRef]
  5. Chen, X.; Zhu, J.; Xi, Q.; Yang, W. A high performance electrochemical sensor for acetaminophen based on single-walled carbon nanotube–graphene nanosheet hybrid films. Sens. Actuators B Chem. 2012, 161, 648–654. [Google Scholar] [CrossRef]
  6. Xu, C.X.; Huang, K.J.; Fan, Y.; Wu, Z.W.; Li, J. Electrochemical determination of acetaminophen based on TiO2–graphene/poly (methyl red) composite film modified electrode. J. Mol. Liq. 2012, 165, 32–37. [Google Scholar] [CrossRef]
  7. Subedi, M.; Bajaj, S.; Kumar, M.S.; Mayur, Y.C. An overview of tramadol and its usage in pain management and future perspective. Biomed. Pharmacother. 2019, 111, 443–451. [Google Scholar] [CrossRef]
  8. Memon, S.A.; Hassan, D.; Buledi, J.A.; Solangi, A.R.; Memon, S.Q.; Palabiyik, I.M. Plant material protected cobalt oxide nanoparticles: Sensitive electro-catalyst for tramadol detection. Microchem. J. 2020, 159, 105480. [Google Scholar] [CrossRef]
  9. Abu-Shawish, H.M.; Ghalwa, N.A.; Zaggout, F.R.; Saadeh, S.M.; Al-Dalou, A.R.; Abou Assi, A.A. Improved determination of tramadol hydrochloride in biological fluids and pharmaceutical preparations utilizing a modified carbon paste electrode. Biochem. Eng. J. 2010, 48, 237–245. [Google Scholar] [CrossRef]
  10. Deiminiat, B.; Rounaghi, G.H.; Arbab-Zavar, M.H. Development of a new electrochemical imprinted sensor based on poly-pyrrole, sol–gel and multiwall carbon nanotubes for determination of tramadol. Sens. Actuators B Chem. 2017, 238, 651–659. [Google Scholar] [CrossRef]
  11. Atta, N.F.; Ahmed, R.A.; Amin, H.M.; Galal, A. Monodispersed gold nanoparticles decorated carbon nanotubes as an enhanced sensing platform for nanomolar detection of tramadol. Electroanalysis 2012, 24, 2135–2146. [Google Scholar] [CrossRef]
  12. Çidem, E.; Teker, T.; Aslanoglu, M. A sensitive determination of tramadol using a voltammetric platform based on antimony oxide nanoparticles. Microchem. J. 2019, 147, 879–885. [Google Scholar] [CrossRef]
  13. Ghorbani-Bidkorbeh, F.; Shahrokhian, S.; Mohammadi, A.; Dinarvand, R. Simultaneous voltammetric determination of tramadol and acetaminophen using carbon nanoparticles modified glassy carbon electrode. Electrochim. Acta 2010, 55, 2752–2759. [Google Scholar] [CrossRef]
  14. Korduba, C.A.; Petruzzi, R.F. High-performance liquid chromatographic method for the determination of trace amounts of acetaminophen in plasma. J. Pharm. Sci. 1984, 73, 117–119. [Google Scholar] [CrossRef]
  15. Belal, T.; Awad, T.; Clark, R. Determination of paracetamol and tramadol hydrochloride in pharmaceutical mixture using HPLC and GC-MS. J. Chromatogr. Sci. 2009, 47, 849–854. [Google Scholar] [CrossRef]
  16. Song, S.M.; Marriott, P.; Kotsos, A.; Drummer, O.H.; Wynne, P. Comprehensive two-dimensional gas chromatography with time-of-flight mass spectrometry (GC×GC-TOFMS) for drug screening and confirmation. Forensic Sci. Int. 2004, 143, 87–101. [Google Scholar] [CrossRef]
  17. Cunha, R.R.; Ribeiro, M.M.; Muñoz, R.A.; Richter, E.M. Fast determination of codeine, orphenadrine, promethazine, scopolamine, tramadol, and paracetamol in pharmaceutical formulations by capillary electrophoresis. J. Sep. Sci. 2017, 40, 1815–1823. [Google Scholar] [CrossRef]
  18. Khairy, M.; Banks, C.E. A screen-printed electrochemical sensing platform surface modified with nanostructured ytterbium oxide nanoplates facilitating the electroanalytical sensing of the analgesic drugs acetaminophen and tramadol. Microchim. Acta 2020, 187, 126. [Google Scholar] [CrossRef]
  19. Miraki, M.; Karimi-Maleh, H.; Taher, M.A.; Cheraghi, S.; Karimi, F.; Agarwal, S.; Gupta, V.K. Voltammetric amplified platform based on ionic liquid/NiO nanocomposite for determination of benserazide and levodopa. J. Mol. Liq. 2019, 278, 672–676. [Google Scholar] [CrossRef]
  20. Cerdà, V.; Araujo, R.G.O.; Ferreira, S.L.C. revising flow-through cells for amperometric and voltammetric detections using stationary mercury and bismuth screen printed electrodes. Prog. Chem. Biochem. Res. 2022, 5, 351–366. [Google Scholar]
  21. Scandurra, A.; Ruffino, F.; Urso, M.; Grimaldi, M.G.; Mirabella, S. Disposable and low-cost electrode based on graphene paper-nafion-bi nanostructures for ultra-trace determination of pb (II) and cd (II). Nanomaterials 2020, 10, 1620. [Google Scholar] [CrossRef] [PubMed]
  22. Ismaeel, S.A.; Al-Bayati, Y.K. Determination of trace metformin in pharmaceutical preparation using molecularly imprinted polymer based pvc-membrane. Eurasian Chem. Commun. 2021, 3, 812–830. [Google Scholar]
  23. Shiva Ariavand, S.; Ebrahimi, M.; Foladi, E. Design and construction of a novel and an efficient potentiometric sensor for determination of sodium ion in urban water samples. Chem. Methodol. 2022, 6, 886–904. [Google Scholar]
  24. Alavi-Tabari, S.A.; Khalilzadeh, M.A.; Karimi-Maleh, H. Simultaneous determination of doxorubicin and dasatinib as two breast anticancer drugs uses an amplified sensor with ionic liquid and ZnO nanoparticle. J. Electroanal. Chem. 2018, 811, 84–88. [Google Scholar] [CrossRef]
  25. Chitravathi, S.; Munichandraiah, N. Voltammetric determination of paracetamol, tramadol and caffeine using poly (Nile blue) modified glassy carbon electrode. J. Electroanal. Chem. 2016, 764, 93–103. [Google Scholar] [CrossRef]
  26. Tajik, S.; Taher, M.A.; Beitollahi, H. Simultaneous determination of droxidopa and carbidopa using a carbon nanotubes paste electrode. Sens. Actuators B Chem. 2013, 188, 923–930. [Google Scholar] [CrossRef]
  27. Vilian, A.E.; Hwang, S.K.; Bhaskaran, G.; Alhammadi, M.; Kim, S.; Tiwari, J.N.; Han, Y.K. Polypyrrole-MXene supported gold nanoparticles for the trace-level detection of nitrofurantoin. Chem. Eng. J. 2023, 454, 139980. [Google Scholar] [CrossRef]
  28. Karimi-Maleh, H.; Shojaei, A.F.; Tabatabaeian, K.; Karimi, F.; Shakeri, S.; Moradi, R. Simultaneous determination of 6-mercaptopruine, 6-thioguanine and dasatinib as three important anticancer drugs using nanostructure voltammetric sensor employing Pt/MWCNTs and 1-butyl-3-methylimidazolium hexafluoro phosphate. Biosens. Bioelectron. 2016, 86, 879–884. [Google Scholar] [CrossRef]
  29. Mehdizadeh, Z.; Shahidi, S.A.; Ghorbani-HasanSaraei, A.; Limooei, M.B.; Bijad, M. Monitoring of amaranth in drinking samples using voltammetric amplified electroanalytical sensor. Chem. Methodol. 2022, 6, 246–252. [Google Scholar]
  30. Khan, I.; Saeed, K.; Khan, I. Nanoparticles: Properties, applications and toxicities. Arab. J. Chem. 2019, 12, 908–931. [Google Scholar] [CrossRef]
  31. Shayegan, H.; Safarifard, V.; Taherkhani, H.; Rezvani, M.A. Efficient removal of cobalt(II) ion from aqueous solution using amide-functionalized metal-organic framework. J. Appl. Organomet. Chem. 2022, 2, 109–118. [Google Scholar]
  32. Tallapaneni, V.; Mude, L.; Pamu, D.; Karri, V.V.S.R. Formulation, characterization and in vitro evaluation of dual-drug loaded biomimetic chitosan-collagen hybrid nanocomposite scaffolds. J. Med. Chem. Sci. 2022, 5, 1059–1074. [Google Scholar]
  33. Sharma, M.; Yadav, S.; Srivastava, M.; Ganesh, N.; Srivastava, S. Promising anti-inflammatory bio-efficacy of saponin loaded silver nanoparticles prepared from the plant Madhuca longifolia. Asian J. Nanosci. Mater. 2022, 5, 313–326. [Google Scholar]
  34. Janitabar Darzi, S.; Bastami, H. Au decorated mesoporous TiO2 as a high performance photocatalyst towards crystal violet dye. Adv. J. Chem. A 2022, 5, 22–30. [Google Scholar]
  35. Kavade, R.; Khanapure, R.; Gawali, U.; Patil, A.; Patil, S. Degradation of methyl orange under visible light by ZnO-polyaniline nanocomposites. J. Appl. Organomet. Chem. 2022, 2, 101–112. [Google Scholar]
  36. Dormanesh, R.; Mohseni, S. Green synthesis of zinc oxide nanoparticles and their application in ring opening of epoxides. Prog. Chem. Biochem. Res. 2021, 4, 403–413. [Google Scholar]
  37. Muhi-Alden, Y.Y.; Saleh, K.A. Removing methylene blue dye from industrial wastewater using polyacrylonitrile/iron oxide nanocomposite. Eurasian Chem. Commun. 2021, 3, 755–762. [Google Scholar]
  38. Shete, R.C.; Fernandes, P.R.; Borhade, B.R.; Pawar, A.A.; Sonawane, M.C.; Warude, N.S. Review of cobalt oxide nanoparticles: Green synthesis, biomedical applications, and toxicity studies. J. Chem. Rev. 2022, 4, 331–345. [Google Scholar]
  39. Abadi, M.A.A.; Masrournia, M.; Abedi, M.R. Simultaneous extraction and preconcentration of benzene, toluene, ethylbenzene and xylenes from aqueous solutions using magnetite-graphene oxide composites. Chem. Methodol. 2021, 5, 11–20. [Google Scholar]
  40. Martins, E.C.; Santana, E.R.; Spinelli, A. Nitrogen and sulfur co-doped graphene quantum dot-modified electrode for monitoring of multivitamins in energy drinks. Talanta 2023, 252, 123836. [Google Scholar] [CrossRef]
  41. Hosseini Fakhrabad, A.; Sanavi Khoshnood, R.; Abedi, M.R.; Ebrahimi, M. Fabrication a composite carbon paste electrodes (CPEs) modified with multi-wall carbon nano-tubes (MWCNTs/N,N-Bis (salicyliden)-1,3-propandiamine) for determination of lanthanum (III). Eurasian Chem. Commun. 2021, 3, 627–634. [Google Scholar]
  42. Hasanpour, F.; Taei, M.; Fouladgar, M.; Salehi, M. Au nano dendrites/composition optimized Nd-dopped cobalt oxide as an efficient electrocatalyst for ethanol oxidation. J. Appl. Organomet. Chem. 2022, 2, 203–211. [Google Scholar]
  43. Zhou, Y.; Lü, H.; Zhang, D.; Xu, K.; Hui, N.; Wang, J. Electrochemical biosensors based on conducting polymer composite and PAMAM dendrimer for the ultrasensitive detection of acetamiprid in vegetables. Microchem. J. 2022, 185, 108284. [Google Scholar] [CrossRef]
  44. Mohammadi, S.; Beitollahi, H.; Mohadesi, A. Electrochemical behaviour of a modified carbon nanotube paste electrode and its application for simultaneous determination of epinephrine, uric acid and folic acid. Sens. Lett. 2013, 11, 388–394. [Google Scholar] [CrossRef]
  45. Karimi-Maleh, H.; Darabi, R.; Shabani-Nooshabadi, M.; Baghayeri, M.; Karimi, F.; Rouhi, J.; Karaman, C. Determination of D&C Red 33 and Patent Blue V Azo dyes using an impressive electrochemical sensor based on carbon paste electrode modified with ZIF-8/g-C3N4/Co and ionic liquid in mouthwash and toothpaste as real samples. Food Chem. Toxicol. 2022, 162, 112907. [Google Scholar] [PubMed]
  46. Saritha, D.; Koirala, A.R.; Venu, M.; Reddy, G.D.; Reddy, A.V.B.; Sitaram, B.; Aruna, K. A simple, highly sensitive and stable electrochemical sensor for the detection of quercetin in solution, onion and honey buckwheat using zinc oxide supported on carbon nanosheet (ZnO/CNS/MCPE) modified carbon paste electrode. Electrochim. Acta 2019, 313, 523–531. [Google Scholar] [CrossRef]
  47. Ardakani, M.M.; Taleat, Z.; Beitollahi, H.; Salavati-Niasari, M.; Mirjalili, B.B.F.; Taghavinia, N. Electrocatalytic oxidation and nanomolar determination of guanine at the surface of a molybdenum (VI) complex–TiO2 nanoparticle modified carbon paste electrode. J. Electroanal. Chem. 2008, 624, 73–78. [Google Scholar] [CrossRef]
  48. Sánchez, A.; Villalonga, A.; Martínez-García, G.; Parrado, C.; Villalonga, R. Dendrimers as soft nanomaterials for electrochemical immunosensors. Nanomaterials 2019, 9, 1745. [Google Scholar] [CrossRef]
  49. Elancheziyan, M.; Senthilkumar, S. Redox-active gold nanoparticle-encapsulated poly (amidoamine) dendrimer for electrochemical sensing of 4-aminophenol. J. Mol. Liq. 2021, 325, 115131. [Google Scholar] [CrossRef]
  50. Elancheziyan, M.; Senthilkumar, S. Covalent immobilization and enhanced electrical wiring of hemoglobin using gold nanoparticles encapsulated PAMAM dendrimer for electrochemical sensing of hydrogen peroxide. Appl. Surf. Sci. 2019, 495, 143540. [Google Scholar] [CrossRef]
  51. Cui, H.; Cui, S.; Tian, Q.; Zhang, S.; Wang, M.; Zhang, P.; Li, X. Electrochemical sensor for the detection of 1-hydroxypyrene based on composites of PAMAM-regulated chromium-centered metal–organic framework nanoparticles and graphene oxide. ACS Omega 2021, 6, 31184–31195. [Google Scholar] [CrossRef] [PubMed]
  52. Daniel, M.; Mathew, G.; Anpo, M.; Neppolian, B. MOF based electrochemical sensors for the detection of physiologically relevant biomolecules: An overview. Coord. Chem. Rev. 2022, 468, 214627. [Google Scholar] [CrossRef]
  53. Zhu, Q.Q.; Zhang, H.W.; Yuan, R.; He, H. Ingenious fabrication of metal–organic framework/graphene oxide composites as aptasensors with superior electrochemical recognition capability. J. Mater. Chem. C 2020, 8, 15823–15829. [Google Scholar] [CrossRef]
  54. Wu, M.; Zhang, Q.; Zhang, Q.; Wang, H.; Wang, F.; Liu, J.; Song, K. Research progress of UiO-66-based electrochemical biosensors. Front. Chem. 2022, 10, 19. [Google Scholar] [CrossRef]
  55. Zhang, H.W.; Li, H.K.; Han, Z.Y.; Yuan, R.; He, H. Incorporating fullerenes in nanoscale metal–organic matrixes: An ultrasensitive platform for impedimetric aptasensing of tobramycin. ACS Appl. Mater. Interfaces 2022, 14, 7350–7357. [Google Scholar] [CrossRef]
  56. Rong, S.; Zou, L.; Meng, L.; Yang, X.; Dai, J.; Wu, M.; Pan, H. Dual function metal-organic frameworks based ratiometric electrochemical sensor for detection of doxorubicin. Anal. Chim. Acta 2022, 1196, 339545. [Google Scholar] [CrossRef]
  57. Duan, S.; Wu, X.; Shu, Z.; Xiao, A.; Chai, B.; Pi, F.; Liu, X. Curcumin-enhanced MOF electrochemical sensor for sensitive detection of methyl parathion in vegetables and fruits. Microchem. J. 2023, 184, 108182. [Google Scholar] [CrossRef]
  58. Li, Z.Y.; Huang, L.; Hu, R.; Yang, T.; Yang, Y.H. An electrochemical aptasensor based on intelligent walking DNA nanomachine with cascade signal amplification powered by nuclease for Mucin 1 assay. Anal. Chim. Acta 2022, 1214, 339964. [Google Scholar] [CrossRef]
  59. Zhang, H.W.; Zhu, Q.Q.; Yuan, R.; He, H. Crystal engineering of MOF@COF core-shell composites for ultra-sensitively electrochemical detection. Sens. Actuators B Chem. 2021, 329, 129144. [Google Scholar] [CrossRef]
  60. Li, Y.; Shen, Y.; Zhang, Y.; Zeng, T.; Wan, Q.; Lai, G.; Yang, N. A UiO-66-NH2/carbon nanotube nanocomposite for simultaneous sensing of dopamine and acetaminophen. Anal. Chim. Acta 2021, 1158, 338419. [Google Scholar] [CrossRef]
  61. Bai, Y.; Dou, Y.; Xie, L.H.; Rutledge, W.; Li, J.R.; Zhou, H.C. Zr-based metal–organic frameworks: Design, synthesis, structure, and applications. Chem. Soc. Rev. 2016, 45, 2327–2367. [Google Scholar] [CrossRef] [PubMed]
  62. Wang, X.; Xu, Y.; Li, Y.; Li, Y.; Li, Z.; Zhang, W.; Li, W. Rapid detection of cadmium ions in meat by a multi-walled carbon nanotubes enhanced metal-organic framework modified electrochemical sensor. Food Chem. 2021, 357, 129762. [Google Scholar] [CrossRef] [PubMed]
  63. Garkani-Nejad, F.; Sheikhshoaie, I.; Beitollahi, H. Simultaneous detection of carmoisine and tartrazine in food samples using GO-Fe3O4-PAMAM and ionic liquid based electrochemical sensor. Food Chem. Toxicol. 2022, 162, 112864. [Google Scholar] [CrossRef] [PubMed]
  64. Wang, Y.; Wang, L.; Huang, W.; Zhang, T.; Hu, X.; Perman, J.A.; Ma, S. A metal–organic framework and conducting polymer based electrochemical sensor for high performance cadmium ion detection. J. Mater. Chem. A 2017, 5, 8385–8393. [Google Scholar] [CrossRef]
  65. Zhang, X.; Zhang, Y.; Wang, T.; Fan, Z.; Zhang, G. A thin film nanocomposite membrane with pre-immobilized UiO-66-NH2 toward enhanced nanofiltration performance. RSC Adv. 2019, 9, 24802–24810. [Google Scholar] [CrossRef] [PubMed]
  66. Fang, Y.; Zhang, L.; Zhao, Q.; Wang, X.; Jia, X. Highly selective visible-light photocatalytic benzene hydroxylation to phenol using a new heterogeneous photocatalyst UiO-66-NH2-SA-V. Catal. Lett. 2019, 149, 2408–2414. [Google Scholar] [CrossRef]
  67. Arabali, V.; Malekmohammadi, S.; Karimi, F. Surface amplification of pencil graphite electrode using CuO nanoparticle/polypyrrole nanocomposite; a powerful electrochemical strategy for determination of tramadol. Microchem. J. 2020, 158, 105179. [Google Scholar] [CrossRef]
  68. Mohammadi, S.Z.; Jafari, M.; Mohammadzadeh-Jahani, P.; Ahmadi, S.A.; Mashayekh, R. Electrochemical determination of tramadol using modified screen-printed electrode. J. Electrochem. Sci. Eng. 2022, 12, 127–135. [Google Scholar]
  69. Mohamed, M.A.; Atty, S.A.; Salama, N.N.; Banks, C.E. Highly selective sensing platform utilizing graphene oxide and multiwalled carbon nanotubes for the sensitive determination of tramadol in the presence of co-formulated drugs. Electroanalysis 2017, 29, 1038–1048. [Google Scholar] [CrossRef]
  70. Babaei, A.; Taheri, A.R.; Afrasiabi, M. A multi-walled carbon nanotube-modified glassy carbon electrode as a new sensor for the sensitive simultaneous determination of paracetamol and tramadol in pharmaceutical preparations and biological fluids. J. Braz. Chem. Soc. 2011, 22, 1549–1558. [Google Scholar] [CrossRef]
  71. Manokaran, J.; Narendranath, J.; Muruganantham, R.; Balasubramanian, N. Nitrogen doped graphene supported Pt-Pd nanoparticle modified GC electrode for electrochemical determination of tramadol and paracetamol. Indian J. Chem. A 2017, 56, 63–68. [Google Scholar]
  72. Madrakian, T.; Alizadeh, S.; Bahram, M.; Afkhami, A. A novel electrochemical sensor based on magneto LDH/Fe3O4 nanoparticles@glassy carbon electrode for voltammetric determination of tramadol in real samples. Ionics 2017, 23, 1005–1015. [Google Scholar] [CrossRef]
  73. Hassannezhad, M.; Hosseini, M.; Ganjali, M.R.; Arvand, M. A graphitic carbon nitride (gC3N4/Fe3O4) nanocomposite: An efficient electrode material for the electrochemical determination of tramadol in human biological fluids. Anal. Methods 2019, 11, 2064–2071. [Google Scholar] [CrossRef]
  74. Hassanvand, Z.; Jalali, F. Gold nanoparticles/cysteic acid modified electrode for simultaneous electrochemical determination of tramadol and paracetamol. Anal. Bioanal. Chem. Res. 2019, 6, 393–404. [Google Scholar]
  75. Jahromi, Z.; Mirzaei, E.; Savardashtaki, A.; Afzali, M.; Afzali, Z. A rapid and selective electrochemical sensor based on electrospun carbon nanofibers for tramadol detection. Microchem. J. 2020, 157, 104942. [Google Scholar] [CrossRef]
  76. Mynttinen, E.; Wester, N.; Lilius, T.; Kalso, E.; Koskinen, J.; Laurila, T. Simultaneous electrochemical detection of tramadol and O-desmethyltramadol with Nafion-coated tetrahedral amorphous carbon electrode. Electrochim. Acta 2019, 295, 347–353. [Google Scholar] [CrossRef]
  77. Aflatoonian, M.R.; Tajik, S.; Aflatoonian, B.; Beitollahi, H.; Zhang, K.; Le, Q.V.; Cha, J.H.; Jang, H.W.; Shokouhimehr, M.; Peng, W. A screen-printed electrode modified with graphene/Co3O4 nanocomposite for electrochemical detection of tramadol. Front. Chem. 2020, 8, 562308. [Google Scholar] [CrossRef]
  78. Hajmalek, S.; Jahani, S.; Foroughi, M.M. Simultaneous voltammetric determination of tramadol and paracetamol exploiting glassy carbon electrode modified with FeNi3 nanoalloy in biological and pharmaceutical media. ChemistrySelect 2021, 6, 8797–8808. [Google Scholar] [CrossRef]
Biosensors 13 00514 g001 550

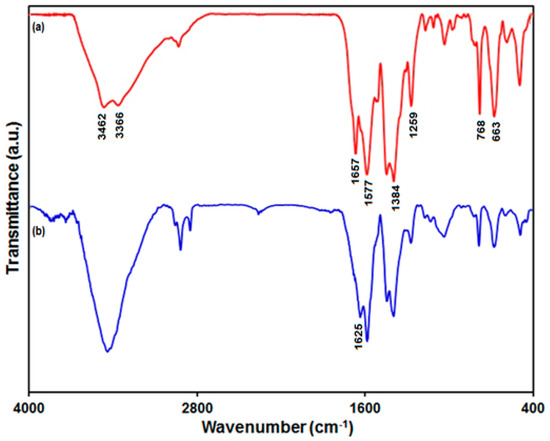

Figure 1. FT-IR spectrum of UiO-66-NH2 MOF (a) and UiO-66-NH2 MOF/PAMAM nanocomposite (b).
Figure 1. FT-IR spectrum of UiO-66-NH2 MOF (a) and UiO-66-NH2 MOF/PAMAM nanocomposite (b).
Biosensors 13 00514 g001
Biosensors 13 00514 g002 550

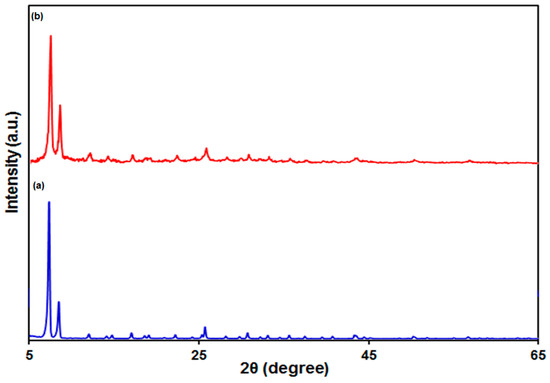

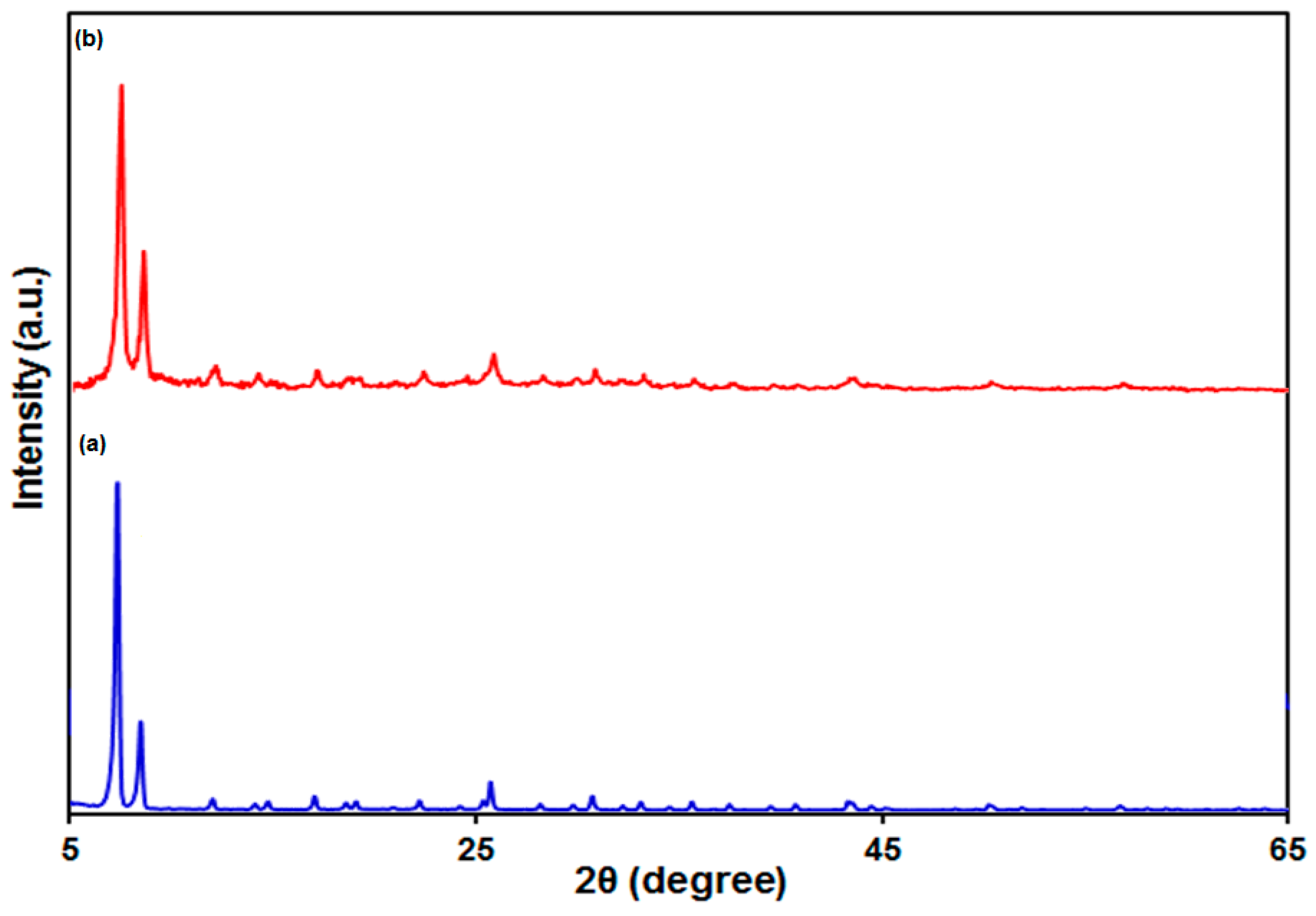

Figure 2. The XRD pattern of UiO-66-NH2 MOF (a) and UiO-66-NH2 MOF/PAMAM nanocomposite (b).
Figure 2. The XRD pattern of UiO-66-NH2 MOF (a) and UiO-66-NH2 MOF/PAMAM nanocomposite (b).
Biosensors 13 00514 g002
Biosensors 13 00514 g003 550
Figure 3. The FE-SEM images of the as-synthesized UiO-66-NH2 MOF (a,b) and UiO-66-NH2 MOF/PAMAM nanocomposite (c,d) at different magnifications.
Figure 3. The FE-SEM images of the as-synthesized UiO-66-NH2 MOF (a,b) and UiO-66-NH2 MOF/PAMAM nanocomposite (c,d) at different magnifications.
Biosensors 13 00514 g003
Biosensors 13 00514 g004 550

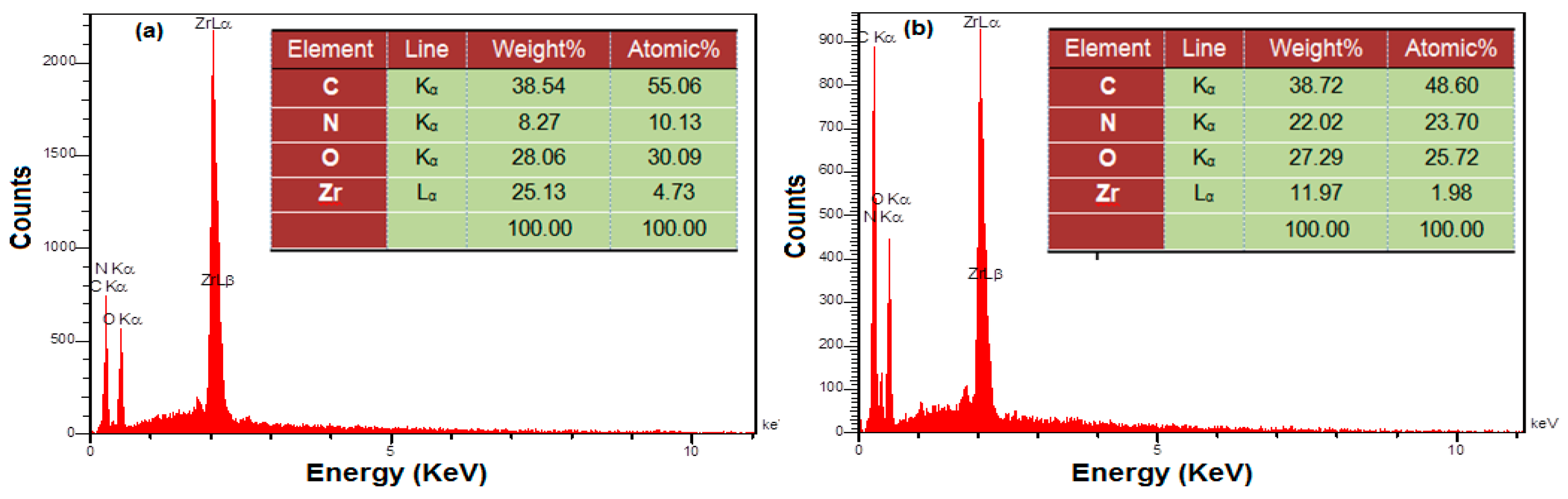

Figure 4. EDS analysis of UiO-66-NH2 MOF (a) and UiO-66-NH2 MOF/PAMAM nanocomposite (b).
Figure 4. EDS analysis of UiO-66-NH2 MOF (a) and UiO-66-NH2 MOF/PAMAM nanocomposite (b).
Biosensors 13 00514 g004
Biosensors 13 00514 g005 550

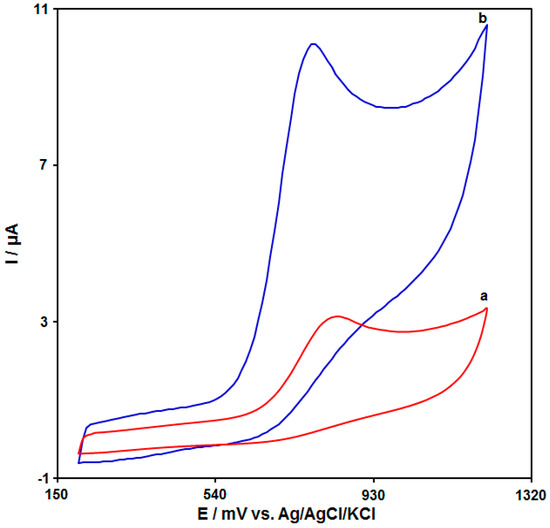

Figure 5. CVs acquired for (a) bare GCE and (b) UiO-66-NH2 MOF/PAMAM-modified GCE for tramadol (100.0 μM) in PBS (pH 7.0, 0.1 M) at a scan rate of 50 mV/s.
Figure 5. CVs acquired for (a) bare GCE and (b) UiO-66-NH2 MOF/PAMAM-modified GCE for tramadol (100.0 μM) in PBS (pH 7.0, 0.1 M) at a scan rate of 50 mV/s.
Biosensors 13 00514 g005
Biosensors 13 00514 g006 550
Figure 6. LSVs acquired for tramadol (70.0 μM) in PBS (pH 7.0, 0.1 M) on UiO-66-NH2 MOF/PAMAM-modified GCE at variable scan rates ((a: 5 mV/s), (b: 10 mV/s), (c: 20 mV/s), (d: 30 mV/s), (e: 40 mV/s), (f: 50 mV/s), (g: 60 mV/s), (h: 70 mV/s), (i: 80 mV/s),(j: 90 mV/s), (k: 100 mV/s), (l: 200 mV/s), (m: 300 mV/s), (n: 400 mV/s), and (o: 500 mV/s)). Inset: Plot of Ipa against υ1/2 for tramadol electro-oxidation.
Figure 6. LSVs acquired for tramadol (70.0 μM) in PBS (pH 7.0, 0.1 M) on UiO-66-NH2 MOF/PAMAM-modified GCE at variable scan rates ((a: 5 mV/s), (b: 10 mV/s), (c: 20 mV/s), (d: 30 mV/s), (e: 40 mV/s), (f: 50 mV/s), (g: 60 mV/s), (h: 70 mV/s), (i: 80 mV/s),(j: 90 mV/s), (k: 100 mV/s), (l: 200 mV/s), (m: 300 mV/s), (n: 400 mV/s), and (o: 500 mV/s)). Inset: Plot of Ipa against υ1/2 for tramadol electro-oxidation.
Biosensors 13 00514 g006
Biosensors 13 00514 g007 550

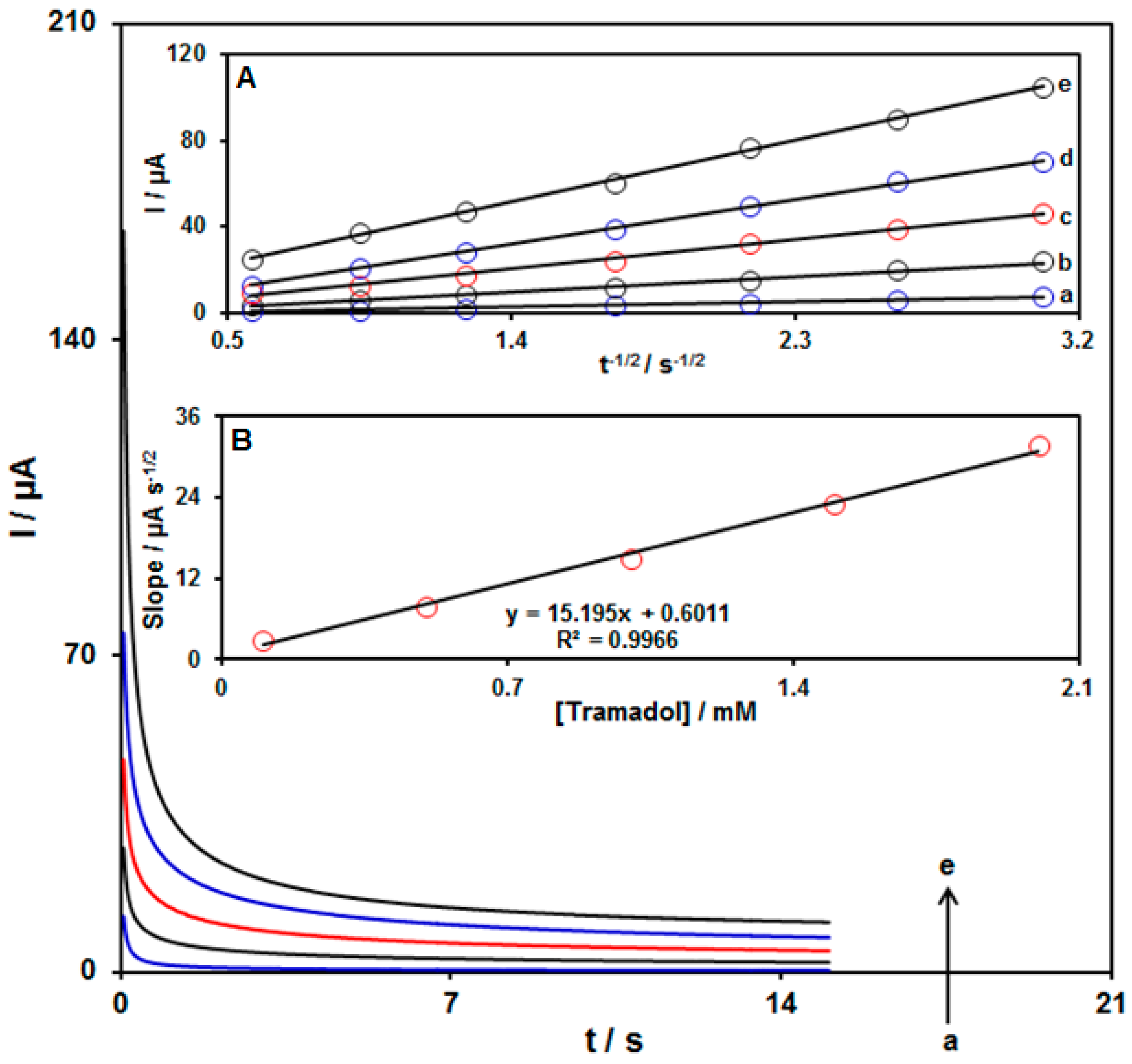

Figure 7. Chronoamperograms acquired for the UiO-66-NH2 MOF/PAMAM-modified GCE in the exposure to variable tramadol concentrations ((a: 0.1 mM), (b: 0.5 mM), (c: 1.0 mM), (d: 1.5 mM), and (e: 2.0 mM) of tramadol) in PBS (pH 7.0, 0.1 M). Inset A: Plots of I vs. t−1/2 from chronoamperograms a–e, and Inset B: Plot of straight line slope vs. tramadol level.
Figure 7. Chronoamperograms acquired for the UiO-66-NH2 MOF/PAMAM-modified GCE in the exposure to variable tramadol concentrations ((a: 0.1 mM), (b: 0.5 mM), (c: 1.0 mM), (d: 1.5 mM), and (e: 2.0 mM) of tramadol) in PBS (pH 7.0, 0.1 M). Inset A: Plots of I vs. t−1/2 from chronoamperograms a–e, and Inset B: Plot of straight line slope vs. tramadol level.
Biosensors 13 00514 g007
Biosensors 13 00514 g008 550

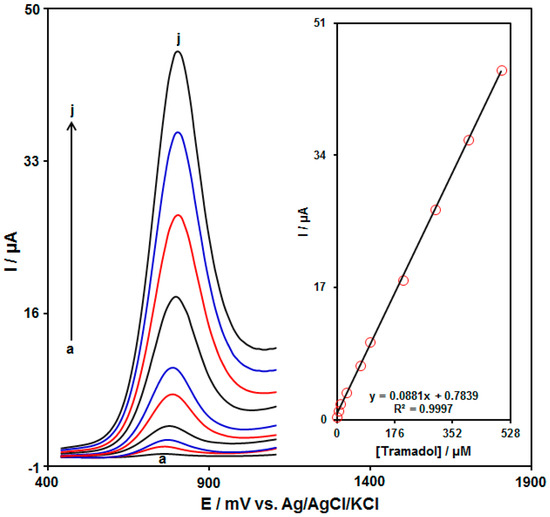

Figure 8. DPVs acquired for the UiO-66-NH2 MOF/PAMAM-modified GCE in the exposure to variable tramadol concentrations ((a: 0.5 μM), (b: 5.0 µM), (c: 10.0 µM), (d: 30.0 µM), (e: 70.0 µM), (f: 100.0 µM), (g: 200.0 µM), (h: 300.0 µM), (i: 400.0 µM), and (j: 500.0 μM)) tramadol in PBS (pH 7.0, 0.1 M). Insets: Relationships between the Ipa and levels of tramadol.
Figure 8. DPVs acquired for the UiO-66-NH2 MOF/PAMAM-modified GCE in the exposure to variable tramadol concentrations ((a: 0.5 μM), (b: 5.0 µM), (c: 10.0 µM), (d: 30.0 µM), (e: 70.0 µM), (f: 100.0 µM), (g: 200.0 µM), (h: 300.0 µM), (i: 400.0 µM), and (j: 500.0 μM)) tramadol in PBS (pH 7.0, 0.1 M). Insets: Relationships between the Ipa and levels of tramadol.
Biosensors 13 00514 g008
Biosensors 13 00514 g009 550

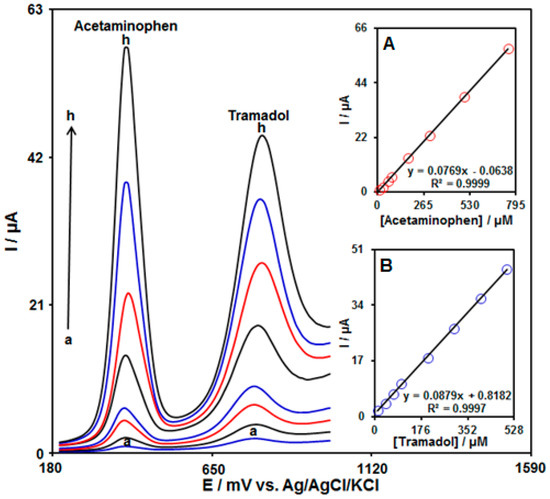

Figure 9. DPVs acquired for UiO-66-NH2 MOF/PAMAM-modified GCE in PBS (pH 7.0, 0.1 M) with variable tramadol and acetaminophen levels ((a: 10.0 μM), (b: 40.0 μM), (c: 70.0 μM), (d: 100.0 μM), (e: 200.0 μM), (f: 300.0 μM), (g: 400.0 μM), and (h: 500.0 μM) of tramadol) and ((a: 10.0 μM), (b: 30.0 μM), (c: 60.0 μM), (d: 80.0 μM), (e: 175.0 μM), (f: 300.0 μM), (g: 500.0 μM), and (h: 750.0 μM) of acetaminophen). Insets: (A) Plot of peak current as a function of acetaminophen levels; (B) Plot of peak current as a function of tramadol levels.
Figure 9. DPVs acquired for UiO-66-NH2 MOF/PAMAM-modified GCE in PBS (pH 7.0, 0.1 M) with variable tramadol and acetaminophen levels ((a: 10.0 μM), (b: 40.0 μM), (c: 70.0 μM), (d: 100.0 μM), (e: 200.0 μM), (f: 300.0 μM), (g: 400.0 μM), and (h: 500.0 μM) of tramadol) and ((a: 10.0 μM), (b: 30.0 μM), (c: 60.0 μM), (d: 80.0 μM), (e: 175.0 μM), (f: 300.0 μM), (g: 500.0 μM), and (h: 750.0 μM) of acetaminophen). Insets: (A) Plot of peak current as a function of acetaminophen levels; (B) Plot of peak current as a function of tramadol levels.
Biosensors 13 00514 g009
Table
Table 1. Comparison of different sensors for tramadol detection.
Table 1. Comparison of different sensors for tramadol detection.
Electrochemical SensorElectrochemical TechniqueLinear RangeLimit of DetectionSample
Type		Ref.
Poly(Nile blue)/glassy carbon electrodeDPV1–310 μM0.5 µMUltracet® tablets[25]
La3+/ZnO nano-flowers and multi-walled carbon nanotubes/screen-printed electrodeDPV0.5–800.0 μM0.08 μMTramadol tablets and urine[68]
Multi-walled carbon nanotubes/glassy carbon electrodeDPV2–300 μM0.361 µMHuman serum, urine, and ZAFIN® tablets[70]
Pt-Pd bimetallic nanoparticles/poly(diallyldimethylammonium chloride)/nitrogen-doped graphene/glassy carbon electrode1 SWV12.0–240.0 µM5.7 µMInfected urine[71]
Magneto layer double hydroxide (LDH)/Fe3O4/glassy carbon electrodeDPV1.0–200.0 µM0.3 µMHuman serum and human urine[72]
Graphitic carbon nitride/Fe3O4 nanocomposite/carbon paste electrodeDPV0.2–14.0 µM
and
14.0–120.0 µM		0.1 µMHuman blood serum, human blood plasma, and urine[73]
Au nanoparticles/cysteic acid/glassy carbon electrodeSWV0.5–63.5 µM0.17 µMHuman blood plasma[74]
Electrospun carbon nanofibers/screen-printed electrodeSWV0.05–1.0 nM and
1.0–100 nM		0.016 nMUrine[75]
Nafion-coated tetrahedral amorphous carbon electrodeDPV1–12.5 µM131 nMHuman plasma[76]
Graphene/Co3O4 nanocomposite/screen-printed electrodeDPV0.1–500.0 μM0.03 μMTramadol tablets, Acetaminophen tablets, and urine[77]
FeNi3 nanoalloy/glassy carbon electrodeDPV0.1–900.0 μM8.2 nMUltracet® tablets, tramadol tablets, acetaminophen tablets, serum, and urine[78]
UiO-66-NH2 MOF-PAMAM/GCEDPV0.5–500.0 µM0.2 µMTramadol tabletsThis work
1—Square wave voltammetry.
Table
Table 2. Determination of tramadol and acetaminophen drugs in pharmaceutical formulations using the UiO-66-NH2 MOF/PAMAM-modified GCE. All concentrations are in µM. (n = 5).
Table 2. Determination of tramadol and acetaminophen drugs in pharmaceutical formulations using the UiO-66-NH2 MOF/PAMAM-modified GCE. All concentrations are in µM. (n = 5).
SampleSpikedFoundRecovery (%)
TramadolAcetaminophenTramadolAcetaminophenTramadolAcetaminophen
Tramadol tablets004.0 ± 0.05---
1.04.04.9 ± 0.044.1 ± 0.0798.0102.5
2.06.06.2 ± 0.055.8 ± 0.05103.396.7
3.08.07.1 ± 0.037.9 ± 0.04101.498.7
4.010.07.9 ± 0.0610.1 ± 0.0498.7101.0
Acetaminophen tablets00-3.5 ± 0.05--
5.01.05.1 ± 0.054.4 ± 0.06102.097.8
7.02.06.8 ± 0.035.6 ± 0.0397.1101.8
9.03.09.1 ± 0.046.4 ± 0.06101.198.5
11.04.010.9 ± 0.057.6 ± 0.0499.1101.3
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Garkani Nejad, F.; Beitollahi, H.; Sheikhshoaie, I. A UiO-66-NH2 MOF/PAMAM Dendrimer Nanocomposite for Electrochemical Detection of Tramadol in the Presence of Acetaminophen in Pharmaceutical Formulations. Biosensors 2023, 13, 514. https://doi.org/10.3390/bios13050514

AMA Style

Garkani Nejad F, Beitollahi H, Sheikhshoaie I. A UiO-66-NH2 MOF/PAMAM Dendrimer Nanocomposite for Electrochemical Detection of Tramadol in the Presence of Acetaminophen in Pharmaceutical Formulations. Biosensors. 2023; 13(5):514. https://doi.org/10.3390/bios13050514

Chicago/Turabian Style

Garkani Nejad, Fariba, Hadi Beitollahi, and Iran Sheikhshoaie. 2023. "A UiO-66-NH2 MOF/PAMAM Dendrimer Nanocomposite for Electrochemical Detection of Tramadol in the Presence of Acetaminophen in Pharmaceutical Formulations" Biosensors 13, no. 5: 514. https://doi.org/10.3390/bios13050514

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
