Solution-Processed PEDOT:PSS/MoS2 Nanocomposites as Efficient Hole-Transporting Layers for Organic Solar Cells
Deprtment of Chemistry and Nanoscience, Ewha Womans University, 52 Ewhayeodae-gil, Seodaemun-gu, Seoul 03760, Korea
*
Authors to whom correspondence should be addressed.
Received: 6 July 2019 / Accepted: 11 September 2019 / Published: 16 September 2019

Abstract

:
An efficient hole-transporting layer (HTL) based on functionalized two-dimensional (2D) MoS2-poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) composites has been developed for use in organic solar cells (OSCs). Few-layer, oleylamine-functionalized MoS2 (FMoS2) nanosheets were prepared via a simple and cost-effective solution-phase exfoliation method; then, they were blended into PEDOT:PSS, a conducting conjugated polymer, and the resulting hybrid film (PEDOT:PSS/FMoS2) was tested as an HTL for poly(3-hexylthiophene):[6,6]-phenyl-C61-butyric acid methyl ester (P3HT:PCBM) OSCs. The devices using this hybrid film HTL showed power conversion efficiencies up to 3.74%, which is 15.08% higher than that of the reference ones having PEDOT:PSS as HTL. Atomic force microscopy and contact angle measurements confirmed the compatibility of the PEDOT:PSS/FMoS2 surface for active layer deposition on it. The electrical impedance spectroscopy analysis revealed that their use minimized the charge-transfer resistance of the OSCs, consequently improving their performance compared with the reference cells. Thus, the proposed fabrication of such HTLs incorporating 2D nanomaterials could be further expanded as a universal protocol for various high-performance optoelectronic devices.
Keywords:
organic solar cells; MoS2; hole-transporting layer; oleylamine

1. Introduction

Organic solar cells (OSCs) have many striking properties such as flexibility, solution processability, light weight, and simple manufacturing, especially if compared with their inorganic counterparts. To enhance their performance, numerous strategies have been proposed, including novel photoactive materials, morphology control, interfacial engineering, plasmonic nanoparticles incorporation, and alternative buffer layers and electrodes [1,2,3,4,5,6]. Their power conversion efficiency (PCE) has been recently improved up to >13% with rapid advances in new photovoltaic materials [7]. In the typical bulk heterojunction (BHJ) OSCs configuration, a photoactive blend layer consisting of acceptor/donor pairs is sandwiched between a bottom transparent anode and a top low-work-function cathode, combined with the corresponding interlayers. Such interlayers are crucial for determining the overall PCE and stability of OSCs because they reduce the potential energy barrier between photoactive layer and electrodes, enhancing the extraction of holes and electrons at the anode and cathode, respectively.
Until now, many hole-transporting layer (HTL) materials, such as conducting conjugated polymers [8,9,10], conjugated polyelectrolytes [11,12] metal oxides/sulfides [13,14,15,16,17], and graphene oxide and its hybrid films [18,19,20,21], have been explored for use in OSCs. Among them, the conjugated polymer poly(3,4 ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) has been the most widely used due to its adequate work function for creating a good ohmic contact between active layer and anode, solution processability, and high conductivity. However, its hygroscopic and acidic nature often induces chemical instability between active layers and indium tin oxide (ITO) anodes, affecting the device stability and efficiency [22,23]. Moreover, there is a clear surface energy mismatch between PEDOT:PSS (hydrophilic nature) and the active layer (hydrophobic and made of, e.g., poly(3-hexylthiophene) (P3HT)) [24,25]. To overcome such drawbacks, various PEDOT:PSS modification strategies, such as incorporating metal nanoparticles [26,27,28], modification by metal salts [29,30], polymer doping [31,32], and hybridization with graphene [33,34], have been developed. Interfacial engineering with long alkyl chains is an alternative but attractive method to reduce the surface energy mismatch between HTL and active layer and also to accomplish desirable molecular orientation in the active layer for enhancing the charge transport in OSCs [35].
Single and few-layer molybdenum disulfide, a two-dimensional (2D) transition metal dichalcogenide (TMDC), has recently received much interest in electronics and optoelectronics research due to its excellent optical (bandgap: 1.8 eV), electrical (device mobility: 10–130 cm2 V−1 S−1), and mechanical (Young modulus: 270 GPa) properties [36,37]. Among the key preparation/exfoliation methods for TMDCs, namely, micromechanical cleavage [38], chemical vapor deposition [39], and liquid-phase exfoliation (LPE) [40], the latter is more attractive because it is scalable and cost-effective. MoS2 has been tested as HTL for OSCs [41,42,43] to exploit its extraordinary optical and electrical properties in photovoltaics; nevertheless, the results have revealed that neat MoS2 is not sufficient to replace PEDOT:PSS as OSC HTL, possibly because of its work function mismatch and unexpected phase transition. Hence, Xing et al. fabricated PEDOT:PSS/WS2 hybrid films and demonstrated their applicability as effective OSC HTLs [44]. However, the long-time (48 h) sonication they adopted for TMDC exfoliation in the PEDOT:PSS aqueous dispersion may affect the structure of both PEDOT:PSS and MoS2 in the final product; therefore, innovative strategies for effectively integrating these materials in OSCs are still highly demanded.
Here, we report the fabrication of oleylamine-functionalized MoS2 (FMoS2) combined with PEDOT:PSS as an effective hybrid HTL (PEDOT:PSS/FMoS2) for use in conventional P3HT:[6,6]-phenyl-C61-butyric acid methyl ester (PCBM)-based OSCs. The so-obtained OSCs exhibited better PCE and short-circuit current density (Jsc) values compared with the reference cell having simple PEDOT:PSS as HTL. FMoS2 was characterized by various spectroscopic techniques including Raman spectroscopy, ultraviolet–visible (UV-Vis) absorption and transmittance, photoluminescence (PL), and transmission electron microscopy (TEM); the active layer microstructure and the surface properties of the hybrid HTL were analyzed by grazing-incidence wide-angle X-ray scattering (GIWAXS), atomic force microscopy (AFM), and contact angle measurements. Electrochemical impedance spectroscopy (EIS) measurements were carried out using an electrochemical analyzer (IVIUMSTAT.XR, IVIUM Technologies) under illumination at 0.1 V.

2. Experimental

2.1. Materials and Methods

The following chemicals were used in our experiment: molybdenum (IV) sulfide (˂2 µm, 99%) and oleylamine (Sigma-Aldrich, Gyeonggi-do, Korea), P3HT (1-Material, Gyeonggi-do, Korea), PEDOT:PSS (Heraeus Deutschland GmbH & Co., Leverkusen, Germany), isopropyl alcohol (IPA) (Dae-Jung Chemicals & Metals Co., Ltd., Gyeonggi-do, Korea), and methanol (Samchun Chemicals, Seoul, Korea).

2.2. Synthesis of FMoS2 Nanosheets and PEDOT:PSS/FMoS2 Hybrids

FMoS2 nanosheets were synthesized according to the liquid-phase exfoliation method reported in literature [45], with small modifications. Briefly, bulk MoS2 powder (200 mg) was bath-sonicated in oleylamine (2 mL) by using a Branson ultrasonic bath for 20 min and successively stirred at 60 °C for 12 h in an N2-filled glove box. Then, 1,2-dichlorobenzene (DCB) (18 mL) was added, and the dispersion was further bath-sonicated for 5 h. The resulting suspension was centrifuged at 4000 rpm, and the top 80% dark-green color supernatant, which contains excess oleylamine, DCB, and FMOS2 was collected. Then, the FMoS2 nanosheets were separated by adding excess acetone, followed by sonication for 2 min and high-speed centrifugation (10000 rpm). The separated FMoS2 nanosheets were settled at the bottom of the centrifuge tube, which was re-dispersed in a small amount of IPA by mild sonication, and different concentrations (5, 20, and 50 µL) of the resulting dispersion were added into PEDOT:PSS:methanol (1:1 V%) aqueous solutions, which were successively ultrasonicated for 30 min to obtain PEDOT:PSS/FMoS2 hybrid solutions.

2.3. Fabrication of OSCs

The OSCs having device architectures of ITO/PEDOT:PSS/P3HT:PCBM/LiF/Al and ITO/(PEDOT:PSS/FMoS2)/P3HT:PCBM/LiF/Al were fabricated as follows. ITO-coated glass substrates were cleaned via sequential ultrasonication in acetone, IPA, and distilled water, followed by oxygen plasma treatment for 10 min; then, they were spin-coated with a PEDOT:PSS (Clevios P VP Al 4083) or PEDOT:PSS/FMoS2 solution at 4000 rpm for 40 s and dried at 130 °C for 30 min to complete the HTL deposition. Next, an active layer consisting of a P3HT:PCBM (1:0.6 wt%) binary blend solution was spin-coated on the resulting HTL layer at 2500 rpm for 40 s inside an N2-filled glove box and annealed at 150 °C. Finally, LiF and Al layers were deposited by thermal evaporation. The active area of the fabricated OSCs was 0.06 cm2.

2.4. Characterization

The absorption properties of the samples were analyzed using a UV-Vis absorption spectrometer (Cary 5000, Varian, Inc.). Raman spectra were recorded on a Horiba Jobin-Yvon spectrometer. The emission properties were investigated with a luminescence spectrometer (LS55 Perkin Elmer). The TEM measurements were carried out on a JEOL JSM-2100-F system. The surface morphologies were investigated using a tapping-mode atomic force microscope (Veeco D3100). The water contact angles of the samples were measured with a KSV CAM 101 instrument. The GIWAXS analysis was conducted at the PLS-II 9A U-SAXs beamline of the Pohang Accelerator Laboratory (Korea) at the following operating conditions: incidence angle of ~0.12°, wavelength of 1.12 Å, and sample-to-detector distance of 224 nm. The GIWAXS patterns were recorded using a 2D charge-coupled device camera (Rayonix, SX-165, USA) with an exposure time of 10–30 s. The JV properties of the solar cells were measured with a Keithley 2400 solar cell IV measurement system under AM 1.5 G illumination at 100 mW cm−2.

3. Results and Discussion

OSCs having two different device architectures, ITO/(PEDOT:PSS/FMoS2)/P3HT:PCBM/LiF/Al and ITO/PEDOT:PSS/P3HT:PCBM/LiF/Al (for comparison), were fabricated as schematized in Figure 1.
First, we synthesized FMoS2 nanosheets via the solution-phase ultrasonic exfoliation of bulk MoS2 in the presence of oleylamine and 1,2-dichlorobenzene as a solvent; then, they were incorporated in different concentrations (5, 20, and 50 µL) into PEDOT:PSS, and the resulting PEDOT:PSS/FMoS2 (denoted as PEDOT:PSS/FMoS2(5), PEDOT:PSS/FMoS2(20), and PEDOT:PSS/FMoS2(50) according to the FMoS2 loading) was used as HTL for conventional OSCs.
Raman spectroscopy is a powerful nondestructive technique for monitoring structural changes in 2D materials [46]. The Raman spectrum of bulk MoS2 showed two characteristic peaks at 374.83 and 402.05 cm−1 corresponding, respectively, to the E¹2g and A1g vibrational modes (Figure 2a); the first arose from the in-plane vibration of Mo and S atoms, while the second resulted from the out-of-plane vibrations of sulfur [47,48]. As regards FMoS2, the peaks for both the E¹2g and A1g vibrational modes were blue-shifted toward higher wavenumbers (respectively, 382.66 and 405.66 cm−1), suggesting interactions between oleylamine and MoS2. Moreover, the wavenumber difference between these two vibrational modes is closely related to the layer number present in the MoS2 nanosheets [49], and in our case, this difference decreased from 27.2 cm−1 for bulk MoS2 to 23 cm−1 for FMoS2 nanosheets, demonstrating the successful exfoliation of MoS2 nanosheets during the oleylamine treatment.
The absorption properties of the FMoS2 nanosheets were further investigated via UV-Vis absorption spectroscopy; their spectrum (Figure 2b) clearly showed two characteristic absorption peaks of MoS2 at 618 and 677 cm−1 corresponding, respectively, to the A1 and B1 direct excitonic transitions with the energy split from valence band spin–orbital coupling [50]. Furthermore, unlike bulk MoS2, FMoS2 yielded dark-greenish dispersion in 1,2-dichlorobenzene. These results clearly indicate some alteration in the surface properties of MoS2 due to the oleylamine treatment [51].
Bulk MoS2 is an indirect bandgap semiconductor that does not exhibit any photoluminescence; however, upon exfoliation, its luminescence increases with decreasing its layer thickness, so that single-layer MoS2 shows the highest photoluminescence due to its transition into a direct bandgap semiconductor [52,53]. As expected, FMoS2 exhibited significant photoluminescence (see the PL spectra in Figure S1, Electronic Supporting Information (ESI)), which clearly proves the successful layer thinning of MoS2 during the functionalization process.
The TEM images of the FMoS2 nanosheets are displayed in Figure 2c,d, showing a thin nanosheet morphology with sizes of several hundred nanometers. A careful observation of the nanosheet edges reveals the presence of few-layer nanosheets, confirming the effectiveness of the liquid-based exfoliation with oleylamine. AFM measurements were carried out (Figure S2, ESI) to further evaluate the layer thickness; that of FMoS2 was ~6.7 nm, suggesting the existence of few-layer nanosheets, while the reported thickness of monolayer MoS2 ranges between 0.9 and 1.2 nm [54].
To improve the performance of conventional PEDOT:PSS-based HTL for OSCs, we incorporated it with FMoS2 via a simple solution-blending method because we believed that the introduction of 2D sheet-like MoS2 functionalized with a long-chain primary alkyl amine (oleylamine) would have made the PEDOT:PSS surface more hydrophobic, facilitating the following deposition of the hydrophobic active layer. In addition, the amine group of oleylamine tends to be located near Mo atoms in MoS2 due to metal–amine interactions, while its long alkyl chain with –CH3 groups is oriented toward the active layer, and this kind of configuration should enforce the active layer with a desirable molecular orientation for efficient charge transport in OSCs; P3HT thin films deposited on insulator substrates modified with –CH3 groups formed face-on orientation because of π–H interactions [55,56].
The contact angles of ITO with PEDOT:PSS and PEDOT:PSS/FMoS2 containing 5, 20, and 50 µL of FMoS2 were 30°, 47°, 54°, and 56°, respectively (Figure S3, ESI), which indicates that the hydrophobicity of PEDOT:PSS was slightly increased by the FMoS2 addition and, hence, the hydrophobic active layer solution was more compatible on hybrid HTL than that of the hydrophilic PEDOT:PSS one.
The surface morphology of the various samples was compared via tapping-mode AFM analysis (Figure S4, ESI); the root-mean-square (rms) roughness value of PEDOT:PSS was 1 nm and decreased down to 0.69 nm for PEDOT:PSS/FMoS2(5), suggesting a smooth surface morphology in the hybrid HTL. However, PEDOT:PSS/FMoS2(50) exhibited an rms roughness value of 0.97 nm, indicating that the addition of higher FMoS2 concentrations would decrease the film smoothness.
All the synthesized PEDOT:PSS and PEDOT:PSS/FMoS2 hybrid films exhibited similar UV-Vis transmittance values (Figure S5a, ESI), showing that the FMoS2 addition did not affect any absorption property of the PEDOT:PSS matrix. As regards the P3HT:PCBM (active layer) films spin-coated on glass substrates predeposited with PEDOT:PSS or PEDOT:PSS/FMoS2 HTLs (Figure S5b), for all the samples, their absorbance ranged from 400 to 650 nm, with a maximum at 512 nm, and two shoulders around 550 and 600 nm. The existence of vibronic feature at 600 nm suggests that the P3HT film existed in a high degree of ordered crystalline lamella due to strong interchain interactions [57].
The current–voltage (JV) characteristics of the fabricated P3HT:PCBM OSCs having PEDOT:PSS/FMoS2 as HTL are shown in Figure 3a. Their performance is compared with that of reference devices having PEDOT:PSS as HTL in Table 1. The reference cells showed PCE = 3.25%, Jsc = 7.92 mA cm−2, Voc = 0.671 V, and FF = 0.61. The FMoS2 incorporation led to significant PCE and Jsc improvements; in particular, the device based on PEDOT:PSS/FMoS2(5) exhibited the highest PCE, Jsc, and FF.
The external quantum efficiency (EQE) measurements (Figure 3b) showed improved EQE for the hybrid HTL-based OSCs compared with the reference cells and confirmed also their increased Jsc, demonstrating the enhanced charge extraction at the HTL/active layer interface and the charge collection at the electrodes [58,59]. The photovoltaic parameters such as PCE, Jsc, FF and Voc as a function of FMoS2 in PEDOT:PSS HTLs are plotted in Figure 3c, d, e and f respectively.
To understand the charge transport, we analyzed the microstructure (chain-orientation and crystallinity) of the active layer (P3HT:PCBM) on both the PEDOT:PSS and PEDOT:PSS/FMoS2 samples by GIWAXS (Figure 4 and Figure 5). Charge transport in conjugated polymers occurs either in the π–π staking direction or the chain backbone one, which is the fastest but its vertical alignment of chains backbones along the z direction is rarely observed [60,61]. In general, P3HT crystallizes into two main configurations, namely, edge-on and face-on orientations; in the former, both chain backbone and π–π staking directions lie parallel to the substrate; in the latter, π–π staking occurs perpendicular to the substrate, which is a desirable orientation in OSCs for vertical charge transport [62]. Figure 4 shows the GIWAXS diffraction patterns of P3HT:PCBM thin films deposited on PEDOT:PSS and PEDOT:PSS/FMoS2 HTLs. In both cases, the thin films exhibited strong (100), (200), and (300) diffractions along the z axis, confirming the existence of the strong edge-on lamellae configuration of P3HT [63]. In addition, the absence of π–π staking peak (010), corresponding to the face-on orientation near the z axis, indicates that P3HT preferentially adopted the edge-on configuration in both PEDOT:PSS and PEDOT:PSS/FMoS2 HTLs. Since the use of –CH3 group-functionalized substrates tends to promote the face-on orientation of P3HT [55,56], we aimed to improve such configuration of the active layer by incorporating the described oleylamine (having –CH3 groups)-functionalized MoS2 into PEDOT:PSS, but we did not observe any significant difference in its molecular orientation, maybe because the low FMoS2 concentrations used were not sufficient for such change. Thus, we can conclude that the PCE and Jsc enhancement in the OCSs having PEDOT:PSS/FMoS2 as HTL may be due to its surface compatibility for the active layer deposition, as observed in the AFM and contact angle measurements.
Electrical impedance spectroscopy (EIS) was performed to investigate the charge transport dynamics of the OSCs fabricated with PEDOT:PSS and PEDOT:PSS/FMoS2(5) as HTL (Figure 6). This analysis allowed us to observe the current response by applying alternating current voltage as a function of frequency; the OSCs with PEDOT:PSS/FMoS2(5) demonstrated slightly lower charge transfer resistance, revealing that the holes were effectively transported from the active layer to the anode (ITO). In order to elucidate the origin of the improvement in the photovoltaic performance, especially both FF and Jsc for PEDOT:PSS/FMoS2(5), we further calculated the resistance of the devices. In general, it is well known that lower series resistance (RS) and higher shunt resistance (RSH) are required to achieve higher FF in the solar cell device [64]. Based on the J–V curves obtained from the devices, it is clearly revealed that the device with PEDOT:PSS/FMoS2(5) as HTL showed the lowest RS while maintaining higher RSH, leading to enhancement in charge extraction. The corresponding RS value of cells employing PEDOT:PSS/FMoS2(5) as HTL was 134.8 Ω∙cm2, while the reference showed 180.0 Ω∙cm2. Lower RS indicates that better interfacial contact and charge collection efficiency were obtained due to the addition of the conducting FMoS2 layer. In the case of the RSH, no significant changes in the shunt resistance were observed for the devices. In the point of view of the identical RSH, barrier resistance at the interface and the leakage current level flowing across the photoactive layer is similar. Therefore, the addition of FMoS2 might contribute to extract photoexcited charges efficiently by lowering the RS.

4. Conclusions

The application of solution-processed PEDOT:PSS/FMoS2 hybrids as effective HTLs for OSCs has been successfully demonstrated. Raman, UV-Vis, PL, TEM, and AFM analyses confirmed the successful exfoliation of bulk MoS2 into few-layer nanosheets in the presence of oleylamine via a simple and cost-effective solution-based method. The OSCs fabricated with the synthesized PEDOT:PSS/FMoS2 hybrids as HTL exhibited PCE values up to 3.74%, which is 15.08% higher than that of the reference cells having simple PEDOT:PSS as HTL. The hybrid HTL films showed better surface properties for the deposition of the hydrophobic active layer, consequently, the charge-transfer resistance was minimized for OSCs fabricated with hybrid HTL compared with reference cells, improving the OSC performance. Due to their simple preparation method, 2D FMoS2-incorporated PEDOT:PSS-based HTL provides valuable alternative HTL for OSCs.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/9/9/1328/s1, Figures S1 and S2: PL spectra and AFM image of oleylamine-functionalized MoS2 (FMoS2) respectively, Figures S3 and S4: Contact angles and AFM images of PEDOT:PSS and PEDOT:PSS combined with FMoS2 respectively, Figure S5: (a) UV-Vis transmittance spectra of PEDOT:PSS and PEDOT:PSS combined with FMoS2, (b) UV-Vis absorbance spectra of P3HT:PCBM thin film spin-coated on PEDOT:PSS and PEDOT:PSS FMoS2.

Author Contributions

M.S.R., prepared the content of this research, carried out device fabrication, analysis of results and wrote the manuscript. K.Y.R. performed GIWAXS measurements and interpreted the data. J.W.L. performed IPCE measurements and guided for manuscript revisions. A.B., H.K., J.-E.L. performed the design of device configuration, performed AFM and PL measurements. D.H.K. and K.K. guided the overall scope of this research and wrote the manuscript.

Funding

This work was supported by National Research Foundation of Korea Grant funded by the Korean Government (2017R1A2A1A05022387 and 2016M1A2A2940914) and by the Korea Institute of Energy Technology Evaluation and Planning (KETEP) and the Ministry of Trade, Industry & Energy (MOTIE) of the Republic of Korea (No. 20173010013340 and 20163030013900).

Conflicts of Interest

There are no conflicts to declare.

References

  1. Jang, Y.H.; Jang, Y.J.; Kim, S.; Quan, L.N.; Chung, K.; Kim, D.H. Plasmonic solar cells: From rational design to mechanism overview. Chem. Rev. 2016, 116, 14982–15034. [Google Scholar] [CrossRef] [PubMed]
  2. Oh, Y.; Lim, J.W.; Kim, J.G.; Wang, H.; Kang, B.H.; Park, Y.W.; Kim, H.; Jang, Y.J.; Kim, J.; Kim, D.H.; et al. Plasmonic periodic nanodot arrays via laser interference lithography for organic photovoltaic cells with ˃10% efficiency. ACS Nano 2016, 10, 10143–10151. [Google Scholar] [CrossRef] [PubMed]
  3. Xie, L.; Lee, J.S.; Jang, Y.; Ahn, H.; Kim, Y.H.; Kim, K. Organic photovoltaics utilizing a polymer nanofiber/fullerene interdigitated bilayer prepared by sequential solution deposition. J. Phys. Chem. C 2016, 120, 12933–12940. [Google Scholar] [CrossRef]
  4. Zhu, M.; Kim, H.; Jang, Y.J.; Park, S.; Ryu, D.Y.; Kim, K.; Tang, P.; Qiu, F.; Kim, D.H.; Peng, J. Toward high efficiency organic photovoltaic devices with enhanced thermal stability utilizing P3HT-b-P3PHT block copolymer additives. J. Mater. Chem. A 2016, 4, 18432–18443. [Google Scholar] [CrossRef]
  5. Kim, Y.; Son, J.; Shafian, S.; Kim, K.; Hyun, J.K. Semitransparent blue, green, and red organic solar cells Using Color Filtering Electrodes. Adv. Opt. Mater. 2018, 6, 1800051. [Google Scholar] [CrossRef]
  6. Xie, L.; Yoon, S.; Cho, Y.J.; Kim, K. Effective protection of sequential solution-processed polymer/fullerene bilayer solar cell against charge recombination and degradation. Org. Electron. 2015, 25, 212–218. [Google Scholar] [CrossRef]
  7. Zhao, W.; Li, S.; Yao, H.; Zhang, S.; Zhang, Y.; Yang, B.; Hou, J. Molecular optimization enables over 13% efficiency in organic solar cells. J. Am. Chem. Soc. 2017, 139, 7148–7151. [Google Scholar] [CrossRef] [PubMed]
  8. Ahn, S.; Jeong, S.H.; Han, T.H.; Lee, T.W. Conducting polymers as anode buffer materials in organic and perovskite optoelectronics. Adv. Opt. Mater. 2017, 5, 1600512. [Google Scholar] [CrossRef]
  9. Zhang, S.; Yu, Z.; Li, P.; Li, B.; Isikgor, F.H.; Du, D.; Sun, K.; Xia, Y.; Ouyang, J. Poly(3,4-ethylenedioxythiophene): Polystyrene sulfonate films with low conductivity and low Acidity through a treatment of their solutions with probe ultrasonication and their application as hole transport layer in polymer solar cells and perovskite solar cells. Org. Electron. 2016, 32, 149–156. [Google Scholar]
  10. Lee, J.J.; Lee, S.H.; Kim, F.S.; Choi, H.H.; Kim, J.H. Simultaneous enhancement of the efficiency and stability of organic solar cells using PEDOT: PSS grafted with a PEGME buffer layer. Org. Electron. 2015, 26, 191–199. [Google Scholar] [CrossRef]
  11. Zhou, H.; Zhang, Y.; Mai, C.K.; Seifter, J.; Nguyen, T.Q.; Bazan, G.C.; Heeger, A.J. Solution-processed pH-neutral conjugated polyelectrolyte improves interfacial contact in organic solar cells. ACS Nano 2015, 9, 371–377. [Google Scholar] [CrossRef] [PubMed]
  12. Zhou, H.; Zhang, Y.; Mai, C.K.; Collins, S.D.; Nguyen, T.Q.; Bazan, G.C.; Heeger, A.J. Conductive conjugated polyelectrolyte as hole-transporting layer for organic bulk heterojunction solar cells. Adv. Mater. 2014, 26, 780–785. [Google Scholar] [CrossRef] [PubMed]
  13. Jasieniak, J.J.; Seifter, J.; Jo, J.; Mates, T.; Heeger, A.J. A solution-processed MoOx anode interlayer for use within organic photovoltaic devices. Adv. Funct. Mater. 2012, 22, 2594–2605. [Google Scholar] [CrossRef]
  14. Xie, F.; Choy, W.C.H.; Wang, C.; Li, X.; Zhang, S.; Hou, J. Low-temperature solution-processed hydrogen molybdenum and vanadium bronzes for an efficient hole-transport layer in organic electronics. Adv. Mater. 2013, 25, 2051–2055. [Google Scholar] [CrossRef] [PubMed]
  15. Bao, X.; Zhu, Q.; Wang, T.; Guo, J.; Yang, C.; Yu, D.; Wang, N.; Chen, W.; Yang, R. Simple O2 plasma-processed V2O5 as an anode buffer layer for high performance polymer solar cells. ACS Appl. Mater. Interfaces 2015, 7, 7613–7618. [Google Scholar] [CrossRef] [PubMed]
  16. Bai, S.; Jin, Y.; Dai, X.; Liang, X.; Ye, Z.; Li, M.; Cheng, J.; Xiao, X.; Wu, Z.; Xia, Z.; et al. Low-temperature combustion-synthesized nickel oxide thin films as hole-transport interlayers for solution processed optoelectronic devices. Adv. Energy Mater. 2014, 4, 1301460. [Google Scholar] [CrossRef]
  17. Yin, Z.; Wei, J.; Zheng, Q. Interfacial materials for organic solar cells: Recent advances and perspectives. Adv. Sci. 2016, 3, 1500362. [Google Scholar] [CrossRef] [PubMed]
  18. Liu, J.; Xue, Y.; Dai, L. Sulfated graphene oxide as a hole-extraction layer in high-performance polymer solar cells. J. Phys. Chem. Lett. 2012, 3, 1928–1933. [Google Scholar] [CrossRef]
  19. Li, S.S.; Tu, K.H.; Lin, C.C.; Chen, C.W.; Chhowalla, M. Solution-processable graphene oxide as an efficient hole transport layer in polymer solar cells. ACS Nano 2010, 4, 3169–3174. [Google Scholar] [CrossRef]
  20. Yun, J.M.; Yeo, J.S.; Kim, J.; Jeong, H.G.; Kim, D.Y.; Noh, Y.J.; Kim, S.S.; Ku, B.C.; Na, S.I. Solution-processable reduced graphene oxide as a novel alternative to PEDOT:PSS hole transport layers for highly efficient and stable polymer solar cells. Adv. Mater. 2011, 23, 4923–4928. [Google Scholar] [CrossRef]
  21. Niu, J.; Yang, D.; Ren, X.; Yang, Z.; Liu, Y.; Zhu, X.; Zhao, W.; Liu, S. Graphene-oxide doped PEDOT: PSS as a superior hole transport material for high-efficiency perovskite solar cell. Org. Electron. 2017, 48, 165–171. [Google Scholar] [CrossRef]
  22. Drakonakis, V.M.; Savva, A.; Kokonou, M.; Choulis, S.A. Investigating electrodes degradation in organic photovoltaics through reverse engineering under accelerated humidity lifetime conditions. Sol. Energy Mater. Sol. Cells 2014, 130, 544–550. [Google Scholar] [CrossRef]
  23. Kawano, K.; Pacios, R.; Poplavskyy, D.; Nelson, J.; Bradley, D.D.C.; Durrant, J.R. Degradation of organic solar cells due to air exposure. Sol. Energy Mater. Sol. Cells 2006, 90, 3520–3530. [Google Scholar] [CrossRef]
  24. Lim, F.J.; Ananthanarayanan, K.; Luther, J.; Ho, G.W. Influence of a novel fluorosurfactant modified PEDOT: PSS hole transport layer on the performance of inverted organic solar cells. J. Mater. Chem. 2012, 22, 25057–25064. [Google Scholar] [CrossRef]
  25. Arulkashmir, A.; Krishnamoorthy, K. Disassembly of micelles to impart donor and acceptor gradation to enhance organic solar cell efficiency. Chem. Commun. 2016, 52, 3486–3489. [Google Scholar] [CrossRef]
  26. Lim, D.C.; Kim, K.D.; Park, S.Y.; Hong, E.M.; Seo, H.O.; Lim, J.H.; Lee, K.W.; Jeong, Y.J.; Song, C.; Lee, E.; et al. Towards fabrication of high-performing organic photovoltaics: New donor polymer, atomic layer deposited thin buffer layer and plasmonic effects. Energy Environ. Sci. 2012, 5, 9803–9807. [Google Scholar] [CrossRef]
  27. Wang, K.; Yi, C.; Hu, X.; Liu, C.; Sun, Y.; Hou, J.; Li, Y.; Zheng, J.; Chuang, S.; Karim, A.; et al. Enhanced performance of polymer solar cells using PEDOT:PSS doped with Fe3O4 magnetic nanoparticles aligned by an external magnetostatic field as an anode buffer layer. ACS Appl. Mater. Interfaces 2014, 6, 13201–13208. [Google Scholar] [CrossRef]
  28. Yao, K.; Salvador, M.; Chueh, C.C.; Xin, X.K.; Xu, Y.X.; de Quilettes, D.W.; Hu, T.; Chen, Y.; Ginger, D.S.; Jen, A.K.Y. A general route to enhance polymer solar cell performance using plasmonic nanoprisms. Adv. Energy Mater. 2014, 4, 1400206. [Google Scholar] [CrossRef]
  29. Zhao, Z.; Wu, Q.; Xia, F.; Chen, X.; Liu, Y.; Zhang, W.; Zhu, J.; Dai, S.; Yang, S. Improving the conductivity of PEDOT: PSS hole transport layer in polymer solar cells via copper(II) bromide salt doping. ACS Appl. Mater. Interfaces 2015, 7, 1439–1448. [Google Scholar] [CrossRef]
  30. Kadem, B.; Cranton, W.; Hassan, A. Metal salt modified PEDOT: PSS as anode buffer layer and its effect on power conversion efficiency of organic solar cells. Org. Electron. 2015, 24, 73–79. [Google Scholar] [CrossRef]
  31. Kang, D.J.; Cho, H.H.; Lee, I.; Kim, K.H.; Kim, H.J.; Liao, K.; Kim, T.S.; Kim, B.J. Enhancing mechanical properties of highly efficient polymer solar cells using size-tuned polymer nanoparticles. ACS Appl. Mater. Interfaces 2015, 7, 2668–2676. [Google Scholar] [CrossRef]
  32. Hossain, J.; Liu, Q.; Miura, T.; Kasahara, K.; Harada, D.; Ishikawa, R.; Ueno, K.; Shirai, H. Nafion-modified PEDOT: PSS as a transparent hole-transporting layer for high-performance crystalline-Si/organic heterojunction solar cells with improved light soaking stability. ACS Appl. Mater. Interfaces 2016, 8, 31926–31934. [Google Scholar] [CrossRef]
  33. Hilal, M.; Han, J.I. Significant improvement in the photovoltaic stability of bulk heterojunction organic solar cells by the molecular level interaction of graphene oxide with a PEDOT: PSS composite hole transport layer. Sol. Energy 2018, 167, 24–34. [Google Scholar] [CrossRef]
  34. HDehsari, S.; Shalamzari, E.K.; Gavgani, J.N.; Taeomi, F.A.; Ghanbary, S. Efficient preparation of ultralarge graphene oxide using a PEDOT: PSS/GO composite layer as hole transport layer in polymer-based optoelectronic devices. RSC Adv. 2014, 4, 55067–55076. [Google Scholar] [CrossRef]
  35. Walker, B.; Choi, H.; Kim, J.Y. Interfacial engineering for highly efficient organic solar cells. Curr. Appl. Phys. 2017, 17, 370–391. [Google Scholar] [CrossRef]
  36. Pham, V.P.; Yeom, G.Y. Recent advances in doping of molybdenum disulfide: Industrial applications and future prospects. Adv. Mater. 2016, 28, 9024–9059. [Google Scholar] [CrossRef]
  37. Chhowalla, M.; Shin, H.S.; Eda, G.; Li, L.J.; Loh, K.P.; Zhang, H. The chemistry of two-dimensional layered transition metal dichalcogenide nanosheets. Nat. Chem. 2013, 5, 263–275. [Google Scholar] [CrossRef]
  38. Li, H.; Wu, J.; Yin, Z.; Zhang, H. Preparation and Applications of Mechanically Exfoliated Single-Layer and Multilayer MoS2 and WSe2 Nanosheets. Acc. Chem. Res. 2014, 47, 1067–1075. [Google Scholar] [CrossRef]
  39. Lee, Y.H.; Zhang, X.Q.; Zhang, W.; Chang, M.T.; Lin, C.T.; Chang, K.D.; Yu, Y.C.; Wang, J.T.W.; Chang, C.S.; Li, L.J.; et al. Synthesis of large-area MoS2 atomic layers with chemical vapor deposition. Adv. Mater. 2012, 24, 2320–2325. [Google Scholar] [CrossRef]
  40. Zhang, X.; Lai, Z.; Tan, C.; Zhang, H. Solution-processed two-Dimensional MoS2 nanosheets: Preparation, hybridization, and applications. Angew. Chem. Int. Ed. 2016, 55, 8816–8838. [Google Scholar] [CrossRef]
  41. Le, Q.V.; Nguyen, T.P.; Jang, H.W.; Kim, S.Y. The use of UV/ozone-treated MoS2 nanosheets for extended air stability in organic photovoltaic cells. Phys. Chem. Chem. Phys. 2014, 16, 13123–13128. [Google Scholar] [CrossRef]
  42. Yun, J.M.; Noh, Y.J.; Yeo, J.S.; Go, Y.J.; Na, S.I.; Jeong, H.G.; Kim, J.; Lee, S.; Kim, S.S.; Koo, H.Y.; et al. Efficient work-function engineering of solution-processed MoS2 thin-films for novel hole and electron transport layers leading to high-performance solar cells. J. Mater. Chem. C 2013, 1, 3777–3783. [Google Scholar] [CrossRef]
  43. Yang, X.; Fu, W.; Liu, W.; Hong, J.; Cai, Y.; Jin, C.; Xu, M.; Wang, H.; Yang, D.; Chen, H. Engineering crystalline structures of two-dimensional MoS2 sheets for high-performance organic solar cells. J. Mater. Chem. A 2014, 2, 7727–7733. [Google Scholar] [CrossRef]
  44. Xing, W.; Chen, Y.; Wu, X.; Xu, X.; Ye, P.; Zhu, T.; Guo, Q.; Yang, L.; Li, W.; Huang, H. PEDOT: PSS-assisted exfoliation and functionalization of 2D nanosheets for high-performance organic solar cells. Adv. Funct. Mater. 2017, 27, 1701622. [Google Scholar] [CrossRef]
  45. Ahmad, R.; Srivastava, R.; Yadav, S.; Chand, S.; Sapra, S. Functionalized 2D-MoS2-incorporated polymer ternary solar cells: Role of nanosheet-induced long-range ordering of polymer chains on charge transport. ACS Appl. Mater. Interfaces 2017, 9, 34111–34121. [Google Scholar] [CrossRef]
  46. Wu, J.B.; Lin, M.L.; Cong, X.; Liu, H.N.; Tan, P.H. Raman spectroscopy of graphene-based materials and its applications in related devices. Chem. Soc. Rev. 2018, 47, 1822–1873. [Google Scholar] [CrossRef]
  47. Cho, K.; Min, M.; Kim, T.Y.; Jeong, H.; Pak, J.; Kim, J.K.; Jang, J.; Yun, S.J.; Lee, Y.H.; Hong, W.K.; et al. Electrical and optical characterization of MoS2 with Sulfur vacancy passivation by treatment with alkanethiol molecules. ACS Nano 2015, 9, 8044–8053. [Google Scholar] [CrossRef]
  48. Yao, Y.; Tolentino, L.; Yang, Z.; Song, X.; Zhang, W.; Chen, Y.; Wong, C. High-concentration aqueous dispersions of MoS2. Adv. Funct. Mater. 2013, 23, 3577–3583. [Google Scholar] [CrossRef]
  49. Luo, S.; Qi, X.; Ren, L.; Hao, G.; Fan, Y.; Liu, Y.; Han, W.; Zang, C.; Li, J.; Zhong, J. Photoresponse properties of large-area MoS2 atomic layer synthesized by vapor phase deposition. J. Appl. Phys. 2014, 116, 164304. [Google Scholar] [CrossRef]
  50. Zhou, K.G.; Mao, N.N.; Wang, H.X.; Peng, Y.; Zhang, H.L. A Mixed-solvent strategy for efficient exfoliation of inorganic graphene analogues. Angew. Chem. Int. Ed. 2011, 50, 10839–10842. [Google Scholar] [CrossRef]
  51. Chen, X.; Berner, N.C.; Backes, C.; Duesberg, G.S.; McDonald, A.R. Functionalization of two-dimensional MoS2: On the reaction between MoS2 and organic thiols. Angew. Chem. Int. Ed. 2016, 55, 5803–5808. [Google Scholar] [CrossRef]
  52. Splendiani, A.; Sun, L.; Zhang, Y.; Li, T.; Kim, J.; Chim, C.Y.; Galli, G.; Wang, F. Emerging photoluminescence in monolayer MoS2. Nano Lett. 2010, 10, 1271–1275. [Google Scholar] [CrossRef]
  53. Eda, G.; Yamaguchi, H.; Voiry, D.; Fujita, T.; Chen, M.; Chhowalla, M. Photoluminescence from chemically exfoliated MoS2. Nano. Lett. 2011, 11, 5111–5116. [Google Scholar] [CrossRef]
  54. Qi, Y.; Wang, N.; Xu, Q.; Li, H.; Zhou, P.; Lu, X.; Zhao, G. A green route to fabricate MoS2 nanosheets in water-ethanol-CO2. Chem. Commun. 2015, 51, 6726–6729. [Google Scholar] [CrossRef]
  55. Kim, D.H.; Park, Y.D.; Jang, Y.; Yang, H.; Kim, Y.H.; Han, J.I.; Moon, D.G.; Park, S.; Chang, T.; Chang, C.; et al. Enhancement of field-effect mobility due to surface-mediated molecular ordering in regioregular polythiophene thin film transistors. Adv. Funct. Mater. 2005, 15, 77–82. [Google Scholar] [CrossRef]
  56. Kim, D.H.; Jang, Y.; Park, Y.D.; Cho, K. Surface-induced conformational changes in poly(3-hexylthiophene) monolayer films. Langmuir 2005, 21, 3203–3206. [Google Scholar] [CrossRef]
  57. Huang, J.S.; Goh, T.; Li, X.; Sfeir, M.Y.; Bielinski, E.A.; Tomasulo, S.; Lee, M.L.; Hazari, N.; Taylor, A.D. Polymer bulk heterojunction solar cells employing Forster resonance energy transfer. Nat. Photonics 2013, 7, 479–485. [Google Scholar] [CrossRef]
  58. Liu, Y.; Renna, L.A.; Page, Z.A.; Thompson, H.B.; Kim, P.Y.; Barnes, M.D.; Emrick, T.; Venkataramanan, D.; Russell, T.P. A polymer hole extraction layer for inverted perovskite solar cells from aqueous solutions. Adv. Energy Mater. 2016, 6, 1600664. [Google Scholar] [CrossRef]
  59. Choi, H.; Kim, H.B.; Ko, S.J.; Kim, J.Y.; Heeger, A.J. An organic surface modifier to produce a high work function transparent electrode for high performance polymer solar cells. Adv. Mater. 2015, 27, 892–896. [Google Scholar] [CrossRef]
  60. Noriega, R.; Rivnay, J.; Vandewal, K.; Koch, F.P.V.; Stingelin, N.; Smith, P.; Toney, M.F.; Salleo, A. A general relationship between disorder, aggregation and charge transport in conjugated polymers. Nat. Mater. 2013, 12, 1038–1044. [Google Scholar] [CrossRef]
  61. Lan, Y.K.; Huang, C. A theoretical study of the charge transfer behavior of the highly regioregular poly-3-hexylthiophene in the ordered state. J. Phys. Chem. B 2008, 112, 14857–14862. [Google Scholar] [CrossRef]
  62. Skrypnychuk, V.; Boulanger, N.; Yu, V.; Hilke, M.; Mannsfeld, S.C.B.; Toney, M.F.; Barbero, D.R. Enhanced vertical charge transport in a semiconducting P3HT thin Film on single layer grapheme. Adv. Funct. Mater. 2015, 25, 664–670. [Google Scholar] [CrossRef]
  63. Boulanger, N.; Yu, V.; Hilke, M.; Toney, M.F.; Barbero, D.R. In situ probing of the crystallization kinetics of rr-P3HT on single layer graphene as a function of temperature. Phys. Chem. Chem. Phys. 2017, 19, 8496–8503. [Google Scholar] [CrossRef]
  64. Lim, J.W.; Wang, H.; Choi, C.H.; Quan, L.N.; Chung, K.; Park, W.T.; Noh, Y.Y.; Kim, D.H. Polyethylenimine ethoxylated interlayer-mediated ZnO interfacial engineering for high-performance and low-temperature processed flexible perovskite solar cells: A simple and viable route for one-step processed CH3NH3PbI3. J. Power Sources 2019, 438, 226956. [Google Scholar] [CrossRef]
Figure 1. Fabrication process for poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS)/oleylamine-functionalized MoS2 (FMoS2) hybrid hole-transporting layer (HTL) for organic solar cells.
Figure 1. Fabrication process for poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS)/oleylamine-functionalized MoS2 (FMoS2) hybrid hole-transporting layer (HTL) for organic solar cells.
Nanomaterials 09 01328 g001

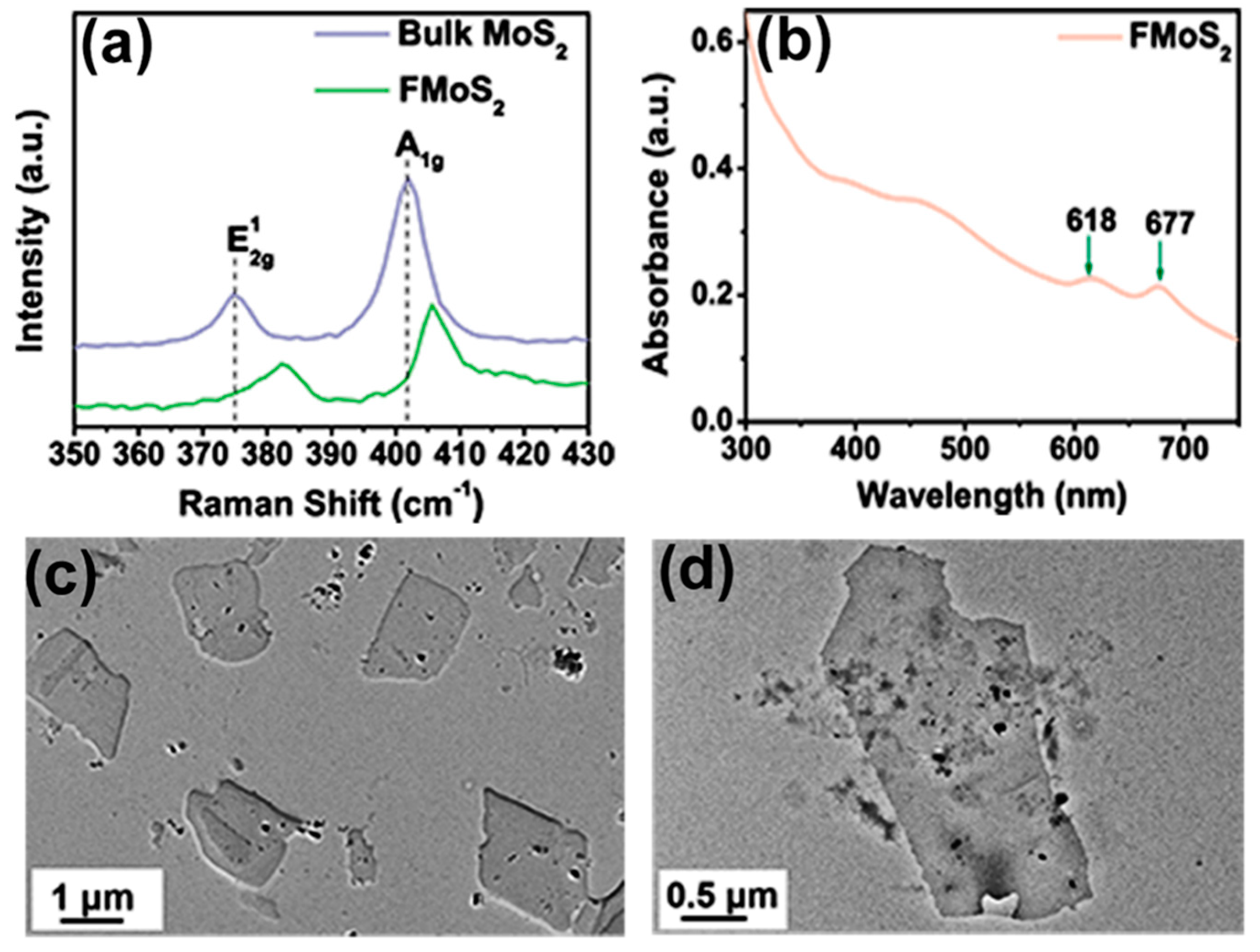

Figure 2. (a) Raman spectra of bulk and oleylamine-functionalized MoS2 (FMoS2). (b) Ultraviolet–visible light absorption spectrum of FMoS2. (c,d) Transmission electron microscopy images of FMoS2 nanosheets.
Figure 2. (a) Raman spectra of bulk and oleylamine-functionalized MoS2 (FMoS2). (b) Ultraviolet–visible light absorption spectrum of FMoS2. (c,d) Transmission electron microscopy images of FMoS2 nanosheets.
Nanomaterials 09 01328 g002

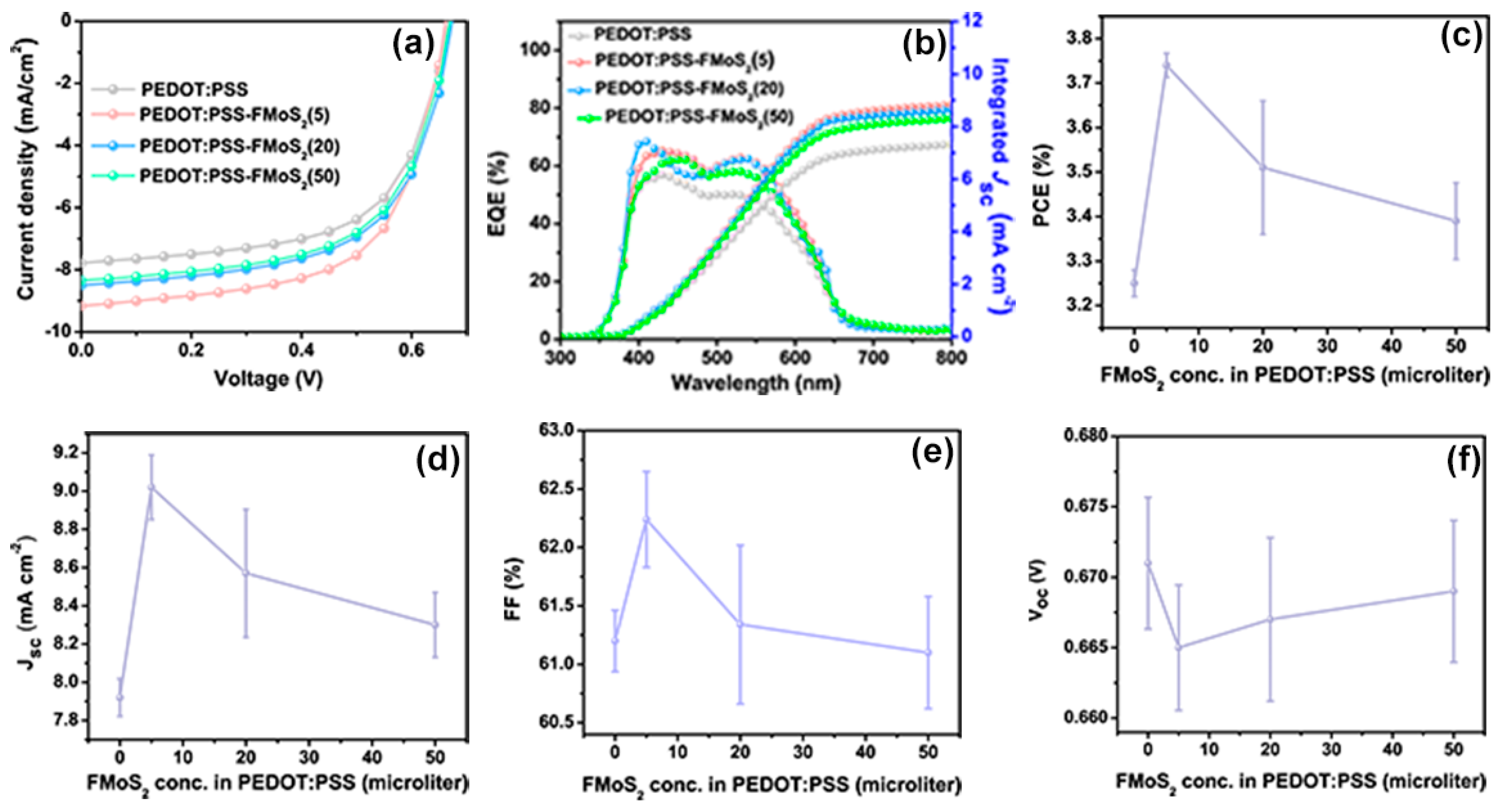

Figure 3. (a) Current density–voltage curves, (b) external quantum efficiency (EQE) profiles, (c) power conversion efficiencies (PCE), (d) short-circuit current density (Jsc), (e) fill factor, and (f) open-circuit voltage (Voc) values of organic solar cells based on poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) and PEDOT:PSS/oleylamine-functionalized MoS2 (FMoS2) as hole-transporting layers. The reported average PCE values are extracted from nine identical cells for each sample.
Figure 3. (a) Current density–voltage curves, (b) external quantum efficiency (EQE) profiles, (c) power conversion efficiencies (PCE), (d) short-circuit current density (Jsc), (e) fill factor, and (f) open-circuit voltage (Voc) values of organic solar cells based on poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) and PEDOT:PSS/oleylamine-functionalized MoS2 (FMoS2) as hole-transporting layers. The reported average PCE values are extracted from nine identical cells for each sample.
Nanomaterials 09 01328 g003

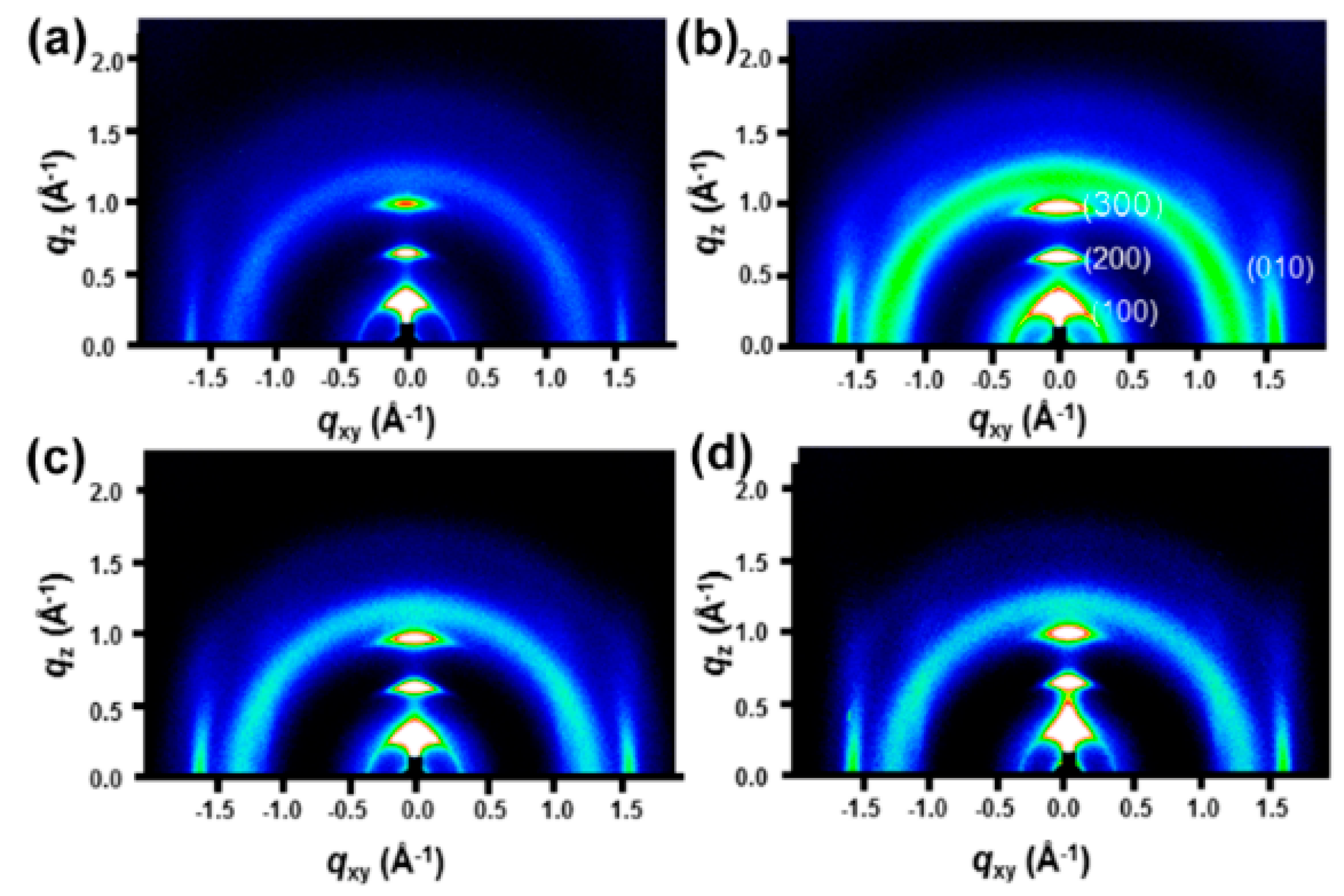

Figure 4. Grazing-incidence wide-angle X-ray scattering diffraction patterns of poly(3-hexylthiophene):[6,6]-phenyl-C61-butyric acid methyl ester thin films deposited on (a) poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) and PEDOT:PSS combined with (b) 5, (c) 20, and (d) 50 µL of oleylamine-functionalized MoS2.
Figure 4. Grazing-incidence wide-angle X-ray scattering diffraction patterns of poly(3-hexylthiophene):[6,6]-phenyl-C61-butyric acid methyl ester thin films deposited on (a) poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) and PEDOT:PSS combined with (b) 5, (c) 20, and (d) 50 µL of oleylamine-functionalized MoS2.
Nanomaterials 09 01328 g004

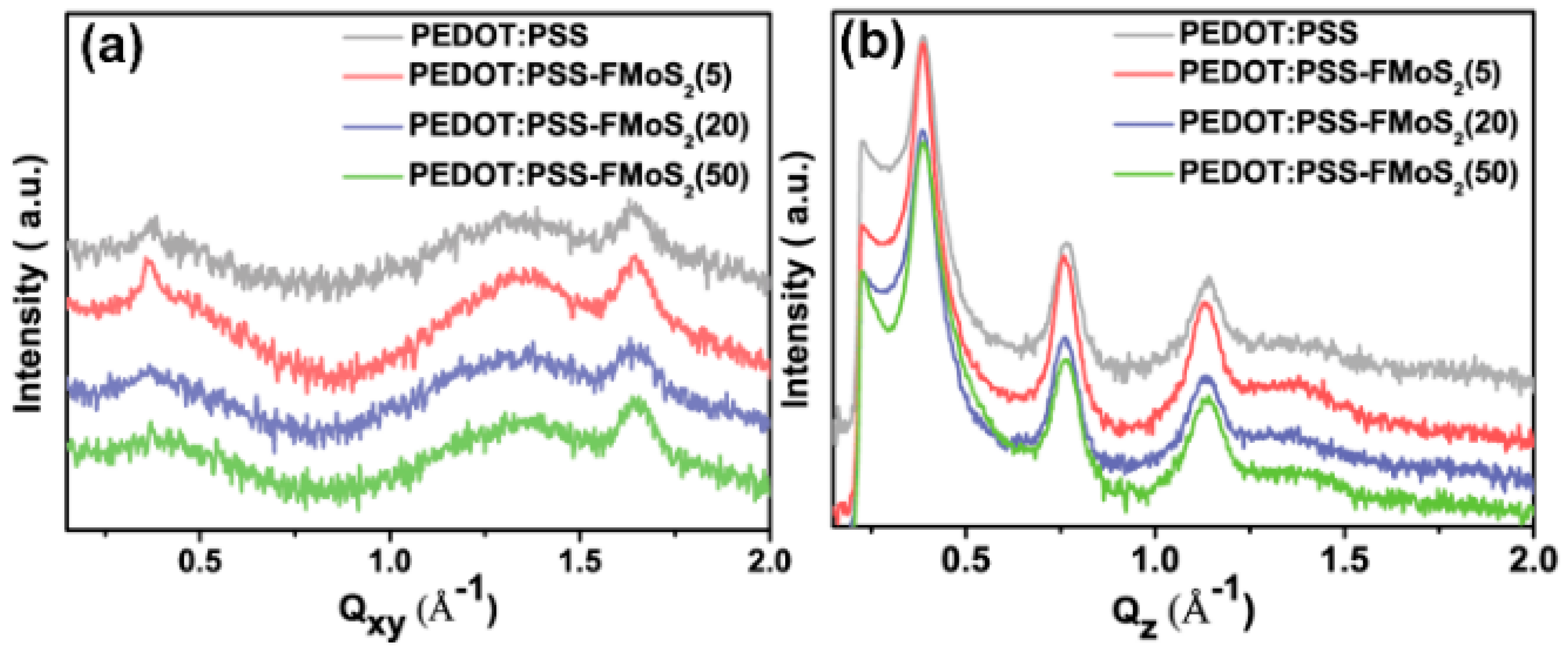

Figure 5. (a) In-plane and (b) out-of-plane spectra of poly(3-hexylthiophene):[6,6]-phenyl-C61-butyric acid methyl ester thin films deposited on poly (3,4-ethylendioxythiophene): poly(styrenesulfonate) (PEDOT:PSS) and PEDOT:PSS combined with 5, 20, and 50 µL of oleylamine-functionalized MoS2 samples obtained from grazing-incidence wide-angle X-ray scattering.
Figure 5. (a) In-plane and (b) out-of-plane spectra of poly(3-hexylthiophene):[6,6]-phenyl-C61-butyric acid methyl ester thin films deposited on poly (3,4-ethylendioxythiophene): poly(styrenesulfonate) (PEDOT:PSS) and PEDOT:PSS combined with 5, 20, and 50 µL of oleylamine-functionalized MoS2 samples obtained from grazing-incidence wide-angle X-ray scattering.
Nanomaterials 09 01328 g005

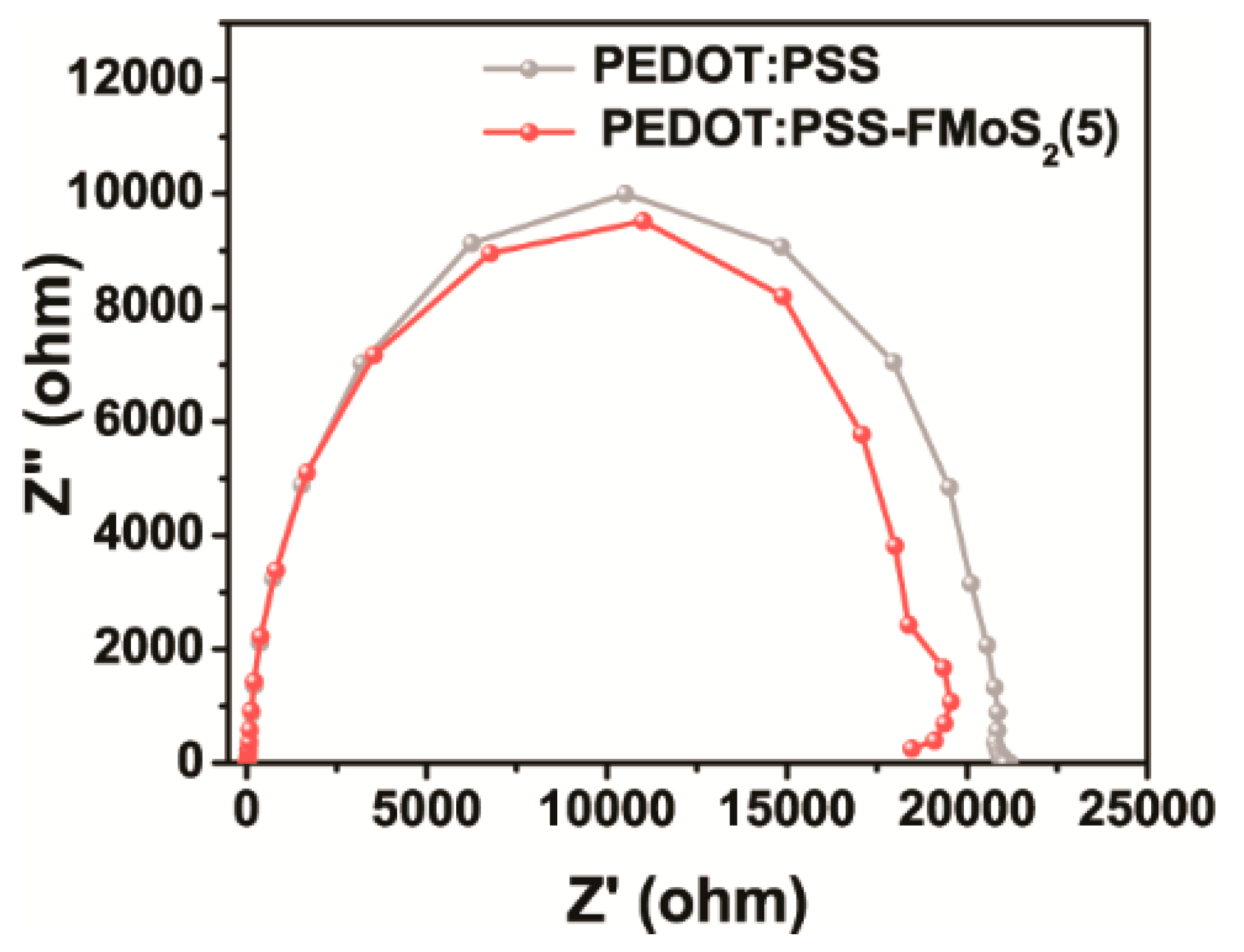

Figure 6. Electrical impedance spectra of organic solar cells based on poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) and PEDOT:PSS/oleylamine-functionalized MoS2 (5 µL) (PEDOT:PSS/FMoS2(5)) as hole-transportation layer.
