SnSe2 Quantum Dots: Facile Fabrication and Application in Highly Responsive UV-Detectors
Shenzhen Key Laboratory of Laser Engineering, College of Physics and Optoelectronic Engineering, Shenzhen University, Shenzhen 518060, China
*
Correspondence: [email protected]; Tel.: +86-755-8653-2505
These authors contributed equally to this work.
Received: 19 August 2019 / Accepted: 10 September 2019 / Published: 15 September 2019

Abstract

:
Synthesizing quantum dots (QDs) using simple methods and utilizing them in optoelectronic devices are active areas of research. In this paper, we fabricated SnSe2 QDs via sonication and a laser ablation process. Deionized water was used as a solvent, and there were no organic chemicals introduced in the process. It was a facile and environmentally-friendly method. We demonstrated an ultraviolet (UV)-detector based on monolayer graphene and SnSe2 QDs. The photoresponsivity of the detector was up to 7.5 × 106 mAW−1, and the photoresponse time was ~0.31 s. The n–n heterostructures between monolayer graphene and SnSe2 QDs improved the light absorption and the transportation of photocarriers, which could greatly increase the photoresponsivity of the device.
Keywords:
SnSe2 quantum dots; graphene; phototransistor; UV-detector

1. Introduction

Graphene-based electronic and optoelectronic devices have attracted extensive attention [1,2,3]. Mueller et al. demonstrated a vertical incidence metal–graphene–metal photodetector with an external responsivity of 6.1 mAW−1 at 1.55 µm [4]. The photoresponsivity was limited by the low absorption of the graphene. Quantum dots (QDs) can break this limitation. They can act as light absorption spots. The photo-induced carriers in them can transfer into the graphene film, and the charges in the graphene film transport to the electrodes quickly. Thus, the responsivity of a graphene-based device is improved [5,6,7]. Cheng et al. showed a phototransistor based on graphene and graphene QDs with a photoresponsivity of up to 4 × 1010 mAW−1, but the response time was 10 s [8]. Sun et al. constructed an infrared photodetector based on graphene and PbS QDs with a responsivity of up to 1010 mAW−1 and a response time of 0.26 s [9]. Sun et al. demonstrated a UV phototransistor based on graphene and ZnSe/ZnS core/shell QDs. Its responsivity was up to 106 mAW−1 and the response time was 0.52 s [10].
In order to fabricate the QD solution with uniform distribution, the wet chemical method was commonly used. Some organic solvents, such as toluene or pyridine, were used in the process [9,10]. The chemical groups can cap the surface of the QDs and modify their charge transfer property, thus influencing the photo responsivity of the device. Synthesizing QDs using facile and green methods and utilizing them in optoelectronic devices are active areas of research.
Two-dimensional transition-metal dichalcogenides (TMDCs) have been applied in fluorescent imaging [11], biological sensing [12], and photocatalytic [13] due to their unique optoelectronic properties. Tin diselenide (SnSe2) is a semiconductor in the TMDCs family. SnSe2 QDs can be used in fast and highly responsive phototransistors since they have a tunable bandgap and high quantum efficiency. In this paper, SnSe2 QDs were fabricated via sonication and a laser ablation process. The deionized water was used as a solvent, and there were no organic chemicals introduced in the process. It was a facile and environmentally-friendly method. The phototransistor based on monolayer graphene and SnSe2 quantum dots was demonstrated. The photoresponse time was ~0.31 s, and the photoresponsivity was up to 7.5 × 106 mAW−1. The n–n heterostructures between monolayer graphene and SnSe2 quantum dots enhance the light absorption and the generation of photocarriers. The photocarriers can transfer quickly from SnSe2 QDs to graphene, thus improving the photoresponsivity of the device.

2. Experiment

SnSe2 QDs were fabricated by sonication and the laser ablation process, as shown in Figure 1. The SnSe2 bulk was bought from Six Carbon Technology. We put the SnSe2 bulk in an agate mortar and manually ground it for 15 min to get SnSe2 powders. Then, we dispersed 20 mg of powder in 30 mL of deionized water. The mixture was sonicated with a sonic tip for 2 h at the output power of 650 W in an ice-bath. The power was on for 4 s and off for 2 s. After sonication, the solution was a mixture of SnSe2 small particles and flakes. The solution was transferred into a quartz cuvette and irradiated under a 1064 nm pulsed Nd:YAG laser for 10 min (6 ns, 10 Hz). The laser output power was 2.2 W. When the solution was irradiated by the laser pulses, the small particles and flakes absorbed the incident photon energies and formed extreme non-equilibrium conditions (high pressure and temperature) in a short time (~ns). After sustainable irradiation, the particles and nanosheets broke into tiny pieces. Then, the solution was centrifuged for 30 min at a speed of 6000 rpm. After that, the supernatant containing SnSe2 QDs was collected.
The morphology of the SnSe2 QDs was studied using a high-resolution transmission electron microscope (TEM, FEI Tecnai G2 F30). The structure of the SnSe2 QDs was characterized by X-ray diffraction spectroscopy (XRD, Bruker D8 Advance) and the Raman spectra (Horiba Labram HR Evolution). The absorption spectra were measured by a UV-vis spectrometer (Shimadzu UV-1700).
The chemical vapor deposition (CVD)-grown monolayer graphene was wet-transferred onto a p+Si/SiO2 substrate [14,15]. The thickness of SiO2 was 285 nm. The highly doped p-type silicon served as the back-gate electrode. Then, the Cr/Au (10 nm/90 nm) source and drain electrodes were deposited on top of the graphene film by the thermal evaporation method. The channel length and width were 0.2 mm and 2 mm, respectively. The optoelectronic properties were studied using a probe station equipped with a semiconductor parameter analyzer (Keithley 4200). The illumination LED light wavelength was 405 nm.

3. Results and Discussion

Figure 2a shows the transmission electron microscope (TEM) image of SnSe2 QDs as-fabricated. It shows an e- a size distribution in the range of 5–11 nm, and the average size is 9.8 nm, as indicated in Figure 2b. The average size of the QDs comes from the statistical analysis of the sizes of 200 QDs measured from TEM images. A high-resolution TEM image of a single SnSe2 QD is shown in the inset of Figure 2a. The lattice spacing is about 0.33 nm, which corresponds to the (1010) planes of a hexagonal-phase SnSe2 [16]. The result shows that the SnSe2 QDs are crystalline.
Figure 3a shows the XRD patterns of the SnSe2 bulk and QDs. The SnSe2 bulk has an obvious diffraction peak at = 14.4° which corresponds to the (001) faces. In addition, some lower peaks located at = 29.1°, = 31.2°, = 44.3°, and = 60.4° are assigned to the (002), (101), (003), and (004) faces. In SnSe2 QDs, these diffraction peaks almost disappear except for a tiny peak at = 29.1°. After sonication and laser ablation, the SnSe2 bulk was cracked into nanoparticles, and there was no constructive interference from the aligned crystal planes [13,17]. The tiny peak at = 29.1° corresponds to the (002) face, which may come from the partial restacking of QDs in the process of drying. Figure 3b shows the Raman spectra of the SnSe2 bulk and QDs. The incident laser wavelength is 514 nm and the spot size is around 2 μm. For the bulk SnSe2, two Raman active vibration modes are observed at 110.3 cm−1 and 183.6 cm−1, which correspond to the in-plane E g and out-of-plane A 1 g modes [18]. For the SnSe2 QDs, the peak of the E g mode is very weak, but the peak of the A 1 g mode is observable and has a small blue-shift of ~1 cm−1, which may be due to the surface effect and decrease of SnSe2 thickness [19].
Figure 3c shows the absorption spectra for SnSe2 QDs and SnSe2 nanosheets solutions in the range of 250–1000 nm. The absorption band of the SnSe2 nanosheets solution is broad, covering regions from the ultraviolet to near-infrared. It is similar to the absorption band reported for the SnSe2 powders [20]. For the SnSe2 QDs solution, only strong absorption from 250 nm to 420 nm is observed. The bulk SnSe2 has an indirect bandgap of 1.0 eV [20]. When the particle size is reduced, the emergence of the quantum confinement effects leads to the discretization of energy levels. As a result, the SnSe2 QDs show a larger band gap [21].
Figure 3d shows the TEM energy dispersive spectra (TEM–EDS) of the SnSe2 QDs. Tin and selenium can be clearly observed, and their atomic ratios are 5.76% (Sn) and 10.50% (Se), respectively. For comparison, the EDS of the TEM substrate (carbon film-coated copper grid without QDs) is shown in the inset of Figure 3d. The Cu, C, and Si signals come from the TEM grid and sample holder. The O peak arises from the oxygen adsorbed on the surface of the grid. The results show that the QDs are composed of tin and selenium.
Figure 4a schematically shows the photodetector decorated with SnSe2 QDs on a p+Si/SiO2 substrate. The Raman spectra of the pure graphene on a p+Si/SiO2 substrate is shown in Figure 4b. Two Raman peaks at 1582 cm−1 (G line) and 2698 cm−1 (2D line) are observed. The ratio of the integrated intensities of the G line and 2D line is ~0.25. The peak at 1350 cm−1 (D line) in the spectra is very weak, indicating that the graphene is a monolayer with good quality. The I–V curves for the monolayer graphene phototransistor in the dark and with illumination under zero gate voltage (VG = 0 V) are shown in Figure 4c. The illumination density is 350 μW/cm2. As shown in the figure, there is no change between the current in the dark and under illumination, indicating that the photoresponse of pure graphene is negligible.
Figure 4d shows the transfer curves (IDS-VG, VDS = 0.5 V) of the device with and without SnSe2 QDs in which the light is absent. The transfer curve of the device without SnSe2 QDs exhibits a typical V-shape. The field-effect mobilities are ~230 cm2V−1s−1 for electrons and ~220 cm2V−1s−1 for holes. The negative, neutral charge point (about −5 V) of single-layer graphene is observed in Figure 4d, indicating an electron dominated conduction in the graphene. The same behavior was also observed by Sun et al. [10]. Graphene is very sensitive to the surroundings. The defects in the SiO2 substrate, residues from processing and handling, charged impurities, and substrate surface roughness can cause the shift of the neutral charge point [22]. The SnSe2 QDs solution was dropped on the top of graphene film and heated at 40 °C for 30 min in a glove box filled with N2 gas. The transfer curve of the photodetector with SnSe2 QDs becomes asymmetric, and the Dirac point converts to a negative gate voltage (about −22 V). The shift indicates that the SnSe2 QDs are n-type semiconductors, which are the same type as the bulk SnSe2 [20]. The electron and hole mobilities decrease to ~160 cm2V−1s−1 and ~130 cm2V−1s−1, respectively.
In order to study the optoelectronic properties of the device, we measured the photocurrents at different illumination densities with zero gate voltage (VG = 0 V). Figure 4e shows the relationship between the photocurrent (IPh = ILight − IDark) and the applied drain voltages. ILight is the drain current under illumination, and IDark is the drain current without illumination. The photocurrent increases while increasing the illumination density. Figure 4f represents the responsivity (R = I ph / ( WLE e ) ) of the photodetector as functions of drain voltages at different illumination densities. The responsivity decreases while increasing the illumination density, which is consistent with the reported UV-detectors [23]. The maximum responsivity of the device is about 7.5 × 106 mAW−1 (VDS = 5 V) at an incident power density of 31.7 μW/cm2, which is higher than that reported in graphene-based UV phototransistors [24,25,26].
Figure 5a shows the transfer curves of the photodetector at different illumination densities. The Dirac point of the device shifts to a lower negative gate voltage while increasing illumination density. The shift of the transfer curves (ΔVG) is plotted as a function of illumination densities in Figure 5b. The shift of the transfer curve (ΔVG) changes linearly with the light illumination density (Ee), indicating that the photo-induced carrier density in SnSe2 QDs increases with increasing illumination density. This illumination density-dependent shift does not appear in the pure graphene phototransistor. The existence of SnSe2 QDs leads to this photoresponse behavior. As shown in Figure 5a, the electron mobility in the SnSe2 QD-decorated device is higher than that of holes at different illumination densities. The photo-induced electron-hole pairs are separated at the interface between SnSe2 QDs and monolayer graphene. The SnSe2 QDs/graphene heterojunction facilitates the injection of photo-generated electrons from SnSe2 QDs into the graphene, leading a local n-doping in the graphene channel. Since the transfer rate of holes is lower that of electrons, net positive charges remain in the SnSe2 QDs. Then, a lower negative gate voltage is required to obtain the charge neutral point (Dirac point) in the detector. A similar process was reported in a p-doped graphene/PbS QDs phototransistor by Sun et al. [9].
Figure 5c shows the current response to on/off light illumination and Figure 5d shows the photocurrent response time of the device (VG = 0 V, VDS = 0.05 V, illumination density: 155.2 μW/cm2). The photocurrent increases with time when the illumination is on and decreases with time when the illumination is off. As shown in Figure 5d, the photocurrent increases to 80% with a response time of 0.31 s, which is faster than that reported in graphene devices [9,10,24,26,27]. The response time includes charge generation time, charge transfer time in heterojunctions, and charge collection time. In our experiment, the measured graphene charge mobility is smaller than the value for perfect graphene (up to 200,000 cm2V−1s−1), which may be due to the defects induced in the graphene film while transferring to the substrate, and the response time can be improved by optimizing the graphene transfer process. When the light is turned out, the photocurrent decreases to 20% with a time of 1.31 s.
The photocurrent of the detector is influenced by the SnSe2 QDs density. We have measured the AFM pictures and photocurrents for detectors with different SnSe2 QDs densities. As shown in Figure 6, the photocurrent increases with an increase of the SnSe2 QDs density under the same irradiation density (illumination density: 350 μW/cm2). When the SnSe2 QDs thickness is larger than 40 nm, the photocurrent tends to decrease, which may be due to the decrease of the charge transfer between the QDs layers.

4. Conclusions

In summary, uniformly distributed SnSe2 quantum dots were synthesized at room temperature using a facile and environment-friendly method. The UV-detector based on monolayer graphene and SnSe2 quantum dots was demonstrated. The device showed fast photoresponse time of ~0.31 s, and its photoresponsivity was up to 7.5 × 106 mAW−1. The n–n heterostructures between monolayer graphene and SnSe2 QDs improved the light absorption and the transportation of photocarriers, which have promising applications in optoelectronic devices.

Author Contributions

Data curation, X.L. and H.Z.; formal analysis, L.L., H.L., and K.T.; resources, S.R., W.Z., P.Y., and Z.S.; writing—review and editing, L.L.

Funding

This work was supported by Science and Technology Projects of Shenzhen (JCYJ20180305125000525, JCYJ20170302151033006, and JCYJ20160328144942069).

Acknowledgments

The authors thank Min Zhang from Peking University Shenzhen Graduate School for the help in the device fabrication and the Electron Microscope Center of Shenzhen University for the help in the TEM-EDS measurements.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bonaccorso, F.; Sun, Z.; Hasan, T.; Ferrari, A.C. Graphene Photonics and Optoelectronics. Nat. Photonics 2010, 4, 611–622. [Google Scholar] [CrossRef]
  2. Xia, F.; Thomas, M.; Lin, Y.; Valdes, Y.; Phaedon, A. Ultrafast Graphene Phototransistor. Nat. Nanotechnol. 2009, 4, 839–843. [Google Scholar] [CrossRef] [PubMed]
  3. Li, X.; Li, T.; Chen, Z.; Fang, H.; Li, X.; Wang, X.; Xu, J.; Zhu, H. Graphene and Related Two-Dimensional Materials: Structure-Property Relationships for Electronics and Optoelectronics. Appl. Phys. Rev. 2017, 4, 021306. [Google Scholar] [CrossRef]
  4. Mueller, T.; Xia, F.; Phaedon, A. Graphene Phototransistors for High-Speed Optical Communications. Nat. Photonics 2010, 4, 297–301. [Google Scholar] [CrossRef]
  5. Li, X.M.; Zhu, H. The Graphene–Semiconductor Schottky Junction. Phys. Today 2016, 69, 46–51. [Google Scholar] [CrossRef]
  6. Liu, C.; Chang, Y.; Theodore, B.; Zhong, Z. Graphene Phototransistors with Ultra-Broadband and High Responsivity at Room Temperature. Nat. Nanotechnol. 2014, 9, 273–278. [Google Scholar] [CrossRef] [PubMed]
  7. Fitzmorris, B.; Pu, Y.; Jason, K.; Lin, Y.; Hu, Y.; Li, U.; Zhang, J. Optical Properties and Exciton Dynamics of Alloyed Core/Shell/Shell Cd1-XZnxSe/ZnSe/ZnS Quantum Dots. ACS Appl. Mater. Interfaces 2013, 5, 2893–2900. [Google Scholar] [CrossRef]
  8. Cheng, S.; Weng, T.; Lu, M.; Tan, W.; Chen, J.; Chen, Y. All Carbon-Based Phototransistors: An Eminent Integration of Graphite Quantum Dots and Two Dimensional Graphene. Sci. Rep. 2013, 3, 2694. [Google Scholar] [CrossRef]
  9. Sun, Z.; Liu, Z.; Li, J.; Tai, G.; Lan, S.; Yan, F. Infrared Phototransistors Based on CVD-Grown Graphene and PbS Quantum Dots with Ultrahigh Responsivity. Adv. Mater. 2012, 24, 5878–5883. [Google Scholar] [CrossRef]
  10. Sun, Y.; Dan, X.; Sun, M.; Teng, C.; Liu, Q.; Chen, R.; Lan, X.; Ren, T. Hybrid Graphene/Cadmium-Free ZnSe/ZnS Quantum Dots Phototransistors for UV Detection. Sci. Rep. 2018, 8, 1–8. [Google Scholar] [CrossRef]
  11. Long, H.; Li, T.; Chun, P.; Chun, Y.; Kin, H.; Yang, C.; Tsang, Y. The WS2 Quantum Dot: Preparation, Characterization and Its Optical Limiting Effect in Polymethylmethacrylate. Nanotechnology 2016, 27, 414005. [Google Scholar] [CrossRef] [PubMed]
  12. Han, Y.; Zhang, C.; Gu, W.; Ding, C.; Li, X.; Xian, Y. Facile Synthesis of Water-Soluble WS2 Quantum Dots for Turn-on Fluorescent Measurement of Lipoic Acid. J. Phys. Chem. C 2016, 120, 12170–12177. [Google Scholar]
  13. Xu, S.; Li, D.; Wu, P. One-Pot, Facile, and Versatile Synthesis of Monolayer MoS2/WS2 Quantum Dots as Bioimaging Probes and Efficient Electrocatalysts for Hydrogen Evolution Reaction. Adv. Funct. Mater. 2015, 7, 1127–1136. [Google Scholar] [CrossRef]
  14. He, R.; Peng, L.; Liu, Z.; Zhu, H.; Zhao, X.; Chan, H.; Yan, F. Solution-Gated Graphene Field Effect Transistors Integrated in Microfluidic Systems and Used for Flow Velocity Detection. Nano Lett. 2012, 12, 1404–1409. [Google Scholar] [CrossRef] [PubMed]
  15. Chiang, C.W.; Haider, G.; Tan, W.C.; Chen, Y.F. Highly Stretchable and Sensitive Photodetectors Based on Hybrid Graphene and Graphene Quantum Dots. ACS Appl. Mater. Interfaces. 2016, 8, 466–471. [Google Scholar] [CrossRef] [PubMed]
  16. Zhou, X.; Lin, G.; Tian, W.; Zhang, Q.; Jin, S.; Li, H.; Yoshio, B.; Dmitri, G.; Zhai, T. Ultrathin SnSe2 Flakes Grown by Chemical Vapor Deposition for High-Performance Phototransistors. Adv. Mater. 2015, 27, 8035–8041. [Google Scholar] [CrossRef]
  17. Zankat, C.; Pratik, P.; Solanki, G.K.; Patel, K.V.; Pathak, M.; Som, N.; Prafulla, J. Investigation of Morphological and Structural Properties of V Incorporated SnSe2 Single Crystals. Mater. Sci. Semicond. Process. 2018, 8, 137–142. [Google Scholar] [CrossRef]
  18. Zhou, W.; Yu, Z.; Song, H.; Fang, R.; Wu, Z.; Li, L.; Ni, Z.; Wei, R.; Lin, W.; Ruan, S. Lattice Dynamics in Monolayer and Few-Layer SnSe2. Physcal Rev. B 2017, 96, 035401. [Google Scholar] [CrossRef]
  19. Qiao, X.; Wu, J.; Zhou, L.; Qiao, J.; Shi, W.; Chen, T.; Zhang, X.; Zhang, J.; Ji, W.; Tan, P.H. Polytypism and Unexpected Strong Interlayer Coupling of Two-Dimensional Layered ReS2. Adv. Funct. Mater. 2015, 8, 8324–8332. [Google Scholar] [CrossRef]
  20. Borges, Z.V.; Poffo, C.M.; de Lima, J.C.; de souza, S.M.; Trichês, D.M.; Nogueira, T.P.O.; Manzato, L.; de Biasi, R.S. Study of Structural, Optical and Thermal Properties of Nanostructured SnSe2 Prepared by Mechanical Alloying. Mater. Chem. Phys. 2016, 169, 47–54. [Google Scholar] [CrossRef]
  21. Solati, E.; Laya, D.; Davoud, D. Effect of Laser Pulse Energy and Wavelength on the Structure, Morphology and Optical Properties of ZnO Nanoparticles. Opt. Laser Technol. 2014, 58, 26–32. [Google Scholar] [CrossRef]
  22. Kathalingam, A.; Senthilkumar, V.; Rhee, J.-K. Hysteresis I-V nature of mechanically exfoliated graphene FET. J. Mater. Sci. Mater. Electron. 2014, 25, 1303–1308. [Google Scholar] [CrossRef]
  23. Cheng, W.; Tang, L.; Xiang, J.; Ji, R.; Zhao, J. An Extreme High-Performance Ultraviolet Photovoltaic Detector Based on Zno Nanorods/Phenanthrene Heterojunction. RSC Adv. 2016, 6, 12076–12080. [Google Scholar] [CrossRef]
  24. Babichev, A.V.; Zhang, H.; Pierre, L.; Julien, F.H.; Egorov, Y.; Lin, Y.; Tu, L.; Maria, T. Gan Nanowire Ultraviolet Phototransistor with a Graphene Transparent Contact. Appl. Phys. Lett. 2013, 103, 201103. [Google Scholar] [CrossRef]
  25. Boruah, B.; Anwesha, M.; Abha, M. Sandwiched Assembly of Zno Nanowires between Graphene Layers for a Self-Powered and Fast Responsive Ultraviolet Phototransistor. Nanotechnology 2016, 27, 095205. [Google Scholar] [CrossRef] [PubMed]
  26. Lu, Y.; Wu, Z.; Xu, W.; Lin, S. ZnO Quantum Dot-Doped Graphene/H-BN/Gan-Heterostructure Ultraviolet Phototransistor with Extremely High Responsivity. Nanotechnology 2016, 26, 48LT03. [Google Scholar] [CrossRef] [PubMed]
  27. Tang, J.; Kyle, K.; Sjoerd, H.; Kwang, J.; Liu, H.; Larissa, L.; Melissa, F.; Wang, X.; Ratan, D.; Dongkyu, C.; et al. Colloidal-Quantum-Dot Photovoltaics Using Atomic-Ligand Passivation. Nat. Mater. 2011, 10, 765–771. [Google Scholar] [CrossRef] [PubMed]

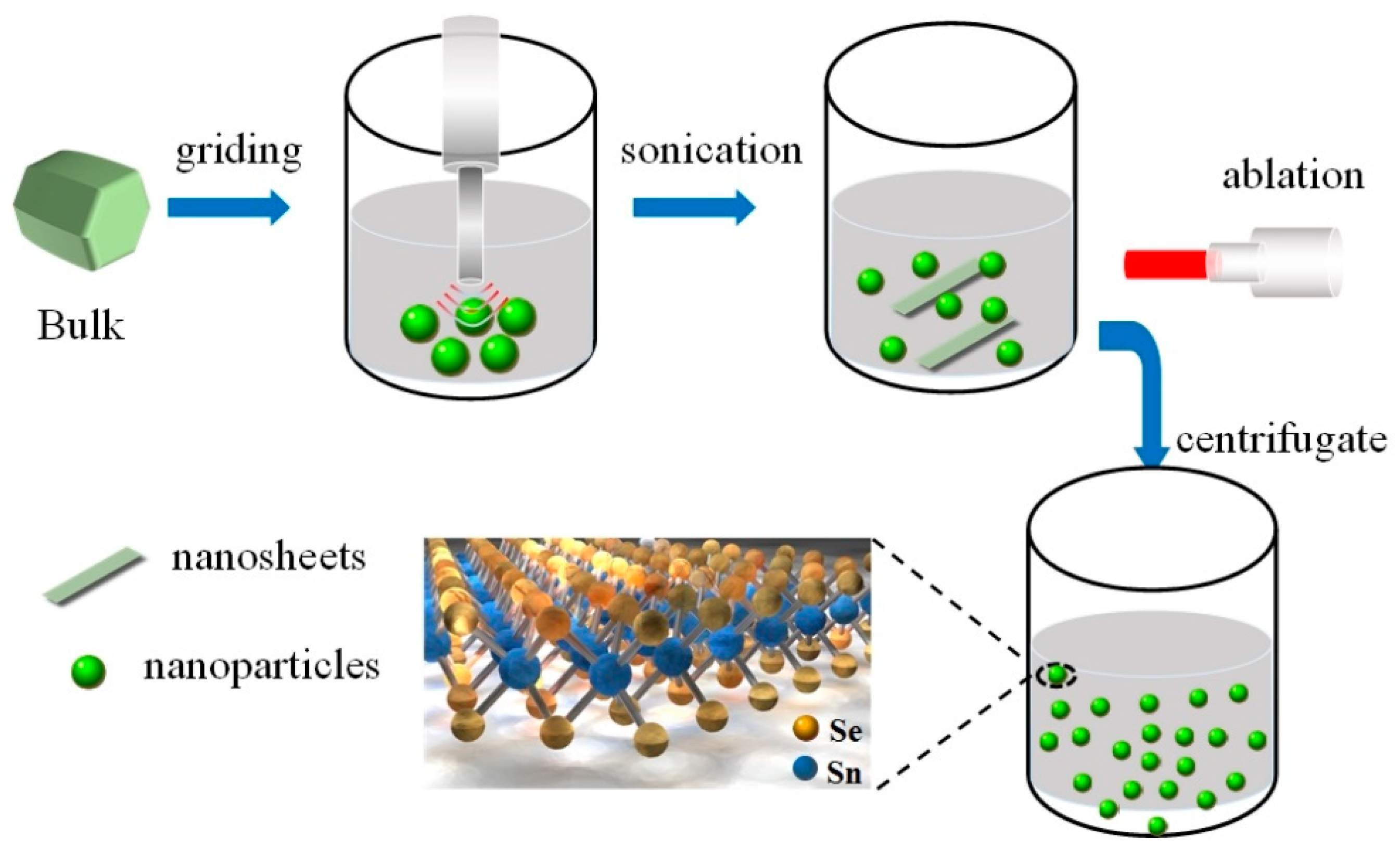

Figure 1. Schematic show of the SnSe2 structure and the quantum dot (QD) fabrication process.
Figure 1. Schematic show of the SnSe2 structure and the quantum dot (QD) fabrication process.
Nanomaterials 09 01324 g001

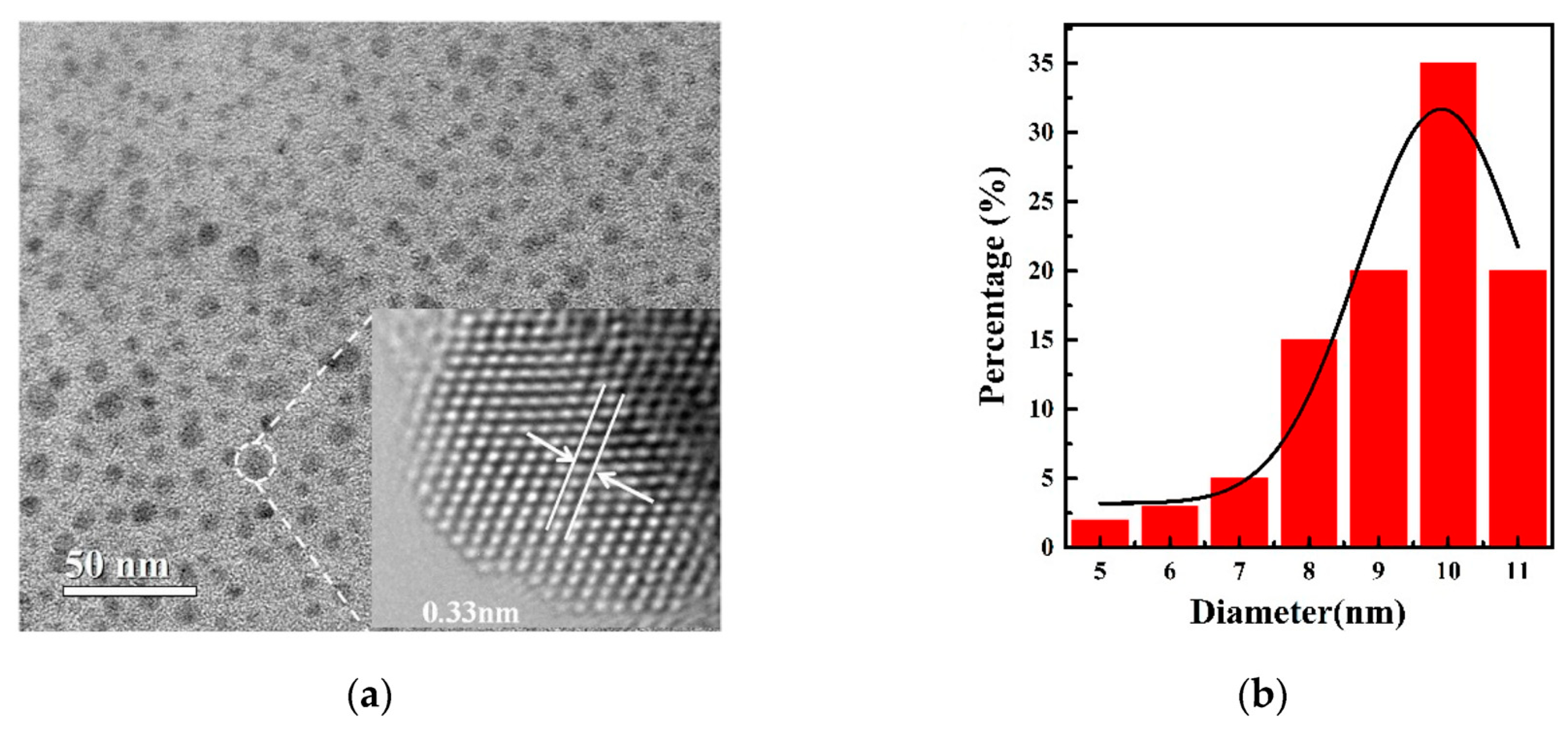

Figure 2. (a) TEM image of SnSe2 QDs with a centrifugal speed of 6000 rpm. The inset shows the detailed crystal structure of a single QD; (b) the size distribution of the SnSe2 QDs.
Figure 2. (a) TEM image of SnSe2 QDs with a centrifugal speed of 6000 rpm. The inset shows the detailed crystal structure of a single QD; (b) the size distribution of the SnSe2 QDs.
Nanomaterials 09 01324 g002

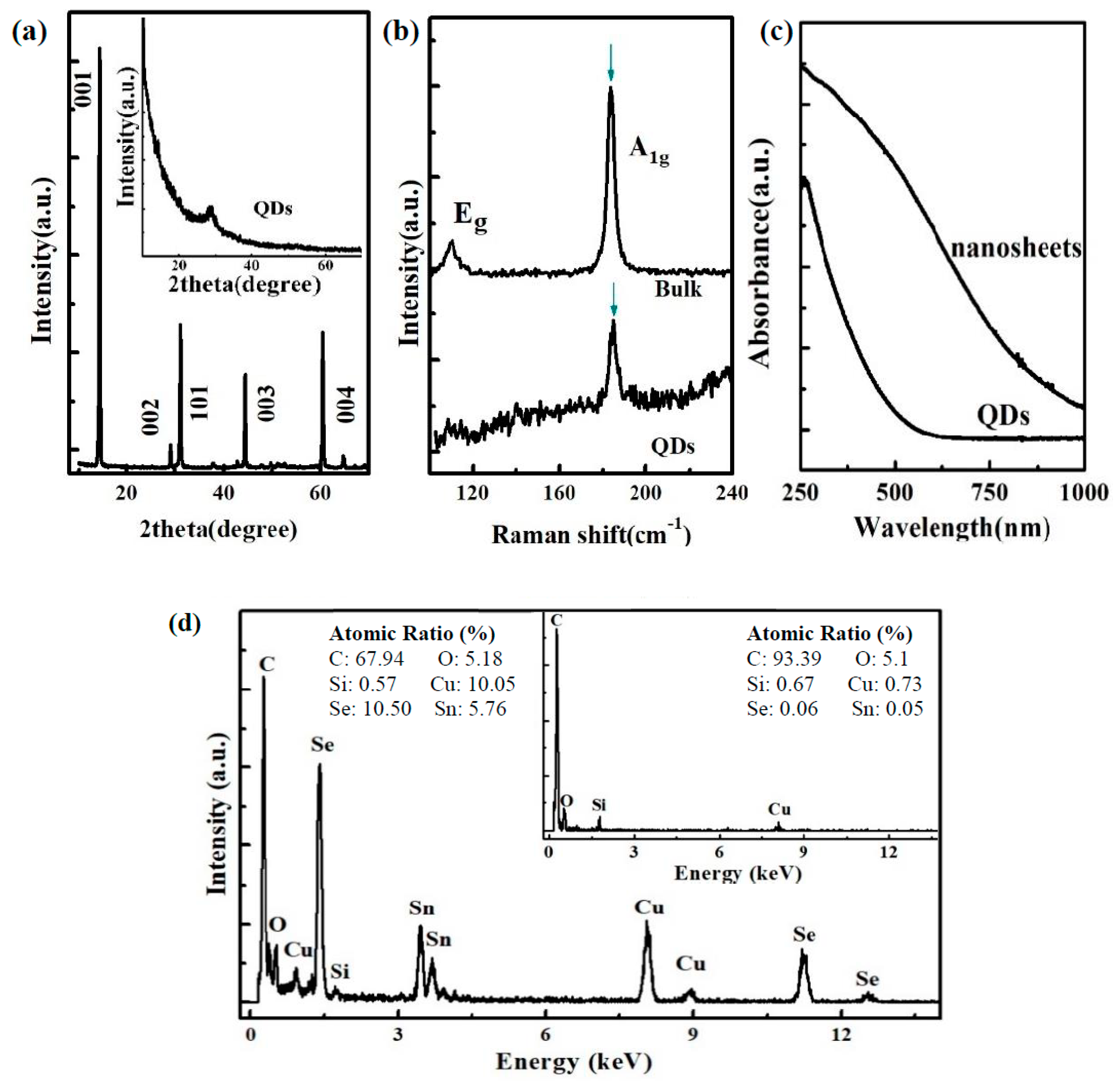

Figure 3. Spectroscopic characterizations. (a) XRD pattern of the SnSe2 bulk and QDs; (b) Raman spectra of the SnSe2 bulk and QDs; (c) absorption spectra of the SnSe2 QDs and nanosheet solutions; (d) TEM energy dispersive spectra (TEM-EDS) of the SnSe2 QDs. The inset shows the EDS of the TEM substrate without QDs.
Figure 3. Spectroscopic characterizations. (a) XRD pattern of the SnSe2 bulk and QDs; (b) Raman spectra of the SnSe2 bulk and QDs; (c) absorption spectra of the SnSe2 QDs and nanosheet solutions; (d) TEM energy dispersive spectra (TEM-EDS) of the SnSe2 QDs. The inset shows the EDS of the TEM substrate without QDs.
Nanomaterials 09 01324 g003
Figure 4. (a) Schematic diagram of a graphene photodetector decorated with SnSe2 QDs; (b) Raman spectra of the pure graphene on a p+Si/SiO2 substrate; (c) the I–V curves for the single-layer graphene phototransistor in the dark and with illumination under zero-gate voltage (VG = 0 V); (d) transfer characteristics (IDS-VG, VDS = 0.5 V) of the phototransistor with and without SnSe2 QDs on the graphene film; (e) photocurrent and (f) responsivity of a SnSe2 QD-decorated graphene photodetector as functions of drain voltages at different illumination densities. The illumination wavelength is 405 nm.
Figure 4. (a) Schematic diagram of a graphene photodetector decorated with SnSe2 QDs; (b) Raman spectra of the pure graphene on a p+Si/SiO2 substrate; (c) the I–V curves for the single-layer graphene phototransistor in the dark and with illumination under zero-gate voltage (VG = 0 V); (d) transfer characteristics (IDS-VG, VDS = 0.5 V) of the phototransistor with and without SnSe2 QDs on the graphene film; (e) photocurrent and (f) responsivity of a SnSe2 QD-decorated graphene photodetector as functions of drain voltages at different illumination densities. The illumination wavelength is 405 nm.
Nanomaterials 09 01324 g004

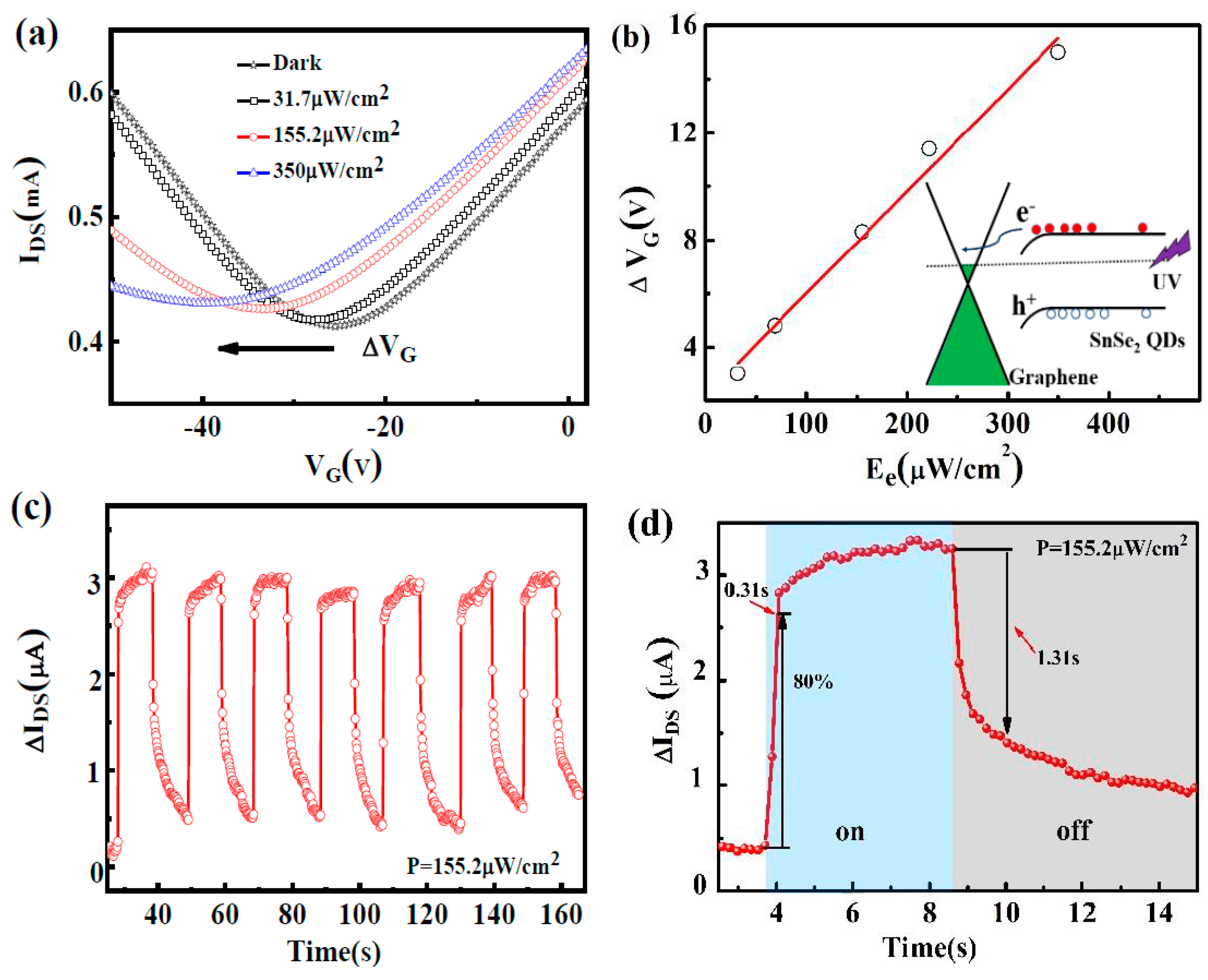

Figure 5. (a) Transfer characteristics of a graphene photodetector decorated with SnSe2 quantum dots at different illumination densities (wavelength: 405 nm, VDS = 0.5 V); (b) horizontal shift of transfer curves as functions of illumination densities. The inset shows the charge transfer between SnSe2 QDs and graphene; (c) current response to on/off light illumination for several cycles; (d) photocurrent response time of the device. (VDS = 0.05 V, illumination density: 155.2 μW/cm 2).
Figure 5. (a) Transfer characteristics of a graphene photodetector decorated with SnSe2 quantum dots at different illumination densities (wavelength: 405 nm, VDS = 0.5 V); (b) horizontal shift of transfer curves as functions of illumination densities. The inset shows the charge transfer between SnSe2 QDs and graphene; (c) current response to on/off light illumination for several cycles; (d) photocurrent response time of the device. (VDS = 0.05 V, illumination density: 155.2 μW/cm 2).
Nanomaterials 09 01324 g005

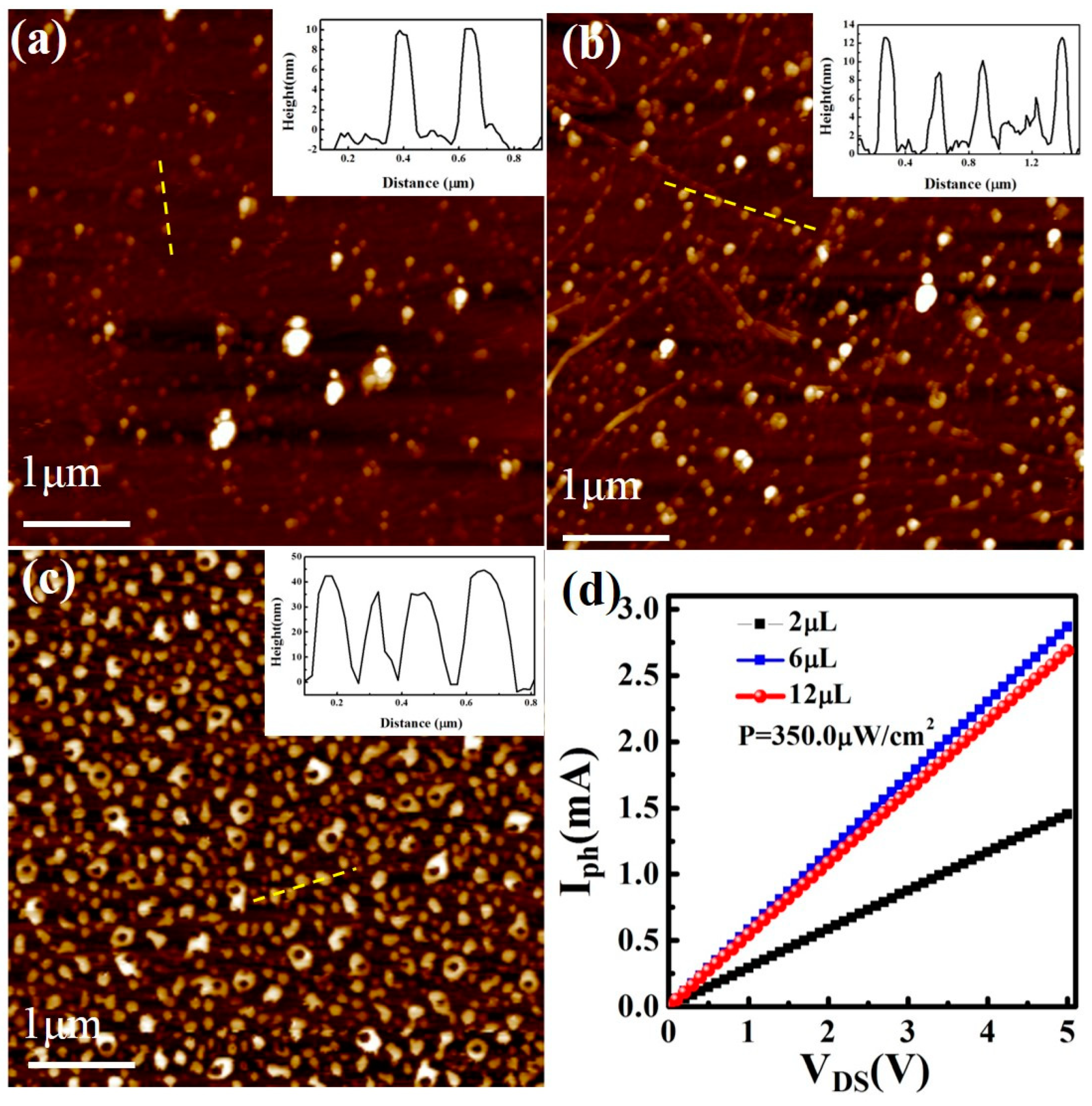

Figure 6. The AFM images of SnSe2 QDs with different densities (a) 2 μL, (b) 6 μL, and (c) 12 μL. The insets show their height profiles. (d) The photocurrents with different SnSe2 QDs densities at the irradiation density of 350.0 μW/cm2.
