Amorphous Sb2S3 Nanospheres In-Situ Grown on Carbon Nanotubes: Anodes for NIBs and KIBs
School of Materials Science and Engineering & Guangxi Key Laboratory of Information Materials, Guilin University of Electronic Technology, Guilin 541004, China
*
Author to whom correspondence should be addressed.
Received: 22 August 2019 / Accepted: 9 September 2019 / Published: 15 September 2019

Abstract

:
Antimony sulfide (Sb2S3) with a high theoretical capacity is considered as a promising candidate for Na-ion batteries (NIBs) and K-ion batteries (KIBs). However, its poor electrochemical activity and structural stability are the main issues to be solved. Herein, amorphous Sb2S3 nanospheres/carbon nanotube (Sb2S3/CNT) nanocomposites are successfully synthesized via one step self-assembly method. In-situ growth of amorphous Sb2S3 nanospheres on the CNTs is confirmed by X-ray diffraction, field-emission scanning electron microscopy, and transmission electron microscopy. The amorphous Sb2S3/CNT nanocomposites as an anode for NIBs exhibit excellent electrochemical performance, delivering a high charge capacity of 870 mA h g−1 at 100 mA g−1, with an initial coulomb efficiency of 77.8%. Even at 3000 mA g−1, a charge capacity of 474 mA h g−1 can be achieved. As an anode for KIBs, the amorphous Sb2S3/CNT nanocomposites also demonstrate a high charge capacity of 451 mA h g−1 at 25 mA g−1. The remarkable performance of the amorphous Sb2S3/CNT nanocomposites is attributed to the synergic effects of the amorphous Sb2S3 nanospheres and 3D porous conductive network constructed by the CNTs.
Keywords:
Amorphous Sb2S3/CNT nanocomposites; High capacity; Anode; Na-ion batteries; K-ion batteries

1. Introduction

Recently, Na-ion batteries (NIBs) and K-ion batteries (KIBs) are being developed hotly as potential substitutes for Li-ion batteries (LIBs) in large-scale energy storage system, due to their natural abundance and low cost [1,2]. Owing to the large radius of Na ions (1.02 Å) and K ions (1.38 Å), however, it is difficult to find appropriate electrode materials, as they would need high capacities, rapid diffusion kinetics and long life cycles [3,4]. Judging from the present development of NIBs and KIBs, the research focused on cathode materials is more productive and extensive, such as layered transition metal oxides [5,6], polyanionic type compounds [7,8] and Prussian blue analogs [9,10]. For the anode materials, the available choices are limited, including the carbonaceous materials [11,12], alloys/metals [13,14], metal sulfides [15,16] and phosphides [17,18]. Among these materials, Sb2S3 is considered as a promising anode material for NIBs and KIBs because of its high theoretical specific capacity, and proper sodium/potassium inserting potential based on the conversion reaction and alloying reaction [19,20,21]. However, the insertion/extraction process of Na/K-ion in Sb2S3 is accompanied with large volume change and structure destruction, along with its lower conductivity, leading to the poor rate capability and cycling performance [20,22,23].
To address these problems, combining nanostructured Sb2S3 with carbon materials is regarded as an effective strategy [24,25]. For example, Zhao and Manthiram have reported that an amorphous Sb2S3-graphite electrode for NIBs delivers a high rate capacity, a high initial oulombic efficiency and stable cycling performance, owing to the amorphous structure of Sb2S3 and the conductive graphite matrix [26]. Nanostructured Sb2S3/sulfur-doped graphene (Sb2S3/SGS) anodes for NIBs demonstrate a stable capacity retention of 83% for 900 cycles, with high capacities of 2 A g−1 and excellent rate performances [27]. A remarkable progress on the exploration of Sb2S3-based anodes for NIBs has been made in the past decade. To our knowledge, however, only a few studies have been reported on the Sb2S3-based anodes for KIBs, including Sb2S3@polypyrrole (Sb2S3@PPy) coaxial nanorods [21], Sb2S3 nanoparticles (~20 nm) uniformly dispersed into a porous S,N-codoped graphene framework (Sb2S3-SNG) composite [23], and a multi-layered Sb2S3/carbon sheet (SBS/C) composite [24]. Many studies are needed to develop Sb2S3-based electrodes for KIBs with high capacities, enhanced rate capabilities and cycling performances. Herein, we demonstrate the feasibility of amorphous Sb2S3 nanospheres/carbon nanotube (Sb2S3/CNT) nanocomposites as anode materials for NIBs and KIBs. Electrochemical measurements indicate the high reversible capacities and superior rate performance of Sb2S3/CNT nanocomposites, owing to the fact that the 3D porous nanostructure of the composites can accommodate the large volume change and enhance the ionic diffusion kinetics in Sb2S3.

2. Materials and Methods

2.1. Materials Synthesis

The amorphous Sb2S3/CNT nanocomposites were simply synthesized by a one-step self-assembly method reported by Yang’s group with minor modifications [28]. Firstly, 0.34 g SbCl3 (99.9%, Alfa Aesar Chemicals Co., Ltd., Shanghai, CN) was dissolved in 30 mL ethylene glycol (EG, 99%, Merck Life Science (Shanghai) Co., Ltd. Shanghai, CN) in a capped glass bottle with magnetic stirring. Secondly, 80 mg CNTs were added in the solution when it turned colorless and was stirred for 3 min to form a black suspension. The CNTs were purchased from XFNANO Company (Nanjing, China). 0.23 g of thioacetamide (TAA, 99%, Merck Life Science (Shanghai) Co., Ltd. Shanghai, China) was then added to the suspension without stirring, and the glass bottle was sealed by tightening the cap. After standing for 24 h at room temperature, red brown powders were formed, and finally, the products were obtained by centrifugation, washing several times with deionized water and ethanol, and drying in a vacuum oven at 90 °C for 24 h. Amorphous Sb2S3 nanospheres were also prepared by the same procedure without the CNTs.

2.2. Materials Characterization

Powder X-ray diffraction (XRD) measurements were performed on PIXcel3D X-ray diffractometer using Cu Kα radiation source to identify the crystal structure of the materials. The morphology of the products was analyzed by field emission scanning electron microscopy (FESEM, Hitachi SU-70, Hitachi High-Technologies Corporation, Tokyo, Japan). Transmission electron microscopy (TEM) and high-resolution TEM (HRTEM) images were recorded by using a transmission electron microscope (Tecnai G2 F20, FEI Company, Hillsboro, Oregon, USA). The content of the CNTs was evaluated by an acid dissolution method. Typically, 3.0 g nanocomposites were dissolved in 50 mL concentrated hydrochloric acid (6 M). The CNTs were collected by centrifugation and washed several times with deionized water and ethanol, and then dried in a vacuum oven at 90 °C for 24 h. The content was determined according to the weight of residual CNTs.

2.3. Electrochemical Measurements

Electrochemical measurements were conducted in 2032-type coin cells, which were assembled in a high-purity argon-filled glove box. The amorphous Sb2S3/CNT nanocomposites were mixed with acetylene black, and carboxy methyl cellulose (CMC) with a ratio of 7:2:1 in deionized water to form slurry. The slurry was pasted on a Cu foil and dried at 80 °C under vacuum for 12 h. The loading density of the electrode laminates was about 1.5 mg cm−2. Sodium and potassium foils were used as counter and reference electrodes, respectively. The electrolyte solution was 1 M NaClO4 and 0.8 M KPF6 dissolved in ethylene carbonate and diethyl carbonate (1:1 by weight) for NIBs and KIBs, respectively. The separator was the Celgard 2400 membrane. Galvanostatic discharge-charge tests were performed by an Arbin battery testing system (BT-2000). The capacities of the amorphous Sb2S3/CNT anode were determined on the basis of the total mass of Sb2S3 and CNTs. Electrochemical impedance spectroscopy (EIS) and cyclic voltammetry (CV) measurements were carried out on a Solartron electrochemical workstation.

3. Results and Discussion

3.1. Materials Structure and Morphology

The detailed structural and morphological characterizations of the Sb2S3/CNT nanocomposites are shown in Figure 1 and Figure 2. As shown in Figure 1, no obvious sharp diffraction peaks are observed in the XRD pattern of pure Sb2S3, indicating the amorphous structure of as-prepared Sb2S3. For the Sb2S3/CNT nanocomposites, the XRD pattern overlaps well with that of pure Sb2S3, except a slightly sharp peak at 2θ = 26° arising from the strongest peak of the CNTs. The results imply that Sb2S3 in the nanocomposites is amorphous, and the presence of the CNTs cannot affect the amorphous structure of Sb2S3. As can be seen from Figure 2a,b, the amorphous Sb2S3 nanospheres grow uniformly on the CNTs. The amorphous Sb2S3/CNT nanocomposites interlink and interweave to form a 3D porous conductive network. The amorphous Sb2S3/CNT nanocomposites have a diameter range of 30–150 nm, which results from the recombination of pure Sb2S3 nanospheres and the CNTs. The grain size of pure Sb2S3 micro/nanospheres is in a range of 50–1200 nm, as displayed in Figure S1. The presence of the CNTs inhibits the growth of Sb2S3 without changing the spherical morphology. TEM and HRTEM were performed to investigate the microstructure of the CNTs and amorphous Sb2S3/CNT nanocomposites. From TEM image (Figure S2a), the CNTs show a wire structure and interconnect to one another. The diameters are in range of 20–90 nm. HRTEM image (Figure S2b) reveals the amorphous carbon microstructure of the CNTs that are composed of short-range ordered nano-crystallites. TEM images (Figure 2c,d) further reveal that the Sb2S3 nanospheres with an average particle size of 80 nm are well grown on the CNTs. From the illustration in Figure 2d, the diffuse rings in the selected-area electron diffraction (SEAD) pattern confirm the amorphous structure of Sb2S3. Furthermore, the EDX spectrum in Figure 2e undoubtedly proves the nanocomposites contain element Sb, S and C. As expected, the atomic ratio of S and Sb is 1.53. The signals of Cu and O peaks originate from the carbon-coated copper grid. Additionally, the CNTs content is about 21 wt.%, which was determined by using the acid dissolution method.

3.2. Amorphous Sb2S3/CNT Nanocomposites as an Anode for NIBs

Figure 3a displays the CV curves of the amorphous Sb2S3/CNT nanocomposites as an anode for NIBs during the initial five cycles at a scan rate of 0.05 mV s−1 between 0.01 and 1.5 V (versus Na/Na+). The first cathodic scan displays two strong current peaks located at 0.83 and 0.41 V, respectively, corresponding to the conversion reaction and alloying reaction of Sb to Na3Sb (Equations (1) and (2)) [15]. Two oxidation peaks located at 0.8 and 1.3 V in the first anodic scan are assigned to the dealloying and reconversion reactions [26]. A pair of small redox peaks near 0.01 V in the CV curves is assigned to the Na-ion insertion/extraction reaction in the conductive carbon materials (acetylene black) and the CNTs [25]. The subsequent CV curves are almost overlapping, especially the pair of redox peaks of alloying/dealloying reaction, indicating an excellent cycle stability of the Sb2S3/CNT anodes.
Sb2S3 + 6Na+ + 6e → 2Sb + 3Na2S
2Sb + 6Na+ + 6e → 2Na3Sb
The discharge/charge plateau regions can be clearly observed in the discharge-charge profiles of the Sb2S3/CNT anode under the current density of 100 mA g−1 between 0.01 and 1.5 V (Figure 3b), in accordance with the CV curves. The capacities of the Sb2S3/CNT anode were calculated on the basis of the total mass of Sb2S3 and CNTs. The Sb2S3/CNT anode delivers a high initial, reversible charge capacity of 870 mA h g−1 and a coulomb efficiency of 77.8%. The initial discharge capacity of 1130 mA h g−1 is higher than the theoretical capacity (946 mA h g−1), which can be mainly ascribed to the formation of solid electrolyte interface (SEI) film and the decomposition of the electrolyte. From the Figure 3c, the Sb2S3/CNT anode exhibits superior cycling performance at 100 mA g−1, delivering a charge capacity of 704 mA h g−1 after 50 cycles, corresponds to 81% of the initial charge capacity. The cycling performance is much higher than that of pure Sb2S3 with a reversible capacity of 262 mA h g−1 over 25 cycles (Figure S3a).
The rate capability of the Sb2S3/CNT anode at various current densities was further studied, as show in Figure 3d and Figure S3b. The discharge capacities of 1280, 831, 795, 743, 685, 601 and 474 mA h g−1 can be achieved by cycling at various current densities of 50, 100, 200, 500, 1000, 2000 and 3000 mA g−1. The corresponding charge capacities are 874, 813, 749, 725, 633, 576 and 441 mA h g−1. After 35 discharge-charge cycles, the Sb2S3/CNT anode can maintain a discharge capacity of 791 mA h g−1 when the current density returns to 50 mA g−1, indicating excellent rate performance. To highlight the superior electrochemical properties of the Sb2S3/CNT anode, a comparison of the electrochemical performance of the amorphous Sb2S3/CNT nanocomposites with that of previously reported Sb2S3-based anode materials for NIBs is shown in Table 1. As can be seen, the Sb2S3/CNT anode is comparable with the reported Sb2S3@PPy [21], [email protected]2S3@PPy [25], Sb2S3/graphene [29], hollow-sphere (HS) Sb2S3/C [30], Sb2S3/PPy [31], sulfur and nitrogen dual doped reduced graphene oxide/Sb2S3 (SN-rGO/Sb2S3) [32], stibnite/sulfur-doped carbon sheet (Sb2S3/SCS) [33], hierarchical Sb2S3 hollow microspheres (Sb2S3 HMS) [34] and RGO/Sb2S3 nanorods [35] in terms of initial coulomb efficiency, reversible specific capacity and rate performance. That is attributed to the synergic effects of the amorphous Sb2S3 nanospheres and the incorporation of the CNTs. The intrinsic isotropic nature of the amorphous Sb2S3 can accommodate the volume change and keep the electrical contact during discharge/charge cycling, particularly in the first cycling, thus facilitating the high initial coulomb efficiency and capacity [19,26]. No obvious morphology differences of the pristine and cycled amorphous Sb2S3-graphite electrodes have been observed by using SEM [26], confirming the structural stability of amorphous Sb2S3 during cycling. The amorphous Sb2S3 nanospheres can provide more active sites and shorten the diffusion pathway of sodium ion during sodiation/desodiation process, being beneficial to the high capacity and superior rate performance. The 3D porous conductive network composed of the CNTs can well buffer the volume change of Sb2S3 and maintain the structural integrity of the electrode [22,25], consequently, leading to a considerable electrochemical performance.

3.3. Amorphous Sb2S3/CNT Nanocomposites as an Anode for KIBs

Inspired by the excellent electrochemical characteristics of the amorphous Sb2S3/CNT nanocomposites as an anode of NIBs, we further studied their electrochemical performance in KIBs. The potassiation–depotassiation behavior of the Sb2S3/CNT anode was firstly investigated by CV technique at a scan rate of 0.05 mV s−1 in a range of 0.01 to 3.0 V (versus K/K+), as shown in Figure 4a. The first CV curve reveals three obvious redox peaks located at 1.35–2.20 V, 0.80–1.37 V and 0.35–1.0 V, which are ascribed to the conversion and alloying reactions during potassiation–depotassiation process [21,23,24]. A small cathodic peak at 1.78 V may be related to the SEI film formation and the intercalation of K-ion into the Sb2S3 layered structure. For the subsequent scans, the intensity and location of redox peaks gradually alter, which is due to the structural change of Sb2S3 caused by the K-ion insertion/extraction. The reversible potassiation–depotassiation reactions of the Sb2S3/CNT anode can be described as in Equations 3–5, which has been confirmed by Lu et al. [23] and Liu et al. [24].
Intercalation reaction: Sb2S3 + xK+ + xe → KxSb2S3
Conversion reaction: KxSb2S3 + 2xK+ + 2xe → 2Sb + KxS
Alloying reaction: 2Sb + KxS + (8 − 3x)K+ + (8 − 3x) e → 2K3Sb2 + K2S3
The galvanostatic discharge/charge curves of the Sb2S3/CNT anode measured at various current densities in a range of 0.01–2.5V are shown in the Figure 4b. For the first discharge-charge curves at 25 mA g−1, two pairs of obvious discharge/charge plateaus at about 1.1–1.3 V and at 0.5–0.6 V can be observed in the curves, in accordance with the CV curves. In addition, discharge sloping regions from 0.4 to 0.01 V presents in the discharge curve. The results indicate the multistep potassiation–depotassiation processes, including the intercalation reaction, the conversion reaction and alloying reaction. The discharge and charge capacities are 869 and 451 mA h g−1, respectively. The corresponding coulomb efficiency is 52%. The capacity loss is mainly caused by the SEI formation and irreversible side reaction [23]. The charge capacity of the Sb2S3/CNT anode is higher than that of the developed anode materials, such as SnS2-rGO (355 mA h g−1 at 25 mA g−1) [16], hard carbon microspheres (262 mA h g−1 at 28 mA g−1) [38], Sn–C composite (140 mA h g−1 at 25 mA g−1) [39], and MoS2 (65.4 mA h g−1 at 20 mA g−1) [40]. The Sb2S3/CNT anode delivers the charge capacities of 446.8, 254.7, 222.2 and 166.6 mA h g−1 at different current densities of 50, 100, 500 and 1000 mA g−1 (Figure 4c). The cycling performance of the Sb2S3/CNT anode at 500 mA g−1 is shown in Figure 4d. The first discharge and charge capacities are 691 and 286.5 mA h g−1, respectively, corresponding to an initial coulomb efficiency of 41.5%. After 50 cycles, the reversible capacity is 212.4 mA h g−1, corresponding to a capacity retention of 74.2%. Except the first cycle, the coulomb efficiency is above 95% during the whole cycling. The inferior electrochemical performance of the amorphous Sb2S3/CNT nanocomposites in KIBs compared to that in NIBs could be attributed to the large volume expansion, severe pulverization and aggregation, and slower diffusion kinetics of K-ions during the repeated potassiation–depotassiation processes, resulting from the larger ionic radius of the K-ion (1.38 Å) [21,41]. Similar results have also been reported in VS2 nanosheet [42] and ReS2 nanosheets [43]. Additionally, compared to that of the previously reported Sb2S3-based anodes for KIBs (Table 2), the performance of amorphous Sb2S3/CNT nanocomposites in this work is poor, indicating the Sb2S3/CNT could not deliver their capacities sufficiently during the cycling. The direct growth of Sb2S3 nanospheres on the CNTs cannot effectively buffer the volume expansion/contraction and release the mechanical stress of Sb2S3, leading to irreversible potassiation–depotassiation reactions. Those issues can be resolved by surface coating effective conducting agents, or by fabricating nanocomposites with unique morphologies, such as nanosheets, nanotubes and hollow nanospheres.

4. Conclusions

In summary, the amorphous Sb2S3/CNT nanocomposites are successfully prepared via in-situ growth of the amorphous Sb2S3 nanospheres on the CNTs, constructing a unique nanostructure. The amorphous Sb2S3/CNT nanocomposites as an anode for NIBs demonstrate an attractive reversible charge capacity of 870 mA h g−1 and a high initial coulomb efficiency of 77.8% at 100 mA g−1. The stable charge capacity is maintained at 704 mA h g−1 over 50 cycles. Even at a high current density of 3000 mA g−1, a charge capacity of 474 mA h g−1 can be achieved. As an anode for KIBs, the amorphous Sb2S3/CNT nanocomposites also demonstrate a high charge capacity of 451 mA h g−1 at 25 mA g−1, exceeding the capacities of hard carbon, Sn–C composite and SnS2-rGO; but future studies are required to optimize the rate performance and cycling stability. The remarkable performance of the amorphous Sb2S3/CNT nanocomposites in NIBs is attributed to the synergic effects of the amorphous Sb2S3 nanospheres and 3D porous conductive network composed of the CNTs.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/9/9/1323/s1, Figure S1: SEM image of pure Sb2S3, Figure S2: (a) TEM and (b) HRTEM images of the CNTs, Figure S3: (a) Cycle performance of the Sb2S3 anode for NIBs at 100 mA g−1. (b) Galvanostatic discharge-charge profiles of the Sb2S3/CNT anode for NIBs measured under various current densities, Figure S4: The galvanostatic discharge/charge curves of the Sb2S3/CNT anode for KIBs at 500 mA g−1.

Author Contributions

J.D. and J.P. generated the research idea. M.L., F.H. and J.P. performed the experiments and wrote the original draft. Y.Z. and L.L. participated in the discussions. J.D. and Q.Y. analyzed the data. J.D. and H.Z. polished the manuscript. All authors read and approved the final manuscript.

Funding

This work was funded by the National Natural Science Foundation of China (number 51661009) and the Natural Science Foundation of Guangxi Province (2016GXNSFGA380001). The authors would like to thank the financial support from the key project of Guangxi Key Laboratory of Information Materials (project number 171006-Z).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Deng, J.; Luo, W.-B.; Chou, S.-L.; Liu, H.-K.; Dou, S.-X. Sodium-Ion Batteries: From Academic Research to Practical Commercialization. Adv. Energy Mater. 2018, 8, 1701428. [Google Scholar] [CrossRef]
  2. Wu, X.; Leonard, D.P.; Ji, X. Emerging Non-Aqueous Potassium-Ion Batteries: Challenges and Opportunities. Chem. Mater. 2017, 29, 5031–5042. [Google Scholar] [CrossRef]
  3. Hwang, J.-Y.; Myung, S.-T.; Sun, Y.-K. Sodium-ion batteries: Present and future. Chem. Soc. Rev. 2017, 46, 3529–3614. [Google Scholar] [CrossRef] [PubMed]
  4. Hosaka, T.; Shimamura, T.; Kubota, K.; Komaba, S. Polyanionic Compounds for Potassium-Ion Batteries. Chem. Rec. 2019, 19, 735–745. [Google Scholar] [CrossRef] [PubMed]
  5. Deng, J.; Luo, W.-B.; Lu, X.; Yao, Q.; Wang, Z.; Liu, H.-K.; Zhou, H.; Dou, S.-X. High Energy Density Sodium-Ion Battery with Industrially Feasible and Air-Stable O3-Type Layered Oxide Cathode. Adv. Energy Mater. 2018, 8, 1701610. [Google Scholar] [CrossRef]
  6. Wang, X.; Xu, X.; Niu, C.; Meng, J.; Huang, M.; Liu, X.; Liu, Z.; Mai, L. Earth Abundant Fe/Mn-Based Layered Oxide Interconnected Nanowires for Advanced K-Ion Full Batteries. Nano Lett. 2017, 17, 544–550. [Google Scholar] [CrossRef] [PubMed]
  7. Duan, W.; Zhu, Z.; Li, H.; Hu, Z.; Zhang, K.; Cheng, F.; Chen, J. Na3V2(PO4)3@C core–shell nanocomposites for rechargeable sodium-ion batteries. J. Mater. Chem. A 2014, 2, 8668–8675. [Google Scholar] [CrossRef]
  8. Lin, X.; Huang, J.; Tan, H.; Huang, J.; Zhang, B. K3V2(PO4)2F3 as a robust cathode for potassium-ion batteries. Energy Storage Mater. 2019, 16, 97–101. [Google Scholar] [CrossRef]
  9. Lee, H.-W.; Wang, R.Y.; Pasta, M.; Woo Lee, S.; Liu, N.; Cui, Y. Manganese hexacyanomanganate open framework as a high-capacity positive electrode material for sodium-ion batteries. Nat. Commun. 2014, 5, 5280. [Google Scholar] [CrossRef]
  10. Pei, Y.; Mu, C.; Li, H.; Li, F.; Chen, J. Low-Cost K4Fe(CN)6 as a High-Voltage Cathode for Potassium-Ion Batteries. ChemSusChem 2018, 11, 1285–1289. [Google Scholar] [CrossRef]
  11. Liu, P.; Li, Y.; Hu, Y.-S.; Li, H.; Chen, L.; Huang, X. A waste biomass derived hard carbon as a high-performance anode material for sodium-ion batteries. J. Mater. Chem. A 2016, 4, 13046–13052. [Google Scholar] [CrossRef]
  12. Jian, Z.; Luo, W.; Ji, X. Carbon Electrodes for K-Ion Batteries. J. Am. Chem. Soc. 2015, 137, 11566–11569. [Google Scholar] [CrossRef] [PubMed]
  13. Liu, J.; Wen, Y.; van Aken, P.A.; Maier, J.; Yu, Y. Facile Synthesis of Highly Porous Ni–Sn Intermetallic Microcages with Excellent Electrochemical Performance for Lithium and Sodium Storage. Nano Lett. 2014, 14, 6387–6392. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, Q.; Zhao, X.; Ni, C.; Tian, H.; Li, J.; Zhang, Z.; Mao, S.X.; Wang, J.; Xu, Y. Reaction and Capacity-Fading Mechanisms of Tin Nanoparticles in Potassium-Ion Batteries. J. Phys. Chem. C 2017, 121, 12652–12657. [Google Scholar] [CrossRef]
  15. Yu, D.Y.W.; Prikhodchenko, P.V.; Mason, C.W.; Batabyal, S.K.; Gun, J.; Sladkevich, S.; Medvedev, A.G.; Lev, O. High-capacity antimony sulphide nanoparticle-decorated graphene composite as anode for sodium-ion batteries. Nat. Commun. 2013, 4, 2922. [Google Scholar] [CrossRef] [PubMed]
  16. Lakshmi, V.; Chen, Y.; Mikhaylov, A.A.; Medvedev, A.G.; Sultana, I.; Rahman, M.M.; Lev, O.; Prikhodchenko, P.V.; Glushenkov, A.M. Nanocrystalline SnS2 coated onto reduced graphene oxide: Demonstrating the feasibility of a non-graphitic anode with sulfide chemistry for potassium-ion batteries. Chem. Commun. 2017, 53, 8272–8275. [Google Scholar] [CrossRef]
  17. Li, W.; Chou, S.-L.; Wang, J.-Z.; Kim, J.H.; Liu, H.-K.; Dou, S.-X. Sn4+xP3@Amorphous Sn-P Composites as Anodes for Sodium-Ion Batteries with Low Cost, High Capacity, Long Life, and Superior Rate Capability. Adv. Mater. 2014, 26, 4037–4042. [Google Scholar] [CrossRef]
  18. Zhang, W.; Mao, J.; Li, S.; Chen, Z.; Guo, Z. Phosphorus-Based Alloy Materials for Advanced Potassium-Ion Battery Anode. J. Am. Chem. Soc. 2017, 139, 3316–3319. [Google Scholar] [CrossRef]
  19. Hwang, S.M.; Kim, J.; Kim, Y.; Kim, Y. Na-ion storage performance of amorphous Sb2S3 nanoparticles: Anode for Na-ion batteries and seawater flow batteries. J. Mater. Chem. A 2016, 4, 17946–17951. [Google Scholar] [CrossRef]
  20. Hou, H.; Jing, M.; Huang, Z.; Yang, Y.; Zhang, Y.; Chen, J.; Wu, Z.; Ji, X. One-Dimensional Rod-Like Sb2S3-Based Anode for High-Performance Sodium-Ion Batteries. ACS Appl. Mater. Interfaces 2015, 7, 19362–19369. [Google Scholar] [CrossRef]
  21. Shi, Y.; Li, F.; Zhang, Y.; He, L.; Ai, Q.; Luo, W. Sb2S3@PPy Coaxial Nanorods: A Versatile and Robust Host Material for Reversible Storage of Alkali Metal Ions. Nanomaterials 2019, 9, 560. [Google Scholar] [CrossRef] [PubMed]
  22. Li, J.; Yan, D.; Zhang, X.; Hou, S.; Li, D.; Lu, T.; Yao, Y.; Pan, L. In situ growth of Sb2S3 on multiwalled carbon nanotubes as high-performance anode materials for sodium-ion batteries. Electrochimica Acta 2017, 228, 436–446. [Google Scholar] [CrossRef]
  23. Lu, Y.; Chen, J. Robust self-supported anode by integrating Sb2S3 nanoparticles with S,N-codoped graphene to enhance K-storage performance. Sci. China Chem. 2017, 60, 1533–1539. [Google Scholar] [CrossRef]
  24. Liu, Y.; Tai, Z.; Zhang, J.; Pang, W.K.; Zhang, Q.; Feng, H.; Konstantinov, K.; Guo, Z.; Liu, H.K. Boosting potassium-ion batteries by few-layered composite anodes prepared via solution-triggered one-step shear exfoliation. Nat. Commun. 2018, 9, 3645. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, S.; Yuan, S.; Yin, Y.-B.; Zhu, Y.-H.; Zhang, X.-B.; Yan, J.-M. Green and Facile Fabrication of [email protected]2S3@PPy Coaxial Nanocables for High-Performance Na-Ion Batteries. Part. Part. Syst. Charact. 2016, 33, 493–499. [Google Scholar] [CrossRef]
  26. Zhao, Y.; Manthiram, A. Amorphous Sb2S3 embedded in graphite: A high-rate, long-life anode material for sodium-ion batteries. Chem. Commun. 2015, 51, 13205–13208. [Google Scholar] [CrossRef]
  27. Xiong, X.; Wang, G.; Lin, Y.; Wang, Y.; Ou, X.; Zheng, F.; Yang, C.; Wang, J.-H.; Liu, M. Enhancing Sodium Ion Battery Performance by Strongly Binding Nanostructured Sb2S3 on Sulfur-Doped Graphene Sheets. ACS Nano 2016, 10, 10953–10959. [Google Scholar] [CrossRef] [PubMed]
  28. Yang, H.; Li, M.; Fu, L.; Tang, A.; Mann, S. Controlled Assembly of Sb2S3 Nanoparticles on Silica/Polymer Nanotubes: Insights into the Nature of Hybrid Interfaces. Sci. Rep. 2013, 3, 1336. [Google Scholar] [CrossRef]
  29. Li, C.-Y.; Patra, J.; Yang, C.-H.; Tseng, C.-M.; Majumder, S.B.; Dong, Q.-F.; Chang, J.-K. Electrolyte Optimization for Enhancing Electrochemical Performance of Antimony Sulfide/Graphene Anodes for Sodium-Ion Batteries–Carbonate-Based and Ionic Liquid Electrolytes. ACS Sustain. Chem. Eng. 2017, 5, 8269–8276. [Google Scholar] [CrossRef]
  30. Ge, P.; Hou, H.; Ji, X.; Huang, Z.; Li, S.; Huang, L. Enhanced stability of sodium storage exhibited by carbon coated Sb2S3 hollow spheres. Mater. Chem. Phys. 2018, 203, 185–192. [Google Scholar] [CrossRef]
  31. Zheng, T.; Li, G.; Zhao, L.; Shen, Y. Flowerlike Sb2S3/PPy Microspheres Used as Anode Material for High-Performance Sodium-Ion Batteries. Eur. J. Inorg. Chem. 2018, 2018, 1224–1228. [Google Scholar] [CrossRef]
  32. Bag, S.; Roy, A.; Mitra, S. Sulfur, Nitrogen Dual Doped Reduced Graphene Oxide Supported Two-Dimensional Sb2S3 Nanostructures for the Anode Material of Sodium-Ion Battery. ChemistrySelect 2019, 4, 6679–6686. [Google Scholar] [CrossRef]
  33. Deng, M.; Li, S.; Hong, W.; Jiang, Y.; Xu, W.; Shuai, H.; Li, H.; Wang, W.; Hou, H.; Ji, X. Natural stibnite ore (Sb2S3) embedded in sulfur-doped carbon sheets: Enhanced electrochemical properties as anode for sodium ions storage. RSC Adv. 2019, 9, 15210–15216. [Google Scholar] [CrossRef]
  34. Xie, J.; Liu, L.; Xia, J.; Zhang, Y.; Li, M.; Ouyang, Y.; Nie, S.; Wang, X. Template-Free Synthesis of Sb2S3 Hollow Microspheres as Anode Materials for Lithium-Ion and Sodium-Ion Batteries. Nano-Micro Lett. 2017, 10, 12. [Google Scholar] [CrossRef] [PubMed]
  35. Wen, S.; Zhao, J.; Zhao, Y.; Xu, T.; Xu, J. Reduced graphene oxide (RGO) decorated Sb2S3 nanorods as anode material for sodium-ion batteries. Chem. Phys. Lett. 2019, 716, 171–176. [Google Scholar] [CrossRef]
  36. Choi, J.-H.; Ha, C.-W.; Choi, H.-Y.; Shin, H.-C.; Lee, S.-M. High performance Sb2S3/carbon composite with tailored artificial interface as an anode material for sodium ion batteries. Met. Mater. Int. 2017, 23, 1241–1249. [Google Scholar] [CrossRef]
  37. Xie, F.; Zhang, L.; Gu, Q.; Chao, D.; Jaroniec, M.; Qiao, S.-Z. Multi-shell hollow structured Sb2S3 for sodium-ion batteries with enhanced energy density. Nano Energy 2019, 60, 591–599. [Google Scholar] [CrossRef]
  38. Jian, Z.; Xing, Z.; Bommier, C.; Li, Z.; Ji, X. Hard Carbon Microspheres: Potassium-Ion Anode Versus Sodium-Ion Anode. Adv. Energy Mater. 2016, 6, 1501874. [Google Scholar] [CrossRef]
  39. Sultana, I.; Ramireddy, T.; Rahman, M.M.; Chen, Y.; Glushenkov, A.M. Tin-based composite anodes for potassium-ion batteries. Chem. Commun. 2016, 52, 9279–9282. [Google Scholar] [CrossRef]
  40. Ren, X.; Zhao, Q.; McCulloch, W.D.; Wu, Y. MoS2 as a long-life host material for potassium ion intercalation. Nano Res. 2017, 10, 1313–1321. [Google Scholar] [CrossRef]
  41. Li, D.; Sun, Q.; Zhang, Y.; Chen, L.; Wang, Z.; Liang, Z.; Si, P.; Ci, L. Surface-Confined SnS2@[email protected] as High-Performance Anode Materials for Sodium- and Potassium-Ion Batteries. ChemSusChem 2019, 12, 2689–2700. [Google Scholar] [CrossRef] [PubMed]
  42. Zhou, J.; Wang, L.; Yang, M.; Wu, J.; Chen, F.; Huang, W.; Han, N.; Ye, H.; Zhao, F.; Li, Y.; et al. Hierarchical VERSUS2 Nanosheet Assemblies: A Universal Host Material for the Reversible Storage of Alkali Metal Ions. Adv. Mater. 2017, 29, 1702061. [Google Scholar] [CrossRef] [PubMed]
  43. Mao, M.; Cui, C.; Wu, M.; Zhang, M.; Gao, T.; Fan, X.; Chen, J.; Wang, T.; Ma, J.; Wang, C. Flexible ReS2 nanosheets/N-doped carbon nanofibers-based paper as a universal anode for alkali (Li, Na, K) ion battery. Nano Energy 2018, 45, 346–352. [Google Scholar] [CrossRef]

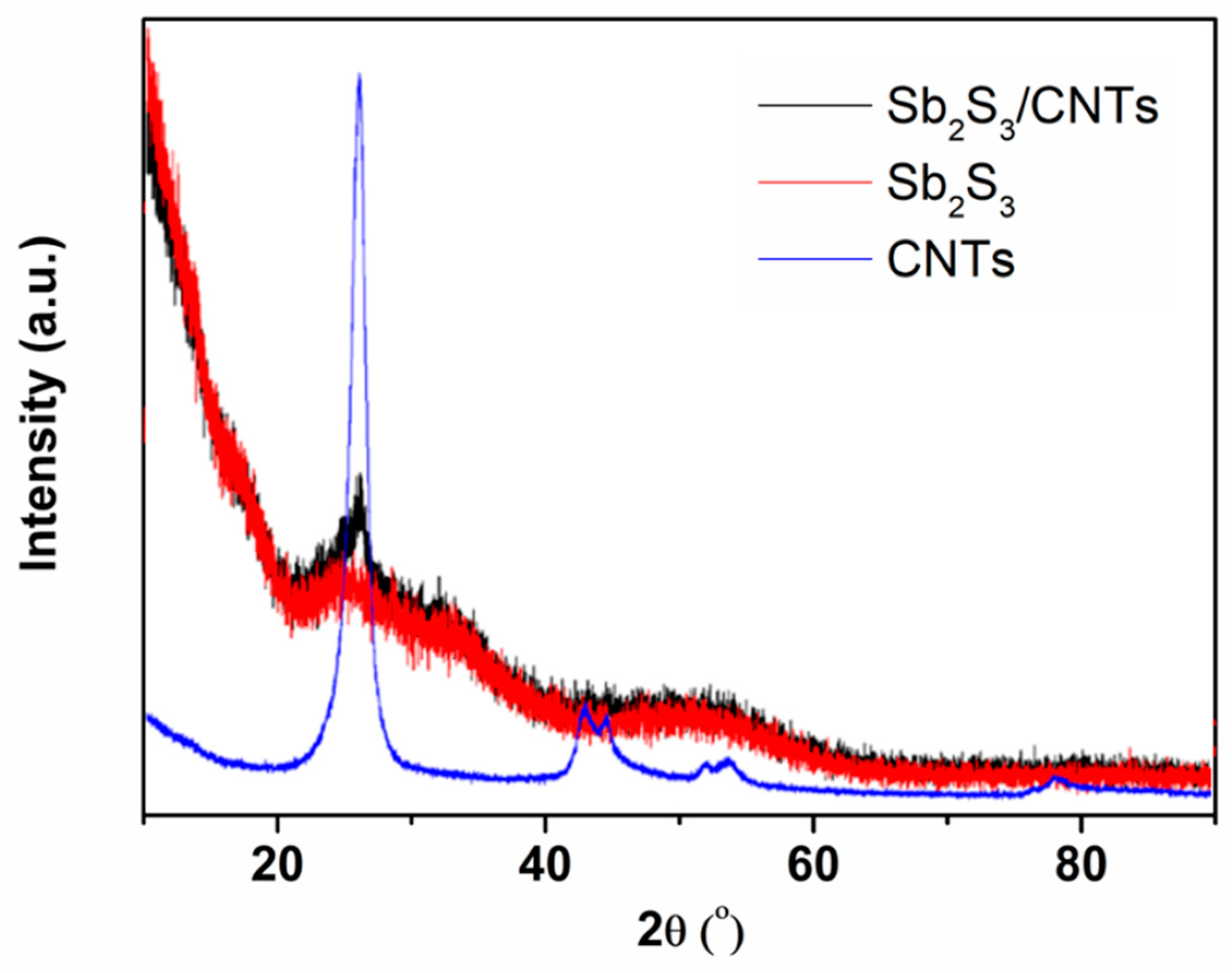

Figure 1. XRD patterns of the as-prepared Sb2S3/carbon nanotube (CNT) nanocomposites, pure Sb2S3 and CNTs.
Figure 1. XRD patterns of the as-prepared Sb2S3/carbon nanotube (CNT) nanocomposites, pure Sb2S3 and CNTs.
Nanomaterials 09 01323 g001
Figure 2. SEM and TEM images of the as-synthesized Sb2S3/CNT nanocomposites. (a,b) SEM images, (c,d) TEM images and (e) EDX spectrum. Selected-area electron diffraction (SAED) pattern is illustrated in (d).
Figure 2. SEM and TEM images of the as-synthesized Sb2S3/CNT nanocomposites. (a,b) SEM images, (c,d) TEM images and (e) EDX spectrum. Selected-area electron diffraction (SAED) pattern is illustrated in (d).
Nanomaterials 09 01323 g002aNanomaterials 09 01323 g002b

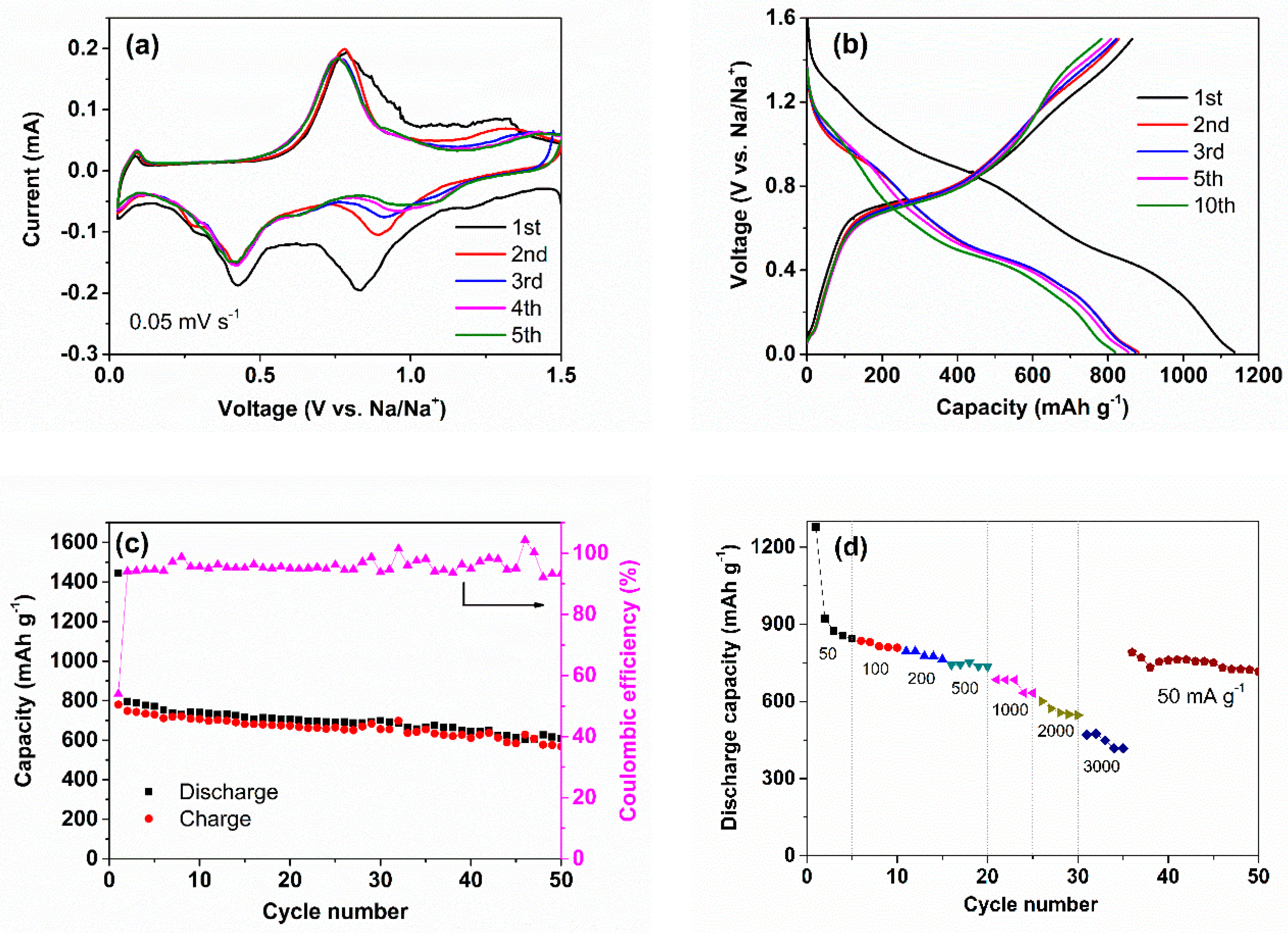

Figure 3. Electrochemical properties of the Sb2S3/CNT anode for Na-ion batteries (NIBs) in a voltage range of 0.01–1.5 V. (a) Cyclic voltammetry (CV) curves, (b) galvanostatic discharge-charge profiles measured under a current density of 100 mA g−1, (c) cycling performance at 100 mA g−1 and (d) rate capability.
Figure 3. Electrochemical properties of the Sb2S3/CNT anode for Na-ion batteries (NIBs) in a voltage range of 0.01–1.5 V. (a) Cyclic voltammetry (CV) curves, (b) galvanostatic discharge-charge profiles measured under a current density of 100 mA g−1, (c) cycling performance at 100 mA g−1 and (d) rate capability.
Nanomaterials 09 01323 g003

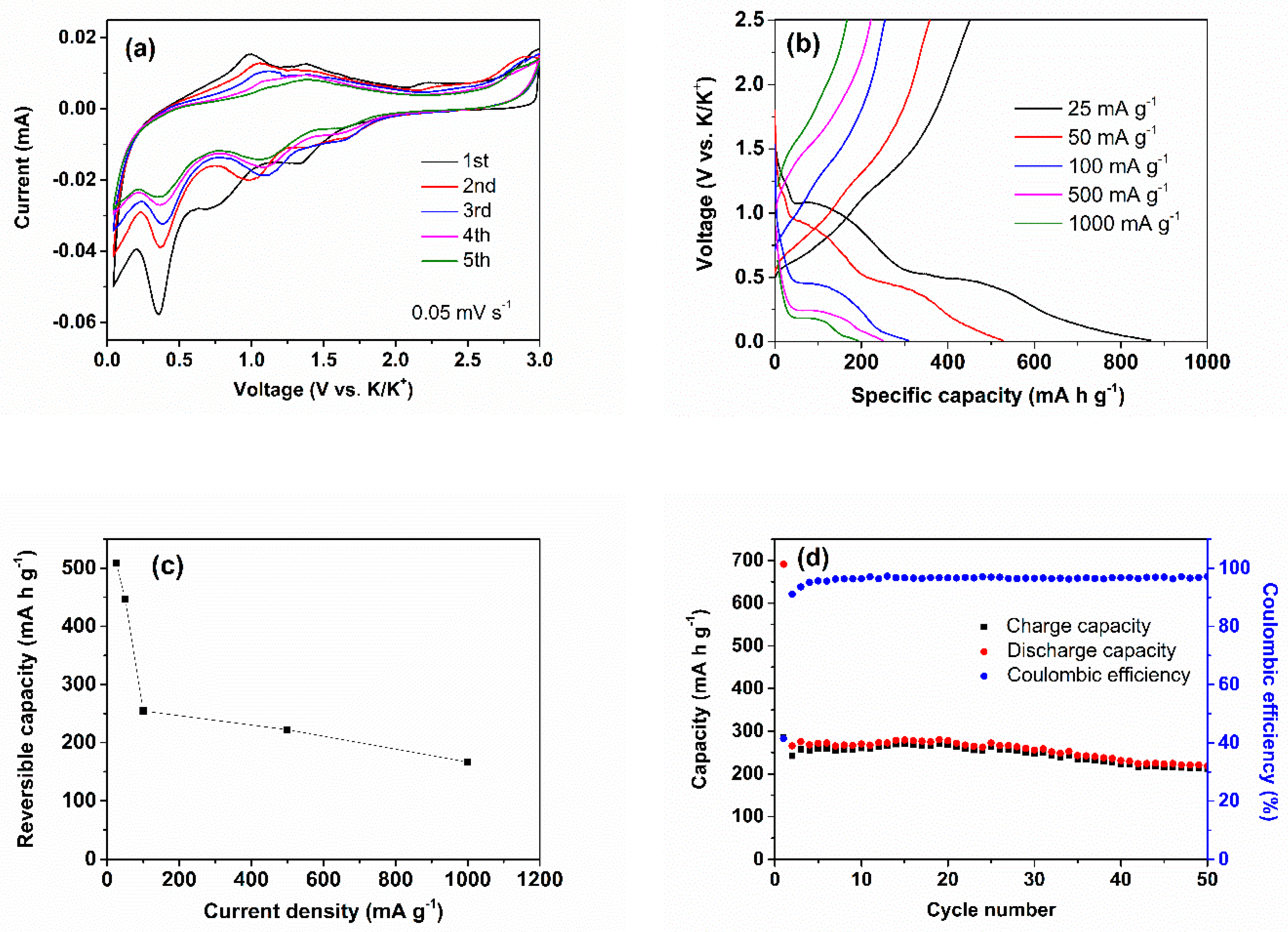

Figure 4. Electrochemical performance of the Sb2S3/CNT anode for K-ion batteries (KIBs). (a) CV curves, (b) the galvanostatic discharge-charge curves at various current densities, (c) rate capability and (d) cycling performance at 500 mA g−1.
Figure 4. Electrochemical performance of the Sb2S3/CNT anode for K-ion batteries (KIBs). (a) CV curves, (b) the galvanostatic discharge-charge curves at various current densities, (c) rate capability and (d) cycling performance at 500 mA g−1.
Nanomaterials 09 01323 g004
Table 1. Comparison of the electrochemical performance of the amorphous Sb2S3/CNT nanocomposites in this work, and those previously reported for Sb2S3-based anode materials for NIBs.
Table 1. Comparison of the electrochemical performance of the amorphous Sb2S3/CNT nanocomposites in this work, and those previously reported for Sb2S3-based anode materials for NIBs.
Anode MaterialsInitial Coulomb EfficiencyCurrent Density (mA g−1)Charge Capacity (mAh g−1)Rate Capability (mAhg−1/mAg−1)Voltage Cange (V)
Amorphous Sb2S3 [19]65%50647534/30000.01–2.5
Sb2S3@PPy [21]63.7%100860290/20000.01–3.0
[email protected]2S3@PPy [25]75%50626376/20000–2.0
Sb2S3-graphite [26]84%100733631/30000.01–3.0
Sb2S3/graphene [29]65%50660240/15000.01–2.0
HS Sb2S3/C [30]64.8%200693220/32000.01–3.0
Sb2S3/PPy [31]70%100605236/8000.01–2.5
SN-rGO/Sb2S3 [32]57%100592365/20000.01–2.0
Sb2S3/SCS [33]68.8%100642.8263/10000.01–2.5
Sb2S3 HMS [34]62%200616314/30000.01–2.0
RGO/Sb2S3 nanorods [35]52.6%100673381/20000.01–2.0
Sb2S3/C [36]78%50642520/20000.005–2.0
Multi-shell Sb2S3 [37]55%100901604/20000.01–2.0
Amorphous Sb2S3/CNT (this work)77.8%100870441/30000.01–1.5
Table 2. Comparison of the electrochemical performances of the amorphous Sb2S3/CNT nanocomposites in this work, and those previously reported for Sb2S3-based anodes for KIBs.
Table 2. Comparison of the electrochemical performances of the amorphous Sb2S3/CNT nanocomposites in this work, and those previously reported for Sb2S3-based anodes for KIBs.
Anode MaterialsCharge Capacity (mA h g−1/mA g−1)Cycling Performance (mA h g−1/n)Rate Capability (mA h g−1/mA g−1)Voltage Range (V)Ref.
Sb2S3@PPy coaxial nanorods628/100487/18690/100
280/1000
0.01–3.0[21]
Sb2S3-SNG composite537/100480/100548/25
340/1000
0.1–3.0[23]
Amorphous Sb2S3/CNT286.5/500212.4/50451/25
166.6/1000
0.01–2.5this work
