# Unveiling Signatures of Topological Phases in Open Kitaev Chains and Ladders

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Majorana Fermions in the Kitaev Chain

## 3. Ladder of Two Kitaev Chains

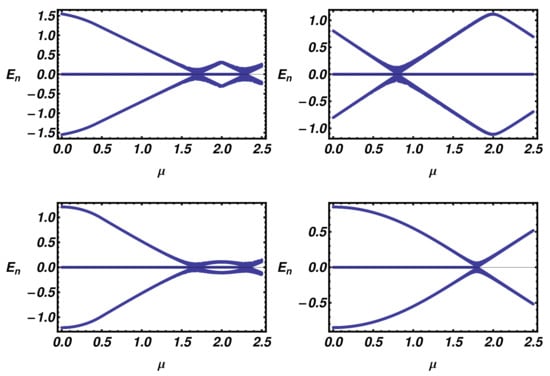

**Figure 5.**Low energy part of the ladder energy spectra as a function of $\mu $, evaluated for different values of ${\Delta}_{1}$ and ${t}_{1}$. From the left to the right and from the top to the bottom, the parameters are: $({\Delta}_{1},{t}_{1})=(0,0.3),(0.09,1.2),(0.5,0.6),(0.8,0.4)$.

## 4. Quantum Transport through a Normal/Kitaev Chain/Superconductor Device

## 5. Quantum Transport through a Normal/Kitaev Ladder/Superconductor Device

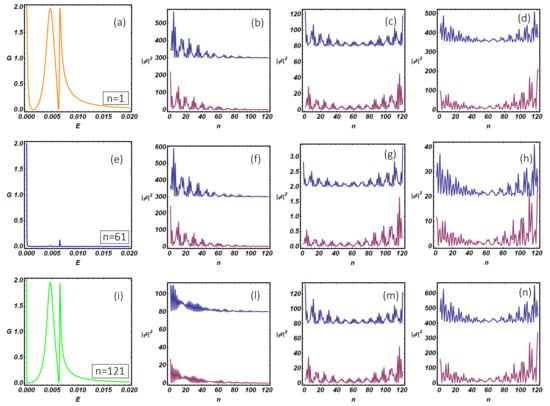

**Figure 11.**N-KL-SC device: zero-temperature differential conductance (in the unit of $\frac{2{e}^{2}}{h}$) as a function of the energy. Different panels, namely (

**a**,

**e**,

**i**), are obtained by changing the linking position, given by n, between the normal lead and the nearest Kitaev wire of the ladder. The blue and purple modes in panels (

**b**–

**d**,

**f**–

**h**,

**l**–

**n**) represent the modulus squared of the resonant modes on the upper and lower chain of the ladder (shifted by a convenient vertical offset) evaluated at energy values corresponding to the sub-gap conductance peaks. From the left to the right and from the top to the bottom, we have set the following parameters: (

**b**): $n=1$, $E=5\xb7{10}^{-5}$. (

**c**): $n=1$, $E=4.5\xb7{10}^{-3}$. (

**d**): $n=1$, $E=6.5\xb7{10}^{-3}$. (

**f**): $n=61$, $E=5\xb7{10}^{-5}$. (

**g**): $n=61$, $E=4.5\xb7{10}^{-3}$. (

**h**): $n=61$, $E=6.5\xb7{10}^{-3}$. (

**l**): $n=121$, $E=5\xb7{10}^{-5}$. (

**m**): $n=121$, $E=4.5\xb7{10}^{-3}$. (

**n**): $n=121$, $E=6.5\xb7{10}^{-3}$. The remaining model parameters have been fixed as: $\Delta =0.02$, ${t}_{N}={t}_{S}=0.2$, $t=1$, $\mu =0.5$, ${\mu}_{S}={\mu}_{N}=0$, ${\Delta}_{1}=0.09$, ${t}_{1}=0.6$.

## 6. Disorder Effects in a Normal/Kitaev Ladder/Superconductor Device

## 7. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Appendix A. The Tight Binding Bogoliubov–de Gennes Equations

#### Appendix A.1. Tight Binding Bogoliubov–de Gennes Equations for the Normal Lead

#### Appendix A.2. Tight Binding Bogoliubov–de Gennes Equations for the Superconducting p-Wave Lead

## Appendix B. Conductance Lowering Effects in Branched Quantum Waveguides

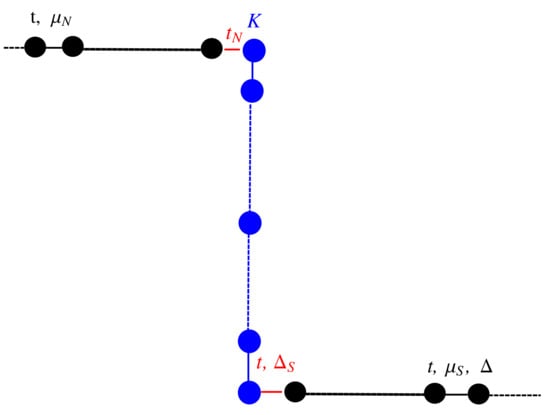

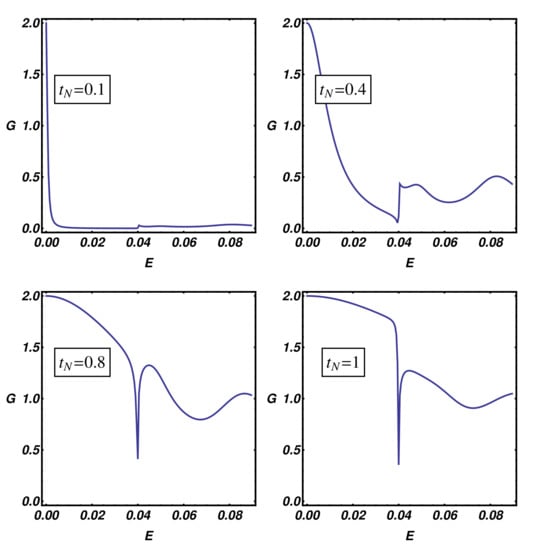

**Figure A2.**N-KC-SC device. Zero-temperature differential conductance of the model depicted in Figure A1. The model parameters have been fixed as: $\Delta =0.02$, ${t}_{S}=t=1$, $\mu =0.5$, ${\mu}_{S}={\mu}_{N}=0$, while ${t}_{N}=0.1$, $0.4$, $0.8$, 1 has been used in obtaining the different plots.

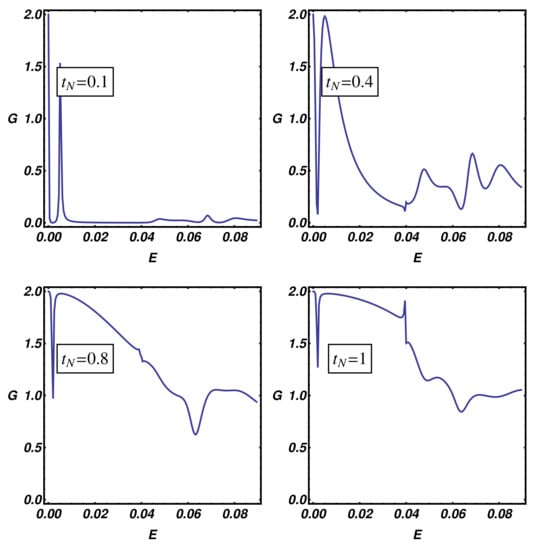

**Figure A3.**Transparent limit of the N-KL-SC device. Zero-temperature differential conductance as a function of energy. The model parameters have been fixed as: $\Delta =0.02$, $t={t}_{S}=1$, $\mu =0.5$, ${\mu}_{S}={\mu}_{N}=0$, ${\Delta}_{1}=0.09$, ${t}_{1}=0.6$, while ${t}_{N}=0.1$, $0.4$, $0.8$, 1 has been used in obtaining the different plots.

## Appendix C. Charge Neutrality of Quasi-Majorana Modes

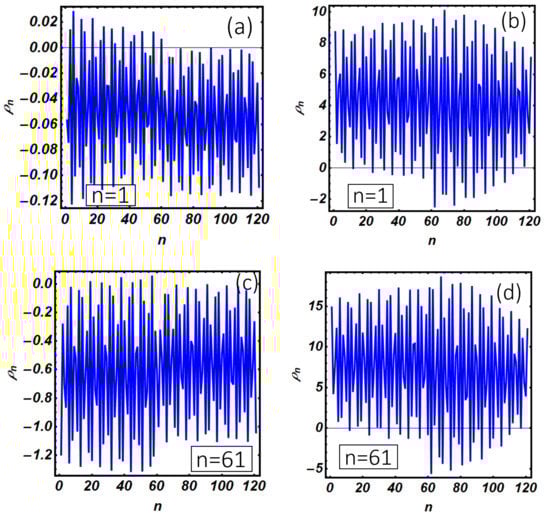

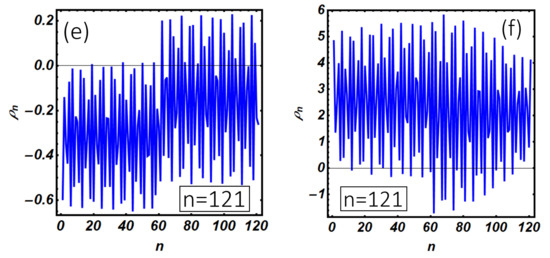

**Figure A4.**Site-dependent charge density ${\rho}_{n}=|{f}_{n}{|}^{2}-{\left|{g}_{n}\right|}^{2}$ as a function of the position along the Kitaev chain device discussed in Figure 8 of the main text. Curves in (

**a**,

**c**,

**e**) correspond to the zero-bias conductance peak in Figure 8 ($E=5\xb7{10}^{-5}$), while the remaining panels correspond to the satellite conductance peak ($E=6\xb7{10}^{-3}$); (

**a**) is computed by setting the model parameters as done in Figure 8b. The average charge density is given by $\overline{\rho}\approx -0.05$; (

**b**) corresponds to Figure 8c with $\overline{\rho}\approx 5$; (

**c**) corresponds to Figure 8e with $\overline{\rho}\approx -0.6$; (

**d**) corresponds to Figure 8f with $\overline{\rho}\approx 6$; (

**e**) corresponds to Figure 8h with $\overline{\rho}\approx -0.25$; (

**f**) corresponds to Figure 8i with $\overline{\rho}\approx 2.5$. Strong deviations from the charge neutrality condition provide evidence of an important contamination of topological properties. Hybridized modes with prevalent electron-like (hole-like) character are defined by $\overline{\rho}>0$ ($\overline{\rho}<0$).

## References

- Pachos, J.K. Topological Quantum Computation. In Formal Methods for Dynamical Systems; Bernardo, M., de Vink, E., Di Pierro, A., Wiklicky, H., Eds.; Springer: Berlin/Heidelberg, Germany, 2013; Volume 7938, pp. 150–179. ISBN 978-3-642-38873-6. [Google Scholar]
- Kitaev, A.Y. Unpaired Majorana fermions in quantum wires. Phys. Uspekhi
**2001**, 44, 131–136. [Google Scholar] [CrossRef] - Fu, L.; Kane, C.L. Superconducting Proximity Effect and Majorana Fermions at the Surface of a Topological Insulator. Phys. Rev. Lett.
**2008**, 100, 096407. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Mourik, V.; Zuo, K.; Frolov, S.M.; Plissard, S.R.; Bakkers, E.P.A.M.; Kouwenhoven, L.P. Signatures of Majorana Fermions in Hybrid Superconductor-Semiconductor Nanowire Devices. Science
**2012**, 336, 1003–1007. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Nadj-Perge, S.; Drozdov, I.K.; Bernevig, B.A.; Yazdani, A. Proposal for realizing Majorana fermions in chains of magnetic atoms on a superconductor. Phys. Rev. B
**2013**, 88, 020407(R). [Google Scholar] [CrossRef] - Nadj-Perge, S.; Drozdov, I.K.; Li, J.; Chen, H.; Jeon, S.; Seo, J.; MacDonald, A.H.; Bernevig, B.A.; Yazdani, A. Observation of Majorana fermions in ferromagnetic atomic chains on a superconductor. Science
**2014**, 346, 602–607. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Beenakker, C.W.J. Search for Majorana Fermions in Superconductors. Ann. Rev. Condens. Matter Phys.
**2013**, 4, 113–136. [Google Scholar] [CrossRef] [Green Version] - Aguado, R. Majorana quasiparticles in condensed matter. La Rivista del Nuovo Cimento
**2017**, 40, 523–593. [Google Scholar] - Marra, P.; Citro, R.; Braggio, A. Signatures of topological phase transitions in Josephson current-phase discontinuities. Phys. Rev. B
**2016**, 93, 220507(R). [Google Scholar] [CrossRef] - Mazziotti, M.; Scopigno, N.; Grilli, M.; Caprara, S. Majorana Fermions in One-Dimensional Structures at LaAlO
_{3}/SrTiO_{3}Oxide Interfaces. Condens. Matter**2018**, 3, 37. [Google Scholar] [CrossRef] - Seaman, B.T.; Krämer, M.; Anderson, D.Z.; Holland, M.J. Atomtronics: Ultracold-atom analogs of electronic devices. Phys. Rev. A
**2007**, 75, 023615. [Google Scholar] [CrossRef] [Green Version] - Hu, Y.; Baranov, M.A. Effects of gapless bosonic fluctuations on Majorana fermions in an atomic wire coupled to a molecular reservoir. Phys. Rev. A
**2015**, 92, 053615. [Google Scholar] [CrossRef] - Potter, A.C.; Lee, P.A. Multichannel Generalization of Kitaev’s Majorana End States and a Practical Route to Realize Them in Thin Films. Phys. Rev. Lett.
**2010**, 105, 227003. [Google Scholar] [CrossRef] [PubMed] - Wimmer, M.; Akhmerov, A.R.; Medvedyeva, M.V.; Tworzydo, J.; Beenakker, C.W.J. Majorana Bound States without Vortices in Topological Superconductors with Electrostatic Defects. Phys. Rev. Lett.
**2010**, 105, 046803. [Google Scholar] [CrossRef] [PubMed] - Zhou, B.; Shen, S.-Q. Crossover from Majorana edge- to end-states in quasi-one-dimensional p-wave superconductors. Phys. Rev. B
**2011**, 84, 054532. [Google Scholar] [CrossRef] - Wakatsuki, R.; Ezawa, M.; Nagaosa, N. Majorana fermions and multiple topological phase transition in Kitaev ladder topological superconductors. Phys. Rev. B
**2014**, 89, 174514. [Google Scholar] [CrossRef] [Green Version] - Schrade, C.; Thakurathi, M.; Reeg, C.; Hoffman, S.; Klinovaja, J.; Loss, D. Low-field topological threshold in Majorana double nanowires. Phys. Rev. B
**2017**, 96, 035306. [Google Scholar] [CrossRef] [Green Version] - Zhou, B.-Z.; Xu, D.-H.; Zhou, B. Majorana zero modes in a ladder of density-modulated Kitaev superconductor chains. Phys. Lett. A
**2017**, 381, 2426–2431. [Google Scholar] [CrossRef] - Maiellaro, A.; Romeo, F.; Citro, R. Topological phase diagram of a Kitaev ladder. Eur. Phys. J. Spec. Top.
**2018**, 227, 1397–1404. [Google Scholar] [CrossRef] - Altland, A.; Zirnbauer, M.R. Nonstandard symmetry classes in mesoscopic normal-superconducting hybrid structures. Phys. Rev. B
**1997**, 55, 1142–1161. [Google Scholar] [CrossRef] [Green Version] - Huang, B.; Chan, C.F.; Gong, M. Large Chern-number topological superfluids in a coupled-layer system. Phys. Rev. B
**2015**, 91, 134512. [Google Scholar] [CrossRef] - Ferry, D.K.; Goodnick, S.M. Transport in nanostructures. In Cambridge Studies in Semiconductor Physics and Microelectronic Engineering, 1st ed.; Cambridge University Press: Cambridge, UK, 1999; ISBN 978-0-521-66365-6. [Google Scholar]
- Blonder, G.E.; Tinkham, M.; Klapwijk, T.M. Transition from metallic to tunneling regimes in superconducting microconstrictions: Excess current, charge imbalance, and supercurrent conversion. Phys. Rev. B
**1982**, 25, 4515–4532. [Google Scholar] [CrossRef] - Fulga, I.C.; Hassler, F.; Akhmerov, A.R.; Beenakker, C.W.J. Scattering formula for the topological quantum number of a disordered multimode wire. Phys. Rev. B
**2011**, 83, 155429. [Google Scholar] [CrossRef] [Green Version] - Flensberg, K. Tunneling characteristics of a chain of Majorana bound states. Phys. Rev. B
**2010**, 82, 180516. [Google Scholar] [CrossRef] - Li, J.; Neupert, T.; Wang, Z.; MacDonald, A.H.; Yazdani, A.; Bernevig, B.A. Two-dimensional chiral topological superconductivity in Shiba lattices. Nat. Commun.
**2016**, 7, 12297. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Feldman, B.E.; Randeria, M.T.; Li, J.; Jeon, S.; Xie, Y.; Wang, Z.; Drozdov, I.K.; Andrei Bernevig, B.; Yazdani, A. High-resolution studies of the Majorana atomic chain platform. Nat. Phys.
**2017**, 13, 286–291. [Google Scholar] [CrossRef] - Romeo, F.; Nappi, C.; Parlato, L.; Sarnelli, E. Andreev Spectroscopy of Molecular States in Resonant and Charge Accumulation Regime. IEEE Trans. Appl. Superconduct.
**2018**, 28, 1–7. [Google Scholar] [CrossRef] - Nappi, C.; Romeo, F.; Parlato, L.; Di Capua, F.; Aloisio, A.; Sarnelli, E. Quantum Interference in Single-Molecule Superconducting Field-Effect Transistors. J. Phys. Chem. C
**2018**, 122, 11498–11504. [Google Scholar] [CrossRef]

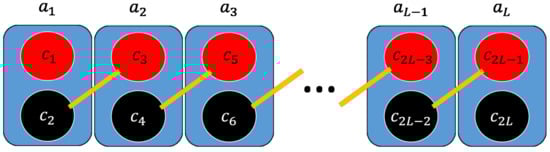

**Figure 1.**A schematic representation of the ideal Kitaev chain model. Unpaired Majorana zero modes ${c}_{1}$ and ${c}_{2L}$ are localized at the system edges and do not enter the Hamiltonian H. The remaining Majorana modes, namely ${c}_{2j}$ and ${c}_{2j+1}$, recombine into ordinary fermionic excitations ${\tilde{a}}_{j}$.

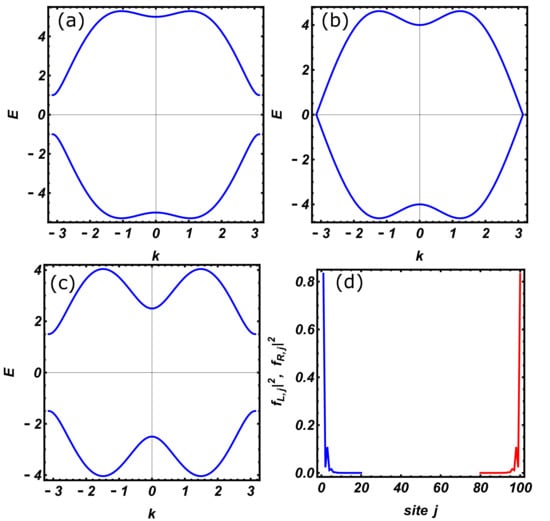

**Figure 2.**Energy bands of the Kitaev chain in the non-topological phase $\mu =3$ (

**a**), at the phase transition point $\mu =2$ (

**b**), and inside the topological region $\mu =0.5$ (

**c**); (

**d**) represents the modulus squared of Majorana zero-modes wave functions in the topological phase (

**c**). Energy is expressed in units of the hopping amplitude t, while the remaining model parameters have been fixed as $L=100$ and $\Delta =2$.

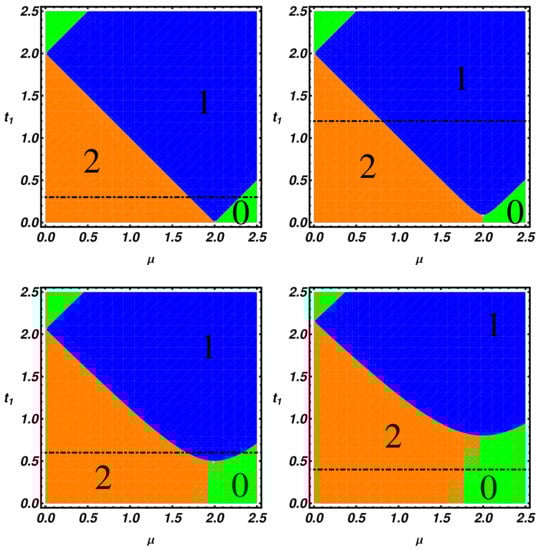

**Figure 3.**Topological phase diagram of the ladder in the $({t}_{1},\mu )$ plane, given by the winding number for different values of ${\Delta}_{1}$, (${\Delta}_{1}=0,0.09,0.5,0.8$ from top left to bottom right) and for $\Delta =0.8$, $t=1$. The orange, blue and green regions are respectively the regions with 2, 1 and 0 Majorana modes per edge. The black line represents the cut on which we take the spectra in Figure 5.

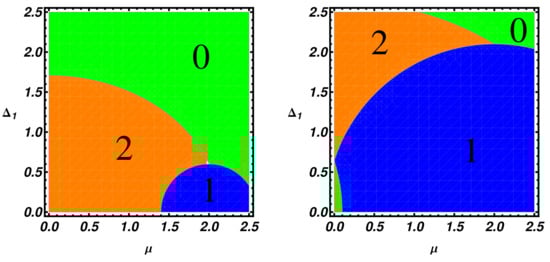

**Figure 4.**Topological phase diagram of the ladder in the $({\Delta}_{1},\mu )$ plane given by the winding number. The two plots are realized for $\Delta =0.8$, $t=1$ and ${t}_{1}=0.6$ (left panel) or ${t}_{1}=2.1$ (right panel).

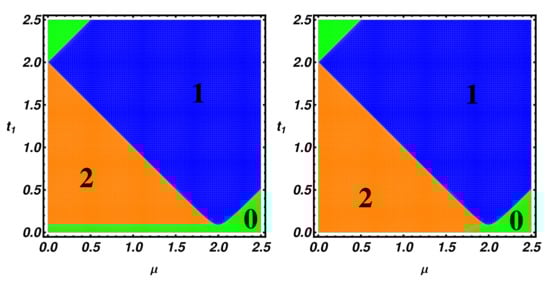

**Figure 6.**Topological phase diagram of the ladder in the (${t}_{1}$, $\mu $) plane. The orange, blue and green regions are respectively the regions with 2, 1 and 0 MZMs at one end. The fixed parameters for both the panels are $t=1$, ${t}_{1}=0.6$, while we set $\Delta =0.02$ and ${\Delta}_{1}=0.09$ for the left panel and $\Delta ={\Delta}_{1}=0.09$ for the right panel.

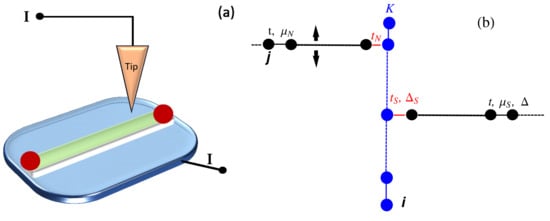

**Figure 7.**(

**a**): Schematic of a tunnel conductance measurement setup where the normal tip position can be changed along the nanowire; (

**b**): tight binding model of the N-KC-SC device. The black chains represent the normal and superconducting p-wave leads with hopping amplitude t, chemical potential ${\mu}_{N}$, ${\mu}_{S}$ and pairing $\Delta $, respectively. The vertical finite line represents the Kitaev chain with parameters: $\mu ,t,\Delta $. The couplings parameters between the leads and the Kitaev nanowire are given by ${t}_{N}$, ${t}_{S}$, ${\Delta}_{S}$.

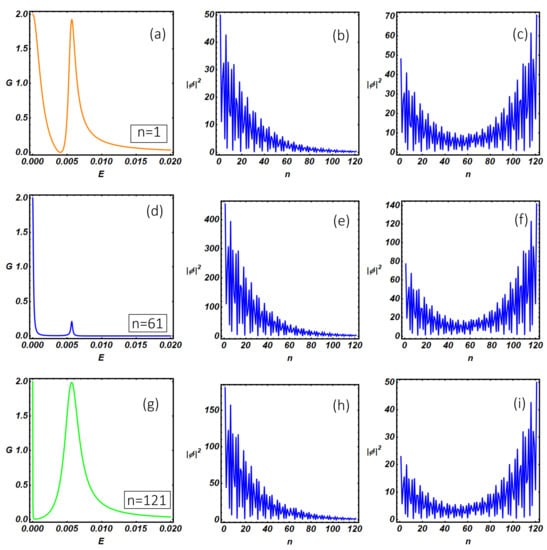

**Figure 8.**N-KC-SC device: Zero-temperature differential conductance (in the unit of $\frac{2{e}^{2}}{h}$) as a function of the energy in the sub-gap regime. (

**a**,

**d**, and

**g**) are obtained by setting different linking positions, specified by n, between the normal lead and the Kitaev wire. (

**b**,

**c**,

**e**,

**f**,

**h**,

**i**) represent the modulus squared ${\left|\Phi \right|}^{2}\equiv |{f}_{n}{|}^{2}+{\left|{g}_{n}\right|}^{2}$ of the resonant modes along the Kitaev chain evaluated at energy values corresponding to the resonant sub-gap peaks in the conductance. From the left to the right and from the top to the bottom, the parameters used are: (

**b**): $n=1$, $E=5\xb7{10}^{-5}$. (

**c**): $n=1$, $E=6\xb7{10}^{-3}$. (

**e**): $n=61$, $E=5\xb7{10}^{-5}$. (

**f**): $n=61$, $E=6\xb7{10}^{-3}$. (

**h**): $n=121$, $E=5\xb7{10}^{-5}$. (

**i**): $n=121$, $E=6\xb7{10}^{-3}$. The remaining model parameters have been fixed as: $\Delta =0.02$, ${t}_{N}={t}_{S}=0.2$, $t=1$, $\mu =0.5$, ${\mu}_{S}={\mu}_{N}=0$.

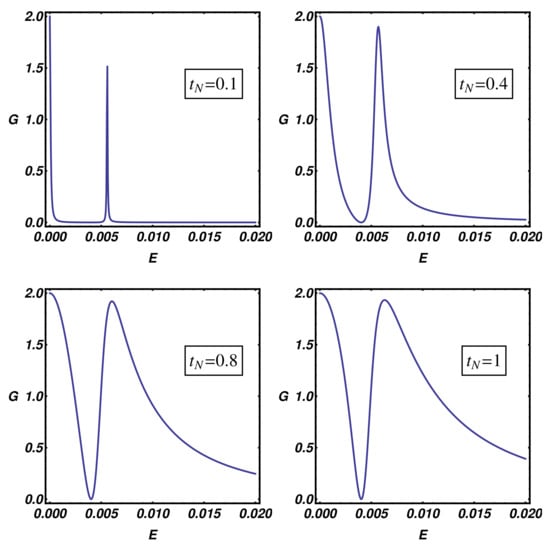

**Figure 9.**N-KC-SC device: Differential conductance (in units of $\frac{2{e}^{2}}{h}$) as a function of the energy. Different plots are obtained by setting ${t}_{N}=0.1,0.4,0.8,1$, while fixing the remaining parameters as: $\Delta =0.02$, ${t}_{S}=0.2$, $t=1$, $\mu =0.5$, ${\mu}_{S}={\mu}_{N}=0$, $n=2$.

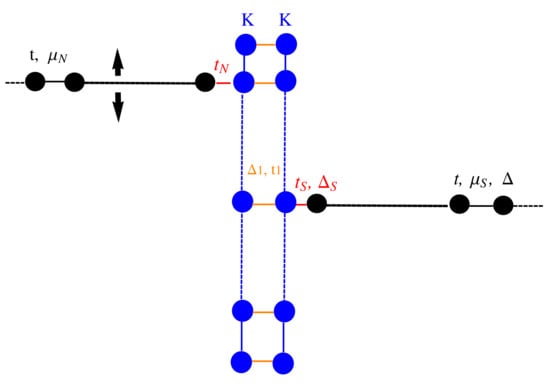

**Figure 10.**N-KL-SC device. A Kitaev ladder (central region) coupled to a movable normal lead and to a superconducting p-wave lead.

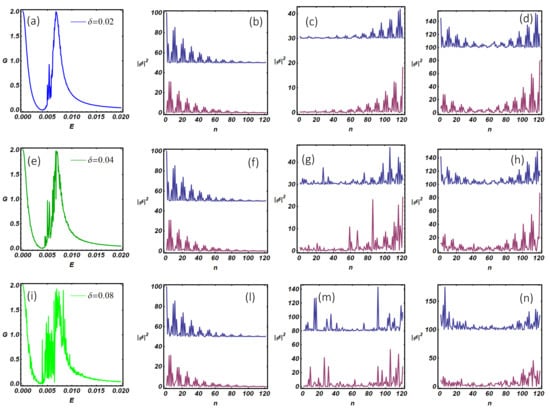

**Figure 12.**N-KL-SC device in the presence of disorder. (

**a**,

**e**,

**i**) show the zero-temperature differential conductance (in the unit of $\frac{2{e}^{2}}{h}$) as a function of the energy for a normal lead attached to the first site of the first Kitaev wire of the ladder and for the three different values of $\delta $, related to the variance of the random on-site potential; (

**b**–

**d**,

**f**–

**h**,

**l**–

**n**) represent the modulus squared of the resonant modes of the upper and lower chain of the ladder evaluated at energy values corresponding to the sub-gap conductance peaks. Model parameters have been fixed as done in first line of Figure 11.
