Understanding of Nanophase Separation and Hydrophilic Morphology in Nafion and SPEEK Membranes: A Combined Experimental and Theoretical Studies

1
Hebei Key Lab of Power Plant Flue Gas Multi-Pollutants Control, Department of Environmental Science and Engineering, North China Electric Power University, Baoding 071003, China
2
MOE Key Laboratory of Resources and Environmental Systems Optimization, College of Environmental Science and Engineering, North China Electric Power University, Beijing 102206, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2019, 9(6), 869; https://doi.org/10.3390/nano9060869
Received: 17 May 2019 / Revised: 2 June 2019 / Accepted: 3 June 2019 / Published: 7 June 2019

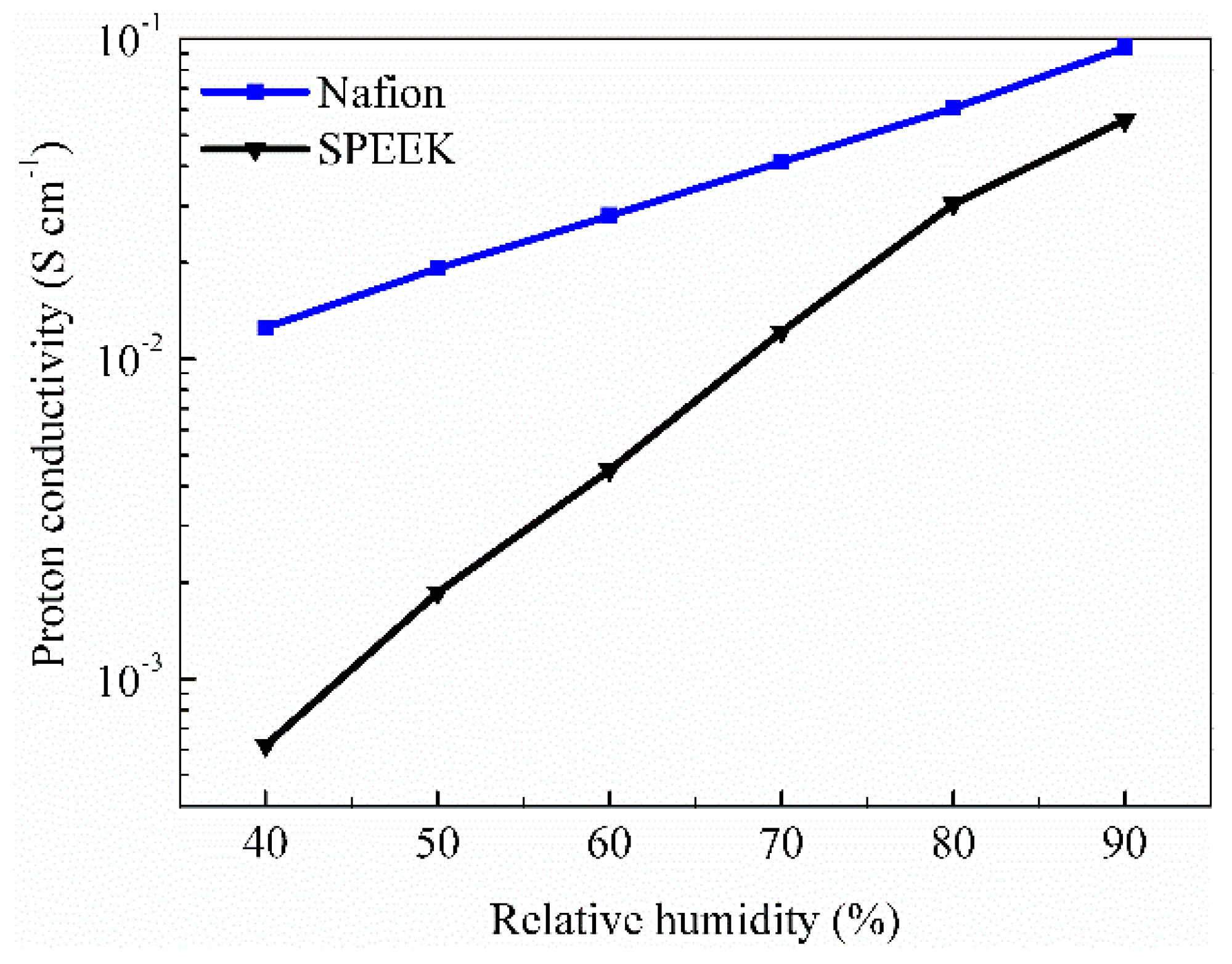

The understanding of the relationship between the chemical structure and the hydrophilic structure is crucial for the designing of high-performance PEMs. Comparative studies in typical Nafion and sulfonated poly (ether ether ketone) (SPEEK) were performed using a combined experimental and theoretical method. SPEEK showed suppressed fuel crossover and good mechanical property but low water uptake, weak phase separation, and inadequate proton conductivity. Molecular dynamics (MD) simulation approaches were employed to get a molecular-level understanding of the structure–property relationship of SPEEK and Nafion membranes. In SPEEK membranes, the local aggregation of hydrophilic clusters is worse, and much stronger electrostatic interaction between Os–Hh was verified, resulting in less delocalized free H3O+ and much lower DH3O+. In addition, the probability of H2O–H3O+ association varied with water content. Particularly, SPEEK exhibited much lower H9O4+ probability at various relative water contents, leading to lower structural diffusivity than Nafion. Eventually, SPEEK possessed low vehicular and structural diffusivities, which resulted in a low proton conductivity. The results indicated that the structure of hydrated hydronium complexes would deform to adapt the confining hydrophilic channels. The confinement effect on diffusion of H2O and H3O+ is influenced by the water content and the hydrophilic morphologies. This study provided a new insight into the exploration of high-performance membranes in fuel cell. View Full-Text
Keywords: nanophase separation; molecular dynamics; proton exchange membrane; proton conductive channel; fuel cell nanophase separation; molecular dynamics; proton exchange membrane; proton conductive channel; fuel cell
Show Figures

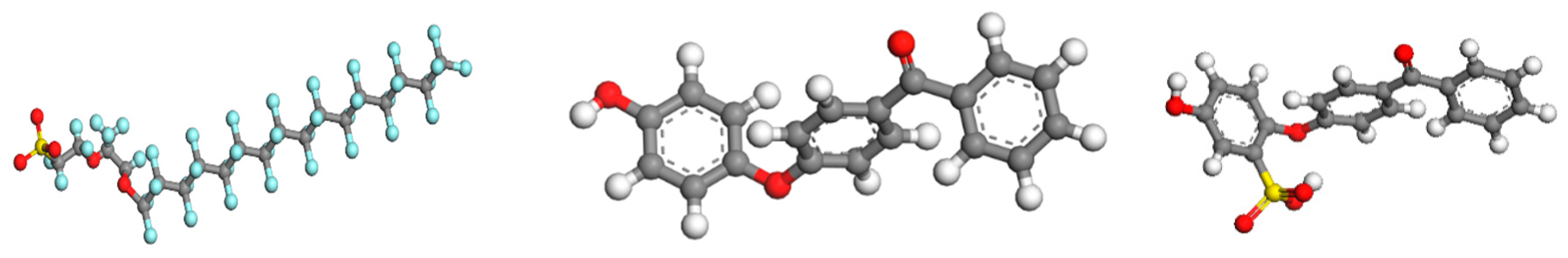

Figure 1
