Photocatalytic Activity of TiO2 Nanofibers: The Surface Crystalline Phase Matters

by
Hongnan Zhang
,
Ming Yu
and
Xiaohong Qin
*
Key Laboratory of Textile Science & Technology, Ministry of Education, College of Textiles, Donghua University, Shanghai 201620, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2019, 9(4), 535; https://doi.org/10.3390/nano9040535
Submission received: 1 February 2019 / Revised: 13 March 2019 / Accepted: 22 March 2019 / Published: 3 April 2019
(This article belongs to the Special Issue Nano‐Photocatalytic Materials: Possibilities and Challenges)
Browse Figures
Versions Notes

Abstract

:
The crystal phases and surface states of TiO2 can intrinsically determine its performance in the applications of photocatalysis. Here, we prepared TiO2 nanofibers with different crystal phase contents by electrospinning followed via calcination at different temperatures. The TiO2 nanofibers were characterized using scanning electron microscopy (SEM), X-ray diffraction (XRD), Raman spectrometry, transmission electron microscopy (TEM), and photocatalytic performance testing. The results showed that the phases of TiO2 nanofibers were layered, that surface crystal phase transition rate was faster than that of internal layers contributed the difference in the ratio of anatase and rutile in the outer and inner layer of TiO2 nanofibers. The TiO2 nanofibers obtained at 575 °C had the best photocatalytic activity, taking only 25 min to degrade Rhodamine B. At 575 °C, the rutile content of the sample surface was about 80 wt.%, while the internal rutile content was only about 40 wt.%. Subsequently, we prepared two different structures of anatase–rutile core-shell TiO2 nanofibers. The core-shell structure can be clearly seen by TEM characterization. The photocatalytic activity of two kinds of core-shell TiO2 nanofibers was tested. The results showed that the photocatalytic activity was close to that of the pure phase TiO2 nanofibers, which corresponded with the surface phase. This further proves that the photocatalytic activity of the material is mainly affected by its surface structure.

1. Introduction

With the acceleration of industrial modernization, people have discharged large amounts of production waste water into the environment they live in, which contain many toxic pollutants such as pesticides and industrial dyes. These toxic pollutants pose a great threat to human health [1,2,3]. Moreover, these contaminants are difficult to completely destroy and degrade by conventional treatment methods. In recent years, photocatalysts have received widespread attention because of their application in energy and environmental issues such as clean energy production, photoelectrochemical processes, and the degradation of contaminants [4,5,6,7]. Titanium dioxide (TiO2) has been widely investigated in the field of photocatalysis because of its superior photocatalytic activity, chemical stability, low cost, and nontoxicity [8,9,10,11]. It is well-known that the crystal phase of TiO2 plays an important role in photocatalysis. Among them, the anatase and rutile phases are extensively used in photocatalytic reactions [12]. It is reported that the anatase phase has excellent photocatalytic activity compared with others [13,14,15]. The rutile phase usually exhibits less activity than that of the anatase because of its lower surface affinity and a higher rate of recombination of photogenerated charge pairs [16]. However, the mixture of anatase and rutile TiO2 have a significant effect on carrier transfer in photocatalytic applications. For example, it is widely recognized that P25 powder, which contains 20% rutile and 80% anatase, is a good photocatalyst [17] as the close contact between the anatase phase and rutile phase contributes to a smooth transfer of charge between the two phases [18]. In addition, the surface properties of TiO2 can be critical to the photocatalytic activity. For instance, the amount of surface absorption of water and hydroxyl determined by anatase and rutile plays an important role in adsorbing molecules to a great extent [19]. The surface phase of TiO2, which is directly exposed to light and the reactants, contributes to photocatalysis because the photocatalytic reaction takes place only when photoinduced electrons and holes are available on the surface [20].
Nanofibrous photocatalysts are attractive for practical applications in environmental purification due to their greater surface-to-volume ratio and a three-dimensional open structure, which allows its surface-active sites to be more easily and effectively accessed by the reactants [21,22,23]. Since its initial development in the 1930s, electrospinning, as a versatile and up-scalable technique, has attracted substantial attention in both scientific research and practical applications [24,25]. Typically, a polymer solution is injected from a nozzle under the influence of a high-voltage electric field. The buildup of electrostatic charges builds up on the surface of the droplet and induces the formation of a jet, which is subsequently stretched to form a continuous nanofiber [26]. In combination with calcination treatment, electrospinning technique is an eco-friendly and cost-effective strategy for fabricating semi-conductive nanofibers such as TiO2 and ZnO. In recent years, many studies have been established on the photocatalytic performance of mixed crystal TiO2 nanofibers via electrospinning [27,28]. For example, Pei et al. successfully synthesized TiO2/ZnO nanofibers with different ratios of anatase/rutile and their results showed that TiO2/ZnO nanofibers with optimal anatase/rutile ratio (48:52) had the highest photocatalytic efficiency in the degradation of Rhodamine B under visible irradiation [29]. Riaz et al. studied the effect of annealing temperatures on morphology, structural, optical properties, and the photocatalytic activity of TiO2 nanofibers, when calcined at 650 °C. The TiO2 nanofibers exhibited the best photocatalytic performance with the anatase/rutile phase ratio of 83:17 under UV irradiation [30]. However, most of these studies only considered the relationship between the ratio of the overall crystal and photocatalytic activity, few researchers have studied the distribution (including the surface and interior) of the TiO2 nanofiber crystal phase and its photocatalytic mechanism in detail. The surface crystal phases are particularly important for photocatalysis. Therefore, it is expected that if the proportion of anatase/rutile in the inner and outer layers of TiO2 nanofibers could be tunable, then the interaction between rutile and anatase phases can exert a variable influence on the surface structure and properties of TiO2 nanofibers, which would be important for designing superior photocatalysts and for further understanding of the photocatalysis processes.
In this work, we prepared TiO2 nanofibers with different crystal ratios by adjusting the calcination temperature, and discussed the process of TiO2 phase transition at high temperature. At the same time, we studied the photocatalytic properties of TiO2 nanofibers where the inner and outer layers contained different anatase/rutile ratios and discussed the relationship between crystal structure and its photocatalytic performance in detail. In order to prove that the surface morphology of TiO2 nanofibers plays a decisive role in its photocatalytic activity, the core-shell TiO2 nanofibers with different crystal structures were prepared by the hydrolysis treatment of TiO2 nanofibers, and the photocatalytic properties of the core-shell nanofibers were studied.

2. Materials and Methods

2.1. Materials

Tetrabutyl titanate (>95%), ethanol (>95%) and acetic acid (>95%) were of analytical grade and purchased from Tianjin Chemical Company (Tianjin, China). Poly(vinyl pyrrolidone) (Mw: 1,300,000) and titanium isopropoxide (TIP, 97%) were purchased from Sigma-Aldrich (Darmstadt, Germany). Concentrated nitric acid and Rhodamine B were purchased from Beijing Chemical Company (Beijing, China). The above chemical reagents were used without further purification.

2.2. Preparation of TiO2 Nanofibers with Different Crystal Forms

In a typical procedure, 0.45 g of poly(vinyl pyrrolidone) (PVP) was mixed with 7.5 mL of ethanol and stirred at room temperature for 6 hours until the PVP was completely dissolved. Another 1.5 g of tetrabutyl titanate was added to a mixed solvent of 3 mL of ethanol and 3 mL of acetic acid, stirred for 15 min to fully dissolve, and then quickly poured into the previously prepared PVP solution, vigorously stirred for 15 min. The mixture was loaded into the glass syringe for electrospinning, and 15 kV high-voltage was provided between the syringe and aluminum foil at a distance of 20 cm. The nanofibers were collected onto the aluminum foil and left in air for 24–48 hours to ensure that they sufficiently hydrolyzed, and subsequently calcinated at different temperature (400–850 °C in air for 5 h) to obtain TiO2 nanofibers with different crystal forms according to the previously reported method [26].

2.3. Preparation of Rutile–Anatase Core-Shell TiO2 Nanofibers

A hydrolysis method was used to prepare rutile–anatase core-shell TiO2 nanofibers. A suitable amount of well-prepared rutile TiO2 nanofibers calcinated at 850 °C was dispersed in a mixture of 80 mL of water, 20 mL of ethanol, 20 mL acetic acid, and 1 mL of concentrated nitric acid under vigorous stirring at 38 °C for 15 min. Then, 5 mL of titanium isopropoxide was added into the premixed solution. The system was mixed vigorously for 16 h at 38 °C with a magnetic stirrer. The rutile–anatase core-shell TiO2 nanofibers were recovered by centrifugation and washed three times with water. The washed nanofibers were then allowed to dry in an oven for 24 h before characterization.

2.4. Preparation of Anatase–Rutile Core-Shell TiO2 Nanofibers

A modified alkoxide method was used to prepare anatase–rutile core-shell TiO2 nanofibers. A suitable amount of well-prepared anatase TiO2 nanofibers calcinated at 400 °C was dispersed in 125 mL of nitric acid solution (pH 1.2) under vigorous stirring at 60 °C for 15 min. Then, 3 mL of titanium isopropoxide and 5 mL of isopropanol were mixed and added into the premixed solution. The system was mixed using a magnetic stirrer until the solution became opaque and then aged for 6 h at 60 °C. Anatase–rutile core-shell TiO2 nanofibers were recovered by centrifugation and washed three times with water. The washed nanofibers were then allowed to dry in an oven at 60 °C for 24 h before characterization.

2.5. Characterization

Nanofibers were characterized by means of scanning electron microscope (SEM: SSX-550, Shimadzu, Kyoto, Japan), transmission electron micrographs (TEM, S-570, Hitachi, Tokyo, Japan), X-ray diffraction (XRD, Scintag XDS 2000 diffractometer with a Cu Kα radiation, Thermo Scientific, Waltham, MA, USA), UV/visible spectrometer (UV-3101 PC Spectrometer, Shimadzu, Kyoto, Japan), high-resolution full-band micro-area Raman spectrometer (HR800, HORIBA Jobin Yvon, Paris, France; excitation source: He–Cd laser (wavelength λ = 325 nm)), confocal Raman microscope (Renishaw Raman system 1000, Renishaw, New Mills, UK; excitation source: 20 mW air-cooled Ar ion laser (wavelength λ = 514.5 nm)), and a box type high temperature resistance furnace (SX2-4-10, Yiheng, Shanghai, China).

2.6. Photocatalytic Activity Measurement

Rhodamine B was used as a reference for organic pollutants to evaluate the photocatalytic activity of the TiO2 nanofibers. First, a dilute solution of 20 mg/L Rhodamine B was configured, then 50.0 mg of the catalyst was weighed into 50.0 mL of 20 mg/L Rhodamine B solution. The reaction system was stirred for 30 min in the dark to achieve an adsorption–desorption equilibrium before UV irradiation. The reaction system was then transferred to a photocatalytic reaction chamber and stirring was continued under ultraviolet light. The temperature of the system was maintained at 35 °C using condensed water and an air-cooling device. During the reaction, a sample solution was taken every 5 min for UV–Vis spectroscopy to determine the concentration change of the Rhodamine B solution.

3. Results and Discussion

3.1. Characterization and Analysis of Mixed Crystalline TiO2 Nanofibers

In order to observe the morphology changes of the TiO2 nanofibers after calcination, we used SEM to characterize them as shown in Figure 1. It can be seen that the diameter of TiO2 nanofibers was significantly reduced after 500 °C calcination, which might be caused by the loss of moisture and organic matter during calcination.
XRD was used to study the phases of the TiO2 nanofibers prepared at different temperatures. The results are shown in Figure 2A. It can be seen from the XRD spectrum that the TiO2 nanofibers obtained at 450 °C were the pure anatase phase (JCPDS: 84-1286); and the TiO2 nanofibers obtained at 800 °C were classified as the pure rutile phase (JCPDS: 88-1175); TiO2 nanofibers prepared at 500, 550, 575, 600, 650, and 700 °C were all mixed phases. The weight percentage of each crystal phase was calculated from the individual diffraction peaks on the basis of formulas reported in the literature [31].
WA = 1 / (1 + 1.26 IR/IA)
WR = 1 − WA = 1/ (1 + 0.79 IA/IR)
where WA and WR represent the weight fraction of the anatase and rutile TiO2 phases, respectively; IA and IR represent the diffraction intensities of the anatase (101) and rutile (110) peaks. With an increase of the calcinated temperature, the content of rutile also increased. The phase compositions of the samples are summarized in Table 1 and Figure 3A.
UV Raman and visible Raman were used to further analyze the crystal phase. According to reports, UV Raman spectroscopy is more sensitive to the surface crystal phase of the sample, while visible Raman spectroscopy is more sensitive to the crystal phase inside the sample. As we know, the structures of both anatase (D4h 19(I41/amd)) and rutile (D4h 14(P42/mnm)) are tetragonal. Derived from the factor group analysis, anatase has six Raman-active modes: A1g (519 cm−1), 2B1g (399 and 519 cm−1), and 3Eg (144, 197 and 639 cm−1) and rutile has four Raman active modes: A1g (612 cm−1), B1g (236 cm−1), B2g (826 cm−1) and Eg (447 cm−1) [32,33]. It can be clearly seen from Figure 2B that the TiO2 nanofibers obtained at 450 °C exhibited distinct peaks of the anatase phase. As the calcination temperature increased, the distinct peaks of rutile phase appeared gradually. When the temperature reached 800 °C, the characteristic peak of the anatase phase could hardly be observed as the TiO2 nanofibers (internal) would have been completely converted into the rutile phase. For the visible Raman spectrum, the peak area ratio of the two characteristic peaks for anatase phase (395 cm−1) and rutile phase (445 cm−1) was linear with the content ratio (WA/WR) [32]. The weight percentages of the rutile phase are shown in Figure 3B, and the significant differences when compared with XRD results (Figure 3A) indicates that the rate of the phase transition inside the TiO2 nanofibers was different from the overall conversion rate. In order to further understand the differences, UV Raman spectroscopy was used to analyze TiO2 nanofibers in Figure 2C and the main characteristic peaks of the two phases can be clearly distinguished as follows: 395, 515, 638 cm−1 (anatase phase) and 445, 612 cm−1 (rutile phase). The TiO2 nanofibers obtained at 450 °C exhibited distinct peaks of the anatase phase. As the sintering temperature increased, the characteristic peak of the rutile phase began to appear at 445 cm−1 in the spectrum, while the characteristic peak of the anatase phase at 638 cm−1 began to shift (since the two characteristic peaks of 612 cm−1 and 638 cm−1 are close to each other, they will interfere with each other to form a composite peak, causing displacement of the characteristic peak). With the further increase of temperature, the characteristic peak of anatase phase gradually weakened, the characteristic peak at 445 cm−1 gradually increased, and the characteristic peak displacement at 638 cm−1 was more obvious. When the temperature rose above 575 °C, the characteristic peak of the rutile phase at 445 cm−1 became the main characteristic peak, and the characteristic peak at 638 cm−1 was almost completely displaced to 612 cm−1, indicating that the crystal form was mainly composed of the rutile phase. When the temperature reached 650 °C, the characteristic peak of the anatase phase was hardly observed as the TiO2 nanofibers (surface) were all converted into the rutile phase. Similarly, the weight percentage of the rutile phase at different temperatures is shown in Figure 3C, and the result clearly indicates that there was a significant difference in the rate of phase transition between the interior and the surface of the TiO2 nanofibers.
The results obtained from XRD, UV Raman, and visible Raman spectroscopy suggest that the crystal transition rate of the surface of TiO2 nanofibers was significantly faster than the interior. As show in Figure 4, with the increase in sintering temperature, the anatase phase on the surface of the TiO2 nanofibers was preferentially converted to the rutile phase. When calcined at 650 °C, the surface anatase phase of the TiO2 nanofibers converted into the rutile phase completely, and there was still a certain amount of anatase phase inside the TiO2 nanofibers without complete conversion. When the temperature reached 800 °C, the anatase phase was completely converted into the rutile phase.

3.2. Photocatalytic Test of Mixed Crystalline TiO2 Nanofibers

We studied the photocatalytic activity of TiO2 nanofibers calcined at different temperatures by degrading Rhodamine B. The results are shown in Figure 5, where C0 and C are the equilibrium concentrations of Rhodamine B in the reaction system before and after UV illumination. It can be seen that the TiO2 nanofibers had obvious catalytic degradation to Rhodamine B, but with the change of sintering temperature, the degradation rate had a significant difference. The pure anatase phase TiO2 nanofibers degraded rhodamine B completely for about 55 min, while the pure rutile phase TiO2 nanofibers degraded Rhodamine B much more slowly, in about 105 min. This indicates that the anatase phase TiO2 has higher photocatalytic activity than the rutile phase. It is generally believed that there are two main reasons for this difference: (1) The forbidden band width Eg of the anatase phase is 3.2 eV, which is slightly larger than the rutile phase TiO2 (Eg = 3.0 eV), and the conduction band of the rutile phase TiO2 correction hinders the reduction reaction of active oxygen, so the electron-hole pairs generated by the anatase phase TiO2 have stronger redox ability; (2) the anatase phase lattice contains more defects and dislocations, which can produce more oxygen vacancies to capture electrons, making photogenerated electrons and holes easier to separate [34]. However, we found that the mixed crystalline TiO2 nanofibers had better photocatalytic efficiency than pure anatase phase. For example, the TiO2 nanofibers calcined at 500, 550, and 575 °C used less than 50 min, while the TiO2 nanofibers obtained at 575 °C only took 30 min.
This excellent photocatalytic activity of the mixed phases of TiO2 nanofibers is caused by the synergistic effect produced by the interaction between the anatase phase and the rutile phase. It has been reported that the photocatalytic mechanism includes three aspects: (1) generation of photogenerated electrons and holes; (2) electron transitions to adjacent sites to reduce the combination with holes; and (3) electrons and holes transfer to the surface of the materials and conduct desired reactions (Figure 6 shows this clearly) [35]. For these mixed phases TiO2 nanofibers, photogenerated electrons are produced on the surface rutile phase, which has a slightly lower conduction band than the anatase phase mentioned earlier under illumination, then the electronic transition to its adjacent lower energy anatase (including surface and internal) trap, leading to the separation of electron and hole pairs. Since the photocatalytic excitation process usually occurs on the surface, the electrons trapped inside occupy a small proportion. At the same time, only a small number of electrons trapped inside can reach the surface of the material due to the path and high bonding rate [35]. Therefore, the synergy between surface anatase and rutile is dominant. On the other hand, the rate of the surface absorption of water and hydroxyl groups, determined by anatase and rutile to a great extent, plays an important role in the surface adsorption of molecules in photocatalysis. The electrons can be consumed by molecular oxygen in an aqueous solution to produce reactive oxygen radicals. Furthermore, the photogenerated holes on the surface of TiO2 nanofibers lead to the production of OH radicals, which will decompose pollutants in water [4]. It is well-known that photocatalytic reactions usually occur on the surface of catalytic materials. Less of the rutile phase on the surface of TiO2 nanofibers causes less excitation of the electron-hole pair; but if the surface rutile phase increases, less of the anatase phase cannot promote the efficient separation of electrons and holes. The nanofiber surface obtained at 575 °C had a richer rutile phase and synergized with the anatase phase. We can recognize that the amount of rutile and anatase on the surface of the nanofibers obtained at this temperature only led to the efficient separation of electrons and holes and the sufficient reaction with small molecules on the surface [36,37], thereby exhibiting the best photocatalytic performance.

3.3. Characterization and Analysis of Core-Shell Structure TiO2 Nanofibers

In order to prove that the surface phase of TiO2 nanofibers plays a decisive role in its photocatalytic activity, we developed unique rutile–anatase core-shell structured nanocrystalline TiO2 nanofibers. Figure 7 shows TEM photographs of two different core-shell structured TiO2 nanofibers prepared by different methods. It can be seen that the surface of the anatase phase TiO2 nanofibers was evenly coated with a dense layer of needle-shaped TiO2 from Figure 7A, while the surface of the rutile phase TiO2 nanofiber was coated with a TiO2 layer composed of nanoparticles in Figure 7B.
As shown in Figure 8A, it can be seen that the two core-shell structured TiO2 nanofibers are mixed phases. The TiO2 nanofibers of the anatase core@rutile shell structure still had anatase structure and contained a certain amount of the rutile phase; while the rutile core@anatase shell structure of TiO2 nanofibers mainly had a rutile structure. Then, we used Raman spectroscopy to analyze two core-shell TiO2 nanofibers and pure phase TiO2 nanofibers. Figure 8B shows the test results for visible Raman spectroscopy where the TiO2 nanofibers of the core-shell structure exhibited a Raman spectrum similar to their internal. The rutile core@anatase shell structured nanofibers exhibited a complete rutile phase while the characteristic peak of the anatase phase was not observed from the figure. The anatase core@rutile shell nanofibers mainly exhibited an anatase structure, but weak rutile phase peaks could still be found, which indicates that the rutile phase content of the shell was higher, a property that cannot be ignored by the response of the visible Raman spectroscopy. The result of the UV Raman spectroscopy (as show in Figure 8C) showed the opposite to the XRD and visible Raman spectroscopy. The UV Raman spectrum of the anatase core@rutile shell fiber showed a complete rutile spectrogram, and no characteristic peak of any anatase phase was observed. This indicates that the fiber surface was completely covered by rutile phase TiO2. On the contrary, although the inner nuclear layer of the rutile core@anatase shell fiber had a complete rutile phase, the surface was mainly of the anatase phase. The presence of a small amount of rutile phase could be seen in the spectrum, which was due to the thinner shell of the nanofibers. In addition, we used the previous method to calculate the crystal phase compositions under the three test results, as shown in Table 2.

3.4. Photocatalytic Test of Core-Shell Structure TiO2 Nanofibers

We also studied the photocatalytic activity of TiO2 nanofibers with a core-shell structure by the photocatalytic degradation of Rhodamine B as a template reaction as shown in Figure 9. The result indicates that although the core-shell TiO2 nanofibers had a mixed phase, the photocatalytic activity was determined by the crystal structure of the surface. It took 95 min to degrade the Rhodamine B completely, which was similar to that of the pure rutile TiO2 nanofibers, while the photocatalytic activity of the rutile core@anatase shell fiber was close to that of pure anatase phase TiO2 nanofibers. The result further demonstrates that the photocatalytic activity is mainly determined by the surface crystal structure of the TiO2 nanofibers. On the other hand, we found that the photocatalytic activity of the core-shell TiO2 nanofibers was higher than that of the corresponding pure phase TiO2 nanofibers. The reason could be due to the synergistic effect at the interface between the core-shell structures, which contributed to the slight improvement of the photocatalytic activity.

4. Conclusions

Electrospun TiO2 nanofibers with different anatase/rutile content were prepared by controlling the sintering temperature. The whole, surface, and internal crystal structures of the TiO2 nanofibers were analyzed in detail by XRD, visible Raman, and UV Raman. The results showed that the phase of TiO2 nanofibers was layered, and there were some differences in the internal and surface crystal phase distribution during the phase transition. The surface phase transition rate was faster than the phase transition rate of the inner layer, thus causing the difference of the layers.
The photocatalytic activity of the TiO2 nanofibers containing different proportions of crystal structure was tested. The TiO2 nanofibers produced at 575 °C had the best photocatalytic activity, which took only 25 min for the degradation of Rhodamine B under UV irradiation. At 575 °C, the rutile content of the sample surface was about 80 wt.%, while the internal rutile content was only about 40 wt.%. The surface rutile was slightly dominant and formed an effective interfacial synergistic effect with anatase. Since the rutile phase is more prone to light response, the electron-hole pair can be more effectively separated by the synergistic effect, thereby enhancing the photocatalytic activity.
Subsequently, we prepared two different structures of anatase–rutile core-shell TiO2 nanofibers. The core-shell structure could be clearly seen by TEM characterization. The XRD test showed that both core-shell fibers were mixed crystals. However, the Raman test results were biased toward the internal nuclear layer structure, and the UV Raman test results were biased toward the structure of the surface shell. The photocatalytic activity of two kinds of core-shell TiO2 nanofibers was tested. The results showed that the photocatalytic activity was close to that of the pure phase TiO2 nanofibers, which corresponded with the surface phase. This further proves that the photocatalytic activity of the material was mainly affected by its surface structure.

Author Contributions

Conceptualization, H.Z.; Methodology, H.Z. and M.Y.; Validation, H.Z. and M.Y.; Formal Analysis, H.Z. and M.Y.; Investigation, H.Z., M.Y., and X.Q.; Data Curation, M.Y.; Writing–Original Draft Preparation, M.Y.; Writing–Review and Editing, H.Z. and X.Q.; Supervision and Project Administration, X.Q.

Funding

This research was funded by the National Natural Science Foundation of China (Grant No.: 51803023 and 51773037) and the Chinese Universities Scientific Fund (Grant No.: CUSF-DH-D-2018043).

Acknowledgments

This work was supported by the Chang Jiang Youth Scholars Program of China as well as the “Innovation Program of Shanghai Municipal Education Commission”, “Fundamental Research Funds for the Central Universities” and “DHU Distinguished Young Professor Program”.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nasikhudin; Ismaya, E.P.; Diantoro, M.; Kusumaatmaja, A.; Triyana, K. Preparation of PVA/TiO2 composites nanofibers by using electrospinning method for photocatalytic degradation. IOP Conf. Ser. Mater. Sci. Eng. 2017, 202, 012011. [Google Scholar] [CrossRef]
  2. Compagnoni, M.; Ramis, G.; Freyria, F.S.; Armandi, M.; Bonelli, B.; Rossetti, I. Photocatalytic processes for the abatement of N-containing pollutants from waste water. part 1: Inorganic pollutants. J. Nanosci. Nanotechnol. 2017, 17, 3632–3653. [Google Scholar] [CrossRef]
  3. Leudjo, T.A.; Pillay, K.; Yangkou, M.X. Nanosponge cyclodextrin polyurethanes and their modification with nanomaterials for the removal of pollutants from waste water: A review. Carbohydr. Polym. 2017, 159, 94–107. [Google Scholar] [CrossRef] [PubMed]
  4. Zhang, L.; Wang, L.; Wei, Y.; Zhang, M.; Jiang, H.; Li, J.; Li, S.; Li, J. Electrospun TiO2 nanofibers surface-loaded with Ag nanoparticles as a sensitizer and their enhanced effect in photocatalytic applications. Eur. J. Inorg. Chem. 2015, 2015, 5039–5044. [Google Scholar] [CrossRef]
  5. Etacheri, V.; Valentin, C.D.; Schneider, J.; Bahnemann, D.; Pillai, S.C. Visible-light activation of TiO2 photocatalysts: Advances in theory and experiments. J. Photochem. Photobiol. C Photochem. Rev. 2015, 25, 1–29. [Google Scholar] [CrossRef]
  6. Wu, W.; Jiang, C.; Roy, V.A. Recent progress in magnetic iron oxide-semiconductor composite nanomaterials as promising photocatalysts. Nanoscale 2015, 7, 38–58. [Google Scholar] [CrossRef] [PubMed]
  7. Sui, Y.; Su, C.; Yang, X.; Hu, J.; Lin, X. Ag-AgBr nanoparticles loaded on TiO2 nanofibers as an efficient heterostructured photocatalyst driven by visible light. J. Mol. Catal. A Chem. 2015, 410, 226–234. [Google Scholar] [CrossRef]
  8. Gong, C.; Du, J.; Li, X.; Yu, Z.; Ma, J.; Qi, W.; Zhang, K.; Yang, J.; Luo, M.; Peng, H. One-step acidic hydrothermal preparation of dendritic rutile TiO2 nanorods for photocatalytic performance. Nanomaterials 2018, 8, 683. [Google Scholar] [CrossRef]
  9. Wu, X.; Si, Y.; Yu, J.; Ding, B. Titania-based electrospun nanofibrous materials: A new model for organic pollutants degradation. MRS Commun. 2018, 8, 765–781. [Google Scholar] [CrossRef]
  10. Siah, W.R.; Lintang, H.O.; Shamsuddin, M.; Yuliati, L. High photocatalytic activity of mixed anatase-rutile phases on commercial TiO2 nanoparticles. IOP Conf. Ser. Mater. Sci. Eng. 2016, 107, 012005. [Google Scholar] [CrossRef]
  11. Wang, X.; Sheng, M.; Zhang, X.; Wang, H.; Wei, Z.; Du, Q. Multi-type carbon doping of TiO2 photocatalyst. Chem. Phys. Lett. 2007, 444, 292–296. [Google Scholar] [CrossRef]
  12. Sun, Q.; Lu, Y.; Zhang, H.; Zhao, H.; Yu, H.; Xu, J.; Fu, Y.; Yang, D.; Liu, Y. Hydrothermal fabrication of rutile TiO2 submicrospheres on wood surface: An efficient method to prepare UV-protective wood. Mater. Chem. Phys. 2012, 133, 253–258. [Google Scholar] [CrossRef]
  13. Luttrell, T.; Halpegamage, S.; Tao, J.; Kramer, A.; Sutter, E.; Batzill, M. Why is anatase a better photocatalyst than rutile?—model studies on epitaxial TiO2 films. Sci. Rep. 2014, 4, 4043. [Google Scholar] [CrossRef]
  14. Likodimos, V.; Chrysi, A.; Calamiotou, M.; Fernandez-Rodriguez, C.; Dona-Rodriguez, J.M.; Dionysiou, D.D.; Falaras, P. Microstructure and charge trapping assessment in highly reactive mixed phase TiO2 photocatalysts. Appl. Catal. B Environ. 2016, 192, 242–252. [Google Scholar] [CrossRef]
  15. Xu, M.; Gao, Y.; Moreno, E.M.; Kunst, M.; Muhler, M.; Wang, Y.; Idriss, H.; Woll, C. Photocatalytic activity of bulk TiO2 anatase and rutile single crystals using infrared absorption spectroscopy. Phys. Rev. Lett. 2011, 106, 138302. [Google Scholar] [CrossRef] [PubMed]
  16. Zhang, J.; Zhou, P.; Liu, J.; Yu, J. New understanding of the difference of photocatalytic activity among anatase, rutile and brookite TiO2. Phys. Chem. Chem. Phys. 2014, 16, 20382–20386. [Google Scholar] [CrossRef] [PubMed]
  17. Mutuma, B.K.; Shao, G.N.; Kim, W.D.; Kim, H.T. Sol–gel synthesis of mesoporous anatase–brookite and anatase–brookite–rutile TiO2 nanoparticles and their photocatalytic properties. J. Colloid Interface Sci. 2015, 442, 1–7. [Google Scholar] [CrossRef] [PubMed]
  18. Rui, Z.; Wu, S.; Peng, C.; Ji, H. Comparison of TiO2 degussa P25 with anatase and rutile crystalline phases for methane combustion. Chem. Eng. J. 2014, 243, 254–264. [Google Scholar] [CrossRef]
  19. Liu, G.; Yan, X.; Chen, Z.; Wang, X.; Wang, L.; Lu, G.Q.; Cheng, H.M. Synthesis of rutile–anatase core–shell structured TiO2 for photocatalysis. J. Mater. Chem. 2009, 19, 6590–6596. [Google Scholar] [CrossRef]
  20. Bai, S.; Jiang, W.; Li, Z.; Xiong, Y. Surface and interface engineering in photocatalysis. ChemNanoMat 2015, 1, 223–239. [Google Scholar] [CrossRef]
  21. Su, C.; Shao, C.; Liu, Y. Electrospun nanofibers of TiO2/CdS heteroarchitectures with enhanced photocatalytic activity by visible light. J. Colloid Interf. Sci. 2011, 359, 220–227. [Google Scholar] [CrossRef]
  22. Lee, J.A.; Krogman, K.C.; Ma, M.; Hill, R.M.; Hammond, P.T.; Rutledge, G.C. Highly reactive multilayer-assembled TiO2 coating on electrospun polymer nanofibers. Adv. Mater. 2009, 21, 1252–1256. [Google Scholar] [CrossRef]
  23. Vu, D.; Li, X.; Li, Z.; Wang, C. Phase-structure effects of electrospun TiO2 nanofiber membranes on as(III) adsorption. J. Chem. Eng. Data 2013, 58, 71–77. [Google Scholar] [CrossRef]
  24. Kanjwal, M.A.; Barakat, N.A.M.; Sheikh, F.A.; Kim, H.Y. Electronic characterization and photocatalytic properties of TiO2/CdO electrospun nanofibers. J. Mater. Sci. 2010, 45, 1272–1279. [Google Scholar] [CrossRef]
  25. Lee, S.S.; Bai, H.; Liu, Z.; Sun, D.D. Electrospun TiO2/SnO2 nanofibers with innovative structure and chemical properties for highly efficient photocatalytic H2 generation. Int. J. Hydrogen. Energy 2012, 37, 10575–10584. [Google Scholar] [CrossRef]
  26. Li, D.; Xia, Y. Fabrication of titania nanofibers by electrospinning. Nano Lett. 2003, 3, 555–560. [Google Scholar] [CrossRef]
  27. Doh, S.J.; Kim, C.; Lee, S.G.; Lee, S.J.; Kim, H. Development of photocatalytic TiO2 nanofibers by electrospinning and its application to degradation of dye pollutants. J. Hazard. Mater. 2008, 154, 118–127. [Google Scholar] [CrossRef] [PubMed]
  28. Zhan, S.; Chen, D.; Jiao, X.; Tao, C. Long TiO2 hollow fibers with mesoporous walls: Sol−gel combined electrospun fabrication and photocatalytic properties. J. Phys. Chem. B 2006, 110, 11199–11204. [Google Scholar] [CrossRef] [PubMed]
  29. Pei, C.C.; Leung, W.F. Enhanced photocatalytic activity of electrospun TiO2/ZnO nanofibers with optimal anatase/rutile ratio. Catal. Commun. 2013, 37, 100–104. [Google Scholar] [CrossRef]
  30. Riaz, A.; Qi, H.; Fang, Y.; Xu, J.; Zhou, C.; Jin, Z.; Hong, Z.; Zhi, M.; Liu, Y. Enhanced intrinsic photocatalytic activity of TiO2 electrospun nanofibers based on temperature assisted manipulation of crystal phase ratios. J. Mater. Res. 2006, 31, 3036–3043. [Google Scholar] [CrossRef]
  31. Spurr, R.A.; Myers, H. Quantitative Analysis of Anatase-Rutile Mixtures with an X-Ray Diffractometer. Anal. Chem. 1957, 29, 760–762. [Google Scholar] [CrossRef]
  32. Zhang, J.; Li, M.; Feng, Z.; Chen, J.; Li, C. UV Raman spectroscopic study on TiO2. I. phase transformation at the surface and in the bulk. J. Phys. Chem. B 2006, 110, 927–935. [Google Scholar] [CrossRef]
  33. Zhang, J.; Xu, Q.; Li, M.; Feng, Z.; Li, C. UV Raman spectroscopic study on TiO2. II. effect of nanoparticle size on the outer/inner phase transformations. J. Phys. Chem. C 2009, 113, 1698–1704. [Google Scholar] [CrossRef]
  34. Watson, S.; Beydoun, D.; Scott, J.; Amal, R. Preparation of nanosized crystalline TiO2 particles at low temperature for photocatalysis. J. Nanopart. Res. 2004, 6, 193–207. [Google Scholar] [CrossRef]
  35. Stolarczyk, J.K.; Bhattacharyya, S.; Polavarapu, L.; Feldmann, J. Challenges and prospects in solar water splitting and CO2 reduction with inorganic and hybrid nanostructures. ACS Catal. 2018, 8, 3602–3635. [Google Scholar] [CrossRef]
  36. Hurum, D.C.; Agrios, A.G.; Crist, S.E.; Gray, K.A.; Rajh, T.; Thurnauer, M.C. Probing reaction mechanisms in mixed phase TiO2 by EPR. J. Electron Spectrosc. Relat. Phenom. 2006, 150, 155–163. [Google Scholar] [CrossRef]
  37. Miyagi, T.; Kamei, M.; Mitsuhashi, T.; Ishigaki, T.; Yamazaki, A. Charge separation at the rutile/anatase interface: A dominant factor of photocatalytic activity. Chem. Phys. Lett. 2004, 390, 399–402. [Google Scholar] [CrossRef]
Nanomaterials 09 00535 g001 550

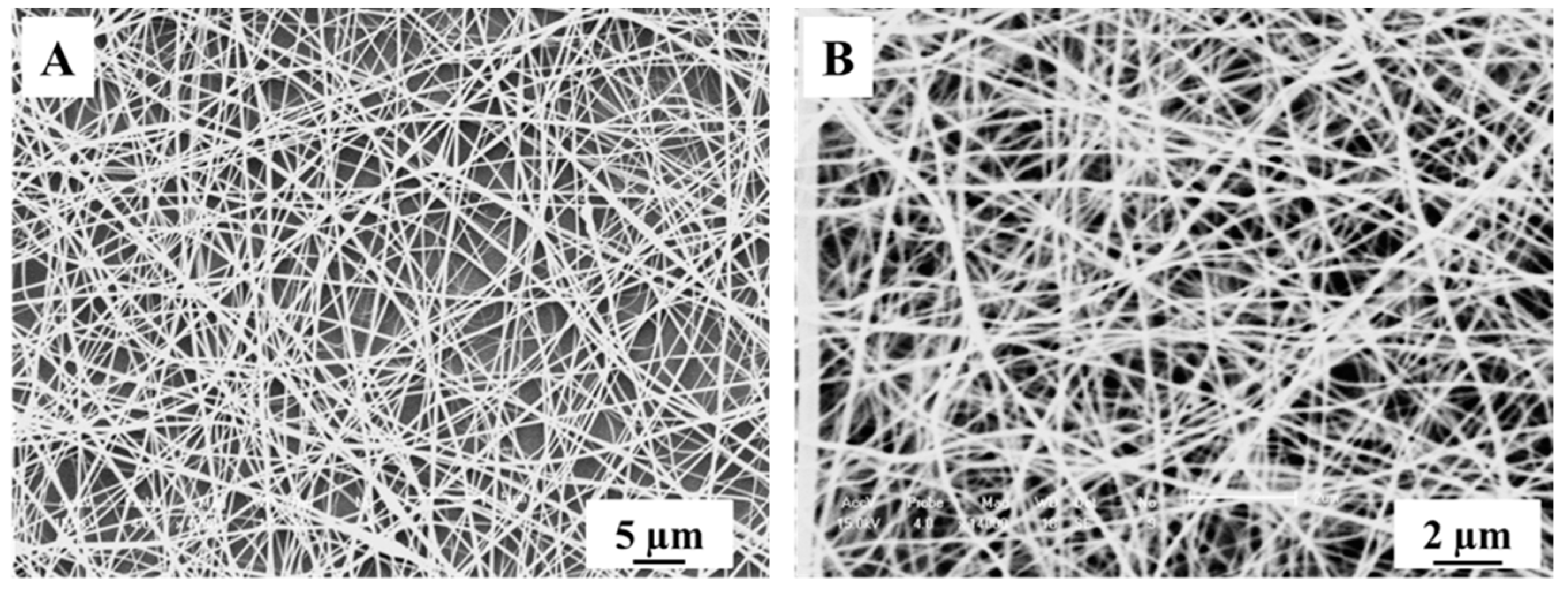

Figure 1. SEM images of electrospun nanofibers: (A) electrospun PVP/Ti(OBu)4 composite nanofibers; (B) TiO2 nanofibers calcined in air at 500 °C for 5 h.
Figure 1. SEM images of electrospun nanofibers: (A) electrospun PVP/Ti(OBu)4 composite nanofibers; (B) TiO2 nanofibers calcined in air at 500 °C for 5 h.
Nanomaterials 09 00535 g001
Nanomaterials 09 00535 g002 550

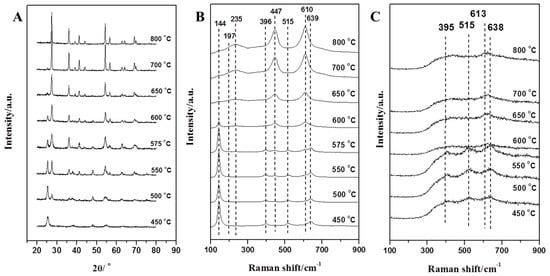

Figure 2. (A) XRD pattern, (B) visible Raman spectra, and (C) UV Raman spectra of the TiO2 nanofibers calcined in air at different temperatures.
Figure 2. (A) XRD pattern, (B) visible Raman spectra, and (C) UV Raman spectra of the TiO2 nanofibers calcined in air at different temperatures.
Nanomaterials 09 00535 g002
Nanomaterials 09 00535 g003 550

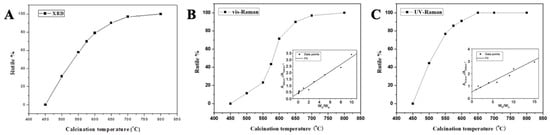

Figure 3. Weight percentage of the rutile phase in the TiO2 nanofibers calcined at different temperatures estimated by (A) XRD, (B) visible Raman (the inset shows the area ratio of the anatase phase to the rutile phase [32]), and (C) UV Raman spectroscopy (the inset shows the area ratio of the rutile phase to the anatase phase [32]).
Figure 3. Weight percentage of the rutile phase in the TiO2 nanofibers calcined at different temperatures estimated by (A) XRD, (B) visible Raman (the inset shows the area ratio of the anatase phase to the rutile phase [32]), and (C) UV Raman spectroscopy (the inset shows the area ratio of the rutile phase to the anatase phase [32]).
Nanomaterials 09 00535 g003
Nanomaterials 09 00535 g004 550

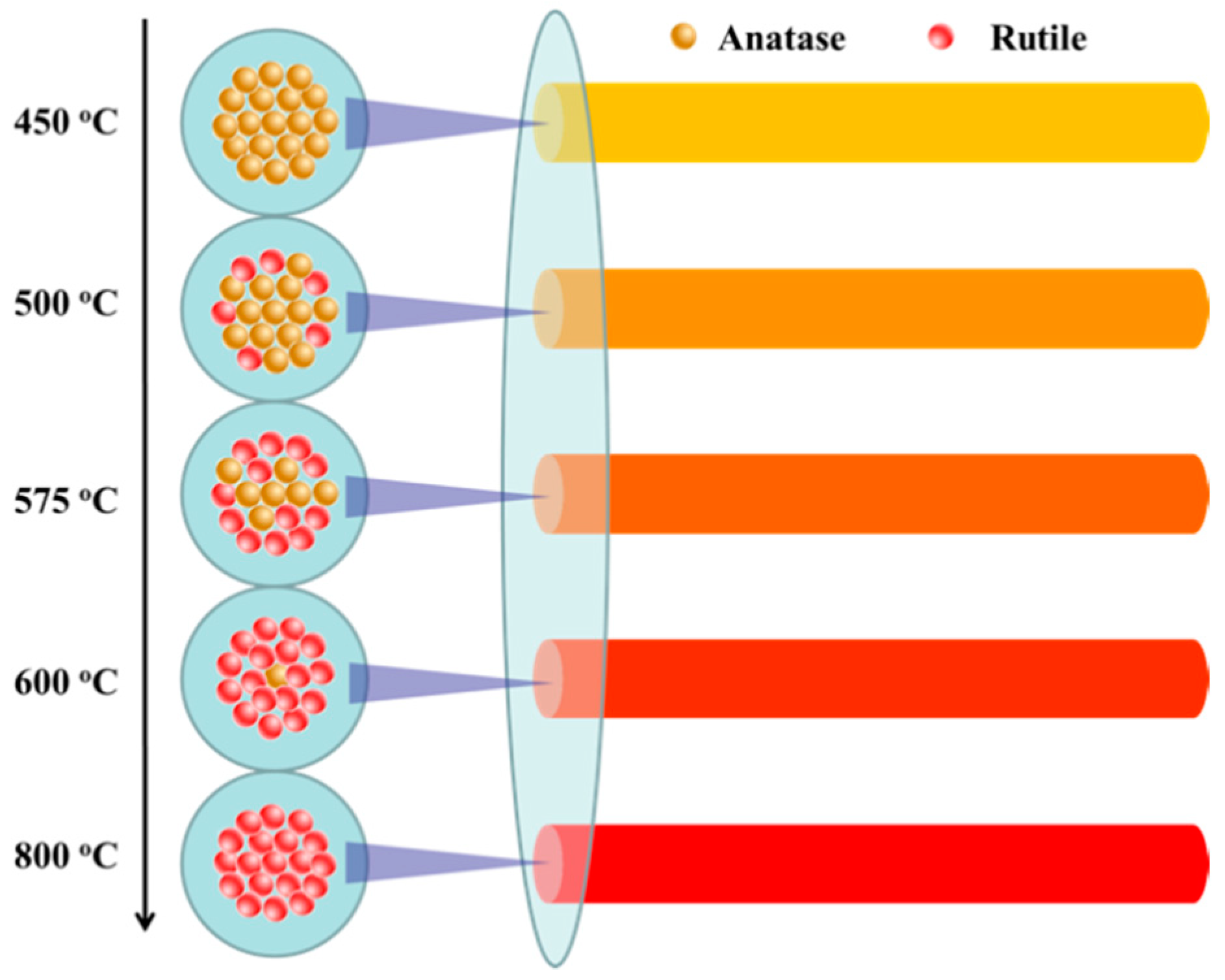

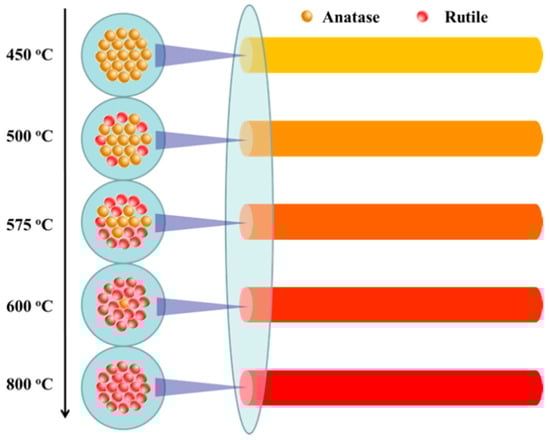

Figure 4. Schematic diagram of the phase transition of TiO2 nanofibers calcined at different temperatures.
Figure 4. Schematic diagram of the phase transition of TiO2 nanofibers calcined at different temperatures.
Nanomaterials 09 00535 g004
Nanomaterials 09 00535 g005 550

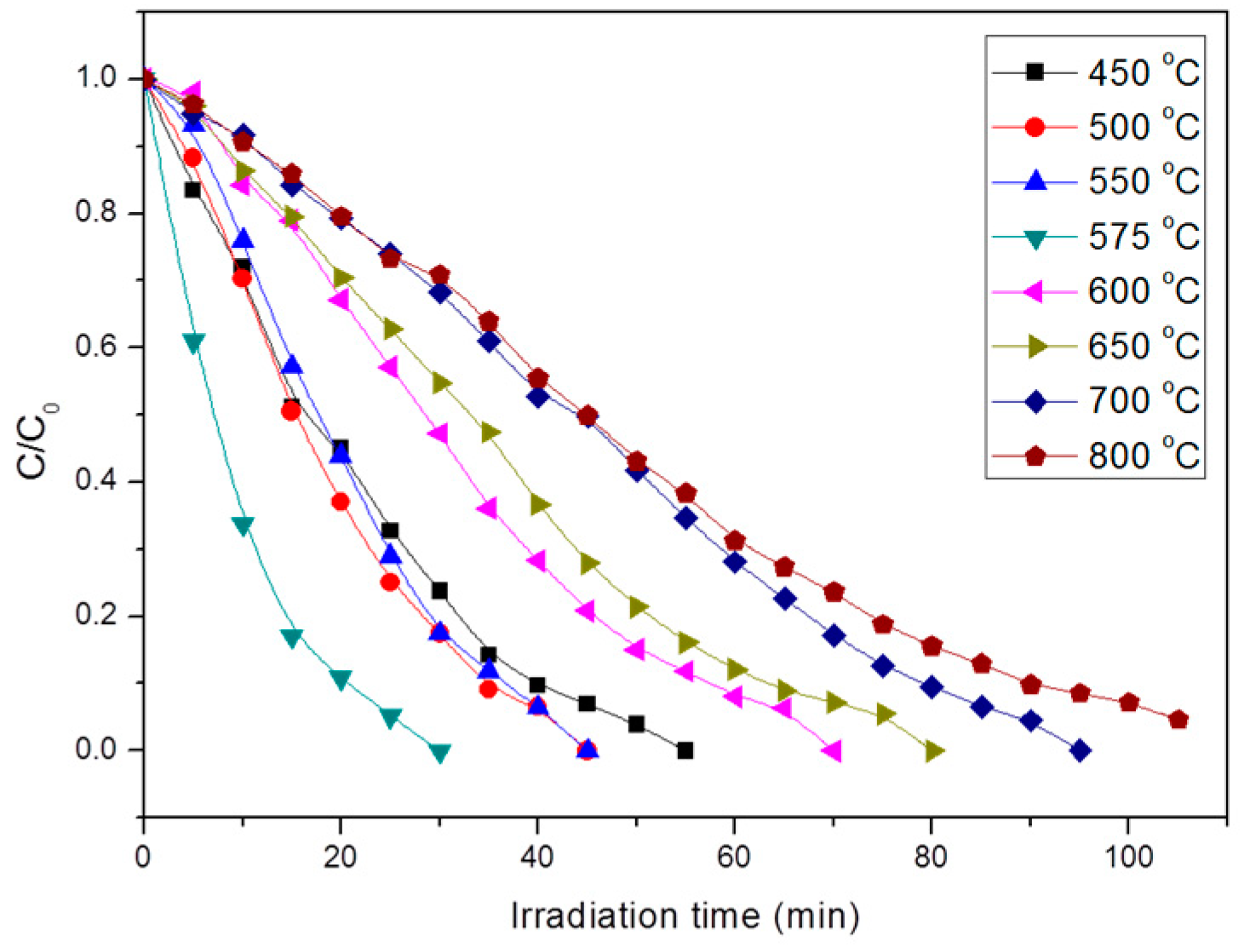

Figure 5. Photodegradation curves of Rhodamine B on TiO2 nanofibers calcined at different temperatures.
Figure 5. Photodegradation curves of Rhodamine B on TiO2 nanofibers calcined at different temperatures.
Nanomaterials 09 00535 g005
Nanomaterials 09 00535 g006 550

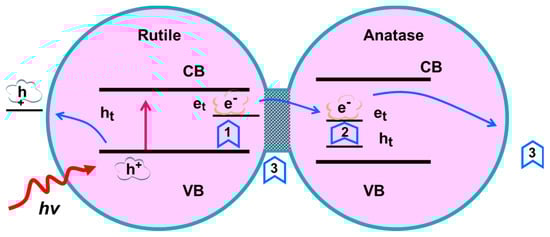

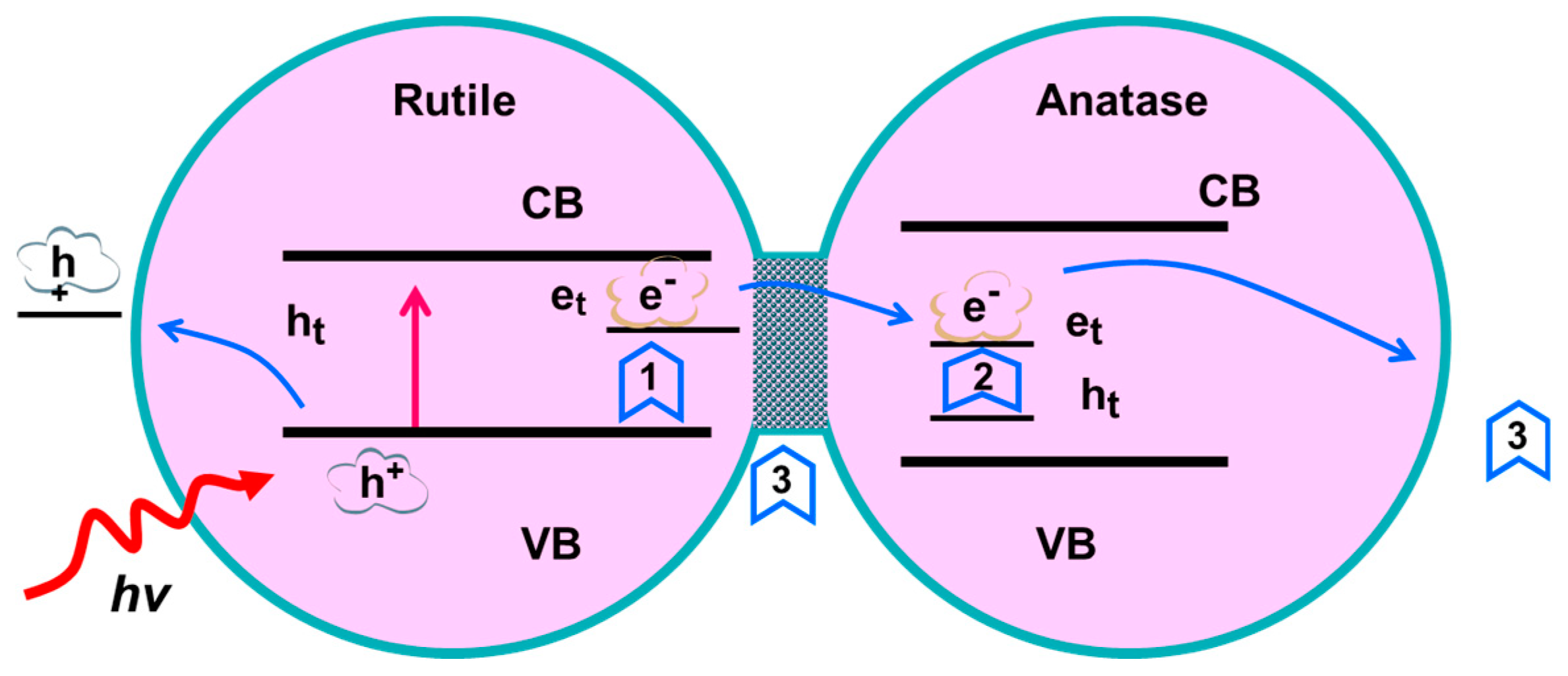

Figure 6. Conceptual model of mixed phases TiO2 catalysts: (1) the rutile lattice, (2) the anatase lattice, and (3) interfacial and surface sites.
Figure 6. Conceptual model of mixed phases TiO2 catalysts: (1) the rutile lattice, (2) the anatase lattice, and (3) interfacial and surface sites.
Nanomaterials 09 00535 g006
Nanomaterials 09 00535 g007 550

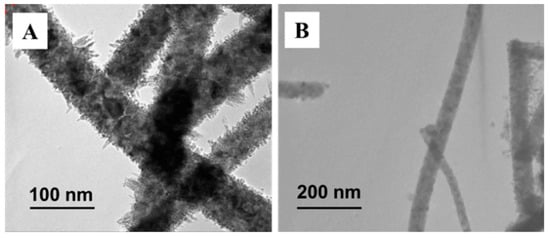

Figure 7. TEM images of (A) anatase core@rutile shell TiO2 nanofibers; (B) rutile core@anatase shell TiO2 nanofibers, respectively.
Figure 7. TEM images of (A) anatase core@rutile shell TiO2 nanofibers; (B) rutile core@anatase shell TiO2 nanofibers, respectively.
Nanomaterials 09 00535 g007
Nanomaterials 09 00535 g008 550

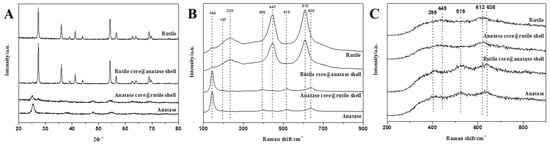

Figure 8. (A) XRD pattern, (B) visible Raman spectra, and (C) UV Raman spectra of anatase core@rutile shell TiO2 nanofibers and rutile core@anatase shell TiO2 nanofibers as well as pure anatase and rutile TiO2 nanofibers.
Figure 8. (A) XRD pattern, (B) visible Raman spectra, and (C) UV Raman spectra of anatase core@rutile shell TiO2 nanofibers and rutile core@anatase shell TiO2 nanofibers as well as pure anatase and rutile TiO2 nanofibers.
Nanomaterials 09 00535 g008
Nanomaterials 09 00535 g009 550

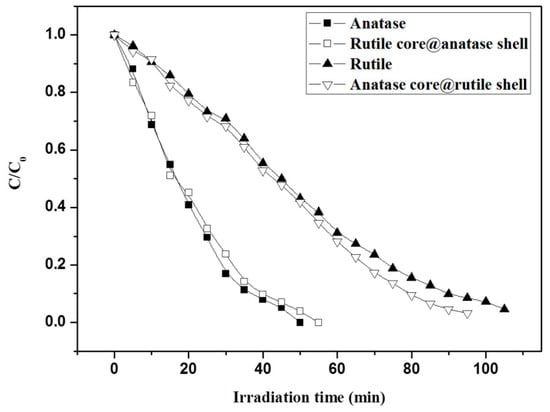

Figure 9. Photodegradation curves of Rhodamine B on anatase core@rutile shell TiO2 nanofibers and rutile core@anatase shell TiO2 nanofibers as well as pure anatase and rutile TiO2 nanofibers.
Figure 9. Photodegradation curves of Rhodamine B on anatase core@rutile shell TiO2 nanofibers and rutile core@anatase shell TiO2 nanofibers as well as pure anatase and rutile TiO2 nanofibers.
Nanomaterials 09 00535 g009
Table
Table 1. Crystallographic composition (%) of TiO2 nanofibers calcined at different temperatures.
Table 1. Crystallographic composition (%) of TiO2 nanofibers calcined at different temperatures.
Temperature
Phase450 °C500 °C550 °C575 °C600 °C650 °C700 °C800 °C
Anatase10068.7142.3330.2220.999.842.940
Rutile031.2957.6769.7879.0190.1697.06100
Table
Table 2. Crystallographic composition (%) of anatase core@rutile shell TiO2 nanofibers and rutile core@anatase shell TiO2 nanofibers estimated by XRD, visible-Raman, and UV-Raman.
Table 2. Crystallographic composition (%) of anatase core@rutile shell TiO2 nanofibers and rutile core@anatase shell TiO2 nanofibers estimated by XRD, visible-Raman, and UV-Raman.
Anatase core@rutile ShellRutile core@anatase Shell
AnataseRutileAnataseRutile
XRD65.234.88.891.2
vis-Raman91.18.90100
UV-Raman010092.77.3

Share and Cite

MDPI and ACS Style

Zhang, H.; Yu, M.; Qin, X. Photocatalytic Activity of TiO2 Nanofibers: The Surface Crystalline Phase Matters. Nanomaterials 2019, 9, 535. https://doi.org/10.3390/nano9040535
