Nanomaterials 2019, 9(3), 385;

Hybrid Metal Graphene-Based Tunable Plasmon-Induced Transparency in Terahertz Metasurface

Guangdong Provincial Key Laboratory of Nanophotonic Functional Materials and Devices, School of Information and Optoelectronic Science and Engineering, South China Normal University, Guangzhou 510006, China
Author to whom correspondence should be addressed.
Received: 9 February 2019 / Revised: 1 March 2019 / Accepted: 3 March 2019 / Published: 6 March 2019
Full-Text   |   PDF [6999 KB, uploaded 6 March 2019]   |

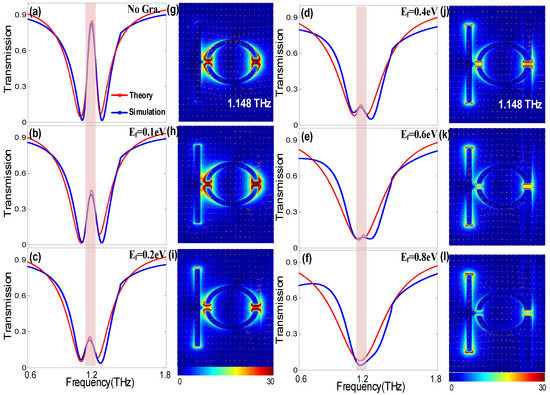

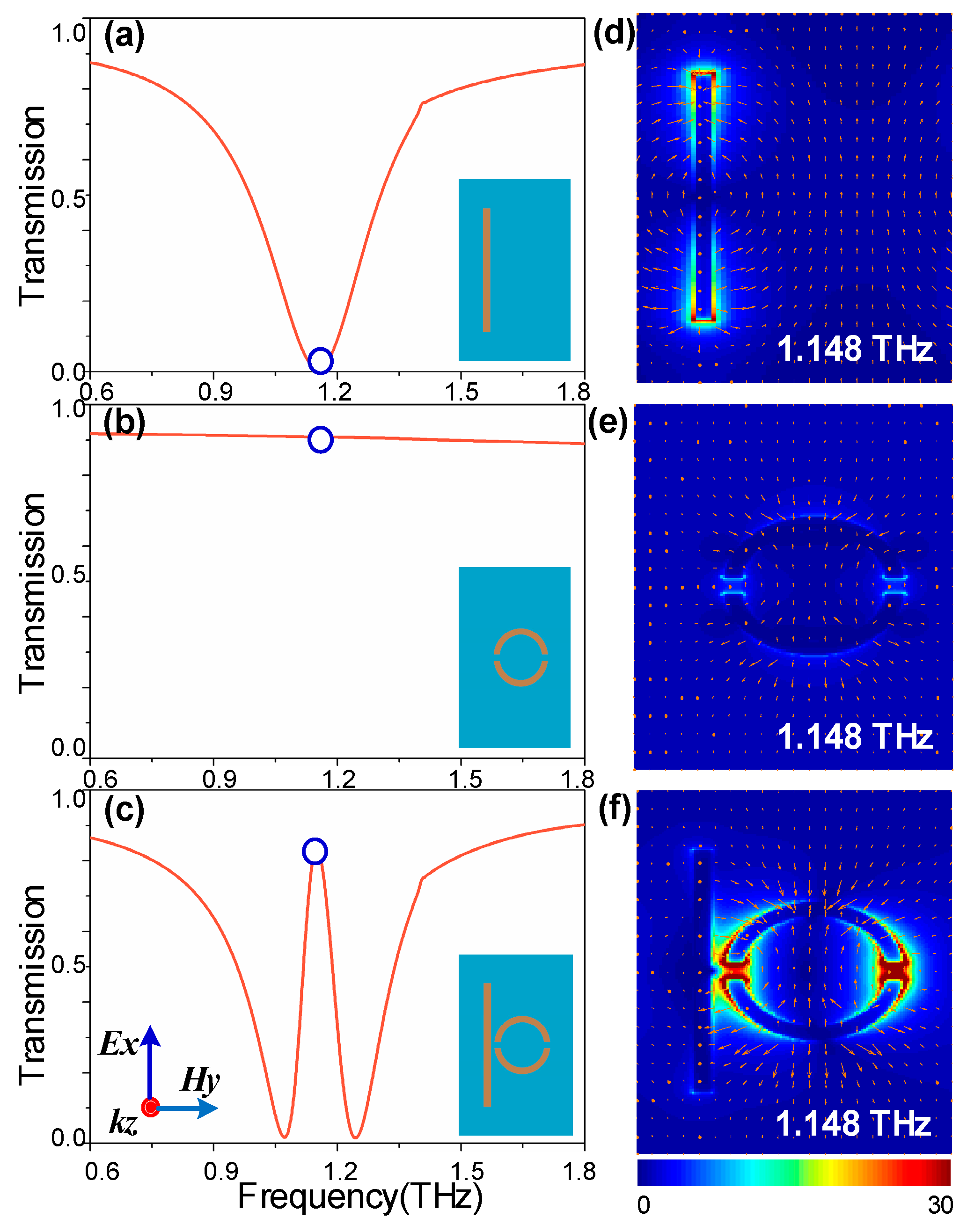

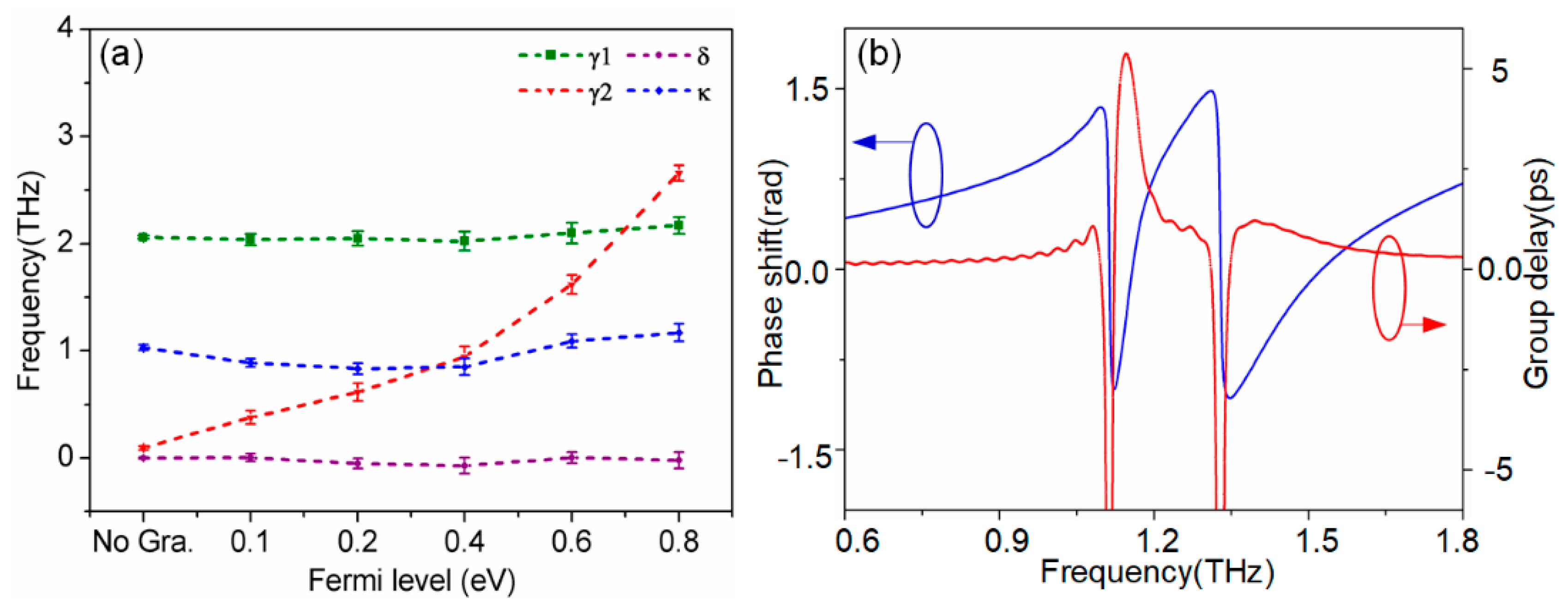

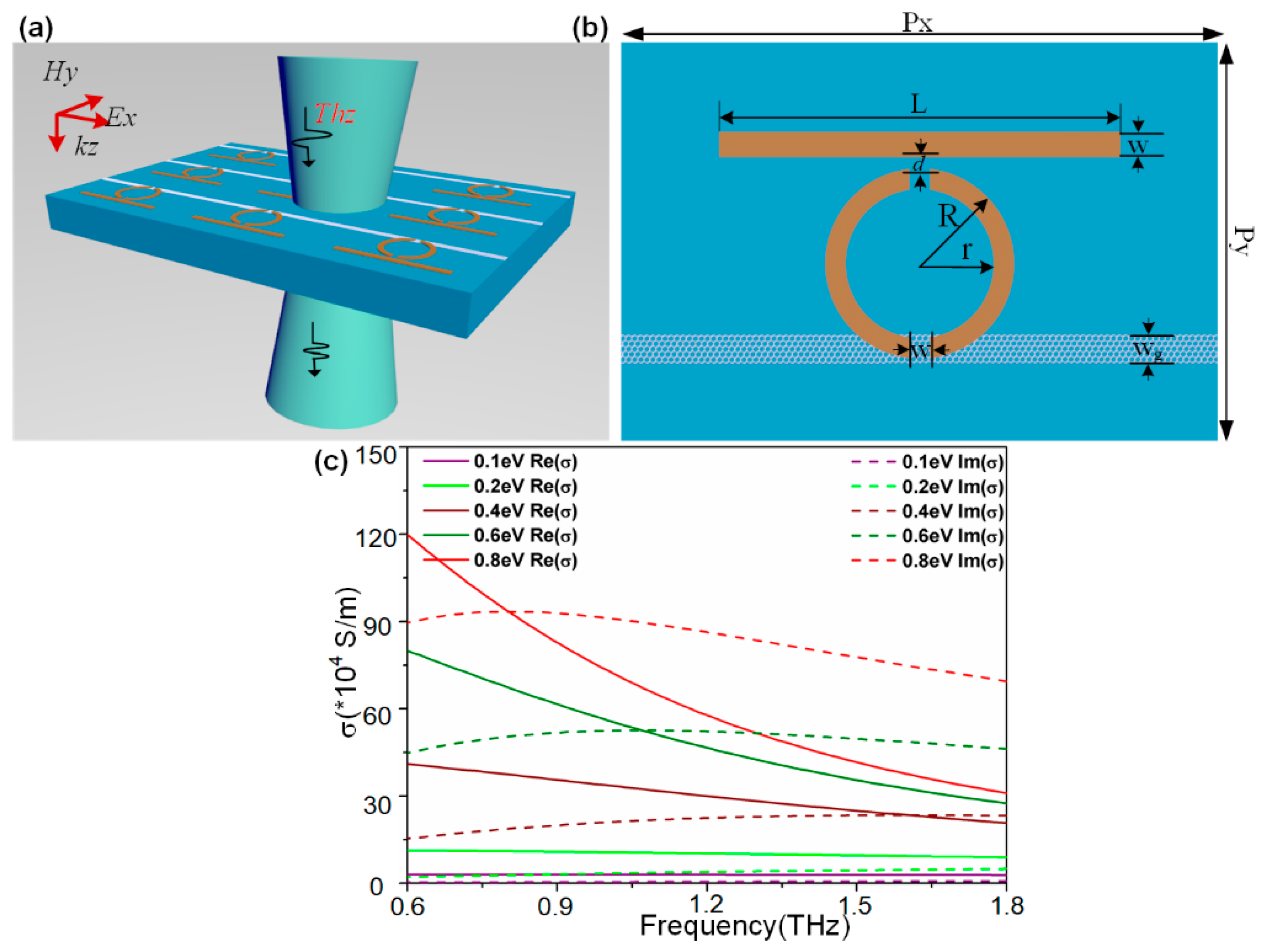

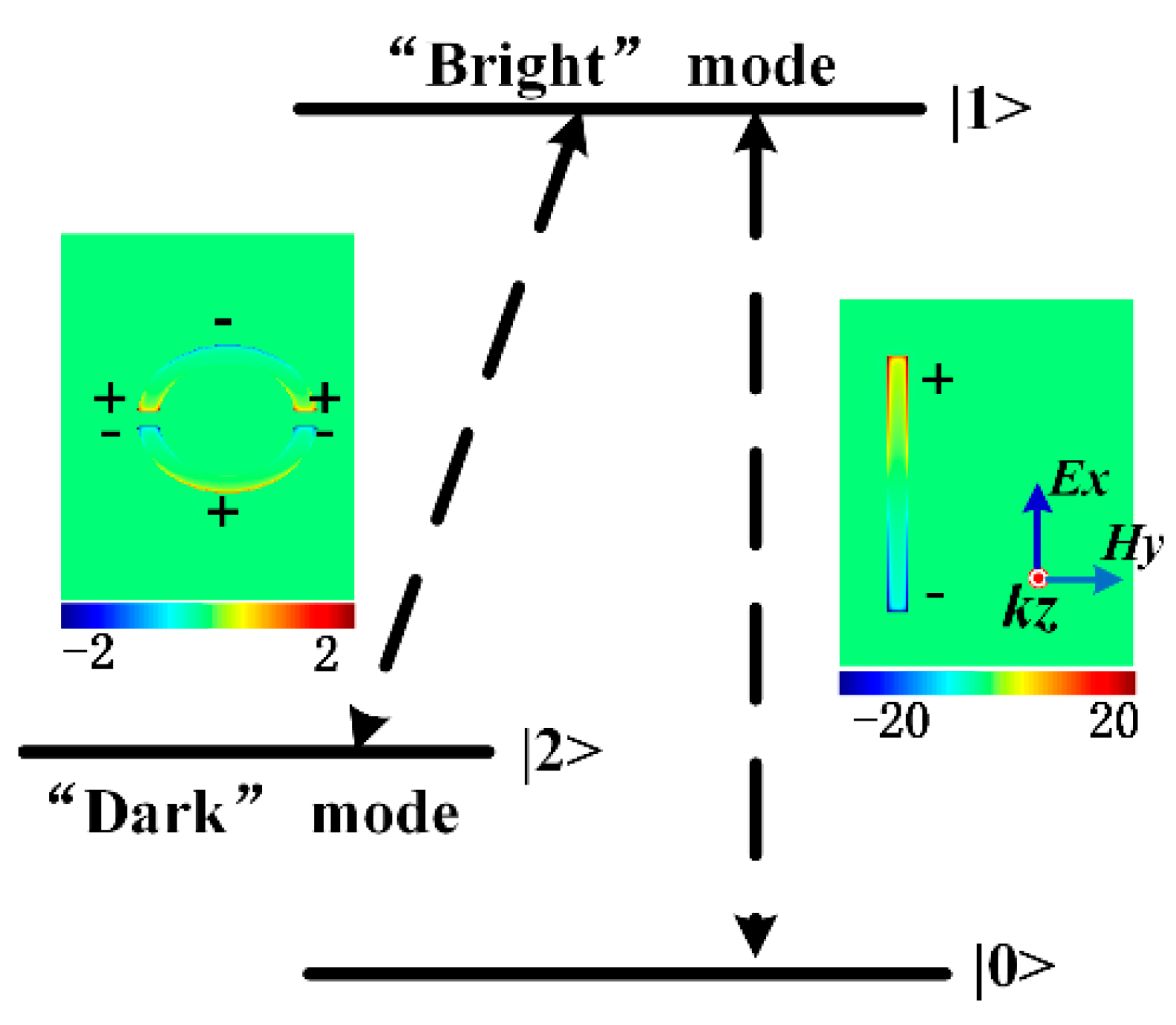

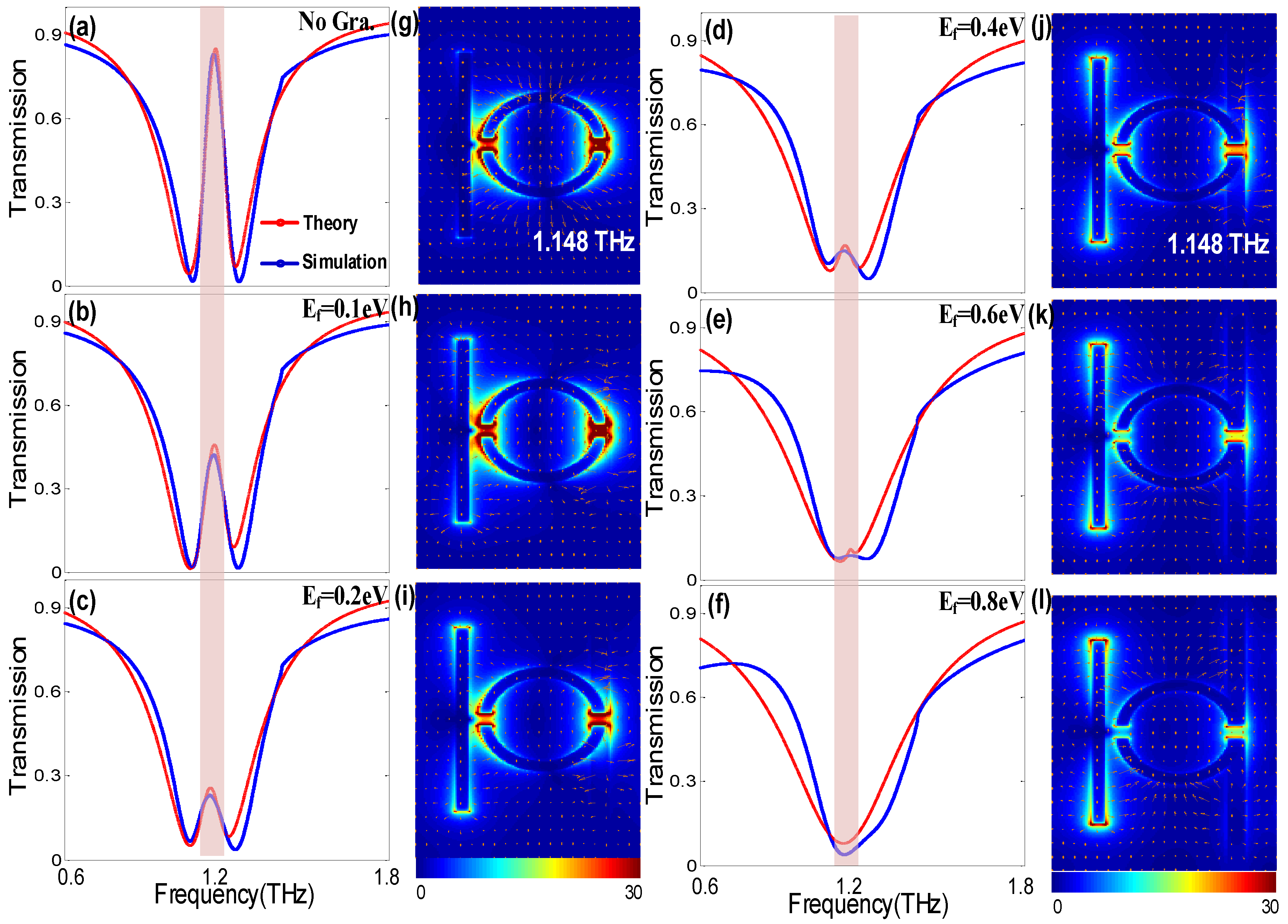

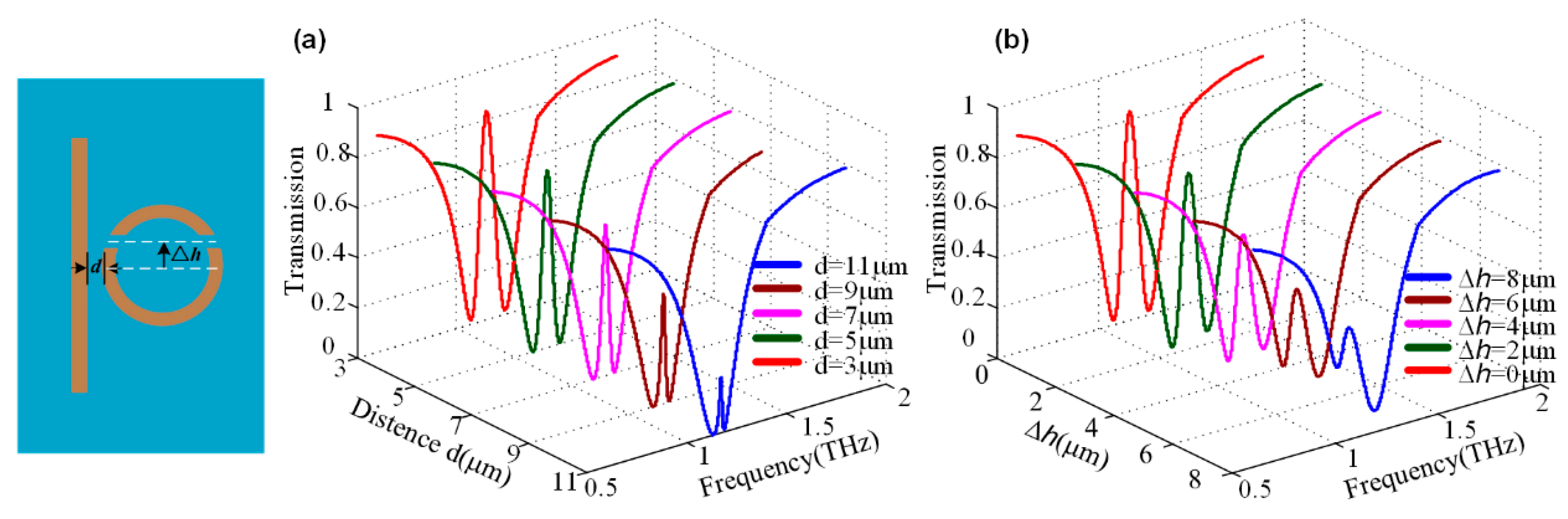

In this paper, we look at the work of a classical plasmon-induced transparency (PIT) based on metasurface, including a periodic lattice with a cut wire (CW) and a pair of symmetry split ring resonators (SSR). Destructive interference of the ‘bright-dark’ mode originated from the CW and a pair of SSRs and resulted in a pronounced transparency peak at 1.148 THz, with 85% spectral contrast ratio. In the simulation, the effects of the relative distance between the CW and the SSR pair resonator, as well as the vertical distance of the split gap, on the coupling strength of the PIT effect, have been investigated. Furthermore, we introduce a continuous graphene strip monolayer into the metamaterial and by manipulating the Fermi level of the graphene we see a complete modulation of the amplitude and line shape of the PIT transparency peak. The near-field couplings in the relative mode resonators are quantitatively understood by coupled harmonic oscillator model, which indicates that the modulation of the PIT effect result from the variation of the damping rate in the dark mode. The transmitted electric field distributions with polarization vector clearly confirmed this conclusion. Finally, a group delay t g of 5.4 ps within the transparency window is achieved. We believe that this design has practical applications in terahertz (THz) functional devices and slow light devices. View Full-Text
Keywords: graphene metamaterials; plasmon-induced transparency; slow light graphene metamaterials; plasmon-induced transparency; slow light
