1. Introduction
The artificial semiconductor superlattice (SL) is a specific form of layered fine composite, in which the nanoscale thin layers with different band gaps are alternately grown by the strict periods. It has been widely used in different application fields, such as quantum cascade lasers, high-frequency oscillators, solar cells, photodetectors, light emitting diodes, and so on [
1,
2,
3,
4], due to its new physical phenomena and mechanisms, such as quantum confinement, quantum hall effect, Brillouin-zone folding, and direct-to-indirect-gap transition [
5]. The structure and properties of SLs are easily associated with coupled multiple quantum well systems. Along the growth direction, the lattice constant of SLs is much larger than the lattice constant of the components, so the original Brillouin-zone is subdivided into smaller zones in which the so-called sub-bands or folded bands are formed. On the other hand, because the potential barrier/well layers are nanoscale thin layers, there is a certain coupling interaction between the adjacent barriers/wells, which makes the separated energy levels expand into micro-bands. The properties of the sub-band and micro-band are determined by the structural parameters of SLs (such as components of the SL, depth and width of the potential well, height and width of the potential barrier, etc.), and determine the application performances of SLs. Therefore, these structural parameters are the key factors to designing SLs.
As representatives of compound semiconductors, III-V group materials have been used to construct SLs and are widely used in the field of nanophotonics. In our previous work, we investigated the effects of modulation p-doping on the thermal stability of InAs/GaAs quantum dot superluminescent diodes, confirming that the improved thermal stability is related to the built-in holes in quantum dot structures [
6]. It is noted that gallium arsenide (GaAs) and aluminum arsenide (AlAs) are perfectly lattice-matched, and few difficulties are expected in the growth of type-I (GaAs)
m(AlAs)
n semiconductor SLs, which consist of m monolayers of a GaAs well alternating with n monolayers of an AlAs barrier [
7,
8]. Many articles have been devoted to investigating the preparation, properties, and performances of (GaAs)
m(AlAs)
n SLs [
9,
10]. Owing to its rich and important properties, (GaAs)
m(AlAs)
n SLs are often used as the prototype to study the underlying intrinsic mechanisms [
10,
11,
12,
13]. Recently, Jiang et al. found Ga and Al atoms in GaAs/AlAs SLs are more susceptible to the radiation than those in the bulk AlAs and GaAs, in which the created defects have a profound effect on the electronic properties of GaAs/AlAs SLs (even metallicity are induced in some cases) [
14]. Barkissy et al. reported the band gap of GaAs/AlAs SLs performed in the envelope function formalism with respect of thickness ratio [
15].
However, due to the limitation of computational methods and computational resources, most early studies are limited to studying only a limited number of (GaAs)
m(AlAs)
n SLs (for example m = n) [
16,
17,
18]. Usually, conventional density functional theory (DFT) calculations only complete a limited number of computing tasks and need to be manually monitored at any time. Therefore, it is difficult to thoroughly understand the variation trend and mechanism of the electronic structure of (GaAs)
m(AlAs)
n SLs with their structural parameters. At present, the high-throughput study based on DFT calculations allows carrying out large quantities of calculation and data screening, promotes the understanding of material properties and the construction of the material genome database, and provides useful information for the design of novel materials and devices. In fact, high-throughput computational methods represent a powerful tool for exploring materials space and for screening materials without having to synthesize them first [
19]. Thus, in this article, it was adopted to study the electronic structure of short-period (GaAs)
m(AlAs)
n (m, n ≤ 10) SLs in order to obtain detailed information and further provide the underlying intrinsic mechanisms, paying particular attention to the band gap variation of (GaAs)
m(AlAs)
n SLs as a function of the periodic numbers m and n. By systematically analyzing the electronic structure and properties of 100 (GaAs)
m(AlAs)
n SL models, the varying trends and laws of the electronic structure and properties of (GaAs)
m(AlAs)
n SLs can be comprehensively understood. Moreover, the data and findings in this article will provide theoretical guidance and technical support for the development of III-V group semiconductor SLs based optoelectronic devices.
2. Computational Methods and Models
All of the calculations were performed using the periodic DFT package of Cambridge Serial Total Energy Package (CASTEP) codes [
20]. All calculations were performed in the framework of generalized gradient approximation (GGA), using the Perdew–Burke–Ernzerhof exchange correlation potential for solids (PBEsol) [
21,
22]. According to the conventional DFT calculation method, all calculations in the present work were performed under the condition of absolute temperature 0 K. The energy cutoff for the plane wave basis was set as 340 eV. In order to get an accurate electronic structure, the method of GGA + U was adopted to overcome the well-known shortcoming of GGA [
23]. Utilizing the GGA + U method, accurate band gaps could be obtained that could be compared with experimental measurements, as well as keeping the main features of the electronic structure obtained using standard DFT calculations. In the present work, the U value was set as 6.0 eV for all p-shells of GaAs layers, and 8.0 eV for p-shells of the AlAs layers. The Monkhorst–Pack scheme of K–points grid sampling was set as 4 × 4 × 4 for the irreducible Brillouin zone. The minimization algorithm chosen was the Broyden–Fletcher–Goldfarb–Shanno (BFGS) scheme [
24]. Its convergence criteria were set as follows: the force on the atoms was less than 0.03 eV/Å, the stress on the atoms was less than 0.05 GPa, the atomic displacement was less than 0.001 Å, and the energy change per atom was less than 1.0 × 10
−5 eV. Based on the optimized crystal structure, the electronic structure was then calculated. By these methods and settings, the reliable lattice parameters and electronic structure of GaAs and AlAs could be obtained, which were completely consistent with recent results in published articles.
A superlattice is a periodic structure of layers of two (or more) materials. Typically, the thickness of one layer is several nanometers, which can also serve as a lower-dimensional quantum structure. In the present work, GaAs acts as a quantum well, while AlAs acts as a quantum barrier. The (GaAs)
m(AlAs)
n SLs were constructed along on the [100] direction of the sphalerite GaAs or AlAs crystal structure. The subscript m or n denotes the period number along this direction. One period number refers to one periodic bulk (GaAs: 5.698 Å; AlAs: 5.720 Å), which equals to one monolayer. This setting is different to the settings in some published articles, in which one period equals to one molecular layer (GaAs: 2.849 Å; AlAs: 2.860 Å). However, the latter setting changes the symmetry of GaAs and AlAs, thus the former setting was adopted in the present work. In the cases of (GaAs)
m(AlAs)
n SLs, m GaAs monolayers and n AlAs monolayers were alternately arranged along the (100) direction, as shown in
Figure 1a. In the process of the geometry optimization, all of the lattice constants and positions of atoms were relaxed using the above computational methods. Based on the optimized structure of (GaAs)
m(AlAs)
n SLs, the electronic structure was successfully calculated.
To get as much information regarding the (GaAs)
m(AlAs)
n SLs as possible, many calculations needed to be done. In other words, we needed to run large-scale high-throughput simulation jobs for structures optimizing the simulation of the material’s properties. This situation determined a need for the management of a large number of simulation jobs, enormous quantities of data at each simulation stage, and the availability of computing resources. For this purpose, in the present work, we adopted the integrated high-throughput computational platform, MatCloud, which provided a graphical user interface for the end user to create a customized workflow for running a DFT simulation [
25].
3. Results and Discussions
For the semiconductor superlattice, the value of the band gap is a very important parameter that determines the classification and optoelectronic performances.
Figure 1b–e illustrates the band gap variation trend of (GaAs)
m(AlAs)
n SLs as a function of monolayer numbers (i.e.; m and/or n). For certain thicknesses of the GaAs well as shown in
Figure 1b, the band gap value of (GaAs)
m(AlAs)
n SLs exponentially increased according to the function
(where
is band gap value of bulk GaAs, 1.508 eV, which is very close to the experimental measurements) as the thickness of AlAs barrier increases. When the monolayer number n is larger than 4,
Eg(n) is gradually converging to a certain value of
. This trend is consistent in all (GaAs)
m(AlAs)
n SLs, except for the values of
A and
k. When the AlAs barrier is ultrathin (i.e.; n < 4), the wave function of GaAs in adjacent wells could be overlapping each other, resulting in a narrowing of the band gap caused by the quantum size effect. For certain thicknesses of the AlAs barrier as shown in
Figure 1c, the band gap value of (GaAs)
m(AlAs)
n SLs exponentially decreases according to the function of
(where
is band gap value of bulk AlAs, 2.270 eV, which is also very close to the experimental measurements) as the thickness of GaAs well increases. When the monolayer number m is larger than 10,
Eg(m) gradually converges to a certain value of
. This trend is also consistent in all (GaAs)
m(AlAs)
n SLs, except for the values of
A and
k (which refers to the parameters in above equations).
It is worth noticing that the fitting curves were almost identical when n was larger than 3. These results suggest that the main effect of the AlAs barrier is to impact the tunneling motion of electrons in the GaAs well caused by the quantum confinement effect. The contour map in
Figure 1d is plotted using the data in the above two figures. It was found that the wide band gap of (GaAs)
m(AlAs)
n SLs was concentrated in the region of m < 4, indicating the quantum size effect was outstanding in this region. When the monolayers of the GaAs well and the AlAs barrier was larger than 6, the quantum confinement effect was significant. In order to compare with the experimental measurements in published articles, the band gap values for
Eg(m = n) of (GaAs)
m(AlAs)
n SLs (m = n) are illustrated in
Figure 1e, as well as the band gap converged values of
Eg,w(m) and
Eg,b(n) in
Figure 1b,c. By fitting these data, it was found that
Eg,w(m) exponentially decayed according to the function of
; while
Eg,b(n) exponentially grew according to the function of
. The variation region of
Eg,w(m) was significantly larger than that of
Eg,b(n). In the case of (GaAs)
m(AlAs)
n SLs, the value of
Eg(m = n) gradually decayed according to the exponential law
. In the latter case, the values of
Eg(m = n) were in food agreement with the experimental measurements in published articles [
12,
15,
16,
17,
18,
26,
27]:
Eg (m = n = 1) = 2.120 eV;
Eg (m = n = 2) = 2.097 eV,
Eg (m = n = 3) = 2.099 eV,
Eg (m = n = 4) = 2.067 eV,
Eg (m = n = 5) = 2.015 eV,
Eg (m = n = 7) = 1.918 eV,
Eg (m = n = 8) = 1.881 eV, and
Eg (m = n = 10) = 1.766 eV. For example, Fujimoto et al. found the band gaps of (GaAs)
n(AlAs)
n SLs with n = 1–15 varied according to the exponential decay with increasing period number [
12], which is consistent with the experimental measurements by Jiang et al. [
27] and our finding in the present work. However, for the specific numerical value, the reported band gap values are also inconsistent in published articles. For instance, Barkissy et al. measured the band gap energy of GaAs (d = 28.3 Å)/AlAs (d = 28.3 Å) SL as 1.748 eV [
15], which is close to our calculated result (the band gap of (GaAs)
5(AlAs)
5 SL was 1.684 eV); Fujimoto et al. also measured the band gap energy of (GaAs)
5(AlAs)
5 SL as 1.910 eV through photoluminescence measurements at room temperature [
12]. The difference between experimental measurements and theoretical calculations is ascribed to the measurement error, temperature effects, theoretical approximation, and so on.
To deeply explore the detailed variation of the band gap, the typical band structure of (GaAs)
m(AlAs)
n SLs are shown in
Figure 2, in which the numerical values denoted by different-colored fonts refer to the energy eigenvalue of the upper valence band at Γ-point. Several key characteristics are summarized as follows: (1) When the thickness of the AlAs barrier is increasing for a certain thickness of the GaAs well, the energy eigenvalue of the lower conduction band at Γ-point (Γ
CB) significantly increased, while the energy eigenvalue of the lower conduction band at M-point (M
CB) was slightly decreasing. On the contrary, the energy eigenvalue of the upper valence band at the M-point (M
VB) increased significantly. (2) When the thickness of the GaAs well was increasing for a specified thickness of the AlAs barrier, both Γ
CB and M
VB decreased significantly, while M
CB increased significantly. (3) As the period of the SLs was increasing, the energy eigenvalue of the lower conduction band at Z-point (Z
CB) was gradually decreasing, while the energy eigenvalue of the upper valence band at Z-point (Z
VB) was gradually increasing. Finally, the values of Z
CB and Z
VB were identical with that of Γ
CB and Γ
VB, respectively, meaning that the quantum confinement effect gradually predominated.
These variations of the band structure of (GaAs)
m(AlAs)
n SLs led to two important phenomena: the first is the variations of the band gap as shown in
Figure 1, and the second is the direct-to-indirect-gap transition. In the case of a (GaAs)
1(AlAs)
1 SL, the band gap is a Γ-Γ direct band gap. With a decrease of M
CB, the cases of (GaAs)
1(AlAs)
n SLs (n ≥ 2) were a Γ-M indirect band gap owing to the crossover between Γ
CB and M
CB. In the case of a (GaAs)
2(AlAs)
4 SL, the value of M
CB was almost equal to the value of Γ
CB, thus (GaAs)
2(AlAs)
n SLs (n < 4) were Γ-Γ direct band gaps, while (GaAs)
2(AlAs)
n SLs (n > 4) had Γ-M indirect band gaps by the same underlying mechanism. These calculated results are very consistent with previous reported experimental measurements [
15,
18,
28,
29], showing that a crossover in the band structures of (GaAs)
m(AlAs)
n SLs with m = n takes place in a certain range of the layer thickness at low temperatures, resulting in an indirect–direct band gap transition. As known, bulk GaAs is a direct band gap semiconductor with
Eg = 1.508 eV, while bulk AlAs is an indirect band gap semiconductor with
Eg = 2.270 eV. Based on the above data analysis, it can be concluded that: (1) When the periodic number of the GaAs well or AlAs barrier was small (i.e. the thickness was small), the quantum confinement effects of the GaAs well and AlAs barrier were affected and coupled with each other, and the quantum confinement effect of the GaAs well was predominant, resulting in the direct band gap of (GaAs)
m(AlAs)
n SLs. (2) When the periodic number of the GaAs well or AlAs barrier was large (i.e. the thickness was large), the quantum confinement effect coupling between the GaAs well and AlAs barrier gradually weakened and decoupled, thus the band gap of (GaAs)
m(AlAs)
n SLs were determined by the AlAs barrier, resulting in the indirect band gap of (GaAs)
m(AlAs)
n SLs. (3) The thickness of the AlAs barrier had a stronger impact on the electronic properties of (GaAs)
m(AlAs)
n SLs. In the present work, (GaAs)
m(AlAs)
n SLs (m >3, n ≤ 10) were all Γ-Γ direct band gaps. Due to the limitations of computational resources, the larger size of the (GaAs)
m(AlAs)
n SLs (m, n > 10) were not considered. However, it could be predicted that (GaAs)
m(AlAs)
n SLs will transform from a direct band gap to an indirect band gap when the AlAs barrier is thick enough, according to above band gap variation and laws.

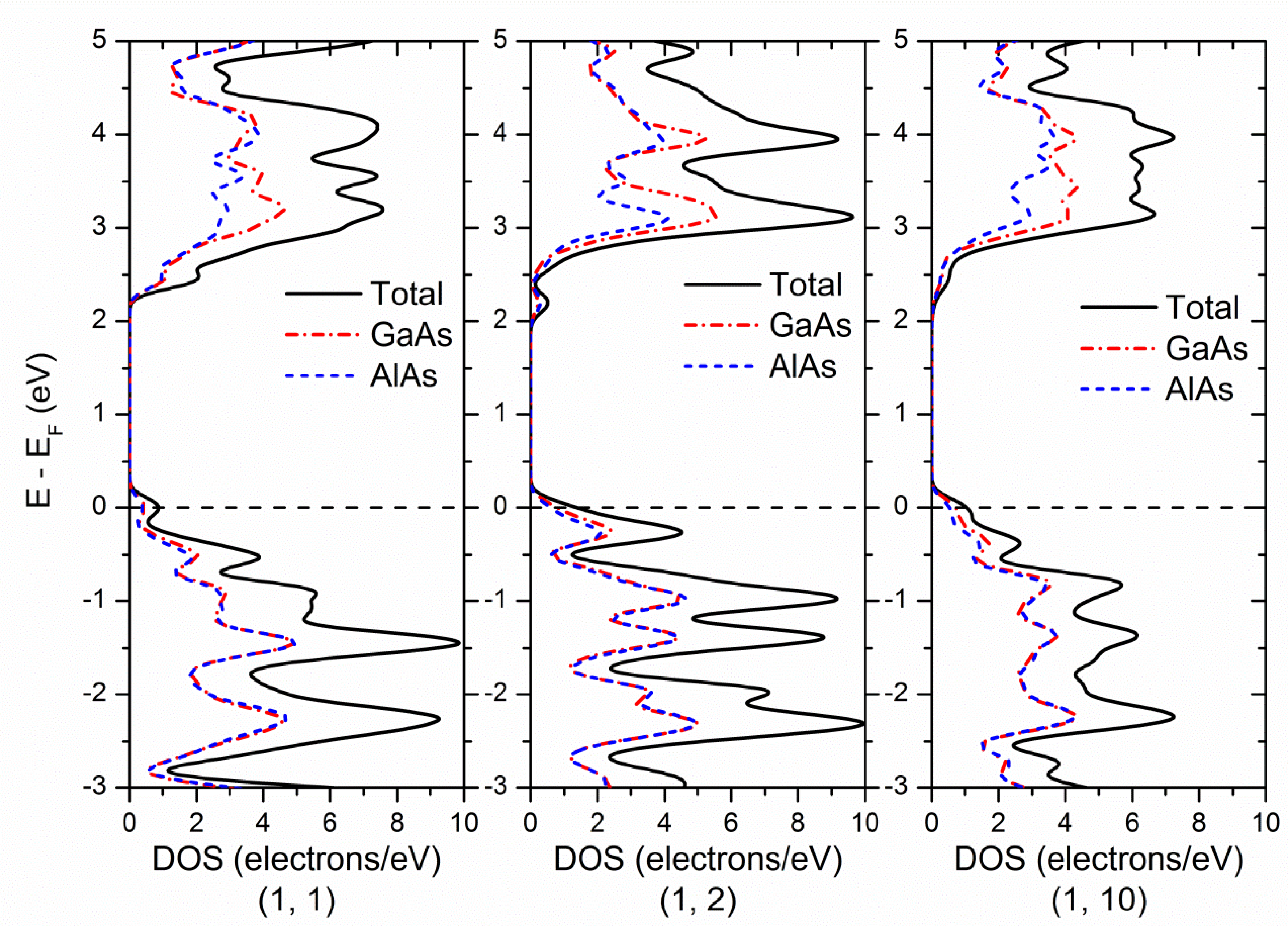

In order to explain the nature of the above trends, the local density of states of (GaAs)
1(AlAs)
n SLs (n = 1, 2, 10) are provided and analyzed in
Figure 3. Compared to the local partial density of states of GaAs and AlAl bulk (not showed here), it was found that M
CB was mainly contributed by the Al 3p states, and Γ
CB was mainly contributed by the hybridized states between Ga 4s and 4p states. Thus, in the case of (GaAs)
m(AlAs)
n SLs, as the thickness of the AlAs barrier increased, the contribution of the Al 4p states for the lower conduction band gradually decreased and relatively down-shifted, while the contribution of hybridized states between Ga 4s and 4p states gradually decreased and relatively up-shifted. This was the main reason for the (GaAs)
m(AlAs)
n SLs transformation from having a Γ-Γ direct band gap to having a Γ-M indirect band gap. Furthermore, above variation trends can be explained using the classic semiconductor theory: when the thickness of a GaAs well is constant, the interaction between adjacent GaAs wells is gradually weakened with the increase of the thickness of the AlAs barrier, so the contribution of the AlAs electronic states is gradually enhanced; when the thickness of the AlAs barrier is constant, the quantum size effect is gradually weakened and the contribution of the GaAs electronic states is gradually enhanced with the increase of the thickness of the GaAs well.
To examine the stability of the whole system, the binding energy (
Eb) was further investigated. The binding energy was calculated using the following equation:
, where
ESLs is the total energy of the (GaAs)
m(AlAs)
n SLs, and
ni and
Ei are the number and energy of the isolated
i atom (Ga, Al, or As), respectively. As shown in
Figure 4, we found another interesting phenomenon in the present work. The variation trends of the binding energy of (GaAs)
m(AlAs)
n SLs were very consistent with those of the band gap as shown in
Figure 1b,c. For the GaAs well, the introduction of the AlAs barrier could increase the binding energy, indicating the stability of (GaAs)
m(AlAs)
n SLs was better than that of the GaAs bulk material. For the AlAs barrier, the introduction of a few GaAs wells could increase the binding energy in the cases of (GaAs)
m(AlAs)
n SLs (m < 5, n > 3), while in the other cases, the stability of the (GaAs)
m(AlAs)
n SLs was worse than that of the AlAs bulk material. Importantly, owing to the identical variation trends between the binding energy and the band gap, it indicated that the binding energy could be used as a detector to estimate the band gap value in the design of (GaAs)
m(AlAs)
n devices.
