Synergistic Effects of Functional CNTs and h-BN on Enhanced Thermal Conductivity of Epoxy/Cyanate Matrix Composites

Research Branch of Advanced Functional Materials, School of Materials and Energy, University of Electronic Science and Technology of China, Chengdu 610054, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2018, 8(12), 997; https://doi.org/10.3390/nano8120997
Received: 6 November 2018 / Revised: 29 November 2018 / Accepted: 29 November 2018 / Published: 3 December 2018

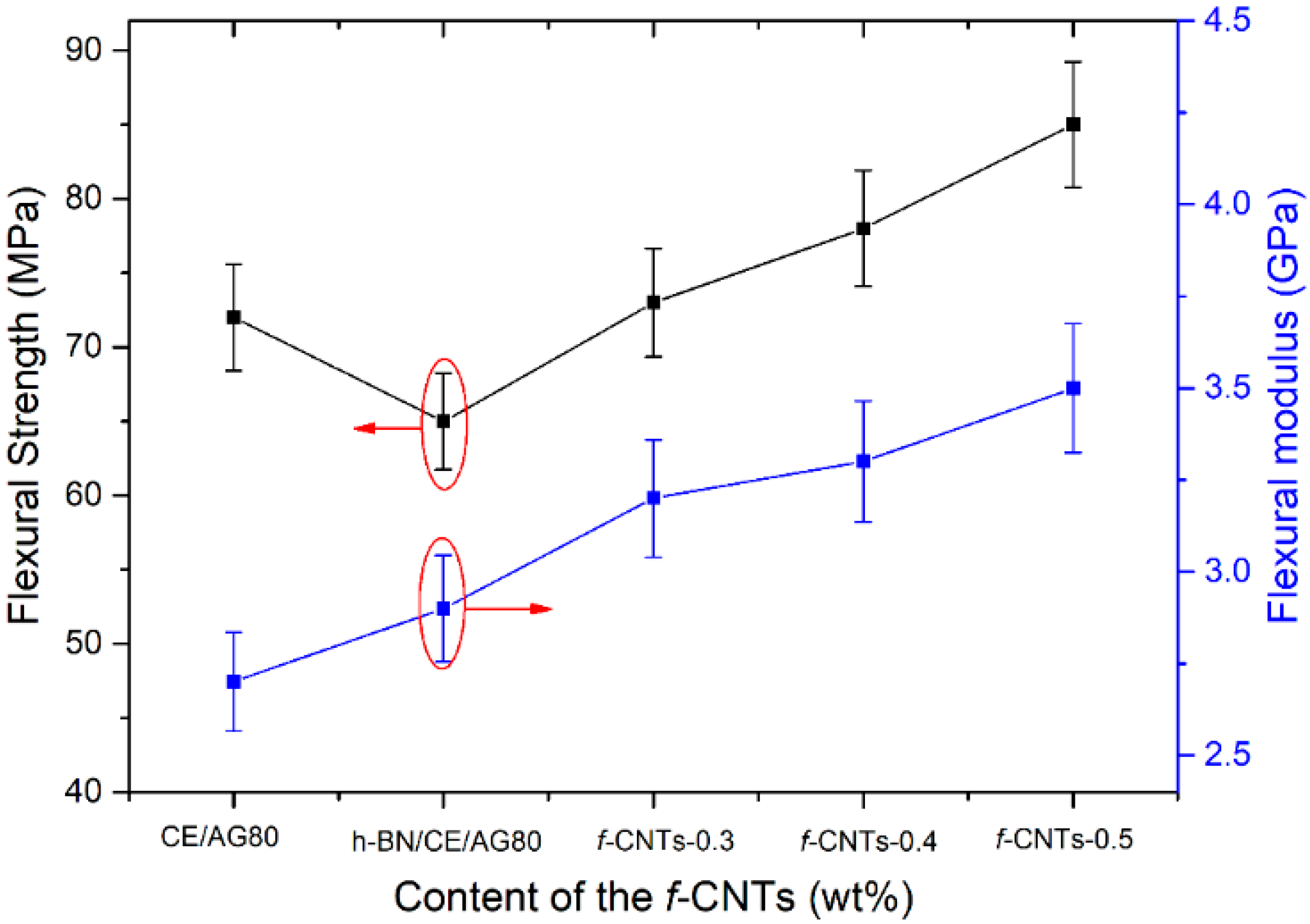

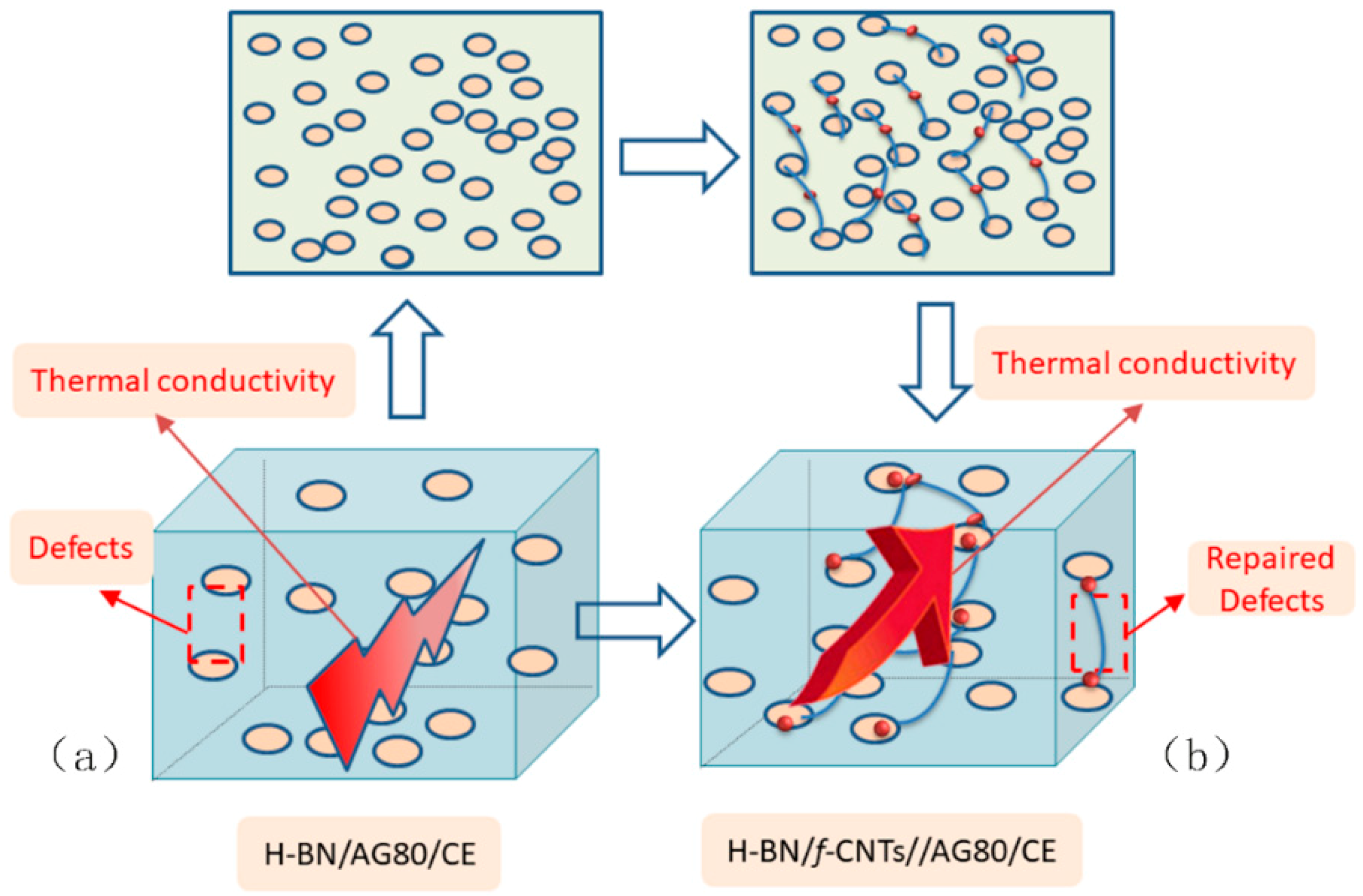

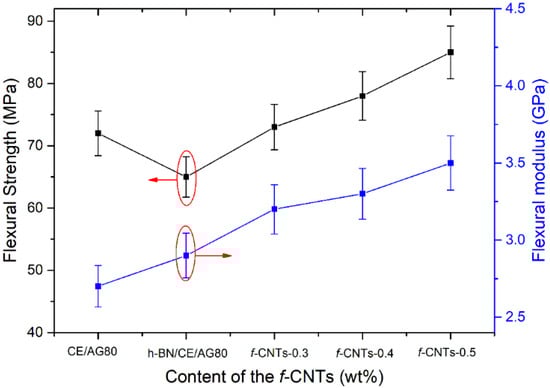

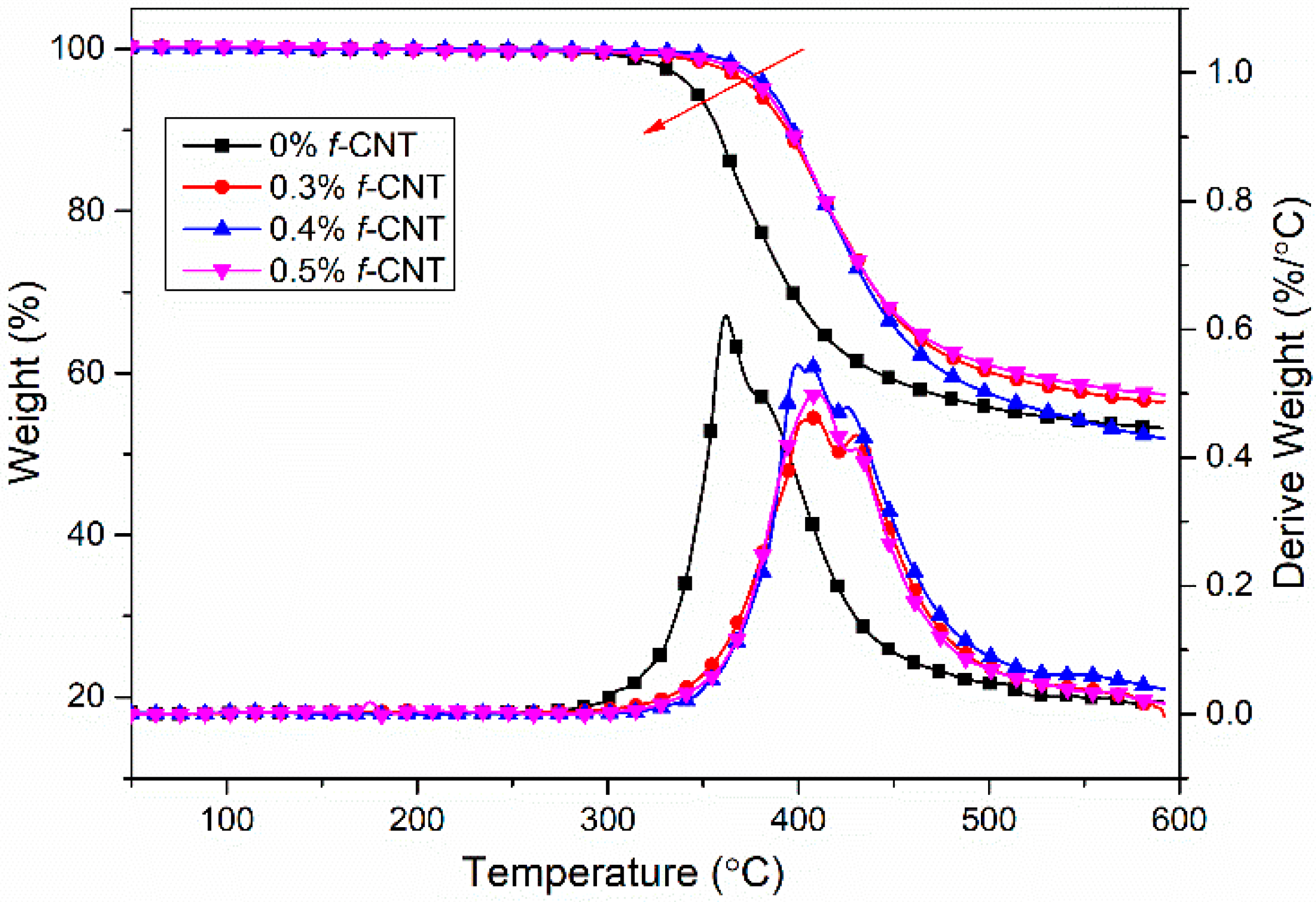

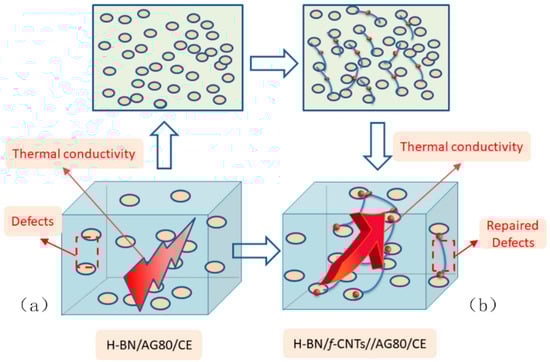

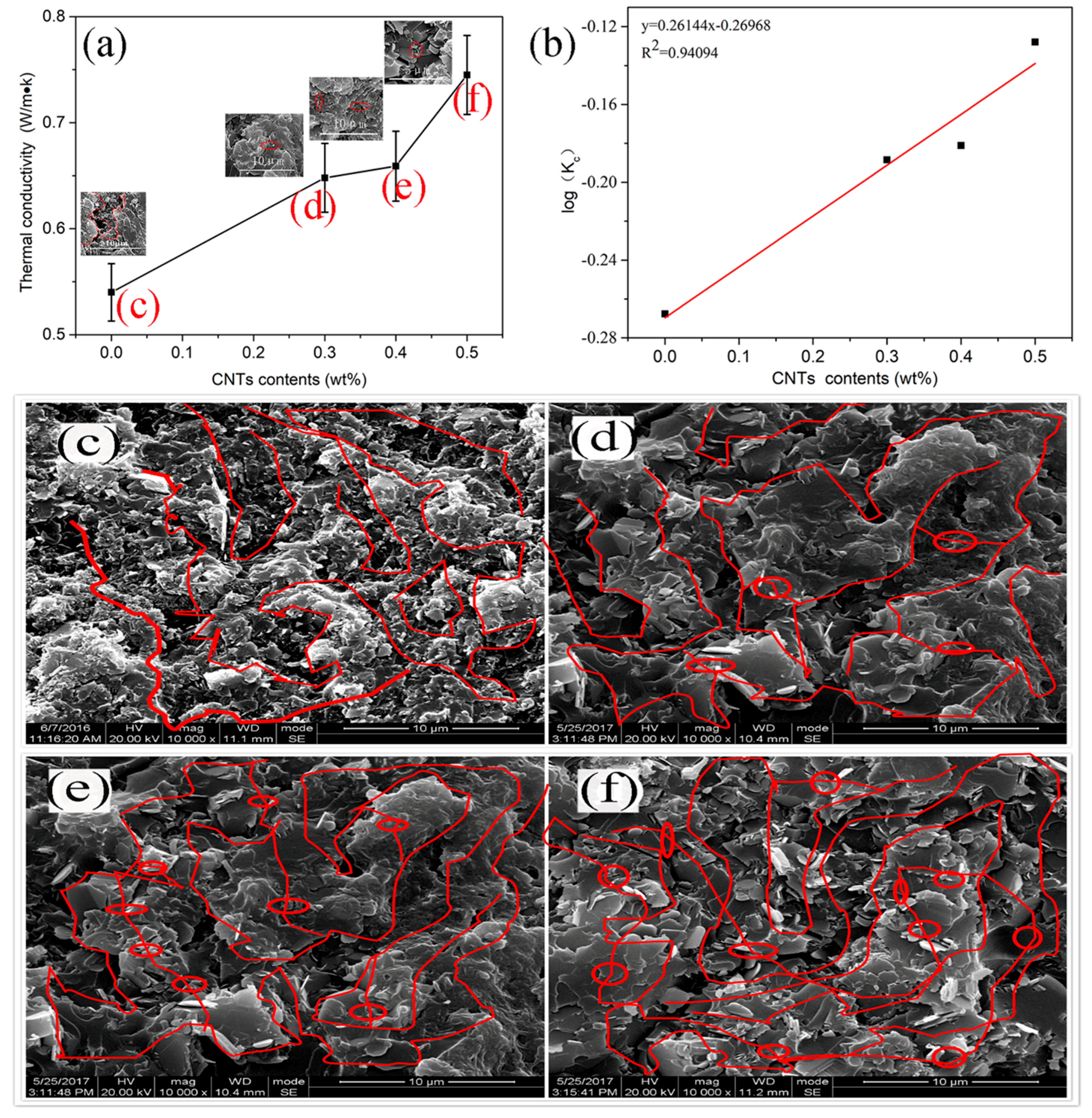

Epoxy/cyanate resin matrix composites (AG80/CE) with improved thermal conductivity and mechanical properties were obtained with synergetic enhancement with functional carbon nanotubes (f-CNTs) and hexagonal boron nitride (h-BN). AG80/CE performed as polymeric matrix and h-BN as conductivity filler which formed the main thermal conductivity channels. Small amounts of f-CNTs were introduced to repair defects in conductivity channels and networks. To confirm the synergetic enhancements, the thermal conductivity was investigated and analyzed with Agari’s model. Results indicated that with introduction of 0.5 wt% f-CNTs, the thermal conductivity coefficient (ƛ) increased to 0.745 W/mk, which is 1.38 times that of composites with just h-BN. Furthermore, the flexural strength and modulus of composites with 0.5 wt% f-CNTs were 85 MPa and 3.5 GPa. The glass transition temperature (Tg) of composites with 0.4 wt% was 285 °C and the initial decomposition temperature (T5%) was 385 °C, indicating outstanding thermal stability. The obtained h-BN/f-CNTs reinforced AG80/CE composites present great potential for packaging continuous integration and miniaturization of microelectronic devices. View Full-Text
Keywords: nanoparticles; copolymerization; functional CNTs; h-BN; cyanate ester nanoparticles; copolymerization; functional CNTs; h-BN; cyanate ester
Show Figures

Figure 1

MDPI and ACS Style

Xu, M.; Lei, Y.; Ren, D.; Chen, S.; Chen, L.; Liu, X. Synergistic Effects of Functional CNTs and h-BN on Enhanced Thermal Conductivity of Epoxy/Cyanate Matrix Composites. Nanomaterials 2018, 8, 997.
