Open AccessFeature PaperArticle
Nanomaterials 2017, 7(10), 342; https://doi.org/10.3390/nano7100342

Flotation Assembly of Large-Area Ultrathin MWCNT Nanofilms for Construction of Bioelectrodes

1
Department of Molecular Chemistry, UMR CNRS-UGA 5250, Université Grenoble Alpes, 38000 Grenoble, France
2
Université Grenoble Alpes, CERMAV, 38000 Grenoble, France
*
Author to whom correspondence should be addressed.
Received: 1 October 2017 / Revised: 18 October 2017 / Accepted: 19 October 2017 / Published: 21 October 2017
(This article belongs to the Special Issue Nanostructured Biofuel Cells)
Full-Text   |   PDF [3403 KB, uploaded 23 October 2017]   |

Abstract

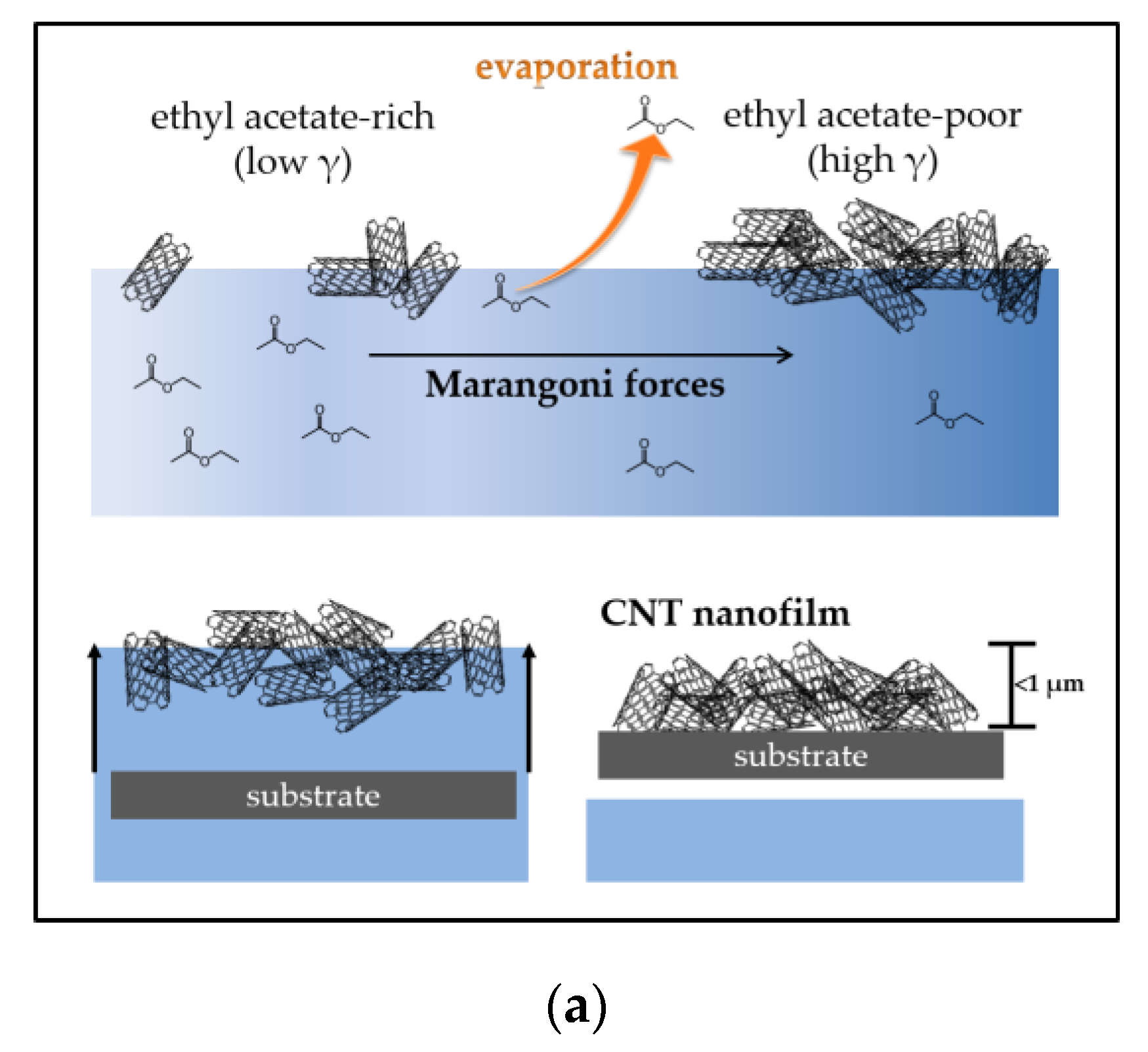

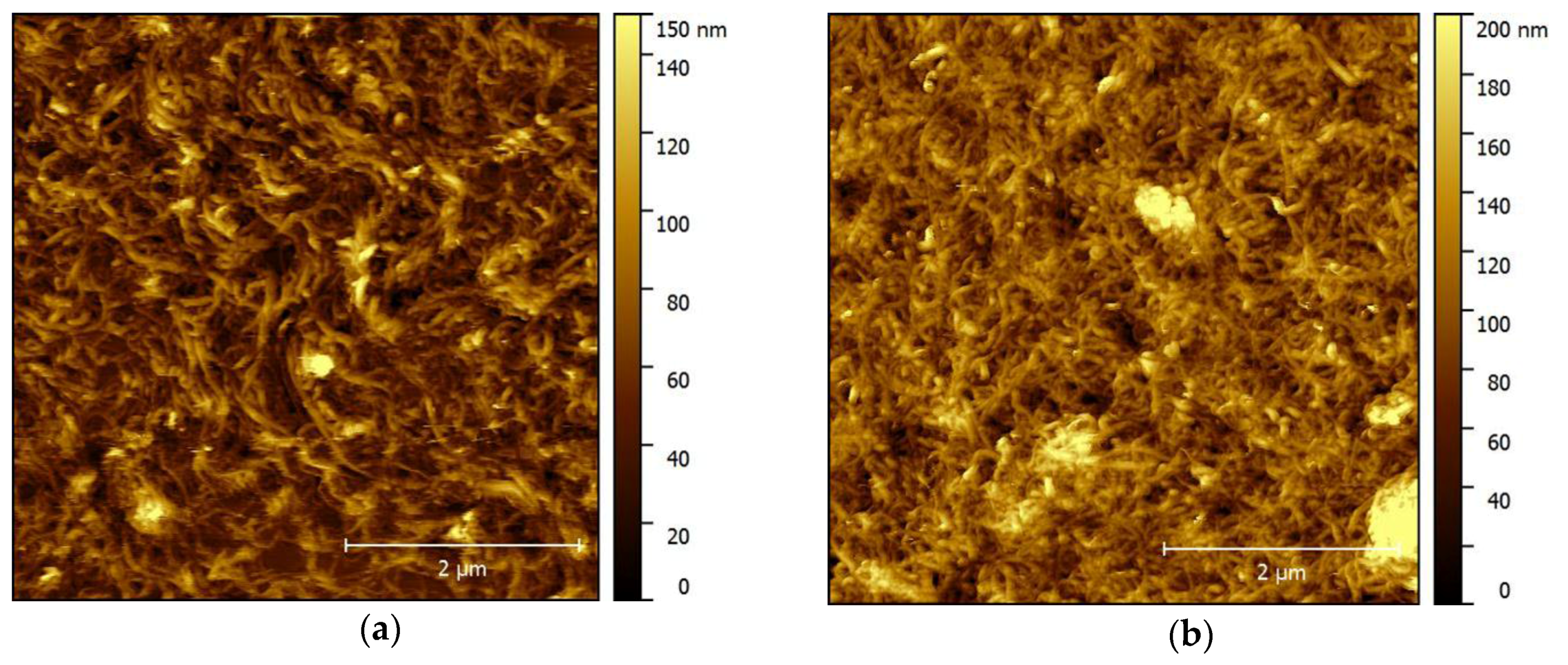

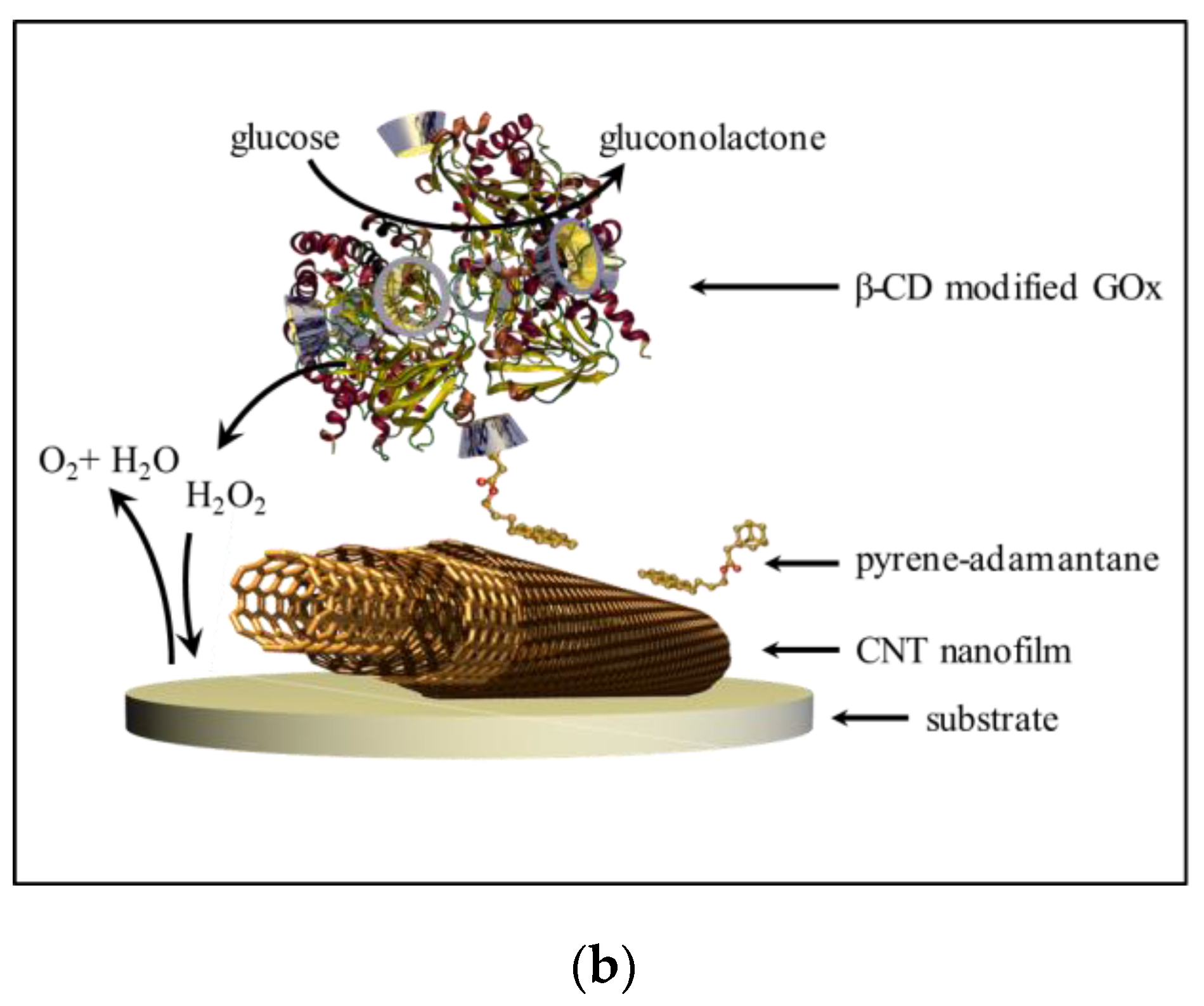

We report a simple, versatile, and rapid method for the fabrication of optically-transparent large-area carbon nanotube (CNT) films via flotation assembly. After solvent-induced assembly, floating films were transferred to a flat supporting substrate to form conductive and transparent CNT film electrodes. The resulting electrodes, with uniform 40 ± 20 nm multi-walled CNT (MWCNT) layers, were characterized by electrochemical and microscopy methods. The flotation method does not require specialized thin-film instrumentation and avoids the need for surfactants and pre-oxidized CNTs which can hamper electrochemical performance. A proof-of-concept nanostructured bioelectrode demonstrating high sensitivity for glucose was developed with an electropolymerized poly(pyrene-adamantane) layer for host–guest immobilization of active β-cyclodextrin tagged GOx enzymes. The polymer provides pyrene groups for cross-linking to CNTs and pendant adamantane groups for binding the β-cyclodextrin groups of the tagged enzyme. This demonstration offers a new approach for the preparation of stable and transparent CNT film electrodes with attractive electrochemical properties towards future photobio- and bio-electrochemical fuel cells, electrochemical sensors, and electroanalysis. View Full-Text
Keywords: multi-walled carbon nanotubes; optically-transparent electrode; photobioelectrode; electropolymerization; flotation assembly; nanostructured electrode; biosensor; biofuel cell multi-walled carbon nanotubes; optically-transparent electrode; photobioelectrode; electropolymerization; flotation assembly; nanostructured electrode; biosensor; biofuel cell
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Gross, A.J.; Hammond, J.L.; Holzinger, M.; Cosnier, S. Flotation Assembly of Large-Area Ultrathin MWCNT Nanofilms for Construction of Bioelectrodes. Nanomaterials 2017, 7, 342.
