Next Article in Journal
Structural Stability of Diffusion Barriers in Cu/Ru/MgO/Ta/Si
Next Article in Special Issue
The Coupled Photothermal Reaction and Transport in a Laser Additive Metal Nanolayer Simultaneous Synthesis and Pattering for Flexible Electronics
Previous Article in Journal
Chalcopyrite Nanoparticles as a Sustainable Thermoelectric Material
Open AccessArticle

Effects of Annealing Temperature on Properties of Ti-Ga–Doped ZnO Films Deposited on Flexible Substrates

Department of Mechanical Engineering, National Kaohsiung University of Applied Sciences, Kaohsiung City 807, Taiwan
*
Author to whom correspondence should be addressed.
Academic Editors: Ming-Tsang Lee and Thomas Nann
Nanomaterials 2015, 5(4), 1831-1839; https://doi.org/10.3390/nano5041831
Received: 8 October 2015 / Revised: 20 October 2015 / Accepted: 29 October 2015 / Published: 3 November 2015

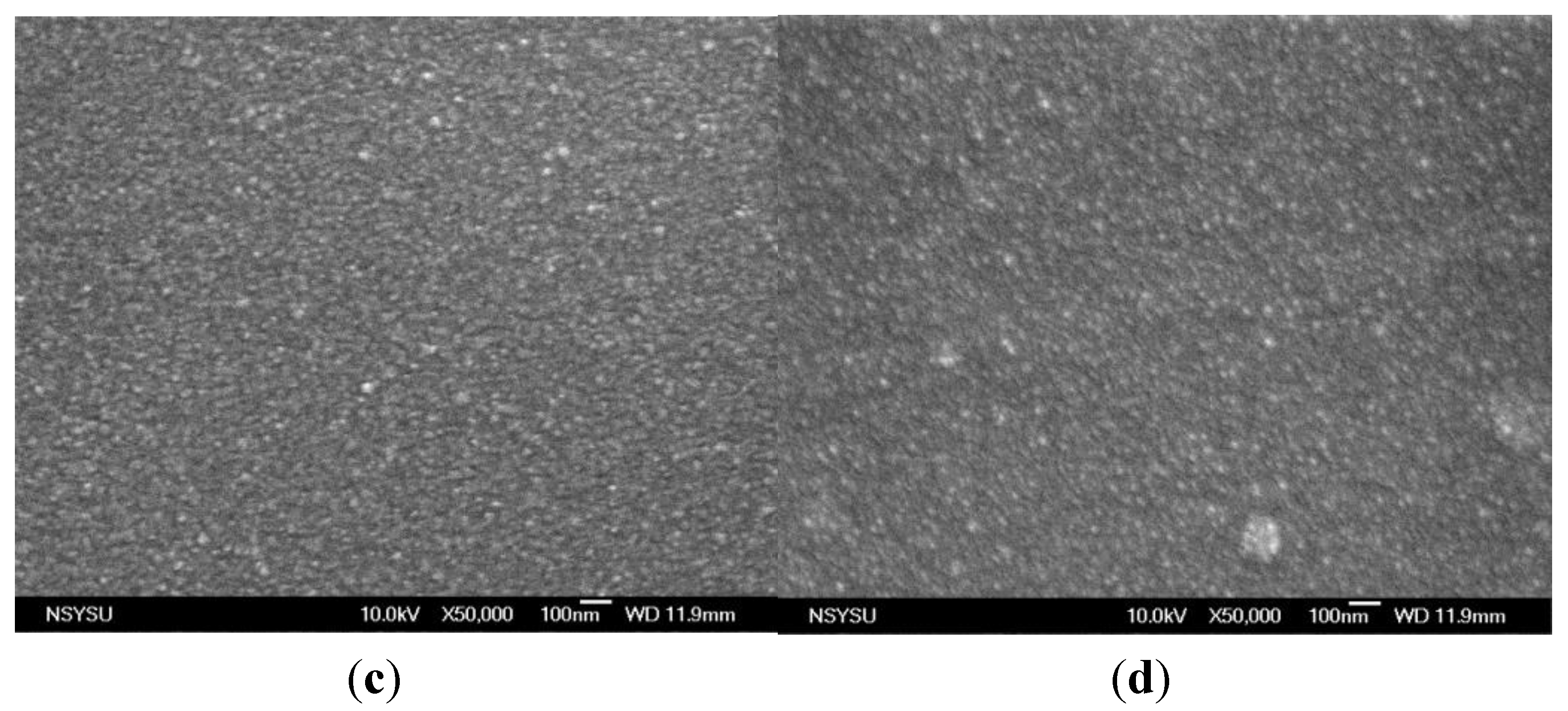

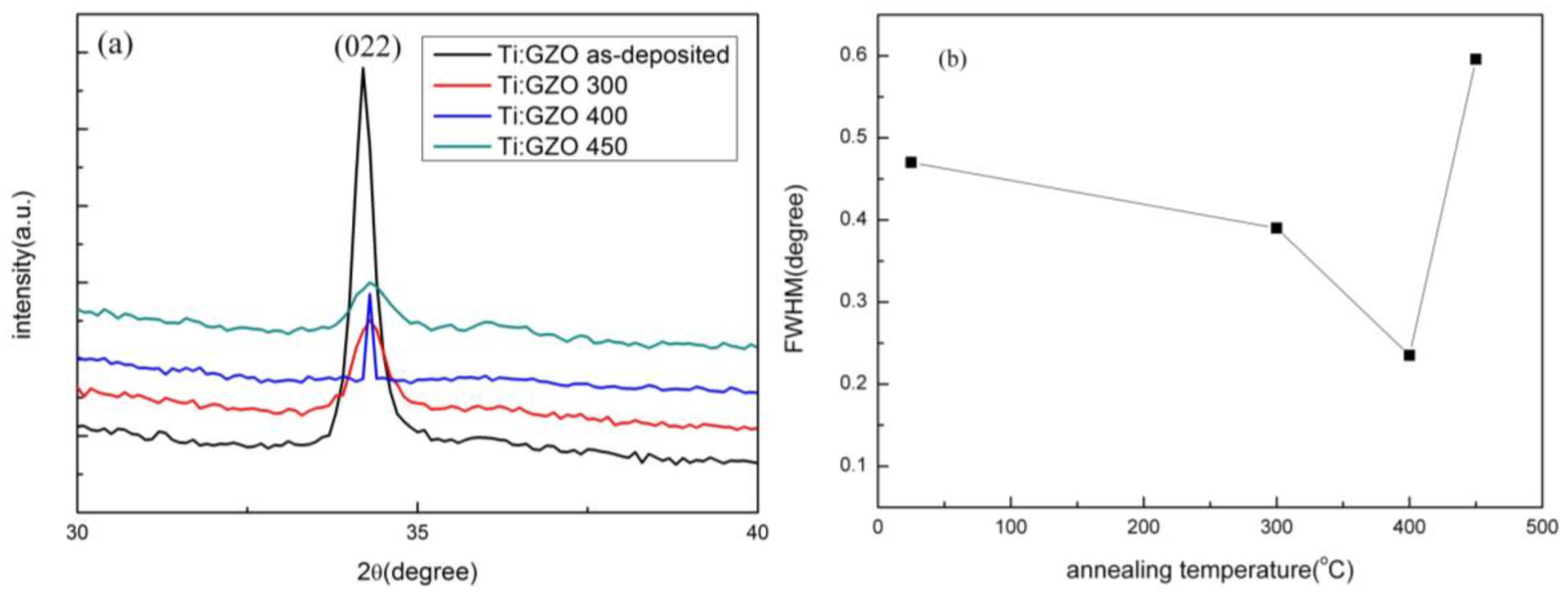

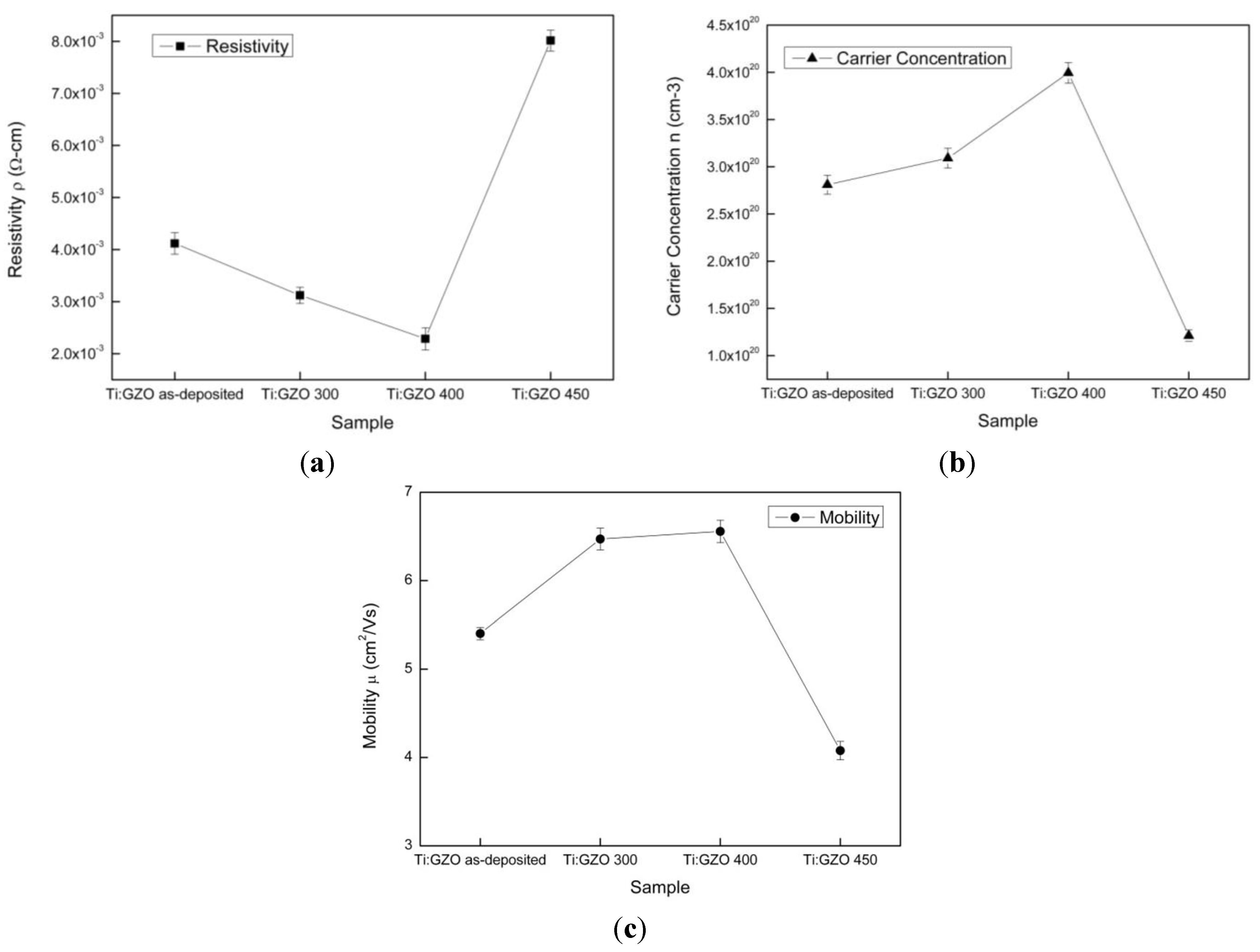

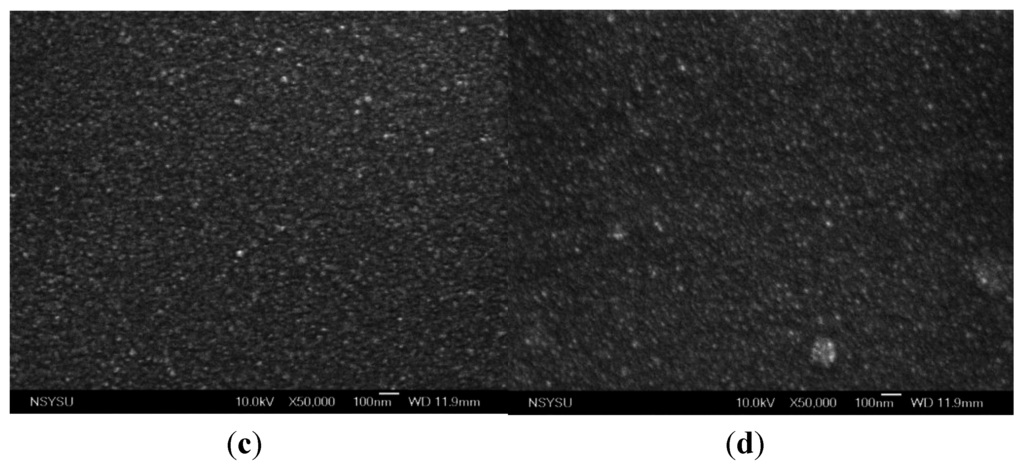

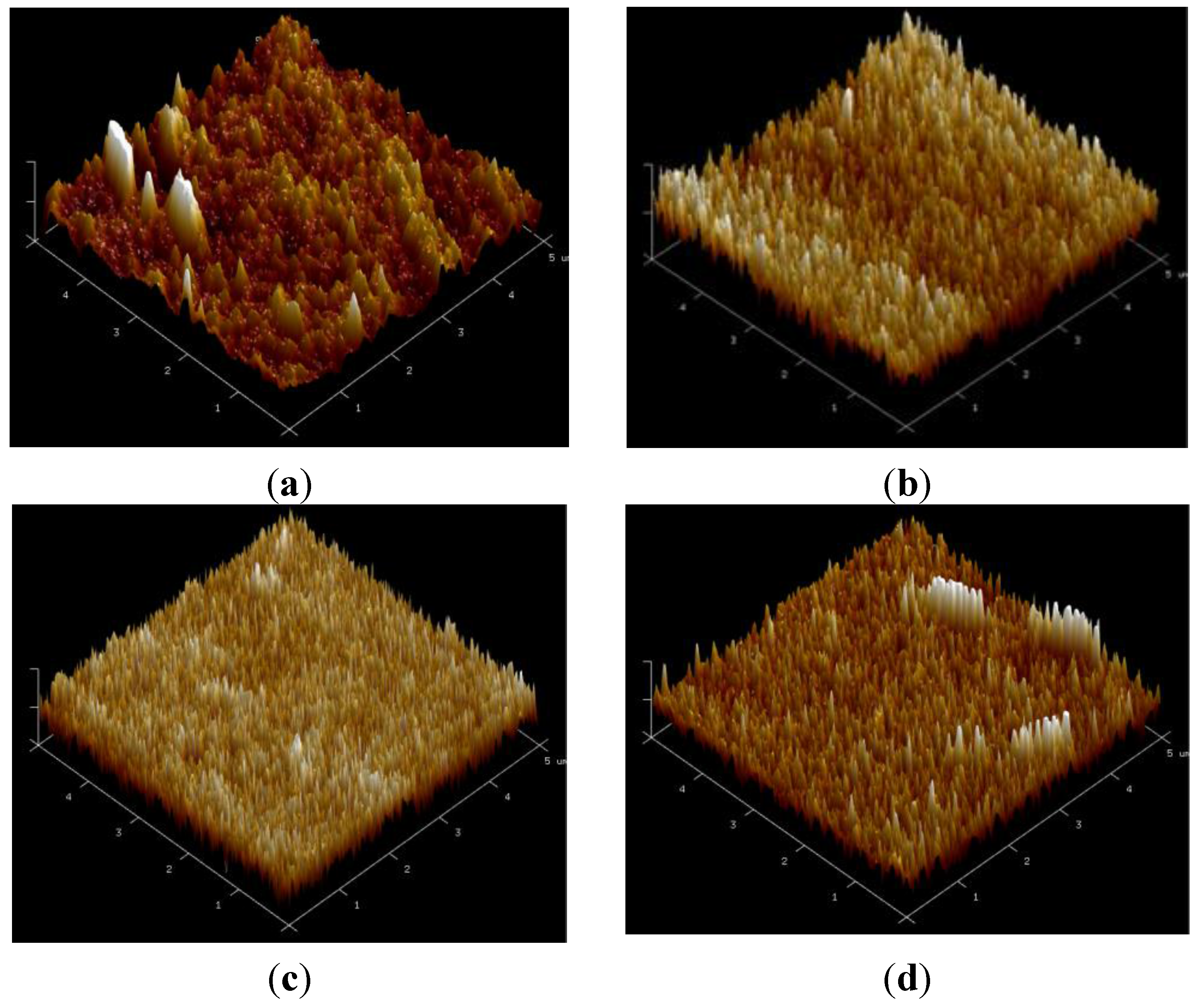

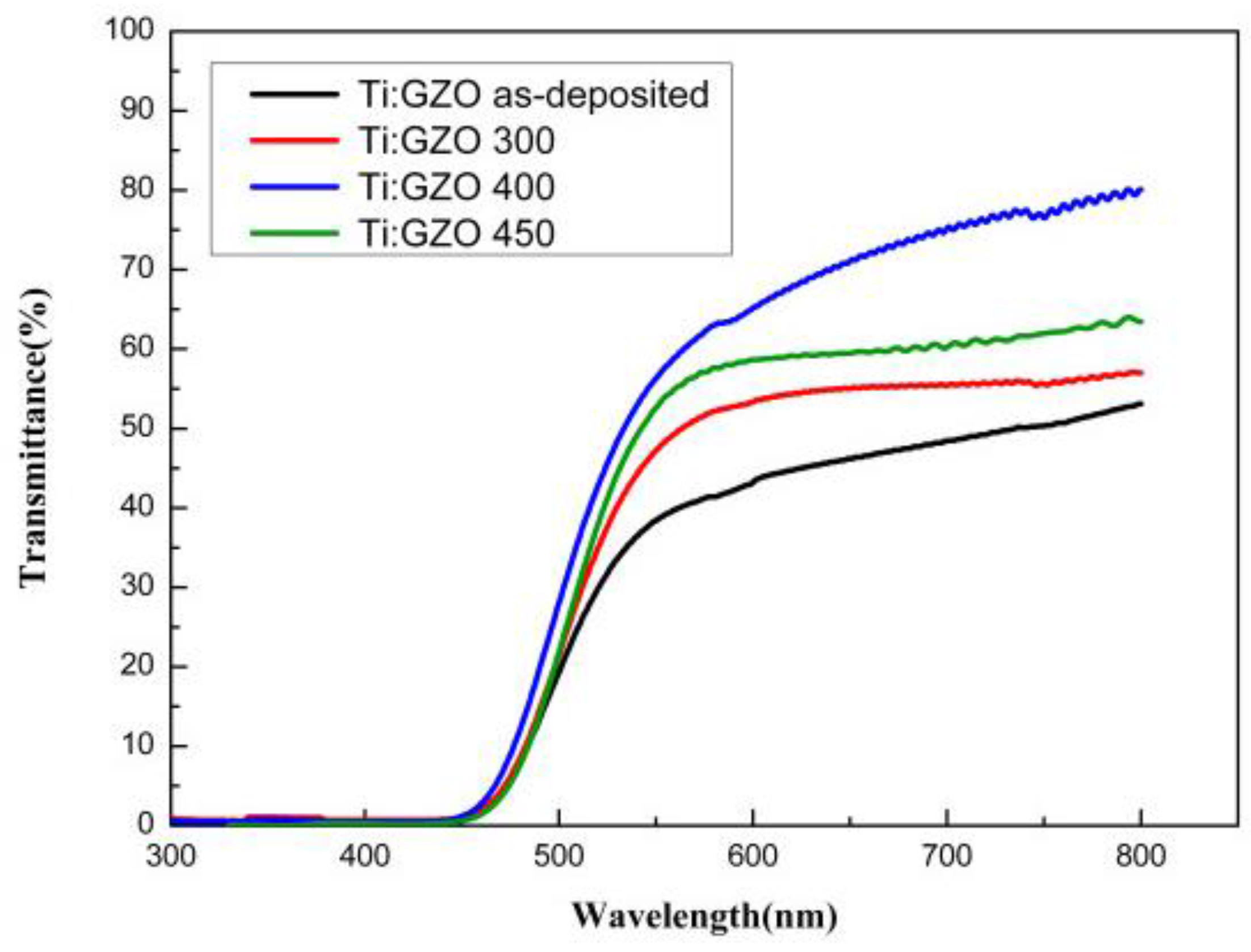

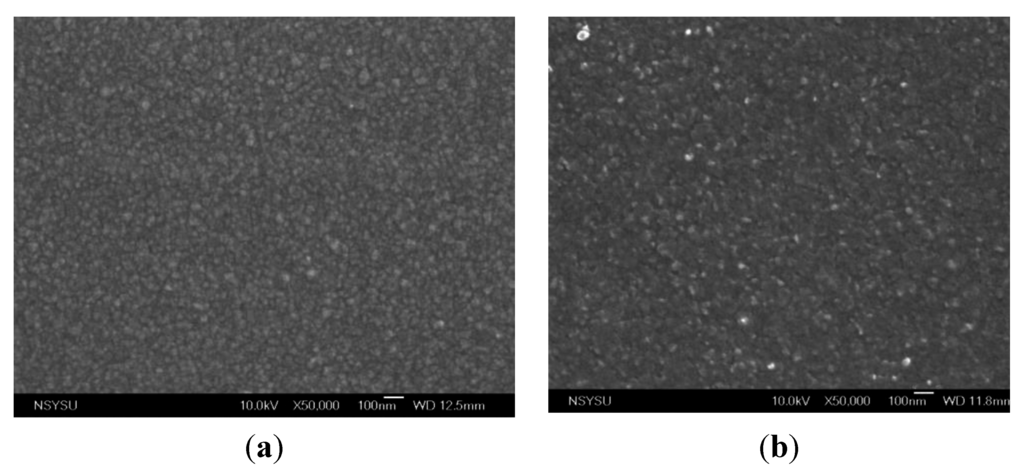

An investigation is performed into the optical, electrical, and microstructural properties of Ti-Ga–doped ZnO films deposited on polyimide (PI) flexible substrates and then annealed at temperatures of 300 °C, 400 °C, and 450 °C, respectively. The X-ray diffraction (XRD) analysis results show that all of the films have a strong (002) Ga doped ZnO (GZO) preferential orientation. As the annealing temperature is increased to 400 °C, the optical transmittance increases and the electrical resistivity decreases. However, as the temperature is further increased to 450 °C, the transmittance reduces and the resistivity increases due to a carbonization of the PI substrate. Finally, the crystallinity of the ZnO film improves with an increasing annealing temperature only up to 400 °C and is accompanied by a smaller crystallite size and a lower surface roughness. View Full-Text
Keywords: annealing temperature effect; Ti-Ga; flexible substrate; polyimide annealing temperature effect; Ti-Ga; flexible substrate; polyimide
Show Figures

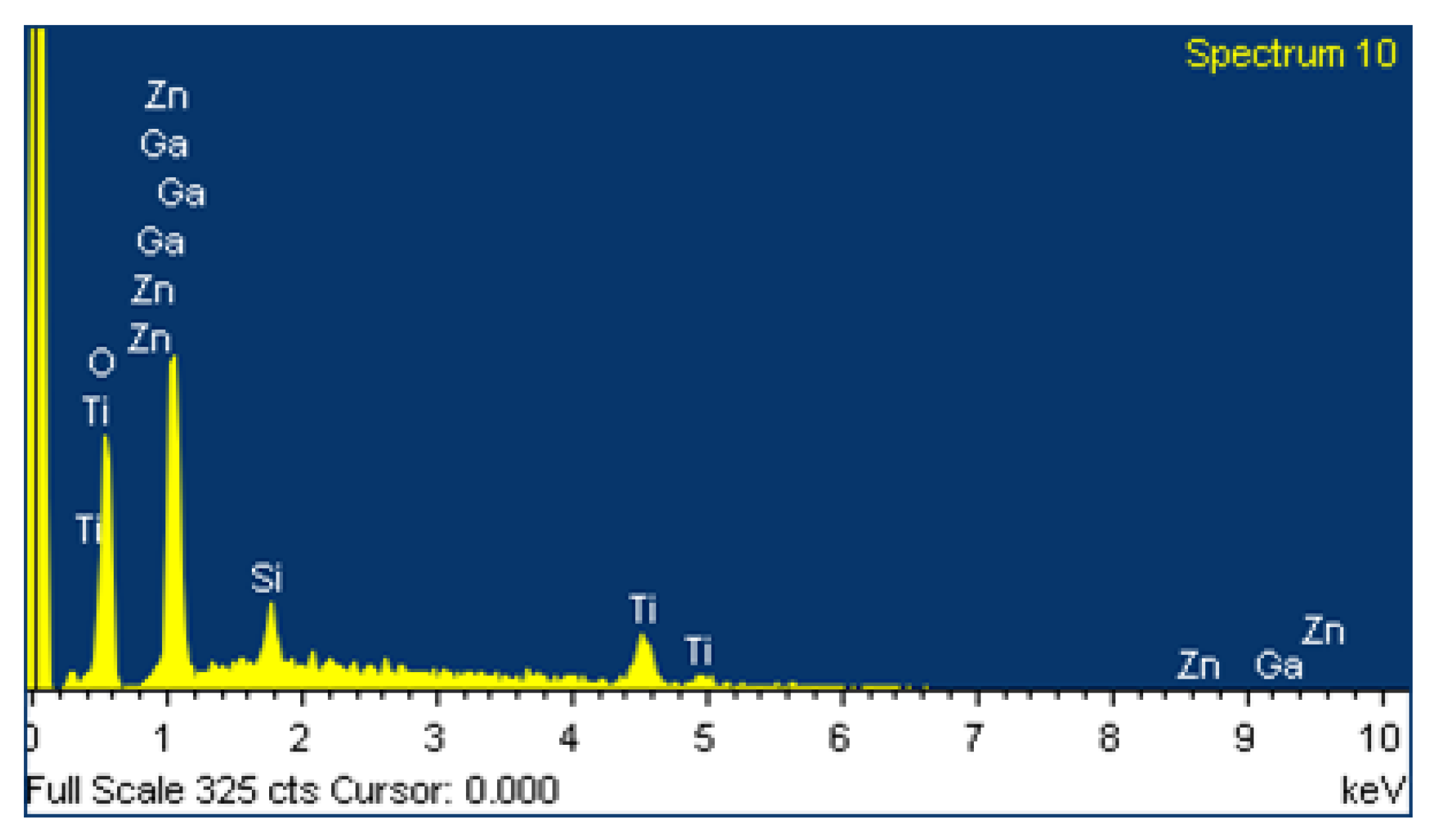

Figure 1

MDPI and ACS Style

Chen, T.-H.; Chen, T.-Y. Effects of Annealing Temperature on Properties of Ti-Ga–Doped ZnO Films Deposited on Flexible Substrates. Nanomaterials 2015, 5, 1831-1839.

Show more citation formats Show less citations formats

Article Access Map by Country/Region

1
Only visits after 24 November 2015 are recorded.
Search more from Scilit

Search
Back to TopTop
