Maghemite Intercalated Montmorillonite as New Nanofillers for Photopolymers

Laboratoire de Photochimie et d'Ingénierie Macromoléculaires, Ecole Nationale Supérieure de Chimie de Mulhouse, Université de Haute-Alsace, 3 rue A. Werner, 68093 Mulhouse Cedex, France
Equipe Matériaux à Porosité Contrôlée, Institut de Science des Matériaux de Mulhouse, LRC-CNRS 7228, Ecole Nationale Supérieure de Chimie de Mulhouse, Université de Haute-Alsace, 3 rue A. Werner, 68093 Mulhouse Cedex, France
Author to whom correspondence should be addressed.
Nanomaterials 2012, 2(4), 413-427;
Received: 31 August 2012 / Revised: 31 October 2012 / Accepted: 8 November 2012 / Published: 19 November 2012
(This article belongs to the Special Issue Composite Nanomaterials)


In this work, maghemite intercalated montmorillonite (γFe2O3-MMT)/polymer nanocomposites loaded with 1 or 2 wt.% of nanofillers were obtained by photopolymerization of difunctional acrylate monomers. The γFe2O3-MMT nanofillers were prepared by a new method based on the in situ formation of maghemite in the interlayer space of Fe-MMT using a three step process. X-ray diffraction (XRD), chemical analysis, TG/DTA and transmission electron microscopy (TEM) characterization of these nanofillers indicated the efficiency of the synthesis. When following the kinetics of the photopolymerization of diacrylate-γFe2O3-MMT nanocomposites using FTIR spectroscopy no significant inhibition effect of the nanofillers was observed at a loading up to 2 wt.%. These innovative nanocomposites exhibit improved mechanical properties compared to the crude polymer.

Graphical Abstract

1. Introduction

Nanocomposites based on polymers have attracted attention due to their superior engineering properties compared to the neat polymer and to the classical composites [1,2,3,4,5]. Among them, nanocomposites containing iron oxide nanoparticles or clays have gained great interest in recent decades because of their unique properties [6,7,8,9,10,11,12]. Indeed, the magnetic properties of iron oxides such as Fe3O4 (magnetite) or γ-Fe2O3 (maghemite) impart applications in various fields such as high-density magnetic recording, pigmentation, microwave absorbing coatings, magnetic cooling, and are also suitable for medical applications (such as magnetic targeting, drug delivery, contrast enhancement in magnetic resonance imaging, and magnetic hyperthermia) [13,14,15,16,17,18]. The most widely preparative methods used for the synthesis of magnetic iron oxide nanoparticles in an aqueous suspension are based on the co-precipitation of iron salts in alkaline medium [19].
Due to their nanoscale particles size and their layered structure, swelling clays offer an attractive way to enhance mechanical, thermal and barrier properties of polymers [20]. Their structure consists of layers made up of two tetrahedrally coordinated silicon atoms fused to an edge-shared octahedral sheet of either aluminium or magnesium hydroxide. The layer thickness is around 1 nm. Stacking of the layers leads to a regular Van Der Waals gap between the layers called the interlayer. Isomorphic substitution within the layers (for example, Si4+ replaced by Al3+) generates negative charges that are counterbalanced by cations such as Na+ in the interlayer space. The hydrophilicity of swelling clays can be turned into hydrophobicity by exchanging the interlayer cations with organic cations rendering them compatible with organic matrices [21,22].
Whatever the filler, polymer nanocomposites are usually prepared by in situ polymerization (thermal polymerization or more seldom, by UV curing), sol–gel processing, or melt compounding [23,24,25,26,27,28]. Although nanocomposites containing either clays [29,30] or iron oxide nanoparticles [31,32,33] are extensively described in the literature only a few works describe the use of mixtures of both [34,35,36]. Laachachi et al. [34], for example prepared, by melt blending, PMMA-γFe2O3-organomodified montmorillonite nanocomposites presenting improved thermal stability and flammability properties compared to unfilled PMMA. Until now, no work has been reported on the preparation of such nanocomposites using UV-curable resins, in spite of the several advantages that this process presents over thermal polymerization. Indeed, photopolymerization leads to high polymerization rates; it is less energy consuming, occurs at room temperature, and is environmentally friendly due to the absence of VOC. Therefore it is a curing process at low cost.
Our objective in this study was to prepare a new kind of nanocomposite based on particles of maghemite and montmorillonite in a photopolymeric matrix. For this purpose, maghemite intercalated montmorillonite (γFe2O3-MMT) was prepared using (1) ion exchange of interlayer sodium ions with iron (III) ions, (2) formation of goethite and (3) thermal solid-state transformation of goethite into maghemite intercalated montmorillonite. Then, this new nanofiller was incorporated in photopolymerizable formulations containing 1,6-hexanediol diacrylate (HDDA) and polyethylene glycol (400) diacrylate (Sr 344) before UV curing. The influence of the nanofiller (γFe2O3-MMT) content on the kinetics of photopolymerization was determined and some properties of the final nanocomposites were evaluated.

2. Results and Discussion

2.1. Nanofillers Preparation (γFe2O3-MMT)

2.1.1. Ion Exchange Reaction

Figure 1 displays the comparison between the X-ray diffraction (XRD) patterns of Na-MMT and Fe-MMT. It appears that the ion exchange led to a decrease of the d001 value (from 1.55 nm for the pristine Na-MMT to 1.34 nm for Fe-MMT) which can be attributed to the replacement of sodium cations (Na+ = 0.095 nm) by iron cations (Fe3+ = 0.064 nm). The determination of the sodium and iron contents in Fe-MMT samples by X-ray fluorescence indicated that the iron content equals 2.5 wt.% and that 97% of the initial Na cations were replaced by Fe cations. These results and the orange coloration of the sample confirmed a successful intercalation of the iron species.

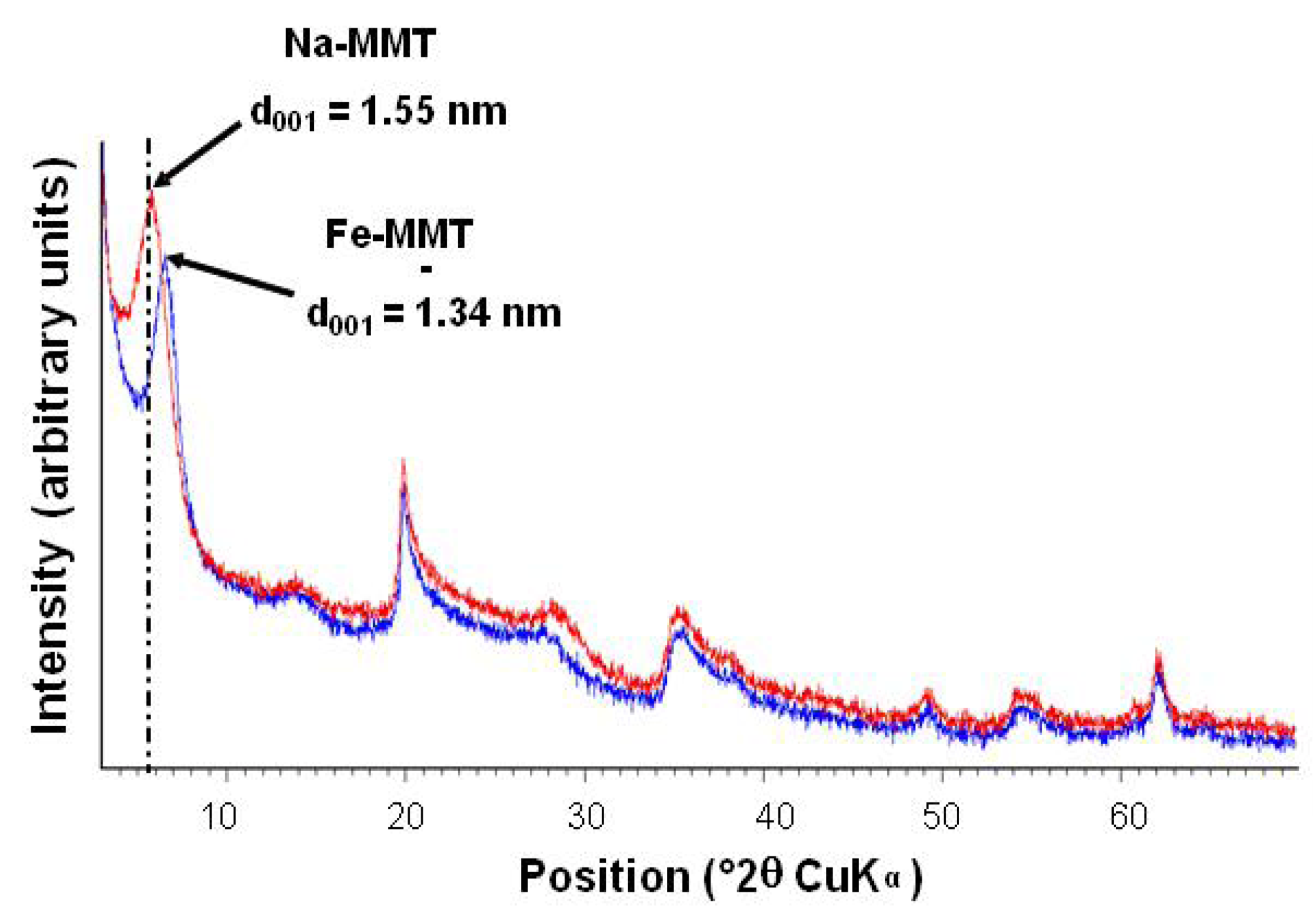

Figure 1. Comparison of the X-ray diffraction (XRD) patterns of Na-montmorillonite (Na-MMT) (red) and maghemite-intercalated montmorillonite (γFe2O3-MMT) (after aqueous exchange with Fe3+ ions).
Figure 1. Comparison of the X-ray diffraction (XRD) patterns of Na-montmorillonite (Na-MMT) (red) and maghemite-intercalated montmorillonite (γFe2O3-MMT) (after aqueous exchange with Fe3+ ions).
Nanomaterials 02 00413 g001

2.1.2. Formation of Goethite

Goethite particles can be formed from a ferric salt solution in two different ways using either a basic [37] or an acidic route [38]. In our case, and for the first time, goethite was formed in the interlayer space of the montmorillonite starting from the Fe cations previously introduced by ion exchange. Both routes were performed and the products obtained (Mo-Go001 and Mo-Go002) exhibited the same characteristics. The X-ray diffraction pattern of Mo-Go001, given as an example in Figure 2, showed a very weak increase of the interlayer space of the montmorillonite.
As expected, the iron contents (2.5 wt.%) of both products did not change after treatment. Due to the small amount of iron in the sample, it was not possible to detect goethite by conventional methods (i.e., XRD). Several studies of decomposition of goethite into maghemite by heating (between 200 and 280 °C) have been reported [39,40]. The curve of heat flow versus temperature for Mo-Go001 is shown in Figure 3 as an example. The sample exhibits a main exothermic peak at 280 °C attributed to the transformation of goethite into maghemite, thus proving the formation of goethite.

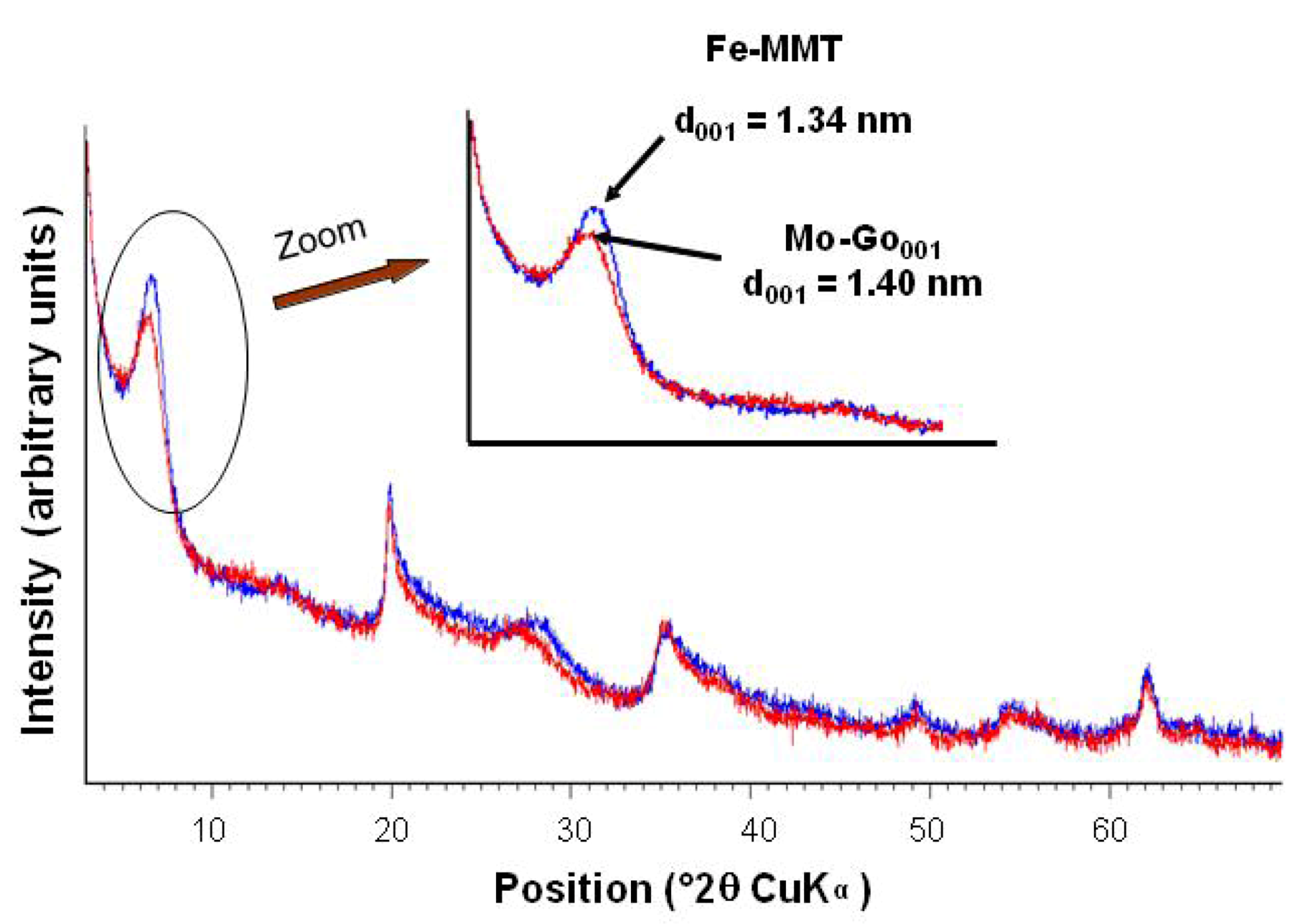

Figure 2. Comparison of the XRD patterns of Fe-MMT(blue) and Mo-Go001 (red).
Figure 2. Comparison of the XRD patterns of Fe-MMT(blue) and Mo-Go001 (red).
Nanomaterials 02 00413 g002

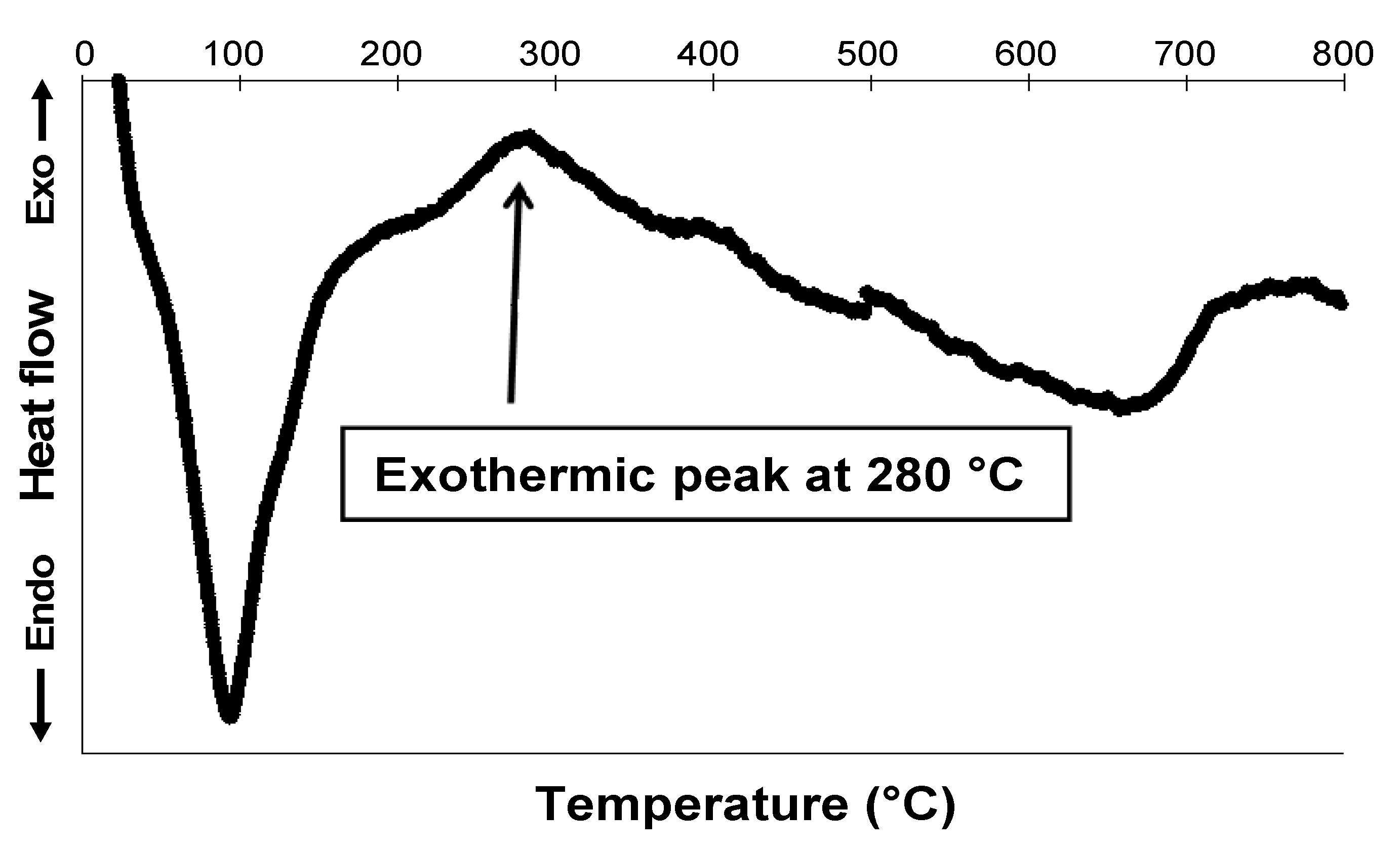

Figure 3. Differential Thermal Analysis (DTA) curve of Mo-Go001.
Figure 3. Differential Thermal Analysis (DTA) curve of Mo-Go001.
Nanomaterials 02 00413 g003
As the two routes led to the same results the following study was pursued with the sample Mo-Go001.

2.1.3. Thermal Solid-State Transformations

Thermal treatment of Mo-Go001 was performed in order to transform goethite into maghemite leading to a brown sample named Mo-Mag001. This color is characteristic of maghemite nanoparticles [40]. The curve of heat flow versus temperature of Mo-Mag001 is shown in Figure 4. The Differential Thermal Analysis (DTA) curve shows the disappearance of the exothermic peak at 280 °C, which proves that all of the goethite was transformed by the thermal treatment applied in the previous steps. The appearance of a new exothermic peak at around 500 °C is attributed, according to the literature, to the transformation of maghemite into hematite [6,41].

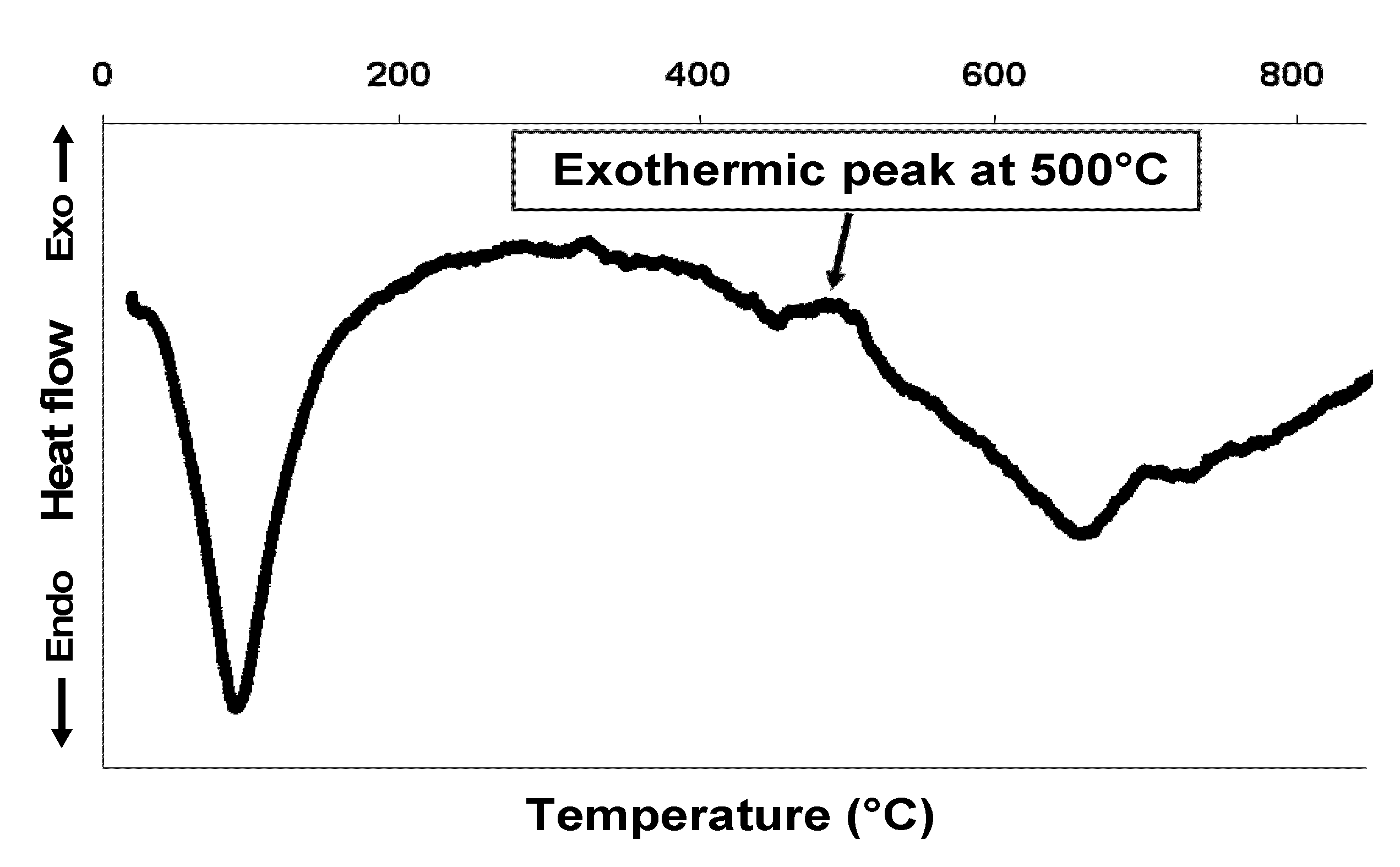

Figure 4. DTA curve of Mo-Mag001.
Figure 4. DTA curve of Mo-Mag001.
Nanomaterials 02 00413 g004
The X-ray diffraction pattern (Figure 5) shows that the thermal treatment led to a broadening of the (001) reflexion. This result may be explained by the delamination of montmorillonite layers induced by the generation of maghemite nanoparticles in the interlayer space as a new peak, which may be attributed to maghemite, is observed on the Mo-Mag001 diffractogram [36]. This hypothesis is supported by TEM analysis as Mo-Mag001 is partially exfoliated (Figure 6b) even if no maghemite nanoparticles can be observed on the micrographs.

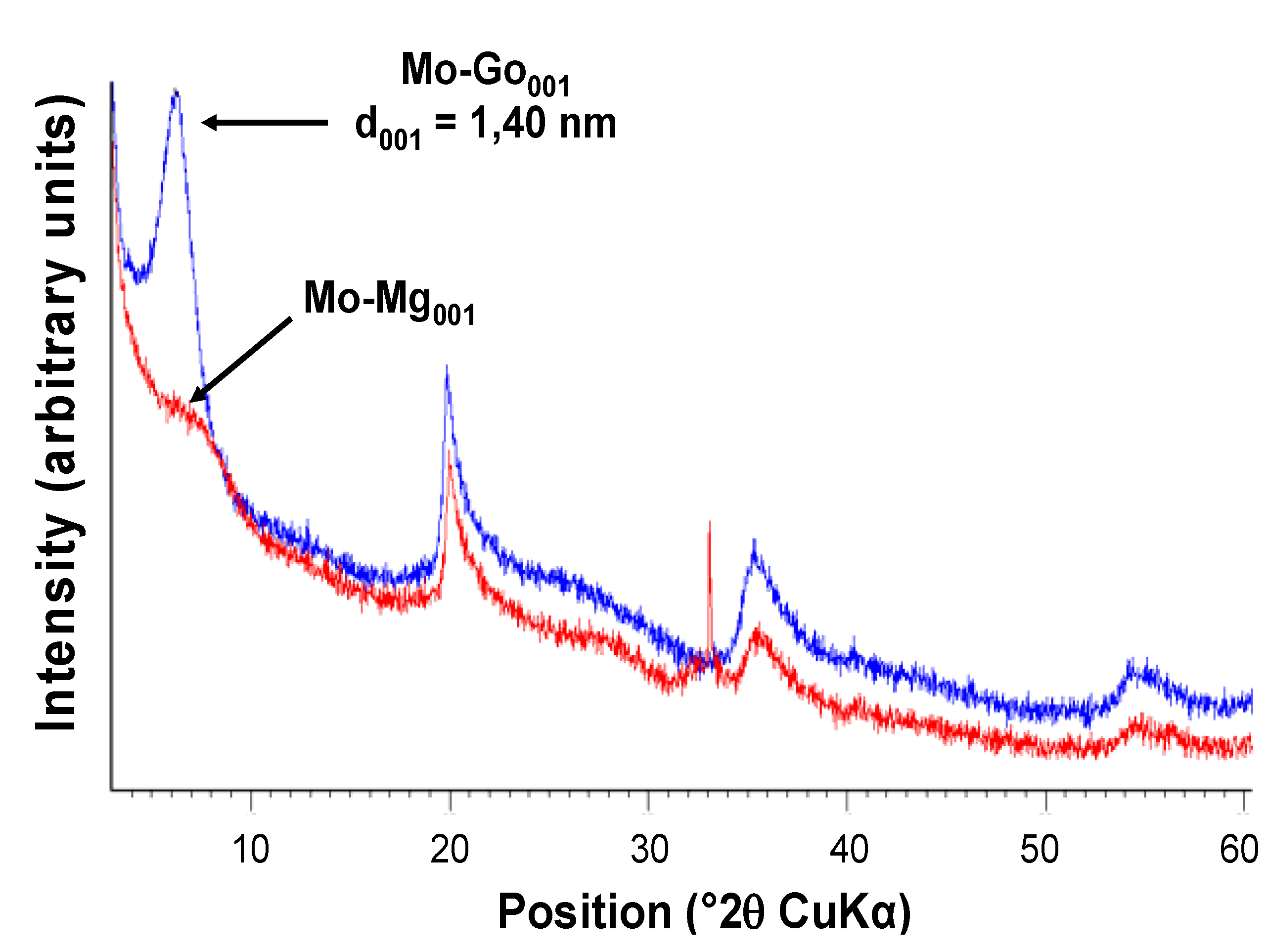

Figure 5. Comparison of the XRD patterns of Mo-Go001 (blue) and Mo-Mag001 (red).
Figure 5. Comparison of the XRD patterns of Mo-Go001 (blue) and Mo-Mag001 (red).
Nanomaterials 02 00413 g005
Figure 6. Transmission electron microscopy (TEM) micrographs of (a) Na-MMT and (b) Mo-Mag001.
Figure 6. Transmission electron microscopy (TEM) micrographs of (a) Na-MMT and (b) Mo-Mag001.
Nanomaterials 02 00413 g006

2.2. Kinetics of Photopolymerization

The degree of conversion of the UV exposed samples was evaluated by infrared spectroscopy, by monitoring continuously the disappearance of the characteristic bands of the reactive group, i.e., at 1590 cm1 or 1660 cm1 for the acrylate double bond. The addition of low concentrations of nanofillers (1 and 2 wt.%) to the resin had no negative effect (inner filter effect) on the polymerization kinetics in thin films (10 µm), as shown by the conversion versus time curves reported in Figure 7. This observation can be explained by the very weak UV absorption of the dispersed nanofillers in the absorption range of the photoinitiator (330 to 410 nm) allowing the photopolymerization process to completely cure the films (Figure 8).

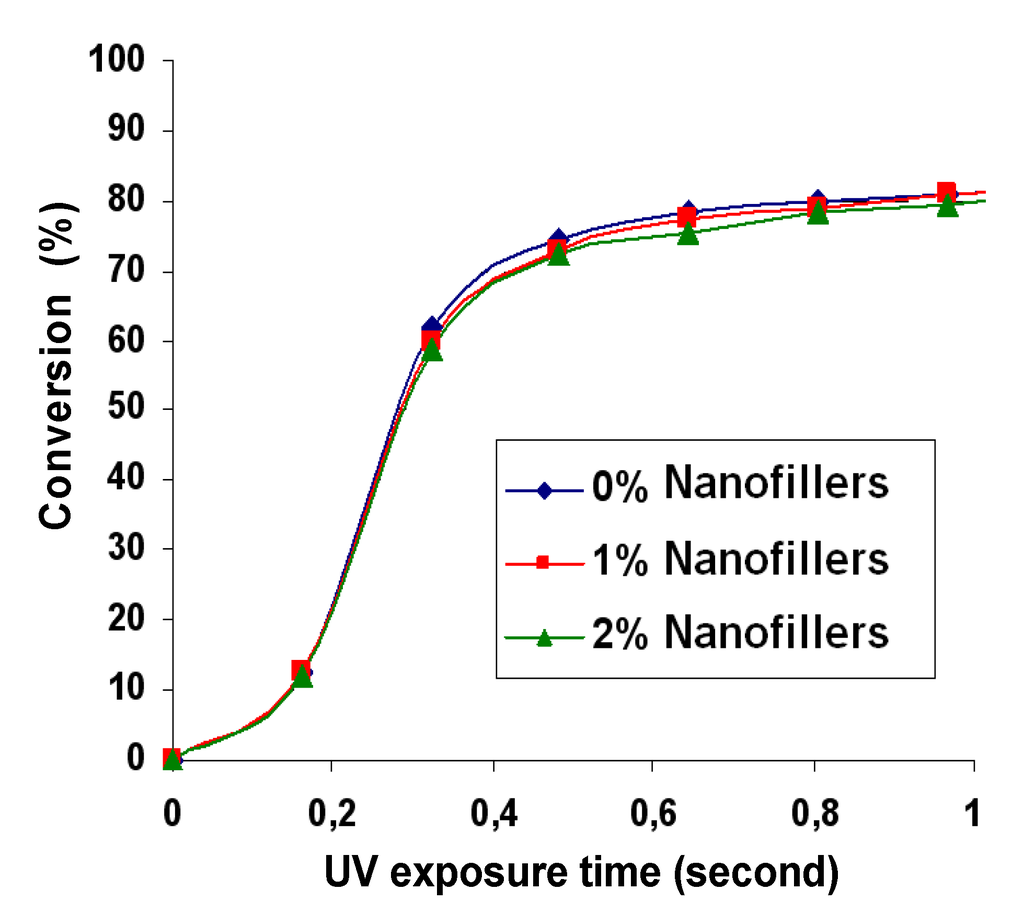

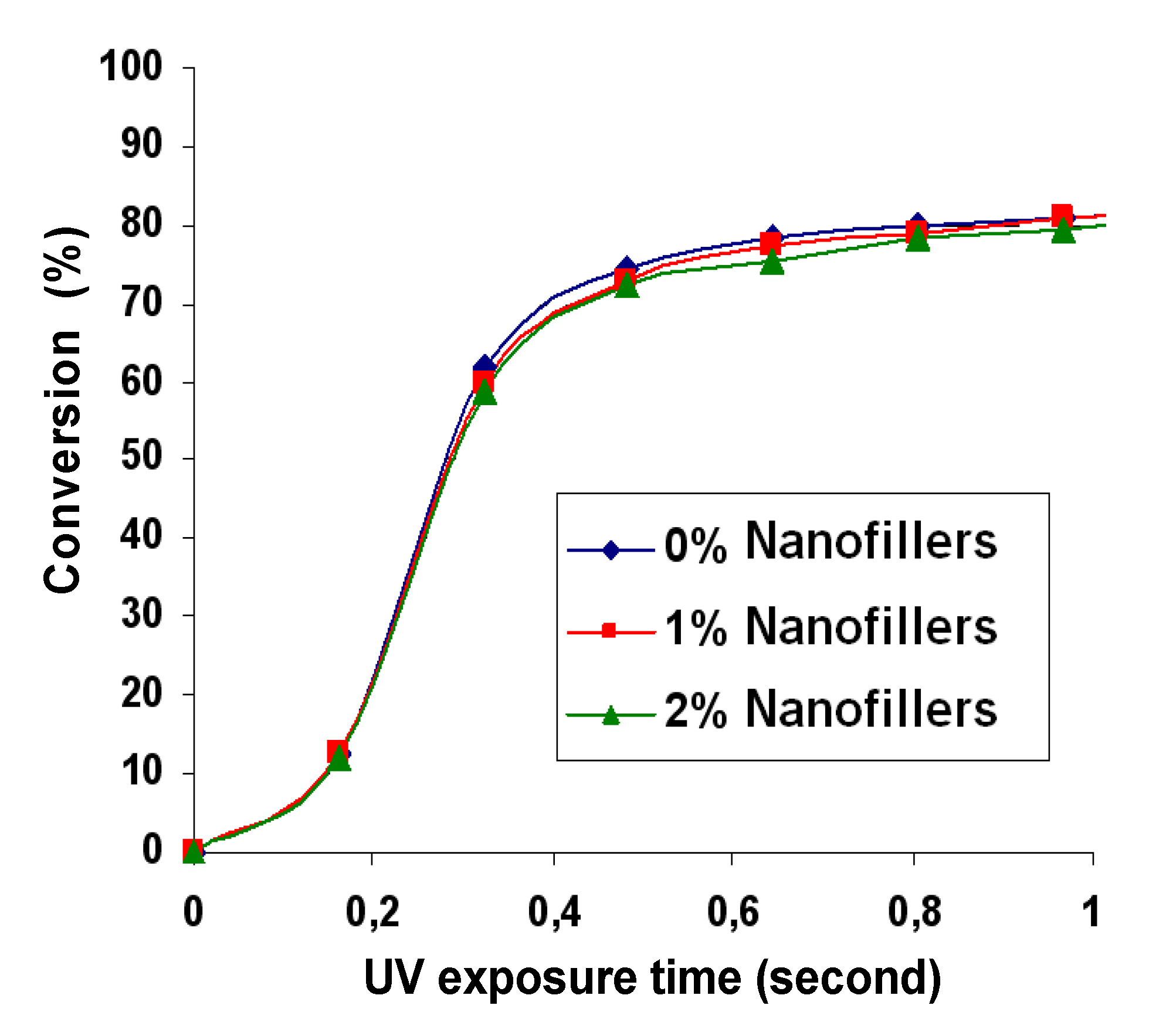

Figure 7. Conversion curves depending on the nanofiller content.
Figure 7. Conversion curves depending on the nanofiller content.
Nanomaterials 02 00413 g007

2.3. Nanocomposite Morphology

The TEM micrograph of the CS1 nanocomposite indicates that the γFe2O3-MMT filler is still partially exfoliated (Figure 9).

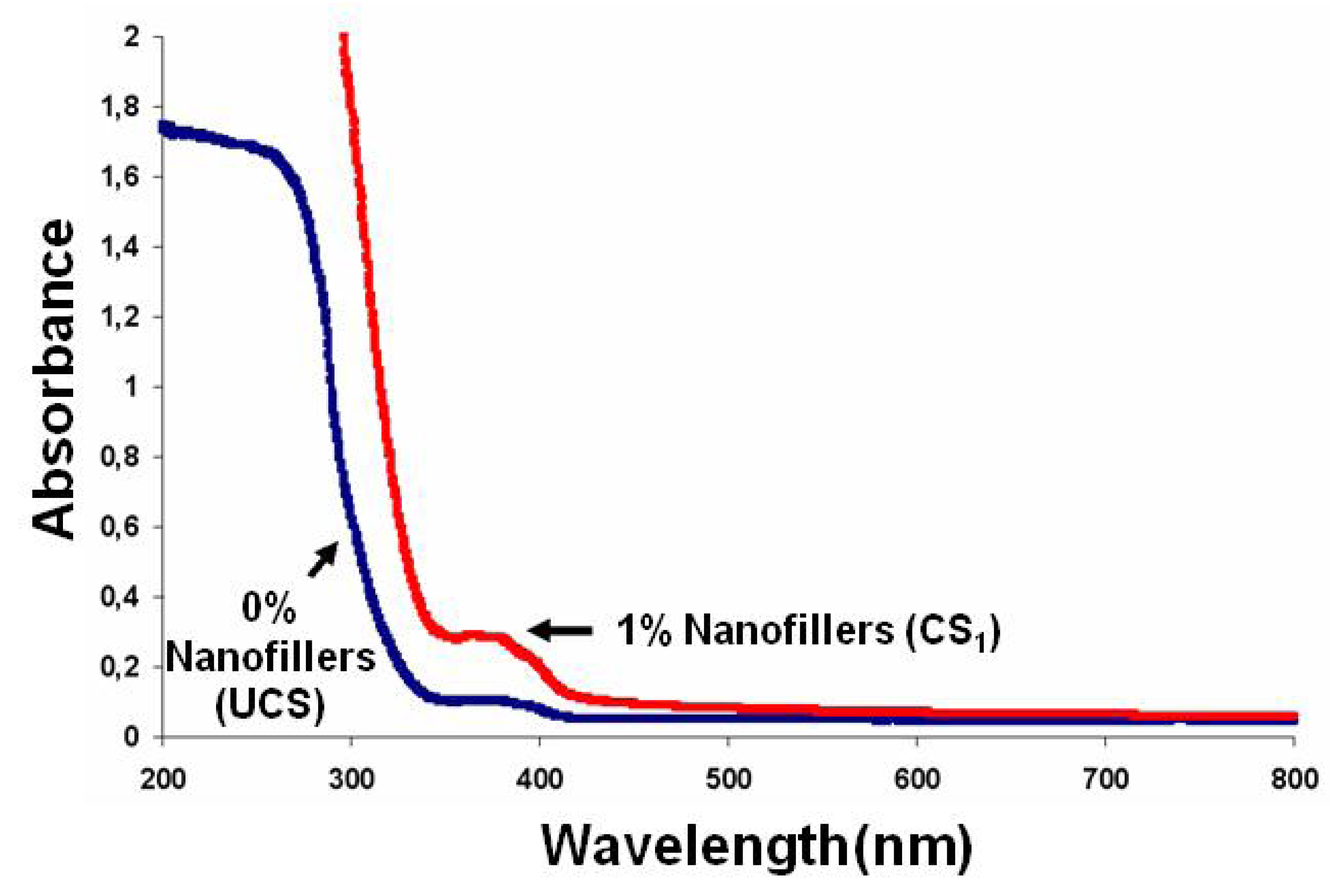

Figure 8. UV absorption spectra of crude polymer (UCS) and nanocomposite CS1.
Figure 8. UV absorption spectra of crude polymer (UCS) and nanocomposite CS1.
Nanomaterials 02 00413 g008
Figure 9. TEM micrographs of CS1 nanocomposite.
Figure 9. TEM micrographs of CS1 nanocomposite.
Nanomaterials 02 00413 g009

2.4. Properties of Nanocomposite Films

2.4.1. Viscoelastic Properties

The viscoelastic properties of the nanocomposites were evaluated by dynamic mechanical analysis on 100 µm thick samples and compared to the pure polymer. Figure 10 displays typical profiles for polymer and CS2 films by monitoring the variation of the storage modulus (E’) and the loss factor (tan δ) with increasing temperature. Youngs modulus and glass transition temperatures are gathered in Table 1.

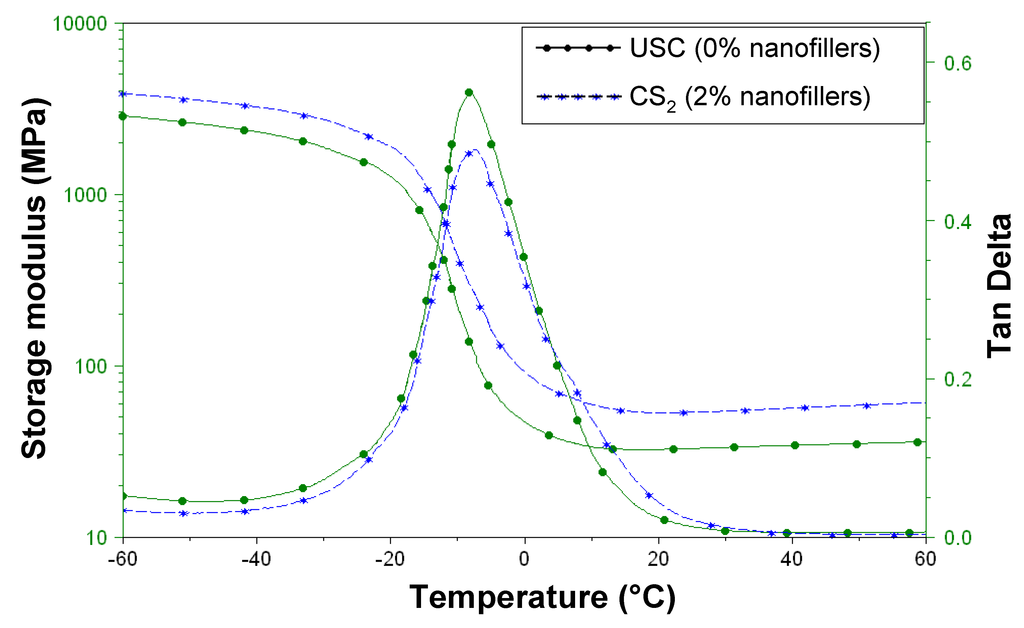

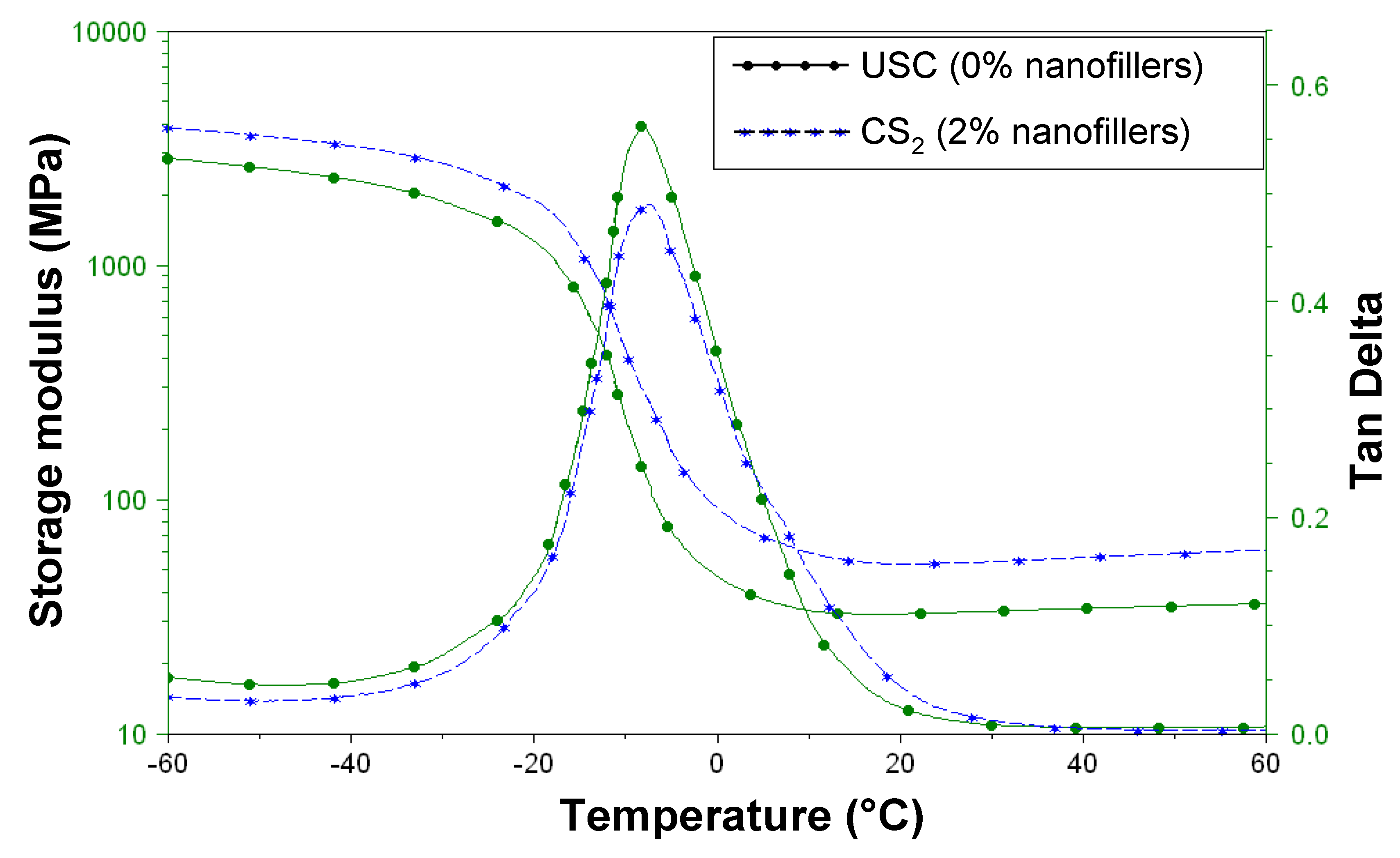

Figure 10. Viscoelastic properties of crude polymer (UCS) and CS2 nanocomposite.
Figure 10. Viscoelastic properties of crude polymer (UCS) and CS2 nanocomposite.
Nanomaterials 02 00413 g010
Table 1. Glass transition temperatures and Youngs modulus.
Table 1. Glass transition temperatures and Youngs modulus.
Sample Tg (°C)Youngs modulus (MPa) at 25 °C
crude polymer (UCS)–7.132
The high storage modulus for the CS2 sample compared to the crude polymer (53 and 32 MPa respectively) shows a significant reinforcement effect of the filler. On the contrary, no effect was observed on the glass transition temperature.

2.4.2. Hardness Properties

Table 2 shows that the addition of nanofillers in the formulation has no influence on the polymer hardness as already observed for UV cured acrylate-MMT nanocomposite [42].
Table 2. Hardness and gloss of the CS1 and CS2 nanocomposites depending on the filler content.
Table 2. Hardness and gloss of the CS1 and CS2 nanocomposites depending on the filler content.
Sample Hardness (s)Gloss at 20° (%)
crude polymer (UCS)195 ± 10100
CS1190 ± 1091
CS2192 ± 1083

2.4.3. Gloss Properties

Results gathered in Table 2 indicate a decrease of the gloss at 20° of the filler content which could be attributed to an increase of the surface roughness [41].

3. Experimental Section

3.1. Materials

Sodium acetate (NaCOOCH3, 99%; Fluka, Saint-Quentin Fallavier, France), pseudo-boehmite (Al2O3, 75%–78%, Pural SB1, Condea, Hambourg, Germany) Silica (SiO2, 99.5%, Aerosil 130; Degussa, Evonik, Rheinfeld, Germany), Iron (III) chloride hexahydrate (Strem Chemicals, 97%), hydrochloric acid (37%, Riedel-de Haën), sodium hydroxide (99%, Aldrich, Saint-Quentin Fallavie, France), 1,6-hexanediol diacrylate (HDDA, 80%, Aldrich, Saint-Quentin Fallavier, France), polyethylene glycol (400) diacrylate (SR 344, Aldrich, Saint-Quentin Fallavier, France), bis (2,4,6-trimethylbenzoyl)-phenylphosphine oxide (Irgacure 819, 100%, BASF, Ludwigshafen, Germany), hydrofluoric acid (HF, 40%; BDH, diluted to 5%) were used as received. The chemical formula of HDDA and SR344 are gathered in Table 3.
Table 3. Chemical structures of the UV-curable acrylic resins.
Table 3. Chemical structures of the UV-curable acrylic resins.
HDDA1,6-Hexanediol diacrylate Nanomaterials 02 00413 i001
SR 344Polyethylene glycol (400) diacrylate Nanomaterials 02 00413 i002

3.2. Procedures

3.2.1. Preparation of Montmorillonite

Na-montmorillonite (Na-MMT) having the following chemical composition per half a unit cell: Na0,11 (Al1,6 Mg0,45) Si4 O10 (OH,F)2 was prepared according to Reinholdt et al. [44,45].

3.2.2. Preparation of γFe2O3-MMT

Maghemite-intercalated montmorillonite (γFe2O3-MMT) was prepared by a three stage process outlined in Figure 11.

- Ion Exchange

For the ion exchange reaction, 1.0 mmol of FeCl3 was added dropwise into 20 mL of a 5 wt.% Na-MMT suspension in HCl solution (0.1 M). After 1h of sonication, the mixture was stirred at room temperature over 24 h. The solid was then recovered by centrifugation, washed thoroughly with distilled water and dried at 70 °C for 12 h. The orange colored Fe-MMT sample obtained was then ground to a fine powder.

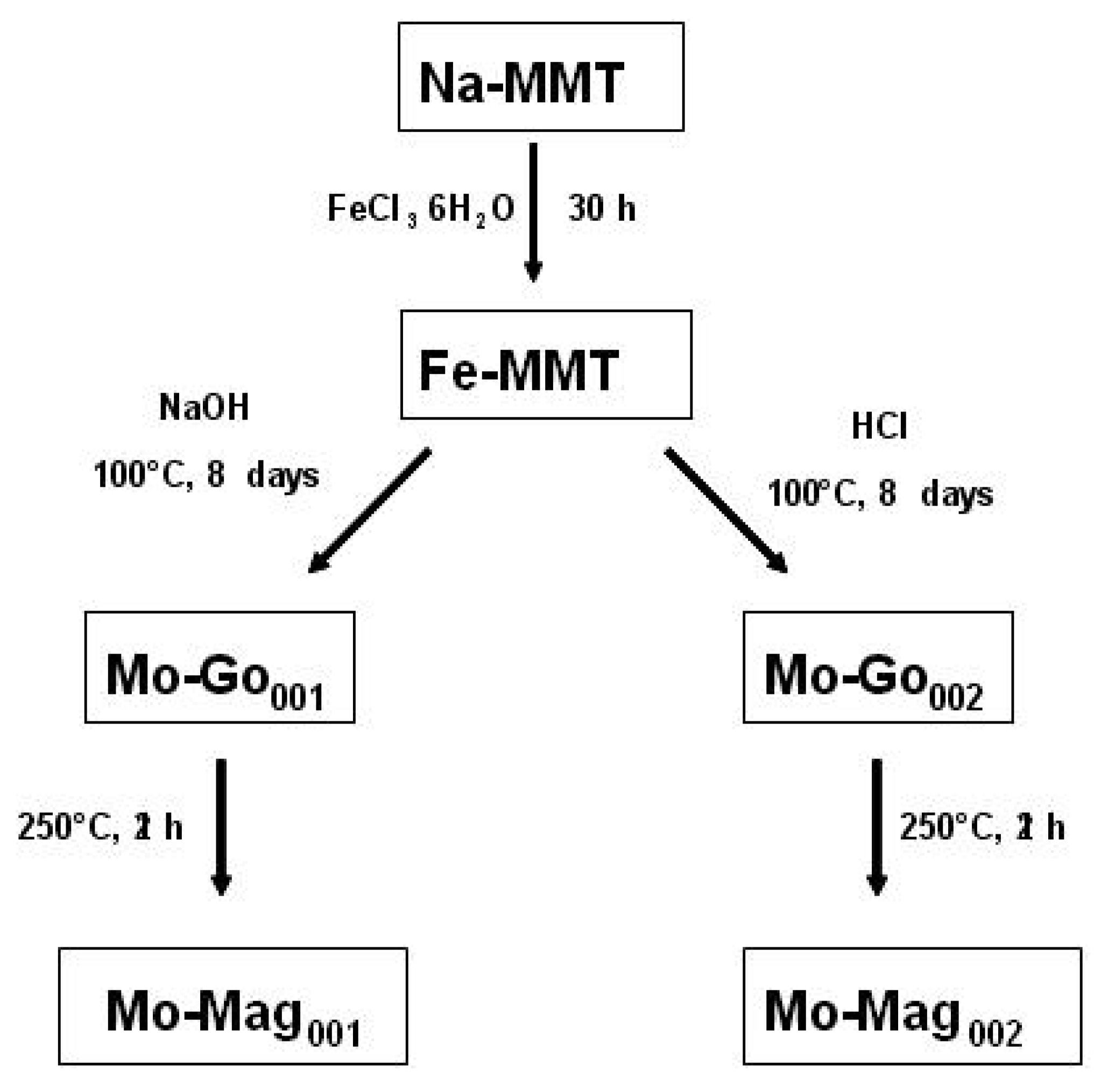

Figure 11. Synthetic pathways for the nanofillers Mo-Mag001 and Mo-Mag002.
Figure 11. Synthetic pathways for the nanofillers Mo-Mag001 and Mo-Mag002.
Nanomaterials 02 00413 g011

- Goethite Formation

Two methods were used:
The basic route [35]: 1 g of Fe-MMT was dispersed in 11 mL of water. Then 9.3 mL of a 5.4 M sodium hydroxide aqueous solution were added dropwise. The OH- to Fe3+ molar ratio and the pH were respectively 5.4 and 12.3.
The acidic route [36]: 1 g of Fe-MMT was dispersed in 23 mL of a 0.01 M hydrochloric acid aqueous solution.
In both cases, the suspensions were hydrothermally treated at 100 °C over 8 days before being cooled to room temperature, centrifuged, washed with distilled water and dried at 70 °C for 12 h and finally ground into a powder. The obtained solids were labelled Mo-Go001 (basic route) and Mo-Go002 (acidic route).

- Thermal Treatment

Sample Mo-Go001 was heated at 250 °C for 2 h under air in order to form γFe2O3-MMT brown powder, named Mo-Mag001.

3.2.3. Preparation of the Formulations and Photopolymerization

- Preparation of CS1 and CS2 Formulations

A liquid UV-curable resin was first obtained by mixing 10 wt.% of HDDA (SR238) and 90 wt.% of Polyethylene glycol (400) diacrylate (SR 344). Then 3 wt.% of Irgacure 819 and 1 wt.% (CS1) or 2 wt.% (CS2) of Mo-Mag001 were added and the mixture was sonicated for 3 h at room temperature (Fischer scientific Sonicator S-LINE).

- Photopolymerization

The liquid resin (CS1 or CS2) was applied onto a BaF2 crystal by means of a calibrated wire-wound applicator. Then 10 µm thick films with a diameter of 20 mm were exposed to a polychromatic medium pressure Hg/Xe lamp (Hamamatsu LC5 L8222-01) equipped with a reflector at 366 nm and coupled with a flexible light-guide. The end of the optical guide was placed at a distance of 3 cm from the sample and directed at an incident angle of 90° onto the sample window. The intensity was of 104 mW/cm2 measured by an International Light IL-390 radiometer. The photopolymerization process was monitored in situ by Real-Time Fourier Transform InfraRed spectroscopy (RT-FTIR IFS 66S from Bruker Optics) by monitoring the decay of the IR absorption bands at 1590 cm−1 or 1660 cm−1 for the acrylate (νC=C stretching vibration mode) under simultaneous exposure to UV light. A conversion (x) versus time curve was then monitored by following the evolution of the νC=C band area at different times (At), At=0 being the area of this band before starting the photopolymerization.
Nanomaterials 02 00413 i003
The slope of the conversion curve corresponds to the ratio of the polymerization rate (Rp) to the monomer concentration [M0]: dx/dt = Rp/[M0]. Its maximum value was used to compare the reactivity of formulations with or without nanofiller mixture.
All the irradiation experiments were performed at ambient temperature in the presence of air. The obtained nanocomposites were respectively called CS1 and CS2 nanocomposite.

3.3. Characterization

Nanofillers were characterized by powder X-ray diffraction (XRD) on a Philips X-pert diffractometer operating with Cu-Kα radiation (λ = 0.15418 nm), between 3° and 70° 2θ with a step size of 0.02° per 2 s.
Elemental analyses of Fe and Na were performed by X-ray fluorescence (XRF) with a Magix Philips (2.4 kW) apparatus. The samples were packed into pellets. Prior to analysis, calibration was performed with mixtures of SiO2 and MgCl2 at different concentrations.
Phase transformations of different iron oxides (hematite, goethite, maghemite) were determined using a thermogravimetric analyzer with a TGA/DTA 851e apparatus from Mettler-Toledo Instruments in the temperature range of 25 to 800 °C with a scanning rate of 5 °C/min under air.
Transmission electron microscopy (TEM) images of the nanofillers were taken by placing a drop of the sample dispersed in chloroform onto a carbon film supported by a copper grid. A Philips EM 120 electron microscope operating at 120 kV was used. The nanocomposites obtained after UV curing were cut by means of a microtome (LKB model 8800) after cooling of the sample to 77 K and placed on the observation grid to obtain TEM images.
The influence of the nanofillers on the optical properties (transparency and gloss) of UV-cured samples was determined by means of a UV–visible spectrophotometer (Beckman DU 7400; Villepinte, France) and by a 20° gloss-meter (micro-TRI-gloss from BYK Gardner), respectively. Gloss measurements quantify how shiny a coating is and how the presence of fillers could affect it. They measure the amount of light reflected at the specular angle which is equal but opposite to the angle of incidence. Standard test method for specular gloss generally specifies at which angle gloss is measured. In the present study, gloss was measured at 20°.
The viscoelastic properties of the samples were determined by dynamic mechanical analysis (DMA-Q 800 from TA-Instruments) operating at 1 Hz frequency and 20 µm amplitude, with a 5°/min temperature rising rate. For these experiments, 100 µm films were cured using an industrial-type UV-line (Minicure (IST) UV Conveyor System), which was operated at belt speeds between 5 and 60 m/min, i.e., UV doses of 950 and 50 mJ/cm2 per pass, respectively.
The pendulum hardness of polymer film (with or without nanofillers) was determined by using “Elcometer Model 3030 Pendulum hardness tester” on 100 µm thick films cured with the UV conveyor system. The “pendulum hardness” of coatings is reported in terms of damping time (in seconds) of the pendulum rested on the coating surface for a swing amplitude of könig pendulum going from 6° to 3°.

4. Conclusions

An original method was used to prepare new nanofillers by generating maghemite nanoparticles (γFe2O3) in the interlayer space of montmorillonite (MMT). By this process, up to 2.5 wt.% of iron was incorporated leading to a partial exfoliation of the montmorillonite. The γFe2O3-MMT/polymer nanocomposites loaded with 1 or 2 wt.% of nanofillers were then successfully obtained by photopolymerization of difunctional acrylate monomers. This offers advantages of UV-curing technology, namely, a high speed hardening of a solvent-free resin at room temperature. No inhibition effect was observed due to the presence of the nanofillers. An interesting improvement of the storage modulus of the composites was obtained for 2 wt.% of nanofillers compared to the crude polymer. Studies on the magnetic properties of these nanocomposites are under progress.


  1. Rong, M.Z.; Zhang, M.Q.; Zheng, Y.X.; Zeng, H.M. Improvement of tensile properties of nano-SiO2/PP composites in relation to percolation mechanism. Polymer 2001, 42, 3301–3304. [Google Scholar] [CrossRef]
  2. Li, Y.; Yu, J.; Guo, Z. The influence of interphase on nylon-6/nano-SiO2 composite materials obtained from in situ polymerization. Polym. Int. 2003, 52, 981–986. [Google Scholar] [CrossRef]
  3. Novakova, A.; Smirnovb, E.V.; Gendler, T.S. Magnetic anisotropy in Fe3O4-PVA nanocomposites as a result of Fe3O4-nanoparticles chains formation. J. Magn. Magn. Mater. 2006, 300, e354–e358. [Google Scholar]
  4. Ali-zade, R.A. Structure and magnetic properties of polymer microspheres filled with magnetite nanoparticles. Inorg. Mater. 2004, 40, 509–515. [Google Scholar] [CrossRef]
  5. Dumont, M.J.; Reyna-Valencia, A.; Emond, J.P.; Bousmina, M. Barrier properties of polypropylene/organoclaynanocomposites. J. Appl. Polym. Sci. 2007, 103, 618–625. [Google Scholar]
  6. Zhu, J.; He, Q.; Luo, Z.; Khasanov, A.; Li, Y.; Sun, L.; Wang, Q.; Wei, S.; Guo, Z. Property manipulated polypropylene–iron nanocomposites with maleic anhydride polypropylene. J. Mater. Chem. 2012, 22, 15928–15938. [Google Scholar]
  7. Gass, J.; Poddar, P.; Almand, J.; Srinath, S.; Srikanth, H. Superparamagnetic polymer nanocomposites with uniform Fe3O4 nanoparticle dispersions. Adv. Funct. Mater. 2006, 16, 71–75. [Google Scholar]
  8. Qiu, G.; Wang, Q.; Nie, M. Polyaniline/Fe3O4 magnetic nanocomposite prepared by ultrasonic irradiation. J. Appl. Polym. Sci. 2006, 102, 2107–2111. [Google Scholar] [CrossRef]
  9. Schmidt, A.M. Electromagnetic activation of shape memory polymer networks containing magnetic nanoparticles. Macromol. Rapid Commun. 2006, 27, 1168–1172. [Google Scholar]
  10. He, Q.; Yuan, T.; Zhu, J.; Luo, Z.; Haldolaarachchige, N.; Sun, L.; Khasanov, A.; Li, Y.; Young, D.P.; Wei, S.; et al. Magnetic high density polyethylene nanocomposites reinforced with in situ synthesized [email protected] core-shell nanoparticles. Polymer 2012, 53, 3642–3652. [Google Scholar] [CrossRef]
  11. Alexandre, M.; Dubois, P. Polymer-layered silicate nanocomposites: Preparation, properties and uses of a new class of materials. Mater. Sci. Eng. Rev. 2000, 28, 1–63. [Google Scholar] [CrossRef]
  12. Zhu, J.; Wei, S.; Haldolaarachchige, N.; Young, D.P.; Guo, Z. Electromagnetic field shielding polyurethane nanocomposites reinforced with core–shell Fe–Silica nanoparticles. J. Phys. Chem. C 2011, 115, 15304–15310. [Google Scholar]
  13. Roco, M.C. Nanoparticles and nanotechnology research. J. Nanopart. Res. 1999, 1, 1–6. [Google Scholar]
  14. Kronmüller, H.; Fischer, R.; Bachmann, M.; Leineweber, T. Magnetization processes in small particles and nanocrystalline materials. J. Magn. Magn. Mater. 1999, 203, 12–17. [Google Scholar] [CrossRef]
  15. Barbic, M. Single domain magnets in bio-medical applications. Eur. J. Cells Mater. 2002, 3, 132–134. [Google Scholar]
  16. Ciobanu, C.C.; Iconaru, S.L.; Gyorgy, E.; Radu, M.; Costache, M.; Dinischiotu, A.; Le Coustumer, P.; Lafdi, K.; Predoi, D. Biomedical properties and preparation of iron oxide-dextran nanostructure by MAPLE technique. Chem. Cent. J. 2012, 6, 1–12. [Google Scholar] [CrossRef]
  17. Neamtu, J.; Verga, N. Magnetic nanoparticles for magneto-resonance imaging and targeted drug delivery. Dig. J. Nanomater. Biostruct. 2011, 6, 969–978. [Google Scholar]
  18. Mahoudi, M.; Simchi, A.; Imani, M.; Hafali, U.O. Superparamagnetic iron oxide nanoparticles with rigid cross-linked polyethylene glycol fumarate coating for application in imaging and drug delivery. J. Phys. Chem. C 2009, 113, 8124–8131. [Google Scholar]
  19. Massart, R. Préparation de ferrofluides aqueux en l’absence de surfactant, comportement en fonction du pH et de la nature des ions présents en solution. C. R. Acad. Sci. Paris 1980, C1, t291. [Google Scholar]
  20. Meneghetti, P.; Qutubuddin, S. Synthesis, thermal properties and applications of polymer-clay nanocomposites. Thermochim. Acta 2006, 442, 74–77. [Google Scholar] [CrossRef]
  21. Betega de Paiva, L.; Morales, A.R.; Valenzuela Diaz, F.R. Organoclays: Properties, preparation and applications. Appl. Clay Sci. 2008, 42, 8–24. [Google Scholar]
  22. Jaber, M.; Miehe-Brendle, J. Organoclays: Preparation, Properties and Applications. In Ordered Porous Solids; Valtchev, V., Mintova, S., Tsapatsis, M., Eds.; Elsevier: London, UK, 2008; pp. 31–49. [Google Scholar]
  23. Godowsky, D.Y.; Varfolomeev, A.V.; Efremova, G.D.; Cherepanov, V.M.; Kapustin, G.A.; Volkov, A.V.; Moskvina, M.A. Magnetic properties of polyvinyl alcohol-based composites containing iron oxide nanoparticles. Adv. Mater. Opt. Electron. 1999, 9, 87–91. [Google Scholar]
  24. Zhitomirsky, I.; Niewczas, M.; Petric, A. Electrodeposition of hybrid organic-inorganic films containing iron oxide. Mater. Lett. 2003, 57, 1045–1050. [Google Scholar] [CrossRef]
  25. Yrkov, G.Y.; Gubin, S.P.; Pankratov, D.A.; Koksharov, Y.A.; Kozinkin, A.V.; Spichkin, Y.I.; Nedoseikina, T.I.; Pirog, I.V.; Vlasenko, V.G. Iron (III) oxide nanoparticles in a polyethylene matrix. Inorg. Mater. 2002, 38, 137–145. [Google Scholar] [CrossRef]
  26. Wilson, J.L.; Poddar, P.; Frey, N.A.; Srikanth, H.; Mohomed, K.; Harmon, J.P.; Kotha, S.; Wachsmuth, J. Synthesis and magnetic properties of polymer nanocomposites with embedded iron nanoparticles. J. Appl. Phys. 2004, 95, 1439–1443. [Google Scholar]
  27. Peeterbroeck, S.; Alexandre, M.; Dubois, P. Processing of Polymer Nanocomposites: New Developments and Challenges. In Recent Advances in Polymer Nanocomposites: Synthesis and Characterisation; Thomas, S., Valsaraj, S.V., Meera, A.P., Zaikov, G., Eds.; CRC Press: Boca Raton, FL, USA, 2010; pp. 19–47. [Google Scholar]
  28. Zhang, Y.; Evans, J.R.G. Approaches to the manufacture of layered nanocomposites. Appl. Surf. Sci. 2012, 258, 2098–2102. [Google Scholar]
  29. Bitinis, N.; Hernandez, M.; Verdejo, R.; Kenny, J.M.; Lopez-Manchado, M.A. Recent advances in clay/polymer nanocomposites. Adv. Mater. 2011, 23, 5229–5236. [Google Scholar] [CrossRef]
  30. Akbari, A.; Talebanfard, S.; Hassan, A. The effect of the structure of clay and clay modifier on polystyrene-clay nanocomposite morphology: A review. Polym.-Plast. Technol. Eng. 2010, 49, 1433–1444. [Google Scholar] [CrossRef]
  31. Flesch, C.; Unterfinger, Y.; Bourgeat-Lami, E.; Duguet, E.; Delaite, C.; Dumas, P. Poly(ethylene glycol) surface coated magnetic particles. Macromol. Rapid Commun. 2005, 26, 1494–1498. [Google Scholar] [CrossRef]
  32. Azadmajiri, J.; Hojati-Talemi, P.; Simon, G.P.; Suzuki, K.; Selomulya, C. Synthesis and electromagnetic interference shielding properties of iron oxide/polypyrrolenanocomposites. Polym. Eng. Sci. 2011, 51, 247–253. [Google Scholar]
  33. Agarwal, T.; Gupta, K.A.; Alam, S.; Zaidi, M.G.H. Fabrication and characterization of iron oxide filled polyvinylpyrrolidone nanocomposites. Int. J. Compos. Mater. 2012, 2, 17–21. [Google Scholar]
  34. Laachachi, A.; Leroy, E.; Cochez, M.; Ferriol, M.; Cuesta, J.M.L. Use of oxide nanoparticles and organoclays to improve thermal stability and fire retardancy of poly(methyl methacrylate). Polym. Degrad. Stab. 2005, 89, 344–352. [Google Scholar]
  35. Mamedov, A.; Ostrander, J.; Aliev, F.; Kotov, N.A. Stratified assemblies of magnetite nanoparticles and montmorillonite prepared by the layer-by-layer assembly. Langmuir 2000, 16, 3941–3949. [Google Scholar] [CrossRef]
  36. Vassilios, T.; Georgi, B.; Vassilios, T.; Georgia, B.; Aristides, B.; Costas, G.; Hadjipanayis, H.; Mao, D.; Niarchos, G.; Hadjipanayis, C.; et al. Immobilization of magnetic iron oxide nanoparticles on laponite discs—An easy way to biocompatible ferrofluids and ferrogels. J. Mater. Chem. 2010, 20, 5418–5428. [Google Scholar]
  37. Sugimoto, T.; Muramatsu, A.; Sakata, K.; Shindo, D. Characterization of hematite particles of different shapes. J. Colloid Interface Sci. 1993, 158, 420–428. [Google Scholar] [CrossRef]
  38. Bailey, J.K.; Brinker, C.J.; Mercartney, M.L. Growth mechanisms of iron oxide particles of differing morphologies from the forced hydrolysis of ferric chloride solutions. J. Colloid Interface Sci. 1993, 157, 1–13. [Google Scholar] [CrossRef]
  39. Fang, J.; Kumbhar, A.; Zhou, W.L.; Stokes, K.L. Nanoneedles of maghemite iron oxide prepared from a wet chemical route. Mater. Res. Bull. 2003, 38, 461–467. [Google Scholar] [CrossRef]
  40. Cudennec, Y.; Lecerf, A. Topotactic transformations of goethite and lepidocrocite into hematite and maghemite. Solid State Sci. 2005, 7, 520–529. [Google Scholar] [CrossRef]
  41. Mazo-Zuluaga, J.; Barrero, C.A.; Diaz-Teran, J.; Jerez, A. Thermally induced magnetite–haematite transformation. Hyperfine Interact. 2003, 148–149, 153–161. [Google Scholar] [CrossRef]
  42. Keller, L.; Decker, C.; Zahouily, K.; Benfarhi, S.; Meins, J.M.L.; Miehe-Brendle, J. Synthesis of polymer nanocomposites by UV-curing of organoclay–acrylic resins. Polymer 2004, 45, 7437–7441. [Google Scholar] [CrossRef]
  43. Decker, C.; Keller, L.; Zahouily, K.; Benfarhi, S. Synthesis of nanocomposite polymers by UV-radiation curing. Polymer 2005, 46, 6640–6648. [Google Scholar]
  44. Reinholdt, M.; Miehe-Brendle, J.; Delmotte, L.; Tuilier, M.-H.; le Dred, R.; Cortes, R.; Flank, A.-M. Fluorine route synthesis of montmorillonites containing Mg or Zn and characterization by XRD, thermal analysis, MAS NMR, and EXAFS spectroscopy. Eur. J. Inorg. Chem. 2001, 11, 2831–2841. [Google Scholar]
  45. Reinholdt, M.; Miehe-Brendle, J.; Delmotte, L.; le Dred, R.; Tuilier, M.-H. Synthesis and characterization of montmorillonite-type phyllosilicates in a fluoride medium. Clay Miner. 2005, 40, 177–190. [Google Scholar] [CrossRef]
