Enhanced Rashba Effect and Optical Absorption in 2D Janus XMoYZ₂ (X = S/Se/Te; Y = Si/Ge; Z = N/P): A First-Principles Study

Abstract

To overcome the physical constraints during the miniaturization of conventional semiconductor devices, spintronics is playing an increasingly prominent role. The Rashba effect, characterized by spin–momentum locking, has emerged as a promising solution to address challenges. Two-dimensional (2D) Janus transition metal dichalcogenides (TMDCs) break spatial inversion symmetry, creating favorable conditions for the Rashba effect. Based on first-principles calculations, 2D Janus materials XMoYZ₂ (X = S/Se/Te; Y = Si/Ge; Z = N/P) were investigated, with strain, external electric field and charge doping employed to modulate the Rashba effect. The strain results reveal that the Rashba constants of XMoYZ₂ increase significantly with compressive strain. Specifically, after applying uniaxial strain, the Rashba constant of TeMoSiP₂ is enhanced to ~2.2 times its initial value. Compressive strain reduces atomic spacing, enhances orbital overlap, and increases spin–orbit coupling (SOC) strength. All the TeMoYZ₂ materials exhibit significant anisotropy under uniaxial strain, which is favorable for spin-oriented transport. SeMoGeP₂ shows an almost linear Rashba constant–electric field correlation, while TeMoGeP₂ and TeMoSiP₂ show non-monotonic variation. The Rashba constant of TeMoSiP₂ can be enhanced to ~2.7 times its intrinsic value under either positive or negative applied electric fields. Charge doping induces negligible changes in the SOC effect. Finally, the optical absorption properties of TeMoGeP₂, TeMoSiN₂, and TeMoSiP₂ were investigated. This study clarifies the mechanism underlying the enhancement of Rashba constants in XMoYZ₂ materials, enriching the research landscape of spintronics.

1. Introduction

As Moore’s Law approaches physical limit, researchers have leveraged spin transport to mitigate quantum tunneling induced by charge-based transport. With the advancement of spintronics, the Rashba effect [1,2,3,4,5,6], arising from the effective magnetic field generated by moving electrons, has emerged as a research hotspot. It establishes a correlation between electron momentum and spin orientation via a specific energy term [7,8]. The Rashba effect can be manipulated during spin transport processes, achieving spin filtering through valley polarization [9,10]. A strong Rashba effect implies that a weak external field can achieve modulation of spin directions, reducing energy consumption [11]. Based with spin–momentum locking, the Rashba effect enables novel architectures to overcome bottlenecks, paving the way for high-performance devices [12].

Two-dimensional materials have become an ideal platform for the Rashba effect. However, as a zero-bandgap semiconductor, graphene is unfavorable for discrete information storage, and the stability of black phosphorus and the carrier mobility of traditional 2D materials pose challenges; although strong Rashba effects can been observed in several bulk materials, it remains unclear whether such effects can persist at the atomic scale [13]. Recent studies have demonstrated that 2D Janus materials exhibit excellent Rashba effects and spin tunability, attributed to their spatial inversion asymmetry [14,15,16], and transition metal dichalcogenides (TMDCs) have emerged as a focus [17,18]. These materials possess suitable bandgaps and intrinsic out-of-plane electric fields induced by different vertically aligned atoms [19,20,21,22,23]. Reports have revealed that such intrinsic fields exhibit superior efficacy in enhancing the Rashba effect compared to externally electric fields.

The Rashba effect typically occurs in confined two-dimensional electron gas systems. The Bychkov–Rashba Hamiltonian can be described by the $k\cdot p$ model [24].

$$H_R=\alpha (\sigma \times p)\cdot \stackrel{\wedge }{z}=\alpha ({\sigma }_x{p}_y-{\sigma }_y{p}_x)$$

(1)

where $\alpha$ denotes the Rashba constant, $p=\left(\begin{array}{c}{p}_x\\ p_y\end{array}\right)$ represents the momentum operator, $\widehat{z}$ is the out-of-plane unit normal vector, and the spin operator $\sigma =\left({\sigma }_x,{\sigma }_y,{\sigma }_z\right)$ corresponds to the Pauli spin matrices.

The Hamiltonian of the system can be expressed by the following formula.

$$H={\displaystyle \frac{p^2}{2m^{\ast }}}+V_0(r)+{\displaystyle \frac{e{\hslash }^2{E}_z}{4m^{\ast 2}{c}^2}}({\sigma }_x{p}_y-{\sigma }_y{p}_x)$$

(2)

where the first term represents the kinetic energy term ($m^{\ast }$: effective mass), the middle term denotes the external electric potential, the last term corresponds to the Rashba SOC Hamiltonian, and $E_z$ indicates the perpendicular electrostatic potential gradient.

Let

$${\alpha }_R={\displaystyle \frac{e{\hslash }^2{E}_z}{4m^{\ast 2}{c}^2}}$$

(3)

The eigenvalues of the Rashba effect are derived as

$$E_{R_{\pm }}={\displaystyle \frac{{\hslash }^2{k}^2}{2m^{\ast }}}\pm {\alpha }_{R}k$$

(4)

The Rashba constant ${\alpha }_R$ is given by the quotient of the difference in energy and difference in momentum from the splitting point to the VBM or the CBM

$${\alpha }_R=2{\displaystyle \frac{E_R}{k_R}}$$

(5)

In this paper, Rashba splitting occurs in the valence band; $E_R$ and $k_R$ are defined as

$$E_R=\left|E_{\Gamma }-E_{\max }\right|$$

(6)

$$k_R=\left|k_{\Gamma }-k_{\max }\right|$$

(7)

where $E_{\max }$ and $E_{\Gamma }$ represent the maximum energy along two directions around and at the Γ point, respectively; $k_{\max }$ and $k_{\Gamma }$ are the momentum values corresponding to $E_{\max }$ and $E_{\Gamma }$.

For uniaxial strain, the lattice constants along the x-axis follow

$$a=a_0\left(1+{\epsilon }_x\right)$$

(8)

The other lattice constants follow

$$b_x=b_{0x}\left(1+{\epsilon }_x\right),b_y=b_{0y}\left(1+{\epsilon }_x\right)$$

(9)

Freitas et al. pointed out that the density of states, bandgap type and size, orbital contributions, and topological insulating properties of XBi and XBi₃ all undergo changes when SOC was considered, demonstrating that SOC can influence the topological properties [25]. Szczęśniak proposed the concept of metal induced gap states, transforming the insulating gap into metal like through altering the electronic distribution, governing Fermi level pinning, and mediating valley–spin polarized charge injection and transport, predicting that such states could mediate valley-resolved and spin-resolved charge transport near the electrode/MX₂ interface, thereby resulting in valley–spin filtering [10]. Compared with reports on the strong Rashba effect in BiTeI monolayers, XMoYZ₂ exhibits significant anisotropy, which can generate spin currents in a directional manner. This is an advantage that is difficult to achieve with BiTeI. Even though ${\alpha }_R$ has not reached a record value, its anisotropy and controllability provide a new dimension for spin devices [26,27]. Wei et al. screened 26 Janus MAA’Z_xZ’_(4−x) layers and found that the Rashba effect in these materials is dominated by Se/Te-p_z orbitals [2]. The ${\alpha }_R$ reached 0.89 eV·Å, revealing that the intensity of the Rashba effect is closely correlated with the built-in electric field and the SOC strength. Farooq et al. showed that spin–momentum locking can be switched by a gate voltage in AB’ stacked InSe [28]. Rezavand et al. investigated 15 Janus TMDC stacking structures and found that Rashba splitting only exists in adjacent stacks with different chalcogen atoms; this effect is the most pronounced in AA-XY and A’B-XY stacking configurations, and can be significantly enhanced by an out-of-plane electric field or appropriate in-plane strain [29,30]. Hu et al. applied a high electric field of 0.5 V/Å to WSeTe, increasing its Rashba constant by 0.31 eV·Å, which confirmed the feasibility of two-dimensional materials under high electric fields [31]. These studies have shown that the strength of Rashba spin splitting can be significantly tuned by strain [32]. Su et al. studied the Rashba effect of SnS and SnSe monolayers, and found that applying strain along the ZZ, AC and biaxial directions could not only induce a bandgap transformation, but also effectively modulate the momentum shift and splitting strength [33]. Specifically, the ${\alpha }_R$ of the SnS monolayer reached 0.76 eV·Å under 6% ZZ tensile strain while that of SnSe reached 1.33 eV·Å under 2% biaxial tensile strain. In the experiment, Sibatov et al. proposed that XMoSiN₂ can be achieved by substituting chalcogen elements for SiN₂ on one side of MoSi₂N₄ [27], and MoSi₂N₄ has been successfully prepared experimentally by chemical vapor deposition (CVD) [34]. Strain can be realized through epitaxial growth on substrates with lattice or thermal expansion mismatch and direct stretching or compressing of flexible substrates [35].

The XMoYZ₂ (X = S/Se/Te, Y = Si/Ge, Z = N/P) series is selected to investigate the structure–property relationships. Chalcogen X is used to tune spin–orbit coupling strength, group-IV Y modulates the electronic structure near the Fermi level, and pnictogen Z (N/P) provides complementary bonding and valence orbital features. This allows us to clarify their individual effects on the electronic and spin-related properties. Zamanian et al. reported the intrinsic Rashba constants of XMoYZ₂ but the modulations for enhancing Rashba constants were not elaborated [25]. Therefore, the strain, electric field and charge doping were adopted to improve the Rashba constants.

2. Computational Methods

First-principles calculations were performed, with the Perdew–Burke–Ernzerhof (PBE) exchange correlation [36,37]. The Projector Augmented Wave (PAW) was adopted [38]. The cutoff energy of 500 eV was set for all calculations. The convergence criterion for electronic iterations was fixed at 10⁻⁸ eV while the ionic relaxation was 10⁻⁴ eV/Å. Gaussian broadening with a width of 0.05 eV was used. A 15 × 15 × 1 Monkhorst–Pack k-mesh was employed for structural optimization and optical absorption calculations. Too dense k-point samples would result in the same energy corresponding to different k-points; therefore, selecting 301 samples is sufficient enough to ensure the accuracy of Δk. The out-of-plane lattice constant was extended to 30 Å to ensure an approximately 15 Å vacuum layer. Bader charge analysis was incorporated to quantify the charge transfer [39]. The SOC was considered in all calculations.

Among all the modulations, the atoms’ relaxation was first calculated for all sampling points. When applying strain, we fixed the calculated lattice constants. When applying electric fields, the dipole correction was activated and its position was set at the center; the electric fields were set to gradually increase along the z axis. Valence electron numbers ± ne means that 1 e per unit cell is equivalent to about 0.0082 e per Ų. (For instance, taking the TeMoSiP₂ lattice constant as an example, when doping with 0.1 e, it means that 10 unit-cells are doped with 1 e, and the charge density is ${\displaystyle \frac{1}{{3.493}^2\times 10}}\approx 0.0082\left(e/{\AA }^2\right)$).

Phonon dispersions were calculated to evaluate the dynamical stability. The force constants were obtained via Density Functional Perturbation Theory (DFPT) [40,41]. The unit cell was expanded to 2 × 2 × 1, and a 5 × 5 × 1 k-mesh was used.

3. Results and Discussion

3.1. Structure

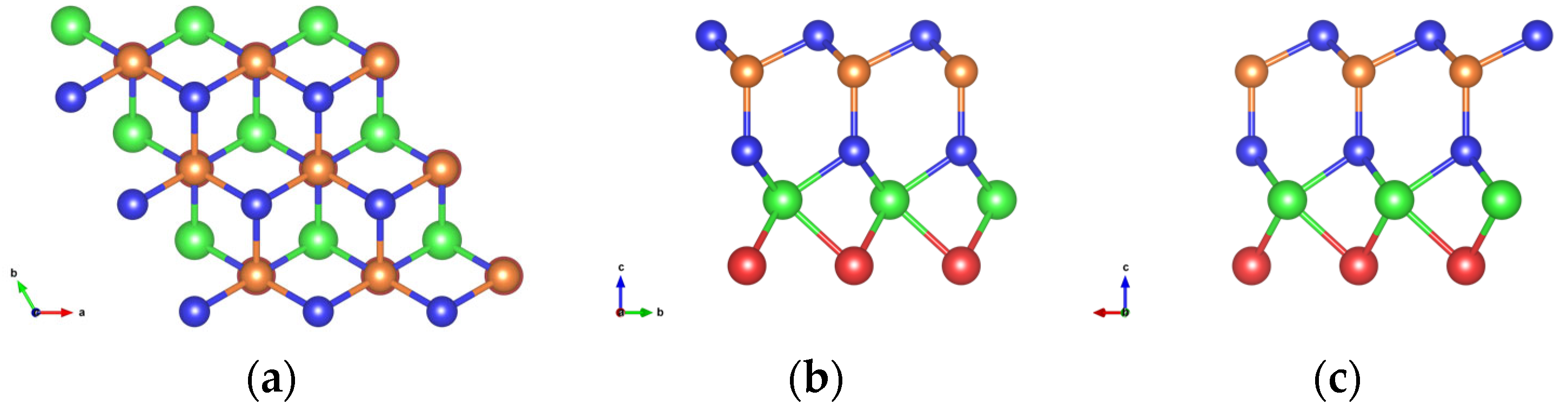

As illustrated in Figure 1a–c, XMoYZ₂ structures crystallize in the hexagonal crystal system. Based on this stacking structure, twelve monolayers were constructed, namely, SeMoGeN₂, SeMoGeP₂, SeMoSiN₂, SeMoSiP₂, SMoGeN₂, SMoGeP₂, SMoSiN₂, SMoSiP₂, TeMoGeN₂, TeMoGeP₂, TeMoSiN₂ and TeMoSiP₂. The chalcogenides are located at the bottom layer, the transition metal Mo at the fourth layer, N/P at the third and first layers and Si/Ge occupy the second layer. The XMoYZ₂ structures belong to the C₃ Schönflies point group. Rotations around the axis passing through Mo and perpendicular to the monolayer plane (via C₃¹ and C₃² operations) can map the XMoYZ₂ structures onto themselves. The Janus structures, induced by the asymmetric vertical layer distribution, break the C₃h point group symmetry, which directly results in the absence of spatial inversion symmetry. The lattice constants and other critical data are summarized in

Table 1. The lattice constants and bond lengths of XMoYZ₂; Z₁ and Z₂ represent the middle layers and the outside layers, respectively.

	α(Å), a = b	Ref. [22]	lX-Mo (Å)	lMo-Z1 (Å)	lZ1-Y (Å)	lY-Z2 (Å)
SeMoGeN2	3.103	3.100	2.511	2.137	1.882	1.881
SeMoGeP2	3.478	3.471	2.585	2.449	2.325	2.300
SeMoSiN2	3.013	3.009	2.499	2.115	1.752	1.802
SeMoSiP2	3.428	3.421	2.574	2.439	2.239	2.236
SMoGeN2	3.067	3.067	2.390	2.132	1.878	1.867
SMoGeP2	3.436	3.434	2.473	2.444	2.324	2.288
SMoSiN2	2.980	2.980	2.374	2.109	1.751	1.786
SMoSiP2	3.386	3.385	2.461	2.434	2.239	2.223
TeMoGeN2	3.169	3.169	2.696	2.150	1.889	1.908
TeMoGeP2	3.545	3.542	2.750	2.460	2.328	2.320
TeMoSiN2	3.077	3.077	2.690	2.130	1.755	1.833
TeMoSiP2	3.493	3.493	2.743	2.448	2.240	2.256

, with reference values provided for comparison.

3.2. Stability

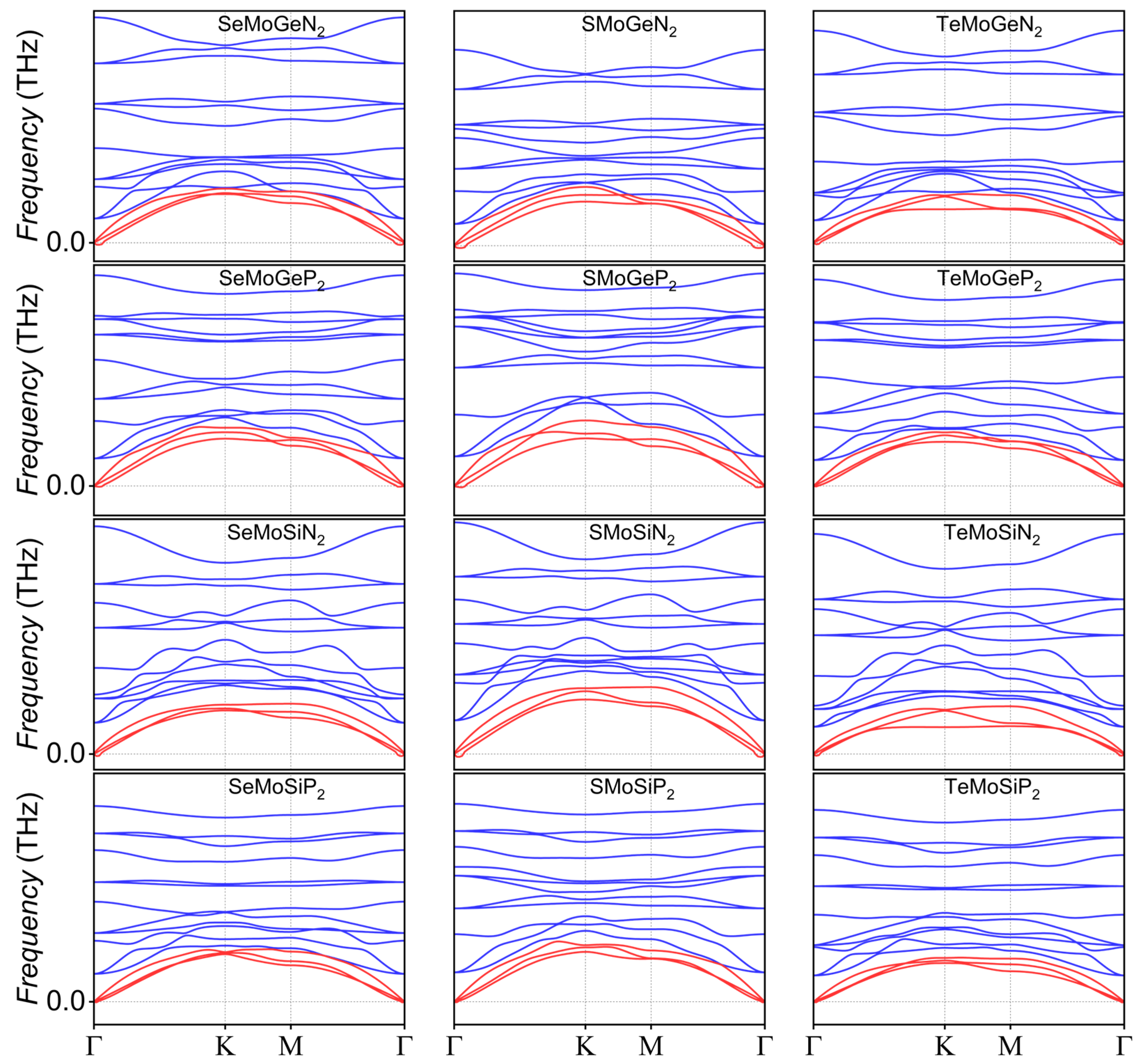

Figure 2 displays the phonon dispersion of XMoYZ₂, which consists of three acoustic branches and twelve optical branches. Small imaginary frequencies are observed near the Γ point. Such weak imaginary frequencies are often not indicative of instability but rather arise from computational artifacts or finite size, which means that their frequencies are easily affected by noise in force calculations, insufficient relaxation, or inadequate sampling of the Brillouin zone, all of which can introduce small imaginary frequencies, particularly for low-energy flexural phonons [42,43].

3.3. Potential Energy and Charge Analysis

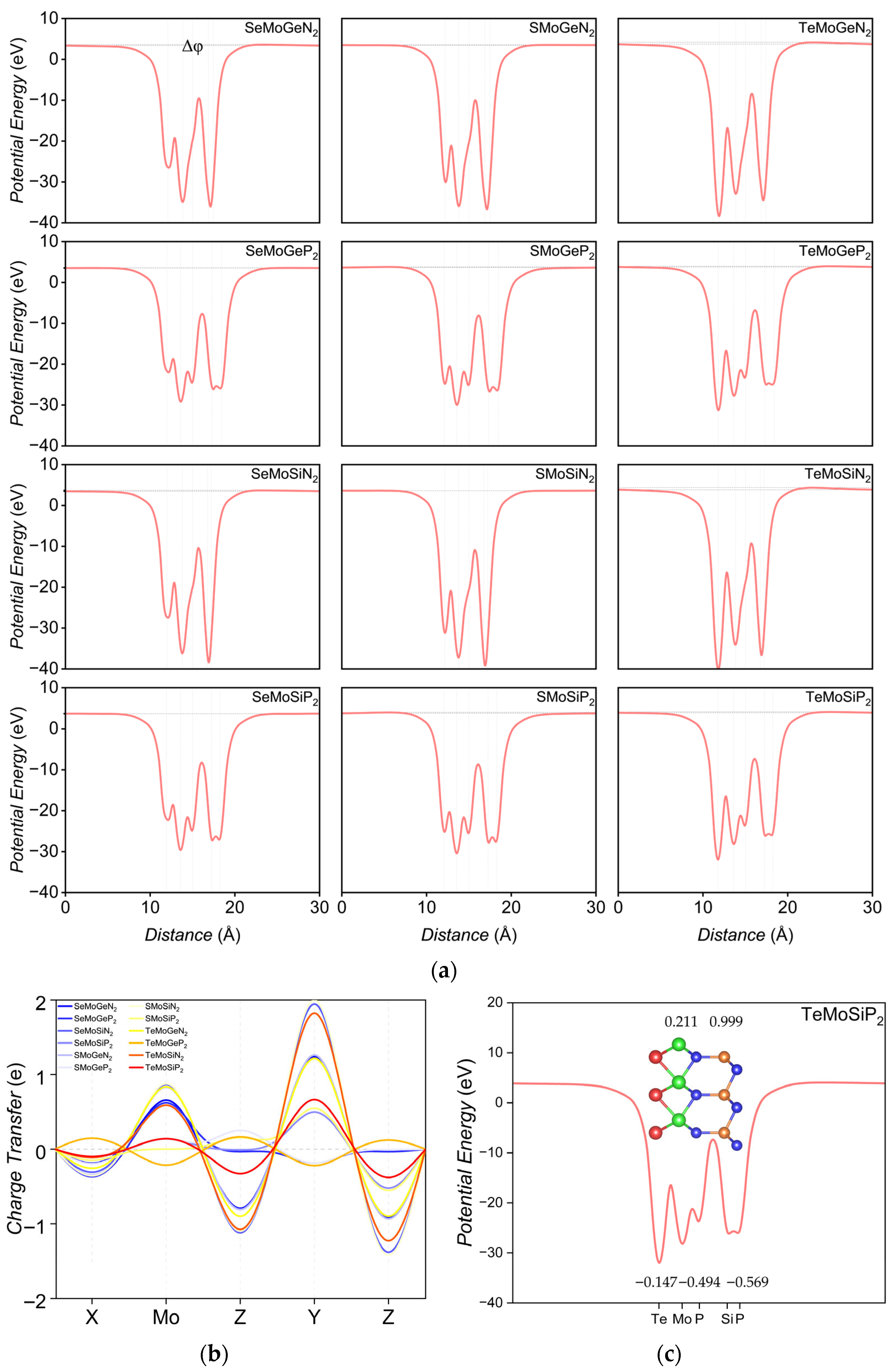

Based on Figure 3a and

Table 2. The potential difference Δϕ, charge accumulation and depletion per layer of XMoYZ₂.

	Δφ	Se/S/Te	Mo	N/P	Ge/Si	N/P
SeMoGeN2	0.232	−0.281	0.988	−1.191	1.861	−1.377
SeMoGeP2	0.018	−0.556	0.934	−0.048	−0.279	−0.050
SeMoSiN2	0.194	−0.464	1.299	−1.680	2.918	−2.073
SeMoSiP2	0	−0.161	0.209	−0.012	0.748	−0.783
SMoGeN2	0.027	−0.522	1.244	−1.215	1.893	−1.400
SMoGeP2	−0.156	−0.292	0.200	0.380	−0.279	−0.008
SMoSiN2	0	−0.537	1.317	−1.647	3.000	−2.133
SMoSiP2	−0.224	−0.225	0.001	0.233	0.822	−0.831
TeMoGeN2	0.460	−0.385	1.254	−1.347	1.825	−1.347
TeMoGeP2	0.176	0.221	−0.321	0.248	−0.330	0.183
TeMoSiN2	0.492	−0.167	0.885	−1.613	2.737	−1.842
TeMoSiP2	0.182	−0.147	0.211	−0.494	0.999	−0.569

, TeMoSiN₂ exhibits the largest potential difference, which corresponds to the other studies [22]. The high electronegativity of N atoms endows them with a stronger electron-attracting capability than P atoms, leading to a larger electronegativity difference between N and Y/Mo atoms. This electronegativity discrepancy results in remarkable charge transfer in XMoYN₂ materials. For instance, for TeMoSiN₂, the charge transfer of the two N layers reaches −1.613 e and −1.842 e, respectively, which contributes to the stronger vertical intrinsic electric field. This electric field may exhibit high coupling efficiency with the Mo-d_z² orbital, thereby enhancing the Rashba effect. In contrast, the electronegativity difference between P atoms and other constituent elements is relatively small, which consequently weakens the Rashba effect. The electronegativity of Te and Mo atoms is nearly equal, which makes the electron cloud of the Mo-d_z² orbital less likely to be attracted by the Te layer; instead, it tends to hybridize with the Z₂-p_z and Y-p_z orbitals. This result may enhance the SOC strength, rendering the Rashba constants of TeMoYZ₂ materials more sensitive to the modulation. In contrast, the electronegativity difference between S/Se and Mo atoms may induce a shift in the Mo-d_z² orbital electron cloud toward the X layer, which may impair hybridization efficiency with the p_z orbitals of the top layers. This further leads to weakened SOC, resulting in the Rashba effect and modulation potential of SMoYZ₂ or SeMoYZ₂ being inferior to those of TeMoYZ₂ counterparts.

Figure 3b,c reveal the intrinsic electric field inside the monolayers. Specifically, for TeMoSiP₂, the Te layer loses a net charge of 0.147 e, while the Mo layer and its adjacent P layer accumulate and lose charges of −0.211 e and 0.494 e, respectively. The Si layer gains a net charge of 0.999 e, and the outermost P layer loses a net charge of 0.569 e. Notably, the charge transfer of SMoGeP₂ and TeMoGeP₂ is opposite to that of most other monolayers. In case of TeMoGeP₂, for example, the Te layer loses a net charge of 0.221 e, while the Mo layer gains a net charge of 0.321 e; the P₁, Ge, and P₂ layers undergo charge changes of 0.248 e, 0.330 e, and 0.183 e, respectively. The charge accumulation and depletion for each layer are summarized in Table 2.

3.4. Spin Texture

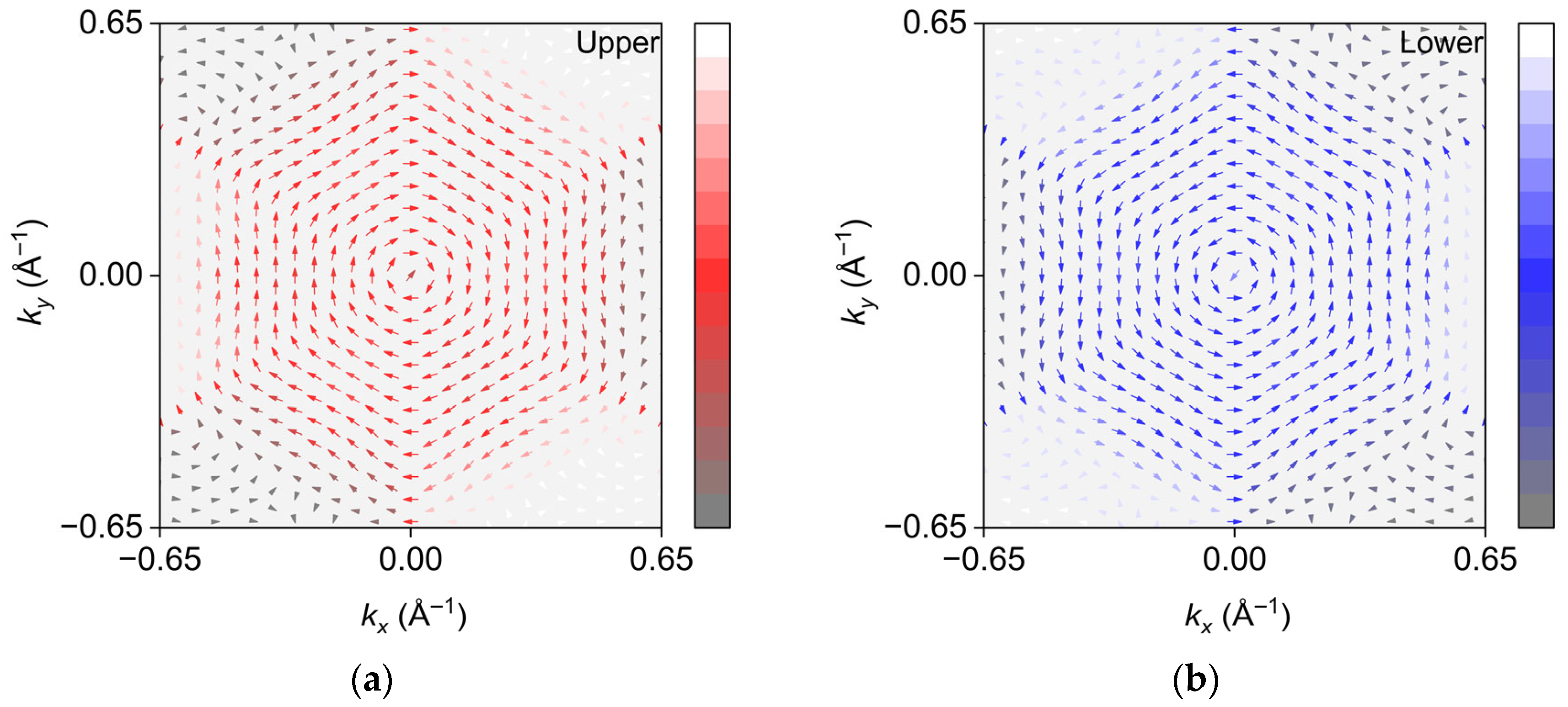

Taking TeMoSiP₂ as an example, in Figure 4a, the degeneracy is lifted in the two energy surfaces where Rashba splitting occurs. Around the Γ point, the spin orientation is clockwise on the upper energy surface but counterclockwise on the lower one, displaying opposite spin chirality. Away from the Γ point, the spin direction begins to develop outward and also exhibits the opposite spin chirality, which confirms that it is Rashba spin splitting.

3.5. Electronic Structure

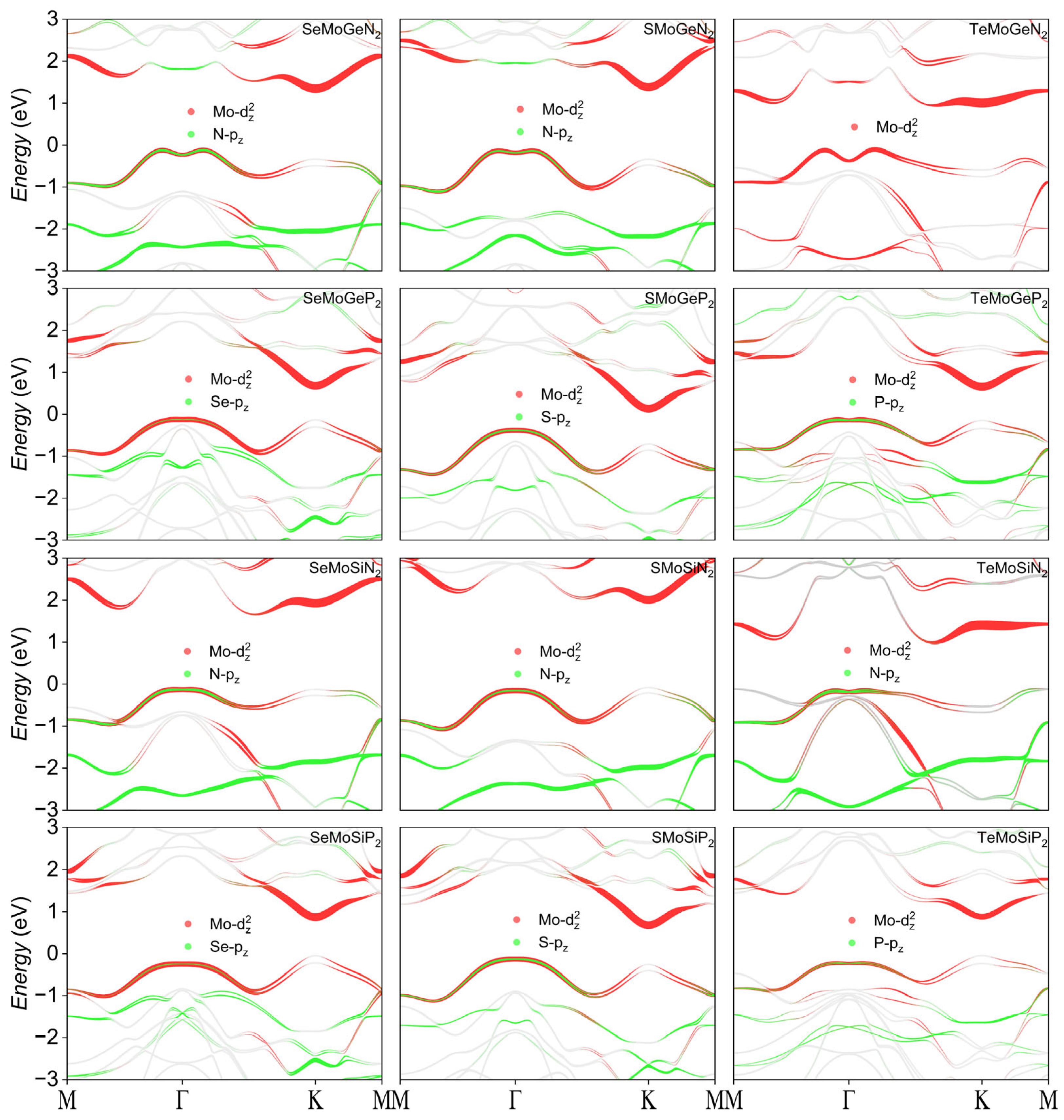

As illustrated in Figure 5, when SOC is considered, the degeneracy of the electronic structures vanishes. Among the XMoYZ₂ monolayers, SeMoSiP₂, SMoSiN₂, and TeMoSiP₂ exhibit direct bandgaps at the K point. Except for XMoGeN₂, which shows Mexican hat-like splitting around the Γ point, all other monolayers display typical Rashba splitting. Specifically, the Rashba splitting of SeMoGeP₂, SeMoSiN₂, SMoGeP₂, SMoSiP₂, and TeMoGeP₂ is observed at the VBM. Relevant data are summarized in

Table 3. Bandgap types, locations of Rashba splitting and bandgaps with SOC (E_g).

	VBM	CBM	Type	Location	Eg (PBE + SOC)
SeMoGeN2	Γ	K	I		1.448
SeMoGeP2	Γ	K	I	VBM	0.791
SeMoSiN2	Γ	Γ→K	I	VBM	1.774
SeMoSiP2	K	K	D		0.912
SMoGeN2	Γ	K	I		1.512
SMoGeP2	Γ	K	I	VBM	0.510
SMoSiN2	K	K	D		2.081
SMoSiP2	Γ	K	I	VBM	0.803
TeMoGeN2	Γ	K	I		1.022
TeMoGeP2	Γ	K	I	VBM	0.761
TeMoSiN2	M	Γ→K	I		1.077
TeMoSiP2	K	K	D		0.914

. When electrons or holes accumulate at the CBM and the VBM exhibits Rashba splitting, this can provide favorable conditions for spin polarization, which shows great promise in spintronic devices. The Mo-d_z² orbitals make significant contributions to Rashba splitting at the Γ point in almost all monolayers. A plausible reason is that the Mo-d_z² orbitals extend along the z-direction, while the electron clouds of elements such as N, P, and Se are also asymmetrically distributed along the z-direction, generating internal electric fields. The Mo-d_z² orbitals couple with these electric fields, enabling the SOC effect to be maximized and thus dominating spin splitting. In some monolayers, the Mo-d_z² orbitals match the p_z orbitals, forming hybrid orbitals; consequently, Rashba splitting is mainly composed of the hybridization between Mo-d_z² and p_z orbitals.

3.6. Rashba Modulation

In the subsequent modulations, all structures satisfied the force convergence criteria and were confirmed to be stable.

3.6.1. Strain

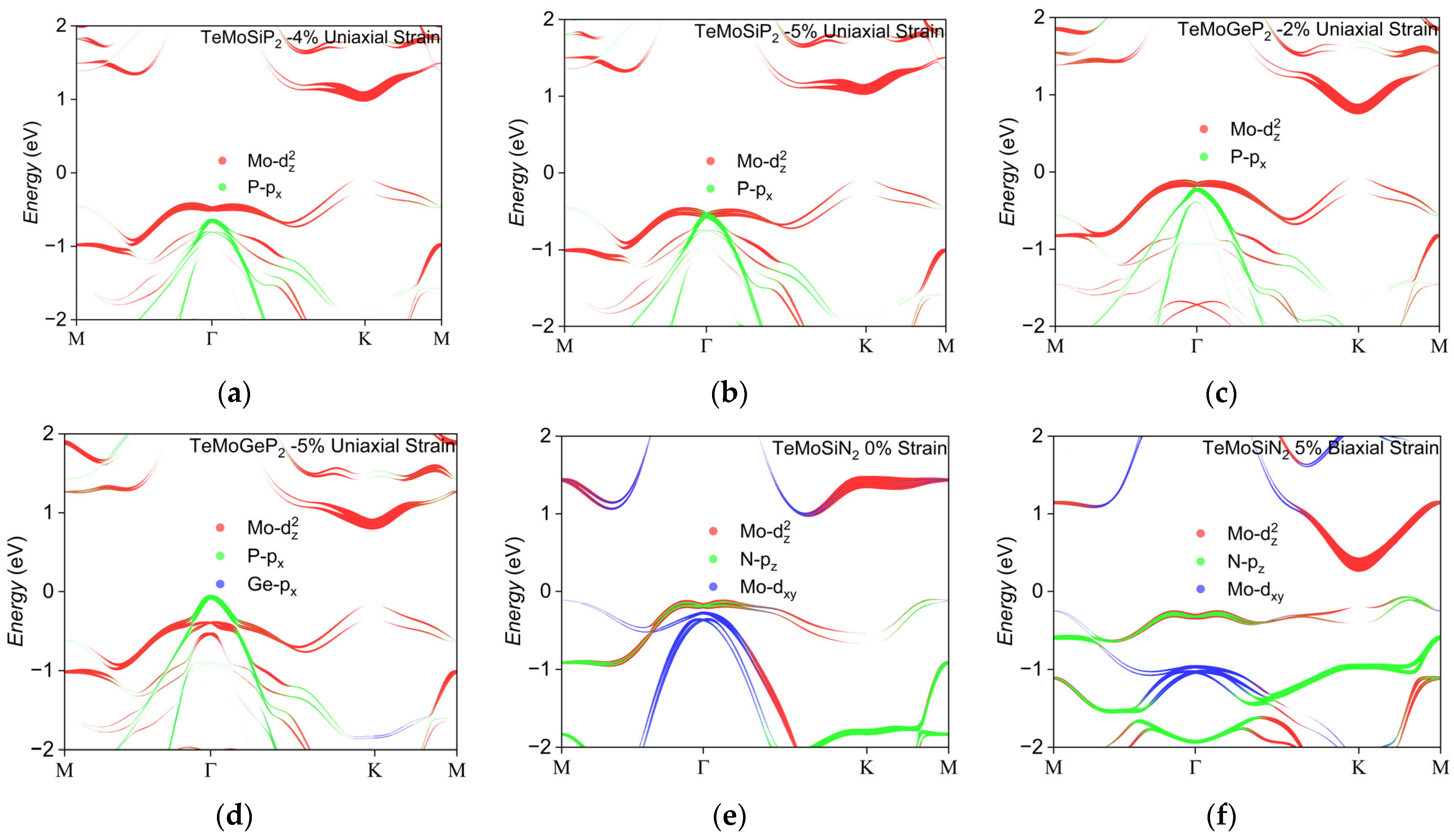

TeMoYZ₂ was selected as the research object due to its excellent performance. Combining Figure 5 and Figure 6a, under uniaxial strain, the Rashba constant of TeMoSiP₂ increases rapidly with the enhancement of compressive strain, with an intrinsic Rashba constant of 0.351 eV·Å. At this stage, the Mo-d_z² orbital is the main contributor, accompanied by the participation of a small amount of P-p_z and Si-p_z orbitals. Subsequently, upon applying −4% compressive strain, the Rashba constants along the Γ→M and Γ→K directions increase to 0.775 eV·Å and 0.553 eV·Å, respectively, which are 2.21 and 1.58 times the intrinsic value; the proportion of Mo-d_z² is 39.6% and that of P-p_x is 0.6%. From

Table 4. The variation in ΔE and Δk with the two kinds of strains of TeMoYZ₂.

		Uniaxial Strain (%)				Biaxial Strain (%)
		ΔEΓ→M	ΔkΓ→M	ΔEΓ→K	ΔkΓ→K	ΔEΓ→M	ΔkΓ→M	ΔEΓ→K	ΔkΓ→K
TeMoGeP2	−5	0.00044	0.00355	0.00030	0.00399
	−4	0.00093	0.00704	0.00061	0.00796	0.06253	0.15989	0.07630	0.21745
	−3	0.00487	0.01746	0.00285	0.01587	0.04990	0.14769	0.05651	0.18272
	−2	0.03415	0.09004	0.02741	0.09502	0.03818	0.12878	0.04120	0.14871
	−1	0.03054	0.09967	0.02836	0.10662	0.03016	0.11370	0.03165	0.12333
	0	0.02505	0.09892	0.02719	0.10634	0.02505	0.09892	0.02590	0.10634
	1	0.02049	0.09500	0.02336	0.10215	0.02185	0.08781	0.02241	0.09359
	2	0.01694	0.09075	0.02108	0.09799	0.01944	0.08026	0.01987	0.08109
	3	0.01424	0.08342	0.01910	0.09776	0.01656	0.06955	0.01688	0.07265
	4	0.01228	0.07952	0.01751	0.09363	0.01212	0.05903	0.01232	0.06060
	5	0.01091	0.07567	0.01625	0.08953	0.00658	0.04548	0.00667	0.04877
TeMoSiN2	−5	0.00005	0.00408	0.00031	0.00920
	−4	0.00010	0.00405	0.00032	0.00917
	−3	0.00050	0.01206	0.00054	0.01372
	−2	0.00544	0.04788	0.00278	0.04105
	−1	0.04255	0.13066	0.04613	0.19107
	0	0.04271	0.13754	0.04883	0.16790	0.04271	0.13754	0.04883	0.16790
	1	0.03727	0.14043	0.04587	0.16295	0.03716	0.14397	0.04032	0.15725
	2	0.03441	0.13940	0.04452	0.15804	0.03470	0.14640	0.03683	0.15571
	3	0.03398	0.14224	0.04470	0.15768	0.03571	0.15261	0.03751	0.15860
	4	0.03576	0.14505	0.04640	0.16181	0.04005	0.15871	0.04190	0.16580
	5	0.03962	0.15162	0.04958	0.16593	0.05822	0.17216	0.06041	0.17719
TeMoSiP2	−5	0.06197	0.16197	0.04332	0.19000
	−4	0.06223	0.16067	0.04805	0.17400
	−3	0.04784	0.15232	0.03856	0.15700	0.05053	0.15346	0.05860	0.18545
	−2	0.03634	0.14060	0.03145	0.14500	0.03582	0.14483	0.03938	0.16315
	−1	0.02745	0.12906	0.02596	0.13225	0.02611	0.12938	0.02777	0.14132
	0	0.02087	0.11770	0.02178	0.12392	0.02087	0.11770	0.02178	0.12392
	1	0.01600	0.10652	0.01848	0.11564	0.01874	0.10968	0.01938	0.11478
	2	0.01243	0.09551	0.01585	0.10740	0.01885	0.10521	0.01943	0.10973
	3	0.00990	0.08805	0.01382	0.10318	0.02045	0.10756	0.02110	0.11254
	4	0.00813	0.08069	0.01226	0.09899	0.02219	0.10984	0.02301	0.11531
	5	0.00697	0.07679	0.01114	0.09482	0.02226	0.11539	0.02326	0.12182

, the wave vector k where the peaks are located is shifting away from Γ, but ΔE increases faster than Δk. However, with the increase in compression, the Rashba constant shows a downward trend, which is attributed to the upward shift in the deeper energy levels in the valence band dominated by P-px orbitals; the proportion of Mo-d_z² is 17.9% and that of P-p_x is 17.9%. As illustrated in Figure 7a,b, these energy levels subsequently couple with Mo-d_z² orbitals and engage in Rashba splitting.

Similarly, TeMoGeP₂ also has an intrinsic Rashba constant of approximately 0.511 eV·Å, which is slightly higher than that of TeMoSiP₂. For the initial Rashba effect, the Mo-d_z² orbital is the main contributor, followed by the P-p_z orbital. As shown in Figure 6a, under a compressive strain of −2%, the Rashba constants reach their maximum values: 0.759 eV·Å along the Γ→M direction and 0.577 eV·Å along the Γ→K direction. This is because ΔE increases continuously while Δk decreases compared to that under −1% or 0% strain, leading to an increase in the Rashba constant. However, after exceeding this threshold strain, a downward trend also occurs. As shown in Figure 7c,d, when the compressive strain increases from −2% to −5%, the Rashba splitting region originally dominated by the Mo-d_z² orbital is completely replaced by the deeper-lying P-p_x orbitals; the proportions of Mo-d_z² and P-p_x change from 33% and 4.8% to 0.2% and 36.6%, respectively, showing a prominent profile, resulting in almost no typical Rashba effect near the Fermi level, and the ratio of ΔE to Δk becomes extremely small.

Among the three monolayers, TeMoSiN₂ exhibits the largest intrinsic Rashba constant, with values along the two directions reaching 0.621 eV·Å and 0.582 eV·Å, respectively, as shown in Figure 6a. With the increase in tensile strain, the Rashba constant remains stable along the Γ→K direction, indicating that it has good robustness against uniaxial stretching along this direction.

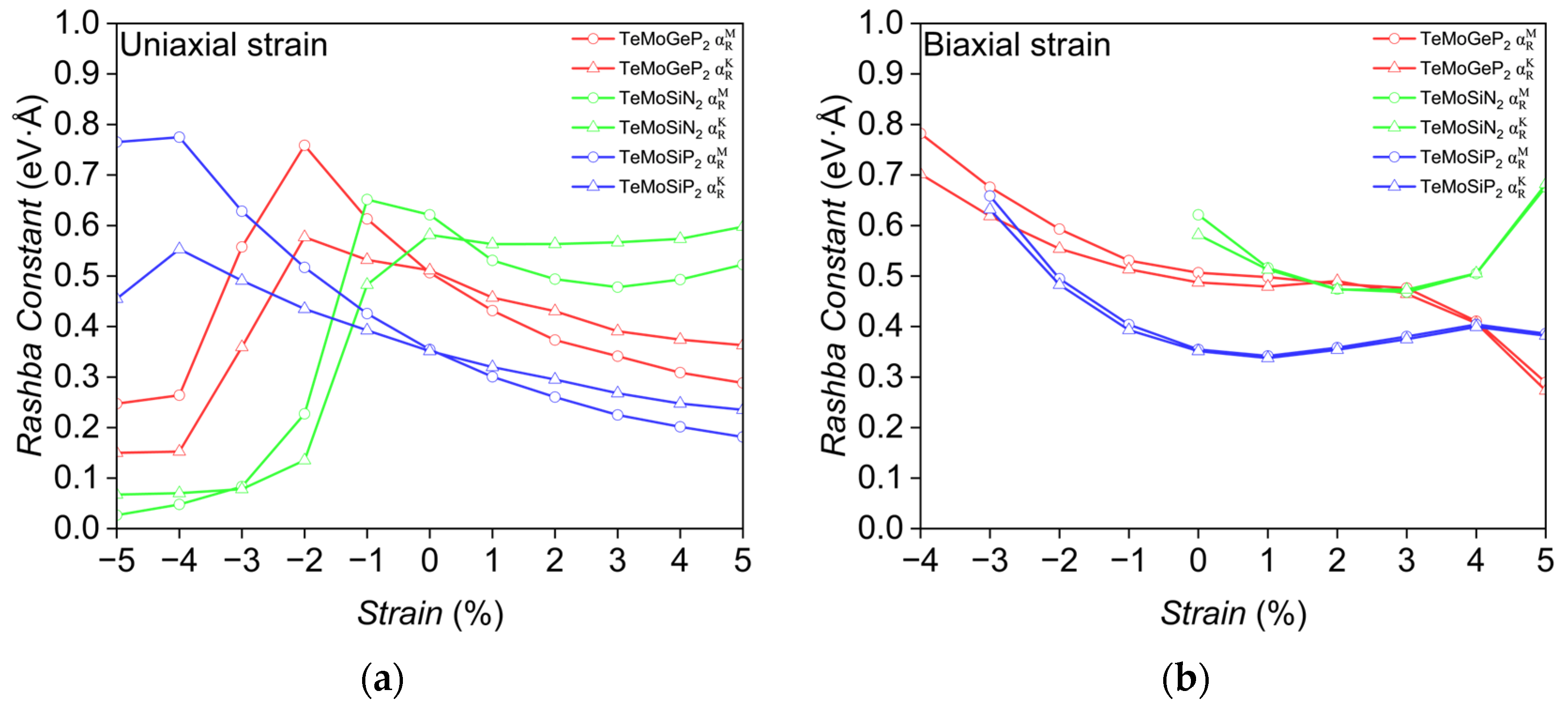

As shown in Figure 6b, under biaxial strain, a compressive strain of −3% can enhance the Rashba constants of TeMoSiP₂ to approximately 0.659 eV·Å and 0.632 eV·Å along the two directions, which are about 1.88 and 1.81 times the intrinsic values, respectively. The Rashba constant of TeMoGeP₂ increases continuously with the enhancement of compressive strain; under a compressive strain of −4%, the Rashba constants are increased to 0.782 eV·Å and 0.702 eV·Å. However, both TeMoGeP₂ and TeMoSiN₂ show a trend of first decreasing and then increasing under tensile strain. For TeMoSiN₂, the splitting originally dominated by the Mo-d_z² and N-p_z orbitals gradually transforms into a Mexican hat-type splitting, as shown in Figure 7e,f; the proportion of Mo-d_z² is 41.1% and that of P-p_x is 19.7%.

Most monolayers exhibit more significant anisotropy under uniaxial strain. For example, under a −4% uniaxial compressive strain, the Rashba constants of TeMoSiP₂ along the Γ→M and Γ→K directions differ by 0.222 eV·Å. When TeMoGeP₂ is subjected to a −2% biaxial compressive strain, this difference is only 0.039 eV·Å, but it reaches 0.182 eV·Å under uniaxial strain.

3.6.2. Electric Field

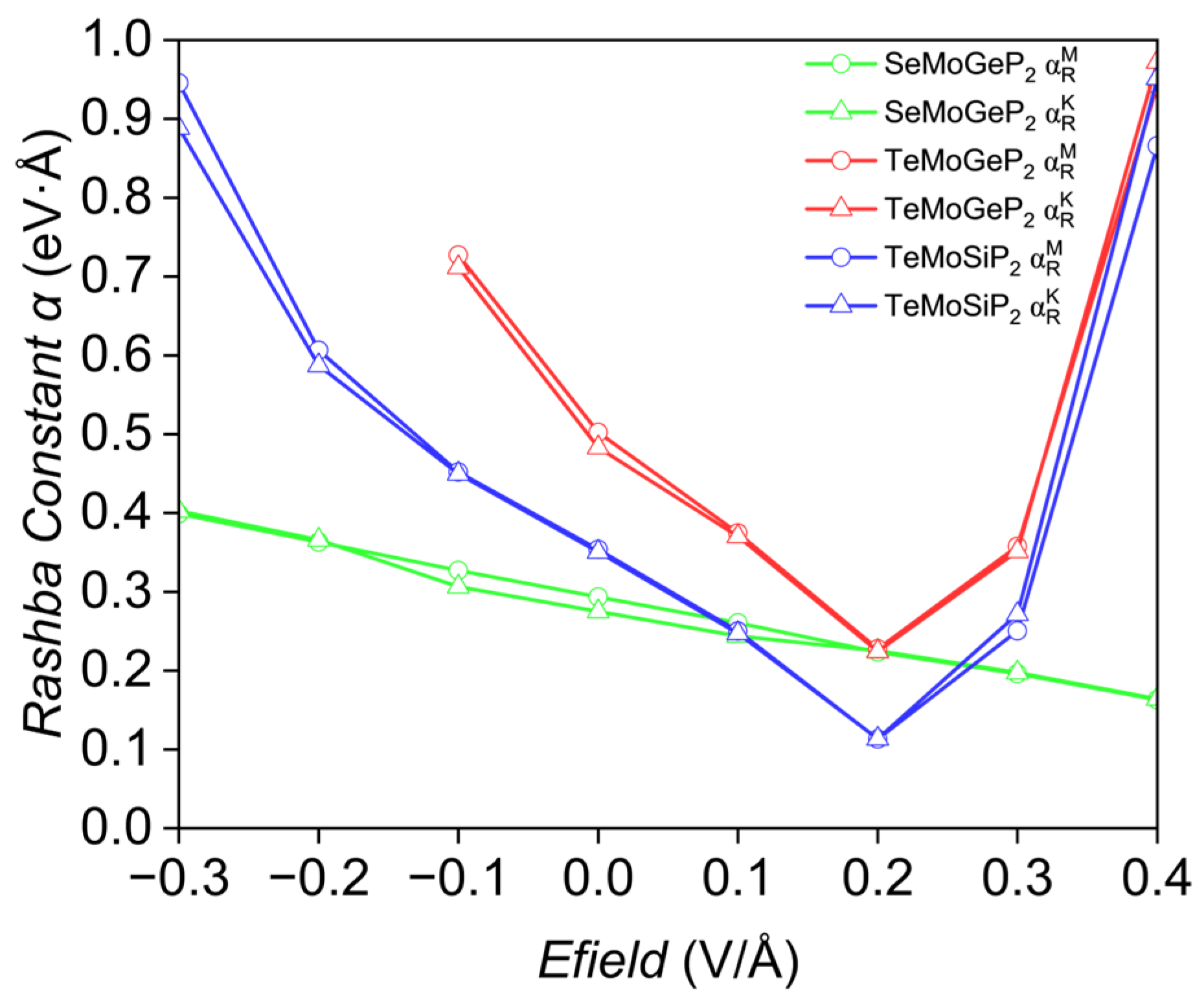

As illustrated in Figure 8, the Rashba constants of SeMoGeP₂ exhibit an almost linear correlation with the applied electric field, where a negative electric field can enhance the Rashba constants to a certain degree. However, such a typical linear relationship is not universal among XMoYZ₂ compounds.

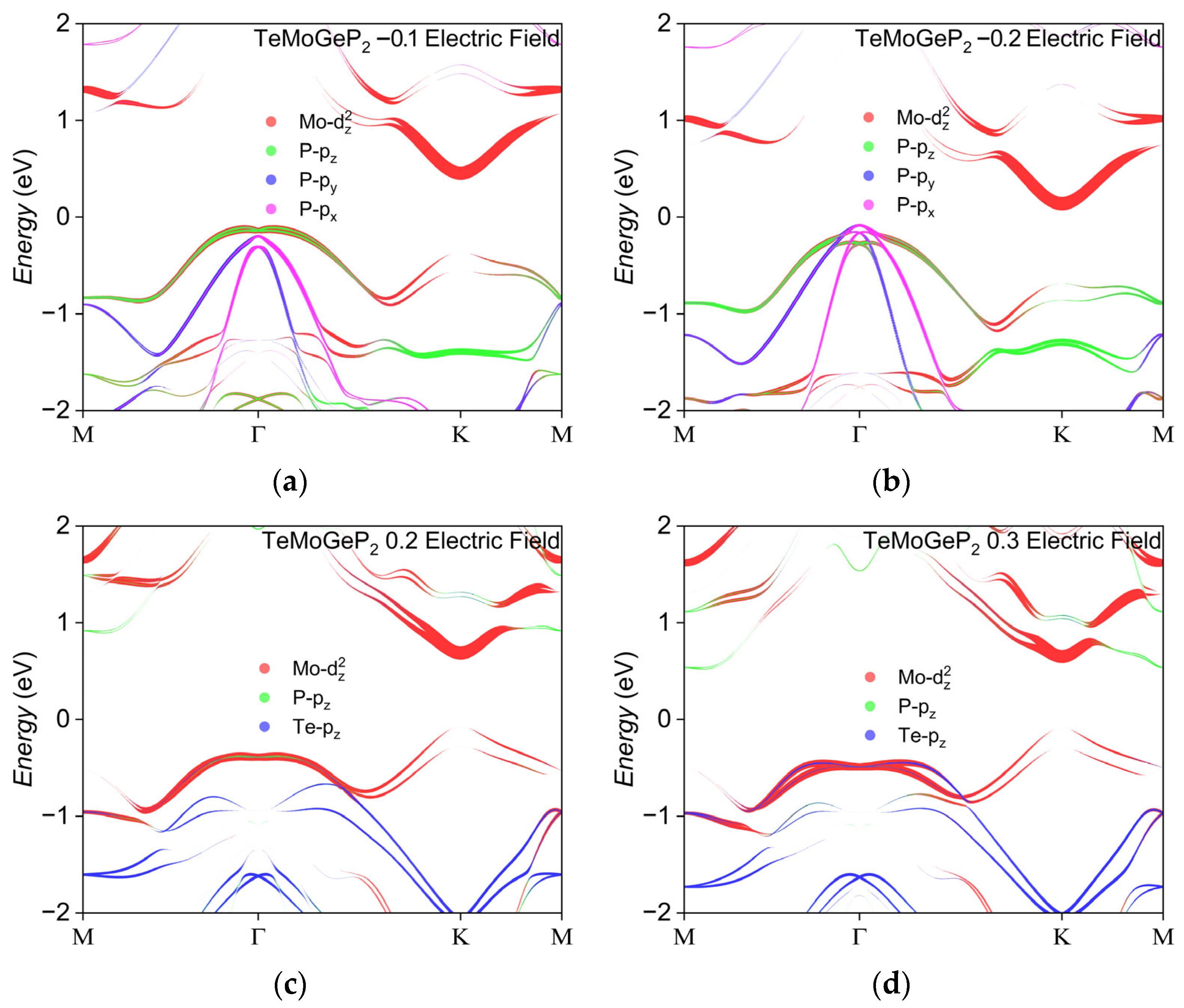

Figure 9 depicts the electronic structure of TeMoGeP₂ under different electric fields. When the electric field reaches −0.1 V/Å, the Rashba constants increase to 0.727 eV·Å and 0.712 eV·Å, respectively. Beyond this threshold, the P-p_x and P-p_y orbitals which do not exhibit the Rashba effect take the place of the original Mo-d_z² and P-p_z orbital; the proportions of Mo-d_z² and P-p_z change from 31.9% and 15.4% to 0% and 0%, respectively, but P-p_x and P-p_y emerge as 17.3% and 17.4%. A positive electric field induces a non-monotonic variation in the Rashba constants, characterized by an initial decrease followed by an increase. As shown in

Table 5. The variation trends of ΔE and Δk in the electric field of SeMoGeP₂, TeMoGeP₂ and TeMoSiP₂.

Electric Field (V/Å)
		ΔEΓ→M	ΔkΓ→M	ΔEΓ→K	ΔkΓ→K
SeMoGeP2	−0.3	0.01040	0.05215	0.01051	0.05219
	−0.2	0.00946	0.05215	0.00955	0.05219
	−0.1	0.00853	0.05215	0.00861	0.05621
	0	0.00833	0.05215	0.00841	0.05621
	0.1	0.00680	0.05215	0.00686	0.05621
	0.2	0.00583	0.05215	0.00588	0.05219
	0.3	0.00511	0.05215	0.00515	0.05219
	0.4	0.00425	0.05215	0.00428	0.05219
TeMoGeP2	−0.1	0.02853	0.07845	0.02943	0.08271
	0	0.02485	0.09892	0.02568	0.10634
	0.1	0.01980	0.10574	0.02043	0.11028
	0.2	0.01202	0.10574	0.01237	0.11028
	0.3	0.03903	0.21830	0.04359	0.24814
	0.4	0.13178	0.27970	0.16082	0.33085
TeMoSiP2	−0.3	0.04419	0.09346	0.04618	0.10393
	−0.2	0.03358	0.11077	0.03520	0.11992
	−0.1	0.02660	0.11770	0.02787	0.12392
	0	0.02082	0.11770	0.02173	0.12392
	0.1	0.01385	0.11077	0.01434	0.11593
	0.2	0.00509	0.09000	0.00521	0.09194
	0.3	0.02948	0.23540	0.04291	0.31579
	0.4	0.12588	0.29079	0.17120	0.35976

, in the electric field range of 0 V/Å to 0.2 V/Å, the Δk values along the two directions remain nearly unchanged, while ΔE decreases significantly, resulting in a reduction in the Rashba constants. It can be seen from Figure 9c,d that from 0.2 V/Å to 0.3 V/Å, around the Rashba splitting point dominated by the Mo-d_z² orbital, the proportion of Mo-d_z², P-p_z and Te-p_z change from 46%, 6.9% and 2.6% to 46%, 4.1% and 5.5%; the growth rate of ΔE exceeds that of Δk, leading to an increase in the Rashba constants. Specifically, under an electric field of 0.4 V/Å, the Rashba constant reaches approximately 0.95 eV·Å.

TeMoSiP₂ follows a similar variation trend to TeMoGeP₂: under an electric field of −0.3 V/Å, Δk decreases while ΔE increases, ultimately leading to Rashba constants along the Γ→K and Γ→M directions of 0.889 eV·Å and 0.946 eV·Å, respectively, 2.53 and 2.70 times the intrinsic values. When the electric field is 0.4 V/Å, the Rashba constants of TeMoSiP₂ also reach around 0.9 eV·Å. This represents a substantial enhancement in the Rashba constants of two-dimensional materials.

3.6.3. Charge Doping

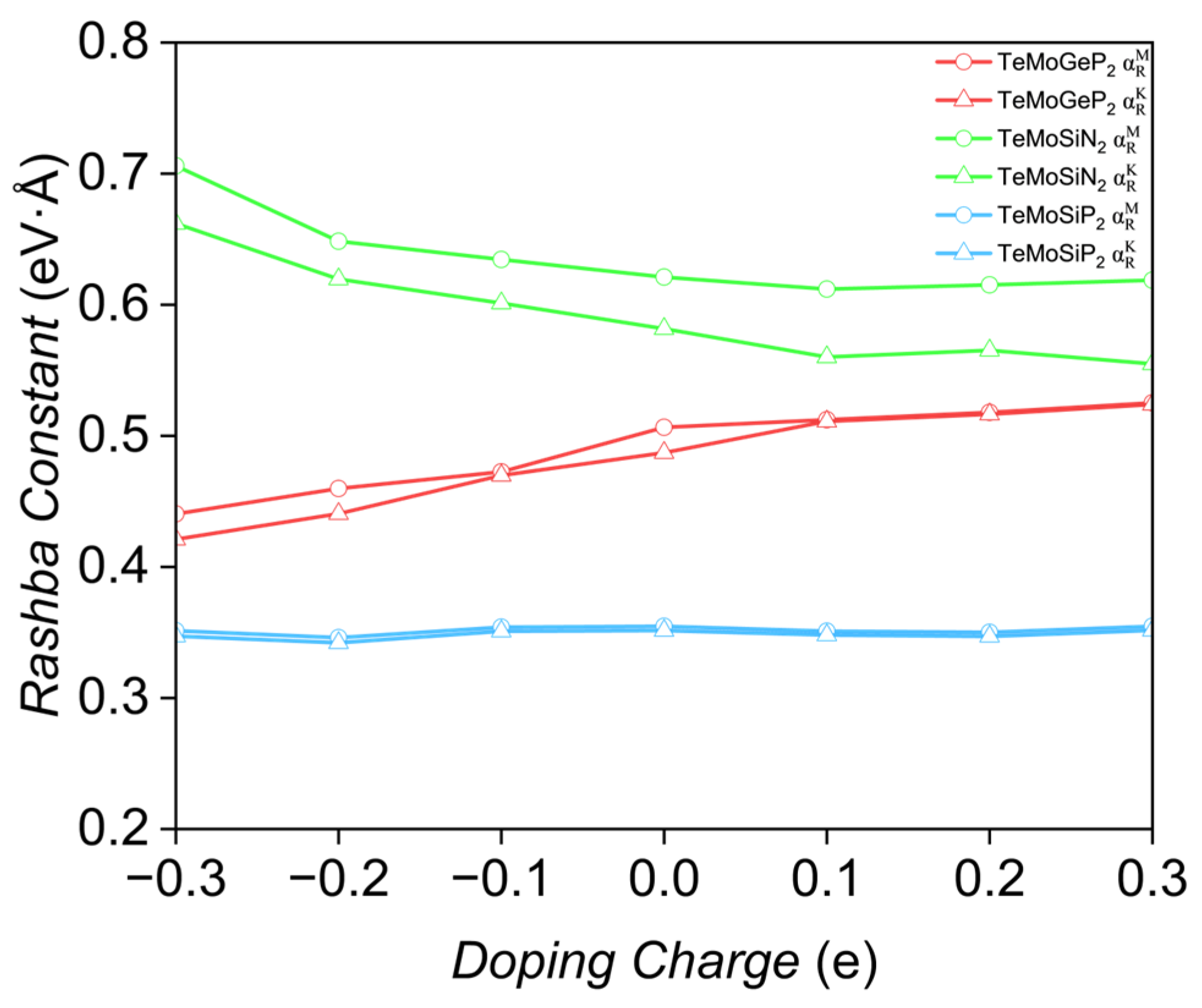

Figure 10 illustrates the variations in Rashba constants of the three monolayers under p-doping and n-doping. It is evident that all three monolayers maintain high structural stability during the doping process. For TeMoGeP₂, the Rashba constants exhibit a slight increase under n-doping: when the doping level reaches 0.3 e (~0.028 e/Ų), the Rashba constants increase by 0.017 eV·Å and 0.037 eV·Å, respectively. In contrast, under p-doping (doping level of −0.3 e), the Rashba constants are 0.422 eV·Å and 0.440 eV·Å, corresponding to a decrease of only approximately 0.066 eV·Å. For TeMoSiN₂, p-doping can moderately enhance the Rashba constants; specifically, at a doping level of −0.3 e, the Rashba constants along the two directions increase by 0.085 eV·Å and 0.08 eV·Å, respectively. TeMoSiP₂ demonstrates high robustness against charge doping.

The Fermi level shifts slightly toward the conduction band after n-doping; conversely, p-doping leads to the Fermi level exhibiting a significant shift toward the valence band. The charge doping adjusts the Fermi level by populating or depopulating the electrons near the band edges, but hardly modifies the electronic structures and SOC strength.

We speculate that in XMoYZ₂, varying the electron count via charge doping only shifts the Fermi energy significantly, while the Rashba constants remain nearly unchanged and are barely affected by such a moderate charge modulation.

Based on the results, we make the following speculations: the essence of strain is the adjustment of atomic spacing and bond angles; lattice distortion alters the wave function overlap integral of the key orbitals of Rashba splitting; the greater the wave function overlap integral, the higher the probability of electron transitions between different orbitals, the stronger the hybridization, and the higher the coupling efficiency of SOC. For an external electric field, the Coulomb force will change the distribution of the electron cloud, regulating the strength of the vertical intrinsic electric field and the orbital hybridization direction; this belongs to the electron state rearrangement dominated by the Coulomb force. For some XMoYZ₂, the modulation has non-monotonicity, related to the direction and intensity of the electric field. The modulation amplitude for TeMoYZ₂ is much greater than that for SMoYZ₂ or SeMoYZ₂. For charge doping, we speculate that only changing the charge density without charge transfer proportion between layers will not change the wave function shape of the orbitals; the overlap integral of Mo-d_z² and Y/Z-p_z orbitals will not change, and the SOC strength remains stable; the Janus structure is not destroyed, the spatial inversion asymmetry remains unchanged, and the intensity of the intrinsic electric field also remains stable.

3.7. Optical Properties

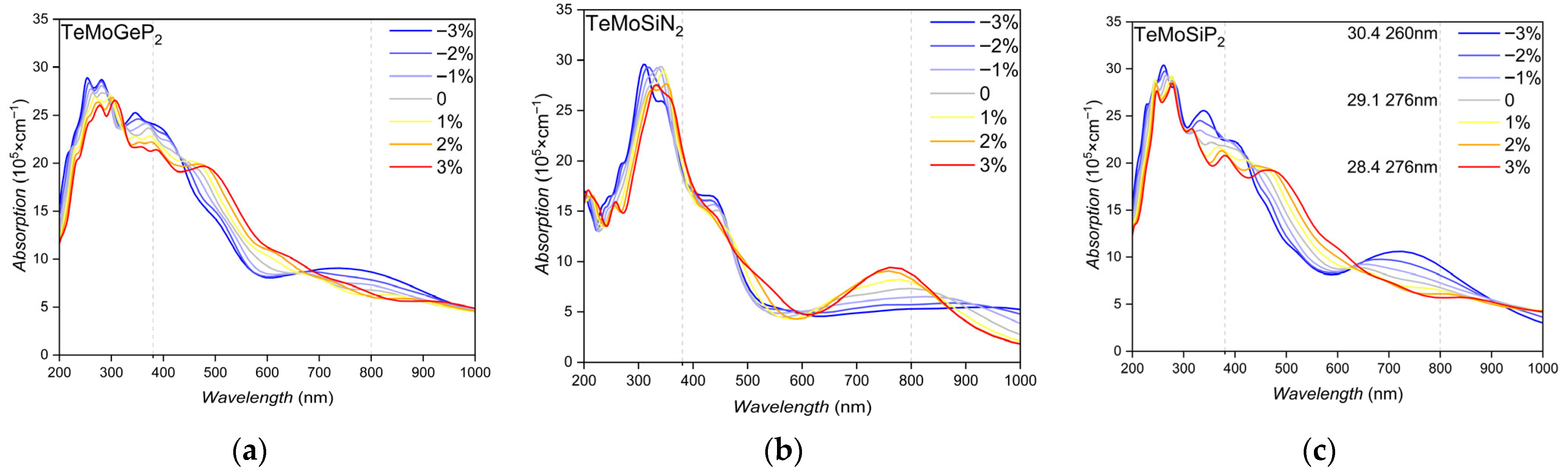

Figure 11 reveals distinct optical absorption responses of TeMoGeP₂, TeMoSiN₂, and TeMoSiP₂, particularly in the visible light and absorption peak regimes. All three monolayers generally exhibit increasingly stronger optical absorption from red light to violet light (about 380 nm−800 nm), with absorption values rapidly rising from 5–10 × 10⁵ to 15–25 × 10⁵ cm⁻¹. The responses of optical absorption to compressive and tensile strains exhibit multiple reversals, providing flexibility for strain modulated optical absorption and indicating optical absorption for visible light applications. Meanwhile, their primary absorption peaks occur between 200 nm and 400 nm, where near-ultraviolet waves are located, reaching maximum intensities of 25–30 × 10⁵ cm⁻¹ before gradually declining with increasing energy.

Compressive strain induces two key effects on the absorption peaks. Firstly, it enhances the peaks’ intensity; the blue curves consistently show higher absorption magnitudes than the red curves. Secondly, the absorption peaks shift toward lower wavelength compared to unstrained or tensile strain, so compressive strain may cause blue shifts. This may arise from strain-induced modifications to the electronic structures, where compressive strain may increase the bandgap energy, shifting optical transitions to shorter wavelengths. These findings demonstrate that compressive strain is an effective tool for tuning both the strength and spectral position of absorption peaks in these monolayers.

4. Conclusions

In summary, we performed investigations on the stability, potential, charge transfer, and SOC-considered electronic structure of XMoYZ₂ via first-principles calculations. We focused on the modulation of Rashba constants in XMoYZ₂ monolayers through strain, external electric fields, and charge doping. The results indicate that TeMoYZ₂ exhibits a superior intrinsic Rashba effect, which becomes more prominent under strain modulation. Specifically, a −2% uniaxial strain can increase the Rashba constant of TeMoGeP₂ from 0.507 eV·Å to 0.759 eV·Å, and a −4% uniaxial strain can increase the TeMoSiP₂ Rashba constant from 0.355 eV·Å to 0.775 eV·Å. Moreover, −0.3 V/Å and 0.4 V/Å external electric fields can raise the Rashba constants of TeMoSiP₂ from about 0.35 eV·Å to around/1 eV·Å. TeMoYZ₂ demonstrates robustness against charge doping and can slightly enhance the Rashba constants of TeMoGeP₂ and TeMoSiN₂. Finally, the optical absorption efficiency of TeMoYZ₂ was tested and it was found that TeMoSiN₂ has strong optical selectivity. In the ultraviolet region, compressive strain can induce a blue shift in the absorption peak and enhance absorption intensity. Through this study, we achieved a more than twofold enhancement in the Rashba constants of several XMoYZ₂ materials, which holds substantial promise for applications in electronic devices. The synthesis of XMoYZ₂ monolayers is expected via mature chemical vapor deposition, and precise crystallinity is crucial for the predicted topological properties. These findings not only enrich the theoretical basis for regulating the Rashba effect in 2D Janus materials but also provide guidance for the design and development of high-performance spintronic and optoelectronic devices.
