Article

SnS2-TiO2 Heterojunction Designed for Reductive Degradation of Contaminants of Emerging Concern

by
Suresh Kumar Pandey
1,
Sandra Romac
1,
Josipa Papac Zjačić
1,
Marijana Kraljić Roković
1,
Marin Kovačić
1,
Hrvoje Kušić
1,2,*,
Boštjan Žener
3,
Boštjan Genorio
3,
Urška Lavrenčič Štangar
3 and
Ana Lončarić Božić
1
1
Faculty of Chemical Engineering and Technology, University of Zagreb, Trg Marka Marulića 19, HR-10000 Zagreb, Croatia
2
Department for Packaging, Recycling and Environmental Protection, University North, Trg dr. Žarka Dolinara 1, HR-48000 Koprivnica, Croatia
3
Faculty of Chemistry and Chemical Technology, University of Ljubljana, Večna pot 113, SI-1000 Ljubljana, Slovenia
*
Author to whom correspondence should be addressed.
Nanomaterials 2025, 15(13), 969; https://doi.org/10.3390/nano15130969
Submission received: 15 May 2025 / Revised: 5 June 2025 / Accepted: 19 June 2025 / Published: 22 June 2025
(This article belongs to the Section Nanocomposite Materials)

Abstract

Contaminants of emerging concern (CECs), including pharmaceuticals and perfluorinated compounds, pose a growing threat to water quality due to their persistence and resistance to conventional treatment methods. In this context, photocatalytic processes capable of promoting both oxidative and reductive transformations have attracted increasing attention. This study explores the synthesis and performance of a SnS2-TiO2 heterojunction photocatalyst, designed to facilitate such reactions under solar and UV-A light. The composite was synthesized via the hydrothermal method and thoroughly characterized for its morphological, structural, surface, and semiconducting properties. The results confirmed the formation of a type-II heterojunction with improved visible-light absorption and suppressed charge recombination. Photoelectrochemical measurements indicated enhanced charge separation and favorable band-edge alignment for reductive processes. Photocatalytic experiments with amoxicillin (AMX) and perfluorooctanoic acid (PFOA) revealed distinct degradation behaviors: AMX was predominantly degraded via superoxide-mediated reductive pathways, whereas PFOA exhibited limited transformation, likely proceeding via a combination of oxidative and reductive mechanisms. While overall removal efficiencies were moderate, this study highlights the role of band structure engineering and heterojunction design in tailoring photocatalytic behavior. The SnS2-TiO2 system serves as a promising platform for further development of composite materials to address the challenge of CECs in water treatment.

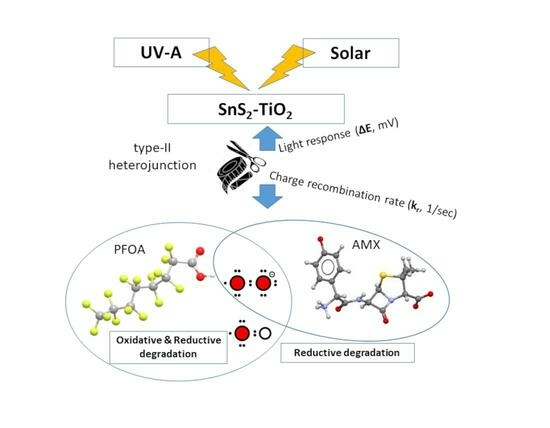

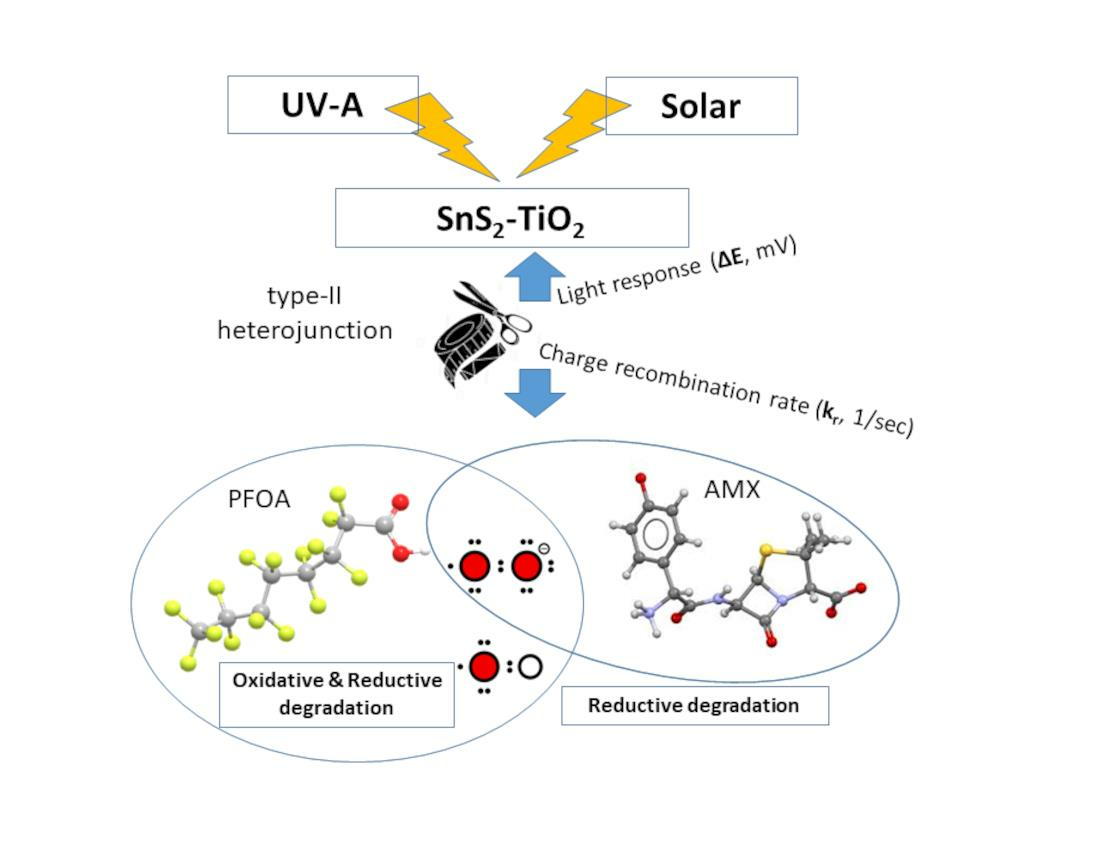

Graphical Abstract

1. Introduction

As global freshwater resources face increasing pressure from climate change, population growth, and industrialization, water reuse has emerged as a vital strategy for ensuring a sustainable water supply [1]. However, the growing presence of contaminants of emerging concern (CECs) in treated wastewater poses a serious challenge to this effort. CECs are pollutants that, while present in the environment, remain largely unmonitored and unregulated. Many of them persist and bioaccumulate in the food chain, posing long-term ecological and health risks. Their complex chemical structures complicate detection, and conventional treatments often fail to fully remove them, resulting in their presence in drinking water [2]. Among the largest CEC groups are pharmaceuticals, which are widely used and persistent in aquatic environments. In recent years, poly- and perfluoroalkyl substances (PFASs) have also emerged as a major concern, drawing increased attention from both regulatory agencies and the scientific community [3]. Due to their unique structure, PFASs can resist harsh conditions and repel both oil and water [4,5]. These properties have driven their widespread use in the industry and consumer products, but also made them highly persistent in the environment. For example, perfluorooctanoic acid (PFOA), a representative PFAS, has been found in surface water, blood serum, and human breast milk [6,7,8,9]. Toxicological studies show that PFOA exposure can cause reproductive and developmental effects and liver damage and may increase the cancer risk [10,11,12]. Given their persistence and potential health impacts, developing efficient and cost-effective methods to remove PFASs from water is essential [13].
Various technologies have been developed and applied for CEC removal, including separation and degradation methods. Separation methods like activated carbon, ion exchange, and reverse osmosis have showed good efficiency but they produce secondary waste requiring further treatment. In contrast, emerging degradation technologies such as advanced oxidation/reduction processes (AO/RPs) aim for complete CECs mineralization [14,15]. AO/RPs employing reactive oxygen species (ROS), such as hydroxyl and sulfate radicals, can effectively break C–C bonds and detach head groups; however, PFASs can only be partially degraded due to an inability to cleave the highly stable carbon–fluorine (C–F) bonds. On the other hand, AO/RPs generating reductive species such as superoxide radicals and/or hydrated electrons—e.g., sonolysis, photocatalysis, radiolysis, and electrochemical processes—may directly target and break C–F bonds [16], thus presenting effective tools for PFAS degradation.
Among the available options, photocatalysis has showed significant potential, offering the degradation of CECs, including pharmaceuticals [17] and PFASs [15] as well, via both oxidative and reductive pathways. The latter involves the cleavage of heteroatoms, including defluorination under mild conditions as the main pathway for complete PFAS degradation [15]. Some pharmaceuticals are more susceptible to reductive than oxidative degradation [18], emphasizing the need for photocatalysts with optimal conduction band-edge (CBE) potentials [19]. Furthermore, if the band gap is suitable, the process can be activated under solar irradiation, offering a sustainable and energy-efficient solution [20]. Optoelectronic properties of photocatalysts can be tailored via metal or non-metal doping and construction of heterojunctions [21]. The choice of photocatalyst material is critical, as it influences light absorption, redox capability, and charge carrier dynamics. Titanium dioxide (TiO₂) is widely studied for its chemical stability, low cost, and strong redox abilities, but its wide band gap (~3.2 eV) restricts activity to UV light [22,23]. In contrast, tin disulfide (SnS₂), with a narrower band gap (∼2.1–2.3 eV) [24], responds to visible light, making it promising for solar-driven photocatalysis. In addition to its visible-light activity, SnS₂ offers several advantages, including non-toxicity, resistance to photocorrosion, and a negative conduction band potential (−0.52 eV), which is favorable for reductive reactions [19,25]. However, its narrow band gap also causes rapid electron–hole (e/h+) recombination, reducing the efficiency of the overall treatment. To address such limitations, heterojunction photocatalysts have been developed to enhance light absorption, promote charge separation, and prolong charge carrier lifetimes [22,24,26]. Previous studies have demonstrated that combining SnS2 with TiO2 can enhance photocatalytic efficiency due to the formation of heterojunctions, which facilitates the separation of photogenerated charge carriers [27,28,29,30,31]. However, complete separation of e/h+ pairs has not yet been achieved in TiO2/SnS2 composites. Therefore, there is significant potential to further improve the photocatalytic performance of TiO2/SnS2 systems [24].
This study investigates the photocatalytic degradation of selected CECs using a SnS2-TiO2 composite. PFOA, one of the most frequently detected PFASs in natural waters [32], and amoxicillin (AMX), selected due to its reported susceptibility to reductive rather than oxidative degradation [18], were used as model contaminants. The composite was synthesized, thoroughly characterized for its morphological, structural, surface, and optoelectronic properties, and tested under UV-A and simulated solar light to evaluate its efficiency in selected CECs’ degradation.

2. Materials and Methods

Chemicals: Titanium (IV) n-butoxide (Ti(OCH2CH2CH2CH3)4, Across Organics, USA), tin chloride pentahydrate (SnCl4×5H2O, Sigma Aldrich, St. Louis, MO, USA), thioacetamide (C2H5NS, Sigma Aldrich, St. Louis, MO, USA), glacial acetic acid (CH3COOH, Fluka, Seelze, Germany), and ethanol (C2H5OH, 96%, Carlo Erba Reagenti, France) were used for the photocatalysts’ synthesis. For the photoelectrochemical (PEC) tests, sodium sulfate (Na2SO4, Lachner, Neratovice, Czech Republic) was utilized as an electrolyte. Perfluorooctanoic acid (PFOA, C7F15COOH, Across Organics, Geel, Belgium) and amoxicillin (AMX, C16H19N3O5S, Thermo Scientific, Waltham, MA, USA) were used as CECs’ representatives. Ammonium acetate (CH3COONH4, LC-MS grade), formic acid (HCOOH, LC-MS grade), acetonitrile (CH3CN, HPLC grade), and water (H2O, HPLC grade) were provided by VWR Chemicals (Vienna, Austria) and were used along with methanol (CH3COOH, HPLC grade, Fisher Scientific, Brussels, Belgium) in the monitoring of the concentrations of selected CECS via LC/MS-MS. All the chemicals were used as obtained from the company without any further purification. Milli-Q water was used throughout the synthesis and degradation experiments.
Synthesis of SnS2: In order to synthesize SnS2, appropriate amounts of SnCl4×5H2O (0.2 M) and C2H5NS (0.4 M) were dissolved in a mixed solution of ethanol and glacial acetic acid (95:5 v/v) with stirring. After 15 min of stirring, the sample solution was transferred into a Teflon-lined autoclave further placed in an oven at 180 °C for 12 h. Thereafter, the cooled sample was centrifuged and washed several times with water and ethanol before drying at 65 °C for 16h.
Synthesis of TiO2: In a 100 mL solution of ethanol and glacial acetic acid (95:5 v/v), a 5 mL aliquot of Ti(OCH2CH2CH2CH3)4 was added under vigorous stirring. The resulting clear solution was transferred to an autoclave and sealed tightly. The autoclave was then kept in an oven and maintained at 180 °C for 12 h. The obtained white suspension was subjected to centrifugation and washed thoroughly to remove any impurities. The washed solid was then dried in an oven at 65 °C.
Synthesis of SnS2-TiO2: To prepare SnS2-TiO2 composites, the appropriate amounts of precursors used for the synthesis of SnS2 and TiO2 were mixed in a total volume of 100 mL of ethanol and acetic acid in a 19:1 v/v ratio. The mixture was stirred continuously for 15 min to ensure homogeneity. The resulting clear solution was transferred into a tightly sealed autoclave, which was then placed in an oven maintained at 180 °C for 12 h. After cooling, the sample was centrifuged to separate the solid material, which was thoroughly washed to remove any impurities. The washed solid was dried in an oven at 65 °C, and the resulting yellow material was finely ground using a mortar and pestle.
Characterization: The crystal structures of the samples were analyzed by X-ray diffractograms (XRDs) acquired by using a Rigaku Miniflex 600 (Tokyo, Japan) instrument with a Cu Kα target at 40 kV and 10 mA. A scanning electron microscope (SEM, Ultra Plus, Zeiss, Jena, Germany) equipped with energy dispersive X-ray spectroscopy (EDS) was used to determine the morphology and elemental composition of the material. The specific surface area and pore size distributions were measured on a Gemini 2380 Brunauer–Emmett–Teller (BET, Micrometrics, Norcross, GA, USA) analyzer. X-ray photoelectron spectroscopy (XPS) measurement was carried out on a Versa Probe 3 AD (PHI, Chanhassen, MN, USA) equipped with a monochromatic Al Kα X-ray source to determine the elemental states present in the samples The surface charge properties of the prepared samples and mean particle size were analyzed by a Zetasizer (Malvern, UK) instrument; prior to measurement, a 0.2 mg/mL sample in water was sonicated at 25 °C for 5 min in an ultrasonic bath to ensure a uniform dispersion of the particles. The UV–visible diffuse reflectance spectroscopy (UV-DRS, Shimadzu, Kyoto, Japan) technique was used to determine the optical properties of the samples. The transfer behavior of photogenerated excitons was elucidated by recording the photoluminescence (PL) spectra of the photocatalysts on a fluorescence spectrophotometer (Varian Cary Eclipse, CA, USA). The photocurrent response and electrochemical impedance spectroscopy (EIS) measurements were performed using a standard three-electrode configuration, where a platinum (Pt) wire served as the counter electrode, and a saturated calomel electrode (SCE) was used as the reference electrode. The working electrodes were prepared by immobilizing the photocatalyst onto an FTO glass substrate. A 0.5 M Na2SO4 solution was used as the electrolyte. All PEC measurements were taken using a potentiostat/galvanostat (SP-150, Biologic, France) and a white LED was employed as the irradiation source for the electrodes; corresponding absorption spectra can be found in our previous study [32].
Photocatalytic degradation procedure: Photocatalytic degradation of PFOA and AMX were carried out in a custom-made, closed-batch, quartz-cover photoreactor, described in detail in our previous study [33]. The reactor has cooling water circulated through the jacket to maintain a constant temperature of the reaction system, while a magnetic stirrer (at 500 rpm) was used to homogenize the reaction solution, which was placed under the solar simulator (Oriel Newport, Irvin, CA, USA), equipped with a collimator, light source, 450 W Xe lamp (Osram, Munich, Germany), and air mass filter (AM 1.5 G) for simulating solar light. In experiments with UV-A light irradiation only, a UVB/C Blocking Filter along with an FSR-BG3 Colored Glass Bandpass Filter, used to narrow irradiation to the UVA region only (with maximum at 356 nm), were applied instead of an air mass filter. The closed reactor system was used to purge O2 and to create an inert atmosphere via N2 purging within the reactor system, thus preventing superoxide radical generation (O2•−). For the experiment, the reactor was filled with a 90 mL aqueous PFOA (12 μM) or AMX (50 μM) solution in which 1 g/L of photocatalyst was added. Prior to illumination, the suspension was stirred in the dark for 30 min to achieve adsorption–desorption equilibrium. During the experiment, the suspension was exposed to light (Solar or UV-A), and 0.5 mL samples were withdrawn at regular intervals (−30, 0, 10, 20, 30, 40, 50, 60, 75, 90). Each sample was filtered using a 0.45 μm cellulose filter (CA, Chromafil, Macherey-Nagel, Dueren, Germany) and taken for further analysis.
Analytical methods: The concentration of PFOA was monitored using ultra-high-performance liquid chromatography coupled with a triple-quadrupole mass spectrometer (LCMS/MS-8045, Shimadzu, Japan). The chromatographic separation was achieved on a Shim-pack C18 column (2.1 I.D. × 150 mm, Shimadzu, Japan). The mobile phase consisted of a binary mixture of phase A (2 mM ammonium acetate in 2% methanol) and phase B (2 mM ammonium acetate in 98% methanol), delivered at a flow rate of 0.25 mL/min. The gradient program was as follows: initially, 90% A and 10% B; after 4 min, ramped up to 20% A and 80% B for the next 4 min; then to 5% A and 95% B for 8 min, and finally, returned to the initial conditions and equilibrated for 3 min. The total runtime for each sample was 20 min. Tandem mass analysis was performed in multiple reaction monitoring (MRM) mode for enhanced specificity and sensitivity. For the detection of PFOA, the following transitions were utilized: m/z 169 and m/z 219 were selected as the qualitative ions, while m/z 369 was used as the quantification ion to minimize potential mass interference. To monitor the concentration of AMX, we utilized an HPLC (Series 20, Shimadzu, Japan) equipped with a UV-PDA detector (SPD-M20AVP, Shimadzu) using a reversed-phase C18 column (250 mm × 4.6 mm, 5 μm, Macherey-Nagel Nucleosil, Duren, Germany). Isocratic elution was carried out with a mobile phase consisting of 90% aqueous 50 mM formic acid and 10% acetonitrile at an overall flow of 1 mL/min. The oven temperature was 40 °C and the injection volume of analyte was 100 μL. AMX was detected at a wavelength of 273 nm.

3. Results

In order to determine the crystal structure and phase purity, synthetized materials were characterized using XRD. The XRD patterns of pure TiO2, SnS2, and SnS2-TiO2 in combination are portrayed in Figure 1. The diffraction peaks of pure TiO2 and SnS2 are indexed well with the standard patterns of tetragonal (anatase; COD card no. 9015929) and hexagonal (berndtite; COD card no. 1011330) phases, respectively. In the case of the SnS2-TiO2 composite, the presence of characteristic peaks corresponding to both SnS2 and TiO2 confirms the successful formation of the SnS2-TiO2 heterostructure.
The SnS2-TiO2 composite was then submitted to morphological analysis. The SEM results are shown in Figure 2a,b at magnifications of 3 μm and 1 μm, respectively. The images reveal a rough surface with a flake-like morphology, which may be beneficial for adsorption due to the increased number of active sites provided by the rough texture [34]. The EDS data presented in Figure 2c confirms the presence of all the constituent elements of the SnS2-TiO2 composite, namely, Sn, S, Ti, and O, as expected. Additionally, the elemental mapping in Figure 2d demonstrates a homogeneous distribution of Ti and O over the SnS2 surface.
The specific surface areas (SSAs) of the studied materials, SnS2-TiO2 composite and sole SnS2, were determined using nitrogen (N2) adsorption–desorption measurements. Figure 3a presents the N2 adsorption–desorption isotherms for the SnS2-TiO2 composite. The SSA for the composite is calculated to be 46 m2/g, which is higher than that of pure SnS2 (37.19 m2/g), as shown in Figure 3b. This enhancement in surface area is likely attributed to the synergistic interaction between SnS2 and TiO2, leading to a more porous structure and increased surface exposure for the composite material. However, it should be pointed out that the SSA of the SnS2-TiO2 composite is smaller than that of pure TiO2 anatase (117 m2/g), synthetized in a previous study [35], as well as almost twice as small as that of commercial TiO2 P25 (90 m2/g) [36]. In addition, the SSA of the SnS2-TiO2 synthesized here with a ratio of SnS2 and TiO2 components of 80% to 20% is much smaller than that of the composite composed of the same components but with a different ratio of SnS2 (27.5%) and 72.5 (TiO2), for which it yielded a 160 m2/g SSA [28]. The clear reason is a larger content of the SnS2 component, which has a smaller SSA comparing to TiO2. A hysteresis loop indicates that it is a type IV isotherm, which suggests a mesoporous structure of the SnS2-TiO2 composite. The pore size diameter of the composite ranges from 2 to 20 nm, as can be observed from the Barrett–Joyner–Halenda (BJH) plot (inserts of Figure 3a).
The zeta potential is a key characteristic of particles, influencing both their stability and overall properties. A more pronounced zeta potential, whether positive or negative, typically enhances the stability of particle suspensions due to the electrostatic repulsion between particles carrying the same charge, which prevents aggregation. In the current study, the zeta potential was measured at −45.19 mV, as shown in Figure 4a. The negative zeta potential value of the SnS2-TiO2 composite suggests an effective dispersion and stability of the particles in suspension. The average particle size of the composite measured by dynamic light scattering (DLS) techniques is 100 nm (Figure 4b), with a solution polydispersity index (PDI) of 0.35.
Determining the band gaps of semiconducting materials is essential for a proper understanding of their photocatalytic mechanisms. The absorbance data of the samples (Figure 5a), obtained using a UV-DRS instrument, were used to construct the Tauc plots for SnS2, TiO2, and SnS2-TiO2. The Tauc plots, displayed in Figure 5b, were derived using the following relation:
α h ϑ 2 = h ϑ E g
where α represents the absorption coefficient, h is Planck’s constant, ν is the frequency of light, and Eg is the optical band gap energy. The optical band gap energies, as calculated from the above equation, were found to be 2.09 eV for SnS2, 3.17 eV for TiO2, and 2.19 eV for the SnS2-TiO2 heterostructure. The DRS results indicate that both SnS2 and the SnS2-TiO2 composite exhibit strong absorption in the visible-light region, while TiO2 primarily absorbs in the UV region.
Photoluminescence is a valuable technique for evaluating the recombination rate of photogenerated excitons (e/h+ pairs). The PL emission intensity is directly correlated with the recombination of electrons and holes; therefore, a lower PL intensity signifies a restrained recombination rate and also effective charge separation [37,38]. In this study, a wavelength of 375 nm was used as the excitation source to record the PL spectra of the samples. The results presented in Figure 6 display that the PL intensity of the SnS2-TiO2 composite is very close to that of pure SnS2, and that both lie below pure TiO2. This behavior can be attributed to the formation of a heterostructure with SnS2 as the dominant component, where the difference in band-edge positions facilitates the recombination of electrons from the TiO2 conduction band (CB) with holes from the valence band (VB) of SnS2, which is typical for n-n heterojunctions [39]. As a result, the remaining photogenerated charges, electrons in CB of SnS2 and holes in VB of TiO2, are effectively separated and stable, and the overall recombination probability of excitons is reduced. However, such assumptions need to be proven via photoelectrochemical (PEC) tests.
The flat band potentials (EFB) at the semiconductor/electrolyte interface were determined from Mott–Schottky plots recorded under dark conditions using Equation [40].
1 C 2 = 2 ε ε 0 A 2 e N D E E F B k B T e
where C and A are the interfacial capacitance and area, ε is the dielectric constant of the semiconductor, ε0 is the permittivity of free space, ND is the number of electron donors, E is the applied voltage, kB is Boltzmann’s constant, T is the absolute temperature, and e is the electronic charge. From the above relation, both EFB and ND can be extracted, taking into account that values for ε and A are known [41,42]. The Mott–Schottky plots for the synthesized samples are presented in Figure 7a. The positive slopes of the Mott–Schottky plots indicate that both SnS2 and the SnS2-TiO2 composite are n-type semiconductors [40], in which electrons are major charge carriers. It was previously reported by our group that TiO2 is an n-type semiconductor, with a flat band potential of −0.29 V [35]. The calculated flat band potentials for SnS2 and the SnS2-TiO2 composite are found to be −0.577 V and −0.377 V vs. SHE, respectively. It can be seen that all investigated photocatalytic materials have CB positions at more negative potentials than 0 V vs. SHE, which is usually important for hydrogen generation via photocatalytic reactions, but also it indicates that this material may have the capacity to reduce PFASs. Materials with a CB positioned more negatively than 0 V can provide the necessary thermodynamic driving force to reduce both protons (for hydrogen generation) and PFASs. Specifically, studies have shown that photocatalysts like TiO2 with suitable band alignment can transfer electrons to PFOA, facilitating its stepwise reduction and degradation into less harmful products [43]. However, successful PFOA degradation also depends on the generation of reactive species like superoxide (O2●−) and the material’s overall catalytic properties, not just the conduction band position.
Open circuit potential (OCP) measurements provide insight into the photoactivity of the material, helping us to understand its behavior in photocatalytic applications for the degradation of organic pollutants. The OCP under illumination provides information regarding the photoactivity of the composite, as shifts in OCP are correlated with photoinduced charge separation. The response values obtained by OCP measurement, charge recombination rate (kr), and photovoltage (ΔE) of composite and pure components are summarized in Table 1, calculated based on the equations presented in Figure S1 (Supplementary Materials), which we used in our previous study, where more detailed explanations of performed OCP and calculations are provided [33].
It can be noted that the composite has the highest photovoltage and lowest recombination rate, which is likely to have a positive effect on the photocatalytic degradation of selected CECs (PFOA and AMX). This is in accordance with the previously reported data [35], where a composite was also prepared from TiO2 and SnS2, but with a much smaller amount of SnS2.
Nyquist plots for the composite and SnS2 are shown in Figure 7b. For the dark condition, a higher impedance value was registered for composite SnS2-TiO2 (80:20) material compared to pure SnS2 (Figure S2, Supplementary Materials). For the illuminated electrode, although a different response was obtained, indicating different properties of space charge layer and different charge transfer dynamics [44], the difference was not significant.
Chronoamperometry was employed to investigate the charge separation efficiency and current stability over time under continuous light illumination. A constant potential of 0.5 V was applied under dark and chopped LED light (Figure 7c). As shown in Figure 7c, no current response was observed in the dark, while illumination produced a photocurrent due to the separation of photogenerated e/h+ pairs. The composite electrode showed a higher photocurrent than pure SnS2, indicating improved charge separation and photocatalytic activity. However, the composite’s photocurrent gradually declined over time, suggesting possible photocatalyst degradation. In contrast, SnS2 exhibited a more stable, though lower photocurrent. The enhanced performance of the composite is attributed to the formation of a type II heterojunction between SnS2 and TiO2, promoting efficient charge transfer. The synergistic effects of the two components (TiO2 aiding charge separation and SnS2 enhancing light absorption) are critical to the observed photoelectrochemical behavior.
The results of an LSV experiment (Figure 7d) indicate that the dark current response is close to zero while the response of the illuminated electrode is anodic current. The photocurrent (Iph) is the result of the photoactivity of a material, and its value is the difference between light and dark current responses (Iph = IlightIdark). Therefore, the good PEC activity of the investigated material is evident in Figure 7d, as Ilight >> Idark. In addition, from the obtained results, it is evident that the composite resulted in higher currents compared to SnS2. However, it is less stable, which is evident from the current decrease with each cycle (Figure S3, Supplementary Materials).
The activity of synthetized SnS2-TiO2 (80:20) toward selected CECs, AMX and PFOA, was examined under solar and UV-A irradiation. As can be seen from Figure 8, the blank tests with direct solar and UV-A photolysis (no catalysts) yielded negligible changes in AMX concentration (<1 and <2% removal within 90 min). AMX was adsorbed at SnS2-TiO2 during a dark period in the amount of 6%, which remained stable with the prolonged time when an additional 90 min was tested in blank experiments, where irradiation was not applied. Accordingly, it can be concluded that an adsorption equilibrium was achieved during the 30 min dark period applied in the photocatalytic experiment (Figure 8), and that all removed AMX after exposing the reaction solution to either solar or UV-A irradiation was due to degradation. As can be seen from Figure 8, somewhat higher AMX removal (36.1%) after 90 min was recorded when solar irradiation was applied, compared to the case with UV-A light (30.4% of AMX removed). Our previous study clearly exhibited that AMX is mainly degraded by a reductive mechanism by the UV-A/TiO2 system [18], i.e., either by e, which may be valid for the amount adsorbed on the surface of the catalyst only, or O2•−, which is responsible for bulk reactions [45,46]. For that reason, AMX was selected as a CEC undergoing reductive degradation. In order to test that assumption, we conducted an additional experiment, where the reaction vessel was purged with N2 in order to remove O2, thus preventing O2•− formation. As can be seen from Figure 8, only 13.5% of AMX was removed after 90 min. Considering there was 6% adsorption during the dark period, it can be concluded that AMX was degraded only up to 7.5% in this experiment. That result clearly shows that AMX mainly undergoes reductive degradation, and mainly via O2•− in bulk. The reason for the somewhat higher degradation rate of AMX under solar compared to under UV-A light may be the higher recombination rate under light of a higher energy (UV-A), which presumably left less charge available for the generation of ROS (primarily O2•−).
The same set of experiments was performed with another selected CEC, PFOA, which also undergoes reductive degradation via the cleavage of C-F bonds, thus leading to mineralization. However, PFOA may also undergo oxidation as well, which would result with shorter-chain PFASs, but not mineralization [15,47,48]. As can be seen from Figure 9, PFOA was only negligibly degraded by direct solar and UV-A photolysis (<0.5%), speaking in favor of its recalcitrance in the environment. It should be also noted that PFOA was not adsorbed on the SnS2-TiO2 composite during the dark period. Such behavior indicates that PFOA would not be subject to direct photocatalytic mechanism produced by photogenerated charges (e and h+). Accordingly, only bulk degradation via the generated ROS, hydroxyl radicals (HO) and O2•−, can be expected. As can be seen, solar/SnS2-TiO2 yielded slightly lower degradation comparing to the case using UV-A irradiation after 90 min treatment (8.9 < 13.6%, respectively). Such results are the opposite of those in the case of AMX, where solar-driven photocatalytic treatment yielded somewhat higher CEC degradation. The plausible explanation can be found in the fact that, most probably, AMX mainly undergoes reductive treatment (as proven in Figure 8), while in the case of PFOA, the oxidative pathway yielding shorter-chain PFASs may come forth as well [48]. Under UV-A light, TiO2 can be activated as well, yielding more ROS, primarily HO responsible for the oxidative degradation of PFOA, than under solar light. Hence, in spite of a somewhat higher recombination rate, as mentioned above for the case of AMX under UV-A light, such effect may be overcome by generating HO more effectively, which would yield higher PFOA degradation under UV-A than under solar. In order to investigate the portions of PFOA degraded via the oxidative and reductive pathways, we conducted an additional experiment in a N2 atmosphere, as in the case of AMX above. As PFOA did not adsorb onto SnS2-TiO2, direct degradation via photogenerated charge carriers would not occur, while an inert atmosphere would prevent the generation of O2•−, thus we recorded PFOA degradation in such an experiment, amounting to 5.8% (Figure 9), which can be assigned to the HO• pathway. Accordingly, it can be concluded that the contributions of HO• and O2•− to PFOA degradation by UV-A/SnS2-TiO2 are similar, amounting to 43% and 57%, respectively.
Based on the DRS, PL, and PEC analyses, a schematic representation of the overall photocatalytic process is presented in Figure 10. The edge positions of the CB and VB of the materials were calculated using flat-band potential values obtained by Mott–Schottky and band gap values via DRS analysis. Based on these calculations, the CB edges of TiO2 and SnS2 are located at −0.29 V and −0.577 V, while the VB edges are positioned at 2.88 V and 1.51 V, respectively. Upon irradiating with suitable light sources (solar and UVA, in our case), electrons are excited to their CB while leaving behind corresponding holes in the VB. However, the photogenerated holes in the VB of SnS2 and electrons in the CB of TiO2 are not thermodynamically favorable for producing HO (EOH/OH = 2.40 V) and O2•− (EO2/O2•− = −0.33 V), respectively. As a result, these charge carriers tend to remain inactive and are likely to recombine under the influence of internal electric fields and band bending effects at the interface. In contrast, the electrons in the CB of SnS2 and holes in the VB of TiO2 possess sufficient redox potential and remain available for photocatalytic activity. These active charge carriers contribute to the degradation of selected CECs, either directly through electrons/holes or via generating O2•− and HO. However, as stated above, PFOA did not adsorb onto the SnS2-TiO2 composite (Figure 9), thus the involvement of photogenerated charge carriers (electrons and holes) in its direct degradation can be neglected, and accordingly, only bulk degradation over formed ROS is possible in the case of PFOA.
In order to test changes on the SnS2-TiO2 composite surface, which may imply its stability, XPS analysis of photocatalysts prior to and after the treatment was performed; the results are presented in Figure 11. In Table 2, the binding energies (BEs) for the O 1s and S 2p3/2 regions of SnS2-TiO2 are listed. After photocatalysis treatment, a slight decrease in the binding energy of the Ti-O bond can be observed. Such a shift indicates a subtle reduction in the titanium centers, i.e., a partial conversion of Ti4+ to Ti3+ or the formation of oxygen vacancies in the TiO2 lattice. Such an effect can be attributed to the migration of the photogenerated electrons from SnS2 to TiO2. On the other hand, the O-Sn bond BE has risen considerably. This higher binding energy implies the formation of surface hydroxyl groups on SnS2 [49]. In turn, this could imply the interactions of HO formed on TiO2 or water with the surface exposed to the Sn centers in SnS2. However, the binding energy of the S 2p3/2 peak remains virtually unchanged, i.e., no oxidation of S2− in the bulk or on the surface is evident, implying a good stability of the composite.

4. Conclusions

This study presents a SnS2-TiO2 (80:20) heterojunction composite as a photocatalyst for the degradation of selected CECs, specifically AMX and PFOA. Structural characterization via XRD confirmed the coexistence of anatase TiO2 and berndtite SnS2 phases, with SEM revealing a flake-like morphology and EDS confirming a uniform elemental distribution. Nitrogen adsorption–desorption measurements showed a moderately enhanced specific surface area for the composite (46 m2/g) compared to pure SnS2 (37.2 m2/g).
Optical measurements revealed visible-light absorption (band gap of 2.19 eV), while the composite’s intermediate PL intensity, relative to the pure components, suggests a partial suppression of charge recombination via heterojunction-facilitated electron transfer from SnS2 to TiO2. Additionally, photoelectrochemical characterization indicated a relatively high light response (ΔE = 212.6 mV) and a low recombination rate (kr = 0.0068 s⁻1), consistent with more efficient charge separation. Electrochemical analyses confirmed that the SnS2-TiO2 composite behaves as an n-type semiconductor, while the positions of valence and conduction bands enable the effective generation of both HO and O2•−. Despite moderate photocurrent stability issues, the composite exhibited an improved charge separation efficiency compared to SnS2 alone.
Photocatalytic experiments showed the measurable degradation of AMX (36.1% under solar irradiation, 30.4% under UV-A), with the results indicating a predominantly reductive degradation pathway mediated by superoxide radicals. PFOA degradation was more limited (up to 13.6% under UV-A) and proceeded via a combination of oxidative and reductive mechanisms, suggesting that complete mineralization remains challenging under the tested conditions. XPS analysis before and after treatment indicated only minor changes in surface chemistry, supporting the structural stability of the composite during photocatalysis.
Overall, while the SnS2-TiO2 heterojunction achieved moderate removal efficiencies, it demonstrated promising attributes in terms of band alignment, charge transport, and photocatalytic response under solar and UV-A irradiation. Further optimization of the SnS2-TiO2 ratio, structural robustness, and operating conditions may enhance its applicability for water treatment targeting CECs.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/nano15130969/s1, Figure S1. Results of OCP measurements. Figure S2. Nyquist plots of SnS2 and SnS2-TiO2 (80:20) in dark. Figure S3. LSV in different cycles of SnS2 (a) and SnS2-TiO2 (80:20) (b).

Author Contributions

Conceptualization, H.K. and U.L.Š.; methodology, H.K., U.L.Š. and M.K.R.; validation, M.K.R., M.K. and B.G.; formal analysis, S.K.P., S.R., J.P.Z., M.K.R. and B.Ž.; investigation, S.K.P., S.R., J.P.Z., M.K.R., B.Ž. and B.G.; data curation, M.K.R., M.K., B.G. and A.L.B.; writing—original draft preparation, S.K.P., S.R. and J.P.Z.; writing—review and editing, M.K., H.K., U.L.Š. and A.L.B.; funding acquisition, H.K. and U.L.Š. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Slovenian Research Agency (ARIS) and Croatian Science Foundation (HRZZ), grant no. IPS-2022-02-4780 (Solar-assisted photocatalytic degradation of perfluorinated compounds in water, SoAPperF), ARIS via project J2-4444, and programs P1-0134 and P1-0418; and the University of Ljubljana via interdisciplinary preparative project Nanostructurome 802-12/2024-5.

Data Availability Statement

The datasets collected and analyzed in this work are available from the corresponding authors upon reasonable written request.

Acknowledgments

We acknowledge the administrative and technical assistance provided by Tea Regvar of the University of Zagreb Faculty of Chemical Engineering and Technology.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Kim, S.; Chu, K.H.; Al-Hamadani, Y.A.J.; Park, C.M.; Jang, M.; Kim, D.-H.; Yu, M.; Heo, J.; Yoon, Y. Removal of Contaminants of Emerging Concern by Membranes in Water and Wastewater: A Review. Chem Eng. J. 2018, 335, 896–914. [Google Scholar] [CrossRef]
  2. Li, X.; Shen, X.; Jiang, W.; Xi, Y.; Li, S. Comprehensive Review of Emerging Contaminants: Detection Technologies, Environmental Impact, and Management Strategies. Ecotoxicol. Environ. Saf. 2024, 278, 116420. [Google Scholar] [CrossRef]
  3. Wang, F.; Xiang, L.; Sze-Yin Leung, K.; Elsner, M.; Zhang, Y.; Guo, Y.; Pan, B.; Sun, H.; An, T.; Ying, G.; et al. Emerging Contaminants: A One Health Perspective. Innovation 2024, 5, 100612. [Google Scholar] [CrossRef] [PubMed]
  4. Chowdhury, S. Per- and Polyfluoroalkyl Substances (PFAS) Are Emerging Contaminants:Review and Awareness. J. Environ. Public Health 2024, 2, 86–90. [Google Scholar] [CrossRef]
  5. Ding, G.; Peijnenburg, W.J.G.M. Physicochemical Properties and Aquatic Toxicity of Poly- and Perfluorinated Compounds. Crit. Rev. Environ. Sci. Technol. 2013, 43, 598–678. [Google Scholar] [CrossRef]
  6. Boulanger, B.; Vargo, J.; Schnoor, J.L.; Hornbuckle, K.C. Detection of Perfluorooctane Surfactants in Great Lakes Water. Environ. Sci. Technol. 2004, 38, 4064–4070. [Google Scholar] [CrossRef]
  7. Bossi, R.; Strand, J.; Sortkjær, O.; Larsen, M.M. Perfluoroalkyl Compounds in Danish Wastewater Treatment Plants and Aquatic Environments. Environ. Int. 2008, 34, 443–450. [Google Scholar] [CrossRef]
  8. Tao, L.; Kannan, K.; Wong, C.M.; Arcaro, K.F.; Butenhoff, J.L. Perfluorinated Compounds in Human Milk from Massachusetts, U.S.A. Environ. Sci. Technol. 2008, 42, 3096–3101. [Google Scholar] [CrossRef]
  9. Hölzer, J.; Midasch, O.; Rauchfuss, K.; Kraft, M.; Reupert, R.; Angerer, J.; Kleeschulte, P.; Marschall, N.; Wilhelm, M. Biomonitoring of Perfluorinated Compounds in Children and Adults Exposed to Perfluorooctanoate-Contaminated Drinking Water. Environ. Health Perspect. 2008, 116, 651–657. [Google Scholar] [CrossRef]
  10. Yang, J.-H. Perfluorooctanoic Acid Induces Peroxisomal Fatty Acid Oxidation and Cytokine Expression in the Liver of Male Japanese Medaka (Oryzias latipes). Chemosphere 2010, 81, 548–552. [Google Scholar] [CrossRef]
  11. Tarapore, P.; Ouyang, B. Perfluoroalkyl Chemicals and Male Reproductive Health: Do PFOA and PFOS Increase Risk for Male Infertility? Int. J. Environ. Res. Public Health 2021, 18, 3794. [Google Scholar] [CrossRef]
  12. Bartell, S.M.; Vieira, V.M. Critical Review on PFOA, Kidney Cancer, and Testicular Cancer. J. Air Waste Manag. Assoc. 2021, 71, 663–679. [Google Scholar] [CrossRef]
  13. You, X.; Yu, L.; Xiao, F.; Wu, S.; Yang, C.; Cheng, J. Synthesis of Phosphotungstic Acid-Supported Bimodal Mesoporous Silica-Based Catalyst for Defluorination of Aqueous Perfluorooctanoic Acid under Vacuum UV Irradiation. Chem. Eng. J. 2018, 335, 812–821. [Google Scholar] [CrossRef]
  14. Kyzas, G.Z.; Fu, J.; Matis, K.A. The Change from Past to Future for Adsorbent Materials in Treatment of Dyeing Wastewaters. Materials 2013, 6, 5131–5158. [Google Scholar] [CrossRef]
  15. Verma, S.; Mezgebe, B.; Hejase, C.A.; Sahle-Demessie, E.; Nadagouda, M.N. Photodegradation and Photocatalysis of Per- and Polyfluoroalkyl Substances (PFAS): A Review of Recent Progress. Next Mater. 2024, 2, 100077. [Google Scholar] [CrossRef]
  16. Gar Alalm, M.; Boffito, D.C. Mechanisms and Pathways of PFAS Degradation by Advanced Oxidation and Reduction Processes: A Critical Review. Chem. Eng. J. 2022, 450, 138352. [Google Scholar] [CrossRef]
  17. Antoniadou, M.; Falara, P.P.; Likodimos, V. Photocatalytic Degradation of Pharmaceuticals and Organic Contaminants of Emerging Concern Using Nanotubular Structures. Curr. Opin. Green Sustain. Chem. 2021, 29, 100470. [Google Scholar] [CrossRef]
  18. Tomic, A.; Kovacic, M.; Kusic, H.; Karamanis, P.; Rasulev, B.; Loncaric Bozic, A. Structural Features Promoting Photocatalytic Degradation of Contaminants of Emerging Concern: Insights into Degradation Mechanism Employing QSA/PR Modeling. Molecules 2023, 28, 2443. [Google Scholar] [CrossRef]
  19. Suzuki, T.; Watanabe, H.; Oaki, Y.; Imai, H. Tuning of Photocatalytic Reduction by Conduction Band Engineering of Semiconductor Quantum Dots with Experimental Evaluation of the Band Edge Potential. Chem. Commun. 2016, 52, 6185–6188. [Google Scholar] [CrossRef]
  20. Spasiano, D.; Marotta, R.; Malato, S.; Fernandez-Ibañez, P.; Di Somma, I. Solar Photocatalysis: Materials, Reactors, Some Commercial, and Pre-Industrialized Applications. A Comprehensive Approach. Appl. Catal. B Environ. 2015, 170–171, 90–123. [Google Scholar] [CrossRef]
  21. Belousov, A.S.; Parkhacheva, A.A.; Suleimanov, E.V.; Fukina, D.G.; Koryagin, A.V.; Shafiq, I.; Krasheninnikova, O.V.; Kuzmichev, V.V. Doping vs. Heterojunction: A Comparative Study of the Approaches for Improving the Photocatalytic Activity of Flower-like Bi2WO6 for Water Treatment with Domestic LED Light. Catal. Commun. 2023, 180, 106705. [Google Scholar] [CrossRef]
  22. Wang, Z.; Lin, Z.; Shen, S.; Zhong, W.; Cao, S. Advances in Designing Heterojunction Photocatalytic Materials. Chin. J. Catal 2021, 42, 710–730. [Google Scholar] [CrossRef]
  23. Athanasekou, C.P.; Likodimos, V.; Falaras, P. Recent Developments of TiO2 Photocatalysis Involving Advanced Oxidation and Reduction Reactions in Water. J. Environ. Chem. Eng. 2018, 6, 7386–7394. [Google Scholar] [CrossRef]
  24. Liu, S.; Zhang, Y. Synthesis of CPVC-Modified SnS2/TiO2 Composite with Improved Visible Light-Driven Photocatalysis. Mater. Res. Bull. 2021, 135, 111125. [Google Scholar] [CrossRef]
  25. Sharma, K.; Patial, S.; Singh, P.; Khan, A.A.P.; Saini, V.; Nadda, A.K.; Hussain, C.M.; Nguyen, V.-H.; Nguyen, C.C.; Hac Nguyen, T.B.; et al. Strategies and Perspectives of Tailored SnS2 Photocatalyst for Solar Driven Energy Applications. Sol. Energy 2022, 231, 546–565. [Google Scholar] [CrossRef]
  26. Guo, X.; Zhang, F.; Zhang, Y.; Hu, J. Review on the Advancement of SnS2 in Photocatalysis. J. Mater. Chem. A 2023, 11, 7331–7343. [Google Scholar] [CrossRef]
  27. Sun, L.; Zhao, Z.; Li, S.; Su, Y.; Huang, L.; Shao, N.; Liu, F.; Bu, Y.; Zhang, H.; Zhang, Z. Role of SnS2 in 2D–2D SnS2/TiO2 Nanosheet Heterojunctions for Photocatalytic Hydrogen Evolution. ACS Appl. Nano Mater. 2019, 2, 2144–2151. [Google Scholar] [CrossRef]
  28. Kovacic, M.; Katic, J.; Kusic, H.; Loncaric Bozic, A.; Metikos Hukovic, M. Elucidating the Photocatalytic Behavior of TiO2-SnS2 Composites Based on Their Energy Band Structure. Materials 2018, 11, 1041. [Google Scholar] [CrossRef]
  29. She, H.; Zhou, H.; Li, L.; Zhao, Z.; Jiang, M.; Huang, J.; Wang, L.; Wang, Q. Construction of a Two-Dimensional Composite Derived from TiO2 and SnS2 for Enhanced Photocatalytic Reduction of CO2 into CH4. ACS Sustain. Chem. Eng. 2019, 7, 650–659. [Google Scholar]
  30. Jawale, N.S.; Arbuj, S.S.; Umarji, G.G.; Rane, S.B. In Situ TiO2-Decorated SnS2 Nanoheterostructures for Enhanced Photocatalytic Hydrogen Generation. ACS Appl. Energy Mater. 2024, 7, 10877–10887. [Google Scholar] [CrossRef]
  31. Deng, L.; Liu, H.; Gao, X.; Su, X.; Zhu, Z. SnS2/TiO2 Nanocomposites with Enhanced Visible Light-Driven Photoreduction of Aqueous Cr(VI). Ceram. Int. 2016, 42, 3808–3815. [Google Scholar] [CrossRef]
  32. Kurwadkar, S.; Dane, J.; Kanel, S.R.; Nadagouda, M.N.; Cawdrey, R.W.; Ambade, B.; Struckhoff, G.C.; Wilkin, R. Per- and Polyfluoroalkyl Substances in Water and Wastewater: A Critical Review of Their Global Occurrence and Distribution. Sci. Total Environ. 2022, 809, 151003. [Google Scholar] [CrossRef]
  33. Perović, K.; Kovačić, M.; Kraljić Roković, M.; Kušić, H.; Genorio, B.; Štangar, U.L.; Novak Tušar, N.; Božić, A.L. Enhancement of TiO2-Based Composite With Low Carbon-Based Component Ratio for Improved Hydrogen Generation via Photocatalytic Water Splitting. ChemNanoMat 2024, 10, e202400121. [Google Scholar] [CrossRef]
  34. Venkatakrishnan, A.; Kuppa, V.K. Polymer Adsorption on Rough Surfaces. Curr. Opin. Chem. Eng. 2018, 19, 170–177. [Google Scholar] [CrossRef]
  35. Perović, K.; Kovačić, M.; Kraljić Roković, M.; Kušić, H.; Genorio, B.; Lavrenčić Štangar, U.; Lončarić Božić, A. The Development of Ternary-Based TiO2-SnS2/GO-RGO Composite Material for Photocatalytic H2 Production under Solar Light Irradiation. Mater. Res. Bull. 2023, 167, 112418. [Google Scholar] [CrossRef]
  36. Kovacic, M.; Kusic, H.; Fanetti, M.; Lavrencic Stangar, U.; Valant, M.; Dionysiou, D.D.; Loncaric Bozic, A. TiO2-SnS2 nanocomposites; solar active photocatalyitic materials for water treatment. Environ. Sci. Pollut. Res. 2017, 24, 19965–19979. [Google Scholar] [CrossRef]
  37. Sharifi, T.; Crmaric, D.; Kovacic, M.; Popovic, M.; Rokovic, M.K.; Kusic, H.; Jozić, D.; Ambrožić, G.; Kralj, D.; Kontrec, J.; et al. Tailored BiVO4 for Enhanced Visible-Light Photocatalytic Performance. J. Environ. Chem. Eng. 2021, 9, 106025. [Google Scholar] [CrossRef]
  38. Wang, M.; Liu, Z.; Fang, M.; Tang, C.; Huang, Z.; Liu, Y.; Wu, X.; Mao, Y. Enhancement in the Photocatalytic Activity of TiO2 Nanofibers Hybridized with G-C3N4 via Electrospinning. Solid State Sci. 2016, 55, 1–7. [Google Scholar] [CrossRef]
  39. Yusuf, T.L.; Olatunde, O.C.; Masekela, D.; Modibane, K.D.; Onwudiwe, D.C.; Makgato, S. Charge Redistribution in NiSe2/MoS2 n–n Heterojunctiontowards the Photoelectrocatalytic Degradation of Ciprofloxacin. ChemElectroChem 2024, 11, e202400309. [Google Scholar] [CrossRef]
  40. Naeem, R.; Ali Ehsan, M.; Rehman, A.; Hassan Yamani, Z.; Saeed Hakeem, A.; Mazhar, M. Single Step Aerosol Assisted Chemical Vapor Deposition of p–n Sn(Ii) Oxide–Ti(Iv) Oxide Nanocomposite Thin Film Electrodes for Investigation of Photoelectrochemical Properties. New J. Chem. 2018, 42, 5256–5266. [Google Scholar] [CrossRef]
  41. Gelderman, K.; Lee, L.; Donne, S.W. Flat-Band Potential of a Semiconductor: Using the Mott-Schottky Equation. J. Chem. Educ. 2007, 84, 685–688. [Google Scholar] [CrossRef]
  42. Baumanis, C.; Bahnemann, D.W. TiO2 Thin Film Electrodes: Correlation between Photocatalytic Activity and Electrochemical Properties. J. Phys. Chem. C 2008, 112, 19097–19101. [Google Scholar] [CrossRef]
  43. Liang, J.; Guo, L.; Xiang, B.; Wang, X.; Tang, J.; Liu, Y. Research Updates on the Mechanism and Influencing Factors of the Photocatalytic Degradation of Perfluorooctanoic Acid (PFOA) in Water Environments. Molecules 2023, 28, 4489. [Google Scholar] [CrossRef]
  44. Radić, G.; Perović, K.; Sharifi, T.; Kušić, H.; Kovačić, M.; Kraljić Roković, M. Electrochemical Characterisation of the Photoanode Containing TiO2 and SnS2 in the Presence of Various Pharmaceuticals. Catalysts 2023, 13, 909. [Google Scholar] [CrossRef]
  45. Perovic, K.; dela Rosa, F.; Kovacic, M.; Kusic, H.; Lavrencic Stangar, U.; Fresno, F.; Dionysiou, D.D.; Loncaric Bozic, A. Recent achievements in development of TiO2-based composite photocatalytic materials for solar driven water purification and splitting. Materials 2020, 13, 1338. [Google Scholar] [CrossRef]
  46. Pichat, P. Photocatalysis and Water Purification: From Fundamentals to Recent Applications; Wiley: Weinheim, Germany, 2013. [Google Scholar]
  47. Deng, Y.; Liang, Z.; Lu, X.; Chen, D.; Li, Z.; Wang, F. The degradation mechanisms of perfluorooctanoic acid (PFOA) and perfluorooctane sulfonic acid (PFOS) by different chemical methods: A critical review. Chemosphere 2021, 283, 131168. [Google Scholar] [CrossRef]
  48. Yao, X.; Zuo, J.; Wang, Y.-J.; Song, N.-N.; Li, H.-H.; Qiu, K. Enhanced photocatalytic degradation of perfluorooctanoic acid by mesoporous Sb2O3/TiO2 Heterojunctions. Front. Chem. 2021, 9, 690520. [Google Scholar] [CrossRef]
  49. Idriss, H. On the wrong assignment of the XPS O1s signal at 531–532 eV attributed to oxygen vacancies in photo- and electro-catalysts for water splitting and other materials applications. Surf. Sci. 2021, 712, 121894. [Google Scholar] [CrossRef]

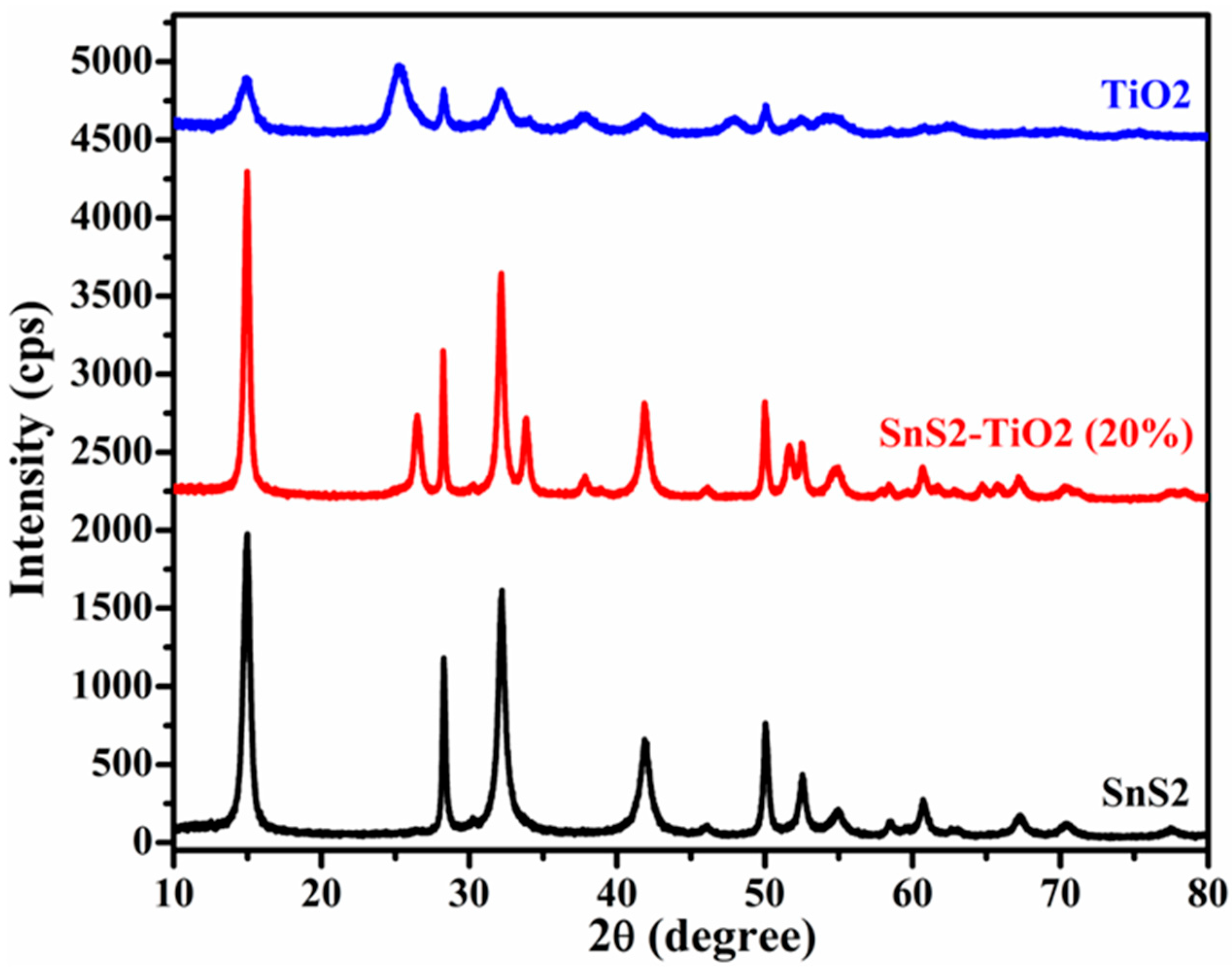

Figure 1. XRD patterns of SnS2, SnS2-TiO2 (20%), and TiO2.
Figure 1. XRD patterns of SnS2, SnS2-TiO2 (20%), and TiO2.
Nanomaterials 15 00969 g001

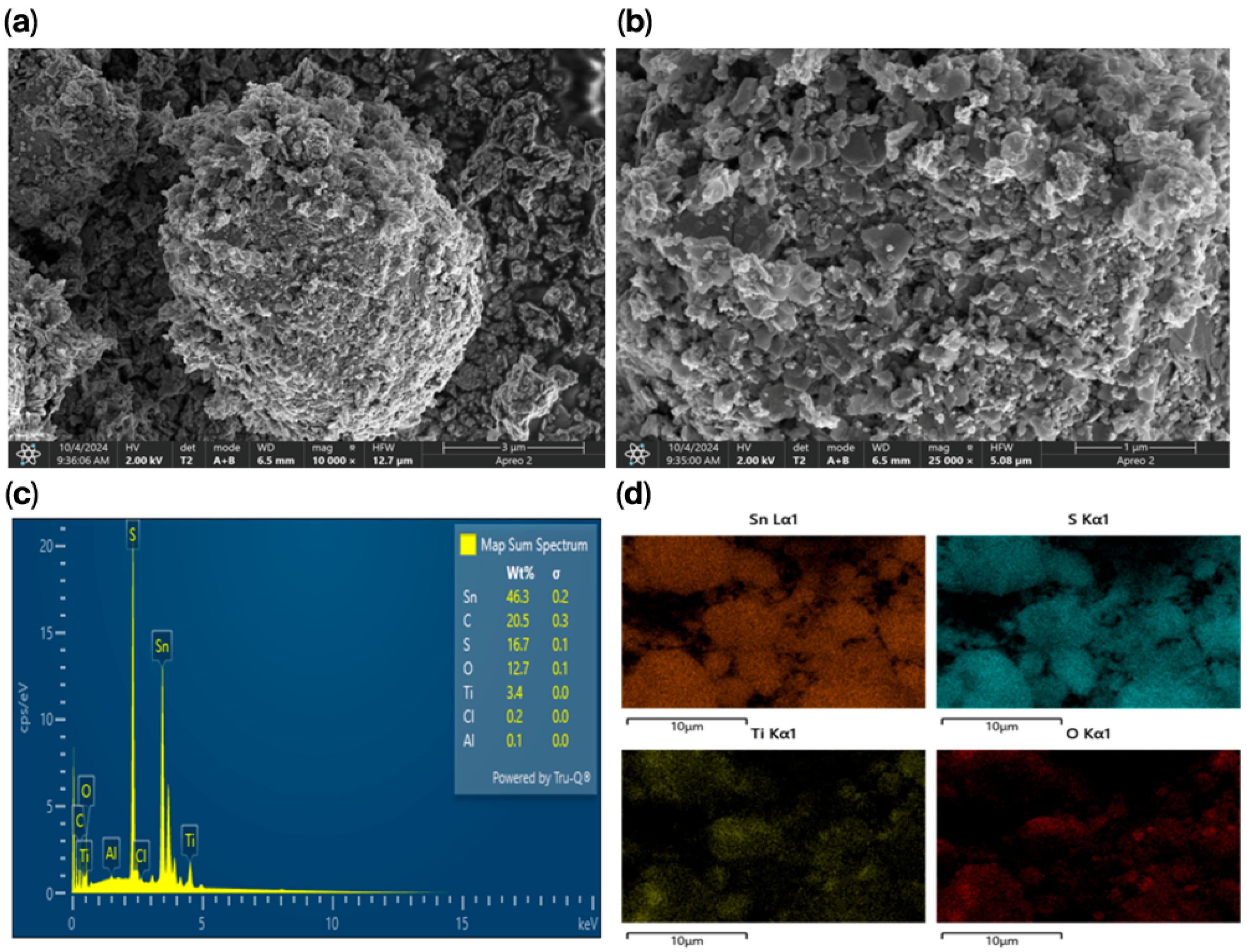

Figure 2. (a,b) SEM images of the SnS2-TiO2 composite, (c) EDS spectra of SnS2-TiO2, and (d) elemental mapping of SnS2-TiO2.
Figure 2. (a,b) SEM images of the SnS2-TiO2 composite, (c) EDS spectra of SnS2-TiO2, and (d) elemental mapping of SnS2-TiO2.
Nanomaterials 15 00969 g002

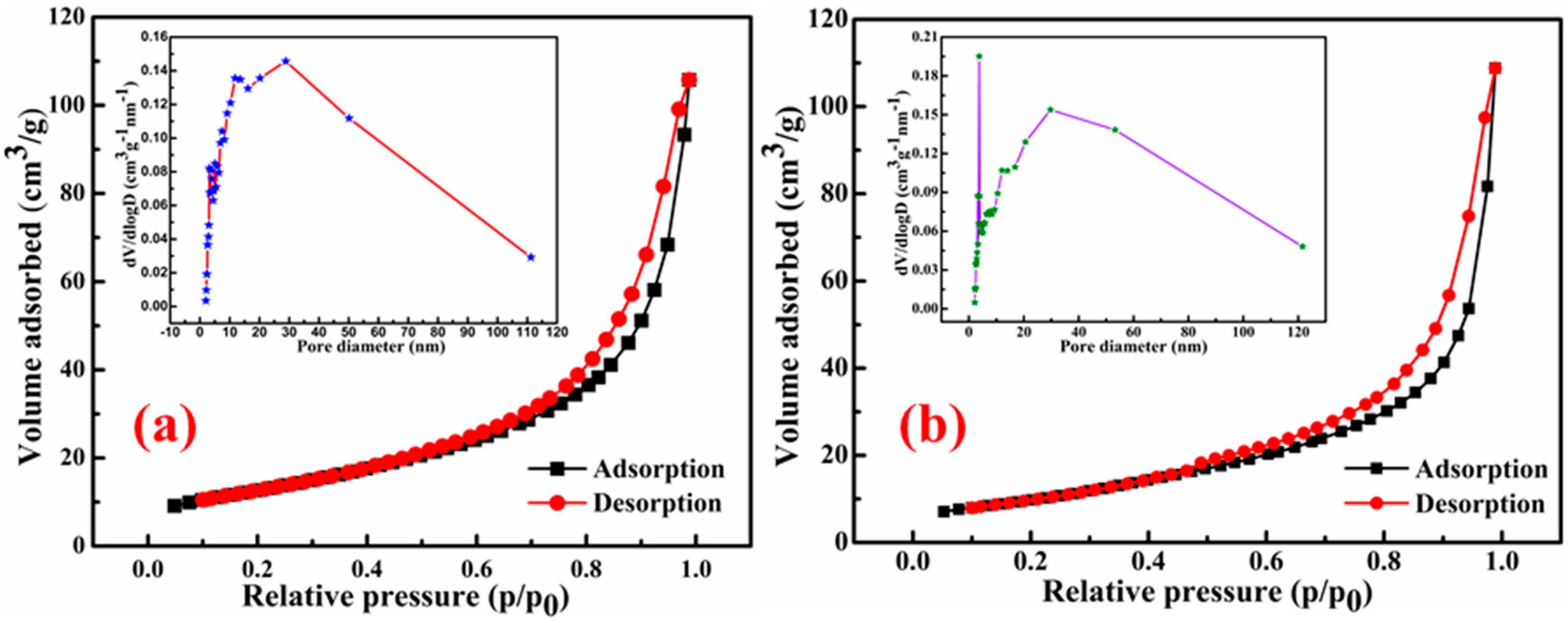

Figure 3. N2 adsorption–desorption isotherm and BJH plot (inserts) of (a) SnS2-TiO2 (20%) and (b) SnS2.
Figure 3. N2 adsorption–desorption isotherm and BJH plot (inserts) of (a) SnS2-TiO2 (20%) and (b) SnS2.
Nanomaterials 15 00969 g003

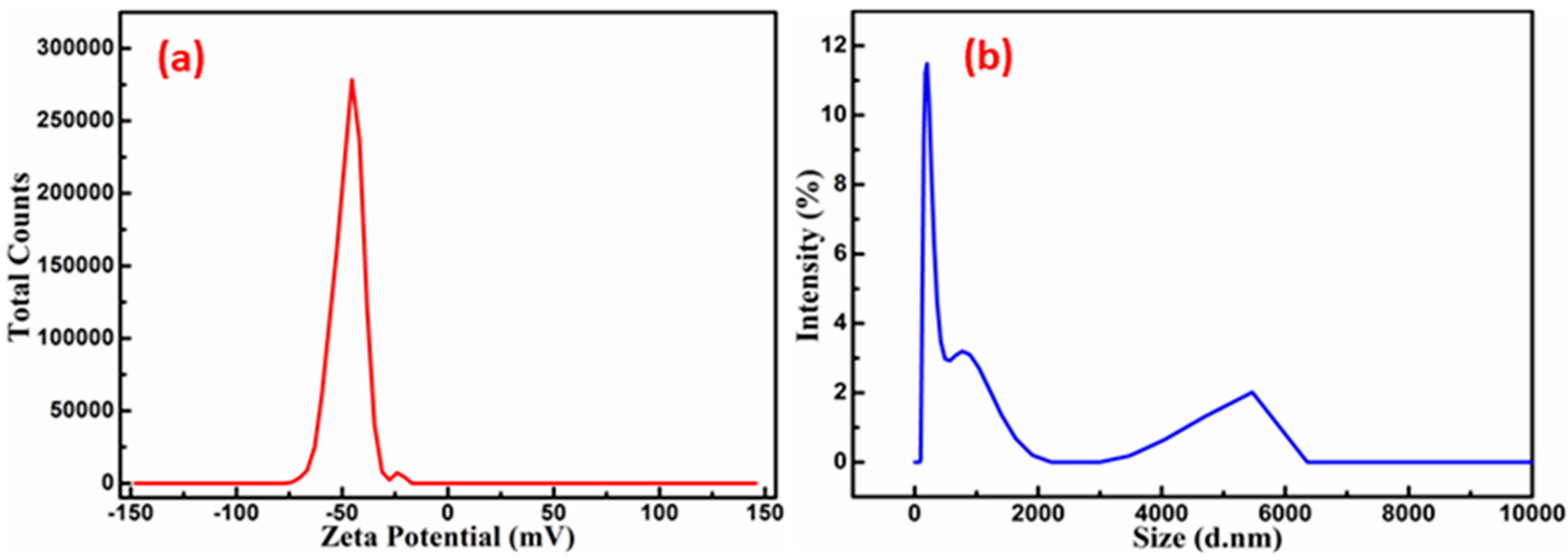

Figure 4. (a) Zeta potential and (b) particle size distribution of SnS2-TiO2 (20%).
Figure 4. (a) Zeta potential and (b) particle size distribution of SnS2-TiO2 (20%).
Nanomaterials 15 00969 g004

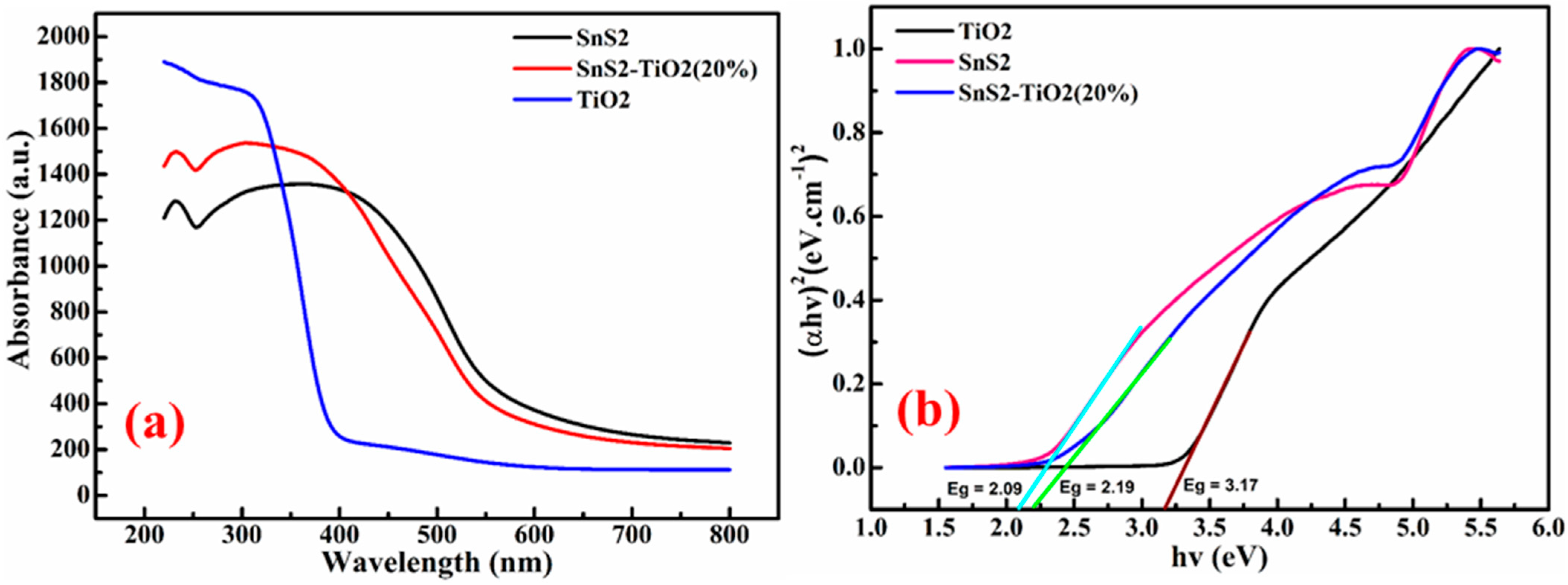

Figure 5. (a) UV-Vis absorbance spectra and (b) Tauc plot of TiO2, SnS2, and SnS2-TiO2 (20%) samples.
Figure 5. (a) UV-Vis absorbance spectra and (b) Tauc plot of TiO2, SnS2, and SnS2-TiO2 (20%) samples.
Nanomaterials 15 00969 g005

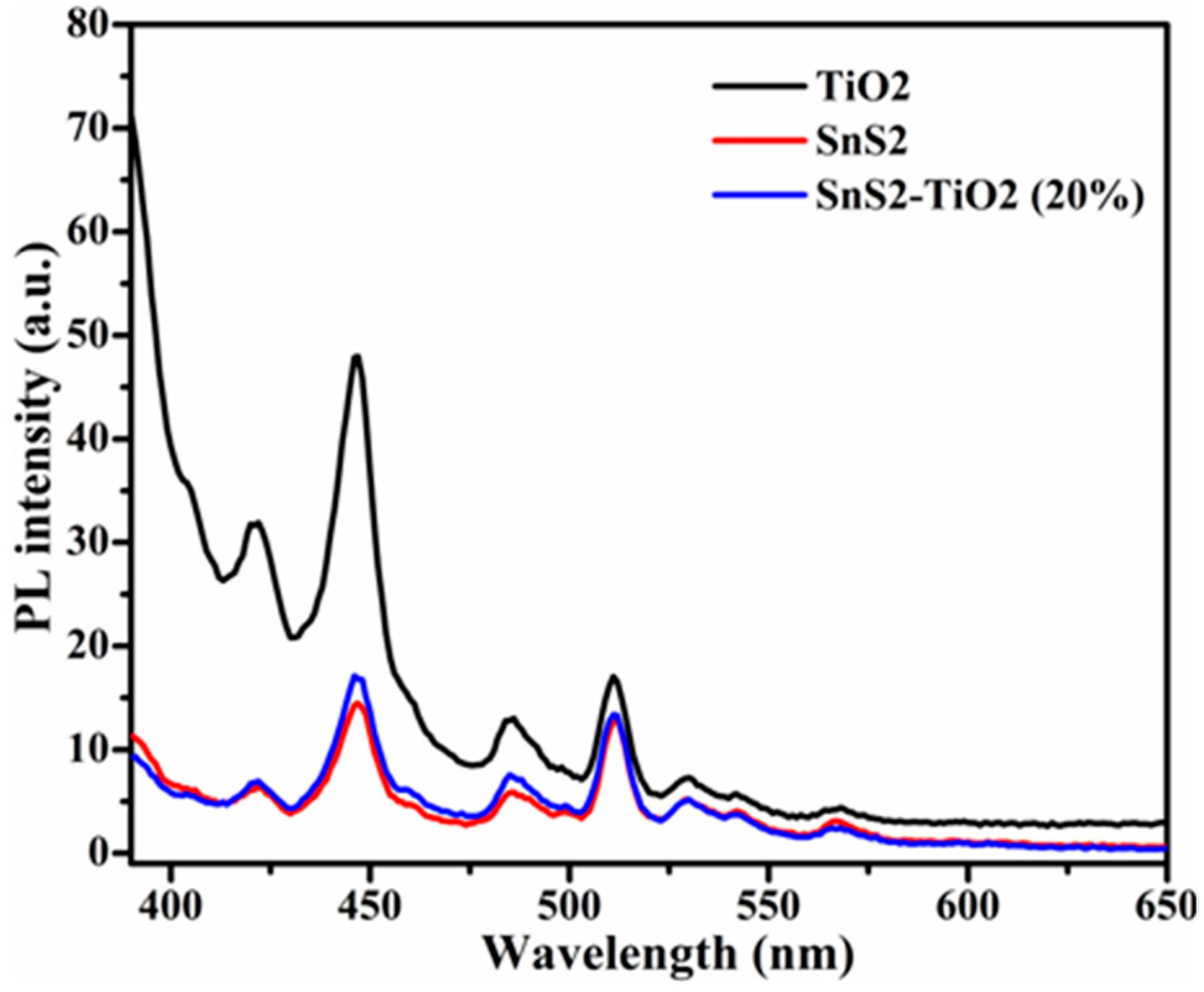

Figure 6. PL spectra of SnS2, TiO2, and SnS2-TiO2 (20%).
Figure 6. PL spectra of SnS2, TiO2, and SnS2-TiO2 (20%).
Nanomaterials 15 00969 g006

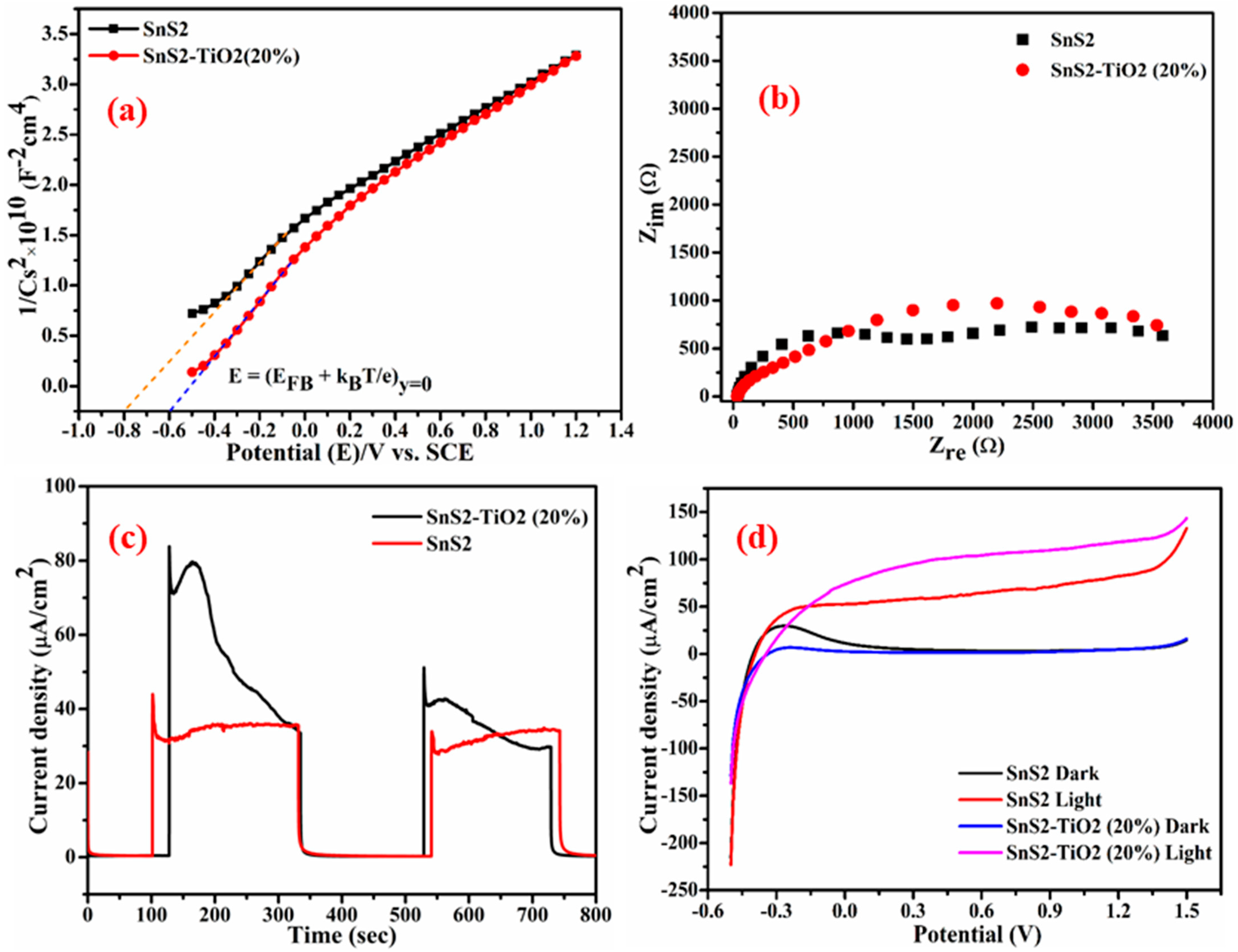

Figure 7. (a) Mott–Schottky curves, (b) EIS Nyquist plots, (c) transient photocurrent response, and (d) linear sweep voltammograms of SnS2 and SnS2-TiO2 (80:20) electrodes in 0.5 M Na2SO4.
Figure 7. (a) Mott–Schottky curves, (b) EIS Nyquist plots, (c) transient photocurrent response, and (d) linear sweep voltammograms of SnS2 and SnS2-TiO2 (80:20) electrodes in 0.5 M Na2SO4.
Nanomaterials 15 00969 g007

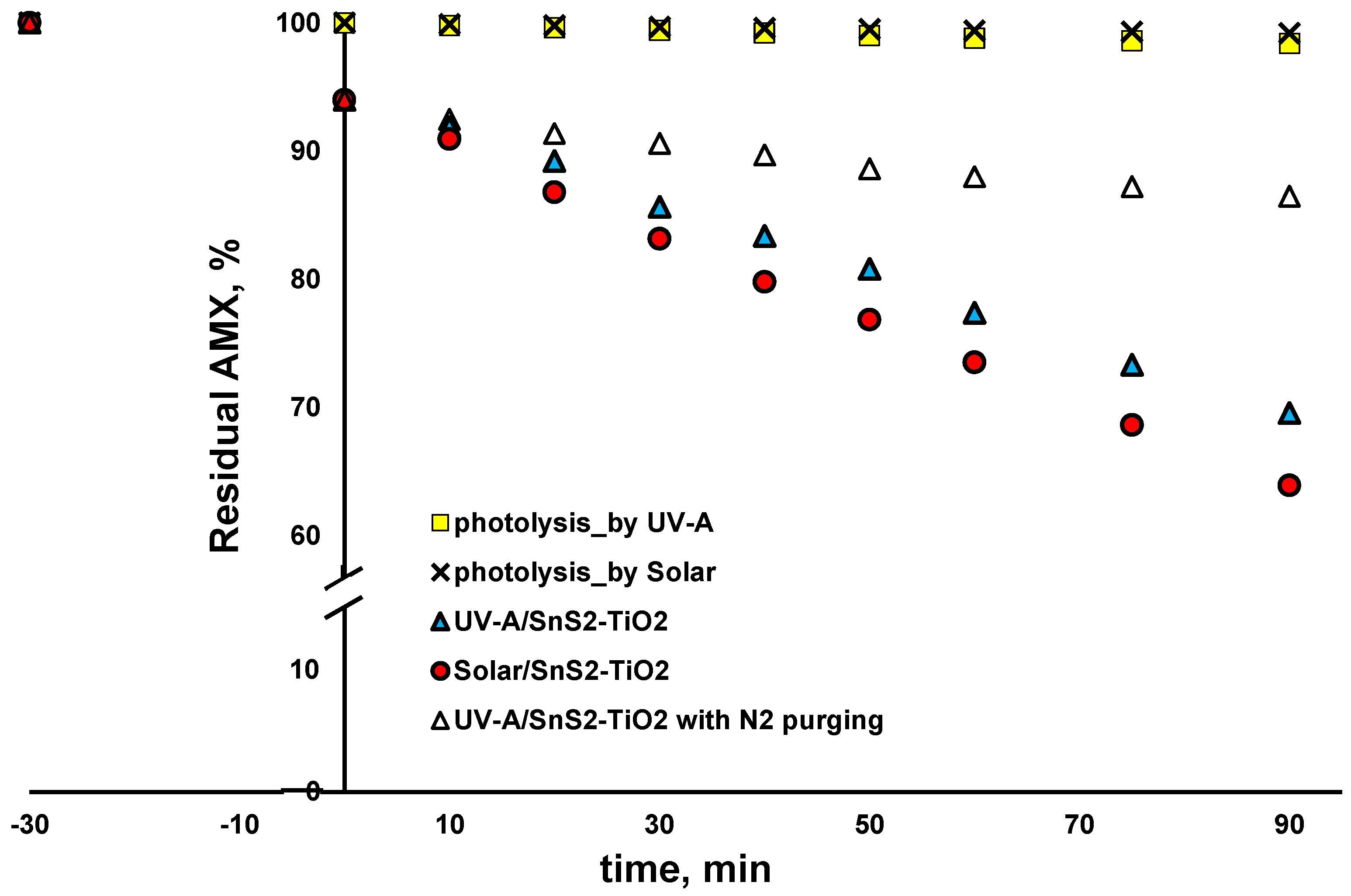

Figure 8. Degradation profiles of AMX using SnS2-TiO2 composite under different irradiation sources (UV-A and solar) (conditions: natural pH (5.5), γ (catalyst dose) = 1 g/L (where applicable)).
Figure 8. Degradation profiles of AMX using SnS2-TiO2 composite under different irradiation sources (UV-A and solar) (conditions: natural pH (5.5), γ (catalyst dose) = 1 g/L (where applicable)).
Nanomaterials 15 00969 g008

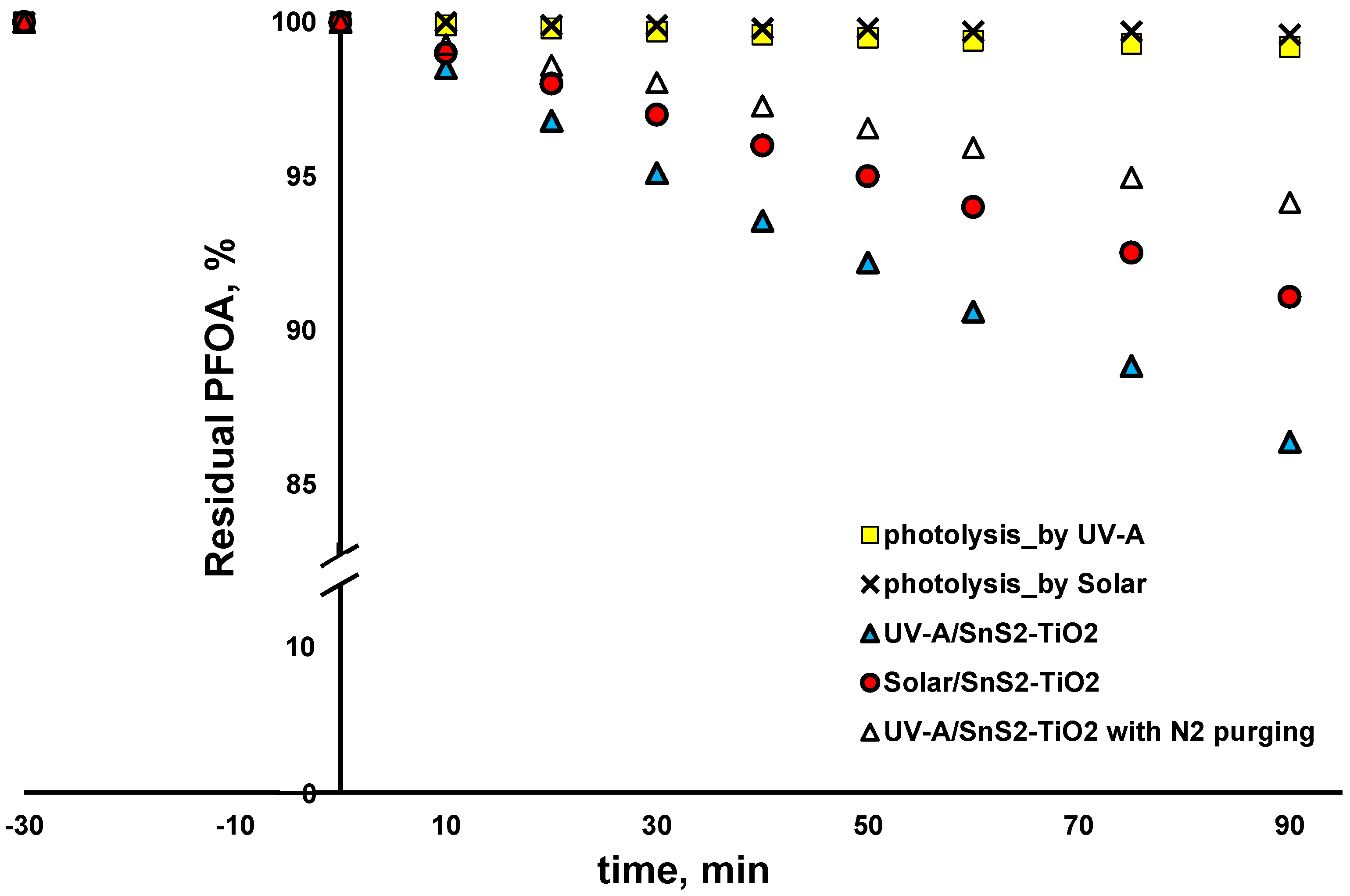

Figure 9. Degradation profiles of PFOA using SnS2-TiO2 composite under different irradiation sources (UV-A and solar) (conditions: natural pH (5.5), γ (catalyst dose) = 1 g/L (where applicable)).
Figure 9. Degradation profiles of PFOA using SnS2-TiO2 composite under different irradiation sources (UV-A and solar) (conditions: natural pH (5.5), γ (catalyst dose) = 1 g/L (where applicable)).
Nanomaterials 15 00969 g009

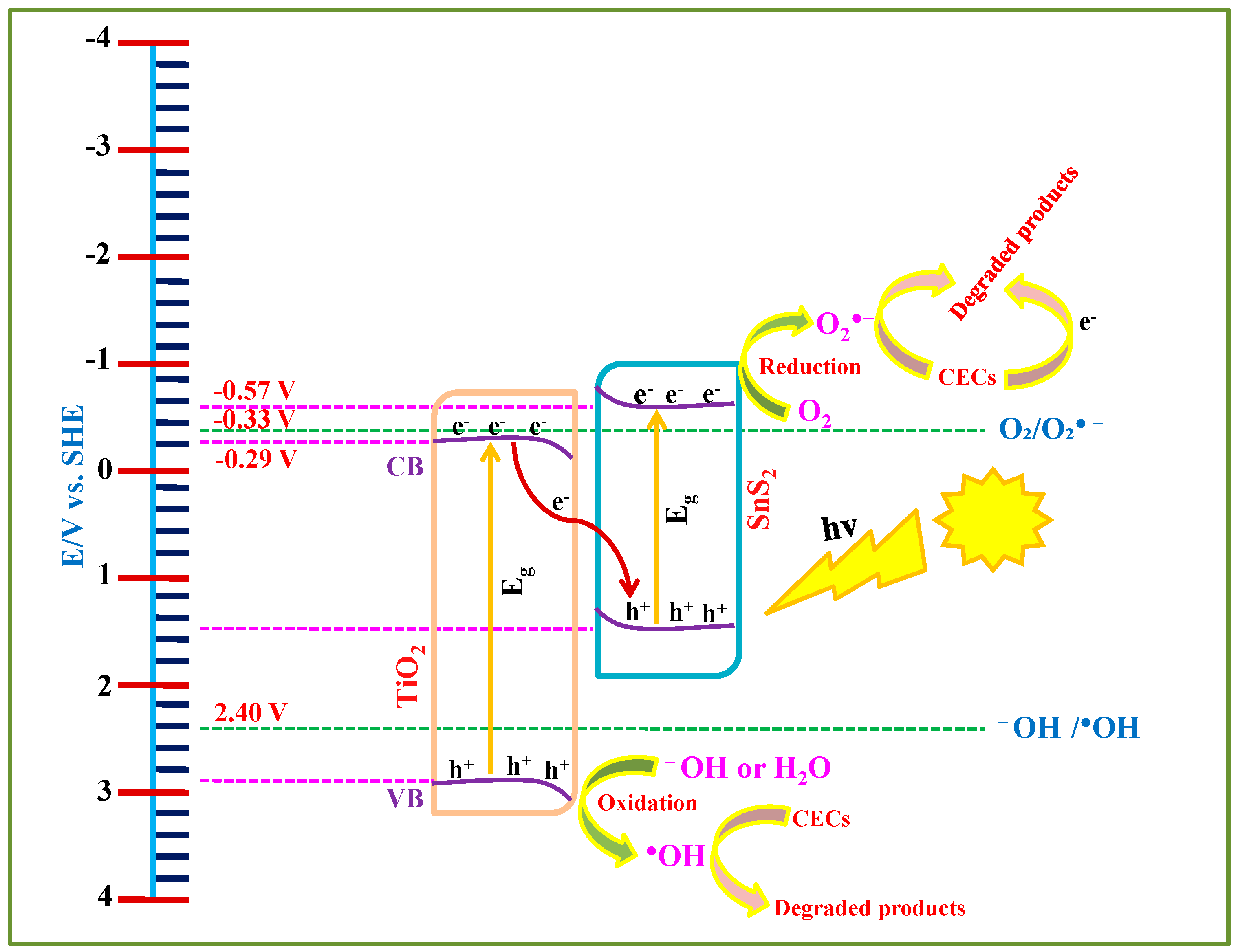

Figure 10. Plausible schematic representation of the photocatalytic pathway.
Figure 10. Plausible schematic representation of the photocatalytic pathway.
Nanomaterials 15 00969 g010

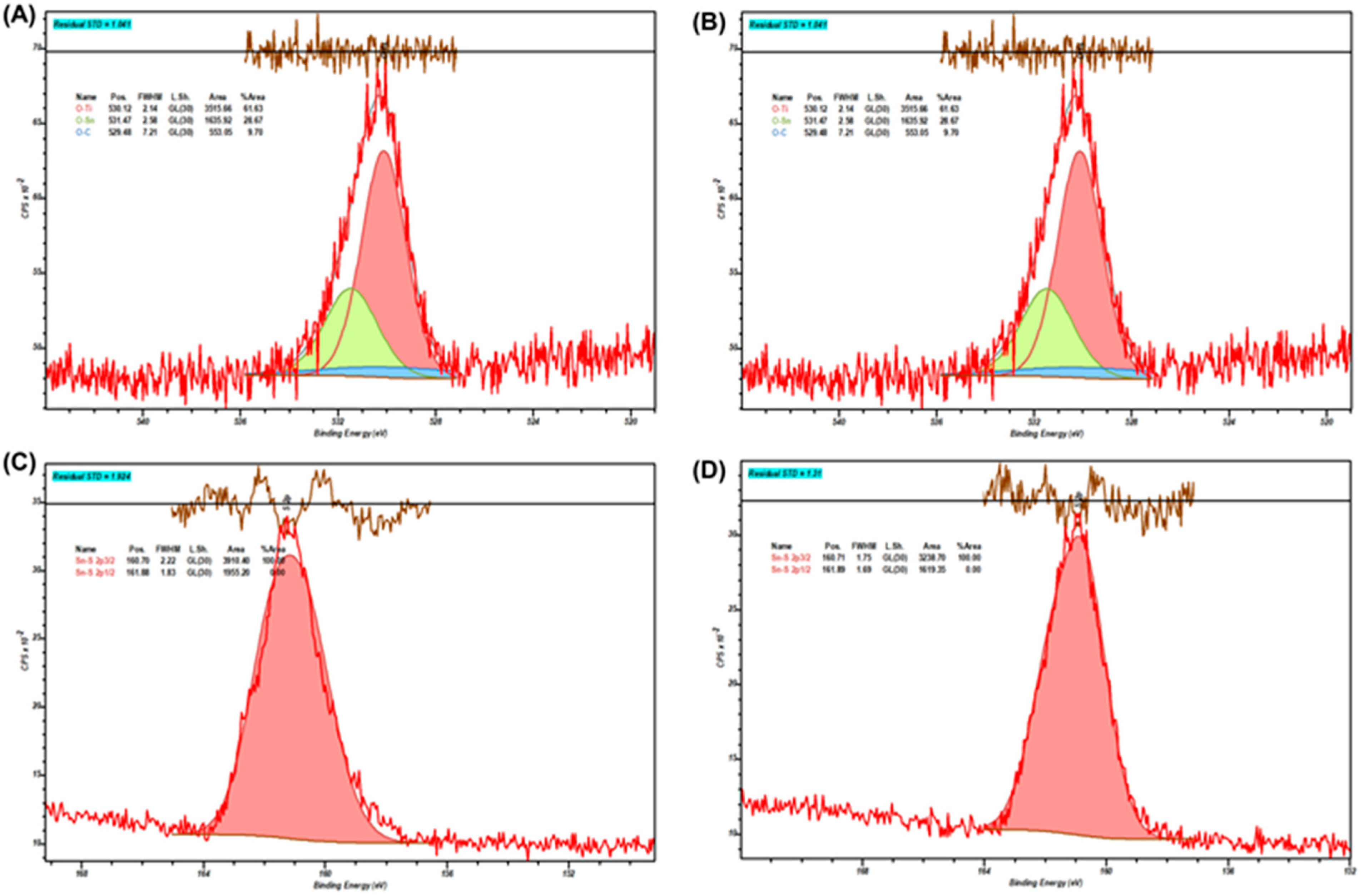

Figure 11. Deconvoluted high-resolution X-ray photoemission spectra (HRXPS) for O 1s in the pristine SnS2-TiO2 (A) and post-photocatalysis (B); S 2p3/2 spectra for the pristine SnS2-TiO2 photocatalysis (C) and post-photocatalysis (D).
Figure 11. Deconvoluted high-resolution X-ray photoemission spectra (HRXPS) for O 1s in the pristine SnS2-TiO2 (A) and post-photocatalysis (B); S 2p3/2 spectra for the pristine SnS2-TiO2 photocatalysis (C) and post-photocatalysis (D).
Nanomaterials 15 00969 g011
Table 1. Summarized parameters obtained by the OCP technique for the as-prepared materials.
Table 1. Summarized parameters obtained by the OCP technique for the as-prepared materials.
MaterialPhotovoltage (ΔE, mV)Charge Recombination Rate (kr, 1/Sec)
TiO2 (HT)54.190.030 [35]
SnS2 (HT)166.330.0132
SnS2-TiO2(20%)212.560.0068
Table 2. High-resolution X-ray photoemission spectroscopy (XPS) spectra for O 1s and S 2p3/2 in pristine SnS2-TiO2 and post-photocatalytic experiments, along with the difference in binding energy (ΔBE) between the two.
Table 2. High-resolution X-ray photoemission spectroscopy (XPS) spectra for O 1s and S 2p3/2 in pristine SnS2-TiO2 and post-photocatalytic experiments, along with the difference in binding energy (ΔBE) between the two.
XPS Region and BondPeak Position, eV
PristinePost-PhotocatalysisΔBE, eV
O 1s, O-Ti530.29530.12−0.17
O 1s, O-Sn530.43531.471.04
S 2p3/2, Sn-S160.70160.710.01
