Towards a CdTe Solar Cell Efficiency Promotion: The Role of ZnO:Al and CuSCN Nanolayers

Isaac Montoya De Los Santos
Alan A. Pérez-Orozco
Diego A. Liña-Martínez
Maykel Courel
Carlos A. Meza-Avendaño
Jorge A. Borrego-Pérez
Laura M. Pérez
5 and
David Laroze
Instituto de Estudios de la Energía, Universidad del Istmo, Oaxaca 70760, Mexico
Centro Universitario de los Valles, Universidad de Guadalajara, Ameca 46600, Mexico
Instituto de Investigación e Innovación en Energías Renovables, Universidad de Ciencias y Artes de Chiapas, Tuxtla Gutiérrez 29039, Mexico
Departamento de Materiales, Facultad de Ingeniería Civil, Universidad Michoacana de San Nicolás de Hidalgo, Morelia 58004, Mexico
Departamento de Física, FACI, Universidad de Tarapacá, Casilla 7D, Arica 1000000, Chile
Instituto de Alta Investigación, CEDENNA, Universidad de Tarapacá, Casilla 7D, Arica 1000000, Chile
Author to whom correspondence should be addressed.
Nanomaterials 2023, 13(8), 1335;
Submission received: 14 February 2023 / Revised: 3 March 2023 / Accepted: 7 March 2023 / Published: 11 April 2023
(This article belongs to the Special Issue State-of-the-Art Nanomaterials for Solar Cells)


A numerical simulation is a valuable tool since it allows the optimization of both time and the cost of experimental processes for time optimization and the cost of experimental processes. In addition, it will enable the interpretation of developed measurements in complex structures, the design and optimization of solar cells, and the prediction of the optimal parameters that contribute to manufacturing a device with the best performance. In this sense, a detailed simulation study was carried out in this work by the Solar Cell Capacitance Simulator (SCAPS). In particular, we evaluate the influence of absorber and buffer thickness, absorber defect density, work function in back contact, Rs, Rsh, and carrier concentration on a CdTe/CdS cell to maximize its performance. Furthermore, the incorporation effect of ZnO:Al (TCO) and CuSCN (HTL) nanolayers was studied for the first time. As a result, the efficiency of the solar cell was maximized from 16.04% to 17.74% by increasing the Jsc and Voc. This work will play an essential role in enhancing the performance of CdTe-based devices with the best performance.

1. Introduction

Crystalline silicon is considered the leading technology in the PV market. Still, the consumption of the material and the high manufacturing costs of these cells have prompted the search for polycrystalline absorber layers of thin films that can adequately replace silicon. One material of interest is CdTe, which has the highest efficiency in thin-film solar cells, this value being above the one reported for CIGS [1]. CdTe is a semiconductor that possesses a direct optical bandgap (1.45 eV) and a high absorption coefficient (105/cm) [2], which enable high quantum yields over a wide wavelength range (from ultraviolet to 827 nm), thus fitting almost optimally to the solar spectrum for photovoltaic energy conversion. In the mid-20th century, the first devices were manufactured by the evaporation of n-type CdS films on single-crystalline p-type CdTe, obtaining an efficiency of less than 5% [3]. Although 22.1% efficiency was eventually achieved, the maximum theoretical efficiency of ~29% has yet to be reached, which shows that there are still some challenges to overcome [4,5,6,7].
On the other hand, solar cell performance greatly depends on the energy barrier at the absorber/contact interface. Therefore, to reduce this barrier, a back contact with a low resistance and high work function (WF) is necessary. In recent years, many researchers have studied diverse materials employed as back contact layers for CdTe devices [8,9,10]. Some materials with high WF, such as WO3 [11], V2O5 [12], NiO [13], and MoOx [14], are used as HTLs (hole transport layer) in these solar cells to improve their performance. On the other hand, inorganic materials can satisfy these properties, such as CuSCN, which has a WF of 5.3 eV and an optical bandgap of 3.6 eV [15]. These properties would allow CuSCN to act as an electron reflector at the back contact, which should help to repulse photogenerated electrons and reduce non-radiative recombination, improving Voc [16]. Moreover, this compound can be synthesized using a low-cost solution [17,18].
On the other side, a transparent electrode (TCO) is used as a front contact to extract the photogenerated electrons to the external charge, usually indium tin oxide (ITO) or fluorine-doped tin oxide (FTO). Nevertheless, both materials possess a high elaboration cost, low electron mobility, and transmittance of around 80% [19,20]. So, it is imperative to search for materials that meet similar characteristics. In this sense, the ZnO:Al compound becomes the ideal candidate since it has a wide bandgap, excellent properties (optical and electrical), and great abundance [21,22,23]. On the contrary, both materials (SnO2:F and ZnO:Al) present a good alignment of the conduction band (CB) with the CdS material and a large valence band (VB). Therefore, minimal recombination is expected at the interface, as electrons pass through smoothly and holes are blocked. However, ZnO:Al has a lower refraction index (of around 7–9%) than SnO2:F. Then, this quality could make it more suitable for CdS/CdTe devices because it allows for promoting more significant photon absorption in the CdTe (absorber) layer [24,25,26].
Another essential requirement for a material to be used as front contact is its lattice matching with the buffer layer, so structural parameters should be considered during their coupling. Lattice-matched materials can be grown on top of one another without forming a high density of nonradiative recombination. However, when the growth of lattice-mismatched materials is attempted, many defects result from the relaxation of strain in the crystal structure [27,28]. In this sense, the ZnO:Al (hexagonal; a = b = 3.24 Å; c = 5.2 Å) [24] could fulfill this condition since there is a minor difference between its lattice constant with the CdS (hexagonal; a = b = 4.13 Å; c = 6.77 Å) [24] compared with the SnO2:F (tetragonal; a = b = 4.74 Å; c = 3.18 Å) [29].
Due to the complexity of solar cells, it is crucial to understand the physics behind these technologies. A helpful tool is a numerical simulation, which allows us to solve the most critical differential equations of solar cells and design and optimize advanced cell structures. SCAPS-1D is a solar cell simulation software conceived at the University of Gent, Belgium. This program was mainly designed for the CdTe and CuInSe2 materials. However, several extensions have improved their application capabilities to Si and GaAs solar cells and other materials, such as perovskite [30,31]. In addition, DFT has also studied similar nanolayer systems, including a variety of semiconductor heterostructures in order to analyze the bonding interfaces [32,33].
The present investigation yielded an extensive study about the impact of different parameters on the CdTe/CdS device structure by SCAPS-1D. Then, a new configuration proposal (CuSCN/CdTe/CdS/ZnO:Al) was studied for improving the device performance.

2. Theoretical Details

2.1. Device Architecture

This work investigates a CdTe solar cell in superstrate structures to analyze the impact of different parameters on the device’s performance. The reference solar cell configuration in the simulation was as follows: SnO2:F/CdS/CdTe/Carbon [34]. The device structures and energy levels of CdTe solar cells simulated in this work are presented below for each configuration in Figure 1. Figure 1a,b show the C/CdTe/Cds/SnO2:F configuration. Figure 1c,d present the C/CdTe/CdS/ZnO:Al configuration, and Figure 1e,f illustrate the C/CuSCN/CdTe/CdS/ZnO:Al configuration, which is the original proposal in this work. Here, the CuSCN unites the hole transport layer and electron-reflecting dual-layer role based on the bandgap edge offset regarding that of CdTe.

2.2. Simulation Parameters

The SCAPS software solves the fundamental semiconductor equations, the Poisson, the continuity equations for electrons and holes, and the drift equation [35]. The software has been used in theoretical studies due to its versatility. All material properties employed (input parameters and CdS/CdTe interface defects) are recapitulated in Table 1 and Table 2, respectively. The material parameters were chosen based on previously reported values [36,37,38,39,40,41,42,43]. Moreover, the simulations were performed under standard conditions.

3. Results and Discussion

3.1. Simulation of CdTe Base Solar Cell

To validate our model, it was necessary to simulate a base solar cell with the typical configuration of CdTe. In this sense, the J-V and EQE curves were calculated by SCAPS and are presented in Figure 2. The output parameters are shown in the inset of Figure 2a, where a power conversion efficiency of 16.04% was obtained.

3.2. Effect of Thickness on the CdTe Absorber Layer

The film thickness is a critical manufacturing parameter affecting the device’s cost and environmental protection properties. Figure 3a shows the behavior of the J-V curves of the devices as a function of the thickness of the absorber material (CdTe) while the thickness of the buffer layer (CdS) was kept constant. The simulations were carried out from 500 nm to 5000 nm. Moreover, a study of the absorber thickness on the output parameters and the external quantum efficiency is shown in Figure 3b,c, respectively.
An improvement at thicker absorber layers is observed in the J-V curves of CdTe devices (Figure 3a). The best performance was obtained at 3000 nm, as seen in Figure 3b. This result implies that the electron diffusion length would be 3 µm, which corresponds well with a Morales–Acevedo report [42]. However, some reports have demonstrated that because of the quality of the deposition of the CdTe layers, it is possible to obtain results between 1.5 and 7.5 µm [43,44]. Similarly, Table 3 shows the output parameters obtained in the simulation by varying the thickness. An increase is observed from 500 nm to 3000 nm (11.83% to 16.13%, respectively).
Results show that when the CdTe thickness was increased up to 3000 nm, the Jsc increased, improving the PCE. This is because a larger CdTe layer can absorb more photons of higher wavelengths, increasing the number of charge carriers generated in it. An improvement was observed in almost all the output parameters with the increase in thickness. However, this effect on the FF was not perceived at thicknesses greater than 3000 nm, which could be attributed to a possible increase in Rs. The plotted graph of EQE vs. wavelength for different thicknesses of the CdTe layer is presented in Figure 3c. This result shows the excellent correspondence of the absorption (855 nm) and the CdTe band gap (1.45 eV). From here, we can see that the EQE performance increased at wavelength values from about 530 nm to 850 nm as the thickness of the CdTe absorber layer increased. Still, the rate of growing quantum efficiency could be more capable for layer thickness over 3000 nm (due to there being only a slight increase at greater wavelength), which means that it was sufficient to absorb most of the incident photons. Then, considerably better photon absorption was obtained at a thicker absorber layer, which corresponds well with the Jsc results presented in Figure 3b. Nevertheless, we can assume that other effects were impairing the solar cell performance.

3.3. Effect of Thickness on the CdS Buffer Layer

The study of the influence of CdS thickness on the solar cell is essential to improve performance. In this sense, Figure 4a shows the behavior of the J-V curves of the devices as a function of the thickness of the buffer layer (CdS), while the CdTe layer thickness was kept constant. The simulations were carried out from 10 nm to 50 nm. The same effect and conditions were studied for the output parameters and are presented in Figure 4b. Besides, the external quantum efficiency at different thicknesses is shown in Figure 4c.
A linear decrease was observed in almost all the output parameters by the thickness increase (Figure 4a). However, this parameter (thickness) does not significantly impact the Voc. Table 4 shows the output parameters obtained in the simulation by varying the CdS thicknesses from 10 nm to 50 nm. It shows a decrease in all parameters at thicker CdS layers. Additionally, this behavior effect is presented in Figure 3b, where a reduction of all the output parameters can be observed as follows: Voc from 0.87 V to 0.86 V, Jsc from 24.89 mA/cm2 to 23.22 mA/cm2, FF from 76.18% to 76.09%, and PCE from 16.53% to 15.37%.
Figure 4c shows the influence of CdS thickness on the external quantum efficiency. As can be seen, the absorption increases at a thinner CdS layer. This effect starts around 500 nm towards lower wavelengths, which corresponds well with the CdS band gap (2.4 eV). In addition, the quantum efficiency increases as the CdS thickness decreases, which indicates less parasitic absorption, making it possible to generate a more significant number of charge carriers in the absorber. This agrees with the Jsc (24.86 mA/cm2 at 10 nm) presented in Table 4.

3.4. Effect of Work Function in Back Contact

The energy needed to remove an electron of the highest level of the stationary Fermi distribution of a solid is known as the work function. The contacts greatly influence the performance and efficiency of solar cells because these devices are highly dependent on the front and back contact work function [45]. Figure 5 shows the J-V curves of CdTe solar cells using different work function values. In this work, an evaluation of its impact on the CdTe device performance is shown in Figure 5 (from 4.5 to 5.5 eV). An increase in Voc (from 0.41 V to 1.10 V), FF (from 60.6% to 77.52%), and PCE (from 5.99% to 20.12%) is observed with the increase in work function values, while the Jsc remains the same. Therefore, materials with back contact values greater than 5.7 eV are unnecessary.

3.5. Effect of Defect Density (cm−3)

Charge carrier generation and recombination are decisive processes for the performance of CdTe solar cells. The first occurs when sunlight strikes the device, allowing the generation of photo-generated carriers in the absorber layer. The charge carriers are collected and transferred to the external current. However, many of these are lost due to the inadequate quality of the material. Higher defect density, commonly found in low-quality materials, increases the recombination rate, reducing the diffusion length of charge carriers and, thus, their lifetime. To determine the effect of defect density on CdTe solar cells’ performance, it is important to understand the recombination mechanisms (non-radiative or Shockley–Red–Hall recombination) [46].
As mentioned above, defects in absorber solar cells have a significant impact on efficiency. In this study, numerical simulations were conducted to investigate the influence of bulk defect density (cm−3) in the CdTe. These simulations were performed at different defect densities from 1012 to 1017 cm−3 (Figure 6). When analyzing the results obtained from the study of CdTe solar cells, all values (Jsc, Voc, and FF) increased as the defect density of the CdTe decreased. As seen in Figure 6, the performance parameters were approximately saturated when the defect densities of the CdTe films decreased to 1013 cm−3, which reveals that an efficiency of 17.56% could be achieved only in CdTe films with remarkably low defect densities.

3.6. Effect of Rs and Rsh on the CdTe Solar Cell Performance

Parasitic resistances have a crucial role in a photovoltaic (PV) system. Series resistance (Rs) is generated by different bulk resistances, such as those of the semiconductor material, metallic material, and contact in the metal–semiconductor [43]. On the other hand, the shunt resistance (Rsh) is caused by leakage across the p-n junction in the vicinity of the device edge and non-peripheral regions due to crystal defects and impurity residues in the solar cell [47,48]. The effect of shunt resistance and series resistance on solar cells performance was analyzed from 0 to 20 Ω cm2 (Rs) and from 0 to 3000 Ω cm2 (Rsh) (Figure 7). A significant impact of Rs on fill factor can be observed in Figure 7. Excessively high values (around 16 Ω cm2) can also reduce the Jsc. On the contrary, the Voc remained the same for values of Rs but increased with higher Rsh. Also, as expected, the FF was mainly affected by the Rs, which directly affected the efficiency. Therefore, we need devices with low or negligible series resistances and very high shunt resistances to obtain high efficiencies.

3.7. Effect of Carrier Concentration

Heterojunction solar cells are characterized by having two or more molecular species acting as electron donor material and electron acceptor material. The doping density of the hole generates the probability that the Fermi distribution value fills the states at the acceptor state. On the other hand, donor density is directly related to electron mobility [49,50,51,52]. Thus, to analyze the effect on the device performance, the carrier concentrations were varied from 1 × 1015 to 1 × 1017 cm−3 for CdS (donor densities) and CdTe (acceptor densities), respectively. As can be seen, the main impact was at greater values of acceptor concentration nearby 10T/cm−3, where the utmost efficiency of 17.48% and a Voc of 2.0 V were determined (Figure 8). This effect is because the increase in the acceptor carrier concentration also resulted in the reduction of the device saturation current, and resultantly, Voc increased. It is clear that the PCE and Voc enlarged with the increase in the acceptor density. Indeed, hole concentration has been pointed out as the limiting factor for interface recombination in the device. On the contrary, this result shows that charge concentration in the buffer layer did not affect the performance of the photovoltaic device.

3.8. Enhancement of the CdTe Solar Cell Performance by Incorporating ZnO:Al and CuSCN Nanolayers

The back contact is one of the challenges of CdTe solar cell fabrication. Due to the high ionization potential of CdTe, a metal with a high WF is necessary to create an ohmic contact. Unfortunately, most metals do not fulfill this characteristic. Although there are some with a high WF, such as platinum or nickel, they are inappropriate because they tend to react with tellurium and generate disfavored phases [52]. On the contrary, metals with a low WF create a Schottky junction. This rectifying contact causes a barrier potential that can reduce FF values with increased barrier height [9]. Remarkable research is required to conceive a path to create an ohmic contact between CdTe-metal.
Using Cu as a p-type dopant at the back contact has been the most productive approach, yielding hole densities of about 1015 cm−2. In this sense, researchers have reported on the use of a CuSCN layer as a hole transport layer or back contact in CdTe solar cells, i.e., HTL/back contact (CuSNC/Au) to replace the common back contact (Cu/Au) [53,54]. In addition, the TCO is located at the bottom of the solar cell, where SnO2:F, as mentioned in the introduction section, is commonly used. However, it is necessary to emphasize the characteristics required of a front contact (TCO) for its application in CdTe/CdS solar cells, such as high transparency (>85%), a low resistivity on the order of 104 Ω cm [55,56], good stability (no degradation) to the growth of the CdS buffer layer (about 60 °C by chemical bath). In this sense, the choice of the type of TCO will depend on the type of solar cell configuration, whether they are SnO2:F (superstrate type) which needs a deposit temperature of around 450 °C or ZnO:Al (substrate type) that has the advantage of being deposited at room temperature [57]. Therefore, this work presents three types of CdTe solar cells. First is the standard CdS/CdTe configuration (previously studied), named cell 1. Second is the heterojunction where the ZnO:Al is used as front contact, replacing the SnO2:F due to its greater transparency (cell 2). And the third one, where the CuSCN material works as HTL (cell 3). The J-V curves with different configurations are shown in Figure 9.
The typical Cu/Au back contact becomes problematic due to Cu diffusion during device production conducting to degradation and compensation via extra Cu diffusion [56]. For this reason, a thin film of CuSCN (30 nm) was considered for this simulation, as was successfully experimentally reported by Paudel et al. and Montgomery et al. [53,54]. Figure 9 shows that the Voc significantly increased by adding the CuSCN layer but slightly decreased in FF. This behavior is because of its high conduction band since the CuSCN operates as an electron reflector. Additionally, the CuSCN and CdTe conductivity (p-type) caused the valence band offset (CuSCN/CdTe) to be negligible. Furthermore, the CuSCN layer became a Cu source for CdTe doping (increasing hole density), which was necessary to improve the Voc in CdTe devices [58]. Thus, increasing the hole concentration in the CdTe absorber can significantly reduce the back-contact barrier height and assure carrier extraction [53,54].
The output parameters of all CdTe devices are presented in Table 5. It can be observed that a CuSCN layer can be applied as a back contact buffer to improve the Voc from 0.87 V to 0.94 V. Results by using CuSCN as HTM are in good agreement with some reports where a significant Voc (1 V) was reached [59]. Figure 10 presents the external quantum efficiency of all CdTe devices. As can be seen, a higher absorption was obtained for cell two at a wavelength between 350 and 600 nm, which corresponds with the Jsc presented in Table 5. This improvement could be related to the higher transparency of ZnO, about 90%, compared to that of SnO2:F (80%). Nevertheless, there was no noticeable improvement in cell 3 with the CuSCN layer.

3.8.1. Effect of Rs in CdTe Devices with Different Configurations

The Rs predominantly result from the available connections or the circuit resistance across the contacts. It is desirable to guarantee a low or negligible Rs to ensure high-efficiency solar cells. However, it is still inconceivable to achieve a perfect FF because of the deficiency of the diode. The Rs were varied from 0 to 10 Ω cm2 to analyze their impact on the solar cell performance using the following configurations: CdTe/CdS/SnO2:F (cell 1), CdTe/CdS/ZnO:Al (cell 2), and CuSCN/CdTe/CdS/CdS/ZnO:Al (cell 3). Figure 11 presents the impact of Rs on the solar cell parameters. These results illustrate that all solar cell structures were negatively affected by increasing the series resistance, as demonstrated by the sharp decrease in efficiency with rising Rs.
In all configurations, the Voc remained constant with increasing Rs values. As this value increased from 0 Ω cm2 to 10 Ω cm2, the efficiency decreased from 16.04% to 11.67% (Cell 1), from 16.90% to 11.72% (Cell 2), and from 17.72% to 12.09% (Cell 3). Nevertheless, better performance was shown for the device with the CuSCN layer (compared with the other devices). The effect of adding the CuSCN and ZnO:Al nanolayers in the device design is revealed in Figure 11. As a result, a minor detrimental impact on all output parameters was observed by the increase in Rs, which can be attributed to a combined effect of these layers on the solar cell performance. This means that for superior transmittance by the ZnO:Al layer, better photogeneration is achieved. Additionally, in the case of the nanolayer of CuSCN, there are two contributions: first, it usually forms an electron reflecting barrier, which helps to reduce leakage currents; and second, it improves the extraction of carriers (holes) to the back contact.

3.8.2. Optimization of the CdTe Solar Cell

As the last step, a new simulation was carried out considering the optimized characteristics obtained in the previous sections, such as thicknesses of 3 µm for CdTe and 25 nm for CdS, a work function of 5.7 eV, a defect density of CdTe of 1013 cm−3, a negligible series resistance, a shunt resistance of 3000 Ω cm2, and hole carrier concentration of 1017 cm−3. In addition, the use of ZnO:Al and CuSCN layers was considered. The J-V curve and EQE are presented in Figure 12. The solar cell performance is shown to be improved, as expected. An efficiency of 22.62% was obtained, slightly superior to the solar cell record (22.1%) [60]. Furthermore, an increase in the EQE at lower wavelengths was observed, where cell 1 cannot absorb.

4. Conclusions

The understanding of CdTe solar cell physics is valuable for achieving greater efficiencies. In this sense, a numerical simulation (SCAPS) of the CdTe device was carried out. The incorporation of the ZnO:Al nanolayer (TCO) and CuSCN nanolayer (HTL) on solar cell performance was compared and studied. The device configurations were: cell 1, CdTe/CdS/SnO2:F; cell 2, CdTe/CdS/ZnO:Al; and cell 3, CuSCN/CdTe/CdS/ZnO:Al. First, the influence of different parameters (thickness, work function, bulk defects, carrier concentration, and Rs) on cell 1 was studied and explained. Then, the impact of the ZnO:Al and CuSCN was evaluated for cells 2 and 3, respectively. Promising optimized results were achieved with a conversion efficiency from 16.04% (cell 1) to 22.62% (cell 3). Finally, cell 3 demonstrated that incorporating ZnO:Al and CuSCN made it possible to obtain a superior Voc and, consequently, greater efficiency. Furthermore, the third device showed a lower adverse effect against parasitic resistance (Rs). This new proposal will guide the feasible fabrication of higher-efficiency CdTe-based photovoltaic cells.

Author Contributions

Conceptualization, I.M.D.L.S.; methodology, A.A.P.-O. and D.A.L.-M.; software, A.A.P.-O. and D.A.L.-M.; validation, I.M.D.L.S., L.M.P. and D.L.; formal analysis, I.M.D.L.S.; investigation, I.M.D.L.S., A.A.P.-O., M.C., C.A.M.-A., J.A.B.-P., L.M.P. and D.L.; resources, L.M.P. and D.L.; data curation, I.M.D.L.S.; writing—original draft preparation, I.M.D.L.S.; writing—review and editing, M.C., C.A.M.-A., J.A.B.-P., L.M.P. and D.L.; visualization, I.M.D.L.S., A.A.P.-O., M.C., C.A.M.-A. and J.A.B.-P.; supervision, I.M.D.L.S.; project administration, I.M.D.L.S., L.M.P. and D.L.; funding acquisition, L.M.P. and D.L. All authors have read and agreed to the published version of the manuscript.


L.M.P. acknowledges the financial support from ANID through Convocatoria Nacional Subvención e Instalación en la Academia Convocatoria Año 2021, grant SA77210040. D.L. acknowledges the partial financial support from the Centers of Excellence with BASAL/ANID financing, grant AFB220001, CEDENNA.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.


The authors thank Marc Burgelman from the University of Gent for providing SCAPS software.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Brian, E.; McCandless, J.R. Cadmium Telluride Solar Cells. In Handbook of Photovoltaic Science and Engineering; Hegedus, S., Luque, A., Eds.; John Wiley & Sons: Hoboken, NJ, USA, 2011; pp. 600–641. [Google Scholar]
  2. Huang, C.-H.; Chuang, W.J. Dependence of performance parameters of CdTe solar cells on semiconductor properties studied by using SCAPS-1D. Vacuum 2015, 118, 32–37. [Google Scholar] [CrossRef]
  3. Niemegeers, A.; Burgelman, M. Effects of the Au/CdTe back contact on IV and CV characteristics of Au/CdTe/CdS/TCO solar cells. J. Appl. Phys. 1997, 81, 2881–2886. [Google Scholar] [CrossRef]
  4. Metzger, W.K.; Grover, S.; Lu, D.; Colegrove, L.; Moseley, J.; Perkins, C.L.; Li, X.; Mallick, R.; Zhang, W.; Malik, R.; et al. Exceeding 20% efficiency with in situ group V doping in polycrystalline CdTe solar cells. Nat. Energy 2019, 4, 837–845. [Google Scholar] [CrossRef]
  5. Hu, A.; Zhou, J.; Qin, X.; Jiang, Y.; Zhou, P.; Zhong, P.; Tang, S.; Wu, X.; Yang, D. Improving CdTe-Based Thin-Film Solar Cell Efficiency with the Oxygenated CdSe Layer Prepared by Sputtering Process. Phys. Status Solidi A 2020, 217, 2000560. [Google Scholar] [CrossRef]
  6. Liu, J.; Chen, W.; Feng, X. Numerical simulation of ultra-thin CdTe solar cells with a buffer layer of MoOx in the backwall configuration. Chin. J. Phys. 2018, 56, 1826–1833. [Google Scholar] [CrossRef]
  7. Shockley, W.; Queisser, H.J. Detailed balance limit of efficiency of p-n junction solar cells. J. Appl. Phys. 1961, 32, 510–519. [Google Scholar] [CrossRef]
  8. Liu, J.; Liu, X.; Yang, K.; He, S.; Lu, H.; Li, B.; Zeng, G.; Zhang, J.; Li, W.; Wu, L.; et al. Preparation and characterization of pulsed laser deposited Sb2Te3 back contact for CdTe thin film solar cell. Appl. Surf. Sci. 2018, 453, 126–131. [Google Scholar] [CrossRef]
  9. Demtsu, S.; Sites, J. Effect of back-contact barrier on thin-film CdTe solar cells. Thin Solid Film. 2006, 510, 320–324. [Google Scholar] [CrossRef]
  10. Yang, R.; Wang, D.; Jeng, M.; Ho, K.; Wang, D. Stable CdTe thin film solar cells with a MoOx back-contact buffer layer. Prog. Photovolt. Res. Appl. 2016, 24, 59–65. [Google Scholar] [CrossRef]
  11. Paudel, N.R.; Xiao, C.; Yan, Y. CdS/CdTe thin-film solar cells with Cu-free transition metal oxide/Au back contacts. Prog. Photovolt. Res. Appl. 2015, 23, 437–442. [Google Scholar] [CrossRef]
  12. Shen, K.; Yang, R.; Wang, D.; Jeng, M.; Chaudhary, S.; Ho, K.; Wang, D. Stable CdTe solar cell with V2O5 as a back contact buffer layer. Sol. Energy Mater. Sol. Cells 2016, 144, 500–508.11. [Google Scholar] [CrossRef]
  13. Xiao, D.; Li, X.; Wang, D.; Li, Q.; Shen, K.; Wang, D. CdTe thin film solar cell with NiO as a back contact buffer layer. Sol. Energy Mater. Sol. Cells 2017, 169, 61–67. [Google Scholar] [CrossRef]
  14. Lin, H.; Xia, W.; Wu, H.N.; Gao, Y.; Tang, C.W. MoOxback contact for CdS/CdTe thin film solar cells: Preparation, device characteristics, and stability. Sol. Energy Mater. Sol. Cells 2012, 99, 349–355. [Google Scholar] [CrossRef]
  15. Larramona, G.; Choné, C.; Jacob, A.; Sakakura, D.; Delatouche, B.; Péré, D.; Cieren, X.; Nagino, M.; Bayón, R. Nanostructured photovoltaic cell of the type titanium dioxide, cadmium sulfide thin coating and copper thiocyanate showing high quantum efficiency. Chem. Mater. 2006, 18, 1688–1696. [Google Scholar] [CrossRef]
  16. Hsiao, K.J.; Sites, J.R. Electron reflector to enhance photovoltaic efficiency: Application to thin-film CdTe solar cells. Prog. Photovolt. Res. Appl. 2012, 20, 486–489. [Google Scholar] [CrossRef]
  17. Aldakov, D.; Chappaz-Gillot, C.; Salazar, R.; Delaye, V.; Welsby, K.A.; Ivanova, V.; Dunstan, P.R. Properties of electrodeposited CuSCN 2D layers and nanowires influenced by their mixed domain structure. J. Phys. Chem. C 2014, 118, 16095–16103. [Google Scholar] [CrossRef] [Green Version]
  18. Pattanasattayavong, P.; Yaacobi-Gross, N.; Zhao, K.; Ndjawa, G.O.N.; Li, J.; Yan, F.; O’Regan, B.C.; Amassian, A.; Anthopoulos, T.D. Hole-transporting transistors and circuits based on the transparent inorganic semiconductor copper (I) thiocyanate (CuSCN) processed from solution at room temperature. Adv. Mater. 2013, 25, 1504–1509. [Google Scholar] [CrossRef]
  19. Way, A.; Luke, J.; Evans, A.D.; Li, Z.; Kim, J.-S.; Durrant, J.R.; Lee, H.K.H.; Tsoi, W.C. Fluorine doped tin oxide as an alternative of indium tin oxide for bottom electrode of semi-transparent organic photovoltaic devices. AIP Adv. 2019, 9, 085220. [Google Scholar] [CrossRef] [Green Version]
  20. Yang, H.-Y.; Ho, W.-J.; Feng, S.-K.; Liu, J.-J.; Chuang, T.-W.; Li, G.-Y.; Yang, Y.-C.; Chiang, C.-C.; Chen, Y.H.; Ghosh, S.; et al. Electrical and optical performance of silicon solar cells using plasmonics indium nanoparticles layer embedded in SiO2 antireflective coating. In Proceedings of the 2017 IEEE 44th Photovoltaic Specialist Conference, Washington, DC, USA, 25–30 June 2017; IEEE: Piscataway, NJ, USA, 2017; pp. 2664–2666. [Google Scholar]
  21. Agrawal, S.; Rane, R.; Mukherjee, S. ZnO thin film deposition for TCO application in solar cell. Conf. Pap. Energy 2013, 2013, 718692. [Google Scholar] [CrossRef] [Green Version]
  22. Rao, T.P.; Kumar, M.S.; Angayarkanni, S.A.; Ashok, M. Effect of stress on the optical band gap of ZnO thin films with substrate temperature by spray pyrolysis. J. Alloys Compd. 2009, 485, 413–417. [Google Scholar] [CrossRef]
  23. Muchuweni, E.; Sathiaraj, T.; Nyakotyo, H. Synthesis and characterization of zinc oxide thin films for optoelectronic applications. Heliyon 2017, 3, e00285. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Vatavu, S.; Rotaru, C.; Fedorov, V.; Stein, T.A.; Caraman, M.; Evtodiev, I.; Kelch, C.; Kirsch, M.; Chetruş, P.; Gaşin, P.; et al. A comparative study of (ZnO, In2O3: SnO2, SnO2)/CdS/CdTe/(Cu/) Ni heterojunctions. Thin Solid Film. 2013, 535, 244–248. [Google Scholar] [CrossRef] [Green Version]
  25. Peña, J.L.; Rejón, V.; Arés, O.; Camacho, J.M.; Rios-Flores, A. The ZnO-reflectance effect on the heterojunction ITO/ZnO/CdS/CdTe. In Proceedings of the 38th IEEE Photovoltaic Specialists Conference, Austin, TX, USA, 3–8 June 2012; pp. 002021–002023. [Google Scholar]
  26. Calceido, L.M.; Moreno, L.C.; Sandino, J.W.; Gordillo, G. Deposition, optical and structural characterization of SnO2:F/CdS and ZnO/CdS structures used as optical windows in solar cells. Surf. Rev. Lett. 2002, 9, 1693–1696. [Google Scholar]
  27. Olson, M.; Friedman, D.J.; Kurtz, S. High-Efficiency III-V Multijunction Solar Cells. In Handbook of Photovoltaic Science and Engineering; Luque, A., Hegedus, S., Eds.; John Wiley & Sons Ltd.: New York, NY, USA, 2003; pp. 359–411. [Google Scholar]
  28. Suhir, E. Thin Films and Epitaxy. In Handbook of Crystal Growth, 2nd ed.; Elsevier: Amsterdam, The Netherlands, 2015; pp. 983–1005. [Google Scholar]
  29. Asl, H.Z.; Rozati, S.M. High-quality spray-deposited fluorine-doped tin oxide: Effect of film thickness on structural, morphological, electrical, and optical properties. Appl. Phys. A 2019, 125, 689. [Google Scholar] [CrossRef]
  30. Montoya De Los Santos, I.; Cortina-Marrero, H.J.; Ruíz-Sánchez, M.A.; Hechavarría-Difur, L.; Sánchez-Rodríguez, F.J.; Courel, M.; Hu, H. Optimization of CH3NH3PbI3 perovskite solar cells: A theoretical and experimental study. Sol. Energy 2020, 199, 198–205. [Google Scholar] [CrossRef]
  31. Montoya De Los Santos, I.; Cortina-Marrero, H.J.; Hechavarriía-Difur, L.; Sánchez-Rodríguez, F.J.; Meza-Avendaño, C.A.; Borrego-Pérez, J.A.; Moreno-Oliva, V.I.; Román-Hernández, E.; Courel, M. The effect of Se/(S+ Se) compositional ratios on the performance of SnS-based solar cell: A numerical simulation. Semicond. Sci. Technol. 2020, 35, 115010. [Google Scholar] [CrossRef]
  32. Wick, C.; Dang, L. Recent advances in understanding transfer ions across aqueous interfaces. Chem. Phys. Lett. 2008, 458, 170–174. [Google Scholar] [CrossRef]
  33. Medeiros, P.V.; Gueorguiev, G.K.; Stafström, S. Bonding, charge rearrangement and interface dipoles of benzene, graphene, and PAH molecules on Au (1 1 1) and Cu (1 1 1). Carbon 2015, 81, 620–628. [Google Scholar] [CrossRef]
  34. Gloeckler, M.; Fahrenbruch, A.L.; Sites, J.R. Numerical modeling of CIGS and CdTe solar cells: Setting the baseline. In Proceedings of the 3rd World Conference on Photovoltaic Energy Conversion, Osaka, Japan, 11–18 May 2003; IEEE: Piscataway, NJ, USA, 2003; Volume 1, pp. 491–494. [Google Scholar]
  35. Neamen, D.A. Solar cells. In Semiconductor Physics and Devices: Basic Principles; Neamen, D.A., Ed.; McGraw-Hill: New York, NY, USA, 2003; pp. 624–632. [Google Scholar]
  36. Zyoud, S.H.; Zyoud, A.H.; Ahmed, N.M.; Abdelkader, A.F.I. Numerical Modelling Analysis for Carrier Concentration Level Optimization of CdTe Heterojunction Thin Film–Based Solar Cell with Different Non–Toxic Metal Chalcogenide Buffer Layers Replacements: Using SCAPS–1D Software. Crystals 2021, 11, 1454. [Google Scholar] [CrossRef]
  37. Zandi, S.; Razaghi, M. Finite element simulation of perovskite solar cell: A study on efficiency improvement based on structural and material modification. Sol. Energy 2019, 179, 298–306. [Google Scholar] [CrossRef]
  38. Pinzón, C.; Martínez, N.; Casas, G.; Alvira, F.; Cappelletti, M. Evaluación teórica del comportamiento de celdas solares de perovskita invertida totalmente inorgánicas. Av. Energías Renov. Medio Ambiente AVERMA 2020, 24, 139–148. [Google Scholar]
  39. Casas, G.A.; Cappelletti, M.A.; Cédola, A.P.; Soucase, B.M.; Peltzer, E.L. Impacto del uso de diversos materiales como capa de transporte de huecos en una celda solar de Perovskita. Av. Energías Renov. Medio Ambiente AVERMA 2021, 20, 113–123. [Google Scholar]
  40. Ahmmed, S.; Aktar, A.; Rahman, F.; Hossain, J.; Ismail, A.B. A numerical simulation of high efficiency CdS/CdTe based solar cell using NiO HTL and ZnO TCO. Optik 2020, 223, 165625. [Google Scholar] [CrossRef]
  41. Seck, S.M.; Ndiaye, E.N.; Fall, M.; Charvet, S. Study of Efficiencies CdTe/CdS Photovoltaic Solar Cell According to Electrical Properties by Scaps Simulation. Nat. Resour. 2020, 11, 147–155. [Google Scholar] [CrossRef] [Green Version]
  42. Morales-Acevedo, A. Thin film CdS/CdTe solar cells: Research perspectives. Sol. Energy 2006, 80, 675–681. [Google Scholar] [CrossRef]
  43. Ščajev, P.; Miasojedovas, S.; Mekys, A.; Kuciauskas, D.; Lynn, K.G.; Swain, S.K.; Jarašiūnas, K. Excitation-dependent carrier lifetime and diffusion length in bulk CdTe determined by time-resolved optical pump-probe techniques. J. Appl. Phys. 2018, 123, 025704. [Google Scholar] [CrossRef]
  44. Wight, D.; Bradley, D.; Williams, G.; Astles, M.; Irvine, S.; Jones, C. Minority carrier diffusion length in CdTe. J. Cryst. Growth 1982, 59, 323–331. [Google Scholar] [CrossRef]
  45. Rached, D.; Mostefaoui, R. Influence of the front contact barrier height on the Indium Tin Oxide/hydrogenated p-doped amorphous silicon heterojunction solar cells. Thin Solid Film. 2008, 516, 5087–5092. [Google Scholar] [CrossRef]
  46. Sze, S.M. Physics of Semiconductor Devices; John Wiley & Sons: New York, NY, USA, 2006. [Google Scholar]
  47. Teyou Ngoupo, A.; Ouédraogo, S.; Ndjaka, J.M. Numerical analysis of interface properties effects in CdTe/CdS:O thin film solar cell by SCAPS-1D. Indian J. Phys. 2019, 93, 869–881. [Google Scholar] [CrossRef]
  48. Dhass, A.D.; Natarajan, E.; Ponnusamy, L. Influence of shunt resistance on the performance of solar photovoltaic cell. In Proceedings of the 2012 International Conference on Emerging Trends in Electrical Engineering and Energy Management (ICETEEEM), Chennai, India, 13–15 December 2012; IEEE: Piscataway, NJ, USA, 2012; pp. 382–386. [Google Scholar]
  49. Wolf, M.; Rauschenbach, H. Series resistance effects on solar cell measurements. Adv. Energy Convers. 1963, 3, 455–479. [Google Scholar] [CrossRef]
  50. Handy, R. Theoretical analysis of the series resistance of a solar cell. Solid-State Electron. 1967, 10, 765–775. [Google Scholar] [CrossRef]
  51. Haitjema, H.; Elich, J.; Hoogendoorn, C. The optical, electrical and structural properties of fluorine-doped, pyrolytically sprayed tindioxide coatings. Sol. Energy Mater. 1989, 18, 283–297. [Google Scholar] [CrossRef]
  52. Demtsu, S.H.; Albin, D.S.; Pankow, J.W.; Davies, A. Stability study of CdS/CdTe solar cells made with Ag and Ni back-contacts. Sol. Energy Mater. Sol. Cells 2006, 90, 2934–2943. [Google Scholar] [CrossRef]
  53. Paudel, N.R.; Yan, Y. Application of copper thiocyanate for high open-circuit voltages of CdTe solar cells. Prog. Photovolt. Res. Appl. 2016, 24, 94–101. [Google Scholar] [CrossRef]
  54. Montgomery, A.; Guo, L.; Grice, C.; Awni, R.A.; Saurav, S.; Li, L.; Yan, Y.; Yan, F. Solution-processed copper (I) thiocyanate (CuSCN) for highly efficient CdSe/CdTe thin-film solar cells. Prog. Photovolt. Res. Appl. 2019, 27, 665–672. [Google Scholar] [CrossRef]
  55. Gretener, C.; Perrenoud, J.; Kranz, L.; Cheah, E.; Dietrich, M.; Buecheler, S.; Tiwari, A.N. New perspective on the performance stability of CdTe solar cells degradation of CdTe solar cell performance. Sol. Energy Mater. Sol. Cells 2016, 146, 51–57. [Google Scholar] [CrossRef]
  56. Chopra, K.L.; Paulson, P.D.; Dutta, V. Thin-film solar cells: An overview. Prog. Photovolt. Res. Appl. 2004, 12, 69–92. [Google Scholar] [CrossRef]
  57. Romeo, A. Thin film technologies—CdTe solar cells. In McEvoy’s Handbook of Photovoltaics, 3rd ed.; Kalogirou, S., Ed.; Elsevier: Edinburgh, UK, 2018; pp. 309–369. [Google Scholar]
  58. Perrenoud, J.; Kranz, L.; Gretener, C.; Pianezzi, F.; Nishiwaki, S.; Buecheler, S.; Tiwari, A.N. A comprehensive picture of Cu doping in CdTe solar cells. J. Appl. Phys. 2013, 114, 174505. [Google Scholar] [CrossRef] [Green Version]
  59. Burst, J.M.; Duenow, J.N.; Albin, D.S.; Colegrove, E.; Reese, M.O.; Aguiar, J.A.; Jiang, C.S.; Patel, M.K.; Al-Jassim, M.M.; Kuciauskas, D.; et al. CdTe solar cells with open-circuit voltage breaking the 1 V barrier. Nat. Energy 2016, 1, 16015. [Google Scholar] [CrossRef]
  60. First Solar. First Solar Achieves Yet Another Cell Conversion Efficiency World Record; First Solar Press: Tempe, AZ, USA, 2016. [Google Scholar]

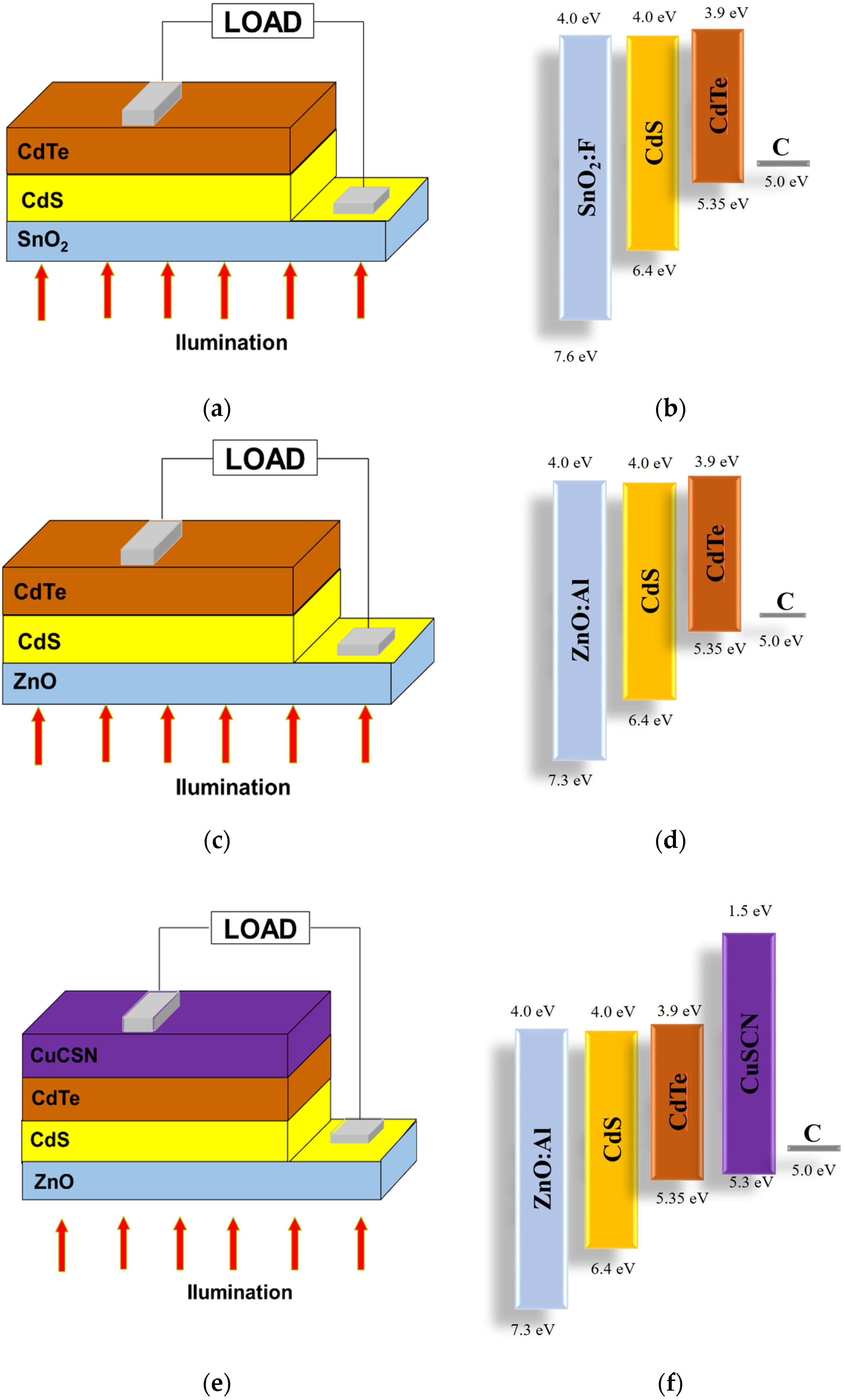

Figure 1. Different configurations and energy levels of CdTe solar cells. (a,b) C/CdTe/Cds/SnO2:F; (c,d) C/CdTe/CdS/ZnO:Al; and (e,f) C/CuSCN/CdTe/CdS/ZnO:Al.
Figure 1. Different configurations and energy levels of CdTe solar cells. (a,b) C/CdTe/Cds/SnO2:F; (c,d) C/CdTe/CdS/ZnO:Al; and (e,f) C/CuSCN/CdTe/CdS/ZnO:Al.
Nanomaterials 13 01335 g001

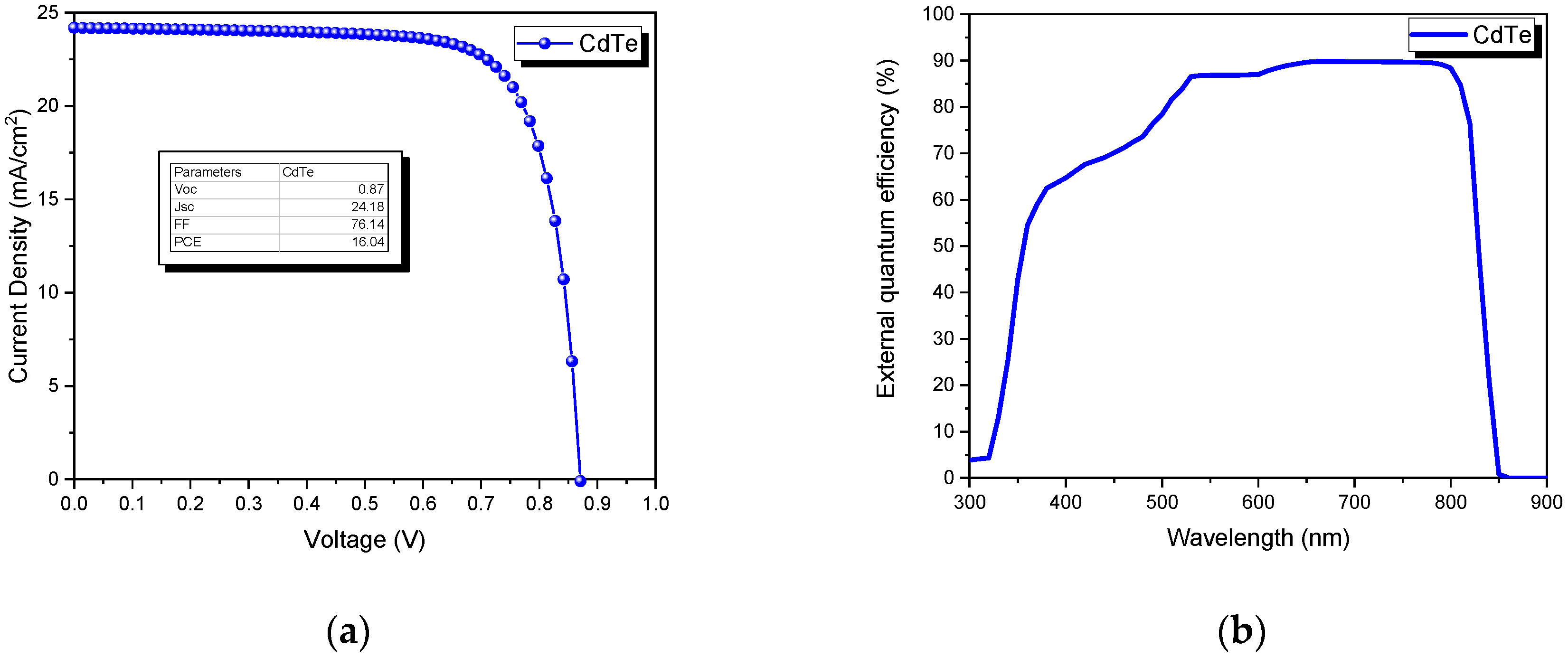

Figure 2. Base solar cell (C/CdTe/CdS/SnO2): (a) J-V curve, (b) the external quantum efficiency.
Figure 2. Base solar cell (C/CdTe/CdS/SnO2): (a) J-V curve, (b) the external quantum efficiency.
Nanomaterials 13 01335 g002

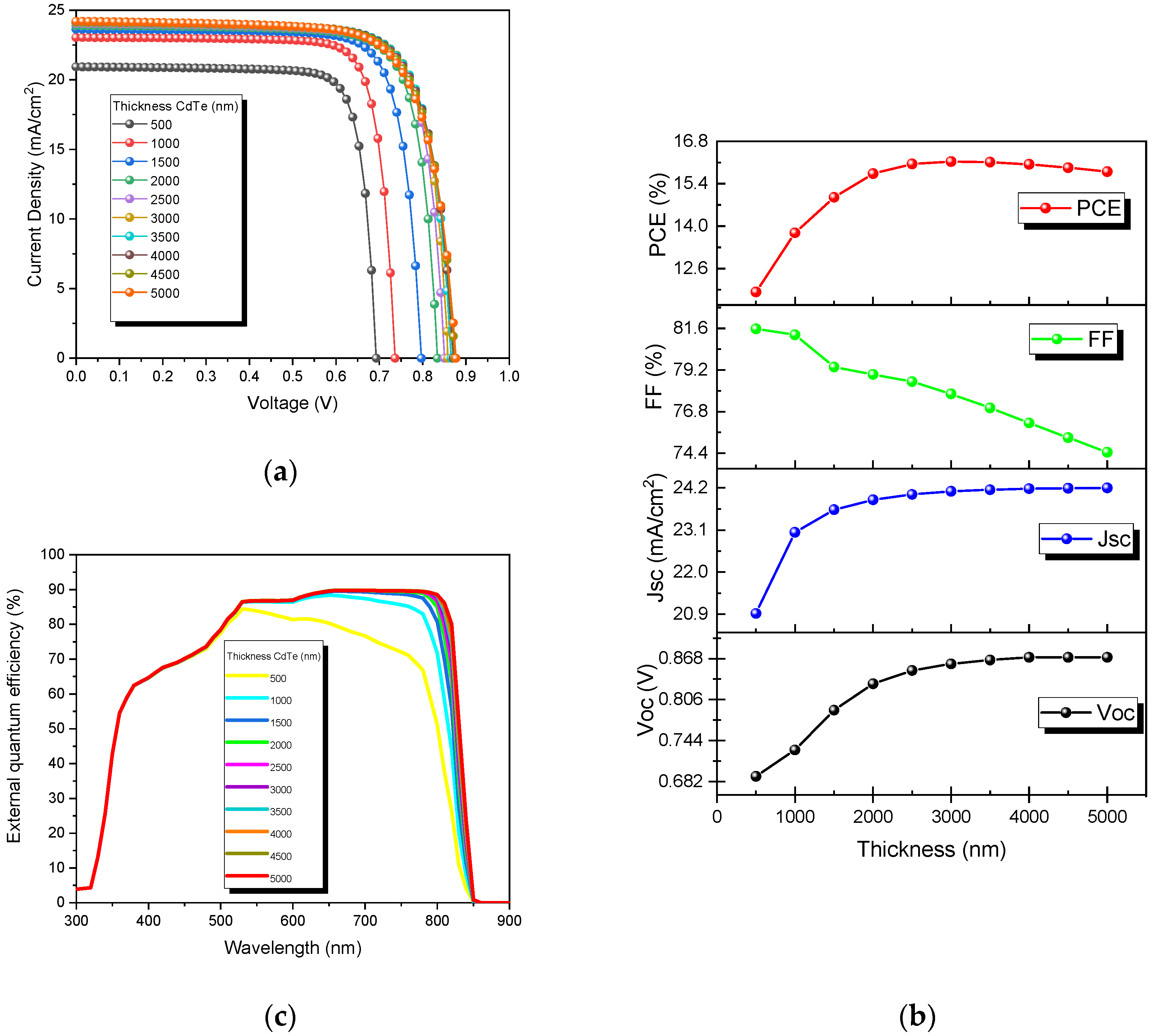

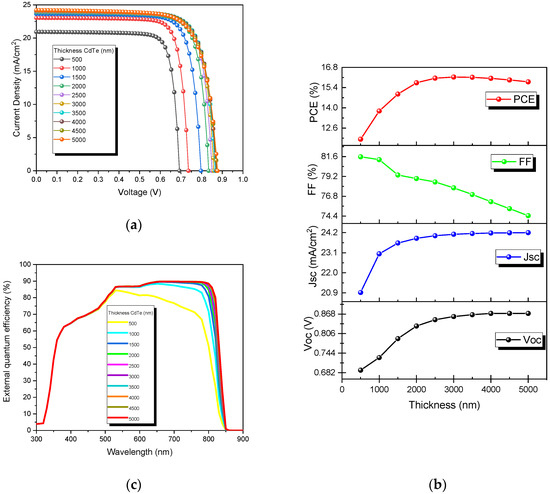

Figure 3. CdTe solar cells at different absorber thicknesses: (a) J-V curves, (b) output parameters, and (c) external quantum efficiencies.
Figure 3. CdTe solar cells at different absorber thicknesses: (a) J-V curves, (b) output parameters, and (c) external quantum efficiencies.
Nanomaterials 13 01335 g003

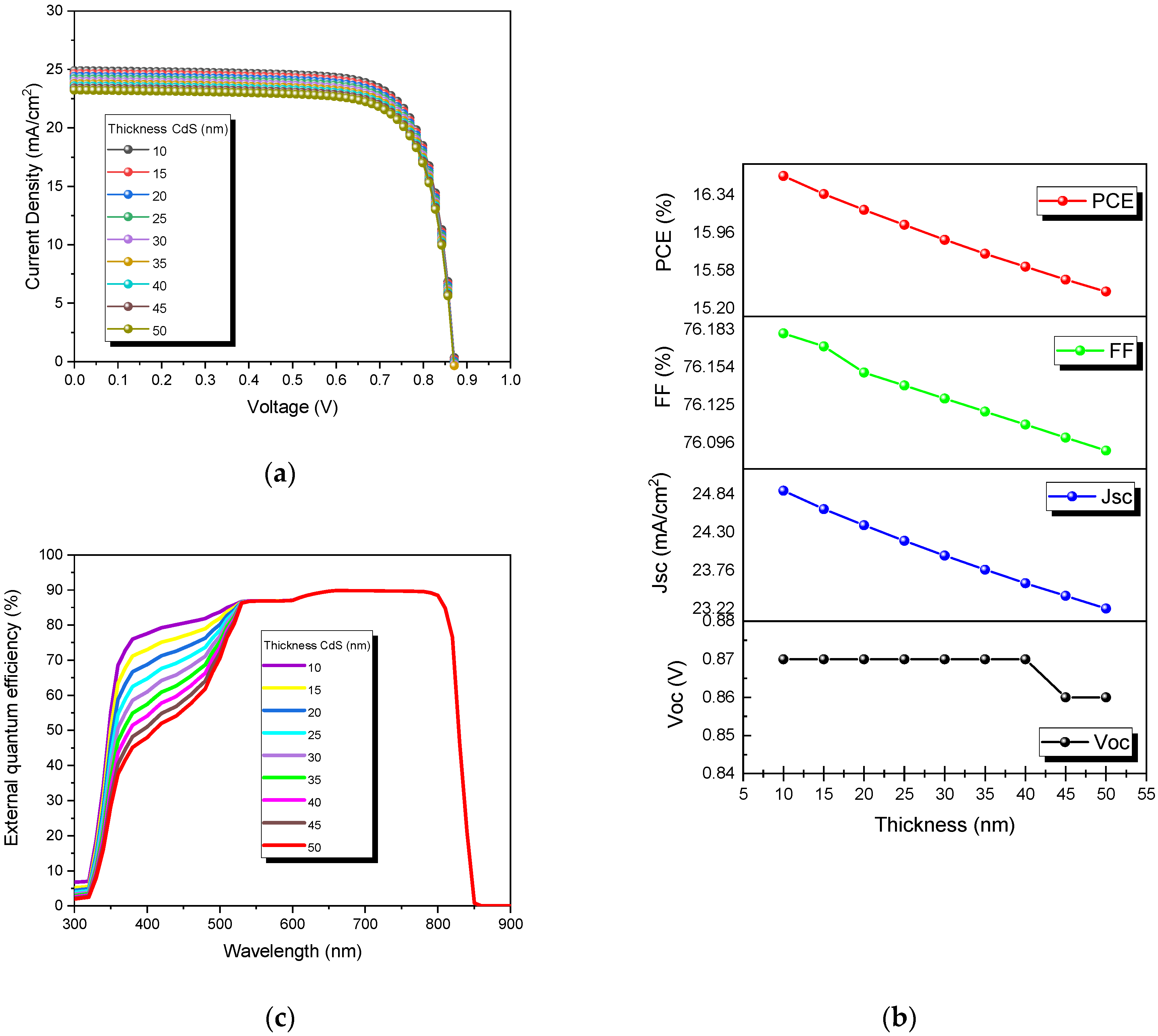

Figure 4. CdTe solar cells at different CdS thicknesses: (a) J-V curves, (b) output parameters, and (c) external quantum efficiencies.
Figure 4. CdTe solar cells at different CdS thicknesses: (a) J-V curves, (b) output parameters, and (c) external quantum efficiencies.
Nanomaterials 13 01335 g004

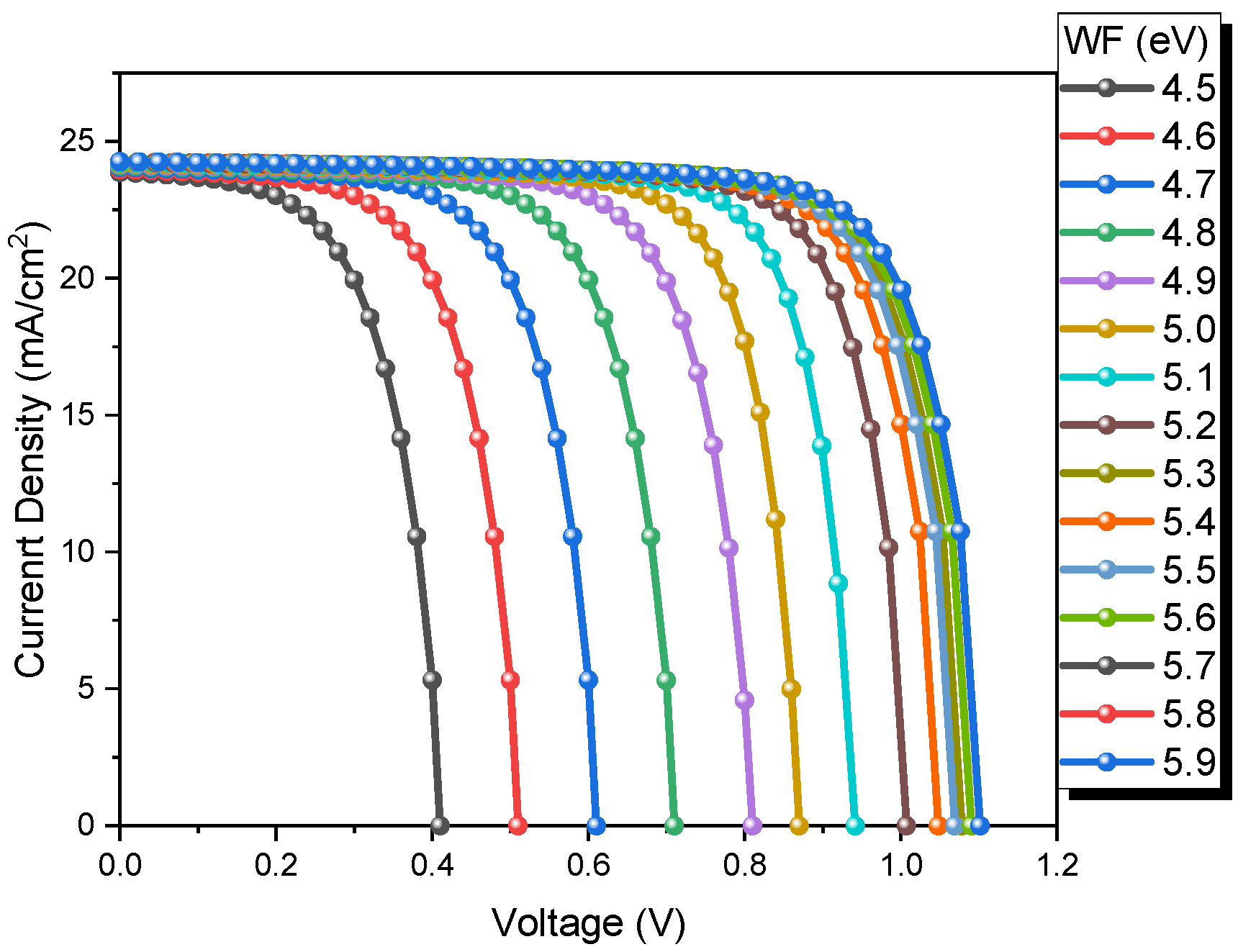

Figure 5. J-V curves of CdTe solar cells at different back work functions.
Figure 5. J-V curves of CdTe solar cells at different back work functions.
Nanomaterials 13 01335 g005

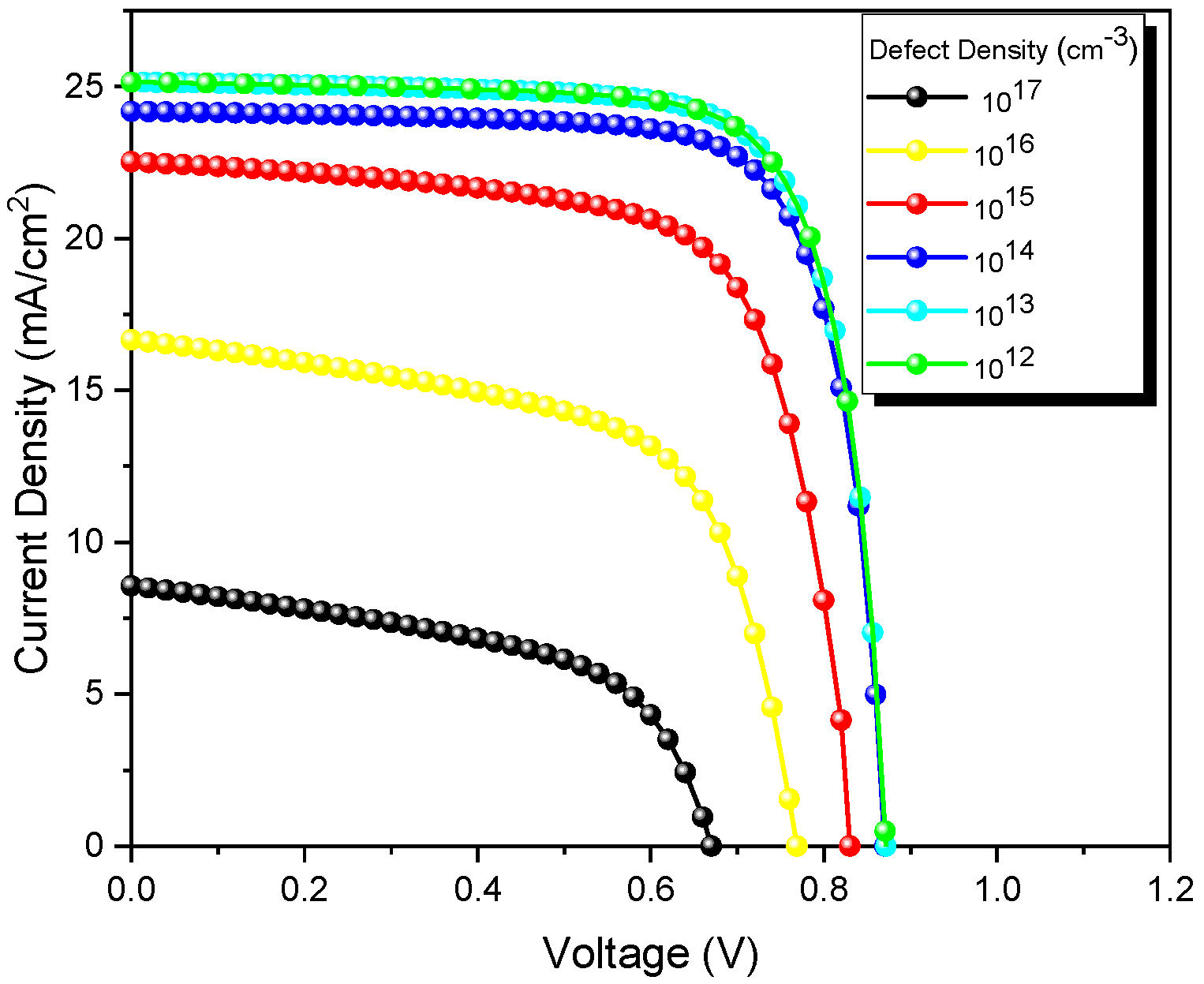

Figure 6. J-V curves of CdTe solar cells at different bulk defect densities of the CdTe layer.
Figure 6. J-V curves of CdTe solar cells at different bulk defect densities of the CdTe layer.
Nanomaterials 13 01335 g006

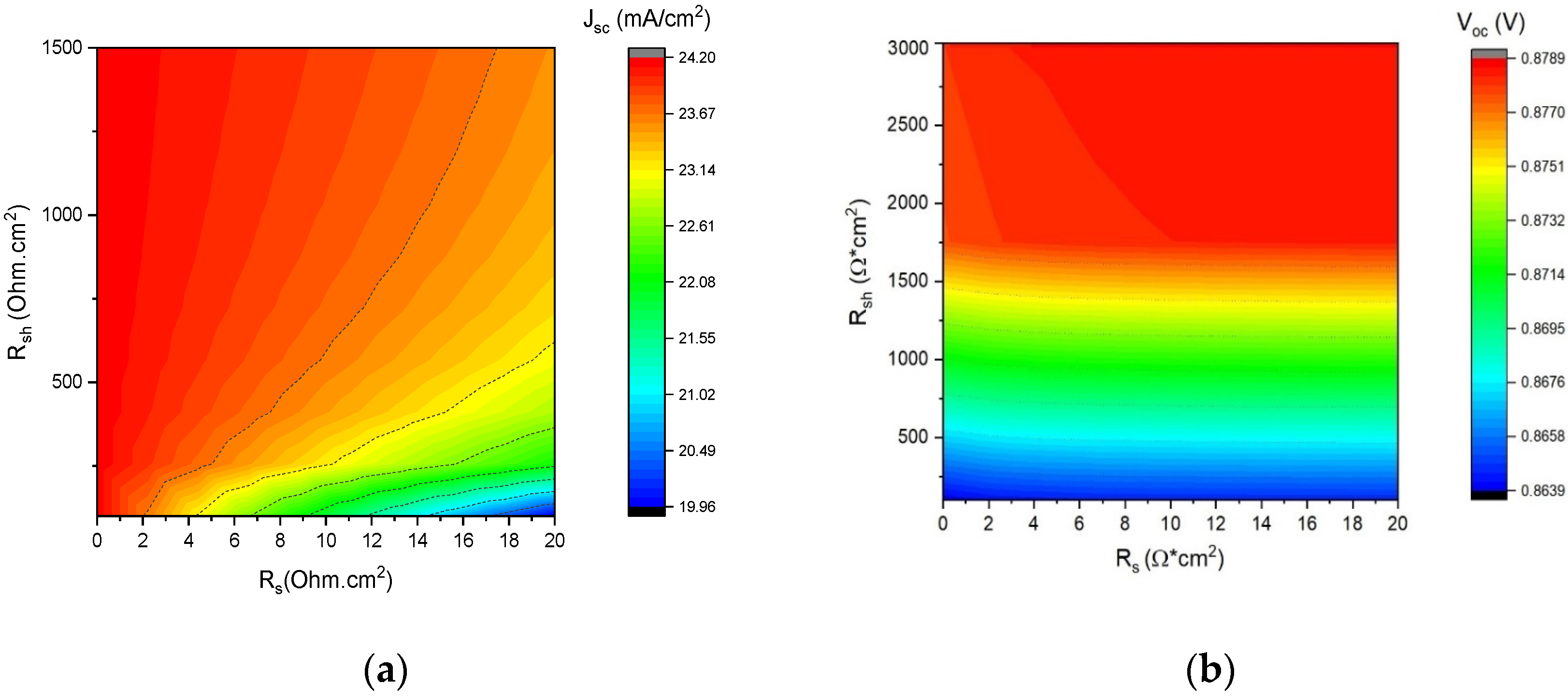

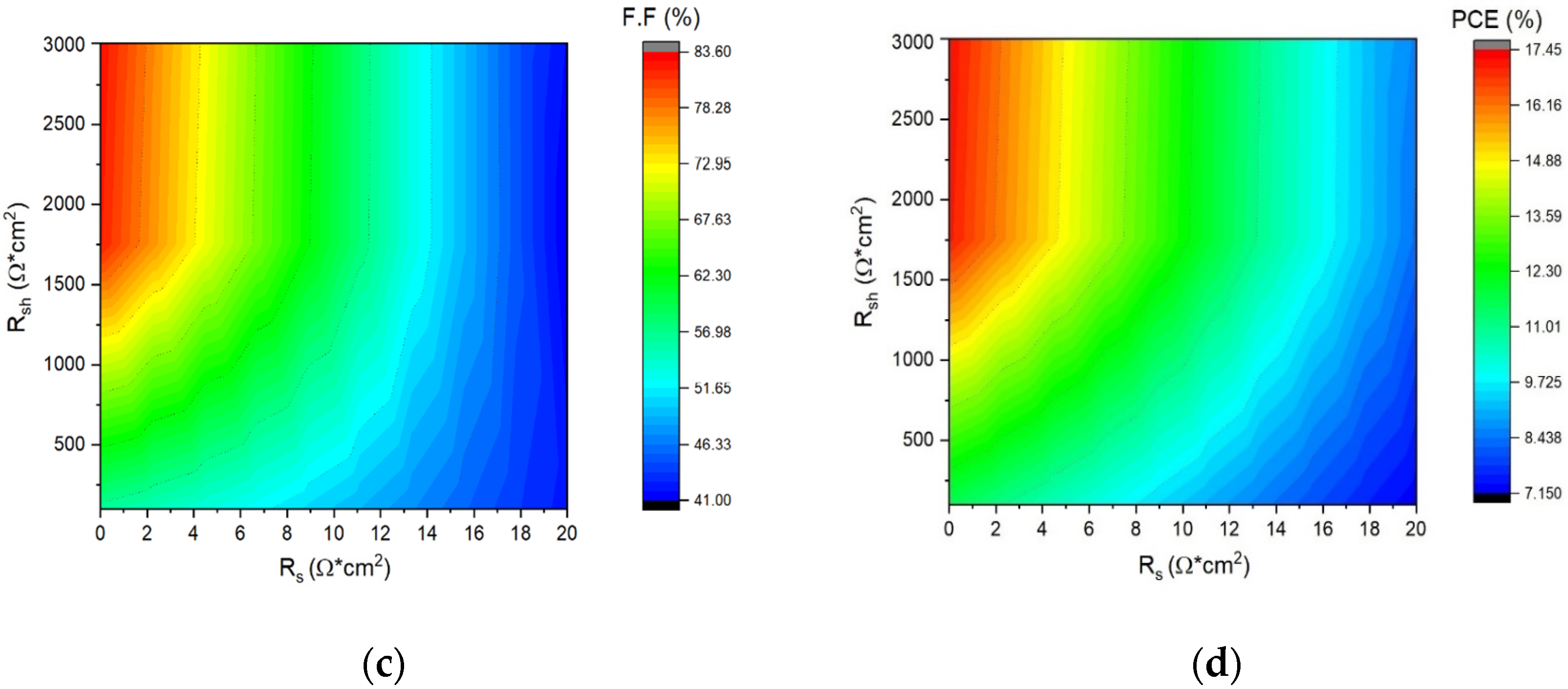

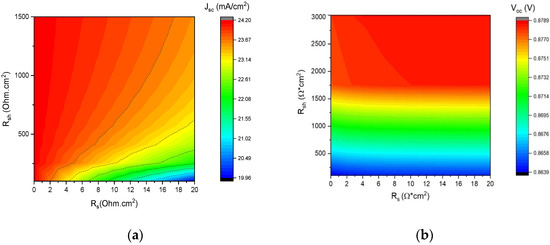

Figure 7. Effect of Rs and Rsh on CdTe solar cell performance: (a) Jsc, (b) Voc, (c) FF, and (d) PCE.
Figure 7. Effect of Rs and Rsh on CdTe solar cell performance: (a) Jsc, (b) Voc, (c) FF, and (d) PCE.
Nanomaterials 13 01335 g007aNanomaterials 13 01335 g007b

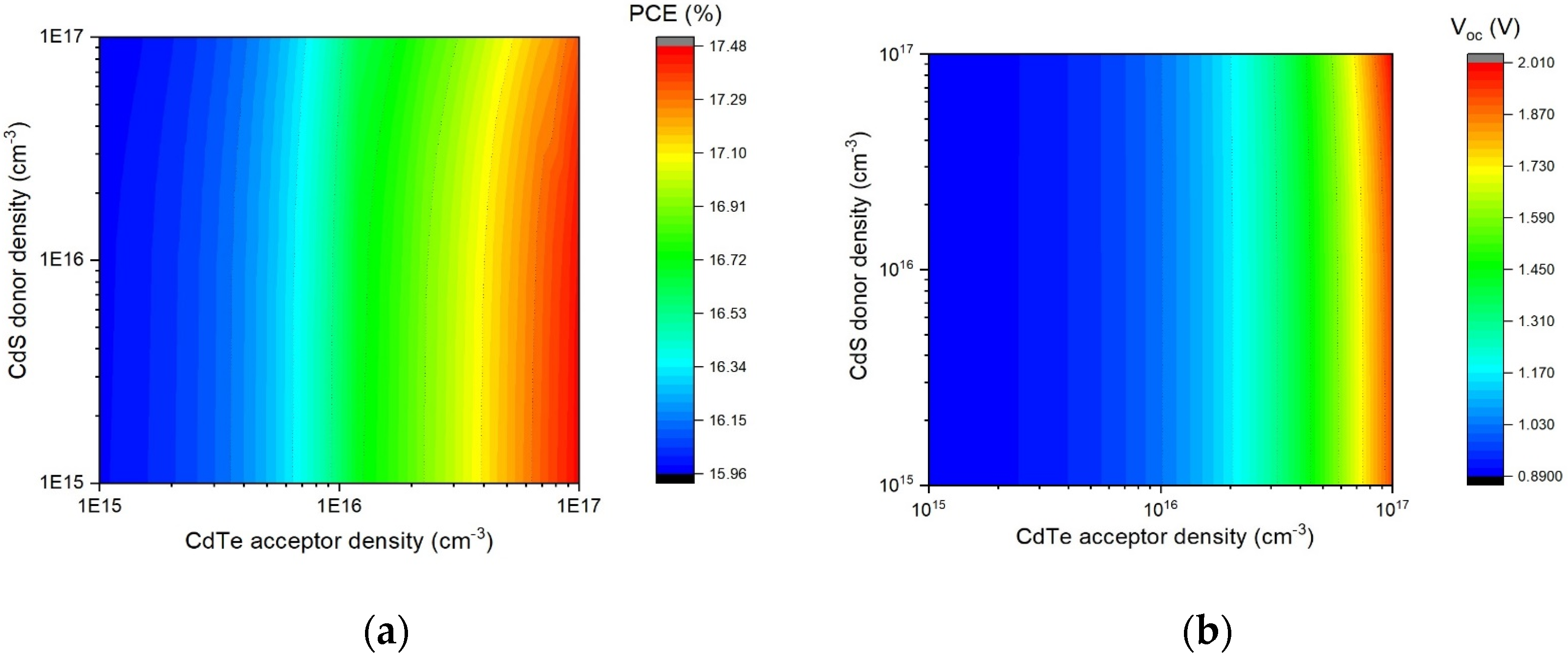

Figure 8. Effect of carrier concentration on CdTe solar cell performance: (a) PCE and (b) Voc.
Figure 8. Effect of carrier concentration on CdTe solar cell performance: (a) PCE and (b) Voc.
Nanomaterials 13 01335 g008

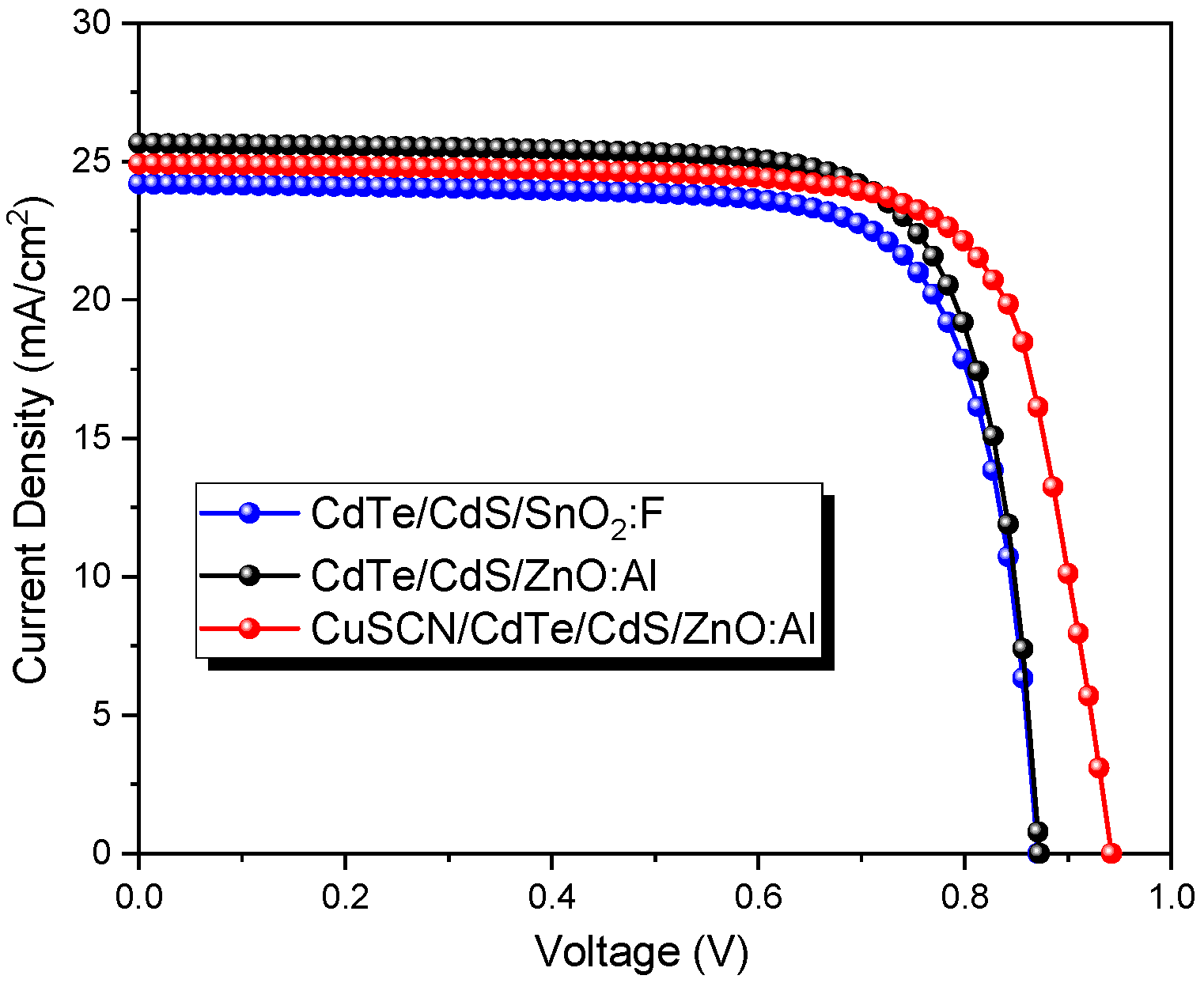

Figure 9. J-V curves of CdTe solar cells with different configurations.
Figure 9. J-V curves of CdTe solar cells with different configurations.
Nanomaterials 13 01335 g009

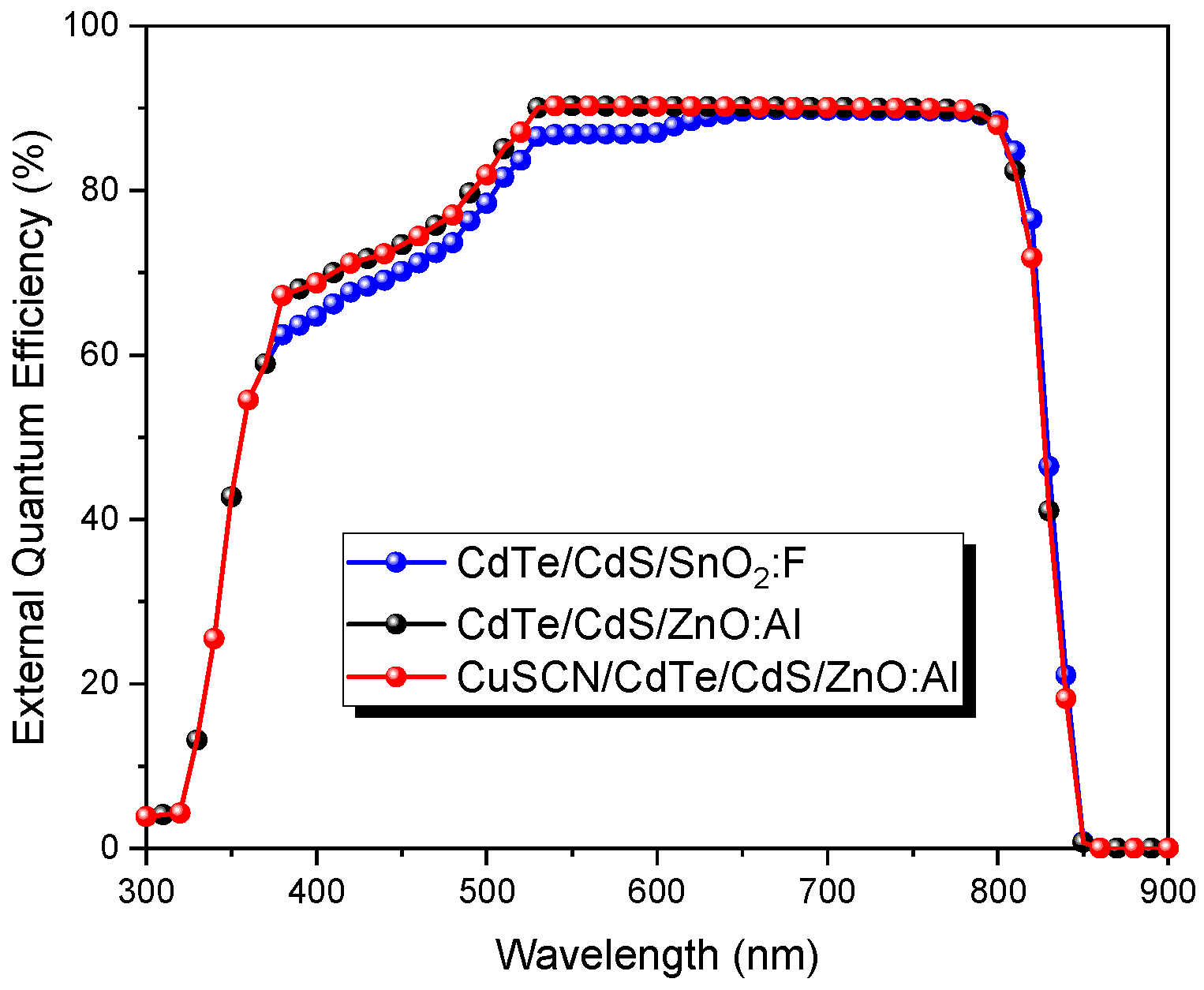

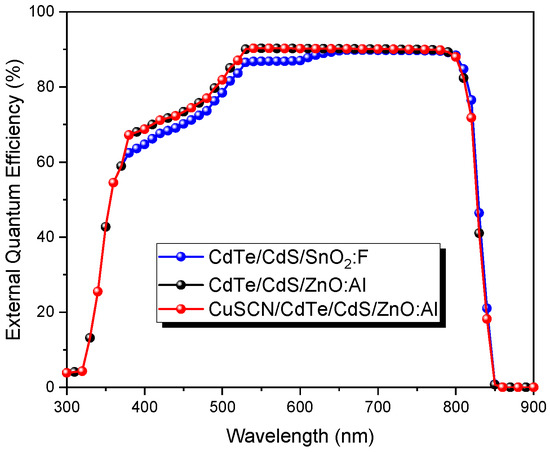

Figure 10. The external quantum efficiency of CdTe solar cells with different configurations.
Figure 10. The external quantum efficiency of CdTe solar cells with different configurations.
Nanomaterials 13 01335 g010

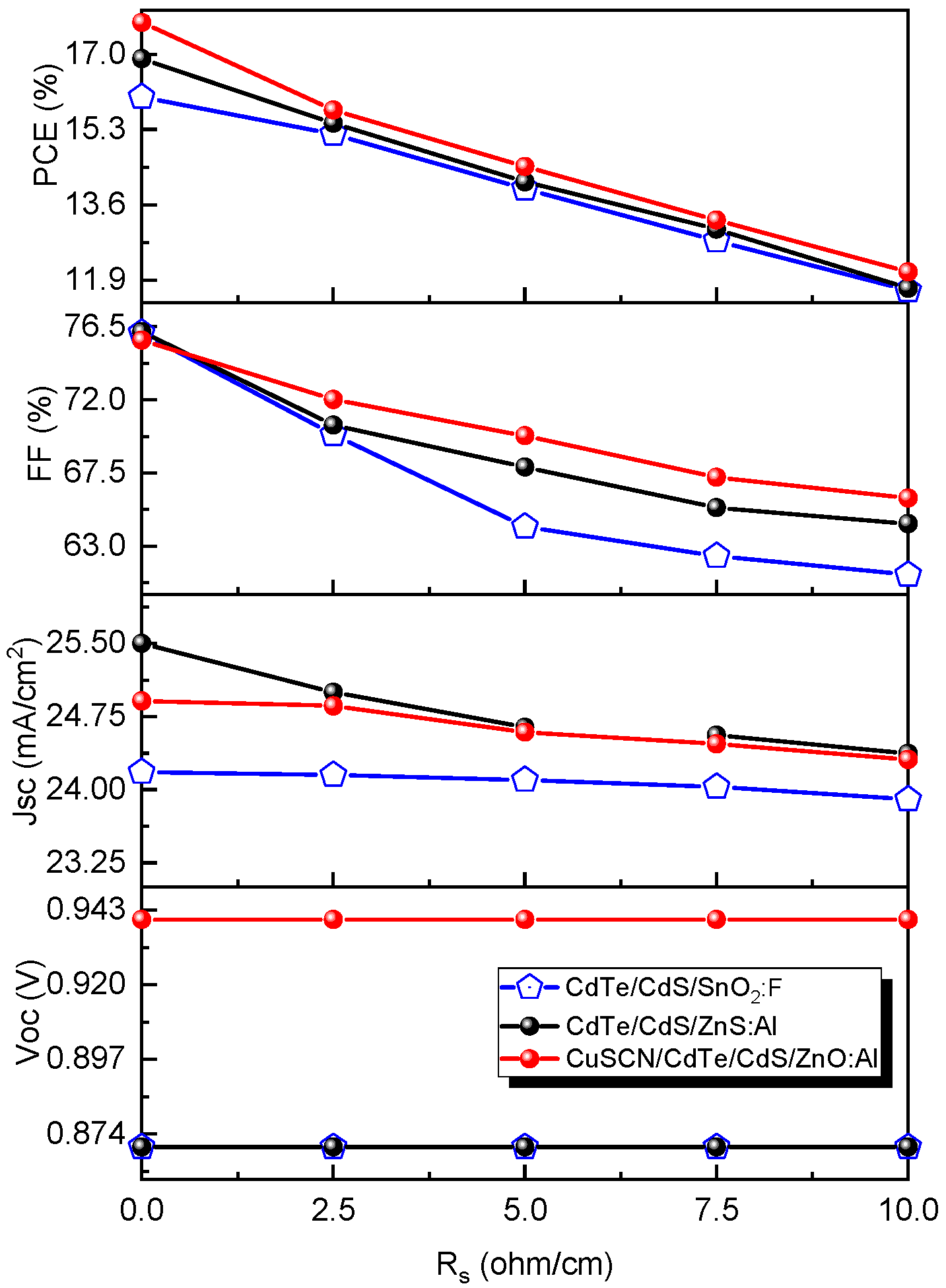

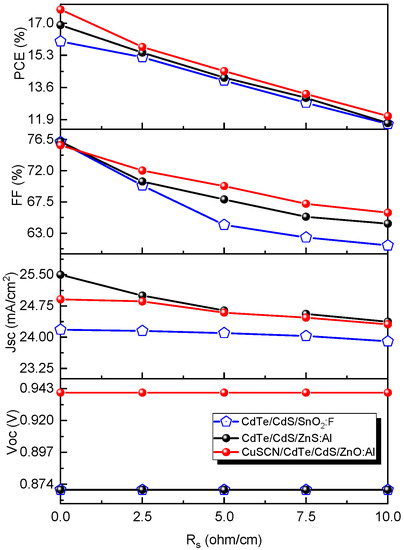

Figure 11. Effect of series resistance (Rs) on the CdTe solar cells.
Figure 11. Effect of series resistance (Rs) on the CdTe solar cells.
Nanomaterials 13 01335 g011

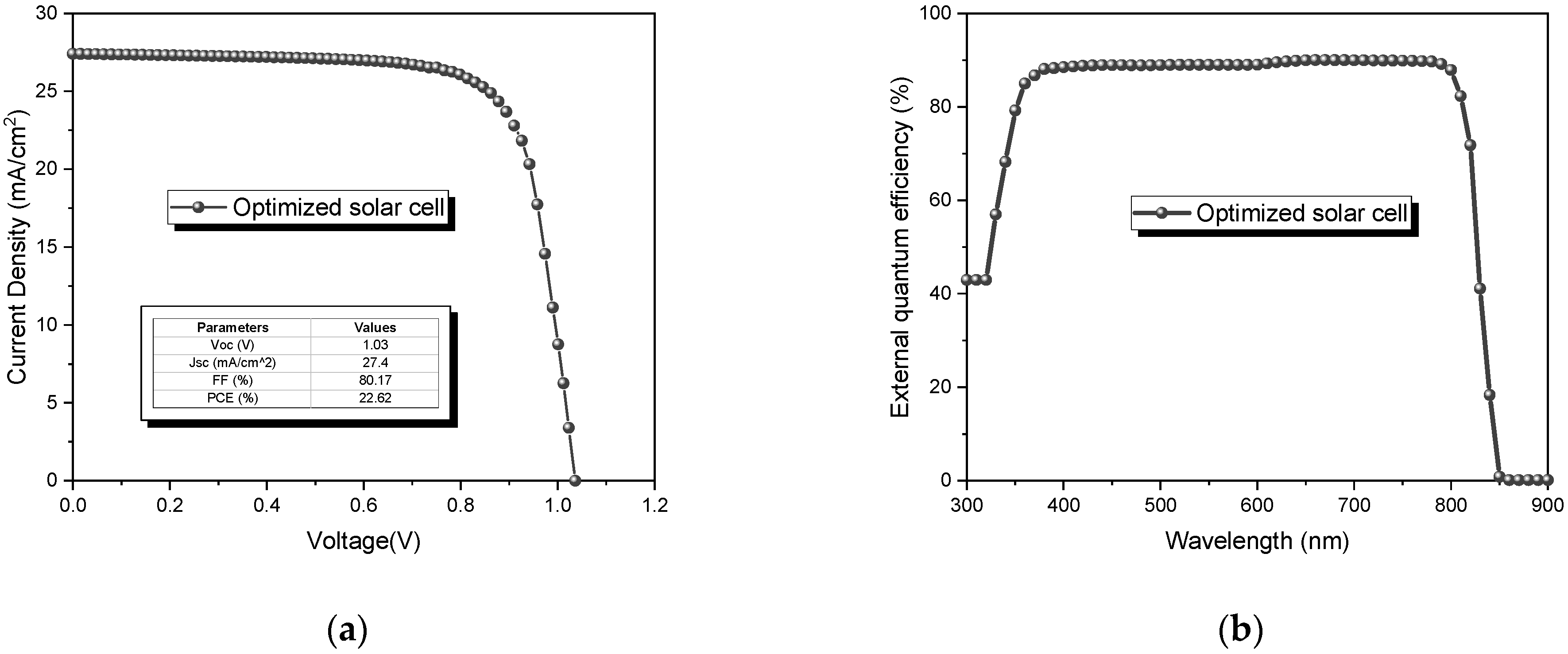

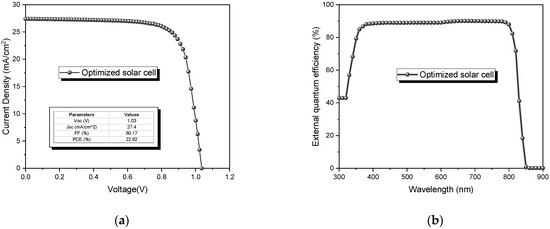

Figure 12. Optimized CdTe solar cell: (a) J-V curve and (b) external quantum efficiency.
Figure 12. Optimized CdTe solar cell: (a) J-V curve and (b) external quantum efficiency.
Nanomaterials 13 01335 g012
Table 1. Input parameters for the simulation of CdTe solar cell.
Table 1. Input parameters for the simulation of CdTe solar cell.
µ m 0.0304.00.0250.50.5
E g ( e V ) 3.41.452.43.33.6
χ ( e V )
r 109.4109.09.0
N C ( c m 3 )1.7 × 10198 × 10172.2 × 10181 × 10192.2 × 1018
N V ( c m 3 )2.5 × 10211.8 × 10191.8 × 10191 × 10191.8 × 1019
µ n ( c m 2 V S ) 1 × 10−43.2 × 1021.0 × 10251.0 × 102
µ p ( c m 2 V S ) 1 × 10−142.552.5
N d   ( c m 3 ) --1.1 × 10185 × 10171.1 × 1017
N a   ( c m 3 ) 1 × 10182 × 1014---
N t   ( c m 3 ) 1 × 10142 × 10141 × 10181 × 10151 × 1015
Defect typeSingle donorSingle donorSingle acceptorSingle acceptorSingle acceptor
Table 2. CdTe solar cell parameters (CdS/CdTe interface).
Table 2. CdTe solar cell parameters (CdS/CdTe interface).
CdS/CdTe InterfaceValues
Defect typeacceptor
Capture cross-section for electrons (cm2)1 × 10−13
Capture cross-section for holes (cm2)1 × 10−13
Energetic distributionSingle
Reference for defect energy level EtAbove Ev of CdTe
Energy concerning reference (eV)0.100
Total density (integrated over all energies) (1 cm2) at CdS/CdTe interface 1.6 × 1012
Table 3. Effect of the CdTe thickness on the output parameters.
Table 3. Effect of the CdTe thickness on the output parameters.
Output Parameters500 nm1000 nm1500 nm2000 nm2500 nm3000 nm3500 nm4000 nm4500 nm5000 nm
Voc (V)0.690.730.790.830.850.850.860.870.870.87
Jsc (mA/cm2)20.9223.0423.6323.8924.0324.1124.1524.1824.1924.20
FF (%)81.5781.2379.3778.9478.5377.8277.0176.1475.2974.45
PCE (%)11.8313.7814.9515.7316.0516.1316.1116.0415.9315.80
Table 4. Effect of the CdS thickness on the output parameters.
Table 4. Effect of the CdS thickness on the output parameters.
Output Parameters50 nm15 nm20 nm25 nm30 nm35 nm40 nm45 nm50 nm
Voc (V)0.870.87 0.87 0.87 0.870.870.870.860.86
Jsc (mA/cm2)24.8924.6324.4024.1823.9723.7723.5823.4023.22
FF (%)76.1876.1776.1576.1476.1376.1276.1176.1076.09
PCE (%)16.5316.3516.1916.0415.8915.7515.6215.4915.37
Table 5. J-V curves of different CdTe solar cell configurations.
Table 5. J-V curves of different CdTe solar cell configurations.
Output ParametersCdTe/CdS/SnO2:FCdTe/CdS/ZnO:AlCuSCN/CdTe/CdS/ZnO:Al
Voc (V)0.870.870.94
Jsc (mA/cm2)24.1825.524.91
FF (%)76.1476.1975.67
PCE (%)16.0416.9017.72
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Montoya De Los Santos, I.; Pérez-Orozco, A.A.; Liña-Martínez, D.A.; Courel, M.; Meza-Avendaño, C.A.; Borrego-Pérez, J.A.; Pérez, L.M.; Laroze, D. Towards a CdTe Solar Cell Efficiency Promotion: The Role of ZnO:Al and CuSCN Nanolayers. Nanomaterials 2023, 13, 1335.

AMA Style

Montoya De Los Santos I, Pérez-Orozco AA, Liña-Martínez DA, Courel M, Meza-Avendaño CA, Borrego-Pérez JA, Pérez LM, Laroze D. Towards a CdTe Solar Cell Efficiency Promotion: The Role of ZnO:Al and CuSCN Nanolayers. Nanomaterials. 2023; 13(8):1335.

Chicago/Turabian Style

Montoya De Los Santos, Isaac, Alan A. Pérez-Orozco, Diego A. Liña-Martínez, Maykel Courel, Carlos A. Meza-Avendaño, Jorge A. Borrego-Pérez, Laura M. Pérez, and David Laroze. 2023. "Towards a CdTe Solar Cell Efficiency Promotion: The Role of ZnO:Al and CuSCN Nanolayers" Nanomaterials 13, no. 8: 1335.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
