Review

Wearable Two-Dimensional Nanomaterial-Based Flexible Sensors for Blood Pressure Monitoring: A Review

by
Siti Nor Ashikin Ismail
1,
Nazrul Anuar Nayan
1,2,*,
Muhammad Aniq Shazni Mohammad Haniff
3,
Rosmina Jaafar
1 and
Zazilah May
4
1
Department of Electrical, Electronic and Systems Engineering, Universiti Kebangsaan Malaysia, Bangi 43600 UKM, Selangor, Malaysia
2
Institute Islam Hadhari, Universiti Kebangsaan Malaysia, Bangi 43600 UKM, Selangor, Malaysia
3
Institute of Microengineering and Nanoelectronics, Universiti Kebangsaan Malaysia, Bangi 43600 UKM, Selangor, Malaysia
4
Electrical and Electronic Engineering Department, Universiti Teknologi Petronas, Seri Iskandar 32610, Perak, Malaysia
*
Author to whom correspondence should be addressed.
Nanomaterials 2023, 13(5), 852; https://doi.org/10.3390/nano13050852
Submission received: 2 February 2023 / Revised: 20 February 2023 / Accepted: 21 February 2023 / Published: 24 February 2023
(This article belongs to the Section 2D and Carbon Nanomaterials)
Browse Figures
Review Reports Versions Notes

Abstract

:
Flexible sensors have been extensively employed in wearable technologies for physiological monitoring given the technological advancement in recent years. Conventional sensors made of silicon or glass substrates may be limited by their rigid structures, bulkiness, and incapability for continuous monitoring of vital signs, such as blood pressure (BP). Two-dimensional (2D) nanomaterials have received considerable attention in the fabrication of flexible sensors due to their large surface-area-to-volume ratio, high electrical conductivity, cost effectiveness, flexibility, and light weight. This review discusses the transduction mechanisms, namely, piezoelectric, capacitive, piezoresistive, and triboelectric, of flexible sensors. Several 2D nanomaterials used as sensing elements for flexible BP sensors are reviewed in terms of their mechanisms, materials, and sensing performance. Previous works on wearable BP sensors are presented, including epidermal patches, electronic tattoos, and commercialized BP patches. Finally, the challenges and future outlook of this emerging technology are addressed for non-invasive and continuous BP monitoring.

1. Introduction

Physiological monitoring offers deep understanding to evaluate the health state of an individual [1]. In recent years, several attempts have been made to modify existing sensors for developing wearable point-of-care systems that are suitable for personalized health monitoring [2,3]. The widespread use of wearable sensors in healthcare have heightened the need for non-invasive, continuous, and real-time monitoring of vital signs, such as blood pressure (BP). Wearable technologies play a significant role in improving human life quality through accurate disease prediction, timely treatment, reduced medical burden, and improved longevity [4,5,6,7,8]. A rapid development of wearable devices has occurred since a decade ago; these devices are not limited to smartwatches [9] and fitness bands [10], and other sensing devices, such as skin patches [11,12,13] and electronic tattoos (e-tattoo) [14,15,16], are gaining increased research attention because they are more appealing to users. Previous works demonstrated how flexible sensors enable a wide pressure detection range [17,18,19].
The advent of flexible materials has led to the plethora of studies on two-dimensional (2D) nanomaterials as promising candidates for the development of sensing elements in flexible sensors. The extensive exploitation of these materials, particularly since the successful exploration of graphene (Gr) by Novoselov et al. [20] in 2004, has inspired the discovery of other similar sheet-like structures, such as transition metal dichalcogenides (TMDs) and transition metal carbides and nitrides (MXenes).
In contrast to other candidates, such as silver (Ag) and copper (Cu), 2D nanomaterials have a number of attractive features, such as larger surface-area-to-volume ratio, higher electrical conductivity, cost effectiveness, flexibility, and lighter weight [21,22,23,24,25,26,27], which confer sensors with excellent wearable sensing performance. Further, conventional sensors are mainly fabricated based on silicone (Si) or glass substrates, making them rigid, bulky, and incapable for physiological monitoring [28,29,30], which in turn degrade the sensor performance. The two tools currently used for BP measurement are the arterial catheter and the sphygmomanometer. The former is the gold standard in BP monitoring and mainly employed to measure continuous and accurate BP readings of critical patients [31]. A major problem of this modality is that patients often feel pain from invasive catheter insertion [32] and trained personnel are required to perform the measurement [33]. The latter is non-invasive, more practical, and has expanded usability outside clinical settings. Although various cuff-based BP monitors are available on the market, their use has been associated with certain drawbacks, such as intermittent measurements, calibration issues, motion sensitivity, and whitecoat effect [34,35,36,37], leading to inaccurate detection. Current studies show an increasing trend of developing non-invasive and cuffless BP sensors by using photoplethysmogram and electrocardiogram (ECG); however, these techniques are prone to produce motion artifacts, BP variations across devices, and shallow penetration depth into the deep artery [38,39,40].
The continuous development of 2D wearable nanomaterial-based technologies is needed to overcome the aforementioned challenges and offer a non-invasive and continuous BP monitoring system with great skin conformability, biocompatibility, improved efficiency, and accurate results. In comparison with other review studies [41,42], the present work mainly focuses on the recent advances of wearable flexible sensors based on 2D nanomaterials for BP monitoring in a non-invasive and continuous manner.

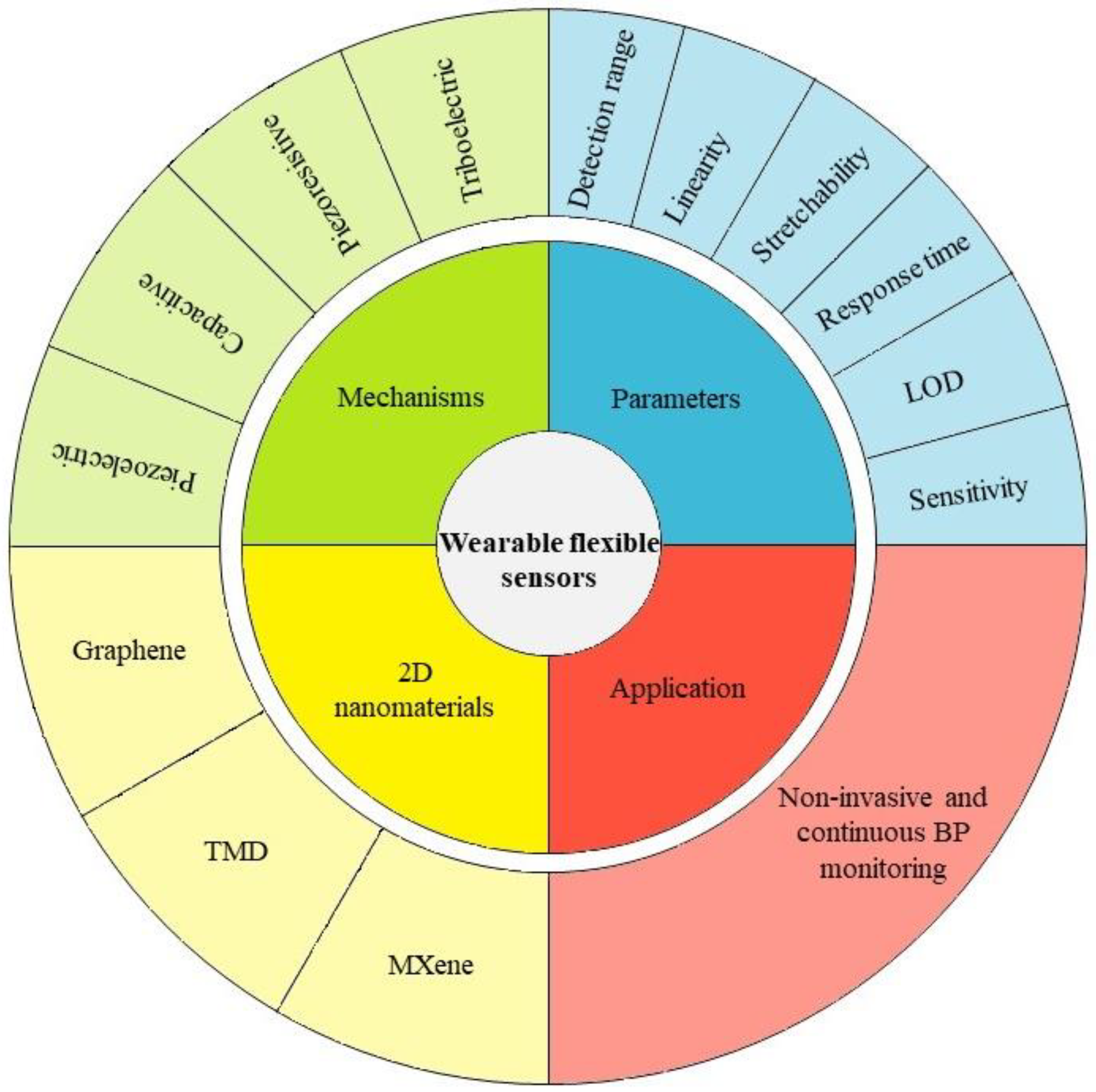

Figure 1 illustrates the overview of the paper, which is divided into seven sections. Section 2 describes the mechanisms of flexible sensors, and Section 3 introduces several parameters of sensing performance. Section 4 discusses the 2D nanomaterials frequently used to fabricate flexible sensors and presents a comparison between 2D nanomaterials explored as sensing materials for flexible sensors and their respective performance. Section 5 reports previously published works of wearable BP sensors. Section 6 addresses the challenges faced by current techniques and future outlooks on wearable sensing implementation. Section 7 summarizes the overview of the paper and ends with a conclusion.

2. Transduction Mechanisms

Physiological monitoring can be performed using flexible sensors to monitor vital signs in a non-invasive and continuous manner. BP monitoring is conducted by placing these sensors on the skin, and electrical signals are generated when subjected to a mechanical stimulus. In this section, several transduction mechanisms, including piezoelectric, capacitive, piezoresistive, and triboelectric, are described.

2.1. Piezoelectric Mechanism

The piezoelectric effect was discovered by the Curie brothers in 1880 [43]. The study of piezoelectric has grown significantly since the employment of quartz crystals in sonar [44]. It was then replaced by inorganic piezoelectric materials, such as barium titanate and lead zirconate titanate (PZT), which exhibit distinguished piezoelectric characteristics [45]. Recent studies have shown that organic materials made from polymers, such as polyvinylidene fluoride [46], are preferred in biomedical devices due to their flexibility, light weight, and capability to generate energy [47]. The piezoelectric mechanism has been widely used in different technologies, such as sensors and actuators [48,49,50,51,52,53,54].
Piezoelectric sensor is based on electrical signals generated when deformation occurs on non-centrosymmetric materials. When these materials experience stress, the crystal structure becomes dislocated, causing the accumulation of positive and negative charges across the faces. As a result, net polarization is formed throughout the crystal structure. Significant potential difference is observed when current is applied to the sensing system.
The advantage of using a piezoelectric sensor is that it can measure dynamic signals. Moreover, it performs best in terms of sensitivity, fast response time, and low power consumption. The piezoelectric behavior of 2D nanomaterials has gained considerable interest since it was reported in 2014 [55]. However, the main disadvantages of this sensor are its inability to monitor static signals, low sensitivity for detection of low pressure, and use of extremely harmful lead-based materials.

2.2. Capacitive Mechanism

The capacitive effect of an Si-based sensor was first studied by Michael Faraday in 1831 [56]. The capacitive transduction mechanism differs from piezoelectric and piezoresistive mechanisms in that no pressure is applied to introduce deformation, but it instead involves the contact between two plates. The parallel-plate capacitor is a typical arrangement of a capacitive sensor, wherein two plates are separated from each other by a dielectric layer. A Si-based organic polymer known as polydimethylsilixone (PDMS) has been widely investigated as a dielectric layer in capacitive sensors due to its great flexibility, biocompatibility, and low toxicity [57,58]. A reduction in separation distance between plates leads to a change in capacitance [59], as shown in Equation (1):
C = ε A / d ,
where C is the capacitance, ε is the dielectric constant, A is the area of the plate, and d is the separation distance between plates.
Capacitive sensors have a number of advantages over piezoelectric-based sensors in terms of lower power consumption, wider detection range, and higher sensitivity for the detection of low pressure. However, this sensor has slow response time, an expensive fabrication procedure, and power source dependency. The sensitivity of capacitive sensors can be increased by several recommended methods, such as lowering the dielectric layer resistance, finetuning the above parameters, and miniaturizing on-chip integrated circuits [60].

2.3. Piezoresistive Mechanism

The piezoresistive effect is not a recent discovery, given that its first experimental demonstration was carried out in 1954 by Smith [61]. The resistivity of a material was identified as the main factor contributing to the change in resistance [62]. The contact area of dielectric materials is expanded by imposing mechanical stimulation, thus allowing the formation of more conductive channels [59]. This phenomenon changes the material resistivity and causes variations in electrical signals [63]. Gr and carbon nanotubes are frequently exploited in the development of piezoresistive flexible sensors. When the applied stress is removed, the resistance returns to its original state. Equation (2) represents the relative change in the resistance of piezoresistive sensors:
Δ R / R 0 = 1 + 2 v ε + Δ ρ / ρ ,
where Δ R / R 0 is the change of resistance, v is the Poisson’s ratio, ε is the dielectric constant, and Δ ρ / ρ is the change of resistivity.
The piezoresistive effect has been widely investigated and used in a broad range of fields, such as microelectromechanical systems and nanoelectromechanical systems. Various piezoresistive flexible sensors have been proposed to monitor the physiology of an individual owing to its ease of fabrication, simplicity in structure, cost effectiveness, capability for detection of static and dynamic signals, low power consumption, biocompatibility, and wide pressure-sensing range. However, this type of sensor suffers from low sensitivity for the detection of low pressure and power source dependency.

2.4. Triboelectric Mechanism

The discovery of the triboelectric effect began to emerge about 2600 years ago [64]. This effect involves the generation of electrical signals as a result of the surface contact between two triboelectric materials. When these materials are in contact with each other, charges will overlap and align according to polarity across the surface. When the applied stress is slowly removed, the contact electrification of the materials reduces, and a potential difference can be measured as a result of electrostatic induction. This phenomenon allows the charges to flow until a net equilibrium is achieved, thereby generating electrical signals [65]. The development of triboelectric nanogenerators in 2012 is one of the first studies that explored the triboelectric effect in sensors [66].
Meng and colleagues [67] employed an interlaced weaving approach to produce a triboelectric-based wearable sensor. The sensor was fabricated using the stacking layers of polyethylene terephthalate, indium–tin oxide, polytetrafluoroethylene, and PDMS. The developed sensor exhibited sensitivity of 45.7 mV Pa−1, response time of <5 ms, broad sensing range of ≈710 Pa, and LOD of 2.5 Pa. Another significant finding of this work is the low difference of 0.87–3.65% between BP readings obtained using the as-prepared sensor and the cuff BP monitor, depicting its potential as a self-powered wearable sensor for continuous BP monitoring.
The triboelectric sensor exhibits excellent properties for wearable applications, particularly physiological monitoring, due to its ability to self-power and detect dynamic signals, its light weight, and low fabrication cost. However, when this sensor is employed to monitor the vital signs of individuals, several issues, such as biocompatibility, biodegradability, and short service lifetime, occur.
Therefore, identifying the type of vital signs being monitored is crucial prior to the fabrication of flexible sensors. For instance, sensors developed in the form of patches are more suitable for continuous BP monitoring because they exhibit greater flexibility on the skin and are comfortable for long wear. Table 1 summarizes the advantages and disadvantages of different sensing mechanisms. Among them, the piezoresistive sensor has attracted much research attention in the field of health monitoring systems through wearable flexible sensors due to advantages including dynamic sensing, low cost and power consumption, and biocompatibility.

3. Sensing Performance Parameters

Sensing performance is another significant aspect of developing wearable flexible sensors. In this section, several key performance parameters of sensors are discussed. Sensitivity, or gauge factor (GF), defines the minimum input that is needed to create changes in electrical signals as a response to mechanical stimuli [68]. Limit of detection (LOD) describes the lowest pressure that can be detected by the sensor to generate electrical signals at the ground pressure of 0 Pa [69]. Response time is the time taken by a sensor to produce detectable changes in electrical signals in response to stress [55].
The stretchability of a sensor refers to its ability to retain internal conductive network connection and resist permanent deformation under external stress [70]. A sensor should maintain a trade-off between high sensitivity and good stretchability to ensure that the original device structure is maintained without neglecting subtle pressure detection under applied stress [71]. Linearity refers to the direct proportional relationship between electrical signals and mechanical stimuli within the set range limits. This parameter is represented by the coefficient of determination (R2), whereby the parameters are considered to achieve good linearity when the R2 value reaches 1 [63]. Detection range indicates the minimum and maximum pressure values that can be detected by the sensor.
These parameters should be considered during the device engineering phase to develop a flexible sensor for monitoring BP continuously and with great accuracy. High sensitivity, low LOD, fast response time, excellent stretchability, good linearity, and broad detection range are some of the desirable properties to realize wearable BP monitoring systems for future personalized medicine.

4. Two-Dimensional Nanomaterials for Flexible Sensors

Material selection plays an important role in developing a flexible sensor that can withstand mechanical stress and maintain its sensitivity without being permanently deformed. Functional materials that are suitable and safe for human consumption should be prioritized in the development of wearable flexible sensors due to the hemodynamic properties of the human arterial system. Aside from good mechanical flexibility, the developed flexible sensors should maintain electrical conductivity when subjected to deformation. Ag has the highest electrical conductivity among conductive materials with 6.3 × 10 7   S   m − 1 . Despite being widely used in a wide range of industrial applications, the high fabrication costs and tendency to electrical breakdown have been the major bottlenecks of Ag in the area of wearable flexible sensors. Meanwhile, Cu is viewed as a potential alternative to Ag due to its high electrical conductivity ( 5.96 × 10 7   S   m − 1 ) which is only 6% lower than Ag and cost effective. However, Cu is easily oxidized in ambient temperature, resulting in lower electrical conductivity and limiting its application in flexible sensors [72,73,74]. Consequently, there has been a surge of research into new materials for high-performance flexible sensors.
The greater competitiveness of 2D nanomaterials than their Ag and Cu counterparts has attracted tremendous interest to explore the versatility of these materials. Two-dimensional nanomaterials demonstrate outstanding properties in detecting subtle stimuli and enabling nanomaterial-based wearable electronics with high surface-area-to-volume ratio, electrical conductivity, mechanical flexibility, and light weight [75]. Moreover, 2D nanomaterials are excessively exploited for diverse studies, such as in biomedical engineering, environment, construction, and electronics [76,77,78,79]. This section summarizes the frequently used 2D nanomaterials for the fabrication of flexible sensors.

4.1. Graphene (Gr)

Gr is a class of 2D nanomaterials known as an allotrope of carbon and arranged in a hexagonal lattice structure [80,81,82]. Gr is a zero-band gap material with exceptional characteristics such as being ultrathin, light weight, and stronger than steel, and having high electron mobility [83,84,85]. Pristine Gr has the least crystalline defect, high purity, and thermal conductivity. Gr and its derivatives are in huge demand in multiple fields [86], such as in coatings [87], biosensors [88], batteries [89], and membranes [90]. Several attempts were conducted to modify the morphology of pristine Gr to tailor its practical applications through bandgap engineering [91]. For instance, numerous Gr-based flexible sensors have been developed recently.
Due et al. [92] successfully fabricated a wearable piezoresistive sensor by facile preparation methods. Gr was grown on a non-woven fabric (GNWF) substrate to produce a wearable sensor that is compatible with cloth. The sensor had excellent sensitivity of around 0.057 kPa−1 and GF of −7.1 at the applied strain of 1% for 10,000 cycles. Ai et al. [93] demonstrated a piezoresistive sensor based on reduced graphene oxide (rGO) sandwiched in between PDMS films. This sensor was tested on a healthy subject and successfully detected pulse waveforms, including the diastolic tail which the tonometry method failed to sense. The results showed that this flexible sensor can be further extended into health wearables to monitor BP continuously with 50.9 kPa−1 sensitivity, 3 Pa LOD, ~1 µW power consumption, 50 ms response time, and high durability. Based on Figure 2a, Luo et al. [94] presented a piezocapacitive sensor that was micro-fabricated with graphene nanowalls (GNW), PDMS, and zinc oxide (ZnO) to monitor pulse for wearable applications. Figure 2b,c depict that the proposed technique exhibited improved sensing performance with 22.3 kPa−1 sensitivity, 25 ms response time, and 22 kPa sensing range. Wu et al. [95] developed a Gr-based piezoresistive sensor by using a laser scribing method for monitoring BP, as shown in Figure 2d. The sensor showed an average sensitivity of 12.3 kPa−1 and enabled different BP measurement locations (Figure 2e), which is advantageous for non-invasive monitoring.
Gr has the disadvantages of high fabrication cost and lack of well-established synthesis methodologies, contributing to the challenging preparation of a monolayer with excellent quality, controllable thickness, and mass-produced Gr [96]. Despite the continuous switching behavior of Gr, making it difficult for energy storage devices, this problem can be addressed by opening the bandgap with regard to the favorable on–off switching properties [97].

4.2. Transition Metal Dichalcogenides (TMD)

The discovery of other 2D nanomaterials has become more popular since the successful findings in 2004. TMDs have gained increased attention for 2D nanomaterials because their crystal structures are similar to those of graphite. The acronym of TMDs is derived from MX2, where M describes the transition metal from groups 4 to 11, such as molybdenum (Mo) and stannum (Sn). Meanwhile, X represents the elements of group 16, such as sulfur (S) and selenium (Se), which are known as chalcogens [85]. The heterostructure engineering of TMDs is possible due to their weak van der Waals interlayer interaction and easily tunable bandgap, which are not found in Gr [98,99]. TMDs exhibit good electronic and optical properties and are suitable for biosensors [100], light-emitting diodes [101], and memory devices [102]. Besides the widely used Gr, progress has been achieved in developing flexible sensors based on TMDs for designing biomedical devices.
For instance, Qiu et al. [103] proposed a piezoelectric MoS2 sensor by forming conductive networks between MoS2 nanosheets and Ag nanofibers in an elastic conductive film. Figure 3a,b show that the developed sensor possessed significant potential in health wearables due to its ability to detect systolic and diastolic peaks, a sensitivity of 3, 3000, 0–13% strain range, and relatively fast response of ∼850 ms for stretching and relaxation time. Furthermore, Tannarana et al. [104] reported a wearable multimodal sensor developed from SnSe2 nanosheets grown on paper substrate through liquid-phase exfoliation. The sensor exhibited excellent sensing performance with 868% responsivity, 1.79 kPa−1, 100 ms response time, 2–100 kPa detection range, and 5000 cycles of loading pressure. Moreover, Pataniya et al. [105] manufactured a flexible piezoresistive sensor based on MoS2 nanosheets by using a cellulose paper as substrate, as shown in Figure 3c. The sensor had high sensitivity of 18.42 kPa−1 (Figure 3d) for the low-pressure range, sensing range of 0.001–0.5 kPa, and fast response time. The time difference displayed in Figure 3e between systolic and diastolic peaks measured was 260 ms, which is in agreement with previous studies.
TMDs have shown potential for flexible sensors to monitor vital signs; however, the current synthesis techniques are not yet scalable or reliable for producing monolayers that are defect-free and have controllable thickness and excellent quality [106,107].

4.3. Transition Metal Carbides and Nitrides (MXene)

Gogotsi and his team [108] conducted the first experiment on MXenes in 2011 by using hydrofluoric acid (HF) to exfoliate three-dimensional titanium aluminum (Al) carbide ( M n + 1 AlX n ) and produce layers of 2D titanium carbide ( M n + 1 X n T x ). M represents transition metals, such as Mo, titanium (Ti), and niobium (Nb); X denotes carbon/nitrogen; and T refers to functional termination groups, such as hydroxyl (-OH), fluorine (-F), and oxygen (-O) [109]. As the name reflects the elements, these materials comprise multi-layers of transition metal carbides, nitrides, and carbonitrides [110]. Recently, MXene has been found to be an ideal candidate for a wide range of applications, such as batteries [111], conductive fillers [112], supercapacitors [113], and solar cells [114].
A growing trend on the development of MXenes-based wearable sensors has occurred due to their superior electrical conductivity, peculiar multilayer structure, and large surface-area-to-volume ratio [115]. For instance, the abundant functional termination groups and the hydrophilic surface in MXenes’ nanostructures confer them with great capability to mix with polymers. The interlayer spacing in between MXene multilayers and the hybridization with polymers in flexible devices would significantly enhance sensor performance including enhanced sensitivity and greater electrical conductivity [116,117].
Figure 4a,b show a novel flexible piezoresistive sensor based on Ti3C2Tx/PDMS developed by Cheng et al. [118] using simple abrasive paper stencil printing to detect the pulse wave of an individual. The sensor detected three important peaks of pulse waveform (Figure 4c) and achieved sensitivity of 151.4 kPa−1, response time of <130 ms, and LOD of 4.4 Pa. The sensor’s response showed high competency in continuous health monitoring. Li et al. [119] developed a Ti3C2Tx flexible piezoresistive sensor on poly (vinylidene fluoride) trifluoroethylene (P(VDF-TrFE)) substrate by spin coating, as shown in Figure 4d. The prepared sensor successfully detected the pulse wave peaks and exhibited excellent properties, with 817.4 kPa−1 sensitivity, 16 ms response time (Figure 4e), and 0.072–0.74 Pa detection range. Su et al. [120] fabricated a flexible piezoresistive sensor based on Ti3C2Tx by using the honeycomb approach on PDMS conductive film. Figure 4f shows that the sensor had a sensitivity of 0.61 kPa−1, response time of 160 ms, and detection range of 0–50 kPa. Not only that, but radial pulse waveforms were also detected in real-time using this sensor, as shown in Figure 4g.
Although MXene can be regarded as an ideal candidate for flexible sensing applications, it has several disadvantages that can affect its long-term stability. MXene films have greater tendency to experience fracture due to poor mechanical properties caused by the weak van der Waals interaction in MXene nanosheets [121,122]. Moreover, the exfoliation of the Al layer from the MAX phase by using HF etchant may introduce nanosheet restacking, leading to easy oxidation in the ambient environment and reduced biocompatibility [123].
In summary, 2D nanomaterials exhibit potential as functional materials in flexible sensors due to their large surface-area-to-volume ratio, which leads to high sensitivity, fast response time, and wide detection range. Although a number of studies have reported on flexible sensors utilizing these nanomaterials, well-grounded conceptual and methodological approaches for continuous BP monitoring are lacking. The majority of these studies on wearable applications have focused only on human activity detection. Few studies have attempted to validate the BP readings obtained from the proposed sensors with those from a commercial cuff sphygmomanometer. The findings reported by previous studies (Table 2) provide insights for future research and better understanding on this matter.

5. Wearable Blood Pressure Monitoring

BP is an essential vital sign in human health monitoring, and its complex dynamics make it difficult to understand. Based on the American Heart Association, the normal systolic BP (SBP) and diastolic BP (DBP) of healthy people are ≤120 and 80 mmHg, respectively [124]. Individuals with BP readings beyond the normal range are considered as hypertensive [125], while those with readings lower than the baseline are considered normotensive [126]. A BP pulse waveform consists of three main peaks, namely, percussion wave (P wave), tidal wave (T wave), and diastolic wave (D wave). In general, P wave is the early SBP, T wave is the late SBP, and D wave is the DBP [127]. Figure 5 depicts the typical BP pulse waveforms obtained from different measurement sites (wrist and neck) of an individual. According to Figure 5a, these waves can be observed from the radial artery pulse and are denoted by P 1 (P wave), P 2 (T wave), and P 3 (D wave), respectively. With the carotid artery pulse in Figure 5b, three distinct peaks can be extracted with the systolic peak denoted by P s , P i is the inflection point and P d is the diastolic peak.
Arterial catheterization is the gold standard for continuous measurement of BP, yet it is invasive and widely employed only on critically ill patients. Meanwhile, sphygmomanometers can monitor BP unobtrusively but suffer from several limitations, such as intermittent readings and non-portability. In this regard, wearable flexible sensors are expected to pave new routes toward remote health monitoring as the future of telemedicine. This section presents several examples of cutting-edge wearable technologies for non-invasive and continuous monitoring of BP.
Noh et al. [128] integrated four components, namely, ECG, ballistocardiogram (BCG), flexible electronic circuits, and a ferroelectric film, in a sensing platform. Silver paste was used to sandwich the ferroelectric layer in between the ECG and BCG through a screen-printing method. Three healthy subjects were selected to participate in the study. Simultaneous measurements were conducted using the developed sensor and a reference device, Finapres. The sensor showed comparable SBP values from both devices with the mean error and standard deviation of −0.16 and 4.12 mmHg, respectively. Although this work did not measure DBP, the results were promising and proved the feasibility of a flexible BP patch as an alternative to the current sphygmomanometer for continuous BP monitoring.
Dagdeviren et al. [129] fabricated a piezoelectric pressure sensor patch by using PZT and Si substrate for long-term BP monitoring. Here, the design of the sensor played a significant role as the PZT is more susceptible to deformation than the Si substrate, allowing the sensor to be skin-mounted. The average SBP and DBP readings of three volunteers recorded using this device are in agreement with the cuff BP values, with averages of 110 mmHg and 65 mmHg for SBP and DBP, respectively. The sensor can stretch up to 30% of its size and has 0.1 ms response time, 25 µm thickness, and 0.005 Pa LOD. The developed sensor can be beneficial for continuous monitoring of human health. Luo et al. [130] documented a skin patch that can monitor continuous BP non-invasively. The sensing mechanism is based on the piezoresistive properties of carbon-made textile and epidermal ECG sensors. Compared with the cuff BP monitor, the fabricated sensor had small deviations of 6.5 ± 4.9 mmHg and −0.4 ± 3.9 mmHg for SBP and DBP, respectively, as well as low power consumption of 3 nW. Hence, the sensor has potential to be integrated in health wearables.
Wang et al. [131] reported an ultrasonic wearable sensor patch for continuous monitoring of BP. A piezoelectric composite and a thin Si layer were used as the sensing element and elastomer, respectively. Ultrasonic waves were employed to provide deeper penetration for BP detection. The proposed sensor had remarkable results and exhibited superior properties over tonometry modality for long-term monitoring of BP with up to 60% stretchability, 23.6 mW power consumption, and ~5 Pa loading pressure on the skin. Sempionatto et al. [132] extended the work by Wang et al. by developing ultrasonic electrochemical sensors based on PZT and printed polymer composites for monitoring BP and other physiological parameters, such as heart rate (HR), glucose, and lactate. Participants were given different stimuli, including food and drink, as well as physical activities, before and after measurement of the parameters. The developed epidermal sensor patch exhibited satisfactory performance when validated with cuff BP readings, thus demonstrating its suitability as a multimodal sensing device for wearable BP application. All studies involving wearable flexible sensor patches for monitoring continuous BP reported no negative effects, such as allergic reaction, redness, or damage, after the removal of the patches from the skin.
Recently, Kireev et al. [133] developed a piezoresistive e-tattoo for continuous BP monitoring by transferring Gr onto a tattoo paper using polymethyl methacrylate. Compared to earlier studies, BP accuracy was improved with 0.2 ± 5.8 mmHg and 0.2 ± 4.5 mmHg, for SBP and DBP, indicating good biocompatibility and stable BP measurement. Laurila et al. [15] proposed inkjet and blade-coating fabrication methods for developing an e-tattoo sensor with piezoelectric properties. The fabricated device is the thinnest fully printed piezoelectric sensor with 4.2 µm thickness. The sensor showed an improved sensitivity of ~50 times that of the reference BP monitor that exploits the arterial tonometry principle. Flexible sensors with e-tattoo configurations were developed in both studies due to the advantages of measuring continuous BP non-intrusively while maintaining good biocompatibility. For example, sensor fabrication on tattoo paper substrates improved skin adhesion and user experience for long-term wear. Moreover, the biomedical company Vivalink introduced the first commercial multi-sensing patch to monitor BP continuously and remotely [134]. The sensor detected various vital signs such as SBP, DBP, and HR with the universal regulatory clearance. This technology features small design, wireless connection, real-time monitoring, and water resistance.
Long-term remote BP monitoring is feasible and relatively accurate with the emergence of advanced technologies and 2D nanomaterials. The ground-breaking research efforts are significant for the early diagnosis and prognosis of health complications such as cardiovascular diseases (CVD). The detection of CVD continues to be a challenge for physicians, and late-stage diagnosis often leads to stroke incidence and mortality. Continuous BP monitoring using wearables, such as epidermal patches and e-tattoos, enables timely treatment for high-risk patients, particularly those with hypertension as it is an underlying risk factor of CVD. This monitoring system is expected to facilitate real-time BP monitoring through automated notification of abnormal BP readings, triaging perioperative patients, and mitigating motion artifacts in other cuffless BP monitors.

6. Challenges and Future Outlooks

Despite the successful development of laboratory-based cuffless sensors for continuous BP monitoring, further improvements are required to address their limitations prior to reaching market readiness and clinical acceptability. Thus far, the synthesis of 2D nanomaterials remains a major challenge in wearable sensing implementation. Existing techniques such as exfoliation suffer from weaknesses that hinder their abilities to fabricate a high-quality and zero-defect sensing layer. To address this issue, development of suitable 2D nanomaterials with the benefits of low fabrication cost and mass-production is the potential area of focus for future research.
Another key challenge for the implementation of wearable is biodegradability, which is a growing health concern worldwide. For instance, the use of toxic chemicals, such as HF acid, to produce 2D nanomaterials can cause adverse effects on the environment and humans through the release of chemical waste and the emission of poisonous gases. Therefore, continuous research efforts are needed to fabricate wearable sensors based on 2D nanomaterials that contain non-harmful by-products and are safe for humans.
Currently, it remains challenging to realize a fully wearable flexible sensor and the development is constrained by the power source dependency. The developed prototypes still heavily rely on wired connection for continuous power supply and signal transmission. A microcontroller-based flexible sensor has been suggested to overcome this problem, yet it is not practical for everyday use and has low conformability. Hence, future research should incorporate the integration of on-chip circuits in wearable devices to be self-powered for monitoring BP and other vital signs continuously and highly accurately. In addition, inkjet printing of electronics in flexible sensors is gaining much research attention in regard to the development of fully integrated wearable technologies.
Monitoring of BP is technically challenging because it involves a manual handling task. In the future, the potential use of artificial intelligence (AI) should be explored because it is at the forefront of smart wearables for continuous physiological monitoring. Aspects that should be investigated are the integration of machine learning (ML), as a subset of AI, to enhance the performance of wearable sensors through the prediction of vital signs, the generation of precise outputs, and real-time monitoring and seamless transmission of signals. Furthermore, the adoption of ML in wearable technologies offers model personalization through user behavior learning.
Despite the potential of 2D nanomaterials in flexible sensors, their commercial applications to wearable BP devices are still far from being achieved. One of the challenges is the stability of 2D nanomaterials when integrated into wearable technologies, leading to difficulty in large-scale production. This problem has inspired scholars to explore the potential solutions through available and emerging techniques for upscaling of 2D nanomaterials synthesis and their integration on wearable platforms with improved sensing performance.

7. Conclusions

In this review, we summarize the recent development of wearable flexible sensors for BP monitoring. Common transduction mechanisms such as piezoelectric, capacitive, piezoresistive, and triboelectric were introduced, and performance parameters including sensitivity, response time, detection limit, stretchability, and biocompatibility were discussed. Moreover, 2D nanomaterials, such as Gr, TMDs, and MXenes, emerged as promising candidates for flexible sensors for BP monitoring. The comparison between novel 2D nanomaterial-based flexible sensors and their respective sensing performance were presented. Several examples of wearable flexible sensors for BP monitoring were also reviewed. This review aims to add to a growing body of literature on the development of wearable sensing systems based on 2D nanomaterials for unobtrusive, continuous, accurate, and reliable BP monitoring.

Author Contributions

Conceptualization, S.N.A.I. and M.A.S.M.H.; writing—original draft preparation, S.N.A.I.; writing—review and editing, M.A.S.M.H. and Z.M.; supervision, N.A.N. and R.J.; funding acquisition, N.A.N. and R.J. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported Ministry of Higher Education Malaysia under Grant Code TRGS/1/2019/UKM/01/4/3, Universiti Kebangsaan Malaysia Research under Grant GUP-2019-020, and Kursi Sheikh Abdullah Fahim under Grant Code RH-2020-007.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wu, W.; Haick, H. Materials and wearable devices for autonomous monitoring of physiological markers. Adv. Mat. 2018, 30, e1705024. [Google Scholar] [CrossRef] [PubMed]
  2. Wang, X.; Liu, Z.; Zhang, T. Flexible sensing electronics for wearable/attachable health monitoring. Small 2017, 13, 1602790. [Google Scholar] [CrossRef]
  3. Guk, K.; Han, G.; Lim, J.; Jeong, K.; Kang, T.; Lim, E.-K.; Jung, J. Evolution of wearable devices with real-time disease monitoring for personalized healthcare. Nanomaterials 2019, 9, 813. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Tolba, A.; Said, O.; Al-Makhadmeh, Z. MDS: Multi-level decision system for patient behavior analysis based on wearable device information. Comput. Commun. 2019, 147, 180–187. [Google Scholar] [CrossRef]
  5. Jalal, A.; Batool, M.; Kim, K. Stochastic recognition of physical activity and healthcare using tri-axial inertial wearable sensors. Appl. Sci. 2020, 10, 7122. [Google Scholar] [CrossRef]
  6. Tang, N.; Zheng, Y.; Cui, D.; Haick, H. Multifunctional dressing for wound diagnosis and rehabilitation. Adv. Healthc. Mater. 2021, 10, 2101292. [Google Scholar] [CrossRef]
  7. Durán-Vega, L.A.; Santana-Mancilla, P.C.; Buenrostro-Mariscal, R.; Contreras-Castillo, J.; Anido-Rifón, L.E.; García-Ruiz, M.A.; Montesinos-López, O.A.; Estrada-González, F. An IoT system for remote health monitoring in elderly adults through a wearable device and mobile application. Geriatrics 2019, 4, 34. [Google Scholar] [CrossRef] [Green Version]
  8. Ahmad, W.N.W.; Adib, M.A.H.M.; Ahmad, Z.; Zaihidee, F.M.; Txi, M.R.S. Integration of the Health Monitoring System with IoT Application in Sports Technology: A Review. J. Kejuruter. 2022, 5, 101–109. [Google Scholar] [CrossRef]
  9. Wen, D.; Zhang, X.; Liu, X.; Lei, J. Evaluating the consistency of current mainstream wearable devices in health monitoring: A comparison under free-living conditions. J. Med. Internet Res. 2017, 19, e68. [Google Scholar] [CrossRef]
  10. Haghayegh, S.; Khoshnevis, S.; Smolensky, M.H.; Diller, K.R.; Castriotta, R.J. Accuracy of wristband fitbit models in assessing sleep: Systematic review and meta-analysis. J. Med. Internet Res. 2019, 21, e16273. [Google Scholar] [CrossRef]
  11. Lee, Y.; Chung, J.W.; Lee, G.H.; Kang, H.; Kim, J.-Y.; Bae, C.; Yoo, H.; Jeong, S.; Cho, H.; Kang, S.-G.; et al. Standalone real-time health monitoring patch based on a stretchable organic optoelectronic system. Sci. Adv. 2021, 7, eabg9180. [Google Scholar] [CrossRef] [PubMed]
  12. Leal, C.; Lopes, P.A.; Serra, A.; Coelho, J.F.J.; de Almeida, A.T.; Tavakoli, M. Untethered disposable health monitoring electronic patches with an integrated Ag2O−Zn battery, a AgInGa current collector, and hydrogel electrodes. ACS Appl. Mater. Interfaces 2020, 12, 3407–3414. [Google Scholar] [CrossRef] [PubMed]
  13. Nakata, S.; Arie, T.; Akita, S.; Takei, K. Wearable, flexible, and multifunctional healthcare device with an ISFET Chemical sensor for simultaneous sweat pH and skin temperature monitoring. ACS Sens. 2017, 2, 443–448. [Google Scholar] [CrossRef]
  14. Chen, Y.; Zhou, G.; Yuan, X.; Li, C.; Liu, L.; You, H. Substrate-free, ultra-conformable PEDOT: PSS E-tattoo achieved by energy regulation on skin. Biosens. Bioelectron. 2022, 206, 114118. [Google Scholar] [CrossRef] [PubMed]
  15. Laurila, M.M.; Peltokangas, M.; Montero, K.L.; Verho, J.; Haapala, M.; Oksala, N.; Vehkaoja, A.; Mäntysalo, M. Self-powered, high sensitivity printed e-tattoo sensor for unobtrusive arterial pulse wave monitoring. Nano Energy 2022, 102, 107625. [Google Scholar] [CrossRef]
  16. Wang, Y.; Qiu, Y.; Ameri, S.K.; Jang, H.; Dai, Z.; Huang, Y.A.; Lu, N. Low-cost, μm-thick, tape-free electronic tattoo sensors with minimized motion and sweat artifacts. NPJ Flex. Electron. 2018, 2, 6. [Google Scholar] [CrossRef] [Green Version]
  17. Doshi, S.M.; Thostenson, E.T. Thin and flexible carbon nanotube-based pressure sensors with ultrawide sensing range. ACS Sens. 2018, 3, 1276–1282. [Google Scholar] [CrossRef]
  18. Zhong, M.; Zhang, L.; Liu, X.; Zhou, Y.; Zhang, M.; Wang, Y.; Yang, L.; Wei, D. Wide linear range and highly sensitive flexible pressure sensor based on multistage sensing process for health monitoring and human-machine interfaces. J. Chem. Eng. 2021, 412, 128649. [Google Scholar] [CrossRef]
  19. Yang, D.; Guo, H.; Chen, X.; Wang, L.; Jiang, P.; Zhang, W.; Zhang, L.; Wang, Z.L. A flexible and wide pressure range triboelectric sensor array for real-time pressure detection and distribution mapping. J. Mater. Chem. A 2020, 8, 23827–23833. [Google Scholar] [CrossRef]
  20. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Zhang, Y.; Dubonos, S.V.; Grigorieva, I.V.; Firsov, A.A. Electric field effect in atomically thin carbon films. Science 2004, 306, 666–669. [Google Scholar] [CrossRef] [Green Version]
  21. Sheng, L.; Liao, T.; Kou, L.; Sun, Z. Single-crystalline ultrathin 2D TiO2 nanosheets: A bridge towards superior photovoltaic devices. Mater. Today Energy 2017, 3, 32–39. [Google Scholar] [CrossRef]
  22. Zong, B.; Xu, Q.; Li, Q.; Fang, X.; Chen, X.; Liu, C.; Zang, J.; Bo, Z.; Mao, S. Novel insights into the unique intrinsic sensing behaviors of 2D nanomaterials for volatile organic compounds: From graphene to MoS2 and black phosphorous. J. Mater. Chem. A 2021, 9, 14411–14421. [Google Scholar] [CrossRef]
  23. Liu, D.; Zhang, S.; Wang, J.; Peng, T.; Li, R. Direct Z-Scheme 2D/2D photocatalyst based on ultrathin g-C3N4 and WO3 nanosheets for efficient visible-light-driven H2 generation. ACS Appl. Mater. Interfaces 2019, 11, 27913–27923. [Google Scholar] [CrossRef] [PubMed]
  24. Feng, R.; Lei, W.; Sui, X.; Liu, X.; Qi, X.; Tang, K.; Liu, G.; Liu, M. Anchoring black phosphorus quantum dots on molybdenum disulfide nanosheets: A 0D/2D nanohybrid with enhanced visible−and NIR−light photoactivity. Appl. Catal. B Environ. 2018, 238, 444–453. [Google Scholar] [CrossRef]
  25. Zong, L.; Li, X.; Zhu, L.; You, J.; Li, Z.; Gao, H.; Li, M.; Li, C. Photo-responsive heterojunction nanosheets of reduced graphene oxide for photo-detective flexible energy devices. J. Mater. Chem. A 2019, 7, 7736–7744. [Google Scholar] [CrossRef]
  26. Guiney, L.M.; Mansukhani, N.D.; Jakus, A.E.; Wallace, S.G.; Shah, R.N.; Hersam, M.C. Three-dimensional printing of cytocompatible, thermally conductive hexagonal boron nitride nanocomposites. Nano Lett. 2018, 18, 3488–3493. [Google Scholar] [CrossRef]
  27. Hamzah, A.A.; Selvarajan, R.S.; Majlis, B.Y. Graphene for biomedical applications: A review. Sains Malays. 2017, 46, 1125–1139. [Google Scholar] [CrossRef]
  28. Chen, J.; Ding, P.; Pan, R.; Xuan, W.; Guo, D.; Ye, Z.; Yin, W.; Jin, H.; Wang, X.; Dong, S.; et al. Self-powered transparent glass-based single electrode triboelectric motion tracking sensor array. Nano Energy 2017, 34, 442–448. [Google Scholar] [CrossRef]
  29. Li, Q.; Zhang, L.N.; Tao, X.M.; Ding, X. Review of flexible temperature sensing networks for wearable physiological monitoring. Adv. Healthc. Mater. 2017, 6, 1601371. [Google Scholar] [CrossRef]
  30. Huynh, T.-P.; Haick, H. Autonomous flexible sensors for health monitoring. Adv. Mater. 2018, 30, 1802337. [Google Scholar] [CrossRef]
  31. Ribas Ripoll, V.; Vellido, A. Blood pressure assessment with differential pulse transit time and deep learning: A proof of concept. Kidney Dis. 2019, 5, 23–27. [Google Scholar] [CrossRef] [PubMed]
  32. Le, T.; Ellington, F.; Lee, T.-Y.; Vo, K.; Khine, M.; Krishnan, S.K.; Dutt, N.; Cao, H. Continuous non-invasive blood pressure monitoring: A methodological review on measurement techniques. IEEE Access 2020, 8, 212478–212498. [Google Scholar] [CrossRef]
  33. Quan, X.; Liu, J.; Roxlo, T.; Siddharth, S.; Leong, W.; Muir, A.; Cheong, S.-M.; Rao, A. Advances in non-invasive blood pressure monitoring. Sensors 2021, 21, 4273. [Google Scholar] [CrossRef]
  34. Stewart, J.; Stewart, P.; Walker, T.; Horner, D.V.; Lucas, B.; White, K.; Muggleton, A.; Morris, M.; Selby, N.M.; Taal, M.W. A Feasibility study of non-invasive continuous estimation of brachial pressure derived from arterial and venous lines during dialysis. IEEE J. Transl. Eng. Health Med. 2020, 9, 2700209. [Google Scholar] [CrossRef] [PubMed]
  35. Shoji, T.; Nakagomi, A.; Okada, S.; Ohno, Y.; Kobayashi, Y. Invasive validation of a novel brachial cuff-based oscillometric device (SphygmoCorXCEL) for measuring central blood pressure. J. Hypertens. 2017, 35, 69–75. [Google Scholar] [CrossRef] [PubMed]
  36. He, H.; Pang, Y.; Cui, K. Study on signal processing and uniform deflation of wrist electronic sphygmomanometer. Int. Core J. Eng. 2022, 8, 782–792. [Google Scholar]
  37. Mirdamadi, A.; Etebari, M. Comparison of manual versus automated blood pressure measurement in intensive care unit, coronary care unit, and emergency room. ARYA Atheroscler. 2017, 13, 29–34. [Google Scholar]
  38. Dal Pont, M.P.; Marques, J.L.B. Reflective photoplethysmography acquisition platform with monitoring modules and noninvasive blood pressure calculation. IEEE Trans. Instrum. Meas. 2020, 69, 5649–5657. [Google Scholar] [CrossRef]
  39. Ray, D.; Collins, T.; Woolley, S.; Ponnapalli, P. A review of wearable multi-wavelength photoplethysmography. IEEE Rev. Biomed. Eng. 2021, 16, 136–151. [Google Scholar] [CrossRef]
  40. Chandrasekhar, A.; Yavarimanesh, M.; Natarajan, K.; Hahn, J.-O.; Mukkamala, R. PPG sensor contact pressure should be taken into account for cuff-less blood pressure measurement. IEEE Trans. Biomed. Eng. 2020, 67, 3134–3140. [Google Scholar] [CrossRef]
  41. Peng, B.; Zhao, F.; Ping, J.; Ying, Y. Recent advances in nanomaterial-enabled wearable sensors: Material synthesis, sensor design, and personal health monitoring. Small 2020, 16, 2002681. [Google Scholar] [CrossRef] [PubMed]
  42. Mathew, M.; Radhakrishnan, S.; Vaidyanathan, A.; Chakraborty, B.; Rout, C.S. Flexible and wearable electrochemical biosensors based on two-dimensional materials: Recent developments. Anal. Bioanal. Chem. 2021, 413, 727–762. [Google Scholar] [CrossRef] [PubMed]
  43. Stapleton, A.; Ivanov, M.S.; Noor, M.R.; Silien, C.; Gandhi, A.A.; Soulimane, T.; Kholkin, A.L.; Tofail, S.A.M. Converse piezoelectricity and ferroelectricity in crystals of lysozyme protein revealed by piezoresponse force microscopy. Ferroelectrics 2018, 525, 135–145. [Google Scholar] [CrossRef]
  44. De Souza Marinho, D.; Pinto, F.R.; Baptista, E.R. Piezoelectric effect as an energy generator: A describal historic of its performance. Int. J. Adv. Eng. Res. Sci. 2019, 6, 228–232. [Google Scholar] [CrossRef]
  45. Ico, G.; Myung, A.; Kim, B.S.; Myung, N.V.; Nam, J. Transformative piezoelectric enhancement of P(VDF-TrFE) synergistically driven by nanoscale dimensional reduction and thermal treatment. Nanoscale 2018, 10, 2894–2901. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Zaszczyńska, A.; Gradys, A.; Sajkiewicz, P. Progress in the applications of smart piezoelectric materials for medical devices. Polymers 2020, 12, 2754. [Google Scholar] [CrossRef] [PubMed]
  47. Ojha, S.; Paria, S.; Karan, S.K.; Si, S.K.; Maitra, A.; Das, A.K.; Halder, L.; Bera, A.; De, A.; Khatua, B.B. Morphological interference of two different cobalt oxides derived from a hydrothermal protocol and a single two-dimensional metal organic framework precursor to stabilize the β-phase of PVDF for flexible piezoelectric nanogenerators. Nanoscale 2019, 11, 22989–22999. [Google Scholar] [CrossRef]
  48. Tian, G.; Deng, W.; Gao, Y.; Xiong, D.; Yan, C.; He, X.B.; Yang, T.; Jin, L.; Chu, X.; Zhang, H.; et al. Rich lamellar crystal baklava-structured PZT/PVDF piezoelectric sensor toward individual table tennis training. Nano Energy 2019, 59, 574–581. [Google Scholar] [CrossRef]
  49. Chen, X.-G.; Song, X.-J.; Zhang, Z.-X.; Li, P.-F.; Ge, J.-Z.; Tang, Y.-Y.; Gao, J.-X.; Zhang, W.-Y.; Fu, D.-W.; You, Y.-M.; et al. Two-dimensional layered perovskite ferroelectric with giant piezoelectric voltage coefficient. J. Am. Chem. Soc. 2020, 142, 1077–1082. [Google Scholar] [CrossRef]
  50. Jin, L.; Ma, S.; Deng, W.; Yan, C.; Yang, T.; Chu, X.; Tian, G.; Xiong, D.; Lu, J.; Yang, W. Polarization-free high-crystallization β-PVDF piezoelectric nanogenerator toward self-powered 3D acceleration sensor. Nano Energy 2018, 50, 632–638. [Google Scholar] [CrossRef]
  51. Zhang, Y.; Peng, Y.; Sun, Z.; Yu, H. A novel stick–slip piezoelectric actuator based on a triangular compliant driving mechanism. IEEE Trans. Ind. Electron. 2019, 66, 5374–5382. [Google Scholar] [CrossRef]
  52. Habibi, M.; Hashemabadi, D.; Safarpour, H. Vibration analysis of a high-speed rotating GPLRC nanostructure coupled with a piezoelectric actuator. Eur. Phys. J. Plus 2019, 134, 307. [Google Scholar] [CrossRef]
  53. Jian, Y.; Huang, D.; Liu, J.; Min, D. High-precision tracking of piezoelectric actuator using iterative learning control and direct inverse compensation of hysteresis. IEEE Trans. Ind. Electron. 2019, 66, 368–377. [Google Scholar] [CrossRef]
  54. Deng, J.; Liu, Y.; Liu, J.; Xu, D.; Wang, Y. Development of a planar piezoelectric actuator using bending–bending hybrid transducers. IEEE Trans. Ind. Electron. 2019, 66, 6141–6149. [Google Scholar] [CrossRef]
  55. Yang, T.; Xie, D.; Li, Z.; Zhu, H. Recent advances in wearable tactile sensors: Materials, sensing mechanisms, and device performance. Mater. Sci. Eng. R Rep. 2022, 115, 1–37. [Google Scholar] [CrossRef]
  56. Osoinach, B. Proximity Capacitive Sensor Technology for Touch Sensing Applications. Available online: Cache.freescale.com/files/sensors/doc/white_paper/PROXIMITYWP.pdf (accessed on 5 November 2022).
  57. Berggren, C.; Bjarnason, B.; Johansson, G. Capacitive biosensors. Electroanalysis 2001, 13, 173–180. [Google Scholar] [CrossRef]
  58. Lin, L.; Chung, C.-K. PDMS Microfabrication and design for microfluidics and sustainable energy application: Review. Micromachines 2021, 12, 1350. [Google Scholar] [CrossRef]
  59. Tang, C.; Liu, Z.; Li, L. Mechanical sensors for cardiovascular monitoring: From battery-powered to self-powered. Biosensors 2022, 12, 651. [Google Scholar] [CrossRef]
  60. Chen, W.; Yan, X. Progress in achieving high-performance piezoresistive and capacitive flexible pressure sensors: A review. J. Mater. Sci. Technol. 2020, 43, 175–188. [Google Scholar] [CrossRef]
  61. Verma, P.; Punetha, D.; Pandey, S.K. Sensitivity optimization of MEMS based piezoresistive pressure sensor for harsh environment. Silicon 2020, 12, 2663–2671. [Google Scholar] [CrossRef]
  62. Bao, M. Analysis and Design Principles of MEMS Devices; Elsevier Science: Amsterdam, The Netherlands, 2005. [Google Scholar]
  63. Duan, L.; D’hooge, D.; Cardon, L. Recent progress on flexible and stretchable piezoresistive strain sensors: From design to application. Prog. Mater. Sci. 2020, 114, 100617. [Google Scholar] [CrossRef]
  64. Wang, Z.L. From contact electrification to triboelectric nanogenerators. Rep. Prog. Phys. 2021, 84, 096502. [Google Scholar] [CrossRef] [PubMed]
  65. Tao, J.; Bao, R.; Wang, X.; Peng, Y.; Li, J.; Fu, S.; Pan, C.; Wang, Z.L. Self-powered tactile sensor array systems based on the triboelectric effect. Adv. Funct. Mater. 2018, 29, 1806379. [Google Scholar] [CrossRef]
  66. Askari, H.; Khajepour, A.; Khamesee, M.B.; Saadatnia, Z.; Wang, Z.L. Piezoelectric and triboelectric nanogenerators: Trends and impacts. Nano Today 2018, 22, 10–13. [Google Scholar] [CrossRef]
  67. Meng, K.; Chen, J.; Li, X.; Wu, Y.; Fan, W.; Zhou, Z.; He, Q.; Wang, X.; Fan, X.; Zhang, Y.; et al. Flexible weaving constructed self-powered pressure sensor enabling continuous diagnosis of cardiovascular disease and measurement of cuffless blood pressure. Adv. Func. Mater. 2018, 29, 1806388. [Google Scholar] [CrossRef]
  68. Qiu, A.; Li, P.; Yang, Z.; Yao, Y.; Lee, I.; Ma, J. A path beyond metal and silicon:Polymer/nanomaterial composites for stretchable strain sensors. Adv. Func. Mat. 2019, 29, 1806306. [Google Scholar] [CrossRef]
  69. Zhang, Y.; Yang, J.; Hou, X.; Li, G.; Wang, L.; Bai, N.; Cai, M.; Zhao, L.; Wang, Y.; Zhang, J.; et al. Highly stable flexible pressure sensors with a quasi-homogeneous composition and interlinked interfaces. Nat. Commun. 2022, 13, 1317. [Google Scholar] [CrossRef]
  70. Li, C.; Huang, K.; Yuan, T.; Cong, T.; Fan, Z.; Pan, L. Fabrication and conductive mechanism analysis of stretchable electrodes based on PDMS-Ag nanosheet composite with low resistance, stability, and durability. Nanomaterials 2022, 12, 2628. [Google Scholar] [CrossRef]
  71. Pan, S.; Liu, Z.; Wang, M.; Jiang, Y.; Luo, Y.; Wan, C.; Qi, D.; Wang, C.; Ge, X.; Chen, X. Mechanocombinatorially screening sensitivity of stretchable strain sensors. Adv. Mater. 2019, 31, 1903130. [Google Scholar] [CrossRef]
  72. Park, J.; Hwang, J.C.; Kim, G.G.; Park, J.-U. Flexible electronics based on one-dimensional and two-dimensional hybrid nanomaterials. InfoMat 2019, 2, 33–56. [Google Scholar] [CrossRef] [Green Version]
  73. Naghdi, S.; Rhee, K.Y.; Hui, D.; Park, S.J. A Review of Conductive Metal Nanomaterials as Conductive, Transparent, and Flexible Coatings, Thin Films, and Conductive Fillers: Different Deposition Methods and Applications. Coatings 2018, 8, 278. [Google Scholar] [CrossRef] [Green Version]
  74. Kamyshny, A.; Magdassi, S. Conductive Nanomaterials for Printed Electronics. Small 2014, 10, 3515–3535. [Google Scholar] [CrossRef] [PubMed]
  75. Xie, J.; Chen, Q.; Shen, H.; Li, G. Wearable graphene devices for sensing. J. Electrochem. Soc. 2020, 167, 037541. [Google Scholar] [CrossRef]
  76. Prakash, J.; Prema, D.; Venkataprasanna, K.S.; Balagangadharan, K.; Selvamurugan, N.; Venkatasubbu, G.D. Nanocomposite chitosan film containing graphene oxide/hydroxyapatite/gold for bone tissue engineering. Int. J. Biol. Macromol. 2020, 154, 62–71. [Google Scholar] [CrossRef]
  77. Yek, S.M.-G.; Azarifar, D.; Nasrollahzadeh, M.; Bagherzadeh, M.; Shokouhimehr, M. Heterogenized Cu(II) complex of 5-aminotetrazole immobilized on graphene oxide nanosheets as an efficient catalyst for treating environmental contaminants. Sep. Purif. Technol. 2020, 247, 116952. [Google Scholar] [CrossRef]
  78. Devi, S.C.; Khan, R.A. Effect of graphene oxide on mechanical and durability performance of concrete. J. Build. Eng. 2020, 27, 101007. [Google Scholar] [CrossRef]
  79. Stanford, M.G.; Zhang, C.; Fowlkes, J.D.; Hoffman, A.; Ivanov, I.N.; Rack, P.D.; Tour, J.M. High-resolution laser-induced graphene. Flexible electronics beyond the visible limit. ACS Appl. Mater. Interfaces 2020, 12, 10902–10907. [Google Scholar] [CrossRef]
  80. Chakraborty, B.; Ray, P.; Garg, N.; Banerjee, S. High capacity reversible hydrogen storage in titanium doped 2D carbon allotrope Ψ-graphene: Density Functional Theory investigations. Int. J. Hydrog. Energy 2021, 46, 4154–4167. [Google Scholar] [CrossRef]
  81. Kumar, R.; Youssry, S.M.; Soe, H.M.; Abdel-Galeil, M.M.; Kawamura, G.; Matsuda, A. Honeycomb-like open-edged reduced-graphene-oxide-enclosed transition metal oxides (NiO/Co3O4) as improved electrode materials for high-performance supercapacitor. J. Energy Storage 2020, 30, 101539. [Google Scholar] [CrossRef]
  82. Zulkepli, N.; Yunas, J.; Mohamed, M.A.; Sirat, M.S.; Hamzah, A.A. Atmospheric pressure chemical vapour deposition growth of graphene for the synthesis of SiO2 based graphene ball. Sains Malays. 2022, 51, 1927–1932. [Google Scholar] [CrossRef]
  83. Zhang, H. Ultrathin two-dimensional nanomaterials. ACS Nano 2015, 9, 9451–9469. [Google Scholar] [CrossRef] [PubMed]
  84. Olabi, A.G.; Wilberforce, T.; Sayed, E.T.; Elsaid, K.; Rezk, H.; Abdelkareem, M.A. Recent progress of graphene based nanomaterials in bioelectrochemical systems. Sci. Total Environ. 2020, 749, 141225. [Google Scholar] [CrossRef] [PubMed]
  85. Cui, H.; Guo, Y.; Ma, W.; Zhou, Z. 2 D materials for electrochemical energy storage: Design, preparation, and application. ChemSusChem 2020, 13, 1155–1171. [Google Scholar] [CrossRef] [PubMed]
  86. Shazni, M.A.; Lee, M.W.; Lee, H.W. Highly-sensitive graphene-based flexible pressure sensor platform. Sains Malays. 2017, 46, 1155–1161. [Google Scholar] [CrossRef]
  87. Zhang, H.; Ren, S.; Pu, J.; Xue, Q. Barrier mechanism of multilayers graphene coated copper against atomic oxygen irradiation. Appl. Surf. Sci. 2018, 444, 28–35. [Google Scholar] [CrossRef]
  88. Govindasamy, M.; Jian, C.-R.; Kuo, C.-F.; Hsieh, A.-H.; Sie, J.-L.; Huang, C.-H. A chemiresistive biosensor for detection of cancer biomarker in biological fluids using CVD-grown bilayer graphene. Microchim. Acta 2022, 189, 374. [Google Scholar] [CrossRef]
  89. Shen, C.; Li, X.; Li, N.; Xie, K.; Wang, J.-G.; Liu, X.; Wei, B. Graphene-boosted, high-performance aqueous Zn-ion battery. ACS Appl. Mater. Interfaces 2018, 10, 25446–25453. [Google Scholar] [CrossRef]
  90. Li, G.; Law, W.-C.; Chan, K.C. Floating, highly efficient, and scalable graphene membranes for seawater desalination using solar energy. Green Chem. 2018, 20, 3689–3695. [Google Scholar] [CrossRef]
  91. Burdanova, M.G.; Kharlamova, M.V.; Kramberger, C.; Nikitin, M.P. Applications of Pristine and Functionalized Carbon Nanotubes, Graphene, and Graphene Nanoribbons in Biomedicine. Nanomaterials 2021, 11, 3020. [Google Scholar] [CrossRef]
  92. Du, D.; Li, P.; Ouyang, J. Graphene coated nonwoven fabrics as wearable sensors. J. Mater. Chem. C 2016, 4, 3224–3230. [Google Scholar] [CrossRef]
  93. Ai, Y.; Hsu, T.H.; Wu, D.C.; Lee, L.; Chen, J.H.; Chen, Y.Z.; Wu, S.C.; Wu, C.; Wang, Z.M.; Chueh, Y.L. An ultrasensitive flexible pressure sensor for multimodal wearable electronic skins based on large-scale polystyrene ball@reduced graphene-oxide core–shell nanoparticles. J. Mater. Chem. C 2018, 6, 5514–5520. [Google Scholar] [CrossRef]
  94. Luo, S.; Zhou, X.; Tang, X.; Li, J.; Wei, D.; Tai, G.; Chen, Z.; Liao, T.; Fu, J.; Wei, D.; et al. Microconformal electrode-dielectric integration with zinc oxide for flexible ultrasensitive robotic tactile sensing. Nano Energy 2021, 80, 105580. [Google Scholar] [CrossRef]
  95. Wu, Q.; Qiao, Y.; Guo, R.; Naveed, S.; Hirtz, T.; Li, X.; Fu, Y.; Wei, Y.; Deng, G.; Yang, Y.; et al. Triode-mimicking graphene pressure sensor with positive resistance variation for physiology and motion monitoring. ACS Nano 2020, 14, 10104–10114. [Google Scholar] [CrossRef] [PubMed]
  96. Lin, L.; Peng, H.; Liu, Z. Synthesis challenges for graphene industry. Nat. Mater. 2019, 18, 520–524. [Google Scholar] [CrossRef]
  97. Ulian, G.; Moro, D.; Valdrè, G. Electronic and optical properties of graphene/molybdenite bilayer composite. Compos. Struct. 2021, 255, 112978. [Google Scholar] [CrossRef]
  98. Wang, Q.H.; Kalantar-Zadeh, K.; Kis, A.; Coleman, J.N.; Strano, M.S. Electronics and optoelectronics of two-dimensional transition metal dichalcogenides. Nat. Nanotech. 2012, 7, 699–712. [Google Scholar] [CrossRef]
  99. Derakhshi, M.; Daemi, S.; Shahini, P.; Habibzadeh, A.; Mostafavi, E.; Ashkarran, A.A. Two-dimensional nanomaterials beyond graphene for biomedical applications. J. Funct. Biomater. 2022, 13, 27. [Google Scholar] [CrossRef]
  100. Chand, R.; Ramalingam, S.; Neethirajan, S. A 2D transition-metal dichalcogenide MoS2 based novel nanocomposite and nanocarrier for multiplex miRNA detection. Nanoscale 2018, 10, 8217–8225. [Google Scholar] [CrossRef]
  101. Andrzejewski, D.; Myja, H.; Heuken, M.; Grundmann, A.; Kalisch, H.; Vescan, A.; Kümmell, T.; Bacher, G. Scalable large-area p–i–n light-emitting diodes based on WS2 monolayers grown via MOCVD. ACS Photonics 2019, 6, 1832–1839. [Google Scholar] [CrossRef]
  102. Zhang, F.; Zhang, H.; Krylyuk, S.; Milligan, C.A.; Zhu, Y.; Zemlyanov, D.Y.; Bendersky, L.A.; Burton, B.P.; Davydov, A.V.; Appenzeller, J. Electric-field induced structural transition in vertical MoTe2- and Mo1–xWxTe2-based resistive memories. Nat. Mater. 2018, 18, 55–61. [Google Scholar] [CrossRef]
  103. Qiu, D.; Chu, Y.; Zeng, H.; Xu, H.; Dan, G. Stretchable MoS2 electromechanical sensors with ultrahigh sensitivity and large detection range for skin-on monitoring. ACS Appl. Mater. Interfaces 2019, 11, 37035–37042. [Google Scholar] [CrossRef]
  104. Tannarana, M.; Solanki, G.K.; Bhakhar, S.A.; Patel, K.D.; Pathak, V.M.; Pataniya, P.M. 2D-SnSe2 Nanosheets functionalized piezo-resistive flexible sensor for pressure and human breath monitoring. ACS Sustain. Chem. Eng. 2020, 8, 7741–7749. [Google Scholar] [CrossRef]
  105. Pataniya, P.M.; Bhakhar, S.A.; Tannarana, M.; Zankat, C.; Patel, V.; Solanki, G.K.; Patel, K.D.; Jha, P.K.; Late, D.J.; Sumesh, C.K. Highly sensitive and flexible pressure sensor based on two-dimensional MoSe2 nanosheets for online wrist pulse monitoring. J. Colloid Interface Sci. 2020, 584, 495–504. [Google Scholar] [CrossRef]
  106. Tedstone, A.T.; Lewis, D.J.; O’Brien, P. Synthesis, properties, and applications of transition metal-doped layered transition metal dichalcogenides. Chem. Mater. 2016, 28, 1965–1974. [Google Scholar] [CrossRef] [Green Version]
  107. Lan, H.-Y.; Hsieh, Y.-H.; Chiao, Z.-Y.; Jariwala, D.; Shih, M.-H.; Yen, T.-J.; Hess, O.; Lu, Y.-J. Gate-tunable plasmon-enhanced photodetection in a monolayer MoS2 phototransistor with ultrahigh photoresponsivity. Nano Lett. 2021, 21, 3083–3091. [Google Scholar] [CrossRef] [PubMed]
  108. Naguib, M.; Kurtoglu, M.; Presser, V.; Lu, J.; Niu, J.; Heon, M.; Hultman, L.; Gogotsi, Y.; Barsoum, M.W. Two-dimensional nanocrystals produced by exfoliation of Ti3AlC2. Adv. Mater. 2011, 23, 4248–4253. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  109. Okubo, M.; Sugahara, A.; Kajiyama, S.; Yamada, A. MXene as a charge storage host. Acc. Chem. Res. 2018, 51, 591–599. [Google Scholar] [CrossRef] [PubMed]
  110. Deysher, G.; Shuck, C.E.; Hantanasirisakul, K.; Frey, N.C.; Foucher, A.C.; Maleski, K.; Sarycheva, A.; Shenoy, V.B.; Stach, V.B.; Anasori, V.B.; et al. Synthesis of Mo4VAlC4 MAX phase and two-dimensional Mo4VC4 MXene with five atomic layers of transition metals. ACS Nano 2020, 14, 204–217. [Google Scholar] [CrossRef] [PubMed]
  111. Lv, G.; Wang, J.; Shia, Z.; Fan, L. Intercalation and delamination of two-dimensional MXene (Ti3C2Tx) and application in sodium-ion batteries. Mater. Lett. 2018, 219, 45–50. [Google Scholar] [CrossRef]
  112. Ma, W.; Yang, K.; Wang, H.; Li, H. Poly(vinylidene fluoride-co-hexafluoropropylene)-MXene nanosheet composites for microcapacitors. Appl. Nano Mater. 2020, 3, 7992–8003. [Google Scholar] [CrossRef]
  113. Ayman, I.; Rasheed, A.; Ajmal, S.; Rehman, A.; Ali, A.; Shakir, I.; Warsi, M.F. CoFe2O4 nanoparticle-decorated 2D MXene: A novel hybrid material for supercapacitor applications. Energy Fuels 2020, 34, 7622–7630. [Google Scholar] [CrossRef]
  114. Wang, J.; Cai, Z.; Lin, D.; Chen, K.; Zhao, L.; Xie, F.; Su, R.; Xie, W.; Liu, P.; Zhu, R. Plasma oxidized Ti3C2Tx MXene as electron transport layer for efficient perovskite solar cells. Appl. Mater. Interfaces 2021, 13, 32495–32502. [Google Scholar] [CrossRef] [PubMed]
  115. Ma, C.; Ma, M.; Si, C.; Ji, X.; Wan, P. Flexible MXene-based composites for wearable devices. Adv. Func. Mat. 2021, 31, 2009524. [Google Scholar] [CrossRef]
  116. Parajuli, D.; Murali, N.; Devendra, K.C.; Karki, B.; Samatha, K.; Kim, A.A.; Park, M.; Pant, B. Advancements in MXene-polymer nanocomposites in energy storage and biomedical applications. Polymers 2022, 14, 3433. [Google Scholar] [CrossRef]
  117. Wang, X.; Bannenberg, L. Design and characterization of 2D MXene-based electrode with high-rate capability. MRS Bull. 2021, 46, 755–766. [Google Scholar] [CrossRef]
  118. Cheng, Y.; Ma, Y.; Li, L.; Zhu, M.; Yue, Y.; Liu, W.; Wang, L.; Jia, S.; Li, C.; Qi, T.; et al. Bioinspired micro-spines for a high-performance spray Ti3C2Tx MXene-based piezoresistive sensor. ACS Nano 2020, 14, 2145–2155. [Google Scholar] [CrossRef]
  119. Li, L.; Fu, X.; Chen, S.; Uzun, S.; Levitt, A.; Shuck, C.E.; Han, W.; Gogotsi, Y. Hydrophobic and stable MXene-polymer pressure sensors for wearable electronics. ACS Appl. Mater. Interfaces 2020, 12, 15362–15369. [Google Scholar] [CrossRef]
  120. Su, Y.; Ma, K.; Yuan, F.; Tang, J.; Liu, M.; Zhang, X. High-performance flexible piezoresistive sensor based on Ti3C2Tx MXene with a honeycomb-like structure for human activity monitoring. Micromachines 2022, 13, 821. [Google Scholar] [CrossRef]
  121. Cheng, Y.; Xie, Y.; Cao, H.; Li, L.; Liu, Z.; Yan, S.; Ma, Y.; Liu, W.; Yue, Y.; Wang, J.; et al. High-strength MXene sheets through interlayer hydrogen bonding for self-healing flexible pressure sensor. J. Chem. Eng. 2023, 453, 139823. [Google Scholar] [CrossRef]
  122. Wang, L.L.; Wang, D.P.; Wang, K.; Jiang, K.; Shen, G.S. Biocompatible MXene/chitosan-based flexible bimodal devices for real-time pulse and respiratory rate monitoring. ACS Mater. Lett. 2021, 3, 921–929. [Google Scholar] [CrossRef]
  123. Babar, Z.U.D.; Ventura, B.D.; Velotta, R.; Iannotti, V. Advances and emerging challenges in MXenes and their nanocomposites for biosensing applications. RSC Adv. 2022, 12, 19590–19610. [Google Scholar] [CrossRef] [PubMed]
  124. Ovbiagele, B.; Diener, H.; Yusuf, S.; Martin, R.H.; Cotton, D.; Vinisko, R.; Donnan, G.A.; Bath, P.M.; PRoFESS Investigators. Level of systolic blood pressure within the normal range and risk of recurrent stroke. JAMA 2011, 306, 2137–2144. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  125. Mohamed, A.; Marciniak, M.; Williamson, W.; Huckstep, O.J.; Lapidaire, W.; Mccance, A.; Neubauer, S.; Leeson, P.; Lewandowski, A.J. Association of systolic blood pressure elevation with disproportionate left ventricular remodeling in very preterm-born young adults: The preterm heart and elevated blood pressure. JAMA Cardiol. 2021, 6, 821–829. [Google Scholar] [CrossRef]
  126. Ismail, S.N.A.; Nayan, N.A.; Jaafar, R.; May, Z. Recent Advances in Non-Invasive Blood Pressure Monitoring and Prediction Using a Machine Learning Approach. Sensors 2022, 22, 6195. [Google Scholar] [CrossRef] [PubMed]
  127. Yang, G.; Pang, G.; Pang, Z.; Gu, Y.; Mäntysalo, M.; Yang, H. Non-invasive flexible and stretchable wearable sensors with nano-based enhancement for chronic disease care. IEEE Rev. Biomed. Eng. 2019, 12, 34–71. [Google Scholar] [CrossRef] [PubMed]
  128. Noh, S.; Yoon, C.; Hyun, E.; Yoon, H.N.; Chung, T.J.; Park, K.S.; Kim, H.C. Ferroelectret film-based patch-type sensor for continuous blood pressure monitoring. Electron. Lett. 2014, 50, 143–144. [Google Scholar] [CrossRef]
  129. Dagdeviren, C.; Su, Y.; Joe, P.; Yona, R.; Liu, Y.; Kim, Y.S.; Huan, Y.A.; Damadoran, A.R.; Xia, J.; Martin, L.W.; et al. Conformable amplified lead zirconate titanate sensors with enhanced piezoelectric response for cutaneous pressure monitoring. Nat. Commun. 2014, 5, 4496. [Google Scholar] [CrossRef] [Green Version]
  130. Luo, N.; Dai, W.; Li, C.; Zhou, Z.; Lu, L.; Poon, C.C.Y.; Chen, S.C.; Zhang, Y.; Zhao, N. Flexible piezoresistive sensor patch ena-bling ultralow power cuffless blood pressure measurement. Adv. Funct. Mater. 2016, 26, 1178–1187. [Google Scholar] [CrossRef]
  131. Wang, C.; Li, X.; Hu, H.; Zhang, L.; Huang, Z.; Lin, M.; Zhang, Z.; Yin, Z.; Huang, B.; Gong, H.; et al. Monitoring of the central blood pressure waveform via a conformal ultrasonic device. Nat. Biomed. Eng. 2018, 2, 687–695. [Google Scholar] [CrossRef]
  132. Sempionatto, J.R.; Lin, M.; Yin, L.; De la Paz, E.; Pei, K.; Sonsa-Ard, T.; Silva, A.N.d.L.; Khorshed, A.A.; Zhang, F.; Tostado, N.; et al. An epidermal patch for the simultaneous monitoring of haemodynamic and metabolic biomarkers. Nat. Biomed. Eng. 2021, 5, 737–748. [Google Scholar] [CrossRef]
  133. Kireev, D.; Sel, K.; Ibrahim, B.; Kumar, N.; Akbari, A.; Jafari, R.; Akinwande, D. Continuous cuffless monitoring of arterial blood pressure via graphene bioimpedance tattoos. Nat. Nanotechnol. 2022, 17, 864–870. [Google Scholar] [CrossRef] [PubMed]
  134. Diagnostic and Interventional Cardiology. Available online: https://www.dicardiology.com/content/vivalink-announces-worlds-first-multi-vital-blood-pressure-patch-remote-patient-monitoring (accessed on 1 November 2022).
Nanomaterials 13 00852 g001 550
Figure 1. Overview of the paper.
Figure 1. Overview of the paper.
Nanomaterials 13 00852 g001
Nanomaterials 13 00852 g002 550
Figure 2. Schematic, (a) response time, (b) and real-time pulse wave detection from the time-resolved capacitance change response (c) of the piezocapacitive GNWs/PDMS/ZnO sensor. Reproduced with permission from [94]. Copyright Elsevier, 2021. (d) Cross-section of the proposed sensor, and (e) multiple pulse waveforms measured at different locations. Reproduced with permission from [95]. Copyright American Chemical Society, 2020.
Figure 2. Schematic, (a) response time, (b) and real-time pulse wave detection from the time-resolved capacitance change response (c) of the piezocapacitive GNWs/PDMS/ZnO sensor. Reproduced with permission from [94]. Copyright Elsevier, 2021. (d) Cross-section of the proposed sensor, and (e) multiple pulse waveforms measured at different locations. Reproduced with permission from [95]. Copyright American Chemical Society, 2020.
Nanomaterials 13 00852 g002
Nanomaterials 13 00852 g003 550

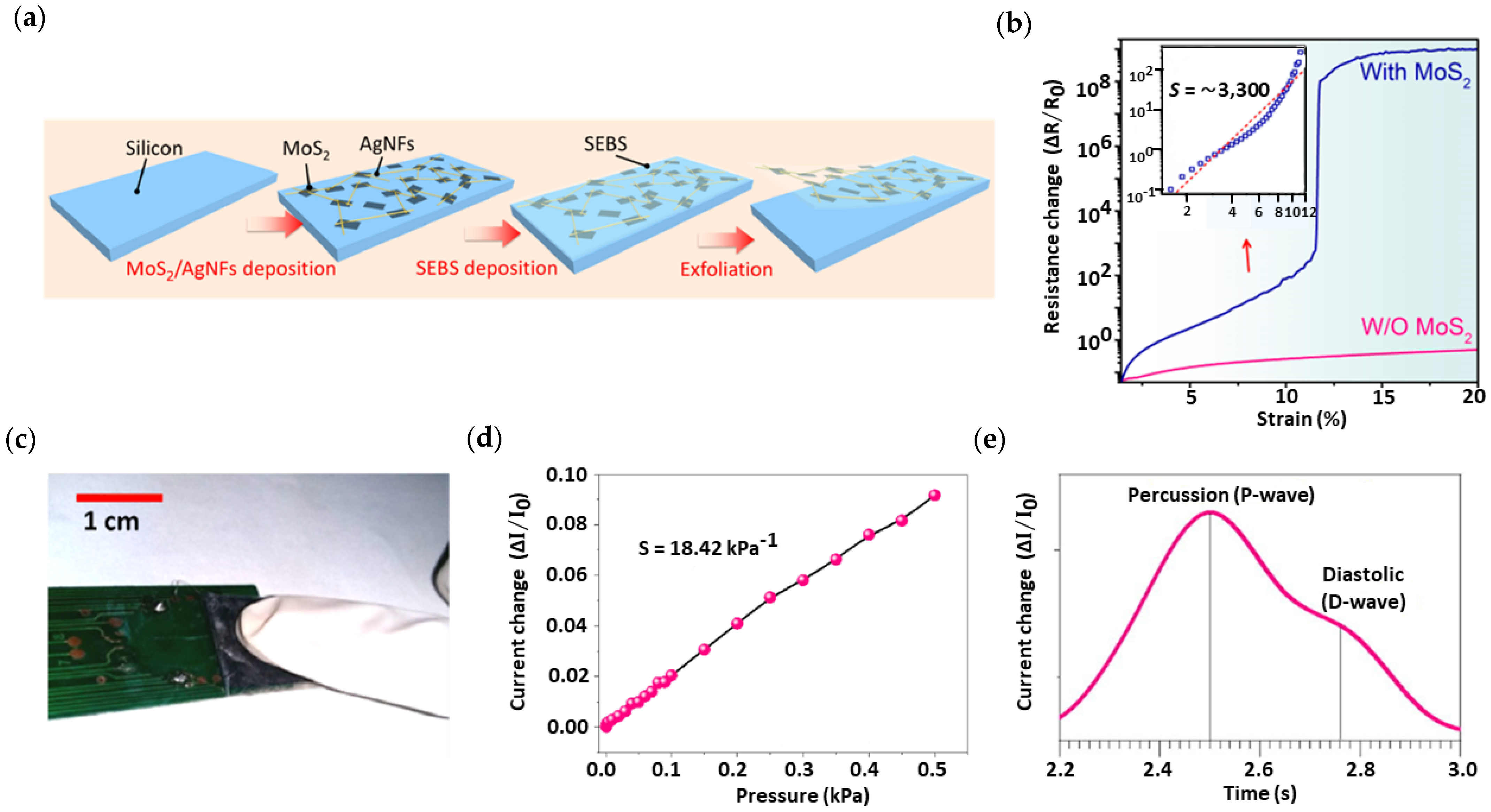

Figure 3. (a) Schematic illustration of the fabrication process. (b) Relative resistance change–strain curves of the MoS2/Ag nanofiber strain sensor with GF of 3300 in the range between 1.4% and 11.5%. Reproduced with permission from [103]. Copyright American Chemical Society, 2019. (c) Photographic image of the piezoresistive MoS2/cellulose paper sensor under fingertip loading. (d) Sensing response of the sensor for pressure range from 0.001 to 0.5 kPa. (e) Pulse wave acquisition in real-time using the proposed pressure sensor with a peak-to-peak time difference of 260 ms. Reproduced with permission from [105]. Copyright Elsevier, 2021.
Figure 3. (a) Schematic illustration of the fabrication process. (b) Relative resistance change–strain curves of the MoS2/Ag nanofiber strain sensor with GF of 3300 in the range between 1.4% and 11.5%. Reproduced with permission from [103]. Copyright American Chemical Society, 2019. (c) Photographic image of the piezoresistive MoS2/cellulose paper sensor under fingertip loading. (d) Sensing response of the sensor for pressure range from 0.001 to 0.5 kPa. (e) Pulse wave acquisition in real-time using the proposed pressure sensor with a peak-to-peak time difference of 260 ms. Reproduced with permission from [105]. Copyright Elsevier, 2021.
Nanomaterials 13 00852 g003
Nanomaterials 13 00852 g004 550
Figure 4. (a) Photographic image of the piezoresistive Ti3C2Tx/PDMS pressure sensor. (b) Linear current–voltage characteristics indicate the piezoresistive performance of the sensor. (c) Real-time detection of subtle radial pulse signals using the fabricated sensor. Reproduced with permission from [118]. Copyright American Chemical Society, 2020. (d) Schematic representation of Ti3C2Tx/P(VDF-TrFE) flexible pressure sensor with dimensions of 10 mm by 8 mm. (e) Fast response/recovery time demonstrated by the sensor in 16 ms. Reproduced with permission from [119]. Copyright American Chemical Society, 2020. (f) Pressure sensitivity of the Ti3C2Tx/PDMS flexible sensor of 0.61 kPa−1 is defined by the slope of the relative resistance change–pressure curve. (g) Real−time radial pulse monitoring using the developed sensor. Reproduced with permission from [120]. Copyright Elsevier, 2021.
Figure 4. (a) Photographic image of the piezoresistive Ti3C2Tx/PDMS pressure sensor. (b) Linear current–voltage characteristics indicate the piezoresistive performance of the sensor. (c) Real-time detection of subtle radial pulse signals using the fabricated sensor. Reproduced with permission from [118]. Copyright American Chemical Society, 2020. (d) Schematic representation of Ti3C2Tx/P(VDF-TrFE) flexible pressure sensor with dimensions of 10 mm by 8 mm. (e) Fast response/recovery time demonstrated by the sensor in 16 ms. Reproduced with permission from [119]. Copyright American Chemical Society, 2020. (f) Pressure sensitivity of the Ti3C2Tx/PDMS flexible sensor of 0.61 kPa−1 is defined by the slope of the relative resistance change–pressure curve. (g) Real−time radial pulse monitoring using the developed sensor. Reproduced with permission from [120]. Copyright Elsevier, 2021.
Nanomaterials 13 00852 g004
Nanomaterials 13 00852 g005 550
Figure 5. Common BP pulse waveform shapes and pulse peaks. (a) Radial pulse is measured from the radial artery of the wrist. (b) Carotid pulse is measured from the carotid artery of the neck.
Figure 5. Common BP pulse waveform shapes and pulse peaks. (a) Radial pulse is measured from the radial artery of the wrist. (b) Carotid pulse is measured from the carotid artery of the neck.
Nanomaterials 13 00852 g005
Table
Table 1. Advantages and disadvantages of flexible sensors based on different transduction mechanisms: piezoelectric, capacitive, piezoresistive, and triboelectric.
Table 1. Advantages and disadvantages of flexible sensors based on different transduction mechanisms: piezoelectric, capacitive, piezoresistive, and triboelectric.
TypeAdvantageDisadvantage
Piezoelectric
  • Dynamic sensing
  • Quick response time
  • Low power consumption
  • Unable for static sensing
  • Less sensitive for low-pressure sensing
  • Harmful lead-based material
Capacitive
  • Highly sensitive for low-pressure sensing
  • Low power consumption
  • Wide detection range
  • Slow response time
  • Expensive
  • Power source dependent
Piezoresistive
  • Ease of fabrication
  • Simple structure
  • Cost-effective
  • Static and dynamic sensing
  • Low power consumption
  • Biocompatibility
  • Wide detection range
  • Less sensitive for low-pressure sensing
  • Power source dependent
Triboelectric
  • Power source independent
  • Dynamic sensing
  • Lightweight
  • Cost-effective
  • Biocompatibility
  • Biodegradability
  • Short service lifetime
Table
Table 2. Comparison of flexible sensors based on 2D nanomaterials for BP monitoring.
Table 2. Comparison of flexible sensors based on 2D nanomaterials for BP monitoring.
MaterialsSensing
Principles		Sensitivity/
GF		Response Time
(ms)		Ref.
GNWFR *0.057 kPa−1-[92]
rGO/PDMSR50.9 kPa−150[93]
GNWs/PDMS/ZnOC **22.3 kPa−125[94]
Gr/Eco-flexR12.3 kPa−1-[95]
MoS2/Ag nanofiberE ***3300850[103]
SnSe2/PaperR1.79 kPa−1100[104]
MoS2/Cellulose paperR18.42 kPa−1260[105]
Ti3C2Tx/PDMSR151.4 kPa−1<130[118]
Ti3C2Tx/P(VDF-TrFE)R817.4 kPa−116[119]
Ti3C2Tx/PDMSR0.61 kPa−1160[120]
* R = piezoresistive. ** C = capacitive. *** E = piezoelectric.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ismail, S.N.A.; Nayan, N.A.; Mohammad Haniff, M.A.S.; Jaafar, R.; May, Z. Wearable Two-Dimensional Nanomaterial-Based Flexible Sensors for Blood Pressure Monitoring: A Review. Nanomaterials 2023, 13, 852. https://doi.org/10.3390/nano13050852

AMA Style

Ismail SNA, Nayan NA, Mohammad Haniff MAS, Jaafar R, May Z. Wearable Two-Dimensional Nanomaterial-Based Flexible Sensors for Blood Pressure Monitoring: A Review. Nanomaterials. 2023; 13(5):852. https://doi.org/10.3390/nano13050852

Chicago/Turabian Style

Ismail, Siti Nor Ashikin, Nazrul Anuar Nayan, Muhammad Aniq Shazni Mohammad Haniff, Rosmina Jaafar, and Zazilah May. 2023. "Wearable Two-Dimensional Nanomaterial-Based Flexible Sensors for Blood Pressure Monitoring: A Review" Nanomaterials 13, no. 5: 852. https://doi.org/10.3390/nano13050852

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
