Pd/Pt-Bimetallic-Nanoparticle-Doped In2O3 Hollow Microspheres for Rapid and Sensitive H2S Sensing at Low Temperature

by
Kaisheng Jiang
1,2,
Tingting Chen
1,2,
Jianhai Sun
1,*,
Hao Quan
1,2 and
Tianye Zhou
1,2
1
State Key Laboratory of Transducer Technology, Aerospace Information Research Institute, Chinese Academy of Sciences, Beijing 100194, China
2
School of Electronic, Electrical and Communication Engineering, University of Chinese Academy of Sciences, Beijing 100049, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2023, 13(4), 668; https://doi.org/10.3390/nano13040668
Submission received: 14 January 2023 / Revised: 31 January 2023 / Accepted: 1 February 2023 / Published: 8 February 2023
(This article belongs to the Special Issue Advanced Gas Sensors Developed by Nanocomposites)
Browse Figures
Review Reports Versions Notes

Abstract

:
H2S is a poisonous gas that is widespread in nature and human activities. Its rapid and sensitive detection is essential to prevent it from damaging health. Herein, we report Pd- and Pt-bimetallic-nanoparticle-doped In2O3 hollow microspheres that are synthesized using solvothermal and in situ reduction methods for H2S detection. The structure of as-synthesized 1 at% Pd/Pt-In2O3 comprises porous hollow microspheres assembled from In2O3 nanosheets with Pd and Pt bimetallic nanoparticles loaded on its surface. The response of 1 at% Pd/Pt-In2O3 to 5 ppm H2S is 140 (70 times that of pure In2O3), and the response time is 3 s at a low temperature of 50 °C. In addition, it can detect trace H2S (as low as 50 ppb) and has superior selectivity and an excellent anti-interference ability. These outstanding gas-sensing performances of 1 at% Pd/Pt-In2O3 are attributed to the chemical sensitization of Pt, the electronic sensitization of Pd, and the synergistic effect between them. This work supplements the research of In2O3-based H2S sensors and proves that Pd- and Pt-bimetallic-doped In2O3 can be applied in the detection of H2S.

1. Introduction

Hydrogen sulfide (H2S) is a common gas. In addition to its natural source, a large amount of H2S is also produced in petroleum refining, sewage treatment, textile treatment, and other human activities [1]. However, H2S is highly poisonous and corrosive. Exposure to H2S at concentrations above 250 ppm can be fatal. Exposure to low concentrations of H2S (10 ppm) also stimulates the visual and olfactory systems, resulting in tears, dizziness, etc. The safety critical concentration of H2S in relevant industries is specified as 10 ppm [2]. Therefore, the sensitive and rapid detection of H2S is critical to ensure the safety and preservation of relevant workers’ health. According to different mechanisms, gas sensors can be divided into surface acoustic wave sensors [3], chemosensitive-based sensors [4], and metal oxide semiconductor (MOS) sensors, etc. Among them, metal oxide semiconductors, such as SnO2, In2O3, TiO2, and IGZO [5,6,7,8,9], are some of the most extensively studied gas-sensing materials, and they have become widely used in gas sensors across the world due to their advantages of a low cost, small size, and high response [10].
Indium oxide (In2O3) is a typical wide-band-gap (3.5–3.7 eV) n-type semiconductor [11], and it has been utilized in various applications, such as lithium-ion batteries [12] and photocatalysis [13]. For gas sensing, the advantages of a wide band gap and a high conductivity make In2O3 have potential in the detection of H2, HCHO, and CO [14,15,16]. However, the research on In2O3-based H2S sensors is still relatively scarce. Pristine In2O3-based gas sensors have the disadvantages of a low response, poor selectivity, and a high operating temperature [17]. Numerous studies have proven that synthesizing two-dimensional (2D) or three-dimensional (3D) nanocomposites and doping metals are effective methods to improve the gas-sensing performance of In2O3.
The 3D structures assembled from 2D nanosheets can maintain the ultra-thin structures of nanosheets while avoiding the performance loss caused by the stacking of the nanosheets [18]. Nanosheet-assembled structures are porous and have large specific surface areas. A larger specific surface area means that there are more atoms on the surface of the material, which can provide more gas adsorption sites and make more gas molecules interact with the material to enhance the gas-sensing property. Liu et al. [19] synthesized an In2O3 porous pompon assembled from 2D nanosheets using the hydrothermal method, and its response to 50 ppm ethanol was 3.4. Qin et al. [20] synthesized porous In2O3 nanosheet-assembled microflowers, which had a response of 66 to 100 ppm ethanol and could respond (12.4 s) and recover (10.4 s) quickly. This was because the porous structures provided more gas adsorption sites and allowed gas molecules to diffuse to the depth of the material. Doping metal can change the carrier concentration in In2O3 by improving the properties of the electron donors or acceptors, changing the structure of In2O3 or sensitization to enhance the gas-sensing performance [21,22]. Platinum (Pt) and palladium (Pd) are important dopants because Pt possess strong catalytic performance, and Pd can change the carrier concentration of a material through electron sensitization [21]. Chen et al. [23] synthesized Pd-In2O3 nanofibers via electrospinning, and their response to 10,000 ppm H2 at room temperature was 146.8 times that of pure In2O3; this was because Pd provided more O2 absorption sites and could form a Schottky barrier with In2O3. Song et al. [24] improved the response of a sensor to 10 ppm acetone from 12 to 113 by modifying Pt on the surface of In2O3 nanotubes, which benefited from more adsorbed oxygen molecules because of the catalytic effect of Pt. On the basis of monometallic catalysts, some studies have shown that, when several metals are doped into a material in a specific proportion, the gas-sensing property of the material is further improved compared to that of a material doped with a single metal. In bimetallic catalysts, the two metals may exhibit synergistic effects due to geometric effects, the interaction of electrons, or chemical reactions, and they exhibit a better gas-sensing property than monometallic catalysts [25,26]. The work of Huang et al. [15] showed that the response of In2O3 modified by Ag nanoparticles (NPs) and Au nanocages (NCs) to 100 ppm HCHO could reach 3400. The response of Ag NP-In2O3 was 519, and that of Au NC-In2O3 was 240 under the same condition. This was mainly because the electrons in Au transferred to Ag, enhancing the spillover effect of Ag.
In this work, we synthesized In2O3 hollow microspheres doped with Pd and Pt bimetallic nanoparticles (Pd/Pt NPs) using the solvothermal and in situ reduction methods. The structure, morphology, and elemental composition of the microspheres were characterized using scanning electron microscopy (SEM), transmission electron microscopy (TEM), high-resolution transmission electron microscopy (HRTEM), nitrogen adsorption and desorption, X-ray diffraction (XRD), and X-ray photoelectron spectroscopy (XPS). Afterward, a sensor based on this material was prepared, and a gas test was carried out. The working temperature, response/recovery time, dynamic characteristics, limit of detection (LOD), repeatability, and selectivity of the sensor were investigated via the gas tests. The response of the as-synthesized 1 at% Pd/Pt-NP-doped In2O3 hollow microspheres (1 at% Pd/Pt-In2O3) to 5 ppm H2S at 50 °C was 140, which is 70 times that of the pure In2O3. The response time of the sensor was 3 s, and the LOD was 50 ppb; moreover, the sensor had a strong linearity, superb repeatability, and great selectivity. However, the recovery time of the sensor was relatively long. It was necessary to increase the working temperature of the sensor to 400 °C through a voltage pulse to speed up the desorption process. The resistance of the sensor could quickly recover to the original value after removing the voltage pulse. In addition, the sensing mechanism of the sensor was also analyzed. The chemical sensitization of Pt, the electronic sensitization of Pd, and the synergistic effect of Pd and Pt were the important factors underlying the excellent gas-sensing performance of the sensor.

2. Materials and Methods

2.1. Chemicals

All reagent-grade chemicals, including indium nitrate hydrate (In(NO3)3·4.5H2O), platinum chloride (PtCl4), palladium chloride (PdCl2), isopropanol, glycerol, and ascorbic acid, were purchased from Sinopharm Chemical Reagent Co., Ltd., Beijing, China, and they were used without further purification.

2.2. Synthesis of Pd/Pt Bimetallic Nanoparticles Doped In2O3 Hollow Microspheres

In2O3 hollow microspheres were synthesized using the solvothermal method. First, 0.6 g indium nitrate hydrate (In(NO3)3·4.5H2O) was added into a beaker containing 60 mL isopropanol and 20 g glycerin. Subsequently, the solution was vigorously stirred at room temperature for 3 h. The obtained solution was transferred into a Teflon-lined stainless-steel autoclave for reaction at 180 °C for 6 h. After naturally cooling to room temperature, the products were collected via centrifugation at a speed of 3500 r/min, and they were washed with absolute ethanol three times. The white In2O3 precursors were obtained after drying at 60 °C for 24 h. The precursors were then transferred to a ceramic crucible and calcined at 400 °C for 6 h in an air atmosphere in order to obtain the In2O3 hollow microspheres.
The doping of Pd/Pt NPs was completed via an in situ reduction. A total of 0.2 g of the In2O3 hollow microspheres synthesized in the first step was added to 40 mL deionized water. The canary color solution was obtained after carrying out ultrasonic irradiation for 15 min and vigorous stirring at room temperature for 3 h. Pt with a content of 1 at% and Pd with a content of 1.8 at% were added to the solution in turn. After 15 min of ultrasonic irradiation, the solution was stirred until there was no obvious sediment in the beaker. Slightly excess ascorbic acid solution (0.01 M) was then slowly dropped into the beaker. The solution was vigorously stirred at room temperature for 3 h after it turned black. The products were collected via centrifugation at a speed of 3500 r/min, and they were washed with deionized water and absolute ethanol three times. Finally, 1 at% Pd/Pt-In2O3 was obtained after drying at 60 °C for 24 h.

2.3. Material Characterization

The changing trend of the mass of the samples with temperature was characterized using a thermal gravimetric analyzer (TG, NETZSCH STA 449 F5/F3 Jupiter, NETZSCH, Selb, Germany). The surface morphology and microstructure of the samples were observed using scanning electron microscopy, transmission electron microscopy, and high-resolution transmission electron microscopy (SEM, TEM, and HRTEM, respectively; SU8020, Hitachi, Tokyo, Japan, and FEI Tecnai G2 F30, FEI, Hillsboro, OR, USA). The specific surface area and pore size of the as-synthesized samples were determined via nitrogen adsorption–desorption isotherms (Micromeritics TriStar III 3020, Micromeritics Instrument Corporation, Norcross, GA, USA). The composition of the material and the phase composition of the samples were determined using X-ray diffraction (XRD, Bruker D8 Advance, Bruker, Billerica, MA, USA) with CuKα Irradiation (λ = 0.154 nm). The scanning range (2θ) was 10–80°, and the scanning speed was 6 °/min. The elemental and combined state composition of the surface of the samples were analyzed using X-ray photoelectron spectroscopy (XPS, Thermo Scientific Escalab 250Xi, Thermo Fisher Scientific, Waltham, MA, USA). All binding energies were calibrated according to the C 1s peak of surface indeterminate carbon at 284.8 eV.

2.4. Gas Sensor Fabrication and Measurement

A gas sensor was obtained by coating the gas-sensing material on a micro-hotplate. The micro-hotplate is a kind of microheater prepared using MEMS technology. It consists of a substrate layer, a heating layer, an insulating layer, and a testing layer. The heating layer comprises a heating circuit wire and a pair of heating electrodes composed of Pt. The insulating layer comprises an insulating medium that separates the heating layer from the test layer. The test layer comprises an interdigital electrode and a pair of test electrodes composed of Au wires. When the sensor is working, the heating layer provides the corresponding temperature for the gas-sensing material coated on the test layer according to the voltage applied to the heating electrodes. The interdigital electrode on the test layer will be conductive after being coated with the gas-sensing material, and the resistance change in the gas-sensing material can be detected through the test electrodes.
The gas sensor was prepared in the following steps: The as-synthesized 1 at% Pd/Pt-In2O3 was mixed with an appropriate amount of anhydrous ethanol. The uniformly mixed paste was uniformly coated on the interdigital electrode in the center of the test layer. After the paste dried, the micro-hotplate and the base were combined to obtain a gas sensor. The static gas distribution method was used to measure the gas response of the sensor. The sensor was aged at 100 °C for 24 h to improve its stability before gas tests. A static gas distribution method was applied to obtain the desired concentration of the target gas in the test chamber, and the air was used as the background gas. The response of the sensor was calculated by detecting the resistance change in the sensor. The response of the sensor (S) is defined according to Equation (1):
S = Ra/Rg,
where Ra and Rg are the resistances in the air and the target gas, respectively. The response time (TResponse) and recovery time (TRecovery) of the sensor are defined as the time spent when the sensor resistance changes from the initial value to 90% of the total resistance change after the target gas is applied and released.

3. Results

3.1. Results of Characterization

A thermogravimetric (TG) analyzer was used to detect the change in the quality of the precursors with the increase in the calcination temperature. According to Figure 1, the quality of the precursors drops sharply in the range of 230–360 °C, which is mainly due to the thermal decomposition of the organic components in the precursors. Therefore, the calcination temperature was set to 400 °C.
The surface morphology and microstructure of 1 at% Pd/Pt-In2O3 were observed using FESEM, TEM, and HRTEM, as shown in Figure 2. It can be observed from the low-resolution SEM image in Figure 2a that the material is composed of many ellipsoidal microspheres with a rough surface, and the size of the microspheres is about 600–900 nm. It can be further observed from the high-resolution SEM image shown in Figure 2b that the microspheres are porous structures assembled from many nanosheets, with Pd/Pt NPs loaded on the surfaces of the nanosheets. It can be inferred from the broken sphere in the image that the microspheres are hollow. The TEM image shown in Figure 2c further confirms the above results: the microspheres are hollow structures, and flocculent structures extend from the surface of the spherical shell. The microsphere structures, especially the flocculent structures, are porous and loose. Figure 2d presents the HRTEM image of 1 at% Pd/Pt-In2O3. Two groups of lattice fringes with distances of 0.25 nm and 0.29 nm can be observed, which are attributed to the (400) and (222) crystal planes of cubic In2O3, respectively [27].
The specific surface area and pore size of the pure In2O3 and 1 at% Pd/Pt-In2O3 were characterized via nitrogen adsorption and desorption isotherms. In the nitrogen adsorption and desorption isotherms presented in Figure 3a, a hysteresis loop is observed in the isotherms of both materials, indicating mesoporous structures in the microspheres [25]. The specific surface area of the material was measured using the Brunauer–Emmett–Teller method (BET). The specific surface area of the pure In2O3 is 61.5061 m2/g, while that of 1 at% Pd/Pt-In2O3 is 58.3404 m2/g. Figure 3b indicates the pore size distribution of the pure In2O3 and 1 at% Pd/Pt-In2O3. The pore size of the pure In2O3 is concentrated in the range of 35–51 nm, while that of 1 at% Pd/Pt-In2O3 is concentrated in the range of 25–35 nm. The specific surface area and pore size of the doped microspheres decrease slightly because the Pd/Pt NPs loaded on the surface of the microspheres block some of the pores. In general, doping does not significantly affect the gas adsorption capacity of the microspheres.
Figure 3c presents the XRD patterns that were obtained for the pure In2O3 and 1 at% Pd/Pt-In2O3 to analyze the crystal structures. The pure In2O3 has strong diffraction peaks at 21.47°, 30.54°, 35.44°, 50.97°, and 60.65°, which correspond to (211), (222), (400), (440), and (622) of cubic In2O3 (JCPDS No. 71–2195), respectively. This result proves that the sample contains In2O3. However, the XRD images of 1 at% Pd/Pt-In2O3 and the pure In2O3 are not significantly different. In addition, the diffraction peaks corresponding to Pd and Pt are not observed, probably because of the low content of Pd and Pt beyond the detection limit of the diffractometer.
The elemental and combined state compositions of the surface of the sample were analyzed using XPS, and the results are shown in Figure 4. Figure 4a presents an XPS survey spectrum containing multiple spectral lines of O, In, and C elements. The diffraction peaks corresponding to Pd and Pt are not obvious due to the low content of Pd and Pt. Figure 4b shows the XPS spectra of In 3d. The In 3d peak can be divided into two peaks at 444.2 and 451.8 eV, corresponding to the binding energies of In 3d3/2 and In 3d5/2 valence states, respectively [28,29]. This result shows that the indium element in the sample is mainly in the form of In3+ [30]. Figure 4c illustrates the peak related to the O element. The peak can be divided into 529.6 and 531.2 eV peaks, corresponding to lattice oxygen (Olattice) and chemisorbed oxygen Ox− (O−, O2−, and O2−), respectively [31]. After performing calculations according to the peak area, it is found that the proportion of chemisorbed oxygen is about 51.5%. The Pt 4f spectra shown in Figure 4d can be obtained from the high-resolution XPS spectra. It can be divided into two peaks at 70.4 and 76.3 eV, corresponding to the binding energies of Pt 4f7/2 and Pt 4f5/2 valence states, respectively, assigned to Pt. Figure 4e presents the high-resolution spectra of Pd 3d, and they show two characteristic peaks with binding energies of about 334.8 and 340.4 eV, corresponding to the binding energies of Pd 3d5/2 and Pd 3d3/2, respectively. This result proves the existence of Pd [32].

3.2. Gas-Sensing Characteristics

Figure 5 illustrates the responses of the pure In2O3 and 1 at% Pd/Pt-In2O3 to 5 ppm H2S at different operating temperatures. Since the minimum working temperature of the micro-hotplate in the sensor is 50 °C, the temperature gradient starts from 50 °C to ensure the stability of the working temperature of the sensor. As shown in Figure 5, when the operating temperature is 50 °C, 1 at% Pd/Pt-In2O3 has the highest response to H2S, and the response decreases with the increase in the operating temperature. The response of the pure In2O3 to H2S increases with the temperature, and it reaches the maximum at 250 °C. The optimal operating temperature of 1 at% Pd/Pt-In2O3 is significantly lower than that of the pure In2O3 because of the catalysis of Pt [33]. In addition, the response of 1 at% Pd/Pt-In2O3 (140) is close to 70 times that of the pure In2O3 (2.1) at 50 °C, which indicates that the introduction of Pd/Pt NPs significantly improves the gas sensitivity of the microspheres to H2S. The electronic sensitization of Pd, the chemical sensitization of Pt, and the synergistic effect between them are the main reasons for the enhanced response of 1 at% Pd/Pt-In2O3.
Figure 6 shows the response/recovery time of 1 at% Pd/Pt-In2O3 for 5 ppm H2S at 50 °C. The response time (TResponse) and recovery time (TRecovery) of the sensor are defined as the time spent when the sensor resistance changes from the initial value to 90% of the total resistance change after the target gas is applied and released. The sensor responds very quickly after contacting H2S, and the response time is only 3 s (TResponse = 3 s). According to the characterization, the structure of 1 at% Pd/Pt-In2O3 is porous and has a specific surface area of 58.3704 m2/g, which enables the gas to diffuse into the interior of the material; there are many active sites on the surface of the material where hydrogen sulfide can be bound, which accelerates the response speed [20]. In addition, a large amount of chemically adsorbed oxygen is distributed on the material surface due to the overflow effect of the Pt NPs, which further shortens the response time [25]. However, after H2S is released, the sensor recovers very slowly. After 1000 s, the resistance of the sensor only recovers from 10% to 28% of the original resistance. This slow recovery may be related to the existence of many cracks and pores in the NP-loaded materials, which hinder the desorption of the H2O and SO2 generated in the reaction between the H2S and the chemically adsorbed oxygen [34,35]. To solve this problem, a voltage pulse is applied to the sensor to increase the working temperature of the sensor to 400 °C in order to promote the desorption of H2S. As shown in Figure 6, the sensor resistance value surges after the pulse is applied, and then it quickly returns to the original value. This proves that the application of a voltage pulse can effectively shorten the recovery time of the sensor because the high temperature accelerates the desorption of H2O and SO2.
Figure 7a shows the dynamic change in the resistance and response of 1 at% Pd/Pt-In2O3 to different concentrations of H2S (500 ppb–10 ppm) at 50 °C. The baseline resistance of the sensor is not affected by the concentration of H2S, and the response of the sensor increases significantly with the increase in the concentration of H2S. Figure 7b shows the relationship between the response of 1 at% Pd/Pt-In2O3 and the concentration of H2S. The response of the sensor has a strong linear relationship with the logarithm of the concentration of H2S, which indicates that the sensor can be applied to H2S sensing. As shown in Figure 7c, the response of the sensor to 50 ppb H2S is 1.6 at 50 °C. Therefore, the LOD of the sensor is 50 ppb.
Figure 8a shows the effect of humidity on the H2S sensing of 1 at% Pd/Pt-In2O3. The response value of the sensor decreases significantly with the increase in humidity. When the relative humidity increases from 25% to 75%, the response of the sensor decreases by 47%. The change trend of the response of 1 at% Pd/Pt-In2O3 with humidity and that of the normalized resistance of a humidity sensor based on metal oxide are similar, so the performance loss may be caused by the influence of the humidity on the resistance of the sensor [36]. In addition, the occupation of some active sites by H2O molecules affects the adsorption of gas on the surface of the material and causes a further decline in the response [37].
Figure 8b indicates the response of the sensor to five groups of 5 ppm H2S at 50 °C. The responses of the sensor to the five groups of introduced H2S are the same, and their standard deviation is 1.4519, demonstrating the superb repeatability of the sensor.
Figure 8c presents the response of 1 at% Pd/Pt-In2O3 to various gases. When the working temperature is 50 °C, the response of the sensor to 5 ppm H2S is significantly higher than its response to various gases with concentrations of 50 ppm. Therefore, the sensor has a strong selectivity and can effectively avoid the influence of interference gas.
The long-term stability of 1 at% Pd/Pt-In2O3 is measured by repeatedly testing its response to 5 ppm H2S at 50 °C within 20 days. According to Figure 8d, the response of the sensor is almost stable within 20 days and has potential for practical applications.
In conclusion, 1 at% Pd/Pt-In2O3 is characterized by a low operating temperature, a high sensitivity (140 for 5 ppm H2S), a fast response, a low LOD, a linear response, superior selectivity, and repeatability. Table 1 demonstrates a comparison of the H2S sensing performance of In2O3-based sensors in the recently reported literature and in our work. The response time of 1 at% Pd/Pt-In2O3 to 5 ppm H2S at 50 °C is 3 s, which is much faster than that of the other materials listed in the table. Additionally, the response of 1 at% Pd/Pt-In2O3 under the same conditions is 140. The other materials have either a higher operating temperature or a lower response at 50 °C. Therefore, the gas-sensing material synthesized in this paper has an excellent low-temperature performance and can be used for the rapid and sensitive detection of H2S at a low temperature.

3.3. Gas-Sensing Mechanism

The gas-sensing mechanism of In2O3 is a surface-controlled type, as shown in Figure 9 [43]. When In2O3 belonging to an n-type semiconductor is exposed to air, the oxygen in the air will adsorb on the surface of In2O3 to form adsorbed oxygen, as shown in Equation (2). The adsorbed oxygen will capture the conduction-band electrons on the surface of In2O3 to generate chemisorbed oxygen, as shown in Equations (3)–(5) [44]. The types of chemisorbed oxygen that form are different according to the different ambient temperatures [45]. As electrons are trapped, the thickness of the electronic depletion layer increases, the carrier mobility of the surface of In2O3 decreases, and the resistance increases.
O2 (gas) → O2 (ads),
O2 (ads) + e− → O2− (ads) T < 147 °C,
O2− (ads) + e− → 2O− (ads) 147 °C < T < 397 °C,
O− (ads) + e− → O2− (ads) T > 397 °C,
Since the working temperature of 1 at% Pd/Pt-In2O3 is 50 °C, the type of chemisorbed oxygen should be mainly O2− [46]. When the reductive H2S contacts the chemisorbed oxygen, H2S will react with the chemisorbed oxygen, as shown in Equation (6).
2H2S (g) + 3O2− → 2H2O (g) + 2SO2 + 3e−,
In this reaction, the electrons captured by the chemisorbed oxygen return to the conduction band of In2O3. The thickness of the electronic depletion layer decreases, the carrier mobility of In2O3 recovers, and the resistance decreases.
According to the measurements of the specific surface areas of the microspheres, the specific surface area of 1 at% Pd/Pt-In2O3 is slightly smaller than that of the pure In2O3. In general, the gas-sensing performances of materials with larger specific surface areas are enhanced. However, the response of 1 at% Pd/Pt-In2O3 to H2S is much higher than that of the pure In2O3, which is contrary to the regular pattern. We believe that this is because the introduction of Pd/Pt NPs can improve the gas-sensing performance of the material much more than the loss caused by a reduction in the specific surface area, which demonstrates that the introduction of Pd/Pt NPs can effectively improve the gas-sensing properties of materials. Pt NPs mainly improve gas sensitivity through chemical sensitization. Pt can promote the formation of chemisorbed oxygen through chemical sensitization. Due to the influence of Pt, a large amount of chemisorbed oxygen overflows to the surface of the material, which improves the sensitivity of the material [33]. Pd improves the gas-sensing property through electronic sensitization. As the work function of Pd NPs (5.5 eV) is greater than that of In2O3 (5.0 eV) [47], a Schottky barrier forms between the Pd NPs and In2O3. Compared to monometallic catalysts, Pd/Pt bimetallic NPs can further improve the catalytic activity because of the synergistic effects between them. As shown in Equation (6), water is generated in the reaction of H2S and chemically adsorbed oxygen. It reacts with Pd to form Pd(OH)2 with low catalytic activity, which reduces the activity of Pd [48]. Doping an appropriate amount of Pt into a material can inhibit this process and reduce the influence of water on Pd [49].

4. Conclusions

In summary, In2O3 hollow microspheres doped with Pd/Pt NPs were successfully synthesized using the solvothermal method and the in situ reduction method. Due to the excellent physical properties of In2O3 and the sensitization and synergistic effect of the dopants, the gas sensor based on 1 at% Pd/Pt-In2O3 has the advantages of a low operating temperature, a high sensitivity, a low LOD, a fast response, superior selectivity, etc. Specifically, the response of the sensor to 5 ppm H2S at 50 °C can reach 140, and the response time is only 3 s. The disadvantage of the slow recovery is also solved by applying a voltage pulse during the recovery process. The material proposed in this paper has potential application prospects in H2S sensors.

Author Contributions

Conceptualization, J.S. and K.J.; methodology, K.J.; software, H.Q. and T.Z.; validation, H.Q. and T.Z.; formal analysis, T.C. and H.Q.; investigation, T.C.; resources, J.S.; data curation, K.J.; writing—original draft preparation, K.J.; writing—review and editing, J.S. and T.C.; visualization, K.J.; supervision, J.S.; project administration, J.S.; funding acquisition, J.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Basic Research Program of China (2022YFB3206800, 2021YFB2012500) and the National Science Foundation of China Project, grant numbers 62174163 and 61874121.

Data Availability Statement

Not applicable.

Acknowledgments

The authors give thanks to the State Key Laboratory of Transducer Technology, Institute of Electronics Chinese Academy of Sciences, for instrumentation and equipment support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chan, Y.H.; Lock, S.S.M.; Wong, M.K.; Yiin, C.L.; Loy, A.C.M.; Cheah, K.W.; Chai, S.Y.W.; Li, C.; How, B.S.; Chin, B.L.F.; et al. A state-of-the-art review on capture and separation of hazardous hydrogen sulfide (H2S): Recent advances, challenges and outlook. Environ. Pollut. 2022, 314, 120219. [Google Scholar] [CrossRef] [PubMed]
  2. Maldonado, C.S.; Weir, A.; Rumbeiha, W.K. A comprehensive review of treatments for hydrogen sulfide poisoning: Past, present, and future. Toxicol. Mech. Methods 2022, 1–14. [Google Scholar] [CrossRef] [PubMed]
  3. Pasupuleti, K.S.; Bak, N.-H.; Peta, K.R.; Kim, S.-G.; Cho, H.D.; Kim, M.-D. Enhanced sensitivity of langasite-based surface acoustic wave CO gas sensor using highly porous Ppy@PEDOT:PSS hybrid nanocomposite. Sens. Actuators B Chem. 2022, 363, 131786. [Google Scholar] [CrossRef]
  4. Basivi, P.K.; Pasupuleti, K.S.; Gelija, D.; Kim, M.-D.; Pasupuleti, V.R.; Kim, C.W. UV-light-enhanced room temperature NO2 gas-sensing performances based on sulfur-doped graphitic carbon nitride nanoflakes. New J. Chem. 2022, 46, 19254–19262. [Google Scholar] [CrossRef]
  5. Lee, D.; Bae, D.; Chae, M.; Kim, H.-D. High sensitivity of isopropyl alcohol gas sensor based on memristor device operated at room temperature. J. Korean Phys. Soc. 2022, 80, 1065–1070. [Google Scholar] [CrossRef]
  6. Lee, D.; Yun, M.J.; Kim, K.H.; Kim, S.; Kim, H.-D. Advanced Recovery and High-Sensitive Properties of Memristor-Based Gas Sensor Devices Operated at Room Temperature. ACS Sens. 2021, 6, 4217–4224. [Google Scholar] [CrossRef]
  7. Wang, N.; Ye, J.-X.; Sun, J.-B.; Zhang, X.-F.; Deng, Z.-P.; Xu, Y.-M.; Huo, L.-H.; Gao, S. Rapid and accurate detection of highly toxic NO2 gas based on catkins biomass-derived porous In2O3 microtubes at low temperature. Sens. Actuators B Chem. 2022, 361, 131692. [Google Scholar] [CrossRef]
  8. Pasupuleti, K.S.; Reddeppa, M.; Chougule, S.S.; Bak, N.-H.; Nam, D.-J.; Jung, N.; Cho, H.D.; Kim, S.-G.; Kim, M.-D. High performance langasite based SAW NO2 gas sensor using 2D g-C3N4@TiO2 hybrid nanocomposite. J. Hazard. Mater. 2022, 427, 128174. [Google Scholar] [CrossRef]
  9. Lee, D.; Jung, J.; Kim, K.H.; Bae, D.; Chae, M.; Kim, S.; Kim, H.-D. Highly Sensitive Oxygen Sensing Characteristics Observed in IGZO Based Gasistor in a Mixed Gas Ambient at Room Temperature. ACS Sens. 2022, 7, 2567–2576. [Google Scholar] [CrossRef]
  10. Mao, L.-W.; Zhu, L.-Y.; Tao Wu, T.; Xu, L.; Jin, X.-H.; Lu, H.-L. Excellent long-term stable H2S gas sensor based on Nb2O5/SnO2 core-shell heterostructure nanorods. Appl. Surf. Sci. 2022, 602, 154339. [Google Scholar] [CrossRef]
  11. Bai, Y.; Fu, H.; Yang, X.; Xiong, S.; Li, S.; An, X. Conductometric isopropanol gas sensor: Ce-doped In2O3 nanosheet-assembled hierarchical microstructure. Sens. Actuators B Chem. 2023, 377, 133007. [Google Scholar] [CrossRef]
  12. Yu, M.; Wei, X.; Min, X.; Yuan, A.; Xu, J. In2O3 surface modification of a Li-rich layered cathode material for boosting electrochemical performance. Mater. Chem. Phys. 2022, 286, 126228. [Google Scholar] [CrossRef]
  13. Liang, Q.; Zhao, S.; Li, Z.; Wu, Z.; Shi, H.; Huang, H.; Kang, Z. Converting Organic Wastewater into CO Using MOFs-Derived Co/In2O3 Double-Shell Photocatalyst. ACS Appl. Mater. Interfaces 2021, 13, 40754–40765. [Google Scholar] [CrossRef]
  14. Bai, J.; Kong, Y.; Liu, Z.; Yang, H.; Li, M.; Xu, D.; Zhang, Q. Ag modified Tb-doped double-phase In2O3 for ultrasensitive hydrogen gas sensor. Appl. Surf. Sci. 2022, 583, 152521. [Google Scholar] [CrossRef]
  15. Huang, J.; Li, J.; Zhang, Z.; Li, J.; Cao, X.; Tang, J.; Li, X.; Geng, Y.; Wang, J.; Du, Y.; et al. Bimetal Ag NP and Au NC modified In2O3 for ultra-sensitive detection of ppb-level HCHO. Sens. Actuators B Chem. 2022, 373, 132664. [Google Scholar] [CrossRef]
  16. Li, D.; Li, Y.; Wang, X.; Sun, G.; Cao, J.; Wang, Y. Surface modification of In2O3 porous nanospheres with Au single atoms for ultrafast and highly sensitive detection of CO. Appl. Surf. Sci. 2023, 613, 155987. [Google Scholar] [CrossRef]
  17. Wang, Z.; Hou, C.; De, Q.; Gu, F.; Han, D. One-Step Synthesis of Co-Doped In2O3 Nanorods for High Response of Formaldehyde Sensor at Low Temperature. ACS Sens. 2018, 3, 468–475. [Google Scholar] [CrossRef]
  18. Wang, M.; Luo, Q.; Hussain, S.; Liu, G.; Qiao, G.; Kim, E.J. Sharply-precipitated spherical assembly of ZnO nanosheets for low temperature H2S gas sensing performances. Mater. Sci. Semicond. Process. 2019, 100, 283–289. [Google Scholar] [CrossRef]
  19. Liu, J.; Lin, X.; Sun, M.; Du, B.; Li, L.; Bai, J.; Zhou, M. Thiourea-assistant growth of In2O3 porous pompon assembled from 2D nanosheets for enhanced ethanol sensing performance. Talanta 2020, 219, 121323. [Google Scholar] [CrossRef]
  20. Qin, W.; Yuan, Z.; Gao, H.; Meng, F. Ethanol Sensors Based on Porous In2O3 Nanosheet-Assembled Micro-Flowers. Sensors 2020, 20, 3353. [Google Scholar] [CrossRef]
  21. Yuan, Z.; Yang, C.; Meng, F. Strategies for Improving the Sensing Performance of Semiconductor Gas Sensors for High-Performance Formaldehyde Detection: A Review. Chemosensors 2021, 9, 179. [Google Scholar] [CrossRef]
  22. Nikolic, M.V.; Milovanovic, V.; Vasiljevic, Z.Z.; Stamenkovic, Z. Semiconductor Gas Sensors: Materials, Technology, Design, and Application. Sensors 2020, 20, 6694. [Google Scholar] [CrossRef] [PubMed]
  23. Chen, C.; Chen, W.; Liu, Q.; Liu, Y.; Xiao, G.; Chen, C.; Li, F.; Zhou, J. Electrospinning of Pd–In2O3 Nanofibers for High-Performance Room Temperature Hydrogen Sensors. ACS Appl. Nano Mater. 2022, 5, 12646–12655. [Google Scholar] [CrossRef]
  24. Li, X.-Y.; Sun, G.-T.; Fan, F.; Li, Y.-Y.; Liu, Q.-C.; Yao, H.-C.; Li, Z.-J. Au25 Nanoclusters Incorporating Three-Dimensionally Ordered Macroporous In2O3 for Highly Sensitive and Selective Formaldehyde Sensing. ACS Appl. Mater. Interfaces 2022, 14, 564–573. [Google Scholar] [CrossRef]
  25. Li, Y.; Wang, H.; Liu, Y.; Li, Y.; Wang, C.; Bai, J.; Yang, L.; Wang, Y.; Liu, F.; Liang, X.; et al. Bimetallic PtRu alloy nanocrystal-functionalized flower-like WO3 for fast detection of xylene. Sens. Actuators B Chem. 2022, 351, 130950. [Google Scholar] [CrossRef]
  26. Meng, X.; Bi, M.; Gao, W. Rapid response hydrogen sensor based on Pd@Pt/SnO2 hybrids at near-ambient temperature. Sens. Actuators B Chem. 2022, 370, 132406. [Google Scholar] [CrossRef]
  27. Lei, F.; Sun, Y.; Liu, K.; Gao, S.; Liang, L.; Pan, B.; Xie, Y. Oxygen Vacancies Confined in Ultrathin Indium Oxide Porous Sheets for Promoted Visible-Light Water Splitting. J. Am. Chem. Soc. 2014, 136, 6826–6829. [Google Scholar] [CrossRef]
  28. Chava, R.K.; Cho, H.-Y.; Yoon, J.-M.; Yu, Y.-T. Fabrication of aggregated In2O3 nanospheres for highly sensitive acetaldehyde gas sensors. J. Alloys Compd. 2019, 772, 834–842. [Google Scholar] [CrossRef]
  29. Liu, X.; Jiang, L.; Jiang, X.; Tian, X.; Sun, X.; Wang, Y.; He, W.; Hou, P.; Deng, X.; Xu, X. Synthesis of Ce-doped In2O3 nanostructure for gas sensor applications. Appl. Surf. Sci. 2018, 428, 478–484. [Google Scholar] [CrossRef]
  30. Zhang, Y.; Li, J.; Liu, H.; Ji, Y.; Zhong, Z.; Su, F. Promoting effect of In2O3 on CuO for the Rochow reaction: The formation of P–N junctions at the hetero-interfaces. J. Catal. 2017, 348, 110–124. [Google Scholar] [CrossRef]
  31. Ma, R.-J.; Zhao, X.; Zou, X.; Li, G.-D. Enhanced formaldehyde sensing performance at ppb level with Pt-doped nanosheet-assembled In2O3 hollow microspheres. J. Alloys Compd. 2018, 732, 863–870. [Google Scholar] [CrossRef]
  32. Cai, H.; Luo, N.; Hu, Q.; Xue, Z.; Wang, X.; Xu, J. Multishell SnO2 Hollow Microspheres Loaded with Bimetal PdPt Nanoparticles for Ultrasensitive and Rapid Formaldehyde MEMS Sensors. ACS Sens. 2022, 7, 1484–1494. [Google Scholar] [CrossRef]
  33. Zheng, W.; Lu, X.; Wang, W.; Li, Z.; Zhang, H.; Wang, Z.; Xu, X.; Li, S.; Wang, C. Assembly of Pt nanoparticles on electrospun In2O3 nanofibers for H2S detection. J. Colloid Interface Sci. 2009, 338, 366–370. [Google Scholar] [CrossRef]
  34. Li, S.; Xie, L.; He, M.; Hu, X.; Luo, G.; Chen, C.; Zhu, Z. Metal-Organic frameworks-derived bamboo-like CuO/In2O3 Heterostructure for high-performance H2S gas sensor with Low operating temperature. Sens. Actuators B Chem. 2020, 310, 127828. [Google Scholar] [CrossRef]
  35. Liang, X.; Kim, T.-H.; Yoon, J.-W.; Kwak, C.-H.; Lee, J.-H. Ultrasensitive and ultraselective detection of H2S using electrospun CuO-loaded In2O3 nanofiber sensors assisted by pulse heating. Sens. Actuators B Chem. 2015, 209, 934–942. [Google Scholar] [CrossRef]
  36. Petrila, I.; Tudorache, F. Effects of sintering temperature on the microstructure, electrical and magnetic characteristics of copper-zinc spinel ferrite with possibility use as humidity sensors. Sens. Actuators A Phys. 2021, 332, 113060. [Google Scholar] [CrossRef]
  37. Zhang, Y.; Han, S.; Wang, M.; Liu, S.; Liu, G.; Meng, X.; Xu, Z.; Wang, M.; Qiao, G. Electrospun Cu-doped In2O3 hollow nanofibers with enhanced H2S gas sensing performance. J. Adv. Ceram. 2022, 11, 427–442. [Google Scholar] [CrossRef]
  38. Lv, L.; Zhang, X.; Wang, J.; Yuan, L.; Fan, J. Construction of Li0.5La0.5TiO3 (LLTO)-In2O3 n-n step scheme heterostructure nanorods for drastically heightening the sensing behavior in H2S gas. Mater. Chem. Phys. 2023, 295, 127085. [Google Scholar] [CrossRef]
  39. Cao, Z.; Tang, Y.; Zou, H.-Y.; Huang, Y.; Wu, L.; Xiao, Z.-L.; Feng, Z.-M.; Yin, Y.-L.; Yu, D. Long-term and stable detection of H2S in a pig house at low operating temperature based on Ce2O3/In2O3 hollow microspheres with a remote monitoring system. Sens. Actuators B Chem. 2022, 372, 132609. [Google Scholar] [CrossRef]
  40. Li, S.; Xie, L.; Luo, G.; Han, Y.; Zhou, M.; Jaisutti, R.; Zhu, Z. Indium-organic framework CPP-3(In) derived Ag/In2O3 porous hexagonal tubes for H2S detection at low temperature. Chin. Chem. Lett. 2022, 33, 551–556. [Google Scholar] [CrossRef]
  41. Amu-Darko, J.N.O.; Hussain, S.; Zhang, X.; Alothman, A.A.; Ouladsmane, M.; Nazir, M.T.; Qiao, G.; Liu, G. Metal-organic frameworks-derived In2O3/ZnO porous hollow nanocages for highly sensitive H2S gas sensor. Chemosphere 2023, 314, 137670. [Google Scholar] [CrossRef] [PubMed]
  42. Al Shboul, A.M.; Izquierdo, R. Printed Chemiresistive In2O3 Nanoparticle-Based Sensors with ppb Detection of H2S Gas for Food Packaging. ACS Appl. Nano Mater. 2021, 4, 9508–9517. [Google Scholar] [CrossRef]
  43. Kapse, V.D.; Ghosh, S.A.; Chaudhari, G.N.; Raghuwanshi, F.C. Nanocrystalline In2O3-based H2S sensors operable at low temperatures. Talanta 2008, 76, 610–616. [Google Scholar] [CrossRef] [PubMed]
  44. Basivi, P.K.; Hamieh, T.; Pasupuleti, K.S.; Pasupuleti, V.R.; Rao, V.N.; Kim, M.-D.; Kim, C.W. Surface Thermal Behavior and RT CO Gas Sensing Application of an Oligoacenaphthylene with p-Hydroxyphenylacetic Acid Composite. ACS Omega 2022, 7, 36307–36317. [Google Scholar] [CrossRef]
  45. Kumar, V.; Majhi, S.M.; Kim, K.-H.; Kim, H.W.; Kwon, E.E. Advances in In2O3-based materials for the development of hydrogen sulfide sensors. Chem. Eng. J. 2021, 404, 126472. [Google Scholar] [CrossRef]
  46. Sun, Y.-F.; Liu, S.-B.; Meng, F.-L.; Liu, J.-Y.; Jin, Z.; Kong, L.-T.; Liu, J.-H. Metal Oxide Nanostructures and Their Gas Sensing Properties: A Review. Sensors 2012, 12, 2610–2631. [Google Scholar] [CrossRef]
  47. Lin, Y.-K.; Chiang, Y.-J.; Hsu, Y.-J. Metal—Cu2O core—Shell nanocrystals for gas sensing applications: Effect of metal composition. Sens. Actuators B Chem. 2014, 204, 190–196. [Google Scholar] [CrossRef]
  48. Cullis, C.F.; Nevell, T.G.; Trimm, D.L. Role of the catalyst support in the oxidation of methane over palladium. J. Chem. Soc. Faraday Trans. 1 Phys. Chem. Condens. Phases 1972, 68, 1406–1412. [Google Scholar] [CrossRef]
  49. Li, Y.; Wang, H.; Chen, Y.; Yang, M. A multi-walled carbon nanotube/palladium nanocomposite prepared by a facile method for the detection of methane at room temperature. Sens. Actuators B Chem. 2008, 132, 155–158. [Google Scholar] [CrossRef]
Nanomaterials 13 00668 g001 550

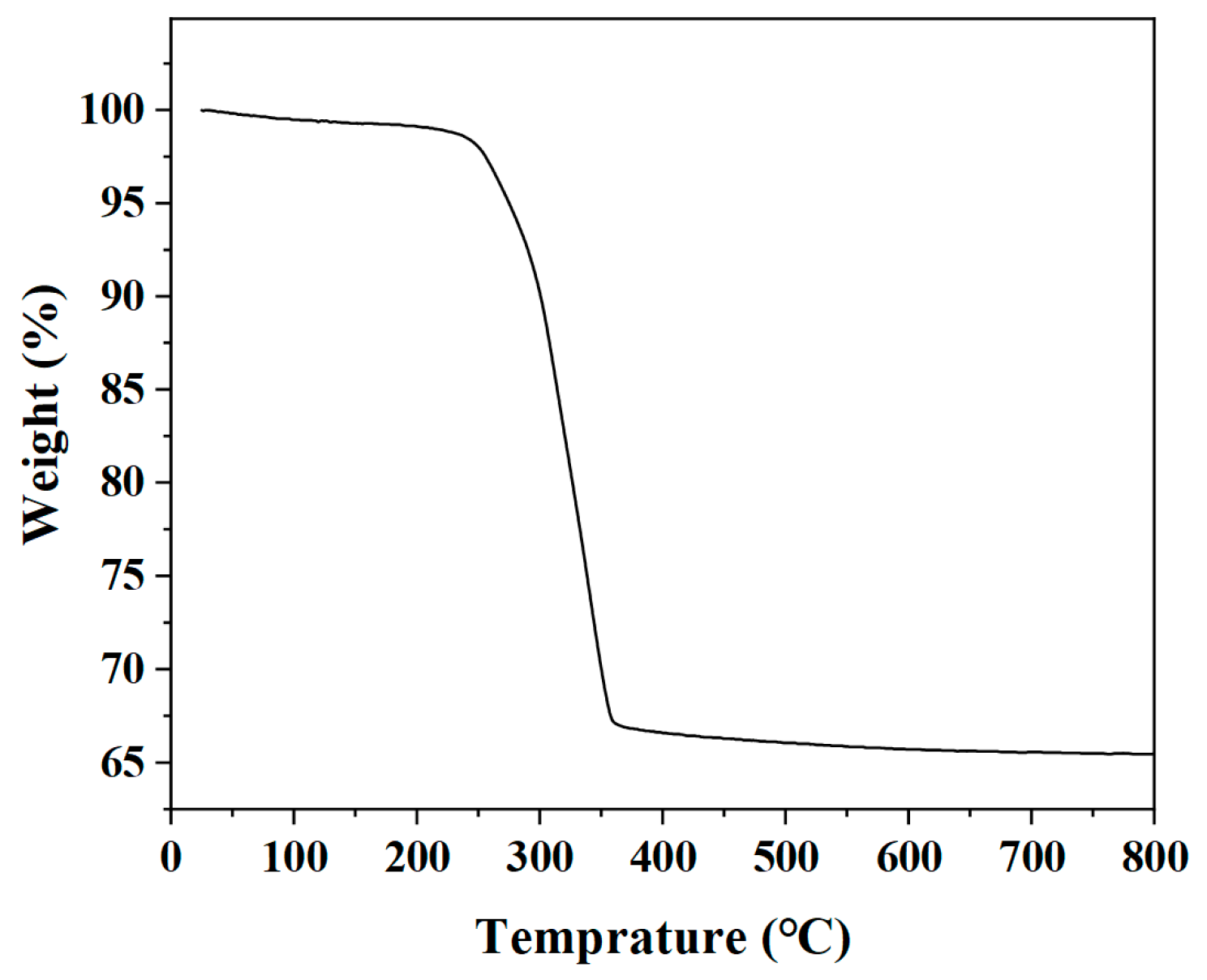

Figure 1. TG curve of the precursors of In2O3 hollow microspheres.
Figure 1. TG curve of the precursors of In2O3 hollow microspheres.
Nanomaterials 13 00668 g001
Nanomaterials 13 00668 g002 550
Figure 2. SEM and TEM images of 1 at% Pd/Pt-In2O3: (a) low-resolution SEM image, (b) high-resolution SEM image, (c) TEM image, (d) HRTEM image.
Figure 2. SEM and TEM images of 1 at% Pd/Pt-In2O3: (a) low-resolution SEM image, (b) high-resolution SEM image, (c) TEM image, (d) HRTEM image.
Nanomaterials 13 00668 g002
Nanomaterials 13 00668 g003 550

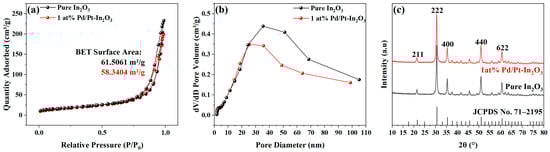

Figure 3. (a) Nitrogen adsorption−desorption isotherms of pure In2O3 and 1 at% Pd/Pt-In2O3. (b) Corresponding pore size distributions of pure In2O3 and 1 at% Pd/Pt-In2O3. (c) XRD image of pure In2O3 and 1 at% Pd/Pt-In2O3.
Figure 3. (a) Nitrogen adsorption−desorption isotherms of pure In2O3 and 1 at% Pd/Pt-In2O3. (b) Corresponding pore size distributions of pure In2O3 and 1 at% Pd/Pt-In2O3. (c) XRD image of pure In2O3 and 1 at% Pd/Pt-In2O3.
Nanomaterials 13 00668 g003
Nanomaterials 13 00668 g004 550

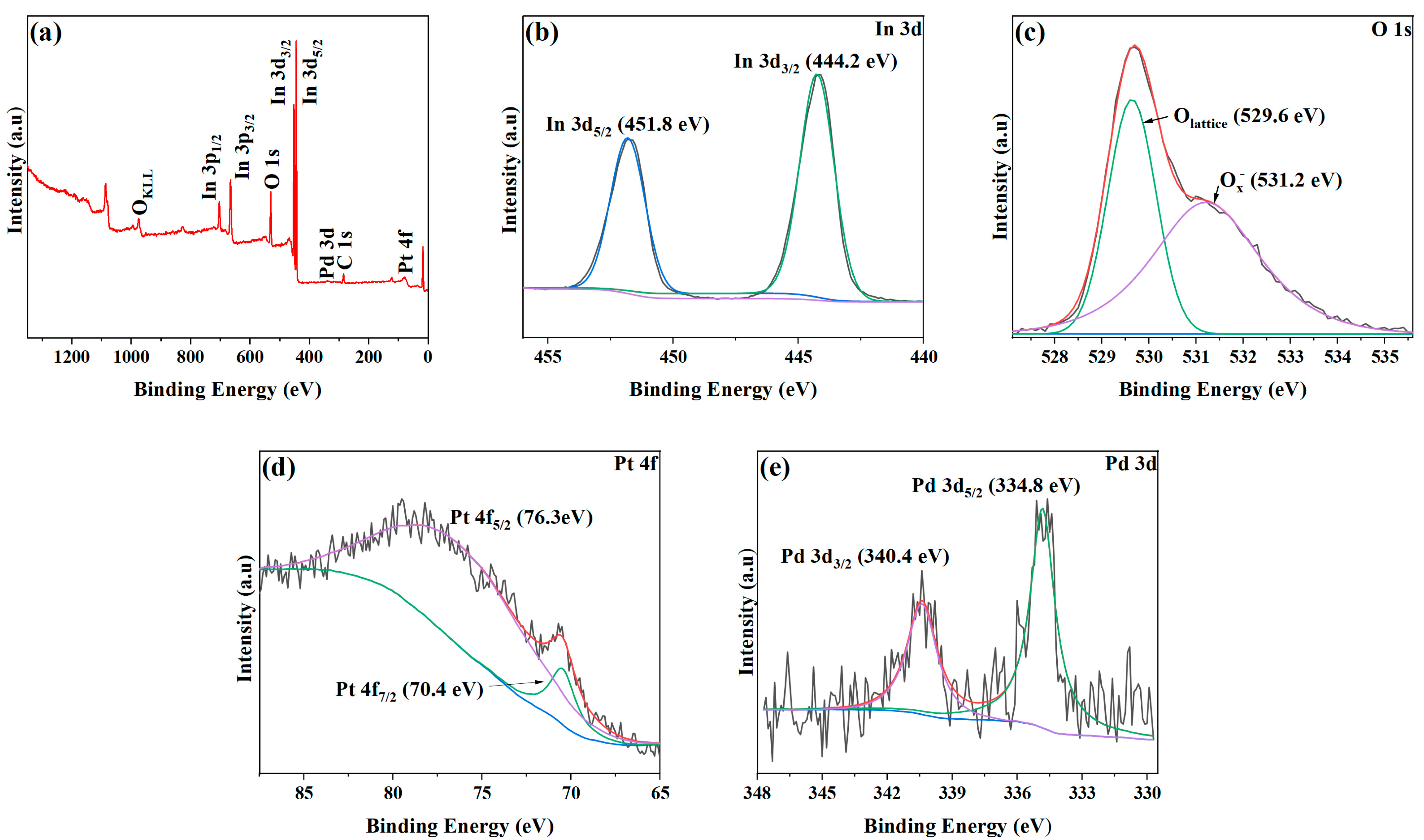

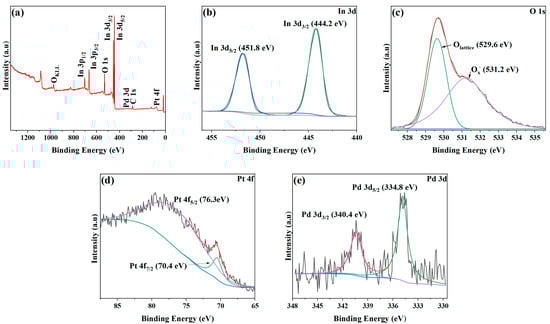

Figure 4. XPS spectra of 1 at% Pd/Pt-In2O3. (a) Survey spectrum and high-resolution XPS spectra: (b) In 3d, (c) In 3d, (d) Pt 4f, and (e) Pd 3d.
Figure 4. XPS spectra of 1 at% Pd/Pt-In2O3. (a) Survey spectrum and high-resolution XPS spectra: (b) In 3d, (c) In 3d, (d) Pt 4f, and (e) Pd 3d.
Nanomaterials 13 00668 g004
Nanomaterials 13 00668 g005 550

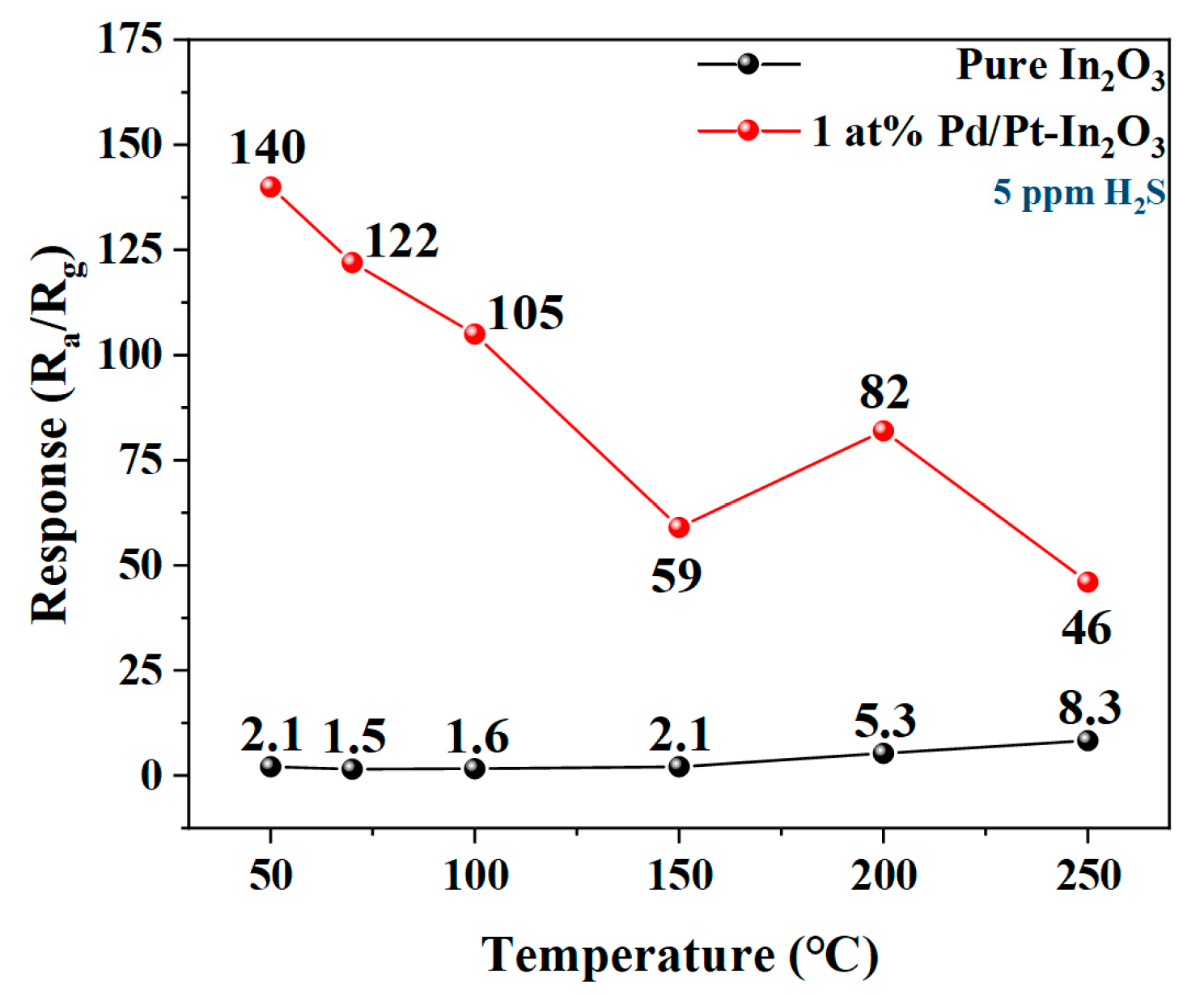

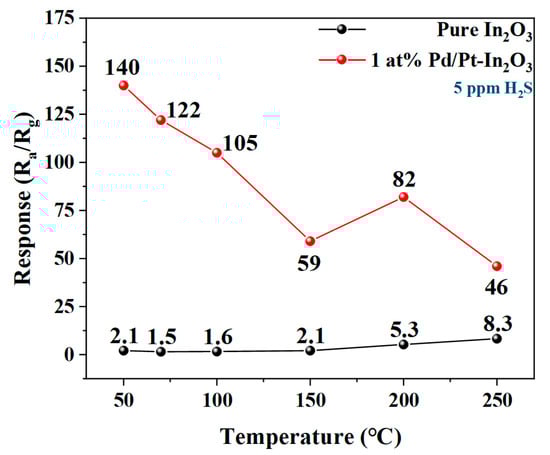

Figure 5. Response of pure In2O3 and 1 at% Pd/Pt-In2O3 to 5 ppm H2S at different temperatures.
Figure 5. Response of pure In2O3 and 1 at% Pd/Pt-In2O3 to 5 ppm H2S at different temperatures.
Nanomaterials 13 00668 g005
Nanomaterials 13 00668 g006 550

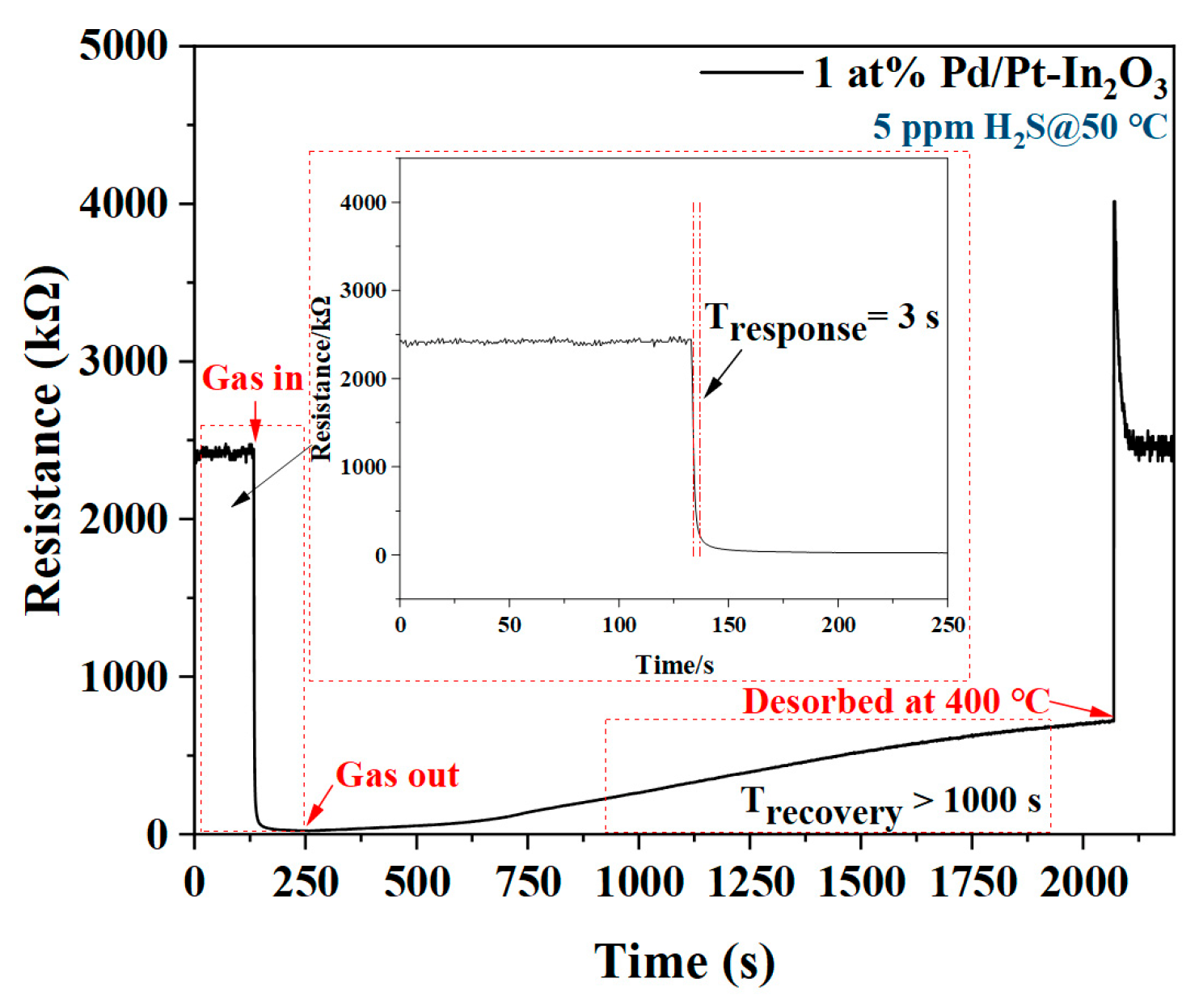

Figure 6. Response/recovery time of 1 at% Pd/Pt-In2O3 for 5 ppm H2S at 50 °C.
Figure 6. Response/recovery time of 1 at% Pd/Pt-In2O3 for 5 ppm H2S at 50 °C.
Nanomaterials 13 00668 g006
Nanomaterials 13 00668 g007 550

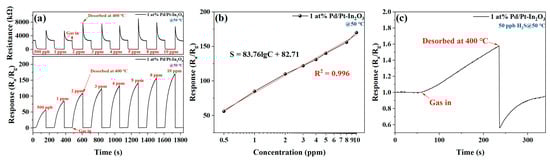

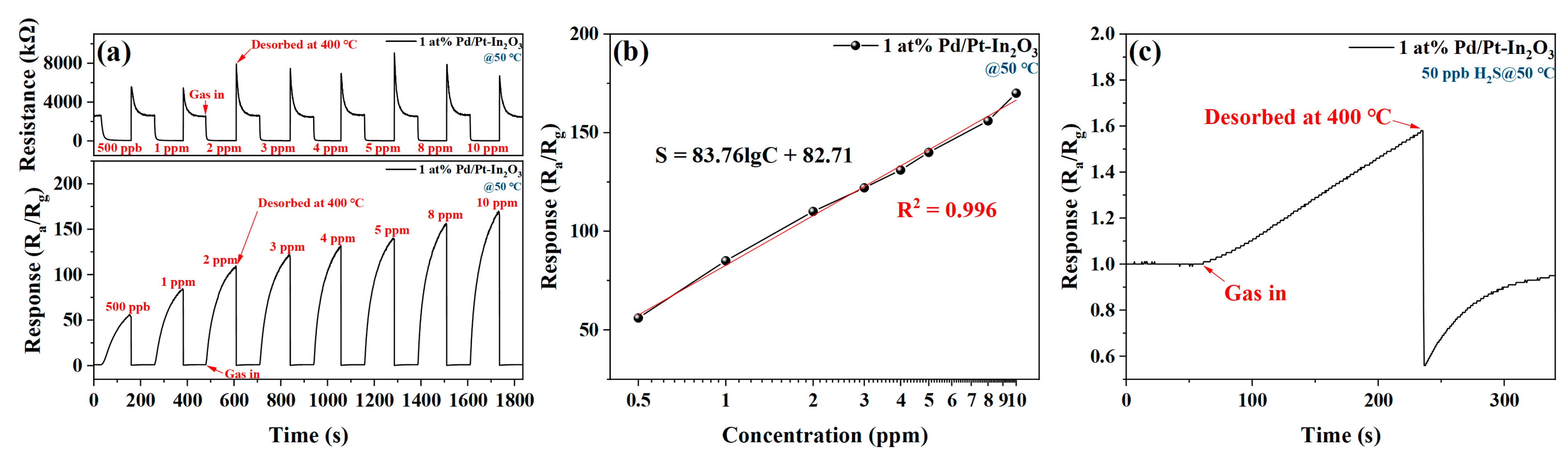

Figure 7. (a) Dynamic change in resistance and response of 1 at% Pd/Pt-In2O3 to different concentrations of H2S (500 ppb–10 ppm) at 50 °C. (b) Relationship between the response of 1 at% Pd/Pt-In2O3 and the concentration of H2S at 50 °C. (c) Response of 1 at% Pd/Pt-In2O3 to 50 ppb H2S at 50 °C.
Figure 7. (a) Dynamic change in resistance and response of 1 at% Pd/Pt-In2O3 to different concentrations of H2S (500 ppb–10 ppm) at 50 °C. (b) Relationship between the response of 1 at% Pd/Pt-In2O3 and the concentration of H2S at 50 °C. (c) Response of 1 at% Pd/Pt-In2O3 to 50 ppb H2S at 50 °C.
Nanomaterials 13 00668 g007
Nanomaterials 13 00668 g008 550

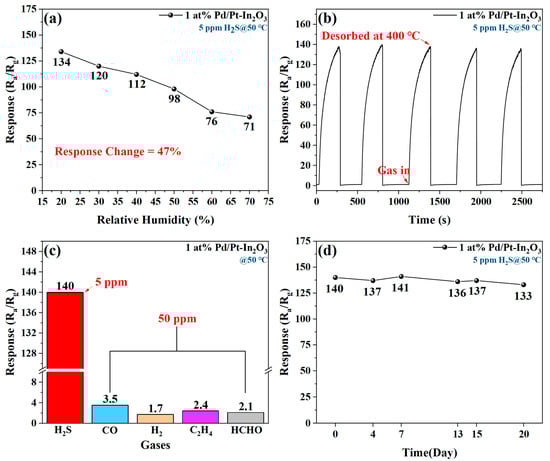

Figure 8. (a) Effect of humidity on H2S sensing of 1 at% Pd/Pt-In2O3. (b) Five-time repeatability of 1 at% Pd/Pt-In2O3 to 5 ppm H2S at 50 °C. (c) Response of 1 at% Pd/Pt-In2O3 to various gases (CO, H2, C2H4, and HCHO). (d) Long-term stability of 1 at% Pd/Pt-In2O3.
Figure 8. (a) Effect of humidity on H2S sensing of 1 at% Pd/Pt-In2O3. (b) Five-time repeatability of 1 at% Pd/Pt-In2O3 to 5 ppm H2S at 50 °C. (c) Response of 1 at% Pd/Pt-In2O3 to various gases (CO, H2, C2H4, and HCHO). (d) Long-term stability of 1 at% Pd/Pt-In2O3.
Nanomaterials 13 00668 g008
Nanomaterials 13 00668 g009 550

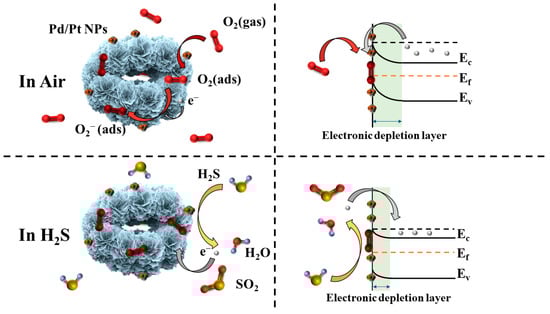

Figure 9. Demonstration of gas-sensing mechanism of 1 at% Pd/Pt-In2O3. The left side is a simulation diagram of the microsphere, and the right side is an energy-band diagram.
Figure 9. Demonstration of gas-sensing mechanism of 1 at% Pd/Pt-In2O3. The left side is a simulation diagram of the microsphere, and the right side is an energy-band diagram.
Nanomaterials 13 00668 g009
Table
Table 1. The comparison in H2S sensing performance of In2O3-based sensors between the reported literatures and our work.
Table 1. The comparison in H2S sensing performance of In2O3-based sensors between the reported literatures and our work.
MaterialsTemp. (°C)Conc. (ppm)Res.Res./Rec. Time (s/s)LOD (ppm)Refs.
Pd/Pt-In2O3 hollow micromicrospheres5051403/-50 ppbThis work
Cu-In2O3 hollow nanofibers2501004201.530/181[34]
Bamboo-like CuO/In2O3 heterostructures705229.310/-0.2[37]
Li0.5La0.5TiO3-In2O3 nanorods15050116.6120/2875[38]
Ce2O3/In2O3 hollow microspheres100203.859/6000.1[39]
Ag/In2O3 porous hexagonal tubes70511920/-0.3[40]
In2O3/ZnO porous hollow nanocages2005067.552/1982[41]
In2O3 nanoparticles250.118.160/--[42]
