CTAB Enhanced Room-Temperature Detection of NO2 Based on MoS2-Reduced Graphene Oxide Nanohybrid

by
Wenbo Li
1,2,3,
Hao Li
1,2,3,
Rong Qian
1,3,*,
Shangjun Zhuo
1,3,
Pengfei Ju
4,* and
Qiao Chen
5
1
National Center for Inorganic Mass Spectrometry in Shanghai, Shanghai Institute of Ceramics, Chinese Academy of Sciences, Shanghai 200050, China
2
School of Material Science and Engineering, University of Shanghai for Science and Technology, Shanghai 200093, China
3
Center of Materials Science and Optoelectronics Engineering, University of Chinese Academy of Sciences, Beijing 100049, China
4
Shanghai Aerospace Equipment Manufacturer, Shanghai 200245, China
5
Department of Chemistry, School of Life Sciences, University of Sussex, Brighton BN1 9QJ, UK
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(8), 1300; https://doi.org/10.3390/nano12081300
Submission received: 5 March 2022 / Revised: 4 April 2022 / Accepted: 7 April 2022 / Published: 11 April 2022
(This article belongs to the Topic Advances and Applications of 2D Materials)
Browse Figures
Versions Notes

Abstract

:
A new NO2 nanohybrid of a gas sensor (CTAB-MoS2/rGO) was constructed for sensitive room-temperature detection of NO2 by 3D molybdenum disulfide (MoS2) and reduced graphene oxide (rGO), assisted with hexadecyl trimethyl ammonium bromide (CTAB). In comparison with MoS2 and MoS2/rGO, the BET and SEM characterization results depicted the three-dimensional structure of the CTAB-MoS2/rGO nanohybrid, which possessed a larger specific surface area to provide more active reaction sites to boost its gas-sensing performance. Observations of the gas-sensing properties indicated that the CTAB-MoS2/rGO sensor performed a high response of 45.5% for 17.5 ppm NO2, a remarkable selectivity of NO2, an ultra-low detection limit of 26.55 ppb and long-term stability for a 30-day measurement. In addition, the response obtained for the CTAB-MoS2/rGO sensor was about two to four times that obtained for the MoS2/rGO sensor and the MoS2 sensor toward 8 ppm NO2, which correlated with the heterojunction between MoS2 and rGO, and the improvement in surface area and conductivity correlated with the introduction of CTAB and rGO. The excellent performance of the CTAB-MoS2/rGO sensor further suggested the advantage of CTAB in assisting a reliable detection of trace NO2 and an alternative method for highly efficiently detecting NO2 in the environment.

Graphical Abstract

1. Introduction

Although nitrogen dioxide (NO2) matters a lot in the industrial, farming and healthcare fields, it is also one kind of poisonous gas—harmful to environment and human health. In general, NO2 is generated from burning fossil fuels or automotive emissions, leading to a lot of serious diseases such as pulmonary, cardiovascular and cardiac diseases, even at low concentrations [1,2]. On this account, many analytical techniques have been applied for monitoring and detecting NO2, including electrochemical, optical, chemiresistive, spectroscopies methods and so on [3]. However, these techniques usually require time-consuming sample treatment procedures, expensive and bulky instruments that could not provide convenient and real-time online detection for the leaking, diffusing or transferring of NO2 gas [4,5]. Because of many superiorities, including low cost, easy operation and rapid, real-time detection and warning, portable semiconductor chemiresistive gas sensors can offer an alternative method for the effective monitoring and detecting of NO2 [6]. Nowadays, portable semiconductor chemiresistive gas sensors have been extensively applied for smart environmental monitoring and have shown a higher commercial application potential [7].
For the abundant vacancies and oxygen-containing functional groups on composite materials containing [8] graphene and derivatives, the sensors have been utilized for practical applications and have attracted considerable attention for detecting poisonous gas in environmental and industrial fields and monitoring exhaled air. Nowadays, rGO sensors have become one of the most common gas sensors. Wang et al. reported a novel NO2 sensor produced with the heterostructure of ZnO-SnO2 on rGO, which displayed a high response of 141.0% toward 5 ppm of NO2 at room temperature [9]. Liu et al. synthesized a NO2 sensor by ZnO-rGO hybrids, whose response towards 5 ppm NO2 operating at room temperature was 25.6%. The response time and recovery time towards 5 ppm were 165 s and 499 s, respectively [10]. Chan et al. prepared rGO-In2O3 hybrid nanostructure sensors, which presented a fine response of 22.3% toward 500 ppb NO2 at 150 °C [11]. Meanwhile, the two-dimensional layered nano-material of MoS2 also drew much attention on account of its prominent semiconductor properties and high surface-to-volume ratio [12]. Yang et al. described the main attributes of two-dimensional nanomaterials and demonstrated that an intense interaction existed between MoS2 and NO2 molecules, suggesting that MoS2 could be one special material for sensitively detecting NO2 [13,14]. To a certain extent, MoS2-based gas sensors exhibited better sensing properties than some carbon materials such as graphene and CNT [15]. However, MoS2-based gas sensors are still facing numerous challenges, such as short lifetime, tardy response or recovery rate, poor gas selectivity and complicated fabrication, which might limit their development or application [16,17,18,19,20].
Surfactants are known for their capability for controlling crystal morphology in the fabrication of inorganic nanomaterials [21]. CTAB is a common surfactant, and it is used extensively for synthesizing nanoparticles [22]. Zhang et al. synthesized a three-dimensional MoS2 nanoflower with a size of around 300 nm in the presence of CTAB, and the MoS2-based sensor displayed a response of 60% to 50 ppm NO2 at 100 °C, but it suffered a low response of almost 8% at room temperature [23]. Lin et al. reported MoS2/rGO composites synthesized with CTAB, which had a larger surface area than those synthesized using TritonX-100 or sodium dodecyl sulfonate [24]. Notably, the strategy of employing a surfactant for nanocomposite fabrication could improve gas adsorption on the material’s surface and promote gas-sensing performance.
In our work, a new CTAB-MoS2/rGO nanohybrid sensor was fabricated for room temperature, detecting NO2 based on hydrothermal and ultrasonic processes. Under ambient conditions, the gas-sensing performances of the CTAB-MoS2/rGO, MoS2 and MoS2/rGO sensors were systematically studied, showing that the response obtained for the CTAB-MoS2/rGO sensor was about four times that obtained for the MoS2 sensor and two times that obtained for the MoS2/rGO sensor to 8 ppm NO2. Under ambient conditions, the CTAB-MoS2/rGO sensor performed a high response of 45.5% for 17.5 ppm NO2, an ultralow detection limit of 26.55 ppb, excellent selectivity for NO2 and long-term stability for a 30-day persistent property test. The remarkable gas-sensing performance possibly owed to the formation of a heterojunction between the MoS2 and rGO, the increase in the number of active sites with the introduction of CTAB and the improvement of conductivity with rGO.

2. Materials and Methods

2.1. Materials and Chemicals

The reduced graphene oxide (rGO) dispersion was received from Chengdu Organic Chemicals Co. Ltd. (Chengdu, China) Thiourea (N2H4CS, 99%) and hexadecyl trimethyl ammonium bromide (CTAB, 99%) were obtained from Shanghai Macklin Biochemical Co. Ltd. (Shanghai, China). The sodium molybdate dihydrate (Na2MoO4·2H2O, 99%) was purchased from Shanghai Adamas-beta Co. Ltd. (Shanghai, China).

2.2. Sample Preparation

For the CTAB-MoS2 nanohybrid synthesis, in a typical run, 2 mmol NaMoO4·2H2O and 10 mmol thiourea were fully dispersed into 70 mL deionized water, then followed by sonication for 30 min. Subsequently, 210 mg CTAB was dissolved into the above solution through extra sonication for 30 min (the details about optimization and the XRD graph are in Figure S1). Next, the solution was poured into a 100 mL autoclave and kept at 210 °C for 24 h. The CTAB-MoS2 powder was obtained after centrifugation and washed with deionized water and anhydrous ethanol. The MoS2 was prepared with the same procedure without the CTAB. In the CTAB-MoS2/rGO fabrication process, 10 mg of the obtained CTAB-MoS2 powder was added into 1 mL ethanol, followed by sonication for 30 min in order to completely disperse. After completely dispersing, 0.1 mL of the rGO dispersion was dropped into the above solution under sonication for 1 h to synthesize the CTAB-MoS2/rGO hybrid. The MoS2/rGO composite was also synthesized with the same procedure. A diagram of the preparation of the composite is illustrated in Figure 1.

2.3. Characterization of Materials

The morphologies of the sensing materials were analyzed by a scanning electron microscope (SEM, SU8220, Hitachi, Tokyo, Japan) and a transmission electron microscope (TEM, JEM-2100F, JEOL). Crystallinity information was obtained by X-ray diffraction (XRD, D8 ADVANCE, Bruker, Cu kα, 380 eV). The composition information was characterized by X-ray photoelectron spectroscopy (XPS, ESCALAB 250, Al X-ray source, 0.5 eV). A confocal Raman microscope (in Via RENISHAW) was utilized to obtain Raman spectra.

2.4. Fabrication of CTAB-MoS2/rGO Sensor

The CTAB-MoS2/rGO sensor was fabricated on interdigital electrodes, which were composed of CTAB-MoS2/rGO sensing materials and interdigital electrodes. The interdigital electrodes were cleaned under sonication with acetone, deionized water and ethanol, respectively, before use. The composite suspension was obtained by adding 10 mg hybrid powder into 1 mL ethanol under sonication for 0.5 h. After that, 0.5 μL of the solution was dropped onto the cleaned interdigital electrodes by pipette. Then, the interdigital electrodes were kept in a 60 °C oven for 3 h to remove the extra ethanol.

2.5. Measurement of Gas-Sensing Properties

In order to observe the gas-sensing properties, homemade gas-sensing test equipment was constructed and demonstrated, which consisted of gas cylinders, a gas-sensing chamber, a plastic conduit and a resistance acquisition device (see Figure S2 for fabrication details). The gas cylinders were filled with dry air and dry NO2, respectively. The gas-sensing chamber contained a 300 mL cylindrical cavity with several holes for gas injection and venting. The resistance of the sensors was obtained with a Keithley 2701 resistance acquisition device. The bubbling method was used to adjust the moisture of injected gas. Typically, dry air was passed through a cylindrical cavity with a certain volume of water to obtain a relative humidity (RH), and then mixed with dry NO2 [25,26]. Various concentrations of NO2 were gained by mixing the wet air with dry NO2, and all the gas flow ratios were regulated by mass flow controllers (MFC). The final flow rate of gas was fixed as 400 mL/min. The response value of the sensor was determined by (ΔR)/R0 × 100%, where ΔR = (R0 − Rg), R0 was the resistance value in the air and Rg was the resistance value in NO2. For all the gas-sensing performance measurements, NO2 was introduced into the gas-sensing chamber for 10 min. The following sensing tests were implemented at room temperature and 58% RH, if without any special indication.

3. Results

3.1. Morphological and Structural Characterization

Figure 2a suggests that the crystal planes of pure MoS2 were assigned to the (002), (004), (101), (103), (006), (105) and (110) of the hexagonal phase. It has been proven that 2H-MoS2 had better semiconductor properties and more thermal stability than 1T-MoS2 and 3R-MoS2 [27]. The (002) crystal plane indicated stacking a layered structure along the c-axis in bulk MoS2 [28]. When the rGO and CTAB were introduced to the hybrid, the main peaks of the (004), (101), (103), (006), (105) and (110) crystal planes became weaker or even disappeared, to restrain the aggregation and restacking of the layered structure of the MoS2 [29]. Meanwhile, no peak around 2 theta of 25 degrees appeared for the MoS2/rGO and CTAB-MoS2/rGO composites, which could suggest a decrease in the layer stacking of the rGO with the existence of MoS2.The XRD investigations demonstrated the prepared MoS2 was in accordance with JCPDS card 37–1492, and some peaks of the MoS2 became weaker or disappeared, which was beneficial for the promotion of sensing performance [30].
The structure of the CTAB-MoS2/rGO was carefully studied by Raman characterization. Figure 2b shows that two typical peaks at 380.9 cm−1 and 407.5 cm−1 were regarded as the in-plane vibration E12g and the out-of-plane vibration A1g of the MoS2. The peak position of E12g and A1g could be applied to calculate the layer numbers of the MoS2 [31]. The Raman shift difference was 26.6 cm−1, which could suggest that the MoS2 had a multilayer structure. Meanwhile, Figure 2b also depicts a D band (1348.39 cm−1) and a G band (1593.39 cm−1) of rGO, which indicated that the hybrid of MoS2/rGO was successfully formed by the introduction of rGO. In addition, the D band was induced by defects, and the G band was attributed to sp2 hybridized carbon atoms [32].
The microstructures and morphologies of the sensing materials were further characterized through SEM. Figure 3a shows a three-dimensional flower-like structure of the MoS2 with multiple nanosheets. The thin nanosheets can be distinctly observed in Figure 3b. Figure 3c suggests that the rGO was closely attached to the MoS2 micro-flower for the formation of the MoS2/rGO hybrids, which was consistent with the investigation of Raman spectra. The image of the CTAB-MoS2/rGO is presented in Figure 3d, and the elemental mapping results are presented in Figure 3e–h. It was clear that the CTAB-MoS2/rGO material mainly contained C, O, Mo and S with homogeneous distribution. Furthermore, the TEM images in Figure 3i–l present the morphologies of the rGO, MoS2, MoS2/rGO and the CTAB-MoS2/rGO, respectively. The high-magnification TEM image further demonstrates that the molybdenum disulfide was multi-layered.
Figure 4a indicates the survey spectrum, suggesting the presence of C, Mo, S and O elements. Figure 4b demonstrates that the typical peaks at 284.6 and 286.6 eV could be assigned to C-C of the graphene skeleton and C-O bond [33]. Figure 4c suggests two valence states for Mo peaks. The peak at 232.2 eV could be assigned to Mo4+ 3d3/2, and the peak at 229.1 eV was assigned to Mo4+ 3d5/2 [34]. The small peak at 235.4 eV could have resulted from Mo6+ 3d3/2, which was potentially ascribed to the low amount of MoO3 in the composite as reported in the previous literature [35]. The peak at 226.3 eV could be assigned to S 2 s. Moreover, Figure 4d suggests that the peaks of 163.0 eV and 161.9 eV could be assigned to S2− 2p1/2 and S2− 2p3/2 of the MoS2 [36].

3.2. Gas-Sensing Properties

The sequential dynamic reversible performance of the CTAB-MoS2/rGO sensor was investigated by exposing the CTAB-MoS2/rGO sensor toward various concentrations of NO2 of 1–17.5 ppm. The response values were 45.52%, 37.64%, 35.50%, 31.75%, 24.19% and 14.45% for 17.5 ppm, 8 ppm, 6 ppm, 4 ppm, 2 ppm and 1 ppm of NO2, respectively, which suggests that the CTAB-MoS2/rGO sensor could monitor NO2 in a wide concentration range sensitively. To further study the sensor’s properties, a linear fitting curve was plotted for the CTAB-MoS2/rGO sensor’s response values versus lg (NO2 concentration). Figure 5b suggests that the response values had an excellent linear relationship with lg (NO2 concentration), and its correlation coefficient (R2) was 0.991, which could demonstrate the reliable responses toward 1–17.5 ppm NO2. The detection limit in this work could be calculated by a formula [37]. By calculation, the LOD was 26.55 ppb, which was lower than the limit of 53 ppb claimed by the U.S. Environmental Protection Agency [38] (see Figure S3 for the calculation of the detection limit).
Subsequently, the comparisons of the response and recovery properties were tested at room temperature and 58% RH for the CTAB-MoS2/rGO, MoS2/rGO and MoS2 sensors toward 8 ppm NO2. The MoS2 sensor performed a response of 9.7%. The MoS2/rGO sensor performed a response of 21.35%, which was two times that of the MoS2 sensor. The increased response demonstrated that the addition of rGO mattered a lot for improving the sensing properties, owing to the generation of a heterojunction between the MoS2 and rGO and the excellent performance of the rGO. More importantly, the CTAB-MoS2/rGO sensor displayed a response of 37.64% toward 8 ppm NO2, which was nearly two times the response for the MoS2/rGO sensor and four times the response for the pure MoS2 sensor. Moreover, the gradually increased specific surface area (Figure 6b) for the MoS2, MoS2/rGO and CTAB-MoS2/rGO might facilitate the distinct promotion of the gas-sensing properties.
Long-term stability was studied through continuously measuring the response values of the CTAB-MoS2/rGO sensor toward 8 ppm NO2 for four weeks (Figure 7a). The results showed that the response values decreased only 5.81% from 37.64% of the first week to 31.83% of the fourth week, and always maintained a high response to NO2 during the four weeks. The results indicated the gas sensor was capable of detecting NO2 with a remarkable repeatability and superior long-term stability.
The repeatability was tested by exposing the CTAB-MoS2/rGO sensor to 8 ppm NO2 for three response–recovery cycles at room temperature and 58% RH (Figure 7b). It was noticeable that the response values maintained practically the same values after three cycles without an obvious response drop, which could confirm splendid repeatability for the CTAB-MoS2/rGO sensor.
Since selectivity is a crucial property for gas sensors in real environments, the selectivity of the CTAB-MoS2/rGO sensor was measured by exposing it to 17.5 ppm of NO2, 100 ppm of NH3, 1000 ppm of methanol, ethanol, isopropanol and acetone. Figure 8a shows that the response value toward 17.5 ppm NO2 was far higher than the higher concentration of all of the interfering gas species, suggesting an outstanding selectivity of the CTAB-MoS2/rGO sensor toward NO2. The extremely low response to high concentrations of methanol, ethanol, isopropanol and acetone may have resulted from the high activation energy barrier of the reaction between the sensing material surface and VOCs [39].
The influence of RH on gas-sensing properties was further explored by exposing the CTAB-MoS2/rGO sensor toward 8 ppm NO2 at different moisture levels (0–68% RH), and the result is shown in Figure 8b. Here, RH in the gas-sensing chamber was controlled by letting dry air pass through a cylindrical cavity of water and mixing it with dry NO2. Before injecting NO2 into the gas-sensing chamber, the CTAB-MoS2/rGO sensor was exposed to wet air with a desired relative humidity. After the resistance was relatively stable, 8 ppm NO2 was introduced to the gas chamber. The sensor response (6.1%) was very low when exposed to 8 ppm of dry NO2. As the relative humidity rose from 0 to 28%, the response rose from 6.1% to 20.56% accordingly. While increasing the moisture level to 38% RH, the response decreased to 15.84%, which could be due to the reduction in the number of active reaction sites. Since the gas adsorption sites on the MoS2/rGO were occupied by abundant water, the number of active reaction sites and the sensitivity decreased. The response increased dramatically as the relative humidity continued to increase to a higher moisture level (38–68% RH). It is possible that the electrons of CTAB-MoS2/rGO were captured by NO2 due to its higher electrophilic property to form NO2−, and NO2− simultaneously reacted with the adsorbed oxygen ion to form NO3−. NO3− was dominant even though NO2− and NO3− could exist at the same time when the moisture level increased to a high relative humidity. The binding energy of NO3− was higher than NO2−, which could result in the enhancement of the response value at a higher moisture level [40]. However, when the relative humidity was at 48–68%, the response values were almost similar, which was possibly caused by the saturation of the impact of the relative humidity on response. The results indicated that the sensors showed excellent gas-sensing properties in high-RH ambient, qualifying them for detecting NO2 gas in a high-RH environment. In addition, the CTAB-MoS2/rGO sensor showed excellent sensitivity and a low detection limit at room temperature compared to the previous TMDs-based sensors and rGO-based sensors (Table 1).

4. Discussion

According to previous reports [49], the active species NO3- originated from NO2 may play a significant role in causing the resistance changes of sensing materials. Based on the theory and the experiments [50], a possible mechanism was proposed and illustrated for the CTAB-MoS2/rGO sensor (Figure 9). When the CTAB-MoS2/rGO sensor was exposed to the air, the oxygen molecules in the air would adsorb electrons in the gas-sensitive material to form chemically adsorption oxygen O2−. When the CTAB-MoS2/rGO hybrid contacted NO2 gas, the electrons would transfer from the hybrid to NO2 to form NO2−, resulting in the rise of hole concentration and the decline of resistance. Meanwhile, NO2 with strong electron absorption ability could also seize electrons from the material and react with the previous O2− to generate NO3−. While the sensor was exposed to air again, NO3− would desorb from the sensing material surface, and the electron would return to the hybrid, thus the resistance would recover to the initial state. Moreover, the formation of the heterojunction between the MoS2 and rGO shows that electrons are transported from the conduction band of MoS2 to that of rGO [51]. The increase in the specific surface area with CTAB and the improvement of conductivity with rGO might result in the enhancement of the gas-sensing properties of the CTAB-MoS2/rGO sensor. The whole reaction is as follows:
O2(gds) → O2(ads)
O2(ads) + e− (from CTAB-MoS2/rGO) → O2−(ads)
NO2(gas) + e− (from CTAB-MoS2/rGO) → NO2−(ads)
2NO2(gas) + O2−(ads) + e− (from CTAB-MoS2/rGO) → 2NO3−(ads)
2NO3−(ads) → 2NO2(gas) + O2(ads) + e− (to CTAB-MoS2/rGO)
3NO2(gas) + H2O → NO(gas) + 2H+ + 2NO3−(ads)

5. Conclusions

In the present work, an efficient CTAB-MoS2/rGO gas sensor was successfully prepared for room-temperature detection of NO2 with the assistance of surfactant CTAB. The sensing properties of the MoS2, MoS2/rGO and CTAB-MoS2/rGO sensors were systematically investigated by exposure to NO2. The introduction of rGO and surfactant CTAB could significantly promote sensitivity to NO2, and the capability of recovery was slightly decreased due to the effect of rGO. The investigations demonstrated that the CTAB-MoS2/rGO sensor manifested an excellent response, remarkable repeatability, long-term stability and selectivity toward NO2. The great sensing performance could result from the generation of a heterojunction, the positive effect of CTAB and the good conductivity of rGO. The investigations also suggested that the surfactant was a great prospect for fabricating high properties of room-temperature gas sensors. Further research in this area is being implemented in our laboratory.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/nano12081300/s1, Figure S1. XRD of different concentrations of CTAB-MoS2, Figure S2. SEM images of CTAB-MoS2; (a) 0 mg/mL (b) 1.5 mg/mL (c) 3 mg/mL (d) 6 mg/mL, Figure S3. Schematic image of the gas sensor measurement system, Table S1. A fifth order polynomial fitting result.

Author Contributions

Conceptualization, W.L., H.L. and R.Q.; investigation, W.L., S.Z. and P.J.; supervision, R.Q. and Q.C.; writing—original draft preparation, W.L. and H.L.; writing—review and editing, S.Z., R.Q., P.J. and Q.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Shanghai Science and Technology Innovation Action Project (Grant No. 20142201100), Shanghai Intergovernmental International Cooperation Project (Grant No. 19520712000) and Shanghai Technical Platform of Testing on Inorganic Materials (Grant No. 19DZ2290700).

Institutional Review Board Statement

This study did not involve humans or animals.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rani, S.; Kumar, M.; Singh, Y.; Tomar, M.; Sharma, A.; Gupta, V.; Singh, V.N. NO2 Gas Sensor Based on SnSe/SnSe2 pn Hetrojunction. J. Nanosci. Nanotechnol. 2021, 21, 4779–4785. [Google Scholar] [CrossRef] [PubMed]
  2. Zhao, S.; Shen, Y.; Maboudian, R.; Carraro, C.; Han, C.; Liu, W.; Wei, D. Facile synthesis of ZnO-SnO2 hetero-structured nanowires for high-performance NO2 sensing application. Sens. Actuators B 2021, 333, 129613. [Google Scholar] [CrossRef]
  3. Zhu, Z.; Lin, S.J.; Wu, C.H.; Wu, R.J. Synthesis of TiO2 nanowires for rapid NO2 detection. Sens. Actuators A 2018, 272, 288–294. [Google Scholar] [CrossRef]
  4. Wang, X.D.; Wolfbeis, O.S. Fiber-optic chemical sensors and biosensors (2013–2015). Anal. Chem. 2016, 88, 203–227. [Google Scholar] [CrossRef]
  5. Chang, S.C.; Stetter, J.R. Electrochemical NO2 gas sensors: Model and mechanism for the electroreduction of NO2. Electroanalysis 1990, 2, 359–365. [Google Scholar] [CrossRef]
  6. Yang, B.; Myung, N.V.; Tran, T.T. 1D metal oxide semiconductor materials for chemiresistive gas sensors: A review. Adv. Electron. Mater. 2021, 7, 2100271. [Google Scholar] [CrossRef]
  7. Nasiri, N.; Clarke, C. Nanostructured chemiresistive gas sensors for medical applications. Sensors 2019, 19, 462. [Google Scholar] [CrossRef] [Green Version]
  8. Meng, F.L.; Guo, Z.; Huang, X.J. Graphene-based hybrids for chemiresistive gas sensors. TrAC Trends Anal. Chem. 2015, 68, 37–47. [Google Scholar] [CrossRef]
  9. Wang, Z.; Gao, S.; Fei, T.; Liu, S.; Zhang, T. Construction of ZnO/SnO2 heterostructure on reduced graphene oxide for enhanced nitrogen dioxide sensitive performances at room temperature. ACS Sens. 2019, 4, 2048–2057. [Google Scholar] [CrossRef]
  10. Liu, S.; Yu, B.; Zhang, H.; Fei, T.; Zhang, T. Enhancing NO2 gas sensing performances at room temperature based on reduced graphene oxide-ZnO nanoparticles hybrids. Sens. Actuators B 2014, 202, 272–278. [Google Scholar] [CrossRef]
  11. Na, C.W.; Kim, J.H.; Kim, H.J.; Woo, H.S.; Gupta, A.; Kim, H.K.; Lee, J.H. Highly selective and sensitive detection of NO2 using rGO-In2O3 structure on flexible substrate at low temperature. Sens. Actuators B 2018, 255, 1671–1679. [Google Scholar]
  12. Wan, P.; Yang, W.; Wang, X.; Hu, J.; Zhang, H. Reduced graphene oxide modified with hierarchical flower-like In(OH)3 for NO2 room-temperature sensing. Sens. Actuators B 2015, 214, 36–42. [Google Scholar] [CrossRef]
  13. Yang, W.; Gan, L.; Li, H.; Zhai, T. Two-dimensional layered nanomaterials for gas-sensing applications. Inorg. Chem. Front. 2016, 3, 433–451. [Google Scholar]
  14. Late, D.J.; Huang, Y.K.; Liu, B.; Acharya, J.; Shirodkar, S.N.; Luo, J.; Yan, A.; Charles, D.; Waghmare, U.V.; Dravid, V.P.; et al. Sensing behavior of atomically thin-layered MoS2 transistors. ACS Nano 2013, 7, 4879–4891. [Google Scholar] [PubMed]
  15. Perkins, F.K.; Friedman, A.L.; Cobas, E.; Campbell, P.M.; Jernigan, G.G.; Jonker, B.T. Chemical vapor sensing with monolayer MoS2. Nano Lett. 2013, 13, 668–673. [Google Scholar] [CrossRef]
  16. Kumar, R.; Goel, N.; Kumar, M. UV-activated MoS2 based fast and reversible NO2 sensor at room temperature. ACS Sens. 2017, 2, 1744–1752. [Google Scholar] [CrossRef]
  17. Wang, S.; Chen, W.; Li, J.; Song, Z.; Zhang, H.; Zeng, W. Low working temperature of ZnO-MoS2 nanocomposites for delaying aging with good acetylene gas-sensing properties. Nanomaterials 2020, 10, 1902. [Google Scholar] [CrossRef]
  18. Lim, N.; Lee, J.S.; Byun, Y.T. Negatively-doped single-walled carbon nanotubes decorated with carbon dots for highly selective NO2 detection. Nanomaterials 2020, 10, 2509. [Google Scholar] [CrossRef]
  19. Zeng, Y.; Lin, S.; Gu, D.; Li, X. Two-dimensional nanomaterials for gas sensing applications: The role of theoretical calculations. Nanomaterials 2018, 8, 851. [Google Scholar] [CrossRef] [Green Version]
  20. Seo, W.S.; Kim, D.K.; Han, J.H.; Park, K.B.; Ryu, S.C.; Min, N.K.; Kim, J.H. Functionalization of Molybdenum Disulfide via Plasma Treatment and 3-Mercaptopropionic Acid for Gas Sensors. Nanomaterials 2020, 10, 1860. [Google Scholar] [CrossRef]
  21. Zhao, Z.; Bai, Y.; Ning, W.; Fan, J.; Gu, Z.; Chang, H.; Yin, S. Effect of surfactants on the performance of 3D morphology W18O49 by solvothermal synthesis. Appl. Surf. Sci. 2019, 471, 537–544. [Google Scholar] [CrossRef]
  22. Nagyné-Kovács, T.; Studnicka, L.; Lukács, I.E.; László, K.; Pasierb, P.; Szilágyi, I.M.; Pokol, G. Hydrothermal synthesis and gas sensing of monoclinic MoO3 nanosheets. Nanomaterials 2020, 10, 891. [Google Scholar] [CrossRef] [PubMed]
  23. Zhang, Y.; Zeng, W.; Li, Y. Hydrothermal synthesis and controlled growth of hierarchical 3D flower-like MoS2 nanospheres assisted with CTAB and their NO2 gas sensing properties. Appl. Surf. Sci. 2018, 455, 276–282. [Google Scholar] [CrossRef]
  24. Hongtao, L.; Zichen, X.; Lina, Z.; Zhiqiang, Z.; Li, X. The effects of different surfactants on the morphologies and electrochemical properties of MoS2/reduce graphene oxide composites. Chem. Phys. Lett. 2019, 716, 6–10. [Google Scholar] [CrossRef]
  25. Wu, J.; Sun, Y.M.; Wu, Z.; Li, X.; Wang, N.; Tao, K.; Wang, G.P. Carbon nanocoil-based fast-response and flexible humidity sensor for multifunctional applications. ACS Appl. Mater. Interfaces 2019, 11, 4242–4251. [Google Scholar] [CrossRef]
  26. Wu, J.; Wu, Z.; Tao, K.; Liu, C.; Yang, B.R.; Xie, X.; Lu, X. Rapid-response, reversible and flexible humidity sensing platform using a hydrophobic and porous substrate. J. Mater. Chem. B 2019, 7, 2063–2073. [Google Scholar] [CrossRef]
  27. Shi, J.; Yu, P.; Liu, F.; He, P.; Wang, R.; Qin, L.; Zhou, J.; Sui, X.; Zhang, S.; Zhang, Y.; et al. 3R MoS2 with broken inversion symmetry: A promising ultrathin nonlinear optical device. Adv. Mater. 2017, 29, 1701486. [Google Scholar] [CrossRef]
  28. Chen, Y.; Song, B.; Tang, X.; Lu, L.; Xue, J. Ultrasmall Fe3O4 nanoparticle/MoS2 nanosheet composites with superior performances for lithium ion batteries. Small 2014, 10, 1536–1543. [Google Scholar] [CrossRef]
  29. Chang, K.; Mei, Z.; Wang, T.; Kang, Q.; Ouyang, S.; Ye, J. MoS2/graphene cocatalyst for efficient photocatalytic H2 evolution under visible light irradiation. ACS Nano 2014, 8, 7078–7087. [Google Scholar] [CrossRef]
  30. Chen, T.; Yan, W.; Xu, J.; Li, J.; Zhang, G.; Ho, D. Highly sensitive and selective NO2 sensor based on 3D MoS2/rGO composites prepared by a low temperature self-assembly method. J. Alloys Compd. 2019, 793, 541–551. [Google Scholar] [CrossRef]
  31. Cho, B.; Yoon, J.; Lim, S.K.; Kim, A.R.; Kim, D.H.; Park, S.G.; Kwon, J.D.; Lee, Y.J.; Lee, K.H.; Lee, B.H.; et al. Chemical sensing of 2D graphene/MoS2 heterostructure device. ACS Appl. Mater. Interfaces 2015, 7, 16775–16780. [Google Scholar] [CrossRef] [PubMed]
  32. Li, Q.C.; Chen, D.; Miao, J.; Lin, S.; Yu, Z.; Han, Y.; Yang, Z.; Zhi, X.; Cui, D.X.; An, Z. Ag-Modified 3D Reduced Graphene Oxide Aerogel-Based Sensor with an Embedded Microheater for a Fast Response and High-Sensitive Detection of NO2. ACS Appl. Mater. Interfaces 2020, 12, 25243–25252. [Google Scholar] [CrossRef]
  33. Long, H.; Harley-Trochimczyk, A.; Pham, T.; Tang, Z.; Shi, T.; Zettl, A.; Carraro, C.; Marcus, A.W.; Maboudian, R. High surface area MoS2/graphene hybrid aerogel for ultrasensitive NO2 detection. Adv. Funct. Mater. 2016, 26, 5158–5165. [Google Scholar] [CrossRef] [Green Version]
  34. Zhou, W.; Yin, Z.; Du, Y.; Huang, X.; Zeng, Z.; Fan, Z.; Liu, H.; Wang, J.Y.; Zhang, H. Synthesis of few-layer MoS2 nanosheet-coated TiO2 nanobelt heterostructures for enhanced photocatalytic activities. Small 2013, 9, 140–147. [Google Scholar] [CrossRef] [PubMed]
  35. Yin, M.; Wang, Y.; Yu, L.; Wang, H.; Zhu, Y.; Li, C. Ag nanoparticles-modified Fe2O3@ MoS2 core-shell micro/nanocomposites for high-performance NO2 gas detection at low temperature. J. Alloys Compd. 2020, 829, 154471. [Google Scholar] [CrossRef]
  36. Donarelli, M.; Bisti, F.; Perrozzi, F.; Ottaviano, L. Tunable sulfur desorption in exfoliated MoS2 by means of thermal annealing in ultra-high vacuum. Chem. Phys. Lett. 2013, 588, 198–202. [Google Scholar] [CrossRef]
  37. Li, J.; Lu, Y.; Ye, Q.; Cinke, M.; Han, J.; Meyyappan, M. Carbon nanotube sensors for gas and organic vapor detection. Nano Lett. 2003, 3, 929–933. [Google Scholar] [CrossRef]
  38. Dai, Z.; Lee, C.S.; Tian, Y.; Kim, I.D.; Lee, J.H. Highly reversible switching from P-to N-type NO2 sensing in a monolayer Fe2O3 inverse opal film and the associated P–N transition phase diagram. J. Mater. Chem. A 2015, 3, 3372–3381. [Google Scholar] [CrossRef]
  39. Zhang, B.; Liu, G.; Cheng, M.; Gao, Y.; Zhao, L.; Li, S.; Liu, F.M.; Yan, X.; Zhang, T.; Sun, P.; et al. The preparation of reduced graphene oxide-encapsulated α-Fe2O3 hybrid and its outstanding NO2 gas sensing properties at room temperature. Sens. Actuators B 2018, 261, 252–263. [Google Scholar] [CrossRef]
  40. Yao, F.; Duong, D.L.; Lim, S.C.; Yang, S.B.; Hwang, H.R.; Yu, W.J.; Lee, H.; Lee, Y.H. Humidity-assisted selective reactivity between NO2 and SO2 gas on carbon nanotubes. J. Mater. Chem. 2011, 21, 4502–4508. [Google Scholar] [CrossRef]
  41. Deokar, G.; Vancsó, P.; Arenal, R.; Ravaux, F.; Casanova-Cháfer, J.; Llobet, E.; Anna, M.; Densi, V.; Struzzi, C.; Lambin, P.; et al. MoS2–carbon nanotube hybrid material growth and gas sensing. Adv. Mater. Interfaces 2017, 4, 1700801. [Google Scholar] [CrossRef]
  42. Kim, Y.; Kwon, K.C.; Kang, S.; Kim, C.; Kim, T.H.; Hong, S.P.; Park, S.Y.; Suh, J.M.; Choi, M.J.; Han, S.; et al. Two-dimensional NbS2 gas sensors for selective and reversible NO2 detection at room temperature. ACS Sens. 2019, 4, 2395–2402. [Google Scholar] [CrossRef] [PubMed]
  43. Cui, S.; Wen, Z.; Huang, X.; Chang, J.; Chen, J. Stabilizing MoS2 nanosheets through SnO2 nanocrystal decoration for high-performance gas sensing in air. Small 2015, 11, 2305–2313. [Google Scholar] [CrossRef] [PubMed]
  44. Zhang, B.; Cheng, M.; Liu, G.; Gao, Y.; Zhao, L.; Li, S.; Wang, Y.P.; Liu, F.M.; Liang, X.S.; Zhang, T.; et al. Room temperature NO2 gas sensor based on porous Co3O4 slices/reduced graphene oxide hybrid. Sens. Actuators B 2018, 263, 387–399. [Google Scholar] [CrossRef]
  45. Wu, J.; Wu, Z.; Ding, H.; Wei, Y.; Huang, W.; Yang, X.; Li, Z.Y.; Qiu, L.; Wang, X. Flexible, 3D SnS2/Reduced graphene oxide heterostructured NO2 sensor. Sens. Actuators B 2020, 305, 127445. [Google Scholar] [CrossRef]
  46. Li, W.; Chen, R.; Qi, W.; Cai, L.; Sun, Y.; Sun, M.; Li, C.; Yang, X.K.; Xiang, L.; Xie, D.; et al. Reduced graphene oxide/mesoporous ZnO NSs hybrid fibers for flexible, stretchable, twisted, and wearable NO2 E-textile gas sensor. ACS Sens. 2019, 4, 2809–2818. [Google Scholar] [CrossRef]
  47. Han, Y.; Huang, D.; Ma, Y.; He, G.; Hu, J.; Zhang, J.; Hu, N.T.; Su, Y.J.; Zhou, Z.H.; Zhang, Y.F.; et al. Design of hetero-nanostructures on MoS2 nanosheets to boost NO2 room-temperature sensing. ACS Appl. Mater. Interfaces 2018, 10, 22640–22649. [Google Scholar] [CrossRef]
  48. Yang, Z.; Zhang, D.; Chen, H. MOF-derived indium oxide hollow microtubes/MoS2 nanoparticles for NO2 gas sensing. Sens. Actuators B 2019, 300, 127037. [Google Scholar] [CrossRef]
  49. Kim, D.H.; Jung, J.W.; Choi, S.J.; Jang, J.S.; Koo, W.T.; Kim, I.D. Pt nanoparticles functionalized tungsten oxynitride hybrid chemiresistor: Low-temperature NO2 sensing. Sens. Actuators B 2018, 273, 1269–1277. [Google Scholar] [CrossRef]
  50. Zhou, Y.; Liu, G.; Zhu, X.; Guo, Y. Ultrasensitive NO2 gas sensing based on rGO/MoS2 nanocomposite film at low temperature. Sens. Actuators B 2017, 251, 280–290. [Google Scholar] [CrossRef]
  51. Mao, S.; Yu, K.; Cui, S.; Bo, Z.; Lu, G.; Chen, J. A new reducing agent to prepare single-layer, high-quality reduced graphene oxide for device applications. Nanoscale 2011, 3, 2849–2853. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 12 01300 g001 550

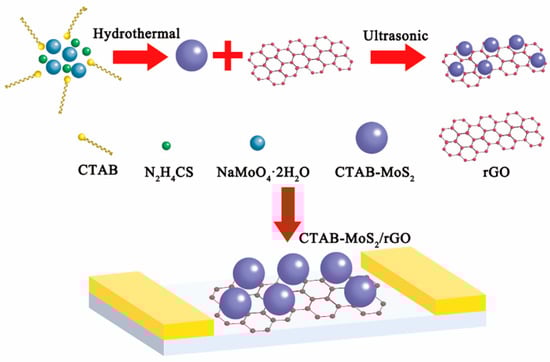

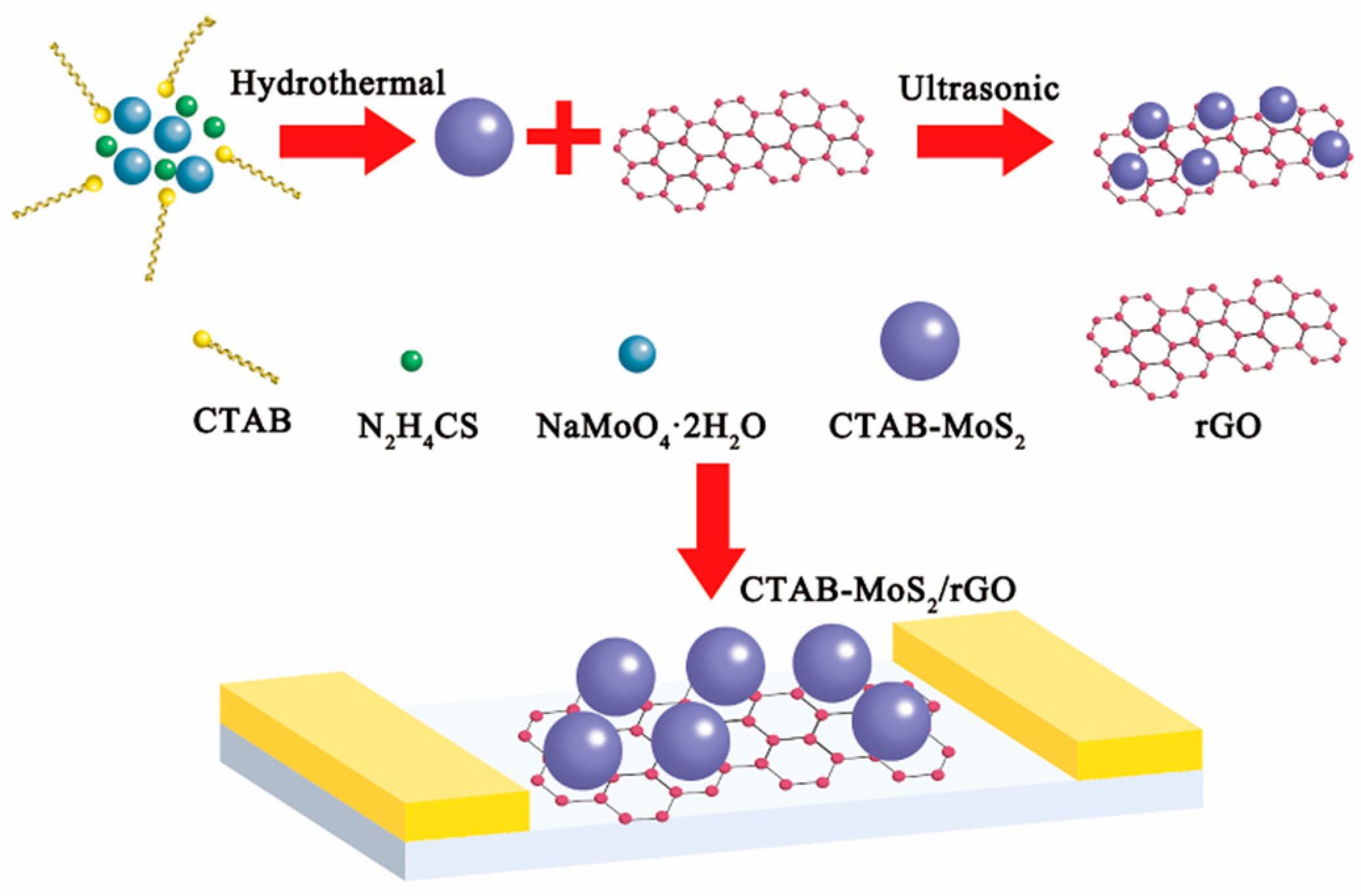

Figure 1. The preparation of CTAB-MoS2/rGO nanohybrid.
Figure 1. The preparation of CTAB-MoS2/rGO nanohybrid.
Nanomaterials 12 01300 g001
Nanomaterials 12 01300 g002 550

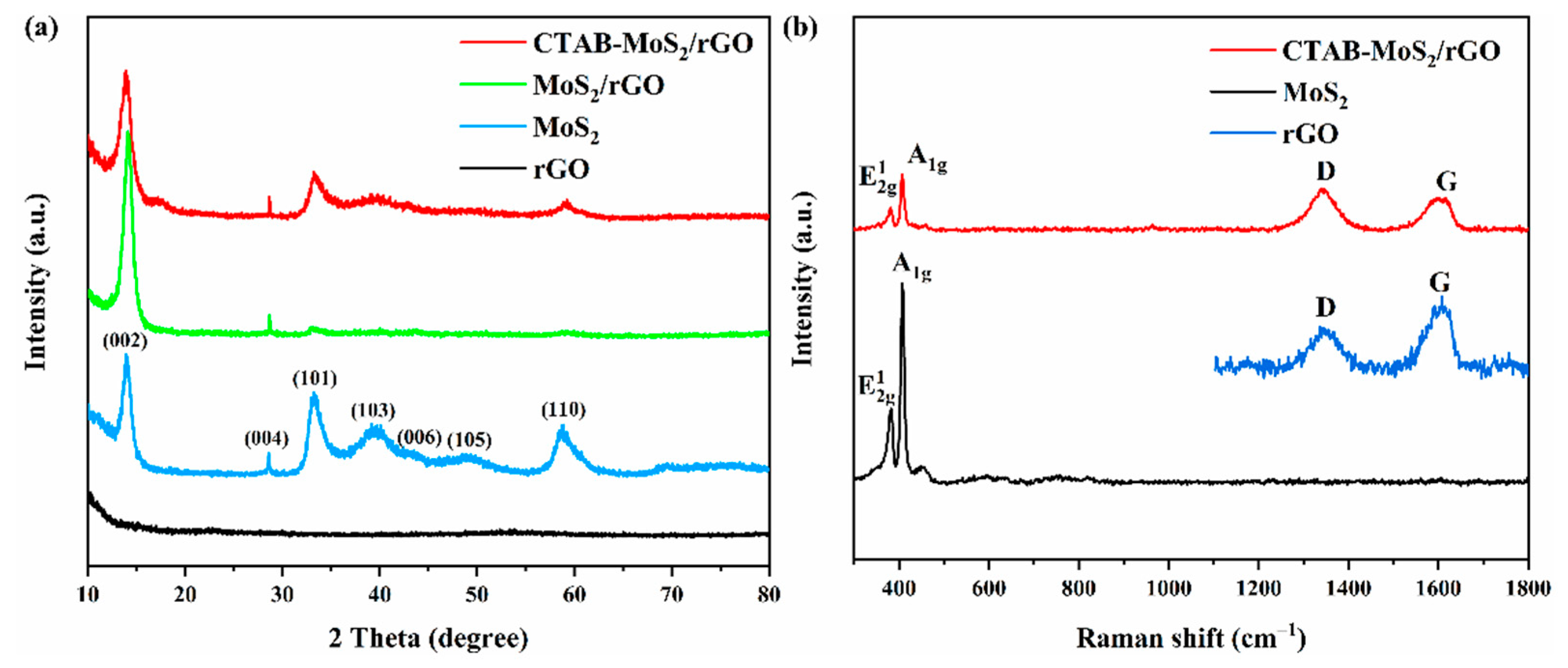

Figure 2. (a) XRD characterization of rGO, MoS2, MoS2/rGO and CTAB-MoS2/rGO; (b) Raman characterization of rGO, MoS2 and CTAB-MoS2/rGO.
Figure 2. (a) XRD characterization of rGO, MoS2, MoS2/rGO and CTAB-MoS2/rGO; (b) Raman characterization of rGO, MoS2 and CTAB-MoS2/rGO.
Nanomaterials 12 01300 g002
Nanomaterials 12 01300 g003 550

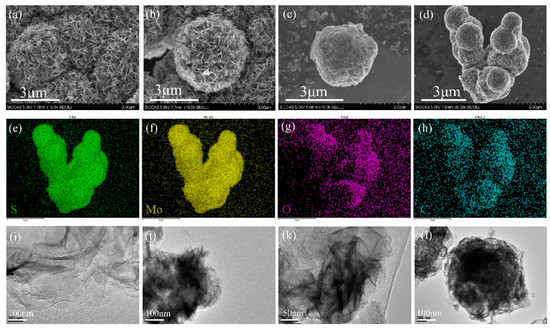

Figure 3. (a,b) SEM images of MoS2. (c,d) SEM images of MoS2/rGO and CTAB- MoS2/rGO. (e–h) The elemental mapping of CTAB-MoS2/rGO. TEM images of (i) rGO, (j) MoS2, (k) MoS2/rGO, (l) CTAB- MoS2/rGO.
Figure 3. (a,b) SEM images of MoS2. (c,d) SEM images of MoS2/rGO and CTAB- MoS2/rGO. (e–h) The elemental mapping of CTAB-MoS2/rGO. TEM images of (i) rGO, (j) MoS2, (k) MoS2/rGO, (l) CTAB- MoS2/rGO.
Nanomaterials 12 01300 g003
Nanomaterials 12 01300 g004 550

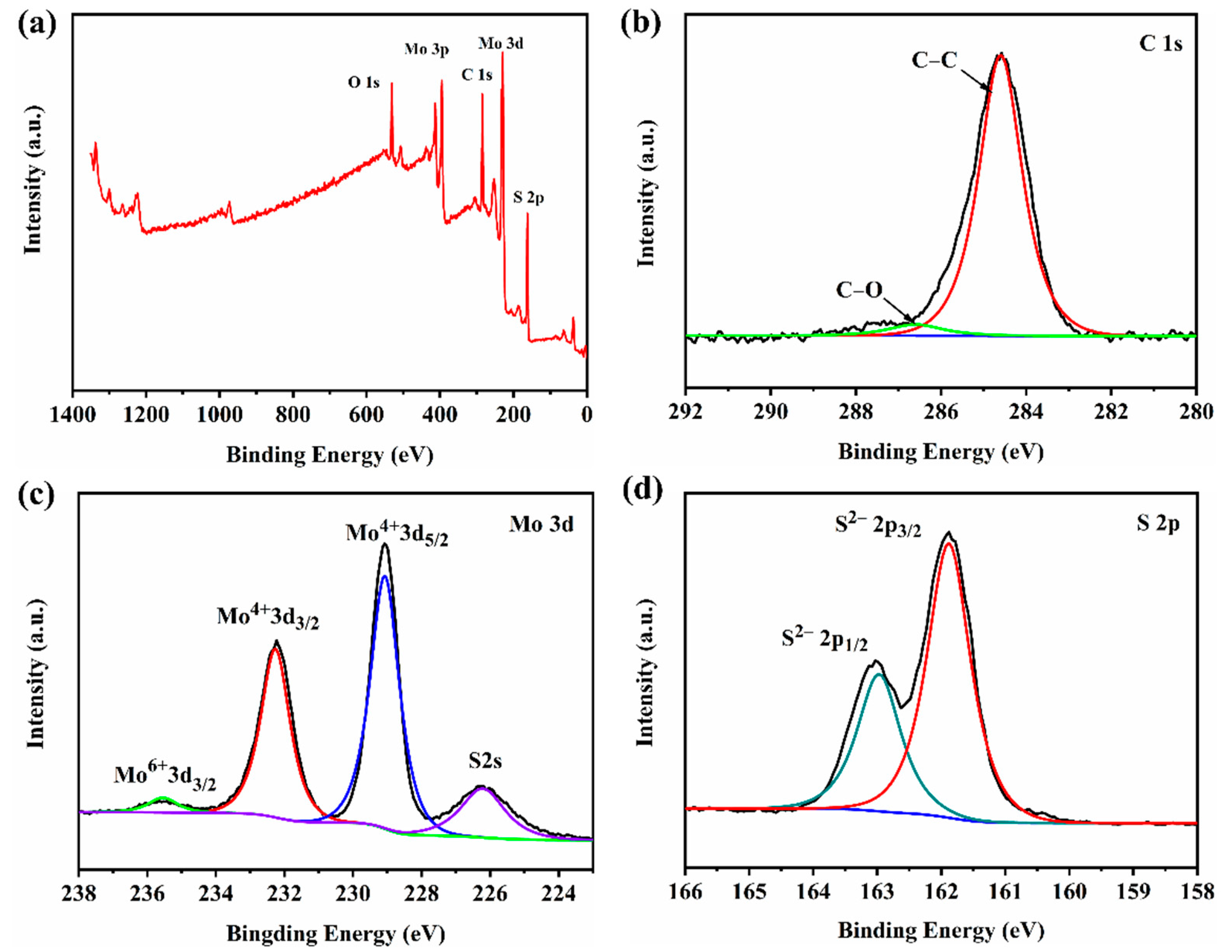

Figure 4. XPS spectra of CTAB-MoS2/rGO: (a) survey spectrum, (b) C 1s, (c) Mo 3d and (d) S 2p.
Figure 4. XPS spectra of CTAB-MoS2/rGO: (a) survey spectrum, (b) C 1s, (c) Mo 3d and (d) S 2p.
Nanomaterials 12 01300 g004
Nanomaterials 12 01300 g005 550

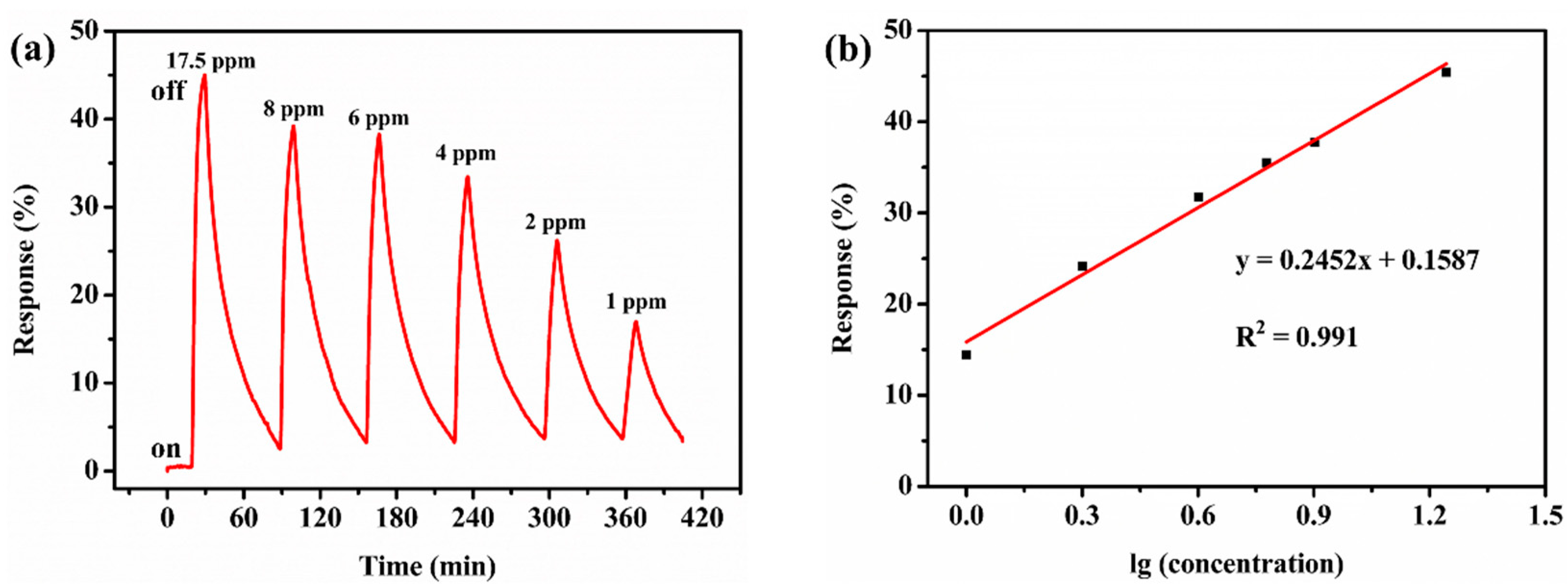

Figure 5. (a) Gas-sensing properties sensitivity of the CTAB-MoS2/rGO toward NO2 with concentration of 1–17.5 ppm at room temperature, RH of 58%. (b) The linear fitting curve between NO2 concentration and response for CTAB-MoS2/rGO.
Figure 5. (a) Gas-sensing properties sensitivity of the CTAB-MoS2/rGO toward NO2 with concentration of 1–17.5 ppm at room temperature, RH of 58%. (b) The linear fitting curve between NO2 concentration and response for CTAB-MoS2/rGO.
Nanomaterials 12 01300 g005
Nanomaterials 12 01300 g006 550

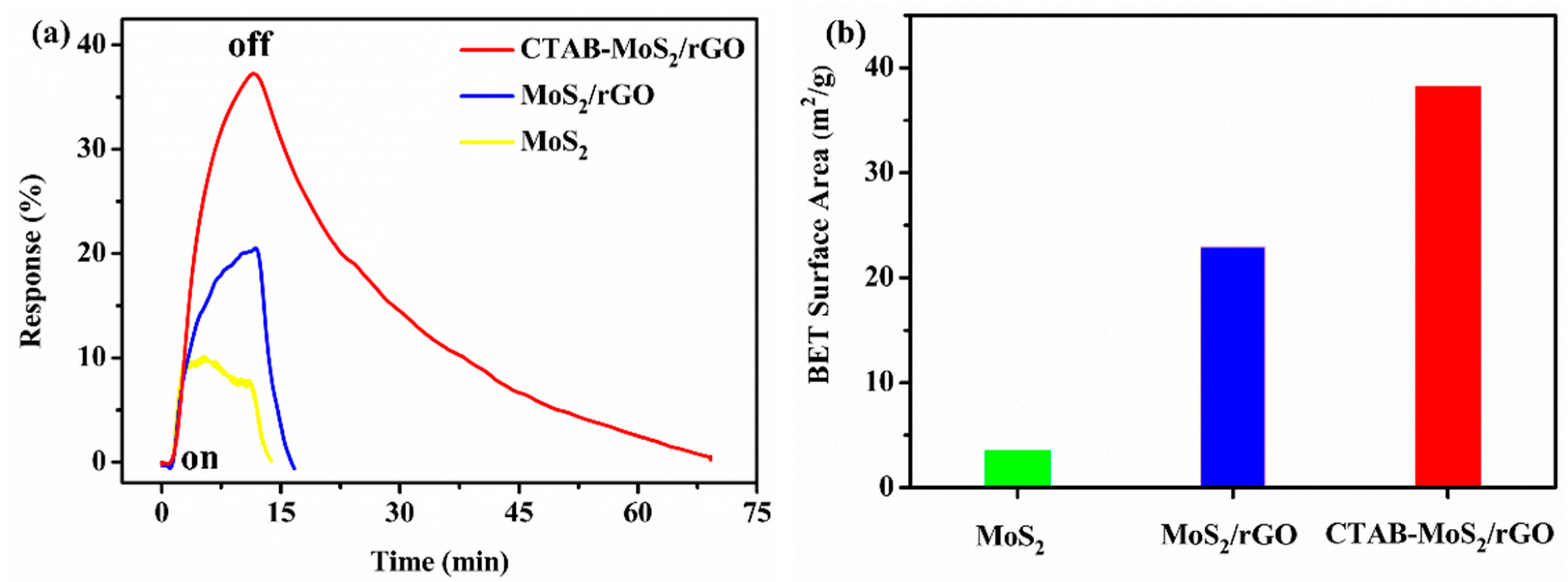

Figure 6. (a) The comparisons of the response and recovery properties of MoS2, MoS2/rGO and CTAB-MoS2/rGO sensors toward 8 ppm NO2 at room temperature and (b) the BET surface area of sensing materials.
Figure 6. (a) The comparisons of the response and recovery properties of MoS2, MoS2/rGO and CTAB-MoS2/rGO sensors toward 8 ppm NO2 at room temperature and (b) the BET surface area of sensing materials.
Nanomaterials 12 01300 g006
Nanomaterials 12 01300 g007 550

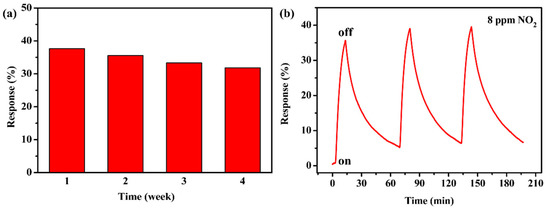

Figure 7. (a) Long-term stability of CTAB-MoS2/rGO sensor toward 8 ppm NO2 for four weeks and (b) repeatability of the CTAB-MoS2/rGO sensor.
Figure 7. (a) Long-term stability of CTAB-MoS2/rGO sensor toward 8 ppm NO2 for four weeks and (b) repeatability of the CTAB-MoS2/rGO sensor.
Nanomaterials 12 01300 g007
Nanomaterials 12 01300 g008 550

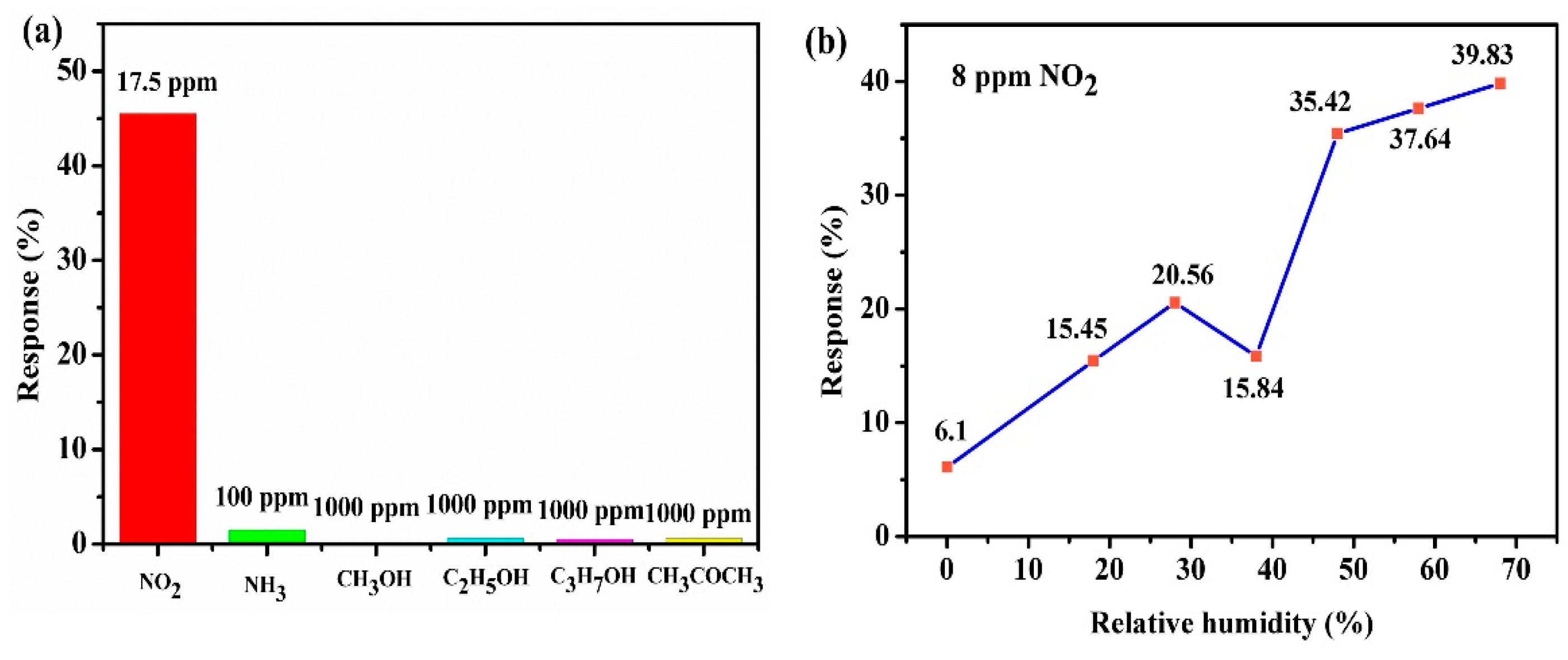

Figure 8. (a) Selectivity of CTAB-MoS2/rGO sensor toward various gases, and (b) humidity influence on response for CTAB-MoS2/rGO sensor toward 8 ppm NO2.
Figure 8. (a) Selectivity of CTAB-MoS2/rGO sensor toward various gases, and (b) humidity influence on response for CTAB-MoS2/rGO sensor toward 8 ppm NO2.
Nanomaterials 12 01300 g008
Nanomaterials 12 01300 g009 550

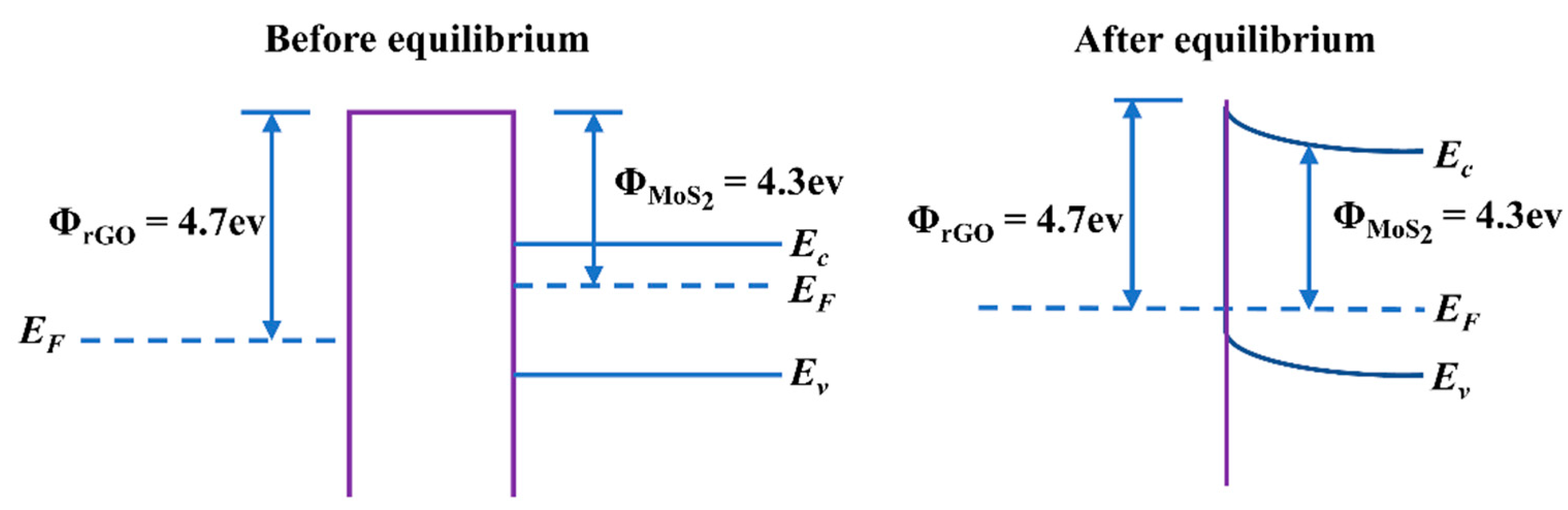

Figure 9. The diagram of energy band at CTAB-MoS2/rGO interfaces.
Figure 9. The diagram of energy band at CTAB-MoS2/rGO interfaces.
Nanomaterials 12 01300 g009
Table
Table 1. Comparison of previously reported TMDs-based sensors, rGO-based sensors and CTAB-MoS2/rGO sensor.
Table 1. Comparison of previously reported TMDs-based sensors, rGO-based sensors and CTAB-MoS2/rGO sensor.
MaterialsTemperature (°C)Concentration (ppm)ResponseLOD
(ppb)		References
MoS2/CNTRT255% a25[41]
ZnO-rGORT525.6% a [9]
NbS2RT518% a241.02[42]
MoS2/SnO2RT55% a500[43]
MoS2/rGORT514.28% a50[32]
rGO/Co3O4RT526.8% a50[44]
SnS2/rGORT849.8% b8.7[45]
rGO/ZnORT1545% a [46]
MoS2/ZnORT53050% c50[47]
In2O3/MoS2RT1050 d8.8[48]
CTAB-MoS2/rGORT837.64% a26.55Our work
a (R0 − Rg)/R0; b ΔG/G0; c (Ig − I0)/I0; d Rg/R0. RT = room temperature.
