Computational Design of Gas Sensors Based on V3S4 Monolayer

by
Ilya V. Chepkasov
1,
Ekaterina V. Sukhanova
2,
Alexander G. Kvashnin
1,*,
Hayk A. Zakaryan
3,
Misha A. Aghamalyan
3,
Yevgeni Sh. Mamasakhlisov
4,5,
Anton M. Manakhov
6,
Zakhar I. Popov
2 and
Dmitry G. Kvashnin
2
1
Center for Energy Science and Technology, Skolkovo Institute of Science and Technology, Bolshoy Boulevard 30, bld. 1, 121205 Moscow, Russia
2
Emanuel Institute of Biochemical Physics RAS, 4 Kosygin Street, 119334 Moscow, Russia
3
Computational Materials Science Laboratory at the Center of Semiconductor Devices and Nanotechnology, Yerevan State University, 1 Alex Manoogian St., Yerevan 0025, Armenia
4
Department of Molecular Physics, Yerevan State University, 1 Alex Manoogian St., Yerevan 0025, Armenia
5
Department of Materials Technology and Structure of Electronic Technique, Russian-Armenian University, 123 Hovsep Emin St., Yerevan 0051, Armenia
6
Aramco Innovations LLC, Aramco Research Center, 119234 Moscow, Russia
*
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(5), 774; https://doi.org/10.3390/nano12050774
Submission received: 2 February 2022 / Revised: 17 February 2022 / Accepted: 22 February 2022 / Published: 25 February 2022
(This article belongs to the Topic Advances and Applications of 2D Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
Novel magnetic gas sensors are characterized by extremely high efficiency and low energy consumption, therefore, a search for a two-dimensional material suitable for room temperature magnetic gas sensors is a critical task for modern materials scientists. Here, we computationally discovered a novel ultrathin two-dimensional antiferromagnet V3S4, which, in addition to stability and remarkable electronic properties, demonstrates a great potential to be applied in magnetic gas sensing devices. Quantum-mechanical calculations within the DFT + U approach show the antiferromagnetic ground state of V3S4, which exhibits semiconducting electronic properties with a band gap of 0.36 eV. A study of electronic and magnetic response to the adsorption of various gas agents showed pronounced changes in properties with respect to the adsorption of NH3, NO2, O2, and NO molecules on the surface. The calculated energies of adsorption of these molecules were −1.25, −0.91, −0.59, and −0.93 eV, respectively. Obtained results showed the prospective for V3S4 to be used as effective sensing materials to detect NO2 and NO, for their capture, and for catalytic applications in which it is required to lower the dissociation energy of O2, for example, in oxygen reduction reactions. The sensing and reducing of NO2 and NO have great importance for improving environmental protection and sustainable development.

1. Introduction

The gas-sensing system is important in various applications including industrial pollutant gas leakage detection, environmental monitoring, medical care, food industry, etc. [1]. Nanomaterials show great performance in this field of technology [2]. Nowadays, the most effective materials for gas sensing belong to the groups of metal-organic framework-based nanostructured materials [3,4] and low-dimensional materials [5,6]. Another type of sensor is based on magnonic sensors with the presence of magnetic nanoparticles [7] and two-dimensional materials [1,8] and it seems to be promising for further development.
Magnetic gas sensors are characterized by greater safety of use, lower working temperatures, and faster response times than traditional gas sensors based on the variation of electronic properties. The change in the magnetic properties of the active material can be detected, for example, by the Hall effect observation, change in magnetization or electron spin orientation, ferromagnetic resonance modification, magneto-optical Kerr effect, and magneto-static wave oscillation effect [9,10].
Two-dimensional materials that belong to the family of transition metal dichalcogenides (TMD) have attracted great interest in the field of gas sensors due to a large surface-to-volume ratio, leading to specific electrical properties. These properties can be strongly modified by the surface adsorbates [11], which is confirmed by recent theoretical studies (MoS2 [12], SnS2 [13], and VS2 [14]). However, there is still a lack of critical information about the real possibility of using TMD monolayers as a magnetic gas sensor component. Most known TMDs are non-magnetic [15,16], but it was shown [17,18,19,20,21,22] that adding point defects or adsorption of non-metallic elements can make them magnetic.
Among the TMD family, the VS2 monolayer has attracted particular interest due to its intrinsic magnetism [23,24,25] which can be tuned by, for example, tensile strain [26]. Ferromagnetism in the VS2 layer was experimentally confirmed at room temperature by Gao et al. [23] where an unusual hybridization of 3d orbitals of V and 3p orbitals of S was also observed. Zhong et al. [27] determined that Curie temperature (Tc) strongly depends on the thickness, and the Tc of single-layer VS2 was determined to be 72 K.
Despite the extensive study of VS2, there is still an open question related to the study of 2D monolayers in the V–S system with compositions differing from VS2. Recent studies have shown that in M–X systems (M = W, Mo, etc.; X = S, Se, Te, etc.), new two-dimensional and non-stoichiometric structures can be formed [28]. There are several studies devoted to vanadium sulfide crystals such as VS4 [29,30], V3S4 [31,32], V5S4 [33], V5S8 [34], and V3S [35] structures in different applications. For example, the bulk V3S4 usually forms a distorted NiAs-type structure with single-layer VS2 building blocks and additional V atoms bonded between two layers with metallic characteristics [36]. Since the properties of two-dimensional materials differ from the bulk ones, this significantly expands the scope of their application. Motivated by the above-mentioned facts, we performed a complex investigation toward designing new two-dimensional V–S phases suitable for magnetic gas sensors. Among the considered earlier structures, we predicted a novel magnetic V3S4 monolayer demonstrating stability as promising for applications as an element of CO and NO molecule magnetic gas sensors.

2. Materials and Methods

The global search for thermodynamically stable 2D compounds in the V–S system was performed by using the variable-composition evolutionary crystal structure prediction algorithm USPEX [37,38,39]. The first 180 structures (first generation) were generated by the operator of random symmetry [39] in the unit cell with up to 16 atoms in the primitive cell. Further generations (120 structures in each) consisted of 20% of the structures of random symmetry [39] and 80% of the structures were generated by the operators of heredity, soft mode mutation, and transmutation.
For each considered compound, the structure was optimized using density functional theory (DFT) [40,41]. The generalized gradient approximation (GGA) was used with the Perdew–Burke–Ernzerhof (PBE) parameterization for the exchange-correlation functional [42] as implemented in the Vienna Ab initio Simulation Package (VASP) 6.1.2 [43,44,45,46]. Ion-electron interaction was described by the augmented plane waves method (PAW) [47], and the cutoff energy of plane waves was set to 500 eV. The partition of the first Brillouin zone into a grid of k-points was carried out within the Monkhorst–Pack scheme [48] with a resolution of 2 π × 0.05   Å − 1 . To consider strong electron correlations between the localized 3d-electrons of V atoms, the GGA + U approach in Dudarev’s formulation [49,50] was applied, where the values of parameter Ueff = U − J varied from 0 to 4 eV. The Grimme corrections (DFT-D3) [51] were applied to take into account van der Waals interactions between the V3S4 surface and molecules.
The phonon density of states for V3S4 was calculated using the finite displacements method as implemented in the PHONOPY program package (version 2.11.0) [52,53] with forces computed by VASP [43,44,45,46]. For phonon calculation, the 4 × 2 × 1 supercell was used. Phonon dispersion curves were plotted using sumo software (version 2.2.5) [54].

3. Results and Discussion

3.1. Crystal Structure Prediction

Two-dimensional compounds in the V–S system were predicted by using the variable-composition evolutionary search as implemented in USPEX [37,38,39] code. The V–S system belongs to strongly correlated systems. Consequently, it is necessary to use the GGA + U approach to correctly describe the stability and electronic properties of V–S compounds, as suggested in [55,56]. As we considered many different compositions and structure types in a single evolutionary search, we could not use one specific Ueff value. Thus, we performed five independent evolutionary searches with different Ueff values from 0 to 4 eV with the step of 1 eV and the resulting convex hulls are summarized in Figure 1. Besides pure compounds, we predicted four thermodynamically stable monolayers with various compositions, namely, V3S, VS, V3S4, and VS2 (see Figure S1 and Table S1). In the resulting convex hull H, polymorphic modification of VS2 becomes less energetically favorable than the T phase at the Ueff value >2 eV, which is consistent with a previous study by Zhuang et al. [55]. At the same time, VS2 and VS composition disappeared from the convex hull at the Ueff value equal to 4 eV and 3 eV, respectively. V3S4 and V3S phases were thermodynamically stable at all considered Ueff parameter values. For all further calculations, we finally employed the value of Ueff = 3 eV [55].

3.2. Novel V3S4 Phase

We predicted a novel monolayer structure of V3S4 that was thermodynamically stable at all considered Ueff values (see Figure 1 and Figure S1). This result was proved by an additional fixed-composition evolutionary search of V3S4 that showed that the obtained structure had the lowest formation energy among other structures with the same composition. Detailed information is presented in the Supplementary Materials. Top and side views of the atomic structure of the novel V3S4 phase are shown in Figure 2a. The V3S4 phase has the cell parameters of a = 3.35 Å, b = 6.75 Å, and γ = 104.35°. The unit cell of the V3S4 monolayer consists of three vanadium atoms, among which one atom exists in octahedral surroundings of sulfur atoms (marked by blue in Figure 2a), and two other vanadium atoms exist in a square pyramidal surrounding (C4v) as marked by green in Figure 2a. Suddenly, one can find analogies of V3S4 monolayer in bulk crystals [57] in which alternation of structural elements of square pyramidal and octahedrally coordinated vanadium atoms are presented. Moreover, the exfoliation of the V3S4 crystal from [33] along the [ 20 1 ¯ ] direction could give a monolayer with the same structure as predicted in our USPEX calculations. Thus, it can be assumed that the presence of a two-dimensional monolayer counterpart of the bulk crystals provides prerequisites for their experimental synthesis.
The dynamical stability of the predicted V3S4 monolayer was studied by calculations of the phonon band structure as shown in Figure 2b. There are minor imaginary modes in the vicinity of the Γ-point in the obtained spectra usually associated with out-of-plane vibrational modes caused by the small supercell size, and therefore, we can conclude the dynamic stability of the predicted novel structure.
To examine in detail the electronic and magnetic properties of the V3S4 phase, we first determined the monolayer’s magnetic ground state. For this aim, we considered the 2 × 1 × 1 supercell of the V3S4 phase in the ferromagnetic (FM) and 10 different antiferromagnetic (AFM) configurations (for more details, see Figure S2 in Supplementary Materials). The comparison of the total energies of these magnetic configurations is shown in Table S2 (Supplementary Materials). The most energetically favorable configuration was noted as AFM10 and the energy difference between the FM and AFM10 configuration was 0.15 eV per unit cell, which is relatively large, indicating the stability of antiferromagnetic configuration. The electronic band structure for the ground state calculation is presented in Figure 2c. Vanadium atoms in octahedral surroundings have a magnetic moment equal to 1.97 μB, while vanadium atoms in the square pyramidal surrounding have a magnetic moment of 2.14 μB. The novel V3S4 monolayer in the AFM magnetic state exhibited semiconducting properties with the band gap of 0.36 eV.
The main feature of V3S4 is the existence of two symmetrically inequivalent vanadium atoms. Furthermore, and more importantly, vanadium atoms in square pyramidal surroundings have a vacant d-orbital that can form a bond with different ligands; for example, with gas molecules, and depending on the binding characteristic, it should lead to a change in cleavage after binding to a gas molecule. This will affect the change in the electronic properties of V3S4, thus, the surface of the V3S4 monolayer is promising as a gas sensor with a large number of adsorption centers.

3.3. Sensing Properties

A study of V3S4 as a potential gas sensor was performed for the cases of the adsorption of CO, CO2, NO, NO2, NH3, H2O, and O2 molecules. For this study, the 4 × 2 × 1 supercell of V3S4 was considered containing 24 vanadium and 32 sulfur atoms. For each molecule, a various number of possible adsorption sites were considered. The most energetically favorable sites for all molecules correspond to the vanadium atom of the outer layer in the square pyramidal surrounding (see Figure S3 in the Supplementary Materials).
Detailed information on the adsorption of different gas molecules on V3S4 nanosheet is presented in Table 1. The energy of adsorption (Ea) was calculated as Ea = E[V3S4 + molecule] − E[V3S4] − E[molecule], where E[V3S4 + molecule] is the energy of the system consisting of the interacting V3S4 monolayer and gas molecule, and E[V3S4] and E[molecule] are the total energies of the V3S4 nanosheet and pristine molecule, respectively. Considering the sign of the charge transferred to the V3S4 monolayer, we can conclude that CO, CO2, NO, NO2, and O2 molecules act as p-type dopants, while NH3 and H2O molecules act as n-type dopants, as indicated by the positive sign of Δq (see Table 1). In systems with strong charge overflow such as in the cases of O2, NO, and NO2 molecules, the sorption of extra electrons at the molecule leads to the occupation of antibonding orbitals increasing the molecule bond length (see Table 1). High values of adsorption energies, except for the CO2 molecule, are related to the pronounced charge redistribution in the interface area. However, in the case of the CO2 molecule, the obtained values of Ea and D and nearly zero charge redistribution suggest weak van der Waals interactions between the molecule and monolayer.
During the adsorption of molecules, except for O2 and NO2, the surrounding of the vanadium atom changes from a square pyramid to an octahedral one. In the case of absorbed oxygen or nitrogen dioxide molecules, the vanadium atom formed the capped trigonal prismatic coordination because both oxygen or nitrogen and oxygen atoms interact with vanadium atoms.
For a detailed analysis of the change in the electronic configuration of the sorption site of the vanadium atom, we analyzed the density of electronic states (Figure 3) and electronic band structures (Figure S3 in Supplementary Materials). Despite the relatively high binding energy between the molecule and the substrate, molecule sorption does not always lead to a significant change in magnetic and electronic properties, as exemplified by the cases of CO, NH3, and H2O molecules sorption because their HOMO and LUMO states were located quite far away from the band gap of the V3S4 nanosheet. Therefore, the V3S4 monolayer is not appropriate for application as a detector of CO, CO2, NH3, and H2O molecules.
It is noteworthy that the HOMO and LUMO states of NO2 molecules are also located quite far from the band gap of V3S4, however, its sorption leads to the emergence of an unoccupied electronic state in the band gap of V3S4 related mostly with vanadium atoms, which leads to a band gap reduction to 0.14 eV. At the sorbed configuration of NO2 molecules on the V3S4 surface, the geometry of the molecule dramatically changed due to the electron donation from V3S4 with filling of the antibonding orbital. This led to elongation of one of the N–O bonds to 1.42 Å. Such a feature indicates not only sensoric applications of V3S4, but can also be useful for the catalytic reduction of NO2 [60].
In contrast, at the adsorption of O2 and NO molecules, some electronic levels in the band gap were observed. The sorption of the oxygen molecules led to the appearance of unoccupied electronic states above the valence band maximum for one spin channel and band gap reduction to 0.24 eV. The molecule attracts electron density (0.473 e) due to high electronegativity to an antibonding orbital, which leads to an increase in O–O distance by 0.09 Å in comparison with the pure O2 molecule. This allows one to conclude about the viability of V3S4 in catalytic applications in which it is required to lower the dissociation energy of molecular oxygen, for example, in oxygen reduction reactions [61,62].
In the case of NO molecule sorption, occupied states close to the valence band maximum and unoccupied states close to the Fermi level for one spin channel were observed, leading to the band gap reduction of 0.14 eV. The magnetic moment of the vanadium atom in a square pyramidal surrounding located under adsorbed NO molecule changes from 2.14 μB to 1.67 μB. Taking into account that the electric conductivity σ (which is the main parameter determining the sensitivity of the sensor) is proportional to σ~exp(-Eg/kBT) (where Eg is the band gap, kB is the Boltzmann’s constant, and T is the temperature), we can conclude that due to significant band gap reduction caused by the sorption of NO and NO2 molecules, the V3S4 monolayer is a prospective material for NO and NO2 molecule detection. The detection of nitric oxide and nitric dioxide is of great importance for environmental protection as these harmful gases are emitted from the upstream of oil and gas production [63]. The development of novel materials that can be used both as sensors and catalysts for NO and NO2 reduction will positively affect sustainable development.

4. Conclusions

In this work, we performed a variable-composition evolutionary search for new stable two-dimensional V–S monolayers with different Ueff values (from 0 to 4 eV) via the USPEX algorithm. The new 2D V3S4 structure was found to be thermodynamically and dynamically stable, showing intriguing electronic and magnetic properties for sensing applications. We found that the V3S4 monolayer exists in an antiferromagnetic ground state and shows semiconducting behavior with a band gap of 0.36 eV. These features signal that the V3S4 monolayer can be used as a gas sensor for different gas agents. We proved this idea by calculating the energies of adsorption and electronic properties of V3S4 with adsorbed CO, CO2, NO, NO2, NH3, H2O, and O2 molecules. Detailed analysis of the electronic properties of V3S4 showed its prospective to be used as effective sensing materials for NO2 and NO gas molecules and as a material for catalytic applications in which it is required to lower the dissociation energy of O2, for example, in the oxygen reduction reactions. The obtained results pave the way for using transition metal chalcogenide monolayers in gas sensors.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12050774/s1, Figure S1: The atomic structures of predicted thermodynamically stable phases (except for V3S4); Table S1: The lattice parameters of predicted V–S structures; Figure S2: Considered antiferromagnetic configurations for 2 × 1 × 1 supercell of the V3S4 phase; Table S2: The energy difference between considered magnetic configurations and the most energetically favorable AFM10 configuration and absolute values of magnetic moment on vanadium atoms in square pyramidal (Vsq_pyr) and octahedral (Voct) surroundings; Figure S3: The most energetically favorable configuration of considered gas molecules (O2, NO, NO2, NH3, CO, CO2, and H2O) on the V3S4 surface and corresponding electronic band structures before and after the gas molecule adsorption. Spin up and down bands are shown by red and blue colors, respectively. The red, yellow, blue, brown, grey and green colors representing vanadium, sulfur, oxygen, carbon, nitrogen and hydrogen atoms are depicted, respectively

Author Contributions

Conceptualization, Z.I.P. and A.G.K.; Formal analysis, E.V.S. and A.M.M.; Investigation, I.V.C., E.V.S., H.A.Z., M.A.A., Y.S.M. and D.G.K.; Data curation, A.G.K.; Writing—original draft preparation, I.V.C.; Writing—review and editing, E.V.S., A.G.K., A.M.M. and Z.I.P.; Visualization, E.V.S.; Supervision, Z.I.P.; Funding acquisition, Z.I.P. All authors have read and agreed to the published version of the manuscript.

Funding

The reported study was funded by RFBR and SC RA, project No. 20-53-05009 Arm_a and 20RF-185.

Data Availability Statement

Not applicable.

Acknowledgments

The authors thank Sergey Streltsov for the fruitful discussion and the Center for Information and Computing of Novosibirsk State University for computational resources.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Shinde, P.V.; Rout, C.S. Magnetic gas sensing: Working principles and recent developments. Nanoscale Adv. 2021, 3, 1551–1568. [Google Scholar] [CrossRef]
  2. Kiani, M.; Rehman, M.U.; Tian, X.; Yakobson, B. Two-dimensional nanomaterials for the development of efficient gas sensors: Recent advances, challenges, and future perspectives. Adv. Mater. Technol. 2021, 2101252. [Google Scholar] [CrossRef]
  3. Lin, T.; Lv, X.; Hu, Z.; Xu, A.; Feng, C. Semiconductor metal oxides as chemoresistive sensors for detecting volatile organic compounds. Sensors 2019, 19, 233. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Zhang, J.; Liu, X.; Neri, G.; Pinna, N. Nanostructured materials for room-temperature gas sensors. Adv. Mater. 2016, 28, 795–831. [Google Scholar] [CrossRef] [PubMed]
  5. Liu, X.; Ma, T.; Pinna, N.; Zhang, J. Two-dimensional nanostructured materials for gas sensing. Adv. Funct. Mater. 2017, 27, 1702168. [Google Scholar] [CrossRef]
  6. Joshi, N.; Hayasaka, T.; Liu, Y.; Liu, H.; Oliveira, O.N.; Lin, L. A review on chemiresistive room temperature gas sensors based on metal oxide nanostructures, graphene and 2D transition metal dichalcogenides. Microchim. Acta 2018, 185, 213. [Google Scholar] [CrossRef]
  7. Matatagui, D.; Kolokoltsev, O.V.; Qureshi, N.; Mejía-Uriarte, E.V.; Saniger, J.M. A magnonic gas sensor based on magnetic nanoparticles. Nanoscale 2015, 7, 9607–9613. [Google Scholar] [CrossRef]
  8. Sukhanova, E.; Visotin, M.A.; Popov, Z.I.; Sorokin, P.B. Stability and gas sensing properties of Ta2X3M8 (X = Pd, Pt; M = S, Se) nanoribbons: A first-principles investigation. Phys. Chem. Chem. Phys. 2020, 22, 14651–14659. [Google Scholar] [CrossRef]
  9. Ciprian, R.; Baratto, C.; Giglia, A.; Koshmak, K.; Vinai, G.; Donarelli, M.; Ferroni, M.; Campanini, M.; Comini, E.; Ponzoni, A. Magnetic gas sensing exploiting the magneto-optical kerr effect on ZnO nanorods/Co layer system. RSC Adv. 2016, 6, 42517–42521. [Google Scholar] [CrossRef]
  10. Lin, G.; Makarov, D.; Schmidt, O.G. Magnetic sensing platform technologies for biomedical applications. Lab Chip 2017, 17, 1884–1912. [Google Scholar] [CrossRef]
  11. Zheng, W.; Liu, X.; Xie, J.; Lu, G.; Zhang, J. Emerging van der Waals junctions based on TMDs materials for advanced gas sensors. Coord. Chem. Rev. 2021, 447, 214151. [Google Scholar] [CrossRef]
  12. Zheng, W.; Xu, Y.; Zheng, L.; Yang, C.; Pinna, N.; Liu, X.; Zhang, J. MoS2 Van der Waals p–n junctions enabling highly selective room-temperature NO2 sensor. Adv. Funct. Mater. 2020, 30, 2000435. [Google Scholar] [CrossRef]
  13. Zhao, R.; Wang, T.; Zhao, M.; Xia, C.; An, Y.; Wei, S.; Dai, X. External electric field and strains facilitated nitrogen dioxide gas sensing properties on 2D monolayer and bilayer SnS2 nanosheets. Appl. Surf. Sci. 2019, 491, 128–137. [Google Scholar] [CrossRef]
  14. Zhao, R.; Wang, T.; An, Y.; Dai, X.; Xia, C. VS2 nanosheet as a promising candidate of recycle and reuse NO2 gas sensor and capturer: A DFT study. J. Phys. Condens. Matter 2021, 33, 165501. [Google Scholar] [CrossRef]
  15. Ataca, C.; Şahin, H.; Ciraci, S. Stable, single-layer MX2 transition-metal oxides and dichalcogenides in a honeycomb-like structure. J. Phys. Chem. C 2012, 116, 8983–8999. [Google Scholar] [CrossRef]
  16. Lv, R.; Robinson, J.A.; Schaak, R.E.; Sun, D.; Sun, Y.; Mallouk, T.E.; Terrones, M. Transition metal dichalcogenides and beyond: Synthesis, properties, and applications of single- and few-layer nanosheets. Acc. Chem. Res. 2015, 48, 56–64. [Google Scholar] [CrossRef]
  17. Shidpour, R.; Manteghian, M. A density functional study of strong local magnetism creation on MoS2 nanoribbon by sulfur vacancy. Nanoscale 2010, 2, 1429–1435. [Google Scholar] [CrossRef]
  18. He, J.; Wu, K.; Sa, R.; Li, Q.; Wei, Y. Magnetic properties of nonmetal atoms absorbed MoS2 monolayers. Appl. Phys. Lett. 2010, 96, 082504. [Google Scholar] [CrossRef]
  19. Wang, Z.; Zhao, K.; Li, H.; Liu, Z.; Shi, Z.; Lu, J.; Suenaga, K.; Joung, S.-K.; Okazaki, T.; Jin, Z.; et al. Ultra-narrow WS2 nanoribbons encapsulated in carbon nanotubes. J. Mater. Chem. 2010, 21, 171–180. [Google Scholar] [CrossRef]
  20. Li, Y.; Zhou, Z.; Zhang, S.; Chen, Z. MoS2 nanoribbons: High stability and unusual electronic and magnetic properties. J. Am. Chem. Soc. 2008, 130, 16739–16744. [Google Scholar] [CrossRef]
  21. Ma, Y.; Dai, Y.; Guo, M.; Niu, C.; Lu, J.; Huang, B. Electronic and magnetic properties of perfect, vacancy-doped, and nonmetal adsorbed MoSe2, MoTe2 and WS2 monolayers. Phys. Chem. Chem. Phys. 2011, 13, 15546–15553. [Google Scholar] [CrossRef]
  22. Ma, Y.; Dai, Y.; Guo, M.; Niu, C.; Huang, B. Graphene adhesion on MoS2 monolayer: An ab initio study. Nanoscale 2011, 3, 3883–3887. [Google Scholar] [CrossRef] [PubMed]
  23. Gao, D.; Xue, Q.; Mao, X.; Wang, W.; Xu, Q.; Xue, D. Ferromagnetism in ultrathin VS2 nanosheets. J. Mater. Chem. C 2013, 1, 5909–5916. [Google Scholar] [CrossRef]
  24. Ma, Y.; Dai, Y.; Guo, M.; Niu, C.; Zhu, Y.; Huang, B. Evidence of the existence of magnetism in pristine VX2 monolayers (X = S, Se) and their strain-induced tunable magnetic properties. ACS Nano 2012, 6, 1695–1701. [Google Scholar] [CrossRef] [PubMed]
  25. Coelho, P.M.; Nguyen Cong, K.; Bonilla, M.; Kolekar, S.; Phan, M.-H.; Avila, J.; Asensio, M.C.; Oleynik, I.I.; Batzill, M. Charge density wave state suppresses ferromagnetic ordering in VSe2 monolayers. J. Phys. Chem. C 2019, 123, 14089–14096. [Google Scholar] [CrossRef]
  26. Ma, Y.; Dai, Y.; Guo, M.; Niu, C.; Huang, B. Intriguing behavior of halogenated two-dimensional tin. J. Phys. Chem. C 2012, 116, 12977–12981. [Google Scholar] [CrossRef]
  27. Zhong, M.; Li, Y.; Xia, Q.; Meng, X.; Wu, F.; Li, J. Ferromagnetism in VS2 nanostructures: Nanoflowers versus ultrathin nanosheets. Mater. Lett. 2014, 124, 282–285. [Google Scholar] [CrossRef]
  28. Joseph, T.; Ghorbani-Asl, M.; Kvashnin, A.G.; Larionov, K.V.; Popov, Z.I.; Sorokin, P.B.; Krasheninnikov, A.V. Nonstoichiometric phases of two-dimensional transition-metal dichalcogenides: From chalcogen vacancies to pure metal membranes. J. Phys. Chem. Lett. 2019, 10, 6492–6498. [Google Scholar] [CrossRef]
  29. Zhu, Q.; Xiao, Q.; Zhang, B.; Yan, Z.; Liu, X.; Chen, S.; Ren, Z.; Yu, Y. VS4 with a chain crystal structure used as an intercalation cathode for aqueous Zn-ion batteries. J. Mater. Chem. A 2020, 8, 10761–10766. [Google Scholar] [CrossRef]
  30. Kozlova, M.N.; Mironov, Y.V.; Grayfer, E.D.; Smolentsev, A.I.; Zaikovskii, V.I.; Nebogatikova, N.A.; Podlipskaya, T.Y.; Fedorov, V.E. Synthesis, crystal structure, and colloidal dispersions of vanadium tetrasulfide (VS4). Chem. Eur. J. 2015, 21, 4639–4645. [Google Scholar] [CrossRef]
  31. Knecht, M.; Ebert, H.; Bensch, W. Electronic and magnetic properties of V5S8. J. Phys. Condens. Matter 1998, 10, 9455–9463. [Google Scholar] [CrossRef]
  32. Kitaoka, Y.; Yasuoka, H. NMR investigations on the spin fluctuations in itinerant antiferromagnets. II. V3S4 and V5S8. J. Phys. Soc. Jpn. 1980, 48, 1949–1956. [Google Scholar] [CrossRef]
  33. Jellinek, F. Structural study of vanadium sulfides. Rev. Chim. Minér. 1974, 11, 624–636. [Google Scholar]
  34. Kawada, I.; Nakano-Onoda, M.; Ishii, M.; Saeki, M.; Nakahira, M. Crystal structures of V3S4 and V5S8. J. Solid State Chem. 1975, 15, 246–252. [Google Scholar] [CrossRef]
  35. Materials Project. Available online: https://materialsproject.org/ (accessed on 20 June 2021).
  36. Bensch, W.; Ebert, H. The electronic bandstructure of hexagonal V3S4 isotypic with Nb3S4. Solid State Commun. 1994, 89, 235–238. [Google Scholar] [CrossRef]
  37. Oganov, A.R.; Glass, C.W. Crystal structure prediction using ab initio evolutionary techniques: Principles and applications. J. Chem. Phys. 2006, 124, 244704. [Google Scholar] [CrossRef] [Green Version]
  38. Oganov, A.R.; Lyakhov, A.O.; Valle, M. How evolutionary crystal structure prediction works—And why. Acc. Chem. Res. 2011, 44, 227–237. [Google Scholar] [CrossRef]
  39. Lyakhov, A.O.; Oganov, A.R.; Stokes, H.T.; Zhu, Q. New developments in evolutionary structure prediction algorithm USPEX. Comput. Phys. Commun. 2013, 184, 1172–1182. [Google Scholar] [CrossRef]
  40. Hohenberg, P.; Kohn, W. Inhomogeneous electron gas. Phys. Rev. 1964, 136, B864–B871. [Google Scholar] [CrossRef] [Green Version]
  41. Kohn, W.; Sham, L.J. Self-consistent equations including exchange and correlation effects. Phys. Rev. 1965, 140, A1133–A1138. [Google Scholar] [CrossRef] [Green Version]
  42. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 1996, 77, 3865–3868. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Kresse, G.; Hafner, J. Ab initio molecular dynamics for liquid metals. Phys. Rev. B 1993, 47, 558–561. [Google Scholar] [CrossRef]
  44. Kresse, G.; Hafner, J. Ab initio molecular-dynamics simulation of the liquid-metal—Amorphous-semiconductor transition in germanium. Phys. Rev. B 1994, 49, 14251–14269. [Google Scholar] [CrossRef] [PubMed]
  45. Kresse, G.; Furthmüller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys. Rev. B 1996, 54, 11169–11186. [Google Scholar] [CrossRef] [PubMed]
  46. Kresse, G.; Furthmüller, J. Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set. Comput. Mater. Sci. 1996, 6, 15–50. [Google Scholar] [CrossRef]
  47. Blöchl, P.E. Projector augmented-wave method. Phys. Rev. B 1994, 50, 17953–17979. [Google Scholar] [CrossRef] [Green Version]
  48. Monkhorst, H.J.; Pack, J.D. Special points for Brillouin-zone integrations. Phys. Rev. B 1976, 13, 5188–5192. [Google Scholar] [CrossRef]
  49. Anisimov, V.I.; Zaanen, J.; Andersen, O.K. Band theory and Mott insulators: Hubbard U instead of Stoner I. Phys. Rev. B 1991, 44, 943–954. [Google Scholar] [CrossRef] [Green Version]
  50. Dudarev, S.L.; Botton, G.A.; Savrasov, S.Y.; Humphreys, C.J.; Sutton, A.P. Electron-energy-loss spectra and the structural stability of nickel oxide: An LSDA + U study. Phys. Rev. B 1998, 57, 1505–1509. [Google Scholar] [CrossRef]
  51. Grimme, S.; Antony, J.; Ehrlich, S.; Krieg, H. A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. J. Chem. Phys. 2010, 132, 154104. [Google Scholar] [CrossRef] [Green Version]
  52. Togo, A.; Tanaka, I. First principles phonon calculations in materials science. Scr. Mater. 2015, 108, 1–5. [Google Scholar] [CrossRef] [Green Version]
  53. Togo, A.; Oba, F.; Tanaka, I. First-principles calculations of the ferroelastic transition between rutile-type and CaCl2-type SiO2 at high pressures. Phys. Rev. B 2008, 78, 134106. [Google Scholar] [CrossRef] [Green Version]
  54. Ganose, A.M.; Jackson, A.J.; Scanlon, D.O. Sumo: Command-line tools for plotting and analysis of periodic*ab initio* calculations. J. Open Source Softw. 2018, 3, 717. [Google Scholar] [CrossRef]
  55. Zhuang, H.L.; Hennig, R.G. Stability and magnetism of strongly correlated single-layer VS2. Phys. Rev. B 2016, 93, 054429. [Google Scholar] [CrossRef] [Green Version]
  56. Esters, M.; Hennig, R.G.; Johnson, D.C. Dynamic instabilities in strongly correlated VSe2 monolayers and bilayers. Phys. Rev. B 2017, 96, 235147. [Google Scholar] [CrossRef] [Green Version]
  57. Bensch, W.; Koy, J. Structure of hexagonal V3S4 determined at three different temperatures. Acta Crystallogr. Sect. C Cryst. Struct. Commun. 1993, 49, 1133–1135. [Google Scholar] [CrossRef]
  58. Bader, R.F. Atoms in molecules. Acc. Chem. Res. 1985, 18, 9–15. [Google Scholar] [CrossRef]
  59. Henkelman, G.A.; Arnaldsson, A.; Jónsson, H. A fast and robust algorithm for Bader decomposition of charge density. Comput. Mater. Sci. 2006, 36, 354–360. [Google Scholar] [CrossRef]
  60. Wang, X.; Du, X.; Yang, G.; Xue, J.; Chen, Y.; Zhang, L. Chemisorption of NO2 on V-based SCR catalysts: A fundamental study toward the mechanism of “Fast SCR” reaction. J. Phys. Chem. C 2019, 123, 20451–20458. [Google Scholar] [CrossRef]
  61. Sun, H.; Wang, M.; Zhang, S.; Liu, S.; Shen, X.; Qian, T.; Niu, X.; Xiong, J.; Yan, C. Boosting oxygen dissociation over bimetal sites to facilitate oxygen reduction activity of zinc-air battery. Adv. Funct. Mater. 2021, 31, 2006533. [Google Scholar] [CrossRef]
  62. Wan, H.; Jensen, A.W.; Escudero-Escribano, M.; Rossmeisl, J. Insights in the oxygen reduction reaction: From metallic electrocatalysts to diporphyrins. ACS Catal. 2020, 10, 5979–5989. [Google Scholar] [CrossRef]
  63. Gonzalez, D.J.X.; Francis, C.K.; Shaw, G.M.; Cullen, M.R.; Baiocchi, M.; Burke, M. Upstream oil and gas production and ambient air pollution in California. Sci. Total Environ. 2022, 806, 150298. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 12 00774 g001 550

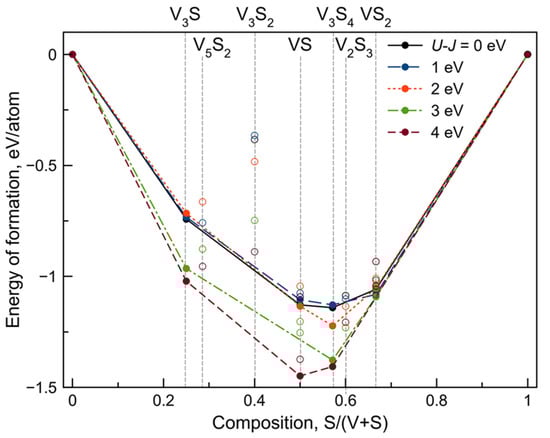

Figure 1. Calculated convex hulls of the V–S system with different Ueff values.
Figure 1. Calculated convex hulls of the V–S system with different Ueff values.
Nanomaterials 12 00774 g001
Nanomaterials 12 00774 g002 550

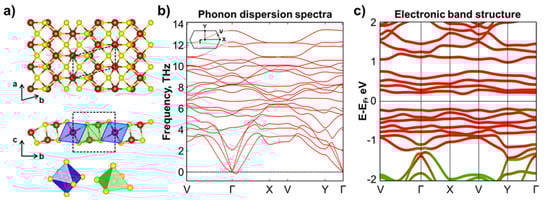

Figure 2. Newly predicted V3S4 monolayer: (a) top and side views of the atomic structure (color legend: V—red; S—yellow); (b) phonon band structure; (c) electronic band structure of the most energetically favorable AFM configuration. The contributions from vanadium and sulfur atoms are indicated with red and green colors, respectively.
Figure 2. Newly predicted V3S4 monolayer: (a) top and side views of the atomic structure (color legend: V—red; S—yellow); (b) phonon band structure; (c) electronic band structure of the most energetically favorable AFM configuration. The contributions from vanadium and sulfur atoms are indicated with red and green colors, respectively.
Nanomaterials 12 00774 g002
Nanomaterials 12 00774 g003 550

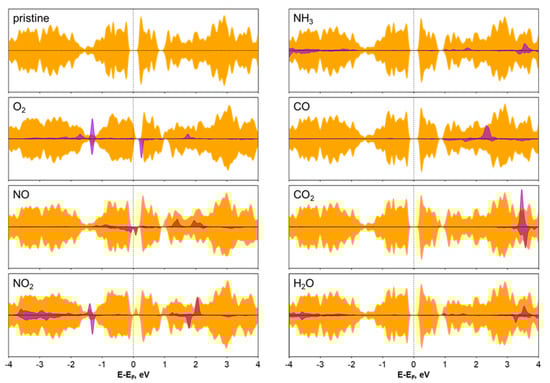

Figure 3. The density of electronic states of the V3S4 monolayer before and after the adsorption of CO, CO2, H2O, O2, NH3, NO, and NO2 gas molecules. Orange and violet colors denote the contribution from the V3S4 monolayer and gas molecules, respectively. The Fermi level shifted to zero. The contribution from gas molecules was enlarged by 4 times for CO, CO2, O2, NO, and NO2 molecules and by 20 times for the H2O and NH3 molecules.
Figure 3. The density of electronic states of the V3S4 monolayer before and after the adsorption of CO, CO2, H2O, O2, NH3, NO, and NO2 gas molecules. Orange and violet colors denote the contribution from the V3S4 monolayer and gas molecules, respectively. The Fermi level shifted to zero. The contribution from gas molecules was enlarged by 4 times for CO, CO2, O2, NO, and NO2 molecules and by 20 times for the H2O and NH3 molecules.
Nanomaterials 12 00774 g003
Table
Table 1. Characteristics of the most energetically favorable adsorption sites in the V3S4 nanosheet with different molecules adsorbed to the surface. Ea is the energy of adsorption; D is the perpendicular distance between molecule and adsorption site (V atom); α0 and α are the bond angles in V-shaped molecules before and after adsorption; d0 and d are the molecules bond lengths before and after adsorption; and Δq is the change in charge of the molecule between states before and after adsorption (within the Bader theory calculation [58,59]).
Table 1. Characteristics of the most energetically favorable adsorption sites in the V3S4 nanosheet with different molecules adsorbed to the surface. Ea is the energy of adsorption; D is the perpendicular distance between molecule and adsorption site (V atom); α0 and α are the bond angles in V-shaped molecules before and after adsorption; d0 and d are the molecules bond lengths before and after adsorption; and Δq is the change in charge of the molecule between states before and after adsorption (within the Bader theory calculation [58,59]).
MoleculeEa (eV)D (Å)α0 (°)α (°)d0 (Å)d (Å)Δq (e)
CO−0.822.11--1.141.140.069
CO2−0.262.39179.97179.481.171.170.007
H2O−0.832.23104.35106.480.970.97−0.051
O2−0.592.04--1.231.320.473
NH3−1.252.22106.58/106.57/106.56108.49/108.63/107.591.021.02−0.114
NO−0.931.87--1.161.170.255
NO2−0.911.91133.9111.371.211.42/1.190.506
