Hollow Iron Oxide Nanospheres Obtained through a Combination of Atomic Layer Deposition and Electrospraying Technologies

by
Paulina Márquez
1,
Cristian Patiño Vidal
2,3,
Alejandro Pereira
4,
Leonardo Vivas
5,
Juan Luis Palma
1,2,
Carol López de Dicastillo
6 and
Juan Escrig
2,5,*
1
School of Engineering, Central University of Chile, Santiago 8330601, Chile
2
Center for the Development of Nanoscience and Nanotechnology (CEDENNA), Santiago 9170124, Chile
3
Packaging Innovation Center (LABEN), University of Santiago de Chile (USACH), Santiago 9170201, Chile
4
Departament of Sciences, Faculty of Liberal Arts, Adolfo Ibañez University, Santiago 7941169, Chile
5
Department of Physics, University of Santiago de Chile (USACH), Santiago 9170124, Chile
6
Packaging Laboratory, Institute of Agrochemistry and Food Technology (IATA-CSIC), 46980 Paterna, Spain
*
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(18), 3180; https://doi.org/10.3390/nano12183180
Submission received: 7 August 2022 / Revised: 1 September 2022 / Accepted: 7 September 2022 / Published: 13 September 2022
(This article belongs to the Section Nanofabrication and Nanomanufacturing)
Browse Figures
Versions Notes

Abstract

:
In the present study, we report on the successful synthesis of hollow iron oxide nanospheres. The hollow Fe3O4 nanospheres were synthesized following a four-step procedure: electrospraying spherical PVP particles, coating these particles with alumina (Al2O3) and hematite (Fe2O3) through atomic layer deposition and, finally, a thermal reduction process to degrade the polymer (PVP) and convert hematite (Fe2O3) into magnetite (Fe3O4). A structural analysis using X-ray diffraction (XRD) confirmed the effectiveness of the thermal reduction process. A morphological analysis confirmed that the four-step procedure allowed for the obtainment of hollow iron oxide nanospheres, even though the reduction process caused a contraction in the diameter of the particles of almost 300 nm, but did not affect the thickness of the walls of the hollow spheres that remained at approximately 15 nm. Magnetic properties of the hollow iron oxide nanospheres enable their use in applications where the agglomeration of magnetic nanostructures in liquid media is commonly not allowed, such as in drug encapsulation and delivery.

1. Introduction

Ferrites have been intensively studied due to their interesting magnetic and photocatalytic properties and their low toxicity. In fact, they have been intensively used in magnetic memories, high-frequency devices and information storage systems, among others. In recent years, different groups have investigated nanometric ferrites because, on this length scale, ferrites exhibit extraordinary magnetic properties compared to their macroscopic counterpart. For example, magnetite (Fe3O4) has been extensively explored for its interesting nanoscale applications in drug delivery, gas sensors, catalytic activities and as an antibacterial agent [1,2,3,4,5,6]. Along with magnetite, other forms of iron oxides can appear altering their oxidation states, for example, hematite (α-Fe2O3), β-Fe2O3, maghemite (γ-Fe2O3) and ε-Fe2O3 [7,8,9].
On the other hand, hollow spherical nanostructures have gained significant attraction due to their unique architecture, which gives them low density, so they can float in different solutions, and significant interior spaces, which can enable their storage of different substances for use as photocatalysts, gas sensors, energy storage and chemotherapeutic drug delivery, among others [10,11,12,13,14,15]. Hollow iron oxide spheres have been synthesized using chemical and physical methods, which can produce a high size variability, defects and agglomeration, thus, reducing the effectiveness of their magnetic properties. These include solvothermal synthesis [16,17,18,19], the sol–gel method with a one-step reaction [20], a nanoscale Kirkendall diffusion process [21], and the template method [1,6,22]; however, the shape-controlled synthesis of hollow iron oxide nanospheres is still quite a challenge.
In this work, the atomic layer deposition (ALD) technique was combined with electrospinning to obtain novel hollow iron oxide nanospheres. In this case, the electrospinning technique was applied to produce polymeric spherical particles by applying a high voltage that broke the surface tension of the droplets of a polymeric solution, responsible for the size and shape of the particles, located at the tip of a needle [23,24]. Then, these polymeric spherical particles were coated using the ALD technique with a thin layer of Al2O3 that allowed these particles to be subjected to elevated temperatures. On this protective layer, a layer of Fe2O3 was deposited, obtaining spherical particles of PVP/Al2O3/Fe2O3. Finally, through a thermal reduction process carried out under a hydrogen atmosphere, the polymer disintegrated, and the hematite (Fe2O3) was transformed into magnetite (Fe3O4), thus, obtaining hollow Fe3O4 nanospheres. This is the first report on the development of hollow Fe3O4 nanospheres synthesized using both electrospinning and ALD techniques, presenting nanospheres that were fully characterized by measuring the morphological, structural and magnetic properties.

2. Experimental Details

2.1. Development of Hollow Fe3O4 Nanospheres

Novel hollow iron oxide nanospheres were successfully obtained following a four-step procedure:

2.1.1. Electrospraying Process of PVP Spherical Particles

First, electrosprayed spherical poly(vinylpyrrolidone) (Sigma Aldrich, Santiago, Chile) (PVP) particles were obtained through a vertical electrospinning system (Spraybase® power supply unit, Maytnooth, Ireland). In total, 2 g of poly(vinylpyrrolidone) was added to 10 mL of an ethanolic solution at 50% (v/v), and stirred at room temperature until the PVP was fully dissolved. The polymeric solution was collected in a 5 mL plastic syringe and connected through a polytetrafluoroethylene tube to a 0.9 mm diameter stainless-steel needle charged with a high-voltage power supply in the range of 0–20 kV. The PVP solution was electrosprayed by using a distance of 12 cm, a flow rate of 0.5 mL h−1 and a voltage of 12.9 kV for 1 h, in order to obtain spherical particles.

2.1.2. Synthesis of Spherical PVP/Al2O3 Particles

Initially, the deposition of Al2O3 (50 cycles) using the Savannah S100 ALD reactor from Cambridge Nanotech (Cambridge, MA, USA) was necessary, supplying the role of maintaining the spherical shape of the PVP particles and avoiding their detachment during the Fe2O3 ALD step, which was carried out at a higher temperature [25]. Each cycle consisted of a 0.015 s pulse of trimethylaluminum (Al(CH3)3) (TMA) (Sigma Aldrich, Santiago, Chile) with a 30 s purge, followed by a 0.015 s pulse of ultrapure water (H2O) with a 60 s purge. The precursors were used at room temperature, while the reactor was kept at a temperature of 80 °C, thus, obtaining spherical PVP/Al2O3 particles.

2.1.3. Synthesis of Spherical PVP/Al2O3/Fe2O3 Particles

Subsequently, the spherical PVP/Al2O3 particles were coated with 500 cycles of Fe2O3 in the ALD reactor at 200 °C in stop/exposure mode. The precursors used were ferrocene (FeCp2) and ozone (O3). The first was kept in a stainless-steel bottle, which was heated to 80 °C to ensure sufficient vapor pressure. On the other hand, the ozone at a volume concentration close to 10% was obtained from an ozone generator (Ol80W/FM100V) (Black Diamond, AB, Canada). The pulse times of ferrocene and ozone in the FeCp2/O3 cycle were 2 s and 0.2 s, respectively; the exposure and pump times were 5 s and 15 s, respectively, thus, obtaining spherical PVP/Al2O3/Fe2O3 particles [26]. It is important to note that throughout the process, a flow of 20 sccm of nitrogen was maintained.

2.1.4. Thermal Reduction Process to Obtain Hollow Fe3O4 Nanospheres

Finally, the spherical PVP/Al2O3/Fe2O3 particles were subjected to a thermal reduction process for which the sample was introduced into a GSL-1100X oven (Richmond, CA, USA) at 430 °C for 4 h under an atmosphere of hydrogen (4%) balanced with argon (96%) [27]. The temperature was chosen based on the results found by Espejo et al. [28], who pointed out that at approximately 430 °C, the peaks related to the hematite phase (Fe2O3) vanished and only the magnetite phase (Fe3O4) could be observed in the sample. This process caused two simultaneous situations: first, the calcination of the PVP polymer occurred, causing the spherical particles to become hollow spheres; second, hematite (Fe2O3) became magnetite (Fe3O4), resulting in hollow Fe3O4 nanospheres. The scheme in Figure 1 shows the thermal reduction process that produced the calcination of the polymer and the transformation of hematite (Fe2O3) into magnetite (Fe3O4).

2.2. Characterization Techniques

The morphology of the samples, before and after the thermal reduction process, was examined using a scanning electron microscope (Zeiss EVO MA10 SEM, Oberkochen, Germany) and a transmission electron microscope used at 120 kV (Hitachi HT7700 high-resolution TEM, Chiyoda, Tokyo, Japan). The images were recorded at different magnifications.
The thickness of the different coatings deposited by the ALD technique was measured indirectly using an alpha-SE ellipsometer from J. A. Wollam (Lincoln, NE, USA). In total, 50 cycles of Al2O3 and 500 cycles of Fe2O3 were deposited on Si(100) substrates, with 200 nm of thermally grown SiO2 (Ted Pella Inc., Redding, CA, USA).
The identification of the phases was carried out by means of X-ray diffraction (XRD) using a Shimadzu 6000 X-ray diffractometer (Nakagyo, Kyoto, Japan) (Cu-Kα radiation, 40 kV and 30 mA). All scans were performed at room temperature using a 2θ range of 10–70°.
All magnetic measurements were performed in a mini Cryogen Free System (mCFMS) vibrating sample magnetometer (VSM) from Cryogenic (London, W3 7QE, UK). The hysteresis curves were measured with a field between 4 and −4 kOe in the temperature range from 10 to 300 K.

3. Results and Discussion

3.1. Macroscopical Characterization

Figure 2a–d shows photographs of samples obtained through the four-step procedure, resulting in electrosprayed PVP solution, alumina-coated, alumina–hematite double-coated and magnetite particles, respectively. The alumina deposition (Figure 2b) maintained the initial white color of the collected electrosprayed spheres (Figure 2a), while the Fe2O3 deposition acquired a red color (Figure 2c). This change was related to the hematite presence, whose main absorption in the visible region was attributed to the charge transfer transition from the O 2p to Fe 3d levels, resulting in a red color [29]. In addition, the color tone of hematite powder strongly depends on its particle size and dispersibility, where a reddish color indicates that the particles are small and well dispersed [30]. Finally, the thermal reduction process produced a new color change in the sample (Figure 2d). The change in the crystalline structure was responsible for the observed black color due to the fact that Fe(II) and Fe(III) were found in octahedral sites in the magnetite structure that resulted in an intervalence charge transfer that rose to an absorption band at the second NIR region at 1000–1350 nm [31,32].

3.2. Morphological Characterization

The growth rate of alumina (Al2O3) was 0.05 nm/cycle, while that of hematite (Fe2O3) was 0.03 nm/cycle. These values were quite similar to those reported in the literature [33,34,35]. SEM images presented in Figure 3a,b revealed that the morphology of the PVP spheres was maintained after the deposition of alumina (PVP/Al2O3) and hematite (PVP/Al2O3/Fe2O3), ensuring uniformity and homogeneity. In addition, the above confirmed that the coating of the PVP spheres with a thin film of Al2O3 prevented the detachment of the substrate and the deterioration of the polymeric material.
On the other hand, the SEM images presented in Figure 3c,d show that the particles that were subjected to a thermal reduction process slightly changed their morphology, and although they maintained their spherical shape, it was less defined and rougher. This was due to two reasons: first, the PVP polymer inside the sphere, when heated, decomposed rapidly, generating volatile components that caused the breakage of the walls of the sphere due to the pressure of the gases inside [25,36]; second, the transformation of the coating from Fe2O3 to Fe3O4 implied that oxygen escaped through the coating, causing cracks in the walls of the hollow sphere [37]. The hollow Fe3O4 nanospheres ultimately resembled punctured ping-pong balls.
Figure 4a shows the size distribution of the spherical PVP/Al2O3/Fe2O3 particles (Figure 3a), while Figure 4b shows the hollow Fe3O4 nanospheres (Figure 3c). In both cases, ImageJ software (version 1.37, Bethesda, MD, USA) was used to obtain histograms with 100 particles. While spherical PVP/Al2O3/Fe2O3 particles exhibited an average diameter of 970 ± 213 nm, hollow Fe3O4 nanospheres exhibited a much smaller average diameter of 685 ± 119 nm. This almost 300 nm reduction in particle diameter was consistent with the fact noted above, that the thermal reduction process induced the formation of holes in the walls of the spheres.
The samples were also observed with transmission electron microscopy (TEM). While Figure 5a,b show the spherical PVP/Al2O3/Fe2O3 particles, Figure 5c,d show the hollow Fe3O4 nanospheres. By comparing Figure 5b,d, it is possible to observe the morphological change of a particle before and after the thermal reduction process, respectively. The spherical PVP/Al2O3/Fe2O3 particle presented a more regular surface compared to that exhibited by the hollow Fe3O4 nanosphere, on which we could also observe a contraction denoted mainly by the folds that were observed on the surface of its shell. Furthermore, it was possible to determine that the thickness of the material deposited with ALD was approximately 15 nm, a value that was obtained by measuring the difference in contrast observed in Figure 5c. This value agreed with the 15.27 ± 0.75 nm measured using ellipsometry when 500 cycles of Fe2O3 were deposited on a Si(100) substrate.

3.3. Structural Characterization

The X-ray diffraction (XRD) analysis of the samples in each of the four stages of the synthesis of the hollow Fe3O4 nanospheres is shown in Figure 6. The diffraction pattern of the PVP spheres showed a broad hump observed for values between 10 and 25° of 2θ, characteristic of the amorphous phase of the PVP polymer [38,39]. It was interesting to note that the diffraction patterns were not capable of detecting peaks associated with the materials deposited with ALD. This could be explained because the deposition process at low temperatures (below 500 °C) by means of ALD can produce coatings with a certain level of amorphousness [40]. Considering that the alumina (Al2O3) was deposited at 80 °C and that the hematite (Fe2O3) was deposited at 200 °C, the amorphous nature of these coatings evidenced in the diffraction patterns was expected.
For the sample obtained after the thermal reduction process, corresponding to the hollow nanospheres, the diffraction pattern was clearly different. First, the contribution of the PVP spheres was markedly reduced, because the temperature degraded the polymer. Second, the peaks (+) observed at 42.5°, 43.6° and 77.5° corresponded to the (006), (113) and (119) planes of alumina (Al2O3), which had a rhombohedral structure with lattice parameters a = b = 4.75 and c = 12.99 Å, belonging to the space group R-3c, according to the ICSD sheet no. 01-010-0173. Finally, the peaks (Δ) observed at 37.6°, 43.8° and 63.9° corresponded to the (222), (400) and (440) planes of magnetite (Fe3O4), which had a cubic structure with lattice parameters a = b = c = 8.31 Å, belonging to the space group Fd-3m, according to the ICSD sheet no. 01-075-0449.

3.4. Magnetic Characterization of Hollow Fe3O4 Nanospheres

The measured sample corresponded to a powder containing hollow Fe3O4 nanospheres exhibiting an average diameter of 685 ± 119 nm (see Figure 4b). The thickness of alumina (Al2O3) measured using ellipsometry was 2.48 ± 0.05 nm, while 500 cycles of hematite (Fe2O3) produced a thickness of 15.27 ± 0.75 nm. This meant that the total thickness of the material deposited with ALD (Al2O3/Fe2O3) was approximately 18 nm. However, after the thermal reduction process, to transform hematite (Fe2O3) into magnetite (Fe3O4), a contraction of approximately 3 nm was produced due to the dewetting process [41], where the release of oxygen produced cracks or holes in the surface, thus reducing, the thickness of the deposited material to approximately 15 nm (see Figure 5c).
Figure 7 shows the hysteresis loops for hollow Fe3O4 nanospheres obtained at different temperatures. It is possible to observe that the hysteresis curve for a temperature of 10 K was much squarer than the other hysteresis curves, and exhibited a much higher coercivity. The hysteresis curves obtained for temperatures ranging between 100 and 300 K were very similar to each other, which ensured that the magnetic properties of these hollow nanospheres did not vary much in this temperature range when they were used in different applications. It was interesting to note that the remanence took generally small values at all temperatures, so the contribution from magnetostatic interactions may have been relevant. Additionally, there was a diamagnetism associated with the alumina (Al2O3) coating that increased with temperature.
In general, magnetite (Fe3O4) nanoparticles exhibit a superparamagnetic behavior, such as those synthesized by the coprecipitation of iron (II) and iron (III) with sodium hydroxide in an aqueous solution at high temperature (80 °C), which have an average diameter of 15 nm [42]. In Figure 8, the coercivity and reduced remanence were summarized as a function of the temperature of the hollow Fe3O4 nanospheres. From this figure, we could conclude that the coercivity varied between approximately 0.0 and 0.22 kOe, while the reduced remanence varied between 0.02 and 0.37. The coercivity presented a nonmonotonic behavior, since it began to increase until reaching a maximum value close to 20 K, a temperature from which the coercivity presented a sustained decrease to reach an anhysteretic behavior (almost zero coercivity and remanence) for 100 K. A higher temperature would not result in significant changes in coercivity. Similarly, the reduced remanence also presented a nonmonotonic behavior, reaching a peak at a temperature close to 40 K, after which it fell to a valley that remained approximately constant until 200 K, after which the temperature increased again to reach the maximum at 300 K. The fact of the obtainment of low coercivities and remanence for a wide range of temperatures could be useful in applications where the agglomeration of magnetic nanostructures in liquid media is not allowed, such as drug encapsulation and delivery.

4. Conclusions

This was the first report on the development of hollow iron oxide nanospheres obtained from a combination of electrospinning and atomic layer deposition techniques. Although the purpose of this article was to obtain hollow magnetic spheres, it was first necessary to coat the polymeric (PVP) spheres with a thin layer of alumina (Al2O3). A layer of approximately 15 nm of hematite (Fe2O3) was then deposited on these spheres, a process that maintained the spherical shape of the particles. Finally, the spheres were subjected to a thermal reduction process that allowed the obtainment of the hollow Fe3O4 nanospheres. The fact that they were hollow was due to the temperature being sufficient enough to degrade the polymer (PVP) that was inside the spheres, and the presence of a hydrogen atmosphere facilitated the transformation of most of the hematite (Fe2O3) into magnetite (Fe3O4). It is important to point out that these processes produced a contraction in the size of the particles, while their surface became much more irregular. The hysteresis curves of the hollow iron oxide nanospheres allowed us to observe low coercivities and reduced remanence in a wide range of temperatures, allowing us to suggest their use in applications where the agglomeration of magnetic nanostructures in liquid media is not allowed, such as drug encapsulation and delivery. This four-step synthesis process could be used to obtain hollow nanospheres from other ferromagnetic materials and their alloys.

Author Contributions

Conceptualization, J.E.; data curation, P.M., C.P.V., A.P., L.V. and J.L.P.; formal analysis, P.M. and L.V.; funding acquisition, J.L.P., C.L.d.D. and J.E.; investigation, P.M., C.P.V., L.V. and J.L.P.; methodology, J.E. and C.L.d.D.; project administration, J.E. and C.L.d.D.; resources, J.E., C.L.d.D. and J.L.P.; supervision, A.P., J.L.P., C.L.d.D. and J.E.; validation, A.P. and J.L.P.; visualization, P.M. and J.E.; writing—original draft preparation, J.E. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Fondequip (grant number EQM120045), Fondecyt (grant numbers 1200302 and 1201491), ANID Convocatoria Nacional Subvención a la Instalación en la Academia (grant number 77210080), the Spanish Research Agency (grant number RYC2020-029874-I/AEI/10.13039/501100011033), Programa de apoyo a la investigación UAI 2022 and Financiamiento Basal para Centros Científicos y Tecnológicos (grant number AFB180001).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available on request.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Goswami, M.M. Synthesis of micelles guided magnetite (Fe3O4) hollow spheres and their application for AC magnetic field responsive drug delivery. Sci. Rep. 2016, 6, 35721. [Google Scholar] [CrossRef] [PubMed]
  2. Wu, Y.; He, T.; Xu, W.; Li, Y. Preparation and photocatalytic activity of magnetically separable Fe3O4@ZnO nanospheres. J. Mater. Sci. Mater. Electron. 2016, 27, 12155. [Google Scholar] [CrossRef]
  3. Arakha, M.; Pal, S.; Samantarrai, D.; Panigrahi, T.K.; Mallick, B.C.; Pramanik, K.; Mallick, B.; Jha, S. Antimicrobial activity of iron oxide nanoparticle upon modulation of nanoparticle-bacteria interface. Sci. Rep. 2015, 5, 14813. [Google Scholar] [CrossRef] [PubMed]
  4. Lee, J.; Kwon, S.G.; Park, J.-G.; Hyeon, T. Size dependence of metal-insulator transition in stoichiometric Fe3O4 nanocrystals. Nano Lett. 2015, 15, 4337. [Google Scholar] [CrossRef] [PubMed]
  5. Su, C. Environmental implications and applications of engineered nanoscale magnetite and its hybrid nanocomposites: A review of recent literature. J. Hazard. Mater. 2017, 322, 48. [Google Scholar] [CrossRef] [PubMed]
  6. Oh, K.H.; Park, H.J.; Kang, S.W.; Park, J.C.; Nam, K.M. Synthesis of hollow iron oxide nanospheres and their application to gas sensors. J. Nanosci. Nanotech. 2018, 18, 1356. [Google Scholar] [CrossRef] [PubMed]
  7. Cornell, R.M.; Schwertmann, U. The Iron Oxides: Structure, Properties, Reactions, Occurrences and Uses; Wiley: Hoboken, NJ, USA, 2003. [Google Scholar]
  8. Yakushkin, S.S.; Balaev, D.A.; Dubrovskiy, A.A.; Semenov, S.V.; Shaikhutdinov, K.A.; Kazakova, M.A.; Bukhtiyarova, G.A.; Martyanov, O.N.; Bayukov, O.A. Evolution of the Fe3+ ion local environment during the phase transition ε-Fe2O3 -> α-Fe2O3. J. Supercond. Nov. Magn. 2017, 31, 1209. [Google Scholar] [CrossRef]
  9. Lee, C.-W.; Jung, S.-S.; Lee, J.-S. Phase transformation of β-Fe2O3 hollow nanoparticles. Mater. Lett. 2008, 62, 561. [Google Scholar] [CrossRef]
  10. Xiao, M.; Wang, Z.; Lyu, M.; Luo, B.; Wang, S.; Liu, G.; Cheng, H.M.; Wang, L. Hollow nanostructures for photocatalysis: Advantages and challenges. Adv. Mater. 2019, 31, 1801369. [Google Scholar] [CrossRef]
  11. Wang, J.; Cui, Y.; Wang, D. Design of hollow nanostructures for energy storage, conversion and production. Adv. Mater. 2019, 31, 1801993. [Google Scholar] [CrossRef]
  12. Lu, Q.; Gao, F. Synthesis and property studies of hollow nanostructures. CrystEngComm 2016, 18, 7399. [Google Scholar] [CrossRef]
  13. Zhao, X.; Wang, W.; Hou, Z.; Yu, Y.; Di, Q.; Wu, X.; Wei, G.; Quan, Z.; Zhang, J. Monodisperse tin nanoparticles and hollow tin oxide nanospheres as anode materials for hig performance lithium ion batteries. Inorg. Chem. Front. 2019, 6, 473. [Google Scholar] [CrossRef]
  14. Aguilera-Granja, F.; Montejano-Carrizales, J.M.; Vogel, E.E.; Escrig, J. Hollow structures of TinOm systems with m=2n: A density functional theoretical study. J. Phys. Chem. Sol. 2022, 164, 110646. [Google Scholar] [CrossRef]
  15. Adhikari, C.; Mishra, A.; Nayak, D.; Chakraborty, A. Drug delivery system composed of mesoporous silica and hollow mesoporous silica nanospheres for chemotherapeutic drug delivery. J. Drug. Deliv. Sci. Technol. 2018, 45, 303. [Google Scholar] [CrossRef]
  16. Hu, P.; Yu, L.; Zuo, A.; Guo, C.; Yuan, F. Fabrication of monodisperse magnetite hollow spheres. J. Phys. Chem. C 2008, 113, 900. [Google Scholar] [CrossRef]
  17. Xu, J.-S.; Zhu, Y.-J. γ-Fe2O3 and Fe3O4 magnetic hierarchically nanostructured hollow microspheres: Preparation, formation mechanism, magnetic property, and application in water treatment. J. Colloid Interface Sci. 2012, 385, 58. [Google Scholar] [CrossRef]
  18. Yadav, B.S.; Singh, R.; Vishwakarma, A.K.; Kumar, N. Facile synthesis of substantially magnetic hollow nanospheres of maghemite (γ-Fe2O3) originated from magnetite (Fe3O4) via solvothermal method. J. Supercond. Nov. Magn. 2020, 33, 2199. [Google Scholar] [CrossRef]
  19. Haghnegahdar, S.; Noroozifar, M. Deposition of PdPtAu nanoparticles on hollow nanospheres of Fe3O4 as a new catalyst for methanol electrooxidation: Application in direct methanol fuel cell. Electroanalysis 2017, 29, 2896. [Google Scholar] [CrossRef]
  20. Wu, W.; Xiao, X.; Zhang, S.; Li, H.; Zhou, X.; Jiang, C. One-pot reaction and subsequent annealing to synthesis hollow spherical magnetite and maghemite nanocages. Nanoscale Res. Lett. 2009, 4, 926. [Google Scholar] [CrossRef]
  21. Cho, J.S.; Park, J.-S.; Kang, Y.C. Preparation of hollow Fe2O3 nanorods and nanospheres by nanoscale kirkendall difussion, and their electrochemical properties for use in lithium-ion batteries. Sci. Rep. 2016, 6, 38933. [Google Scholar] [CrossRef]
  22. Nor, Y.A.; Zhou, L.; Meka, A.K.; Xu, C.; Niu, Y.; Zhang, H.; Mitter, N.; Mahony, D.; Yu, C. Engineering ion oxide hollow nanospheres to enhance antimicrobial property: Understanding the cytotoxic origin in organic rich environment. Adv. Funct. Mater. 2016, 26, 5408. [Google Scholar] [CrossRef]
  23. Liu, D.; Zhang, C.; Dong, G.; Xu, C.; Liu, D.; Lv, Y.; Zhong, B.; Wang, B. Temperature-controlled electrospinning of EVOH nanofibre mats encapsulated with Ag, CuO, and ZnO particles for skin wound dressing. Mater. Res. Express 2018, 6, 015007. [Google Scholar] [CrossRef]
  24. Liu, X.; Yang, Y.; Yu, D.-G.; Zhu, M.-J.; Zhao, M.; Williams, G.R. Tunable zero-order drug delivery systems created by modified triaxial electrospinning. Chem. Eng. J. 2019, 356, 886. [Google Scholar] [CrossRef]
  25. López de Dicastillo, C.; Patiño, C.; Galotto, M.J.; Vásquez-Martínez, Y.; Torrent, C.; Alburquenque, D.; Pereira, A.; Escrig, J. Novel hollow titanium dioxide nanospheres with antimicrobial activity against resistant bacteria. Beilstein J. Nanotechnol. 2019, 10, 1716. [Google Scholar] [CrossRef]
  26. Márquez, P.; Alburquenque, D.; Celis, F.; Freire, R.M.; Escrig, J. Structural, morphological and magnetic properties of iron oxide thin films obtained by atomic layer deposition as a function of their thickness. J. Magn. Magn. Mater. 2021, 530, 167914. [Google Scholar] [CrossRef]
  27. Palma, J.L.; Pereira, A.; Alvaro, R.; García-Martín, J.M.; Escrig, J. Magnetic properties of Fe3O4 antidot arrays synthesized by AFIR: Atomic layer deposition, focused ion beam and thermal reduction. Beilstein J. Nanotechnol. 2018, 9, 1728. [Google Scholar] [CrossRef]
  28. Espejo, A.P.; Zierold, R.; Gooth, J.; Dendooven, J.; Detavernier, C.; Escrig, J.; Nielsch, K. Magnetic and electrical characterization of nickel-rich NiFe thin films synthesized by atomic layer deposition and subsequent thermal reduction. Nanotechnology 2016, 27, 345707. [Google Scholar] [CrossRef]
  29. Hashimoto, H.; Kiyohara, J.; Isozaki, A.; Arakawa, Y.; Fujii, T.; Takada, J.; Inada, H.; Takaishi, T.; Asoh, H. Bright yellowish-red pigment based on hematite/alumina composites with a unique porous disk-like structure. ACS Omega 2020, 5, 4330. [Google Scholar] [CrossRef]
  30. Takada, T. On the effects of particle size and shape on the colour ferric oxide powders. J. Jpn. Soc. Powder Powder Metall. 1958, 4, 160. [Google Scholar] [CrossRef]
  31. Busquets, M.A.; Fernández-Pradas, J.M.; Serra, P.; Estelrich, J. Superparamagnetic nanoparticles with efficient near-infrared photothermal effect at the second biological window. Molecules 2020, 25, 5315. [Google Scholar] [CrossRef]
  32. Tang, J.; Myers, M.; Bosnick, K.A.; Brus, L.E. Magnetite Fe3O4 nanocrystals: Spectroscopic observation of aqueous oxidation kinetics. J. Phys. Chem. B 2003, 107, 7501. [Google Scholar] [CrossRef]
  33. Liu, X.J.; Zhu, L.; Gao, M.Y.; Li, X.F.; Cao, Z.Y.; Zhai, H.F. Nonvolatile memory capacitors based on Al2O3 tunneling and HfO2 blocking layers with charge storage in atomic-layer-deposited Pt nanocrystals. Appl. Surf. Sci. 2014, 289, 332. [Google Scholar] [CrossRef]
  34. Zierold, R.; Le Lam, C.; Dendooven, J.; Gooth, J.; Bohnert, T.; Sergelius, P.; Munnik, F.; Montero Moreno, J.M.; Gorlitz, D.; Detavernier, C.; et al. Magnetic characterization and electrical field-induced switching of magnetite thin films synthesized by atomic layer deposition and subsequent thermal reduction. J. Phys. D Appl. Phys. 2014, 47, 485001. [Google Scholar] [CrossRef]
  35. Ramachandran, R.K.; Dendooven, J.; Detavernier, C. Plasma enhanced atomic layer deposition of Fe2O3 thin films. J. Mater. Chem. A 2014, 2, 10662. [Google Scholar] [CrossRef]
  36. Wang, H.X.; Pu, X.M.; Zhou, Y.Q.; Chen, X.C.; Liao, X.M.; Huang, Z.B.; Yin, G.F. Synthesis of macroporous magnetic Fe3O4 microparticles via a novel organic matter assisted open-cell hollow sphere aseembly method. Materials 2018, 11, 1508. [Google Scholar] [CrossRef]
  37. Thompson, C.V. Solid-state dewetting of thin films. Annu. Rev. Mater. Res. 2012, 42, 399. [Google Scholar] [CrossRef]
  38. Mangalam, R.; Thamilselvan, M.; Selvasekarapandian, S.; Jayakumar, S.; Manjuladevi, R. Polyvinyl pyrrolidone/Mg(ClO4)2 solid polymer electrolyte: Structural and electrical studies. Ionics 2017, 23, 2837. [Google Scholar] [CrossRef]
  39. Saroj, A.L.; Singh, R.K.; Chandra, S. Studies on polymer electrolyte poly(vinyl) pyrrolidone (PVP) complexed with ionic liquid: Effect of complexation on thermal stability, conductivity and relaxation behavior. Mater. Sci. Eng. B 2013, 178, 231. [Google Scholar] [CrossRef]
  40. Rooth, M.; Johansson, A.; Kukli, K.; Aarik, J.; Boman, M.; Harsta, A. Atomic layer deposition of iron oxide thin films and nanotubes using ferrocene and oxygen as precursors. Chem. Vap. Depos. 2008, 14, 67. [Google Scholar] [CrossRef]
  41. Alburquenque, D.; Bracamonte, V.; Del Canto, M.; Pereira, A.; Escrig, J. Dewetting of Co thin films obtained by atomic layer deposition due to the thermal reduction process. MRS Commun. 2017, 7, 848. [Google Scholar] [CrossRef]
  42. Dudchenko, N.O. Synthetic analogues of biogenic magnetite: Synthesis and characterization of magnetite nanoparticles. Mater. Und Werkst. 2011, 42, 89. [Google Scholar] [CrossRef]
Nanomaterials 12 03180 g001 550

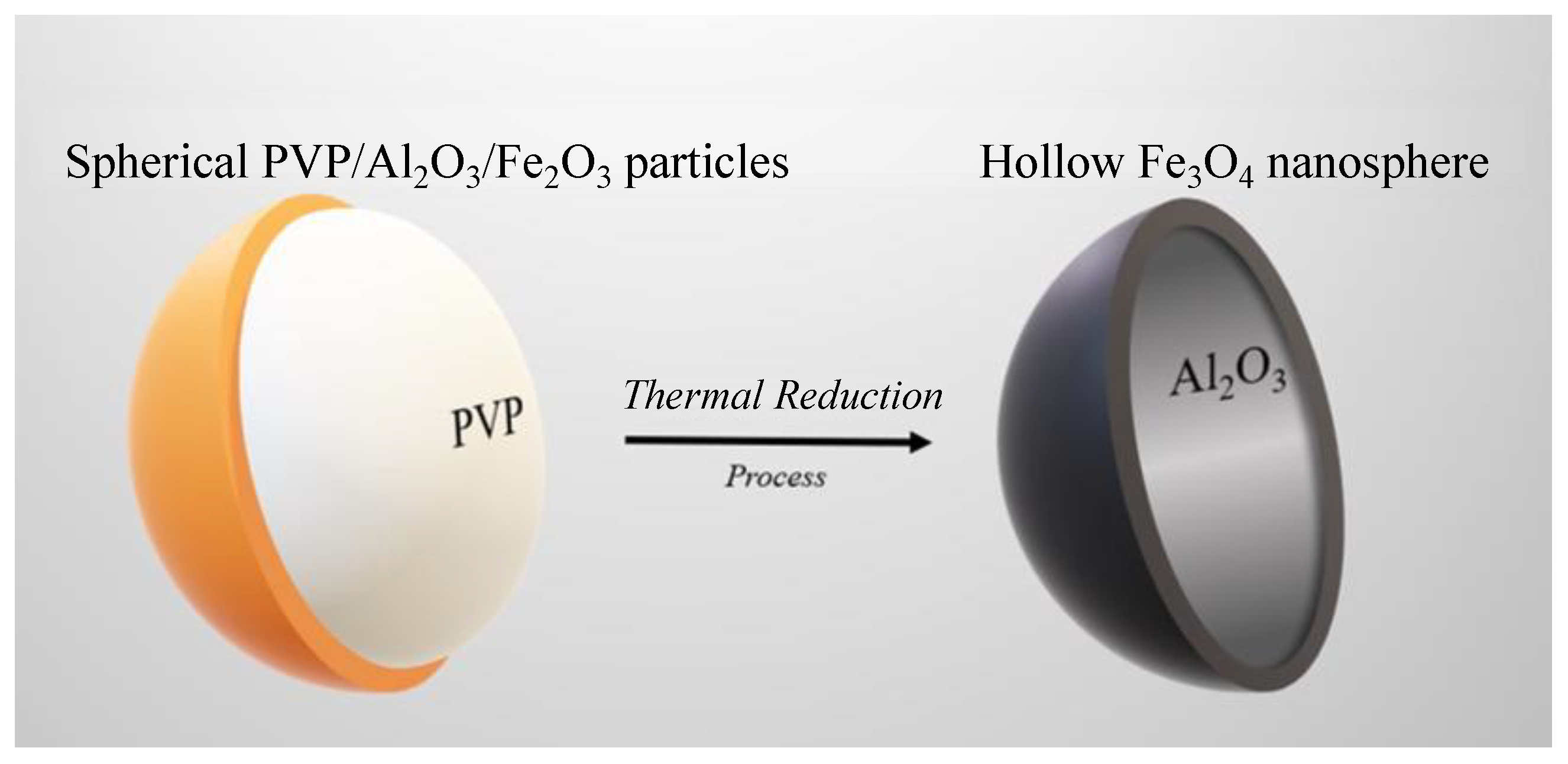

Figure 1. Scheme of the thermal reduction process that produced the calcination of the polymer and the transformation of hematite (Fe2O3) into magnetite (Fe3O4).
Figure 1. Scheme of the thermal reduction process that produced the calcination of the polymer and the transformation of hematite (Fe2O3) into magnetite (Fe3O4).
Nanomaterials 12 03180 g001
Nanomaterials 12 03180 g002 550

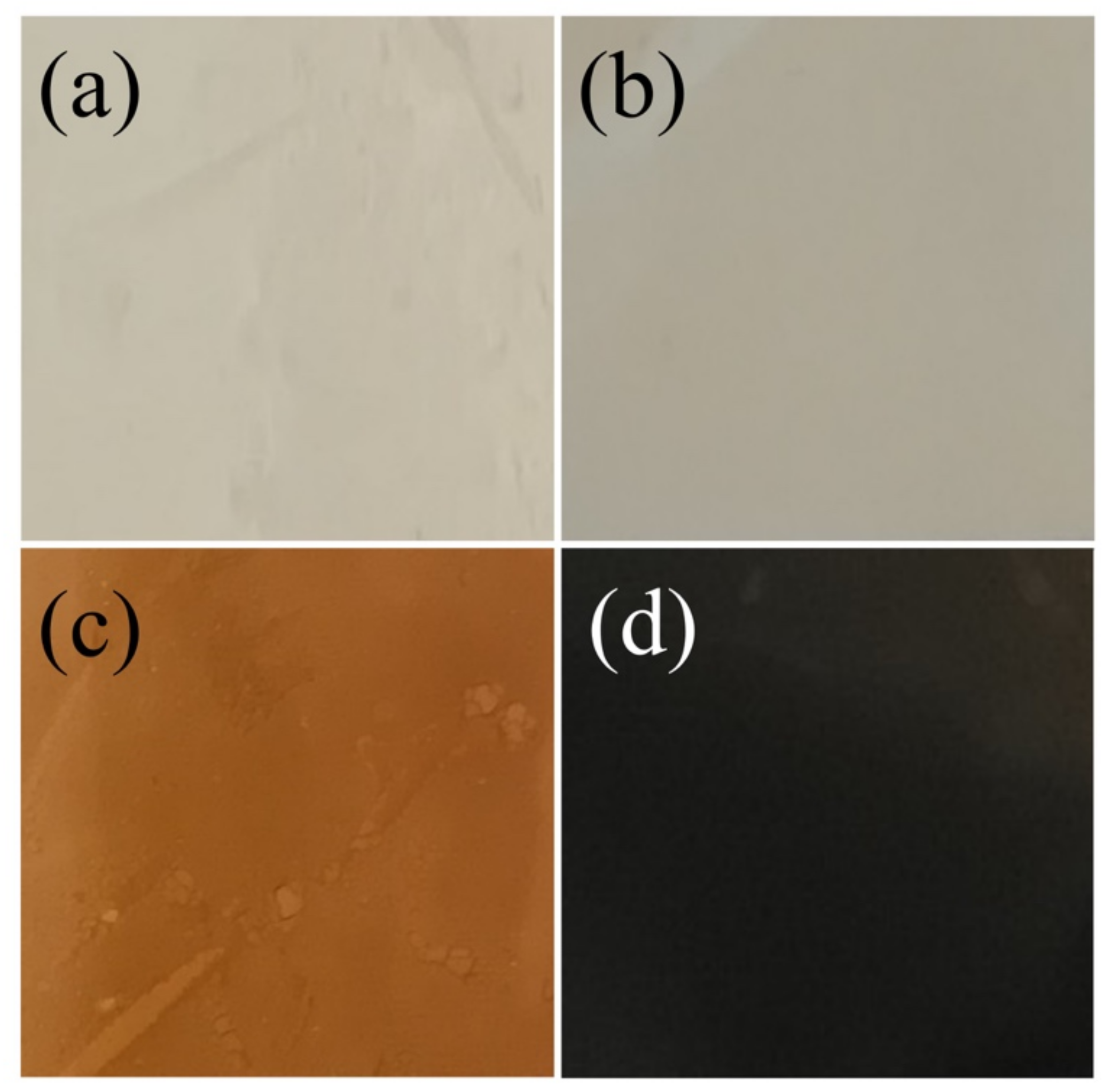

Figure 2. Photographs of: (a) electrosprayed spherical PVP particles, (b) deposition of 50 cycles of Al2O3 on spherical PVP particles with ALD (PVP/Al2O3), (c) deposition of 500 cycles of Fe2O3 on spherical PVP/Al2O3 particles with ALD (PVP/Al2O3/Fe2O3) and (d) thermal reduction of PVP/Al2O3/Fe2O3 particles to obtain hollow Fe3O4 nanospheres.
Figure 2. Photographs of: (a) electrosprayed spherical PVP particles, (b) deposition of 50 cycles of Al2O3 on spherical PVP particles with ALD (PVP/Al2O3), (c) deposition of 500 cycles of Fe2O3 on spherical PVP/Al2O3 particles with ALD (PVP/Al2O3/Fe2O3) and (d) thermal reduction of PVP/Al2O3/Fe2O3 particles to obtain hollow Fe3O4 nanospheres.
Nanomaterials 12 03180 g002
Nanomaterials 12 03180 g003 550

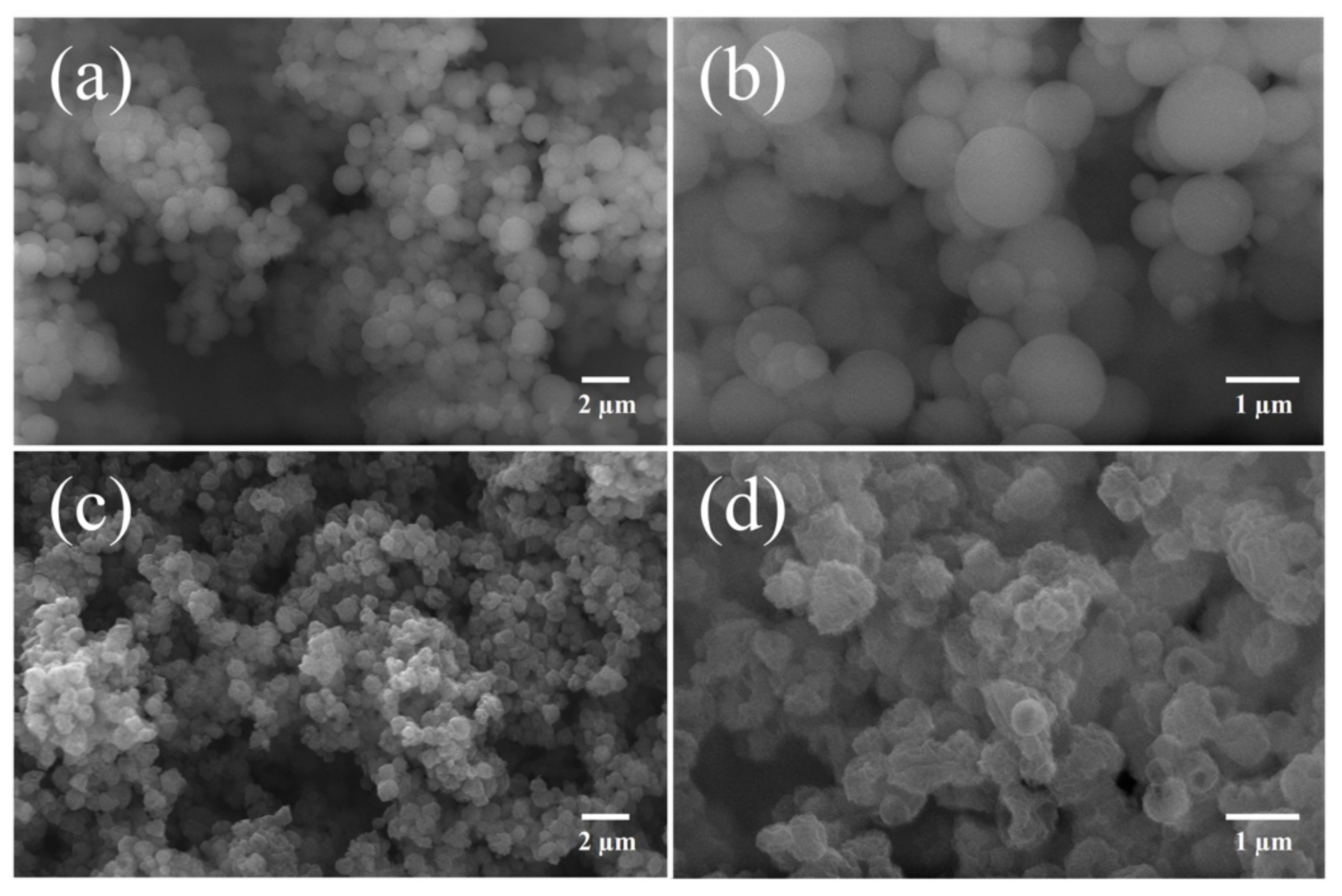

Figure 3. Scanning electron microscopy (SEM) images of (a,b) spherical PVP/Al2O3/Fe2O3 particles and (c,d) hollow Fe3O4 nanospheres.
Figure 3. Scanning electron microscopy (SEM) images of (a,b) spherical PVP/Al2O3/Fe2O3 particles and (c,d) hollow Fe3O4 nanospheres.
Nanomaterials 12 03180 g003
Nanomaterials 12 03180 g004 550

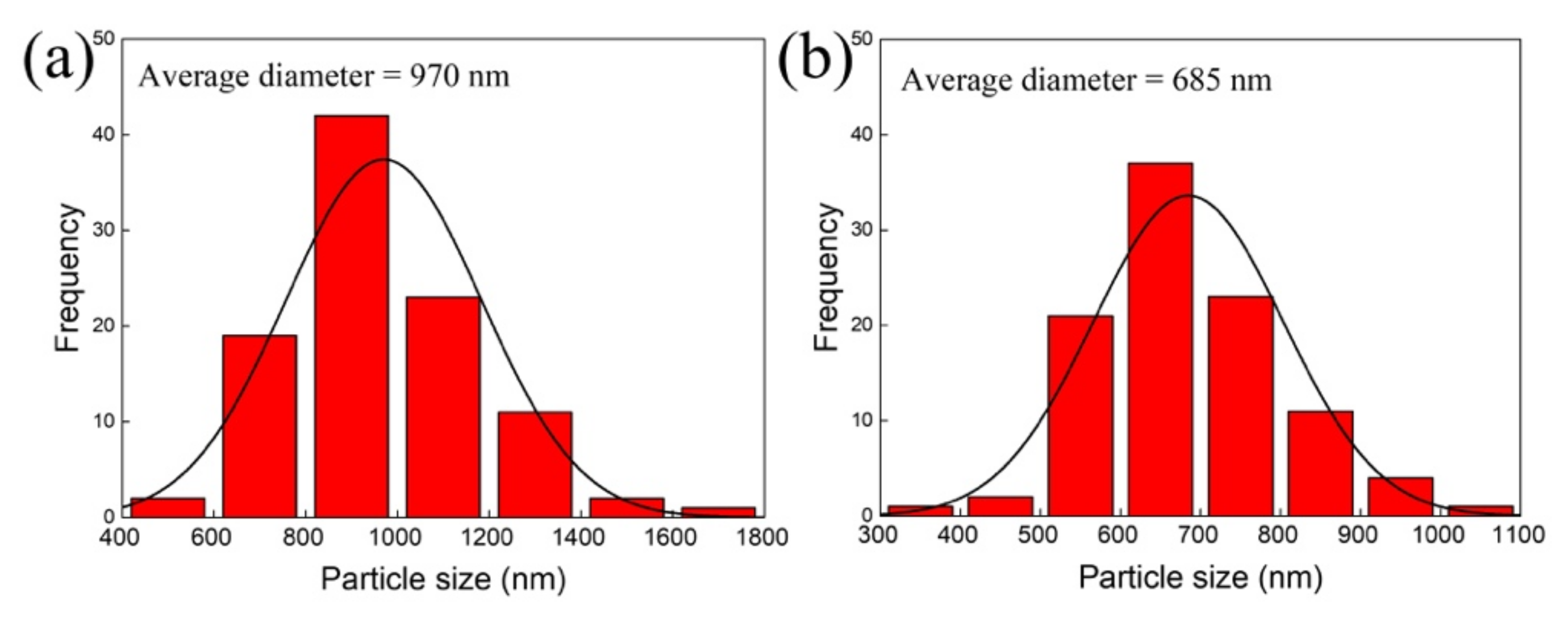

Figure 4. Size distribution of (a) spherical PVP/Al2O3/Fe2O3 particles and (b) hollow Fe3O4 nanospheres. The distribution used to measure the particle size corresponded to a normal distribution.
Figure 4. Size distribution of (a) spherical PVP/Al2O3/Fe2O3 particles and (b) hollow Fe3O4 nanospheres. The distribution used to measure the particle size corresponded to a normal distribution.
Nanomaterials 12 03180 g004
Nanomaterials 12 03180 g005 550

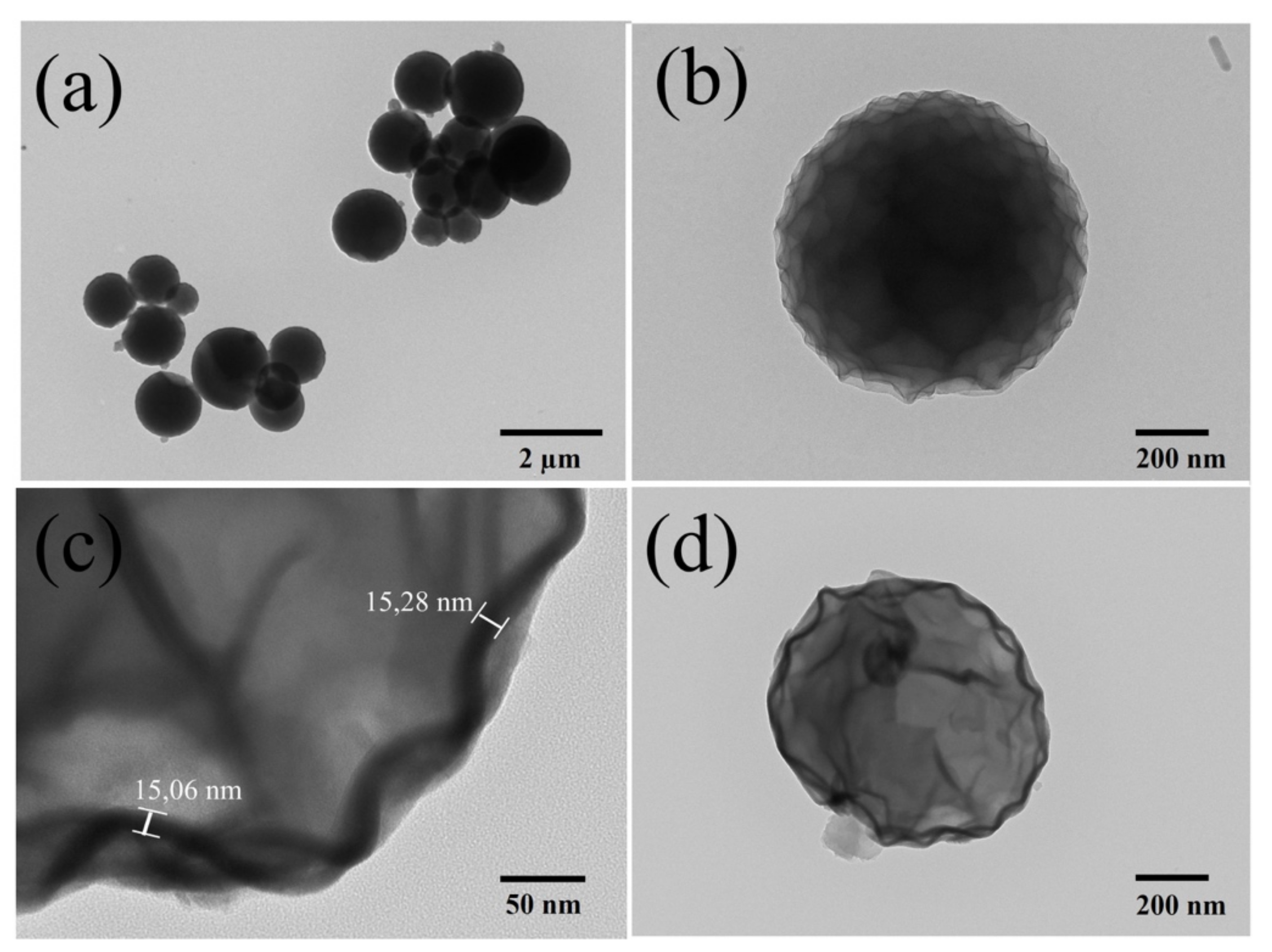

Figure 5. Transmission electron microscopy (TEM) images of (a,b) spherical PVP/Al2O3/Fe2O3 particles and (c,d) hollow Fe3O4 nanospheres.
Figure 5. Transmission electron microscopy (TEM) images of (a,b) spherical PVP/Al2O3/Fe2O3 particles and (c,d) hollow Fe3O4 nanospheres.
Nanomaterials 12 03180 g005
Nanomaterials 12 03180 g006 550

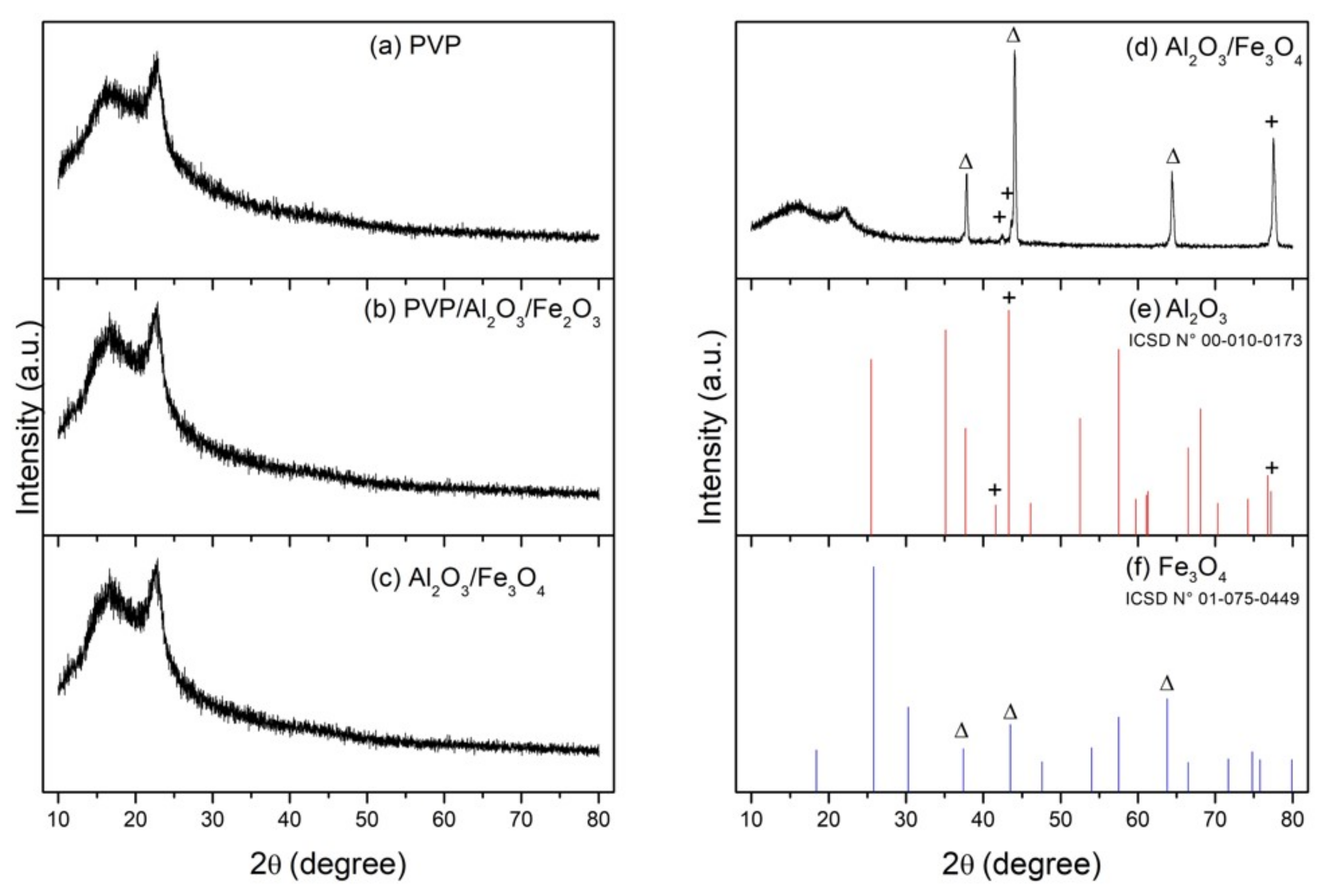

Figure 6. XRD patterns of (a) electrosprayed spherical PVP particles, (b) deposition of 50 cycles of Al2O3 on spherical PVP particles with ALD (PVP/Al2O3), (c) deposition of 500 cycles of Fe2O3 on spherical PVP/Al2O3 particles with ALD (PVP/Al2O3/Fe2O3), (d) thermal reduction of PVP/Al2O3/Fe2O3 particles to obtain hollow Fe3O4 nanospheres (+) and traces of Al2O3 (Δ), (e) diffraction peaks of standard card ICSD no. 01-010-0173 and (f) diffraction peaks of standard card ICSD no. 01-075-0449.
Figure 6. XRD patterns of (a) electrosprayed spherical PVP particles, (b) deposition of 50 cycles of Al2O3 on spherical PVP particles with ALD (PVP/Al2O3), (c) deposition of 500 cycles of Fe2O3 on spherical PVP/Al2O3 particles with ALD (PVP/Al2O3/Fe2O3), (d) thermal reduction of PVP/Al2O3/Fe2O3 particles to obtain hollow Fe3O4 nanospheres (+) and traces of Al2O3 (Δ), (e) diffraction peaks of standard card ICSD no. 01-010-0173 and (f) diffraction peaks of standard card ICSD no. 01-075-0449.
Nanomaterials 12 03180 g006
Nanomaterials 12 03180 g007 550

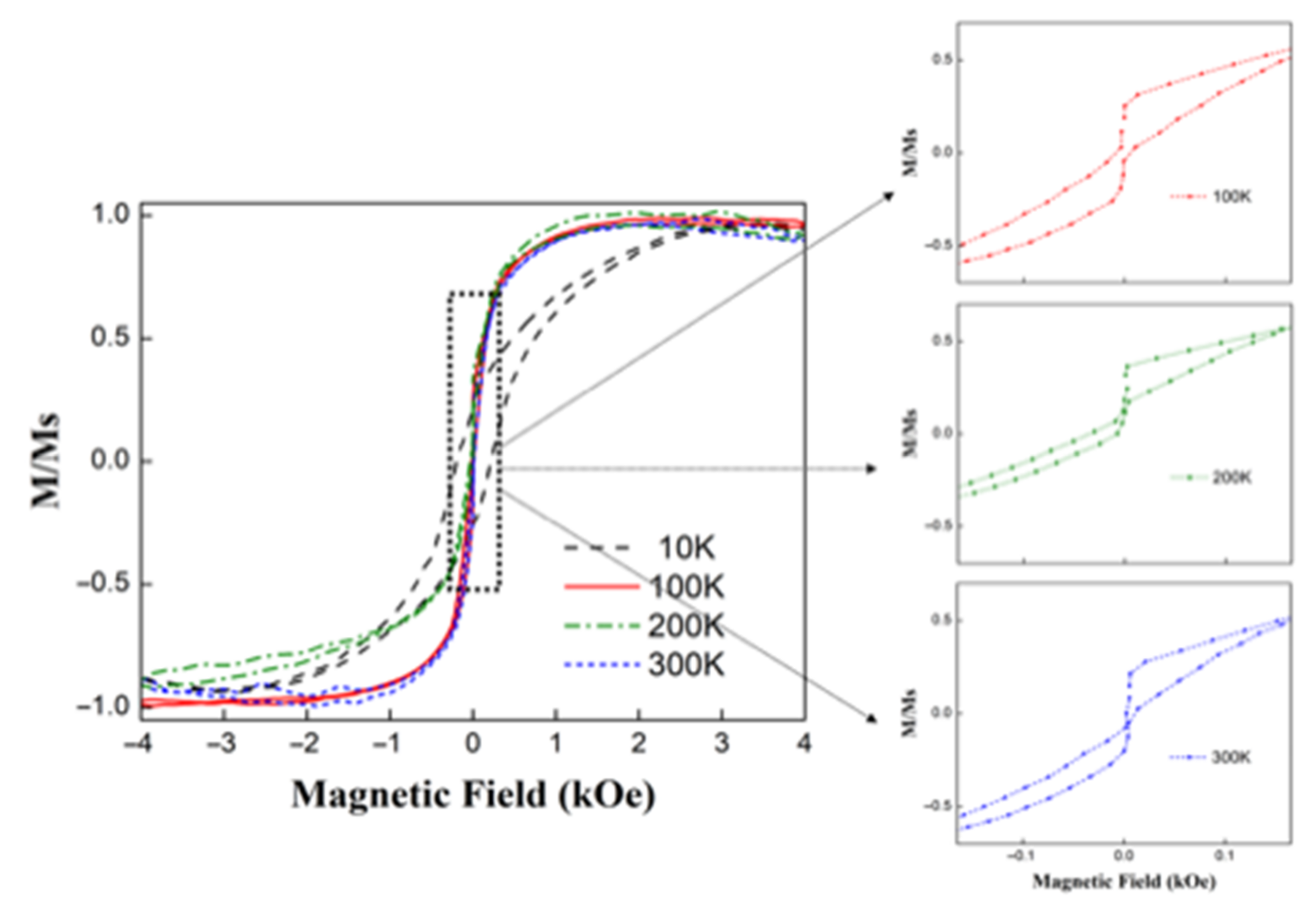

Figure 7. Hysteresis curves for hollow Fe3O4 nanospheres obtained at different temperatures.
Figure 7. Hysteresis curves for hollow Fe3O4 nanospheres obtained at different temperatures.
Nanomaterials 12 03180 g007
Nanomaterials 12 03180 g008 550

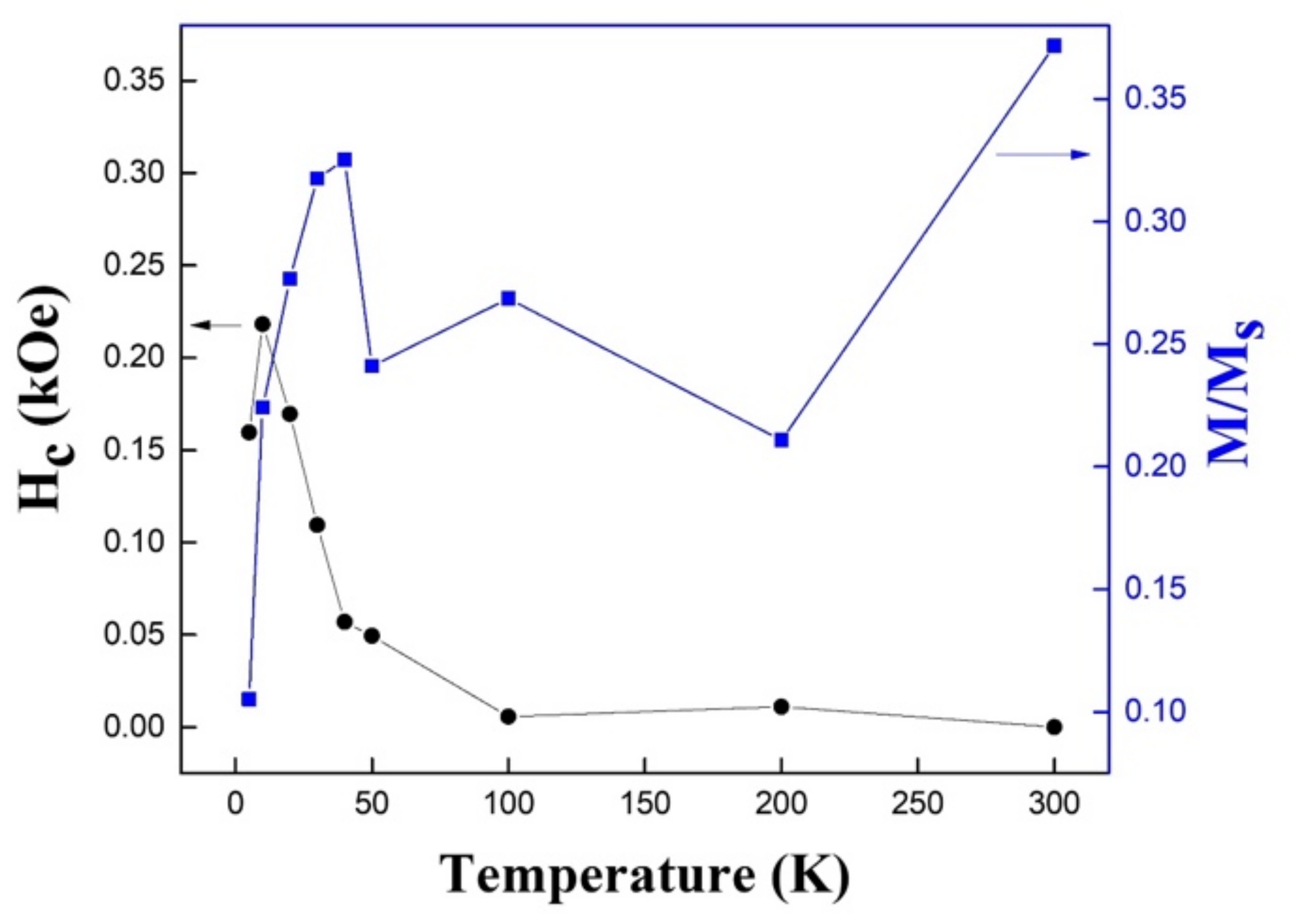

Figure 8. Coercivity (black circles) and reduced remanence (blue squares) for hollow Fe3O4 nanospheres as a function of temperature.
