Designing Highly Efficient Cu2O-CuO Heterojunction CO Oxidation Catalysts: The Roles of the Support Type and Cu2O-CuO Interface Effect

by
Fen Zhao
1,†,
Yiyu Shi
1,†,
Leilei Xu
1,*,
Mindong Chen
1,*,
Yingying Xue
1,
Cai-E Wu
2,
Jian Qiu
3,
Ge Cheng
1,
Jingxin Xu
4 and
Xun Hu
5
1
Collaborative Innovation Centre of the Atmospheric Environment and Equipment Technology, Jiangsu Key Laboratory of Atmospheric Environment Monitoring and Pollution Control, School of Environmental Science and Engineering, Nanjing University of Information Science & Technology, Nanjing 210044, China
2
College of Light Industry and Food Engineering, Nanjing Forestry University, Nanjing 210037, China
3
Jiangsu Shuangliang Environmental Technology Co., Ltd., Jiangyin 214400, China
4
State Environmental Protection Key Laboratory of Atmospheric Physical Modeling and Pollution Control, China Energy Science and Technology Research Institute Co., Ltd., Nanjing 210023, China
5
School of Material Science and Engineering, University of Jinan, Jinan 250022, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Nanomaterials 2022, 12(17), 3020; https://doi.org/10.3390/nano12173020
Submission received: 8 August 2022 / Revised: 25 August 2022 / Accepted: 26 August 2022 / Published: 31 August 2022
Browse Figures
Review Reports Versions Notes

Abstract

:
In this work, a series of Cu2O/S (S = α-MnO2, CeO2, ZSM-5, and Fe2O3) supported catalysts with a Cu2O loading amount of 15% were prepared by the facile liquid-phase reduction deposition–precipitation strategy and investigated as CO oxidation catalysts. It was found that the Cu2O/α-MnO2 catalyst exhibits the best catalytic activity for CO oxidation. Additionally, a series of Cu2O-CuO/α-MnO2 heterojunctions with varied proportion of Cu+/Cu2+ were synthesized by further calcining the pristine Cu2O/α-MnO2 catalyst. The ratio of the Cu+/Cu2+ could be facilely regulated by controlling the calcination temperature. It is worth noting that the Cu2O-CuO/α-MnO2-260 catalyst displays the best catalytic performance. Moreover, the kinetic studies manifest that the apparent activation energy could be greatly reduced owing to the excellent redox property and the Cu2O-CuO interface effect. Therefore, the Cu2O-CuO heterojunction catalysts supported on α-MnO2 nanotubes are believed to be the potential catalyst candidates for CO oxidation with advanced performance.

Graphical Abstract

1. Introduction

With the acceleration of economic globalization, power plants, cement plants, automobile exhaust emissions [1,2], biomass combustion [3], and other sources of fuel produce large quantities of CO due to the incomplete combustion [4,5,6,7,8]. It is reported that when the CO content in the air is larger than 0.1%, it will cause poisoning in humans [9], which further results in nausea, dizziness, loss of consciousness, headache, and even fatal accidents [10]. As well known, CO is a colorless, odorless, and asphyxiating toxic gas, and a flammable and explosive air pollutant, which greatly threatens the health of humans and the safety of the living environment. There are various methods of CO removal reported in the literature, such as the physisorption, CO methanation [11], and catalytic oxidation [12]. Among these strategies, catalytic oxidation is regarded as one of the most efficient techniques for the elimination of CO [13,14]. Additionally, CO oxidation is widely investigated as an interesting probe reaction for other oxidation processes.
Currently, CO oxidation catalysts based on precious metals and transition metal oxides have attracted extensive research interest. Although the noble metal-based catalysts exhibit excellent low-temperature catalytic activity, their high cost and rarity limit their industrial applications. In comparison, metal oxide-based catalysts are much lower cost than the noble metal-based catalysts, which is more favorable for industrial applications [15,16,17]. For the transition metal oxides, Cu2O-based materials have been widely used as CO oxidation catalysts because of their high activity at low temperature [18]. These not only have the advantages of low cost, low toxicity, and easy synthesis process, but also have excellent redox performance. Therefore, they are considered to be the potential functionalized catalysts for CO oxidation. In recent years, the heterojunction of Cu2O with semiconductors, such as TiO2 [19], CeO2 [20], WO3 [21], BiVO4 [22], among others, has become a research focus [23]. Shi et al. found that CuO can provide lattice oxygen for the CO oxidation reaction, and then regenerate the oxygen atoms on the Cu2O surface through decomposition of O2 [7]. Both Cu2O and CuO are stable, abundant, low-cost, and environmentally friendly p-type semiconductors with direct band gaps of 2.2 and 1.2 eV, respectively. Copper oxides (Cu2O and CuO) have become important catalysts for photocatalytic degradation of organic pollutants due to their high light absorption coefficients [24,25]. The Cu2O and CuO composite structure has a synergetic effect on the low-temperature oxidation of CO. To be specific, Cu2O and CuO can provide active sites for the oxygen dissociation and CO oxidation, respectively, and the atomic-scale distance between Cu2O and CuO would be conducive to rapid migration of oxygen adsorption atoms on Cu2O-CuO [26]. Therefore, CuOx-based catalysts are potential candidates for the replacement of noble metal CO oxidation.
The CuOx-based catalysts supported on different supports have significant effects on CO oxidation. They can be divided into two categories depending on the reducibility of the support. As for the inert supports, generally a non-reducible oxide (Al2O3, SiO2, MgO, etc.), they mainly play the roles of dispersing and stabilizing active species. As for the reducible active supports, such as transition metal oxides (CeO2, CoOx, TiO2, etc.), they interact with metals and promote the reaction. Additionally, they are also partially involved in the reaction and contribute to the reaction activity. Specifically, CeO2 can form structurally stable and chemically active interfacial interactions with active components due to its unique oxygen storage and release capacity, which significantly improves the performance of the catalyst. Kong et al. [27] reported that the CeO2 catalyst could realize the efficient and stable removal of VOCs due to its high carbon deposition resistance. The ZSM-5 molecular sieve is one of the most important catalytic materials, which has been widely investigated as a support, catalyst, etc., in various fields [28,29,30]. Pang et al. [31] reported that the Ce-doped Cu/ZSM-5 catalyst greatly improved the catalytic performance, hydrothermal stability, and SO2 toxicity resistance in NH3-SCR selective catalytic reduction of NO. As for the Fe2O3, it has various advantages of good stability, low-cost, good oxygen carrier, and environmental friendliness. Zhao et al. [32] developed a Au/γ-Fe2O3 catalyst with commercial γ-Fe2O3 as the support, which exhibited 20 times higher activity for CO oxidation than the Au/α-Fe2O3 catalyst due to the higher redox property of Au/γ-Fe2O3. Additionally, the manganese oxide (MnOx), as an excellent catalyst support, has been attracting increasingly more attention due to its low price and environmentally harmless features. Mo et al. [33] prepared the CeO2/MnO2 catalyst with high efficiency for toluene degradation. Therefore, in order to further enhance the catalytic activity of CO oxidation at low temperature, it is of great significance to search for an optimal catalytic support for the CO oxidation catalyst.
In this work, a series of oxides, such as α-MnO2 nanotube, CeO2 nanosphere, ZSM-5, and commercial Fe2O3, were investigated as the supports for Cu2O-based CO oxidation catalysts. The optimal support was screened among these oxides by comparing their CO oxidation performance. The supports and catalysts were systematically characterized by X-ray powder diffraction (XRD), N2 physisorption, transmission electron microscopy (TEM), X-ray photoelectron spectroscopy (XPS), H2 temperature-programmed reduction (H2-TPR), among others. Additionally, the effect of the Cu2O-CuO heterojunction on CO oxidation performance was also studied in depth.

2. Experimental

2.1. Preparation of the Supports

The detailed preparation process of the α-MnO2, CeO2, and ZSM-5 supports are given in Supplemental Materials S1.

2.2. Preparation of the Catalysts

2.2.1. Preparation of Cu2O/S Supported Catalysts

A series of the Cu2O/S (S = α-MnO2, CeO2, ZSM-5, and Fe2O3) supported catalyst was prepared by the liquid-phase-reduction deposition–precipitation synthesis strategy. The specific process for Cu2O/S supported catalysts preparation is described in detail in Supplemental Materials S1.

2.2.2. Preparation of Cu2O-CuO Heterojunction Catalysts

The Cu2O-CuO/α-MnO2 heterojunction catalysts with various Cu+/Cu2+ ratios were synthesized. The Cu2O-CuO/α-MnO2 heterojunction catalyst obtained was designated as Cu2O-CuO/α-MnO2-T, in which “T” denotes the targeted calcination temperature. Further details related to preparation are shown in Supplemental Materials S1.

2.3. Catalyst Characterizations

A series of characterization analyses were carried out on the supports and corresponding catalysts. Further details related to the equipment information, the operational details, and the determination parameters are summarized in Supplemental Materials S2.

2.4. Catalytic Activity Measurements

The catalytic performance of catalyst for CO oxidation was evaluated in a fixed-bed reactor. The productions were detected online by gas chromatography. Further information on the specific reactor and evaluation of catalyst is summarized Supplemental Materials S3.

3. Results and Discussions

3.1. Catalytic Property toward CO Oxidation

3.1.1. Effect of the Support Type on the Catalytic Activity of CO Oxidation

The catalytic activity of CO oxidation on Cu2O/S (S = α-MnO2, CeO2, ZSM-5, Fe2O3) catalysts with different supports was evaluated to investigate the influence of the support type on the catalytic activity of the CO oxidation. Figure 1 shows that the trend of the CO conversions was increasing with the increase in reaction temperature until 100% CO conversion was finally reached. Additionally, it was also interesting to observe that the catalytic activities of the Cu2O-based catalysts supported on ZSM-5 and Fe2O3 were much lower than those of Cu2O/α-MnO2 and Cu2O/CeO2 catalysts. The presence of the α-MnO2 and CeO2 supports could greatly improve the catalytic activities of the Cu2O-based catalyst, which might be due to the excellent oxygen storage and release capacities of the α-MnO2 and CeO2 supports. This indicates that the properties of the supports had great effect on the catalytic performance of the Cu2O-based catalysts. It is worth noting that the Cu2O/α-MnO2 catalyst exhibited the best CO oxidation activity among the Cu2O-based catalysts investigated. Therefore, α-MnO2 was considered as the promising candidate among the investigated supports.

3.1.2. Effect of Cu2O-CuO Heterojunction on the Catalytic Activity of CO Oxidation

As shown in Figure 2, detailed evaluations of the catalytic performance for CO oxidation on the Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts were also conducted. Figure 2 indicates that the CO conversion on these catalysts increased with the increase in the reaction temperature until reaching 100%. In addition, all the investigated catalysts performed CO oxidation well, and 100% CO conversion could be achieved below 120 °C. However, their reaction temperatures of 10% (T10), 50% (T50) and 100% (T100) CO conversion were quite different. This might be due to the difference in Cu2O-CuO heterojunction composition between the CuO and Cu2O. Thus, the presence of the Cu2O-CuO heterojunction in Cu2O-CuO/α-MnO2-T catalyst could greatly decrease the ignition temperature (T10) of the catalyst. Specifically, the Cu2O-CuO/α-MnO2-T catalysts performed at lower ignition temperatures (even to the room temperature) than the pure Cu2O/α-MnO2 (73 °C) and CuO/α-MnO2-500 (48 °C). Furthermore, the T50 and T100 of the Cu2O-CuO/α-MnO2-T heterojunction catalysts were lower than those of the pure Cu2O/α-MnO2 and CuO/α-MnO2-500 catalysts. The phenomenon indicated that the Cu2O-CuO heterojunction of Cu2O-CuO/α-MnO2-T catalysts greatly contributed to enhanced CO oxidation activity at low temperature, which was on account of the synergetic effect of the Cu2O-CuO heterojunction [7,34]. The synergistic effect of Cu+ and Cu2+ was mainly derived from the atomic scale distance between Cu2O and CuO, which was conducive to the rapid migration of adsorbed oxygen on the Cu2O-CuO surface. In addition, it is noteworthy that the Cu2O-CuO/α-MnO2-260 catalyst with the lowest T10, T50, and T100 showed the highest reactivity among the Cu2O-CuO/α-MnO2-T catalysts investigated. Therefore, the reaction temperature required for the CO catalytic oxidation was greatly reduced and the efficient removal of CO could be realized at low temperature when assisted with the combined effect of the Cu2O-CuO heterojunction.

3.1.3. Kinetic Study

The kinetic study of CO oxidation was carried out over the Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts to investigate the Cu2O-CuO heterojunction on the catalytic performance. The Arrhenius curves are shown in Figure 3, and the specific value of the apparent activation energies are listed in Table 1. It is noteworthy that the apparent activation energies of the Cu2O-CuO/α-MnO2-T heterojunction catalysts were in the range from 41.9 to 62.2 kJ·mol−1, which were greatly lower compared with the pure Cu2O/α-MnO2 (83.4 kJ·mol−1) and CuO/α-MnO2-500 (64.0 kJ·mol−1) catalysts. These results indicate that the synergy effect of the Cu2O-CuO heterojunction can greatly increase the speed of the activation process of O2. Specifically, the Cu2O-CuO/α-MnO2-T catalyst reduced the activation energy of the CO oxidation process. At the same time, the apparent activation energy of Cu2O-CuO/α-MnO2-260 was the lowest among the Cu2O-CuO/α-MnO2-T catalysts. These results suggest that the Cu2O-CuO-T catalyst with the appropriate Cu+/Cu2+ ratio dramatically reduced the activation energy owing to the improvement of the O2 activation ability. The two rate-determining steps of the Cu2O-CuO/α-MnO2-260 °C catalysts were close to the optimal dynamic equilibrium ratio. Therefore, the Cu2O-CuO heterojunction structure displays great advantages in improving the CO oxidation activity at low temperature by reducing the apparent activation energy. In addition, it is noteworthy that the apparent activation energy of the CuO/α-MnO2-500 (64.0 kJ·mol−1) catalyst was also much lower than that of the Cu2O/α-MnO2 (83.4 kJ·mol−1) catalyst. This proved that the CuO-MnO2 interface provided the new reactive site for the CO catalytic oxidation, which was consistent with the study reported in [34]. The Cu2O-CuO/α-MnO2-T heterojunction catalysts performed excellent CO oxidation activity at low temperature through the comprehensive effects of the Cu2O-CuO heterojunction.

3.1.4. Long-Term Stability Test

The Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-260 and CuO/α-MnO2-500 catalysts were selected as representative catalysts for the CO oxidation stability test at 90 °C for 12 h under certain conditions. Their stability test results are displayed in Figure 4. It can be observed that these three catalysts showed excellent stability throughout the whole 12 h, with no signs of deactivation. Additionally, the Cu2O-CuO/α-MnO2-260 catalyst showed a higher conversion rate than the Cu2O/α-MnO2 and CuO/α-MnO2-500 catalysts in the catalytic stability test due to the presence of the Cu2O-CuO heterojunction. Similarly, the CuO/α-MnO2-500 catalyst showed higher conversion than the Cu2O/α-MnO2 catalyst. These results indicate that the Cu2O-CuO/α-MnO2-T heterojunction catalyst exhibited not only excellent low-temperature activity, but good stability owing to the synergistic interaction of Cu2O-CuO heterojunction.

3.2. Characterization of the Catalysts

3.2.1. XRD Analysis

Figure S1 displays the XRD patterns of the as-prepared Cu2O/S (S = α-MnO2, CeO2, ZSM-5, Fe2O3) catalysts with 15% Cu2O loading amount. As shown in Figure S1, the diffraction peaks of Cu2O/S catalysts were mainly situated at 2θ = 36.6°, 42.5°, 61.7°, and 73.7°, which could be ascribed to the (111), (200), (220), and (311) of Cu2O phase (PDF-#-05-0667). However, the intensities of the Cu2O peaks on these catalysts were quite different. Specifically, the intensities of the Cu2O peaks on the Cu2O/α-MnO2 and Cu2O/CeO2 catalysts were much weaker than that on the Cu2O/ZSM-5 and Cu2O/Fe2O3 catalysts, suggesting the high dispersion of the Cu2O species. This indicated that the properties of the support could greatly affect the dispersion of Cu2O, which was further conducive to the improvement of the catalytic activity of CO oxidation. In addition, the diffraction peaks of the supports could be observed over these Cu2O-based catalysts, which were attributed to the crystalline ZSM-5 (PDF-#-47-0715), Fe2O3 (PDF-#-99-0060), CeO2 (PDF-#-34-0394), and α-MnO2 (PDF-#-78-0428) phases.
Figure 5a shows the XRD patterns of the Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts. The diffraction peaks of the Cu2O/α-MnO2 catalyst were mainly situated at 2θ = 36.6°, 42.5°, 61.7°, and 73.7°, which could be due to the (111), (200), (220), and (311) of the Cu2O phase (PDF-#-90-0041), respectively. The diffraction peaks of the CuO/α-MnO2-500 catalyst were located at 2θ = 35.7° and 38.8°, which might be due to the (−111) and (111) of the CuO phase (PDF-#-01-1117), respectively. However, as for the Cu2O-CuO/α-MnO2-T catalyst, the characteristic diffraction peaks of Cu2O, CuO, and α-MnO2 could also be found at the same time in their XRD patterns. The results indicate that the supported Cu2O had been transformed into the Cu2O-CuO heterojunction with a different proportion of Cu+/Cu2+. Specifically, the intensity of the CuO diffraction peaks increased with the increase in the calcination temperature. This suggests that the ratio of CuO in the Cu2O-CuO/α-MnO2-T catalyst increased with the increase in the calcination temperature from 240 to 280 °C. The brown Cu2O/α-MnO2 catalyst, abundant with the Cu2O phase, was eventually oxidized into the CuO/α-MnO2-500 black powder when the calcination temperature further increased to 500 °C. As a result, the XRD patterns of the CuO/α-MnO2-500 catalyst only displayed the characteristic diffraction peaks of CuO and α-MnO2 phases. This indicates that Cu2O was completely transformed into CuO after the calcination at 500 °C for 1 h. Based on this analysis, it can be concluded that the Cu2O-CuO/α-MnO2 heterojunction catalysts with different Cu+/Cu2+ ratios can be obtained by adjusting the calcination temperature. The appropriate Cu+/Cu2+ ratio heterojunction could greatly improve the catalytic activity of catalysts based on the catalytic results given in Figure 2.
Figure 5b shows the XRD patterns of the spent (SP-) Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-260, and CuO/α-MnO2-500 catalysts after 12 h long-term stability tests. Meanwhile, the XRD patterns of their corresponding fresh catalysts are also presented for comparison. As shown in Figure 5b, this pattern represents the fresh catalyst, and the pattern below represents the spent catalyst (SP-) after the stability test. The characteristic diffraction peaks of Cu2O (PDF#-90-0041), CuO (PDF#-72-1982), and α-MnO2 (PDF#-78-0428) can still be obviously observed on the spent catalysts, especially on the SP-Cu2O-CuO/α-MnO2-260 heterojunction catalyst. Therefore, the XRD results confirmed that the Cu2O-CuO heterojunction existed in the Cu2O-CuO/α-MnO2-260 catalyst after the 12 h long-term stability test of CO oxidation. This implies that the oxygen activation cycle during the CO oxidation on the Cu2O-CuO/α-MnO2-260 heterojunction catalyst was sustainable owing to the thermal stability of the Cu2O-CuO heterojunction. At the same time, the characteristic peaks of α-MnO2 were also perfectly retained. These results illustrate the important roles of the Cu2O-CuO heterojunction interface when constructing stable and efficient CO oxidation catalysts.

3.2.2. TG Analysis

The thermal stability and the phase transformation process of the Cu2O/α-MnO2 catalyst were studied by thermogravimetric analysis (TG) in air atmosphere. The weight decreased slowly in the range 30–200 °C, as shown in Figure 6. This might be caused by the removal of the water of physisorption and water of crystallization, together with the removal of trace organic reagent. However, when the temperature further rose to 511 °C, the weight began to drop sharply. The weight loss was equivalent to the loss of oxygen in the lattice of MnO2, leading to the formation of Mn2O3. Furthermore, when the temperature further increased to 769 °C, the weight again dropped sharply. This indicates that the Mn2O3 once again lost part of the lattice oxygen, leading to the formation of Mn3O4. These results are consistent with precursory literature reports [35,36,37]. It is worth noting that the mass loss of the catalyst (10.61%) was less than the theoretical value (12.26%) during the conversion of α-MnO2 to Mn3O4. The reason for the actual mass reduction being less than the theoretical mass reduction was that the transformation of the loaded Cu2O to CuO increased the weight.

3.2.3. N2 Physisorption Analysis

The structural characteristics of the Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts were investigated by N2 physisorption characterization. Their N2 adsorption–desorption isotherms and pore size distributions of catalysts are shown in Figure 7. It can be observed in Figure 7a that all the catalysts were characterized by the type IV isotherm and H4 hysteresis loops. This also indicates that the Cu2O-CuO/α-MnO2-T and CuO/α-MnO2-500 catalysts still had mesoporous structures similar to Cu2O/α-MnO2 after calcination at different temperatures, thus exhibiting the excellent thermal stability. Typically, the H4-shaped hysteresis loops indicate the existence of narrow wedge-shaped mesopores. Additionally, the mesopores might originate from the hollow α-MnO2 nanotube in the catalyst support, the sintering of catalysts in calcination process, and the rupture of internal mesopores. As shown in Figure 7b, the average pore size of the Cu2O-CuO/α-MnO2-T and CuO/α-MnO2-500 catalysts was similar or larger than the original Cu2O/α-MnO2 catalyst. This suggested that their mesoporous structures were not severely damaged by the thermal aggregation and phase transformation during the calcination process at different temperature. The nanotube hollow microsphere catalyst exhibited excellent thermal stability. In addition, the specific data of the structural properties of these catalysts are listed in Table 2. The results show that the specific surface areas, average pore diameters, and pore volumes of the Cu2O-CuO/α-MnO2-T catalysts were very similar to those of the pristine Cu2O/α-MnO2 catalyst. This again confirms the excellent thermal performance stability of these catalysts. The slight reduction in the specific surface area might be due to the sintering of Cu2O in the process of the calcination. It would further affect the surface morphology of the catalyst-supported nanotube hollow spheres by creating internal pores and surface defects. In contrast, the specific surface area of the CuO/α-MnO2-500 catalyst was relatively smaller, which might be caused by the complete oxidation of the surface Cu2O specifies and the closure and/or blockage of the hollow pores due to the long-term high temperature calcination.

3.2.4. SEM and TEM Analyses

The TEM and SEM photos of the support α-MnO2 nanotube are shown in Figure S2a,b. Figure 8 shows the SEM images of the as-prepared Cu2O/S (S = α-MnO2, CeO2, ZSM-5, Fe2O3) catalysts with 15% Cu2O loading amount. As shown in Figure 8a,b, the as-synthesized Cu2O/ZSM-5 catalyst exhibits regular cuboid shape with the a-axis (205 nm), b-axis (100 nm), and c-axis (1054 nm). In contrast, Cu2O/Fe2O3 catalyst supported on the commercial Fe2O3, shown in Figure 8c,d, resulted in an irregular morphology in the particle state, which might not be conducive to the dispersion of the Cu2O active sites. In addition, it is interesting to find in Figure 8e,f that the as-prepared Cu2O/CeO2 catalyst exhibited spherical nanoparticles with uniform size distribution about 130 nm. At the same time, it can be observed in Figure 8g,h that the Cu2O/α-MnO2 catalyst presented the morphology of hollow spheres, which were assembled by hollow nanotubes.
Figure 9 depicts the SEM images of the hollow Cu2O/α-MnO2 catalyst calcined at different temperatures. Further, the spatial distribution of the Cu and Mn elements in the catalysts were investigated by the EDS-mapping technique. The Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-260, and CuO/α-MnO2-500 catalysts are chosen as the representative samples. As can be observed in Figure 9a,b, the Cu2O/α-MnO2 hollow microspheres catalyst with the average size of 5.01 μm exhibits the Cu2O nanoparticles supported on the surface of hollow nanotube. With the increase in calcination temperature, the surface of the Cu2O-CuO/α-MnO2-260 (Figure 9c,d) and CuO/α-MnO2-500 (Figure 9e,f) catalysts became coarse, and the morphology of hollow microsphere was less pronounced compared with the Cu2O/α-MnO2. This was because the Cu2O was gradually oxidized into CuO in the process of the calcination at different temperatures. In addition, the average particle size of the Cu2O-CuO/α-MnO2-260 (4.71 μm) and CuO/α-MnO2-500 (5.09 μm) hollow microspheres did not show significant thermal shrinkage and aggregation in the process of the calcination, and the morphology of hollow microspheres had been successfully maintained.

3.2.5. FTIR Analysis

To investigate the phase transition process from Cu2O to CuO in the calcination process, FTIR analysis of Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts in the range 400–4000 cm−1 was performed. As shown in Figure 10, it is noteworthy that the samples show infrared transmittance peaks at 598 and 468 cm−1, which are attributed to the stretching vibration of the Cu(+1)-O and Cu(+2)-O bond, respectively [38]. In addition, the coexistence of stretching vibration peaks at 598 and 468 cm−1 indicate the existence of the Cu2O-CuO heterojunction. When the calcination temperature increased to 240 °C or other higher temperature, the characteristic stretching vibration peak of Cu(+2)-O bond gradually appeared at 468 cm−1, while the Cu(+1)-O stretching vibration at 598 cm−1 progressively weakened due to the complete oxidation of Cu2O to CuO until it finally disappeared at 500 °C. This further verifies the change in crystal structure and valence state of Cu species in the calcination process in air atmosphere. Meanwhile, it can be found that the catalyst also provided strong infrared transmission peaks at 720 and 523 cm−1, which are attributed to the stretching vibration of O-Mn-O and layered manganese oxide, respectively [39,40,41,42]. As for the transmittance peaks around 3423 and 1637 cm−1, they are attributed to the stretching and flexural oscillations of the O-H groups caused by the physiosorbed water [43,44]. Therefore, the results of FTIR characterization further confirm the oxidation process of the Cu2O supported on the surface of α-MnO2 nanotube and the formation of Cu2O-CuO heterojunction in the process of the calcination.

3.2.6. XPS Analysis

XPS analysis was performed on the Cu2O/S (S = ZSM-5, CeO2, α-MnO2, and Fe2O3) catalysts to further investigate the states of valence, surface chemical coordination, and composition. The results of Cu 2p and O 1s spectra are shown in Figure 11. Specifically, the pristine Cu2O/α-MnO2, Cu2O/Fe2O3, Cu2O/CeO2, and Cu2O/ZSM-5 catalysts showed the 2p3/2 peak of Cu+ at 931.38 eV (Figure 11a). This indicates the presence of the Cu2O species on the support surface. As shown in Figure 11b, the O 1s main peak of the catalyst was around 529.36–529.46 eV, and the shoulder peak was around 530.76–530.96 eV. To be specific, the peaks of 529.36–529.46 eV and 530.76–530.96 eV could be attributed to surface adsorbed oxygen (Oads) and lattice oxygen (Olatt), respectively [45]. However, the location of the main peak and shoulder peak of Cu2O/ZSM-5 catalyst differed greatly from the catalysts above. The shoulder peak at 530.58 eV should be attributed to the O species of Si-OH on the surface of SiO2 support, rather than the surface-adsorbed oxygen (Olatt) [46,47]. In general, the number of the Oads mainly depends on the number of oxygen vacancies at the surface. The reason is that the Oads could only be absorbed on the oxygen vacancies. Thus, the Oads/(Olatt + Oads) ratio became the valid parameter to analyze the content of the surface oxygen vacancy. Table 3 shows that the O 1s shoulder peak area ratio (Oads/(Olatt + Oads)) of the Cu2O/CeO2, Cu2O/Fe2O3, Cu2O/ZSM-5, and Cu2O/α-MnO2 catalysts were 31.8%, 46.67%, 37.46%, and 21.26%, respectively. Although the (Oads/(Olatt + Oads)) ratio of Cu2O/α-MnO2 catalyst is somewhat lower compared with other supported Cu2O catalysts, the Cu2O/α-MnO2 catalyst exhibits excellent catalytic performance. This suggests that the ratio of O 1s shoulder peak area has a close relationship with the type of support.

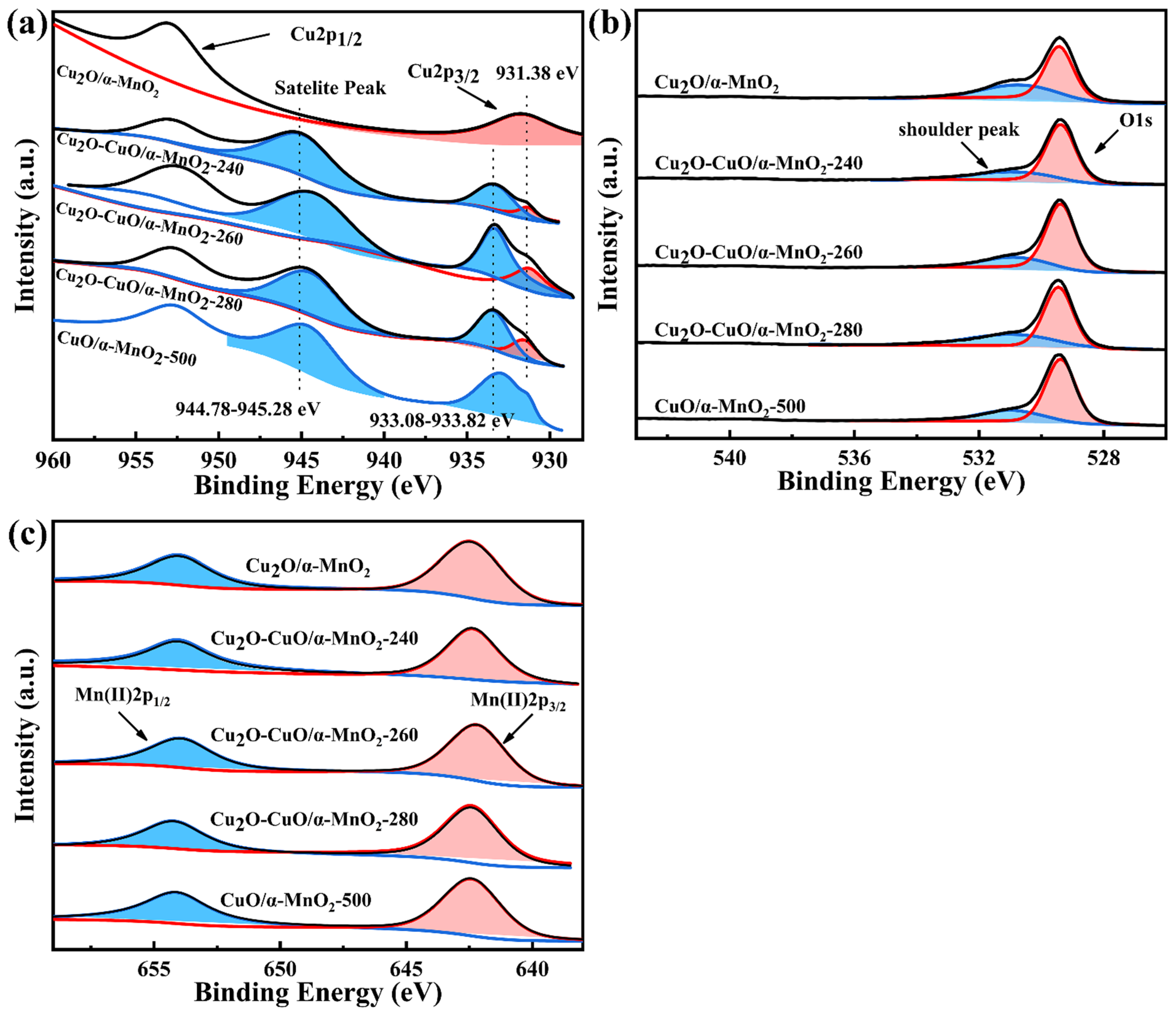

The XPS results of Cu 2p, O 1s, and Mn 2p over Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts are shown in Figure 12. Generally, there are two main peaks around 933.08–933.82 eV and 952.68–952.88 eV observed over these catalysts (Figure 12a), which can be attributed to the Cu 2p3/2 and Cu 2p1/2 peaks, respectively [48]. Interestingly, the Cu 2p3/2 peak was accompanied by an oscillating satellite peak from 944.78 to 945.28 eV. It was previously reported that the satellite peaks are generated by the transfer of electrons from the ligand orbital to the 3d orbital of Cu [49,50]. This indicates that the Cu2+ exists in the divalent form with the 3d9 structure, rather than the Cu+ or Cu0 species with the 3d10-filled energy level. It was reported that the CO oxidation activity of the Cu2O-CuO heterojunction catalyst is largely dependent on the surface of Cu+/Cu2+ ratio [26]. The Cu2+/Cu1+ relative percentages can be estimated by the peak-fitted areas of their corresponding XPS peaks. As shown in Table 4, the relative percentages of different oxidation states in the Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-240, Cu2O-CuO/α-MnO2-260, Cu2O-CuO/α-MnO2-280, and CuO/α-MnO2-500 catalysts were 0, 6.30, 9.64, 9.99, and ∞, respectively. These results indicate that the calcination temperature greatly affects the relative percentages of different oxidation states over the catalyst surface. Meanwhile, the XPS results also reveal the formation of the Cu2O-CuO heterojunction structure on the surface of the Cu2O-CuO-T catalyst, which is consistent with the FTIR and XRD characterization results.
Figure 12a indicates that in the O 1s spectra of the catalysts studied, each catalyst showed a main peak centered at 529.40 eV and a shoulder peak around 531.12 eV. The results in 3 show that the Oads/(Olatt + Oads) ratio of the Cu2O-CuO/α-MnO2-T heterojunction catalyst was higher than that of Cu2O/α-MnO2. CuO/α-MnO2-500 was also found to have a relatively high acromion area ratio Oads/(Olatt + Oads), possibly due to the large amount of additional oxygen species provided by the CuO-MnO2 interface effect [34]. Among Cu2O-CuO-T heterojunction catalysts, Cu2O-CuO-260 catalyst possessed the highest proportion of shoulder peak area. According to previous report [51], the surface oxygen vacancies could enhance the redox properties of catalysts, which would be beneficial to the improvement of the performance of catalysts. The two binding energy peaks around 642.7 and 654.0 eV belong to Mn 2p3/2 and Mn 2p1/2 spin orbits, respectively, from the Mn 2p spectra shown in Figure 12c. It should be noted that these two peaks are the characteristic signals of Mn4+(IV). These phenomena indicate the occurrence of interfacial reactions and the existence of α-MnO2 [52,53].

3.2.7. H2-TPR Analysis

To investigate the reduction, the Cu2O/S (S = ZSM-5, CeO2, α-MnO2, and Fe2O3), Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts were performed H2-TPR analysis. The H2-TPR curves of the ZSM-5, CeO2, α-MnO2, and Fe2O3 supports are shown in Supplemental Materials S4. As can be observed, ZSM-5 zeolite had no obvious reduction peak, which might be due to the inert support. Additionally, it could be interesting to find that the Fe2O3 support exhibited a small reduction peak at 532 °C and a wide non-termination peak at 745 °C. According to the literature [54], the Fe2O3 support experiences the reduction from Fe2O3 to Fe3O4 and from Fe3O4 to Fe. The reduction of CeO2 support might be due to the existence of Ce4+/Ce3+ redox pairs. In addition, α-MnO2 showed two reduction peaks at 432 and 579 °C. The reduction process of α-MnO2 samples could be speculated to be a two-step reduction process with MnO as the final state, namely MnO2→Mn3O4→MnO [34,44,55].
As for the H2-TPR curves of Cu2O/S catalysts supported on different oxides, shown in Figure 13a, they reveal two or three reduction peaks in the range 30–800 °C. This indicates that the reduction of Cu2O species at different temperatures was related to the different metal–support interaction. Specifically, the Cu2O/ZSM-5 catalyst showed a large reduction peak and a shoulder peak near 296 and 420 °C, respectively, which could correspond to the interaction strength of the Cu2O and ZSM-5 with different intensities. The Cu2O/Fe2O3 catalyst showed three reduction peaks, which might correspond to the interaction strength of Cu2O and Fe2O3 with different intensities, and the reduction peak of Fe2O3 support. The Cu2O/CeO2 catalyst showed two reduction peaks, and the peak at 258 °C might be the common reduction peak of Cu2O and CeO2 species. It is worth noting that the reduction peak intensity of the Cu2O/α-MnO2 catalyst was the largest among these four catalysts. Therefore, the nature of the support had an important influence on the reduction property of the catalyst and the metal–support interaction.
The H2 reduction profiles of the Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts are shown in Figure 13b. These catalysts had three reduction peaks: 156–290, 337–385, and 442–487 °C. Generally, their H2-TPR curves are analogous in the shape, with a large reduction peak at 442–487 °C (γ-type), a big shoulder peak at 337–385 °C (β-type), and a small shoulder peak at 156–290 °C (α-type). Additionally, it is noteworthy that the reduction peak area of the CuO/α-MnO2-500 catalyst was somewhat larger than that of the Cu2O/α-MnO2 catalyst. The main reason for this was that the reduction process of the CuO consisted of two reduction stages, which contained the reduction processes from Cu2+ to Cu+ and then from Cu+ to Cu0. Therefore, compared with the reduction of Cu2O/α-MnO2, the reduction of the Cu2O-CuO/α-MnO2 heterojunction and CuO/α-MnO2 catalysts required more H2 reductant, resulting in the larger H2 consumption. Furthermore, it is interesting to find that the initial reduction temperature of Cu2O-CuO/α-MnO2-T heterojunction catalysts gradually shifted to the lower temperature with the increase in the calcination temperature. This suggests that the presence of the Cu2O-CuO heterojunction had an important influence on the reduction property of the catalysts.

4. Conclusions

In summary, a series of Cu2O/S (S = α-MnO2, CeO2, ZSM-5, Fe2O3) catalysts were prepared by the liquid-phase reduction deposition–precipitation strategy and used for CO oxidation. It was found that the Cu2O/α-MnO2 catalyst performed the optimum low-temperature activity of CO oxidation. Furthermore, the influence of the Cu2O-CuO heterojunction structure on the catalytic activity of CO oxidation was also carefully investigated. It was found that Cu2O-CuO/α-MnO2-260 with the Cu2O/total Cu proportion of 9.4% exhibited the highest catalytic activity. The presence of the Cu2O-CuO heterojunction greatly increased the content of the surface oxygen vacancy. This further enhanced the activation ability of oxygen, and finally improved the low temperature CO oxidation property. Kinetic study showed that the Cu+/Cu2+ proportion of the Cu2O-CuO heterojunction and redox property of the Cu2O-CuO/α-MnO2-T catalyst significantly reduced the apparent activation energy of CO oxidation. As a result, the catalytic activity of CO oxidation at low temperature was greatly improved. In addition, there are few reports on Cu2O-CuO heterojunction catalysts supported on MnO2 for CO oxidation. Although researchers have prepared CuOx-type catalysts with MnO2 as the support by some methods, its catalytic CO oxidation performance is not ideal. In conclusion, the Cu2O-CuO/α-MnO2-T heterojunction catalysts with adjustable Cu+/Cu2+ ratios are expected to be promising catalyst candidates for CO oxidation in future applications.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12173020/s1, S1 Experimental; S2. Catalyst Characterizations; S3. Catalytic Activity Measurements; Figure S1: X-ray diffraction patterns of the as-prepared Cu2O/S (S = ZSM-5, CeO2, α-MnO2 and commercial Fe2O3) catalysts; Figure S2: SEM (a,b) and TEM (c,d) image of the as-prepared α-MnO2 supports; Figure S3: H2-TPR profiles of the as-prepared ZSM-5, CeO2, α-MnO2 and Fe2O3 supports. References [56,57,58] are cited in the supplementary materials.

Author Contributions

Conceptualization, M.C., F.Z. and Y.S.; formal analysis, F.Z. and Y.S.; investigation, X.H., Y.X. and F.Z.; resources, M.C., C.-E.W., G.C., J.X. and J.Q.; data curation, Y.S. and F.Z.; writing—original draft preparation, F.Z.; writing—review and editing, L.X.; funding acquisition, M.C. All authors have read and agreed to the published version of the manuscript.

Funding

The authors sincerely acknowledge the financial support from National Natural Science Foundation of China (Grant No. 21503113, 21871144, 21976094, and 22176100), the National Key Research and Development Project (Grant No.2018YFC0213802), Environmental protection projects of Jiangsu province (2017022), a Project Funded by the Priority Academic Program Development of Jiangsu Higher Education Institutions, Postgraduate Research & Practice Innovation Program of Jiangsu Province (SJCX22_0367). This study was also supported by Startup Foundation of Nanjing University of Information Science and Technology.

Data Availability Statement

The data supporting the findings of this study are available by reason-able request to leileixu88@gmail.com.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Boubnov, A.; Dahl, S.; Johnson, E.; Molina, A.P.; Simonsen, S.B.; Cano, F.M.; Helveg, S.; Lemus-Yegres, L.J.; Grunwaldt, J.-D. Structure–activity relationships of Pt/Al2O3 catalysts for CO and NO oxidation at diesel exhaust conditions. Appl. Catal. B Environ. 2012, 126, 315–325. [Google Scholar] [CrossRef]
  2. Lee, J.; Theis, J.R.; Kyriakidou, E.A. Vehicle emissions trapping materials: Successes, challenges, and the path forward. Appl. Catal. B Environ. 2019, 243, 397–414. [Google Scholar] [CrossRef]
  3. Sahu, S.; Chakraborty, N.; Sarkar, P. Coal–biomass co-combustion: An overview. Renew. Sustain. Energy Rev. 2014, 39, 575–586. [Google Scholar] [CrossRef]
  4. Cui, Y.; Xu, L.; Chen, M.; Lian, X.; Wu, C.-E.; Yang, B.; Miao, Z.; Wang, F.; Hu, X. Facilely fabricating mesoporous nanocrystalline Ce–Zr solid solution supported CuO-based catalysts with advanced low-temperature activity toward CO oxidation. Catal. Sci. Technol. 2019, 9, 5605–5625. [Google Scholar] [CrossRef]
  5. Cui, Y.; Xu, L.; Chen, M.; Lv, C.; Lian, X.; Wu, C.-E.; Yang, B.; Miao, Z.; Wang, F.; Hu, X. CO Oxidation over Metal Oxide (La2O3, Fe2O3, PrO2, Sm2O3, and MnO2) Doped CuO-Based Catalysts Supported on Mesoporous Ce0.8Zr0.2O2 with Intensified Low-Temperature Activity. Catalysts 2019, 9, 724. [Google Scholar] [CrossRef]
  6. Farrauto, R.J.; Deeba, M.; Alerasool, S. Gasoline automobile catalysis and its historical journey to cleaner air. Nat. Catal. 2019, 2, 603–613. [Google Scholar] [CrossRef]
  7. Shi, Y.; Xu, L.; Chen, M.; Yang, B.; Cheng, G.; Wu, C.-E.; Miao, Z.; Wang, N.; Hu, X. Fabricating Cu2O-CuO submicron-cubes for efficient catalytic CO oxidation: The significant effect of heterojunction interface. J. Ind. Eng. Chem. 2022, 105, 324–336. [Google Scholar] [CrossRef]
  8. Song, H.; Xu, L.; Chen, M.; Cui, Y.; Wu, C.-E.; Qiu, J.; Xu, L.; Cheng, G.; Hu, X. Recent progresses in the synthesis of MnO2 nanowire and its application in environmental catalysis. RSC Adv. 2021, 11, 35494–35513. [Google Scholar] [CrossRef]
  9. Xu, Z.; Li, Y.; Lin, Y.; Zhu, T. A review of the catalysts used in the reduction of NO by CO for gas purification. Environ. Sci. Pollut. Res. 2020, 27, 6723–6748. [Google Scholar] [CrossRef]
  10. World Health Organization; Regional Office for Europe. Monitoring Ambient Air Quality for Health Impact Assessment; European Series; WHO Regional Publications: Geneva, Switzerland, 1999; p. 196. [Google Scholar]
  11. Miao, B.; Ma, S.S.K.; Wang, X.; Su, H.; Chan, S.H. Catalysis mechanisms of CO2 and CO methanation. Catal. Sci. Technol. 2016, 6, 4048–4058. [Google Scholar] [CrossRef]
  12. Śmiechowicz, I.; Kocemba, I.; Rogowski, J.; Czupryn, K. CO oxidation over Pt/SnO2 catalysts. React. Kinet. Mech. Catal. 2018, 124, 633–649. [Google Scholar] [CrossRef]
  13. Kaneti, Y.V.; Tanaka, S.; Jikihara, Y.; Nakayama, T.; Bando, Y.; Haruta, M.; Hossain, S.A.; Golberg, D.; Yamauchi, Y. Room temperature carbon monoxide oxidation based on two-dimensional gold-loaded mesoporous iron oxide nanoflakes. Chem. Commun. 2018, 54, 8514–8517. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, L.-N.; Li, X.-N.; He, S.-G. Recent research progress in the study of catalytic CO oxidation by gas phase atomic clusters. Sci. China Mater. 2020, 63, 892–902. [Google Scholar] [CrossRef]
  15. Dehestaniathar, S.; Khajelakzay, M.; Ramezani-Farani, M.; Ijadpanah-Saravi, H. Modified diatomite-supported CuO–TiO2 composite: Preparation, characterization and catalytic CO oxidation. J. Taiwan Inst. Chem. Eng. 2016, 58, 252–258. [Google Scholar] [CrossRef]
  16. Haruta, M.; Yamada, N.; Kobayashi, T.; Iijima, S. Gold catalysts prepared by coprecipitation for low-temperature oxidation of hydrogen and of carbon monoxide. J. Catal. 1989, 115, 301–309. [Google Scholar] [CrossRef]
  17. Wang, W.; Li, Y.; Zhang, R.; He, D.; Liu, H.; Liao, S. Metal-organic framework as a host for synthesis of nanoscale Co3O4 as an active catalyst for CO oxidation. Catal. Commun. 2011, 12, 875–879. [Google Scholar] [CrossRef]
  18. El Kasmi, A.; Tian, Z.-Y.; Vieker, H.; Beyer, A.; Chafik, T. Innovative CVD synthesis of Cu2O catalysts for CO oxidation. Appl. Catal. B Environ. 2016, 186, 10–18. [Google Scholar] [CrossRef]
  19. Ângelo, J.; Magalhães, P.; Andrade, L.; Mendes, A. Characterization of TiO2-based semiconductors for photocatalysis by electrochemical impedance spectroscopy. Appl. Surf. Sci. 2016, 387, 183–189. [Google Scholar] [CrossRef]
  20. Gerasimov, G.N.; Ikim, M.; Timashev, P.; Gromov, V.F.; Belysheva, T.V.; Spiridonova, E.Y.; Bagratashvili, V.N.; Trakhtenberg, L.I. Small CeO2 clusters on the surface of semiconductor nanoparticles. Russ. J. Phys. Chem. A 2015, 89, 1059–1064. [Google Scholar] [CrossRef]
  21. Hoseinzadeh, S.; Ghasemiasl, R.; Bahari, A.; Ramezani, A.H. n-type WO3 semiconductor as a cathode electrochromic material for ECD devices. J. Mater. Sci. Mater. Electron. 2017, 28, 14446–14452. [Google Scholar] [CrossRef]
  22. Malathi, A.; Madhavan, J.; Ashokkumar, M.; Arunachalam, P. A review on BiVO4 photocatalyst: Activity enhancement methods for solar photocatalytic applications. Appl. Catal. A Gen. 2018, 555, 47–74. [Google Scholar] [CrossRef]
  23. Su, Y.; Lang, J.; Cao, N.; Wang, T.; Zhu, B.; Wang, X. Morphological reconstruction and photocatalytic enhancement of NaTaO3 nanocrystals via Cu2O loading. J. Nanoparticle Res. 2015, 17, 63. [Google Scholar] [CrossRef]
  24. Kakuta, S.; Abe, T. Photocatalytic activity of Cu2O nanoparticles prepared through novel synthesis method of precursor reduction in the presence of thiosulfate. Solid State Sci. 2009, 11, 1465–1469. [Google Scholar] [CrossRef]
  25. Kuo, C.-H.; Chen, C.-H.; Huang, M.H. Seed-Mediated Synthesis of Monodispersed Cu2O Nanocubes with Five Different Size Ranges from 40 to 420 nm. Adv. Funct. Mater. 2007, 17, 3773–3780. [Google Scholar] [CrossRef]
  26. Wei, B.; Yang, N.; Pang, F.; Ge, J. Cu2O–CuO Hollow Nanospheres as a Heterogeneous Catalyst for Synergetic Oxidation of CO. J. Phys. Chem. C 2018, 122, 19524–19531. [Google Scholar] [CrossRef]
  27. Kong, J.; Xiang, Z.; Li, G.; An, T. Introduce oxygen vacancies into CeO2 catalyst for enhanced coke resistance during photothermocatalytic oxidation of typical VOCs. Appl. Catal. B Environ. 2020, 269, 118755. [Google Scholar] [CrossRef]
  28. Bahri, S.; Patra, T.; Sonal; Upadhyayula, S. Synergistic effect of bifunctional mesoporous ZSM-5 supported Fe-Co catalyst for selective conversion of syngas with low Ribblet ratio into synthetic fuel. Microporous Mesoporous Mater. 2019, 275, 1–13. [Google Scholar] [CrossRef]
  29. Shilina, M.; Rostovshchikova, T.; Nikolaev, S.; Udalova, O. Polynuclear Co-oxo cations in the catalytic oxidation of CO on Co-modified ZSM-5 zeolites. Mater. Chem. Phys. 2018, 223, 287–298. [Google Scholar] [CrossRef]
  30. Zhang, W.; Liu, B.; Zhu, C.; Tian, Y. Preparation of La2NiO4/ZSM-5 catalyst and catalytic performance in CO2/CH4 reforming to syngas. Appl. Catal. A Gen. 2005, 292, 138–143. [Google Scholar] [CrossRef]
  31. Pang, L.; Fan, C.; Shao, L.; Song, K.; Yi, J.; Cai, X.; Wang, J.; Kang, M.; Li, T. The Ce doping Cu/ZSM-5 as a new superior catalyst to remove NO from diesel engine exhaust. Chem. Eng. J. 2014, 253, 394–401. [Google Scholar] [CrossRef]
  32. Zhao, K.; Tang, H.; Qiao, B.; Li, L.; Wang, J. High Activity of Au/γ-Fe2O3 for CO Oxidation: Effect of Support Crystal Phase in Catalyst Design. ACS Catal. 2015, 5, 3528–3539. [Google Scholar] [CrossRef]
  33. Mo, S.; Li, J.; Liao, R.; Peng, P.; Li, J.; Wu, J.; Fu, M.; Liao, L.; Shen, T.; Xie, Q.; et al. Unraveling the decisive role of surface CeO2 nanoparticles in the Pt-CeO2/MnO2 hetero-catalysts for boosting toluene oxidation: Synergistic effect of surface decorated and intrinsic O-vacancies. Chem. Eng. J. 2021, 418, 129399. [Google Scholar] [CrossRef]
  34. Qian, K.; Qian, Z.; Hua, Q.; Jiang, Z.; Huang, W. Structure–activity relationship of CuO/MnO2 catalysts in CO oxidation. Appl. Surf. Sci. 2013, 273, 357–363. [Google Scholar] [CrossRef]
  35. Chang, J.-K.; Chen, Y.-L.; Tsai, W.-T. Effect of heat treatment on material characteristics and pseudo-capacitive properties of manganese oxide prepared by anodic deposition. J. Power Sources 2004, 135, 344–353. [Google Scholar] [CrossRef]
  36. Jeong, Y.U.; Manthiram, A. Nanocrystalline Manganese Oxides for Electrochemical Capacitors with Neutral Electrolytes. J. Electrochem. Soc. 2002, 149, A1419–A1422. [Google Scholar] [CrossRef]
  37. Reddy, R.N.; Reddy, R.G. Synthesis and electrochemical characterization of amorphous MnO2 electrochemical capacitor electrode material. J. Power Sources 2004, 132, 315–320. [Google Scholar] [CrossRef]
  38. Zhang, D.-F.; Zhang, H.; Guo, L.; Zheng, K.; Han, X.-D.; Zhang, Z. Delicate control of crystallographic facet-oriented Cu2O nanocrystals and the correlated adsorption ability. J. Mater. Chem. 2009, 19, 5220–5225. [Google Scholar] [CrossRef]
  39. Golden, D.C.; Chen, C.C.; Dixon, J.B. Synthesis of Todorokite. Science 1986, 231, 717–719. [Google Scholar] [CrossRef]
  40. Kang, L.; Zhang, M.; Liu, Z.-H.; Ooi, K. IR spectra of manganese oxides with either layered or tunnel structures. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2007, 67, 864–869. [Google Scholar] [CrossRef]
  41. Sinquin, G.; Petit, C.; Hindermann, J.; Kiennemann, A. Study of the formation of LaMO3 (M = Co, Mn) perovskites by propionates precursors: Application to the catalytic destruction of chlorinated VOCs. Catal. Today 2001, 70, 183–196. [Google Scholar] [CrossRef]
  42. Zhang, T.; Sun, D.D. Removal of arsenic from water using multifunctional micro-/nano-structured MnO2 spheres and microfiltration. Chem. Eng. J. 2013, 225, 271–279. [Google Scholar] [CrossRef]
  43. Zhang, Y.; Wang, D.; Zhang, X.; Qu, F. Template-Free Synthesis of Porous Cu2O Nanospheres at Room Temperature and Investigation on Their Adsorption Property. J. Nanomater. 2013, 2013, 378919. [Google Scholar] [CrossRef]
  44. Zhou, D.-L.; Feng, J.-J.; Cai, L.-Y.; Fang, Q.-X.; Chen, J.-R.; Wang, A.-J. Facile synthesis of monodisperse porous Cu2O nanospheres on reduced graphene oxide for non-enzymatic amperometric glucose sensing. Electrochimica Acta 2014, 115, 103–108. [Google Scholar] [CrossRef]
  45. Lu, L.; Xu, X.; Yan, J.; Shi, F.-N.; Huo, Y. Oxygen vacancy rich Cu2O based composite material with nitrogen doped carbon as matrix for photocatalytic H2 production and organic pollutant removal. Dalton Trans. 2018, 47, 2031–2038. [Google Scholar] [CrossRef]
  46. Amin, I.A.; Yarmo, M.A.; Yusoff, N.I.N.; Yusoff, M.Z.; Ayatillah, A. Mesoporous Silica Sol-Gel as Catalyst for the Synthesis of Alkylpolyglucosides. Adv. Mater. Res. 2013, 620, 446–452. [Google Scholar] [CrossRef]
  47. Hashemi, A.; Bahari, A. Structural and dielectric characteristic of povidone–silica nanocomposite films on the Si (n) substrate. Appl. Phys. A 2017, 123, 535. [Google Scholar] [CrossRef]
  48. Avgouropoulos, G.; Ioannides, T. Selective CO oxidation over CuO-CeO2 catalysts prepared via the urea–nitrate combustion method. Appl. Catal. A Gen. 2003, 244, 155–167. [Google Scholar] [CrossRef]
  49. Chanquía, C.M.; Sapag, K.; Rodríguez-Castellón, E.; Herrero, E.R.; Eimer, G.A. Nature and Location of Copper Nanospecies in Mesoporous Molecular Sieves. J. Phys. Chem. C 2010, 114, 1481–1490. [Google Scholar] [CrossRef]
  50. Papavasiliou, J.; Avgouropoulos, G.; Ioannides, T. Combined steam reforming of methanol over Cu–Mn spinel oxide catalysts. J. Catal. 2007, 251, 7–20. [Google Scholar] [CrossRef]
  51. Thompson, T.L.; Yates, J.T.J. Surface Science Studies of the Photoactivation of TiO2—New Photochemical Processes. Chem. Rev. 2006, 106, 4428–4453. [Google Scholar] [CrossRef] [PubMed]
  52. Guan, H.; Cai, P.; Zhang, X.; Zhang, Y.; Chen, G.; Dong, C. Cu2O templating strategy for the synthesis of octahedral Cu2O@Mn(OH)2 core–shell hierarchical structures with a superior performance supercapacitor. J. Mater. Chem. A 2018, 6, 13668–13675. [Google Scholar] [CrossRef]
  53. Zhang, J.; Cao, Y.; Wang, C.-A.; Ran, R. Design and Preparation of MnO2/CeO2–MnO2 Double-Shelled Binary Oxide Hollow Spheres and Their Application in CO Oxidation. ACS Appl. Mater. Interfaces 2016, 8, 8670–8677. [Google Scholar] [CrossRef] [PubMed]
  54. Sun, Y.-N.; Tao, L.; You, T.; Li, C.; Shan, H. Effect of sulfation on the performance of Fe2O3/Al2O3 catalyst in catalytic dehydrogenation of propane to propylene. Chem. Eng. J. 2014, 244, 145–151. [Google Scholar] [CrossRef]
  55. Xie, Y.; Yu, Y.; Gong, X.; Guo, Y.; Guo, Y.; Wang, Y.; Lu, G. Effect of the crystal plane figure on the catalytic performance of MnO2 for the total oxidation of propane. CrystEngComm 2015, 17, 3005–3014. [Google Scholar] [CrossRef]
  56. Chen, R.; Yu, J.; Xiao, W. Hierarchically porous MnO2 microspheres with enhanced adsorption performance. J. Mater. Chem. A. 2013, 1, 11682–11690. [Google Scholar] [CrossRef]
  57. Wu, K.; Zhou, L.; Jia, C.-J.; Sun, L.-D.; Yan, C.-H. Pt-embedded-CeO2 hollow spheres for enhancing CO oxidation performance. Mater. Chem. Front. 2017, 1, 1754–1763. [Google Scholar] [CrossRef]
  58. Li, T.; Krumeich, F.; Ihli, J.; Ma, Z.; Ishikawa, T.; Pinar, A.B.; van Bokhoven, J.A. Heavy atom labeling enables silanol defect visualization in silicalite-1 crystals. ChemComm 2019, 55, 482–485. [Google Scholar] [CrossRef] [Green Version]
Nanomaterials 12 03020 g001 550

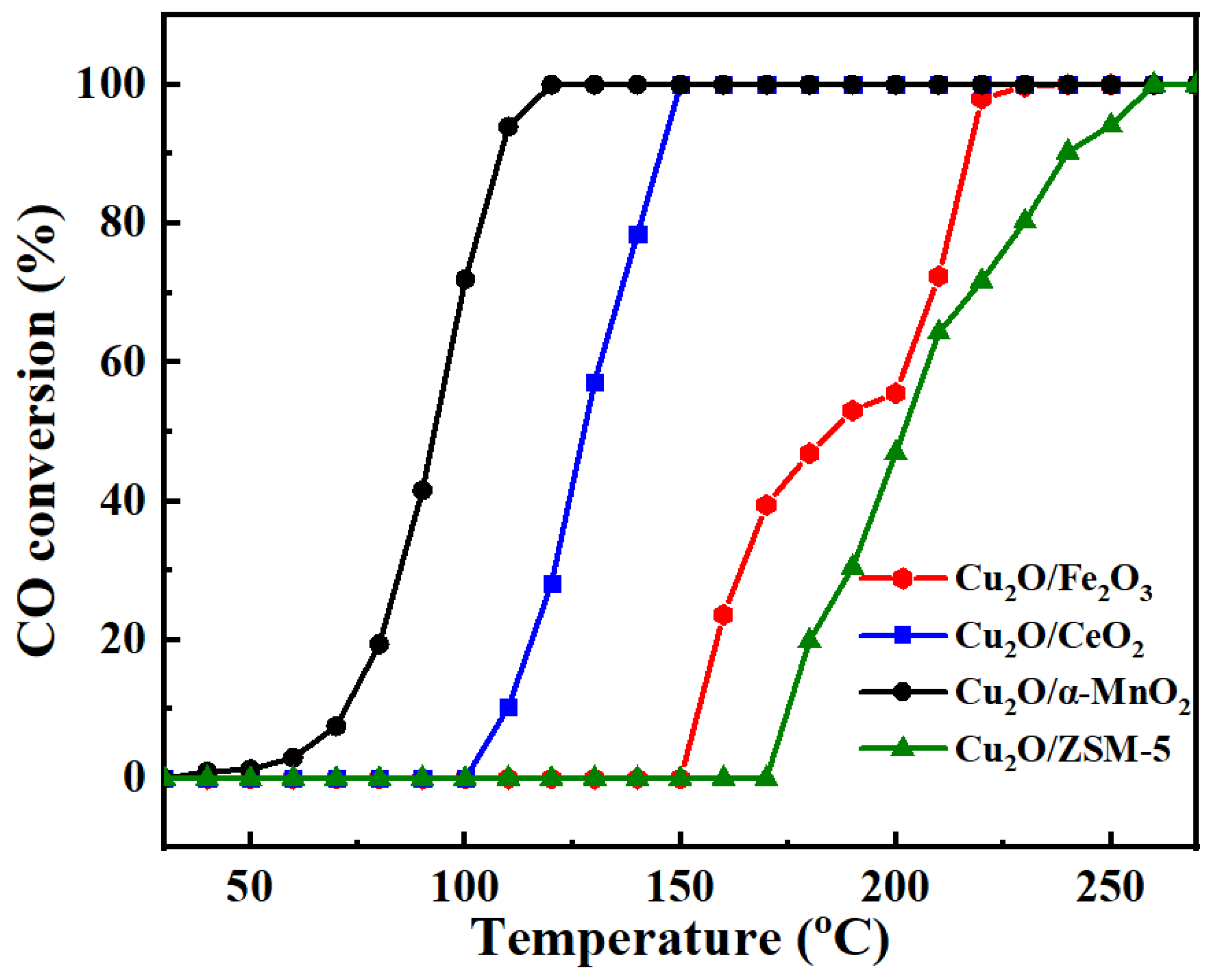

Figure 1. The curves of CO conversion versus reaction temperature over the as-prepared Cu2O/S (S = ZSM-5, CeO2, α-MnO2, and Fe2O3) catalysts; reaction conditions: CO/O2/N2 = 1/20/79, GHSV = 12,000 mL g−1 h−1, 1 atm.
Figure 1. The curves of CO conversion versus reaction temperature over the as-prepared Cu2O/S (S = ZSM-5, CeO2, α-MnO2, and Fe2O3) catalysts; reaction conditions: CO/O2/N2 = 1/20/79, GHSV = 12,000 mL g−1 h−1, 1 atm.
Nanomaterials 12 03020 g001
Nanomaterials 12 03020 g002 550

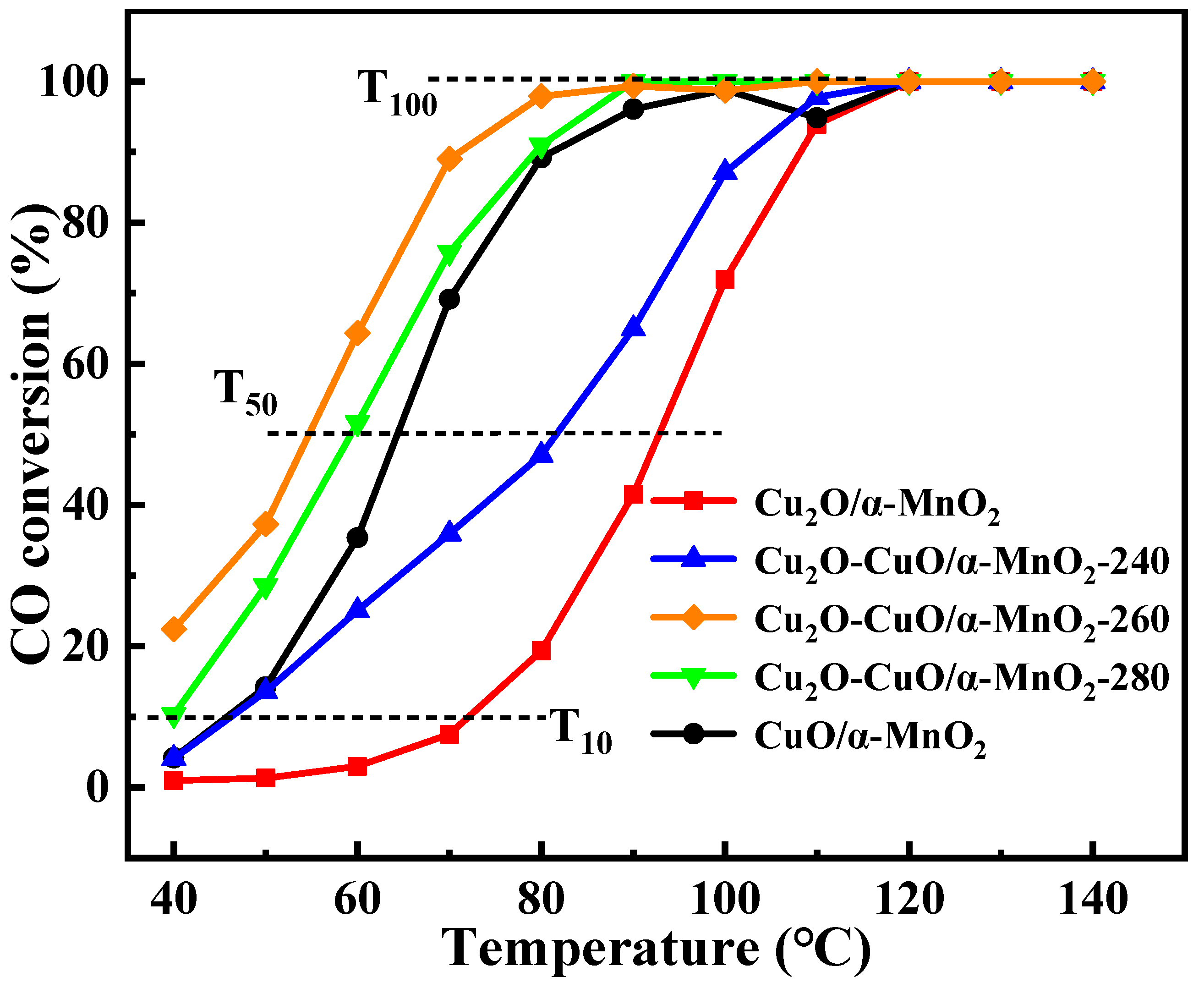

Figure 2. The curves of the CO conversion versus reaction temperature over the as-prepared Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts; reaction conditions: CO/O2/N2 = 1/20/79, GHSV = 12,000 mL g−1 h−1, 1 atm.
Figure 2. The curves of the CO conversion versus reaction temperature over the as-prepared Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts; reaction conditions: CO/O2/N2 = 1/20/79, GHSV = 12,000 mL g−1 h−1, 1 atm.
Nanomaterials 12 03020 g002
Nanomaterials 12 03020 g003 550

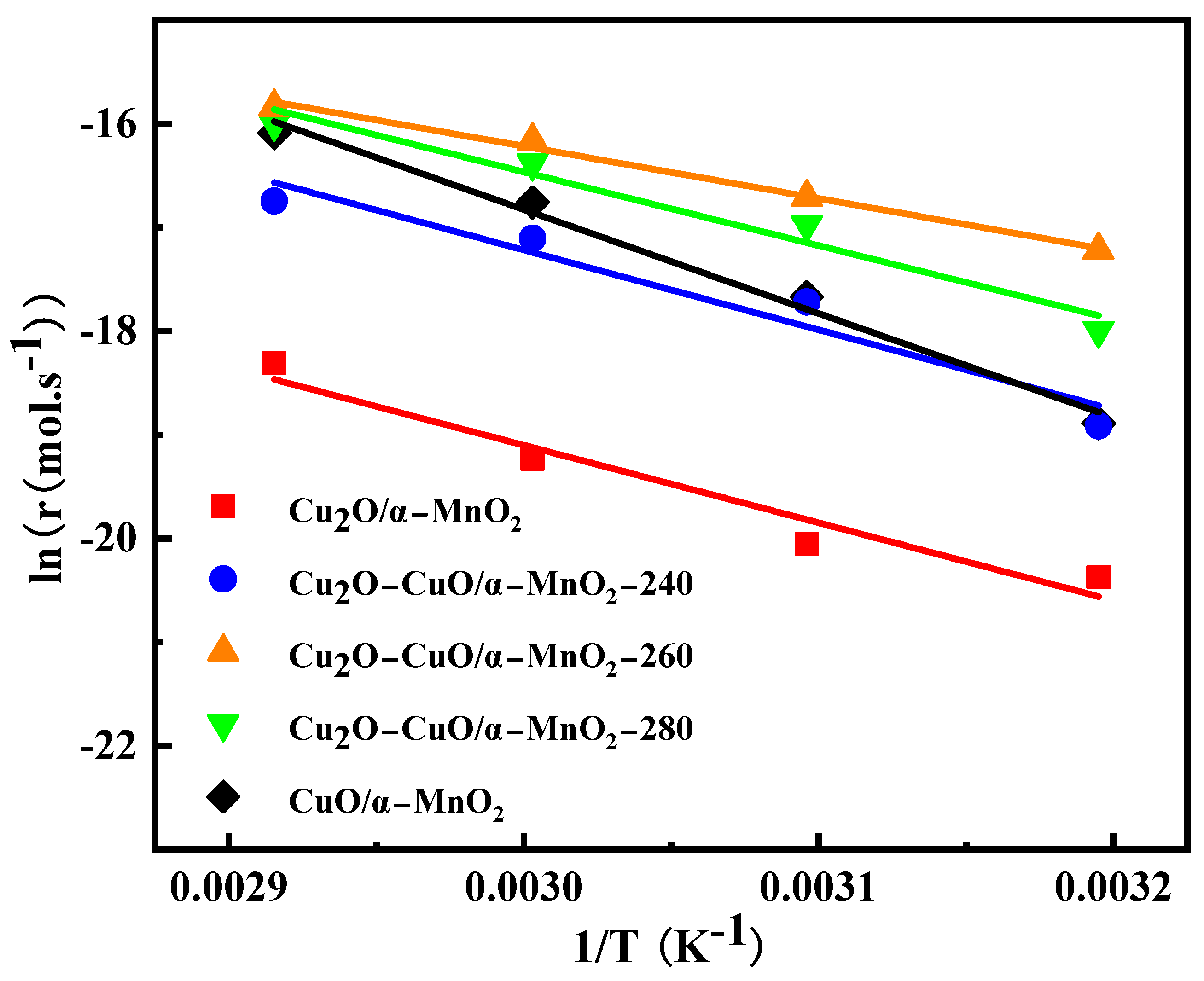

Figure 3. Arrhenius plots for the CO oxidation reaction rate over the as-prepared Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts.
Figure 3. Arrhenius plots for the CO oxidation reaction rate over the as-prepared Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts.
Nanomaterials 12 03020 g003
Nanomaterials 12 03020 g004 550

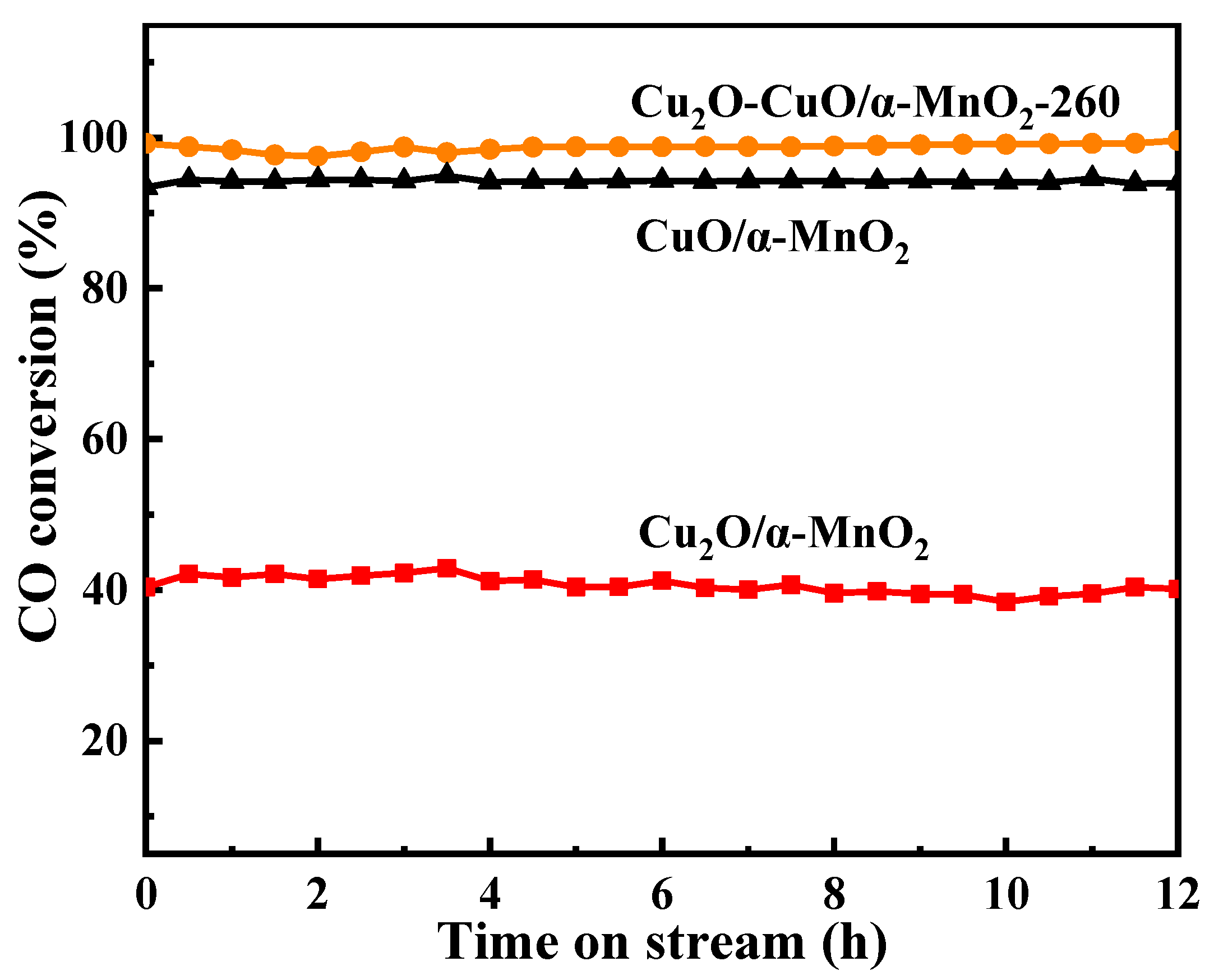

Figure 4. Results of 12 h long-term stability tests over the as-prepared Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts; reaction conditions: CO/O2/N2 = 1/20/79, GHSV = 12,000 mL g−1 h−1, 1 atm.
Figure 4. Results of 12 h long-term stability tests over the as-prepared Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts; reaction conditions: CO/O2/N2 = 1/20/79, GHSV = 12,000 mL g−1 h−1, 1 atm.
Nanomaterials 12 03020 g004
Nanomaterials 12 03020 g005 550

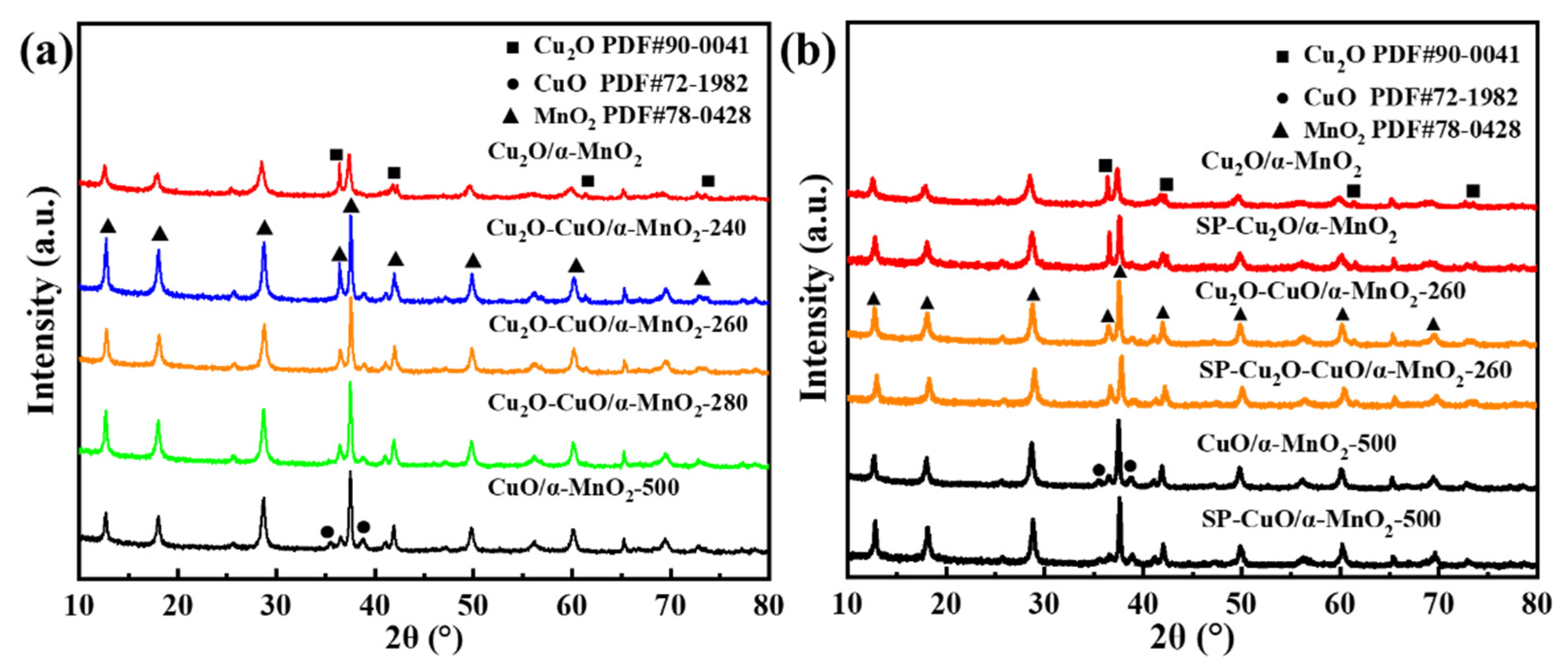

Figure 5. X-ray diffraction patterns of the as-prepared (a) Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts and (b) the XRD patterns of each catalyst after long-term stability tests (SP-).
Figure 5. X-ray diffraction patterns of the as-prepared (a) Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts and (b) the XRD patterns of each catalyst after long-term stability tests (SP-).
Nanomaterials 12 03020 g005
Nanomaterials 12 03020 g006 550

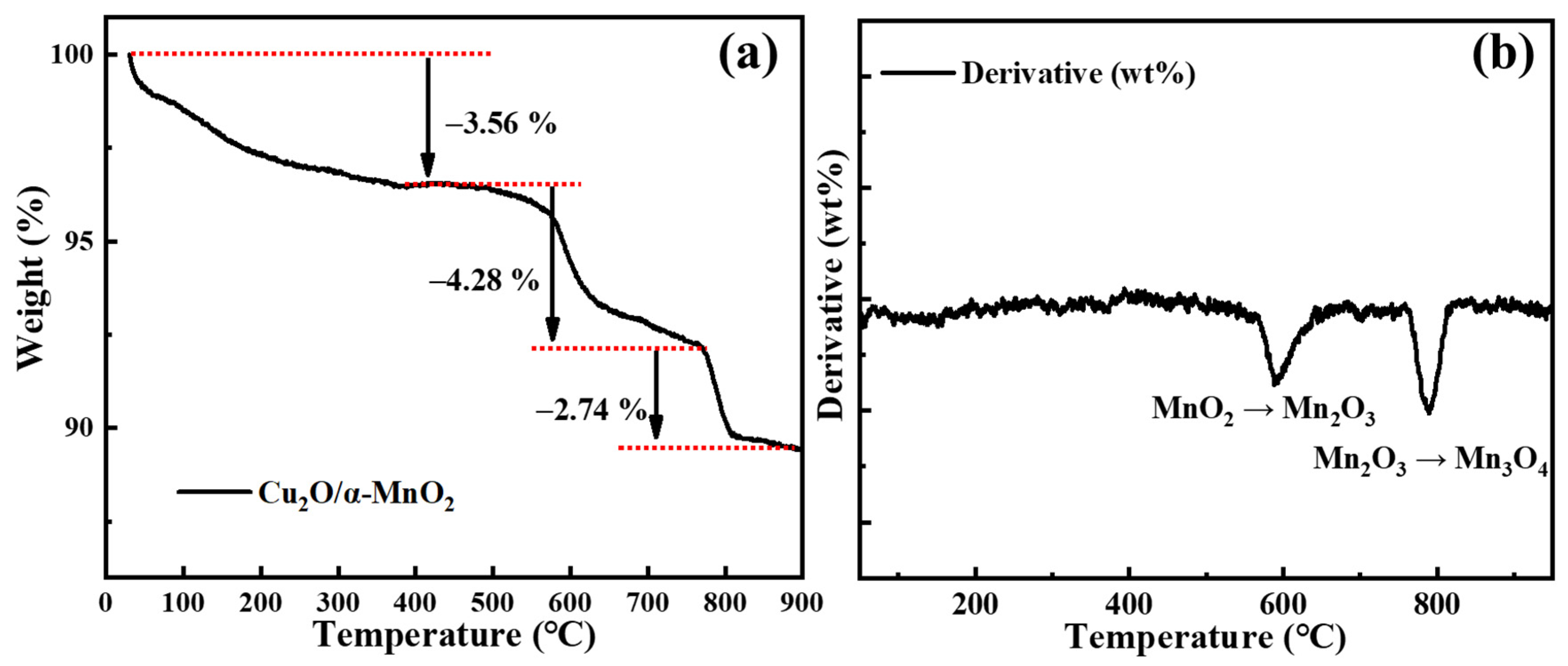

Figure 6. (a) TG result and (b) the DTG result for the Cu2O/α-MnO2 in air atmosphere.
Figure 6. (a) TG result and (b) the DTG result for the Cu2O/α-MnO2 in air atmosphere.
Nanomaterials 12 03020 g006
Nanomaterials 12 03020 g007 550

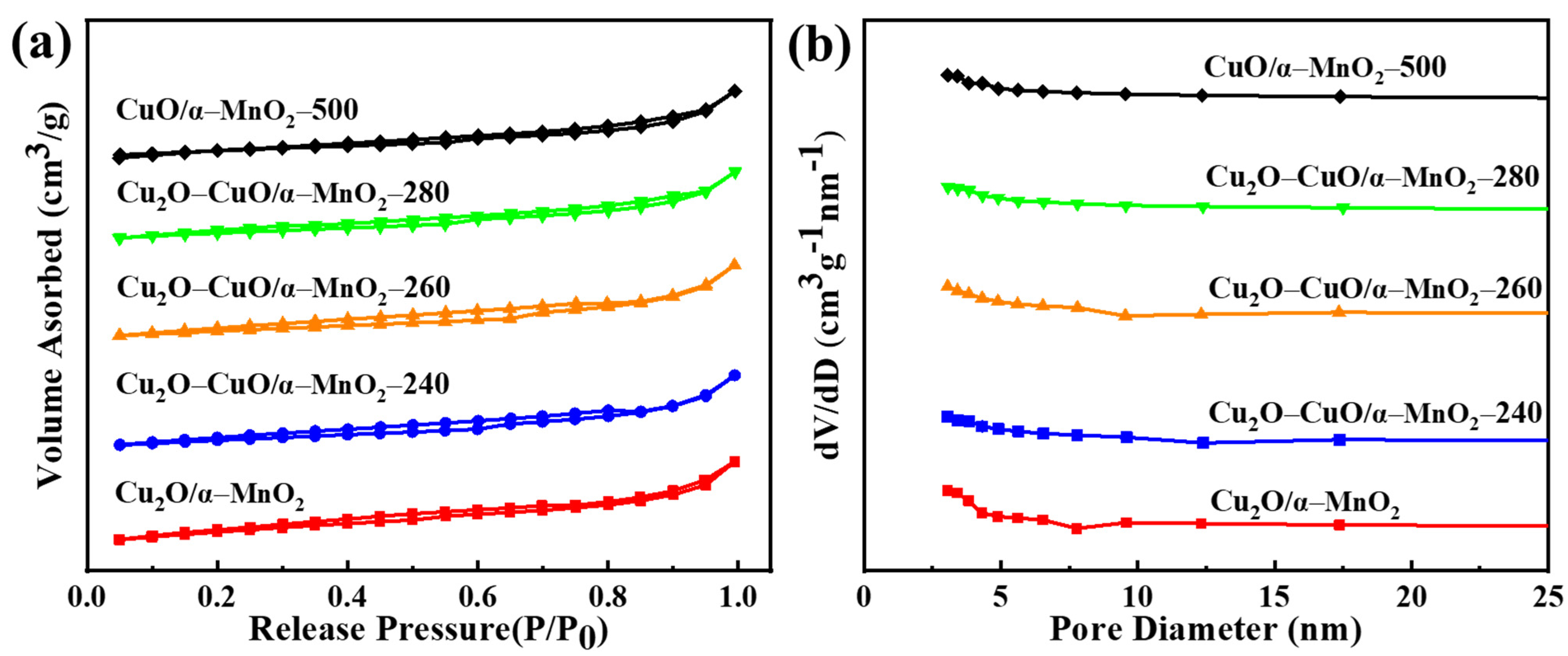

Figure 7. (a) N2 adsorption–desorption isotherms and (b) pore size distribution curves of the as-prepared Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts.
Figure 7. (a) N2 adsorption–desorption isotherms and (b) pore size distribution curves of the as-prepared Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts.
Nanomaterials 12 03020 g007
Nanomaterials 12 03020 g008 550
Figure 8. SEM images of the as-prepared (a,b) Cu2O/ZSM-5, (c,d) Cu2O/Fe2O3, (e,f) Cu2O/CeO2, and (g,h) Cu2O/α-MnO2 catalysts.
Figure 8. SEM images of the as-prepared (a,b) Cu2O/ZSM-5, (c,d) Cu2O/Fe2O3, (e,f) Cu2O/CeO2, and (g,h) Cu2O/α-MnO2 catalysts.
Nanomaterials 12 03020 g008
Nanomaterials 12 03020 g009 550
Figure 9. SEM images of the as-prepared catalysts: (a,b) Cu2O/α-MnO2, (c,d) Cu2O-CuO/α-MnO2-260, and (e,f) CuO/α-MnO2-500.
Figure 9. SEM images of the as-prepared catalysts: (a,b) Cu2O/α-MnO2, (c,d) Cu2O-CuO/α-MnO2-260, and (e,f) CuO/α-MnO2-500.
Nanomaterials 12 03020 g009
Nanomaterials 12 03020 g010 550
Figure 10. FTIR characterization for the as-prepared Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts.
Figure 10. FTIR characterization for the as-prepared Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts.
Nanomaterials 12 03020 g010
Nanomaterials 12 03020 g011 550

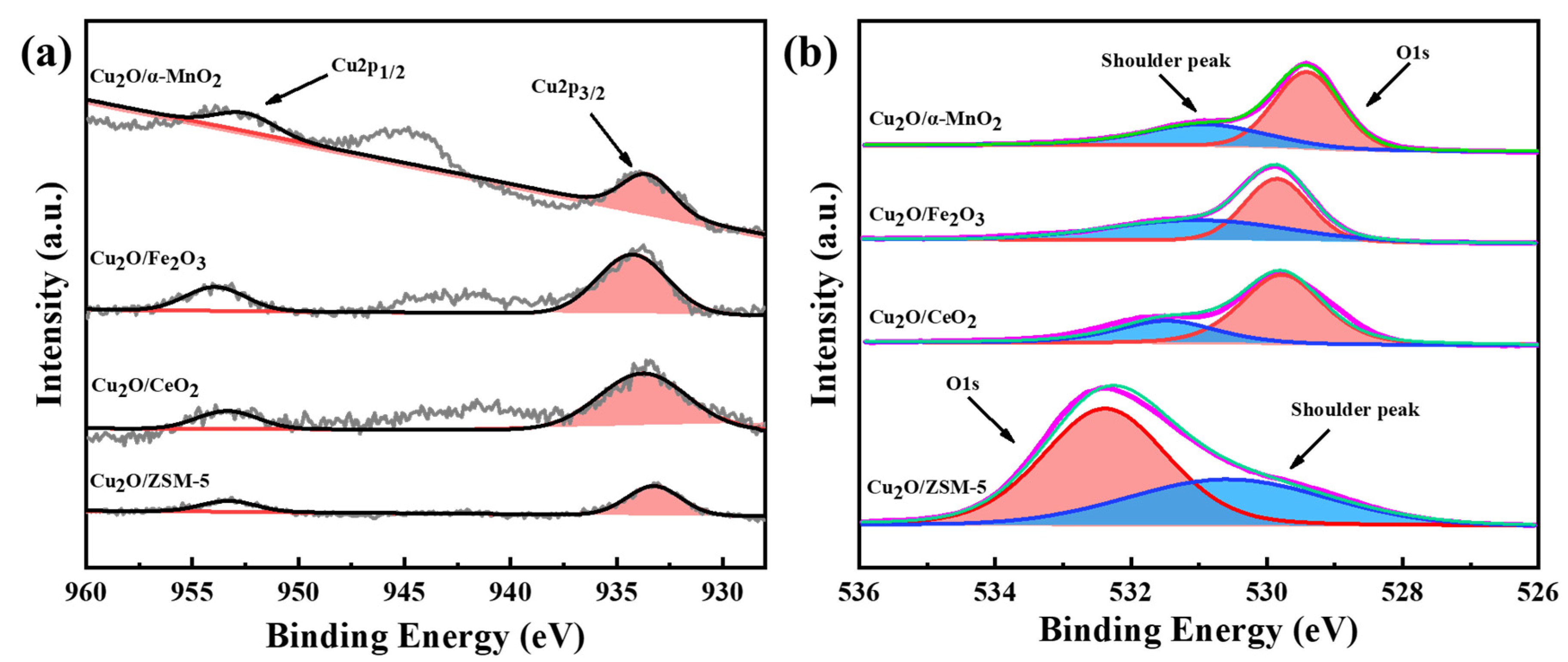

Figure 11. (a) Cu 2p and (b) O 1s XPS spectra of the as-prepared Cu2O/S (S = ZSM-5, CeO2, α-MnO2, and Fe2O3) catalysts.
Figure 11. (a) Cu 2p and (b) O 1s XPS spectra of the as-prepared Cu2O/S (S = ZSM-5, CeO2, α-MnO2, and Fe2O3) catalysts.
Nanomaterials 12 03020 g011
Nanomaterials 12 03020 g012 550
Figure 12. (a) Cu 2p, (b) O 1s, and (c) Mn 2p XPS spectra of the as-prepared Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts.
Figure 12. (a) Cu 2p, (b) O 1s, and (c) Mn 2p XPS spectra of the as-prepared Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts.
Nanomaterials 12 03020 g012
Nanomaterials 12 03020 g013 550
Figure 13. H2-TPR profiles of the as-prepared (a) Cu2O/S (S = ZSM-5, CeO2, α -MnO2, and Fe2O3) catalysts and (b) α-MnO2, Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts.
Figure 13. H2-TPR profiles of the as-prepared (a) Cu2O/S (S = ZSM-5, CeO2, α -MnO2, and Fe2O3) catalysts and (b) α-MnO2, Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts.
Nanomaterials 12 03020 g013
Table
Table 1. Apparent activation energy data of the as-prepared Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts.
Table 1. Apparent activation energy data of the as-prepared Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts.
SamplesEa (KJ/mol)
Cu2O/α-MnO283.4
Cu2O-CuO/α-MnO2-24062.2
Cu2O-CuO/α-MnO2-26041.9
Cu2O-CuO/α-MnO2-28059.2
CuO/α-MnO2-50064.0
Table
Table 2. Structural properties of the as-prepared catalysts.
Table 2. Structural properties of the as-prepared catalysts.
SamplesSpecific Surface
Area (m2/g)		Pore Volume (cm3/g)Average Pore
Diameter (nm)		Isotherm Type
Cu2O/α-MnO243.640.0513.05IV H4
Cu2O-CuO/α-MnO2-24028.330.0483.06IV H4
Cu2O-CuO/α-MnO2-26028.820.0473.06IV H4
Cu2O-CuO/α-MnO2-28026.370.0453.06IV H4
CuO/α-MnO2-50010.490.0453.06IV H4
Table
Table 3. O 1s peak area of the as-prepared Cu2O/S (S = ZSM-5, CeO2, α-MnO2, and Fe2O3) Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T and CuO/α-MnO2-500 catalysts.
Table 3. O 1s peak area of the as-prepared Cu2O/S (S = ZSM-5, CeO2, α-MnO2, and Fe2O3) Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T and CuO/α-MnO2-500 catalysts.
SamplesO 1s Main
Peak Area		O 1s Shoulder
Peak Area		O 1s Shoulder
Peak Area Ratio a (%)
Cu2O/CeO2283,829.4132,367.231.80
Cu2O/Fe2O3173,370.0151,701.646.67
Cu2O/ZSM-5653,388.9391,390.737.46
Cu2O/α-MnO2223,908.260,458.921.26
Cu2O-CuO/α-MnO2-240223,95288,670.3828.36
Cu2O-CuO/α-MnO2-260222,799123,070.9835.58
Cu2O-CuO/α-MnO2-280227,844.3119,566.334.42
CuO/α-MnO2-500248,099.898,654.8428.45
a The O 1s shoulder peak area ratio represents the ratio of Oads/(Olatt + Oads).
Table
Table 4. Cu 2p peak area of the as-prepared Cu2O/S (S = α-MnO2, CeO2, SBA-ZSM-5, Fe2O3), Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts.
Table 4. Cu 2p peak area of the as-prepared Cu2O/S (S = α-MnO2, CeO2, SBA-ZSM-5, Fe2O3), Cu2O/α-MnO2, Cu2O-CuO/α-MnO2-T, and CuO/α-MnO2-500 catalysts.
SamplesCu2O
Peak Area		CuO
Peak Area		Satellite Peak AreaCu2O Peak Area Percentage (%)CuO Peak Area Percentage (%)Cu2+/Cu1+
Relative Ratio
Cu2O/CeO258,985.9300100.000
Cu2O/Fe2O323,117.5400100.000
Cu2O/ZSM-515,803.4600100.000
Cu2O/α-MnO228,836.8300100.000
Cu2O-CuO/α-MnO2-2408059.7716,647.2833,992.7013.786.36.30
Cu2O-CuO/α-MnO2-2608803.5836,178.2249,118.259.490.69.64
Cu2O-CuO/α-MnO2-2807076.7716,647.2854,040.249.190.99.99
CuO/α-MnO2-500055,346.2196,344.520.0100∞
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhao, F.; Shi, Y.; Xu, L.; Chen, M.; Xue, Y.; Wu, C.-E.; Qiu, J.; Cheng, G.; Xu, J.; Hu, X. Designing Highly Efficient Cu2O-CuO Heterojunction CO Oxidation Catalysts: The Roles of the Support Type and Cu2O-CuO Interface Effect. Nanomaterials 2022, 12, 3020. https://doi.org/10.3390/nano12173020

AMA Style

Zhao F, Shi Y, Xu L, Chen M, Xue Y, Wu C-E, Qiu J, Cheng G, Xu J, Hu X. Designing Highly Efficient Cu2O-CuO Heterojunction CO Oxidation Catalysts: The Roles of the Support Type and Cu2O-CuO Interface Effect. Nanomaterials. 2022; 12(17):3020. https://doi.org/10.3390/nano12173020

Chicago/Turabian Style

Zhao, Fen, Yiyu Shi, Leilei Xu, Mindong Chen, Yingying Xue, Cai-E Wu, Jian Qiu, Ge Cheng, Jingxin Xu, and Xun Hu. 2022. "Designing Highly Efficient Cu2O-CuO Heterojunction CO Oxidation Catalysts: The Roles of the Support Type and Cu2O-CuO Interface Effect" Nanomaterials 12, no. 17: 3020. https://doi.org/10.3390/nano12173020

APA Style

Zhao, F., Shi, Y., Xu, L., Chen, M., Xue, Y., Wu, C.-E., Qiu, J., Cheng, G., Xu, J., & Hu, X. (2022). Designing Highly Efficient Cu2O-CuO Heterojunction CO Oxidation Catalysts: The Roles of the Support Type and Cu2O-CuO Interface Effect. Nanomaterials, 12(17), 3020. https://doi.org/10.3390/nano12173020

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
