Assembly of Hydrophobic ZIF-8 on CeO2 Nanorods as High-Efficiency Catalyst for Electrocatalytic Nitrogen Reduction Reaction

by
Yiwen Liu
†,
Xianbin Meng
†,
Zhiqiang Zhao
,
Kai Li
* and
Yuqing Lin
*
Department of Chemistry, Capital Normal University, Beijing 100048, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this paper.
Nanomaterials 2022, 12(17), 2964; https://doi.org/10.3390/nano12172964
Submission received: 23 July 2022 / Revised: 20 August 2022 / Accepted: 21 August 2022 / Published: 27 August 2022
(This article belongs to the Special Issue Properties and Applications of Two-Dimensional Materials)
Browse Figures
Versions Notes

Abstract

:
The electrocatalytic nitrogen reduction reaction (NRR) can use renewable electricity to convert water and N2 into NH3 under normal temperature and pressure conditions. However, due to the competitiveness of the hydrogen evolution reaction (HER), the ammonia production rate (RNH3) and Faraday efficiency (FE) of NRR catalysts cannot meet the needs of large-scale industrialization. Herein, by assembling hydrophobic ZIF-8 on a cerium oxide (CeO2) nanorod, we designed an excellent electrocatalyst CeO2-ZIF-8 with intrinsic NRR activity. The hydrophobic ZIF-8 surface was conducive to the efficient three-phase contact point of N2 (gas), CeO2 (solid) and electrolyte (liquid). Therefore, N2 is concentrated and H+ is deconcentrated on the CeO2-ZIF-8 electrocatalyst surface, which improves NRR and suppresses HER and finally CeO2-ZIF-8 exhibits excellent NRR performance with an RNH3 of 2.12 μg h−1 cm−2 and FE of 8.41% at −0.50 V (vs. RHE). It is worth noting that CeO2-ZIF-8 showed excellent stability in the six-cycle test, and the RNH3 and FE variation were negligible. This study paves a route for inhibiting the competitive reaction to improve the NRR catalyst activity and may provide a new strategy for NRR catalyst design.

1. Introduction

As a potential alternative to Haber–Bosch, electrocatalytic nitrogen reduction reaction (NRR) is a green and sustainable method to produce NH3 [1,2,3,4,5,6,7,8,9,10,11]. As we all know, the electrocatalytic NRR process, as opposed to the simple two-electron reaction mechanism of hydrogen evolution reaction (HER), includes numerous multiphase reactions involving six protons, six electrons, and one N2 and a complicated mass transfer process [8]. A non-negligible fact is that the extremely low solubility of N2 in electrolyte limits the supply of N2 molecules to the NRR process, while protons (H) in aqueous solution are easily dissociated in water, resulting in HER with overwhelming competition [7]. In addition, studies have shown that most catalytic materials are intrinsically favorable for the adsorption of H atoms rather than N2 molecules, resulting in the majority of surface-active centers and electrons being occupied by undesirable H atoms, which then end up at poor selectivity [7,12,13,14,15,16]. From the perspective of thermodynamics, although both NRR and HER need similar theoretical potentials, due to the strong dipole moment and the ultrahigh bond energy of the strong N≡N triple bond, with a bond energy of 940.95 kJ mol−1, NRR can only proceed at a higher overpotential than HER [17]. As a result, in the potential window of an electrocatalytic NRR process, undesirable HER processes often predominate and severely lower the ammonia production rate (RNH3) and Faraday efficiency (FE) of NRR.
In the face of this critical challenge, one viable strategy is to increase the concentration of N2 on the catalyst surface in order to boost NRR and inhibit HER. Gas-phase electrochemical reactions have been greatly influenced by hydrophobic interfaces in recent years since they can provide rich three-phase contact points (TPCPs) for gas, catalyst and electrolyte [18]. In addition, the hydrophobic interface offers a quick channel for gas diffusion, supplying the catalyst surface with a sufficient amount of gas [19,20,21,22]. Therefore, instead of being wetted by electrolyte, the electrochemical gas evolution process is more likely to occur on the hydrophobic surface of the TPCPs [19]. Additionally, H+ concentration at the hydrophobic interface is lower than that at the hydrophilic interface since there is inadequate contact between the aqueous and the hydrophobic surface [20,21,22,23]. Therefore, it stands to reason that designing a three-phase electrocatalyst with hydrophobic interfaces would be a successful way to increase NRR and suppress HER. Du and Ling et al. introduced a hydrophobic zeolite imidazolate framework (ZIF) to cover Au Ag-Au or Pt/Au by the surface modification of electrocatalyst, forming a three-phase interface that inhibits HER and enhances electrochemical NRR [24,25,26]. However, these strategies involved precious metals which are scarce and expensive. Cerium oxide (CeO2) rich in oxygen vacancies has been reported to possess intrinsic NRR activity since the flexible conversion between +3 and +4 valence in CeO2 offers the coordinatively unsaturated sites for electron transfer to the adsorbed N2 molecule and weakens the nitrogen–nitrogen bond [7,27,28,29]. The N≡N triple bond can be softened for future activation and hydrogenation by injecting the abundant oxygen vacancy in CeO2 into the antibonding orbital of N2 adsorbed on the surface of the catalyst [7,27,28,29]. Related research provides a basis for the subsequent research and development of CeO2-based electrocatalytic NRR catalysts.
The metal–organic frameworks (MOFs) are an emerging porous crystalline materials, among which the ZIFs are a broad sub-category and have great applications in the chemical catalysis of various reactions [30,31]. However, due to the few active sites and low conductivity, the electrocatalytic activity of ZIFs is usually poor [32]. However, ZIFs can be used as a matrix or dopant to immobilize other active electrocatalysts and improve certain properties [25,33]. Firstly, their porosity promotes chemical accumulation around the active sites and reduces diffusion in the electrolyte [25,32]. Secondly, the strong chemical endurance of ZIFs preserves the catalyst’s structural integrity. In addition, some ZIFs (such as ZIF-8) show good hydrophobicity, so they can effectively inhibit HER [25,26]. The porosity and hydrophobicity of ZIF-8 are favorable for the enrichment of N2 near the active site. Furthermore, ZIF-8 is stable in electrolyte, which can enhance the overall cycling performance of the catalyst.
In our previous work, the synthesized CeO2 with rich oxygen vacancies proved to have intrinsic NRR activity [27]. In this work, the co-assembled electrocatalytic nitrogen reduction catalyst CeO2-ZIF-8 was synthesized by incorporating porous hydrophobic ZIF-8 on CeO2 nanorods with abundant oxygen vacancies (Scheme 1). The experimental demonstration showed that, by improving the hydrophobicity of the catalyst, the progress of HER during the electrocatalytic nitrogen reduction process was inhibited and the enrichment of N2 near the active site was enhanced. Meanwhile, the dodecahedron structure of ZIF-8 can promote the uniform distribution of CeO2, prevent CeO2 from agglomerating, and expose more active sites in CeO2, thus improving the NRR catalytic activity with RNH3 of 2.12 μg h−1 cm−2 and FE of 8.41% at −0.50 V (vs. RHE). The research provides ideas for inhibiting the competitive reaction HER by increasing the hydrophobicity, and then promoting NRR.

2. Experimental Section

2.1. Synthesis of CeO2

In a classical process [34], 1,3,5-Benzenetricarboxylic acid (1 mmol) and Cerium (III) nitrate hexahydrate (1 mmol) were added to 50 mL of the combined solution (water-to-ethanol ratio was 1:1), and kept under stirring conditions constantly at room temperature. Then, the solution was heated to 90 °C for two hours to obtain Ce-MOF. The resulting Ce-MOF (white powder) was then dried at 70 °C and centrifuged after being cleaned six times with water and ethanol. The Ce-MOF is then heated to 600 °C for two hours with a 5 °C/min temperature rise in air to produce pale yellow CeO2.

2.2. Synthesis of CeO2-ZIF-8

To prepare CeO2-ZIF-8, 55 mg of CeO2, 148 mg Zn(NO3)2·6H2O, 2-methylimidazole were homo-dispersed in 20 mL of methanol, and the mixture solution was stirred for 3 h. The end product, together with the precipitates on the bottom, was carefully collected, washed five times in ethanol, and then dried for ten hours at 70 °C.

2.3. Synthesis of CeO2-ZIF-8 on Carbon Paper (CPs)

The CPs (1 cm × 1 cm × 0.1 cm) were submerged in a 70% concentrated HNO3 solution at 115 °C for 1.5 h, rinsed three times with water thereafter, and dried at 65 °C before being used. Then, 1 mg CeO2-ZIF-8 powder was dispersed in a mixture of 50 μL water, 50 μL ethanol and 5 μL 5 wt% Nafion ethanol. After ultrasonic treatment for 30 min, the dispersion was evenly dropped onto CPs.

3. Results and Discussion

3.1. Investigation of Morphology and Structure of CeO2-ZIF-8

To learn more about the crystalline structure of CeO2-ZIF-8, the XRD method was used (Figure 1a). The CeO2 crystal planes (PDF#34-0394) (111), (200), (220), and (311) may be readily connected with the four strong diffraction peaks centered at 2θ = 28.6°, 33.1°, 47.5°, and 56.3°. Meanwhile, a series of diffraction peaks dominated by 2θ = 7.4°, 12.8° and 18.1° are consistent with the simulated XRD pattern of ZIF-8, indicating that ZIF-8 can exist stably in CeO2-ZIF-8. X-ray photoelectron spectroscopy (XPS) was used to analyze the types and valence states of the metal elements on the surface of the synthesized sample. As shown in Figure 1b, the full XPS spectrum of CeO2-ZIF-8 shows that the catalyst has the element of Ce, O, Zn, C, N. The Ce 3d peak (Figure 1c) in CeO2-ZIF-8 can be divided into eight characteristic peaks. The peaks at 881.78 eV, 888.32 eV and 897.88 eV correspond to the characteristic peak of Ce4+ 3d 5/2 (in blue), and the peaks at 900.32 eV, 902.58 eV and 916.18 eV correspond to the characteristic peak of Ce4+ 3d 3/2 (in purple). The peaks at 884.32 eV and 902.58 eV correspond to the characteristic peaks of Ce3+ 3d 5/2 (in pink) and Ce3+ 3d 3/2 (in green), respectively [7,27,35,36,37]. In CeO2, Ce exists in +3 and +4 valences. This difference in the number of valence states can lead to the changes in the amount of oxygen vacancies in CeO2, which helps to improve the adsorption of N2 by the catalyst, and the subsequent dissociation and hydrogenation of N≡N, thereby showing a certain NRR activity. The O 1s XPS spectrum (Figure 1d) also verify the oxygen vacancies with the peak at 531.40 eV (in green), and the peak at 529.00 eV (in blue) which indicates the metal–oxygen band (M-O) [7]. The XPS data of CeO2-ZIF-8 and CeO2 were compared. Among them, the Ce 3d and O 1s spectra in CeO2-ZIF-8 shifted to the lower energy level by 1.0 eV and 0.7 eV, respectively, indicating that before and after the co-assembly of CeO2 and ZIF-8, ZIF-8 may affect the electron binding energies of the Ce and O elements, inducing them shifting to lower energy levels, which may facilitate the transfer of electrons from the catalyst to the reactants (Figure S1). The Zn 2p peak (Figure 1e) in CeO2-ZIF-8 can be divided into Zn 2p 3/2 at 1043.73 eV (in blue) and Zn 2p 1/2 at 1020.71 eV (in green). For the three peaks in the C 1s XPS spectrum (Figure 1f) at 288.56 eV (in purple), 286.40 eV (in green) and 284.80 eV (in blue) correspond to C=O, C-O/N and C-C bonds, respectively.
The morphology of CeO2-ZIF-8 samples was characterized by SEM and TEM (inset), as shown in Figure 1g. It can be seen that the synthesized CeO2-ZIF-8 is a co-assembly mixture of nanorods and dodecahedron, where the nanorods are CeO2 and the dodecahedron are ZIF-8. As shown in Figure S2, individual CeO2 nanorods have a tendency to agglomerate, which prevents the full exposure of active sites in CeO2 and affects the further improvement of NRR activity. In comparison to CeO2 alone (as shown in Figure S2), the co-assembly CeO2-ZIF-8 (as shown in Figure S3) shows that CeO2 and ZIF-8 are evenly distributed, and the porosity and hydrophobicity of ZIF-8 are advantageous for the enrichment of N2 at the active sites, hence boosting NRR activity [25,26]. In addition, the element mapping imaging technology was also applied to obtain CeO2-ZIF-8 element distribution and topography information. As shown in Figure 1h, the Ce, O, Zn and C elements of CeO2-ZIF-8 are uniformly distributed in the sample, which proves that the co-assembly structure of CeO2-ZIF-8 has a uniform distribution for both CeO2 and ZIF-8, which is beneficial to the uniform distribution and full exposure of the catalytic sites.
Increasing the hydrophobicity can inhibit the HER in the NRR reaction process, which helps to improve the selectivity of the catalyst. In order to explore the hydrophobicity of CeO2-ZIF-8, the contact angle of the samples CeO2-ZIF-8 and CeO2 was tested. The 0.5 M K2SO4 aqueous solution contact angle on CeO2-ZIF-8 is 36.3°, as shown in Figure 2a, which is an increase of 20.4° over the 15.9° on CeO2 shown in Figure 2b. The results show that, after CeO2 is combined with ZIF-8 to create a CeO2-ZIF-8 co-assembly structure, the contact angle of the catalyst material has been significantly increased, which proves that its hydrophobicity has increased. In the process of nitrogen reduction, CeO2 acts as a catalyst. The porous hydrophobic ZIF-8 co-assembled with the active site improved the hydrophobicity of the catalyst and the enrichment degree of nitrogen on the catalyst surface and inhibited HER, which in turn can promote the catalytic activity of NRR [24,25].

3.2. Electrocatalytic Nitrogen Reduction Performance

The NRR activity of the CeO2-ZIF-8 was first measured by linear sweep voltammetry (LSV) in a 0.5 M K2SO4 solution saturated with Ar and N2, respectively, as shown in Figure 3a. Compared with Ar saturation, the current density of CeO2-ZIF-8 significantly increases under N2 saturation, which proves that nitrogen is involved in the cathodic reduction reaction, which means that CeO2-ZIF-8 has electrocatalytic activity towards NRR. In order to verify and quantify the product of nitrogen reduction, the indophenol blue method was introduced to detect the output of ammonia in the electrolyte. The standard concentration of ammonia solution was prepared in 0.5 M K2SO4 aqueous solution, and the standard concentration curve of ammonia solution was plotted by UV–Vis absorption spectrum through the indophenol blue method. The calibration curve (y = 0.638x + 0.209, R2 = 0.999) shows an excellent linear correlation between concentration and absorbance by three independent calibrations (Figure S4). For quantitatively detecting the RNH3 and FE at various potentials, chronoamperometry test was introduced, and the indophenol blue method was utilized to measure the ammonia content of the electrolyte by UV–Vis (Figure S5) [38]. As shown in Figure 3b, the results show that the NRR reaction was already proceeding at −0.2 V, and among the selected four potentials, the working electrode CeO2-ZIF-8 loaded with catalyst materials has the highest RNH3 of 2.12 μg h−1 cm−2 and FE of 8.41% at −0.5 V vs. RHE, which can compete with the bulk of published water-based NRR electrocatalysts, including iron-based catalysts such as the 30%-Fe2O3-carbon nanotube (0.11 μg h−1 cm−2), Fe/Fe oxide (0.19 μg h−1 cm−2), and noble metal catalysts such as Au nanorods (1.65 μg h−1 cm−2), for which detailed comparative information is included in Table 1 [39,40,41,42,43,44,45]. We carried out two electrolysis procedures at −0.50 V in Ar-saturated and N2-saturated solution in order to demonstrate that all of the measured ammonia is a result of the electrocatalytic NRR of CeO2-ZIF-8. As illustrated in Figure S6, at an open circuit potential of 0.214 V vs. RHE, the same electrolysis was also performed in an electrolyte that was N2-saturated and Ar-saturated at −0.5 V. The corresponding UV–Vis absorption spectrum shows that no ammonia was produced under the conditions of N2-saturated at open circuit potential and Ar-saturated at −0.5 V, but ammonia was produced under the conditions of N2-saturated at −0.5 V, indicating that all the detected ammonia originated from the NRR reaction on CeO2-ZIF-8.
Stability is another important indicator for evaluating catalyst performance. In order to determine the stability of the catalyst material, cycle stability and long-term stability tests were introduced. In the catalyst’s cycle stability test (Figure 3c and Figure S7) at −0.5 V vs. RHE, the RNH3 of the first cycle was 2.12 μg h−1 cm−2 and FE was 8.41%, while the RNH3 of the sixth cycle was 2.10 μg h−1 cm−2 (99.06% retention rate) and FE was 8.21% (97.62% retention rate), which revealed that the FE and RNH3 did not change significantly. At the same time, the current density did not vary much during the 30,000 s long-term stability test, as shown in Figure 3d. The initial current is basically stable at −0.26 mA cm−2, and then the current gradually reaches −0.33 mA cm−2 after a longtime test of 30,000 s. This demonstrates the catalyst material’s high stability. The same conclusion can be drawn from the XPS pattern (Figure S8) and SEM (Figure S9) that CeO2-ZIF-8 did not change before and after the NRR durability test. All these results show that CeO2-ZIF-8 possess high mechanical strength and chemical stability. The high selectivity of CeO2-ZIF-8 also confirmed that only NH3 but no N2H4 was formed in the electrolyte. The Watt and Chrisp method was used to verify the quantity of N2H4 generated in 0.5 M K2SO4 solutions [46]. The standard concentration of hydrazine solution was prepared in 0.5 M K2SO4 aqueous solution, and the standard concentration curve of hydrazine solution was drawn by UV–Vis absorption spectrum through the Watt and Chrisp method. The calibration curve (y = 0.738x + 0.307, R2 = 0.999) shows an excellent linear correlation between concentration and absorbance by three independent calibrations (Figure S10). The electrolysis procedures were performed for 2 h in 0.5 M K2SO4 aqueous solution saturated with N2 at −0.5 V vs. RHE (Figure S11). Moreover, the Watt and Chrisp method was used to detect the N2H4 content in the solution before and after the reaction. The results show that the N2H4 content in the solution before and after the reaction was the same, indicating that there was no hydrazine generation in the electrolysis procedures, which verified the high selectivity of CeO2-ZIF-8 for electrocatalytic NRR. In order to explore whether the hydrophobic structure of ZIF-8 can promote the improvement of the NRR performance of the catalyst in the structure of CeO2-ZIF-8, the NRR activity of CeO2 was also discussed. As shown in Figure 4a, the working electrode loaded with CeO2-ZIF-8 has a significantly higher current density than that loaded with CeO2 and ZIF-8, indicating that more strong electrochemical reactions occurred on CeO2-ZIF-8. As shown in Figure 4b, the results show that the RNH3 and FE of CeO2-ZIF-8/CPs are significantly improved compared to CeO2/CPs and ZIF-8/CPs. It was proven that the nitrogen reduction performance of ZIF-8 and CeO2 catalyst was significantly improved after the co-assembly of the hydrophobic ZIF-8 and CeO2. The excellent performance of CeO2-ZIF-8 towards NRR catalysis was confirmed by all of these assays.
In summary, the reasons for the excellent NRR performance of CeO2-ZIF-8 were as follows: (i) the oxygen vacancies in CeO2 offers the coordinatively unsaturated sites for the electron transfer to the adsorbed N2 molecule and ensures the intrinsic NRR activity; (ii) the porous hydrophobic ZIF-8 co-assembled with the active site improved the hydrophobicity of the catalyst and the enrichment degree of nitrogen on the catalyst surface and inhibited HER; and (iii) the introduction of ZIF-8 with a framework structure can effectively inhibit the agglomeration of CeO2, increase the exposure of catalytic sites, and thereby increase the catalytic activity of NRR.

4. Conclusions

In summary, the CeO2-ZIF-8 electrocatalytic nitrogen reduction catalyst was prepared by the co-assembly of CeO2 nanorods with NRR intrinsic activity and porous hydrophobic ZIF-8. Hydrophobic ZIF-8 can limit the competitive hydrogen evolution reaction HER, allowing more electrons to flow into the electrocatalytic NRR process, endowing CeO2-ZIF-8 excellent NRR performance with an RNH3 of 2.12 μg h−1 cm−2 and FE of 8.41% at −0.50 V (vs. RHE). This study not only increased the reactant concentration but also inhibited the competitive reaction to improve the catalyst activity and current utilization, providing us with a new strategy to improve the activity of the NRR catalyst.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12172964/s1: Experimental Procedures. Figure S1: Constitutional element XPS spectra of (a) Ce 3d and (b) O 1s of CeO2 and CeO2-ZIF-8. Figure S2: SEM images of CeO2 with different magnification. Figure S3: SEM images of CeO2-ZIF-8 with different magnification. Figure S4: Absolute calibration of the indophenol blue method using ammonium chloride solutions of known concentration as standards. (a) UV-Vis curves of indophenol assays with NH4+ ions after incubated for 2 h and (b) calibration curve used for estimation of NH3 by NH4+ ion concentration. The absorbance at 655 nm was measured by UV-Vis spectrophotometer, and the fitting curve shows good linear relation of absorbance with NH4+ ion concentration (y = 0.638x + 0.209, R2 = 0.999) of three times independent calibration curves. Figure S5: (a) Chronoamperometry results at the corresponding potentials of CeO2-ZIF-8/CPs, and (b) UV-Vis absorption spectra of the K2SO4 electrolyte stained with indophenol indicator after charging at each restricted potential vs. RHE under N2 controls for 2 h. Figure S6: UV-Vis absorption spectra of the electrolytes stained with indophenol indicator after 2 h NRR electrolysis under different conditions: open circuit in N2 (red curve), −0.5 V in N2 (purple curve) and −0.5 V in Ar (blue curve). Figure S7: Cycling test of the CeO2-ZIF-8/CPs after consecutive recycling electrolysis in N2-saturated 0.5 M K2SO4 solution (pH 3.5) at −0.5 V vs. RHE for 2 h of each NRR experiment. Figure S8: Full XPS spectrum of CeO2-ZIF-8/CPs before (a) and after (b) NRR. Figure S9: SEM images of CeO2-ZIF-8/CPs before (a) and after (b) NRR. Figure S10: UV-Vis absorption spectra of various N2H4 concentrations after incubated for 10 min at room temperature. Calibration curve used for estimation of N2H4 concentrations. The absorbance at 425 nm was measured by UV-Vis spectrophotometer, and the fitting curve shows good linear relation of absorbance with N2H4·H2O concentration (y = 0.748x + 0.307, R2 = 0.999) of three times independent calibration curves. Figure S11: UV-Vis absorption spectrum of the by-produced N2H4 for CeO2-ZIF-8/CPs tested in 0.5 M K2SO4 with bubbled N2 under −0.5 V vs. RHE for 2 h.

Author Contributions

Conceptualization, Y.L. (Yiwen Liu), X.M., Z.Z., K.L. and Y.L. (Yuqing Lin); methodology, Y.L. (Yiwen Liu); software, X.M. and Z.Z.; validation, X.M.; formal analysis, Y.L. (Yiwen Liu), X.M., Z.Z., K.L. and Y.L. (Yuqing Lin); investigation, Y.L. (Yiwen Liu), X.M.; resources, Y.L. (Yuqing Lin); data curation, Y.L. (Yiwen Liu) and X.M.; writing—original draft preparation, Y.L. (Yiwen Liu) and X.M.; writing—review and editing, X.M., K.L. and Y.L. (Yuqing Lin); visualization, Y.L. (Yiwen Liu) and X.M.; supervision, K.L. and Y.L. (Yuqing Lin); project administration, Y.L. (Yuqing Lin); funding acquisition, Y.L. (Yuqing Lin). All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the National Natural Science Foundation (22074095), Beijing Municipal Natural Science Foundation (2222005) and High-level Teachers in Beijing Municipal Universities in the Period of the 13th Five-Year Plan (CIT&TCD20190330).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets generated during and/or analyzed during the current study are available from the corresponding authors.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Suryanto, B.H.R.; Du, H.-L.; Wang, D.; Chen, J.; Simonov, A.N.; MacFarlane, D.R. Challenges and prospects in the catalysis of electroreduction of nitrogen to ammonia. Nat. Catal. 2019, 2, 290–296. [Google Scholar] [CrossRef]
  2. Mourdikoudis, S.; Antonaropoulos, G.; Antonatos, N.; Rosado, M.; Storozhuk, L.; Takahashi, M.; Maenosono, S.; Luxa, J.; Sofer, Z.; Ballesteros, B.; et al. Heat-up colloidal synthesis of shape-controlled Cu-Se-S nanostructures-role of precursor and surfactant reactivity and performance in N2 electroreduction. Nanomaterials 2021, 11, 3369. [Google Scholar] [CrossRef]
  3. Luo, H.; Wang, X.; Wan, C.; Xie, L.; Song, M.; Qian, P. A theoretical study of Fe adsorbed on pure and nonmetal (N, F, P, S, Cl)-doped Ti3C2O2 for electrocatalytic nitrogen reduction. Nanomaterials 2022, 12, 1081. [Google Scholar] [CrossRef] [PubMed]
  4. Li, X.; Li, T.; Ma, Y.; Wei, Q.; Qiu, W.; Guo, H.; Shi, X.; Zhang, P.; Asiri, A.M.; Chen, L.; et al. Boosted electrocatalytic N2 reduction to NH3 by defect-rich MoS2 nanoflower. Adv. Energy Mater. 2018, 8, 1801357. [Google Scholar] [CrossRef]
  5. Zhao, L.; Xiong, Y.; Wang, X.; Zhao, R.; Chi, X.; Zhou, Y.; Wang, H.; Yang, Z.; Yan, Y.-M. Shearing sulfur edges of VS2 electrocatalyst enhances its nitrogen reduction performance. Small 2022, 18, 2106939. [Google Scholar] [CrossRef] [PubMed]
  6. Zhao, R.; Chi, X.; Wang, X.; Zhao, L.; Zhou, Y.; Xiong, Y.; Yao, S.; Wang, S.; Wang, D.; Fu, Z.; et al. In operando identification of the V4+-site-dependent nitrogen reduction reaction of VSx. J. Mater. Chem. A 2022, 10, 10219. [Google Scholar] [CrossRef]
  7. Vanderham, C.M.; Koper, M.M.; Hetterscheid, D.H. Challenges in reduction of dinitrogen by proton and electron transfer. Chem. Soc. Rev. 2014, 43, 5183–5191. [Google Scholar] [CrossRef]
  8. Xu, B.; Xia, L.; Zhou, F.; Zhao, R.; Chen, H.; Wang, T.; Zhou, Q.; Liu, Q.; Cui, G.; Xiong, X.; et al. Engineering, enhancing electrocatalytic N2 reduction to NH3 by CeO2 nanorod with oxygen vacancies. ACS Sustain. Chem. Eng. 2019, 7, 2889–2893. [Google Scholar] [CrossRef]
  9. Shipman, M.A.; Symes, M.D. Recent progress towards the electrosynthesis of ammonia from sustainable resources. Catal. Today 2016, 286, 57–68. [Google Scholar] [CrossRef]
  10. Cui, B.; Zhang, J.; Liu, S.; Liu, X.; Xiang, W.; Liu, L.; Xin, H.; Lefler, M.J.; Stuart, L. Electrochemical synthesis of ammonia directly from N2 and water over iron-based catalysts supported on activated carbon. Green Chem. 2017, 19, 298–304. [Google Scholar] [CrossRef]
  11. Brito-Ravicini, A.; Calle-Vallejo, F. Interplaying coordination and ligand effects to break or make adsorption-energy scaling relations. Exploration 2022, 2, 20210062. [Google Scholar] [CrossRef]
  12. Singh, A.R.; Rohr, B.A.; Schwalbe, J.A.; Cargnello, M.; Chan, K.; Jaramillo, T.F.; Chorkendorff, I.; Nørskov, J.K. Electrochemical ammonia synthesis-the selectivity challenge. ACS Catal. 2016, 7, 706–709. [Google Scholar] [CrossRef]
  13. Renner, J.N.; Greenlee, L.F.; Herring, A.M.; Ayers, K.E. Electrochemical synthesis of ammonia: A low pressure, low temperature approach. J. Electrochem. Soc. 2015, 24, 51–57. [Google Scholar] [CrossRef]
  14. Kyriakou, V.; Garagounis, I.; Vasileiou, E.; Vourros, A.; Stoukides, M. Progress in the electrochemical synthesis of ammonia. Catal. Today 2017, 286, 2–13. [Google Scholar] [CrossRef]
  15. Chen, S.; Perathoner, S.; Ampelli, C.; Mebrahtu, C.; Su, D.; Centi, G. Electrocatalytic synthesis of ammonia at room temperature and atmospheric pressure from water and nitrogen on a carbon-nanotube-based electrocatalyst. Angew. Chem. Int. Ed. 2017, 56, 2699–2703. [Google Scholar] [CrossRef] [PubMed]
  16. He, F.; Li, Y. Advances on theory and experiments of the energy applications in graphdiyne. CCS Chem. 2022. [Google Scholar] [CrossRef]
  17. He, H.; Zhu, Q.-Q.; Yan, Y.; Zhang, H.-W.; Han, Z.-Y.; Sun, H.; Chen, J.; Li, C.-P.; Zhang, Z.; Du, M. Metal-organic framework supported Au nanoparticles with organosilicone coating for high-efficiency electrocatalytic N2 reduction to NH3. Appl. Catal. B 2022, 302, 120840. [Google Scholar] [CrossRef]
  18. Zhang, J.; Zhao, B.; Liang, W.; Zhou, G.; Liang, Z.; Wang, Y.; Qu, J.; Sun, Y.; Jiang, L. Three-phase electrolysis by gold nanoparticle on hydrophobic interface for enhanced electrochemical nitrogen reduction reaction. Adv. Sci. 2020, 7, 2002630. [Google Scholar] [CrossRef]
  19. Lu, Z.; Xu, W.; Ma, J.; Li, Y.; Sun, X.; Jiang, L. Superaerophilic carbon-nanotube-array electrode for high-performance oxygen reduction reaction. Adv. Mater. 2016, 28, 7155–7161. [Google Scholar] [CrossRef]
  20. Li, A.; Cao, Q.; Zhou, G.; Schmidt, B.; Zhu, W.; Yuan, X.; Huo, H.; Gong, J.; Antonietti, M. Three-phase photocatalysis for the enhanced selectivity and activity of CO2 reduction on a hydrophobic surface. Angew. Chem. Int. Ed. 2019, 58, 14549–14555. [Google Scholar] [CrossRef]
  21. Xu, W.; Lu, Z.; Sun, X.; Jiang, L.; Duan, X. Superwetting electrodes for gas-involving electrocatalysis. Acc. Chem. Res. 2018, 51, 1590–1598. [Google Scholar] [CrossRef] [PubMed]
  22. Bidault, F.; Brett, D.J.L.; Middleton, P.H.; Brandon, N.P. Review of gas diffusion cathodes for alkaline fuel cells. J. Power Sources 2009, 187, 39–48. [Google Scholar] [CrossRef]
  23. Peng, Y.; Wang, L.; Luo, Q.; Cao, Y.; Dai, Y.; Li, Z.; Li, H.; Zheng, X.; Yan, W.; Yang, J.; et al. Molecular-level insight into how hydroxyl groups boost catalytic activity in CO2 hydrogenation into methanol. Chem 2018, 4, 613–625. [Google Scholar] [CrossRef]
  24. Lee, H.K.; Koh, C.S.L.; Lee, Y.H.; Liu, C.; Phang, I.Y.; Han, X.; Tsung, C.K.; Ling, X.Y. Favoring the unfavored: Selective electrochemical nitrogen fixation using a reticular chemistry approach. Sci. Adv. 2018, 4, eaar3208. [Google Scholar] [CrossRef]
  25. Yang, Y.; Wang, S.Q.; Wen, H.; Ye, T.; Du, M. Nanoporous gold embedded ZIF composite for enhanced electrochemical nitrogen fixation. Angew. Chem. Int. Ed. 2019, 58, 15362–15366. [Google Scholar] [CrossRef] [PubMed]
  26. Sim, H.Y.F.; Chen, J.R.T.; Koh, C.S.L.; Lee, H.K.; Han, X.; Phan-Quang, G.C.; Pang, J.Y.; Lay, C.L.; Pedireddy, S.; Phang, I.Y.; et al. ZIF-induced d-band modification in a bimetallic nanocatalyst: Achieving over 44% efficiency in the ambient nitrogen reduction reaction. Angew. Chem. Int. Ed. 2020, 59, 16997–17003. [Google Scholar] [CrossRef] [PubMed]
  27. Liu, Y.; Li, C.; Guan, L.; Li, K.; Lin, Y. Oxygen vacancy regulation strategy promotes electrocatalytic nitrogen fixation by doping Bi into Ce-MOF-derived CeO2 nanorods. J. Phys. Chem. C 2020, 124, 18003–18009. [Google Scholar] [CrossRef]
  28. Qi, J.; Zhou, S.; Xie, K.; Lin, S. Catalytic role of assembled Ce Lewis acid sites over ceria for electrocatalytic conversion of dinitrogen to ammonia. J. Energy Chem. 2021, 60, 249–258. [Google Scholar] [CrossRef]
  29. Zhang, S.; Zhao, C.; Liu, Y.; Li, W.; Wang, J.; Wang, G.; Zhang, Y.; Zhang, H.; Zhao, H. Cu doping in CeO2 to form multiple oxygen vacancies for dramatically enhanced ambient N2 reduction performance. Chem. Commun. 2019, 55, 2952–2955. [Google Scholar] [CrossRef]
  30. Tran, U.P.N.; Le, K.K.A.; Phan, N.T.S. Expanding applications of metal-organic frameworks: Zeolite imidazolate framework ZIF-8 as an efficient heterogeneous catalyst for the knoevenagel reaction. ACS Catal. 2011, 1, 120–127. [Google Scholar] [CrossRef]
  31. Yang, F.; Xie, J.; Liu, X.; Wang, G.; Lu, X. Linker defects triggering boosted oxygen reduction activity of Co/Zn-ZIF nanosheet arrays for rechargeable Zn-Air batteries. Small 2020, 17, 2007085. [Google Scholar] [CrossRef] [PubMed]
  32. Ma, W.; Jiang, Q.; Yu, P.; Yang, L.; Mao, L. Zeolitic imidazolate framework-based electrochemical biosensor for in vivo electrochemical measurements. Anal. Chem. 2013, 85, 7550–7557. [Google Scholar] [CrossRef] [PubMed]
  33. Hao, Y.-C.; Guo, Y.; Chen, L.-W.; Shu, M.; Wang, X.-Y.; Bu, T.-A.; Gao, W.-Y.; Zhang, N.; Su, X.; Feng, X.; et al. Promoting nitrogen electroreduction to ammonia with bismuth nanocrystals and potassium cations in water. Nat. Catal. 2019, 2, 448–456. [Google Scholar] [CrossRef]
  34. Chen, G.; Guo, Z.; Zhao, W.; Gao, D.; Li, C.; Ye, C.; Sun, G. Design of porous/hollow structured ceria by partial thermal decomposition of Ce-MOF and selective etching. ACS Appl. Mater. Interfaces 2017, 9, 39594–39601. [Google Scholar] [CrossRef]
  35. Wang, W.; Chen, X.; Liu, G.; Shen, Z.; Xia, D.; Wong, P.K.; Yu, J.C. Monoclinic dibismuth tetraoxide: A new visible-light-driven photocatalyst for environmental remediation. Appl. Catal. B 2015, 176, 444–453. [Google Scholar] [CrossRef]
  36. Liu, B.; Wang, Q.; Yu, S.; Zhao, T.J.; Han, J.; Jing, P.; Hu, W.; Liu, L.; Zhang, J.; Sun, L.-D.; et al. Double shelled hollow nanospheres with dual noble metal nanoparticle encapsulation for enhanced catalytic application. Nanoscale 2013, 5, 9747–9757. [Google Scholar] [CrossRef]
  37. Han, J.; Meeprasert, J.; Maitarad, P.; Nammuangruk, S.; Shi, L.; Zhang, D. Investigation of the facet-dependent catalytic performance of Fe2O3/CeO2 for the selective catalytic reduction of NO with NH3. J. Phys. Chem. C 2016, 120, 1523–1533. [Google Scholar] [CrossRef]
  38. Liu, Y.; Han, M.; Xiong, Q.; Zhang, S.; Zhao, C.; Gong, W.; Wang, G.; Zhang, H.; Zhao, H. Dramatically enhanced ambient ammonia electrosynthesis performance by in-operando created Li-S interactions on MoS2 electrocatalyst. Adv. Energy Mater. 2019, 9, 1803935. [Google Scholar] [CrossRef]
  39. Chen, S.; Perathoner, S.; Ampelli, C.; Mebrahtu, C.; Su, D.; Centi, G. Room-temperature electrocatalytic synthesis of NH3 from H2O and N2 in a gas-liquid-solid three-phase reactor. ACS Sustain. Chem. Eng. 2017, 5, 7393–7400. [Google Scholar]
  40. Li, S.; Bao, D.; Shi, M.; Wu, B.; Yan, J.; Jiang, Q. Amorphizing of Au nanoparticles by CeOx-RGO hybrid support towards highly efficient electrocatalyst for N2 reduction under ambient conditions. Adv. Mater. 2017, 29, 1700001. [Google Scholar] [CrossRef]
  41. Liu, Q.; Zhang, X.; Zhang, B.; Luo, Y.; Cui, G.; Xie, F.; Asiri, A.M.; Sun, X. Ambient N2 fixation to NH3 electrocatalyzed by a spinel Fe3O4 nanorod. Nanoscale 2018, 10, 14389–14396. [Google Scholar] [CrossRef] [PubMed]
  42. Chen, G.; Cao, X.; Wu, S.; Zeng, X.; Ding, L.; Zhu, M.; Wang, H. Ammonia electrosynthesis with high selectivity under ambient conditions via a Li+ incorporation strategy. J. Am. Chem. Soc. 2017, 139, 9771–9774. [Google Scholar] [CrossRef] [PubMed]
  43. Lin, H.; Asim, K.; Jun, W.; Gang, C.; Kaden, W.E.; Xiao, F. Ambient electrochemical ammonia synthesis with high selectivity on Fe/Fe-oxide catalyst. ACS Catal. 2018, 8, 9312–9319. [Google Scholar]
  44. Huang, H.; Xia, L.; Shi, X.; Asiri, A.M.; Sun, X. Ag nanosheets for efficient electrocatalytic N2 fixation to NH3 under ambient conditions. Chem. Commun. 2018, 54, 11427–11430. [Google Scholar] [CrossRef] [PubMed]
  45. Bao, D.; Zhang, Q.; Meng, F.; Zhong, H.; Shi, M.; Zhang, Y.; Yan, J.; Jiang, Q.; Zhang, X. Electrochemical reduction of N2 under ambient conditions for artificial N2 fixation and renewable energy storage using N2/NH3 cycle. Adv. Mater. 2017, 29, 1604799. [Google Scholar] [CrossRef] [PubMed]
  46. Watt, G.W.; Chrisp, J.D. Spectrophotometric method for determination of hydrazine. Anal. Chem. 1952, 24, 2006–2008. [Google Scholar] [CrossRef]
Nanomaterials 12 02964 sch001 550

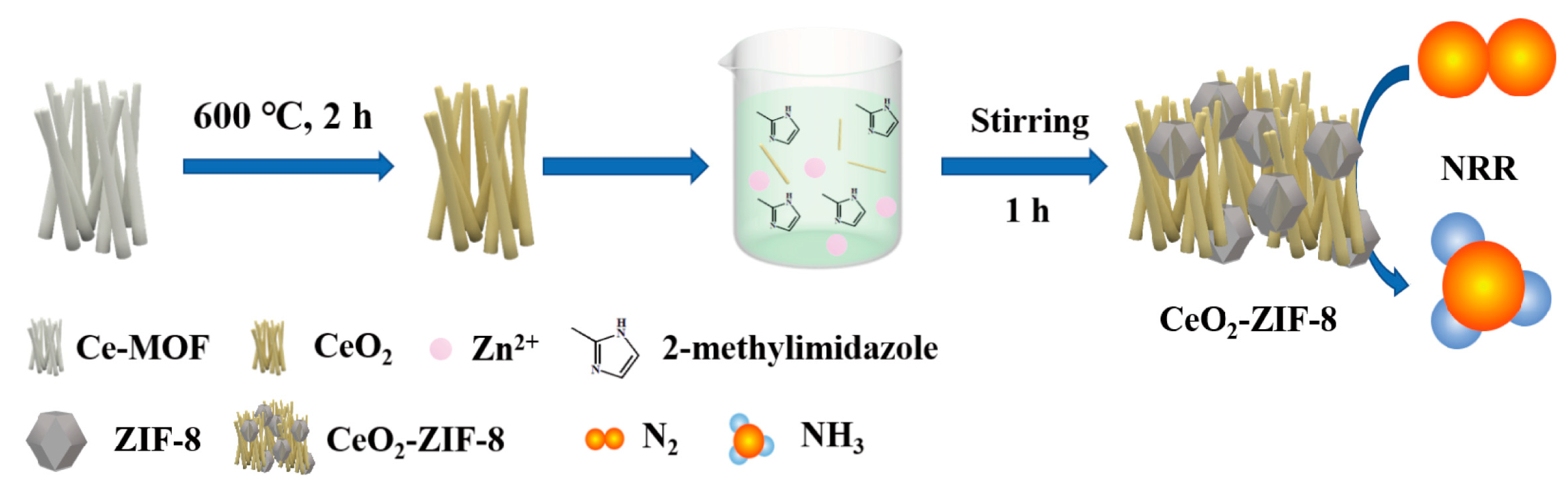

Scheme 1. Synthetic processes of CeO2-ZIF-8.
Scheme 1. Synthetic processes of CeO2-ZIF-8.
Nanomaterials 12 02964 sch001
Nanomaterials 12 02964 g001 550

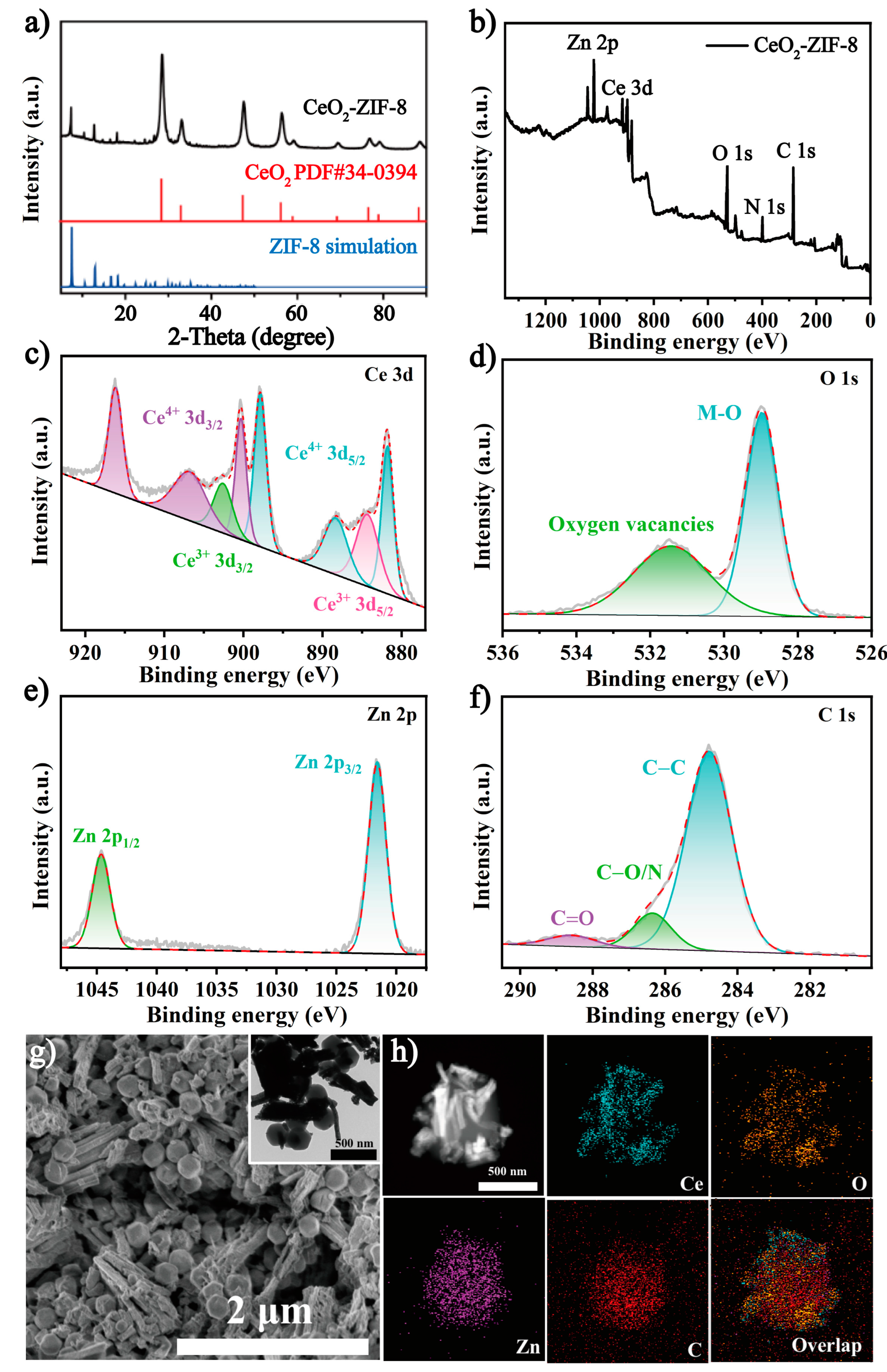

Figure 1. (a) XRD pattern and (b) full XPS spectrum of CeO2-ZIF-8. (c–f) constitutional element XPS spectra of Ce 3d, O 1s, Zn 2p, and C 1s. (g) SEM image and TEM image (inset) of CeO2-ZIF-8. (h) Mapping images of CeO2-ZIF-8.
Figure 1. (a) XRD pattern and (b) full XPS spectrum of CeO2-ZIF-8. (c–f) constitutional element XPS spectra of Ce 3d, O 1s, Zn 2p, and C 1s. (g) SEM image and TEM image (inset) of CeO2-ZIF-8. (h) Mapping images of CeO2-ZIF-8.
Nanomaterials 12 02964 g001
Nanomaterials 12 02964 g002 550

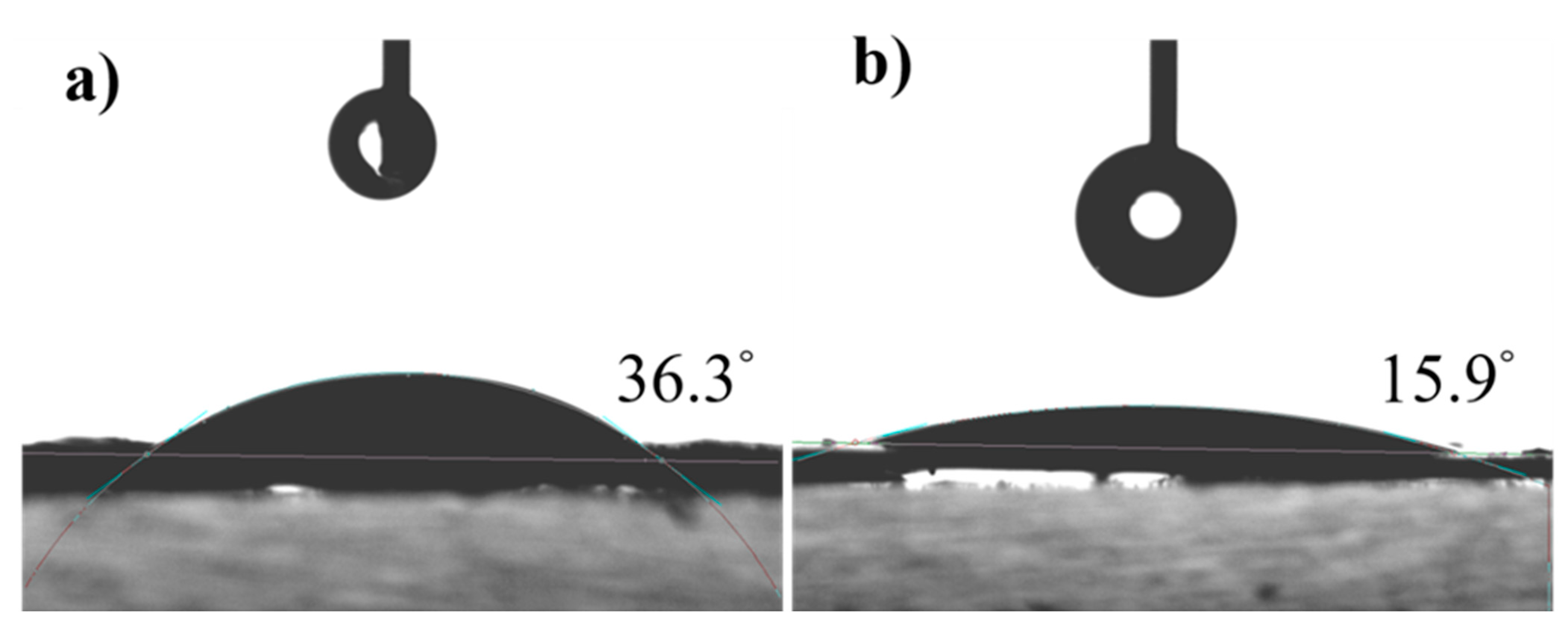

Figure 2. Water contact angle measurement of (a) CeO2-ZIF-8 and (b) CeO2 substrates.
Figure 2. Water contact angle measurement of (a) CeO2-ZIF-8 and (b) CeO2 substrates.
Nanomaterials 12 02964 g002
Nanomaterials 12 02964 g003 550

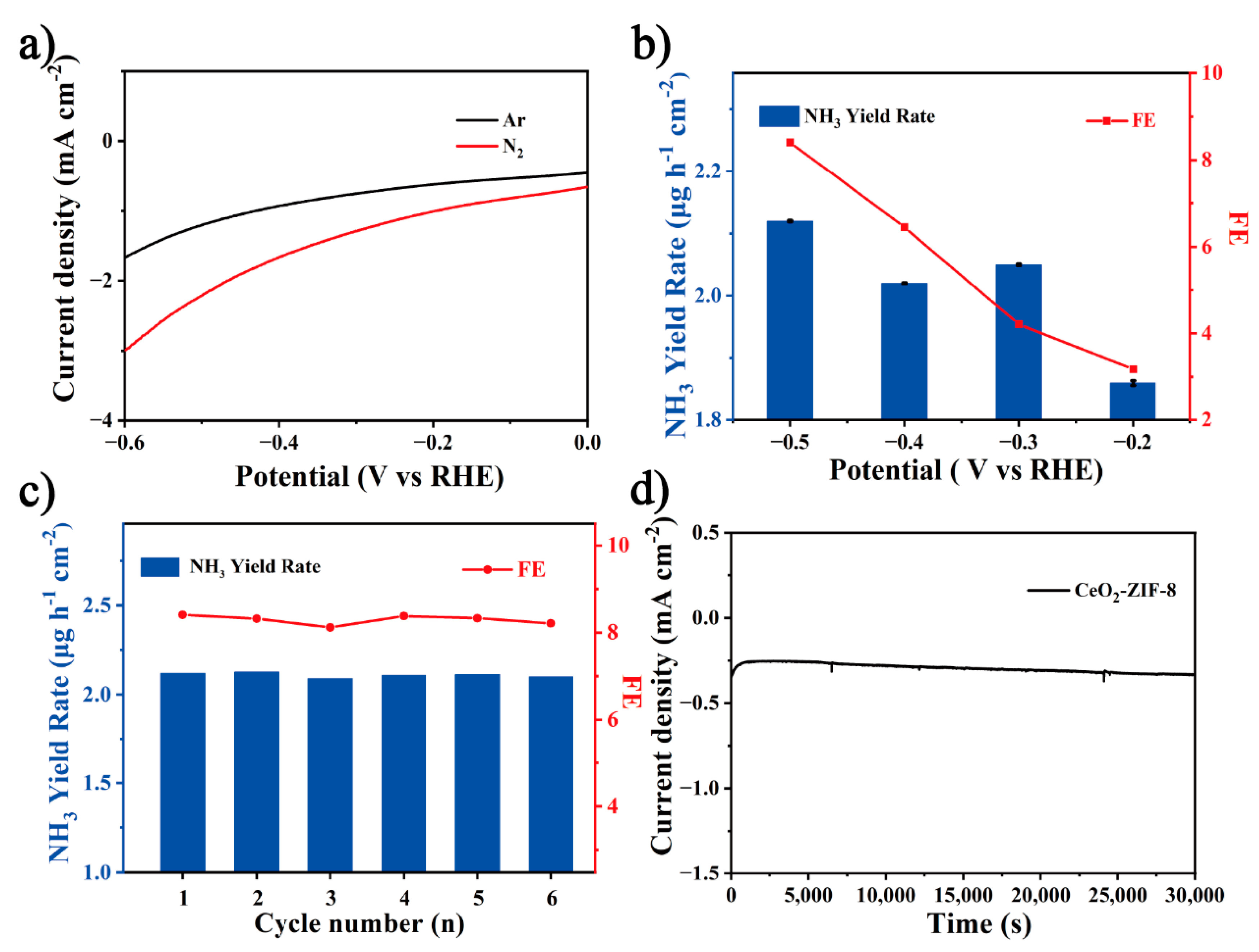

Figure 3. (a) NRR electrochemical performances of CeO2-ZIF-8 in 0.5 M K2SO4 at a scan rate of 2 mV/s; (b) Faradaic efficiency (red) and yield rate of NH3 (blue) at each potential; (c) cycling test of the CeO2-ZIF-8 at −0.5 V vs. RHE for 2 h of each NRR experiment in N2-saturated 0.5 M K2SO4 solution (pH 3.5); (d) time-dependent current density during electrolysis at −0.5 V vs. RHE for 30,000 s.
Figure 3. (a) NRR electrochemical performances of CeO2-ZIF-8 in 0.5 M K2SO4 at a scan rate of 2 mV/s; (b) Faradaic efficiency (red) and yield rate of NH3 (blue) at each potential; (c) cycling test of the CeO2-ZIF-8 at −0.5 V vs. RHE for 2 h of each NRR experiment in N2-saturated 0.5 M K2SO4 solution (pH 3.5); (d) time-dependent current density during electrolysis at −0.5 V vs. RHE for 30,000 s.
Nanomaterials 12 02964 g003
Nanomaterials 12 02964 g004 550

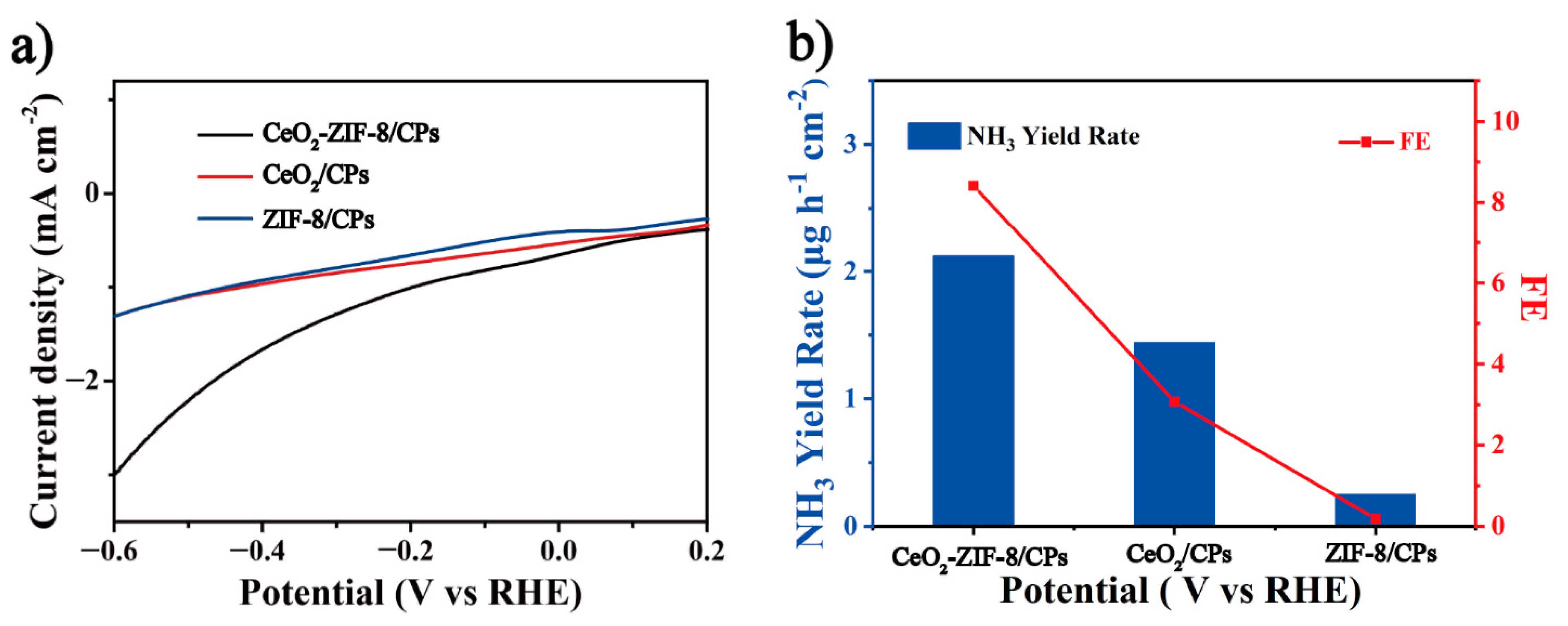

Figure 4. (a) The NRR electrochemical performances of CeO2-ZIF-8/CPs, CeO2/CPs and ZIF-8/CPs in 0.5 M K2SO4 of nitrogen saturated at a scan rate of 2 mV/s; and (b) Faradaic efficiency (red) and yield rate of NH3 (blue) of CeO2-ZIF-8/CPs, CeO2/CPs and ZIF-8/CPs.
Figure 4. (a) The NRR electrochemical performances of CeO2-ZIF-8/CPs, CeO2/CPs and ZIF-8/CPs in 0.5 M K2SO4 of nitrogen saturated at a scan rate of 2 mV/s; and (b) Faradaic efficiency (red) and yield rate of NH3 (blue) of CeO2-ZIF-8/CPs, CeO2/CPs and ZIF-8/CPs.
Nanomaterials 12 02964 g004
Table
Table 1. Comparison of the electrocatalytic N2 reduction performance for CeO2-ZIF-8/CPs with other aqueous-based NRR electrocatalysts.
Table 1. Comparison of the electrocatalytic N2 reduction performance for CeO2-ZIF-8/CPs with other aqueous-based NRR electrocatalysts.
CatalystElectrolyteNH3 YieldFE (%)Ref.
30%-Fe2O3-CNT0.50 M KOH0.11 μg h−1 cm−20.59[39]
Fe/Fe Oxide0.10 M PBS0.19 μg h−1 cm−28.29[40]
Fe3O4/Ti0.10 M Na2SO43.43 μg h−1 cm−22.60[41]
PEBCD/C0.50 M Li2SO41.58 μg h−1 cm−22.85[42]
Fe/Fe Oxide0.10 M PBS0.19 μg h−1 cm−28.29[43]
Ag nanosheets0.10 M HCl2.80 μg h−1 cm−24.80[44]
Au nanorods
This work		0.10 M KOH
0.50 M K2SO4		1.65 μg h−1 cm−2
2.21 μg h−1 cm−2		4.00
8.41		[45]
