# Free Vibrations of Bernoulli-Euler Nanobeams with Point Mass Interacting with Heavy Fluid Using Nonlocal Elasticity

^{1}

^{2}

^{*}

*Nanomaterials*

**2022**,

*12*(15), 2676; https://doi.org/10.3390/nano12152676 (registering DOI)

## Abstract

**:**

## 1. Introduction

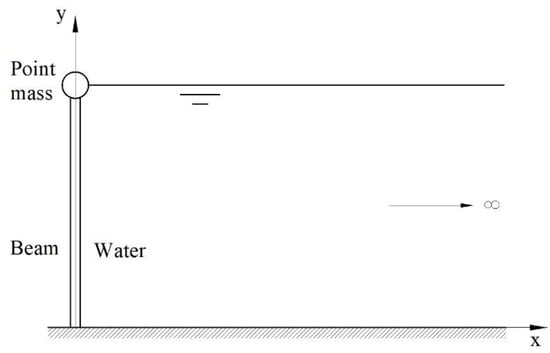

## 2. Equilibrium Equations and Boundary Conditions

_{y}is the axial stress and A is area of the cross-section.

#### 2.1. Separation of Variables Method

_{1}is the first ordinal number n of a wave number $\widehat{\kappa}$ for which condition (27) is fulfilled, and G

_{n}are real constants.

_{z}is the second moment of the cross-sectional area:

#### 2.2. Application of Nonlocal PurelySDM Theory

_{λ}is the special convolution kernel

_{c}is the characteristic nanobeam length defined by the expression.

_{j}of Equation (49) are:

_{n}in the particular solution are determined from the fluid-structure interaction condition (13), which, using the definition of fluid pressures (28) and beam displacements (15), has the following form:

_{k}is the number of used pressure field mode shapes. With the growth of n

_{k}the solution converges.

_{n}, and later on ${\tilde{E}}_{n}$, is used:

_{m}is the dimensionless ratio of the concentrated mass to the mass of the beam.

#### 2.3. Definition of the Eigenfrequencies of the Beam-Fluid System

_{i}and unknown eigenfrequency $\overline{\omega}$. These algebraic equations can be rewritten in the matrix form as the product of a quadratic matrix of linearly independent equation solutions, A($\overline{\omega}$), and the vector of constants C

_{i}, p:

## 3. Examples

#### 3.1. Convergence and the Influence of Nonlocal Parameter

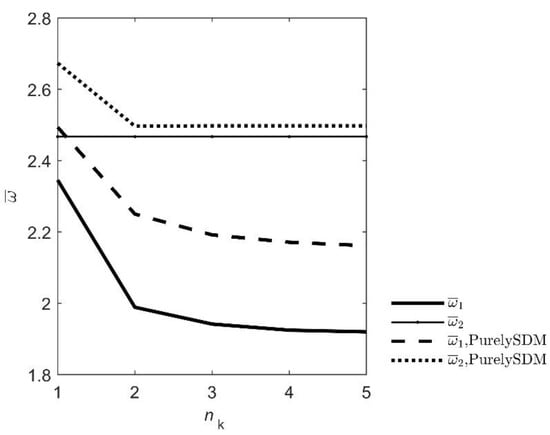

_{k}) needed for the convergence of the results. The first part of this example deals with this issue. The beam length is L = 100 nm, the thickness F = 3.85 nm, the mass density ${\rho}_{s}$ = 2600 kg/m

^{3}and density of fluid is ${\rho}_{f}$ = 1000 kg/m

^{3}(water), so dimensionless parameter mass ratio of water to beam is γ = 10. Width of the beam is W = 10 nm and modulus of elasticity is E = 160 GPa. The linear free surface waves are not considered, i.e., p(x,y = H,t) = 0. Water is compressible and the speed of sound is c = 1439 m/s. The beam is completely immersed in water and there is no tip mass. Solutions in this and other examples were obtained by the aid of Wolfram Mathematica software. Possible numerical ill-conditioning didn’t appear [23].

_{k}= 4, so calculations will be performed with this value. Also, it can be seen that frequency ${\overline{\omega}}_{2}$ calculated with local theory, which is defined as the eigenfrequency of water domain in the rigid beam case [19], do not change its value with growth of n

_{k}. But, it can be also seen, that second frequency calculated with nonlocal theory changes with growth of n

_{k}which points out that frequencies connected with fluid are influenced by nonlocal theory. The reason for this new effect can be explained with the expression for fluid standing wave (28, 34) where coefficient G

_{n}is now a function of λ. If the fluid standing wave changes then its eigenfrequency also changes.

#### 3.2. The Influence of Tip Point Mass, Water and Nano-Scale Effects

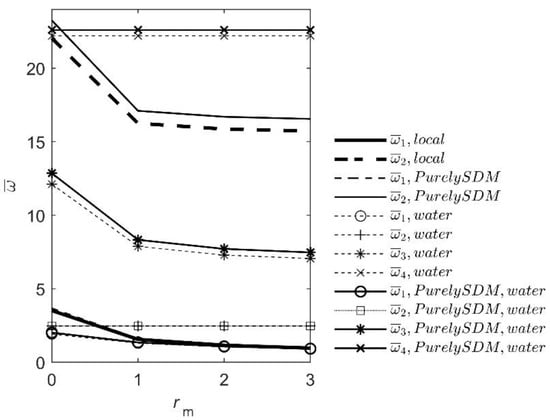

_{m}= 0, 1, 2 and 3. The number of used pressure field mode shapes is n

_{k}= 4. The results are shown in Figure 4 and Table 3.

## 4. Conclusions

- an increase of the nonlocal parameter of PurelySDM method leads to an increase of the eigenfrequencies for all tested boundary conditions of the system beam-water, indicating a higher stiffness,
- the increase in point mass leads to a decrease in eigenfrequencies of a nanobeam for both local and nonlocal theory,
- the calculated eigenfrequencies of the coupled system with the local and nonlocal theory (corresponding to frequencies of the water domain) are equal for various tip point masses, but growth of eigenfrequencies occurs with the growth of the nonlocal parameter of PurelySDM method,
- when the beam is immersed in water, the main effect of the tip point mass (decrease of the eigenfrequency) is reduced for local and nonlocal theories. This effect can have a crucial impact on functionality of nanosensors.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Ouakad, H.M.; Sedighi, H.M. Rippling effect on the structural response of electrostatically actuated single-walled carbon nanotube based NEMS actuators. Int. J. Non-Linear Mech.
**2016**, 87, 97–108. [Google Scholar] [CrossRef] - Cooksey, G.A.; Patrone, P.N.; Hands, J.R.; Meek, S.E.; Kearsley, A.J. Dynamic measurement of nanoflows: Realisation of an optofluidic flow meter to the nanoliter-per-minute scale. Anal. Chem.
**2019**, 91, 10713–10722. [Google Scholar] [CrossRef] [PubMed] - Quist, A.; Chand, A.; Ramachandran, S.; Cohen, D.; Lal, R. Piezoresistive cantilever based nanoflow and viscosity sensor for microchannels. RSC
**2006**, 6, 1450–1454. [Google Scholar] [CrossRef] [PubMed] - Poncharal, P.; Wang, Z.; Ugarte, D.; De Heer, W.A. Electrostatic deflections and electromechanical resonances of carbon nanotubes. Science
**1999**, 283, 1513–1516. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Elmer, F.J.; Dreier, M. Eigenfrequencies of a rectangular atomic force microscope cantilever in a medium. J. Appl. Phys.
**1997**, 81, 7709–7714. [Google Scholar] [CrossRef] - Sader, J.E. Frequency response of cantilever beams immersed in viscous fluids with applications to the atomic force microscope. J. Appl. Phys.
**1998**, 84, 64–76. [Google Scholar] [CrossRef] [Green Version] - Paul, M.R.; Cross, M.C. Stohastic dynamics of nanoscale mechanical oscillators immersed in a viscous fluid. Phys. Rev. Lett.
**2004**, 92, 235501. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Kennedy, S.J.; Cole, D.G.; Clark, R.L. A method for atomic force microscopy cantilever stiffness calibration under heavy fluid loading. Rev. Sci. Instrum.
**2009**, 80, 125103. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Eringen, A.C. (Ed.) Polar and nonlocal field theory. In Continuum Physics; Academic Press: New York, NY, USA, 1976; Volume 4. [Google Scholar]
- Romano, G.; Barretta, R. Stress-driven versus strain-driven nonlocal integral model for elastic nano-beams. Compos. B Eng.
**2017**, 114, 184–188. [Google Scholar] [CrossRef] - Romano, G.; Barretta, R.; Diaco, M.; Marotti de Sciarra, F. Constitutive boundary conditions and paradoxes in nonlocal elastic nano-beams. Int. J. Mech. Sci.
**2017**, 121, 151–156. [Google Scholar] [CrossRef] - Wang, Y.B.; Zhu, X.W.; Dai, H.H. Exact solutions for the static bending of euler-Bernoulli beams using Eringen’s two-phase local/nonlocal model. AIP Adv.
**2016**, 6, 085114. [Google Scholar] [CrossRef] [Green Version] - Romano, G.; Barretta, R. Nonlocal elasticity in nanobeams: The stress-driven integral model. Int. J. Eng. Sci.
**2017**, 115, 14–27. [Google Scholar] [CrossRef] - Barretta, R.; Marotti de Sciarra, F. Variational nonlocal gradient elasticity for nano-beams. Int. J. Eng. Sci.
**2019**, 143, 73–91. [Google Scholar] [CrossRef] - Barretta, R.; Čanađija, M.; Marotti de Sciarra, F.; Skoblar, A.; Žigulić, R. Dynamic behavior of nanobeams under axial loads: Integral elasticity modeling and size-dependent eigenfrequencies assessment. Math. Meth. Appl. Sci.
**2020**, 1–18. [Google Scholar] [CrossRef] - Apuzzo, A.; Barretta, R.; Luciano, R.; Marotti de Sciarra, F.; Penna, R. Free vibrations of Bernoulli-Euler nano-beams by the stress-driven nonlocal integral model. Compos. B Eng.
**2017**, 123, 105–111. [Google Scholar] [CrossRef] - Meirovitch, L. Fundamentals of Vibrations; McGraw Hill International Edition: New York, NY, USA, 2001. [Google Scholar]
- Skoblar, A.; Žigulić, R.; Braut, S.; Blažević, S. Dynamic Response to Harmonic Transverse Excitation of Cantilever Euler-Bernoulli Beam Carrying a Point Mass. FME Trans.
**2017**, 45, 367–373. [Google Scholar] [CrossRef] [Green Version] - Xing, J.T.; Price, W.G.; Pomfret, M.J.; Yam, L.H. Natural vibration of a beam-water interaction system. J. Sound Vib.
**1997**, 199, 491–512. [Google Scholar] [CrossRef] - Acheson, D.J. Elementary Fluid Dynamics; Oxford University Press Inc.: New York, NY, USA, 1990. [Google Scholar]
- Han, R.P.S. A Simple and Accurate Added Mass Model for Hydrodynamic Fluid-Structure Interaction Analysis. J. Frankl. Inst.
**1996**, 333, 929–945. [Google Scholar] [CrossRef] - Spiegel, M.R.; Lipschutz, S.; Liu, J. Mathematical Handbook of Formulas and Tables; McGraw-Hill Education: New York, NY, USA, 2018. [Google Scholar]
- Skoblar, A.; Žigulić, R.; Braut, S. Numerical ill-conditioning in evaluation of the dynamic response of structures with mode superposition method. Proc. Inst. Mech. Eng. Part C
**2017**, 231, 109–119. [Google Scholar] [CrossRef]

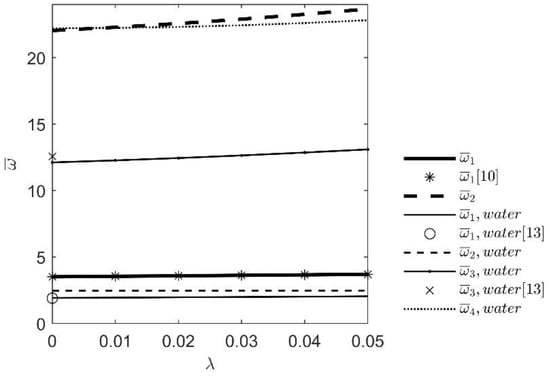

**Figure 3.**Influence of the dimensionless nonlocal parameter growth on the eigenfrequencies of dry nanobeam and nanobeam immersed in water.

n_{k} | 1 | 2 | 3 | 4 | 5 |
---|---|---|---|---|---|

local theory | |||||

${\overline{\omega}}_{1}$ | 2.3456 | 1.9889 | 1.9418 | 1.9247 | 1.9169 |

${\overline{\omega}}_{2}$ | 2.4674 | 2.4674 | 2.4674 | 2.4674 | 2.4674 |

nonlocal PurelySDM theory, λ = 0.1 | |||||

${\overline{\omega}}_{1}$ | 2.4936 | 2.2502 | 2.1919 | 2.1712 | 2.1615 |

${\overline{\omega}}_{2}$ | 2.6732 | 2.4967 | 2.4977 | 2.4977 | 2.4977 |

λ | 0 | 0.01 | 0.02 | 0.03 | 0.04 | 0.05 |

n_{k} = 0 | ||||||

${\overline{\omega}}_{1}$ | 3.5160 | 3.5515 | 3.5877 | 3.6246 | 3.6621 | 3.7002 |

${\overline{\omega}}_{1}$ [10] | 3.516013 | 3.551528 | 3.587734 | 3.624609 | 3.662122 | 3.700236 |

${\overline{\omega}}_{2}$ | 22.0345 | 22.2764 | 22.5608 | 22.8868 | 23.2523 | 23.6552 |

n_{k} = 4 | ||||||

${\overline{\omega}}_{1}$ | 1.9247 | 1.9482 | 1.972 | 1.9961 | 2.0206 | 2.0452 |

${\overline{\omega}}_{1}$ [13] ^{1} | 1.9047 | - | - | - | - | - |

${\overline{\omega}}_{2}$ | 2.4674 | 2.4677 | 2.4686 | 2.4701 | 2.4723 | 2.475 |

${\overline{\omega}}_{3}$ | 12.1148 | 12.2681 | 12.4436 | 12.6404 | 12.8574 | 13.0929 |

${\overline{\omega}}_{3}$ [13] ^{1} | 12.5670 | - | - | - | - | - |

${\overline{\omega}}_{4}$ | 22.2066 | 22.2313 | 22.305 | 22.4274 | 22.5977 | 22.8147 |

**Table 3.**Influence of tip point mass, water and nano-scale effects (linear free surface waves not considered).

r_{m} | 0 | 1 | 2 | 3 |
---|---|---|---|---|

local theory, no fluid | ||||

${\overline{\omega}}_{1}$ | 3.5160 | 1.5573 | 1.1582 | 0.9628 |

${\overline{\omega}}_{2}$ | 22.0345 | 16.2501 | 15.8609 | 15.7198 |

PurelySDM, λ = 0.04, no fluid | ||||

${\overline{\omega}}_{1}$ | 3.6621 | 1.609 | 1.1957 | 0.9937 |

${\overline{\omega}}_{2}$ | 23.2523 | 17.1006 | 16.6962 | 16.5498 |

local theory; fluid, n_{k} = 4 | ||||

${\overline{\omega}}_{1}$ | 1.9247 | 1.2982 | 1.0404 | 0.8923 |

${\overline{\omega}}_{2}$ | 2.4674 | 2.4674 | 2.4674 | 2.4674 |

${\overline{\omega}}_{3}$ | 12.1148 | 7.8824 | 7.2903 | 7.0561 |

${\overline{\omega}}_{4}$ | 22.2066 | 22.2066 | 22.2066 | 22.2066 |

PurelySDM, λ = 0.04; fluid, n_{k} = 4 | ||||

${\overline{\omega}}_{1}$ | 2.0206 | 1.3491 | 1.0781 | 0.9235 |

${\overline{\omega}}_{2}$ | 2.4723 | 2.4723 | 2.4723 | 2.4723 |

${\overline{\omega}}_{3}$ | 12.8574 | 8.3265 | 7.7124 | 7.4708 |

${\overline{\omega}}_{4}$ | 22.5977 | 22.5977 | 22.5977 | 22.5977 |
