Amine-Functionalized Natural Halloysite Nanotubes Supported Metallic (Pd, Au, Ag) Nanoparticles and Their Catalytic Performance for Dehydrogenation of Formic Acid

by
Limin Song
1,
Kaiyuan Tan
1,
Yingyue Ye
1,
Baolin Zhu
1,2,*,
Shoumin Zhang
1,2 and
Weiping Huang
1,2,*
1
College of Chemistry, Nankai University, Tianjin 300071, China
2
The Key Laboratory of Advanced Energy Materials Chemistry (Ministry of Education), Nankai University, Tianjin 300071, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(14), 2414; https://doi.org/10.3390/nano12142414
Submission received: 17 June 2022 / Revised: 10 July 2022 / Accepted: 11 July 2022 / Published: 14 July 2022
Browse Figures
Review Reports Versions Notes

Abstract

:
In today’s age of resource scarcity, the low-cost development and utilization of renewable energy, e.g., hydrogen energy, have attracted much attention in the world. In this work, cheap natural halloysite nanotubes (HNTs) were modified with γ-aminopropyltriethoxysilane (APTES), and the functionalized HNTs were used as to support metal (Pd, Au, Ag) catalysts for dehydrogenation of formic acid (DFA). The supports and fabricated catalysts were characterized with ICP, FT-IR, XRD, XPS and TEM. The functional groups facilitate the anchoring of metal particles to the supports, which brings about the high dispersion of metallic particles in catalysts. The catalysts show high activity against DFA and exhibit selectivity of 100% toward H2 at room temperature or less. The interactions between active centers and supports were investigated by evaluation and comparison of the catalytic performances of Pd/NH2-HNTs, PdAg/NH2-HNTs and PdAu/NH2-HNTs for DFA.

1. Introduction

Under the general trend of global energy conservation and emission reduction, replacing fossil energy with clean and renewable energy is getting more and more attention [1,2,3,4]. Hydrogen (H2), an important renewable energy carrier, is believed a promising source of renewable energy. At present, the development and applications of hydrogen energy have attracted great attention. The successful application of hydrogen energy at a large scale ultimately depends on efficient and sustainable production, storage and transport of dihydrogen [5,6,7,8]. Hydrogen storage materials are divided into chemical hydrogen storage materials and physical hydrogen storage materials. Among many chemical hydrogen storage materials, one of them is formic acid (HCOOH, FA), which has attracted considerable attention due to its economy, recyclability, low toxicity, low flammability, high stability and high hydrogen capacity (4.4 wt.%) under normal conditions [9,10]. For the decomposition reaction of FA, there are two possible pathways, dehydrogenation (Reaction (1)) and dehydration (Reaction (2)). It is obvious that the Reaction (1) is the only one desired if FA is used to produce H2. Reaction (2), on the contrary, is an off-putting one owing to the generation of CO, which is toxic and may deactivate catalysts and so on [11,12,13]. Therefore, the key to utilize FA as a hydrogen storage material is to develop low-cost and highly efficient catalysts for DFA.
HCOOH → H 2 + CO 2
HCOOH → H 2 O + CO
The United Nations’ sustainable development goals, including reducing carbon emissions, have provided a much-needed boost the development of catalysts with high selectivity and activity for DFA. At present, many catalysts have been reported for DFA [14,15,16,17,18], including homogeneous catalysts and supported mono-metallic, bi-metallic and trimetallic catalysts. Padhi and co-workers reported using a half-sandwich complex containing Ru to dehydrogenate formic acid. They believe that the complex is a descent catalyst towards dehydrogenation of formic acid into carbon dioxide and hydrogen in 1:1 ratio [19]. Beller et al., also reported catalytic dehydrogenation of FA with ruthenium–PNP–pincer complexes. They found the catalyst show highest activity in an acidic environment (pH 4.5) [20]. The cobalt pincer complex has also been reported for the dehydrogenation of formic acid in aqueous medium under mild conditions [21]. Many researchers reported heterogeneous catalysts for DFA. Amos and co-workers reported a non-transition-metal catalysis system for DFA, which exhibits very encouraging performance [22]. However, most of the catalysts reported for DFA are transition metal catalysts. Jiang et al., have reviewed heterogeneous catalysts used in DFA [23].
The current research relevant to heterogeneous catalysts for DFA mainly concerns the activities and lifetimes of catalysts, which is focused on active sites and supports. Au [24], Pd [25] and bimetallic combinations, such as PdAu and PdAg [26,27], are commonly used as catalytic active sites. Among them, Pd is regarded as a most promising active component. The widely used supports of catalysts for DFA are graphite, carbon, mesoporous-silica, TiO2, ZrO2, metal–organic frameworks (MOF) and so on [28,29,30,31,32,33,34]. These supports have large specific surface areas (SSAs), which is a benefit to dispersing metal particles, active sites, in catalysts, and prevents them from agglomerating effectively. As a support, g-C3N4 has also attracted much attention [35]. Though the SSA of g-C3N4 is not very large, the dπ–pπ interaction between g-C3N4 and transition metallic particles may change the electron density of catalytic active sites, which is beneficial for the formation of M-formate in the DFA.
Recently, a natural nanotube, halloysite [Al2Si2O5(OH)4·nH2O], which is an abundant and cheap natural resource in many countries [36,37,38], has attracted much attention due to its biocompatibility and large SSA. Halloysite nanotubes (HNTs) external surfaces are composed of siloxane (Si-O-Si) groups, whereas the internal surface consists of a gibbsite-like array of aluminol (Al-OH) groups [39]. Regrettably, this structure is not beneficial to the interaction between metal nanoparticles and HNTs, though HNTs are used as supports. However, it is the unique structure of HNTs that makes it easy to modify them with functional agents [40], which can greatly improve the adhesion of metal nanoparticles to their surfaces [41,42,43,44]. Various chemical reagents, such as sodium citrate, EDTA, 3-mercaptopropyltrimethoxysilane [45], 3-aminopropyltriethoxysilane (APTES) [46] and poly diallyldimethylammonium chloride [47,48,49], were used to modify HNTs in order to improve the performances of HNTs. Yuan et al., reported the modification of HNTs with γ-aminopropyltriethoxysilane (APTES) [50], by which the amino-functionalized HNTs were obtained via the condensation between APTES and the hydroxyl groups of HNTs, including Al–OH and Si–OH [51,52].
Based on the above-mentioned, in the present contribution we report the amino-functionalization of natural halloysite nanotubes and focus on the utilization of amino-functionalized HNTs as supports for supported metallic (Pd, Au, Ag) catalysts in the DFA. The -NH2 groups on the supports serve as basic sites, which facilitates not only the dispersion of metal nanoparticles, but also the formation of formate ions by absorbing H+ ions of formic acid [53], and then improving the interaction between the metal NPs and formate ions, enhancing the catalytic activity of catalysts in the DFA.

2. Materials and Methods

2.1. Materials and Reagents

Aminopropyltriethyoxysilane (APTES, ≥98.0%) was purchased from NJDULY, Nanjing, China; sodium formate (HCOONa, 98.4%) was purchased from Beat Medicine, Shanghai, China. Halloysite nanotubes (Tianjin First Chemical Plant, Tianjin, China), sodium borohydride (NaBH4, ≥98.0% Tianjin First Chemical Plant), formic acid (HCOOH, FA, ≥98.0% Tianjin First Chemical Plant), sodium carbonate (Na2CO3, ≥99.8% Tianjin First Chemical Plant), toluene (C7H8, ≥99.5% Tianjin First Chemical Plant), ethanol (CH3CH2OH, ≥99.7% Tianjin Second Chemical Plant, Tianjin, China), ammonium tetrachloropalladate ((NH4)2PdCl4, 99.9%, Pd > 36.5%, Tianjin Heowns, Tianjin, China), silver nitrate (AgNO3, ≥99.8% Tianjin First Chemical Plant), chloroauric acid (HAuCl4, ≥47.8% Tianjin First Chemical Plant). The deionized water was obtained by reversed osmosis followed by ion-exchange and filtration.

2.2. Synthesis of Catalysts

2.2.1. Amino-Functionalization of HNTs

The synthesis of amino-functionalized HNTs is described as follows. First of all, the natural HNTs were calcined at 110 °C for 12 h. Then, 1.2 g of calcined HNTs and 4 mL of APTES were added into 25 mL of anhydrous toluene under stirring at room temperature, followed by ultrasounding for 1 h; then, the mixture was heated at 80 °C for 20 h under stirring [54]. After centrifugation, the solid product was washed three times with toluene and dried at 80 °C. Product is labeled NH2-HNTs.

2.2.2. Synthesis of Pd/NH2-HNTs

First, 0.6 g of NH2-HNTs was dispersed in 4 mL of deionized water, into which 3 mL of (NH4)2PdCl4 (0.05 M) was added. The mixture was stirred for 12 h at room temperature after several vacuumizing and aerating cycle treatments under agitation. The solid collected by centrifugation was washed with water and ethanol, and finally dried at 80 °C, yielding Pd (II)-functionalized NH2-HNTs. The obtained material was then treated with 0.1g NaBH4 in 20 mL of Na2CO3 solution (0.025 M), forming NH2-HNT-supported Pd NPs [55]. The presence of Na2CO3 in solution makes the NaBH4 not easily hydrolyzed; a suitable pH value even facilitates the growth of uniform Pd nanoparticles. The product was labeled Pd/NH2-HNTs (Scheme 1). The catalysts with different Pd contents were also prepared by changing the amounts of (NH4)2PdCl4. For comparison, the Pd/HNTs, Ag/NH2-HNTs and Au/NH2-HNTs were also prepared in the same preparation processes, except that the NH2-HNTs or Pd were replaced by the HNTs, Ag or Au, respectively.

2.2.3. Synthesis of PdAu/NH2-HNTs

PdAu/NH2-HNTs were synthesized by co-impregnation method. First, 0.6 g of NH2-HNTs were dispersed in 4 mL of deionized water, into which 1.5 mL of (NH4)2PdCl4 (0.05 M) and 7.5 mL of HAuCl4 (0.01 M) were added. The synthesis processes followed were the same as those for preparing Pd/NH2-HNTs. The product obtained was labeled as PdAu/NH2-HNTs.

2.2.4. Synthesis of PdAg/NH2-HNTs

First, 0.6 g of NH2-HNTs were dispersed in 4 mL of deionized water, into which 1.5 mL of (NH4)2PdCl4 (0.05 M) and 1.5 mL of AgNO3 (0.05 M) were added. The synthesis processes followed were the same as those of preparing Pd/NH2-HNTs. The product obtained was labeled as PdAg/NH2-HNTs.

2.3. Characterization

X-ray diffraction (XRD) patterns of samples were recorded on Rigaku SmartLab diffractometer (Rigaku Corporation, Tokyo, Japan) at room temperature, operating with Cu-Kα radiation, using a generator with a voltage of 40 KV and a current of 150 mA. Transmission electron microscopy (TEM) and energy dispersive spectroscopy (EDS) were performed on a Talos F200X G2 transmission electron microscope (Thermo Fisher Scientific Inc., Waltham, MA, USA) with an accelerating voltage of 200 kV, and the information resolution of the TEM was 0.12 nm. The BET surface area measurements were performed on Autosorb IQ C (Quantachrome Instruments, Boynton Beach, FL, USA) at 77 K. Prior to analysis, samples were degassed at 353 K for 4 h under vacuum. The H2 chemisorption was carried out on an Autosorb IQ C-XR. The measurement method was described in reference [35]. The mean size of metal particles in catalysts was calculated from the amount of H2 adsorbed. The Fourier transform infrared (FTIR) spectra were recorded on a Nicolet iS50 FT-IR (Thermo Fisher Scientific Inc., Waltham, MA, USA) in the wave number range from 1000 to 4000 cm−1. Inductively coupled plasma optical emission spectroscopy (ICP-OES) measurements were performed on Thermo Fisher iCAP 7000 (Thermo Fisher Scientific Inc., Waltham, MA, USA). X-ray photoelectron spectroscopy (XPS) spectra were acquired with Axis Ultra DLD (Shimadzu, Kyoto, Japan) using Al Kα X-rays, and the binding energy was calibrated by taking the C1s peak at 284.8 eV as the reference. The gas products were qualitatively analyzed by gas chromatography (GC) on a GC-7900 (Techcomp Instrument Limited, Shanghai, China) with a thermal conductivity detector (TCD).

2.4. Evaluation of Catalytic Activity of Catalysts in DFA

Figure 1 shows the device for evaluating the catalytic performance of catalysts in the DFA. The experimental processes are described briefly as follows. First, 0.1 g of as-prepared catalyst was added into the round-bottom flask with three necks. Then, 20 mL of an aqueous formic acid/sodium formate (FA/SF) solution (CFA + CSF = 6.0 M) was added into the pressure-equalization funnel. The gas burette was filled with NaOH solution in order to absorb the CO2 produced in the reaction. The catalytic reaction started as soon as the FA/SF solution was added into the flask under stirring. The evolution of gas was monitored by gas burette. The catalytic reactions were carried out at different temperatures (283, 298, 313 K) by adjusting the temperature of the water bath. The hydrostatic pressure formed due to the presence of the solution in the burette; the vapor pressure of water was deducted; and the total pressure of the H2 collected was assumed constant throughout the experiment at atmospheric pressure. All calculations were performed based on the ideal gas law [56].
In order to study the durability and recyclability of the catalyst, the catalyst was collected after the initial catalytic test, washed with deionized water and then dried at room temperature for 6 h under vacuum. The recovered catalyst was then used in the next reaction under the same conditions as above.

2.5. Turn-Over-Frequency (TOF) Calculations

The TOF of the catalyst was calculated based on the following formula.
TOFpd = (P V/R T)/n t
where TOFPd is the TOF (nH2/nPd/h) at time t, P is the atmospheric pressure (Pa), V is the volume of the generated H2 (m3), R is the universal gas constant (8.3145 m3·Pa·mol−1·K−1), T is the temperature of gas (K), n is the molar quantity of Pd in the catalyst and t is reaction time (h).

3. Results

The SSAs and pore volumes (Vp) of HNTs, NH2-HNTs, Pd/HNTs, Pd/NH2-HNTs, PdAu/NH2-HNTs and PdAg/NH2-HNTs are listed in Table 1. The adsorption isotherms of HNTs, NH2-HNTs and Pd/NH2-HNTs are type Ⅱ with H3 hysteresis loops according to the IUPAC-classification (Figure S1). Compared with the SSA (62.3 m2·g−1) and Vp (0.41 cm3·g−1) of the original HNTs, those (55.9 m2·g−1, 0.40 cm3·g−1) of Pd/HNTs are low, for which the large Pd particles blocking tubes or entering into the inner parts of the tubes should be responsible. Similarly, the SSA (34.8 m2·g−1) of NH2-HNTs is also smaller, which indicates that APTES was attached to the inner and outer surfaces of HNTs, reducing the SSA of HNTs. However, the SSA of NH2-HNT-loaded metal particles, e.g., Pd/NH2-HNTs, is larger than that of NH2-HNTs. This can be explained by the fact that the metal particles supported on the NH2-HNTs are very small and have high dispersion due to the presence of -NH2 groups, which do not block tubes but increase the SSA of the catalyst. Thus, the SSA should be sum of the original SSA of NH2-HNTs and the SSA of small metal particles [57]. It can be seen in the data in Table 1 that there are differences in the Vp of the catalysts, but the differences are inconspicuous. The mean particle sizes of Pd NPs in the as-prepared Pd/HNTs and Pd/NH2-HNTs determined by static chemisorption method were 3.5 and 1.2 nm respectively.
In order to detect the structural changes of halloysite in all samples, XRD was used to analyze samples. Figure 2a depicts the XRD patterns of HNTs, NH2-HNTs, Pd/NH2-HNTs, PdAu/NH2-HNTs and PdAg/NH2-HNTs.
As shown in Figure 2a, we found primary halloysite displays peaks at 12.1°, 20.1°, 24.6°, 35.0°, 54.5° and 62.6°, which are consistent with the data of PDF#29-1487. It can be seen clearly that all peaks in NH2-HNTs correspond to those of HNTs, which indicates that NH2-HNTs maintain the phase structure of HNTs. That is to say, the reaction between APTES and HNTs does not damage the skeleton structure of HNTs; the reaction should take place on the surfaces of HNTs. All catalysts (Pd/NH2-HNTs, PdAu/NH2-HNTs, PdAg/NH2-HNTs) showed no other peaks, e.g., peaks of Pd, besides those of HNTs, which means that the metallic particles in catalysts were small or in a state of high dispersion.
The XRD of NH2-HNTs confirms that the skeleton structure of HNTs was maintained in NH2-HNTs; however, information about amino-functional groups in NH2-HNTs is absent. In order to obtain the information about amino-functional groups in samples and explore the bonding between APTES and HNTs, FTIR was used to characterize samples. Figure 2b shows the FTIR spectra of HNTs, NH2-HNTs and Pd/NH2-HNTs. The frequencies and assignments of each vibrational mode observed are listed in Table S1.
Figure 2b displays the typical vibration bands of halloysite, which are in agreement with those reported by reference [54]. Compared with HNTs, NH2-HNTs exhibited several new FTIR peaks, such as the stretching vibration and the deformation vibration bands of CH2 at round 2930 and 1490 cm−1, respectively, and a peak at 1570 cm−1 that is attributed to the deformation vibration of N–H bonds. All of these peaks indicate the presence of moieties of APTES in NH2-HNTs, the amino-functionalized HNTs. Furthermore, the O–H stretching band (3626 cm−1) in HNTs is highlighted. It is the -OH groups on the surfaces of HNTs that make the reaction between HNTs and APTES possible [50].
TEM images and the element distribution mappings of the catalysts are shown in Figure 3 and Figure S2. The natural HNTs were mainly composed of hollow nanotubes ranging from 0.5 to 1.0 μm in length, with internal diameters of 10–30 nm. Figure 3a clearly shows that NH2-HNTs, the HNTs modified by APTES, still maintained a perfect tubular structure, which confirms that the reaction between APTES and HNTs does not damage the tubular structure of the HNTs. It can be seen clearly in Figure 3b,c (Pd/NH2-HNTs) that some black particles were uniformly deposited and dispersed on the surfaces of the tubes, which should be Pd particles. Their size as evaluated using ImageJ, was about 1.8 ± 0.4 nm, which is similar to the result obtained by static chemisorption (1.2 nm). However, the Pd NPs in Pd/HNTs prepared under the same synthetic conditions as those of Pd/NH2-HNTs were all larger than 4.3 nm, and the metal particles were obviously aggregated (Figure 3d), even though the Pd content characterized by ICP in Pd/HNTs (0.60 wt.%) was lower than that in Pd/NH2-HNTs (2.50 wt.%). These results indicate that the H2N-groups on the surfaces of HNTs have significant influences on the size and dispersion of Pd particles, and Pd loading amount. The interaction between PdCl42− and NH2-HNTs is different from that between PdCl42− and HNTs because of the difference in surface structure between HNTs and NH2-HNTs, which causes in aforementioned results. For NH2-HNTs, the -CH2CH2CH2NH2 connected to the surfaces of HNTs are readily transformed into -CH2CH2CH2NH3+ [58], which has strong electrostatic attraction to PdCl42−.
Furthermore, the -NH2 groups, Lewis bases, can promote the interactions among the metal Pd particles, Lewis acid and support, making a contribution to the high dispersion and loading of ultrafine particles. However, the small Pd particles in Pd/HNTs tended to aggregate and can form larger particles; the maximum size of particles was ca. 25 nm. Figure 3e,f shows the distribution mappings of Pd element in Pd/NH2-HNTs, which further demonstrate the existence and high dispersion of Pd in the catalysts. The HAADF-STEM images and the corresponding element mapping of PdAu/NH2-HNTs are shown in Figure 3g–i. As shown in these images, Pd and Au were uniformly dispersed in the NH2-HNTs. It can be seen in the distribution mappings of Pd and Ag elements in PdAg/NH2-HNTs (Figure S2) that the metallic particles were successfully and uniformly anchored on the modified HNTs.
To further investigate the presence of -NH2 groups, the chemical states of metallic elements, and the interactions between metals and the supports in the prepared catalysts, XPS was also used to characterize samples. As shown in Figure 4a, in addition to peaks of C, O, Al and Si, an obvious peak of N (BE∼400 eV) was observed in Pd/NH2-HNT and NH2-HNT spectra, but this N peak did not exist in the HNTs’ spectrum.
Figure 4b–e displays the XPS spectra of Pd 3d in samples. The XPS spectra of Ag and Au in samples are shown in Figure S3.
The peaks centered at 335.2 and 337.2 eV are attributed to the 3d5/2 of Pd0 and 3d5/2 of Pd2+, respectively (Figure 4b) [59]. Pd exists as Pd0 and Pd2+ in the Pd/HNTs, but the Pd0 is dominant based on the peak area ratios of the peaks. Compared with Figure 4b, Figure 4c shows that all peaks attributed to Pd0 shifted toward higher binding energies for Pd/NH2-HNTs, for which a reasonable explanation is that the Pd particles are smaller and attached to -NH2 groups in Pd/NH2-HNTs [60]. The electronegativity of N is higher than that of Pd, so partial electron migration from Pd to N may take place while there is an interaction between them, which would also help Pd to interact better with negatively charged intermediates, such as formate ions, in the DFA. It is worth noting that the ratio of nPd2+ to nPd0 in Pd/NH2-HNTs is higher than that in Pd/HNTs (Table 2).
These results are reasonable because the Pd particles in Pd/NH2-HNTs are smaller than those in Pd/HNTs (cf. TEM). Smaller Pd particles that have larger SSAs are more unstable and readily oxidized by oxygen. However, the PdO species are readily reduced in hydrogen atmosphere even at temperatures below 30 °C [61], so a small amount of PdO in a catalyst has no effect on its catalytic activity in FAD. Similarly, Pd 3d peaks in Figure 4d,e are also shifted. However, it can be seen that the influences of Ag and Au on the shift of Pd 3d peaks are different in comparison with Figure 4b,c, which can be explained by the difference in work functions of the metals [62]. The work functions of Ag, Pd and Au are 4.26, 5.12 and 5.10 eV, respectively. It is well known that the smaller the work function of the metal, the easier the metal loses electron. When two metals with different work functions combine together, the electrons may migrate from the metal with the lower work function to the one with the higher work function. Accordingly, the binding energies of Pd 3d5/2 and 3d3/2 in Pd/NH2-HNTs (335.8 and 341.0 eV) are higher and lower than those in PdAg/NH2-HNTs (335.7 and 341.0 eV) and PdAu/NH2-HNTs (336.1 and 341.3 eV), respectively. All XPS results strongly confirm the existence of strong interactions between metals and metal and support. The electronic effect between Pd and Au and the interaction between metal and support may produce a synergistic effect and significantly enhance the catalytic performance of PdAu/NH2-HNTs for DFA.
The catalytic performances of all catalysts for DFA were evaluated. Table 3 and Figure 5 show the catalytic performances of as-prepared catalysts at 298 K. It should be noted that no CO was detected by GC in any of the collected gas (Figure S4), which means the FA decomposes into H2 and CO2 over the catalysts with high selectivity.
Obviously, all catalysts containing Pd showed catalytic activity (Entries 1–6), whereas those without Pd did not show catalytic activity (Entries 7 and 8). Pd was undoubtedly the catalytic active center for DFA. In order to explore the influences of -NH2 groups, catalysts with similar Pd contents were designed and compared. The results display that the catalytic activity of Pd (1.28%)/HNTs (Entry 2) is obviously weaker than that of Pd (1.30%)/NH2-HNTs (Entry 4), though they have similar Pd contents. This is due to the presence of -NH2 groups serving as basic sites. The order of the activity of three catalysts with the same Pd content and support (Entries 4, 5 and 6) was as follows: PdAu/NH2-HNTs > Pd/NH2-HNTs > PdAg/NH2-HNTs, which is agreement with the order of binding energies of Pd0 in these catalysts (cf. XPS). It confirms that the formate ions are firstly combined with metal Pd as intermediates. In this case, reducing the electron density on the surfaces of Pd NPs is beneficial to the combining of catalytic active centers and formate ions, and then enhances the catalytic activity of all the catalysts. Accordingly, PdAu/NH2-HNTs showed the highest activity among all the catalysts. In addition, the higher the Pd contents in catalysts with the same support (Entries 1 and 2; Entries 3 and 4), the larger the volume of H2 evolved in the DFA in the same reaction time (70 min).
The above results suggest that the -NH2 in Pd/NH2-HNTs plays an important role in enhancing the catalytic activity of Pd/NH2-HNTs for DFA. This excellent catalytic performance can be ascribed to three factors. Firstly, the -NH2 groups are conducive to the combination and connection between the support and PdCl42− ions, which promotes the fixation and dispersion of Pd, leading to ultrafine Pd particles in the catalyst. Secondly, the alkalinity of -NH2 groups is favorable for the breaking of the O-H bonds of FA, forming formate ions, which improves the catalytic process. Thirdly, the synergistic interactions among Pd active centers, -NH2 groups on the support and metal of higher work function may change the electron density of Pd0, which is beneficial to the combining of formate ions and catalyst. In summary, the -NH2 groups on the support are able to enhance the catalytic activity of the catalyst.
To explore the activity of the catalyst at different temperatures, the activities of the catalysts for DFA were evaluated and compared at 283, 298 and 313 K. Taking Pd/NH2-HNTs as an example, its activities at different temperature are shown in Figure 5b, which displays clearly that the rate of hydrogen generation increased as reaction temperature increased. What is interesting is that the catalyst did show excellent catalytic activity at 283 K, producing H2 112 mL, which means that this catalyst has some potential practical value for DFA breakdown. The molar ratio of FA to SF has significant influence on the performance of Pd/NH2-HNTs in the DFA (Figure 5c). In the FA-SF aqueous solution, the activity of the catalyst for DFA increased with the molar fraction of SF, and 50% was the optimal value. This demonstrates that the SF serves as a catalyst promoter to accelerate the reaction rate. Firstly, the formate ions in the reaction system coordinate with active sites, forming the key intermediate, M-formate; and then, accompanied by β-H transfer, it is turned into hydride (M-H) and CO2. The formed hydride reacts with H+ ions in the reaction system immediately, releasing H2.
The recyclability of catalyst was investigated under optimal reaction conditions. The results are shown in Figure 5d.
As shown in Figure 5d, the catalytic activity of catalyst decreased slightly after the first run. However, the activity was still stable after the second run. The TEM image of the Pd/NH2-HNTs after the fifth run shows that the Pd NPs were still in good dispersion on the support, though the size of Pd NPs increased (Figure S5). Further work on enhancement of the stability of the present catalyst for the DFA is underway.

4. Conclusions

In summary, we have developed a new catalyst that uses a cheap natural alloy site as a support to well disperse Pd nanoparticles. It is the hydroxyl groups on HNTs that make the connection between APTES and HNTs possible, so Pd nanoparticles can be evenly dispersed on the NH2-functionalized HNTs. The obtained catalysts, Pd/NH2-HNTs, PdAu/NH2-HNTs and PdAg/NH2-HNTs, showed excellent catalytic performance in DFA, which demonstrates that the -NH2 group may change the electron density of Pd and facilitate the decomposition of HCOOH. This study showed that the size of Pd particles in supported catalysts is strongly dependent on the support. It is expected that combining the precious metal Pd with other non-noble metals with higher work functions may reduce the cost of catalysts for DFA.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12142414/s1. Figure S1: N2 adsorption desorption isotherms of various samples; Table S1: Positions and assignments of the IR vibration bands. Figure S2: (a) HAADF-STEM images of PdAg-NH2-HNTs, (b) EDX mapping of Pd element in PdAg-NH2-HNTs, (c) EDX mapping of Ag element in PdAg-NH2-HNTs. Figure S3: Ag 3d XPS spectra of (a) PdAg-NH2-HNTs and (b) Ag-NH2-HNTs. Au 4f XPS spectra of (c) PdAu-NH2-HNTs and (d) Au-NH2-HNTs. Figure S4: GC results of (a) Pd/NH2-HNTs and standard sample (b) H2, (c) CO and (d) air. Figure S5: The TEM images of spent Pd-NH2-HNTs catalysts after the fifth catalytic reaction cycle. Table S2: Turnover frequency (TOF) for different catalysts used for the generation of dihydrogen. References [63,64,65,66,67] are cited in the Supplementary Materials.

Author Contributions

Conceptualization, W.H. Investigation, L.S., K.T. and Y.Y. Methodology, S.Z. Project administration, B.Z. All authors have read and agreed to the published version of the manuscript.

Funding

Supported by the funds from State Key Laboratory of Coking Coal Exploitation and Comprehensive Utilization (41040220181107).

Institutional Review Board Statement

The study in this paper did not involve humans or animals.

Informed Consent Statement

The study in this paper did not involve humans or animals.

Data Availability Statement

The data presented in this study are avilable upon request from the corresponding author.

Acknowledgments

This work is supported by the Gansu Junmao New Materials Science and Technology Co., Ltd.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Steven, J.H.; Andrew, M.H.; Thomas, A.J. Fuel Cell Chemistry and Operation. J. Power Sources 2007, 172, 1. [Google Scholar]
  2. Brandon, N.P.; Kurban, Z. Clean energy and the hydrogen economy. Philos. Trans. R. Soc. A 2017, 375, 20160400. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Yao, Q.; Shi, W.; Feng, G.; Lu, Z.; Zhang, X.; Tao, D. Ultrafine Ru nanoparticles embedded in SiO2 nanospheres: Highly efficient catalysts for hydrolytic dehydrogenation of ammonia borane. J. Power Sources 2014, 257, 293–299. [Google Scholar] [CrossRef]
  4. Enthaler, S. Carbon Dioxide—The Hydrogen-Storage Material of the Future. ChemSusChem 2008, 1, 801–804. [Google Scholar] [CrossRef] [PubMed]
  5. Yang, J.; Sudik, A.; Wolverton, C.; Siegel, D.J. High capacity hydrogen storage materials: Attributes for automotive applications and techniques for materials discovery. Chem. Soc. Rev. 2010, 39, 656–675. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Dalebrook, A.F.; Gan, W.; Grasemann, M.; Moret, S.; Laurenczy, G. Hydrogen storage: Beyond conventional methods. Chem. Commun. 2013, 49, 8735–8751. [Google Scholar] [CrossRef] [PubMed]
  7. Bockris, J.O.M. The hydrogen economy: Its history. Int. J. Hydrogen Energy 2013, 38, 2579–2588. [Google Scholar] [CrossRef]
  8. Jiang, Z.; Qi, R.; Huang, Z.; Shangguan, W.; Wong, R.; Lee, A. Impact of Methanol Photomediated Surface Defects on Photocatalytic H2 Production Over Pt/TiO2. Energy Environ. Mater. 2020, 3, 202–208. [Google Scholar] [CrossRef] [Green Version]
  9. Ferenc, J. Breakthroughs in hydrogen storage—Formic Acid as a sustainable storage material for hydrogen. ChemSusChem 2010, 1, 805–808. [Google Scholar]
  10. Sun, Q.; Wang, N.; Xu, Q.; Yu, J. Nanopore-Supported Metal Nanocatalysts for Efficient Hydrogen Generation from Liquid-Phase Chemical Hydrogen Storage Materials. Adv. Mater. 2020, 32, 2001818. [Google Scholar] [CrossRef]
  11. Yadav, M.; Akita, T.; Tsumori, N.; Xu, Q. Strong metal–molecular support interaction (SMMSI): Amine-functionalized gold nanoparticles encapsulated in silica nanospheres highly active for catalytic decomposition of formic acid. J. Mater. Chem. 2012, 22, 12582–12586. [Google Scholar] [CrossRef]
  12. Grasemann, M.; Laurenczy, G. Formic acid as a hydrogen source–recent developments and future trends. Energy Environ. Sci. 2012, 5, 8171–8181. [Google Scholar] [CrossRef]
  13. Dai, H.; Xia, B.; Wen, L.; Du, C.; Su, J.; Luo, W.; Cheng, G. Synergistic catalysis of AgPd@ZIF-8 on dehydrogenation of formic acid. Appl. Catal. B Environ. 2015, 165, 57–62. [Google Scholar] [CrossRef]
  14. Filonenko, G.A.; Putten, R.; Schulpen, E.N.; Hensen, E.J.; Pidko, E.A. Highly Efficient Reversible Hydrogenation of Carbon Dioxide to Formates Using a Ruthenium PNP-Pincer Catalyst. ChemCatChem 2014, 6, 1526–1530. [Google Scholar] [CrossRef]
  15. Myers, T.W.; Berben, L.A. Aluminium–ligand cooperation promotes selective dehydrogenation of formic acid to H2 and CO2. Chem. Sci. 2014, 5, 2771–2777. [Google Scholar] [CrossRef]
  16. Mellone, I.; Gorgas, N.; Bertini, F.; Peruzzini, M.; Kirchner, K.; Gonsalvi, L. Selective Formic Acid Dehydrogenation Catalyzed by Fe-PNP Pincer Complexes Based on the 2,6-Diaminopyridine Scaffold. Organometallics 2016, 35, 3344–3349. [Google Scholar] [CrossRef]
  17. Bertini, F.; Mellone, I.; Ienco, A.; Peruzzini, M.; Gonsalvi, L. Iron(II) Complexes of the Linear rac-Tetraphos-1 Ligand as Efficient Homogeneous Catalysts for Sodium Bicarbonate Hydrogenation and Formic Acid Dehydrogenation. ACS Catal. 2015, 5, 1254–1265. [Google Scholar] [CrossRef]
  18. Kim, Y.; Kim, S.H.; Ham, H.C.; Kim, D.H. Mechanistic insights on aqueous formic acid dehydrogenation over Pd/C catalyst for efficient hydrogen production. J. Catal. 2020, 389, 506–516. [Google Scholar] [CrossRef]
  19. Vatsa, A.; Padhi, S.K. Dehydrogenation of Formic Acid by RuII Half Sandwich Catalysts. Chem. Sel. 2021, 6, 9447–9452. [Google Scholar]
  20. Agapova, A.; Alberico, E.; Kammer, A.; Junge, H.; Beller, M. Catalytic Dehydrogenation of Formic Acid with Ruthenium-PNP-Pincer Complexes: Comparing N-Methylated and NH-Ligands. ChemCatChem 2019, 11, 1910–1914. [Google Scholar] [CrossRef] [Green Version]
  21. Zhou, W.; Wei, Z.; Spannenberg, A.; Jiao, H.; Junge, K.; Junge, H.; Beller, M. Cobalt-Catalyzed Aqueous Dehydrogenation of Formic Acid. Chem. Eur. J. 2019, 25, 8459–8464. [Google Scholar] [CrossRef]
  22. Amos, R.I.J.; Heinroth, F.; Chan, B.; Zheng, S.; Haynes, B.S.; Easton, C.J.; Masters, A.F.; Radom, L.; Maschmeyer, T. Hydrogen from Formic Acid through Its Selective Disproportionation over Sodium Germanate—A Non-Transition-Metal Catalysis System. Angew. Chem. Int. Ed. 2014, 53, 11275–11279. [Google Scholar] [CrossRef]
  23. Zhang, L.; Wu, W.; Jiang, Z.; Fang, T. A review on liquid-phase heterogeneous dehydrogenation of formic acid: Recent advances and perspectives. Chem. Pap. 2018, 72, 2121–2135. [Google Scholar] [CrossRef]
  24. Ojeda, M.; Iglesia, E. Formic Acid Dehydrogenation on Au-Based Catalysts at Near-Ambient Temperatures. Angew. Chem. Int. Ed. 2009, 121, 4894–4897. [Google Scholar] [CrossRef]
  25. Ruthven, D.M.; Upadhye, R.S. The catalytic decomposition of aqueous formic acid over suspended palladium catalysts. J. Catal. 1971, 21, 39–47. [Google Scholar] [CrossRef]
  26. Ye, W.; Huang, H.; Zou, W.; Ge, Y.; Lu, R.; Zhang, S. Controllable Synthesis of Supported PdAu Nanoclusters and Their Electronic Structure-Dependent Catalytic Activity in Selective Dehydrogenation of Formic Acid. ACS Appl. Mater. Interfaces 2021, 13, 34258–34265. [Google Scholar] [CrossRef]
  27. Dai, H.; Cao, N.; Yang, L.; Su, J.; Luo, W.; Cheng, G. AgPd nanoparticles supported on MIL-101 as high performance catalysts for catalytic dehydrogenation of formic acid. J. Mater. Chem. A 2014, 2, 11060–11064. [Google Scholar] [CrossRef]
  28. Bi, Q.; Lin, J.; Liu, Y.; He, H.; Huang, F.; Cao, Y. Gold supported on zirconia polymorphs for hydrogen generation from formic acid in base-free aqueous medium. J. Power Sources 2016, 328, 463–471. [Google Scholar] [CrossRef]
  29. Bi, Q.; Lin, J.; Liu, Y.; He, H.; Huang, F.; Cao, Y. Dehydrogenation of Formic Acid at Room Temperature: Boosting Palladium Nanoparticle Efficiency by Coupling with Pyridinic-Nitrogen-Doped Carbon. Angew. Chem. Int. Ed. 2016, 55, 11849–11853. [Google Scholar] [CrossRef] [PubMed]
  30. Cui, C.; Tang, Y.; Ziaee, M.A.; Tian, D.; Wang, R. Highly Dispersed Ultrafine Palladium Nanoparticles Enabled by Functionalized Porous Organic Polymer for Additive-free Dehydrogenation of Formic Acid. ChemCatChem 2017, 10, 1431–1437. [Google Scholar] [CrossRef]
  31. Wang, Z.; Wang, C.; Mao, S.; Gong, Y.; Chen, Y.; Wang, Y. Pd nanoparticles anchored on amino-functionalized hierarchically porous carbon for efficient dehydrogenation of formic acid under ambient conditions. J. Mater. Chem. A 2019, 7, 25791–25795. [Google Scholar] [CrossRef]
  32. Halasi, G.; Schubert, G.; Solymosi, F. Photolysis of HCOOH over Rh Deposited on Pure and N-Modified TiO2. Catal. Lett. 2012, 142, 218–223. [Google Scholar] [CrossRef] [Green Version]
  33. Mori, K.; Masuda, S.; Tanaka, H.; Yoshizawa, K.; Che, M.; Yamashita, H. Phenylamine-functionalized mesoporous silica supported PdAg nanoparticles: A dual heterogeneous catalysts for formic acid/CO2-mediated chemical hydrogen delivery/storage. Chem. Comm. 2017, 53, 4677–4680. [Google Scholar] [CrossRef]
  34. Gao, D.; Wang, Z.; Wang, C.; Wang, L.; Chi, Y.; Wang, M.; Zhang, J.; Wu, C.; Gu, Y.; Wang, H.; et al. CrPd nanoparticles on NH2-functionalized metal-organic framework as a synergistic catalyst for efficient hydrogen evolution from formic acid. Chem. Eng. J. 2019, 361, 953–959. [Google Scholar] [CrossRef]
  35. Liu, X.; Su, P.; Chen, Y.; Zhu, B.; Zhang, S.; Huang, W. g-C3N4 supported metal (Pd, Ag, Pt) catalysts for hydrogen-production from formic acid. New J. Chem. 2018, 42, 9449–9454. [Google Scholar] [CrossRef]
  36. Riela, S.; Massaro, M.; Colletti, C.G.; Lazzara, G.; Milioto, S.; Noto, R. Halloysite nanotubes as support for metal-based catalysts. J. Mater. Chem. A 2017, 5, 13276–13293. [Google Scholar]
  37. Yuan, P.; Tan, D.; Annabi-Bergaya, F. Properties and applications of halloysite nanotubes: Recent research advances and future prospects. Appl. Clay Sci. 2015, 112–113, 75–93. [Google Scholar] [CrossRef]
  38. Massaro, M.; Lazzara, G.; Milioto, S.; Noto, R.; Riela, S. Covalently modified halloysite clay nanotubes: Synthesis, properties, biological and medical applications. J. Mater. Chem. B 2017, 5, 2867–2882. [Google Scholar] [CrossRef] [Green Version]
  39. Bates, T.F.; Hildebrand, F.A.; Swineford, A. Morphology and structure of endellite and halloysite. Am. Mineral. 1950, 35, 463–484. [Google Scholar]
  40. Saif, M.J.; Asif, H.M.; Naveed, M. Properties and modification methods of halloysite nanotubes: A state-of-the-art review. J. Chil. Chem. Soc. 2018, 63, 4109–4125. [Google Scholar] [CrossRef] [Green Version]
  41. Yu, L.; Bing, Y.; Ma, J. Epoxidation of alkenes efficiently catalyzed by Mo salen supported on surface-modified halloysite nanotubes. Chin. J. Catal. 2015, 36, 348–354. [Google Scholar]
  42. Lvov, Y.; Wang, W.; Zhang, L.; Fakhrullin, R. Halloysite Clay Nanotubes for Loading and Sustained Release of Functional Compounds. Adv. Mater. 2016, 28, 1227–1250. [Google Scholar] [CrossRef]
  43. Papoulis, D. Halloysite based nanocomposites and photocatalysis: A Review-ScienceDirect. Appl. Clay Sci. 2019, 168, 164–174. [Google Scholar] [CrossRef]
  44. Zheng, Y.; Wang, L.; Zhong, F.; Cai, G.; Xiao, Y.; Jiang, L. Site-Oriented Design of High-Performance Halloysite-Supported Palladium Catalysts for Methane Combustion. Ind. Eng. Chem. Res. 2020, 59, 5636–5647. [Google Scholar] [CrossRef]
  45. Abu El-Soad, A.M.; Pestov, A.V.; Tambasova, D.P.; Osipova, V.A.; Martemyanov, N.A.; Cavallaro, G.; Kovaleva, E.G.; Lazzara, G.; Organomet, J. Insights into grafting of (3-Mercaptopropyl) trimethoxy silane on halloysite nanotubes surface. J. Organomet. Chem. 2020, 915, 121224. [Google Scholar] [CrossRef]
  46. Osipova, V.A.; Pestov, A.V.; Mekhaev, A.V.; Abuelsoad, A.M.A.; Tambasova, D.P.; Antonov, D.O.; Kovaleva, E.G. Functionalization of Halloysite by 3-Aminoproryltriethoxysilane in Various Solvents. Petrol. Chem. 2020, 60, 597–600. [Google Scholar] [CrossRef]
  47. Sanchez-Ballester, N.M.; Ramesh, G.V.; Tanabe, T.; Koudelkova, E.; Liu, L.; Shrestha, K.; Lvov, Y.; Hill, J.P.; Ariga, K.; Abe, H. Activated interiors of clay nanotubes for agglomeration-tolerant automotive exhaust remediation. J. Mater. Chem. A 2015, 3, 6614–6619. [Google Scholar] [CrossRef]
  48. Das, S.; Jana, S. A tubular nanoreactor directing the formation of in situ iron oxide nanorods with superior photocatalytic activity. Environ. Sci. Nano 2017, 4, 596–603. [Google Scholar] [CrossRef]
  49. Liu, Y.; Zhang, J.; Guan, H.; Zhao, Y.; Yang, J.; Zhang, B. Preparation of bimetallic Cu-Co nanocatalysts on poly (diallyldimethylammonium chloride) functionalized halloysite nanotubes for hydrolytic dehydrogenation of ammonia borane. Appl. Surf. Sci. 2018, 427, 106–113. [Google Scholar] [CrossRef]
  50. Yuan, P.; Peter, D.S.; Liu, Z.; Green, M.; Hook, J.M.; Antill, S.J.; Kepert, C.J. Functionalization of Halloysite Clay Nanotubes by Grafting with γ-Aminopropyltriethoxysilane. J. Phys. Chem. C 2008, 112, 15742–15751. [Google Scholar] [CrossRef]
  51. Koh, K.; Jeon, M.; Yoon, C.W.; Asefa, T. Formic acid dehydrogenation over Pd NPs supported on amine-functionalized SBA-15 catalysts: Structure-activity relationships. J. Mater. Chem. A 2017, 5, 16150–16161. [Google Scholar] [CrossRef]
  52. Koh, K.; Seo, J.E.; Lee, J.H.; Goswami, A.; Yoon, C.W.; Asefa, T. Untrasmall palladium nanoparticles supported on amine-functionalized SBA-15 efficiently catalyze hydrogen evolution from formic acid. J. Mater. Chem. A 2014, 2, 20444–20449. [Google Scholar] [CrossRef]
  53. Mori, K.; Dojo, M.; Yamashita, H. Pd and Pd–Ag Nanoparticles within a Macroreticular Basic Resin: An Efficient Catalyst for Hydrogen Production from Formic Acid Decomposition. ACS Catal. 2013, 3, 1114–1119. [Google Scholar] [CrossRef]
  54. Yuan, P.; Southon, P.D.; Liu, Z.; Kepert, C.J. Organosilane functionalization of halloysite nanotubes for enhanced loading and controlled release. Nanotechnology 2012, 23, 375705. [Google Scholar] [CrossRef]
  55. Zhang, S.; Jiang, B.; Jiang, K.; Cai, W. Surfactant-Free Synthesis of Carbon-Supported Palladium Nanoparticles and Size-Dependent Hydrogen Production from Formic Acid-Formate Solution. ACS Appl. Mater. Interfaces 2017, 9, 24678–24687. [Google Scholar] [CrossRef]
  56. Paksoy, A.; Kurtoğlu, S.F.; Dizaji, A.K.; Altıntaş, Z.; Khoshsima, S.; Uzun, A.; Balcı, Ö. Nanocrystalline cobalt–nickel–boron (metal boride) catalysts for efficient hydrogen production from the hydrolysis of sodium borohydride. Int. J. Hydrogen Energy 2021, 46, 7974–7988. [Google Scholar] [CrossRef]
  57. Dedzo, G.K.; Ngnie, G.; Detallier, C. PdNP Decoration of Halloysite Lumen via Selective Grafting of Ionic Liquid onto the Aluminol Surfaces and Catalytic Application. ACS Appl. Mater. Interfaces 2016, 8, 4862–4869. [Google Scholar] [CrossRef]
  58. Pena-Alonso, R.; Rubio, F.; Rubio, J.; Oteo, J.L. Study of the hydrolysis and condensation of γ-Aminopropyltriethoxysilane by FT-IR spectroscopy. J. Mater. Sci. 2007, 42, 595–603. [Google Scholar] [CrossRef]
  59. Yang, J.; Stargent, E.; Kelley, S.; Ying, J.Y. A general phase-transfer protocol for metal ions and its application in nanocrystal synthesis. Nat. Mater. 2009, 8, 683–689. [Google Scholar] [CrossRef]
  60. Dong, C.; Gao, Z.; Li, Y.; Peng, M.; Wang, M.; Xu, Y.; Li, C.; Xu, M.; Deng, Y.; Qin, X.; et al. Fully exposed palladium cluster catalysts enable hydrogen production from nitrogen heterocycles. Nat. Catal. 2022, 5, 485–493. [Google Scholar] [CrossRef]
  61. Hu, C.; Pulleri, J.K.; Ting, S.W.; Chan, K. Activity of Pd/C for hydrogen generation in aqueous formic acid solution. Inter. J. Hydrogen Energy 2014, 39, 381–390. [Google Scholar] [CrossRef]
  62. Ding, Y.; Sun, W.; Yang, W.; Li, Q. Formic acid as the in-situ hydrogen source for catalytic reduction of nitrate in water by PdAg alloy nanoparticles supported on amine-functionalized SiO2. Appl. Catal. B Environ. 2017, 203, 372–380. [Google Scholar] [CrossRef]
  63. Wang, N.; Sun, Q.; Bai, R.; Li, X.; Guo, G.; Yu, J. In situ confinement of ultrasmall Pd clusters within nanosized silicalite-1 zeolite for highly efficient catalysis of hydrogen generation. J. Am. Chem. Soc. 2016, 138, 7484. [Google Scholar] [CrossRef]
  64. Cheng, J.; Gu, X.; Liu, P.; Zhang, H.; Ma, L.; Su, H. Achieving efficient room-temperature catalytic H2 evolution from formic acid through atomically controlling the chemical environment of bimetallic nanoparticles immobilized by isoreticular amine-functionalized metal-organic frameworks. Appl. Catal. B Environ. 2017, 45, 1953–1958. [Google Scholar] [CrossRef]
  65. Lee, J.H.; Ryu, J.; Kim, J.Y.; Nam, S.W.; Han, J.H.; Lim, T.H.; Gautam, S.; Chae, K.H.; Yoon, C.W. Carbon dioxide mediated, reversible chemical hydrogen storage using a Pd nanocatalyst supported on mesoporous graphitic carbon nitride. J. Mater. Chem. A 2014, 2, 9490–9495. [Google Scholar] [CrossRef]
  66. Lee, D.W.; Jin, M.H.; Park, J.H.; Lee, Y.J.; Choi, Y.C.; Chan Park, J.; Chun, D.H. Alcohol and water free synthesis of mesoporous silica using deep eutectic solvent as a template and solvent and its application as a catalyst support for formic acid dehydrogenation. ACS Sustain. Chem. Eng. 2018, 6, 12241–12250. [Google Scholar] [CrossRef]
  67. Sun, J.; Qiu, H.; Cao, W.; Fu, H.; Wan, H.; Xu, Z.; Zheng, S. Ultrafine Pd particles embedded in nitrogen-enriched mesoporous carbon for efficient H2 production from formic acid decomposition. ACS Sustain. Chem. Eng. 2019, 7, 1963–1972. [Google Scholar] [CrossRef]
Nanomaterials 12 02414 sch001 550

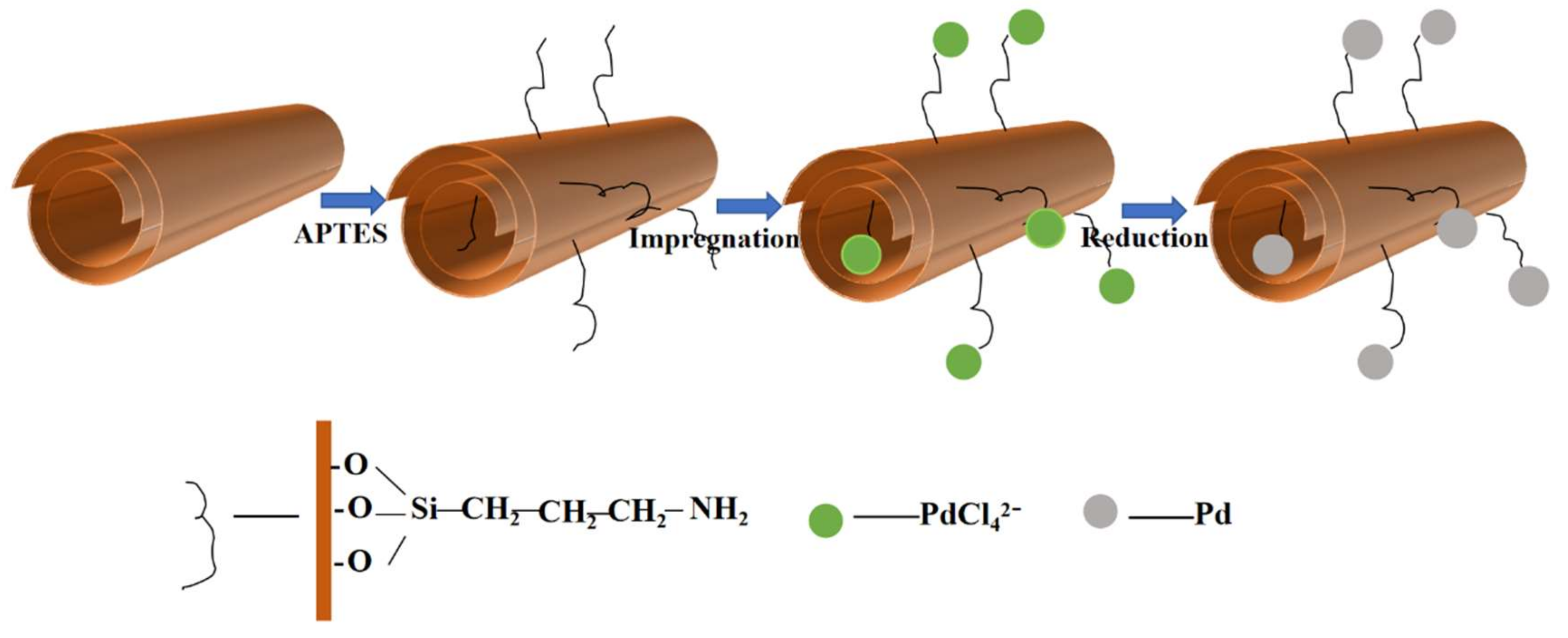

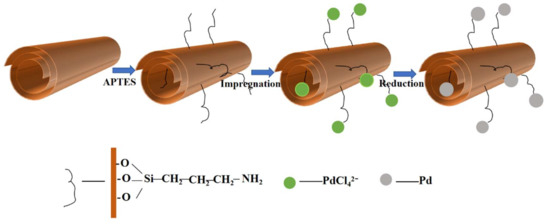

Scheme 1. Synthesis processes of Pd/NH2-HNTs.
Scheme 1. Synthesis processes of Pd/NH2-HNTs.
Nanomaterials 12 02414 sch001
Nanomaterials 12 02414 g001 550

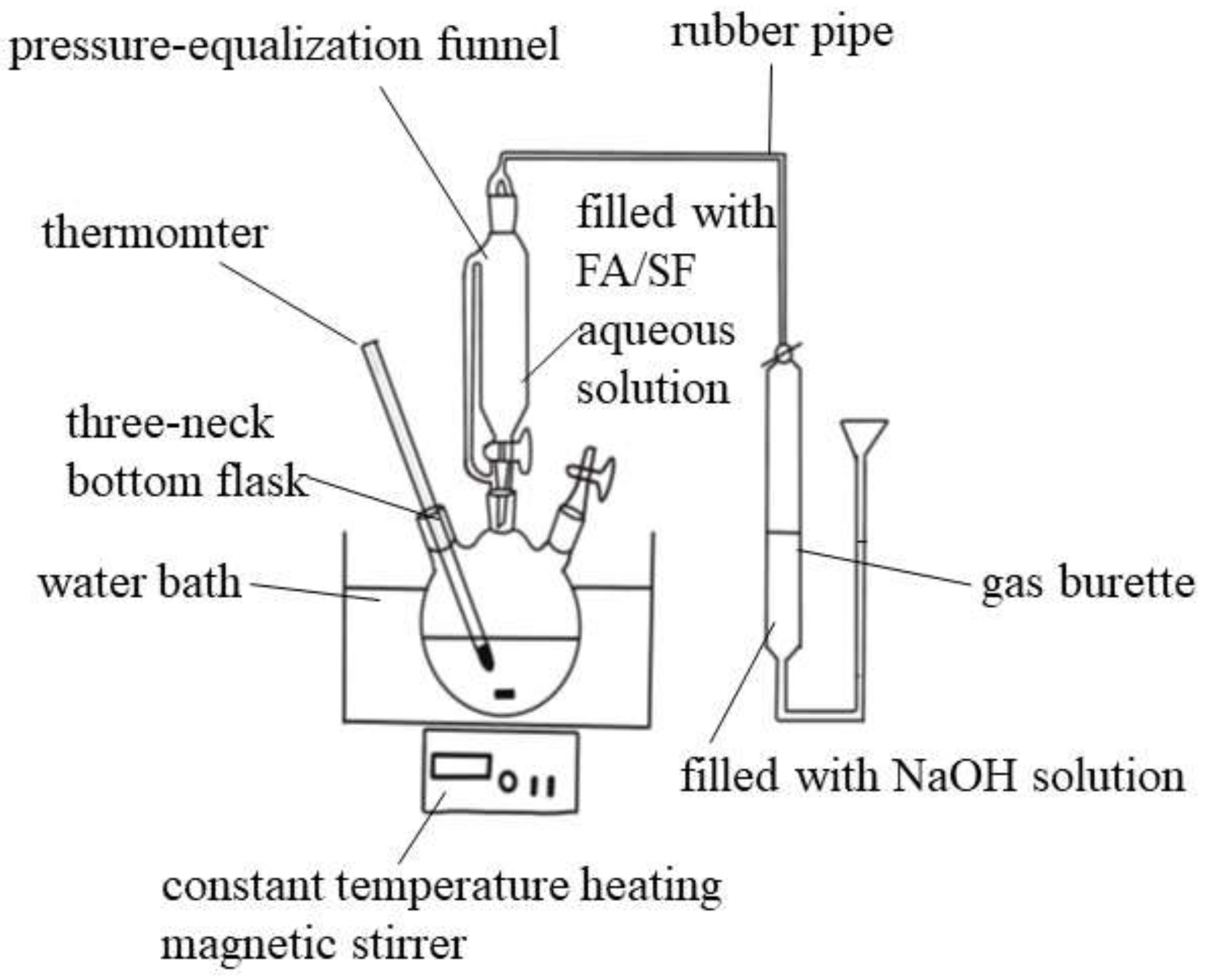

Figure 1. The device for evaluating the performances of catalysts in DFA.
Figure 1. The device for evaluating the performances of catalysts in DFA.
Nanomaterials 12 02414 g001
Nanomaterials 12 02414 g002 550

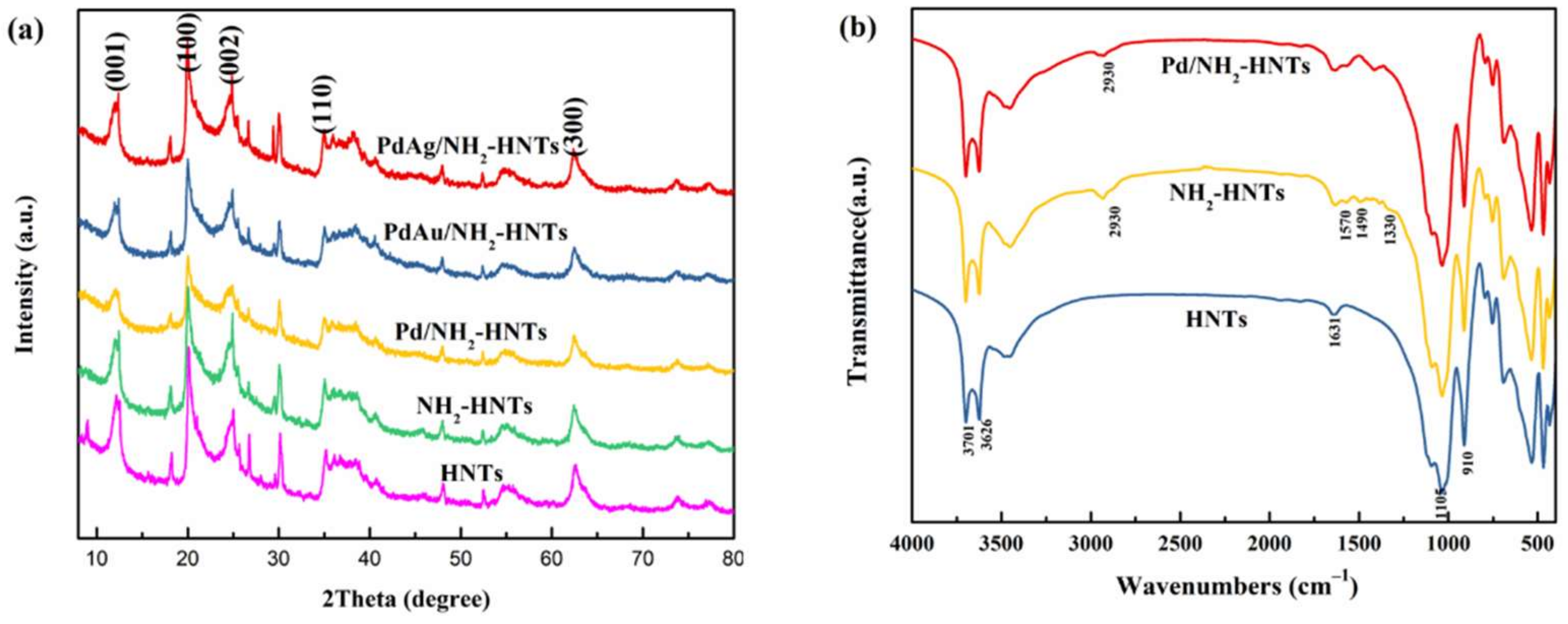

Figure 2. (a) XRD patterns; (b) FTIR spectra.
Figure 2. (a) XRD patterns; (b) FTIR spectra.
Nanomaterials 12 02414 g002
Nanomaterials 12 02414 g003 550

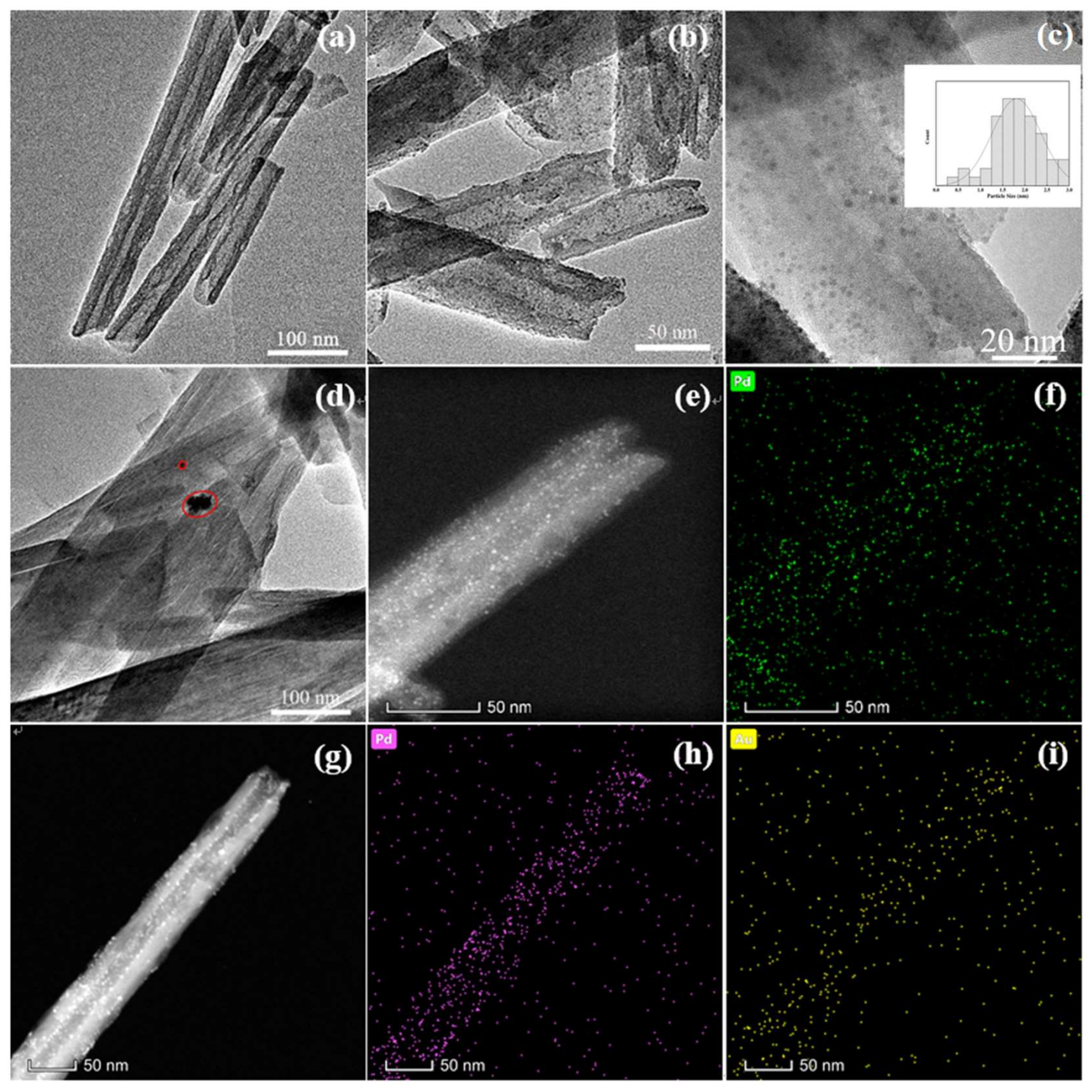

Figure 3. TEM images of (a) NH2-HNTs, (b,c) Pd/NH2-HNTs and (d) Pd/HNTs; (e) HAADF-STEM images of Pd/NH2-HNTs; (f) EDX mapping of Pd in Pd/NH2-HNTs; (g) HAADF-STEM images of PdAu/NH2-HNTs; (h) EDX mapping of Pd in PdAu/NH2-HNTs; (i) EDX mapping of Au in PdAu/NH2-HNTs.
Figure 3. TEM images of (a) NH2-HNTs, (b,c) Pd/NH2-HNTs and (d) Pd/HNTs; (e) HAADF-STEM images of Pd/NH2-HNTs; (f) EDX mapping of Pd in Pd/NH2-HNTs; (g) HAADF-STEM images of PdAu/NH2-HNTs; (h) EDX mapping of Pd in PdAu/NH2-HNTs; (i) EDX mapping of Au in PdAu/NH2-HNTs.
Nanomaterials 12 02414 g003
Nanomaterials 12 02414 g004 550

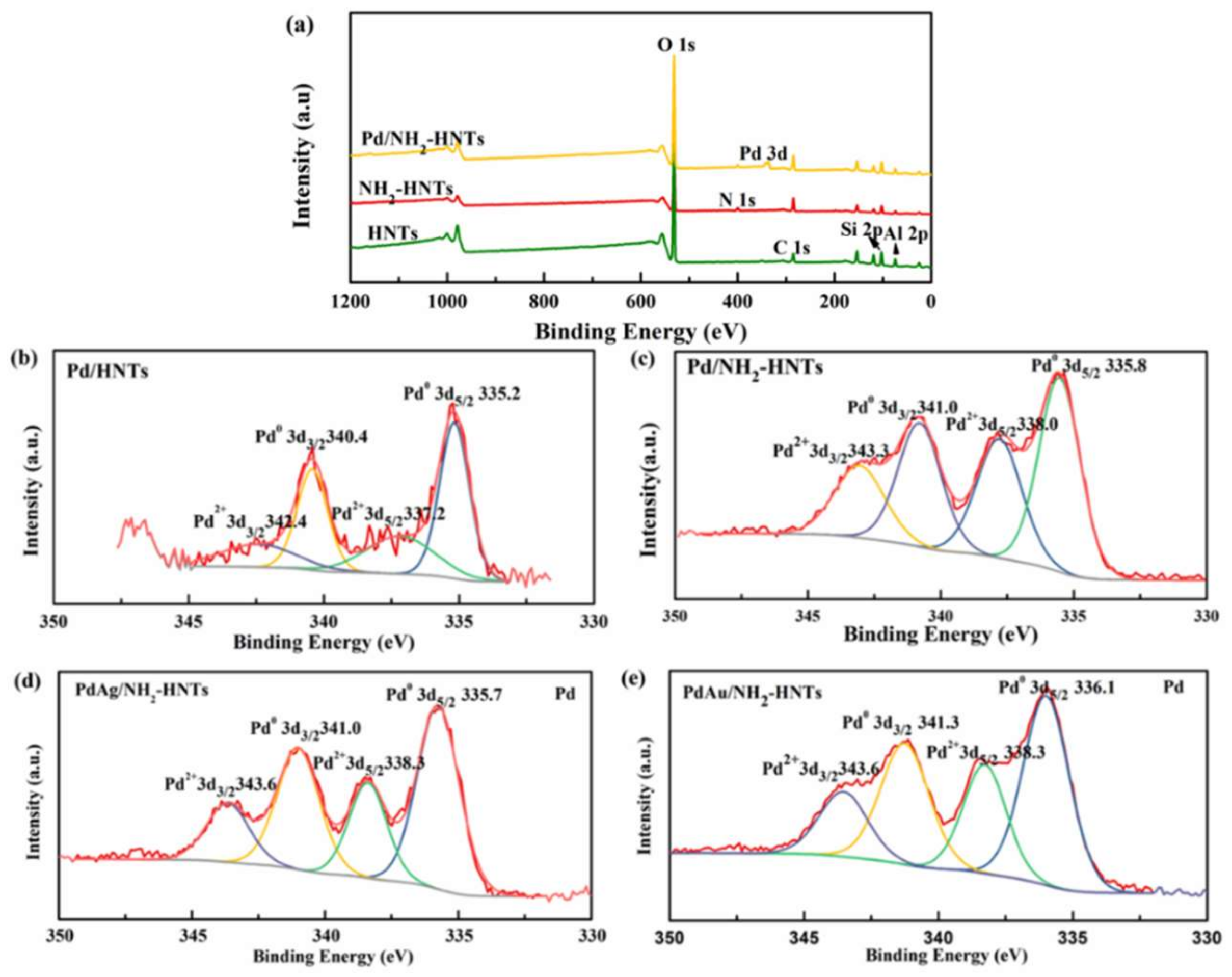

Figure 4. XPS spectra. (a) Full spectra of HNTs, NH2-HNTs and Pd/NH2-HNTs; (b) Pd spectra of Pd/HNTs; (c) Pd spectra of Pd/NH2-HNTs; (d) Pd spectra of PdAg/NH2-HNTs; (e) PdAu spectra of Pd/NH2-HNTs.
Figure 4. XPS spectra. (a) Full spectra of HNTs, NH2-HNTs and Pd/NH2-HNTs; (b) Pd spectra of Pd/HNTs; (c) Pd spectra of Pd/NH2-HNTs; (d) Pd spectra of PdAg/NH2-HNTs; (e) PdAu spectra of Pd/NH2-HNTs.
Nanomaterials 12 02414 g004
Nanomaterials 12 02414 g005 550

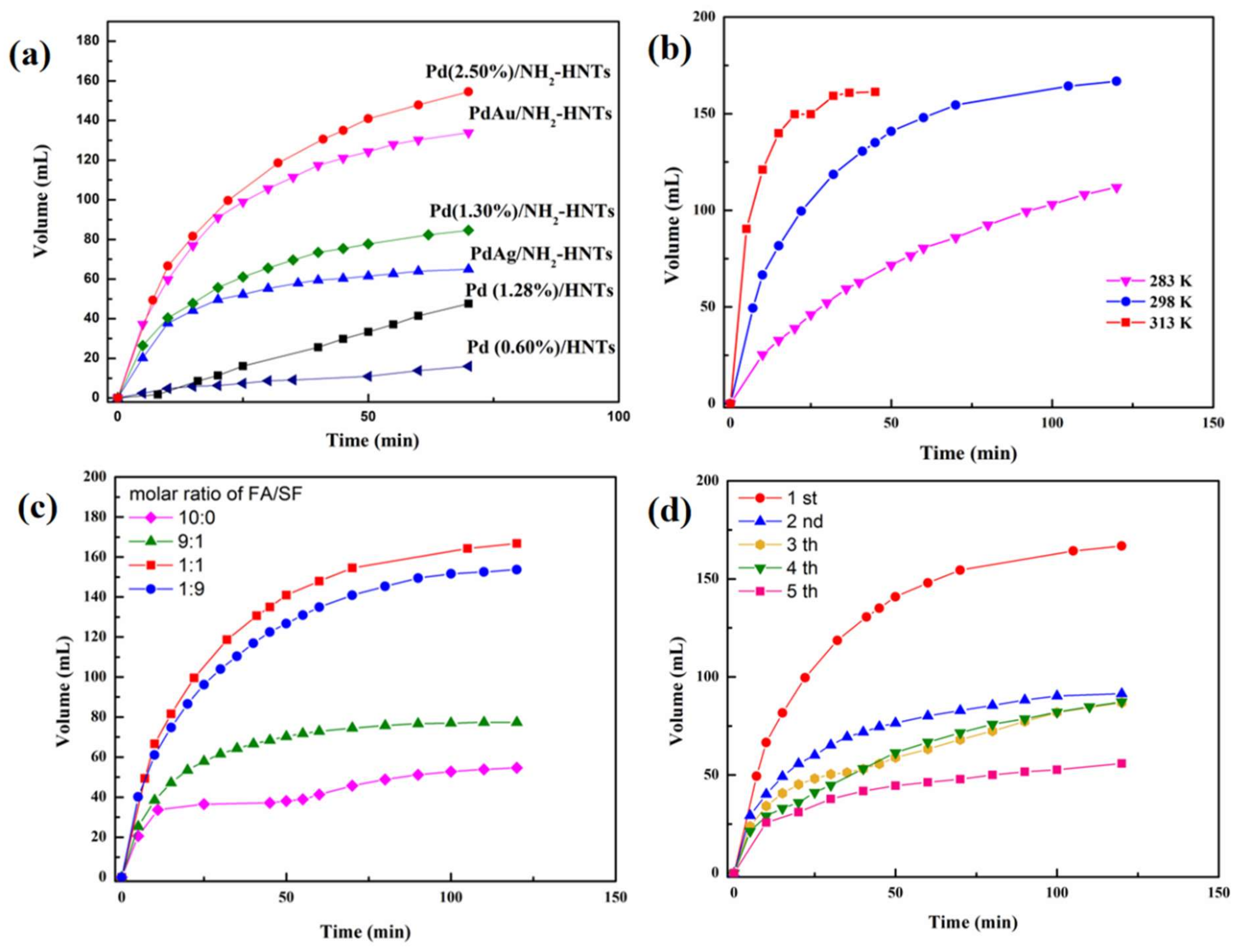

Figure 5. (a) H2 volumes generated in DFA reactions of solution with FA/SF = 1 over catalysts at 298 K. (b) Hydrogen generation over the catalyst Pd/NH2-HNTs with FA/SF = 1 at 283, 298 and 313 K; (c) with different FA/SF molar ratios at 298 K. (d) Recyclability results of Pd/NH2-HNTs used in DFA.
Figure 5. (a) H2 volumes generated in DFA reactions of solution with FA/SF = 1 over catalysts at 298 K. (b) Hydrogen generation over the catalyst Pd/NH2-HNTs with FA/SF = 1 at 283, 298 and 313 K; (c) with different FA/SF molar ratios at 298 K. (d) Recyclability results of Pd/NH2-HNTs used in DFA.
Nanomaterials 12 02414 g005
Table
Table 1. The SSAs, pore volumes and mean sizes of metal particles; and the metal contents of catalysts.
Table 1. The SSAs, pore volumes and mean sizes of metal particles; and the metal contents of catalysts.
SampleSSA
(m2·g−1)		Vp
(cm3 ·g−1)		Particle * Size (nm)Content (wt.%)
PdAuAg
HNTs62.30.41————
NH2-HNTs34.80.49————
Pd/HNTs55.90.403.50.60————
Pd/NH2-HNTs54.90.451.22.50————
PdAu/NH2-HNTs50.20.51——1.311.31——
PdAg/NH2-HNTs51.10.55——1.30——1.20
* Determined by static chemisorption method.
Table
Table 2. Pd XPS analysis of catalysts.
Table 2. Pd XPS analysis of catalysts.
SamplePd5/2Pd3/2
Pd2+Pd0Pd2+Pd0Pd2+/Pd0
BE%BE%BE%BE%
Pd/NH2-HNTs338.023.6335.836.3343.315.8341.024.30.65
Pd/HNTs337.221.4335.238.5342.214.3340.425.80.55
Table
Table 3. Evaluation of catalytic performances of catalysts a.
Table 3. Evaluation of catalytic performances of catalysts a.
EntryCatalystsPd (wt.%)V b (mL)TOF (h−1) Initial c
1Pd/HNTs0.6016126.2
2Pd/HNTs1.2847.6136.0
3Pd/NH2-HNTs2.50154.5412.9
4Pd/NH2-HNTs1.3084.6439.2
5PdAu/NH2-HNTs1.31133.9701.6
6PdAg/NH2-HNTs1.3065370.3
7Au/NH2-HNTs——00
8Ag/NH2-HNTs——00
a T= 298 K, FA/SF = 1; b V, total volume of H2 evolved in 70 min; c TOF (h−1) initial was calculated based on the total volume of H2 in the first 30 min. The literatures TOF for different catalysts used for the generation of dihydrogen are showed in Table S2.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Song, L.; Tan, K.; Ye, Y.; Zhu, B.; Zhang, S.; Huang, W. Amine-Functionalized Natural Halloysite Nanotubes Supported Metallic (Pd, Au, Ag) Nanoparticles and Their Catalytic Performance for Dehydrogenation of Formic Acid. Nanomaterials 2022, 12, 2414. https://doi.org/10.3390/nano12142414

AMA Style

Song L, Tan K, Ye Y, Zhu B, Zhang S, Huang W. Amine-Functionalized Natural Halloysite Nanotubes Supported Metallic (Pd, Au, Ag) Nanoparticles and Their Catalytic Performance for Dehydrogenation of Formic Acid. Nanomaterials. 2022; 12(14):2414. https://doi.org/10.3390/nano12142414

Chicago/Turabian Style

Song, Limin, Kaiyuan Tan, Yingyue Ye, Baolin Zhu, Shoumin Zhang, and Weiping Huang. 2022. "Amine-Functionalized Natural Halloysite Nanotubes Supported Metallic (Pd, Au, Ag) Nanoparticles and Their Catalytic Performance for Dehydrogenation of Formic Acid" Nanomaterials 12, no. 14: 2414. https://doi.org/10.3390/nano12142414

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
